JML FOOD SEALER User manual
FS_INS.indd 1 3/11/06 13:58:32
FOOD SEALER
Instructions
Vacuum seal storage system
FS_INS.indd 2 3/11/06 13:59:00
Thank-you for purchasing the JML Food Sealer.
In order to make the best use of this product
and use it safely, please read these instructions
carefully before use and keep for future reference.
John Mills Limited JML House, Regis Road, London, NW5 3EG
FS_INS.indd 3 3/11/06 13:59:12
Contents
5Features and Functions
7Safety Information
9Operating Instructions
11 Preservation guidelines
13 Troubleshooting
14 Cleaning
15 Technical Data
Keep the flavour and goodness locked in
FOOD SEALER
Vacuum seal storage system
FS_INS.indd 4 3/11/06 13:59:12
5
Food Sealer: Instructions
Features and Functions
532
1
47 7
1. Sealing control button: Operates the sealing function only.
2. Cancel button: Press this to stop the operation of the unit.
3. Vacuum/Seal button: Operates the vacuum followed by the seal
function.
4. Sealing light: The red light will activate whilst the unit is
sealing.
5. Vacuum light: The red light will activate whilst the vacuum is in
operation.
FS_INS.indd 5 3/11/06 13:59:18
Food Sealer: Instructions
6
Features and Functions
6. Locking mechanism: Push this down until it clicks to lock the bag into
place.
7. Release mechanism: Push both of these to open the unit.
8. Vacuum nozzle: The bag must be placed below this nozzle for the
vacuum to operate correctly.
9. Vacuum Plate: The bag must sit within the rippled section for the
vacuum and seal to operate correctly.
10. Sealing bar: Allows the bag to seal without sticking to the bar.
6 9 8 9 6
10 10
FS_INS.indd 6 3/11/06 13:59:24
7
Food Sealer: Instructions
Guide to Safe Operation
The JML Food Sealer is an electrical device, and certain basic safety standards
must be applied at all times, as follows:
1. Keep the unit away from water or other liquids to avoid electrical discharge;
don’t plug the product in if it’s resting on a wet surface.
2. Place the unit on a solid surface to avoid movement or falling.
3. Don’t place the unit on or near warm surfaces, in the oven, or in a dish
washer.
4. Never immerse the unit in water. If the cord and plug become wet at any
time, remove the plug from the electric socket while wearing dry rubber
gloves. If the unit has been immersed, send it immediately to an authorized
service centre or to your dealer.
5. To avoid getting burned, never touch the sealing bar while the unit is
operating.
6. Never use adapters with input voltage not indicated on the bottom of the
unit (rating plate).
Safety Information
FS_INS.indd 7 3/11/06 13:59:24
Food Sealer: Instructions
8
7. Don’t use the product outside the work area.
8. Keep the cord away from hot surfaces and sharp edges.
9. Before the first use and periodically thereafter check the plug; if it’s
damaged do not use.
10. Don’t open the unit or attempt to change or repair. Unauthorized repairs will
invalidate the warranty.
11. Unplug the cord after use, before assembling or disassembling parts, or
before cleaning.
12. Don’t use detergents or abrasive cloths to clean the unit.
13. For best results use the rolls supplied by JML.
14. Vacuum packaging is not a substitute to refrigeration
15. To avoid possible illness, do not re-use the bag after storing raw meats, fish
or greasy food
16. The product is not intended to be used by children; if children are present,
be sure to monitor them closely.
17. Do not use for any purpose other than described in this user guide.
18. This is not a toy. Keep away from children.
Safety Information
FS_INS.indd 8 3/11/06 13:59:24
9
Food Sealer: Instructions
Operation Instructions
1. Plug the unit in and then switch it on.
2. Unroll the bag and put one end of the bag on top of the lower black
rubber strip. Ensure the bag does not cover the vacuum nozzle.
Then close the cover (see figure 1).
3. Press the cover down ensuring that the locking mechanism locks into
place (see figure 2).
4. Press the “Seal Only” button.
5. Once the sealing light turns off the seal is complete and the unit can
be opened.
6. Cut the roll to your desired bag length.
7. Fill the bag with desired contents.
8. Clean and straighten the open end of the bag, make sure there are no
wrinkles or ripples on the panels of the open ends.

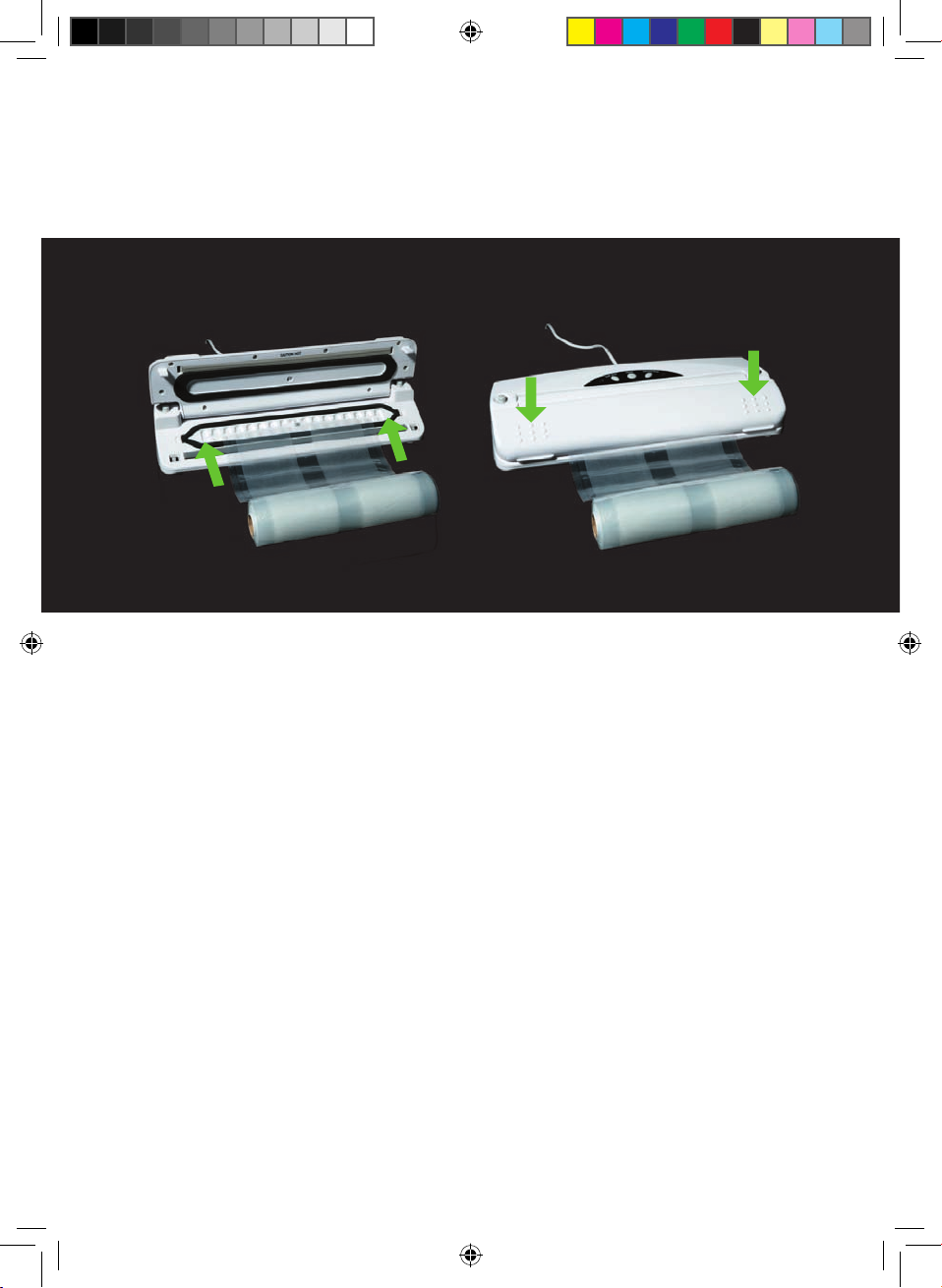

FIGURE 1 FIGURE 2
FS_INS.indd 9 3/11/06 13:59:37
Food Sealer: Instructions
10
Operation Instructions
9. Make sure that both panels of the bag are located within the rippled
area (vacuum plate), but below the vacuum nozzle (see figure 3).
10. Close the cover and press down at each end ensuring that both
locking mechanisms click into place.
11. Press the “Vacuum/Seal” button and the bag will be vacuumed and
sealed (see figure 4). The machine automatically stops when the bag
is ready.
12. Open the unit and the process is complete.
Helpful Hints
1. Do not overfill the bag: leave enough empty length at the open end of
the bag so that it can be placed on the vacuuming plate easily.
2. Ensure that the open end of the bag is not wet. A wet bag may be
difficult to melt and seal tightly.
FIGURE 3 FIGURE 4
FS_INS.indd 10 3/11/06 13:59:46
11
Food Sealer: Instructions
Preservation Guide
In the fridge (5+/-2C) no vacuum
no vacuum
JML Food Sealer
JML Food Sealer
In the freezer (-18+/-2C)
Red Meat 3/4 days 8/9 days
White Meat 2/3 days 6/8 days
Fish 1/3 days 4/5 days
Cooked Meat 3/5 days 10/15 days
Soft Cheese 5/7 days 20 days
Hard/Semi Hard Cheese 15 days 60 days
Fruits 5/7 days 14/20 days
Vegetables 1/3 days 7/10 days
Soup 2/3 days 8/10 days
Pasta/Rice leftover 2/3 days 6/8 days
Cream Desserts 2/3 days 8 days
no vacuum JML Food Sealer
Room temperature (25+/-2C)
Fresh Bread 1/2 days 8/10 months
Biscuits 4/6 months 12 months
Uncooked Pasta/Rice 5/6 months 12 months
Flour 4/6 months 12 months
Dry Fruits 3/4 months 12 months
Ground Coffee 2/3 months 12 months
Loose Tea 5/6 months 12 months
Milk Powder 1/2 months 12 months
Meat 4/6 months 15/20 months
Fish 3/4 months 10/12 months
Vegetables 8/10 months 18/24 months
FS_INS.indd 11 3/11/06 13:59:47
Food Sealer: Instructions
12
Preservation Guide
In the fridge (5+/-2C) no vacuum
no vacuum
JML Food Sealer
JML Food Sealer
In the freezer (-18+/-2C)
Red Meat 3/4 days 8/9 days
White Meat 2/3 days 6/8 days
Fish 1/3 days 4/5 days
Cooked Meat 3/5 days 10/15 days
Soft Cheese 5/7 days 20 days
Hard/Semi Hard Cheese 15 days 60 days
Fruits 5/7 days 14/20 days
Vegetables 1/3 days 7/10 days
Soup 2/3 days 8/10 days
Pasta/Rice leftover 2/3 days 6/8 days
Cream Desserts 2/3 days 8 days
no vacuum JML Food Sealer
Room temperature (25+/-2C)
Fresh Bread 1/2 days 8/10 months
Biscuits 4/6 months 12 months
Uncooked Pasta/Rice 5/6 months 12 months
Flour 4/6 months 12 months
Dry Fruits 3/4 months 12 months
Ground Coffee 2/3 months 12 months
Loose Tea 5/6 months 12 months
Milk Powder 1/2 months 12 months
Meat 4/6 months 15/20 months
Fish 3/4 months 10/12 months
Vegetables 8/10 months 18/24 months
FS_INS.indd 12 3/11/06 13:59:48
13
Food Sealer: Instructions
Troubleshooting
Here are the steps to follow if you’re experiencing difficulties with your product.
Nothing happens when I press the vacuum/seal button
• Make sure the power cord is plugged in correctly. Test the electrical outlet
by plugging in another appliance.
• Check to see if either the power cord or the plug is damaged. If they are,
don’t attempt to start.
Air is not removed from the bag completely
• The bag may not be completely sealed. To seal properly, the open end of
the cut roll should be resting entirely inside vacuum channel area
• The bag may have a hole. To test, seal the bag with some air in it,
submerge in water, and apply pressure. If there are bubbles present this
indicates a leak and a new bag should be used.
FS_INS.indd 13 3/11/06 13:59:48
Food Sealer: Instructions
14
Troubleshooting
Bag loses vacuum after being sealed
• This may be caused by a leakage due to wrinkles, crumbs, fats or liquids.
Open the bag, clean the upper part and take any foreign matter off the
sealing bar before trying to seal again
• Make sure the bag is free of holes. If sealing foods with sharp edges, first
line the bag with napkins or paper towels
Bags are not sealing correctly
• The cause may be the sealing bar overheating or melting the bag. Open
the lid and let the sealing bar cool down for several minutes
FS_INS.indd 14 3/11/06 13:59:48
15
Food Sealer: Instructions
Cleaning
Cleaning the Vacuum Sealer
Your JML Food Sealer is easy to clean, just observe the following steps:
1. Always unplug the unit before cleaning.
2. Wipe the outside of the unit with a damp cloth or sponge and mild soap if
necessary.
3. To clean the inside of the unit, wipe away any food or liquid with a paper
towel.
4. Dry thoroughly before using again.
Storing Your JML Food Sealer
Keep the unit in a flat, safe place, out of the reach of children.
FS_INS.indd 15 3/11/06 13:59:48
Food Sealer: Instructions
16
Technical Details
Guarantee
This product is unconditionally guaranteed for one year against all defects
of workmanship and materials. This guarantee does not affect your statutory
rights. If you have any problems or queries about this product please contact
JML.
Warning
This is not a toy. Keep away from children.
Rated Voltage: AC 220-240V 50Hz Rated Power: 110W
Dimensions: Length: 38cm Vacuum Power: -0.6 bar (approx.)
Width: 15cm
Height: 7.5cm Weight: 1.519kgs

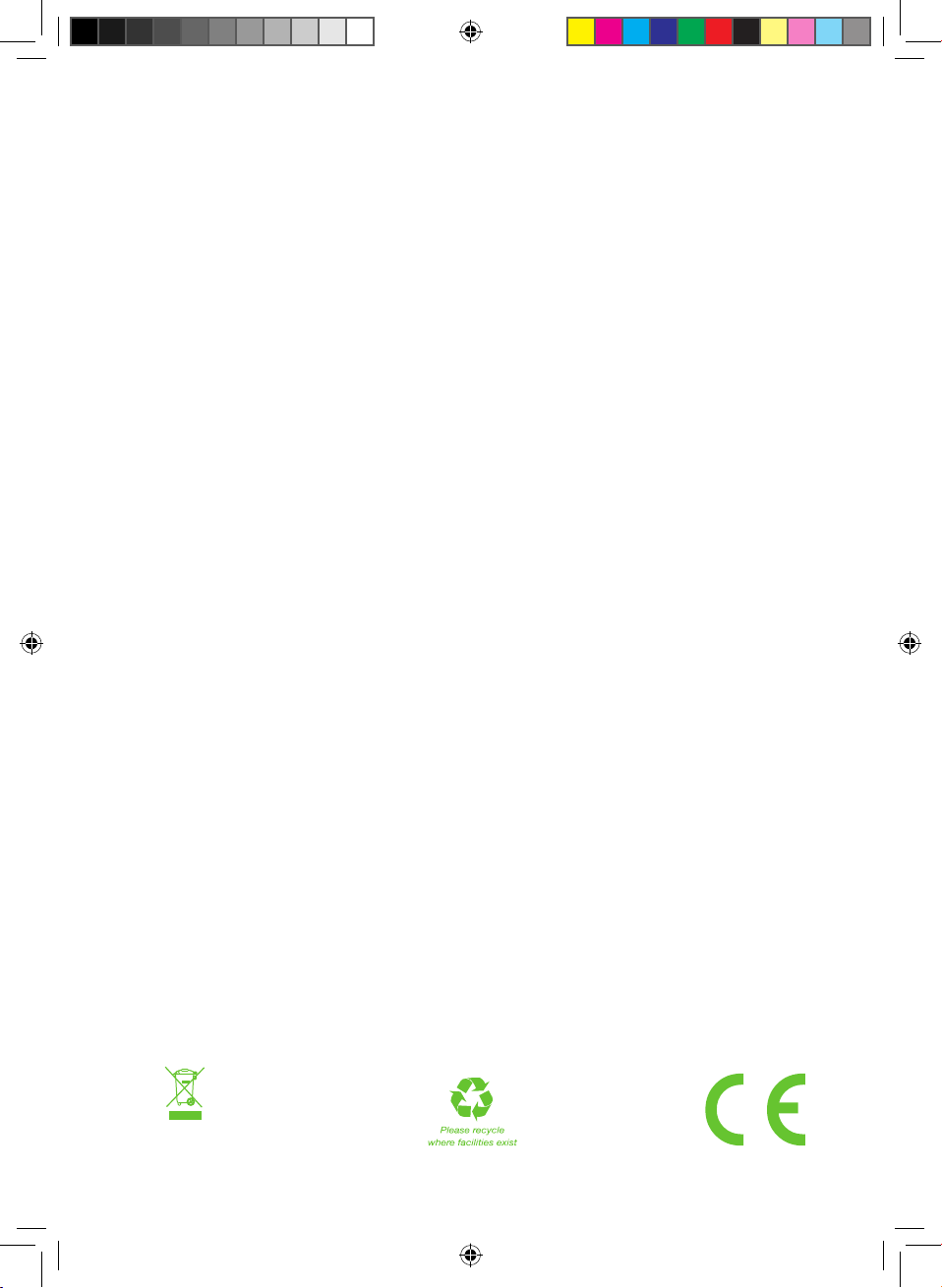

Not to be disposed of with
other household waste
