JMQ Fitness SP6612 User manual

Luxury electric running machine instruction
User’s Manual

Orders
一、Security considerations ----------------------------------1
二、Product introduction ----------------------------------2
三、Installation guide -------------------------------------5
四、Foiding/Expansion/Movment -----------------------------8
五、Product maintenance --------------------------------8
六、Fitness guide -----------------------------------------10
七、Electricity run common faults and processing methods ------11
八、Service commitment -------------------------------- 12

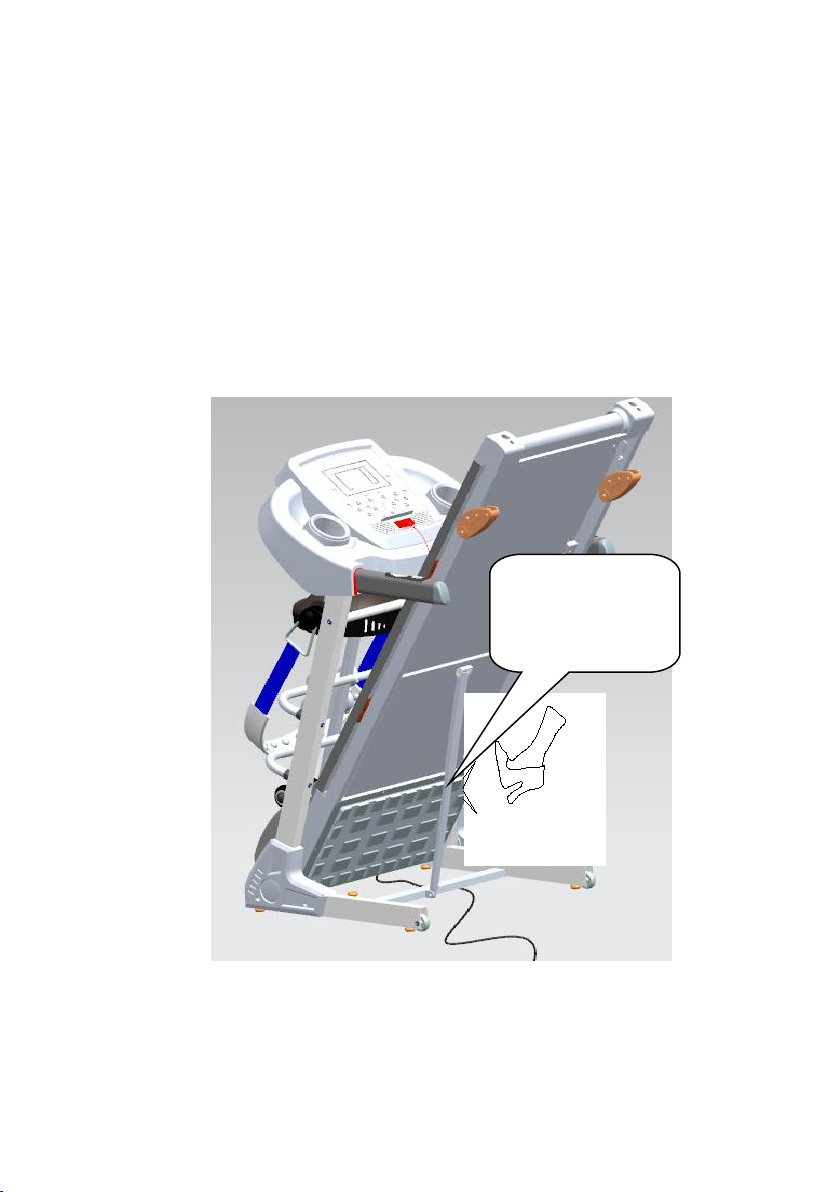

The machine folding matters needing attention:
●The machine after assembled, to move the body must be set up. It moves, determine
the treadmill is folded, grab handle, lean back running machine, can use at the base of
the wheels for movement.
Low down the machine: use walking living body tail, and then the corresponding position
(below) with the feet light play, no support after the machine automatically.
Fold down (the machine)
light played this position
with their feet

- 1 -
一、Security considerations
Warning:
Please read this manual carefully before using, please comply with them, to ensure safety.
The machine moving or before shipment, be sure to lock the treadmill to fold and confirm can be
carried out only after tight, and in the process of a shipment switch, do not touch, folding machine
is strictly prohibited in the state of not to fold to luck or mobile.
Locking methods: treadmill after use, please place the urgent stop switch to children is not easy to
find places, in order to avoid accidents.
On the host folds and open, please don't will touch the armrest, lest hurt fingers.
Keep children away from being used or after folding machine, during the use of children or pets
should be at least 3 meters away from the running machine.
Please consult your doctor before exercise, it's history for more than 35 years old and who is
particularly important
●Located indoors and in a running machine is suitable for instead of be affected with damp be affected with damp;Water splashed
on the treadmill and are not allowed to be placed in the unit or insert any foreign body。
●The ground to level off, confirm the treadmill placed after smooth, reliable foot touchdown, just can use。
●Power plug must be reliable grounding, the same power supply line to avoid the use of other electrical appliances。
●Use running unit should wear sportswear and appropriate shoes, barefoot on the treadmill exercise is forbidden。
●It is forbidden to two or more than two people at the same time in this machine, the biggest load of 110 kg。
●No standing on the run on startup, operation before should stand on the side bar, hold the handrail, at startup to normal rear can
use the computer。
●If you feel any discomfort in using or have abnormal situation, please press the stop button or pull off the safety lock, holding the
handrail of propping up the body at the same time, stands on the edge of article, from the side of the treadmill。
●Heart rate sensor does not belong to medical equipment, there are many reasons can cause testing, test results are for reference
only。
●Patients with heart disease should not be used alone electric treadmill, and forbids the use of automatic speed function。
●According to your physical condition, running speed, infirm should be used under the
Helpful hints: because technology continues to improve, if there is any
changes to the final explanation right belongs to the company.

二、Product introduction
technical standard
●speed area：0.00-99.99(km)
●voltage：220V (50Hz) ●speed：1-14 (km/h)
●time：00:00-99:59 (min:s) ●power：1500W(2.0HP)
1, 2.0 HP low noise dc import motor, USES 220 v / 50 hz power supply.
2, blue LCD liquid crystal display.
3, has eight kinds of built-in function exercise program.
4, hand heartbeat measurement device, take to master the workout.
5, with running, massage, dumbbell, sit-ups, four kinds of functions.
6, special safety pulled off switch, with emergency stop function.
7, has over current and short circuit protection function.
8, with functions of speed direct elections.
9, wear-resisting elastic running board.
10, running machine folding design, make the installation more convenient
save worry.
11, MP3 function:
When electricity connect MP3 or other audio equipment, electronic watch
can play music.The size of the voice control is on audio equipment, please
pay attention to control the size of voice so as not to affect the rest of
others.
-2-

.
Technical parameter:
Max load weight
110kg
outline dimension
Packing size:1680*720*290(mm)
Expand size：1740*680*1220(mm)
Effective running area
1260*450(mm)
power
2.0HP
speed
1-14 km/h
function
Running 、sprain back、sit ups,massage.
weight
N.W：56 kg G.W:62 kg
-3-

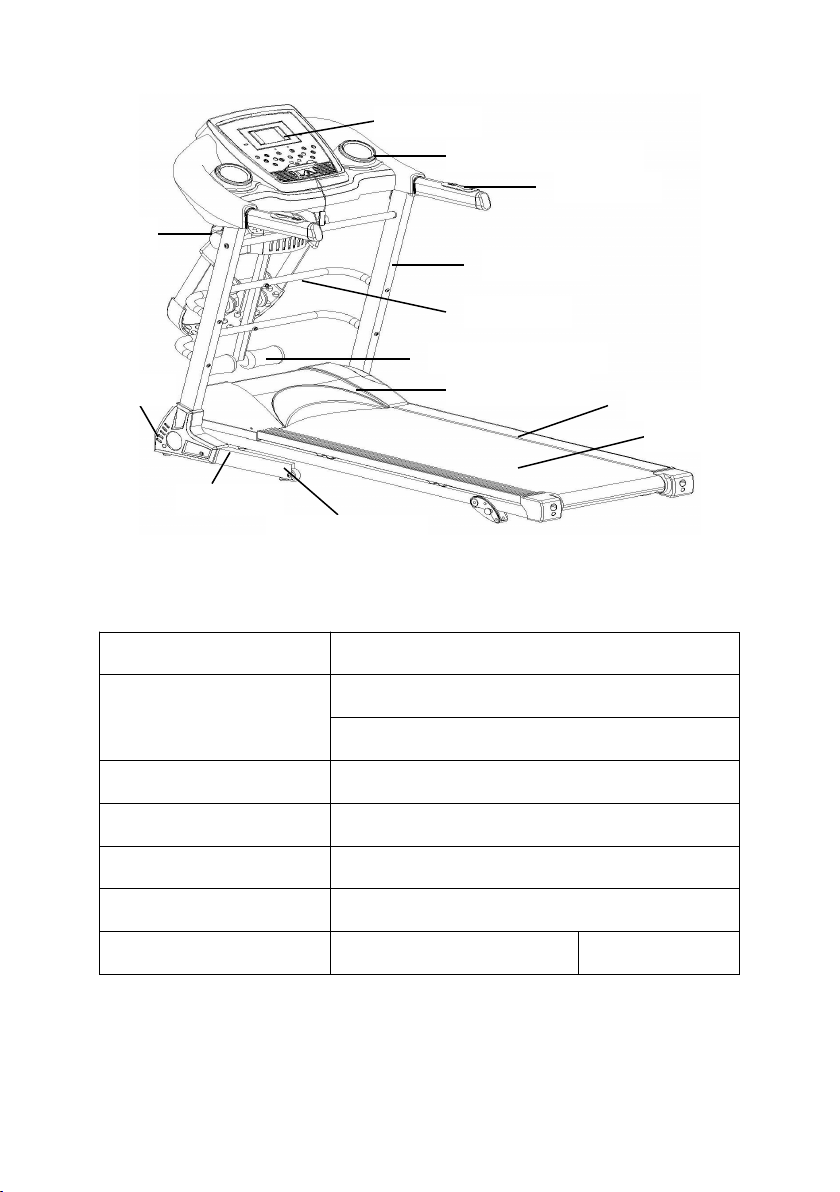

Electronic watch
display
handrail
riser
U-tube
Motor cover
Hook foam
Protection strip
Running belt
Moving wheel
base
Protective shell
massager

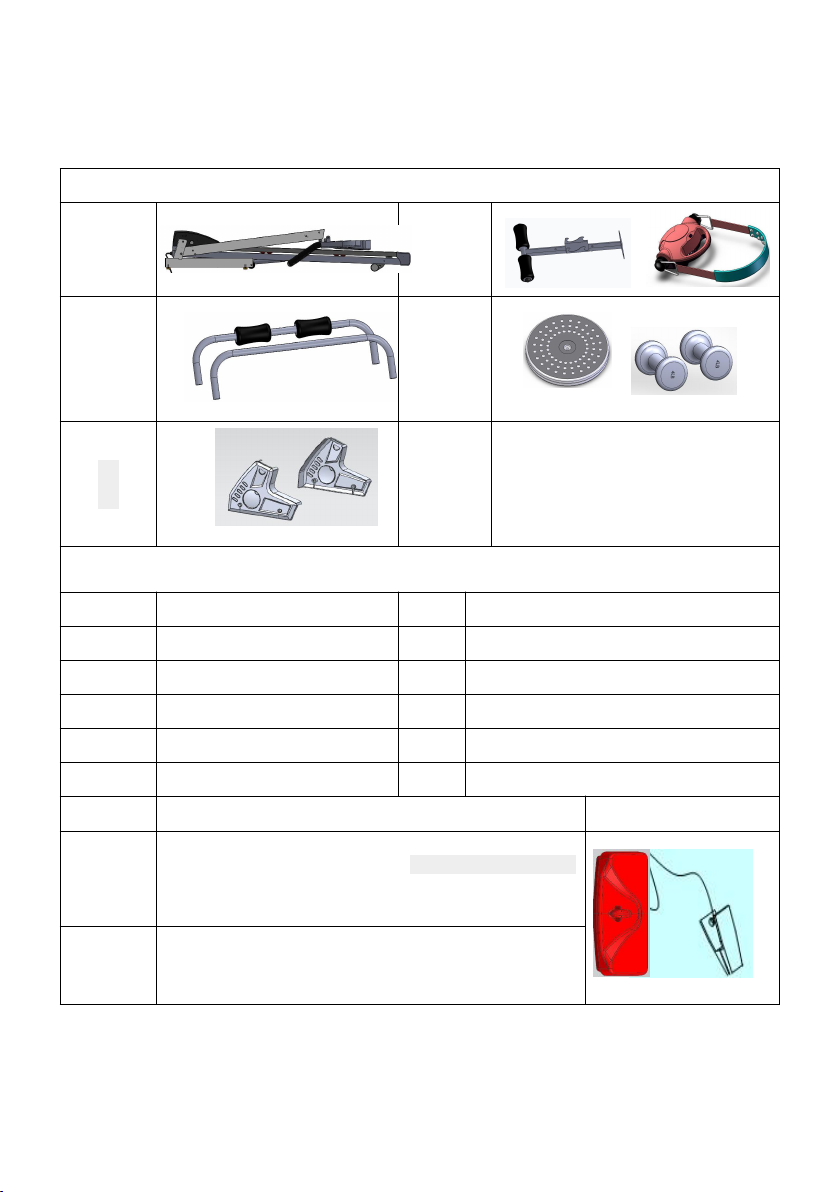

Loading list：
Loading list
Main
macine
massager
U tuber
Twist dumbell
cover
Accessories
Serial number
name
number
remarks
1
Screw:M8×70
4
2
Screw :M8×50
2
3
Screw :M8×45
2
4
Screw : M8×15
6
5
Screw :M5×10
4
6
M8 nut 2 pcs/gasket10pcs
key
7
Multifunctional screwdriver/5mm、6mm Allen wrench in each one
8
13 to 15, open end wrench a/ oil
-4-

三、installation guide
Installation hint: to eliminate the installation error, please do not fully tighten the
bolt of each step, such as the machine after the installation is complete,
then tighten all bolts completely ！
1、 riser:
●Upward of riser and electronic part, the front
with the M8 4 x 15 screws and washers, two
side with the M8 x 45 screw 2 with gasket
and tighten
2、Electronic watch: using M8 2 x 15 screws,
and washers through the arrow shown in
place, and tighten.
3、U tube and function
Gasket with M8 4 x 70 screw, respectively
through the stand pipe connected to the U
pipe thread hole and tighten。
Gasket with M8 x50 screw 2 4, nut 2, through the
function frame and u-shaped tube hole to
tighten connection
4、: massage:
Massage machine under the first three
screw screw down, then head on function
frame plate of well hole, tighten plucked
screws to mount on a massage belt.All the
install screws to clean again, confirm the
screws are tight.
5、About set cover of the management
Use 4 pcs m10*5 screw、Around the
shield and riser respectively
corresponding to the lock hole and
tighten。
6、 key:
Plugged in, turned on the power switch and
then put the safety lock in digital watches
as shown in figure position, press the
START button (START), you can START
running (note: beginners START from low
speed to adapt to)。
-5-
key

Electronic watch button function
1start/stop ②stop ③program ④mode ⑤speed +/-
⑥speed direct
(一) function：
The LCD window shows the following features:
Time, speed, distance, calories, and heart rate
Function keys:
A: the program, model, stop, start, speed, speed reduction.
B: speed quick keys: 3, 6, 9, 12 km/H.
(二) key：
1.prog 1, programming key: in stop state, press program can choose circle program:
manual mode to P1, P2, P3, P4, P5, P6 and P7 - P8 to manual mode,....12 automatic
programming, standby mode press program can choose automatic program, time
can be set (5-99 points) choose the right press start button to enter the program,
speed switch and direct key is invalid, system run to time is zero stop.
-6-
①
②
③
④
⑤
⑥

2.mode of the countdown to pour meter distance mode, pour meter
calorie mode to normal mode,....Manual operation mode: the electricity
directly into the run mode or manual mode, add and subtract, the model can
be used to speed the direct key control speed, the system automatically
stops running to 99 minutes。
3, the start/pause start/pause: standby mode by pressing this button to
enter the countdown, countdown into run mode;Run mode by pressing this
button into suspend mode, the system will record pause before speed
value;You press this button to suspend mode into run mode, the system
automatically reply slowly pause before speed value。
4、stop：Run mode by pressing this button, the system is slow to stop,
go into standby mode;Other information push down this button, the system
response with electricity on.
5、speed+：Manual operation mode by pressing this button can
be accelerated, each with 0.1, but changan and continuously
6, the speed - : manual operation mode by pressing this button can be
slow, every time minus 0.1, changan continuous reduction.
7, speed shortcut: 3, 6, 9, 12 km/H.In the motor running state, press the
button will be marked on the motor speed adjustment to directly to the key
value of speed.
8, the safety lock function
In any state, pull off the safety lock can be emergency stop the operation of
the treadmill, running machine all window display "-", when the emergency
stop alarm buzzer constantly issued a "BB";The treadmill can't except the
shutdown for any other operations.
⑴check whether the load power supply before exercise;Check whether
the safety lock is effective.
⑵the abnormal situation in the process of movement, korah off the safety
lock, running opportunities rapid deceleration to stop;Add the safety lock
device reset, waiting for a command input.
9, MP3, music playback functions
the MP3 music player:
Will have the audio signal is inserted into the MP3 jack, 3.5 audio
interface power amplifier circuit automatically after the audio signal
amplification output to the speaker.
-7-

四、FOIDING/EXPANSION/MOVMENT
FOIDING Right hand hold a treadmill to elevate, when heard "da" indicates that the
body has already,Should be locked in position, folding。
EXPANSION Click on the gas spring with the foot to gently, right hand holding the
treadmill gently pressing down on them,
Automatic running slowly fall to the ground, namely。
MOVMENT Moves, determine the running machine is folded and
locked by the handle, lean back running machine, can use at the
base of the wheels for movement.
A、 Level adjustmentAssembled running machine, it is necessary to
adjust the level,tighten the regulation of the base floor MATS,
make the base was stable, from shaking.
B、power switch
First treadmill plug to the power seat, will switch button in the
position of "I", can start the treadmill.
C、Safety switch
Safety switch is used in order to prevent accidents, the former
must be sucked in the safety switch side panel of the safety lock position, the other end
of the clip on the practitioner's clothing.
五、product maintenance
1．lubrication :Running belt use after period of time, must use special configuration of
the methyl silicone oil for lubrication.
Suggestion: use time less than 3 hours a week for 5 months 1 lubrication
Use 4 to 7 hours a week 1 2 months lubrication
Use time more than 7 hours a week a month lubrication 1 times
Not excessive add lubricants, lubricants is not the more the better.
Helpful hints: reasonable lubrication is important factor to improve the service life of
the running machine
2．lubrication methods :As to check whether need to lubricant on the way, as long as
grabbed the running belt, put your hand can touch the running belt on the back of the
central, if your hand is stained with silicone (slightly moist), it indicates that the
lubricant on no longer need to, if running board is dry and do not have the stick to the
silicone, you will need to add lubricant
-8-

Low add lubricant step: (as pictured)
1. Stop running belt, the folding machine;
(2) take the frame on the back of the run wave;Took oil can reach as far as possible into the run middle
3. Run an elastic adjustment
All the running machine in the factory before and after installation to adjust running belt, but after using a
period may also appear relaxation phenomenon.Such as: the user to pause the phenomenon of sliding at
running.When appear this phenomenon, in a half circle clockwise, synchronous adjustment to run around with
adjusting bolts.Run with too loose, foot in running, running belt and roller turn produce skid phenomenon, but
too close is not good, easy to increase the load of the motor, damage to the motor, running belt and roller, etc.
4. Run belt running deviation adjustment
The treadmill has been adjusted and passed QC inspection before leaving the factory. If there is
phenomenon of bias running of the belt, the possible reasons might be:
A. The frame is not stably laid
B. The user is not running on the centre of the running belt;
C. The user’s two feet are not using even strength.

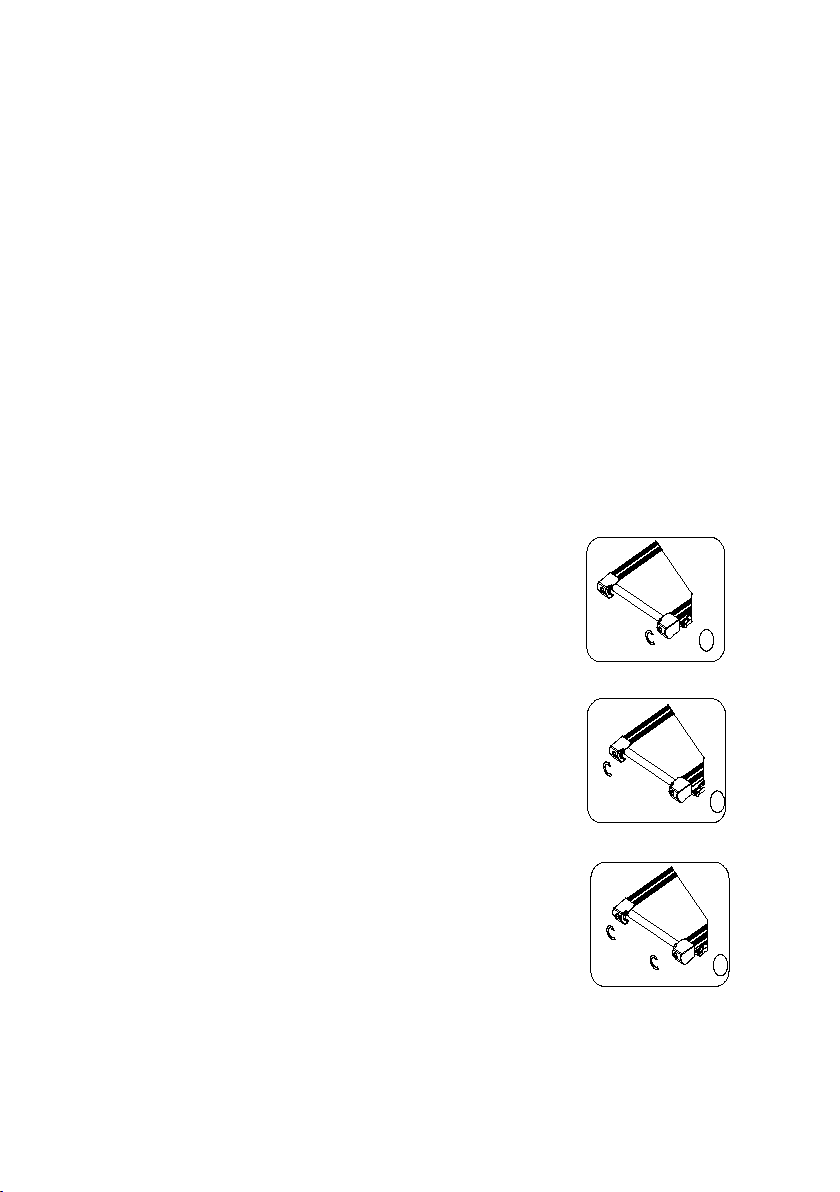

For bias which can not be fixed automatically, try the following methods to fix the belt, as picture shown
-9-
A
B
C
If the belt tends to move to the right, you should turn the
belt adjustment screw on the right in clockwise
direction. We recommend you turn 1/4 turn each time
and check how it works. If the belt remains slanting to
the right ,then turn the belt adjustment screw on the left
in counterclockwise direction 1/4,as shown in the
picture A
If the belt tends to move to the left, then turn the belt
adjustment screw on the left in clockwise direction for
1/4 turn. If the belt remains slanting to the left ,then turn
the belt adjustment screw on the right in
counterclockwise direction for 1/4 turn, as shown in the
picture B
After having been used for a period, the belt might be
slightly elongated, and slipping and halting might appear
when a person is running on it. When these phenomena
appear, you should secure the screws on both sides for
1/4 turn. If the belt is too tight just loosen the screw on
both sides for 1/4 turn, as shown in picturec.

- 2 -
guidance of a doctor。
●Shut down immediately after using running mechanical and electrical source。
●Around the treadmill should be placed in a more spacious place, do not put sundry, guaranteed the safety
of the 2 m * 1 m area
●Children can't use the treadmill alone, if you use should be use under adult supervision。
●Children to prevent accidental activation treadmill, running off immediately after using mechanical and
electrical source, and then remove the safety lock on the children can't get a place。
● Should avoid long time overload operation, overload operation may cause damage to the motor, controller, aging
acceleration bearings, run and run。
5．Drive belt adjustment: all the treadmill before delivery to adjust a drive belt, in use after a period of time
may appear relaxation skid phenomenon, mainly adjusted by the user themselves。
Adjust steps (right)：
motor first fixed nut loose 4 to counterclockwise,
Using a wrench to adjust the bolt clockwise；
Adjusting range will be subject to run on load no skid,
Set before you will be in front of the loose screw；
六、fitness guide Adjust screw
Warm up
Before exercise, take a few minutes to do some stretching exercises, it is strictly prohibited to bounce), can
also be slow on a treadmill exercise, which can improve body flexibility；
practice time
①Experts suggested that aerobic exercise time best in 20 to 30 minutes, according to their own conditions
and exercise；
②If you lack of movement in recent years, the best starting point is 5 minutes, gradually adjust your
movement duration;
③If your goal is weight loss, low intensity exercise for a long period of time would be more effective, weight
loss, enhanced physique, sports scores, maintain energy, body, improve sleep, reducing stress,
cardiovascular endurance)
-10-

七、Electricity run common faults and processing methods
problmes
reasons
maintenance methods
Electric
child
table
show
wrong
E1
a、Electronic communications
line contact undesirable
1、Rewiring or replace the communication
line
b、Electronic watch fault
2、change new one
c、controller failure
3、changed new one
E2
a、Explosion-proof rushed to
protect
b、Whether the positive and
negative line access of the
motor
1、Main line connection, rewiring
C、controller failure
2、changed new one
E4
Over voltage protection
1、The voltage is too high。
2、Motor fault。
3、The motor is normal
E5
When the motor running
current is too large, more than
the rated current
1、Check whether the motor is damaged。
2、If the motor is blocked。
3、Due to the power grid pulse voltage,
occasional protected shutdown to boot。
4、Replace the controller
E7
Said electronic safety lock
signal was detected
1、lock off。
2、Magnetron is damaged。
3、Electronic watch failure to replace
electronic
●If special failure occurs, please contact us immediately cut off the machine power supply
with the company's agent, we will provide the high quality service in a timely manner 。
-11-

八.service commitments
1, product warranty provisions
This machine is one year free warranty machine series products,
guarantee the dc servo motor for six years.
2, the warranty scope
In the provisions of the warranty period, under normal use, products
affect the normal function of fault.
3, one of the following does not belong to the warranty scope
Low artificial damage
Damage to force majeure factors, natural disasters such as earthquakes
"Improper use (not according to operation manual specification) or
improperly secured (such as electricity run circuit into the water)
"More than product warranty
-12-
