jobmate 054-0242-6 User manual

Wet/Dry Vacuum
054-0242-6
Owner's Manual
Toll-Free Helpline:
1-866-JOBMATE (562-6283)
©
2013

2
2
3
4
6
6
7
8
9
10
10
11
11
12
13
SECTION Page
Specifications ………………………………………………………………………………………....
Warranty………………………………………………………………………………………………..
Safety Warnings ……………………………………………………………………………………....
Extension Cords…………………………………………………………………….…………………
Location of Parts ….…………………………………………………………………….………….....
General Assembly Instructions ……………………………………………………..…………….....
Dry Vacuum Operation………………………………………………………………………………..
Wet Vacuum Operation ..……………………………………………………………..……………...
Blower Operation…….……………………………………………..…………………………….…..
Maintenance ……………………………………………………………………………..…….……..
Troubleshooting ………………………………………………………………………..…………….
Accessories …………………………………………………………………………..………………
Exploded View ………………………………………………………………………….……………
Parts List ……………………………………………………………………………………………...
SPECIFICATIONS：
Peak Horsepower：2
Power：120 V, 60 Hz, 6 A
Cubic Feet (Airflow) per Minute (CFM) 53 CFM
Tank Size：15 L (4 U.S. gallons / 3 ½ Imperial
gallons)
Tank：Polypropylene
Hose：11/4
” x 6’
(3.2cmx1.8m)
PowerCord 8'(2.4m)
Weight 10lb2oz(4.6kg)
Table of Contents

3
JOBMATE® LIMITED WARRANTY
This JOBMATE® product is guaranteed for a period of one (1) year from the date of original retail
purchase against defects in materials and workmanship
Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase
within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the
same model, or one of equal value or specification), at our option. We will bear the cost of any repair or
replacement and any costs of labour relating thereto.
This warranty is subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation,
operation or maintenance (as outlined in the applicable owner’s manual or operating instructions) or
which is being used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that may
be supplied with the product which are expected to become inoperative or unusable after a
reasonable period of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited to,
fuel, lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e.
persons not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a reconditioned
or refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer is
installed therein or any repairs or alterations have been made or attempted by unauthorized persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to,
scratches, dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical
cleaners; and
i) this warranty will not apply to component parts sold by and identified as the product of another
company, which shall be covered under the product manufacturer’s warranty, if any.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor the
manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect,
incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this
product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from province to
province. The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim
or exclude any statutory warranties set forth in any applicable provincial or federal legislation.
Imported by Trifleaf Distribution Trifeuil Toronto, Canada M4S 2B8
Warrant
y

4
IMPORTANT SAFETY INSTRUCTIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE.
Read all instructions before using this appliance
Read and understand this instruction manual and all labels on the Wet/Dry Vacuum before using.
Safety is a combination of common sense, staying alert and knowing how this Wet/Dry Vacuum works. Use
this Wet/Dry Vacuum only as described in this manual. To reduce the risk of personal injury or damage to the
Wet/Dry Vacuum, use only recommended accessories.
Understanding Safety Terminology
DANGER: If safety information is not followed, someone will be seriously injured or killed.
WARNING: If safety information is not followed, someone could be seriously injured or killed.
CAUTION: If safety information is not followed someone may be injured.
When using this Wet/Dry Vacuum follow basic safety precautions including the following:
WARNING: To reduce the risk of fire, electric shock, or injury:
• Do not run the Wet/Dry Vacuum unattended.
• Do not vacuum, or use this Wet/Dry Vacuum near liquids, gases, or explosive vapours like gasoline
or similar fuels, lighter fluid, cleaners, oil based paints, natural gas or hydrogen. Do not vacuum or
use this Wet/Dry Vacuum near explosive dusts like coal dust, magnesium dust, grain dust, or gun
powder as sparks inside the motor can ignite flammable vapours or dust.
• Do not vacuum burning or smoking items such as cigarettes, matches, or hot ashes.
• Keep the cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use if the cord, plug or other parts are damaged.
• If the Wet/Dry Vacuum is not working correctly or has missing parts, has been dropped or damaged,
left outdoors or dropped in water, return it to an independent service centre.
• Do not pull or carry by the cord. Do not use the cord as a handle, close a door on the cord, or pull the
cord around sharp edges or corners.
• Do not run the Wet/Dry Vacuum over the cord.
• Do not handle the plug or the Wet/Dry Vacuum with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not use this Wet/Dry Vacuum with a torn filter or without installing the filter except when
vacuuming liquids as described in the operation section of this manual.
• Do not use the Wet/Dry Vacuum as a toy. Pay particularly close attention when it is being used by or
near children.
• To reduce the risk of injury from the Wet/Dry Vacuum accidentally starting, unplug the power cord
before changing or cleaning the filter.
Safet
y
Warnin
g
s

5
• Do not leave the Wet/Dry Vacuum unattended when it is plugged in. Unplug it from the power outlet
when not in use and before servicing. Turn off the Wet/Dry Vacuum before unplugging.
• Do not put any objects into the ventilation openings. Do not vacuum with any ventilation openings
blocked.
• Keep free of dust, lint, hair or any other items that may reduce the air flow.
• Keep hair, loose clothing, fingers, and all body parts away from openings and moving parts.
• To reduce the risk of falling, use extra care when cleaning on stairs.
• Do not use for any purpose other than described in this user’s guide.
When using as a blower:
• Direct air discharge only at the work area.
• Do not direct air at bystanders.
• Do not use near children.
• Do not use blower for any purpose other than blowing dirt and debris.
• Do not use Wet/Dry Vacuum as a sprayer.
• Use safety goggles.
This Wet/Dry Vacuum is double insulated, eliminating the need for a separate grounding system. Use only
identical replacements parts. Read the servicing instructions before servicing the Wet/Dry Vacuum.
Use this Wet/Dry Vacuum only as described in this manual.
Observe the following warnings that appear on the motor housing of this Wet/Dry Vacuum.
DOUBLE-INSULATED, GROUNDING NOT REQUIRED. WHEN SERVICING, USE ONLY IDENTICAL
REPLACEMENT PARTS.
WARNING: To reduce the risk of electric shock, do not expose to rain. Store indoors.
WARNING: For your own safety, read and understand this instruction manual. Do not operate
unattended. Do not use this Wet/Dry Vacuum to pick up hot ashes, coals, toxic, flammable or
other hazardous materials. Do not use near explosive liquids or vapours.
CAUTION:
• Do not vacuum drywall dust or cold fireplace soot or ash with a standard Wet/Dry filter. This dust is
very fine and hence will not be captured by the filter and may cause damage. Refer to the operation section
for proper filter selection.
WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM
In a double-insulated Wet/Dry Vacuum, two systems of insulation are provided instead of
grounding. No method of grounding is provided on a double-insulated appliance, nor should one be
added. Servicing a double-insulated Wet/Dry Vacuum requires extreme care and knowledge of the
system, and should be done only by qualified service personnel. Replacement parts for a
double-insulated Wet/Dry Vacuum must be identical to the parts that are being replaced. This Wet/Dry
Vacuum is marked with the words ‘DOUBLE INSULATED’ and the symbol (square within a
square) may also be marked on the appliance.
• For household use only.
• To reduce the risk of electric shock, unplug before cleaning or servicing.
• DO NOT use without filters in place.
• To reduce the risk of electric shock, use indoors only.
CAUTION: To reduce the risk of injury from moving parts, unplug before servicing.
POLARIZED PLUG
To reduce the risk of electrical shock, this appliance has a polarized plug (with one blade wider than the
other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in
any way. Double insulation eliminates the need for the three-wire, grounded power cord and grounded
power supply system.

6
When using an extension cord with your Wet/Dry Vacuum refer to the following table to determine the
required AWG wire size. Before using the Wet/Dry Vacuum make sure the power cord and extension cord are
in good working condition. Make repairs or replacements before using the vacuum cleaner. Only use
extension cords that are rated for outdoor use.
Item Description
1. Handle
2. Top section
3. Blower connection
4. Filter basket
5. Floor nozzle
6. Dry Reusable filter
7. Extension wands (x 3)
8. Safety float valve
9. Castors (x 4)
10. Foam Sleeve / Wet Filter
11. Switch
12. Clasp (x 2)
13. Vacuum hose connector
14. Tank
15. Hose set
Length of Extension Cord
110 V-120 V 25’ (7.5 m) 50’ (15.25 m) 100’ (30.5 m) 150’ (45.7 m)
Amps AWG Wire Size
0-6 18 16 16 14
7-10 18 16 14 12
11-12 16 16 14 12
13-16 14 12 Not recommended
Location of Parts
Extension Cords

7

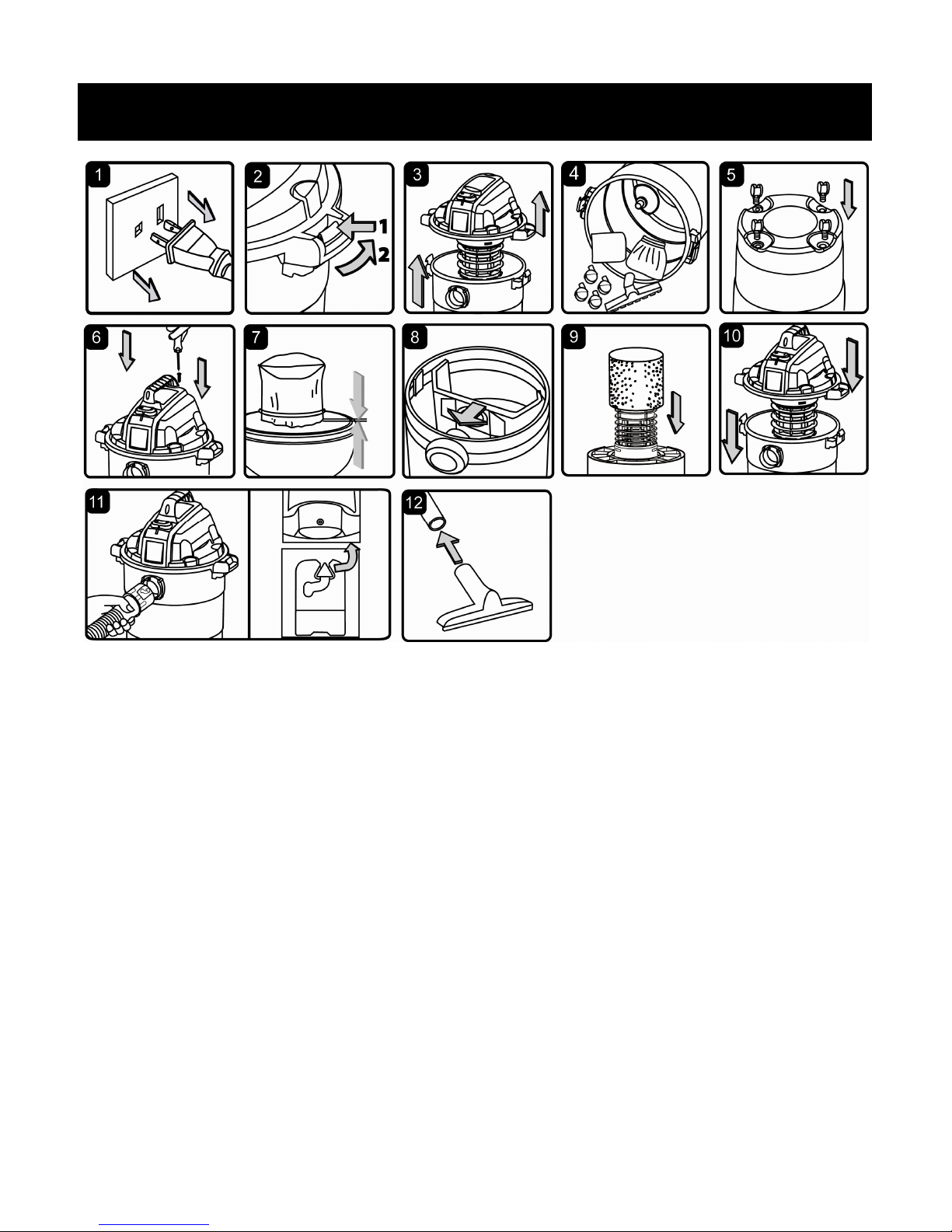

GENERAL ASSEMBLY
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the clasps (Fig. 2).
3. Lift the top section off the container (Fig. 3).
4. Remove the contents from inside the container (Fig. 4).
5. Turn the container upside down, and insert the four casters. Verify that they are mounted correctly.
Do not over tighten (Fig. 5).
6. Insert the handle into the slots on the power head and pressure into place (Fig. 6).
7. For dry vacuuming, install the supplied dust filter and dust bag (Fig. 7, Fig 8).
8. For wet vacuuming, install the supplied foam filter (Fig. 9).
9. Place the top section back on the container (Fig. 10).
10. Align the top section with the clasps, and snap into place by applying pressure until clasps latch into
place (Fig. 10).
11. Insert the large end of the hose into the front inlet of the container, and lock it by pushing and twisting
(Fig. 11).
12. Choose the desired accessories and push onto the suction tube (Fig. 12).
General Assembl
y
Instructions

8

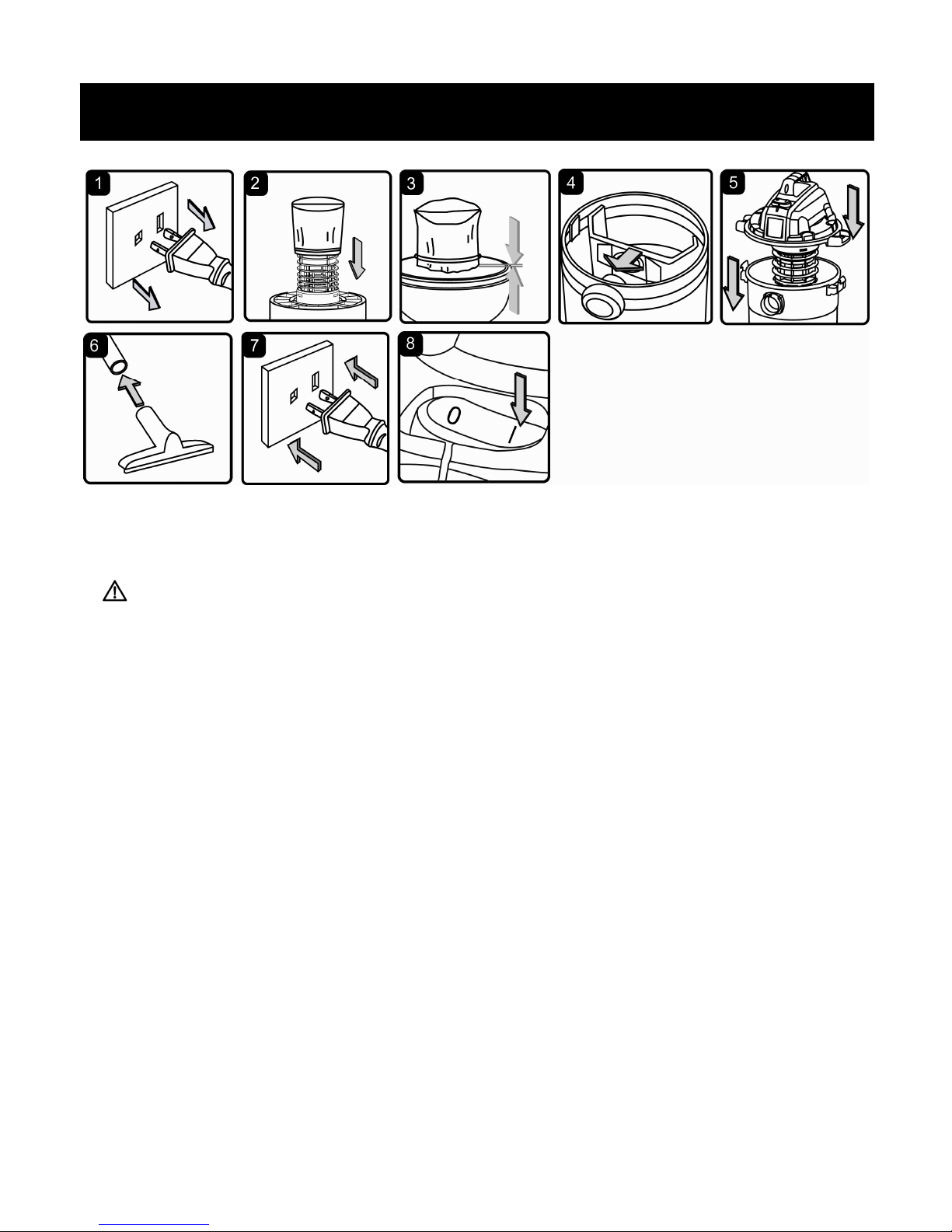

DRY VACUUMING
BEFORE YOU START
WARNING!
Be sure to read, understand, and apply Section 1, entitled “Safety Warnings.”
Reminder: DO NOT vacuum hazardous substances.
The use of an incorrect dust bag will void the warranty.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. In order to prepare vacuum for dry vacuuming, verify that the dust filter is clean and dry. Place the dust
filter over the filter basket and centre it.
Push down until the mounting ring of the dust filter is positioned against the ribs of the top section (Fig. 2).
3. Verify that the dust filter completely covers the filter basket. Also verify that all edges of the dust filter are
secure under the mounting ring (Fig. 3).
4. Verify that the dust bag is installed to the inside of the tank（Fig. 4）
5. Place the top section back on the container, and secure it in place using the clasps (Fig. 5).
OPERATING INSTRUCTIONS: DRY VACUUMING
6. Insert the larger end of the flexible hose into the front inlet on the tank, and lock in place. Push the required
attachment onto the free end of the hose or extension (Fig. 6).
7. Plug the power cord into the outlet (Fig. 7).
8. Turn the motor on by flipping the switch to the “I” position（Fig. 8）
9. Once you have finished vacuuming, flip the switch to the “O” position and unplug the power cord from the
power outlet.
DO NOT USE THE DUST FILTER FOR WET OR SHARP MATERIALS.
DO NOT USE DUST BAG FOR WET VACUUMING.
O = OFF I = ON
Dr
y
V
acuum O
p
eration

9
WET VACUUMING
BEFORE YOU START
WARNING!
Be sure to read, understand, and apply Section 1, entitled “Safety Warnings.”
Reminder: DO NOT vacuum hazardous substances.
1. Verify that the power cord is disconnected from the outlet. Verify that the container is clean and free of
dust and dirt (Fig. 1).
2. Remove the dust filter and dust bag, and install a foam filter over the filter basket, and place the top
section back on the container (Fig. 2).
DO NOT USE dust filter for wet materials.
OPERATING INSTRUCTIONS: WET VACUUMING
3. Fit the desired nozzle onto the vacuum hose (Fig. 3).
4. Verify that the switch is in the ‘O’ position before plugging the power cord into the outlet (Fig. 4).
5. Turn the motor on by flipping the switch to the “I” position（Fig. 5）
6. After use, flip the switch to the “O” position and unplug the power cord, then empty and dry the
container (Fig. 6, Fig 7).
Remember! The foam filter must be removed after wet vacuuming, and a dust filter must be installed before
dry vacuuming again.
IMPORTANT! When vacuuming large quantities of liquids, do not immerse the nozzle completely in the
liquid; leave a gap at the tip of the nozzle opening to allow air inflow. The machine is fitted with a float valve
that stops the suction action when the container reaches its maximum capacity. You will notice an increase in
motor speed. When this happens, turn off the machine, disconnect from power supply, and drain the liquid
into a suitable receptacle or drain. To continue vacuuming, refit the container with the drain cap. After wet
vacuuming, turn the machine off and remove plug from power supply. Empty the container, clean and dry the
inside and outside before storage.
Wet
V
acuum O
p
eration

10
This Wet/Dry Vac has blowing capabilities. To use the blower feature follow the instructions listed.
WARNING: ALWAYS WEAR SAFETY GOGGLES COMPLYING WITH ANSI Z87.1 (OR IN CANADA,
CSA Z94.3) BEFORE USING BLOWER.
WARNING: KEEP BYSTANDERS CLEAR FROM BLOWING DEBRIS.
WARNING: WEAR A DUST MASK IF BLOWING CREATES DUST THAT MIGHT BE INHALED.
1. Push the large end of the flexible hose into the blower connection in the top of the motor housing (Fig. 1).
2. Ensure the power switch is turned off and plug into the power supply (Fig. 2).
3. Switch on the power (Fig. 3).
4. The unit will now blow through the vacuum hose, and can be used to clear obstructions within the pipe (Fig. 4).
WARNING! If the hose is still blocked after a few seconds, turn off the unit and clear the hose manually.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Disconnect the hose from the container (Fig. 2)
3. Undo the clasps and remove the top section from the container (Fig. 3).
4. Clear all dirt or debris from the container and hose (Fig. 4).
5. Clean the foam filter or dust filter by washing it with a mild soapy solution (Fig. 5).
6. Check the hoses, attachments, and power cord to verify that they have not been damaged. (Fig. 6)
IMPORTANT! CHANGE THE DUST FILTER REGULARLY.
IF THE MACHINE IS USED WITHOUT THE DUST FILTER, THE MOTOR WILL BURN OUT AND THE
WARRANTY WILL BE VOIDED. ALWAYS KEEP SPARE FILTERS ON HAND.
Maintenance
Blowe
r
O
p
eration

11
REPLACEMENT BAGS & FILTERS
Bags and filters should be replaced regularly.
Foam Sleeve / Wet Filter (054-0035) (Part #25)
Dry Reusable filter (054-0148) (Part #23)
Household Collector Bag (054-0150) (Part #28)
Fine Dust High Eff. Collector Bag (054-0212)
Regular Cartridge Filter (054-0008)
HEPA Cartridge Filter (054-0159)
Symptom Possible Causes Corrective Action
Vacuum will not operate. 1) No power supply. 1) Check power supply – cord,
breakers, fuses.
2) Faulty power cord. 2) Check the power cord and repair
it or replace it if necessary.
3) Container is full of liquid. 3) Empty container.
Dust comes from motor cover. 1) The dust filter is missing or
damaged.
1) Attach or replace dust filter.
Reduced efficiency and
motor/speed vibration.
1) There is a blockage in the nozzle,
the hose, or the container inlet, or
the dust filter is blocked by fine dust.
1) Check the nozzle, the hose, and
the container inlet for blockage.
Take off the dust filter, and wash
and clean it. Reuse it when it is dry.
It is recommended to use a new
dust filter.
Available accessories for your Jobmate® Wet/Dry Vacuum:
Consumables
054-0151 Foam Sleeve / Wet Filter
054-0148 Dry Reusable filter
054-0149 Household Collector Bag
1 1/4" Accessories
054-0047 Hose
054-0120 Multi-surface nozzle
054-0009 Micro kit
054-0084 Round brush
054-0085 Crevice tool
054-0086 Utility nozzle
054-0087 Floor nozzle
054-0128 Extension wand
054-0079 Claw utility nozzle
054-0080 1 1/4" to 2 1/2" adapter
054-0227 Crevice tool and soft bristle kit
054-0226 Drain hero
Troubleshootin
g
A
ccessories

12
Parts – Ex
p
loded view

13
Item
Number Description Qty
1 Handle Assembly 1
2 Top Cover 1
3 Switch Assembly 1
4 Baffle 1
5 Lid 1
6 Motor assembly 1
7 Press board 1
8 Impeller 1
9 Aluminium press board 1
10 Screw 1
11 Motor mount 1
12 Rubber washer 1
13 Safety float valve 1
14 Filter basket 1
15 Cord clamp assembly 1
16 Cord wrap 1
17 Internal wiring 1
18 Tank 1
19 Hose inlet assembly 1
20 Caster 4
21 Dry Reusable filter 1
22 Extension wand 3
23 Foam Sleeve / Wet Filter 1
24 Floor brush 1
25 Hose 1
Parts List
