jobmate 54-0011-6 User manual

Version 3.3
Wet/Dry Vacuum Kit
54-0011-6
Owner's Manual
Toll-Free Helpline:
1-866-JOBMATE (562-6283)

2
SECTION Page
Specifications ………………………………………………………………………………………....2
Safety Warnings ……………………………………………………………………………………... 3
Location of Parts ….…………………………………………………………………….………….... 5
General Assembly Instructions ……………………………………………………..…………….... 6
Dry Vacuum Operation………………………………………………………………………………. 7
Wet Vacuum Operation ..……………………………………………………………..……………....8
Blowing Operation…….……………………………………………..…………………………………9
Maintenance ……………………………………………………………………………..………….….9
Troubleshooting ………………………………………………………………………..……………. 10
Wet-Dry Vacuum Accessories ……………………………………………………..………………. 10
Exploded View ………………………………………………………………………….……………..11
Parts List ……………………………………………………………………………………………… 12
Warranty ……………..………………………………………………………………………………...13
SPECIFICATIONS：
Peak Horsepower 2 HP
Power 120 V, 60 Hz, 7 A
Tank Size 4 Gallons (18 L)
Tank Plastic
Volume 170 CFM
Hose 1 1/4" (32 mm) diam.
6' (1.8 m) length
Power Cord 8' (2.4 m)
Weight 11 lb 7 oz (5.2 kg)
Sound Pressure Level 85 db(A)
Table of Contents

3
1. IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS
Read All Instructions Before Using This Appliance
Read and understand this owner's manual and all labels on the Wet/Dry Vacuum before operating. Safety is
a combination of common sense, staying alert and knowing how your vacuum works. Use this Wet/Dry
Vacuum only as described in this manual.
Safety Signal Words
DANGER: means if the safety information is not followed someone will be seriously injured or killed.
WARNING: means if the safety information is not followed someone could be seriously injured or killed.
CAUTION: means if the safety information is not followed someone may be injured.
When using your Wet/Dry Vacuum, follow basic safety precautions including the following.
WARNING: To reduce the risk of fire, electric shock, or injury:
• Do not run vacuum unattended.
• Do not vacuum flammable liquids, gases, or explosive vapours like gasoline or other fuels, lighter fluid,
cleaners, oil-based paints, natural gas, hydrogen, or explosive dusts like coal dust, magnesium dust,
grain dust, or gun powder. Sparks inside the motor can ignite flammable vapours or dust.
• Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Keep cord away from heated surfaces.
• Do not expose to rain. Store indoors.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not use with damaged cord, plug or other parts.
• If your Wet/Dry Vacuum is not working as it should, please review the Troubleshooting section of this
manual, then contact the Toll-Free Helpline if it is still not operating as it should.
• If the Wet/Dry Vacuum is left outdoors or dropped into water, contact the Toll-Free Helpline.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or
corners.
• Do not run Wet/Dry Vacuum over cord.
• Do not handle plug or the Wet/Dry Vacuum with wet hands.
• To reduce the risk of health hazards from vapours or dusts, do not vacuum toxic materials.
• Do not use or store near hazardous materials.
• Do not use this Wet/Dry Vacuum with a torn filter or without the filter installed, except when vacuuming
liquids, as described in the operation section of this manual.
• Do not permit children to use.
• To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter.
• Do not leave Wet/Dry Vacuum when plugged in. Unplug from outlet when not in use and before servicing.
• Turn off Wet/Dry Vacuum before unplugging.
• Do not put any object into ventilation openings. Do not vacuum with any ventilation openings blocked.
• Keep free of dust, lint, hair or anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• To reduce the risk of falls, use extra care when cleaning on stairs.
When using as blower:
• Direct air discharge only at work area.
• Do not direct air at bystanders.
• Keep children away when blowing.
• Do not use blower for any job except blowing dirt and debris.
• Do not use Wet/Dry Vacuum as a sprayer.
Safety Warnings

4
Use this Wet/Dry Vacuum as described in this manual.
Observe the following warnings that appear on the motor housing of your Wet/Dry Vacuum.
DOUBLE INSULATED
GROUNDING NOT REQUIRED
WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS.
WARNING: to reduce the risk of electric shock, do not expose to rain. Store indoors.
WARNING: For your own safety, read and understand owner’s manual. Do not run unattended. Do
not pick up hot ashes, coals, toxic, flammable or other hazardous materials, Do not use around
explosive liquids or vapours.
CAUTION:
• Do not vacuum drywall dust with standard Wet/Dry filter. This is a very fine dust that will not be captured by
the filter, and may cause damage. Refer to operation section for proper filter selection.
WARNING: SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM
In a double-insulated Wet/Dry Vacuum, two systems of insulation are provided instead of grounding.
No means of grounding is provided on a double-insulated appliance, nor should a means of
grounding be added. Servicing a double insulated Wet/Dry Vacuum requires extreme care and
knowledge of the system, and should be done only by qualified service personnel. Replacement
parts for a double-insulated Wet/Dry Vacuum must be identical to the parts they replace. Your
double-insulated Wet/Dry Vacuum is marked with the words ‘DOUBLE INSULATED’ and the symbol
(square within a square) may also be marked on the appliance.
• For Household Use Only.
• To reduce the risk of electric shock, unplug before cleaning or servicing.
• DO NOT use without dust bag and/or filters in place.
• To reduce the risk of electric shock, use indoors only.
CAUTION: To reduce the risk of injury from moving parts, unplug before servicing.

5
Item Description
1. Handle
2. Top section
3. Blower connection
4. Filter basket
5 . Hose set
6. Floor nozzle
7. Extension wands (x 3)
8. Foam filter
9. Safety float valve.
10. Castors (x 4)
11. Dust filter
12. Switch
13. Vacuum hose connector
14. Clasp (x 2)
15. Tank
Location of Parts

6
GENERAL ASSEMBLY
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Undo the clasps (Fig. 2).
3. Lift the top section off the container (Fig. 3).
4. Remove the contents from inside the container (Fig. 4).
5. Turn the container upside down, and insert the four castors. Verify that they are mounted correctly.
Do not over-tighten (Fig. 5).
6. For dry vacuuming, install the supplied dust filter (Fig. 6).
7. For wet vacuuming, install the supplied foam filter (Fig. 7).
8. Place the top section back on the container (Fig. 8).
9. Align the top section with the clasps, and snap into place by applying pressure until clasps latch into
place (Fig. 9).
10. Insert the large end of the hose into the front inlet of the container, and lock it by twisting and pushing
(Fig. 10).
11. Choose the desired accessories and push onto the suction tube (Fig. 11).
General Assembl
y
Instructions

7
DRY VACUUMING
BEFORE YOU START
WARNING!
Be sure to read, understand, and apply Section 1, entitled ‘Safety Warnings'.
Reminder: DO NOT vacuum hazardous substances.
The use of an incorrect dust bag will void the warranty.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. In order to prepare your vacuum for dry vacuuming, verify that the dust filter is clean and dry. Place the
dust filter over the basket filter and centre it.
Push down until the mounting ring of the dust filter is positioned against the ribs of the top section (Fig. 2).
3. Verify that the dust filter completely covers the filter basket. Also verify that all edges of the dust filter are
secure under the mounting ring (Fig. 3).
4. Place the top section back on the container, and secure it in place using the clasps (Fig. 4).
OPERATING INSTRUCTIONS: DRY VACUUMING
5. Insert the larger end of the flexible hose into the front vacuum inlet on the container, and lock in place.
Push the required attachment onto the free end of the hose or extension (Fig. 5).
6. Plug the power cord into the outlet (Fig. 6).
7. Depress the on/off switch (Fig. 7).
8. Once you have completed vacuuming, press the switch to the ‘O’ position, and unplug the power cord
from the outlet.
DO NOT USE the dust filter for wet or sharp materials.
O = OFF I = ON
Dr
y
-
V
acuum O
p
eration

8
WET VACUUMING
BEFORE YOU START
WARNING!
Be sure to read, understand, and apply Section 1, entitled ‘Safety Warnings'.
Reminder: DO NOT vacuum hazardous substances.
1. Verify that the power cord is disconnected from the outlet. Verify that the container is clean and free of
dust and dirt (Fig. 1).
2. Remove the dust filter, and install a foam filter over the filter basket, and place the top section back on the
container (Fig. 2).
DO NOT USE dust filter for wet materials.
OPERATING INSTRUCTIONS: WET VACUUMING
3. Fit the desired nozzle onto the vacuum hose (Fig. 3).
4. Verify that the switch is in the ‘O’ position before plugging the power cord into the outlet (Fig. 4).
5. Depress down the button. (Fig. 5)
6. After use, empty and dry the container (Fig. 6).
When vacuuming large quantities of liquid from a sink or tank, etc., do not immerse the nozzle completely in
the liquid. Leave a gap at the top of the nozzle opening to allow an air inflow. The machine is fitted with a
float valve that stops the suction action when the container reaches its maximum capacity. The operator will
notice an increase in motor speed. When this happens, turn off the machine, disconnect from power supply,
remove the head from the container, and empty the liquid into a suitable receptacle or drain. To continue
vacuuming, refit the head and proceed. After wet vacuuming, turn the machine off and remove plug from
power supply. Empty the container and clean/dry the inside and outside before storage.
Remember! The foam filter must be removed after wet vacuuming, and a dust filter must be installed before
dry vacuuming again.
Wet-Vacuum Operation

9

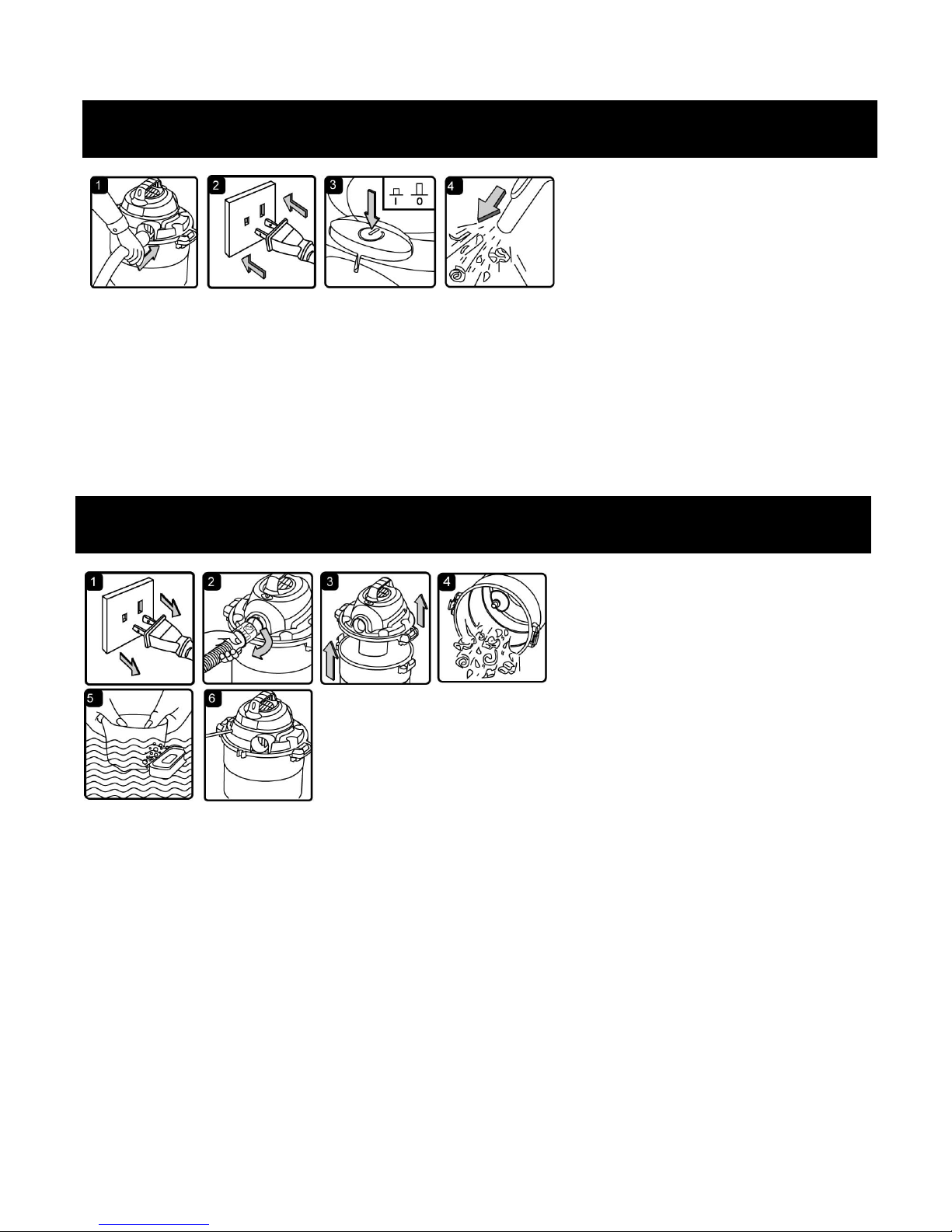

1. Push the large end of the flexible hose into the blower connection in the top of the motor housing (Fig. 1).
2. Ensure the power switch is turned off and plug into the power supply (Fig. 2).
3. Switch on the power (press down the button) (Fig. 3).
4. The unit will now blow through the vacuum hose, and can be used to clear obstructions within the pipe
(Fig. 4).
WARNING! If the hose is still blocked after a few seconds, turn off the unit and clear the hose manually.
1. Verify that the power cord is disconnected from the outlet (Fig. 1).
2. Disconnect the hose from the container (Fig. 2)
3. Undo the clasps and remove the top section from the container (Fig. 3).
4. Clear all dirt or debris from the container and hose (Fig. 4).
5. Clean the foam filter or dust filter by washing it with a mild soapy solution (Fig. 5).
6. Check the hoses, attachments, and power cord to verify that they have not been damaged. (Fig. 6)
IMPORTANT! CHANGE THE DUST FILTER REGULARLY.
IF THE MACHINE IS USED WITHOUT THE DUST FILTER, THE MOTOR WILL BURN OUT AND THE
WARRANTY WILL BE VOIDED. ALWAYS KEEP SPARE BAGS ON HAND.
Maintenance
Blowing Operation

10
REPLACEMENT BAGS & FILTERS
Bags and filters should be replaced regularly.
Dust Filter (Part 24)
Foam Filter (Part 23)
Symptom Possible Causes Corrective Action
Vacuum will not operate. 1) No power supply. 1) Check power supply – cord,
breakers, fuses.
2) Faulty power cord. 2) Check the power cord and repair
it or replace it if necessary.
3) Container full of liquid. 3) Empty container.
Dust comes from motor cover. 1) The dust filter is missing or
damaged.
1) Attach or replace dust filter.
Reduced efficiency and
motor/speed vibration.
1) There is a blockage in the nozzle,
the hose, or the container inlet, or
the dust filter is blocked by fine
dust.
1) Check the nozzle, the hose, and
the container inlet for blockage.
Take off the dust filter, and wash
and clean it. Reuse it when it is dry.
It is recommended to use a new
dust filter.
Available accessories for your Jobmate® Wet/Dry Vacuum:
7’ (2.13 m) Hose Set (54-0204)
Nozzle Brush (54-0084)
Multi Surface Floor Nozzle (54-0087)
Round Brush (54-0055)
Auto Claw Nozzle (54-0086)
Upholstery Nozzle 1-1/4" (32 mm) (54-0071)
Crevice Tool (54-0085)
Extension Wands (54-0128)
Consumables
Re-Usable Filter (54-0207)
Foam Filter (54-0210)
Troubleshooting
Accessories
