Jobsite V-12/AWE Operation manual

12-STEP ALL WEATHER ENCLOSED VOLUME CONTROL
For Precise Volume
Adjustment in All
Weather Conditions
INSTALLATION & USER GUIDE
V-12/AWE
DS00397BCN_V12AWE.qxp 2/17/05 3:57 PM Page a

V-12/AWE
12-STEP ALL WEATHER ENCLOSED VOLUME CONTROL
TABLE OF CONTENTS
Features............................................................................................................................1
Product Overview...........................................................................................................2
Package Contents ..........................................................................................................3
Preparing for Installation..............................................................................................3
Installation.......................................................................................................................4
Operation..........................................................................................................................6
Specifications.................................................................................................................7
Warranty...........................................................................................................................8
DS00397BCN_V12AWE.qxp 2/17/05 3:57 PM Page b

1
FEATURES
IIncludes PVC weatherproof housing and stainless steel hardware
ISafely connect up to eight speaker pairs to a single amplifier or receiver
IUL listed to comply with local building codes
IStylish indicator knob
I12-step make before break volume control switch design
Installation friendly design:
IAccepts up to 14-gauge wire
ISnap and lock connector secures wire in place without the use of a screwdriver
IMounts easily to any surface or directly on PVC conduit
DS00397BCN_V12AWE.qxp 2/17/05 3:57 PM Page 1

PRODUCT OVERVIEW
2
V-12/AWE

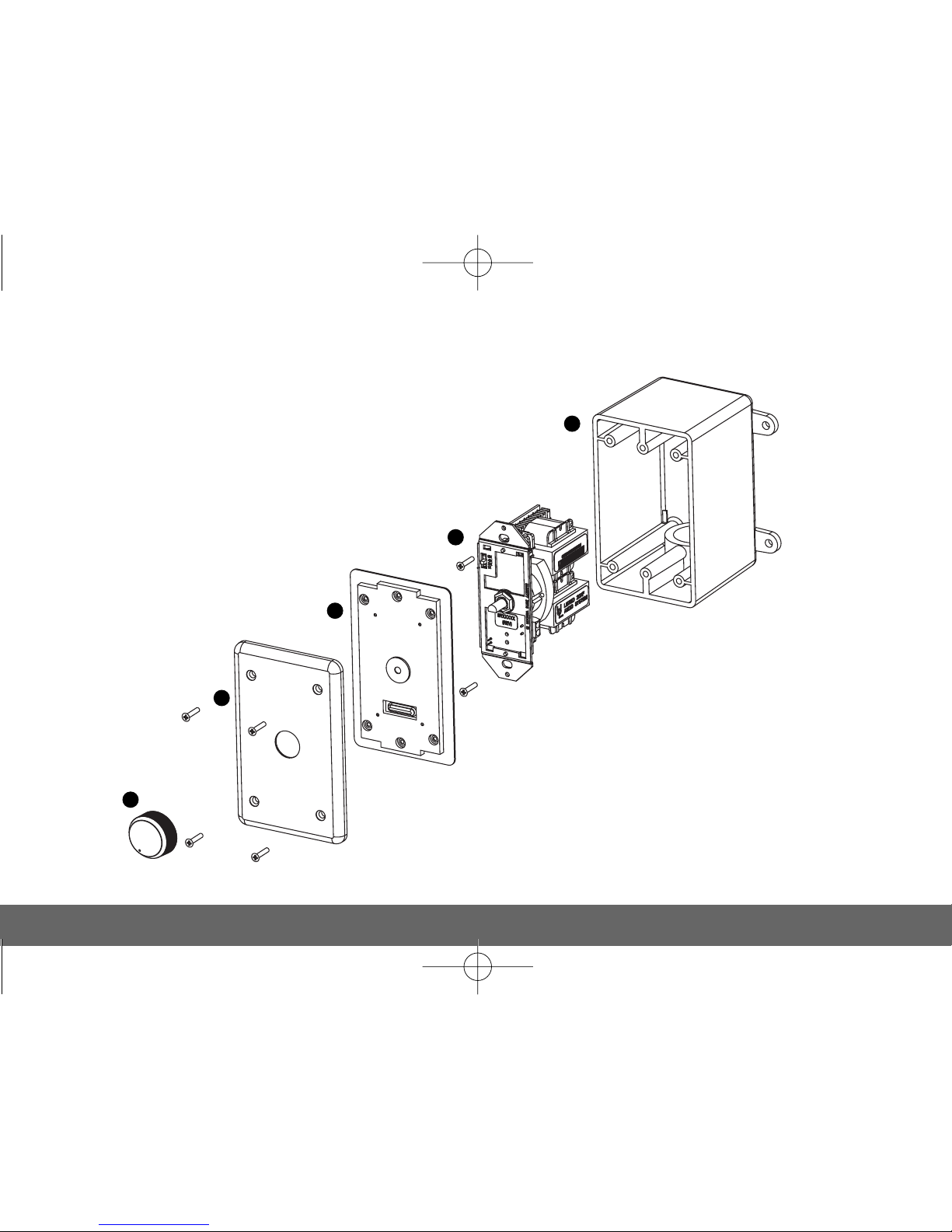

Figure 1
(a) Knob
(b) Faceplate
(c) Gasket
(d) Volume Control
(e) Enclosure
e
d
c
b
a
DS00397BCN_V12AWE.qxp 2/17/05 3:57 PM Page 2

3
PACKAGE CONTENTS
IV-12/AWE Volume Control x 1
IKnob x 1
IDevice mounting screws x 2
ISnap and lock removable speaker connectors x 2
IStandard faceplate screws x 4
IEnclosure x 1
IGasket x 1
PREPARING FOR INSTALLATION
Consider the most convenient location to mount the
V-12/AWE. Use the PVC junction box (supplied),
mounted atop a PVC conduit through which the wires
will run. Count the number of pairs of 4 ohm speakers
and the number of pairs of 8 ohm speakers you are
connecting. Count pairs of 6 ohm speakers as 4 ohm
pairs. Determine the correct switch position from the

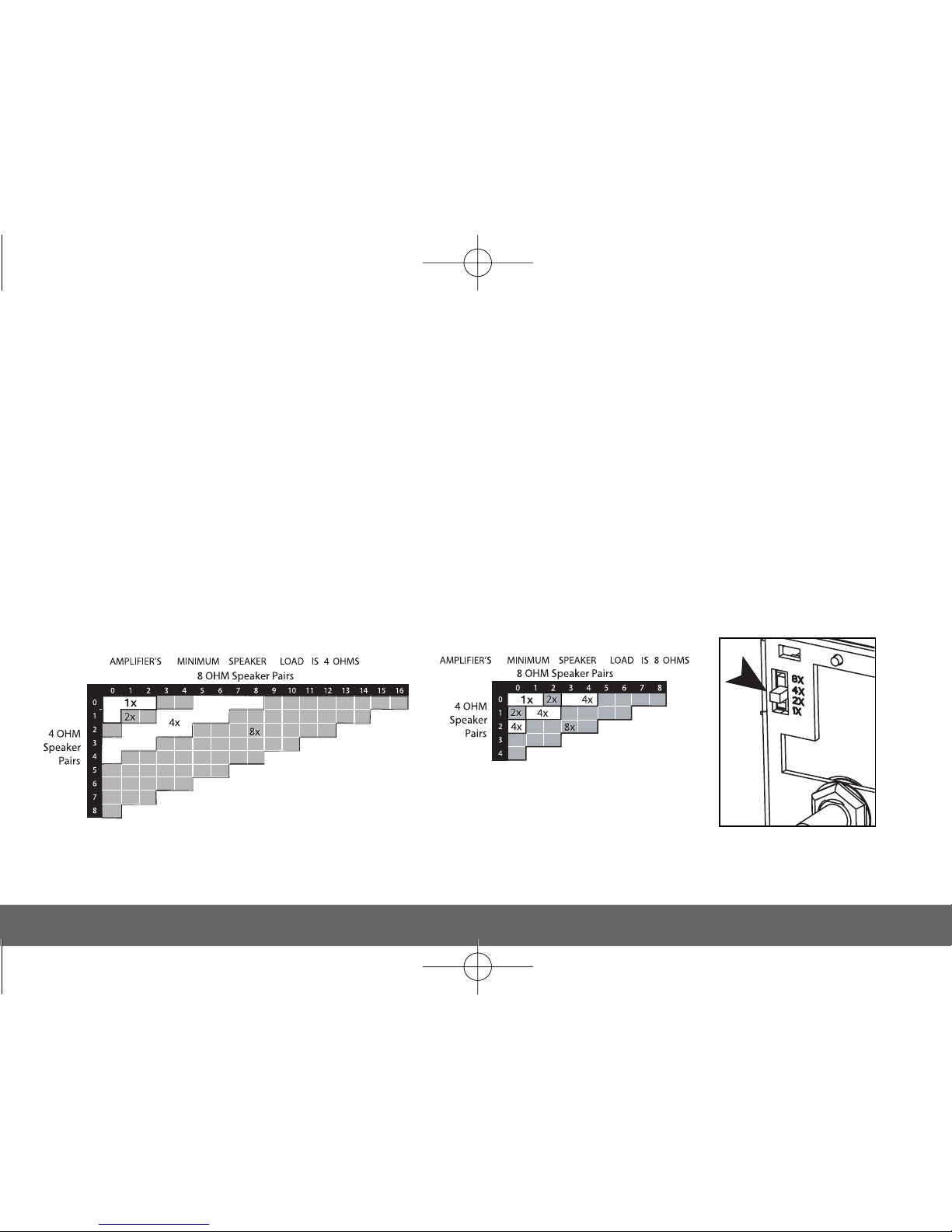

impedance charts. See figures 2, 3 and 4.
Figure 2 Figure 3 Figure 4
DS00397BCN_V12AWE.qxp 2/17/05 3:57 PM Page 3
