STATEMENT
Thank you for purchasing this product. In order to ensure the correct use of this product, please read
the user manual carefully before use, and keep this manual in a place where you can refer to it at any
time.
PRODUCT DESCRIPTION
With the increasing pressure of life and work, people's bodies will have various problems. Red light infrared is a new
type of light therapy equipment that can be used in gyms and homes. It is safe, efficient, reliable, painless, drug-free and
natural solution of body pain relief. It can transmit to different depths of human tissue, and directly make muscles,
subcutaneous tissue, etc. produce thermal effects.
USAGE

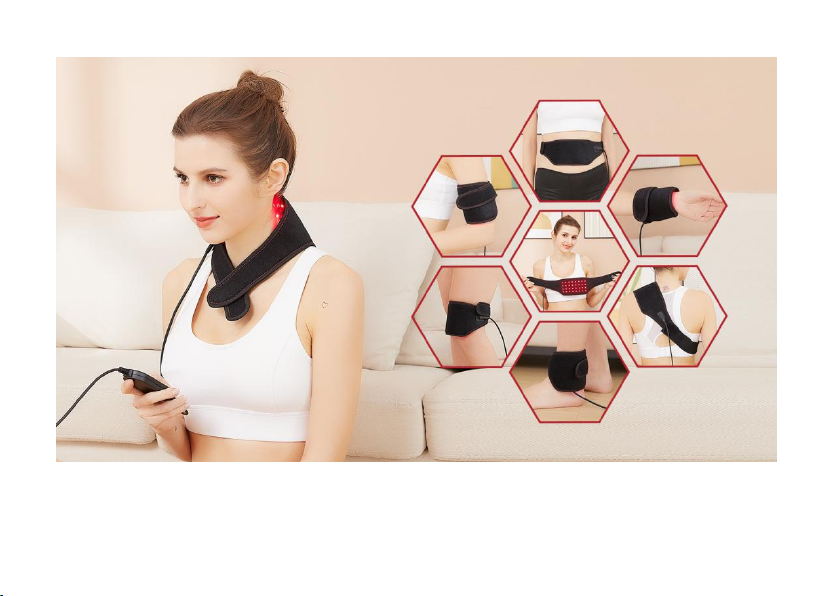

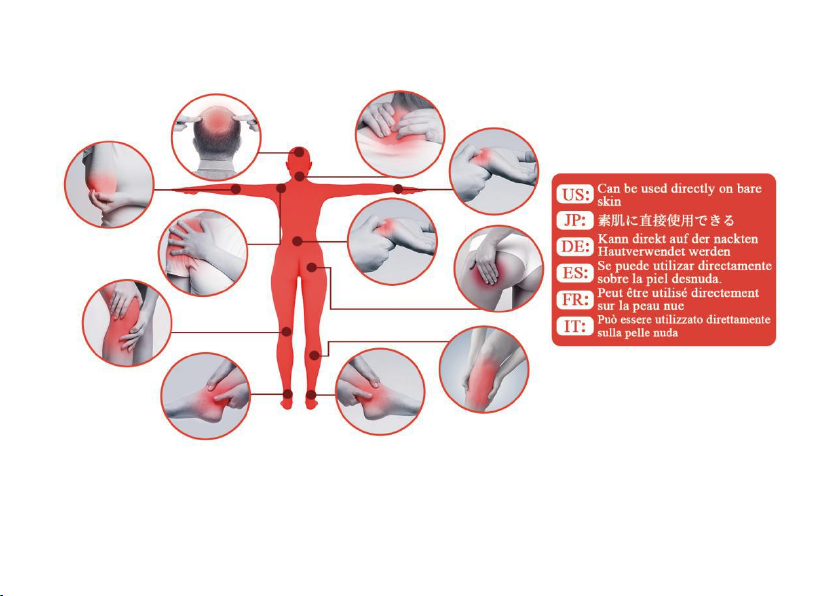

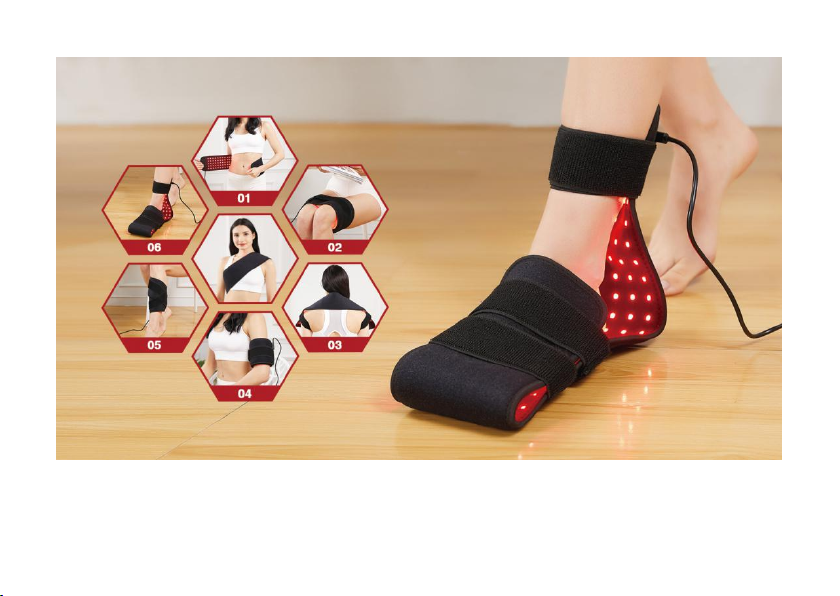

Suitable for head, neck, shoulders, chest, back, arms, abdomen, waist, hips, knees, feet, elbows and other body parts.
(Which parts of the body the product can be used on is determined by the characteristics of the product).
CONTRAINDICATIONS
1. Children under the age of 13 and pregnant women should not use the light therapy product; 2. Cancer patients; 3.
Tuberculosis patients; 4. Acute suppurative inflammation; 5. Hemorrhagic patients; 6. Heart disease and pacemaker
patients; 7. Arteriosclerosis patients; 8. Newborns and infants; 9. Patients who are allergic to light and are considered
inappropriate to use these product by doctors.
WARNING
1. Do not irradiate the eyes; 2.Do not let children play; 3.Do not touch water; 4. If the wires or plugs are damaged,
please do not used it; 5. Not waterproof, use in indoor only.
US

14
INTRODUCTION TO LIGHT SOURCES AND WAVELENGTHSTO
LIGHT SOURCES AND WAVELENGTHS
color
wavelength
Function (different wavelengths, different skin depths)
Blue light
460nm
It is an extremely effective light source for activating cellular activity, and energy is available to
many hair follicles and sebaceous glands. And can stimulate macrophages to release cytokines,
thereby affecting the formation of inflammation, and play a certain healing and repair,
anti-inflammatory, sedative, and have a certain effect on congestion and pain relief.
Orange light
605nm
Improve the oxygen exchange function of cells, can promote blood circulation, increase the
toughness of capillaries, improve the immune function of the skin, reduce skin sensitivity, and
can also decompose pigments and lighten pigmentation.
Red light
640nm
It has the characteristics of high purity, strong light source and uniform energy density. It plays
an important role in skin care and recovery and is known as bioactive light. Red light can
increase cell activity, promote cell metabolism, promote blood circulation, make the skin secrete
a large amount of collagen and fibrous tissue to fill itself, accelerate blood circulation, increase
skin elasticity, improve skin chlorosis and dullness, so as to achieve anti-aging, anti-aging
oxidation and repair.
660nm
Infrared
850nm
It is invisible to the naked eye and penetrates deep into human tissues, which can expand local
blood vessels, accelerate blood circulation, increase local arterial blood supply, help provide
more energy and nutritional support, promote the healing of lesions, and relieve muscle tension,
fatigue and strain.
880nm

15
JB-HW-M09
PRODUCT PARAMETERS
Model No
JB-HW-M09
Product
Name
Red & Infrared Light Neck Belt
Voltage
DC 12V
Power
19W
LED QTY
32PCS
Wavelength
Red LED 660nm*1; Infrared LED 850nm*2
Material
SBR
Size
600*110mm
Package
contents
Neck Strap*1; Control Switch*1; Elastic
Band*1; USB Boost Cable*1; Power Bank
Bag*1; User Manual*1.
Function
Infrared, red light, pulse, heating, timing
Usage
frequency
1-2 times a day, no more than 30 minutes per
body part, at least 4 weeks.

16

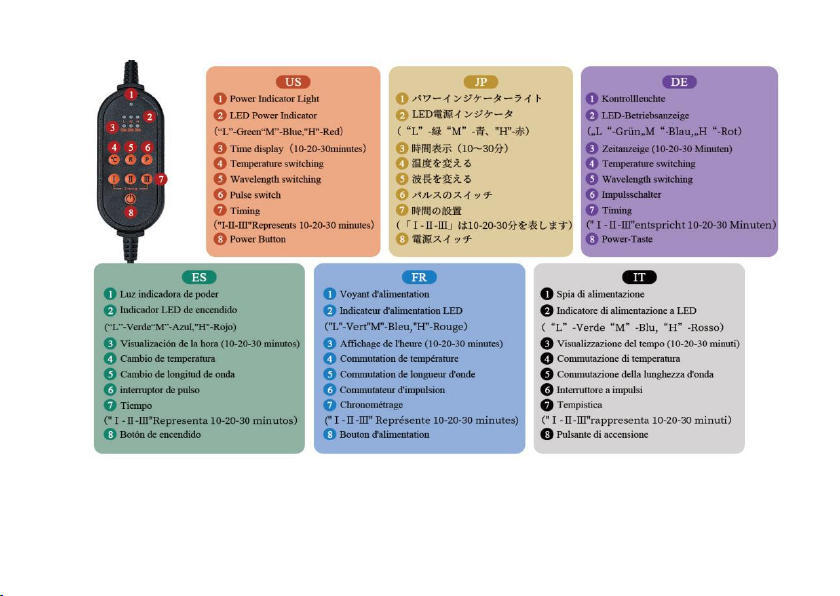

INSTRUCTIONS FOR USE

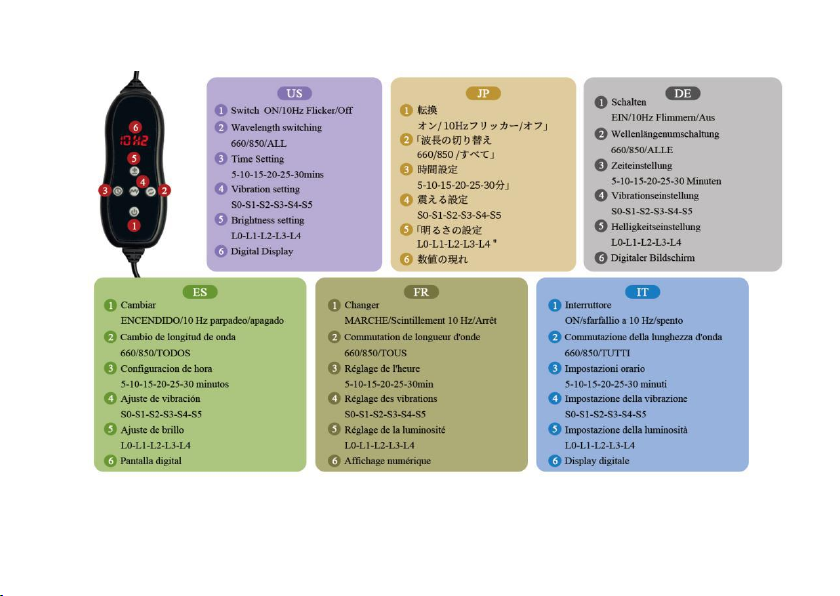

1. Press the power switch, the indicator light is on.
2. Wavelength selection: press the "R" key once, the LED power indicator will display green, and both red and
infrared light will be on; press the "R" key twice, only the near-infrared light will be on (not visible to the naked
eye, slightly glowing in dark light) ), the red light is off; press the "R" key 3 times, only the red light is on, and the
near-infrared light is off; press the "R" key 4 times, all the LED lights are off.
3. Temperature selection: the default temperature is 39°C±2, press the “°C” key once, the LED power indicator
will display blue, and the heating temperature of the product is 43°C±2; press the “°C” key twice, the LED power
indicator shows red, and the heating temperature of the product is 47℃±2;
4. Pulse selection: Press the "R" key to set the wavelength mode, and then press the "P" key to start the
corresponding wavelength pulse mode;
5. Timing selection: press the timing button, press "Ⅰ" for 10 minutes, the 10min indicator light is on, "Ⅱ" is set for
20 minutes, the 20min indicator light is on, press "Ⅲ" for 30 minutes, the 30min indicator light is on, the timer
defaults to start for 30 minutes. Timing setting includes red light, infrared, temperature, pulse all modes. And
product will auto shut off when the time is up.

17
JB-HW-M19
PRODUCT PARAMETERS
Model No
JB-HW-M19
Product
Name

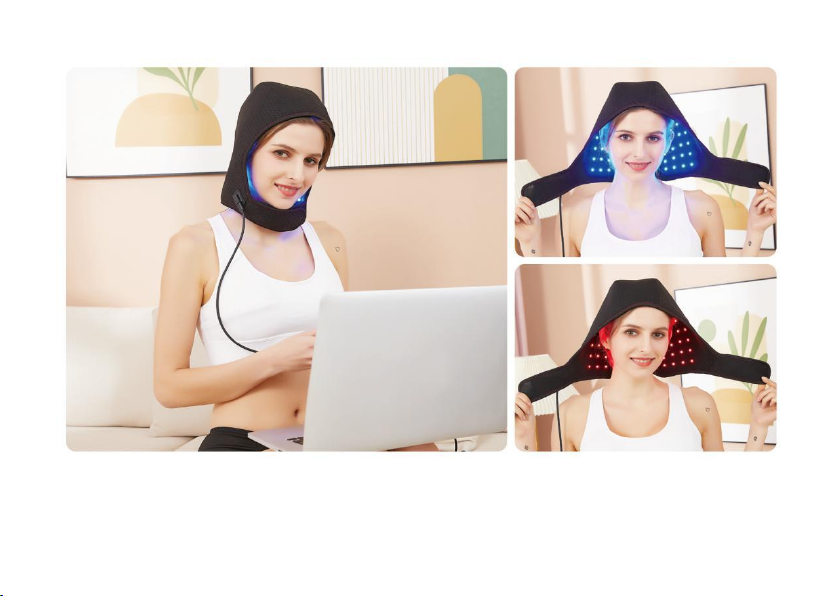

Red and infrared light hat
Voltage
AC 100-240V, DC 12V (can be connected to
power bank or AC power)
Power
25W
LED QTY
144PCS
Wavelength
Blue light 460nm*1; Red light 660nm*1;
Infrared light 850nm*1
Material
SBR
Size
300*245mm
Package
contents
Hat*1; AC Power Adapter*1; Control
Switch*1; USB Boost Cable*1; Power Bank
Bag*1; User Manual*1.
Function
Blue light, infrared light, red light, pulse,
heating, timing
Usage count
1-2 times a day, no more than 30 minutes per
body part, at least 12 weeks.

18
1. Press the power switch, the indicator light is on.
2. Wavelength selection: press the "R" key once, the LED power indicator will display green, and the blue light
will be all on; press the "R" key twice, the infrared and red lights will all light up; press the "R" key three times,
the blue light, red light/infrared light turns on alternately; press the "R" key 4 times, all the LED lights are off.
3. Temperature selection: the default temperature is 39°C±2, press the “°C” button once, the LED power indicator
will display blue, and the product heating temperature is 43°C±2; press the “°C” button twice, the LED power
indicator display red, the product heating temperature is 47℃±2;
4. Pulse selection: Press the "R" key to set the wavelength mode, and then press the "P" key to start the
corresponding wavelength pulse mode;
5. Timing selection: press the timing button, press "Ⅰ" for 10 minutes, the 10min indicator light is on, "Ⅱ" is set for
20 minutes, the 20min indicator light is on, press "Ⅲ" for 30 minutes, the 30min indicator light is on, the timer
defaults to start for 30 minutes. Timing setting includes blue light, red light, infrared light, temperature, pulse all
mode. And product will auto shut off when the time is up.
INSTRUCTIONS FOR USE
