JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
1
TABLE OF CONTENTS
INTRODUTION 2
TO THE PURCHASER 2
ILLUSTRATIONS 2
DIRECTION REFERENCE 2
SAFETY PRECAUTIONS 2
SAFTETY PRECAUTIONS 3
SAFETY FIRST 3
CHILDREN 4
CAB SAFETY 5
BEFORE OPERATION 5
CAB OPERATION 5
MAINTENANCE 7
PARTS 8
TORQUE SPECIFICATIONS 8
STANDARD PARTS LIST 9
STANDARD PARTS LIST 9
STANDARD BOLTS LIST 9
ELECTRICAL CONNECTORS LIST 9
OPTIONAL PARTS LIST 10
OPTIONAL PARTS LIST 10
OPTIONAL A/C PARTS LIST 10
OPTIONAL HEATER PARTS LIST 10
MOUNTING INSTRUCTIONS 11
MACHINE PREPARATION 11
CAB PREPARATION 15
INSTALLATION 16
ELECTRICAL INSTALLATION 17
COMPLETING CAB INSTALLATION 18
OPTIONAL HEATER INSTALLATION 21
OPTIONAL A/C INSTALLATION 23
ELECTRICAL SCHEMATICS 25
HEATER &A/C 25
FRONT WIPER &WASHER 26
REAR WIPER &WASHER 27
WORK LIGHT,FRONT 28
WORK LIGHT,REAR 29
12 VOLT OUTLET 30
BEACON 31
DEFROST FAN 32
DOME LIGHT 33
SINGLE RELAY 34

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
2
◄TABLE OF CONTENTS
INTRODUTION
TO THE PURCHASER
All products are designed to give safe, dependable service if they are operated and
maintained according to instructions. Read and understand this manual before
operation.
This manual has been prepared to assist the owner and operators in the safe operation
and suitable maintenance of the canopy. The information is applicable to products at the
time of manufacture and does not include modifications made afterwards.
Read and understand this manual before attempting to put equipment into service.
Familiarize yourself with the operating instructions and all the safety recommendations
contained in this manual and those labeled on the equipment and on the tractor. Follow
the safety recommendations and make sure that those with whom you work follow them.
ILLUSTRATIONS
The illustrations may not necessarily reproduce the full detail and the exact shape of the
parts or depict the actual models, but are intended for reference only.
DIRECTION REFERENCE
All references to right and left, forward or rearward, are from the operator’s seat,
facing the steering wheel.
SAFETY PRECAUTIONS
All products are designed to give safe, dependable service if they are operated and
maintained according to instructions. Read and understand this manual before
operation. It is the owner’s responsibility to be certain anyone operating this product
reads this manual, and all other applicable manuals, to become familiar with this canopy
and all safety precautions. Failure to do so could result in serious personal injury or
canopy damage. If you have any questions, consult your dealer.
To assist your John Deere distributor/dealer in handling your needs, please record
hereafter the model number and serial number of your canopy and tractor. It is also
advisable to supply them to your insurance company. It will be helpful in the event that
the canopy or tractor is lost or stolen.
MODEL:_______________________________________________________________
SERIAL NUMBER:_______________________________________________________
DATE OF PURCHASE:___________________________________________________
DEALER NAME:_________________________________________________________

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
3
◄TABLE OF CONTENTS
SAFTETY PRECAUTIONS
SAFETY FIRST
This symbol, the industry’s “Safety Alert Symbol”, is used throughout
this manual and on labels on the machine itself to warn of the
possibility of personal injury. Read these instructions carefully. It is
essential that you read the instructions and safety regulations before
you attempt to assemble or use this cab.
DANGER: Indicates an immediate hazardous situation which, if not avoided,
could result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided,
may result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
IMPORTANT: Indicates that the cab or property damage could result if
instructions are not followed.
NOTE: Gives helpful information.
All products are designed to give safe, dependable service if they are operated and
maintained according to instructions. Read and understand this manual before
installation or operation. It is the owner’s responsibility to be certain anyone operating
this product reads this manual, and all other applicable manuals, to become familiar with
this cab and all safety precautions. Failure to do so could result in serious personal injury
or cab damage. If you have any questions, consult your dealer.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
4
◄TABLE OF CONTENTS
SAFTETY PRECAUTIONS
Read and understand this manual before operation.
NOTE A safe operator is the best assurance against accidents. All operators, no matter
how experienced they may be, should read this operator’s manual and all other related
manuals before attempting to operate the cab. Please read the following section and pay
particular attention to all safety recommendations contained in this manual and those
labeled on the cab and on the tractor.
CHILDREN
Tragic accidents can occur if the operator is not alert to the presence of children.
Children are generally attracted to machines and the work being done. Never assume
children will remain where you last saw them.
1. Keep children out of the operating area and under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children enter the work area.
3. Before and when backing up, look behind for small children.
4. Never carry children while operating the machine. They may fall off and be
seriously injured or interfere with the safe operation of the machine.
5. Never allow children to play on the machine or cab even though they are turned
off.
6. Never allow children to operate the machine even under adult supervision.
7. Use extra care when approaching blind corners, shrubs, trees, or other
obstructions that might hide children from sight.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
5
◄TABLE OF CONTENTS
CAB SAFETY
BEFORE OPERATION
Read and understand both the tractor and this operator’s manual before operating the
equipment. Know how to operate all controls and how to stop the unit and
disengage controls quickly. Lack of knowledge could lead to accidents.
1. Never wear loose, torn, or bulky clothing around the tractor and cab. They can
catch on moving parts or controls, causing injury.
2. Before and during seasons, thoroughly inspect the area where the cab is to be
used and remove all objects that may be blown or cause damage to the cab.
3. Do not operate cab in wintertime without wearing adequate winter garments.
Always wear protective clothing.
4. Never attempt to make any adjustments while engine is running, Read this
manual carefully to acquaint yourself with the cab as well as the tractor
operator’s manual. Working with an unfamiliar cab can lead to accidents. Be
thoroughly familiar with the controls and proper use of the cab.
5. Keep all safety guards in place and verify hardware for proper tightening.
6. Check for moving parts excessive wear regularly. Replace worn parts with
genuine parts.
7. Replace all missing, illegible, or damaged safety and warning decals. See list of
decals in operator’s manual.
8. Do not modify or alter this cab or any of its components or any cab function
without first consulting your dealer.
9. Keep safety decals clean of dirt and grime.
10. Make sure tractor is counterweighted as recommended by your dealer. Weights
provide the necessary balance to improve stability, traction and steering.
CAB OPERATION
1. Before leaving the tractor unattended, take all possible precautions. Park the
tractor/cab on level ground, place the transmission in neutral, set the parking
brake, disengage the PTO, lower all attachments to the ground, place all levers
including the auxiliary control levers in neutral, shut off the engine and remove
the ignition key.
2. Before starting the tractor/cab, inspect and clean all moving parts.
3. Be sure the PTO switch/lever is in OFF position before starting engine.
4. Exercise extreme caution when operating on or crossing a gravel drive, walks, or
roads. Stay alert for hidden hazards or traffic.
5. Do not carry passengers.
6. Keep clear of all rotating parts. Do not put hands or feet under or into tractor
attachments with engine running.
7. Park the tractor/cab on level ground, place the transmission in neutral, set the
parking brake, disengage the PTO, lower tractor attachments to the ground,
place all control levers in neutral, shut off the engine, remove the ignition key and
allow any moving parts to stop BEFORE making any repairs, adjustments, or
inspections.
8. Do not run engine indoors except when starting engine and transporting
attachment in or out of building. Carbon monoxide gas is colorless, odorless,
and deadly.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
6
◄TABLE OF CONTENTS
CAB SAFETY
9. Never operate cab without guards, and other safety protective devices in
place. All tractor and cab covers must be correctly installed at all times.
When necessary to remove these, they must be re-installed immediately.
10. Never operate cab/tractor at high transport speeds on a slippery surface.
11. Use extra caution when backing up.
12. Disengage power to cab when transporting or when not in use.
13. Never operate cab/tractor without good visibility and lighting.
14. Prolonged exposure to loud noise can cause hearing impairment or loss of
hearing. Wear a suitable hearing protective device such as earmuffs or earplugs
to protect against objectionable or uncomfortable noises
15. Never allow anyone near the work area.
16. Never allow anyone to operator the cab until they have read the manual
completely and are familiar with basic tractor and cab operation.
17. Make sure the tractor is counterweighted as recommended by your dealer.
Weights provide the necessary balance to improve stability, traction, and
steering.
18. Always make sure all cab components are properly installed and securely
fastened BEFORE operation.
19. Make sure nobody is in the working area of the tractor/cab as serious personal
injury could occur.
20. Do not allow passengers on the tractor/cab at any time. There is no safe place
for passengers in the cab. The operator MUST sit in the tractor seat.
21. Eye and hearing protection is recommended when operating the cab.
22. Inspect the cab after striking and foreign object to assure that all cab parts are
safe and secure and not damaged.
23. Be especially observant of operating area and terrain. Watch for holes, rocks, or
other hidden hazards. ALWAYS inspect area prior to operating cab/tractor.
24. DO NOT operate cab near the edge of drop-offs or banks.
25. DO NOT operate cab on steep slopes as overturn may result.
26. Operate up and down (not across) intermediate slopes. Avoid sudden starts and
stops.
27. Slow down before you change directions on any slope.
28. Never stand alongside the tractor/cab while the engine is running.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
7
◄TABLE OF CONTENTS
MAINTENANCE
ALWAYS USE GENUINE PARTS WHEN REPLACEMENT PARTS ARE REQUIRED.
1. Keep the tractor and cab properly maintained.
2. Park the tractor/cab on level ground, place the transmission in neutral, set the
parking brake, disengage the PTO, lower all tractor attachments to the ground,
place all control levers in neutral, shut off the engine and remove the ignition key
and allow all moving parts to stop BEFORE making any tractor/cab adjustments.
3. To avoid injury, do not adjust, unblock the driving system, or service the cab with
the tractor engine running. Make all moving parts have completely stopped
before leaving the operator’s seat.
4. Keep the tractor/cab clean. Snow, dirt, or ice build-up can lead to malfunction or
personal injury from thawing and refreezing in the garage.
5. Always were eye protection when cleaning or servicing the cab.
6. DO NOT service the tractor while the engine is running or hot, or if the unit is in
motion. Always lower tractor attachments to the ground. If necessary to service
attachments in raised position, securely support with stands or suitable blocking
before working underneath. Do not rely on hydraulically supported devices for
your safety. They can settle suddenly, leak down, or be accidentally lowered.
7. Do not attempt to service machine, clear obstructions, or unclog drive system
with the engine running. Always shut off engine and allow all motion to cease.
8. The manufacturer will not claim responsibility for fitment of unapproved parts
and/or accessories and any damages as a result of their use.
9. The manufacturer will not claim responsibility for fitment of unapproved parts
and/or accessories and any damages as a result of their use.
10. Do not modify or alter cab or any of its components or operating functions. If you
have any questions concerning modifications, consult with your dealer.
11. Do not operate a cab that is defective or has missing parts. Make sure all
recommended maintenance procedures are completed before operating cab.
12. Check all controls regularly and adjust where necessary. Make sure that the
brakes are evenly adjusted.
13. Periodically check all nuts and bolts for tightness, especially wheel hub and rim
nuts.
14. To avoid serious personal injury: Escaping hydraulic/diesel fluid under pressure
can penetrate the skin causing serious injury. Do not use your hands to check for
leaks. Use a piece of cardboard or paper to search for leaks.
15. Stop engine and relieve pressure before connecting or disconnecting hydraulic
hoses. Tighten all connections before starting engine or pressurizing hoses.
16. Ensure cab hinges are properly lubricated. If hinges are closing hard, or partially
seized, lubrication is required. Remove door/escape window/side vent windows
to grease each part of the hinge separetely. This should occur semi-annually.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
8
◄TABLE OF CONTENTS
PARTS
The following section consists of component breakdowns of the standard and optional
parts contain in the Jodale Perry BOXER MC Mower cab. For your convenience, part
numbers have been assigned to those items, which may be ordered from Jodale Perry.
If a required item does not have a part number associated with it, the part, with an
associated part number, which contains that item must be ordered.
NOTE: Each figure is only a general depiction of a cab and its components, and may not
appear exactly the same as the cab you have received.
Figure key:
A/R -as required
LF -linear foot
SF -square foot
TU -tube
U -unit
All parts are illustrated in ‘exploded views’ which show the individual parts in their normal
relationship to each other. Reference numbers are used in the illustrations. These
numbers correspond to those in the ‘Item #’ column, and are followed by the description
and quantity required. Orders must give the complete description, correct part number,
the total amount required, cab serial number, method of shipment and the shipping
address.
The manufacturer reserves the right to change, modify, or eliminate from time to time, for
technical or other reasons, certain or all data, specifications, or the product or products
themselves, without any liability or obligation
TORQUE SPECIFICATIONS
Size SAE Grade 8 Gold Plated Hardware and Locknuts
*1/4” *157 (18)
*5/16” *324 (37)
3/8” 48 (65)
7/16” 77 (104)
1/2” 117 (159)
9/16” 169 (2290
5/8” 233 (316)
3/4” 413 (560)
7/8” 667 (904)
Size Grade 8 Metric Hardware and Locknuts
M10 58 (79)
M12 102 (138)
M16 254 (344)
Note: Torque values shown with * are inch-pounds

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
9
◄TABLE OF CONTENTS
STANDARD PARTS LIST
STANDARD PARTS LIST
Qty Description
Part No. Stock No.
L&R Rear Mounting Brackets
1 Front Mounting Brackets
1 Rear Panel
1 Platform Floor-mat
L&R Under-seat Floor-mat
1 Standard Acoustic Foam
1 Step Pad
1 Hydraulic Pedal Bracket
15’ 180˚O-Rubber
4 Structural Washer
1 50 Amp Circuit Breaker (#30055-50 w/jumper wire)
1 Seat Belt Assembly
30” NDAX, ¾” x ¾”
32” NDAX, 1” x 1”
36” NDAX, ½” x ¾”
STANDARD BOLTS LIST
Qty Description
Part No. Stock No.
2 Bolt, Hex, 5/8” x 2”, Grade 8, Yellow Dichrome
4 Bolt, Hex, 5/8” x 4”, Grade 8, Yellow Dichrome
1 Bolt, Hex, 1/2” x 1 1/2, Grade 8, Yellow Dichrome
1 Bolt, Hex, 1/2” x 2”, Grade 8, Yellow Dichrome
2 Bolt, Hex, 3/8” x 1 1/2”, Grade 8, Yellow Dichrome
2 Bolt, Flange, 1/4” x 3/4”
2 Bolt, 10-24 x 1”
6 Nut, Locking, 5/8”, Yellow Dichrome
2 Nut, 10-24
4 Isolator, Rubber, 3/4”, Black
4 Washer, 3/4” ID, Rubber
2 Washer, Flat, 5/16”
2 Washer, Locking, 1/2”
ELECTRICAL CONNECTORS LIST
Qty Description
Part No. Stock No.
1 Connectors, Loop, 10 Ga. 1/4”
1 Connectors, Loop, 10 Ga. 3/8”
1 Bullet, 16-14 Ga, Blue
1 Splicer, Wire, Blue

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
10
◄TABLE OF CONTENTS
OPTIONAL PARTS LIST
OPTIONAL PARTS LIST
Qty Description
Part No. Stock No.
1 Cab Lifting Bar

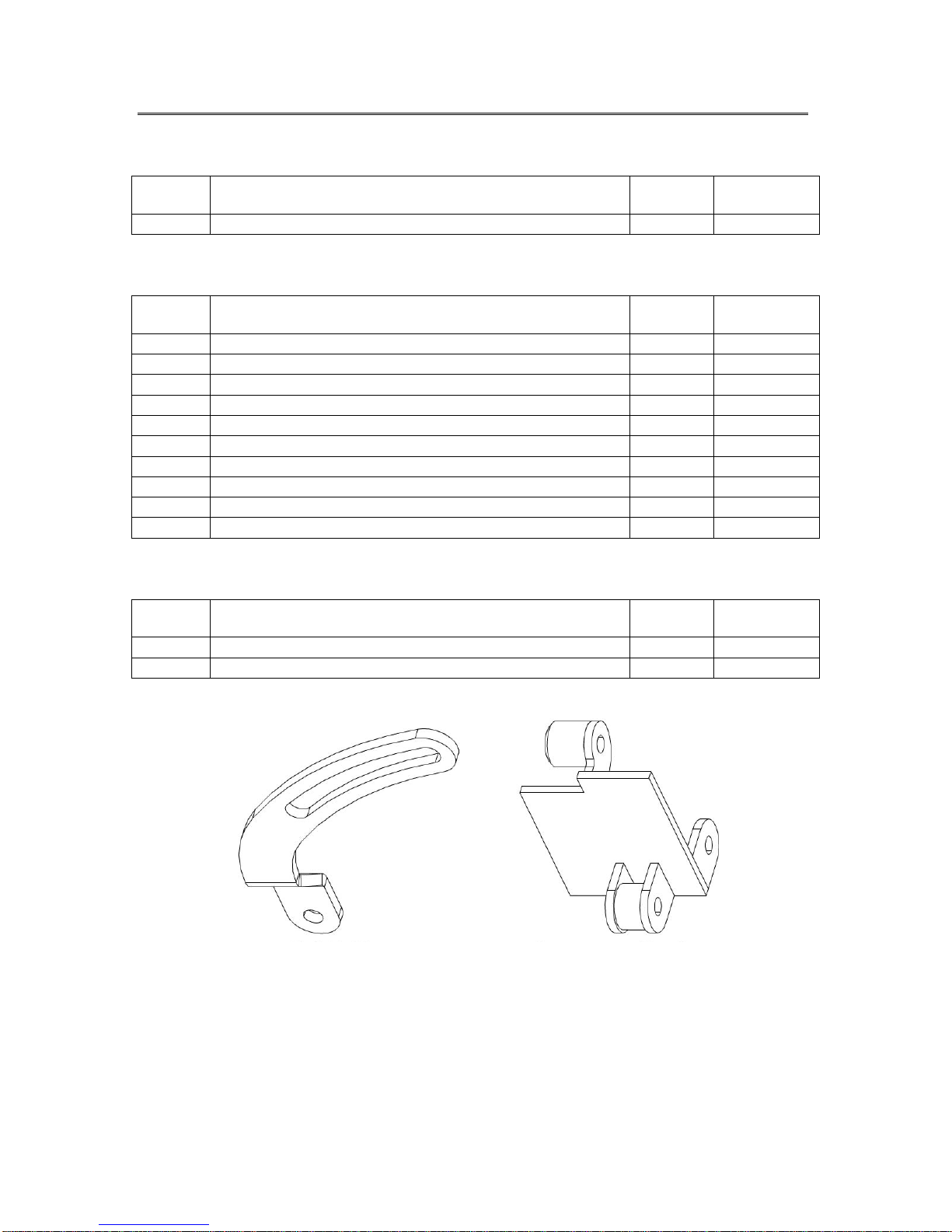

OPTIONAL A/C PARTS LIST
Qty Description
Part No. Stock No.
1 Compressor Bracket
1 Belt Tensioning Bracket
1 Bolt, Carriage, M10 x 100 x 1.5mm, YD
1 Bolt, Flange, M10 x 90 x 1.5mm, YD
2 Nut, Flange, M10 x 1.5mm, YD
2 Bolt, Flange, 3/8” x 1 1/2”, YD
2 Nut, Flange, 3/8”, YD
1 V-Belt, 31/64” x 52 3/8”
1 V-Belt, 1/2” x 24 1/2”
1 Compressor, Rear Port
OPTIONAL HEATER PARTS LIST
Qty Description
Part No. Stock No.
2 Fitting, Barb, 135˚, 3/8” NPT x 5/8”
2 HS-10 Hose Clamps
Compressor Bracket
JAHR9016ASM0023
Belt Tensioning Bracket
JAHR9016DRW0136

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
11
◄TABLE OF CONTENTS
MOUNTING INSTRUCTIONS
Park the tractor in a well ventilated location on a flat and level surface. Fully
lower the cutting units to the ground, engage the parking brake, turn the ignition
switch to the off position, and remove the key.
Wait for all movement to stop before making any adjustments or modifications.
Take this opportunity to thoroughly inspect the equipment and perform other
required maintenance. Drain all but one gallon of fuel from the fuel tank.
Warning -Handle fuel with care – it is highly flammable. Use an approved container, the
spout must fit inside the fuel filler neck. Avoid using cans and funnels to transfer fuel.
Disconnect ground from battery.
MACHINE PREPARATION
Note -Retain all fasteners and parts for reassembly.

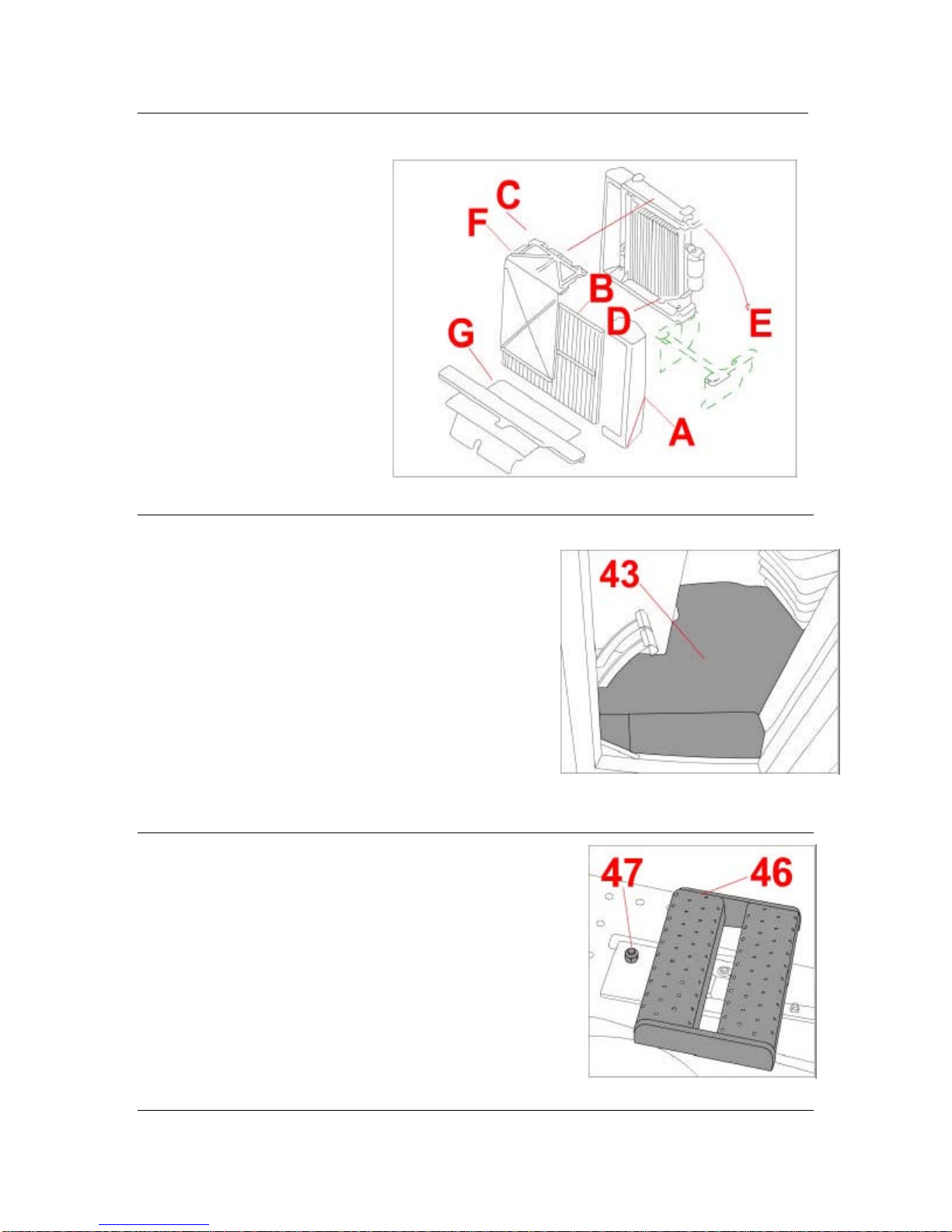

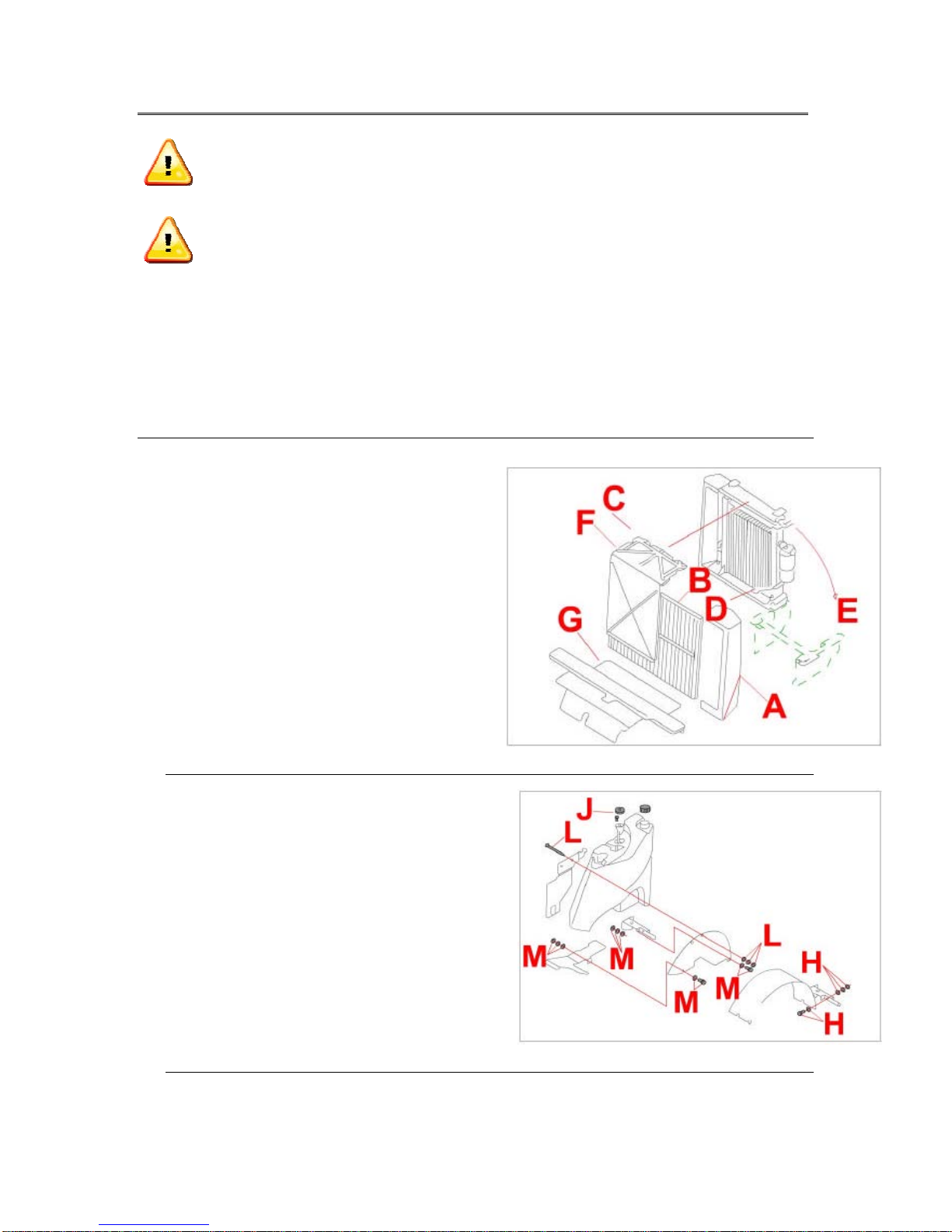

1. Move oil cooler to service position.
Remove end cap (A) from left side of
cooler. Slide screen (B) out from front of
oil cooler. Unfasten knobs (C) located on
top of oil cooler, and remove plastic
shield (F) from front of oil cooler.
Release prop rod (D) at bottom of cooler
and position hydraulic line to the front of
it, so hose can move freely. Swing
cooler up and away from radiator as
shown (E). Insert prop rod into hole in
frame to hold oil cooler in its service
position. Remove floor shield (G) from
tractor.
2. Loosen fuel tank. Remove four 5/16”
screws and corresponding hardware (H),
holding left front fender to frame. Remove
fender. Remove two 1/2” carriage bolts
and corresponding hardware (L) securing
fuel tank to frame. Remove two remaining
5/16” screws (M) holding fender wall to
frame and remove fender wall. Lift the
tank as needed to provide clearance for
rear mounting bracket, but must remain
securely supported by frame.
Note –Be careful not to damage fittings or
hoses.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
12
◄TABLE OF CONTENTS
MOUNTING INSTRUCTIONS

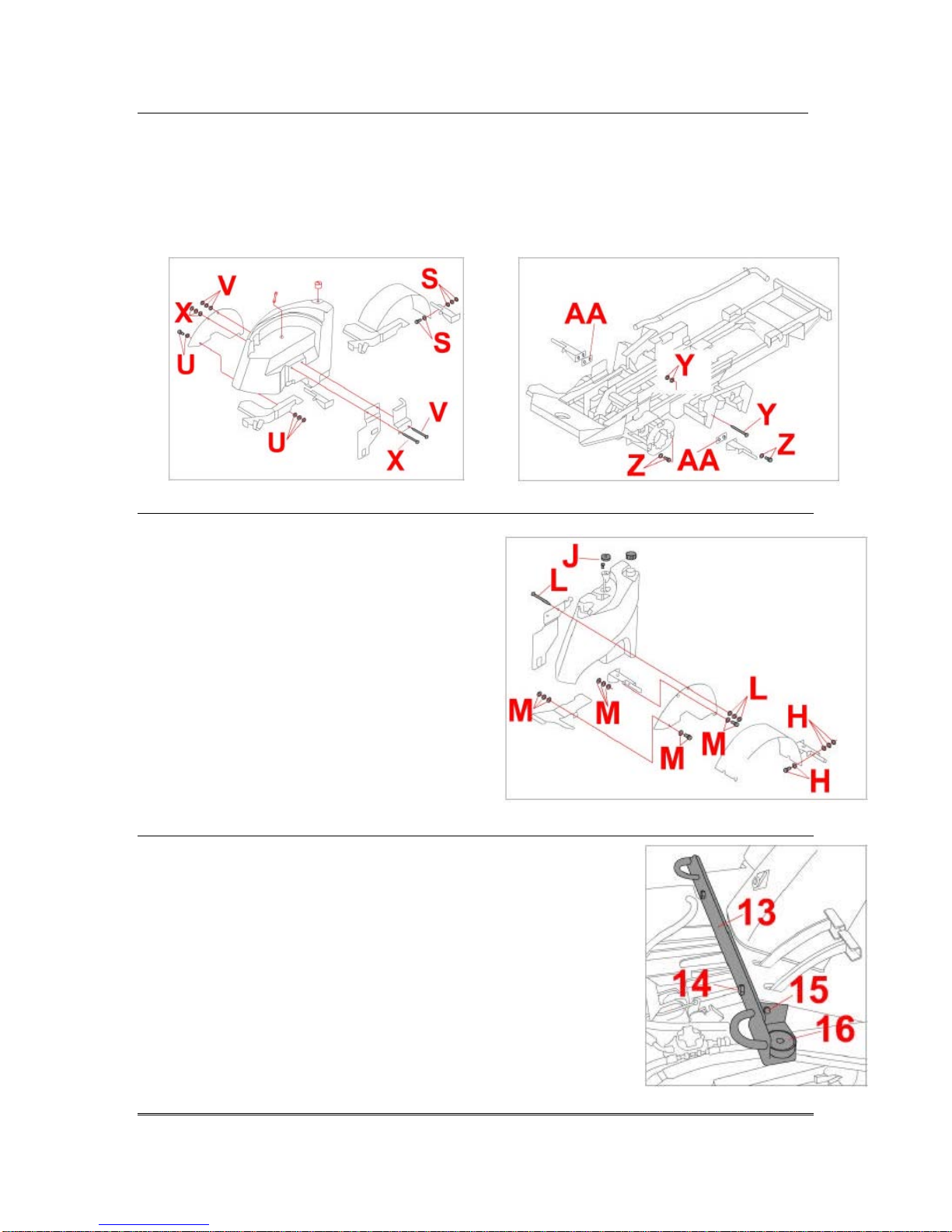

3. Loosen hydraulic tank. Remove four 5/16” screws and corresponding hardware
(S) securing right fender to frame. Remove fender. Loosen front 5/16” hardware,
and remove rear 5/16” hardware (U)
holding fender wall to frame. Loosen front
1/2” carriage bolt (X), and remove rear
1/2” carriage bolt (V) securing hydraulic
tank to frame.
Caution – Hydraulic tank is full of oil. Do
not remove all mounting hardware. Tank
must remain supported by frame. Carefully
slide rear of hydraulic tank away form center of
tractor. Tank should slide a few inches to provide
clearance for rear mounting bracket, but must
remain securely supported by frame.
4. Install left rear mounting bracket. Remove four 3/4” bolts (Y), and
corresponding hardware (two on each side) securing frame to frame. Remove
four 3/4” bolts (Z) and corresponding hardware (two on each side) securing rear
tank mounts to cross frame. If the tractor does not have a two-post ROPS
installed, then remove and discard spacer plates (AA). If the tractor does have a
two-post ROPS installed, then remove it using a hoist.
Caution – the two -post ROPS
weights approximately 170Lbs. We
recommend that you use a hoist when
lifting it off of tractor. Be careful not to
damage other tractor parts. Position the left
rear mounting bracket so that it rests on top
the frame (ie. The isolator cup is directly over
the tractor frame.), and install the top 3/4”
hardware (Y). Torque nuts to 200-240 ft-lbs.
Insert a rubber isolator in the mounting
bracket isolator cups. Repeat for
m
of
right rear
ounting bracket.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
13
◄TABLE OF CONTENTSBLE OF CONTENTS
MOUNTING INSTRUCTIONSMOUNTING INSTRUCTIONS
5. Install left NDAX. Take the 1” X 1” NDAX (1) remove
the backing and place it on the seat mount. Start at
the back and work your way forward until you reach
the left tank mount (2). See Figure 5. Take the 3/4” X
3/4” NDAX, remove backing and place it along the
seat mount, starting where the 1” X 1” NDAX ended,
and working your way up to the platform mount (4).
Repeat for right side.

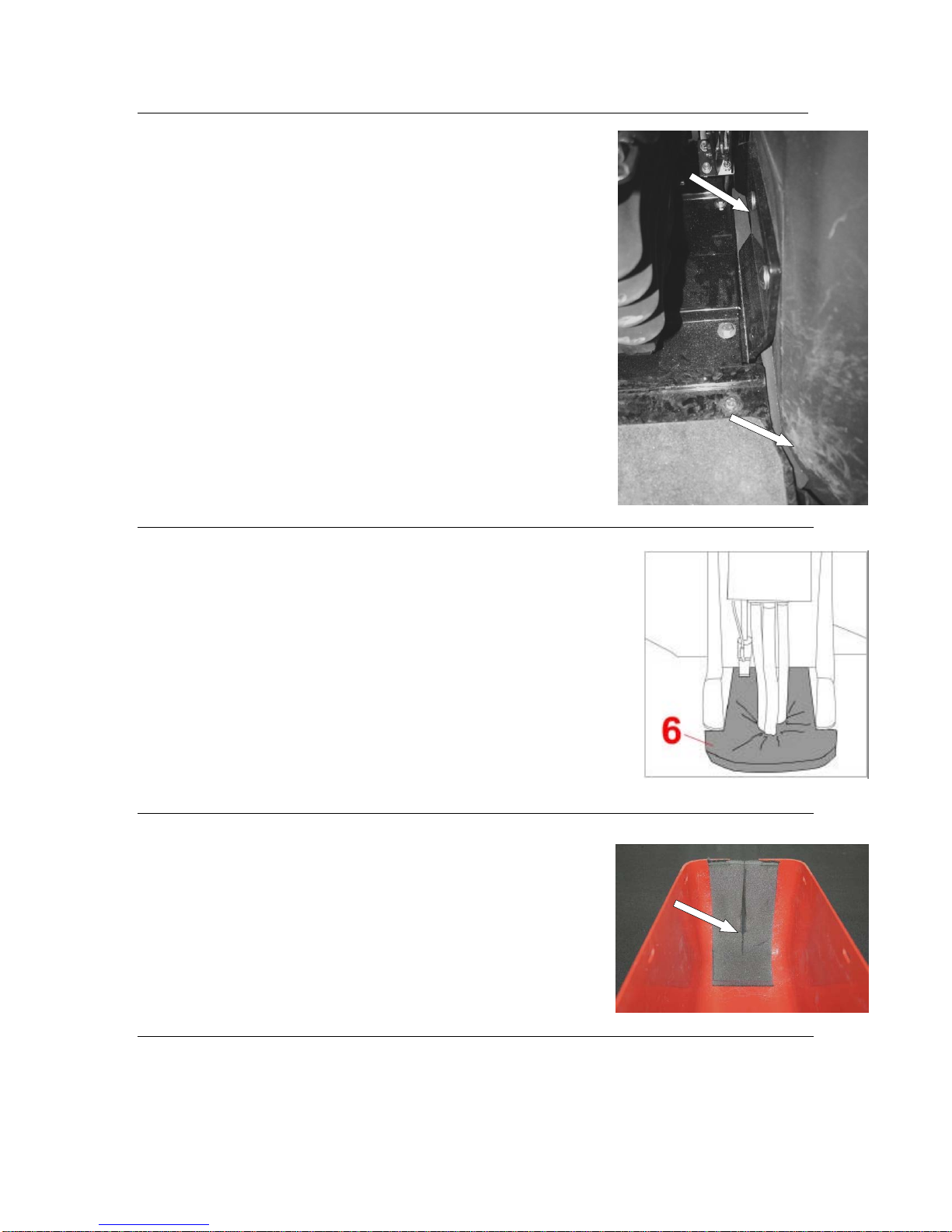

6. Install standard acoustic foam. Remove the front casing
of the steering tower. Move the foam into position inside
the tower (6). Once the foam is in place, peel off the
backing and secure it into place with the adhesive side.
7. Install upholstery on steering column. Take the
steering column upholstery glue into place.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
14
◄TABLE OF CONTENTS
MOUNTING INSTRUCTIONS
8. Install hydraulic tank. Slide hydraulic tank back into position. Tighten front 1/2”
carriage bolt and hardware (X). Install and tighten rear 1/2” hardware (V). Lift rear
tank mount into position and secure to right rear mounting bracket and
crossframe with 3/4” hardware (Z). Torque nuts to 200-240 ft-lbs. Install rear and
tighten front 5/16” fender wall hardware (U). Reinstall fender with four 5/16”
crews and hardware (S). Install clamps securing 2” pump suction line.
9. Install fuel tank. Move fuel tank back
into position. Install two 1/2” carriage
bolts and hardware (L) from frame to
fuel tank and fender wall. Lift rear tank
mount into position and secure to left
rear mounting bracket and crossframe
with 3/4” hardware. Torque nuts to 200-
240 ft-lbs. Install 5/16” hardware (M)
securing fender wall to tank mount.
Reconnect wires to fuel sender (J) and
fuel lines to tank. Install fender with four
5/16” screws and hardware (H).
10. Install front mounting bracket. Bolt the front mounting
bracket (13) over the front lip of the foot platform using the
3/4” bolts (14) and corresponding hardware. Find the two
1/2” nuts welded onto the left and right sides of the bracket.
Mark the hole locations on the side lips of the foot platform
and remove the front bracket. Drill two 9/16” holes through
the lip of the foot platform at the marked locations. Loosely
bolt the front bracket to the machine using 1/2” X 1 1/2”
bolts (15) and lock washers on the right hand side under
the platform. Use 1/2” X 2” bolts and lockwashers on left
hand side under platform. Insert a rubber isolator (16) in
the mounting bracket isolator cups.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
15
◄TABLE OF CONTENTS
MOUNTING INSTRUCTIONS
CAB PREPARATION
Important – The side panels and roof are not structural – DO NOT handle the cab in
any way using the side panels or roof.
Note -Retain all fasteners and parts for reassembly.

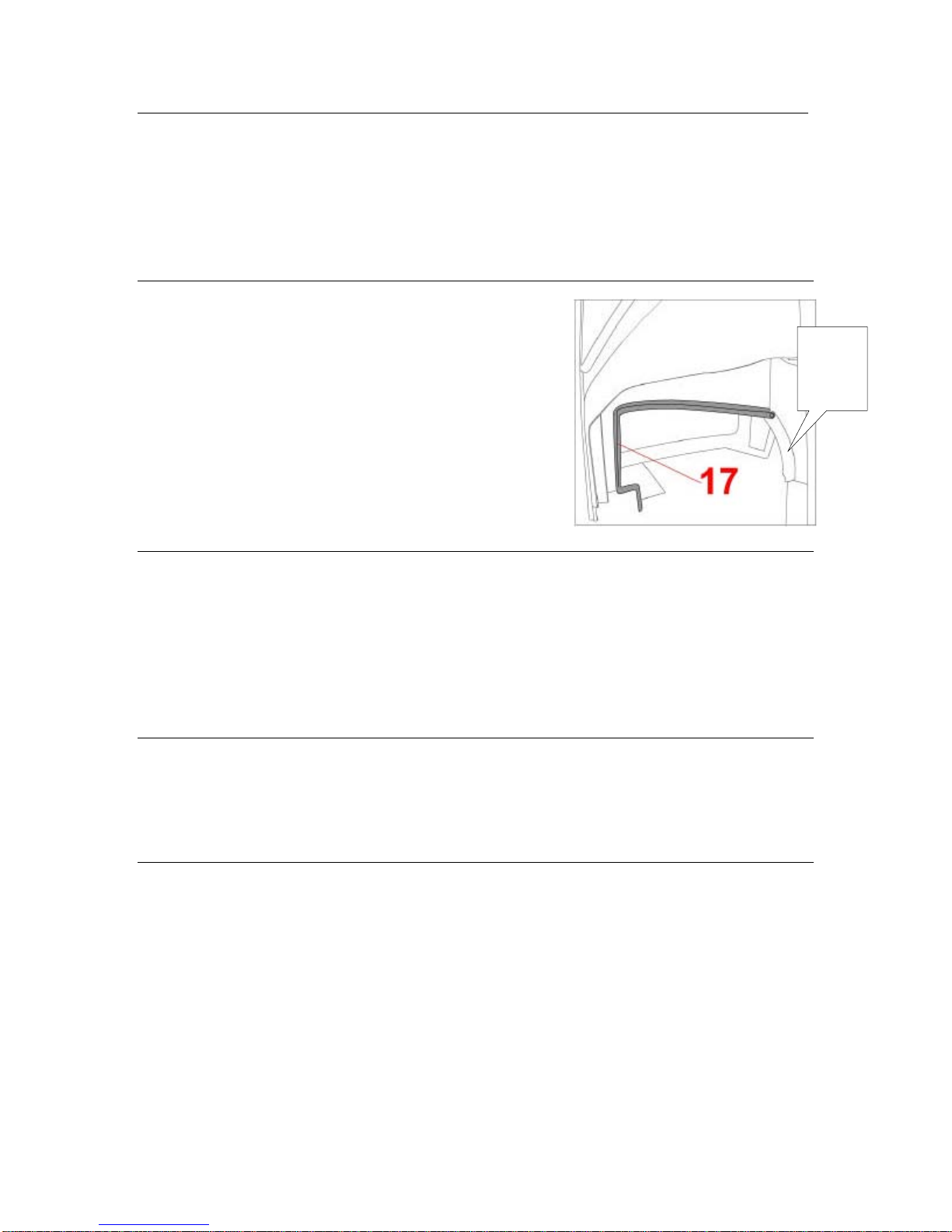

1. Install cab weather stripping. For the left side
panel, install 180° bulb seal (17). Start at the left
front lower corner of the inner steel side panel.
Work your way back until you reach the 1 x 1
NDAX foam rubber seal at the rear corner of the
steel panel. Repeat for the right side.
1 x 1
NDAX
Foam
2. Remove the door and side windows. Release the gas shock from the cab
frame by removing the wire snap ring and pulling the front end of the gas shock
down. Open the door and lift it straight up off the hinge pin. Be careful not to lose
the brass washers. Remove the front right side window by opening window latch
to half-open position, and pulling the latch down so that the stud passes through
the slot in top surface of the latch. Open the window and lift it straight up off of
the pin hinge. Be careful not to lose the brass washers.
3. Without optional cab lift bracket only. If you do not have the optional cab
lifting bracket, it will be necessary to remove the side windows as well. Open the
side window and remove Rue Ring Cotter from clevis pin. Slide slider off of clevis
pin. Lift off side window. Be careful not to lose the brass washers.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
16
◄TABLE OF CONTENTS
MOUNTING INSTRUCTIONS

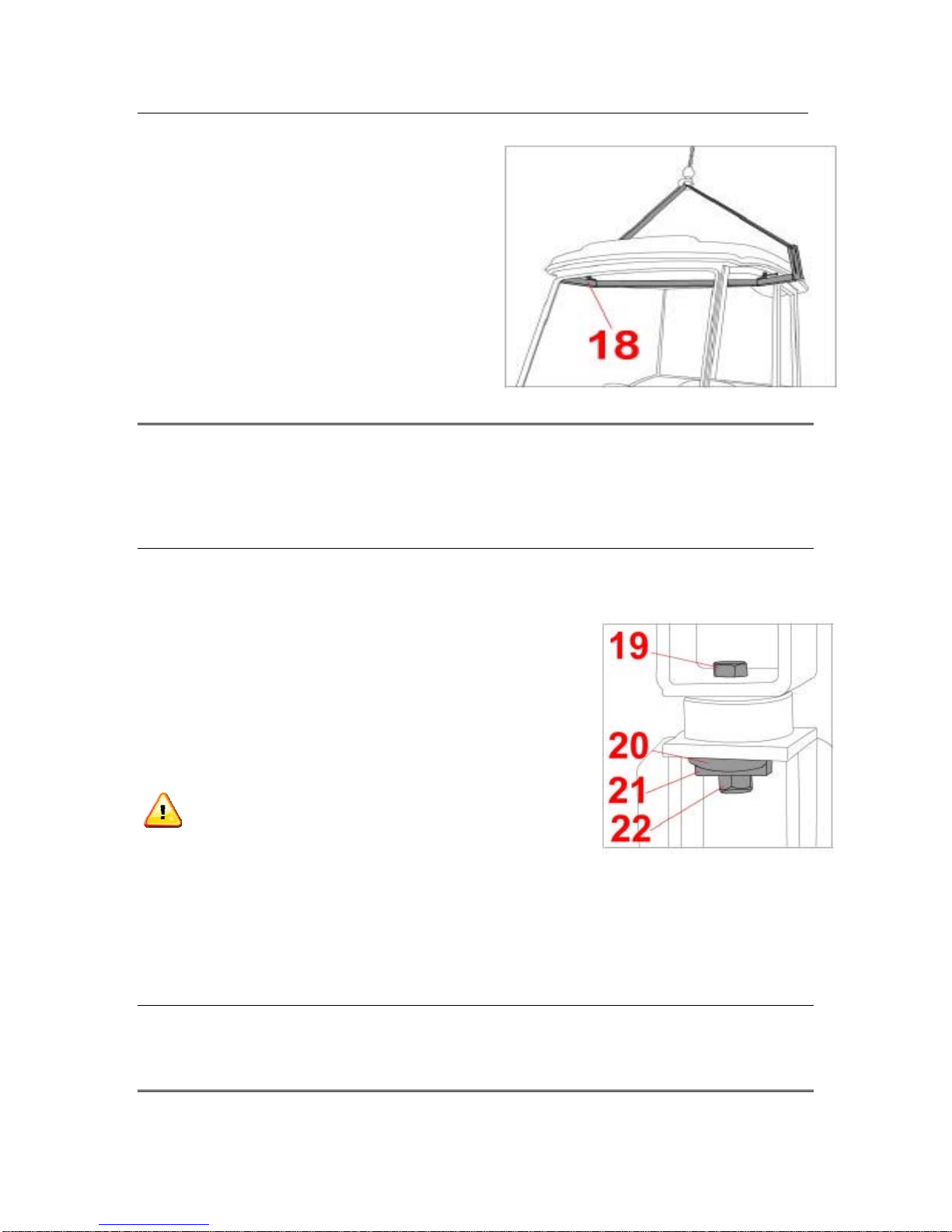

4. With optional cab lift bracket only.
Install the cab lifting bar. Pass the cab
lifting bar through the door opening and
the escape window opening (18).
Position the lifting bar against the front
surfaces of both hinge posts and slide it
upward so that the rubber padded
brackets hook around the inside of each
hinge post. Attach lifting bar to hoist,
ensuring that lifting bar, chains or cables
will not damage the cab roof. Remove
bolts securing cab to pallet. Lift cab with
hoist.
INSTALLATION
1. Attach a lifting strap to the brackets and raise the cab frame slowly over the
tractor.
2. Lowering the cab. Begin lowering the cab carefully onto the tractor, guiding the
rear mounts between the tanks. Ensure that fuel and oil filler spouts clear the cab
side panels. Ensure that the heater hose does not
become pinched under cab. Lower the cab until the
cab mounts are resting on the rubber isolators in the
front and rear bracket isolator cups. Insert the four
5/8” X 3 1/2” bolts (19) into the mounts from above.
From below, first slip on the rubber washer (20), then
the thick square structural washer (21), and finally
the 5/8” nut (22).
Warning -The structural washer is crucial to the
structural integrity of the ROPS frame. It must be
installed between the bottom surface of the mo
brackets and the nut. If it is not installed, the nut could be
pulled through the mounting bracket during a rollover, and protection would be lost.
Torque nut to compress isolator until the distance between top plate of bracket and
bottom plate of mount is 1 1/8”. (See figure 17). Torque 5/8” bolts through front surface
of front mounting bracket to 120-180 ft-lbs. Locate front left mounting bolt, an
floormat under cab frame crossmember, at the b
unting
d tuck the
ottom of the windshield.
3. With optional cab lift bracket only. Remove, but do not discard the cab lifting
bar. It may be required for future cab installations.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
17
◄TABLE OF CONTENTS
MOUNTING INSTRUCTIONS
NOTE: Inspect the gap between the fiberglass side panels and the plastic fuel and
hydraulic oil tanks. Wedge in rubber spacers, if necessary (not supplied), to ensure that
the side panels do not touch the tanks. Vibrations may cause the panels to wear holes in
the tank.
ELECTRICAL INSTALLATION

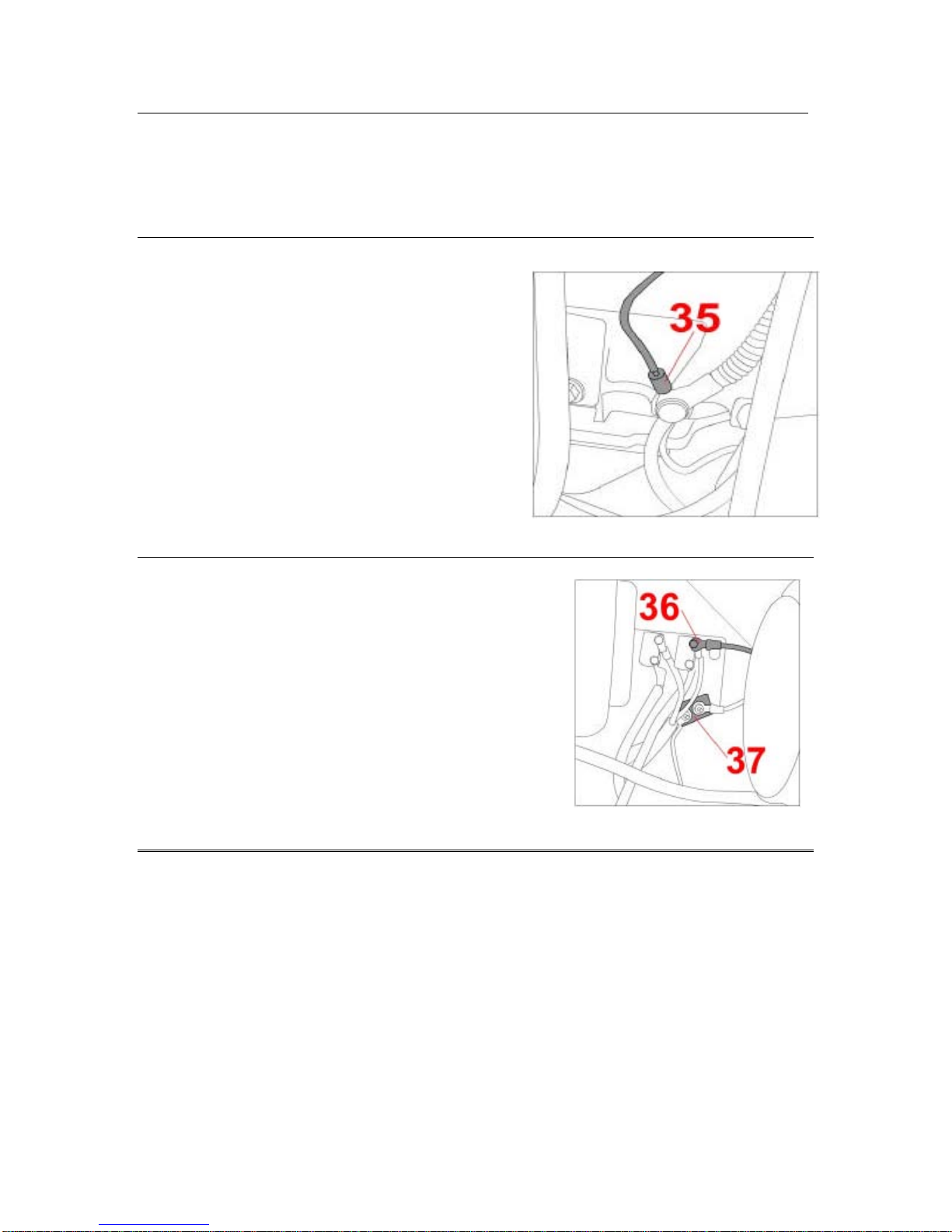

1. Connect the cab ground wire (35) and run it to
the machine ground, located on the rear left
side of the engine. Ensure that the wire does
not interfere with any moving parts.
2. Take the loose end of the jumper wire and attach it to
the machine power source (36). Take the cab power
wire and the breaker and attach them to the machine
power source below the jumper wire connection (37).
Ensure that the power wire does not interfere with
any moving parts of the engine.

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
18
◄TABLE OF CONTENTS
MOUNTING INSTRUCTIONS
COMPLETING CAB INSTALLATION

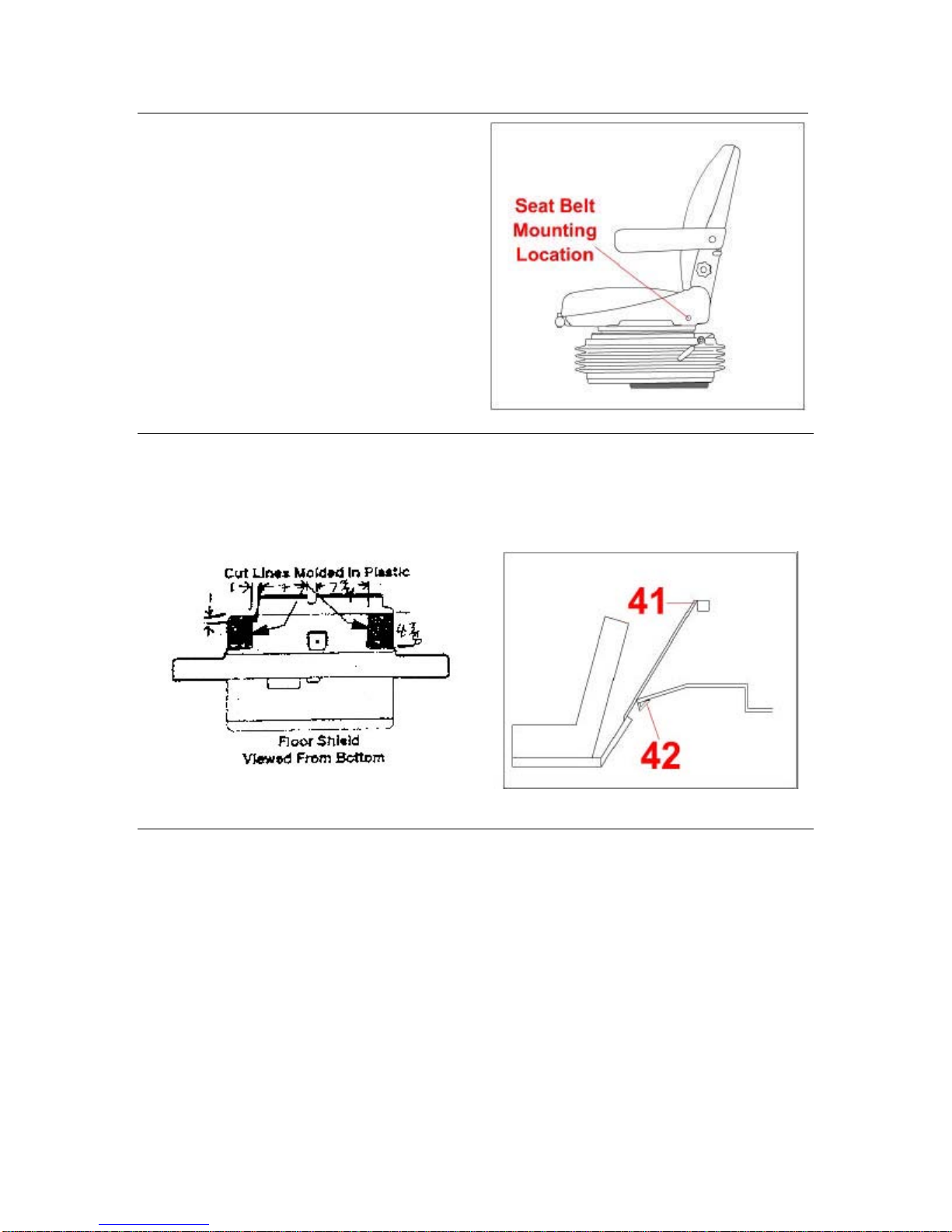

1. Install seat belt. Install seat belt
assembly on to the seat using the
instruction sheet provided with the belt
2. Finishing tractor reassembly. Cut out shaded areas of machine floor shield as
shown in to provide clearance for rear mounting brackets. Secure cab rear panel with
two 1/4” X 1/2” flange bolts (41). Replace machine floor shield. Tuck the front lip of
the floor shield into the channel provided in the rear surface of the cab rear access
panel (42).

JACOBSEN HR9016 Cab Operator Manual & Parts List
Jodale • Perry Printed: 4/4/2008
19
◄TABLE OF CONTENTS
MOUNTING INSTRUCTIONS
3. Replace oil cooler, by reversing step four from above. Install floor shield (G) on
tractor. Insert prop rod into
hole in frame to hold oil
cooler in its regular position
(D) at bottom of cooler and
position hydraulic line to the
front of it. Swing cooler up
and toward radiator as
shown (E). Slide screen (B)
in front of oil cooler. Fasten
knobs (C) located on top of
oil cooler, and insert plastic
shield (F) in front of oil
cooler. Attach end cap (A)
from left side of cooler.
4. Finishing cab installation. Fit pre-cut foot platform
floor mat (43) onto foot platform, and seat platform
floor mats to seat platform. If necessary, trim floor
mats to provide close fit to tanks, front of seat
assembly, steering tower and front cab frame
members. When fit of floor mat is satisfactory,
remove floor mat, apply adhesive to underside of
floor mat and reinstall. Use sealer to seal seams in
floor mat and between floor mat and tanks, and
wherever edges of floor mat meets seat platform,
tanks or cab frame. (See Figure Twenty-eight).
Reinstall door, right front window and side windows
by reversing the steps described in “Removing door
and windows”.
5. Installing the step. Remove the two bolts on the left
wing of the front deck, where the step fits under a
support bracket. Replace those bolts with two 3/8” X 1
1/2” hex bolts (46) supplied. Place step (47) over the
bolts, positioning it to the front and outside of the
original step. Secure into place using the nuts removed
from the support bracket.
