1. INTRODUCTION
1.1. Product description
The Johansson Profino Revolution Lite is an easy to use programmable filter amplifier and
convertor for terrestrial signals. The module optimizes terrestrial VHF/UHF signals from multiple
inputs. The state-of-the-art programmable filter amplifier has no equivalent on the market due
to its revolutionary technology:
•Can process and convert more than 50 channels (consisting out of 32 filters, each up to 6
MUXes wide)
•Can process S-Band output channels
•5G LTE Protection (694MHz)
•Sharpest filters on the market (50 dB on adjacent channels)
•Real-time AGC on all individual multiplexes
•Complete flexibility in assigning filters from any input. Each channel can be frequency
shifted to any other channel in the VHF or UHF band (Flex Matrix)
•To avoid unauthorized persons changing the settings, all Profiler products can be locked
with a security code
•Made in Europe, for worldwide application
•3 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
•Powered via output F-connector
•Product dimensions (H X W X D): 165mm x 190mm x 59mm
1.2. Typical installation
The Profino Revolution Lite can be used to provide high quality TV signals in a wide
range of projects, both in the hospitality as in the residential market. Typical buildings
or infrastructures where the Profino Revolution Lite can be used include, but are not
limited to:
•Large and small hotels, hostels, bed and breakfasts, holiday parks
•Hospitals, rest homes, prisons, settlements
•Large and small multi-dwelling units
1.3. Package contents
•1 Profino Revolution Lite (ref. 6714)
•Not included: Power Supply ref. 2438 (only included in KIT6714)

PROFINO REVOLUTION LITE (REF. 6714)
4

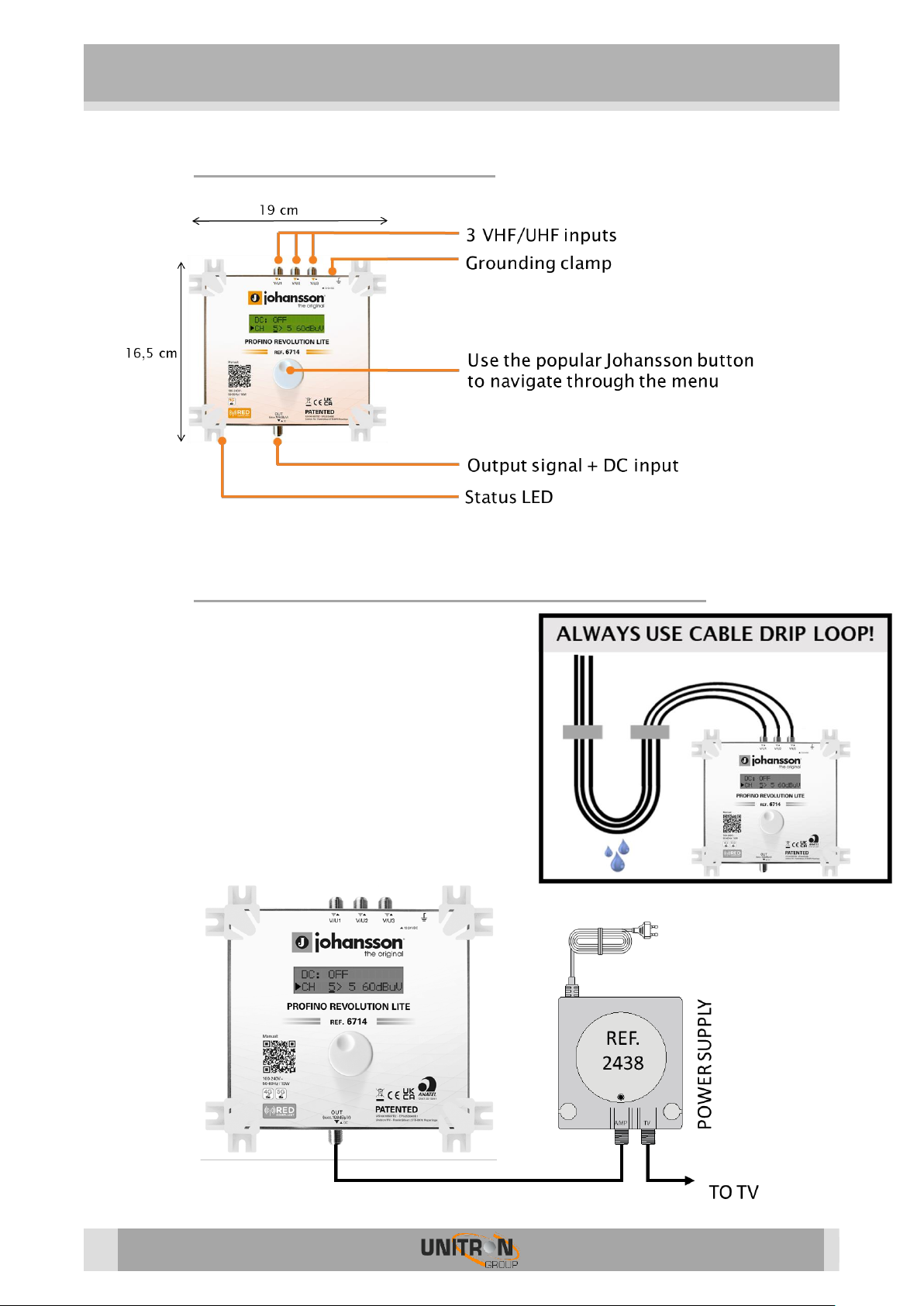

1.4. Hardware installation
FIGURE 1: TOP VIEW OF PRODUCT
1.5. Mounting the Profino Revolution Lite
•Important: Mount the module vertically to a
wall in a well-ventilated room and leave a minimum
space of 15 cm around the product to guarantee a
maximum ventilation of the product
•Connect an earth wire to the grounding clamp
•Connect the inputs to the Profino Revolution Lite
•Connect a coaxial cable to the output connector
for distribution of the signal
•Power the device via the output (use the
Johansson Power Supply ref. 2438)
•Configure the device using the rotary button

PROFINO REVOLUTION LITE (REF. 6714)
5
1.6. Configuring the Profino Revolution Lite
NAVIGATING THROUGH THE MENU
Use the Johansson rotary/push button to navigate through the menu. This is very
straightforward and simple. The table below shows how the rotary/push should be used:
Push the button 2s to enter the basic
configuration.
Push the button to confirm your
selections.
When rotating the button, you scroll
through the different screens.
MENU OVERVIEW
CHANNEL SCAN
INPUT V/U 1 - 3
OUTPUT
ADVANCED
EXIT
START
PRE-AMPLIFIER
LEVEL
LANGUAGE

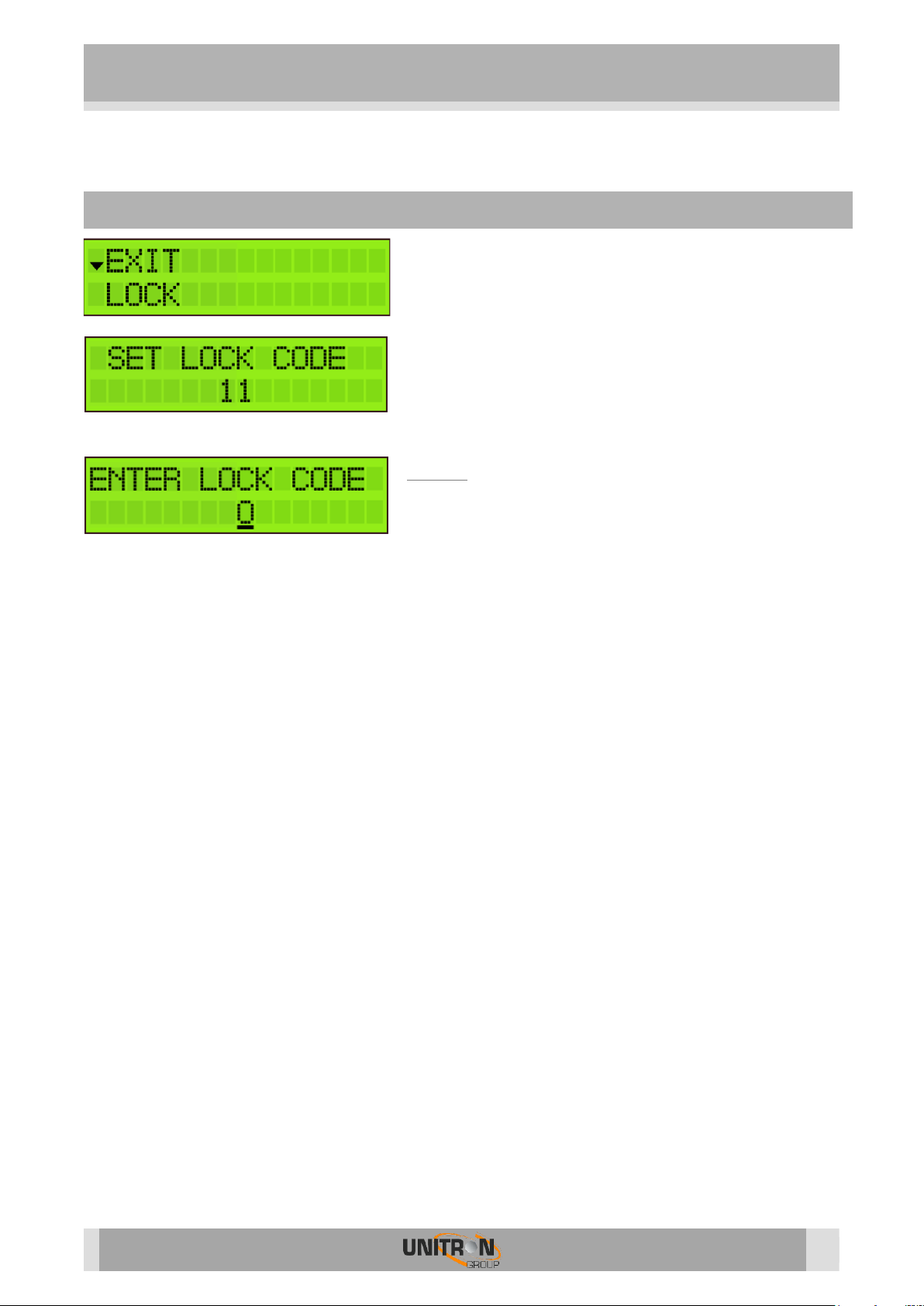

LOCK
DUPLICATCH
DC
VHF ATTN
REGION
NO LOCK
REPOWER
ADD CHANNEL
DC VOLTAGE
BANDWIDTH
S-BAND
FW VERSION
SERIAL NUMBER
REGION/COUNTRY SETTINGS
IMPORTANT! Before starting the configuration, it is advised
to set the correct region or country. Unpower the unit, push
the button and keep pushing the button while you repower
the unit. Release the button when the display shows “RESET FINISHED”. Now the product
is reset and will ask you to enter country or region. This will amongst others determine the
channel plan for VHF and UHF and the DC voltage for the inputs (12 or 24V).
DISPLAY READOUT
EXPLANATION
To activate the correct channel frequency plan, select
the country or region where the Profiler Revolution
Lite is situated. Rotate to select and confirm by tapping
the rotary button.

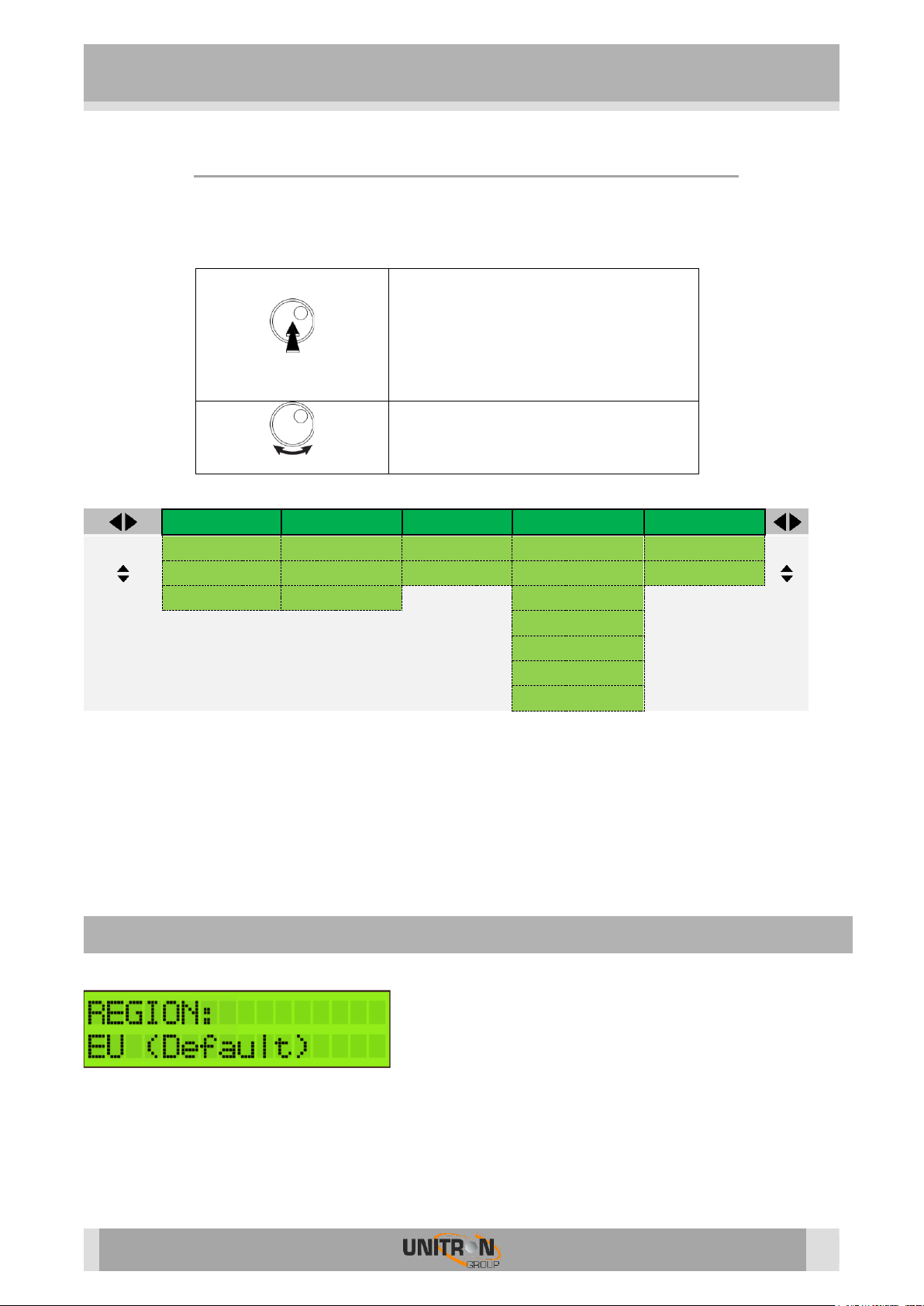

The default setting is Europe. The Profiler Revolution
Lite is also operational in the following
countries/regions: Australia, Brazil, China, Hongkong,
Italia, New-Zealand, Russia, South Africa, UK and USA.
All the following menu items can be accessed without the reset procedure.

PROFINO REVOLUTION LITE (REF. 6714)
6
Push the rotary button for 2 seconds to access the menu
CHANNEL SCAN
DISPLAY READOUT
EXPLANATION
Tap the rotary button to enter the channel scan menu
Scroll down to START and tap the rotary button to
start scanning
Scanning can take up to 1 minute
When scanning is finished, the number of detected
channels will be displayed. Manual changes can still be
done afterwards via the Input settings (next section)
Tap the rotary button to proceed in the menu
Sometimes, there can be transponders on the same
frequency coming from different antennas (e.g. CH40
is detected on input 1 and input 2). These are called
duplicate channels.
DUPLICATCH = When duplicate channels is ON, the
weakest of a pair of duplicate channels will be
transferred to the LTE band. The strongest of the pair
keep its frequency at the output.
When duplicate channels is OFF, the weakest of a pair
of duplicate channels will be rejected.
When REPOWER is ON, the device will do a rescan
after a power interruption of 6 seconds or less. If a
power interruption takes longer than 6 seconds,
channel settings will not change.
When REPOWER is OFF, the device will never
automatically rescan.

PROFINO REVOLUTION LITE (REF. 6714)
7
INPUT SETTINGS
DISPLAY READOUT
EXPLANATION
Tap INPUT V/U 1 to enter the menu to configure input
1.
Rotate the rotary button to scroll down in the
submenu of INPUT V/U 1.
PRE-AMPLI: The internal amplifier is by default ON,
only in case of very strong incoming signals (if the
strongest channel on that input is higher than
80dBµV), it can be advised to switch this OFF.
DC: Decide whether the input should provide power to
an external amplifier. Choose between OFF or 12 V.
Remark: If the external amplifier needs 24 V, you can
change this in advanced settings (see further).
Tap Add Channel to add channel.
Up to 6 channels can be added at once.
First select the starting channel (e.g. CH5) and tap to
confirm. Then select the stop channel (e.g. CH7, this
means that you will add 3 channels). Tap to confirm.
Then you can convert them using the rotary button
(e.g. CH5 to CH7 converts to CH8 to CH10) and tap to
confirm.
Some other examples:
To add CH5 and convert to CH6,
select as follows: 5: 5 →6: 6
To add CH21-22-23 and convert to CH31-32-33,
select as follows: 21:23 →31:33
.
Remark 1: The value 85dBµV (in the bottom right
corner) indicates the incoming level of the channel.
Remark 2: For EU, Italy and New-Zealand region,
Channel 13 (230-240MHz) can be used. CH13 cannot
be converted.
Remark 3: A star () will appear when converting to
a different channel bandwidth: e.g. from a 7MHz
channel to an 8 MHz channel
For optimal performance we recommend to only add single channels, unless you
need to process a lot of channels.

PROFINO REVOLUTION LITE (REF. 6714)
8
DISPLAY READOUT
EXPLANATION
To add another (group of) channel(s), scroll down to
ADD CHANNEL and tap to confirm.
To prevent bad quality or scrambled images, make
sure that only one input channel is assigned to one
output channel. If 2 channels are assigned to the same
output channel, a star () will appear.
The same applies for adding multiple channels. Make
sure that each output channel is selected only once.
To delete a (pair of) channel(s), position the arrow on the
channel and press the rotary button 3 seconds.
DISPLAY READOUT
EXPLANATION
To delete a (pair of) channel(s), position the arrow on
the channel and press the rotary button 3 seconds.
When you have added all the channels to INPUT V/U 1,
and you want to add channels to the other inputs,
scroll up to the top of the menu (to INPUT V/U 1), tap
the button and scroll to the next input.
Repeat the previous steps for all input channels.

PROFINO REVOLUTION LITE (REF. 6714)
9
OUTPUT SETTINGS
DISPLAY READOUT
EXPLANATION
Define the OUTPUT LEVEL of the output signal.
Range between 88 dBµV and 108 dBµV (default output
level is 98 dBµV).
Note: The more channels you select, the less input
power you should give (e.g. 99 dBµV for 10 channels).
VHF ATTN: To compensate for cable losses, an
attenuator of up to 15 dB can be configured to
decrease the VHF (up to 300MHz) output level
(compared to the UHF output level (above 300MHz)).
Note: In the OUTPUT menu, you define the output level in dBµV of the MUX’s. The Profiler
Revolution has enough gain to guarantee this output level under all input conditions.

PROFINO REVOLUTION LITE (REF. 6714)
10
ADVANCED SETTINGS
DISPLAY READOUT
EXPLANATION

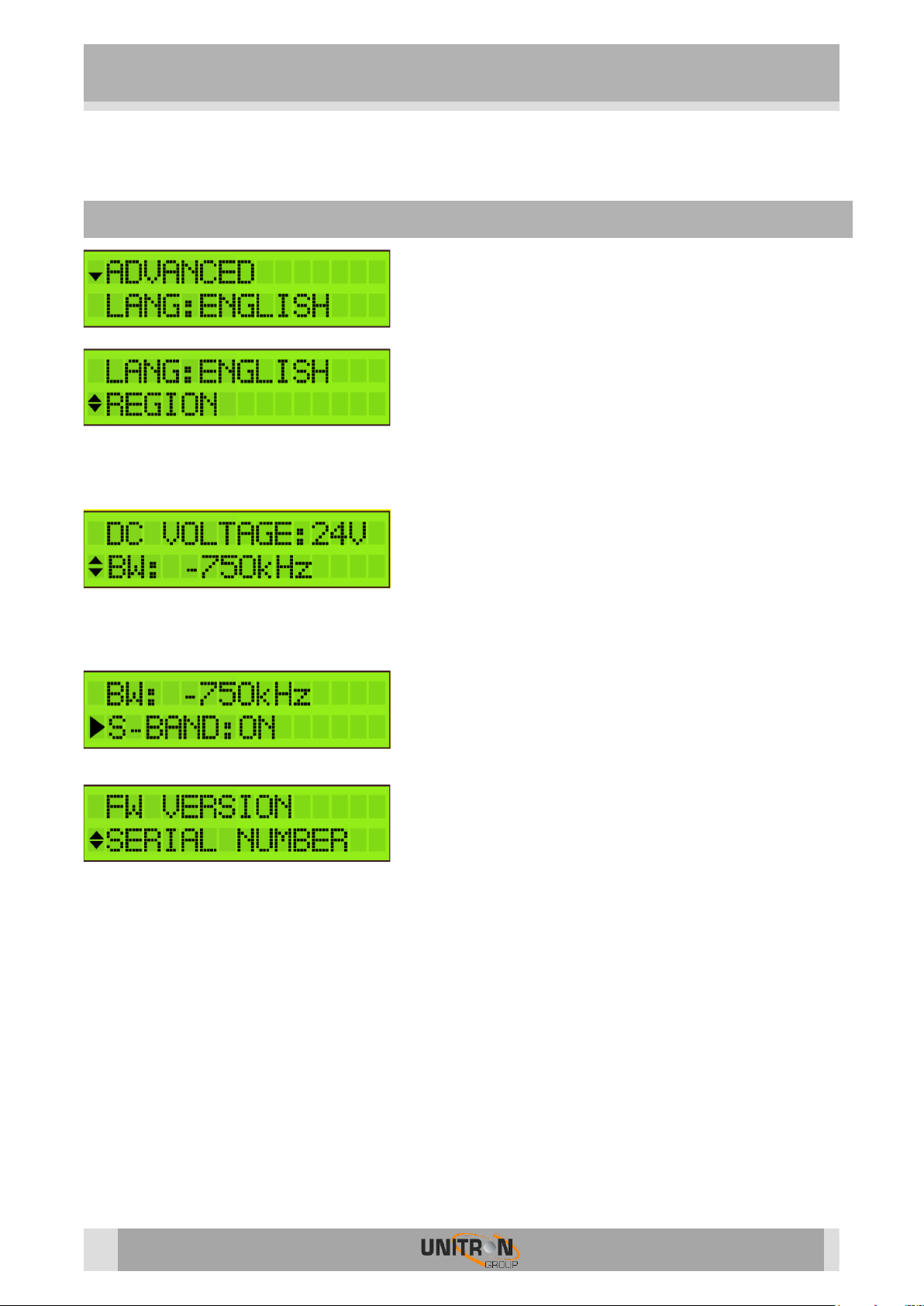

The language of the Profiler Revolution can be set to
English, Italian, Spanish or French.
Tap REGION to check to which region/country the
Profiler Revolution is set. To change the
region/country, a hard reset is required (see
instructions above (cfr. REGION/COUNTRY SETTINGS).
Define DC VOLTAGE for the inputs, choose between
12V or 24V. This is a global setting for all inputs, each
input can then be switched between OFF or this value.
(cfr. STEP 2). All countries are set by default on 24V,
except UK which is set by default on 12V.
The filter bandwidth can be changed from -2000 kHz to
0 kHZ in steps of 250 kHz.
This allows you to optimize the bandwidth of your filter.
For instance, a European 8 MHz channel can be
changed from 6 to 8 MHz. The default setting is -750
kHz, which is an optimal setting in 95% of the cases.
S-Band channels can be activated in Advanced Mode.
By default, they are not activated.
See NOTE below for more explanation.
Tap FW VERSION to check the firmware version of the
device.Tap SERIAL NUMBER to check the serial number
of the device. To format the SD CARD, tap FORMAT
CARD.
Note: You can convert any single input Channel, to any output Channel position (including
output S-channels). But you can only convert a group of input channels to a group of output
channels with the same channel spacing.
Some examples:
21:23 →31:33 Can be converted because groups of channels have same channel spacing
07:07 →S15:15 Can be converted because single channel conversion
07:07 →S35:35 Can be converted because single channel conversion
(Even though channel spacing and bandwidth is different)
07:08 →S35:36 Can’t be converted because groups of channels have different channel spacing

PROFINO REVOLUTION LITE (REF. 6714)
11
EXIT SETTINGS
DISPLAY READOUT
EXPLANATION
To avoid unauthorized people changing the settings, all
Profiler products can be locked with a security code.
Select LOCK and SET LOCK CODE.
When the lock code is set, the device will shut down.
When you restart the device, you will now have to
enter the correct lock code.
Remark: If you forgot the lock code, you can always
use the value 50. This master code is fixed and cannot
be changed.
If you do not want to work with a lock code, go to EXIT
and tap NO LOCK.

PROFINO REVOLUTION LITE (REF. 6714)
12
2. TECHNICAL SPECIFICATIONS
Profino Revolution Plus 6714
Inputs
-
3 VHF/UHF (wideband)
Outputs
-
1 main (VHF-S-UHF)
Input frequency range (EU*)
MHz
MHz
VHF:174 –240
UHF: 470 –694
Output frequency range (EU*)
MHz
174 –862
LTE protection
MHz
694 (5G)
Input level
dBµV
dBµV
VHF: 37** - 109
UHF: 37** - 109
VHF/UHF Output power (60dB/IM3)
VHF/UHF Output power (36dB/IM3)
VHF/UHF Output power with 1 MUX
VHF/UHF Output power with 6 MUX
VHF/UHF Output power with 15 MUX
VHF/UHF Output power with 32 MUX
dBµV
dBµV
dBµV
dBµV
dBµV
dBµV
114
125
108
108
105
102
Add channels
-
Per 1, 2, 3, 4, 5 or 6 MUXes
Number of channels
-
More than 50 (32 filters)
Conversion
-
Yes (from any VHF-UHF channel
to any VHF-S-UHF channel)
Gain
dB
dB
VHF: >65
UHF: >65
Gain adjustment
dB
Channel AGC
General attenuator
dB
20
VHF attenuator
dB
15
Noise figure
dB
7
Selectivity
dB/1MHz
35
Return Loss
dB
10
Output MER
dB
dB
VHF: 35
UHF: 35
ESD protection
-
All inputs
Remote voltage for preamp
Remote current
V
mA
12 or 24
50 (total for the 3 inputs)
Operating temperature
°C
-5 to +50
Power Supply
VDC
12V (use ref. 2438)
Power consumption
W
9
Dimensions
mm
190 x 165 x 59
Weight
kg
0,65
* frequency range can vary slightly according to local channel plan (check REGION settings)
** For 64QAM with code rate 3/4

PROFINO REVOLUTION LITE (REF. 6714)
13

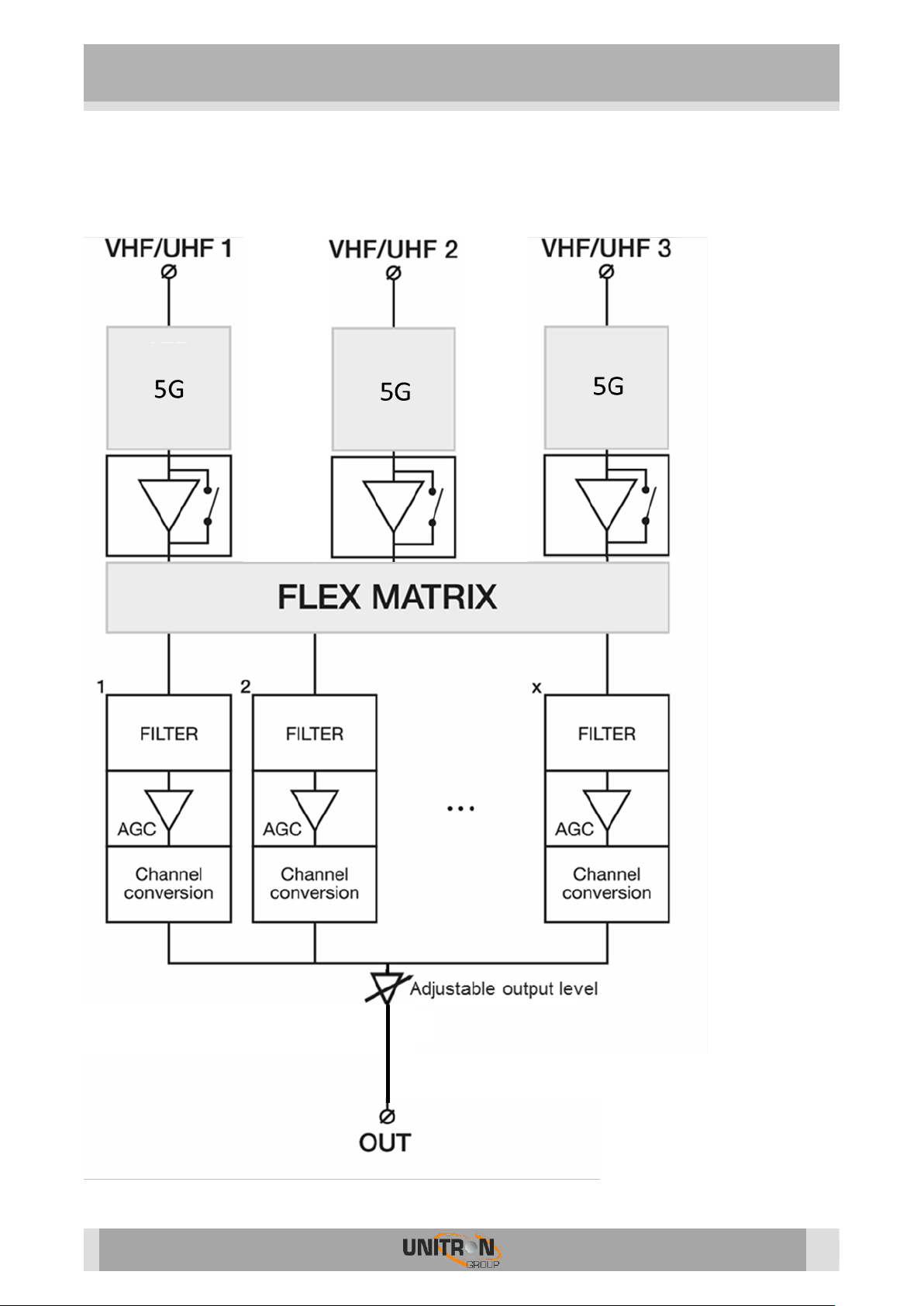

3. BLOCK DIAGRAM

PROFINO REVOLUTION LITE (REF. 6714)
14
4. SAFETY INSTRUCTIONS
Read these instructions carefully before connecting the unit
To prevent fire, short circuit or shock hazard:
• Do not expose the unit to rain or moisture.
• Install the unit in a dry location without infiltration or condensation of water.
• Do not expose it to dripping or splashing.
• Do not place objects filled with liquids, such as vases, on the apparatus.
• If any liquid should accidentally fall into the cabinet, disconnect the power plug.
To avoid any risk of overheating:
• Install the unit in a well aired location and keep a minimum distance of 15 cm around the
apparatus for sufficient ventilation
• Do not place any items such as newspapers, tablecloths, curtains,
on the unit that might cover the ventilation holes.
• Do not place any naked flame sources, such as lighted candles, on the apparatus
• Do not install the product in a dusty place
• Use the apparatus only in moderate climates (not in tropical climates)
• Respect the minimum and maximum temperature specifications
To avoid any risk of electrical shocks:
• Connect apparatus only to socket with protective earth connection.
• The mains plug shall remain readily operable
• Pull out power plug to make the different connections of cables
• To avoid electrical shock, do not open the housing of adapter.
Maintenance
Only use a dry soft cloth to clean the cabinet.
Do not use solvent
For repairing and servicing refer to qualified personnel.
Dispose according your local authority’s recycling processes

PROFINO REVOLUTION LITE (REF. 6714)
15
5. CONDITIONS OF WARRANTY
Unitron N.V. warrants the product as being free from defects in material and
workmanship for a period of 24 months starting from the date of production indicated on
it. See note below.
If during this period of warranty the product proves defective, under normal use, due to
defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace
the product. Return the product to your local dealer for reparation.
THE WARRANTY IS APPLIED ONLY FOR DEFECTS IN MATERIAL AND
WORKMANSHIP AND DOES NOT COVER DAMAGE RESULTING FROM:
•Misuse or use of the product out of its specifications,
•Installation or use in a manner inconsistent with the technical or safety standards in
force in the country where the product is used,
•Use of non-suitable accessories (power supply, adapters...),
•Installation in a defect system,
•External cause beyond the control of Unitron N.V. such as drop, accidents,
lightning, water, fire, improper ventilation…
THE WARRANTY IS NOT APPLIED IF
•Production date or serial number on the product is illegible, altered, deleted or removed.
•The product has been opened or repaired by a non-authorized person.
NOTE
Date of production can be found in the product’s serial number code. The format will either
be “YEAR W WEEK” (e.g., 2017W32 = year 2017 week 32) or “YYWW” (e.g., 1732 = year
2017 week 32).
UNITRON NV
Frankrijklaan 27
B-8970 Poperinge
Belgium
T [phone]
F [phone]
[e-mail]
www.unitrongroup.com

PROFINO REVOLUTION LITE (REF. 6714)
16
UNITRON NV
Frankrijklaan 27
B-8970 Poperinge
Belgium
T [phone]
F [phone]
[e-mail]
www.unitrongroup.com
