Johansson 5951 User manual
User Manual

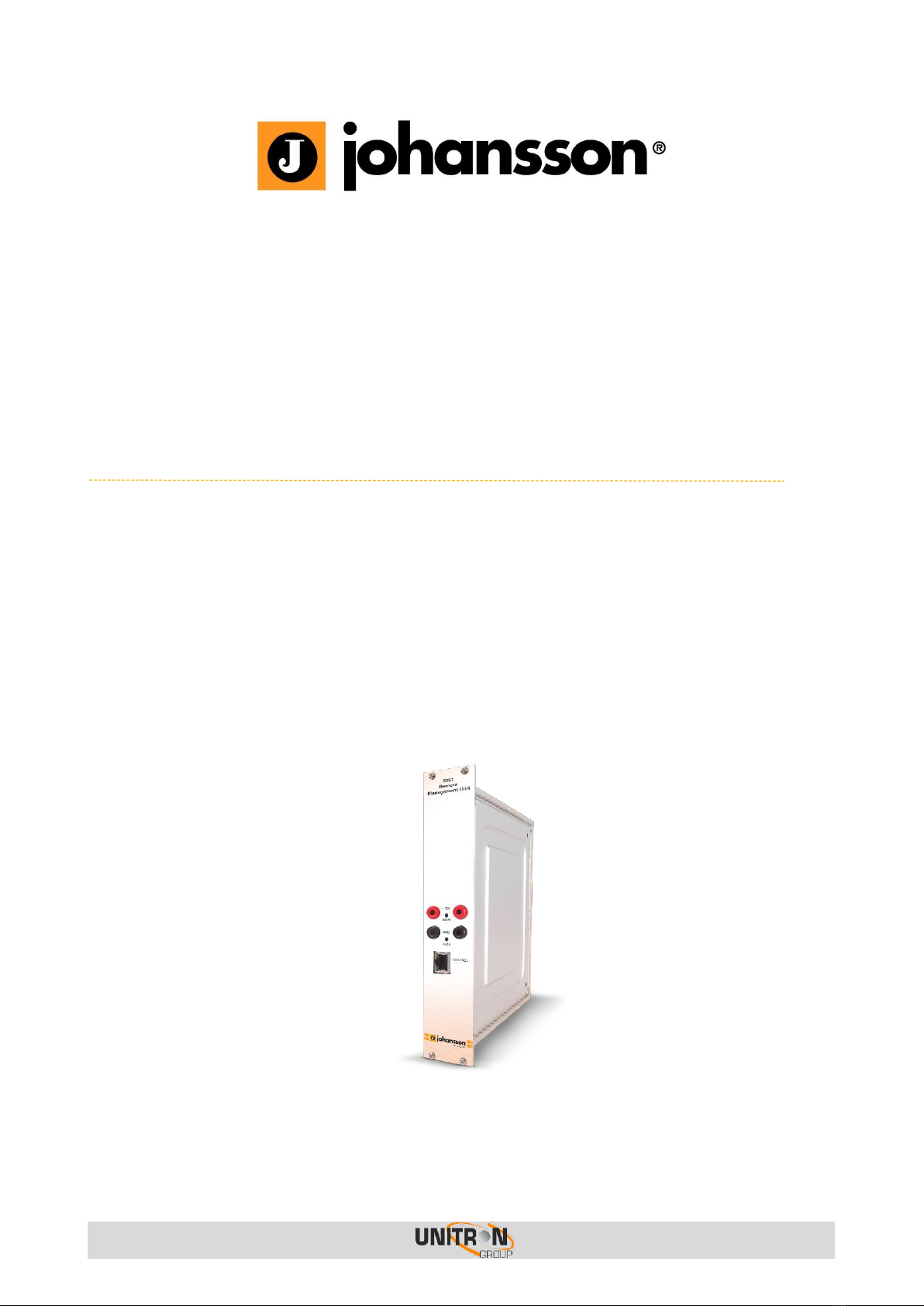

Remote Management Unit
Ref. 5951
RMU (REF. 5951)
2
CONTENTS
1. INTRODUCTION ............................................................................ 3
Product description.......................................................................................... 3
Package contents ............................................................................................ 3
Safety Instructions ..........................................................................................4
2. INSTALLATION OF THE HARDWARE .................................................... 5
Status LED (2 COLORS) ...................................................................................5
Reset Button .................................................................................................. 5
Conditions to make a successful connection........................................................ 5
Connecting to the RMU ....................................................................................5
3. CONFIGURATION OF UCLOUD ........................................................... 6
4. TECHNICAL SPECIFICATIONS ........................................................... 7
5. CONDITIONS OF WARRANTY ............................................................ 8
No part of this manual may be copied, reproduced, transmitted, transcribed or translated into any
language without permission.
Unitron reserves the right to change the specifications of the hardware and software described in these
manuals at any time.
Unitron cannot be held liable for any damages resulting from the use of this product.
Specifications are subject to change without notice. 9/18
©Unitron - Frankrijklaan 27 - B-8970 Poperinge - Belgium
T+32 57 33 33 63 F+32 57 33 45 24
email sales@unitrongroup.com
www.unitrongroup.com
RMU (REF. 5951)
3
1. INTRODUCTION
Product description
The Remote Management Unit (RMU) enables any authenticated user to configure or monitor a
DMH headend remotely. The RMU is a very smart and powerful solution which connects with a
server hosted by us (uCloud) and enables you to connect to any of your installations with any
PC or Internet-connected device. The RMU is the hardware that connects the uCloud with your
installation.
•Powerful configuration and monitoring tool with extended graphical user interface
(embedded Universal User Interface).
•No network knowledge needed, bypasses most firewalls without intervention.
•Use our uCloud to manage all your installations remotely: Google Maps overview of all
your installations, one button-connect to any installation, add pictures and comments
regarding the installation...
•Safe remote access with certificates and password authentication.
•Solve problems from wherever you are.
•Easy to access: remotely or local.
Package contents
•1x RMU module
•2x DC bridges
•1x CAT6 Ethernet cable
RMU (REF. 5951)
4
Safety Instructions
Read these instructions carefully before connecting the unit
To prevent fire, short circuit or shock
hazard:
•
Do not expose the unit to rain or moisture.
•
Install the unit in a dry location without infiltration or condensation of water.
•
Do not expose it to dripping or splashing.
•
Do not place objects filled with liquids, such as vases, on the apparatus.
•
If any liquid should accidentally fall into the cabinet, disconnect the power plug.
To avoid any risk of
overheating:
•
Install the unit in a well aery location and keep a minimum distance of 15 cm around the
apparatus for sufficient ventilation
•
Do not place any items such as newspapers, table-cloths, curtains,
on the unit that might cover the ventilation holes.
•
Do not place any naked flame sources, such as lighted candles, on the apparatus
•
Do not install the product in a dusty place
•
Use the apparatus only in moderate climates (not in tropical climates)
•
Respect the minimum and maximum temperature specifications
To avoid any risk of electrical
shocks:
•
Connect apparatus only to socket with protective earth connection.
•
The mains plug shall remain readily operable
•
Pull out power plug to make the different connections of cables
•
To avoid electrical shock, do not open the housing of adapter.
Maintenance
Only use a dry soft cloth to clean the
cabinet.
Do not use solvent
For repairing and servicing refer to qualified
personnel.
Dispose according your local authority’s recycling processes
RMU (REF. 5951)
5
2. INSTALLATION OF THE HARDWARE
Before mounting, install all DMH modules in the sub-rack. Place the power supply (ref. 5050)
in the uppermost left slot of the rack and the RMU in the next slot. Connect LAN to the control
port and both DC bridges to the RMU. The DMH modules can now be added to the next slots.
Status LED (2 COLORS)
After powering the RMU, the LED will follow a sequence of colors.
It begins with blinking red UUI not started up and not connected to the cloud.
In less than 1 minute the LED turns solid red connected to server but UUI not started up.
After 3 minutes the LED turns solid green UUI started up and connected to the cloud.
Now the RMU is ready to use.
There are 4 different states:
UUI active
UUI not active
CONNECTED TO THE CLOUD
Solid Green
Solid red
NOT CONNECTED TO THE CLOUD
Blinking green
Blinking red
Reset Button
•Push the reset button firmly for 3 seconds Restart with IP release, slow red blinking of
Alarm LED
•Push the reset button firmly for 10 seconds Factory and IP reset, fast red blinking of
Alarm LED
Conditions to make a successful connection
You need an internet connection at both locations (the RMU and your PC). Ask the IT-
administrator in case a remote connection does not work (status LED is blinking): Firewall at
the RMU location must allow incoming traffic from ports 80&443 (http and https) and port 22
(SSH). Any outgoing ports can be blocked.
Connecting to the RMU
Connection to the RMU can be made from different locations:
•If you have internet on your pc and the RMU you can connect using the remote access
platform “uCloud”. To connect to the RMU open your web browser and go to the URL:
https://remote.uui-platform.com. If this is the first time you are using the remote
access platform you will need to create an account. From there on, you are able to
create new locations (new installations) and manage all your existing locations from a
single remote connection.
RMU (REF. 5951)
6
•If you don’t have an internet connection you will need to connect both your pc and the
RMU to the same network. To connect to the RMU open your web browser and go to
http://rmu:8888 or the URL http://<RMUIPAddress>:8888 (change <RMUIPAddress> to
the IP of your RMU). The default username is “admin” with the password “UUI”. If you
connect without internet you can use the UUI but can’t use the “uCloud”.
3. USING UCLOUD
1. Go to https://remote.uui-platform.com/
2. Create an account and log in
3. When logged in, click “Digital Modular Headend“
4. Add your remote system by clicking on “+ New“on the left side of the menu
5. Fill in the system details and the RMU key, click create to continue.
6. When the location is connected, it will appear in the left side of the menu.
7. To have remote access and control, click on the location, then click on “Connect“in the
top right corner of the menu. This will open as a pop-up screen or a new tab.
RMU (REF. 5951)
7
4. TECHNICAL SPECIFICATIONS
5951 –RMU
GENERAL
Dimensions
-
5RU x 8TE x 180 mm
Temperature (ambient) within specs
°C
+10 to +40
Operation
°C
-20 to +50
Storage
°C
-20 to +70
Power supply voltage
VDC
12 to 15
Consumption
A
0,66
User interface
-
UUI
ETHERNET OUTPUT
Connector
-
RJ-45
Standard
-
Ethernet 10/100/1000Base-T
Version
-
IPv4 (IPv6 ready)
Mode
-
Full-duplex
Protocols
-
ARP, ICMP, TCP/IP, HTTP, FTP, DHCP
Click here to enter text.
RMU (REF. 5951)
8
5. CONDITIONS OF WARRANTY
Unitron N.V. warrants the product as being free from defects in material and
workmanship for a period of 24 months starting from the date of production indicated on
it. See note below.
If during this period of warranty the product proves defective, under normal use, due to
defective materials or workmanship, Unitron N.V, at its sole option, will repair or replace the
product. Return the product to your local dealer for reparation
THE WARRANTY IS APPLIED ONLY FOR DEFECTS IN MATERIAL AND WORKMANSHIP
AND DOES NOT COVER DAMAGE RESULTING FROM:
•Misuse or use of the product out of its specifications.
•Installation or use in a manner inconsistent with the technical or safety standards in
force in the country where the product is used
•Use of non-suitable accessories (power supply, adapters...).
•Installation in a defect system.
•External cause beyond the control of Unitron N.V. such as drop, accidents, lightning,
water, fire, improper ventilation…
THE WARRANTY IS NOT APPLIED IF
•Production date or serial number on the product is illegible, altered, deleted or
removed.
•The product has been opened or repaired by a non-authorized person.
NOTE
Date of production is YYWW format, example 1447 = year 2014 –week 47.
For the serial number barcodes, the date corresponds to the 4 first numbers
UNITRON NV
Frankrijklaan 27
B-8970 Poperinge
Belgium
T +32 57 33 33 63
F +32 57 33 45 24
sales@johansson.be
www.johansson.be
