John Lewis JLWD 1609 User manual

Child lock
1600
1200
500
800
Extra
rinse
Off
14 Minute wash
45 Minute wash
Dr ing
Dr ing
95°
Econom 60°
60°
Econom 40°
40°
30°
60°
40°
Delicates 40°
Delicates 30°
30°
40°
Rinses
Drain
Spin
Eas iron 40°
JLWD1609
Spin Automatic dr Time dr Prewash
Start/Pause
Door lock
Dela start
Programme time
Rinse hold
Iron dr
Cupboard dr
Extra dr
JLWD 1609
1600 spin washer-dryer
Instruction manual
132963590.qxd 27/05/2008 10.45 Pagina 1

2
Installation
●This appliance is heavy. Care should be taken when
moving it.
●It is dangerous to alter the specifications or attempt
to modify this product in any way.
●All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instructions.
●Care must be taken to ensure that the appliance does
not stand on the electrical supply cable.
●If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.
Child Safety
●This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
●Pets and children have been known to climb into
washer-dryers. Please check your drum before use.
●The glass door becomes very hot during the washing
cycle. Keep children away from the vicinity of the
appliance whilst it is in operation.
●Keep all packaging well away from children.
●Keep all detergents in a safe place out of children’s
reach.
●When the appliance is to be scrapped, cut off the
electrical supply cable. Disable the door catch in
order to prevent children form becoming trapped
inside while playing.
Use
●Always unplug the appliance and turn off the water
supply after use.
●Do not overload the appliance. See relevant section in
the instruction book.
●Only wash and dry fabrics which are designed to be
machine washed and dried. If in doubt, consult the
care label on the clothes.
●Before washing, ensure that all pockets are empty and
buttons and zips are fastened. Avoid washing frayed or
torn articles and treat stains such as paint, ink, rust,
and grass before washing. Underwired bras must
NOT be machine washed.
●Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.
●Garments which have been in contact with volatile
petroleum products should not be machine washed. If
volatile cleaning fluids are used, care should be taken
to ensure that the fluid is removed from the garment
before placing in the machine.
●Wash small items such as socks, laces, washable belts
etc in a washing bag or pillow case as it is possible for
such items to slip down between the tub and the
inner drum.
●Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill. Refer
to the manufacturer’s recommendations of quantities.
●As some duvets and eiderdowns should be
washed/dried in large commercial machines because
of their bulk, please check with the manufacturer of
the item before washing in a domestic machine.
●The users should always check that they have not left
their gas lighters (disposable or otherwise) in their
clothing.
●Never tumble dry items that have had contact with
chemicals such as dry cleaning fluid.These are of a
volatile nature and could cause an explosion.
Only tumble dry items which have been washed in
water or require airing.
●Plastic detergent dispensers should not remain in the
drum during the drying cycle, as the plastic used is not
designed to withstand the heat. If you wish to wash-
through-to-dry you should use the conventional
detergent dispenser drawer.
Important safety information
It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred to another owner, or should you move house and leave the
appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to
know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully before use or
installation by a qualified person.
If you are unsure of the meanings of these warnings contact the John Lewis branch from which you purchased
the appliance.
132963590.qxd 27/05/2008 10.45 Pagina 2

3
Maintenance and cleaning
●Leave the porthole door slightly ajar between washes
to preserve the door seal.
●For information on maintenance and cleaning your
washing machine see page 26 of this instruction
manual.
Service
●This product should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.
Ecological hints
To save water and energy and help protect the
environment, we recommend that you follow these
hints:
●Normally soiled laundry may be washed without
prewashing in order to save detergent, water and
time (the environment is protected too!).
●The machine works more economically if it is fully
loaded.
●With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.
●Measure out detergent according to the water
hardness, the degree of soiling and the quantity of
laundry being washed.
●Try to load the maximum drying capacity of the
machine as small loads are uneconomical.
●Save energy and reduce drying time by ensuring the
laundry load has been thoroughly spun before
attempting to machine dry.
●Materials marked with the symbol are
recyclable.
●Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
●When the appliance is to be scrapped, cut off the
power supply cable and make the door lock device
unusable to prevent young children from being
trapped inside.
●Help to keep your country tidy - use authorised
disposal sites for your old appliance.
Environmental information
The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local council, your
household waste disposal service or the shop where
you purchased the product.
WARNING:
A cut off plug inserted into a 13 amp
socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
132963590.qxd 27/05/2008 10.45 Pagina 3

4
Contents
For the User
Important Safety Information 2-3
Description of the Appliance 5
The Control Panel 12-15
Programme information 16
Special features 16

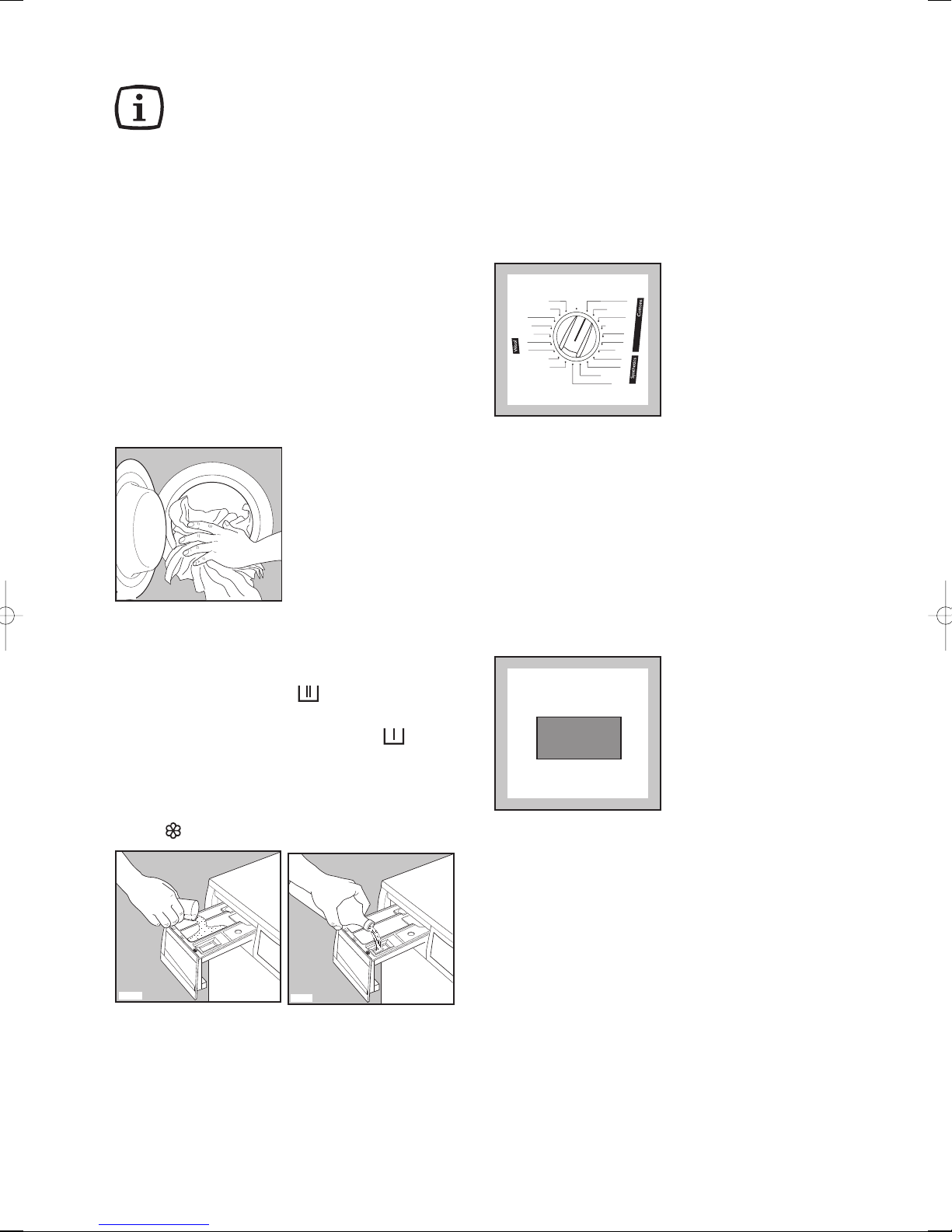

Using your washing machine 17-19
Drying 20
Hints & Tips on Washing and Drying 21
Wash Care Symbols 22
Washing Programmes 23-24
Drying Programmes 25
Maintenance and Cleaning 26
Descaling 26
After each wash 26
Maintenance Wash 26
External cleaning 26
Cleaning the dispenser drawer 26
Cleaning the drawer recess 26
Cleaning the pump 26-27
Cleaning the water inlet filter 27
The dangers of freezing 27
Emergency emptying out 28
Something Not Working 29-30
Repairs - After Sales Service 31
Spare parts 31
For the Installer
Installation 6
Technical Specifications 6

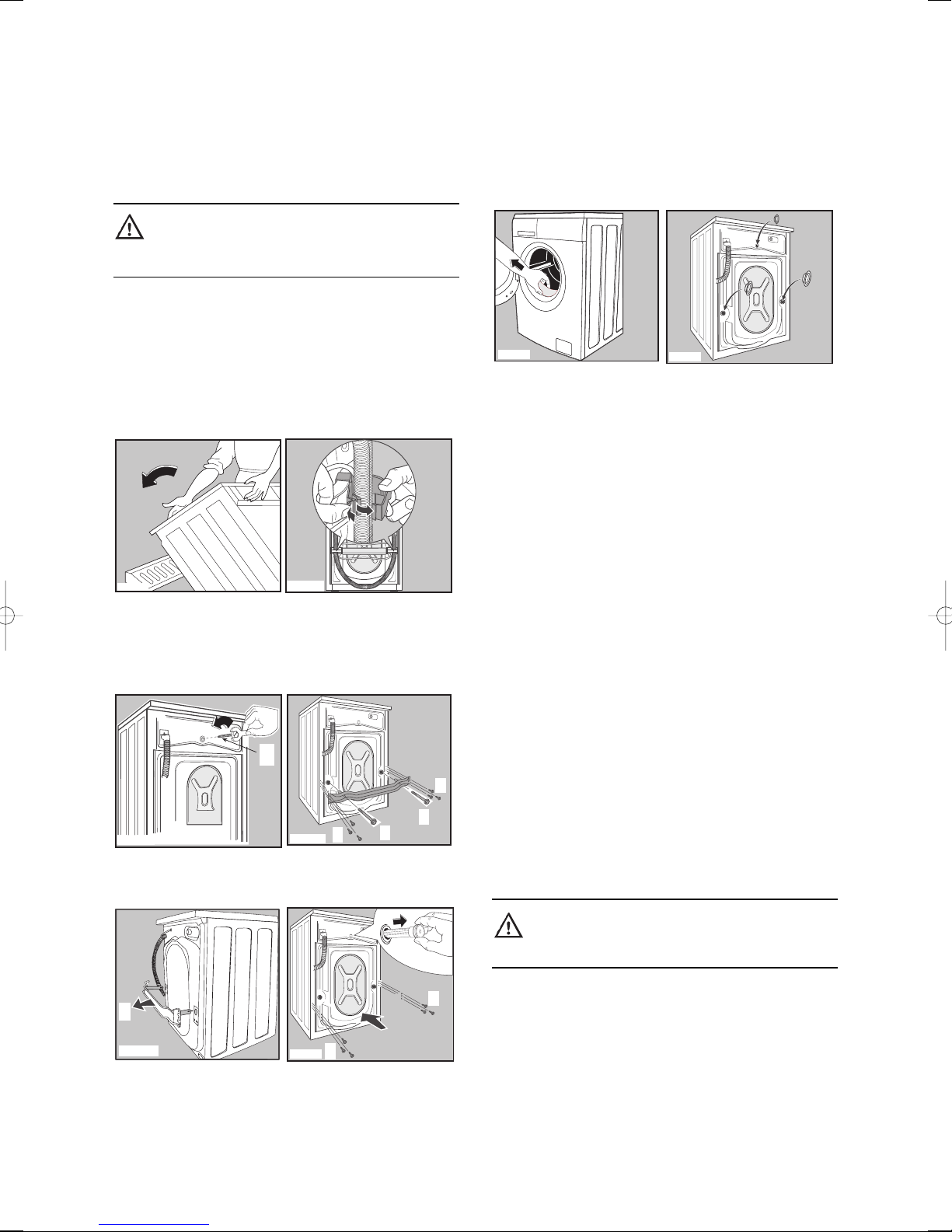

Unpacking 7
Positioning 7
Installation on a suspended floor 7/8
Plumbing in 8
Water inlet 8
Water drainage 8/9
Levelling 9

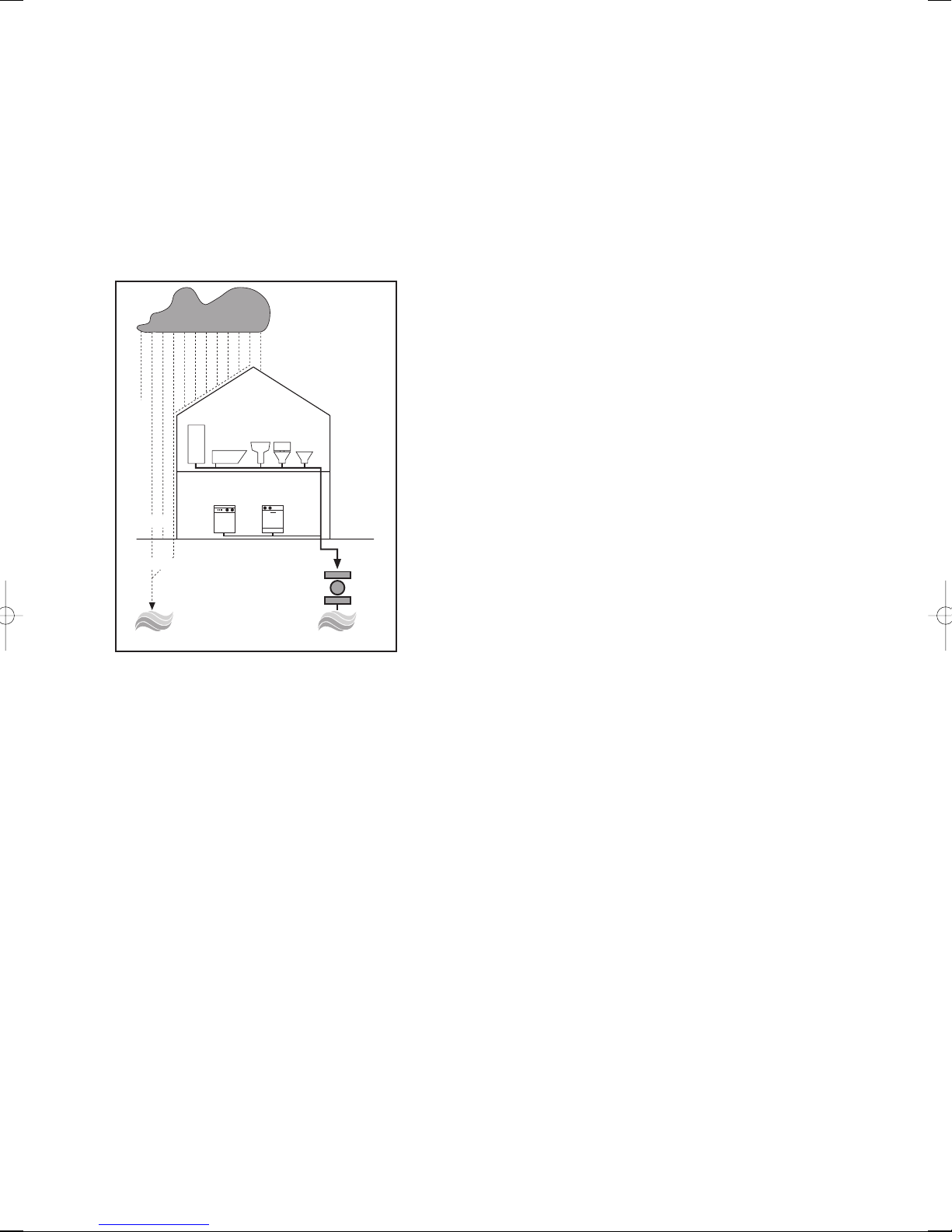

In the interest of the environment 10

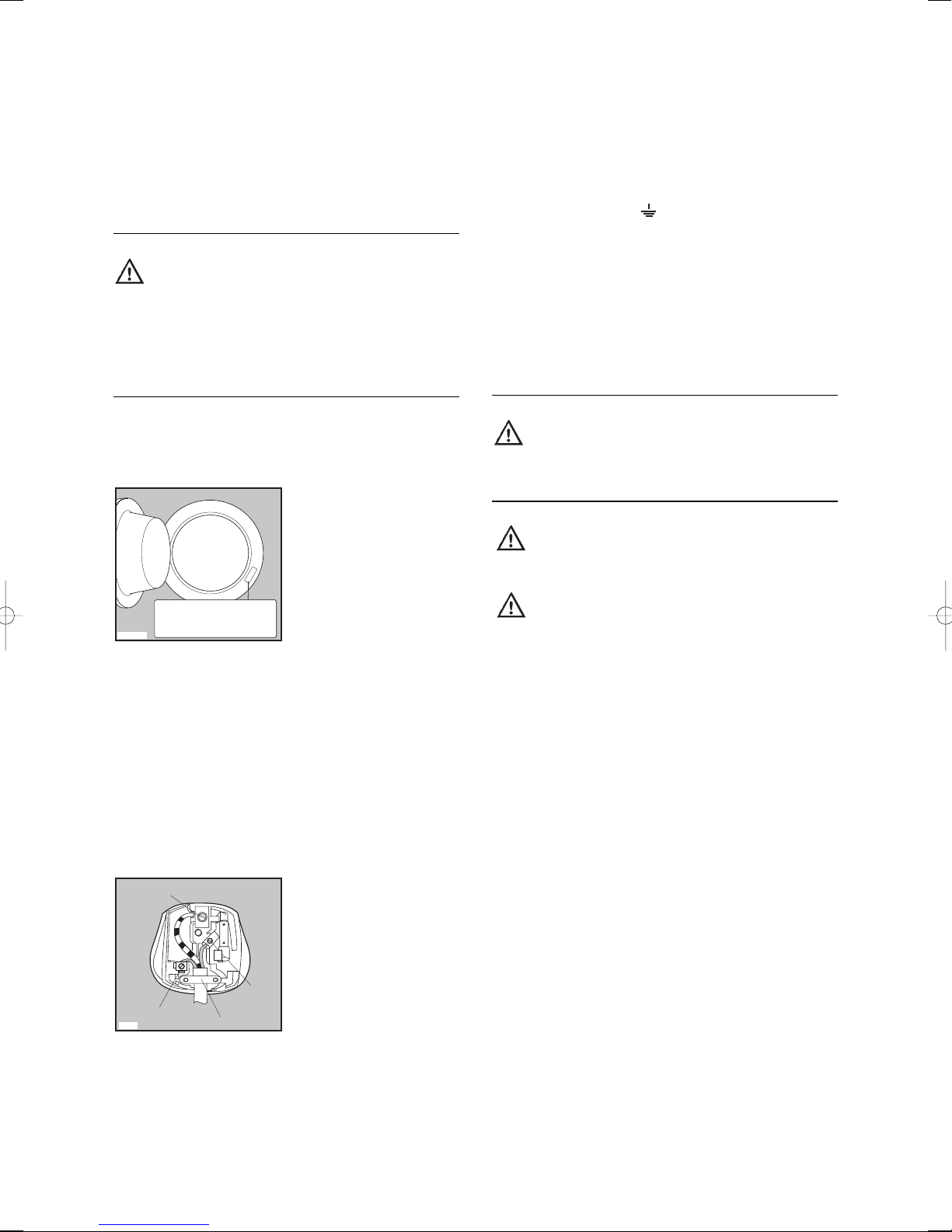

Electrical connection 11
Guide to use the Instruction
Manual
The following symbols will be found in the text to guide
you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
This appliance complies with the following E.E.C.
Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
132963590.qxd 27/05/2008 10.45 Pagina 4

5
Description of the appliance

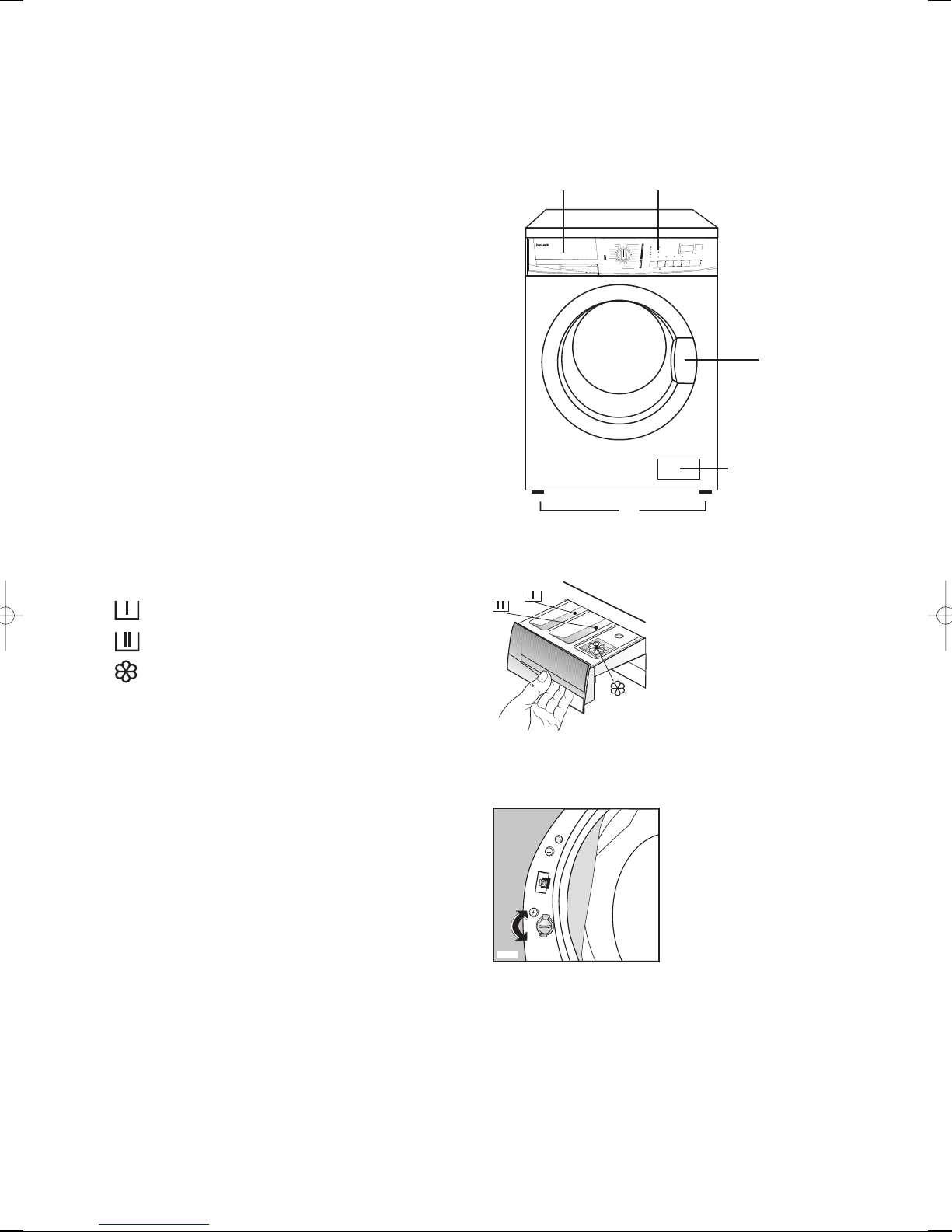

1 Detergent dispenser drawer
2 Control panel
3 Door opening handle
4 Drain pump
5 Adjustable feet
Detergent dispenser drawer
Prewash
Main wash
Fabric softener
Child safety feature
This machine incorporates a special child safety feature
to prevent small children from being trapped inside the
machine.
To activate this device, rotate the button (without
pressing it) inside the door clockwise until the groove is
horizontal. If necessary use a coin. This prevents the
door being closed.
To disable this device and close the door, rotate the
button anti-clockwise until the groove is vertical.
3
5
2
4
1
Child lock
1600
1200
500
800
Extra
rinse
Off
14 Minute wash
45 Minute wash
Dr ing
Dr ing
95°
Econom 60°
60°
Econom 40°
40°
30°
60°
40°
Delicates 40°
Delicates 30°
30°
40°
Rinses
Drain
Spin
Eas iron 40°
JLWD1609
Spin Automatic dr Time dr Prewash Start/Pause
Door lock
Dela start
Programme time
Rinse hold
Iron dr
Cupboard dr
Extra dr
SM001
