John Luis Home JLH-528 User manual

BOOKLET SKU#707
Installation Instructions
www.johnlouishome.com
12in. Deep Premier Closet Organizer
MODEL: JLH-528, JLH-529
16in. Deep Deluxe Closet Organizer
MODEL: JLH-525, JLH-526

Quantity: 1 26.25 in. Tower Top Shelf
PARTS LIST Lista De Piezas Liste Des Piéces
IMPORTANT: DO NOT RETURN TO STORE!
For missing or damaged parts, technical or assembly questions,
please call John Louis Customer Service at 1-800-480-6985
IMPORTANTE: ¡NO LO DEVUELVA A LA TIENDA!
Llame al servicio al cliente local de John Louis al 1-800-480-6985
para aclarar sus dudas sobre pérdidas, daños, asuntos écnicos y ensamblaje.
IMPORTANT: NE PAS RENVOYER OU RAPPORTER AU MAGASIN!
Si vous avez une question concernant l’assemblage, des piéces manquantes ou endommagées ou
un probléme technique, appelez le Service á la clientéle de John Louis au 1-800-480-6985.
Quantity: 1 72 in. Shelf
Quantity: 2 24 in. Adjustable Shelf
Quantity: 2 72 in. Tower Side
Quantity: 2 48 in. Shelf
Quantity: 1 24 in. Tower Bottom Cam Shelf
Quantity: 1 72 in. Garment Bar
Quantity: 2 48 in. Garment Bar
1
Quantity: 6 Angle Bracket

Quantity: 8 #6 1 1/4 Self Tapping Screw
Quantity: 5
Cam Lock Nut
Quantity: 4
Cam Bolt
Quantity: 16
Adjustable Shelf Pin
Quantity: 1
Touch Up Stain Pen
Quantity: 6
J-Hook
Quantity: 14
Shelf mounting L- Clip
Quantity: 6
Bar End
Quantity: 6
Angle Bracket Mushroom
Cap
Quantity: 4
Tower Mushroom Cap
Quantity: 4
#8 1/2 in.
Quantity: 24
#4 3/4 in.
Quantity: 64 #8 1 1/2 in. Quantity: 56 Wall Anchor Quantity: 6 #8 3 in.
Quantity: 7
Shelf End
Quantity: 6
Tower Bracket
Quantity: 12
#8 1 in. (J-Hook)
Quantity: 4
Barrel Nut
Quantity: 4
Barrel Bolt
2
Quantity: 14
#8 3/4 in.
Quantity: 1
Allen wrench
Contact Contact0 Contacter
For questions concerning missing or damaged parts, technical specs and / or assembly
help, please contact John Louis Home Customer Service at:
Si tiene preguntas sobre partes faltantes o dañadas, especicaciones técnicas o asisten-
cia para el armado, comuníquese con el Servicio al Cliente de John Louis Home:
Pour toute question relative à des pièces manquantes ou endommagées, toute spécica-
tion technique et/ou aide au montage, contactez le service après-vente de John Louis
Home au :
1.800.480.6985 [email protected] www.johnlouishome.com
John Louis Home 4310 Rider Trail North Earth City, Missouri 63045 USA
© 2016 John Louis Inc., All Rights Reserved.
Quantity: 1
Shelf End Template

3
IMPORTANT - Read Before Assembly
12 in. deep Premier Organizer and 16 in. deep Deluxe Organizer
use the same assembly instruction process EXCEPT DURING
THE J-HOOK PLACEMENT ON THE ANGLE BRACKET.

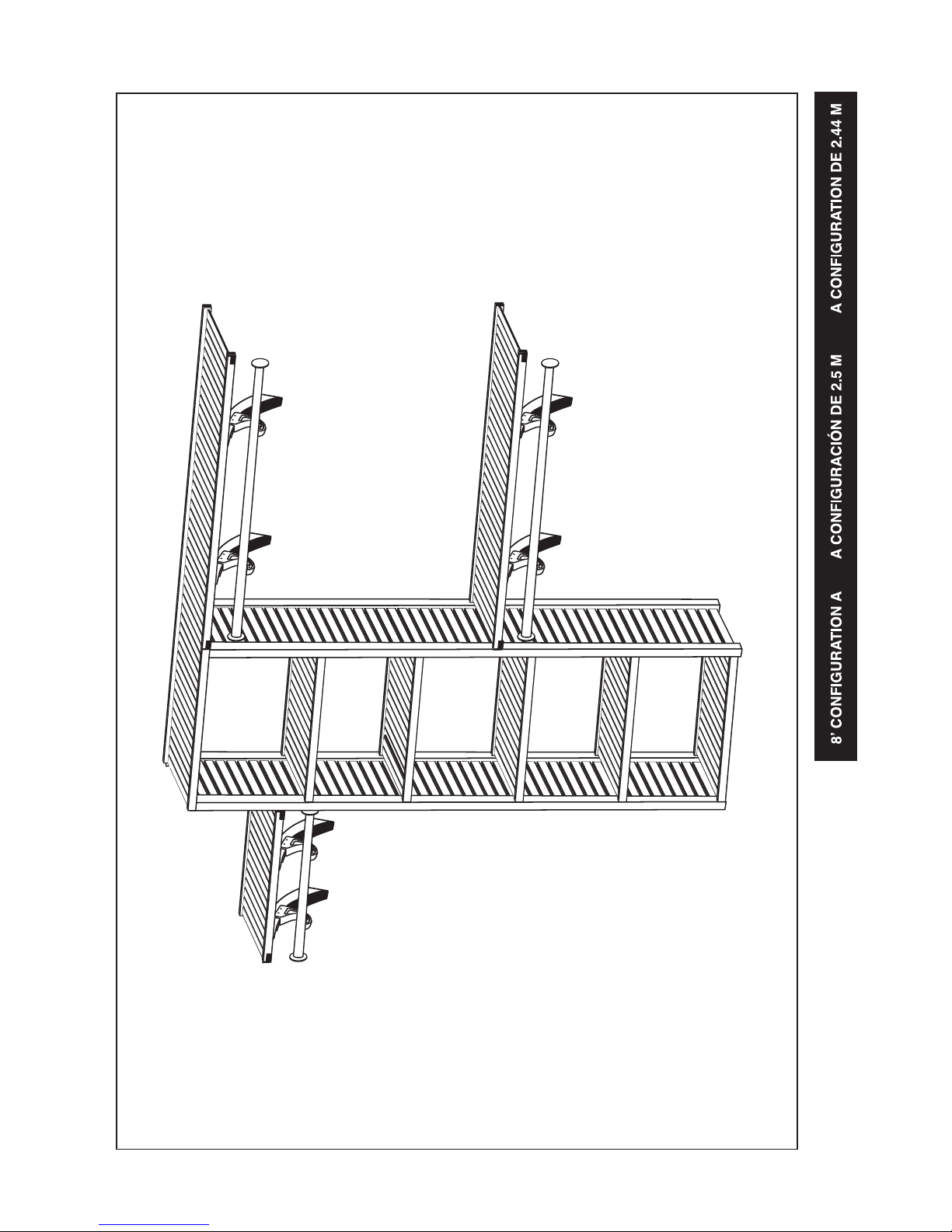

Assembly instructions are written for 8 ft. conguration A.
All assembly processes are the same for each conguration
EXCEPT for the order or locations of the assembly process.

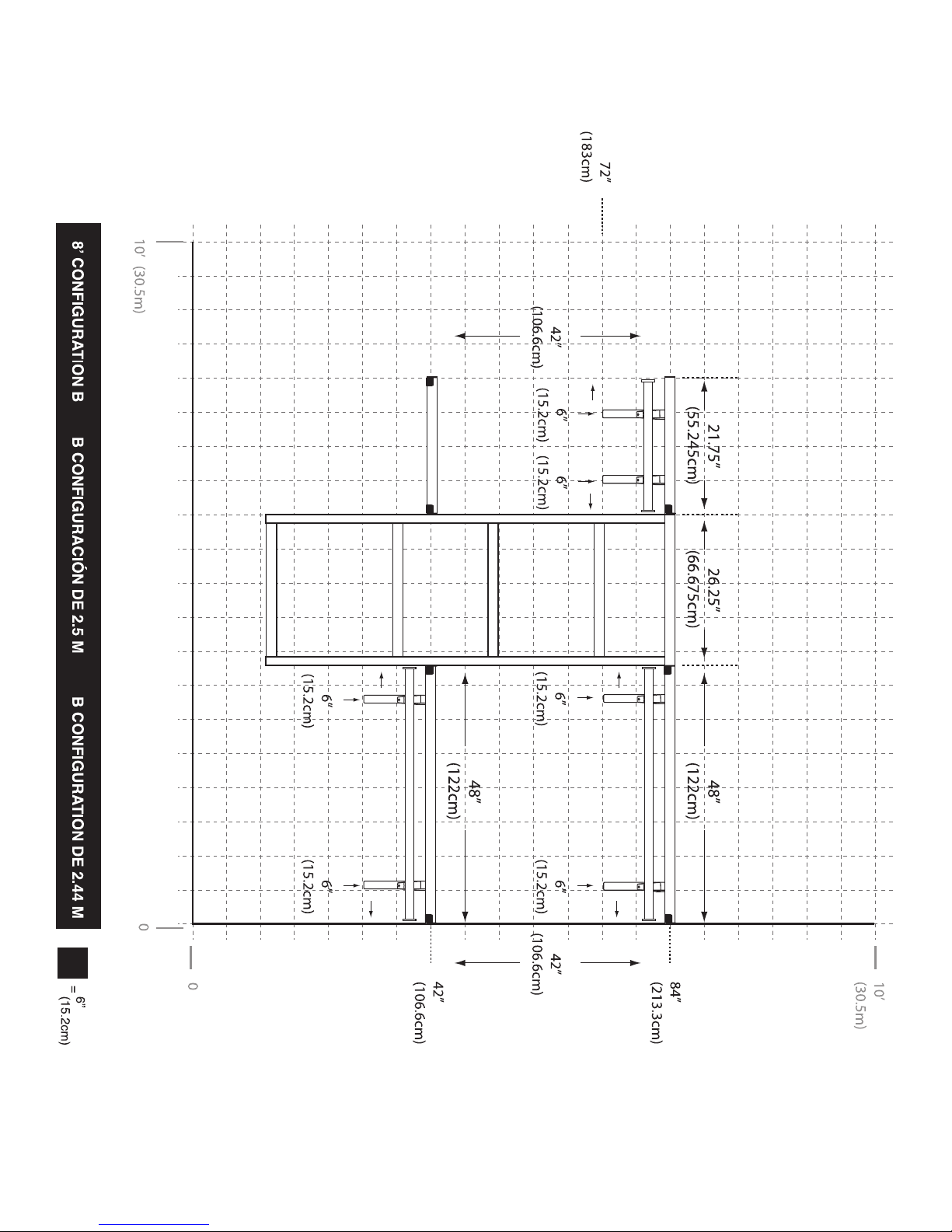

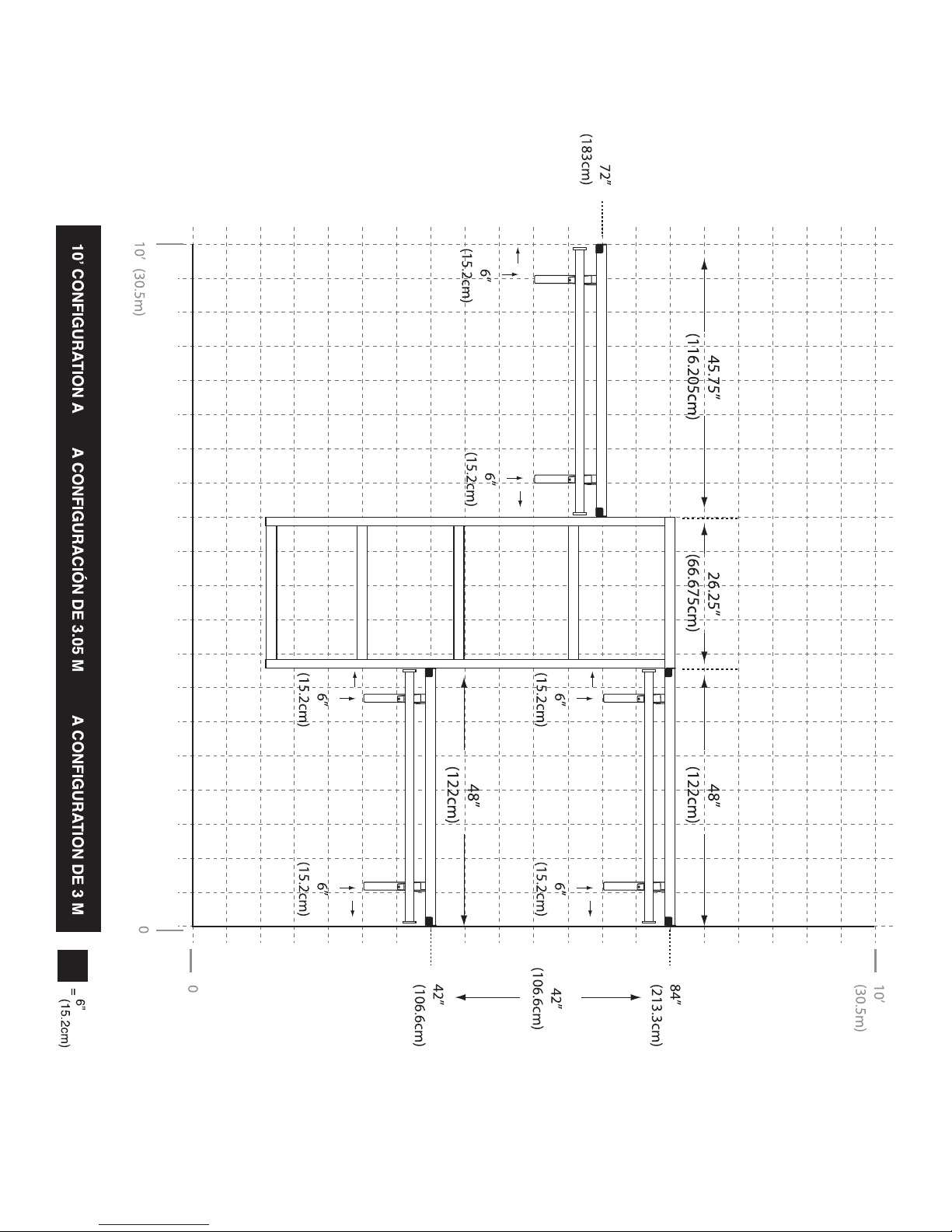

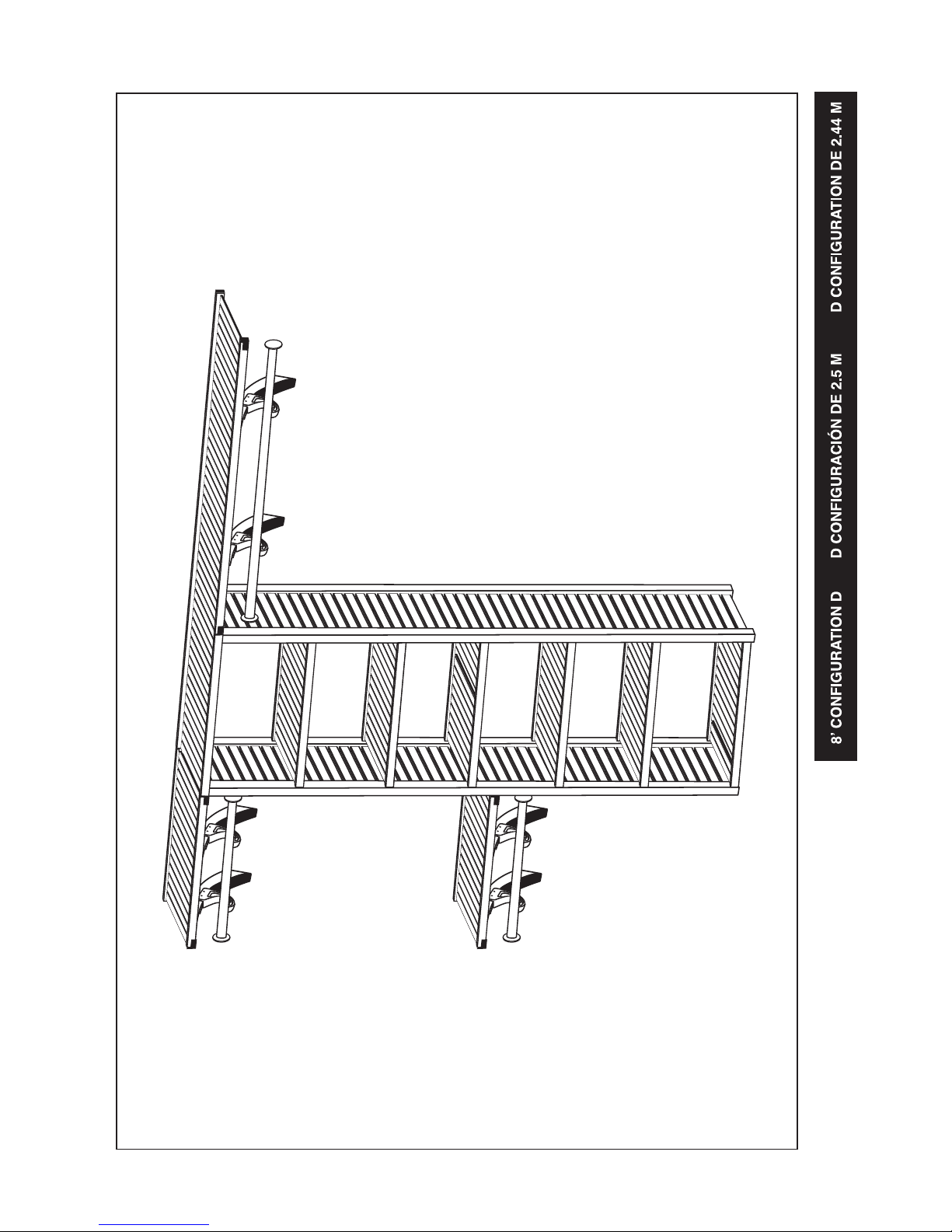

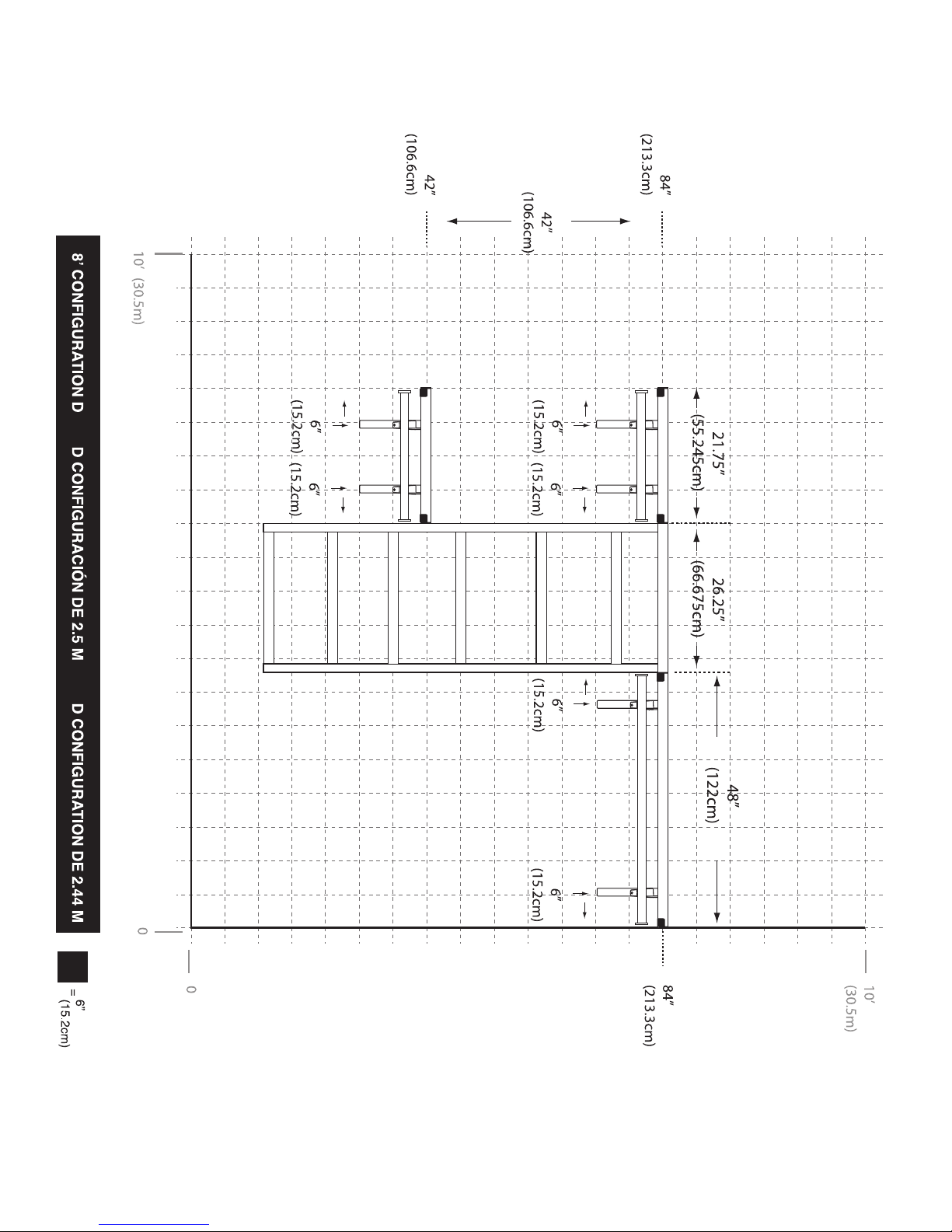

Use selected conguration for shelf locations.
Shelf lengths and Garment bars may need to be cut depending upon conguration
desired.
All cut shelf lengths are used in closet congurations supplied. Depending upon
your closet dimensions, some cut lengths may not be usable.
EXAMPLE: If you choose an 8 ft. closet conguration and the width of your
closet is 8 ft. 4 in., the cut shelf length will be short 4 in. for use. It is recommended
that if your closet is over the selected dimension (8 ft.), then choose a congura-
tion from the next dimension higher (10 ft.).
EXAMPLE: If you choose an 8 ft. closet conguration and the width of your
closet is 7 ft. 6 in., some shelf lengths may need to be cut 6 in. shorter in length
to t closet dimensions.
VERIFY SHELF MEASUREMENTS
MEASURE - MARK - MEASURE AGAIN
Chosen conguration may not require use of all hardware or components sup-
plied.
It is recommended to secure hardware into wall studs for overall strength and
stability of closet system.
If choosing a custom designed conguration, modications to the instructions pro-
vided will be necessary.
All congurations provided may be reversed.

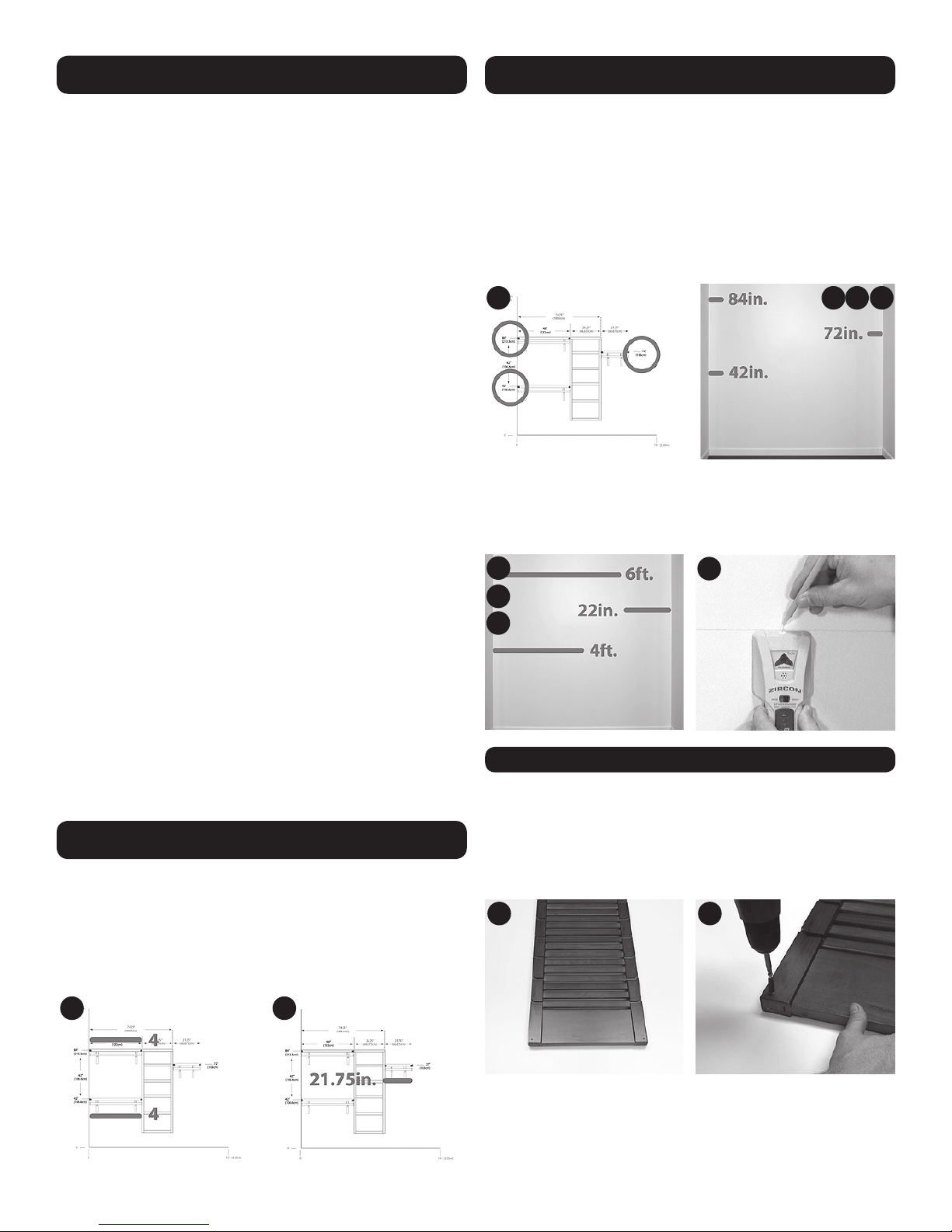

STEP 1 - Determining Your Dimensions
1. Locate your desired conguration (Instructions are written for 8 ft.
conguration A).
2. Double hang is created with 2 - 4 ft. shelf length.
3. Long hang is created by cutting a 6 ft. shelf to 21.75 in. wide. (If your
closet is greater or less than 8 ft. wide you will cut your shelf greater
or less that distance.)
STEP 2 - Marking Measurements On Wall
1. Locate the 3 main shelf height locations for your conguration.
2. Measure up from the oor & mark the 84 in. location.
3. Measure up from the oor & mark the 42 in. location.
4. Measure up from the oor & mark the 72in. location.
84 in. - top shelf
42 in. - lower hang shelf
72 in. - long hang shelf
5. Draw a 6 ft. long level line out from wall end at 84 in. location.
6. Draw a 4 ft. long level line out from wall end at 42 in. location.
7. Draw a 22 in. long level line out from wall end at 72 in. location.
8. Locate stud locations at level lines.
1. Place tower sides down with grooves facing up.
2. Insert cam bolts at tower bottom hole locations (Do not over tighten).
3. Insert tower sides into tower bottom.
4. Insert cam nuts into tower bottom shelf with arrow facing bolt hole.
5. Secure by turning cam nuts clockwise to tighten.
6. Repeat for opposite tower side.
STEP 3 - Tower Assembly

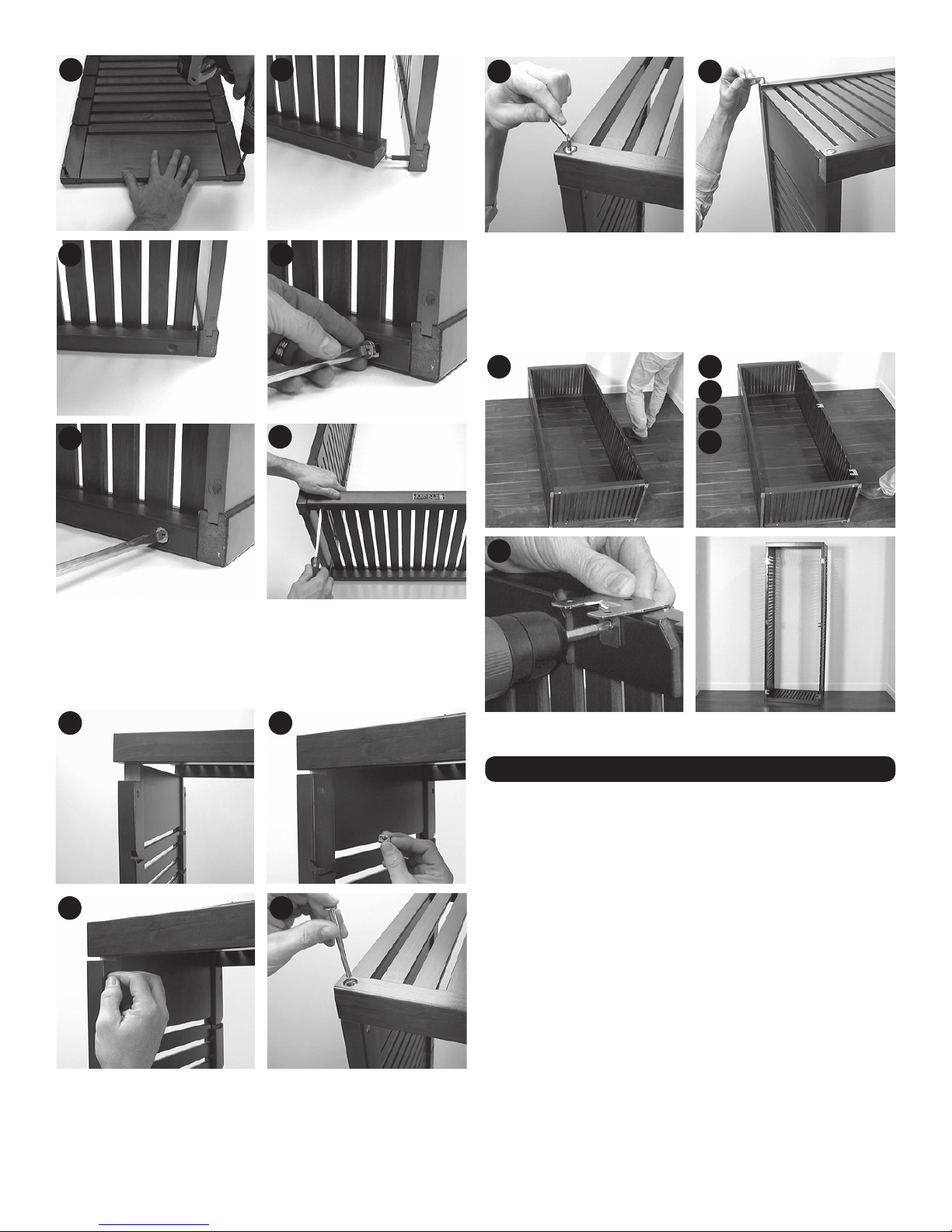

1 2
2 3
1 432
58
6
7

4
7. Place tower top (26 1/4in. shelf) into notches at top of tower.
8. Insert barrel nuts into tower sides with slot in a vertical position.
9. Insert barrel bolts into tower top
10. Flush Tower top with tower side & tighten with allen wrench provided (nut
position may need adjustment).
11. Place tower face down (nameplate typically designates tower front)
12. Place top tower bracket between 1st & 2nd groove.
13. Place middle tower bracket between 8th & 9th groove.
14. Place bottom tower bracket between last groove & tower bottom.
15. Repeat for opposite side.
16. Secure brackets to tower using #8 3/4in. screws.
STEP 4 - Installing Top Shelf & Tower
It is recommended to install hardware into wall studs. Typically 16 in. on
center. Use 50 lb. wall anchors provided if no stud is present.
On the top level line space shelf mounting L-clip hardware equidistant in
the following manner:
• 3 L-clip hardware within the 48in. shelf location
• 2 L-clip hardware within the tower top location
NOTE: AT LEAST 1 L-CLIP HARDWARE MUST BE IN-
STALLED INTO A WALL STUD AT TOWER TOP LOCATION

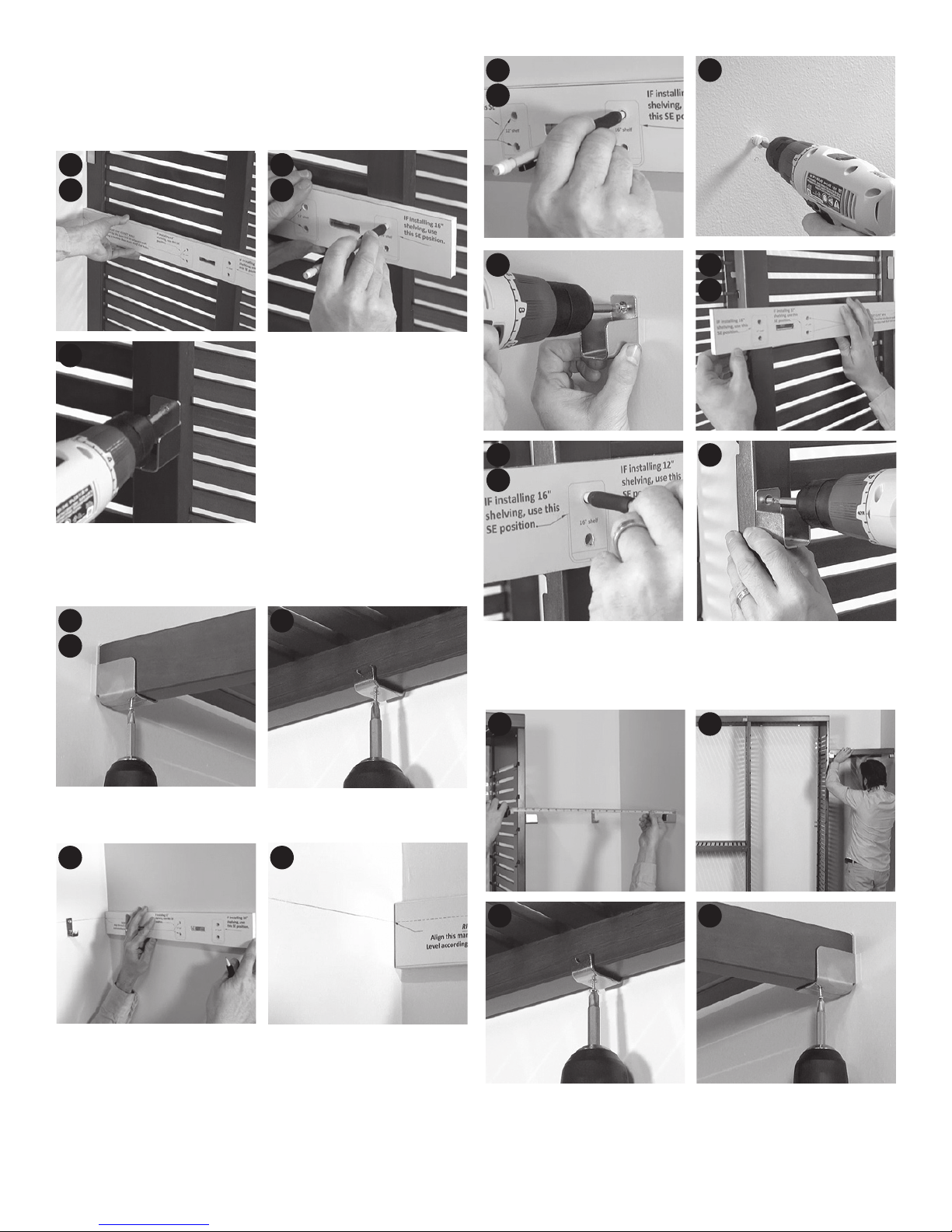

1. Center the top screw hole of the shelf mounting L-clip hardware with the
level line & mark all hole locations.

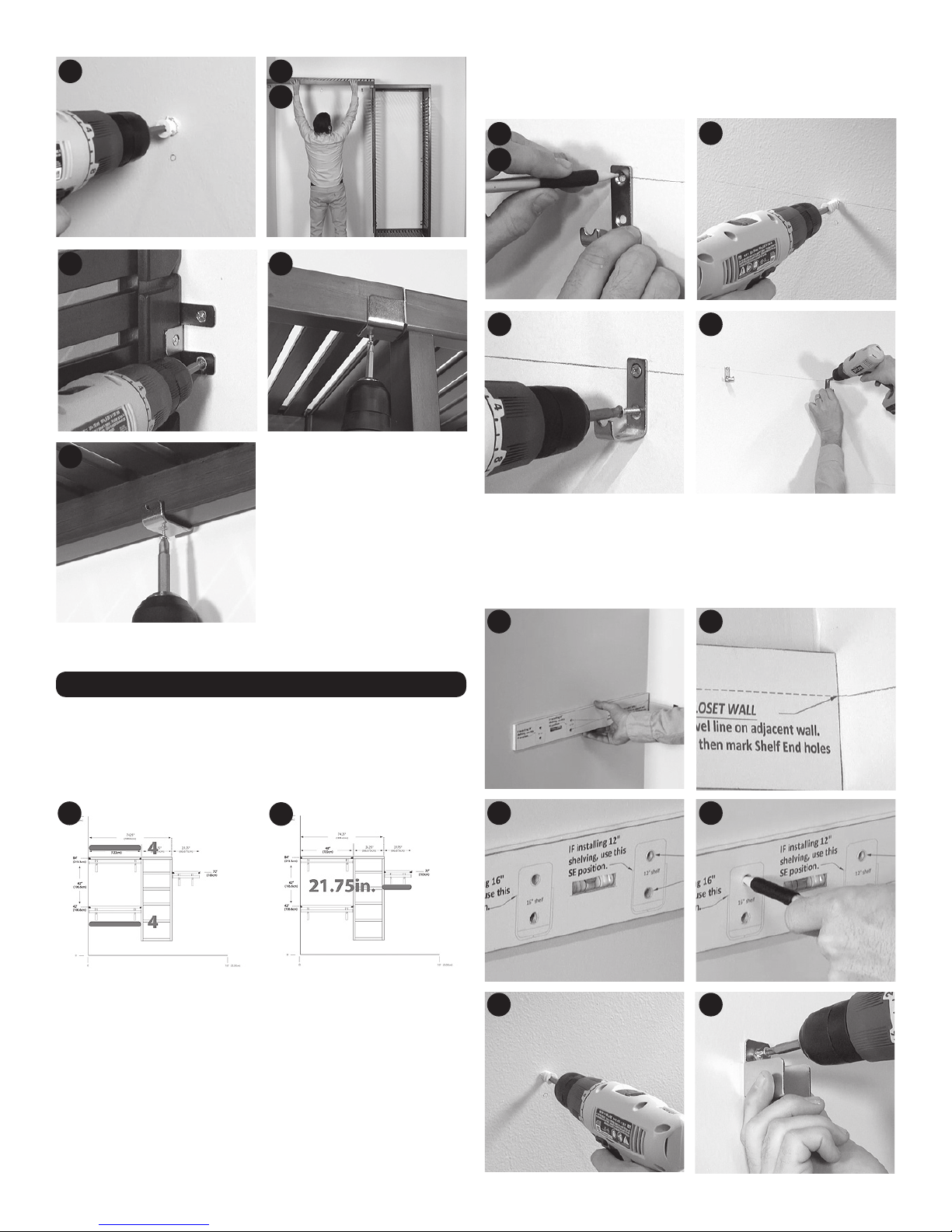

2. Secure L-clip to wall using #8 1 1/2 in. screws at hole locations (Use wall
anchors provided if no stud is present).
3. Repeat for remaining L-clip locations.
2 3
3 4
56
7 8
8 9
10 10
11 12
16
13
14
15
