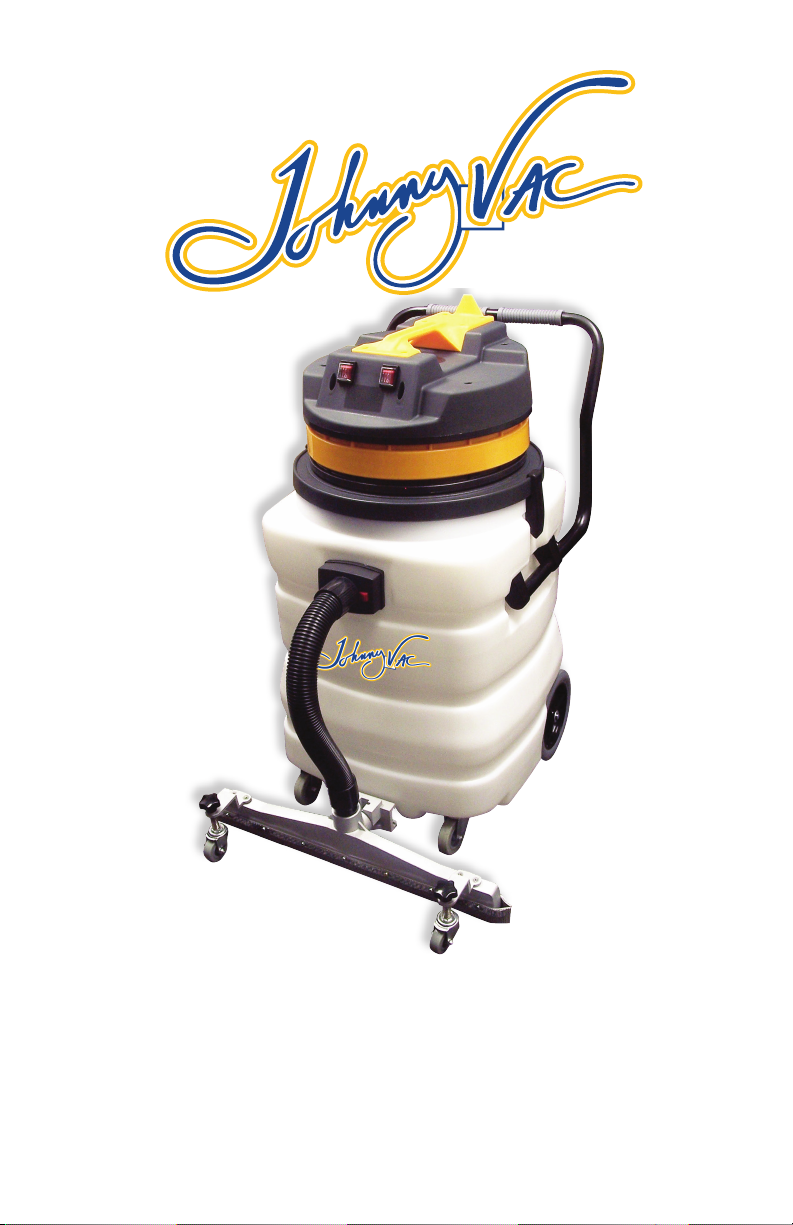

Johnny Vac JV420HD2 User manual

JV420HD2
Wet & Dry Commercial Vacuum Cleaner
USER GUIDE

User Guide
JV420HD2
2
JV420HD2
User Manual
Table of contents:
1- Product description ................................................... 3
2- Safety rules and cautions .......................................... 4
3- Operation instructions ............................................... 5
4- Product overview....................................................... 6
5- Exploding view........................................................... 7
6- Technical specifications............................................. 8
7- Common troubleshooting solutions........................... 9
8- Packaging Content List ............................................. 9
Please read this manual carefully before use and
save it well for further information later

User Guide JV420HD2
3
1. Product Description
• The plastic tank, acid and alkali resistant, solid and durable.
• Silent motor, with a poweful suction and long runtime.
• Anti-cracking tanks and heatproof cover, waterproof and anti-static.
• Large capacity tank with flexible axles and watershoot.
• Complete sets of accessories, easy to assemble.
• Mobile squeegee brush specially made for higher working efficiency.
• Smart appearance, high flexibility and stabilization of large-wheeled bases.
• Power light to indicate on/off status.
• Self-stop device to avoid motor burning after taking too much water
• Broad operation scale due to 7.2 M power cord.
• Wet and dry suction functions, suitable for cleaning places such as hotels,
workshops, restaurants, etc.

User Guide
JV420HD2
4
2. Safety Rules And Cautions
• Make sure service voltage complies with rated voltage in parameter label.
• Check if there’s any damage on electrical elements. If yes, only the
maintenance staff of the manufacturer or similar specialists can replacer
or repair it in case of any possible hazard.
• To ensure a clean tank, make sure the accessories are installed tightly and
nothing is blocking the passage.
• Check if the suction is regular, instead of too weak.
• Filter bags need to be used only when using the dust suction function and
must be removed before wetting suction.
• Direction of power switch must be the same as direction of the square
hose holder.
• Don’t absorb anything that could block the passage easily, such as hair,
large paper lumps, etc.
• Some defoamer additive solution is needed in the tank while working at
location with much foam.
• Power cord mustn’t be extended artificially or circled during use.
• Top part, including motor, must be taken off before emptying liquid in the
tank, instead of turning over the entire machine.
• Tank, filter bags and any related functional accessories must be cleaned
up after each use. While cleaning the filter bag, some cleanser is required.
• Dirty or wet filter bags should not be used. Similarly, filter bags with holes
or cracks should not be used either.
• Don’t forget to hang the power cord on the special hook after each use.
• Please be gentle when using the machine, do not force it passed its
capacities.
• The machine must be kept in a dry place after use.
• While cleaning machine, a wet cloth is needed and top part with motor
mustn’t be immersed in water
• Caustic cleansers, like gasoline or isoamyl acetate, are not allowed in case
of any surface crack.
UNINTERRUPTED WORKING TIME SHOULDN’T BE BEYOND 2 HOURS,
TO AVOID A SHORTENED SERVICE LIFE.

User Guide JV420HD2
5
3. Operation Instructions
• TO LINK HOSE TO THE PLASTIC TANK :
Insert the end cuff hose in the machine inlet block and be sure the hose can’t
be pulled out. By pressing the inlet block’s button, the cuff can be taken out.
Note : Do not pull roughly.
• TO ASSEMBLE HOSE ACCESSORIES:
To link metal wand to hose: join straight ends of two metal wands, insert one
bended end into handle end cuff and twist it until it is well tightened. To link
brush to metal wand: Insert the other bended end into lock screw ring of floor
brush (or squeegee brush) and lock metal wand by twisting the ring. To link the
crevice tool with hose, if necessary: Insert handle end cuff into the crevice tool
(or round brush).
• TO LOCK MOBILE SQUEEGEE BRUSH:
Adjust casters on mobile squeegee brush and then fix it on the machine base
with hand screws. Finally, insert the machine end cuff and handle end cuff into
the inlet block and mobile squeegee brush respectively.
• TO ADJUST HEIGHT OF MOBILE SQUEEGEE BRUSH:
Adjust height of mobile squeegee brush with side hand screws if necessary,
according to cleaning demands.
• TO SWITCH MACHINE «ON» OR «OFF»:
When the power switch is in position « I », it is on; when it is in position « O »,
it is off. Still then, power light might still be on, meaning current is still flowing
through.
• TO START DRY SUCTION :
1. Make sure hose, metal wand and floor brush (or crevice tool, round brush)
are well installed.
2. Check if filter bag is mounted well.
3. Switch on the machine and start cleaning dry locations.
• TO START WET SUCTION :
1. Make sure hose, metal wand and squeegee brush (or mobile squeegee
brush) are well installed.
2. Take out filter bag and check if direction of the power switch is in the same
direction as the inlet block.
3. Switch on the machine and start cleaning wet locations.

User Guide
JV420HD2
6

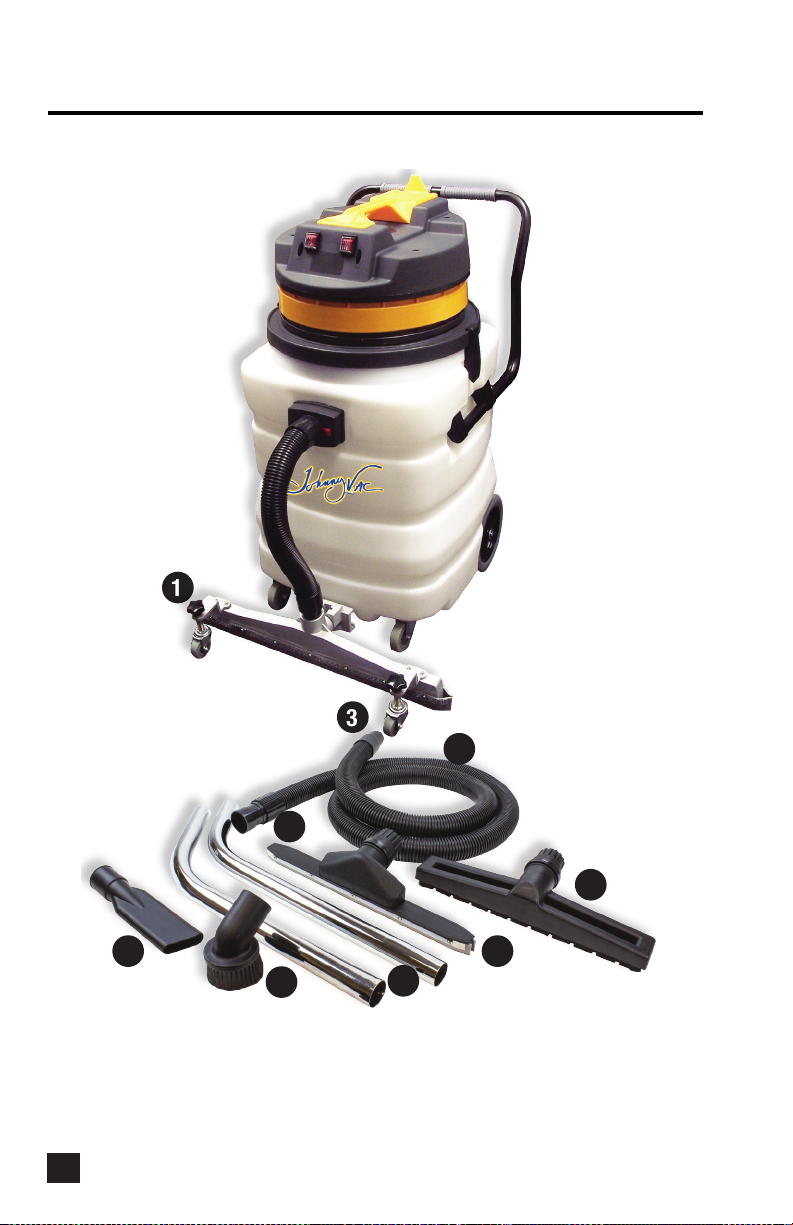

4. Product Overview
JV420HD2
5
2
3
1
4
6
1. Mobile squeegee brush
2. Suction hose
3. Handle end cuff
4. Machine end cuff
5. Squeegee brush
6. Floor brush
7. Metal wand
8. Crevice tool
9. Dusting brush
7
9
8

User Guide JV420HD2
7

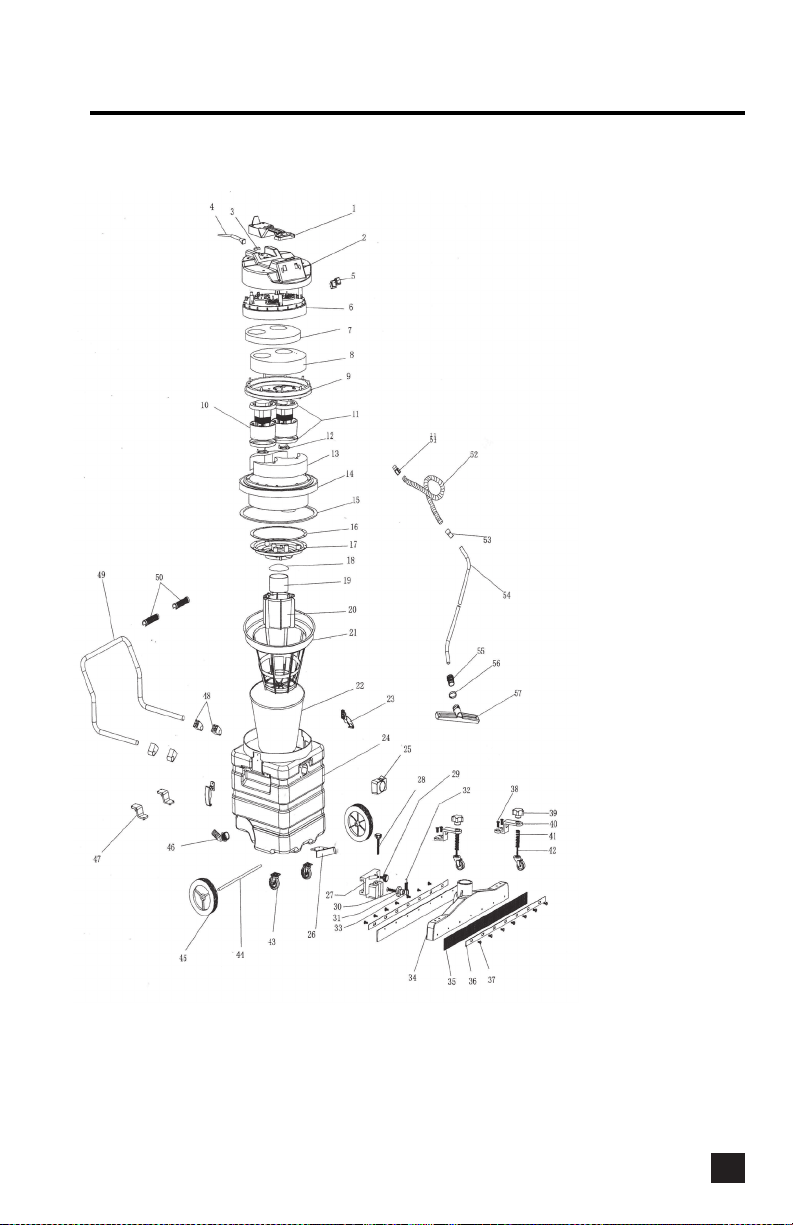

5. Exploding View
JV420HD2
1- Cover gripe
2- Top cover
3- Cable clamp
4- Power cable
5- Power switch
6- Motor enclosure
7- Soundproof sponge
8- Soundproof sponge
9- Motor retaining
hood
10- Motor
11- Motor washer
12- Spacers
13- Sponge
14- Retaining base
15- Retaining base washer
16- Lock ring
17- Float cage holder
18- Float cap
19- Float
20- Float cage
21- Filter bag rack
22- Filter bag
23- Tank clip
24- Plastic tank
25- Square hose holder
26- Nozzle linking bracket
27- Nozzle connector
28- Hand screw A
29- Hnad screw B
30- Sunk inner hex screw
31- Lock pin
32- Spring
33- Circlip
34- Rubber strip holder
35- Rubber strip
36- Metal fixing bar
37-Tapping screw
38- Sunk screw
39- Knub nut
40- Castor bracket
41- Castor spring
42-Castor set
43- Swivel castor
44- Wheel axle
45- Rear wheel
46- Hose connector
47- Fixing bracket
48- Handle retainer
49- Main handle
50- Rubber covert handle
51- Short hose connector
52- Suction hose
53- Long hose connector
54- Metal wand
55- Lock screw-hoop
56- Circlip
57- Dry intake nozzle

User Guide
JV420HD2
8
6. Technical Specifications
• ITEM CODE JV420HD2
• POWER OF SUCCION 1600W
• WATERLIFT 86”
• CAPACITY 22 gal.
• HEIGHT 95 cm
• TANK DIAMETER 44 cm
• CFM 215
• FUNCTION Wet / Dry Vacuum
• VOLTAGE 110 V - 60 Hz
• POWER CORD 25’

User Guide JV420HD2
9
7. Common Troubleshooting Solutions
Before you contact your local dealer, it is recommended to inspect the vacuum cleaner
according to the following instructions:
PROBLEMS POSSIBLE REASONS SOLUTIONS
Motor is not working 1. Is the power cord well
plugged?
2. Is the machine switched on?
3. Make sure it is well
plugged in.
4. Switch machine «ON».
Weak suction 1. Are the brush, hose or wand
blocked?
2. Is the tank filled with dust or
liquid?
3. Is the filter bag blocked by
any dust?
1. Clean blockage.
2. Empty the tank.
3. Replace filter bag.
Water comes out from
top part or motor
during use
Direction of power switch and
inlet block are different.
Change direction to make
them the same.
8. Packaging Content List
• Cleaning vacuum
• Suction Hose
• Dry Intake Nozzle
• Metal Wands (2)
• Round Brush
• Crevice Tool
• Floor Brush
• Squeegee
• User Guide

JV420HD2 - EN
FOR
PARTS, ACCESSORIES & VACUUM BAGS
VISIT OUR WEBSITE AT
WWW.JOHNNYVAC.COM
Residential and commercial
vacuum cleaner specialist
