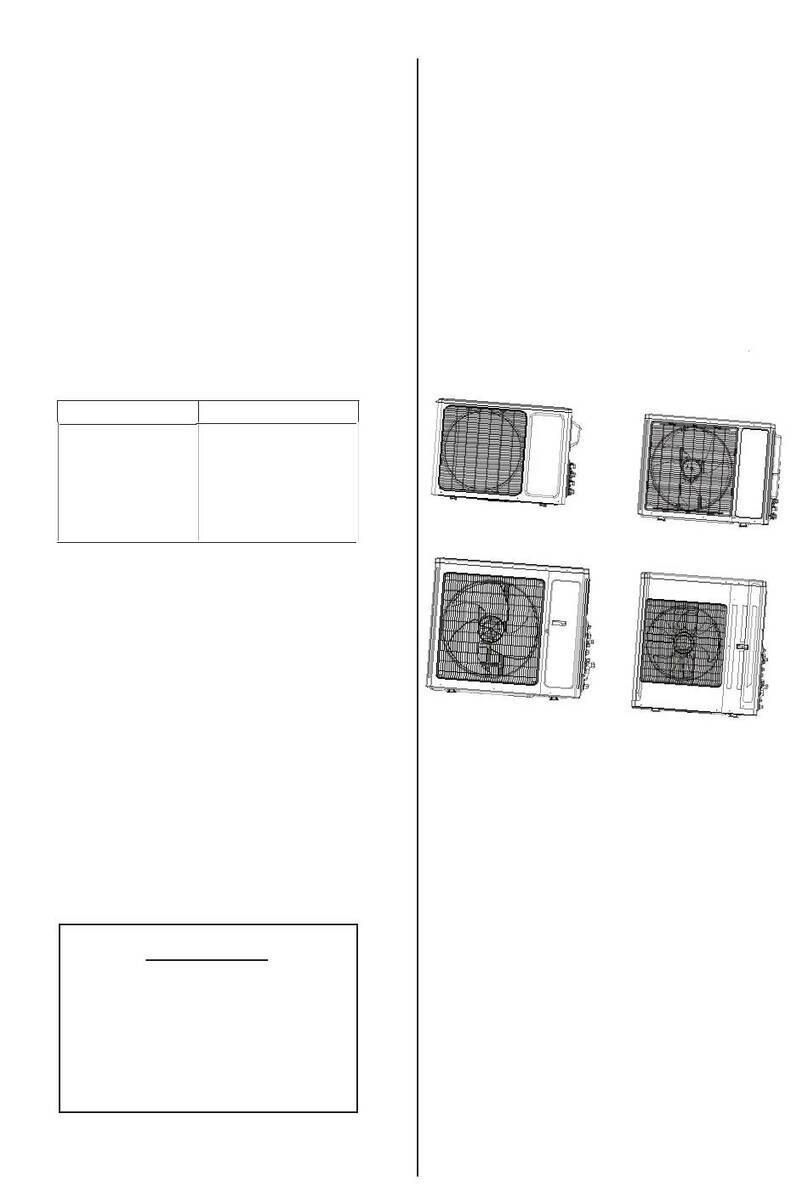

Johnson Controls P Series Manual

Installation and
Maintenance
Manual
"P" SERIES
9K - 12K - 115V
INVERTER-DRIVEN AIR
CONDITIONING UNITS
PLEASE READ AND
UNDERSTAND THIS
MANUAL BEFORE USING
THIS INVERTER-DRIVEN
AIR CONDITIONING UNIT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
INDOOR UNITS
DCP09NWB11S
DHP09NWB11S
DCP12NWB11S
DHP12NWB11S
OUTDOOR UNITS
DCP09CSB11S
DHP09CSB11S
DCP12CSB11S
DHP12CSB11S
Type Model
Model
Type
,03257$17

2P5415467
Important Notice
●Johnson Controls, Inc. pursues a policy of continuing improvement in design and performance in its
products. As such, Johnson Controls, Inc. reserves the right to make changes at any time without
prior notice.
●Johnson Controls, Inc. cannot anticipate every possible circumstance that might involve a potential hazard.
●This inverter air conditioning unit is designed for standard air conditioning applications only. Do not use
this unit for anything other than the purposes for which it was intended for.
● The installer and system specialist shall safeguard against leakage in accordance with local pipetter
and electrical codes. The following standards may be applicable, if local regulations are not available.
International Organization for Standardization: (ISO 5149 or European Standard, EN 378). No part of
this manual may be reproduced in any way without the expressed written consent of Johnson Controls,
Inc.
●This inverter-driven (cooling or heat pump) air conditioning unit will be operated and serviced in the
United States of America and comes with all required Safety, Danger, and Caution, warnings.
●If you have questions, please contact your distributor or dealer.
●This manual provides common descriptions, basic and advanced information to maintain and service
this inverter-driven (cooling or heat pump) air conditioning unit which you operate, as well for other
models.
● This inverter-driven (cooling or heat pump) air conditioning unit has been designed for a specic
temperature range. For optimum performance and long life, operate this unit within range limits.
●This manual should be considered as a permanent part of the air conditioning equipment and should
remain with the air conditioning equipment.
Product Inspection upon Arrival
1. Upon receiving this product, inspect it for any damages incurred in transit. Claims for damage, either
apparent or concealed, should be led immediately with the shipping company.
2. Check the model number, electrical characteristics (power supply, voltage, and frequency rating), and
any accessories to determine if they agree with the purchase order.
3. The standard utilization for this unit is explained in these instructions. Use of this equipment for
purposes other than what it designed for is not recommended.
4. Please contact your local agent or contractor as any issues involving installation, performance, or
maintenance arise. Liability does not cover defects originating from unauthorized modications
performed by a customer without the written consent of Johnson Controls, Inc. Performing any
mechanical alterations on this product without the consent of the manufacturer will render your
warranty null and void.

Table of contents
Table of Contents
2.Installation.................................................................................................................
2. 0DLQ7RROVIRU,QVWDOODWLRQDQG0DLQWHQDQFH...............................................................
2.4 Installation - Checking Parts ...........................................................................................4
2.5 Selection of Installation Location......................................................................................4
2.6 Electric Connection Requirement ....................................................................................4
2.7 Installation of Indoor Unit..................................................................................................4
2.8 Installation of Outdoor Unit...............................................................................................6
2.9 Vacuum Pump/Leak Detection .........................................................................................8
2.10 Post Installation Testing..................................................................................................8
3.Maintenance............................................................................................................... 9
3.1 Precautions before Maintenance...................................................................................... 9
3.2 Error Code List ...............................................................................................................10
3.3 Troubleshooting Procedures.............. ............................................................................11
3.4 Troubleshooting for Normal Malfunction.........................................................................26
Appendix:........................................................................................................................28
Appendix 1: Reference Sheet of Celsius and Fahrenheit ....................................................28
Appendix 2: Configuration of Connection Pipe.....................................................................28
Appendix 3: Pipe Expanding Method ...................................................................................29
Appendix 4: List of Resistance for Temperature Sensor ......................................................30
2.1 Installation Dimension Diagram......................................................................................1
1.,QWURGXFWLRQ and 6DIHW\,QVWUXFWLRQV...................................................i
2. Installation Procedures ...................................................................................................3
Customer Service, Technical Support....................................................32

31P5415467
1. Introduction
This manual should be considered as a permanent part of the air conditioning equipment and should
remain with the air conditioning equipment.
This manual concentrates on inverter-driven cooling or heat pump air conditioning units. Read this manual
carefully before installation.
2. Important Safety Instructions
Safety Messages
Indicates a hazardous situation that, if not avoided, could result in death or
serious injury.
Indicates a hazardous situation that, if not avoided, could result in minor or
moderate injury.
Indicates information considered important, but not hazard-related (for
example, messages relating to property damage).
General Precautions
To reduce the risk of serious injury or death, read these instructions
thoroughly and follow all warnings or cautions included in all manuals that
accompanied the product and are attached to the unit. Refer back to these
safety instructions as needed.
● This system should be installed by personnel certied by Johnson Controls, Inc. Personnel must be
qualied according to local, state and national building and safety codes and regulations. Incorrect
installation could cause leaks, electric shock, re or explosion. In areas where Seismic ‘’Performance
requirements are specied, the appropriate measures should be taken during installation to guard against
possible damage or injury that might occur in an earthquake if the unit is not installed correctly, injuries may
occur due to a falling unit.
●Use appropriate Personal Protective Equipment (PPE), such as gloves and protective goggles and,
where appropriate, have a gas mask nearby. Also use electrical protection equipment and tools suited
for electrical operation purposes. Keep a quenching cloth and a re extinguisher nearby during brazing.
Use care in handling, rigging, and setting of bulky equipment.
●When transporting, be careful when picking up, moving and mounting these units. Although the unit may
be packed using plastic straps, do not use them for transporting the unit from one location to another. Do
not stand on or put any material on the unit. Get a partner to help, and bend with your knees when lifting
to reduce strain on your back. Sharp edges or thin aluminum fins on the air conditioning unit can cut
fingers, so wear protective gloves.
●Do not touch or adjust any safety devices inside the indoor or outdoor units. All safety features,
disengagement, and interlocks must be in place and functioning correctly before the equipment is put
into operation. If these devices are improperly adjusted or tampered with in any way, a serious accident
can occur. Never bypass or jump-out any safety device or switch.
●Johnson Controls, Inc. will not assume any liability for injuries or damage caused by not following steps
outlined or described in this manual. Unauthorized modications to Johnson Controls products are
prohibited as they…
◦May create hazards which could result in death, serious injury or equipment damage.
◦Will void product warranties.
◦ May invalidate product regulatory certications.
◦May violate OSHA standards.
i

4P5415467
Take the following precautions to reduce the risk of property damage.
●Be careful that moisture, dust, or variant refrigerant compounds not enter the refrigerant cycle during
installation work. Foreign matter could damage internal components or cause blockages.
● If air lters are required on this unit, do not operate the unit without the air lter set in place. If the air
lter is not installed, dust may accumulate and breakdown may result.
●Do not install this unit in any place where silicon gases can coalesce. If the silicon gas molecules
attach themselves to the surface of the heat exchanger, the nned surfaces will repel water. As a
result, any amount of condensate can overow from the condensate pan and could run inside of the
electrical box, possibly causing electrical failures.
●When installing the unit in a hospital or other facility where electromagnetic waves are generated
from nearby medical and/or electronic devices, be prepared for noise and electronic interference
Electromagnetic Interference (EMI). Do not install where the waves can directly radiate into the
electrical box, controller cable, or controller. Inverters, appliances, high-frequency medical equipment,
and radio communications equipment may cause the unit to malfunction. The operation of the unit
may also adversely affect these same devices. Install the unit at least 10 ft. (approximately 3m) away
from such devices.
●When a wireless zone controller is used, locate at a distance of at least 3.3 ft. (approximately 1 meter)
between the indoor unit and electric lighting. If not, the receiver part of the unit may have difculty
receiving operation commands.
●Do not install the unit in any location where animals and plants can come into direct contact with the
outlet air stream. Exposure could adversely affect the animals and plants.
●Do not install the unit with any downward slope to the side of the drain boss. If you do, you may have
water owing back which may cause leaks.
●Be sure the condensate hose discharges water properly. If connected incorrectly, it may cause leaks.
●Do not install the unit in any place where oil can seep onto the units, such as table or seating areas in
restaurants, and so forth. For these locations or social venues, use specialized units with oil-resistant
features built into them. In addition, use a specialized ceiling fan designed for restaurant use. These
specialized oil-resistant units can be ordered for such applications. However, in places where large
quantities of oil can splash onto the unit, such as a factory, even the specialized units cannot be used.
These products should not be installed in such locations.
Installation Precautions
To reduce the risk of serious injury or death, the following installation
precautions must be followed.
●When installing the unit into…
▫ A wall: Make sure the wall is strong enough to hold the unit’s weight. It may be necessary to
construct a strong wood or metal frame to provide added support.
▫A room: Properly insulate any refrigerant tubing run inside a room to prevent “sweating” that can
cause dripping and water damage to wall and oors.
▫Damp or uneven areas: Use a raised concrete pad or concrete blocks to provide a solid, level
foundation for the unit to prevent water damage and abnormal vibration.
▫An area with high winds: Securely anchor the outdoor unit down with bolts and a metal frame.
Provide a suitable air bafe.
▫A snowy area (only for heat pump model): Install the outdoor unit on a raised platform that is
higher than drifting snow. Provide snow vents.
● Do not install the unit in the following places. Doing so can result in an explosion, re, deformation,
corrosion, or product failure.
▫ Explosive or ammable atmosphere
▫ Where re, oil, steam, or powder can directly enter the unit, such as in close proximity or directly
above a kitchen stove.
▫Where oil (including machinery oil) may be present.
▫ Where corrosive gases such as chlorine, bromine, or sulde can accumulate, such as near a hot
tub or hot spring.
▫ Where dense, salt-laden airow is heavy, such as in coastal regions.
▫Where the air quality is of high acidity.
▫Where harmful gases can be generated from decomposition.
ii

5P5415467
●Do not position the condensate pipe for the indoor unit near any sanitary sewers where corrosive
gases may be present. If you do, toxic gases can seep into breathable air spaces and can cause
respiratory injuries. If the condensate pipe is installed incorrectly, water leakage and damage to the
ceiling, oor, furniture, or other possessions may result. If condensate piping becomes clogged,
moisture can back up and can drip from the indoor unit. Do not install the indoor unit where such
dripping can cause moisture damage or uneven locations: Use a raised concrete pad or concrete
blocks to provide a solid, level foundation for the unit to prevent water damage and abnormal
vibration.
● Before performing any brazing work, be sure that there are no ammable materials or open
ames nearby.
●Perform a run test to ensure normal operation. Safety guards, shields, barriers, covers, and protective
devices must be in place while the compressor/unit is operating. During the test run, keep ngers and
clothing away from any moving parts.
● Clean up the site when nished, remembering to check that no metal scraps or bits of wiring have
been left inside the unit being installed.
●During transportation, do not allow the backrest of the forklift to make contact with the unit,
otherwise, it may cause damage to the heat exchanger and also may cause injury when
stopped or started suddenly.
● Remove gas inside the closing pipe when the brazing work is performed. If the brazing ller metal is
melted with remaining gas inside, the pipes will be blown off and it may cause injury.
●Be sure to use nitrogen gas for an airtight test. If other gases such as oxygen gas, acetylene gas or
uorocarbon gas are accidentally used, it may cause explosion or gas intoxication.
After installation work for the system has been completed, explain the “Safety Precautions,” the proper use
and maintenance of the unit to the customer according to the information in all manuals that came with the
system. All manuals and warranty information must be given to the user or left near the Indoor Unit.
Refrigerant Precautions
To reduce the risk of serious injury or death, the following refrigerant
precautions must be followed.
●As originally manufactured, this unit contains refrigerant installed by Johnson Controls. Johnson
Controls uses only refrigerants that have been approved for use in the unit’s intended home country
or market. Johnson Controls distributors similarly are only authorized to provide refrigerants that
have been approved for use in the countries or markets they serve. The refrigerant used in this unit
is identied on the unit’s faceplate and/or in the associated manuals. Any additions of refrigerant into
this unit must comply with the country’s requirements with regard to refrigerant use and should be
obtained from Johnson Controls distributors. Use of any non-approved refrigerant substitutes will void
the warranty and will increase the potential risk of injury or death.
●If installed in a small room, take measures to prevent the refrigerant from exceeding the maximum
allowable concentration in the event that refrigerant gases should escape. Refrigerant gases can
cause asphyxiation (0.42 kg/m3 based on ISO 5149 for R410A). Consult with your distributor for
countermeasures (ventilation system and so on). If refrigerant gas has leaked during the installation
work, ventilate the room immediately.
●The design pressure for this product is 601 psi (4.15MPa). The pressure of R410A refrigerant is 1.4
times higher than that of the refrigerant R22. Therefore, the refrigerant piping for R410A shall be
thicker than that for R22. Make sure to use the specified refrigerant piping. If not, the refrigerant
piping may rupture due to an excessive refrigerant pressure. Besides, pay attention to the piping
thickness when using copper refrigerant piping. The thickness of copper refrigerant piping differs
depending on its material.
●The refrigerant R410A is adopted. The refrigerant oil tends to be affected by foreign matters such
as moisture, oxide lm, (or fat). Perform the installation work with care to prevent moisture, dust, or
different refrigerant from entering the refrigerant cycle. Foreign matter can be introduced into the
cycle from such parts as expansion valve and the operation may be unavailable.
●To avoid the possibility of different refrigerant or refrigerant oil being introduced into the cycle, the
sizes of the charging connections have been changed from R407C type and R22 type. It is necessary
to prepare the appropriate tools before performing the installation work.
●Use refrigerant pipes and joints which are approved for use with R410A.
●A compressor/unit comprises a pressurized system. Never loosen threaded joints while the system is
iii

6P5415467
under pressure and never open pressurized system parts.
●Before installation is complete, make sure that the refrigerant leak test has been performed. If
refrigerant gases escape into the air, turn OFF the main switch, extinguish any open ames and
contact your service contractor. Refrigerant (Fluorocarbon) for this unit is odorless. If the refrigerant
should leak and come into contact with open ames, toxic gas could be generated. Also, because the
uorocarbons are heavier than air, they settle to the oor, which could cause asphyxiation.
●When installing the unit, and connecting refrigerant piping, keep all piping runs as short as
possible, and make sure to securely connect the refrigerant piping before the compressor starts
operating. If the refrigerant piping is not connected and the compressor activates with the stop
valve opened, the refrigerant cycle will become subjected to extremely high pressure, which can
cause an explosion or re.
● Tighten the are nut with a torque wrench in the specied manner. Do not apply excessive force to the
are nut when tightening. If you do, the are nut can crack and refrigerant leakage may occur.
●When maintaining, relocating, and disposing of the unit, dismantle the refrigerant piping after the
compressor stops.
●When pipes are removed out from under the piping cover, after the insulation work is completed,
cover the gap between the piping cover and pipes by a packing (eld-supplied). If the gap is not
covered, the unit may be damaged if snow, rain water or small animals enter the unit.
●Do not apply an excessive force to the spindle valve at the end of opening. Otherwise, the spindle
valve ies out due to refrigerant pressure. At the run test, fully open the gas and liquid valves,
otherwise, these devices will be damaged. (It is closed before shipment.)
● If the arrangement for outdoor units is incorrect, it may cause owback of the refrigerant and result in
failure of the outdoor unit.
●The refrigerant system may be damaged if the slope of the piping connection kit exceeds +15o.
Electrical Precautions
Take the following precautions to reduce the risk of electric shock, re or
explosion resulting in serious injury or death.
●Highly dangerous electrical voltages are used in this system. Carefully refer to the wiring diagram
and these instructions when wiring. Improper connections and inadequate grounding can cause
serious injury or death.
●Perform all electrical work in strict accordance with this installation and maintenance manual and all
the relevant regulatory standards.
●Before servicing, open and tag all disconnect switches. Never assume electrical power is
disconnected. Check with meter and equipment.
●Only use electrical protection equipment and tools suited for this installation.
● Use specied cables between units.
●The new air conditioner may not function normally in the following instances:
▫If electrical power for the new air conditioner is supplied from the same transformer as the device*
referred to below.
▫If the power source cables for this device* and the new air conditioner unit are located in close
proximity to each other.
Device*: (Example): A lift, container crane, rectier for electric railway, inverter power
device, arc furnace, electric furnace, large-sized induction motor and large-sized switch.
Regarding the cases mentioned above, surge voltage may be inducted into the power
supply cables for the packaged air conditioning unit due to a rapid change in power
consumption of the device and an activation of a switch.
Check eld regulations and standards before performing electrical work in order to protect the
power supply for the new air conditioner unit.
iv

7P5415467
●Communication cabling shall be a minimum of 18-Gauge, 2-Conductor, Stranded Copper. Shielded
cable must be considered for applications and routing in areas of high EMI and other sources of
potentially excessive electrical noise to reduce the potential for communication errors. When shielded
cabling is applied, proper bonding and termination of the cable shield is required as per Johnson
Controls guidelines. Plenum and riser ratings for communication cables must be considered per
application and local code requirments.
● Use an exclusive power supply for the air conditioner at the unit’s rated voltage.
●Be sure to install circuit breakers (ground fault interrupter, isolating switch, molded case circuit
breaker and so on), with the specied capacity. Ensure that the wiring terminals are tightened securely
to recommended torque specications.
●Clamp electrical wires securely with a cable clamp after all wiring is connected to the terminal block.
In addition, run wires securely through the wiring access channel.
●When installing the power lines, do not apply tension to the cables. Secure the suspended cables at
regular intervals, but not too tightly.
●Make sure that the terminals do not come into contact with the surface of the electrical box. If the
terminals are too close to the surface, it may lead to failures at the terminal connection.
●Turn OFF and disconnect the unit from the power source when handling the service connector. Do not
open the service cover or access panel to the indoor or outdoor units without turning OFF the main
power supply.
● After ceasing operation, be sure to wait at least ve minutes before turning off the main power
switch. Otherwise, water leakage or electrical breakdown may result. Disconnect the power source
completely before attempting any maintenance for electrical parts. Check to ensure that no residual
voltage is present after disconnecting the power source.
●Do not clean with, or pour water into, the controller as it could cause electric shock and/or damage the
unit. Do not use strong detergent such as a solvent. Clean with a soft cloth.
●Check that the ground wire is securely connected. Do not connect ground wiring to gas piping, water
piping, lighting conductor, or telephone ground wiring.
●If a circuit breaker or fuse is frequently activated, shut down the system and contact your
service contractor.
●Perform all electrical work in accordance with this manual and in compliance with all regulations and
safety standards.
● Do not open a service access cover or panel of an indoor or outdoor unit without rst turning OFF the
power at the main power supply.
●Residual voltage can cause electric shock. At all times, check for residual voltage after disconnecting
from the power source before starting work on the unit.
●This equipment can be installed with a Ground Fault Circuit Breaker (GFCI), which is a recognized
measure for added protection to a properly grounded unit. Install appropriate sized breakers/fuses/
overcurrent protection switches, and wiring in accordance with local, state and NEC codes and
requirements. The equipment installer is responsible for understanding and abiding by applicable
codes and requirements.
v

1Installation and Maintenance
2.Installation
2.1 Installation Dimension Diagram
Space to the ceiling
Space to the wall
At least 5 7/8 inch
At least 98 7/16 inch
At least 5 7/8 inch
At least 5 7/8 inch
Space to the wall
Space to the obstruction
roolfehtotecapS
At least 118 inch
Space to the obstruction
At least 78 5/8 inch
Space to the wall
At least 11 13/16 inch
At least 19 11/16 inch
Space to the obstruction
At least 11 13/16 inch
Space to the obstruction
At least 19 11/16 inch
Condensate pipe
Space to the obstruction

2
Installation and Maintenance
2.2 Main Tools for Installation and Maintenance
1. Level meter, measuring tape
4. Electroprobe
7. Electronic leakage detector
10. Pipe pliers, pipe cutter
2. Screw driver
5. Universal meter
8. Vacuum pump
11. Pipe expander, pipe bender
3. Impact drill, drill head, electric drill
6. Torque wrench, open-end wrench, inner
hex wrench
9. Manifold gauge
12. Soldering appliance, refrigerant container


3
Installation and Maintenance
Preparation before installation
Prepare tools
Read the requirements
for electric connection
Select installation
location
Select indoor unit
installation location
Install wall-mounting
frame, drill wall holes
Connect pipes of indoor
unit and condendsate pipe
Connect wires of indoor unit
Connect wires of outdoor unit
Bind up pipes and
hang the indoor unit
Make the bound pipes pass
through the wall hole and then
connect outdoor unit
Arrange the pipes
Vacuum pumping and leakage detection
Check after installation and test operation
Finish installation
Note: This flow is only for reference; please find more detailed installation steps in this section.
Select outdoor unit
installation location
Install outdoor unit mount
(select it according to the actual situation)
Install drainage joint of outdoor unit
(only for cooling and heating unit)
Connect pipes of outdoor unit
Start installation
IMount outdoor unit
2.3 Installation Procedures

4Installation and Maintenance
NO. Name NO. Name
1,QGRRUXQLW 8Sealant
22XWGRRUXQLW 9 Wrapping tape
3 Connection pipe 10 6XSSRUWRIRXWGRRU
XQLW
4Condensate pipe 11 )L[LQJVFUHZ
5:DOOPRXQWLQJ
frame 12 'UDLQDJHSOXJFRROLQJ
DQGKHDWLQJXQLW
6Connecting
cable(power cord) 13 2ZQHU¶VPDQXDO
remote controller
7 Wall pipe
1. Safety Precaution
(1) All electric safety regulations must be followed when
installing the unit.
(2) Use proper power supply circuit and air switch in
accordance with local safety regulations.
(3) The power supply must be sized to meet the requirements
of air conditioning unit. Incorrect sizing/wiring may result in
electric shock,fire hazard or malfunction.
3URSHUO\FRQQHFWWKHOLYHZLUHQHXWUDOZLUHDQGJURXQGLQJ
ZLUHRISRZHUVRFNHW
%HVXUHWRFXWRIIWKHSRZHUVXSSO\EHIRUHSURFHHGLQJDQ\
ZRUNUHODWHGWRHOHFWULFLW\DQGVDIHW\ 'RQRWturn on the
SRZHUEHIRUH¿QLVKLQJLQVWDOODWLRQ
)RUDSSOLDQFHVZLWKW\SH<DWWDFKPHQWWKHLQVWUXFWLRQV
VKDOOFRQWDLQWKHVXEVWDQFHRIWKH
IROORZLQJ,IWKHVXSSO\FRUGLVGDPDJHGLWPXVWEHUHSODFHGE\
WKHPDQXIDFWXUHU LWVVHUYLFHDJHQWRUa certified technician
LQRUGHUWRDYRLGDKD]DUG
7KHWHPSHUDWXUHRIUHIULJHUDQWFLUFXLWZLOOEHKLJKSOHDVH
NHHSWKHLQWHUFRQQHFWLRQFDEOHDZD\IURPWKHFRSSHUWXEH
2.4Installation -Checking Parts
2.5Selection of Installation Location
2.6Electric Connection Requirement
2.7Installation of Indoor Unit
3OHDVHFRQWDFWWKHORFDODJHQWIRULQVWDOODWLRQ
'RQWXVHXQTXDOL¿HGSRZHUFRUG
1. Basic Requirement:
,QVWDOOLQJWKHXQLWLQWKHIROORZLQJSODFHVPD\FDXVH
PDOIXQFWLRQ,ILWLVXQDYRLGDEOHSOHDVHFRQVXOWWKHORFDOGHDOHU
 AreasZLWKVWURQJKHDWVRXUFHVYDSRUVÀDPPDEOHRU
H[SORVLYHJDVRUYRODWLOHREMHFWVVSUHDGLQWKHDLU
AreasZLWKKLJKIUHTXHQF\GHYLFHVVXFKDVZHOGLQJ
PDFKLQHPHGLFDOHTXLSPHQW
Areas withsalt water vapors can cause corrosion to the
unit
AreasZLWKRLORUIXPHVLQWKHDLU
AreasZLWKVXOIXUicJDV
2WKHUSODFHVZLWKVSHFLDOFLUFXPVWDQFHV
2. Grounding Requirements:
7KHDLUFRQGLWLRQing unit must be properly grounded ZLWKa
VSHFLDOL]HGJURXQGLQJGHYLFHby a certified technician.
3OHDVHPDNHVXUHLWLVDOZD\VJURXQGHGHIIHFWLYHO\RWKHUZLVH
LWPD\FDXVHHOHFWULFVKRFN
7KH\HOORZJUHHQZLUHLQthe DLUFRQGLWLRQing unit is
groundiing wire, which can't be used IRURWKHUSXUSRVHV
7KHJURXQGLQJUHVLVWDQFHVKRXOGFRPSO\ZLWKQDWLRQDO
HOHFWULFVDIHW\UHJXODWLRQV
7KHDSSOLDQFHPXVWEHSRVLWLRQHGVRWKDWWKHSOXJLV
accessible.
$QDOOSROHGLVFRQQHFWLRQVZLWFKKDYLQJDFRQWDFWVHSDUDWLRQ
RIDWOHDVW3/32 in. in all poles should be connected in
securedZLULQJ
,QFOXGeDQDLUVZLWFKZLWKVXLWDEOHFDSDFLW\.POHDVHQRWH
WKHIROORZLQJWDEOH$LUVZLWFKVKRXOGEHLQFOXGHGPDJQHW
EXFNOHDQGKHDWLQJEXFNOHIXQFWLRQLWFDQSURWHFWWKHFLUFXLW
VKRUWDQGRYHUORDG&DXWLRQPOHDVHGRQRWXVHonly a fuse
toSURWHFWWKHFLUFXLW.
1. Choosing Installation Iocation
Recommend installation location to the client based on field
conditions; then proceed after client approval.
2. Install Wall-mounting Frame
InstallWKHZDOOPRXQWLQJIUDPHRQWKHZDOODGMXVWLWLQa
KRUL]RQWDOSRVLWLRQZLWKaOHYHOPHWHUDQGWKHQplanRXWWKH
VFUHZ¿[LQJKROHVRQWKHZDOO
'ULOOWKHVFUHZ¿[LQJKROHVRQWKHZDOOZLWKLPSDFWGULOOWKH
VSHFLILFDWLRQRIGULOOKHDGVKRXOGEHWKHVDPHDVWKHSODVWLF
H[SDQVLRQSDUWLFOHsDQGWKHQ¿OOWKHSODVWLFH[SDQVLRQSDUWLFOHV
LQWKHKROHV
2. Indoor Unit:
7KHUHVKRXOGEHQRREVWUXFWLRQQHDUDLULQOHWDQGDLURXWOHW
6HOHFWDORFDWLRQZKHUHWKHFRQGHQVDWLRQZDWHUFDQEH
GLVSHUVHGHDVLO\DQGZRQWDIIHFWRWKHUSHRSOH
6HOHFWDORFDWLRQZKLFKLVFRQYHQLHQWWRFRQQHFWWKH
RXWGRRUXQLWDQGQHDUWKHSRZHUVRFNHW
6HOHFWDORFDWLRQZKLFKLVRXWRIUHDFKIRUFKLOGUHQ
7KHORFDWLRQVKRXOGEHDEOHWRZLWKVWDQGWKHZHLJKWRI
LQGRRUXQLWDQGZRQWLQFUHDVHQRLVHDQGYLEUDWLRQ
7KHDSSOLDQFHPXVWEHLQVWDOOHGLQFKesDERYHÀRRU
'RQWLQVWDOOWKHLQGRRUXQLWULJKWDERYHanHOHFWULF
appliance.
3. Outdoor Unit:
6HOHFWDORFDWLRQZKHUHWKHQRLVHDQGRXWÀRZDLUHPLWWHGE\
WKHRXWGRRUXQLWZLOOQRWDIIHFWQHLJKERUKRRG
7KHORFDWLRQVKRXOGEHZHOOYHQWLODWHGDQGGU\LQZKLFKWKH
RXWGRRUXQLWZRQWEHH[SRVHGGLUHFWO\to VWURQJwind.
7KHORFDWLRQVKRXOGEHDEOHWRZLWKVWDQGWKHZHLJKWRI
RXWGRRUXQLW
0DNHVXUHWKDWWKHLQVWDOODWLRQIROORZVWKHUHTXLUHPHQWRI
installation dimension diagram.
6HOHFWDORFDWLRQZKLFKLVRXWRIUHDFKIRUFKLOGUHQDQGIDU
DZD\IURPDQLPDOVRUSODQWV,ILWLVXQDYRLGDEOHSOHDVHDGG
IHQFHIRUVDIHW\SXUSRVHs
(6) Install above local snow line.
Note:

5
Installation and Maintenance
Outlet
pipe
Condensate
hose
Condensate hose
Ta
p
e
Outlet pipe
Insulating pipe
Torque wrench
Open-end
wrench
Indoor pipe
Pipe
Union nut
Union nutPipe joint Pipe
5HIHUWRWKHIROORZLQJWDEOHIRUtorque tightening
Left
Rear left
Right
Rear right
Cut off
the hole
Left Right
Condensate hose
Insulating pipe
 e
2 1/6inch
Indoor Outdoor
3D\DWWHQWLRQWRGXVWSUHYHQWLRQDQGWDNHUHOHYDQWVDIHW\
PHDVXUHVZKHQRSHQLQJWKHKROH
7KHSODVWLFH[SDQVLRQSDUWLFOHVDUHQRWSURYLGHGDQGVKRXOG
EHERXJKWORFDOO\
$GGLQVXODWLQJSLSHLQWKHLQGRRUcondensateKRVHLQRUGHU
WRSUHYHQWFRQGHQVDWLRQ
7KHSODVWLFH[SDQVLRQSDUWLFOHVDUHQRWSURYLGHG$VVKRZn
LQ)LJ
)LJ
)LJ
)LJ )LJ
)LJ
)LJ )LJ
)LJ
)LJ
)LJ
)L[WKHZDOOPRXQWLQJIUDPHRQWKHZDOOZLWKWDSSLQJVFUHZV
67;7$DQGWKHQFKHFNLIWKHIUDPHLV¿UPO\LQVWDOOHGE\
SXOOLQJWKHIUDPH,IWKHSODVWLFH[SDQVLRQSDUWLFOHsareORRVH
SOHDVHGULOODQRWKHU¿[LQJKROHQHDUE\
3. Install Wall-mounting Frame
&KRRVHWKHSRVLWLRQRISLSLQJKROHDFFRUGLQJWRWKHGLUHFWLRQ
RIRXWOHWSLSH7KHSRVLWLRQRISLSLQJKROHVKRXOGEHDOLWWOH
ORZHUWKDQWKHZDOOPRXQWHGIUDPH$VVKRZnLQ)LJ
5. Connect the Pipe of Indoor Unit
$LPWKHSLSHMRLQWDWWKHFRUUHVSRQGLQJEHOOPRXWK$VVKRZn
LQ)LJ
3UHWLJKWHQWKHXQLRQQXWbyKDQG
$GMXVWWKHWRUTXHIRUFHE\UHIHUULQJWRWKHIROORZLQJpage
3ODFHWKHRSHQHQGZUHQFKRQWKHSLSHMRLQWDQGSODFHWKH
WRUTXHZUHQFKRQWKHXQLRQQXW7LJKWHQWKHXQLRQQXWZLWK
the WRUTXHZUHQFK$VVKRZnLQ)LJ
:UDSWKHLQGRRUSLSHDQGMRLQWRIFRQQHFWLRQSLSHZLWK
LQVXODWLQJSLSHDQGWKHQZUDSLWZLWKWDSH$VVKRZnLQ)LJ
6. Install Condendsate Hose
&RQQHFWWKHcondensateKRVHWRWKHRXWOHWSLSHRILQGRRU
XQLW$V VKRZnLQ)LJ
%LQGWKHMRLQWZLWKWDSH$VVKRZnLQ)LJ
4. Outlet Pipe
7KHSLSHFDQEHOHGRXWLQWKHGLUHFWLRQRIULJKWUHDUULJKW
OHIWRUUHDUOHIW$VVKRZnLQ)LJ
:KHQVHOHFWLQJOHDGLQJRXWWKHSLSHIURPOHIWRUULJKWSOHDVH
FXWRIIWKHFRUUHVSRQGLQJKROHRQWKHERWWRPFDVH$VVKRZnLQ
)LJ
2SHQDSLSLQJKROHZLWKWKHGLDPHWHURILQFKesRQWKH
VHOHFWHGRXWOHWSLSHSRVLWLRQ,QRUGHUWRGUDLQVPRRWKO\VODQW
WKHSLSLQJKROHRQWKHZDOOVOLJKWO\GRZQZDUGWRWKHRXWGRRU
VLGHZLWKWKHJUDGLHQWRI$VVKRZnLQ)LJ
Note:
Note:
Left
Wall
Φ55mm
Right
Mark in the middle of it Level meter
Rear piping hole
Wall
Space
to the
wall
above
150mm
Space
to the
wall
above
150mm
Φ55mm
Rear piping hole
+H[QXWGLDPHWHULQFK 7LJKWHQLQJWRUTXHIWÂ,EI
ĭ 11.10~14.75
ĭ 22.82~29.50
ĭ 33.19~40.56
ĭ 44.24~47.94
ĭ 51.32~55.31

6Installation and Maintenance
Outdoor unit connection
3 2 N(1)
green
green)
red black
(yellow-
(brown)
white
(blue)
connection wire sleeve
3XWZLULQJFRYHUEDFNDQGWKHQWLJKWHQWKHVFUHZ
&ORVHWKHSDQHO
Indoor unit Gas
pipe
Indoor and
outdoor power cord
Liquid
pipe
Condensate hose
Band
Condensate hose Band
Connection pipe
Indoor power cord
Note:
$OO ZLUHVRIthe LQGRRUXQLWDQGRXWGRRUXQLW
VKRXOGEH connected by a certified technician.
,IWKHOHQJWKRISRZHUFRQQHFWLRQZLUHLVLQVXI¿FLHQWSOHDVH
FRQWDFWWKHVXSSOLHUIRUDQHZRQH$YRLGH[WHQGLQJWKHZLUHE\
\RXUVHOI
 )RU WKH DLU FRQGLWLRQHU ZLWK a SOXJ WKH SOXJ
VKRXOG EH UHDFKDEOHDIWHU¿QLVKLQJLQVWDOODWLRQ
)RUWKHDLU FRQGLWLRQHUZLWKRXWSOXJDQ DLUVZLWFKPXVWEH
LQVWDOOHGLQWKHOLQH7KHDLUVZLWFKVKRXOGEHDOOSROHSDUWLQJ
DQGWKHFRQWDFWSDUWLQJGLVWDQFHVKRXOGEHPRUHWKDQLQFK
Note:
7KH SRZHU FRUG DQG FRQWURO ZLUH FDQW EH FURVVHG RU
winding.
7KHcondensateKRVHVKRXOGEHERXQGDWWKHERWWRP
'RQRWEHQGWKHGUDLQKRVHWRRH[FHVVLYHO\LQRUGHUWRSUHYHQW
EORFNLQJ
7. Connect Wire of Indoor Unit
2SHQWKHSDQHOUHPRYHWKHVFUHZRQWKHZLULQJFRYHUDQG
WKHQWDNHGRZQWKHFRYHU$VVKRZnLQ)LJ
8. Bind up Pipe
%LQGXSWKHFRQQHFWLRQSLSHSRZHUFRUGDQGGUDLQKRVH
ZLWKWKHEDQG$VVKRZnLQ)LJ
5HVHUYHDFHUWDLQOHQJWKRIGUDLQKRVHDQGSRZHUFRUG
IRULQVWDOODWLRQZKHQELQGLQJWKHP:KHQELQGLQJWRDFHUWDLQ
GHJUHHVHSDUDWHWKHLQGRRUSRZHUDQGWKHQVHSDUDWHWKHGUDLQ
KRVH$VVKRZnLQ)LJ
%LQGWKHPHYHQO\
7KHOLTXLGSLSHDQGJDVSLSHVKRXOGEHERXQGVHSDUDWHO\DW
WKHHQG
9. Hang the Indoor Unit
3XWWKHERXQGSLSHVLQWKHZDOOSLSHDQGWKHQ PDNHWKHP
SDVVWKURXJKWKHZDOOKROH
InstallWKHLQGRRUXQLWRQWKHZDOOPRXQWLQJIUDPH
6WXIIWKHJDSEHWZHHQSLSHVDQGZDOOKROHZLWKsealant
)L[WKHZDOOSLSH$VVKRZnLQ)LJ
&KHFNLIWKHLQGRRUXQLWLVLQVWDOOHG¿UPO\DQGFORVHWRWKH
ZDOO$VVKRZnLQ)LJ
)L[WKHZLUHFURVVLQJERDUGRQFRQQHFWLRQZLUHVOHHYHDW
WKHERWWRPFDVHOHWWKHFRQQHFWLRQZLUHVOHHYHJRWKURXJKWKH
ZLUHFURVVLQJKROHDWWKHEDFNRILQGRRUXQLWDQGWKHQSXOOLWRXW
IURPWKHIURQW$VVKRZnLQ)LJ
5HPRYHWKHZLUHFOLSFRQQHFWWKHSRZHUFRQQHFWLRQZLUH
WRWKHZLULQJWHUPLQDODFFRUGLQJWRWKHFRORUWLJKWHQWKHVFUHZ
DQGWKHQ¿[WKHSRZHUFRQQHFWLRQZLUHZLWKZLUHFOLS$VVKRZn
LQ)LJ
Note:
Indoor Outdoor
Wall pipe
Sealant
Upper hook
Lower hook of
wall-mounting frame
)LJ
)LJ
)LJ
)LJ
)LJ
)LJ
)LJ
Wiring cove
r
Screw
Panel
2.8Installation of Outdoor Unit
1. Install the Support of Outdoor Unit(Select it according to
the actual installation situation)
6HOHFWLQVWDOODWLRQORFDWLRQDFFRUGLQJWRWKHKRXVHVWUXFWXUH
)L[WKHVXSSRUWRIRXWGRRUXQLWRQWKHVHOHFWHGORFDWLRQZLWK
expansion screws.

7
Installation and Maintenance
The outdoor unit should be installed above the snow line
0DNHVXUHWKHVXSSRUWFDQZLWKVWDQGDWOHDVWIRXUWLPHVWKH
XQLWZHLJKW
7KHRXWGRRUXQLWVKRXOGEHLQVWDOOHGDWOHDVW LQFK
DERYHWKHÀRRULQRUGHUWRLQVWDOOGUDLQMRLQW$VVKRZnLQ)LJ
)RUWKHXQLWZLWKFRROLQJFDSDFLW\RI:a:
H[SDQVLRQVFUHZVDUHQHHGHGIRUWKHXQLWZLWKFRROLQJFDSDFLW\
RI:a:H[SDQVLRQVFUHZVDUHQHHGHGIRUWKH
XQLWZLWKFRROLQJFDSDFLW\RI:a:H[SDQVLRQ
screws are needed.
$IWHUWLJKWHQLQJWKHVFUHZSXOOWKHSRZHUFRUGVOLJKWO\WR
FKHFNLILWLV¿UP
1HYHUFXWWKHSRZHUFRQQHFWLRQZLUHWRSURORQJRUVKRUWHQ
WKHGLVWDQFH
7KHFRQQHFWLQJZLUHDQGFRQQHFWLRQSLSHFDQQQRWWRXFK
HDFKRWKHU
7RSFRYHURIRXWGRRUXQLWDQGHOHFWULFER[DVVHPEO\VKRXOG
EH¿[HFE\WKHVFUHZ 2WKHUZLVHLWFDQFDXVHD¿UHRUVKRUW
FLUFXLWFDXVHGE\ZDWHURUGXVW
Note:
Note:
Install the over line pipe
The condensate
hose
can't raise
upwards
gas pipe
Liquid pipe
Liquid
valve
gas valve Union nut
Pipe joint
Foot holes
Foot holes
Chassis
Outdoor drain joint
Condensate hose
Drain vent
5. Connect Outdoor Electric Wire
3XWSRZHUFRQQHFWLRQZLUHDQGSRZHUZLUHWKURXJKWKHZLUH
SDVVLQJKROH
5HPRYHWKHZLUHFOLSFRQQHFWWKHSRZHUFRQQHFWLRQZLUH
DQGSRZHUZLUHWRWKHZLULQJWHUPLQDO¿[WKHPZLWKVFUHZV$V
VKRZnLQ)LJ
)L[WKHSRZHUFRQQHFWLRQZLUHDQGSRZHUZLUHZLWKZLUHFOLS
,QVWDOOWKHFDEOHFURVVSODWHVXEDVV\.
6. Neaten the Pipes
7KHSLSHVVKRXOGEHSODFHGDORQJWKHZDOOEHQWUHDVRQDEO\
DQGKLGGHQ0LQVHPLGLDPHWHURIEHQGLQJWKHSLSHLV  LQFKes
,IWKHRXWGRRUXQLWLVKLJKHUWKDQWKHZDOOKROH\RXPXVWVHW
D8VKDSHGFXUYHLQWKHSLSHEHIRUHSLSHJRHVLQWRWKHURRP
LQRUGHUWRSUHYHQWUDLQIURPJHWWLQJLQWRWKHURRP$VVKRZnLQ
)LJ
2. Install Drain Joint(Only for cooling and heating unit)
&RQQHFWWKHRXWGRRUGUDLQMRLQWLQWRWKHKROHRQWKHFKDVVLV
&RQQHFWWKHcondensateKRVHLQWRWKHGUDLQYHQW
$VVKRZnLQ)LJ
3. Install Outdoor Unit
3ODFHWKHRXWGRRUXQLWRQWKHVXSSRUW
)L[WKHIRRWKROHVRIRXWGRRUXQLWZLWKEROWV
$VVKRZnLQ)LJ
4. Connect Indoor and Outdoor Pipes
5HPRYHWKHVFUHZRQWKHULJKWFDEOHFURVVSODWHVXEDVV\ and
YDOYHFRYHURIRXWGRRUXQLWDQGWKHQUHPRYHWKHcable cross plate
VXEDVV\DQGYDOYHFRYHU$VVKRZnLQ)LJ
5HPRYHWKHVFUHZFDSRIYDOYHDQGDLPWKHSLSHMRLQWDWWKH
EHOOPRXWKRISLSH$VVKRZnLQ)LJ
3UHWLJKWHQLQJWKHXQLRQQXWZLWKKDQG
7LJKWHQWKHXQLRQQXWZLWKWRUTXHZUHQFK
5HIHUWRWKHIROORZLQJWDEOHIRUZUHQFKPRPHQWRIIRUFH

)LJ )LJ
)LJ )LJ
)LJ
)LJ
)LJ
)LJ
A
t least 1 1/6 inch
above the floor
wire pipe
wire-passing
hole
Fixed nut Finish
+H[QXWGLDPHWHULQFK 7LJKWHQLQJWRUTXHIWÂ,EI
ĭ 11.10~14.75
ĭ 22.82~29.50
ĭ 33.19~40.56
ĭ 44.24~47.94
ĭ 51.32~55.31
cable cross
plate sub-assy
Indoor unit connection
POWER
N(1) 2 3 L
L
N
N
(blue)
white
(blue)
whitered
black (brown) (brown)
black
(yellow-
green
green)
(yellow-
green
green)
Screw
Cable Cross
3ODWH6XEDVV\
9DOYH&RYHU
U-shaped curve
Wall
Condensatehose

8Installation and Maintenance
7KHZDWHURXWOHWFDQWEHSODFHGLQZDWHULQRUGHUWRGUDLQ
VPRRWKO\$VVKRZnLQ)LJ
Liquid valve
Gas valve
Refrigerant charging
vent
Nut of refrigerant
Charging vent
Vacuum pump
Manifold Gauge
Valve cap
Lo Hi
Inner hex
wrench
Open
Close
The condensate hose can't be fluctuant
The condensate hose
can't be fluctuant The water
outlet can't be
fluctuant
NO. ,WHPVWREHFKHFNHG 3RVVLEOHPDOIXQFWLRQ
1+DVWKHXQLWEHHQ
LQVWDOOHG¿UPO\"
7KHXQLWPD\GURSVKDNHRU
emit noise.
2+DYH\RXGRQHWKH
UHIULJHUDQWOHDNDJHWHVW"
,WPD\FDXVHLQVXI¿FLHQWFRROLQJ
KHDWLQJFDSDFLW\
3,VKHDWLQVXODWLRQRI
SLSHOLQHVXI¿FLHQW"
,WPD\FDXVHFRQGHQVDWLRQDQG
water dripping.
4,VZDWHUGUDLQHGZHOO" ,WPD\FDXVHFRQGHQVDWLRQDQG
water dripping.
5
,VWKHYROWDJHRISRZHU
VXSSO\DFFRUGLQJWRWKH
YROWDJHPDUNHGRQWKH
QDPHSODWH"
,WPD\FDXVHPDOIXQFWLRQRU
GDPDJHWKHSDUWV
6Is electric wiring and pipeline installed
FRUUHFWO\"
,WPD\FDXVHPDOIXQFWLRQRU
GDPDJHWKHSDUWV
7,VWKHXQLWJURXQGHG
VHFXUHO\" ,WPD\FDXVHHOHFWULFshock
8'RHVWKHSRZHUFRUG
IROORZWKHVSHFL¿FDWLRQ"
,WPD\FDXVHPDOIXQFWLRQRU
GDPDJHWKHSDUWV
9,VWKHUHDQ\REVWUXFWLRQ
LQDLULQOHWDQGDLURXWOHW"
,WPD\FDXVHLQVXI¿FLHQWFRROLQJ
KHDWLQJ
10
7KHGXVWDQG
VXQGULHVFDXVHG
GXULQJLQVWDOODWLRQDUH
UHPRYHG"
,WPD\FDXVHPDOIXQFWLRQRU
GDPDJLQJWKHSDUWV
11 7KHJDVYDOYHDQGOLTXLG YDOYHRIFRQQHFWLRQSLSH
DUHRSHQFRPSOHWHO\"
,WPD\FDXVHLQVXI¿FLHQWFRROLQJ
KHDWLQJ
The water outlet
can't be placed
in water
1. Use Vacuum Pump
5HPRYHWKHYDOYHFDSVRQWKHOLTXLG YDOYHDQGJDVYDOYH
DQGWKHQXWRIUHIULJHUDQWFKDUJLQJYHQW
&RQQHFWWKHFKDUJLQJKRVHRImanifold gauge to the
rHIULJHUDQWFKDUJLQJYHQWRIJDVYDOYHDQGWKHQFRQQHFWWKH
RWKHUFKDUJLQJ KRVHWRWKHYDFXXPSXPS
2SHQWKHmanifold gauge completely and operate for
1PLQWRFKHFNLIWKHSUHVVXUHRImanifold gauge
UHPDLQVLQ03D
&ORVHWKHYDFXXPSXPSDQGPDLQWDLQWKLVVWDWXVIRUPLQ
WRFKHFNLIWKHSUHVVXUHRImanifold gauge remains
LQ03D,I WKHSUHVVXUHGHFUHDVHVWKHUHPD\EHOHDNDJH
5HPRYHWKHmanifold gauge, open the valve core
RIOLTXLGYDOYHDQGJDVYDOYHFRPSOHWHO\ZLWKLQQHUKH[wrench
7LJKWHQWKHVFUHZFDSVRIYDOYHVDQGUHIULJHUDQWFKDUJLQJ
YHQW$VVKRZnLQ)LJ
1. Check after Installation
&KHFNDFFRUGLQJWRWKHIROORZLQJUHTXLUHPHQWDIWHUILQLVKLQJ
installation.
2. Test Operation
(1) Preparation of test operation
Ɣ7KHFOLHQWDSSURYHVWKHDLUFRQGLWLRQHULQVWDOODWLRQ
Ɣ6SHFLI\WKHLPSRUWDQWQRWHVIRUDLUFRQGLWLRQHUWRWKHFOLHQW
0HWKRGRIWHVWRSHUDWLRQ
Ɣ3XWWKURXJKWKHSRZHUSUHVV212))EXWWRQRQWKHUHPRWH
controller to start operation.
Ɣ3UHVV02'(EXWWRQWRVHOHFW$872&22/'5<)$1DQG
+($7WRFKHFNoperations
Ɣ,IWKHDPELHQWWHPSHUDWXUHLVORZHUWKDQ)WKHDLU
FRQGLWLRQHUFDQ¶WVWDUWFRROLQJ
2. Leakage Detection
:LWKOHDNDJHGHWHFWRU
&KHFNLIWKHUHLVOHDNDJHZLWKOHDNDJHGHWHFWRU
:LWKVRDSZDWHU
,IOHDNDJHGHWHFWRULVQRWDYDLODEOHSOHDVHXVHVRDSZDWHUIRU
OHDNDJHGHWHFWLRQ$SSO\VRDSZDWHUDWWKHVXVSHFWHGSRVLWLRQ
DQGNHHSWKHVRDSZDWHUIRUPRUHWKDQPLQ,IWKHUHDUHDLU
EXEEOHVFRPLQJRXWRIWKLVSRVLWLRQWKHUHVDOHDNDJH
2.9Vacuum Pump/Leak Detection
2.10 Post Installation Testing
)LJ
)LJ
)LJ
7KHWKURXJKZDOOKHLJKWRIGUDLQKRVHVKRXOGQWEHKLJKHU
WKDQWKHRXWOHWSLSHKROHRILQGRRUXQLW$VVKRZnLQ)LJ
6ODQWWKHGUDLQKRVHVOLJKWO\GRZQZDUGV7KHcondensate
KRVHFDQWEHFXUYHGUDLVHGorÀXFWXDQW$VVKRZnLQ)LJ
Note:

9
Installation and Maintenance
There are high-capacity electrolytic capacitors on the outdoor mainboard. Thus, even if the power is cut off, there is high voltage inside
the capacitors and it needs more than 20 min. to reduce the voltage to safety value. Touching the electrolytic capacitor within 20 min.
after cutting the power will cause electric shock. If maintenance is needed, follow the steps below to discharge electricity of electrolytic
capacitor after power off.
(1) Open the top cover of outdoor unit and then remove the cover of the electric box.
(2) After finishing discharging electricity, measure the voltage between points A and B with universal meter to make sure if electricity
discharging is completed, in order to prevent electric shock. If the voltage between the two points is below 20V, you can perform
maintenance safely.
3.Maintenance
3.1 Precautions before Maintenance
outdoor mainboard
cover of electric box

10
Installation and Maintenance
3.2Error Code List
O/U--OFF or Unblink
Notes: R(Indoor)--Running C--Cooling H--Heating Y--Yellow R(Outdoor)--Red G--Green
6
6
EU
24
LU
E8
L9
H5
4
10
Module temperature is too high
1
9
1
11
9
8
6
5
4
3
2
1
13
11
8
Frequency limiting (power)
Frequency limiting (module temperature )
The temperature for turning on the unit is reached(normal)
Power protection
Compressor is running(normal)
11
14
8
2
13
7
5
6
2
15
6
5
3
1
2
16
1
23
19
15
11
8
FH
EE
HC
H5
H3
H1
Fo
L3
PH
F9
F8
F6
F5
F4
F3
F2
F1
LP
C5
H6
H4
Anti-freezing limit / drop frequency
Loading EEPROM malfunction
PFC protection
IPM protection
Compressor overload protection
Defrosting
Gathering refrigerant
Outdoor DC fan motor malfunction
High exhaust temperature limit / drop frequency
Over current limit / drop frequency
Overload limit / drop frequency
Exhaust sensor open or short circuit
Outdoor tube sensor open or short circuit
Outdoor ambient sensor open or short circuit
Indoor tube sensor open or short circuit
Indoor ambient sensor open or short circuit
Indoor unit and outdoor unit doesn't match
Jumper cap malfunction protection
No feedback of indoor fan motor
Low PN voltage protection PL 21 12
4-way valve reversal abnormal U7 20
DRED1 / DRED2 / DRED3
Refrigerant leakage protection
Compressor Min frequence in test state
Compressor intermediate frequence in test state
Compressor rated frequence in test state
Compressor maximum frequence in test state
d1/d2/d3
F0
P0
P1
P2
P3
6
20
High PN voltage protection
6
4
Anti-high temperature protection
E6 O/U
7
3
5
G
R
Y
4
E5
E4
E2
H
C
Display of lamp
2
R
Display of
indoor unit
Communication failure between indoor unit and outdoor unit
E3 3
Indoor Outdoor
6
5
AC over-current protection
Anti-freezing protection
Compressor exhaust high temperature protection
Block or Low pressure of refrigerant system
Name of malfunction
9
14
3
1
2
4
5
(the times of blinking)
9
10
The display difference between Fo and F0 is 'o' is the bottom part of figure 8

11Installation and Maintenance
3.3Troubleshooting Procedures
Indoor unit
(1) Malfunction of Temperature Sensor F1, F2
Main detection points:
Ɣ,VWKHZLULQJWHUPLQDOEHWZHHQWKHWHPSHUDWXUHVHQVRUDQGWKHFRQWUROOHUORRVHQHGRUSRRUO\FRQWDFWHG"
Ɣ,VWKHUHVKRUWFLUFXLWGXHWRWULSRYHURIWKHSDUWV"
Ɣ,VWKHWHPSHUDWXUHVHQVRUEURNHQ"
Ɣ,VPDLQERDUGEURNHQ"
0DOIXQFWLRQGLDJQRVLVSURFHVV
,VWKHZLULQJWHUPLQDOEHWZHHQWKH
WHPSHUDWXUHVHQVRUDQGWKHFRQWUROOHU
ORRVHQHGRUSRRUO\FRQWDFWHG"
Start
,QVHUWWKHWHPSHUDWXUH
VHQVRUWLJKWO\
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
,VPDOIXQFWLRQ
eliminated
,VPDOIXQFWLRQ
eliminated
,VPDOIXQFWLRQ
eliminated
5HSODFHLWZLWKD
WHPSHUDWXUHVHQVRUZLWK
WKHVDPHPRGHO
0DNHWKHSDUWVXSULJKW
,VWKHUHVKRUWFLUFXLWGXHWRWULS
RYHURIWKHSDUWV
,VWKHWHPSHUDWXUHVHQVRUQRUPDO
DFFRUGLQJWRWKHUHVLVWDQFHWDEOH"
5HSODFHWKHPDLQERDUGZLWK
WKHVDPHPRGHO
End

12
Installation and Maintenance
(2) Malfunction of Blocked Protection of IDU Fan Motor H6
Main detection points:
Ɣ6PRRWKO\,VWKHFRQWUROWHUPLQDORI3*PRWRUFRQQHFWHGWLJKWO\"
Ɣ6PRRWKO\,VWKHIHHGEDFNLQWHUIDFHRI3*PRWRUFRQQHFWHGWLJKWO\"
Ɣ7KHIDQPRWRUFDQWRSHUDWH"
Ɣ7KHPRWRULVEURNHQ"
Ɣ'HWHFWLRQFLUFXLWRIWKHPDLQERDUGLVGH¿QHGDEQRUPDO"
0DOIXQFWLRQGLDJQRVLVSURFHVV
Start
:KLOHSRZHULVRIIVWLUWKHEODGH
ZLWKDWRROWRVHHZKHWKHUWKH
EODGHURWDWHVVPRRWKO\
&KHFNLIWKHFRQQHFWLRQRI3*
PRWRUIHHGEDFNWHUPLQDOLV¿UP
&KHFNLIWKHFRQQHFWLRQRI3*
PRWRUFRQWUROWHUPLQDOLV¿UP
7XUQRQWKHXQLWDJDLQPHDVXUH
ZKHWKHUWKHRXWSXWYROWDJHRQ
control terminal for PG motor is
PRUHWKDQ9ZLWKLQPLQDIWHU
WKHORXYHUVDUHRSHQHG
7LJKWHQWKHVFUHZUHDVVHPEOHWKHEODGHPRWRU
DQGVKDIWEHDULQJUXEEHUEDVHVXEDVV\WRPDNH
VXUHWKHUHLVQRIRUHLJQREMHFWEHWZHHQWKHP
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
No
No
No
No
No
,VPDOIXQFWLRQ
eliminated
,VPDOIXQFWLRQ
eliminated
,VPDOIXQFWLRQ
eliminated
,VPDOIXQFWLRQ
eliminated
,VWKHPRWRUVWDUWHGXS
Replace PG motor
5HSODFHWKHPDLQERDUG
ZLWKWKHVDPHPRGHO
0HDVXUHWKHYROWDJHRIWKLVIRRWWR
QHXWUDOZLUHRQWKHPDLQERDUG
End
5HLQVWDOOWKHEODGH
and motor correctly
,QVHUWWKHFRQWUROWHUPLQDO
RI3*PRWRUWLJKWO\
