Johnson Controls T7200 User manual

T7200
LCD Digital Thermostat
Installation Guide
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
Building E󰀩ciency
Headquarters: Milwaukee, Wisconsin, USA
Branch Officies: Principal Cities World-wide
Johnson Controls® is registered trademarks of Johnson Controls.
All other marks herein are the marks of their respective owners.
© Copyright 2020 Johnson Controls. All rights reserved. Any unauthorized use or copying is strictly prohibited.
www.johnsoncontrols.com
*248578400186C*

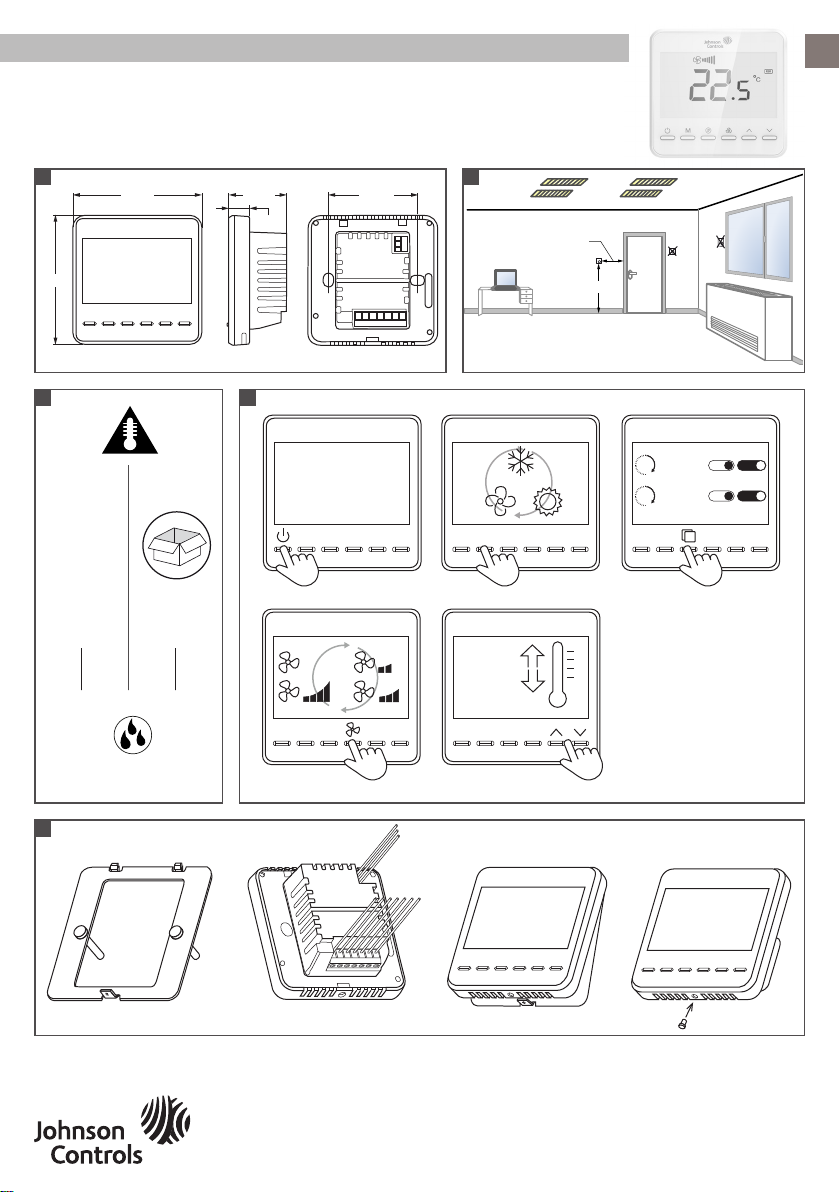

87.75
87.75
14.20
39.20 60.00
> 50 cm
> 150 cm
°C
ON / OFF
AUTO
°C/°F
M
1s
TiO2/ESP
3s Timer
Symbol
ON OFF
ON OFF
• Ambient
• 工作环境
MAX
40 °C
104 °F
MIN
0 °C
-32 °F
MAX
60 °C
140 °F
MIN
-10 °C
-14 °F
MAX 90% RH
MIN 10% RH
 

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020

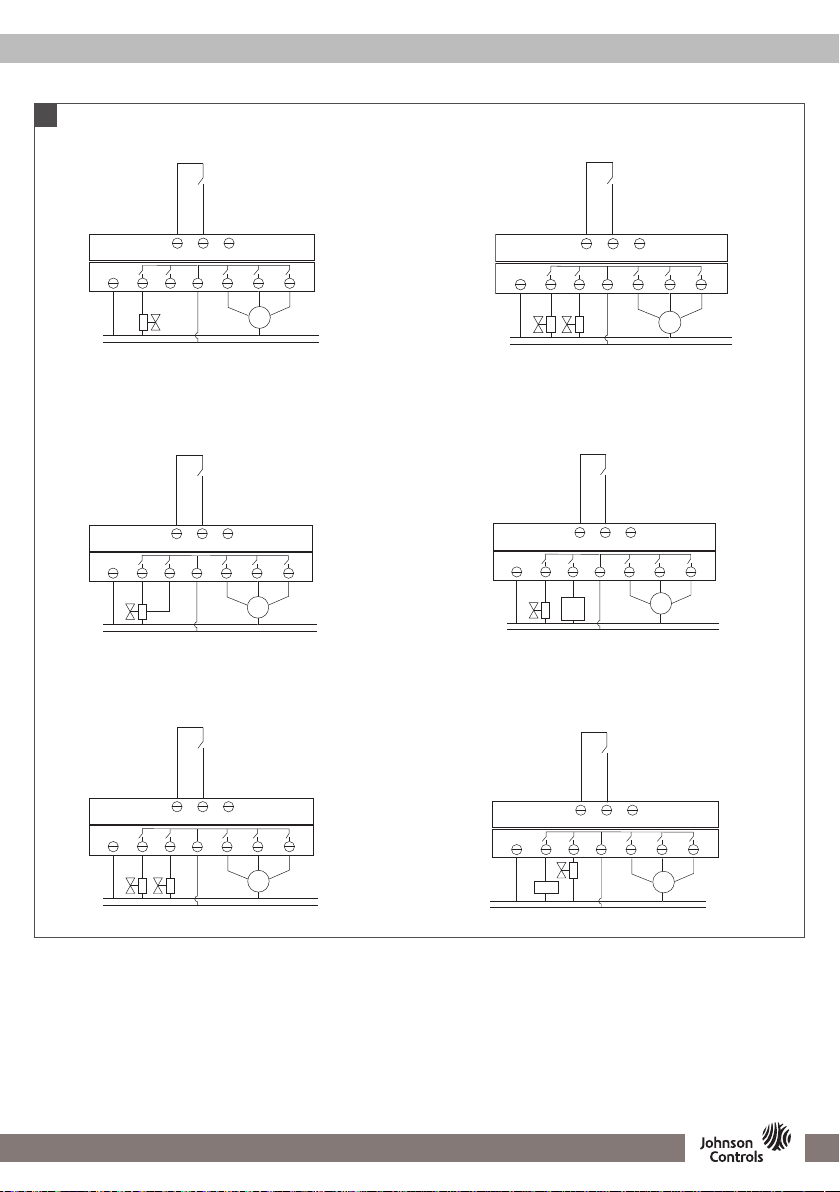

GND
L
N

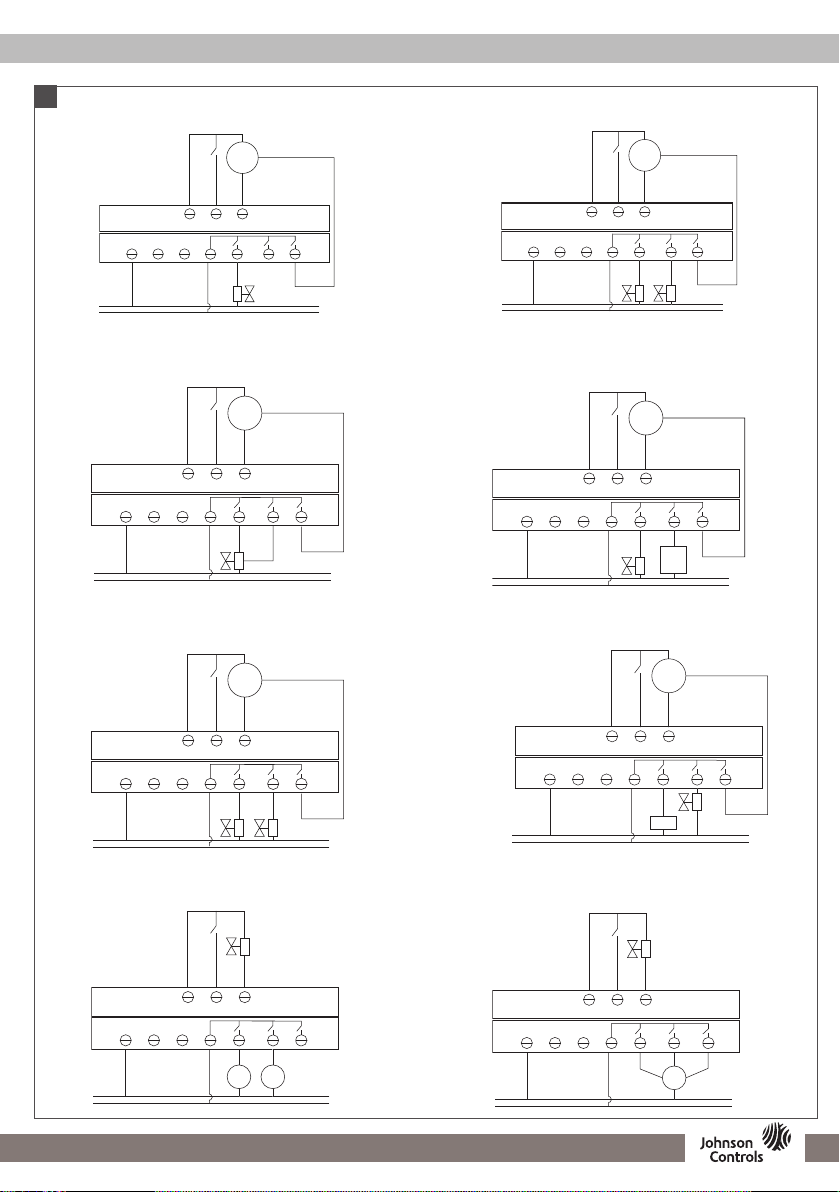

R3
2-pipe FCU
2管制风机盘管
0-10 V
N
100-240 VAC 50/60Hz
ECM
FAN
OCC AO
R2R1
Cool / Heat
L
GND
L
N
R3
4-pipe FCU
�4管制风机盘管
N
100-240 VAC 50/60Hz
ECM
FAN
OCC AO
R2R1
Cool
L
Heat
0-10 V
GND
L
N
R3
2-pipe FCU, 3 wires On/Off valve
2管制风机盘管+3线开关阀
N
100-240 VAC 50/60Hz
ECM
FAN
OCC AO
R2R1
On
L
Off
0-10 V
GND
L
N
R3
2-pipe FCU with TiO2/ESP
2管制风机盘管+TiO2/ESP
N
100-240 VAC 50/60Hz
ECM
FAN
OCC AO
R2R1
Cool /
Heat
L
0-10 V
TiO2
ESP
GND
L
N
R3
2-pipe FCU with floor heating
2管制风机盘管+地暖
N
100-240 VAC 50/60Hz
ECM
FAN
OCC AO
R2
R1
Cool /
Heat
L
Floor
Heater
0-10 V
GND
L
N
R3
Water source heat pump
水源热泵
N
100-240 VAC 50/60Hz
ECM
FAN
OCC AO
R2R1L
0-10 V
CMP RV
RV = REVERSING VALVE CMP = COMPRESSOR
GND
L
N
R3
Single fan speed AHU
空气处理机单速风机
N
100-240 VAC 50/60Hz
OCC AO
R2
R1L
Damper
Cool / Heater
FAN M
GND
L
N
R3
2-pipe FCU, proportional valve
2管制风盘，比例调节阀
N
100-240 VAC 50/60Hz
OCC AO
R2R1
Low
L
Hi
Cool / Heater
Med
FAN
T7200-TB21-9JS0

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
GND
L
N
R3
2-pipe FCU
�2管制风机盘管
0-10 V
NTC
100-240 VAC 50/60Hz
ECM
FAN
AO
R2R1
Cool / Heat
LN
OCC
4-pipe FCU
�4管制风机盘管
GND
L
N
R3
0-10 V
NTC
100-240 VAC 50/60Hz
ECM
FAN
AO
R2R1
Cool
LN
OCC
Heat
2-pipe FCU, 3 wires On/Off valve
2管制风机盘管+3线开关阀
On Off
GND
L
N
R3
0-10 V
NTC
100-240 VAC 50/60Hz
ECM
FAN
AO
R2R1LN
OCC
2-pipe FCU with TiO2/ESP
2管制风机盘管+TiO2/ESP
Cool /
Heat
GND
L
N
R3
0-10 V
NTC
100-240 VAC 50/60Hz
ECM
FAN
AO
R2R1LN
OCC
TiO2
ESP
2-pipe FCU with floor heating
2管制风机盘管+地暖
Cool /
Heat Floor
Heating
GND
L
N
R3
0-10 V
NTC
100-240 VAC 50/60Hz
ECM
FAN
AO
R2R1LN
OCC
Water source heat pump
水源热泵
RV
RV = REVERSING VALVE CMP = COMPRESSOR
GND
L
N
R3
0-10 V
NTC
100-240 VAC 50/60Hz
ECM
FAN
AO
R2R1LN
OCC
CMP
Single fan speed AHU
空气处理机单速风机
Damper
Cool /
Heater
GND
L
N
R3
0-10 V
NTC
100-240 VAC 50/60Hz
AO
R2R1LN
OCC
FAN M
GND
L
N
R3
2-pipe FCU, proportional valve
2管制风盘，比例调节阀
N
100-240 VAC 50/60Hz
OCC
AO
R2
R1
Low
L
Hi
Cool /
Heater
Med
FAN
NTC
0-10 V
T7200-TB21-9JS1

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
T7200-TF20-...JS0
GND
L
N
2-pipe FCU
2管制风机盘管
N
100-240 VAC 50/60Hz
OCC
LowL Hi
MedV1 V2
Cool /
Heat FAN
GND
L
N
4-pipe FCU
�4管制风机盘管
N
100-240 VAC 50/60Hz
OCC
Low
LHi
MedV1 V2
Heat
FAN
Cool
GND
L
N
2-pipe FCU, 3 wires On/Off valve
2管制风机盘管+3线开关阀
N
100-240 VAC 50/60Hz
OCC
LowL Hi
MedV1 V2
Off
On
FAN
GND
L
N
2-pipe FCU with TiO2/ESP
2管制风机盘管+TiO2/ESP
N
100-240 VAC 50/60Hz
OCC
LowL Hi
MedV1 V2
Cool /
Heat FAN
TiO2
ESP
GND
L
N
2-pipe FCU with floor heating
2管制风机盘管+地暖
N
100-240 VAC 50/60Hz
OCC
LowL Hi
MedV1 V2
Cool /
Heat
Floor
Heater
FAN
GND
L
N
Water source heat pump
水源热泵
N
100-240 VAC 50/60Hz
OCC
LowL Hi
MedV1 V2
CMP RV
RV = REVERSING VALVE CMP = COMPRESSOR
FAN

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
T7200-TF20-9JS1
GND
L
N
2-pipe FCU
2管制风机盘管
N
100-240 VAC 50/60Hz
OCC
Low
LHi
MedV1 V2
Cool /
Heat FAN
NTC
GND
L
N
4-pipe FCU
�4管制风机盘管
N
100-240 VAC 50/60Hz
OCC
LowL Hi
Med
V1 V2
Heat FAN
Cool
NTC
GND
L
N
2-pipe FCU, 3 wires On/Off valve
2管制风机盘管+3线开关阀
N
100-240 VAC 50/60Hz
OCC
LowL Hi
Med
V1 V2
Off
On FAN
NTC
GND
L
N
2-pipe FCU with TiO2/ESP
2管制风机盘管+TiO2/ESP
N
100-240 VAC 50/60Hz
OCC
LowL Hi
MedV1 V2
Cool /
Heat FAN
TiO2
ESP
NTC
GND
L
N
2-pipe FCU with floor heating
2管制风机盘管+地暖
N
100-240 VAC 50/60Hz
OCC
Low
LHi
MedV1 V2
Cool /
Heat
Floor
heater FAN
NTC GND
L
N
Water source heat pump
水源热泵
N
100-240 VAC 50/60Hz
OCC
LowL Hi
MedV1 V2
CMP RV
RV = REVERSING VALVE CMP = COMPRESSOR
FAN
NTC
图例：
NTC： 温度传感器
OCC： 门卡开关
ECMFAN： ECM风机
FAN： 风机
AO1： 模拟输出1
AO2： 模拟输出2
AI： 模拟输入/阀反馈
HEAT： 热水阀
COOL： 冷水阀
FLOORHEAT：地暖阀
LOW： 风机低速档位
MED： 风机中速档位
HI： 风机高速档位
TiO2ESP：TiO2ESP设备
CMP：Compressor压缩机
RV： ReversingValve换向阀
F-ON：风机开关
GND:地
L：火线
N：零线
V1：阀1
V2：阀2
TR:变压器

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
INSTALLATION INSTRUCTIONS FOR THE TECHNICIAN / FITTER
READ THIS INSTRUCTION SHEET AND THE SAFETY WARNINGS CAREFULLY BEFORE INSTALLING AND
SAVE IT FOR FUTURE USE
REPAIR AND REPLACEMENT
Do not attempt to repair the T7 Series thermostat. In case of an improperly functioning control, contact the nearest Johnson Controls®representative, and
specify the desired product code number. When contacting the supplier for a replacement please state the type/model number of the control located on the
data plate or cover label.
IMPORTANT
• Use this T7 Series Thermostat only as an operating control. Where failure of malfunction of the T7 Series Thermostat could lead to personal injury or
property damage to the controlled equipment or other property, additional precautions must be designed into the system. Incorporate and maintain other
devices such as supervisory or alarm systems or safety or limit controls intended to warn of, or protect against, failure or malfunction of the T7 Series
Thermostat.
• Do not install this thermostat in condensing, wet, or damp environments. Moisture may cause damage to the thermostat.
• Do not remove PCB from the enclosure cover. Removing the PCB from the enclosure cover voids the product warranty.
• Make all wiring connections in accordance with local, nation, and regional regulations. Do not exceed the T7 Series thermostat’s electrical ratings.
• Remove LCD plastic cover before use.
WARNING
Disconnect power supply before making electrical connections. Contact with components carrying hazardous voltages can cause electrical shock and may
result in severe personal injury or death.
• Risk of Electrical Shock: Ground the thermostat according to local, national, and regional regulations. Failure to ground the thermostat may result in
electrical shock and severe personal injury and death.
• Risk of Electrical Shock and Property Damage: Insulate and secure each unused wire lead before applying power to the thermostat.
Failure to insulate and secure each unused wire lead may result property damage, electrical shock, and severe personal injury or death.
Callout Feature
AFan auto
BFan speed Hi/Med/Low
CTio2/ESP
DAlarm
ELock
FValve status
GRemote sensor
HDelay time
ITemperature value
JDelay on/o󰀨
KLow temperature protection
LOccupancy
MCooling, heating, ventilation or auto mode
M
Callout Feature
APower button
BWorking mode button
CGeneral button
DFan speed adjustment button
EUp and down buttons
T7200 Interface

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
English
PARAMETER SETTING (PART 1/2)
Press and button for 5 seconds at power o󰀨 mode to get in parameter list. Press Mbutton to scroll the list and use and button to change
parameter value.
Code
T7200-
TB21-9JS0,
T7200-
TB21-9JS1
T7200-
TF20-9JS0,
T7200-
TF20-9JS1 Parameter Name Default Function
01 ■ ■ Upper setpoint limit 35°C Setting range 2°C to 40°C (36°F to 99°F)
02 ■ ■ Lower setpoint limit 5°C Setting range 0°C to 38°C (32°F to 95°F)
03 ■■Application 00
T7200-TB21-9JS0, T7200-TB21-9JS1
00: 2-pipe ON/OFF valve with EC Motor Control
01: 4-pipe ON/OFF valve with EC Motor Control
02: 2-pipe ON/OFF three wire relay valve with EC Motor Control
03: 2-pipe ON/OFF valve with TiO2/ESP relay with EC Motor Control
04: 2-pipe ON/OFF valve with floor heating with EC Motor Control
05: Water source heat pump with EC Motor Control
06: Single fan speed AHU
07: 2-pipe Proportional valve, three speed fan
T7200-TF20-9JS0, T7200-TF20-9JS1
00: 2-pipe ON/OFF valve
01: 4-pipe ON/OFF Valve
02: 2-pipe ON/OFF three-wire relay valve
03: 2-pipe ON/OFF valve with TiO2/ESP relay
04: 2-pipe ON/OFF valve with floor heating
05: Water source heat pump
04 ■ ■ Cooling setpoint unoccupied 26°C Setting range 22°C to 32°C (72°F to 90°F)
05 ■ ■ Heating setpoint unoccupied 18°C Setting range 10°C to 21°C (50°F to 70°F)
06 ■ ■ Frost protection 00 00: On
01: Off
07 ■ ■ Frost protection setpoint 5°C Setting range 0°C to 20°C (32 °Fto 68°F)
08 ■ ■
Fan speed in AUTO mode in
deadband (room temperature
reach set point)
01 00: Fan off
01: Low speed
09 ■ 1■Fan mode when unoccupied 00 00: Low speed
01: Set speed
10 ■ 2--- ECM Min voltage 3V Min voltage below which the fan output is 0%, range 0 V -10 V. (0.5 V)
11 ■ 2--- ECM Max voltage 10V Max voltage above which the fan output is 100%, range 0-10 V
12 ■ 2--- ECM cut off relay (F-ON) 00 00: Disabled
01: Enabled
13 ■ ■ Restart after power failure 00
00: Keep last status
01: On
02: Off
14 ■ ■ Keypad lock 00
00: No lock
01: Lock all keys
02: Lock the keys except Fan Speed and Temp Adjustment keys
03: Lock the ON/OFF and Timer keys
04: Lock the keys except ON/OFF key
...Continued...
INSTRUCTIONS
On/O󰀨 Setting: Press to turn on, press again to turn o󰀨, close the fan and valve.
Mode Selection: Press Mto change the working mode, for cooling, for heating, and for venting.
Temperature Setting: Press either or button to increase or decrease the temperature by 0.5°C.
Fan Speed Adjustment: Press to switch the fan mode, auto ash, high , medium , low fan.
Delay On/O󰀨 setup: Press and hold button 5 seconds, then “ON” appears, press button to switch On or O󰀨 delay,
then press or to adjust the minute by 30 minutes.
Note: Time-On/O󰀨 setting performs only once within one day.
Delay On/O󰀨 Cancel: Press and hold button 5 seconds, then “ON” appears, press button to switch to check On or
O󰀨 delay time, then press or adjust the time to “00:00”.
Lock setup: If Lock function is enabled, the thermostat locks automatically after 30 seconds unused.
Unlock function: Press and hold the button for 5 seconds to unlock. The thermostat locks automatically after 30
seconds unused.
Tio2/ESP Manual: When Tio2/ESP function is set to Manual, press button once, to switch Tio2/ESP On or O󰀨.

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
English
PARAMETER SETTING (PART 2/2)
Code
T7200-
TB21-9JS0,
T7200-
TB21-9JS1
T7200-TF20-
9JS0,
T7200-TF20-
9JS1 Parameter Name Default Function
15 ■ ■ Default display 00 00: Display room temp.
01: Display setpoint only
16 ■ 3■ 3Auto changeover 00 00: Disable
01: Enable
17 ■ ■ Digital input function 00
00: Setpoint reduction when contact is Closed (UnOccupied)
01: Setpoint reduction when contact is Open (UnOccupied)
02: Dew Point Alarm when contact is Closed
03: Dew Point Alarm when contact is Open
04: Shut off Fan and Valves when contact is Closed
05: Filter Alarm when contact is Closed
06: Filter Alarm when contact is Open
18 ■ ■ Unit selection 00 00: Celsius degree (°C)
01: Fahrenheit degree (°F)
19 ■ ■ Temperature offset 0 Setting range -5°C to 5°C (-9°F to 9°F)
20 ■ 1■ 1Fan speed 00
00: 3 Speed
01: 2 Speed (MED, LOW)
02: 1 Speed (LOW)
03: No Fan
21 ■ ■ Language 00 00: Chinese
01: English
22 ■ ■ Mode selection 00
00: Cooling/heating/ventilation
01: Cooling only
02: Heating
23 ■ ■ Back light 30 The back light will be OFF in 05 seconds to 60 seconds.
25 ■8■8Remote sensor type 00 00: China market 10KNTC
01: JCI type II 10NTC
28 ■ 4--- Sample time 10 Setting range 1 to 99
29 ■ ■ Deadband 1 Setting range 0°C to 10°C (32°F to 50°F)
30 ■ 4--- KP 10 Setting range 1 to 99
31 ■ 4--- KI 01 Setting range 0 to 99
32 ■ 5■ 5TiO2/ESP operation 00 00: Operate separately (Pressing Timer button shortly)
01: Work in parallel with FCU fan
33 ■ 6■ 6Inter stage difference 3 Setting range 0°C to 10°C (32°F to 50°F)
34 ■ 6■ 6Heating stage 00 00: 2 Stages
01: 1 Stage
35 ■ 7--- Set Damper Opening time control 00 00: Disable
01: Enable
36 ■ 7--- Damper opening time, 75 - 174 seconds
(only AHU application) 00 00 - 99 (00 = 75 s / 99 = 174 s)
37 ■ ■ Fan off timer (time position setting for
fan off) 00 00-99 seconds
Note
• Terminal blocks changes depending on the application selected, please check the table beside rst
• The relay output are line voltage, they are connected with Terminal “L” internally
• The digital input “OCC” can assume di󰀨erent meaning depending on parameter 17 setting
1Appeared when application parameter is 00,01,02,03,04,05,07
2Appeared when application parameter is 00,01,02,03,04,05
3Appeared when application parameter is 01 for T7200-TB21-9JS0 and T7200-TF20-9JS0
4Appeared when application parameter is 06 07
5Appeared when application parameter is 03
6Appeared when application parameter is 04
7Appeared when application parameter is 06
8Parameter 25 is supported by T7200-TB21-9JS1 and T7200-TF20-9JS1

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
ALARM CODE DESCRIPTION
Item Code Description
1 E1 Internal sensor warning.
2 HI High temperature warning. Room Temperature >55°C (>131°F)
3 LO Low temperature warning. Room Temperature <0°C (<32°F) or internal sensor opened.
4 E5 Dew point risk warning. Valves and fan are shut off when error is active.
5 E3 Remote sensor closed. Active with 2 pipe auto-changeover configuration.
6 E4 Remote sensor opened. Active with 2 pipe auto-changerover configuration.
1icon is visible when TiO2/ESP command is active
2 icon ash when lter alarm is active
3While connected to the remote sensor, the E1 will disable. While the E1 alarm is disabled, the T7200 fan stops and the valve closes.

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
中文
编号 功能
A自动风速
B风速高中低
CTio2/ESP
D警告
E键盘锁
F阀状态
G外置传感器
H延时
I温度读数
J时间启停
K低温保护
L占用模式
M制冷/制热/通风/自动模式
M
编号 功能
A开关键
B模式键
C功能键
D风速键
E上下调节键
T7200 界面
安装指导
请在安装前仔细阅读该安装指导和安全警告
维修和替换：
不要试图现场维修T7000系列温控器。如果T7000不能正常工作，请与附近江森自控办事处联系。当联系办事处更换产品的时
候，请说明外部标签或参数表上印有的类型/型号。
重要：
• T7000系列温控器仅用作设备控制。当T7000系列温控器调节装置失灵或故障时可能会导致人员伤害，财产损失及其他配备损坏。请增加预防
措施，如常使用监控及报警系统、电压保护开关等，在安装系统中。来加强此温度调节装置的机能失常和失效时的保护。
• 不要把T7000装在结露、潮湿或有湿气处。湿气会损坏温控器。
• 不要把封入前盖的PCB板移出，从前盖中把封入的PCB板拆卸移出将不再享有质保服务。
• 使所有接线符合国家、地区和当地的规定。不要超过T7000系列温控器电流容量。
• 使用前请移除LCD塑料保护壳。
警告：
在进行电器接线时确保电源断开。在带电时连接各部件可能引起电击，从而导致人员受伤甚至死亡。
• 电击危险：按照国家、地区和当地的规定给温控器接地。接地失效可能导致电击和人员伤亡甚至死亡。
• 电击危险和财物损失：在温控器通电前把未使用的线头保护好，使之绝缘。任何一个未使用的线头未被绝缘和保护可能导致财产损坏，电击
和人员伤亡甚至死亡。

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
参数设定
关机状态下同时按 和 键5秒进入参数设定列表，
编号 T7200-TB21-9JS0,
T7200-TB21-9JS1
T7200-TF20-9JS0,
T7200-TF20-9JS1 参数名 默认值 功能含义
01 ■ ■ 设定值上限 35°C 设定范围2°C~40℃(36°F~99oF)
02 ■ ■ 设定值下限 5°C 设定范围0°C~38℃(32°F~95oF)
03 ■ ■ 应用 00
T7200-TB21-9JS0,T7200-TB21-9JS1
00:2管制FCU，开关阀，ECM风机
01:4管制FCU，开关阀，ECM风机
02:2管制FCU，3线开关阀，ECM风机
03:2管制FCU带TiO2/ESP，开关阀，ECM风机
04:2管制FCU带地暖，开关阀，ECM风机
05:水源热泵，ECM风机
06:单速AHU
07:2管制FCU，比例调节阀，三速风机
T7200-TF20-9JS0,T7200-TF20-9JS1
00:2管制FCU，开关阀
01:4管制FCU，开关阀
02:2管制FCU，3线开关阀
03:2管制FCU带TiO2/ESP，开关阀
04:2管制FCU带地暖，开关阀
05:水源热泵
04 ■ ■ 无人状态制冷设定值 26°C 设定范围22°C~32℃(72°F~90oF)
05 ■ ■ 无人状态制热设定值 18°C 设定范围10°C~21℃(50°F~70oF)
06 ■ ■ 低温保护 00 00：开启
01：关闭
07 ■ ■ 低温保护设定值 5°C 设定范围0°C~20℃
08 ■ ■ 自动模式下，死区风速（当房
间温度达到设定点） 01 00:风机关闭 01:低速
09 ■ 1■无人模式风机状态 00 00：低风速
01：用户设定风速
10 ■ 2--- ECM风机电压输入下限 3V 0%对应电压值，设定范围0V-10V.（0.5V阶跃）
11 ■ 2--- ECM风机电压输入上限 10V 100%对应电压值，设定范围0V-10V.（0.5V阶跃）
12 ■ 2--- ECM风机继电器启停 00 00：禁用
01：启用
13 ■ ■ 掉电重启 00
00：恢复掉电前状态
01：开启
02：关闭
...继续...
使用说明
开关机设置：按“”键一次开机；再按一次关机，同时关闭风机盘管、电动阀。
模式调节：开机状态下，按“M”键进行工作模式切换。液晶显示“”表示制冷，显示“”表示制热，显示“”表示通风。
温度设置：在开机状态下，按“”或“”可进行设置温度的调节，每按一次，温度变化0.5℃。

风速调节：
温控器有4种风机速度，自动“”闪烁、高“”、中“”、低“”风速。按“”按钮，将循环切换。
定时开关机设置：
开机状态下，按“”键，直至出现“ON”符号，再次按“”键以切换设置“ON”延时开或者“OFF”延时开时间，按“”或
“”键调整，每按一次变化30分钟。
注意：设定一次定时开关机时间只能执行一次，即只在一天内有效。
取消定时开关机设置：
开机状态下，按“”键，直至出现“ON”符号，再次按“”键以切换查看“ON”延时开或者“OFF”延时开时间，按“”
或“”键调整，每按一次变化30分钟，将时间调整为“00:00”，即为取消定时功能。

按键锁功能：如果温控器开启了锁按键功能，在没有人使用的情况下30秒后会自动把按键锁上，禁止其他人员对温控器进行操作。
按键解锁：按风速按键5秒即可解锁（在没有人使用的情况下30秒后会自动把按键锁上）。
TIO2/ESP功能：仅在TIO2/ESP应用，且TIO2/ESP操作设定为手动操作,按“”键马上释放以切换TIO2/ESP启用/停止。

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
中文
参数设定
编号 T7200-TB21-9JS0, T7200-TB21-9JS1
T7200-TF20-9JS0,
T7200-TF20-9JS1 参数名 默认值 功能含义
14 ■ ■ 按键锁 00
00：禁用
01：锁定所有按键
02：除风速及温度调节按键，锁定其他按键
03：锁定开关及通用按键
04：除开关键，锁定其他按键
15 ■ ■ 默认显示 00 00：室内温度
01：温度设定值
16 ■3■3自动模式 00 00：禁用
01：启用
17 ■ ■ BI输入 00
00：开路表示门卡插入（有人）
01：短路表示门卡插入（有人）
02：短路表示露点报警
03：开路表示露点报警
04：开路表示有人，短路表示无人，关闭风扇和阀门
05：短路表示滤网报警
06：开路表示滤网报警
18 ■ ■ 温度单位 00 00：摄氏度(℃)
01：华氏度(oF)
19 ■ ■ 温度偏移 0设定范围–5°C~5℃(-9°F~9oF)
20 ■1■1风速 00
00：三风速
01：两风速（MED，LOW）
02：单风速（LOW）
03：风扇禁用
21 ■ ■ 语言 00 00：中文
01：英文
22 ■ ■ 模式 00
00：制冷/制热/通风
01：单冷
02：单热
23 ■ ■ 背光 30 05~60s，xx秒无操作，背光熄灭
25 ■8■8外置传感器类型 00 00:中国版10KNTC
01:JCI版II10NTC.
28 ■4--- 采样时间 10 设定范围1~99
29 ■ ■ 死区范围 1设定范围0°C~10℃
30 ■4--- KP 10 设定范围1~99
31 ■4--- KI 01 设定范围0~99
32 ■5■5TiO2/ESP操作 00 00：单独操作（通用键）
01：与风机联动
33 ■6■6制热阶段切换阈值 3设定范围0°C~10℃
34 ■6■6制热阶段 00 00：两级制热
01：单级制热
35 ■7--- 新风阀门开启时间控制 00 00:禁用
01:开启
36 ■7--- 新风阀门开启时间,75-174秒 00 00–99(00=75秒/99=174秒)
37 ■ ■ 风机延迟关闭时间设定 00 00-99秒
• 接线前请查看右侧应用表以确定端子接线方式
• 温控器内部继电器与火线相连
• 设置参数17可配置OCC端子为不同应用
1仅在参数1为00010203040507时显示
2 仅在参数1为000102030405时显示
3 仅在参数1为01时显示（仅T7200-TB21-9JS0，T7200-TF20-9JS0）
4 仅在参数1为0607时显示
5 仅在参数1为03时显示
6 仅在参数1为04时显示
7仅在参数1为06时显示
8参数25仅支持7200-TB21-9JS1和T7200-TF20-9JS1

T7200
P/N 24-85784-00186 Rev. C Issue Date: 01 2020
Compliance Johnson Controls declares that these products are in compliance with the essential requirements and other relevant provisions of the
EMC Directive and Low Voltage Directive.
产品中有害物质的名称及含量
部件名称
有害物质
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
塑胶部件 O O O O O O
电路板及组件 X O O O O O
金属部件 O O O O O O
本表格依据SJ/T11364的规定编制
○：表示该有害物质在该部件所有均质材料中的含量均在GB/T26572规定的限量要求以下
×：表示该有害物质在该部件所有均质材料中的含量超出GB/T26572规定的限量要求
（产品中使用的物料超出SJ/T11364标准，但在欧盟RoHS中，此项为豁免，因目前技术无法有符合SJ/T11364的替代材料）
报警代码描述
编号 代码 描述
1 E1 温度传感器故障
2 HI 高温报警，室内温度>55℃.
3 LO 1)低温报警，室内温度<0℃.
2)传感器开路
4 E5 露点传感器报警
5 E3 外置温度传感器短路报警
6 E4 外置温度传感器开路报警
• E3和E4报警仅在两管制风盘工作在自动切换模式时有效
• 1 图标显示表示Tio2/ESP工作
• 2图标闪烁表示滤网报警
• 3连接外置传感器时，E1报警失效。当发生E1报警，T7000会关闭风速及水阀输出

Use of the software that is in (or constitutes) this product,or access to the cloud, or hosted services
applicable to this product, if any, is subject to applicable terms set forth at
www.johnsoncontrols.com/techterms.Your use of this product constitutes an agreement to such terms.
This product is covered by a limited warranty, details of which can be found at
www.johnsoncontrols.com/buildingswarranty.
Software terms
Product warranty
Contact information
APAC
JOHNSON CONTROLS
C/O CONTROLS PRODUCT MANAGEMENT
NO. 32 CHANGJIJANG RD NEW DISTRICT
WUXI JIANGSU PROVINCE 214028 - CHINA
Europe
JOHNSON CONTROLS
WESTENDHOF 3
45143 ESSEN
GERMANY
NA/SA
JOHNSON CONTROLS
507 E MICHIGAN ST
MILWAUKEE WI 53202
USA
Contact your local branch o󰀩ce: www.johnsoncontrols.com/locations
Contact Johnson Controls: www.johnsoncontrols.com/contact-us
Single point of contact
Building Technologies & Solutions
Headquarters: Milwaukee, Wisconsin, USA
Branch Offices: Principal Cities World-wide
Johnson Controls®is registered trademark of Johnson Controls.
All other marks herein are the marks of their respective owners.
© Copyright 2020 Johnson Controls. All rights reserved. Any unauthorized use or copying is strictly prohibited.
