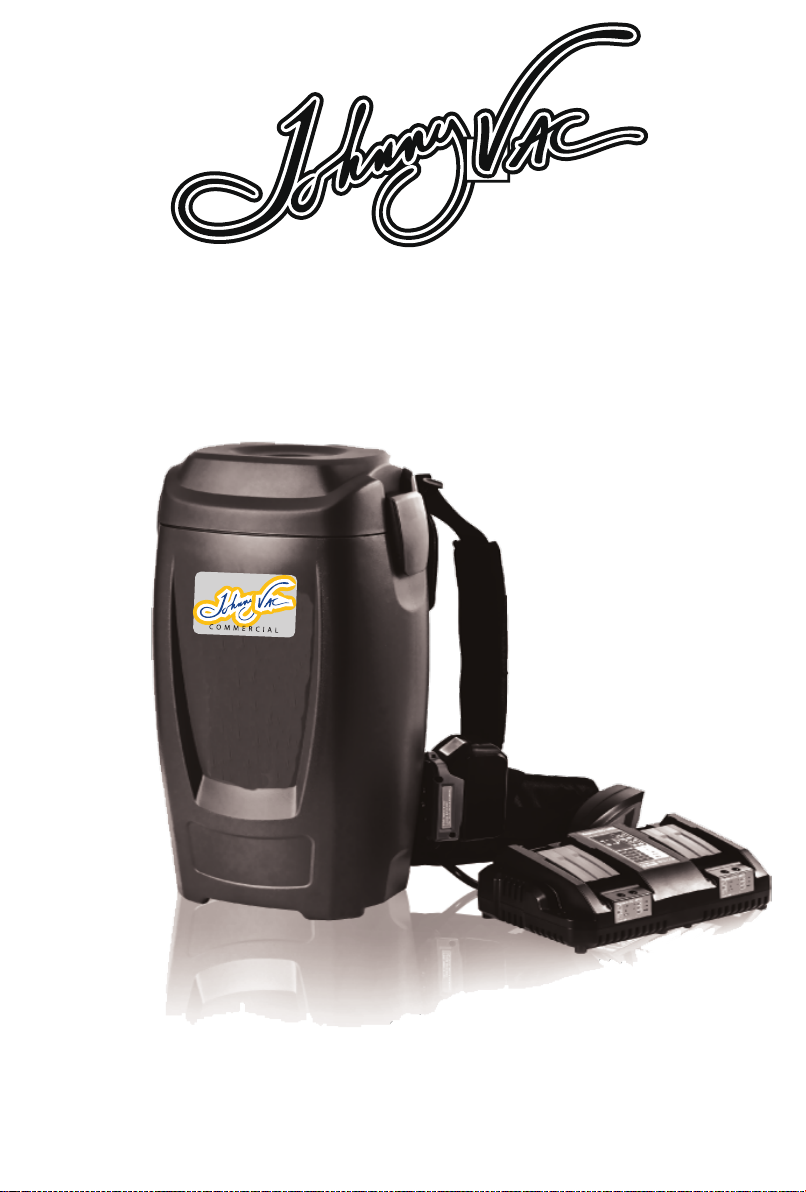

JOHNY VAC JVBP6B User manual

JVBP6B
Backpack Vacuum Cleaner
U S E R G U I D E

1
CONTENTS
CONTENTS ............................................................................................................. 1
TECHNICAL DATA ................................................................................................. 1
GENERAL SAFETY & WARNINGS ..................................................................... 1
DANGER LEVELS ..................................................................................................................... 1
RECHARGING THE BATTERY ................................................................................................. 2
USO - EMPLOYMENT............................................................................................................... 3
TRANSPORT............................................................................................................................. 4
MAINTENANCE......................................................................................................................... 4
ACCESSORIES AND SPARE PARTS....................................................................................... 4
DRY VACUUM CLEANER ......................................................................................................... 4
SYMBOLS USED IN THE MANUAL ...................................................................... 5
PURPOSE AND CONTENT OF THE MANUAL .....................................................5
TARGET GROUP .................................................................................................... 5
STORING THE USE AND MAINTENANCE MANUAL........................................... 5
ON DELIVERY OF THE APPLIANCE ....................................................................5
INTRODUCTORY COMMENT ................................................................................ 5
IDENTIFICATION DATA.......................................................................................... 5
TECHNICAL DESCRIPTION .................................................................................. 5
INTENDED USE ...................................................................................................... 5
SAFETY .................................................................................................................. 5
SERIAL NUMBER PLATE ...................................................................................... 5
BATTERY TYPE...................................................................................................... 5
BATTERY MAINTENANCE AND DISPOSAL ........................................................ 5
RECHARGING THE BATTERY ..............................................................................6
APPLIANCE SAFETY............................................................................................. 6
PREPARING TO WORK .........................................................................................6
WORK ..................................................................................................................... 6
THE END OF THE WORK ................................................................................. 7
DISPOSAL .............................................................................................................. 7
MAINTENANCE ...................................................................................................... 7
TROUBLESHOOTING ............................................................................................ 7
EC DECLARATION OF CONFORMITY.................................................................. 7
PARTS LIST .................................................................................................................................... 8
Before using the appliance, please read and
comply with these safety warnings.
•
Read this manual before using the appliance or
carrying out any maintenance —work.
Keep these safety warnings on hand and review
them regularly.
Please pass this document on to successive
owners of this product.
user manual.
Before commissioning, read the appliance's
•The warning plates on the appliance provide
important instructions for its safe use.
•Always comply with both the directions on
the instructions, as well as current safety
standards.
•
children. Risk of asphyxiation!
General Safety & Warnings
DANGER: Indicates an imminent danger
that could cause serious injury or death.
WARNING: Indicates a probable
dangerous situation that could cause
serious injury or death.
CAUTION: Indicates a probable dangerous
situation that could cause minor injuries.
ATTENTION: Indicates a probable
dangerous situation that could damage
objects.
DANGER LEVELS
TECHNICAL DATA U.M.
[SI] SRB007
Electrical characteristics of the vacuum motor V / W 36 / 300
Type of vacuum cleaner Dry
Number of vacuum motors 1
Vacuum kPa 16
l/s
L
29
Collection tank capacity 6
Barrel material HDPE
Appliance weight when dry (without battery) kg
Battery weight kg 1.2
5.2
Appliance weight when ready to use kg 6.5
Type of battery Li-ion Technology
Electrical characteristics of the battery V - Ah 18 - 5
Dimensions (length x height x depth) cm 26.5x51x22.3
Accessories diameter mm 32
Electrical protection class (battery charger) II
Electrical protection class (vacuum cleaner) III
Sound pressure level (ISO 11201) dB (A) <67
Uncertainty Kpa dB (A) 1.5
Hand vibration level (ISO 5349) m/s20.5
Body vibration level (ISO 2631) m/s24.95
Vibration measurement uncertainty 1.5%
User Guide
JVBP6B

2
RECHARGING THE BATTERY
DANGER:
.
WARNING:
Before charging check that the electric cable that connects the battery charger to the mains
is not damaged, and if it is damaged or broken, it should be replaced by either the
manufacturer or by an authorised Sirocco service agent.
Before charging check that the base of the battery charger is not damaged, and if it is
damaged do not use it and contact either the manufacturer or an authorised Sirocco service
agent.
The socket for the battery charger cable must have an earth connection.
Keep sparks, flames, heat, and incandescent materials at a safe distance from the batteries
and the battery charger.
Charging the batteries produces highly explosive hydrogen gas, carry out the procedure
only in areas that are well ventilated and away from open flames.
The battery charger must only be used in a covered area.
Do not use the battery charger in potentially explosive environments.
The batteries must be clean and dry when they are inserted in the battery charger.
Before starting to charge the batteries, check there is no stagnant water or humidity in the
on¬board battery charger socket.
Do not disconnect the power cable of the battery charger from the socket of the machine
when the battery charger is operating to avoid electric arcs forming.
Charge the batteries (2 x # XXXX) with the battery charger ( # XXXX), both present in the
packing, do not use any other type of battery charger.
We suggest that you charge the batteries after every use.
Always recharge the batteries at a room temperature between 10°C and 40°C. Recharge
the batteries using only the power supply unit supplied with the appliance. Do not attempt to
recharge damaged batteries.
Keep a safe distance from flames or sparks when using this product.
Before using the battery charger, make sure that the frequency and the voltage values
indicated on the machine's data plate coincide with the local network.
Do not smoke near the battery charger, during the charging cycle.
Carefully read the user manual of the battery charger before recharging.
Do not attempt to open the batteries for any reason whatsoever. Avoid any contact with
the liquid that seeps out of damaged batteries. If necessary, rinse the area of skin which
came into contact with the liquid in water; in case of contact with eyes, rinse thoroughly
and seek medical advice.
Do not let the batteries get dirty or wet.
The batteries must not be exposed to excessive heat (e.g. sunshine, flames, etc.). Do not
leave the batteries in places where the temperature could exceed 40°C.
The battery contacts must not touch metal parts, to avoid any risk of short-circuits.
The batteries must be kept far from metal objects, to avoid any risk of short-circuits.
Do not throw the batteries into a fire.
Do not throw a battery away with domestic waste; respect the disposal regulations in
force in the country where the appliance is used.
User Guide
JVBP6B

3
DANGER:
•Explosive or inflammable gases, liquids and powders (reactive powders).
•Reactive metal powders (for example aluminium, magnesium, zinc) together with strongly alkaline
detergents and acids.
•Acids and alkalines in their purest state.
•Organic solutions (for example gasoline, paint thinners, acetone or gasoline)
USO - EMPLOYMENT
To power the appliance, use only the batteries supplied in the package.
OTHER BATTERY TYPES CANNOT BE USED. The appliance is powered by 2 x lithium-ion
batteries.
The appliance must not be used or kept outdoors, in damp conditions or directly exposed to rain.
The storage temperature must be between -25°C and +40°C.
Conditions of use: ambient temperature between 0°C and 40°C with a relative humidity between
30 and 95%. The vacuum cleaner has been developed only for dry cleaning and it should not be
used or kept outdoors in moist conditions.
Before using, make sure the appliance is in a good condition. If that is not the case, remove the
batteries and cease use of the appliance.
When the appliance is used in dangerous situations (for example filling stations) the relative
safety regulations must be followed. It is forbidden to use the appliance in areas with a high risk
of explosion.
Certain substances can form explosive vapours and mixtures together with intake air.
Never vacuum the following substances:
WARNING:
Keep hair, loose clothing, fingers and all body parts away from openings and from
moving parts.
Do not put objects into the openings or use the appliance with the opening blocked.
Keep the openings free of dust, fur, cloths, hair, and everything else that can reduce the
air flow.
This appliance is not suitable for vacuuming dangerous powders.
Do not use to vacuum flammable or combustible liquids like gasoline, or use in areas
where they may be present.
Do not vacuum anything that is burning or smouldering, like cigarettes, matches or
glowing embers.
The appliance should only be used by people trained in its use and who have shown that
they know how to use the appliance and have been expressly authorised to do so.
This appliance can be used by persons over the age of 10 years old and by people with
physical, sensorial or mental impairments, as well as by people who have no experience
or the required knowledge, as long as they are supervised, have been given instruction
regarding the appliance safety, can wear and use it without damaging or hurting
themselves and understand the dangers involved in using it.
Children must be supervised and should not do any cleaning or maintenance that is the
responsibility of the user without supervision.
This appliance should only be used in enclosed areas.
Never leave the appliance unattended when the batteries are connected. Remove the
battery when not in use and before any maintenance.
Never use the appliance near burning or smouldering objects.
It is forbidden to vacuum persons or animals with this appliance.
This appliance should not be used outdoors.
User Guide
JVBP6B

4
WARNING:
DANGER:
CAUTION:
Only use accessories and spare parts that have been authorised by the manufacturer. Original
accessories and spare parts ensure the appliance can be used safely and without any fault
TRANSPORT
MAINTENANCE
ACCESSORIES AND SPARE PARTS
DANGER:
The appliance has been designed only for vacuuming dry solid material and it should not be
used for other purposes.
WARNING:
The appliance is not suitable for vacuuming powders that are damaging to health.
DRY VACUUM CLEANER
When the appliance is operating do not place it close to delicate organs like ears, mouth,
eyes, etc.
Do not use the appliance without filters. The dry vacuum cleaner must always have a bag
filter fitted.
The device must only be kept in closed areas.
If the vacuum cleaner is not working properly or it has fallen, been damaged, left outside or
has fallen in water, take it to an authorised Sirocco service agent.
Always use the appliance in compliance with its intended use, taking into consideration local
conditions and looking out for the presence of others, especially children, when working.
Never leave the appliance unattended before it is switched off and the battery removed.
The appliance should only be used by people trained in its use and who have shown that
they know how to use the appliance and have been expressly authorised to do so.
Do not place any liquid containers on the appliance.
In the event of a fire, use a powder extinguisher. Do not use water.
If foam forms or liquid leaks, immediately switch off the appliance.
This appliance has been designed and built to be used for cleaning (vacuuming solid, dry
elements) smooth flooring in the commercial, residential and industrial sectors (for example:
hotels; schools; hospitals; factories; shops; offices and business premises), in proven safety
conditions, by a qualified operator.
Before transporting, close all the locking hooks of the top cover. When transporting the
appliance, the engine should be switched off, and make sure that the appliance is in a stable
and secure position.
• Switch off the appliance and remove the batteries before cleaning, replacing
components and carrying out maintenance on the appliance.
• Repairs should only be carried out by an authorised Sirocco service agent
• Observe the safety check as per local provisions for commercial appliances.
4
User Guide
JVBP6B

5
The descriptions contained in this document are not binding. The company therefore reserves the right to
for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial,
of the text and drawings contained in this document is prohibited by law.
are shown as reference only and are not binding as to the actual design and/or equipment.
PURPOSE AND CONTENT OF THE MANUAL
The aim of this manual is to provide customers with all the information needed to use the appliance in
the safest, most appropriate and most autonomous way. It includes information concerning technical
aspects, safety, operation, appliance downtime, maintenance, spare parts and scrapping. Operators
operation on the appliance. If in doubt about the correct interpretation of instructions, contact your
TARGET GROUP
manufacturer is not liable for damages resulting from failure to comply with this veto.
STORING THE USE AND MAINTENANCE MANUAL
The Use and Maintenance Manual must be stored in its special pouch close to the appliance, protected
from liquids and anything else that could compromise its legibility.
ON DELIVERY OF THE APPLIANCE
When the machine is delivered to the customer, an immediate check must be performed to ensure all
the material mentioned in the shipping documents has been received, in addition to verifying that the
equipment has not been damaged during transportation. If this is the case, the carrier must ascertain
this type that the missing material can be obtained, and compensation for damage successfully claimed.
INTRODUCTORY COMMENT
order by performing the maintenance operations described in the attached documentation. You should
therefore read this instruction manual carefully, consulting it again if issues arise while using the machine.
If necessary, remember that our assistance service (organised in collaboration with our dealers) is
always available for advice or direct intervention.
IDENTIFICATION DATA
For technical assistance or to request replacement parts, always give the model, the version and the
serial number (written on the relevant plate).
TECHNICAL DESCRIPTION
The SRB007 is a vacuum cleaner which uses the vacuum created in the collection tank by the fan
(operated by the electric motor) to pick up dust and dry solid elements measuring up to 2cm at room
The
appliance must only be used for this purpose.
INTENDED USE
safety conditions.
ATTENTION: the appliance is not suitable for use in the rain, or under jets of water.
IT IS FORBIDDEN
places with an explosive atmosphere. In addition, it is not suitable as a means of transport for
people or objects.
SAFETY
Operator cooperation is paramount for accident prevention. No accident prevention programme can be
The majority of occupational accidents that happen either in the workplace or whilst moving are caused
against accidents and is fundamental in order to implement any prevention programme.
SERIAL NUMBER PLATE
The serial number plate is located at the rear of the vacuum cleaner, and indicates the general
characteristics of the appliance, in particular the appliance's serial number. The serial number is a very
important piece of information and should always be provided together with any request for assistance
or when purchasing spare parts.
BATTERY TYPE
To power the appliance, use only the battery supplied in the package or by a specialised technician.
OTHER BATTERY TYPES CANNOT BE USED. The appliance is powered by a lithium-ion battery. The
battery compartment can accommodate a single battery slot at 36.5V.
BATTERY MAINTENANCE AND DISPOSAL
For maintenance and recharging, respect the instructions provided by the battery manufacturer.THE
BATTERY IS CLASSIFIED AS DANGEROUS WASTE, AND AS SUCH, IT IS COMPULSORY TO TAKE
IT TO AN AUTHORISED SERVICE CENTRE.
For good battery maintenance, follow these indications:
•Do not attempt to open the battery for any reason whatsoever. Avoid any contact with the liquid that
seeps out of damaged batteries. If necessary, rinse the area of skin which came into contact with the
liquid in water; in case of contact with eyes, rinse thoroughly and seek medical advice.
•Do not let the battery get dirty or wet.
•
the battery in places where the temperature could exceed 40°C.
•The battery contacts must not touch metal parts, to avoid any risk of short-circuits.
•The battery must be kept far from metal objects, to avoid any risk of short-circuits.
•
•Do not throw the battery away with domestic waste; respect the disposal regulations in force in the
country where the appliance is used.
For good battery charger maintenance, follow these indications:
•Always recharge the battery at a room temperature between 10°C and 40°C. Recharge the battery
using the power supply unit supplied with the appliance. Do not attempt to recharge damaged
batteries.
•Only use the power supply unit delivered with the appliance to recharge the battery supplied by the
manufacturer or by a specialised technician. Other batteries could explode, causing harm to people
and damage to property.
•The voltage rate indicated on the plate in the battery charger must correspond to the mains voltage.
•Do not use the battery charger in potentially explosive environments.
•The battery charger contacts must not touch metal parts, to avoid any risk of short-circuits.
•Never attempt to recharge the primary cell batteries: danger of explosion.
•Never attempt to recharge damaged batteries.
•
centre.
•Have any faulty supply wires replaced immediately.
•Do not let the power supply unit get dirty or wet.
•Do not open the power supply unit.
•Do not connect the power supply unit to probes.
•The batteries must be clean and dry when they are inserted in the battery charger. Do not use the
battery charger if the battery holder support is dirty or wet.
ATTENTION: the battery charger must only be used in a covered place.
ATTENTION: read this manual before using the appliance or carrying out any maintenance work.
ATTENTION: if the battery is handled in the wrong way, it could explode or release acids. This
could cause burns and injuries to the people nearby.
ATTENTION: when the battery is run down or damaged, respect the disposal regulations in force
in the country of use.
Warning symbol:
Carefully read the sections preceded by this symbol meticulously following the instructions
indicated for the safety of the operator and the device.
Covered place symbol:
The operations preceded by this symbol must always be carried out in a dry, covered area.
Disposal symbol:
Carefully read the sections marked with this symbol for disposing of the appliance.
Recycling symbol:
Tells the operator to carry out the operations in compliance with environmental regulations
in force in the place where the appliance is being used.
Symbol of the open book with i:
Indicates the need to consult the instruction manual.
Symbol of the open book:
Tells the operator to read the user manual before using the device.
Symbol indicating the compulsory use of protective gloves:
Indicates that the operator should always wear protective gloves, to avoid the risk of
serious injury to his hands from sharp objects.
SYMBOLS USED IN THE MANUAL
Information symbol:
Indicates additional information for the operator, to improve the use of the device.
4
User Guide
JVBP6B

8
4
User Guide
JVBP6B
-
-
-
-
-
-
-
-
-
-
-
--
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Parts List
BX-1 Hose assy
BX-2JV Lid
BX-3N Paper bag
BX-4 Cloth bag
BX-5 Lid latch assy
BX-6 Lid latch screw
BX-7JV Body
BX-8 Bag support screw
BX-9 Bag support
BX-10 Motor shroud seal
BX-11L Motor
BX-12 Exhaust sponge
BX-13 Bottom cover
BX-14 Bottom cover screw
BX-17L Motor mount
BX-19L Motor seal
BX-21 Motor shroud
BX-22 Pre-motor lter
BX-23D2 Switch box assy
BX-24 Waist belt
BX-25A Waist belt mounting plate
BX-26 Waist belt screw
BX-27 Carry handle screw
BX-28 Carry handle
BX-29 Shoulder strap screw
BX-30 Shoulder strap
BX-46A Battery
BX-52 Lithiumionbattery
packontheleft
BX-53 Lithium ion battery
pack on the right
BX-54 Sealing gasket for battery seat
BX-55 Iron plate for battery seat
BX-56 Lithium battery charger
BX-31 2 Pieces aluminum
wand
BX-32 Crevice tool
BX-33 Bare floor brushl
BX-34 Upholstery brush
BX-35 Rug brush
BX-36 Dusting brush
BX-51 Cord Clip

4

4
JVBP6B - EN/A2
FOR
PARTS, ACCESSORIES & VACUUM BAGS
VISIT OUR WEBSITE AT
WWW.JOHNNYVAC.COM
Residential and commercial
vacuum cleaner specialist
