Jolywood JW-HD108N User manual

INSTALLATION
MANUAL
Jolywood N-type Mono-crystalline Double Glass Module
M10 Double-glass module（HD108N/P）
All rights reserved © Jolywood (Taizhou) Solar Technology Co., Ltd

1.0
1.1
1.2
2.0
2.1
2.2
2.3
3.0
3.1
3.2
3.3
3.4
4.0
4.1
4.2
5.0
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
6.0
6.1
6.2
6.3
6.3.1
6.3.2
6.3.3
7.0
03
03
03
03
03
03
04
04
05
06
06
06
06
06
07
07
08
09
09
11
11
12
13
13
14
14
14
15
15
15
16
16
Introduction
Disclaimer
Limitation of Liability
Safety Precautions
Warning
General Safety
Operation instruction
Unload, Transportation and Storage
Marks on Outer Packaging
Unloading Instructions
Secondary Transportation and Precautions
Storge
Unpacking Instruction
Unpacking Safety Instruction
Unpacking Steps
Installation
Installation Safety
Mechanical installation and precautions
Framed Bifacial Double-Glass Modules (installation with clamps)
Grounding
Electrical installation
Wiring
Fuse
Maintenance for PV Modules
Module Visual Inspection and Replacement
Connector and Cable Inspection
Cleaning
Water quality requirements
Module Inspection after Cleaning
Troubleshooting
Technical Issues or Claims
Framed Bifacial Double-Glass Modules (installation with bolts)
…………………………………………………………………
……………………………………………………………………
…………………………………………………………
……………………………………………………………
………………………………………………………………………
………………………………………………………………
…………………………………………………………
…………………………………………
……………………………………………………
………………………………………………………
………………………………
…………………………………………………………………………
…………………………………………………………
………………………………………………
………………………………………………………………
……………………………………………………………………
……………………………………………………………
……………………………………
………
…………
…………………………………………………………………
…………………………………………………………
………………………………………………………………………
……………………………………………………………………………
………………………………………………
…………………………………
………………………………………………
……………………………………………………………………
…………………………………………………
……………………………………………
………………………………………………………………
…………………………………………………
Contents
2
Revision Date 2022/5/13
Version: TZ-MP-094-2022-V2
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cn[email protected]
[phone]
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

3
1.0
Introduction
1.1
Declaration
1.2
Limitation of Liability
2 Safety precautions
2.1 Warning
2.2 General Safety
2.2.1
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cn[email protected]
[phone]
This manual contains relevant information
about the installation methods and safe operation
of photovoltaic modules (hereinafter referred
to as "modules") of Jolywood Solar Technology
Co., Ltd (hereinafter referred to as "Jolywood").
This manual is applicable to the installation
methods of standard PV module type JW-HD108N/P.
The module size are 1728mm*1134mm*30mm
and 1722mm*1134mm*30mm.This manual would
be updated when new module introduced in the
future. Failure to follow these safety guidelines
may result in personal injury or death or property
damage.
The installer must read and understand this
guide before installation. Any question, please
contact our customer service department or
our local representative for more detailed
information. The installer must follow all safety
precautions in this guide, local requirements,
regulations of laws or authorized agencies
requirements. Before installing a solar photo-
voltaic system, the installer should be familiar
with its mechanical and electrical requirements.
The installer required relevant professional
knowledge, and the system must be installed
and maintained by qualified person with
professional knowledge.
Before installing, wiring, operating or
maintaining modules, you should read and
understand all safety rules. Modules will generate
electricity when exposed under a light source
environment. The generate electricity from array
of multiple modules would cause fatal electric
shock or burns. Person without authorization and
relevant training should not touch modules and
wiring terminals.
For any of the following injuries or losses,
including but not limited to bodily injury and property
damage caused by module operation, system
installation errors, and failure to follow the instructions
of this manual, Jolywood is not responsible for that.
Jolywood reserves the right to change this
installation manual without prior notice. Jolywood
does not make any guarantee for any express or
implied information contained in this manual. If
customer fails to follow the requirements listed in
this manual during the installation of the modules,
the limited product warranty provided would be
invalidated.
Please store this guide in a safe place for
future reference (maintenance), which would
also be useful when selling or disposing of the
modules.
The modules of Jolywood have passed the
tests of IEC standards in certification agencies.
Please rest assured that you can use them under
the premise of complying with the requirements
of this installation manual.
The module installer must inform the end
customer (or consumer) of the above matters
accordingly.
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

2.3 operation instruction
2.3.1
3.0
Unload, Transportation and Storage
2.2.2
2.3.2
2.3.3
2.3.4
2.2.3
2.2.4
2.2.5
4
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Preventive measures and general safety rules:
Modules should be stored in the original
box before installation. Please protect the package
from damage. Transport the modules and unpack
It is forbidden to climb, step on, stand, walk
or jump directly on the package or module.
Only work in a dry environment, and only use
dry tools. Do not work in a humid environment
without wearing any protective measures. When
exposed under the sun, no matter whether module
is connected or not, please do not directly touch
junction box, connector, cable or other charged
objects of module without any protection.
Please do not use water to extinguish fire
when the power is on.
Do not install or operate modules during
wet or windy weather.
In order to avoid damage module, please
do not scratch or hit module, and do not use
paint or adhesive on the front or back side of
module. In order to ensure insulation performance
of modules from be damaged, please avoid
scratching, cutting the cables and connectors or
exposed under the sun for a long time. Do not
drop module or drop other things onto the module
surface. Do not place any heavy or sharp objects
on the module surface.
According to the National Electrical Code,
the maximum system voltage shall not exceed 1500V.
Do not connect the positive terminal of a
single module to the positive terminal of another
module. Please make sure that the polarity of
each module or module string is not opposite to
other modules or module strings. Please make
sure that there are no gaps between the insulating
washers of the joint. If there are gaps between
the insulating washers, it may cause the risk of
fire or electric shock.
The operator of the system requires
relevant professional knowledge, and the
system must be installed and maintained by
qualified person with professional knowledge.
Persons without authorization and relevant
training should not touch modules and
approach the installation area or module
storage area.
It is strictly forbidden to use modules with
broken glass. Damaged modules must not be
repaired. Contact with the surface of the modules
may cause electric shock. Do not disassemble
the module or remove any part of the module.
Do not artificially gather sunlight on these solar
modules.
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

3.1.1 Prohibit discarding modules randomly,
special recycling is needed
3.1.2 Protect modules from rain or moisture
3.1.3 Modules in carton are fragile,
shall be handled with care
3.1.4 The package should be vertically up
during transportation
3.1.5 Do not step on or stand above
package or module
3.1 Marks on Outer Packaging
5
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Always work under a dry environment,
ensure that all modules and electrical contacts
are clean and dry before installation. If it is
necessary to store the modules outdoors for a
certain period of time, always cover module
and ensure that the glass surface is facing
down on a soft surface, preventing water from
entering inside of the module, preventing
connectors from be damaged. Unpacking must
be operated by two or more people at the same
time. Do not lift module by grasping module
terminal box or lead wires. Use both hands to
carry the module and do not stack modules.
Do not place modules in an environment without
reliable support or unfixed. Do not place any
heavy objects or sharp objects on modules.
the modules according to the recommended
shipping method and unpacking procedure.
Avoid damaging modules, scratching or striking
the modules. Do not apply pressure directly on the
unit during transportation. Improper transportation
or installation may damage the modules, which
excluded from the warranty. Do not stand, climb,
walk or jump on unpacked pallets of modules.
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

3.1.6 Stack no more than 2 layers
3.2 Unloading Instructions
3.2.1
3.4 Storge
3.4.1
3.3 Secondary Transportation
and Precautions
3.3.1
3.2.2
When modules is temporarily stored in
a project site, modules should be placed
in a dry and ventilated place. Do not stack
modules at a project site. Cover modules
with a tarpaulin, the tarpaulin should be
fixed by a curtain or mesh belt to protect
modules from moisture and rain.
3.4.2
4.1.2
The ground needs to be flat enough
2
6
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Warehouse requirement: Humidity <70%;
Temperature: -20°C ~+50°C. Modules should
be stacked less than 2 layers.
It is forbidden to let modules be exposed to
the rain or get wet. If it is necessary to store
modules outdoors for a certain period of time,
modules should always be covered.
If the module would be transported for a
too long distance or stored for a long period,
it is forbidden to remove the original package.
Modules packaged with original package could
be transported by land, sea or air. During
transportation, fixing the package to the
transport platform to ensure it would not be
tumbled. Taking land transportation as an
example. When transported with truck, stacking
up should be less than two layers, it is forbidden
to cut thepackaging belts of packages.
When unloading the modules from the
transport vehicle, use a reasonable lifting fixture
to allow up to two brackets per sling. Before lifting,
make sure that the trays and cartons damaged,
skewed, and that the hoisting ropes are durable.
When the hoisting is on the ground, the two men
put the carton gently on the project in a relatively
flat position. Using a forklift to remove the
components from the truck, and the unloaded
modules placed on a level surface.
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module
4.0 Unpacking instruction
4.1 Unpacking safety instruction
4.1.1
When modules unpacked outdoors, it is
forbidden to work under rain, as carton would
becomesoft and be broken. Modules inside of
it would come out, damage or bruises may be
caused to module. During windy days, special
attention should be paid for safety, it is reco-
mmended not to transport modules, and the
unpacked modules should be properly fixed.

to ensure package could be placed
horizontallyandstably.Supportive tool
should be used when disassembling the
carton to prevent the modulesfromfalling
down.
4.1.5
Each module should be lifted by 2 man.
Do not lift module by grasping the module
terminal box or lead wires. Use both hands
to carry module, do not stack modules
during lifting.
4.1.6
The unpacked modules must completely
be assembled and prohibited from being
stacked at the project site. 5.0
Installation
Double glass modules produced by
Jolywood could work for more than 30 years
under proper conditions. Modules with an
expired life should be reasonably disposed
in accordance with local laws and regulations.
Besides requirement of IEC certification,
4.2.4
Modules removed out of package are
prohibited from leaning against a without
reliable support or an unfixed object
4.2.3
When removing modules from package,
two man stand must stand on each side of
the box while lifting the module, one hand
grasping the corner of the module, the other
hand grasping the short side of the module.
When unpacking on a horizontal floor, remove
modules from one side to the other side of
package, and then carry them. If unpacking
on a non-horizontal floor, use a supportive
tool to ensure package placed verticality.
4.2.2
When unpacking, cut all vertical packing
belts with a blade or scissors, first cut the
long side packing belt, then cut the short
side packing belt; remove the upper cover
of the carton and take out two or three upper
lifting brackets.
4.2 Unpacking steps
4.2.1
Before unpacking, please check the
product name and serial number on an A4
paper onthesurface of the package, unp-
acking method should not be randomly
changed.
4.1.4
Module information could be queried from
outer package, please read it carefully before
unpacking.
4.1.3
Wear protective gloves during
unpacking to avoid injury and fingerprints
on the glass surface.
7
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

5.1.8
After modules are installed, the cables
should be fixed or tied to avoid exposed
under direct sunlight after installation,
which would prevent cable from aging.
Low-hanging cables can cause various
problems, such as electric leakage and
fire.
5.1.9
The application level of module
produced by Jolywood is Class A. modules
with different color should be avoided from
installed in the same array or roof.
5.1.7
When installing modules, do not work
alone, and keep working with a team of two
or more men.
5.1.6
Do not damage the back glass of module when
modules mounted on the bracket. If module sneed
to be replaced, do not damage the surrounding
modules or mounting structure.
5.1.3
When installing modules, only work in a
dry environment with dry tools. Do not work
in a humid environment without wearing any
protective measures. Do not install modules
under any rainy, snowy or windy conditions.
Keep the connectors dry and clean when
installing modules to avoid the risk of electric
shock. If the terminal of the module is wet,
no work could be done, otherwise electric
shock may be caused. Modules should be
installed immediately after unpacked.
5.1.4
Do not wear metal rings, wristwatches,
earrings, nose rings, lip rings, or other metal
materials when installing or repairing PV systems.
5.1.5
Use opaque materials to cover the module
completely during installation. Do not open the
electrical connection or pull out the connector
while the circuit is under load. Do not touch the
modules during installation unless necessary.
Glass surfaces and brackets may have high
temperature, which might lead to the risk of
hazards of burns and electric shock.
5.1.2
Do not remove module package before
installation.
5.1 Installation Safety
5.1.1
The modules produced by Jolywood could
installed landscape or portrait, the influence
of shading effect caused by dust could be
minimized when installed landscape.
the product has been tested to verify its
resistance to ammonia, which may be present
near the cowshed, whether it could work in a
wet(coastal) areas, areas where sandstorms
occur frequently are also tested.
8
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

Fixture installation meth：
①frame ②clip ③ M8 bolt ④mounting rail
④
②
③
①
5.2 Mechanical installation and
precautions
5.3 Framed Bifacial Double-Glass
Modules (installation with clamps)
Modules could be mounted with clamps
or bezels. Modules Installation must be
carried out according to the following
examples and recommendations. If the
installation method is different from
below methods, please consult Jolywood
local technical support or after-sales, to
obtain the consent of Jolywood, otherwise
when the modules is damaged, the limit
warranty would be invalid.
The mechanical load of the module
(including snow and wind loads) depends
on the way of module installed. The
mechanical load should be calculated
by the professional system designer
based on actual conditions and en-
vironmental. Moreover, it does not
withstand the excessive force generated
by the thermal expansion of the support
structure. The drain hole should not be
blocked under any conditions during
installation or use.
Edge Clamp& Middle Clamp:
9
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]

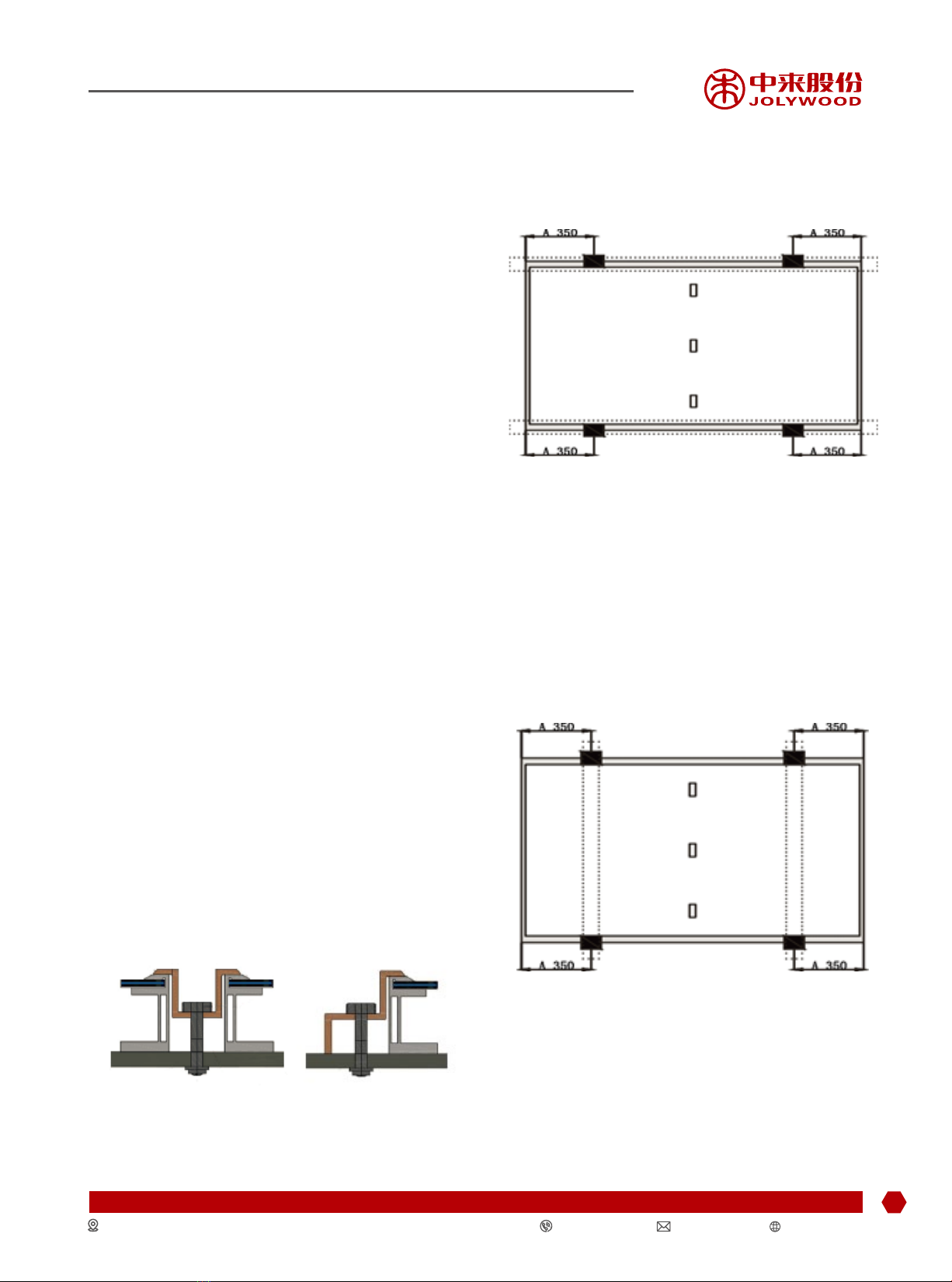

Mounted with 4 clamps along the long frame.
A=350mm±30mm.
C-shaped steel parallel to the long frame.
Clamp: height=30mm,width=40-50mm.
Maximum load: front ≤2400pa back ≤2400pa.
Mounted with 4 clamps along the long frame.
A=350mm±30mm.
C-shaped steel perpendicular to the long frame.
Clamp: height=30mm,width=40-50mm.
Maximum load: front ≤5400pa back ≤2400pa.
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module
①
③
④
②

10
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]

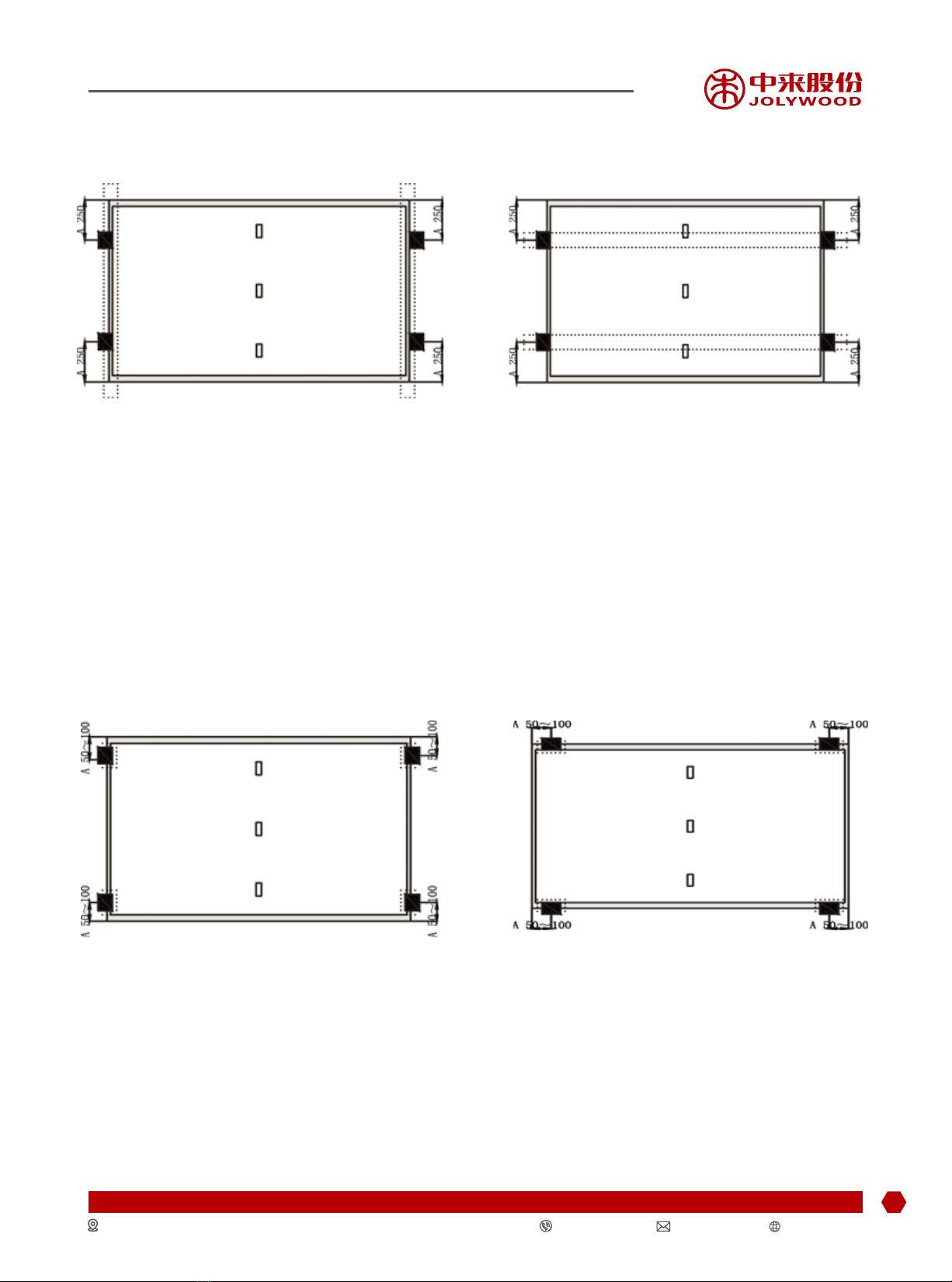

Mounted with 4 clamps along the short frame.
A=250mm±30mm.
C-shaped steel parallel to the short frame.
Clamp: height=30mm,width=40-50mm.
Maximum load: front ≤1200pa back ≤1200pa.
Mounted with 4 clamps along the short frame.
A=250mm±30mm.
C-shaped steel parallel to the long frame.
Clamp: height=30mm,width=40-50mm.
Maximum load: front ≤4800pa back ≤1200pa.
Mounted with 4 clamps along the short frame.
A=50mm~100mm.
Clamp: height=30mm,width=40-50mm.
Maximum load: front ≤1200pa back ≤1200pa.
Mounted with 4 clamps along the long frame.
A=50mm~100mm.
Clamp: height=30mm,width=40-50mm.
Maximum load: front ≤1800pa back ≤1800pa.
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

① M8 screw ② Flat washer ③ Spring washer
④ Nut ⑤ Mounting rail
Note: The above standard installation is used
in the Jolywood standard Clamp. For details,
please refer to the Jolywood standard clamp
drawing.
Bolt mounting method：
5.4
Framed Bifacial Double-Glass modules
（installation with bolts）
a) The modules should be bolted to the
support structure using the mounting holes on
the back of the frame.
b) Each modules needs to be fastened by
at least 4 points on two opposite sides.
c) M8 x 1.25 (5/16”) bolts and nuts should
be used. The yield strength of bolts and nuts
should not be less than 450 MPa, and the reco-
mmended torque is 16-20 Newton meters.
d) The outer flat washer needs to use M8
(A2-70), a stainless steel (SUS304) flat washer
with an outer diameter of 20±2 mm and a
thickness of 1.1-1.2 mm; the corresponding
stainless steel spring washer thickness is
2.0±0.2mm.
Bolt：
11
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
All module frames and brackets must
be properly grounded in accordance with
the appropriate National Electrical Code.
The grounding conductor or grounding
5.5
Grounding
Mounted with 4 inner holes along the long frame.
C-shaped steel parallel to the long frame.
Maximum load: front ≤2400pa back ≤2400pa
Mounted with 4 inner holes along the long frame.
C-shaped steel perpendicular to the long frame.
Maximum load: front ≤5400pa back ≤2400pa
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

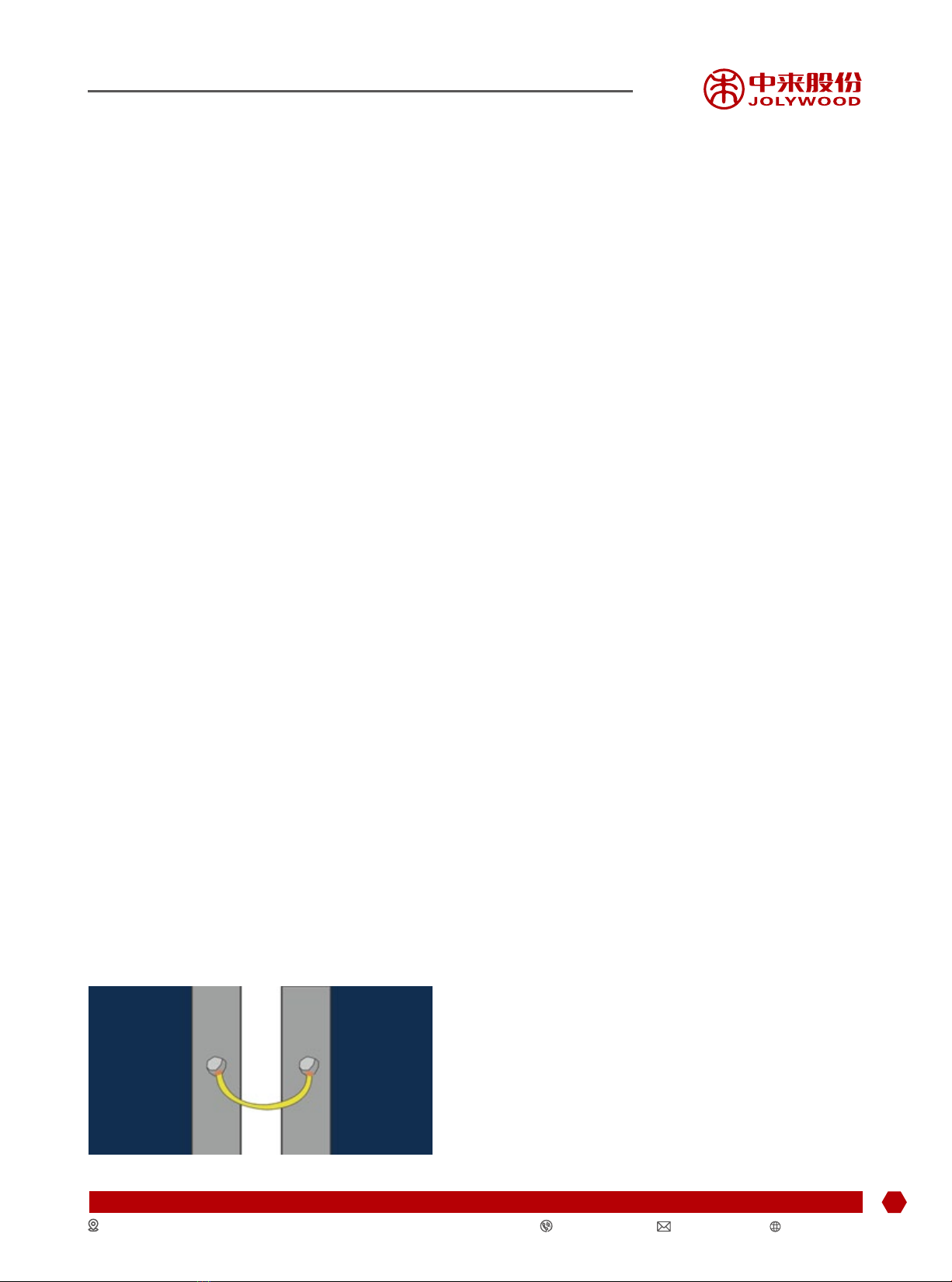

Place the toothed washers, washers,
and grounding wires in turn, and screw the
screws into the grounding holes to connect
the two adjacent components.
5.6 Electrical Installation
All wiring should be performed by
a qualified and trained person in accordance
with local regulations and procedures.
Modules could be connected in series
to increase the operating voltage by
inserting the positive plug of one module
into the negative plug of another module.
Always ensure that the contact points
are corrosion-resistant, clean, and dry
before wiring modules. If the polarities
of modules connected wrong, may lead
to irreparable damage. Before modules
connected in parallel, please check the
voltage and polarity of each module
array. If the polarity of products is opposite
or Voltage difference greater than 10V
founded after measurement, please check
the configuration of module array before
its access to power grids.
All cables and connectors used to
connect the DC system must have similar
(or higher) level. It is suggested that
all cables should run in proper cable
ducts and should be located away from
the water-prone area. Each module has
two standard 90°C shading output cables
with a plug-and-play connector on each
terminal. Jolywood modules are equipped
with a DC copper cable with a cross-
sectional area of 4mm2, system voltage
1500V DC, insulation layer maximum work
temperature up to 90°C, also UV-resistant.
All cables used to connect the DC system
must have similar or high level. It is
required that all wiring and electrical
connections should be comply with the
appropriate National Electrical Code.
12
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Module could be grounded with a
grounding equipment listed by a third party.
The equipment must be installed in accordance with
the instructions given by the grounded equipment
manufacturer.
Please visit http://www.jolywood.cn/ to
view the “Product Catalog” link for detailed
grounding holes locations and dimensions.
. The electrical contact is formed by
penetrating the anodized coating of the
aluminum frame and tightening the ground
screw (together with the star washer) to
an appropriate torque of 25 lbf.in. A
properly sized ground wire (solid bare
copper wire according to American Wire
Gauge 6 to 12) should be selected and
mounted under the connecting bolt.
wire could be made with copper, copper
alloy or other material, which should also
be in accordance with the requirements
of corresponding National Electrical Code.
The grounding conductor must be connected
to the ground through a suitable grounding
methods.
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

Figure 1
Series connection
Parallel connection
Figure 2
Parallel connection after series connection
5.8 Fuse
The fuse should be connected to each
non-grounded pole of the array (in other
words, if system is not grounded, the fuse
should be connected to both positive and
negative terminals).
b) The fuse rating also corresponds
to the maximum reverse current that the
module could withstand (when an array is
shading, the array is loaded into another
parallel module array to generate power),
thus the number of parallel connected
arrays is affected.
c) It is forbidden to connect two or
more strings in parallel and then share
the fuses.
a) The maximum rating of the fuse
connected in series is 30A, and the module
-specific ratings are available on the
product label and product data sheet.
5.7 Wiring
In order to ensure PV system could
operation smoothly, when connecting modules
or connecting loads (such as inverters batteries,
etc.), ensure that the polarity of the cables is
properly connected (Figure 1 and Figure 2).
If modules are not connected properly, the
bypass diode may be damaged. Modules
could be connected in series to increase
voltage. Connecting modules in series by
inserting the positive terminal of one module
into the negative terminal of the next module.
Figure 1 shows the serial connection of
modules. Modules could be connected in
parallel to increase current (shown in Figure 2).
Connecting modules in series in Parallel by
inserting the positive terminal of one module
into the negative terminal of the next module.
The number of modules connected in series
or in parallel needs to be reasonably designed
according to the system configuration. All
instructions above must be followed to meet
the Jolywood Warranty valid conditions.
13
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

6.2 Connector and Cable Inspection
6.2.1
Check if all cables are securely connected.
It is suggested that all cables shouldrunin
proper cable ducts and should be located
away from the water-prone area.
6.2.2
Check the electrical, grounding, and
mechanical connections every 6 months to
ensure that they are clean, safe, free from
damage, and rust-free; ensure that the
mountings properly tightened; check all
cables to make sure they are tight.
6.2.3
It is forbidden to use WD-40 or various
organic solvents to wipe all parts of the
junction boxes, wires, and connectors.
6.1.1
Maintenance should be carried out at
least once a year by trained person. As
system voltage is so high, that maintenance
person should always wear rubber gloves
and insulated boots. Removing all possible
shading of the solar array, which would affect
power generation of the module array.
6.1.5
Cover the front surface of Modules with an
opaque material. Modules exposed under the sun
could be extremely dangerous, as high voltages
could be generated.
6.1.6
Module junction boxes is equipped with bypass
diodes to minimize module heating and current loss
6.1.2
Check if the installed hardware is securely
in place.
6.1.3
Check if all array fuses in each of the
non-grounded poles are working properly.
6.1.4
If module is damaged (glass breakage
or scratches on the back glass), it is need
to be replaced. Module must be replaced
with same type one. Do not touch the live
parts of the cables or connectors when
replacing modules. Use appropriate safety
guards (insulation tools, insulated gloves,
insulated boots, etc.) when handling modules.
Modules in array should be regularly
inspected to check damage modules. If
damage module is founded, it must be
replaced with same type one. Such as broken
glass, broken cables, damaged junction box,
etc., which would lead to functional and safety
failure of modules.
Well-designed solar systems require
minimal maintenance, and some simple steps
could be taken to improve system performance
and reliability.
6.0 Maintenance for PV Modules
6.1 Module Visual Inspection and
Replacement
14
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

6.3.2.1
The overall appearance of modules is
clean, bright and free of stains. The surface
of module should no ash accumulation;
there is no obvious scratch on the surface
of module. No cracking occurs on the
surface of module.
6.3.1
Water quality requirements
PH: 5 ~7;
Chloride or salt content ：0 - 3,000 mg/L
Turbidity：0-30 NTU
Conductivity：1500~3000 μs/cm
Total dissolved solids：≤1000 mg/L
Water hardness：0-40 mg/L
Non-alkaline water must be used, use demineralized
water when conditions are available.
6.3.2 Module inspection after
cleaning
6.2.4
The dustproof plug should not be removed
in advance, it can only be removedduring
installation.
The amount of electricity produced by
a solar module is proportional to the amount
of light that falls on it. A battery-blocked
component produces relatively little power,
so it is important to keep the components
clean.
a) The PV module should be cleaned
under the irradiance of less than 200W/m2
. Avoiding cleaning water with great different
temperature from air to avoid cracking. Hard
water needs to be softened. The water remains
should be removed from glass surface after
cleaning.
b) It is strictly forbidden to clean PV
modules under meteorological conditions
where the wind is greater four, heavy rain
or heavy snow.
c) During cleaning, the water pressure
on the surface of module glass shall not
exceed 700 kPa (14619.80 lb/ft2), and the
module is not allowed to withstand additional
external force.
such as oil on the surface of modules, use
a non-friction neutral liquid cleaner. Do not
use any organic solvent containing alkali or
acid. Do not use corrosive solvents or wipe
the PV modules with a hard object.
f) If you are not sure whether the array
need to cleaned, first select a column of pa-
rticularlydirtyarray to begin cleaning. If the
power generated increased less than 5%,
cleaning is usuallynotrequired. The above
verification should be carried out only under
a stable sunshinerate(sunny,strong sunshine,
no cloud).
g) Regularly trim the vegetation to prevent
shading created on the module surface,
whichwoulddecrease power generation.
d) During cleaning, it is strictly forbidden
to step on the modules, splashing water to
the back of the modules or cables. Ensure
that connectors are clean and dry to prevent
electric shock and fire hazard. Steam clean
machines are strictly prohibited; soft parts,
Cloth and mild detergent and water should
be used. Do not put modules directly into the
water. Serious thermal shocks also could
damage modules.
e) The difficult-to-clean substances
6.3 Cleaning
15
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module

6.3.2.3
After modules cleaned, complete the PV
module cleaning record.
6.3.3
Troubleshooting
If module does not work after install-
ation, please notify the installer immedi-
ately.
7.0
Technical Issues or Claims
If you have any questions about
technology or claims, please contact the
installer.
Please visit http://www.jolywood.cn/
to contact Jolywood’s after-sales service
team.
Please submit the Customer Feedback
Information Form at http://www.jolywood.cn/.
Our technical service representatives will
contact you within 5 working days. The
required username and password will be
sent via the Customer Service link.
Please download the specifications
or data sheets for the components at
http://www.jolywood.cn/.
6.3.2.2
The module brackets are not tilted or bent
after cleaning, the module terminals are not
disconnected.
16
Jolywood (Taizhou) Solar Technology Co.,Ltd.
Kaiyang Rd., Jiangyan EconomicDevelopment zone, Taizhou City, Jiangsu Province, P. R. Chinawww.jolywood.cnmk[email protected]
[phone]
Installation Manual - Jolywood N-type Mono-crystalline Double Glass Module
