JONR ED10 User manual

Cordless wet & dry vacuum cleaner (Wireless intelligent floor washer)
Use Manual
ED10
ED11

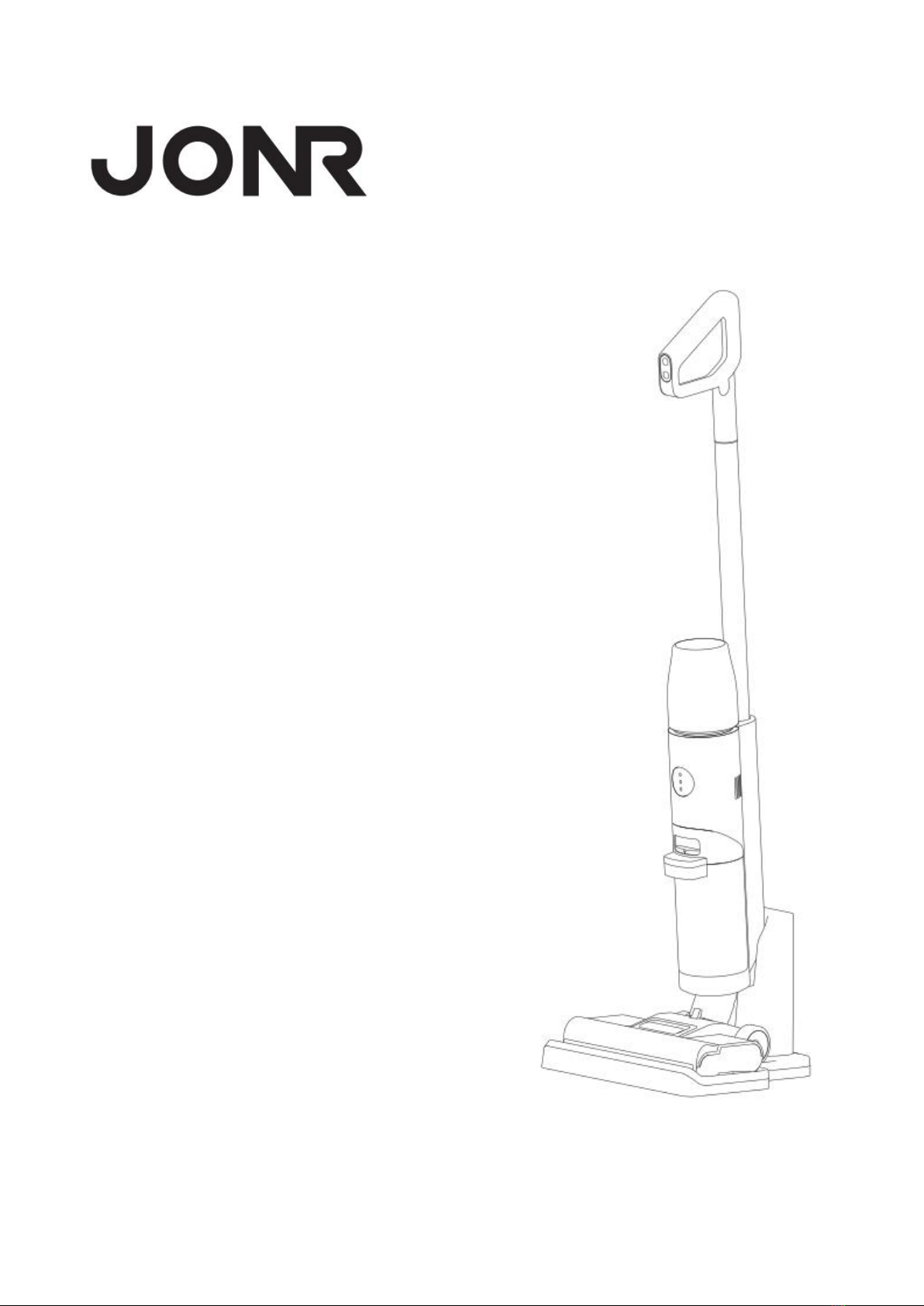

This picture is for reference only, and the actual
product shall prevail.
Please read this manual carefully before use, and keep it properly for further reference.

Table of Content
Safety Specifications-------------------------------------------------------------------------------------------- 1
Product Introduction-------------------------------------------------------------------------------------------- 3
Installation-------------------------------------------------------------------------------------------------------- 7
Product Summary------------------------------------------------------------------------------------------------8
Product Technology and Parameters------------------------------------------------------------------------ 11
Maintenance and Service------------------------------------------------------------------------------------- 12
Description of Hazardous Substances-----------------------------------------------------------------------15
After-Sales Service-------------------------------------------------------------------------------------------- 16
Warranty Card-------------------------------------------------------------------------------------------------- 17

1
Safety Specifications
In order to avoid accidental injuries such as electric shock and fire caused by improper operation, please read the
User Manual carefully before use and keep this manual properly for further reference. This product is designed
only for household use rather than outdoor use, non-ground use, commercial or industrial environments.
Warning
Unless supervised or instructed by an adult guardian who can ensure that this product can be operated safely and
properly, persons with physical, sensory, or intellectual disabilities or without experience and knowledge,
including children, are prohibited from using this product.
• Children are prohibited from operating this product or using it as a toy. Close attention is required when
children, pets, or plants are nearby or this product is operated near them; children are prohibited from cleaning
or maintaining the product without supervision by their guardian.
• Plastic films used for product packaging may be dangerous, and they shall be kept away from children to avoid
choking.
• This product is suitable for hard indoor floors; optimal results will not be achieved when used on uneven floors.
• As this product body and its floor brush have electrical components, they cannot be immersed in water or liquid.
Do not operate this product unless all parts are installed.
• Do not touch the outlet, power adapter, or display with wet hands to avoid the risk of electric shock.
• Please remove the plug from the power socket and make sure that the product is in the power-off state when it
is out of service or before cleaning, cleaning, maintaining, or repairing the product. When cleaning the roller
brush, please turn off the main machine to prevent damage caused by the rotating roller brush. Do not operate
this product if the roller brush, clean water tank, wastewater tank, or filter sponge is not installed in place.
• Do not use this product for flammable or highly volatile liquids and other chemically hazardous liquids (such as
gasoline, kerosene, paints, and perfumes) or in areas where flammable or combustible liquids may be present.
Otherwise, a short circuit or explosion of the product may occur.
• Do not use this product for toxic or harmful substances (chlorine bleach, ammonia, drain cleaner); or for
sweeping hard or sharp objects (such as glass, nails, screws, and coins); or for removing unextinguished heat
sources such as cigarette butts and matches to avoid fire.
• Do not use this product for removing powdered ink or toner in laser printers and copiers to avoid fire or
explosion.
• Do not use this product for removing strong stains such as pigments, paints, and shoe polish.
• Do not use this product for foam-type cleaning liquids to avoid damage to the motor.
• Do not operate this product in an enclosed space filled with paint thinners emitting from the oily paint or with
some anti-moth matter, combustible dust, or other explosive or toxic materials.
• Before use, ensure that any human hair, loose clothing, fingers, and body parts are kept away from the openings
and moving parts of this product and its accessories.
• Do not block the air inlet and outlet to avoid machine overheating. Do not put any object at the suction port of
the product. Do not operate this product when the suction port of the product is blocked. Please remove the dust,
cotton wool, hair, or other items timely because they may cause the reduced airflow of the product.
• Please keep the ambient temperature in the range of 0-40°C when charging, storing, and operating this product.
• Please operate this product strictly according to the instructions in the manual.
• Please only use the type of liquid specified in the operating section of this manual, and its usage volume shall
meet the regulations. Do not add other solutions (such as alcohol and disinfectant) without permission.
• Take extra care when cleaning on stairs to prevent falls.
• Please put this product on a level surface. Do not store this product in a place where icing may occur.
• When lifting or handling this product, ensure that this product is always in the OFF state. When handling this
product, putting your finger on the switch or setting the switch in the ON state may cause an accident.
• Do not incinerate this product even if it has been severely damaged, because the battery may catch fire and
explode. Please remove the battery before scrapping the product.
• Do not modify or try to repair this product except as described in the operation and maintenance instructions.
Before cleaning or maintaining the product, please remove the power plug and ensure the power supply is in the
OFF state. Repairs should be conducted by qualified maintenance personnel, and only the same replacement
parts should be used.
• Do not continue to operate this product when it cannot work properly due to drops, damage, outdoor use, or
water ingress. To avoid injury, do not try to run it but send it to the after-sales service center for repair.
• Before use, if any electric leakage of the product or excessively high temperature/ abnormal sound of the motor,
such as body overheating, abnormal sound, and odor are identified, please stop the product immediately and
contact the after-sales service for help.

2
Safety Specifications
• Do not immerse the floor brush in water to avoid product burns. Do not shake or impact the machine violently
to avoid wastewater flowing into the motor. When handling the product, please keep the product in an upright
state to avoid wastewater flowing into the motor.
Battery and Charging
• Do not charge this product outdoors. This product should only be used with the charging base and power
adapter that come with the product. Otherwise, other types of charging bases may cause battery failure or
extreme thermal effects.
• The charging base has an air drying function and is only suitable for roller brushes of floor scrubbers.
• Please follow all charging instructions and do not charge the product beyond the temperature range specified in
the instructions. Improper charging or charging out of the specified temperature range may cause damage to the
battery and increase the risk of fire.
• Be careful to prevent damage to the power cord. Do not drag or lift the product and charging block with the
power cord, and do not use the power cord as a handle; do not insert the power cord in the door gap, and do not
pull the power cord at sharp points and corners. Do not travel the product on the power cord, and keep the
power cord away from heat sources.
• If the power cord of the power adapter is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified personnel to avoid danger.
• Do not hold the product or the plug of the charging base. To pull out the plug, please hold the plug of the
charging base and do not pull the power cord.
• Do not short-circuit the output terminals of the battery pack or charging base.
• Do not charge, remove, heat (60°C and above) or incinerate discarded batteries.
• Do not expose this product to fire or excessive temperatures. Exposure to flames or temperatures above 130°C
may cause an explosion.
• Do not use damaged or modified devices. Using damaged or modified batteries may cause unpredictable
consequences, posing the risk of fire, explosion or injury.
• Liquid may eject from the battery with excessive force. Avoid contact with this liquid. In case of accidental
contact, please rinse with water. If the liquid enters the eyes, please seek medical care immediately, as the
liquid ejected from the battery may cause irritation or burns.
• This product must be disconnected from the power source before the battery is removed. Please put the battery
in places out of reach of children; do not discard the battery without permission, and send it to the professional
recycling agency for disposal. Do not put the battery in your mouth, and seek medical care as soon as possible
if it is swallowed.
• The batteries in this product shall only be replaced by qualified technicians or after-sales personnel.
• If the product is out of service for a long time, turn off the power and remove the plug of the charging base.

3
Product Introduction

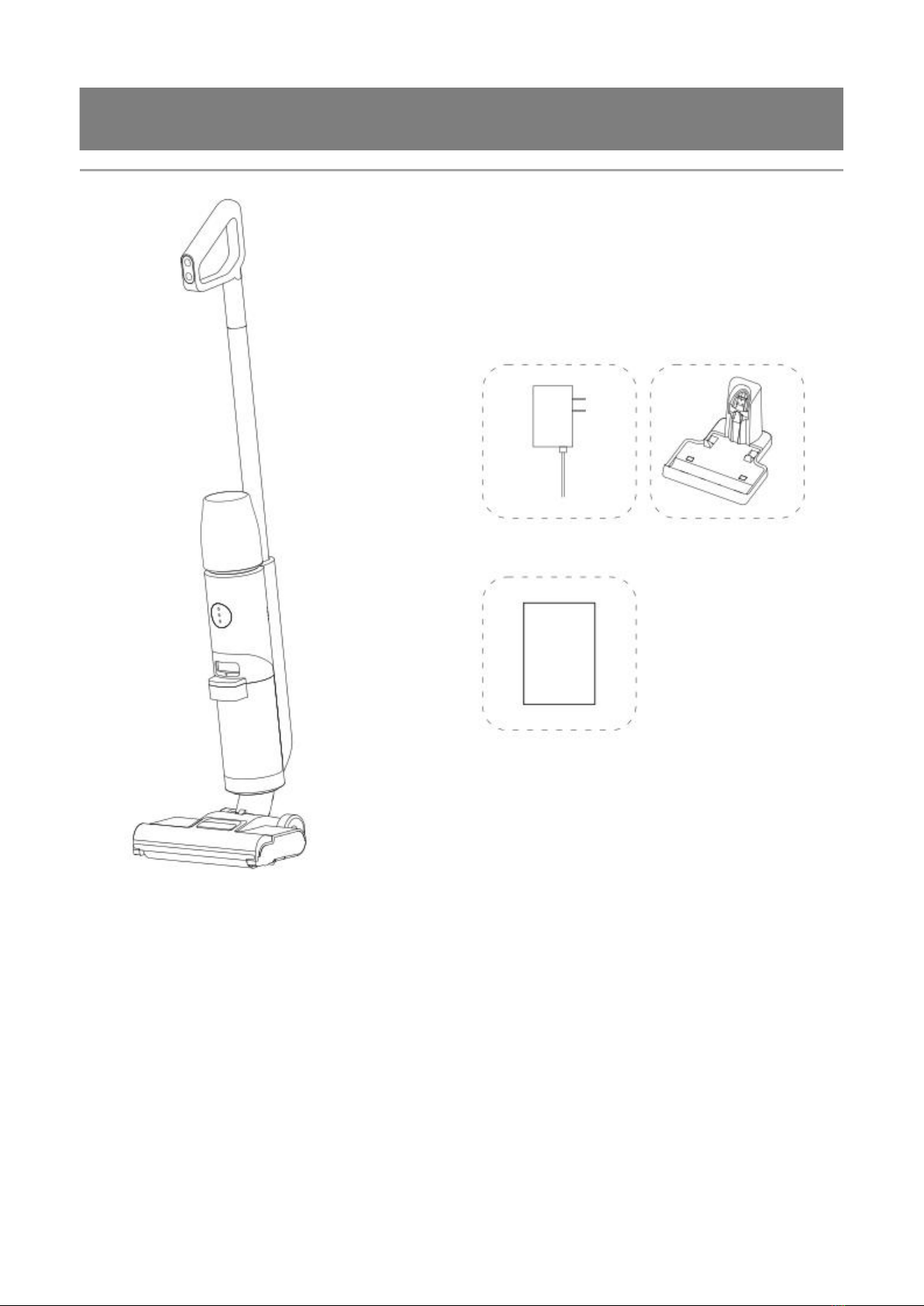

Packing list
Adapter Charging base
Manual
Manual
Main engine
*Notes:
The illustrations of the product, accessories and user interface in the manual are schematic and are for reference
only.
The actual product will prevail as the products are improved continuously, and our company reserves the right to
update the product.

4
Product Introduction

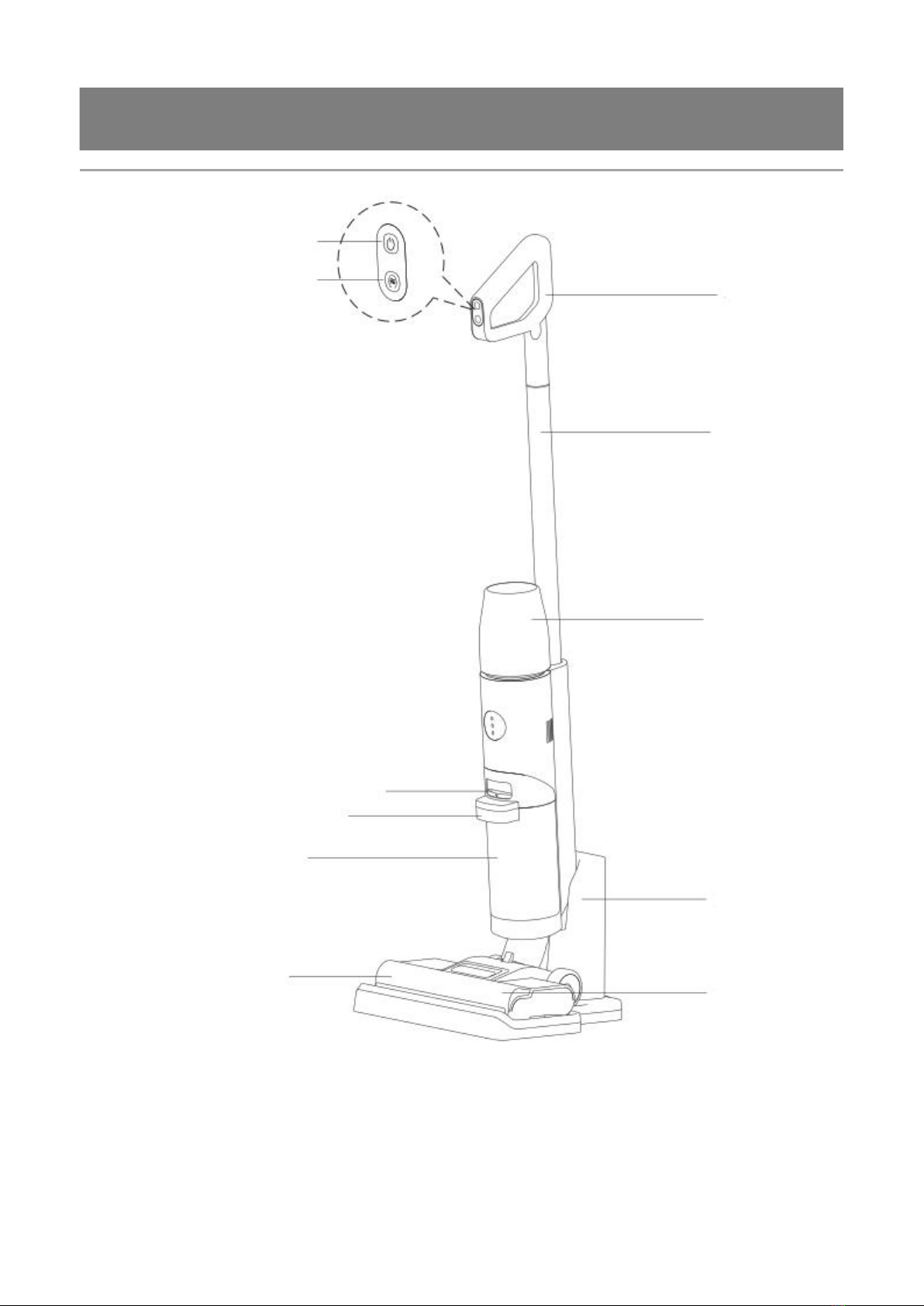

Product Description
ON/OFF key
Mode key/self-cleaning key
Handle
Aluminum tube
Clean water tank
Release button of wastewater tank
Wastewater tank handle
Wastewater tank
Charging base
Roller brush Roller brush cover

5
Product Introduction

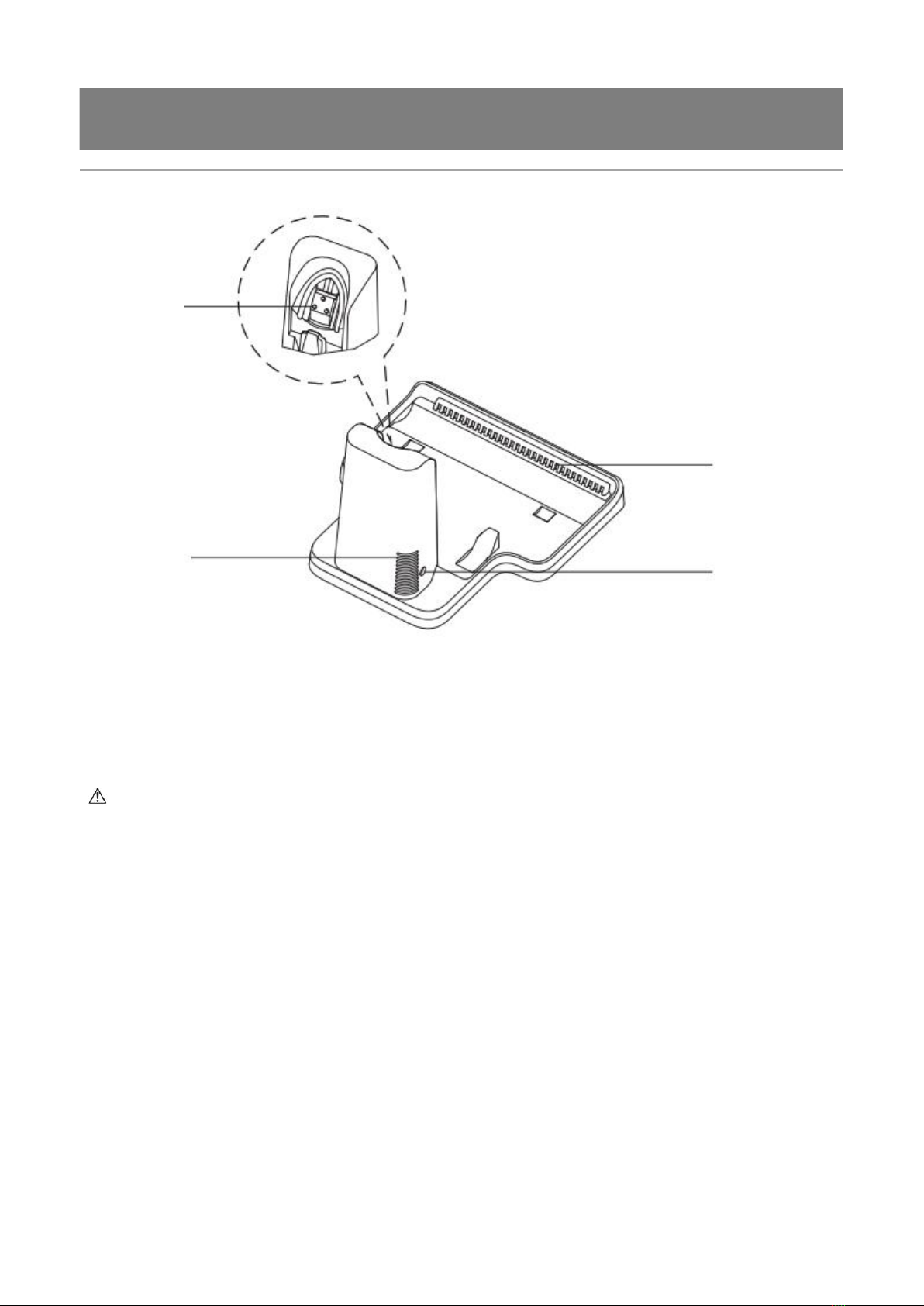

Charging base Instruction
Charging pin
Drying air outlet
Drying air inlet
Charging socket
Self-cleaning + air drying function
Put the machine on the air drying base, and ensure that the machine is in the charging state; press the self-cleaning
button to start the self-cleaning function; air will be blown out continuously from the air drying base to properly
dry the robber brush after self-cleaning. Please timely clean the wastewater tank after cleaning, and remove any
residual stains on the base if any.
Tips: ED10 has no air drying function, but ED11 has air drying function.

6
Product Introduction

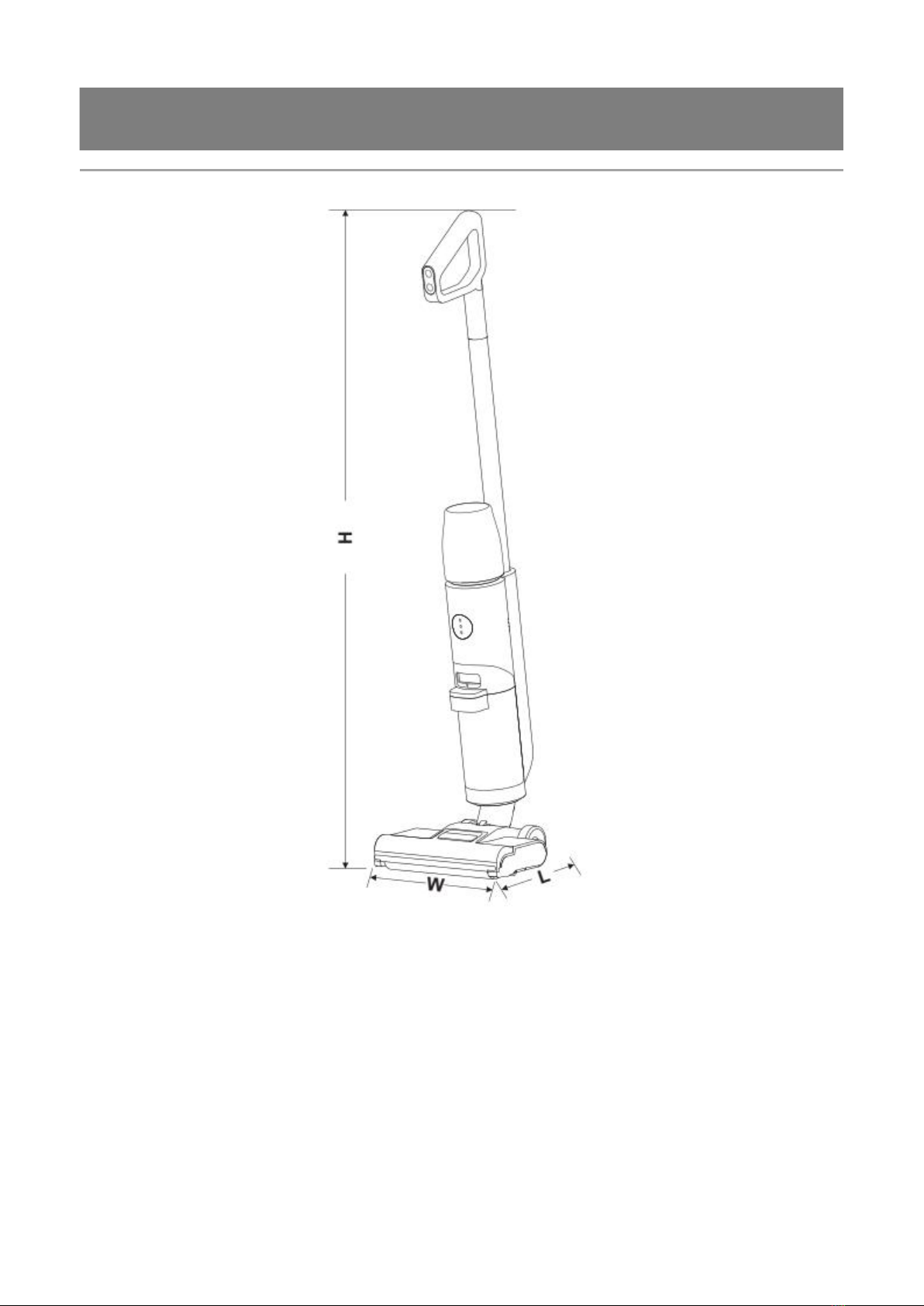

Size L: 28.2cm W: 27cm H: 112cm

7
Installation
Handle Disassembly
Click
To remove the aluminum tube of the handle,
insert a long, thin, and rigid object into the hole
in the back of the body to press the elastic sheet
while pulling the machine handle upwards.
Insert the end of the aluminum tube vertically
into the hole on the host until a “click” sound is
heard, and make sure that the tube is tightly
inserted, indicating that it is installed
successfully.
Insert the end of the handle
vertically into the bore of the
aluminum tube until a “click”
sound is heard, and make sure that
the handle is tightly inserted,
indicating that it is installed
successfully.

8
Product Summary
1. Preparation before use
1) Before use, please check whether your floor scrubber battery has power; if not, please charge it timely. Do not
use it until fully charged.
(Recommendation: please fully charge the product before first use).
Charging method:
Put the machine into the charging base, connect one end of the adapter to the charging base, and connect the other
end to the socket in the home. When charging, put the machine upright in the charging base, and make it close to
the corner of the wall to avoid injuries such as tripping. During the charging process, the light panel of the
machine body displays the battery status. When fully charged, the light panel goes out. Put the power cord away
when charging is not required.
Tips
Please charge the product once every three months if it is out of service for a long time after purchase (Please be
sure to use the charging base equipped with the product for charging; the charging time is about 4 hours, and fully
charging is not required).

9
Product Summary
2) Fill water in the clean water tank
Remove the clean water
tank
Open the silicone stopper and fill with
water
Install clean water tank on the body
2. Start to work
1) Startup: Press the Power button after the product is fully charged to start the machine, and press this button
again to shut down the machine;
2) Mode switching: The AUTO (auto) mode is activated by default after startup. Press the Mode key to switch to
the MAX (powerful) mode. The two modes alternate in turn;
3) Self-cleaning: When the machine is charging, press the self-cleaning button once to activate the self-cleaning
function, and press this button again to deactivate the self-cleaning function; the machine enters the air drying
mode after self-cleaning;
ON/OFF key
Mode key/self-cleaning key
3. Cleaning after use
1) Self-cleaning of body pipes and roller brush
a. After use, please the machine into the charging base timely for charging, and press the self-cleaning button to
clean the machine automatically.
b. The machine enters the air drying mode after self-cleaning, and then enter the charging state at the next stage;
Tips: Ensure enough water is kept in the clean water tank before self-cleaning.

10
Product Summary
2) Clean the wastewater tank
Remove the wastewater tank Open the wastewater tank
Clean the wastewater tank Install the wastewater tank

11
Product Specifications and Parameters
Product name
Wireless intelligent floor washer
Product model (available)
ED10 / ED10W / ED10Z / ED10X / ED10M
ED11 / ED11W / ED11Z / ED11X
Rated voltage
22.2V
Rated power
200W
Li-ion battery capacity
2600mAh
Clean water tank capacity
0.8L
Wastewater tank capacity
0.4L
Net weight
3.35kg
Product dimensions (mm)
1120*260*282
Rated input of the adapter
100-240V~ 50/60Hz 0.45A
Rated output of the adapter
27V 0.5A

12
Maintenance and Service
1. To prevent affecting the working performance of the machine, it is recommended to regularly clean and
maintain the machine body, floor brush, dirt suction port, and wastewater tank;
2. Before cleaning, stop the machine and clean the machine body with a cloth dipping in water or neutral
detergent; please wring out the cloth to avoid water stains penetrating the inside of the machine;
3. Wastewater tank cleaning: Please clean the wastewater tank timely every time after use, and clean the upper
cover and filter of the wastewater tank regularly.
Remove the upper cover Remove the filter, wash with clean water, and dry
4. Clean the water jet port on the roller brush cover and the roller brush.
▶Users can clean the water spray port on the roller brush cover regularly according to the use conditions to avoid
accumulation and scaling of stains to affect water flow.
▶Remove the roller brush regularly for cleaning and drying to avoid long-term micro-wetness of roller brush
resulting in odor.
Remove the upper cover of lower
roller brush in the arrow direction
Wash the upper cover of roller
brush
Disassemble the roller brush in the
arrow direction
1Remove the end cover of
roller brush in the arrow
direction, and remove debris
②. Remove hairs from the surface
of roller brush with scissors
Wash it with clean water, and dry it
Install the robber brush in the arrow
direction
Insert the latch of upper coper of
roller brush into the hole in the
arrow direction
Press the upper cover of roller brush
in the arrow direction until a “click”
sound is heard, so the installation is
completed

13
Maintenance and Service
5. Clean the suction nozzle of the floor brush
If the floor cannot be cleaned thoroughly after an
extended period of use, please check whether the suction
nozzle of the floor brush is blocked. When cleaning the
roller brush, please remove dirt inside the suction nozzle
with a clean brush or a wet cloth.
6. If any abnormality is identified during the product use, please refer to the table below.
Abnormal
conditions
Possible causes
Solution
The floor scrubber
does not work, or
an alarm is issued
-The roller brush is wrapped in objects such as hair
-The wastewater tank is full
-Low battery
-Clean the rollers after shutting
down
-Pour wastewater out of the
wastewater tank
-Charge
Impaired suction
power of the
product
-Roller brush, roller brush cover, and wastewater tank
are not installed in place
-The roller brush is wrapped in objects such as hair
-The suction nozzle or pipe is blocked
-The filter above the inside of the wastewater tank is
dirty
-The filter of the wastewater tank is dirty or missing
-Reinstall
-Clean the roller brush
-Remove the obstacles from the
suction nozzle or the inside of the
pipe
-Clean the filter before use
-Clean or install the filter before
use
Abnormal sound is
heard when the fan
is running
-The suction nozzle is blocked
-The liquid level in the wastewater tank has reached
the specified level
-Remove the obstacles from the
suction nozzle
-Take out the wastewater tank,
pour the wastewater, and install
the tank again
No water is jetted
from the floor
brush
-There is no water in the clean water tank
-The clean water tank is not installed in place
-Fill water in the clean water tank
-Reinstall the clean water tank
Water leakage at
the air outlet
-The wastewater tank filter is not dried after
cleaning and use
-Wash, and dry before use
Water leakage
from the bottom of
the floor brush
-No wastewater tank or wastewater tank filter is
installed
-Install the wastewater tank and
filters
In case of failure to solve any fault, please contact the local after-sales service outlet or call the national service
hotline: [phone]

14
Maintenance and Service
7. Description of abnormal conditions of lights
Abnormal conditions
Light warning
Solution
Short circuit
The red light flashes 5 times
Contact the customer service center and sent it
to the factory for repair
The wastewater tank is full
The red light flashes 4 times
Pour wastewater water
The charging temperature is
abnormal
The red light flashes 3 times
Charge after being placed quietly at room
temperature
The adapter voltage is abnormal
The red light flashes 3 times
Use the original charger or sent it to the factory
for repair
The battery is dead
The red light flashes 3 times
Contact the customer service center and sent it
to the factory for repair
The motor current is abnormal
The red light flashes 5 times
Power off the machine and dry
The floor brush is blocked
The red light flashes 5 times
Remove impurities from the roller brush
The battery is overheating
The red light flashes 8 times
Power off the machine and leave it idle for 30
minutes
The battery is damaged
The red light flashes 12
times
Contact the customer service center and sent it
to the factory for repair
The battery is exhausted
The red light flashes 5 times
Charging base

15
Description of Hazardous Substances
1. This product meets the requirements of the Management Measures for the Restriction of the Use of Hazardous
Substances in Electrical and Electronic Products.
2. During the environmental protection use period, no harmful substances that affect their health are leaking or
precipitating, and consumers can operate it safely.
3. The environmental protection use period of the company’s products is 10 years. The “environmental protection
use period” is valid only when this product works under normal conditions as described in this manual.
Part name
Hazardous substances
Pb
Hg
Cd
Cr(VI)
PBB
PBDE
Main body
O
O
O
O
O
O
Clean water tank assembly
O
O
O
O
O
O
Wastewater tank assembly
O
O
O
O
O
O
Floor brush assembly
O
O
O
O
O
O
Battery
X
O
O
O
O
O
Electronic circuits
X
O
O
O
O
O
Adapter
X
O
O
O
O
O
Motor assembly
O
O
O
O
O
O
Other accessories
O
O
O
O
O
O
This table is prepared in accordance with the provisions of SJ/T11364
O: Meaning that the content of the hazardous substance in all homogeneous materials of the component is below
the limit specified in GB/T26572.
X: Meaning that the content of the hazardous substance in at least one homogeneous material of the component
exceeds the limit specified in GB/T26572. (Note: Some of the parts marked “X” above contain hazardous
substances that exceed the limit due to the current technical level of the industry, and substitutes or reductions
cannot be realized temporarily.)

16
After-Sales Service
The free warranty period of the entire machine is one year, and the warranty will be invalid for any of the
following situations:
1. Corresponding consumables and gifts;
2. Damaged due to improper handling, operation, maintenance, and storage by the user;
3. Damaged due to the charging voltage lower than 100V or higher than 240V;
4. Damaged by failure to follow the user manual for operation, maintenance, and service;
5. Disassembled and repaired by non-professional service personnel not designated by the company;
6. The warranty period of the product expires;
7. The model or number recorded on the invoice or warranty card is inconsistent with the actual product;
8. Damaged due to force majeure;
Tips:
1. Please keep your purchase invoice and related receipts as an essential basis for warranty service.
2. This product is only a household one, and the company is not responsible for any problem caused by its use
outside the household.

17
Warranty Card
Relevant information (filled in by the user)
User name
Frequently used phone
Contact address
Product model
Product No.
Purchase store
Date of purchase
Repair station
Invoice number
Repair Records
Date of repair
Fault content
Troubleshooting details
Name of the repair unit
Phone of repair unit
Signature of the repairman
Customer service hotline [phone].
Please keep the warranty card properly and provide the original warranty card and valid invoice for the repair.
Product Certificate
Product Model:_______________
Inspector No.:________________
Date of check:________________
Check conclusion:_____________
