JONR XQ02E User manual

Please read this manual carefully before use and retain it for future reference.
Water suction vacuum cleaner
( Wireless intelligent floor washer )
User Manual
XQ02E

Contents
JONR XQ02E Wet and Dry Vacuum Cleaner User Manual 01
EN
DE 17
FR 33
ITIT 49
ES 65
JONR XQ02E Nass- und Trockensauger
Bedienungsanleitung
JONR XQ02E l'aspirateur eau et poussière manuel
d'utilisation
JONR XQ02E Aspiraliquidi e Aspirapolvere Manuale
d'uso
JONR XQ02E Aspiradora Escoba Sin Cables en Seco
y Húmedo manual del usuario

1
Important Information
WARNING
• This product is suitable for hard floors in indoor environments, including waxed floors,
stone floors, rubber floors, marble floors, granite floors, terrazzo floors, solid wood
floors, composite floors, bamboo floors, various mirror tiles, porcelain tiles and other
flat surfaces. If this product is used on an uneven floor surface, optimum results may not
be achieved.
• Do not use this product near or on the surface of flammable and explosive objects, which
may cause fire and explosion.
• Do not use this product near working fireplaces and heaters, to prevent warping of the
machine enclosure.
• Do not vacuum high-temperature substances (cigarette butts, matches or hot ash, etc.),
ultra-fine substances (such as lime, cement, sawdust, gypsum powder, ash, carbon
About the scope of use of the product
Before using this product, please read all contents of this manual carefully. Install the
machine according to the steps in this manual. Keep this manual for future reference. If
you transfer the product to others, please attach this manual to the machine. Any
operation inconsistent with the contents of the manual may cause product damage or
personal injury. This product is only suitable for operation in a conventional home
environment, and is not suitable for industrial or outdoor use.
• The product is not suitable for people with physical, sensory, intellectual defects or
people without experience and common sense (including children), unless supervised
or instructed by others to ensure its safe use.
• Do not touch the plug or any live part of the product with wet hands, in order to avoid
electric shock.
• If the adapter or plug is damaged, stop using it. Please call our professional
maintenance personnel for replacement to avoid harm.
• Keep the airflow channel and moving parts of this product away from long hair, loose
clothing, fingers and other parts of the body. Do not put the vacuum tube, accessory
suction head or tool into your eyes, ears or mouth.
• When using, if you notice electric leakage or excessive motor temperature and abnormal
sound, such as overheating, abnormal sound, peculiar smell, weak suction, etc.,
stop using immediately and call our company’s professional maintenance personnel.
• When charging, please use the specially provided adapter. Other types of adapter may
cause battery failure or extreme thermal effects.
• If the product is not used for a long time, turn off the power supply and unplug the adapter.
• After using the machine, please clean the wastewater tank immediately to keep the
ventilation path unblocked, so as to avoid the decrease of suction and motor heating due
to blockage, which will affect the service life of the floor washer.
• After using the machine, please keep it in a dry place. Humid environments affect the
insulation and service life of electrical appliances.
• The handle, body, floor brush, adapter and other electrical components of the floor
washer must not be soaked in water or washed.
• Please check the suction nozzle regularly. If there is any blockage, please remove it
immediately to avoid reduced suction caused by dirt solidification and blockage, which
will affect the cleaning performance of the machine.
• Please ensure that the shutdown screen is off before replacing the roller brush.
• If the machine breaks down, do not repair it by yourself. Please call our company’s
after-sales department for help.
• All technical and other data provided in this product manual are obtained by our company
or the designated third-party testing company, and the final interpretation right belongs
to our company.
EN

2
• Do not disassemble the floor washing machine by yourself. There are no parts in the
machine that can be repaired by customers. Do not try to change the performance of the
machine, otherwise it will cause danger.
Using an adapter that does not correspond to the specifications of this product will •
damage the battery and increases the risk of harm to the user.
The correct rated voltage is marked on the nameplate at the rear of the machine body.•
After vacuuming a large amount of liquid, do not shake the machine up and down, knock •
it violently or tip it onto the floor, to prevent wastewater from flowing into the motor or
entering the internal live parts through gaps.
When cleaning stairs, be extra careful to prevent falling.•
When operating the floor washer, do not lift it up and down or carry it without first •
shutting it down or pausing it.
In order to prevent tripping, the machine should be placed against a wall after use.•
If the clean water tank and wastewater tank are not properly installed, do not use them.•
Do not place any small objects at the air outlet, and do not block the air outlet. Remove •
all small objects that may hinder the smooth air flow at the air outlet, to prevent the
machine from overheating.
Do not get the machine body wet, otherwise fire and electric shock may occur due to •
short circuit of the machine.
Safely dispose of waste batteries.•
▶ When the battery contained in the appliance contains materials that are harmful to the
environment, the battery must be removed from the appliance before the appliance is
discarded.
About the machine
About cleaning solution
EN
powder, etc.), dangerous goods (such as solvents, descaling agents, etc.), chemical
substances (such as acidic substances, cleaners, etc.) and other substances with
uncertain physical properties.
• Do not use this washing machine to vacuum non-designated detergents, kerosene,
gasoline, alcohol, paint, perfume, etc. These liquids may cause short circuit, fire or
explosion.
• Do not use this floor washer to vacuum toner used inside a laser printer or copier. These
objects may cause fire or explosions.
• Do not use this floor washer to absorb sharp objects, such as glass fragments, small
toys, pins, paper clips, stones, gypsum, large pieces of paper, etc. These objects may
cause blockage and damage the machine.
• Stains such as shoe polish, paint and pigment with strong grease, strong viscosity or
strong dyeing properties are not within the scope of use of this product.
Important Information
• If a large amount of cleaning solution is added, it will produce more foam when used,
which may cause danger to the motor.
• Please clean according to the instructions. It is recommended to use cleaning agents
produced by our company or by manufacturers approved by our company, which do not
contain acid, alkali solution or substances harmful to the environment.
• Keep the detergent out of the reach of children. If the cleaning solution accidentally
enters the eyes, rinse thoroughly with clean water. In case of accidental ingestion, seek
medical attention immediately.
• Local environmental regulations shall be followed when treating wastewater and
cleaning solution.

3
▶ When removing the battery, the appliance must be powered off.
▶ Please dispose of used batteries safely and properly. Do not throw them into fire, water
or soil.
▶ If a waste battery leaks and touches the skin or clothing, rinse with clean water to avoid
skin discomfort, and promptly go to a hospital for treatment.
EN
Important Information

4
Supplied Equipment
Main engine
Cleaning solution Roller brush Charging stand
HEPA Brush Storage basket
Adapter Manual
Manual
Note: The images in this manual are for illustrative purposes only. The actual product
may differ.
EN
Product Introduction

5
Product Introduction
Product Description
Mode
Power
Handle
LED display screen
Clean water tank
Charging stand
Adapter jack
Roller brush cover
Wastewater tank lock
Wastewater tank handle
Wastewater tank
Self-cleaning switch
Roller brush
EN

6
Product Summary

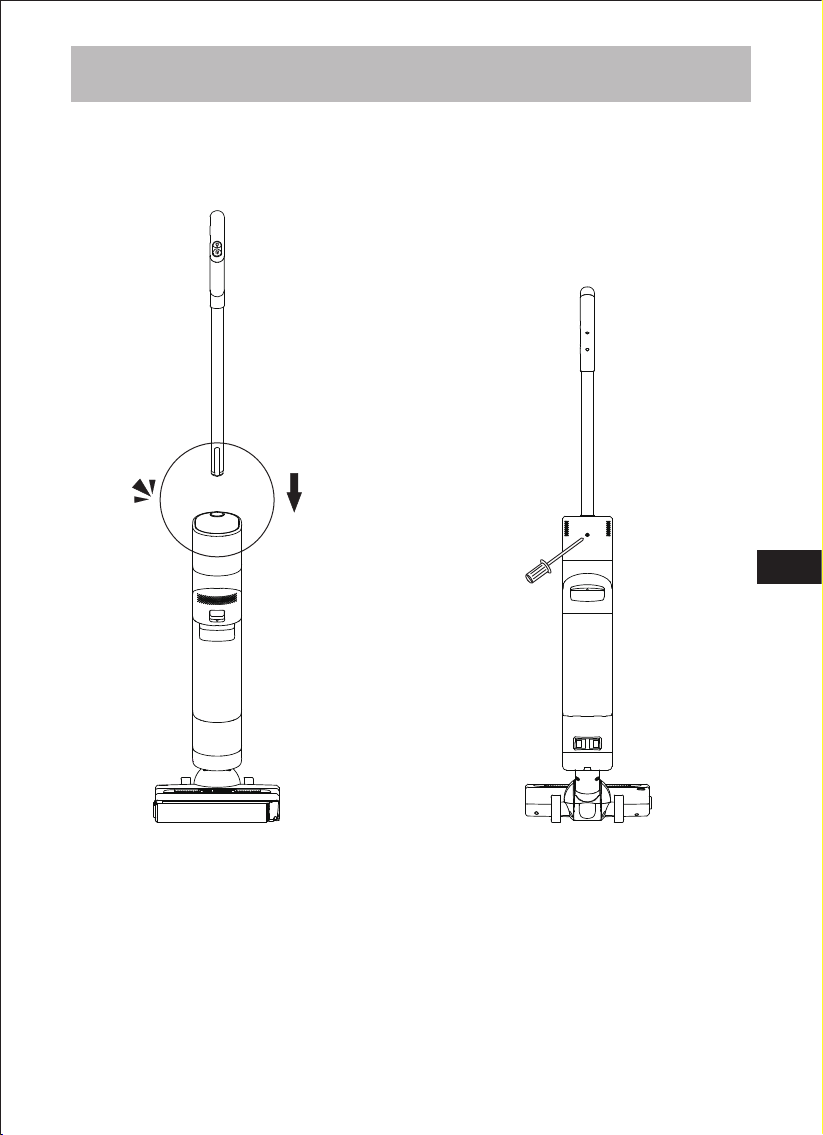

Handle Disassembly
Insert the end of the handle into the
port of the machine body until it
clicks into place. Make sure that the
handle is tight and not loose.
To disassemble, please use a slender,
hard object to press the clip located
inside the hole on the back of the
machine body, while at the same time
pulling the machine handle upwards.
click
EN

7
Instructions for Use
A. Preparation before use
a) Before use, please check whether your floor washer is fully charged. If not, please
charge and use after it is fully charged.
Charging method:
Put the machine on the charging stand, connect one end of the adapter to the charging
stand and the other end to a mains socket in the home; you can stow away the power cord
when you don't need to charge the machine. When charging, please place the machine
upright on the charging stand, close to the corner of the wall to avoid tripping and other
injuries. During the charging process, the machine screen displays the power status in
real time, and the screen light goes out after full power is reached.
Tips
If the product is not used for a long time after purchase, please use the specific charging
stand to charge the battery for about 4 hours every 3 months (no need to fully charge).
EN
Product Summary

8
Product Summary
b) Filling the clean water tank
Open the silicone stopper
and fill with water
When the machine is turned on it automatically defaults to wet mopping mode. Default
Wet Mopping Mode on start-up; press the Mode button to cycle between Wet Mopping
Mode, Suction Mode.
Item
Button
Operating Instructions
1
Power
After the product is fully charged, press the power button to turn it
on. Press this button again to turn off the machine.
2
Mode
▶ Standardmäßig Nasswischmodus beim Start; drücken Sie die
Modus-Taste, um in den Saugmodus zu wechseln. Drücken Sie die Default Wet Mopping Mode on start-up; press the Mode button to ▶
switch to Suction Mode, press the Mode button again to switch to
Turbo Mode. Cycle through them in sequence;
Wet mopping mode: the water pump discharges water to moisten ▶
the roller brush, enabling the floor to be wet mopped.
▶ Vacuum mode: The pump does not produce water, so you can
mop the floor dry, or suck up residual water on the floor.
3
Voice
Short press the voice switch button to switch the voice switch
function; the default voice broadcast function is turned on when
Booting, and tap the voice switch to turn off the voice function;
Remove the clean
water tank
Refit the clean water tank
on the machine body
B. Starting work
If you need to add floor cleaning solution, please use the product's special or designated
cleaning solution. Do not add other types of solution, so as to avoid damaging the product
or the floor.
Tips
EN

9
Roller brush blocked
Spray water/Self-clean
Wastewater tank full
Battery indicator
Dirt status display
Power display
Voice button
Vacuum Wet Mopping
During use:
A. The machine will automatically identify the dirt condition on the floor and if necessary
simultaneously adjust the cleaning force and change the color of the dirt display ring.
Red indicates dirt and blue indicates no dirt. EN
B. When the clear water tank level is low, a voice prompt will remind the user toadd water.
C. When the wastewater tank is full, the machine will enter pause state, the corresponding
display indicator light will illuminate and a voice prompt will remind the user to empty it.
D. When the roller brush is blocked by foreign objects, the machine will enter pause state,
the corresponding display indicator light will illuminate and a voice prompt will be played.
E. This machine is supplied with an upright switch. After turning on the machine, please
push down the handle of the machine and then push and pull to clean. However, the
height of the handle should not be less than 30cm from the floor, otherwise the
wastewater in the wastewater tank will flow back onto the floor.
F. After using the machine, it is recommended to place it vertically on the charging stand.
Note:
When using, please do not absorb foam liquid, so as not to affect the use experience.
Product Summary
EN

10
Reinstall the
wastewater
tank
Remove the
wastewater
tank
Clean the
wastewater
tank
C. Cleaning after use
1) Self-cleaning of machine body pipes and roller brush
a. After use, please promptly put the machine back into the
charging stand for charging, and step on the self-cleaning
switch to start self-cleaning; step on the self-cleaning switch
again to stop self-cleaning.
b. After self-cleaning is complete, the machine will automatically
enter charging state.
Tips
1. Before self-cleaning, make sure there is
sufficient water in the clean water tank.
2. Please pay attention to avoid foreign
objects touching the self-cleaning switch,
so as to avoid accidentally starting the
self-cleaning function.
2) Clean the wastewater tank
Self-cleaning switch
Product Summary
EN

11
Product Specifications and Parameters
Product Name
Water Suction Vacuum Cleaner
(Wireless Smart Floor Washer)
Model number
XQ02E
Rated voltage
18.5V
Rated power
220W
Battery capacity
4400mAh
Clean water tank capacity
0.5L
Wastewater tank capacity
0.55L
Net weight of machine body
4.41kg
Product Size(mm)
1130 x 260 x 216
Adapter rated input
100-240V~ 50/60Hz 0.8A
Adapter rated output
23.5V 1A
Charging time
4–5h
EN

12
1. In order to avoid affecting the performance of the machine, it is recommended to
regularly clean and maintain the machine body, floor brush, dirt suction port,
wastewater tank, etc.
2. Before cleaning, turn off the machine, then wipe the body with a cloth or neutral
detergent. Note that the cloth should be wrung out to prevent water stains from leaking
into the machine.
3. Wastewater tank cleaning: clean the wastewater tank after each use of the machine
(can be washed with a cleaning brush), and regularly clean the upper cover and filter of
the wastewater tank.
After removing the filter, wash
with clean water and dry
Remove the upper cover
4. Cleaning the sprinkler ports and roller brush
▶ Clean the sprinkler ports regularly according to the usage conditions, to avoid
accumulation of stains and scaling from affecting the water outlet.
▶ Clean and dry the roller brush regularly after disassembly to avoid long-term
dampness and odor.
Rinse the brush cover
After cleaning surface hair and
debris with a cleaning brush, wash
with water and leave to air
Remove the brush cover Pull out the roller brush
in direction of arrow
Install the roller brush and
push it firmly into place
Install the roller
brush cover
Maintenance and Repair
Replacement of HEPA
element in filter
In order to ensure maximum cleaning performance, please replace the roller brush and
HEPA element regularly. It is recommended to replace it every 6 months under normal use.
Tips
☼
EN

13
When the dirt indicator ring
displays red for a long time
and does not disappear, it
may be that the dirt sensor in
the dirt suction port of the floor
brush is blocked by dirt.
Remove the wastewater tank, then
use a damp cloth or cleaning brush
to clean the dirt sensor inside the
suction port.
Maintenance and Repair
5. Cleaning the dirt sensor
EN

14
6. If any abnormality is found during use of this product, please refer to the following table.
Error
Possible Causes
Solution
The floor washer
does not work or
alarm is active
1. The roller brush is entangled
with hair or foreign objects
2. Wastewater tank full
3. Battery is low
1. Clean the roller brush after
shutdown
2. Clean the wastewater tank
3. Charge
Product suction is
weakened
1. The roller brush, roller brush
cover and/or wastewater tank is
not properly installed
2. The roller brush is entangled
with hair or foreign objects
3.The suction port or pipe is
blocked
4. The filter above the float is dirty
5. The wastewater tank filter is
dirty or missing
1. Re-install
2. Clean the roller brush
3. Clear obstructions in the
suction port or pipe
4. Use after cleaning the filter
5. Clean or install filter before
use
Abnormal fan noise
1. The nozzle opening is blocked
2. Wastewater is full
1. Clear foreign objects in the
suction port
2. Take out wastewater tank
and pour away wastewater
before using
Floor brush does not
spray water
1. Lack of water in the clean water
tank
2. The clean water tank is not
properly installed
1. Refill the clean water tank
2. Reinstall the water tank
Water leakage at the
air outlet
1. Float not installed
2. Wastewater tank filter not dried
after cleaning
1. Install float
2.Wash and dry thoroughly
before use
Water leakage at the
bottom of the floor
brush
Wastewater tank or wastewater
tank filter not installed
Install wastewater tank and
filter
For other failures that cannot be resolved, please contact your local after-sales service
outlet or call the nationwide service hotline.
Maintenance and Repair
EN

1. This product meets the requirements of the Management Methods for Restricted Use
of Hazardous Substances in Electrical and Electronic Products, otherwise known as
China RoHS.
2. Within the environmental protection service life, consumers will not have problems
affecting consumer health, such as leakage and precipitation of harmful substances
during normal use, so can use the product with peace of mind.
3. The environmental protection service life of the company's products is 10 years. The
"environmental protection service life" is valid only when the products are used under
normal conditions as described in this manual.
Name and content of harmful substances contained in the product
Remarks:
This table is compiled according to the regulations of SJ/T11364.
O: Indicates that the content of the hazardous substance in all homogeneous materials
of the part is below the limit requirement specified in GB/T26572.
X: Indicates that the content of the hazardous substance in at least one of the
homogeneous materials of the part exceeds the limit requirement of GB/T26572.
(Note: Some of the parts marked with "X" above contain hazardous substances that
exceed the standard due to the current technical limitations of the industry, and at the
current time it is impossible to substitute or reduce them.)
Part name
Hazardous substances
Pb
Hg
Cd
Cr(VI)
PBB
PBDE
Main body
O
O
O
O
O
O
Clean water tank assembly
O
O
O
O
O
O
Wastewater tank assembly
O
O
O
O
O
O
Floor brush assembly
O
O
O
O
O
O
Battery
X
O
O
O
O
O
Electronic circuit
X
O
O
O
O
O
Adapter
X
O
O
O
O
O
Motor assembly
O
O
O
O
O
O
Other accessories
O
O
O
O
O
O
China RoHS
15
EN

Customer Service
The whole machine is guaranteed for two years, the motor is guaranteed for three years,
and the adapter and battery are guaranteed for one year. Any one of the following
conditions is not covered by the warranty:
1. Corresponding wear parts (such as roller brush, filter material, cleaning brush, floor
cleaning fluid) and free gifts.
2. Damaged by improper handling, use, maintenance, and storage by the user.
3. Damaged by using a charging voltage lower than 100V or higher than 240V.
4. Damage caused by failure to use and maintain according to the product instruction
manual.
5. Disassembled and repaired by personnel other than the company's professional
service personnel.
6. Product is outside the warranty period.
7. The model or number recorded on the invoice or warranty card does not conform to the
actual product.
8. Damage caused by force majeure.
16
WEEE Information
All products bearing this symbol are waste electrical and electronic equipment
(WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household
waste. Instead, you should protect human health and the environment by handing over
your waste equipment to a designated collection point for the recycling of waste electrical
and electronic equipment, appointed by the government or local authorities. Correct
disposal and recycling will help prevent potential negative consequences to the
environment and human health. Please contact the installer or local authorities for more
information about the location as well as terms and conditions of such collection points.
Tips
1. Please keep your purchase invoice and related vouchers as an important basis for
warranty service.
2. This product is limited to home use. The company is not responsible for any problems
arising from uses other than home use.
* Note:
The illustrations of products, accessories, user interface, etc. shown in the user manual
are for reference only.
The actual product may vary due to continuous product enhancement. The Company
reserves the right to update the products.
EN

17
Wichtige Hinweise
Bitte lesen Sie vor der Verwendung des Produkts die Bedienungsanleitung sorgfältig
durch und installieren Sie das Gerät gemäß den Anweisungen in dieser
Bedienungsanleitung. Bewahren Sie die Bedienungsanleitung an einem sicheren Ort auf.
Wenn das Gerät an einen Dritten weitergegeben wird, fügen Sie bitte die
Bedienungsanleitung bei. Eine nicht anweisungsgemäße Bedienung kann zu Schäden
am Produkt oder zu Verletzungen führen. Dieses Produkt ist nur für die Verwendung in
einer gewöhnlichen häuslichen Umgebung und nicht für den Einsatz in der Industrie oder
im Freien geeignet.
• Das Produkt ist nicht für die Verwendung durch Personen mit körperlichen, sensorischen
oder geistigen Einschränkungen oder Personen, denen es an Erfahrung und allgemeinem
Menschenverstand mangelt (einschließlich Kindern), bestimmt, es sei denn, sie werden
beaufsichtigt oder angewiesen, um eine sichere Verwendung zu gewährleisten.
• Berühren Sie den Stecker oder andere stromführende Teile des Geräts nicht mit nassen
Händen, um das Risiko eines Stromschlags zu vermeiden.
• Wenn eine Beschädigung des Netzteils oder seines Steckers festgestellt wird, darf das
Netzteil nicht mehr benutzt werden. Wenden Sie sich zur Reparatur oder zum Austausch
an unseren Kundendienst, um Gefahren zu vermeiden.
• Halten Sie den Luftstromkanal und die beweglichen Teile des Geräts von langen Haaren,
loser Kleidung, Fingern und anderen Körperteilen fern. Richten Sie den Saugschlauch,
das Aufsatzrohr oder das Werkzeug nicht auf Ihre Augen oder Ohren und nehmen Sie
es nicht in den Mund.
• Wenn Sie bei der Verwendung des Geräts ein Leck oder andere ungewöhnliche
Erscheinungen feststellen, wie z. B. Überhitzung, seltsame Geräusche, Geruch,
schwache Saugleistung usw., stellen Sie die Verwendung sofort ein und wenden Sie
sich an unseren Kundendienst.
• Verwenden Sie zum Aufladen ausschließlich das mitgelieferte Netzteil; andere
Netzgeräte können einen Ausfall des Akkus oder extreme thermische Effekten
verursachen.
• Wenn das Gerät längere Zeit außer Betrieb genommen wird, schalten Sie es aus und
ziehen den Stecker des Netzteils .ab
• Nach dem Gebrauch des Geräts reinigen Sie bitte rechtzeitig den Abwassertank und
halten Sie den Belüftungsweg frei, um Verstopfungen zu vermeiden, die zu einer
Verringerung der Saugleistung und zur Erwärmung des Motors führen und somit die
Lebensdauer des Bodenreinigers beeinträchtigen.
• Nach dem Gebrauch des Geräts sollte es an einem trockenen und belüfteten Ort
gelagert werden, da eine feuchte Umgebung die Isolierung und Lebensdauer von
Elektrogeräten beeinträchtigt.
• Der Griff des Bodenreinigers, das Gehäuse, die Bodenbürste, das Netzteil und andere
Teile, die elektrisch betrieben werden, dürfen nicht in Wasser eingeweicht oder direkt
mit Wasser abgespült werden.
• Bitte überprüfen Sie regelmäßig die Saugdüse und beseitigen Sie eine Verstopfung ggf.
unverzüglich, um zu vermeiden, dass sich Schmutz verfestigt, wodurch die
Saugleistung abnimmt und die Reinigungswirkung des Geräts beeinträchtigt wird.
• Vergewissern Sie sich, dass die Anzeige zum Ausschalten des Geräts vom Display
verschwunden ist, bevor Sie die Walzenbürste austauschen.
• Bei Störungen dürfen Sie das Gerät nicht selbst reparieren; bitte wenden Sie sich dazu
an unseren Kundendienst.
• Alle technischen und sonstigen Daten, die in dieser Bedienungsanleitung angegeben
sind, wurden von uns oder einer von uns beauftragten Prüfstelle ermittelt. Das
endgültige Recht zur Auslegung liegt bei uns.
Warnhinweise
DE
