Jonsered LT2216 Guide

SERVICE
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
IPL, LT2216, 2007-10, 504 11 16-17
LT2216
504 11 16-17
96041003202

ILLUSTRATED PARTS LIST
MODEL NO. 96041003202
CUSTOMER CATALOG NO. LT2216
PRODUCT NO. 960 41 00-32
532 41 56-22 Rev. 8

2
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
410
598
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire F T 15 x 6 0 - 6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 BearingFlange(FrontWheelOnly)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 10 62-68 Tire R 18 x 9.5-8 TurfSaver
- - 532 42 05-31 Tire R 18 x 9.5-8 TurfSaver LT
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
11
9
1 532 40 03-89 Decal, Operators
2 532 18 95-53 Decal, Hood
3 532 19 68-41 Decal, Warning Eng. Symbols
4 532 40 86-55 Decal, Hood Panel
5 532 15 97-36 Decal, Chassis Hot Muffler
6 532 18 04-32 Decal, Fender 100 DB/CE
7 532 18 21-66 Decal, Cutfinger CE
8 532 41 30-02 Decal, Rpl
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 14 08-37 Decal, Saddle Brake Parking
11 532 19 63-57 Decal, Warning
12 532 19 43-02 Decal, Mower V-Belt Schematic
13 532 15 97-37 Decal, Brake/Clutch Symbol
14 532 40 91-50 Decal, Eng. HP
16 532 18 57-73 Decal, Steering
17 532 19 68-42 Decal,SDLSHF/CRDSYM.Cutfinger
18 532 18 39-30 Decal Cover/Belt GRD.
- - 532 40 95-05 Pad, Footrest, LH
- - 532 41 12-73 Pad, Footrest, RH
- - 532 16 25-98 Decal, Drawbar Load Limit
- - 532 41 21-75 Manual Oper. Euro
12
2
4
2
1
8
5
6
10
13
3
5
7
16
14
18
17 17

3
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
SM
B
GL
2
3
1
6
A2A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUITPOSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.

4
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
ELECTRICAL
30 33
34
22
79 21
41
42
26
43 27
40
71
16
87
25
T02K
90
28
55
With 12V Outlet Option
59
103
With Service Minder Option
4646
94
92
29
93
2

5
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 18 37-59 Harness Socket Light W/4152J
22 532 00 41-52 Bulb Light
25 532 40 16-62 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-35 Key/Chain
34 532 11 07-12 Switch Light / Reset
40 532 40 10-98 Harness Ign. Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover, Terminal
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT
71 532 40 04-49 Harness Ign.
79 532 17 52-42 Socket Asm. Bulb
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 40 07-25 Cover Terminal
92 532 19 66-15 Harness Pigtail Reverse Switch
93 532 19 25-40 Screw Plastite 10-14 x 2.0
94 532 19 18-34 Module Reverse ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

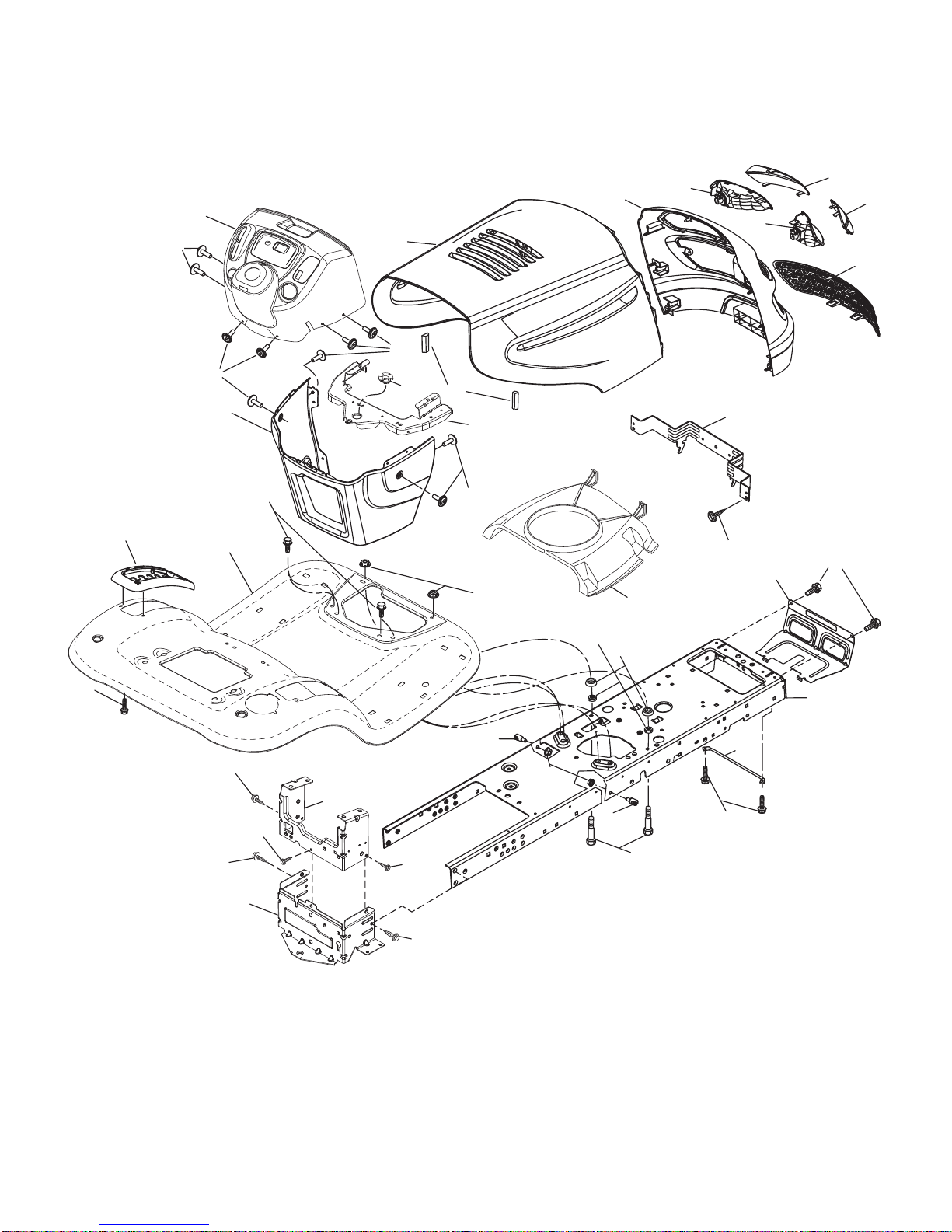

CHASSIS
37
194
36
236
235
183
152 159
180
196
68
222
chassis-tex_elite-sv-pro_2_r1
217
182
176
175
177
130
151
176
150
228
194
228
5
176
176
137
14
18 208
207
15
25
186
2
58
159
189
189
189
159

7
2 532 41 22-82 Drawbar Lower
5 532 41 12-79 Dash
14 532 19 47-57 Hood
15 532 18 97-54 Lens LH
18 532 19 29-15 Grille
25 532 18 97-55 Lens RH
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 41 12-83 Fender
58 817 41 22-80 Drawbar Upper
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
130 532 19 16-11 Screw
137 532 18 49-21 Bumper Dash
150 532 18 43-22 Air Duct
151 532 40 78-07 Bracket Pivot
152 532 19 43-29 Shield Browning
159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16x 3/4
175 532 19 32-43 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-28 Bushing Steering
180 532 19 42-60 Chassis
182 532 19 30-57 Dash Lower
183 874 78 05-20 Bolt 5/16-18 unc x 1-1/4
186 532 18 97-53 Insert Grille
189 817 00 05-12 Screw 5/16 - 18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
196 532 40 97-28 Console Asm. Deck Lift
207 532 18 38-33 Bezel RH
208 532 18 38-32 Bezel LH
217 532 40 91-67 Rod Pivot Hood
222 532 13 77-29 Screw 1/4-20 x 5/8
228 532 19 51-61 Stud Fastener
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
CHASSIS

8
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
DRIVE
70
74
56
185
186
189 49
187
50
51
190
52
51
29
232
233
165166
64
188
172
172
2
1
17
26
195
125
125
125
161
35
175
192
158
134
192
157
141
140
139
176
178
174
1
22
15
203
184
167
160
42
drive-tex_D6800_Fender_31
159
166
237
205 33
155
61
193
221
23
268 148
275
202
73
73
116
116
116

9
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 – – – – – – Transaxle, DANA D6800-1
(Order Parts from Transaxle
Manufacturer)
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 19 72-97 Spring, Brake
22 532 19 76-60 Rod Shift
23 532 12 12-74 Knob Duckhead 1/2-13
26 532 19 74-55 Spring Brake Return
29 532 19 72-67 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 77-22 Rod, Brake, Park
37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove .910" Offset
56 532 41 12-45 V-Belt, Drive
61 532 12 36-66 Pulley transaxle
64 532 19 62-00 Shaft Asm. Pedal Brake Control
70 532 41 12-90 Console
74 532 14 24-32 Screw 1/4 x 1/2
73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
134 532 40 24-30 Asm Shift
139 874 55 04-12 Bolt 1/4-28 unf Gr. 8 w/Patch
140 810 04 04-00 Washer Lock Hvy Helical 1/4
141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
148 817 00 06-12 Screw 3/8-16 x 3/4
155 812 00 00-28 Ring Retainer
157 532 10 57-01 Washer Plate Shift
158 532 19 43-52 Belt Keeper
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 19 54-03 Spring, Return, Clutch
165 532 19 62-12 Bushing Shaft Brake Hand Control
166 532 19 72-90 Nut Push .625
167 532 40 52-57 Latch Brake Parking
172 532 19 76-57 Strap Torque LH
174 532 19 72-89 Nut Push
175 532 19 89-81 Shaft Asm. Shift
176 532 19 62-14 Arm Clevis Rod Shift
178 532 19 74-56 Spring Shift
184 532 41 12-89 Handle Parking Brake
185 872 11 06-20 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
192 532 15 03-60 Nut Lock Center 1/4-28 Fnthd
193 817 06 05-12 Screw 5/16-18 x 3/4
195 532 19 73-32 Bracket Brake Rod
202 532 19 95-89 Link Transaxle
203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
205 532 12 17-48 Washer 25/32 x 1-5/8 16 Ga.
221 532 40 31-87 Retainer Spring Clip Handle
232 874 78 07-16 Bolt 7/16-14 x 1 Gr.5
233 532 40 52-96 Washer Serrated
268 532 18 24-02 Guard Muffler
275 819 13 16-14 Washer 13/32 x 1 x 14 Ga.

10
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
ENGINE
21
20
OPTIONAL EQUIPMENT
Spark Arrester
29
18
15
37
28
engine-bs-1cyl-tex_5
12
42
85
9
90
84
45
1
81
82
69 2
79
22
97
96
guard_assembly-18
102
107
105
108
106
102
107

11
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 -– – – – – Engine Briggs Model No. 31E677
2 532 13 73-52 Muffler
9 532 19 43-19 Keeper Belt Engine
12 532 40 19-85 Pulley Engine
15 532 40 75-45 Tank Fuel
18 532 19 77-25 Cap Asm
20 532 18 38-97 Control Throttle
21 532 19 16-11 Screw 10 x 3/4 Single Lead-Hex
22 532 19 49-81 Control Choke
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Bolt 5/16-18 unc x 3/4 w/Sems
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw 5/16-18 x .75
81 532 14 84-56 Tube Drain Oil Easy
82 532 18 16-54 Plug Drain Oil
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 Gr. 5
90 817 00 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer 9/32 x 7/8 x 16 GA
97 817 67 04-12 Screw 1/4 - 20 x 3/4
102 817 00 05-12 Screw 5/16-18 x 3/4
105 532 41 05-28 Shield Side LH
106 532 41 05-29 Shield Side RH
107 532 13 77-29 Srew Thdrol 1/4 20x5/8
108 532 41 05-32 Cover Asm. Engine
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
ENGINE
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-
neers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affected by,
among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of prod-
ucts on which engines are placed and the variety of environmental issues applicable to operating the equipment, the gas
engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or net
horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust,
charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humid-
ity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may sub-
stitute an engine of higher rated power for this Series engine.

12
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32

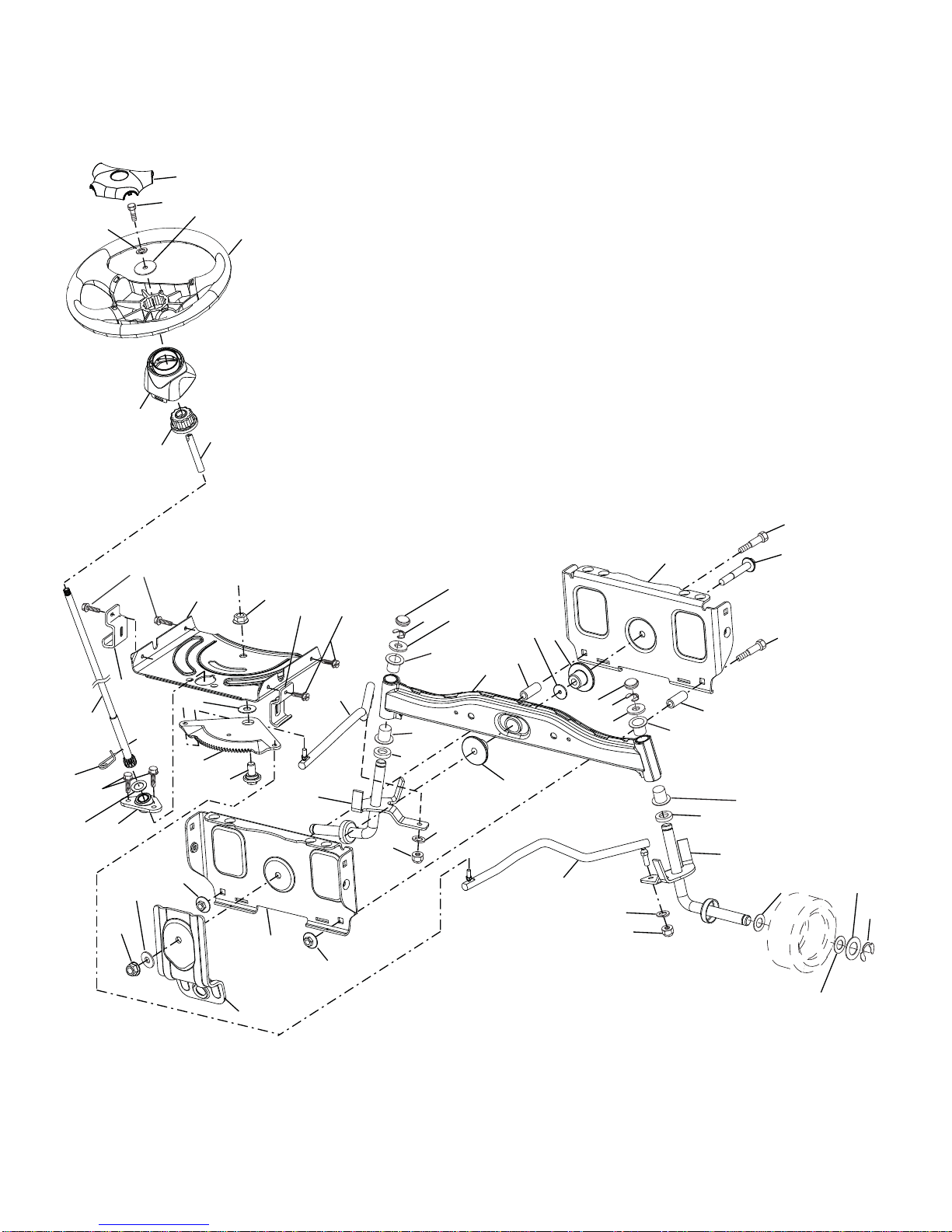

STEERING ASSEMBLY






























STEERINGTEX?,%'.$?




 

























13
KEY PART
NO. NO. DESCRIPTION
1 532 19 45-95 Wheel, Steering
2 532 19 56-73 Axle Asm., Front
4 532 40 30-87 Spindle Asm., LH
5 532 40 30-88 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 19 60-74 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 41 12-91 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 19 48-45 Bushing, Strg. Blk
26 532 19 46-03 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 3/8 x 12 Ga.
50 873 90 06-00 Nut Lock Flg 3/8 - 16
53 532 18 89-67 WasherHardened.793x1.637x.060
54 874 76 06-36 Bolt Hex HS 3/8-16 UNC x 2-1/4
55 532 19 76-36 Spacer Brace Axle
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
65 532 19 47-34 Brace Axle Front
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
70 532 19 61-97 Bracket Deck Susp. Front
71 532 19 60-75 Shaft Extension Steering
72 874 78 05-72 Bolt 5/16-18 UNC x 4.5. Gr. 5
78 532 05 70-79 Washer Thrust
69 532 19 91-62 Washer 1.5 x .505 x .118
74 532 12 49-37 Bearing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
STEERING ASSEMBLY

14
30
38
30
30
62 189
188
189
188
1
15
14
144
145
40
19
19
6
6
32
31
33
21
21
21
69
38
13
8115
115
11
199
25
26
27
24
21
29
23
195
122
123
195
68
38-Tex-LT_2_r4
205 206
43
42
60 63
46
147
55
64
34
56
57
59
40
145
57
209
56
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
MOWER DECK
211
46
46
46 46
210
70
7
7
37
67
152

15
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 19 42-51 Mower Housing
6 532 19 51-86 Arm Suspension
7 532 19 16-11 Screw 10 x 3/4 Single Lead Hex
8 532 19 30-03 Bolt/Washer asm 7/16-20 unf
11 532 19 39-57 Blade, 38" Premium 38"
13 532 19 28-72 Shaft Assembly, Mandrel
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
19 532 19 65-39 Bolt, Shoulder
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
23 532 19 25-57 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 19 70-26 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 40 16-18 Shield, Deflector
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Rolling Wsh Hd
31 532 18 76-90 Washer, Spacer
32 532 19 97-89 Pulley, Mandrel
33 532 40 02-34 Nut, Toplock, Flanged
34 872 11 06-12 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
37 819 13 13-16 Washer
38 532 19 95-41 Keeper Belt LH Mandrel
40 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
42 532 19 84-10 Spring Torsion Brake
43 532 19 72-56 Spring Torsion Retainer
46 532 13 77-29 Screw 1/4-20 x 5/8
55 532 19 72-49 Arm, Idler
56 532 19 90-92 Spacer, Retainer
57 817 00 06-16 Screw 3/8-16 x 1
59 532 14 10-43 Guard, Tuv Idler
60 532 19 94-71 Arm Brake Mower
62 872 11 06-12 Bolt Carr. 3/8-16 x 1-1/2
63 532 19 94-70 Arm Brake Mower
64 532 19 97-90 Link Brake
67 532 40 30-12 Handle Clutch Cable
68 532 40 83-81 V-Belt
69 872 14 05-05 Bolt
70 532 19 83-32 Clutch Asm Manual
115 872 11 05-05 Bolt Carr. 5/16-18 x 5/8
122 532 19 72-58 Keeper Belt Engine LH
123 532 19 72-59 Keeper Belt Engine RH
144 532 19 34-14 Keeper Belt
145 532 19 31-97 Pulley, Idler, Flat
147 532 40 18-72 Spring Return
152 532 40 87-14 Manual Clutch Cable
188 532 19 51-61 Stud Fastener
189 873 90 05-00 Nut Lock Hex Flange
195 817 00 06-12 Screw 3/8-16 x 3/4
199 532 40 00-95 Baffle Vortex
205 817 49 04-16 Screw 1/4 - 20 x 1.00
206 819 09 14-16 Washer 9/32 x 7/8 x 16
209 819 13 32-10 Washer 13/32 x 2 x 10
210 532 40 92-56 Cover Mandrel LH
211 532 40 92-57 Cover Mandrel RH
- - 532 19 28-70 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 532 40 86-77 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

16
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
MOWER LIFT
2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41-07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16
101 532 40-70-03 Link Asm. Lift FXD
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
90
87
98
97
97
lift-tex_5_r5
91
101*
89
89
87
100
*Key 91 may be substituted for Key 101

17
TRACTOR - - MODEL NUMBER LT2216 (96041003202), PRODUCT NO. 960 41 00-32
SEAT ASSEMBLY
1 532 41 14-05 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock W/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8 - 16 UNC X 3 1/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6-tex LT
44
43

10.12.11 BD
