Joohong SL-4560 User manual

SL-4560 ADSL Modem
1
ADSL External Modem (SL-4560)

SL-4560 ADSL Modem
2
FCC NOTE
:This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.

SL-4560 ADSL Modem
3
Table of contents
1. Introduction of SL-4560 ADSL Modem ……………………………… 4
1.1 ADSL …………………………………………………………………………………… 5
1.2 SL-4560 ADSL Modem / Frontside ……………………………………………… 6
1.3 SL-4560 ADSL Modem / Backside………………………………………………… 7
1.4 contents in the package……………………………………………………………… 7
1.5 Network configuration………………………………………………………………… 8
2. Set up the SL-4560 ADSL Modem ……………………………………… 17
SL-4560 ADSL Modem Web management start ………………………………… 18
Main menu …………………………………………………………………………………… 20
2.1 Status Information ……………………………………………………………………… 20
2.2 Quick Setup ……………………………………………………………………………… 21
2.2.1. PPPoE(RFC2516) Configuration ……………………………………………… 22
2.2.2. Bridge Mode(RFC1483) Configuration ……………………………………… 24
2.2.3. Multi IP(IPOA) Configuration ………………………………………………… 26
2.3 DSL configuration……………………………………………………………………… 30
2.4 Diagnostics……………………………………………………………………………… 31
2.5 Modem Status…………………………………………………………………………… 31
2.6 Tool – System Log……………………………………………………………………… 35
2.7 Tool– Software upgrade………………………………………………………………… 36
2.8 Tool – default value……………………………………………………………………… 37

SL-4560 ADSL Modem
4
1. Introduction of SL-4560 ADSL Modem

SL-4560 ADSL Modem
5
1.1 Introduction of ADSL
ADSL means ‘Asymmetric Digital Subscriber Line’. Using word of ‘Asymmetric’,
because there are difference between upstream speed and down stream speed. As you
could see in the diagram below, downstream use more wide bandwidth than upstream.
Technology that allows more data to be sent over existing copper telephone lines
(POTS). ADSL supports data rates of from 1.5 to 9 Mbps when receiving data (known
as the
downstream rate) and from 16 to 640 Kbps when sending data (known as the
upstream rate).
ADSL requires a special ADSL modem.
ADSL is growing in popularity as more areas around the world gain access.
<Picture 1-1> ADSL Service Diagram

SL-4560 ADSL Modem
6
1.2 SL-4560 ADSL Modem /Frontside
 The Front of SL 4560
<Picture 1-2> the front of SL-4560 ADSL
 LED Explanation.
LED Color Status Description
On Power on
PWR Green Off Power Off
Blinking Data transfer
LAN Green ON Connected with user PC
Blinking Data transfer through WAN
DATA Green ON Idle status of Data transfers through WAN.
Blinking Tempting to make a connect with DSLAM
ADSL Green ON Connection had been made with DSLAM
<Table 1-1> SL-4560 ADSL / LED Function

SL-4560 ADSL Modem
7
1.3 SL-4560 ADSL Modem / Backside
 Backside / Connector block plan
<Picture 1-3> SL-4560 / Backside
NAME Function
LINE Connect with ADSL Line
PHONE Connect with Phone
LAN Connect with LAN port of PC
PWR SW Power Switch
F/G For ground
DC 5V For Power adapter
<Table 1-2> SL-4560 ADSL / Backside / Name and Function
1.4 Contents in the Package
Please check the contents in the package.
<Picture 1-4> Contents in the package

SL-4560 ADSL Modem
8
1.5 Network configuration setup
※ Before you make the connection with modem
 Windows 95/98/Me
1. [Start] → [Control Panel] → [Network], in the ‘Local Area connection property’,
choose the ‘TCP/IP’. Please click ‘Property’.

SL-4560 ADSL Modem
9
2. In ‘TCP/IP Properties’, please check the ‘Obtain an IP address Automatically’ and
‘Obtain an DNS Server address Automatically’.
3. Click ‘OK’.
4. If prompted to restart your computer, do so.

SL-4560 ADSL Modem
10

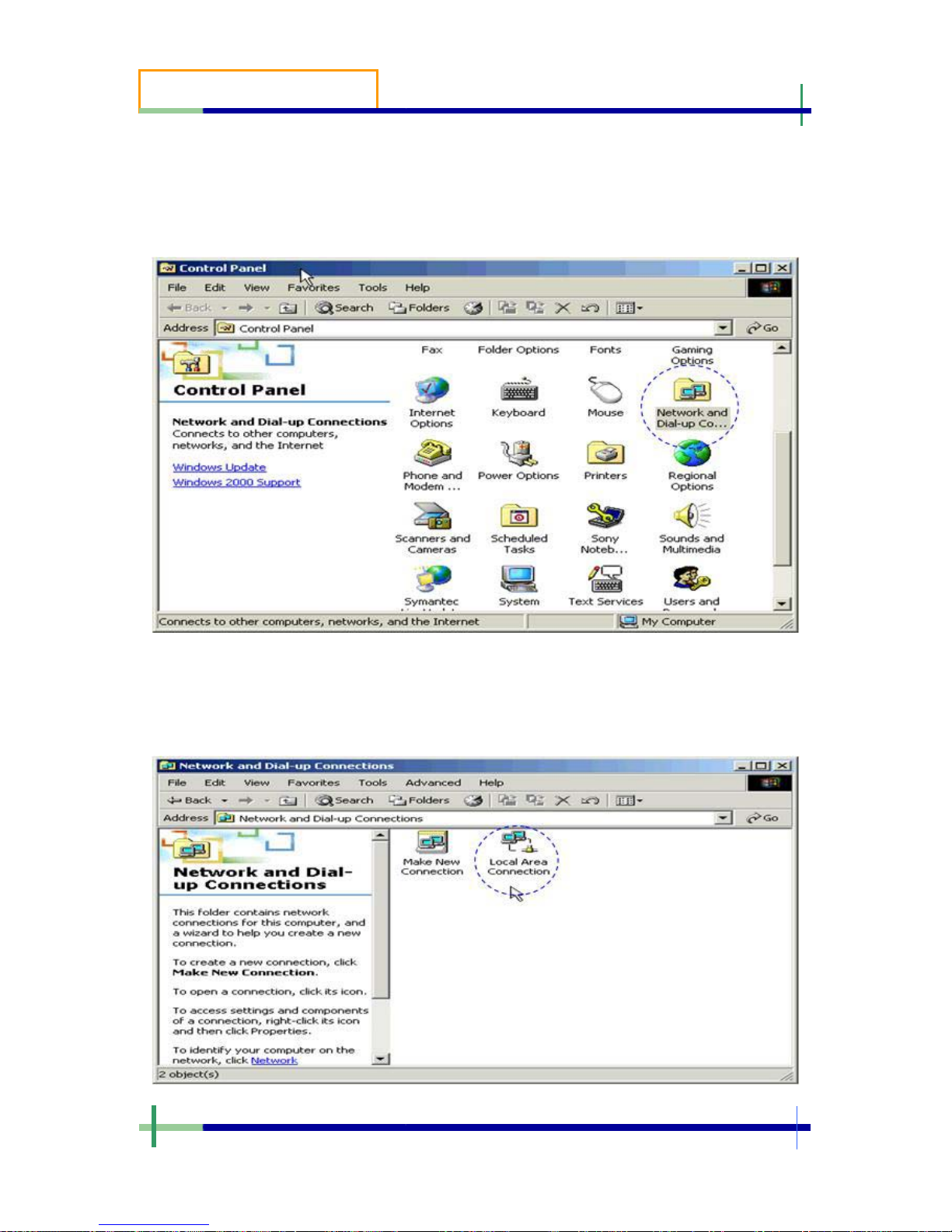

 Windows 2000/NT
1. [Start] → [Settings] → [Control panel]
‘Network and Dial-up Connections’ double click it.
2. ‘Network and Dial-up Connections’ → ‘Local Area Connection’
Double click.

SL-4560 ADSL Modem
11
3. In Local Area Connection Status, click ‘Properties’.
4. ‘Local Area Connection Properties’ → ‘Internet Protocol(TCP/IP)’ →
‘Properties’ click.

SL-4560 ADSL Modem
12

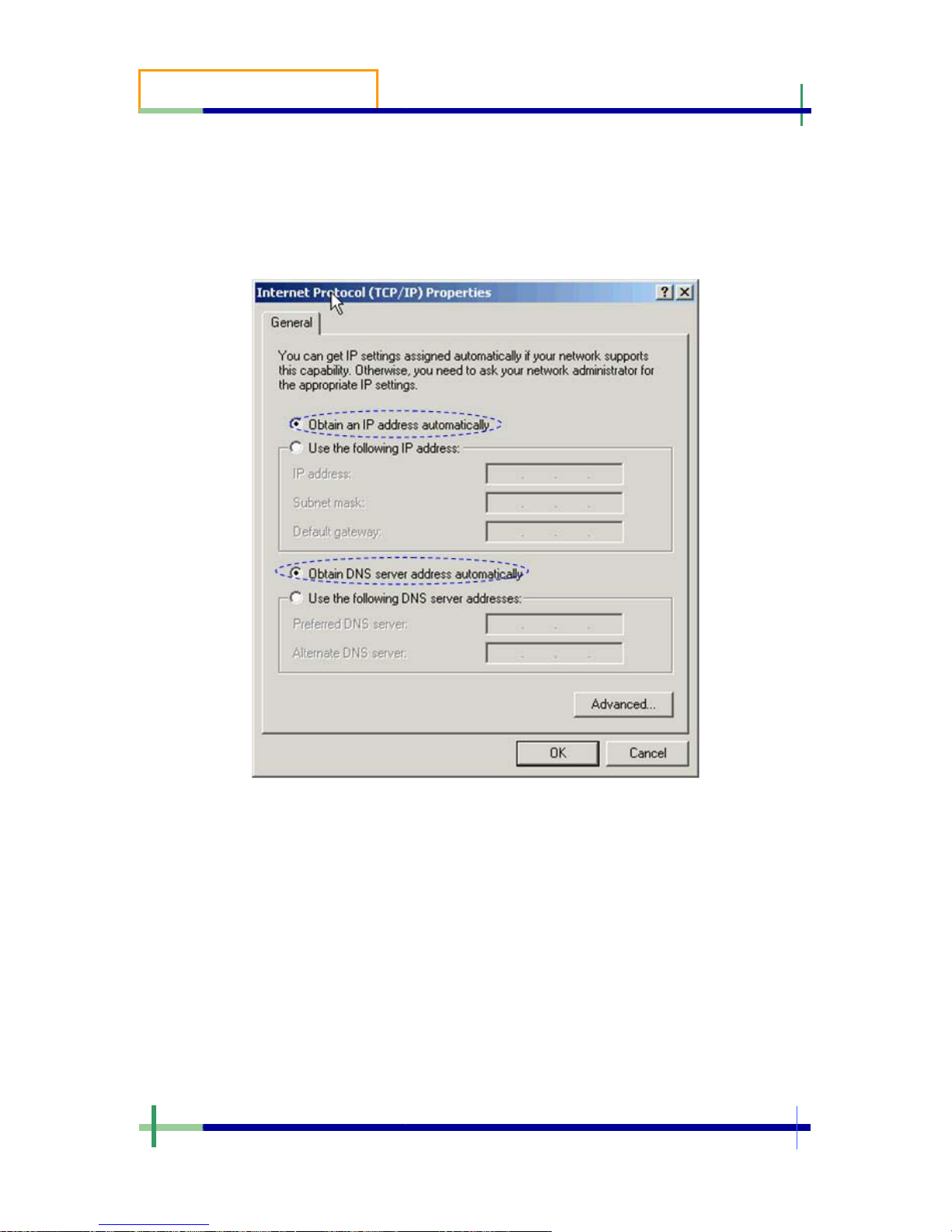

5. ‘Internet Protocol(TCP/IP) Properties’
→ check ‘Obtain an IP address automatically ‘
→ check ‘Obtain DNS Server address automatically’
→ click ‘OK’
6. Local Area Connection Properties → click ‘OK’
Local Area Connection Status → click ‘Close’
Network and Dial-up Connections → click ‘Close’

SL-4560 ADSL Modem
13
 Configuration for Win XP
1. [Start] → [Control panel]
‘Network and Internet Connections’ double click.
2. ‘Network and Internet Connections’ → ‘Network connections’

SL-4560 ADSL Modem
14
3. ‘Network Connections’ → ‘Local Area Connection’ double click.
4. In ‘Local Area Connection Status’, click ‘Properties’.

SL-4560 ADSL Modem
15
5. ‘Local Connection properties’ → ‘Internet protocal(TCP/IP)’ check.
click ‘Properties’.
6. ‘Internet protocol (TCP/IP) Properties’
→ Check ‘Obtain an IP address automatically’.
→ Check ‘Obtain DNS server address automatically’.
→ Click ‘OK’.

SL-4560 ADSL Modem
16
7. ‘Local Area Connection Properties’ → Click ‘OK’
‘Local Area Connection Status’ → Click ‘Close’
‘Network Connections’ → Click ‘Close’

SL-4560 ADSL Modem
17
2. SETUP the SL-4560 ADSL Modem

SL-4560 ADSL Modem
18
▶ SL-4560 ADSL Modem Web management start
Note :
- Please connect Ethernet cable only, make a start with Web management and set-up
the configuration. (Don’t make a connection with ADSL Line)
- After set-up the configuration, make a connection with ADSL Line. Please check the
LED-On of LINK LED. (If the configuration was proper, Link LED will be on after
blinking; Blinking means ‘on the NAS authentication process’) after 10seconds, Check
again with Web Management.
1. Finish 1.5 Network configuration setup
2. Connect LAN Cable: PC ↔ SL4560
3. Insert the SL 4560 ADSL Modem Install CD or Diskette
(If use Install Diskette, double click on autorun.exe)
1) Click ‘SETUP’
SL-4560 ADSL Modem support ‘Web Management’
Recommend higher version of Microsoft Internet Explorer 4.0

SL-4560 ADSL Modem
19
2) Please type your user name and password.
 Administrator mode : You can configure all the setting value of modem
User name admin
Password admin
 User mode : You can check modem status only.
User name user
Password user
3) Click ‘OK’
4) The’ BROADCOM Device Info’ main page shown below will load. (Refer to 2.1)
5) Configure SL4560 ADSL Modem. (Refer to 2.2 and 2.3)

SL-4560 ADSL Modem
20
▶ Main menu
2.1. Status Information
Connection status with DSLAM and other information like an IP address obtained
from NAS.
