Joro PROLIFT SLK Cart User manual






ThankyouforpurchasingaPro‐LIFTSLKCart.Thismobileproductisdesignedtoenhanceyour
interactiveLCD/LED.Pleasefollowallassemblyinstructionscorrectlytoprovideoptimaluse.
OnlyaqualifiedcontractorshouldinstallthePro‐LIFTSLKCart.Ifyoudonotunderstandanyofthe
assemblyinstructions,pleasecontactyourlocalre‐seller.
IMPROPERINSTALLATIONCANCAUSEDAMAGETOYOURPro‐LIFTSLKCartANDLEADTOSERIOUS
PHYSICALINJURY.JOROManufacturingcannottakeanyresponsibilityfordamageorinjuryresulting
fromimproperinstallation.
DonotmaneuverPro‐LIFTSLKCartifthelockingscrewsarenotpresentorthere
areanyobstructionswithinthePro‐LIFTSLKCartvicinity.Doingsomaycause
unitmalfunctionorleadtoseriousphysicalinjury.
ThesuppliedmountinghardwareisforuseonthePro‐LIFTSLKCartstandsonly.Ifyouencounterany
problemsorinsufficienthardwareduringinstallation,pleasecontactyourlocalre‐seller.















5/16 Jam Nut
x4
Note: Parts may not be exactly as shown and not to scale
SLK Cart Kit
x2
5/16" Acorn Nut
x4
M6 x 12mm Socket Cap Screw SILVER
x12
M6x25mm Button Head
x4
5/16x1" SILVER Button Head
x16
1/4" Washer USS x4
5/16 Hex Nut
x16
M6 x 8mm Socket Cap Screw
1/4" ID x 3/8" Lg. Nylon Spacer
x2
x1
3/16" Allen (Hex) Key x1
5/32" Allen (Hex) Key
SLK Cart ASSY Instructions : 0.001
Tube1020 End Cap
x4
x2
3/8" x 2" Lg. - 5/16" Hex Socket Head Shoulder Bolt
x2
JORO Button Head
COPYRIGHT 2014
www.proliftstand.comwww.joromfg.com

SLK Cart ASSY Instructions : 0.001
M6 x 8mm Socket Cap Screw

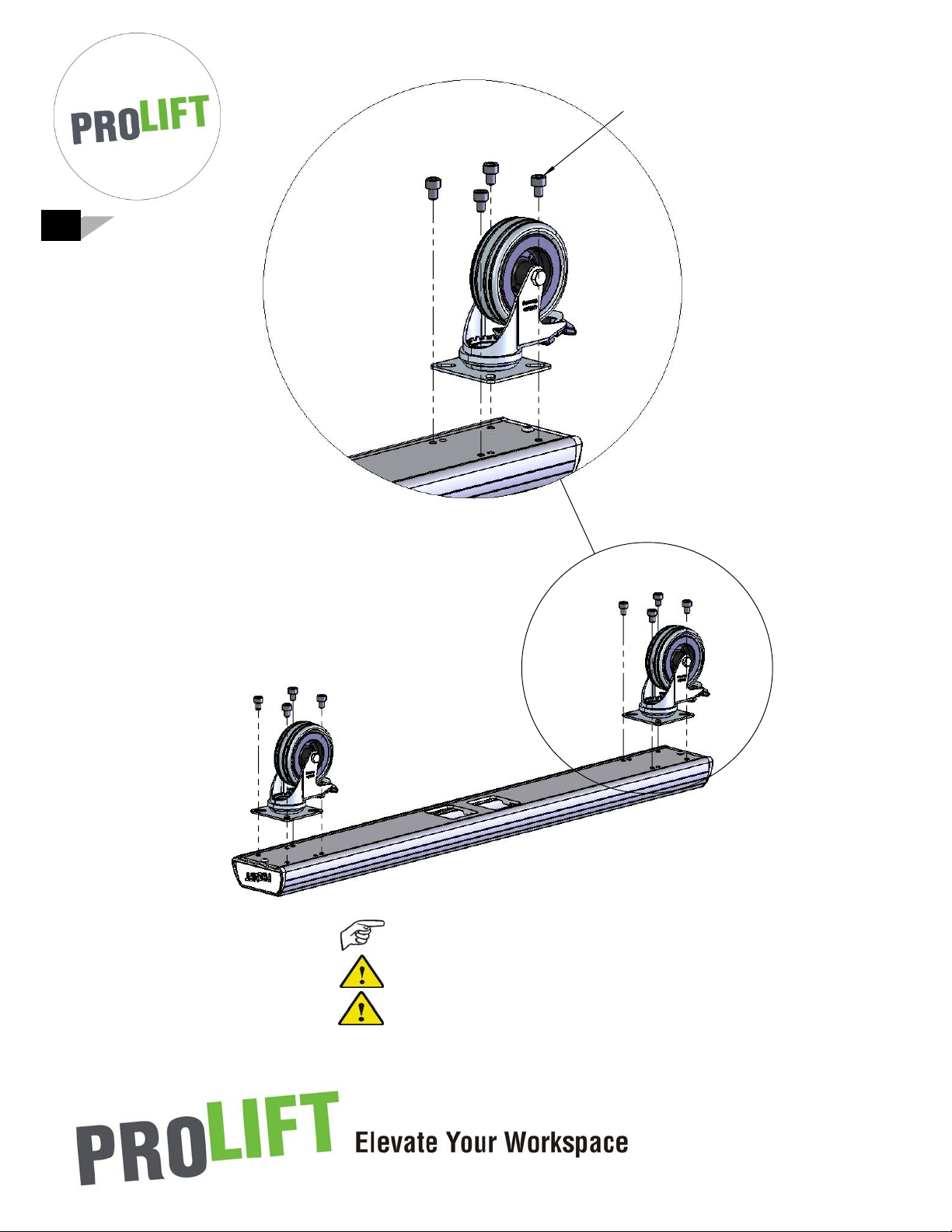

Mount Casters
DO NOT over tighten
Use the M6 x 8mm Socket Cap Screws
1
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com

Mount the feet to the main frame
DO NOT over tighten
Be sure to match circle label on foot and leg
Label - Circle
NOTE: MATCH THE LABELS ON
THE FOOT AND LEG
Use the M6x25mm Button Head screws supplied
Right Leg
Left Leg
Right Foot
Left Foot
SLK Cart ASSY Instructions : 0.001
M6x25mm Button Head
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com
2

SLK Cart ASSY Instructions : 0.001
SLK Cart Top Platform
Use the M6x25mm Button Head screws supplied
M6x25mm Button Head
DO NOT over tighten
Mount SLK Cart top platform
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com
3

Fasten the shoulder bolts
DO NOT over tighten
Note three (3) mounting positions, see above for details
5/16" Acorn Nut
3/8" x 2" Lg. - 5/16" Hex Socket Head Shoulder Bolt
5/16" Acorn Nut
3/8" x 2" Lg. - 5/16" Hex Socket Head Shoulder Bolt
SLK Cart ASSY Instructions : 0.001
Use the 3/8" x 2" Lg. - 5/16" Hex Socket Head Shoulder Bolt supplied
HighPosition
MidPosition
LowPosition
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com
4

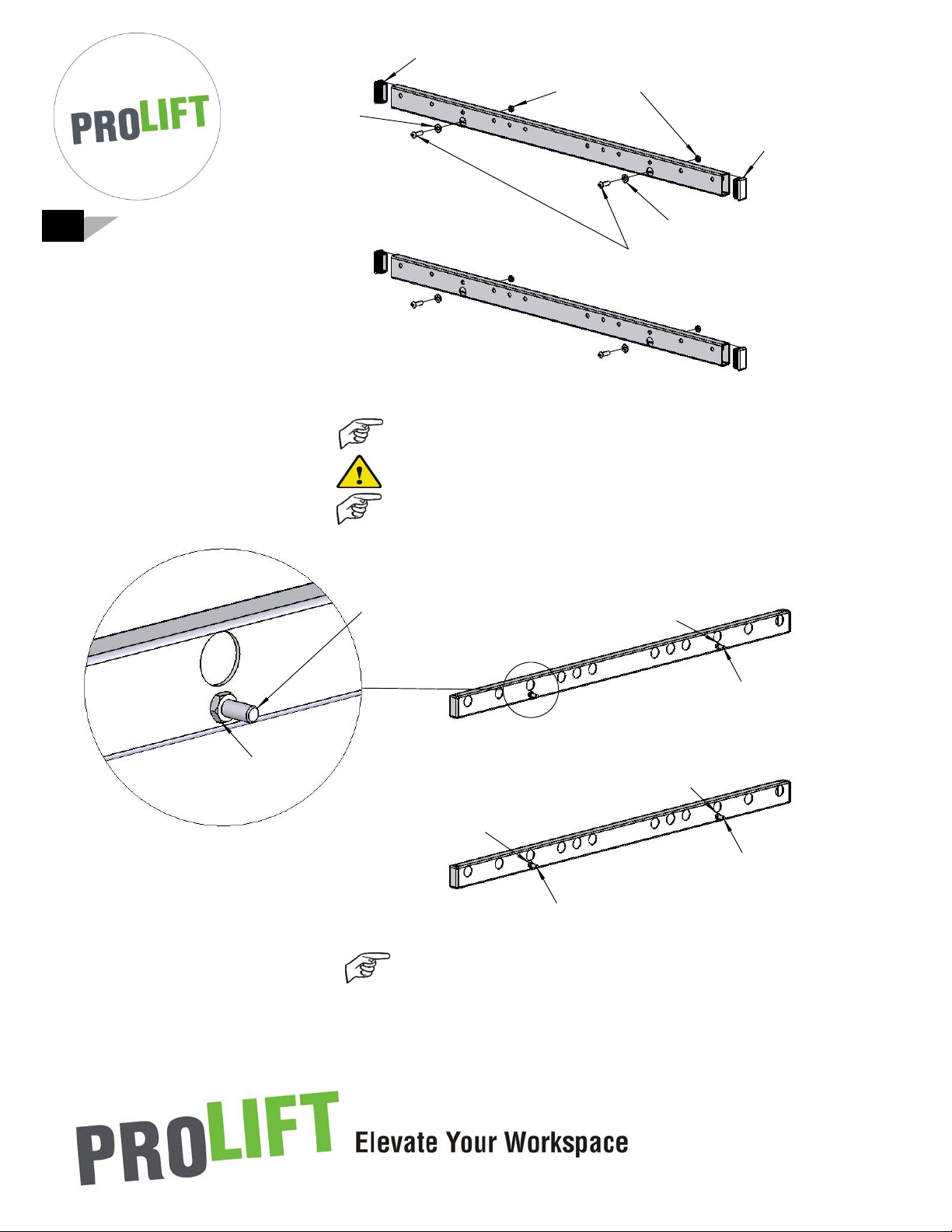

SLK Cart ASSY Instructions : 0.001SLK Cart ASSY Instructions : 0.001SLK Cart ASSY Instructions : 0.001
5/16x1" SILVER Button Head
Tube1020 End Cap
5/16 Jam Nut
Tube1020 End Cap
1/4" Washer USS
1/4" Washer USS
Fasten the 5/16x1" SILVER Button Head Screws to the TUBE1020
Use a rubber mallet to knock the Tube1020 End Caps into place
5/16 Jam Nut
5/16x1" SILVER Button Head
DO NOT over tighten
Assembled product should look like this
5/16x1" SILVER Button Head
5/16 Jam Nut
5/16 Jam Nut
5/16x1" SILVER Button Head
5/16 Jam Nut
5/16x1" SILVER Button Head
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com
5

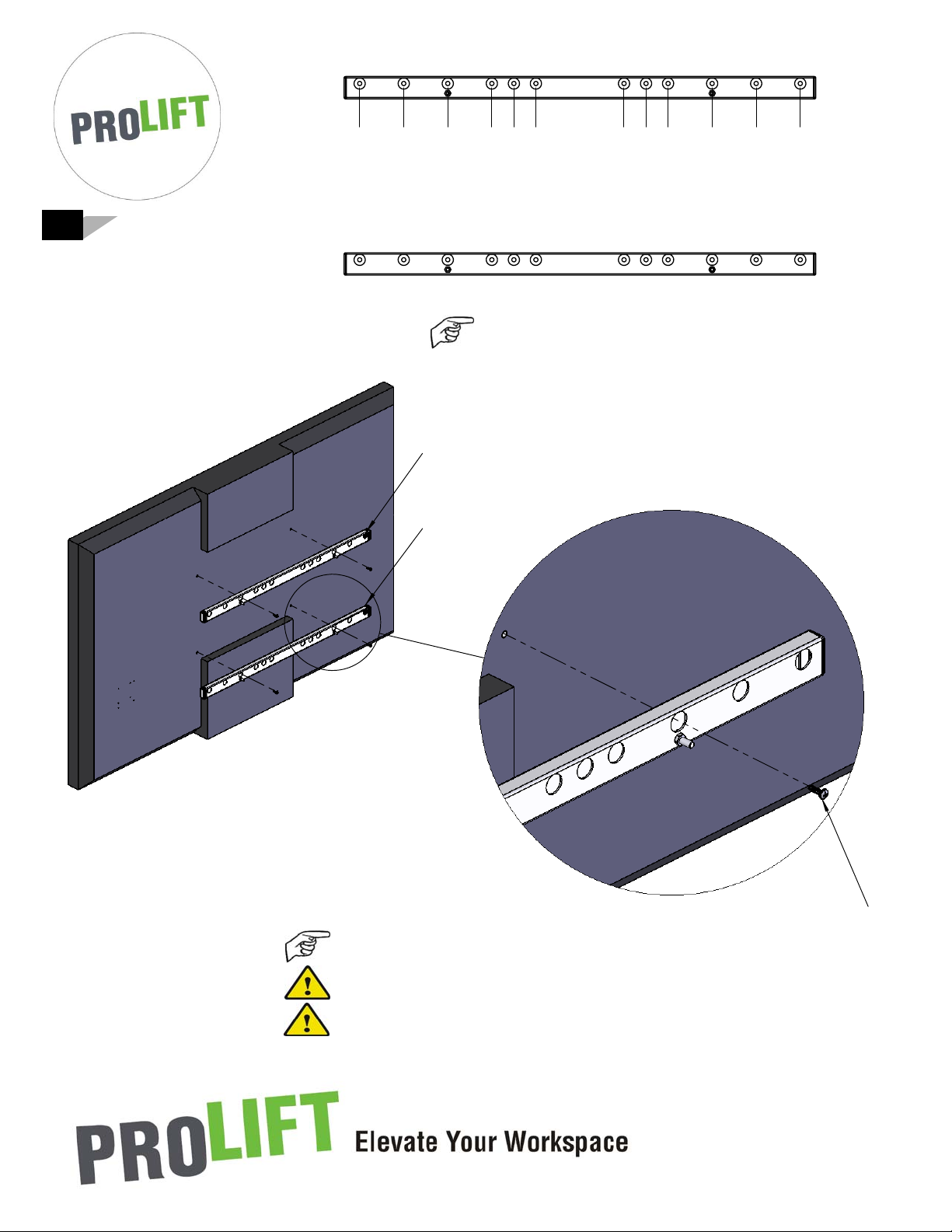

800 VESA
1000 VESA
800 VESA 600 VESA 400 VESA 300 VESA 200 VESA 200 VESA 300 VESA 400 VESA 600 VESA
1000 VESA
Please use the appropriate mounting holes for your
LCD (not included)as shown above
Use the appropriate fasteners as specified in the LCD owners manual
Please note spacers/washers may be required to acheive length.
Serious damage to LCD may result if screws are too long.
DO NOT over tighten
LCD Fastener from
LCD TV Kit provided
G5-ACC-SLK1000
G5-ACC-SLK1000
Fasten the G5-ACC-SLK1000 to your LCD (not included)
using the fasteners from the LCD TV Kit
SLK Cart ASSY Instructions : 0.001
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com
6

SLK Cart ASSY Instructions : 0.001
5/16 Hex Nut
1/4" Washer USS
1/4" Washer USS
SLK Cart Right Arm
SLK Cart Left Arm

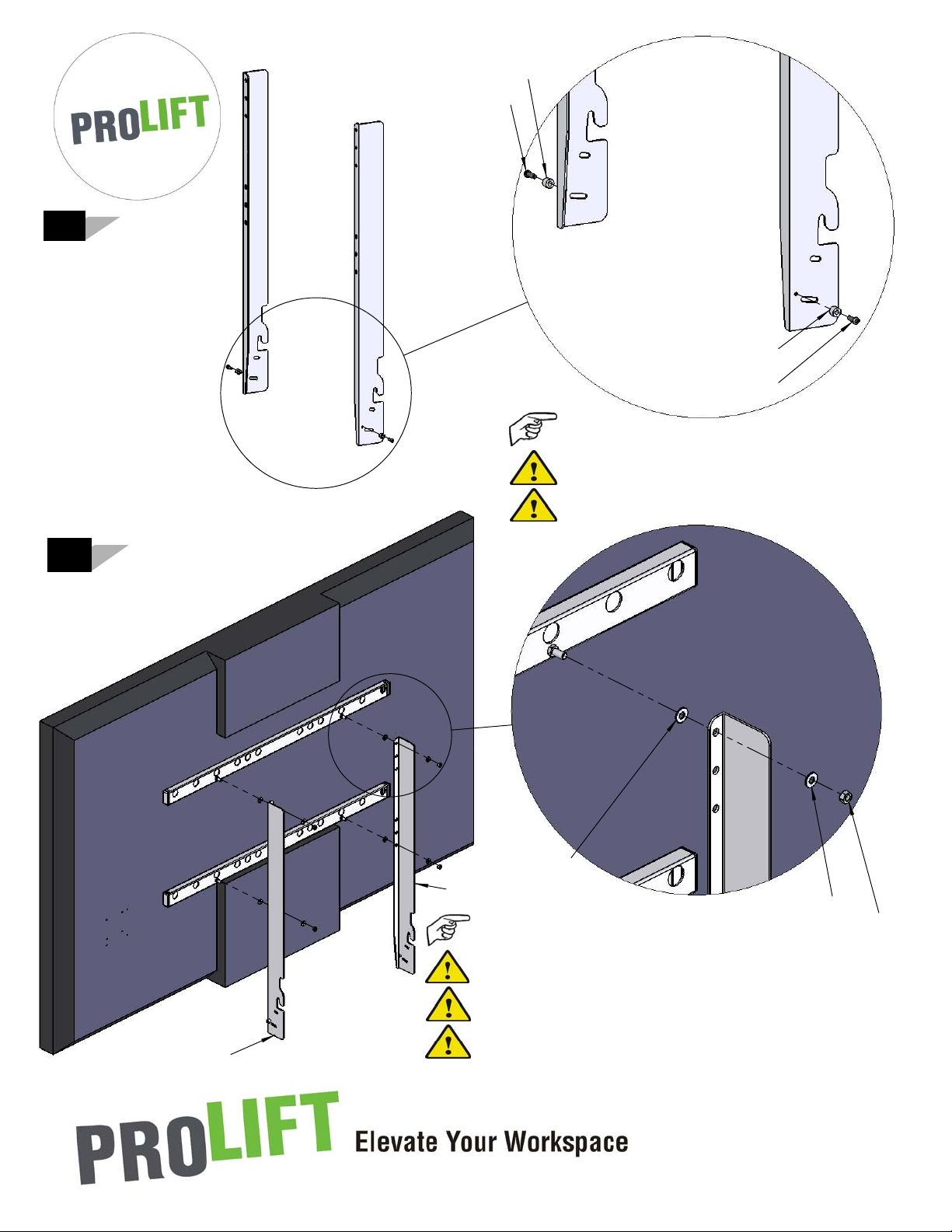

Mount the SLK Cart Arms before mounting to the
SLK main frame
Maynotbeexactlyasshown
Mount the SLK Cart Arms to the G5-ACC-SLK1000 tubes
Fasten bumpers to outside face as shown
DO NOT over tighten
Use the fasteners supplied
DO NOT COMPLETELY TIGHTEN! Allow SLK Cart Arm alignment
Use the JORO Button Head and nylon spacers supplied
JORO Button Head
1/4" ID x 3/8" Lg.
Nylon Spacer
1/4" ID x 3/8" Lg.
Nylon Spacer
JORO Button Head
7
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com
8

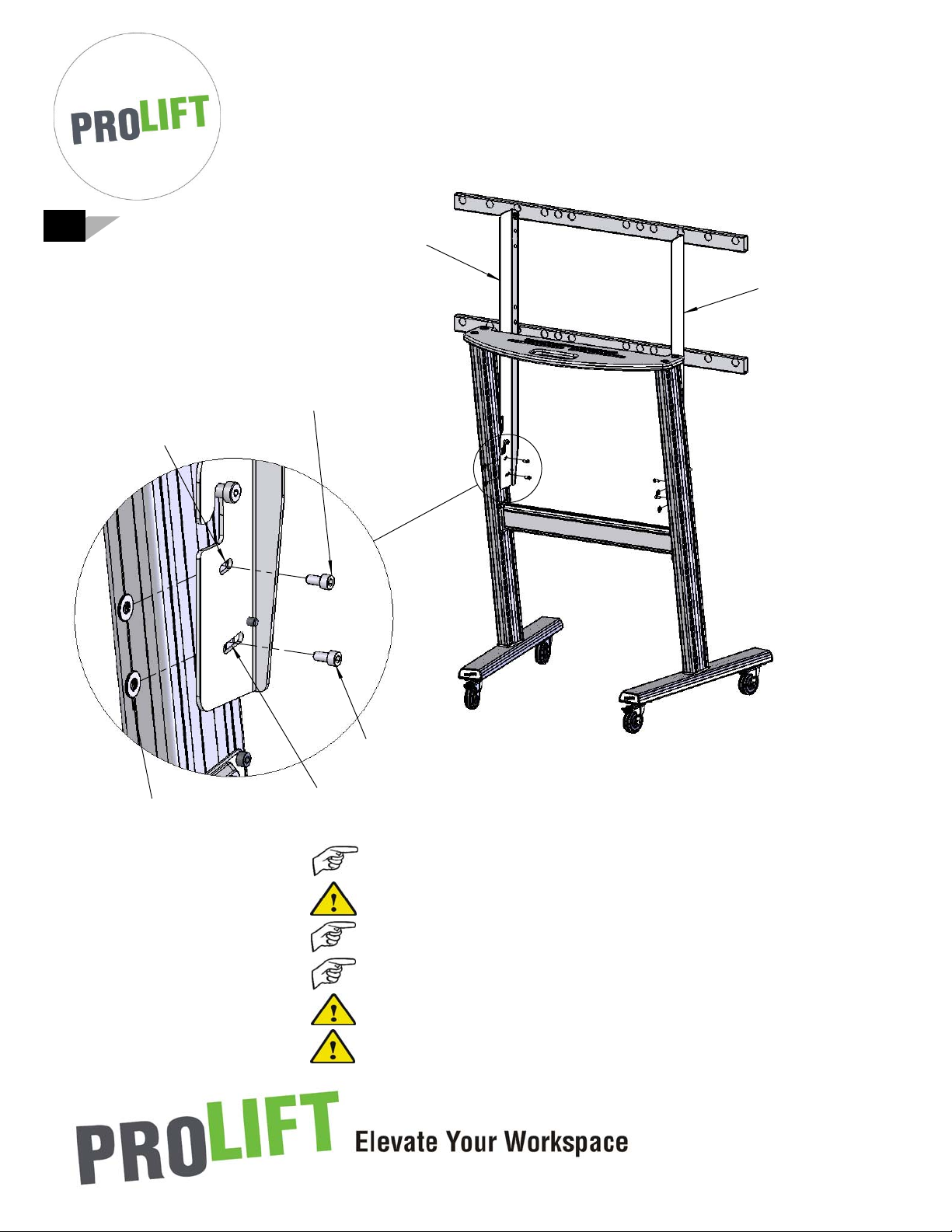

Hang both SLK Cart Arms over shoulder bolts
Hang the SLK Cart Arms for locking
Locate the locking holes and insert fasteners
Lock the SLK Cart Arms
DO NOT over tighten
M6 x 12mm Socket Cap Screw SILVER
M6 x 12mm Socket Cap Screw SILVER
Use the M6 x 12mm Socket Cap Screw SILVER and 1/4 Washer USS supplied
Locking Hole
Locking Hole
1/4" Washer USS
SLK Cart ASSY Instructions : 0.001
SLK Cart Right Arm
SLK Cart
Left Arm
COPYRIGHT 2017
www.proliftstand.comwww.joromfg.com
9


