jotron Phontech BTS 4000 Operator's manual

www.jotron.com
DOCUMENTATION HANDBOOK
BTS 4000
PHONTECH
BATTERYLESS TELEPHONE SYSTEM
Handbook page
1/52

BTS 4000 Handbook contents:
Handbook page:
Batteryless Telephone System 4000
−System Description ……...…………………………………………… 08400-006-DE .………… 1
−External Connection , 1L. Configuration example, 4050/4051 …..… 08400-006-EC-01 ....…… 20
−External Connection , 12L. Configuration example, 4060/4061 …..... 08400-006-EC-02 ....…… 21
−External Connection , 24L. Configuration example, 4040/4000 …..… 08400-006-EC-03 ....…… 22
4040, Batteryless Telephone, 24L
−Mechanical Layout (flush mounted) ……………….……………….. 08400-001-ML .………… 23
−Mechanical Layout (bulkhead mounted) …………..……………….. 08400-001-ML-02 ……… 24
−External Connection ….....…………………………………………… 08400-001-EC ..………… 25
4050, Batteryless Telephone, 1L
−Mechanical Layout (flush mounted) ……………….……………….. 08400-002-ML .………… 26
−Mechanical Layout (bulkhead mounted) …………..……………….. 08400-002-ML-02 ……… 27
−External Connection ….....…………………………………………… 08400-002-EC ..………… 28
4051, Batteryless Telephone w/Amp, 1L
−Mechanical Layout (flush mounted) ……………….……………….. 08400-003-ML .………… 29
−Mechanical Layout (bulkhead mounted) …………..……………….. 08400-003-ML-02 ……… 30
−External Connection ….....…………………………………………… 08400-003-EC ..………… 31
4060, Batteryless Telephone, 12L
−Mechanical Layout (flush mounted) ……………….……………….. 08400-004-ML .………… 32
−Mechanical Layout (bulkhead mounted) …………..……………….. 08400-004-ML-02 ……… 33
−External Connection ….....…………………………………………… 08400-004-EC ..………… 34
4061, Batteryless Telephone w/Amp, 12L
−Mechanical Layout (flush mounted) ……………….……………….. 08400-005-ML .………… 35
−Mechanical Layout (bulkhead mounted) …………..……………….. 08400-005-ML-02 ……… 36
−External Connection ….....…………………………………………… 08400-005-EC ..………… 37
99400-011, Relay Switch Board for BTS
−Board Layout ………………..................................……………….. 99400-011-LO ...………… 38
−Description …………..……...............................................………….. 99400-011-CA ……......… 39
−Circuit Diagram …............…………………………………………… 99400-011-CD ..………… 40
Amplifier unit, 4000
−Mechanical Layout ……...…………………………………………… 87400-004-ML .………… 41
−External Connection ………....……………….……………………… 87400-004-EC ..………… 42
4018, Headset Plugbox with Call Stop
−Mechanical Layout ……...…………………………………………… 09908-007-ML .………… 43
−External Connection ………....……………….……………………… 09908-007-EC ..………… 44
9000, Relay Unit
−Mechanical Layout ……...…………………………………………… 09908-009-ML .………… 45
−External Connection ………....……………….……………………… 09908-009-EC ..………… 46
Headset with PTT Switch, 0018
−Mechanical Layout ……...…………………………………………… 88000-005-ML .………… 47
Headset with Chest Switch, 9010
−Mechanical Layout ……...…………………………………………… 00900-002--ML .………… 48
Ver 2010.09

Doc.No.: 08400-006-DE
Page 1 of 19
This document is the property of JOTRON
PHONTECH and must not be copied or shown to a
third person without our written consent. In the
interest of product improvement, JOTRON
PHONTECH reserves the right to alter
specification and design without notice.
1 08.07.2010 REVISION, EM 1289 ASK ASK
0 27.10.2008 FINAL DOCUMENTATION CD
REV No: ISSUE DATE REASON FOR ISSUE PREPARED CHECKED APPROVED
TITLE: BATTERYLESS TELEPHONE SYSTEM 4000
DESCRIPTION SIZE: -- UED no: --
DOC no: 08400-006-DE
FILE NAME: 08400-006-DE.doc
BATTERYLESS TELEPHONE SYSTEM 4000
UNITS: 4000 / 4040 / 4050 / 4051 / 4060 / 4061
SYSTEM DESCRIPTION.
Contents:
1.GENERAL DESCRIPTION............................................................................................................. 3
2.LIST OF TELEPHONE UNITS....................................................................................................... 4
2.1.24 LINES BATTERYLESS TELEPHONE, TYPE 4040.........................................................4
2.2.12 LINES BATTERYLESS TELEPHONE WITH INTEGRATED AMP, TYPE 4061.......... 5
3.ADDITIONAL EQUIPMENT.......................................................................................................... 6
3.1.AMPLIFIER UNIT, TYPE 4000............................................................................................... 6
3.2.RELAY UNIT, TYPE 9000 ......................................................................................................7
3.3.PLUGBOX FOR HEADSET WITH CALL STOP, TYPE 4018.............................................. 7
3.4.HEADSET WITH PTT SWITCH AND PLUG, TYPE 0018................................................... 8
3.5.HEADSET WITH PTT SWITCH, TYPE 9010........................................................................8
3.6.PLUG-IN RELAY MODULE (BRD 99400-011).................................................................... 9
4.LIST OF FACILITIES...................................................................................................................... 9
4.1.BATTERYLESS AMPLIFIERT UNIT, TYPE 4000 ...............................................................9
4.2.24 LINES BATTERYLESS TELEPHONE 4040...................................................................10
4.3.SINGLE LINE BATTERYLESS TELEPHONE, TYPE 4050...............................................10
4.4.SINGLE LINE BATTERYLESS TELEPHONE WITH AMPLIFIER, TYPE 4051.............. 10
4.5.12 LINES BATTERYLESS TELEPHONE, TYPE 4060.......................................................10
5.BASIC MEANS OF OPERATION................................................................................................ 11
5.1.GENERAL............................................................................................................................... 11
5.2.MAKE A CALL TO ANOTHER STATION.......................................................................... 11
5.3.ANSWER A CALL FROM ANOTHER STATION............................................................... 11
5.4.TERMINATE A CONVERSATION...................................................................................... 11
5.5.HEADSET (TYPE 9010) OPERATION................................................................................. 12
Handbook page
1/50

Doc.No.: 0400-000-DE
Page 2 of 19
5.5.1.Make a call out from the telephone to another station......................................................... 12
5.5.2.Answer a call from another station...................................................................................... 12
6.INSTALLATION............................................................................................................................ 13
6.1.SYSTEM CONFIGURATION................................................................................................ 13
6.2.MOUNTING............................................................................................................................ 13
6.3.COMPASS SAFE DISTANCE............................................................................................... 13
6.4.CABLE TERMINATION ....................................................................................................... 13
6.5.CABLE REQUIREMENTS .................................................................................................... 14
6.6.GLANDING............................................................................................................................ 14
6.7.SCREENING........................................................................................................................... 14
6.8.MARKING.............................................................................................................................. 14
6.9.FASTENING........................................................................................................................... 14
6.10.PRESERVATION................................................................................................................ 14
6.11.VOLUME ADJUSTMENT ................................................................................................. 15
7.TECHNICAL DATA. TELEPHONE UNITS 4040/4050/4051/4060/4061................................... 16
8.SINGLE LINE DIAGRAM – SINGLE LINE SYSTEM...............................................................17

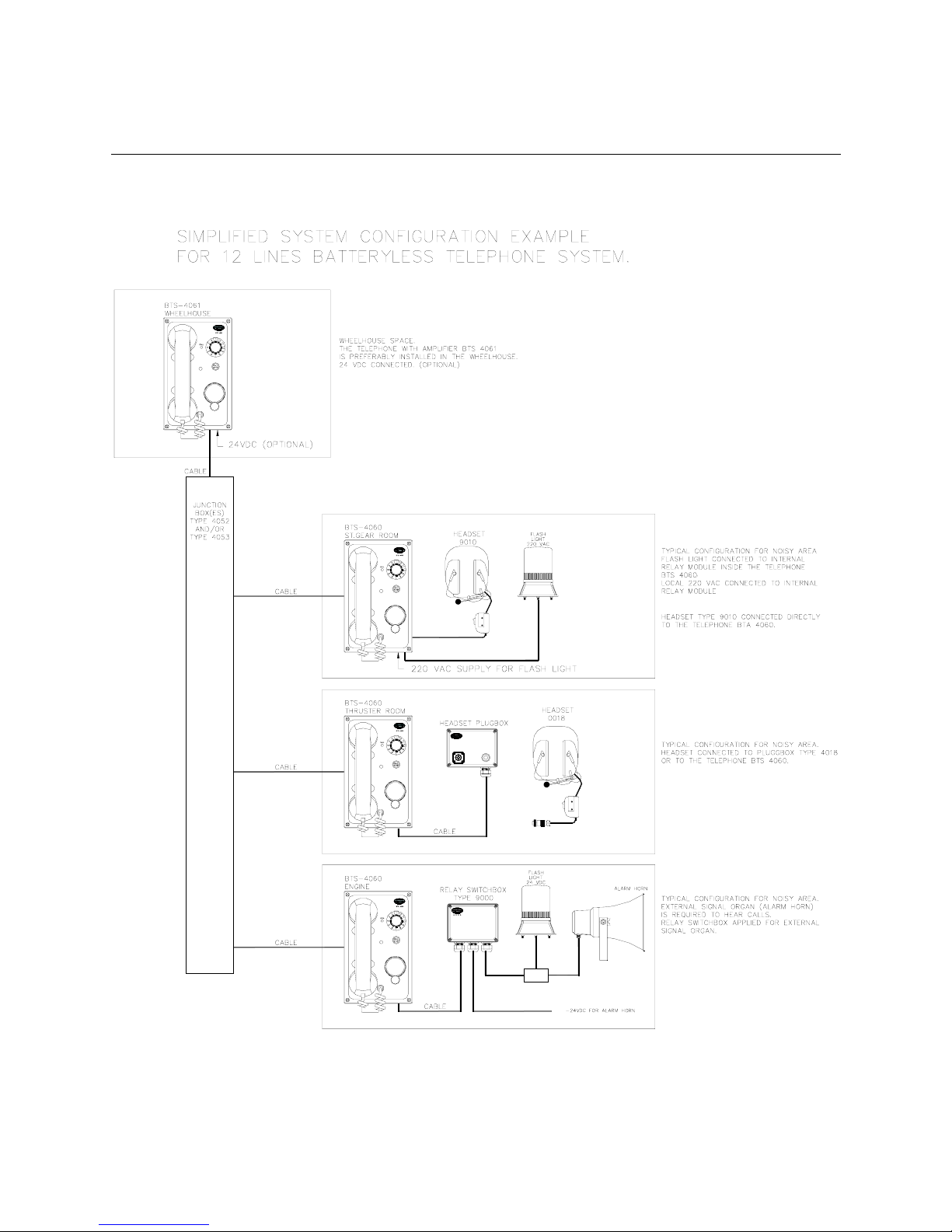

9.SINGLE LINE DIAGRAM – 12 LINE SYSTEM .........................................................................18
10.SINGLE LINE DIAGRAM – 24 LINE SYSTEM...................................................................... 19
Handbook page
2/50

Doc.No.: 08400-006-DE
Page 3 of 19
1. GENERAL DESCRIPTION
The batteryless telephone system is developed and manufactured Jotron Phontech as.
The different modules in the system are designed to meet the need and demand for non-
powered internal (sound powered) emergency communication on ships.
The system is basically divided into three different configurations, the single line system
(4050/4051) for point-to point communication between two stations, like the bridge and the
machinery spaces. The 12 lines system, (4060/4061) for up to 12 stations. And the 24 lines
system (4000/4040) for up to 24 stations.
The compact design provides good installation possibilities, with a minimum space
requirement.
The flush mounting units are adapted to the DIN 144x144 module standard for easy mounting
in the bridge and engine control consoles.
The modules may also be wall mounted; this requires a wall mounting back-box. (Optional)
The different units are prepared for gland mounting, i.e. holes have been fitted for a wide range
of cable glands.
Several additional types of equipment may be connected to the Batteryless Telephone System,
like headset connector boxes, extra headsets, power supplies, external signal devices relay
switch boxes, etc.
Handbook page
3/50

Doc.No.: 08400-006-DE
Page 4 of 19
.
2. LIST OF TELEPHONE UNITS
Type BTS 4040. 24 lines batteryless telephone.
Type BTS 4050 Single line batteryless telephone.
Type BTS 4051 Single line batteryless telephone with integrated amplifier
Type BTS 4060 12 lines batteryless telephone.
Type BTS 4061 12 lines batteryless telephone with integrated amplifier

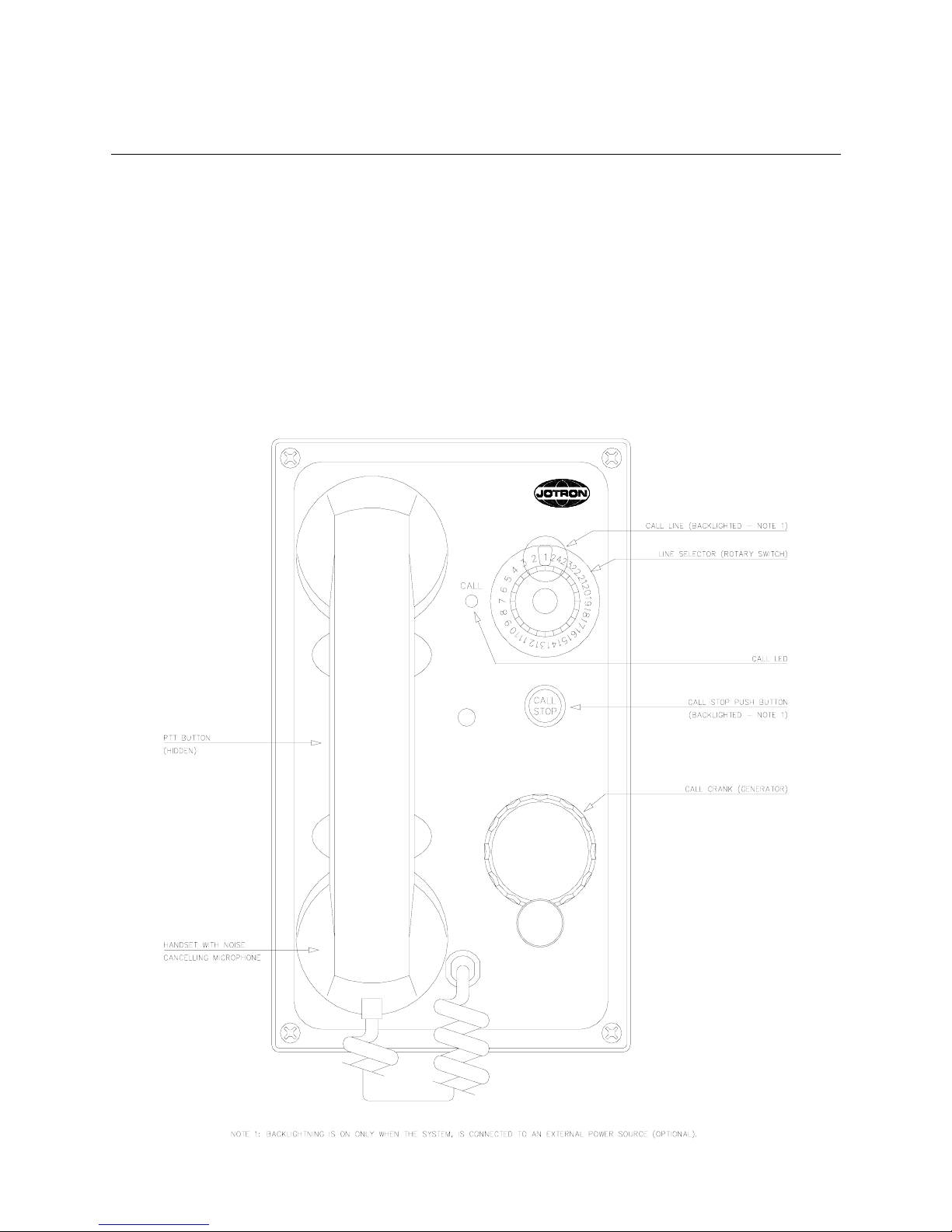

2.1. 24 LINES BATTERYLESS TELEPHONE, TYPE 4040
PHONTECH 4040
Handbook page
4/50

Doc.No.: 08400-006-DE
Page 5 of 19
.
2.2. 12 LINES BATTERYLESS TELEPHONE WITH INTEGRATED AMP, TYPE
4061
PHONTECH 4061
Handbook page
5/50

Doc.No.: 08400-006-DE
Page 6 of 19
.
3. ADDITIONAL EQUIPMENT
Type BTS 4000. Amplifier unit (separate) for a 4040 / 24 lines system
Type 9000 Relay unit (for additional signal device)
Type 4018 Plugbox for headset with “Call stop”.
Type 0018 Headset with PTT switch and plug. (Connects to 4018)
Type 9010 Headset with PTT switch. (Connects directly to the telephone unit)
BRD 99400-011 Plug-in relay module for external signal device.
Type 4052 Junction box type I (12 ext.)
Type 4053 Junction box type II (8 ext.)

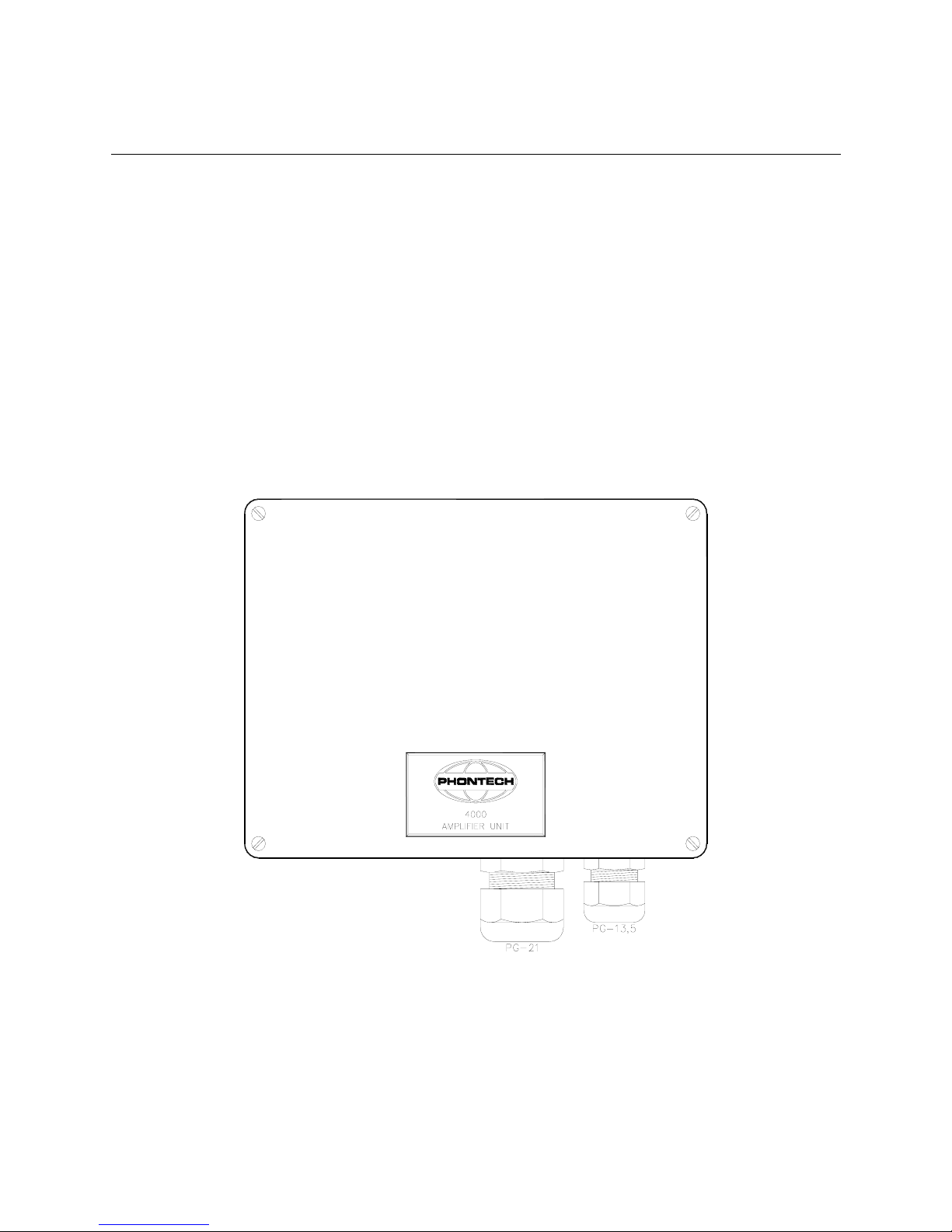

3.1. AMPLIFIER UNIT, TYPE 4000
Handbook page
6/50

Doc.No.: 08400-006-DE
Page 7 of 19
.
3.2. RELAY UNIT, TYPE 9000

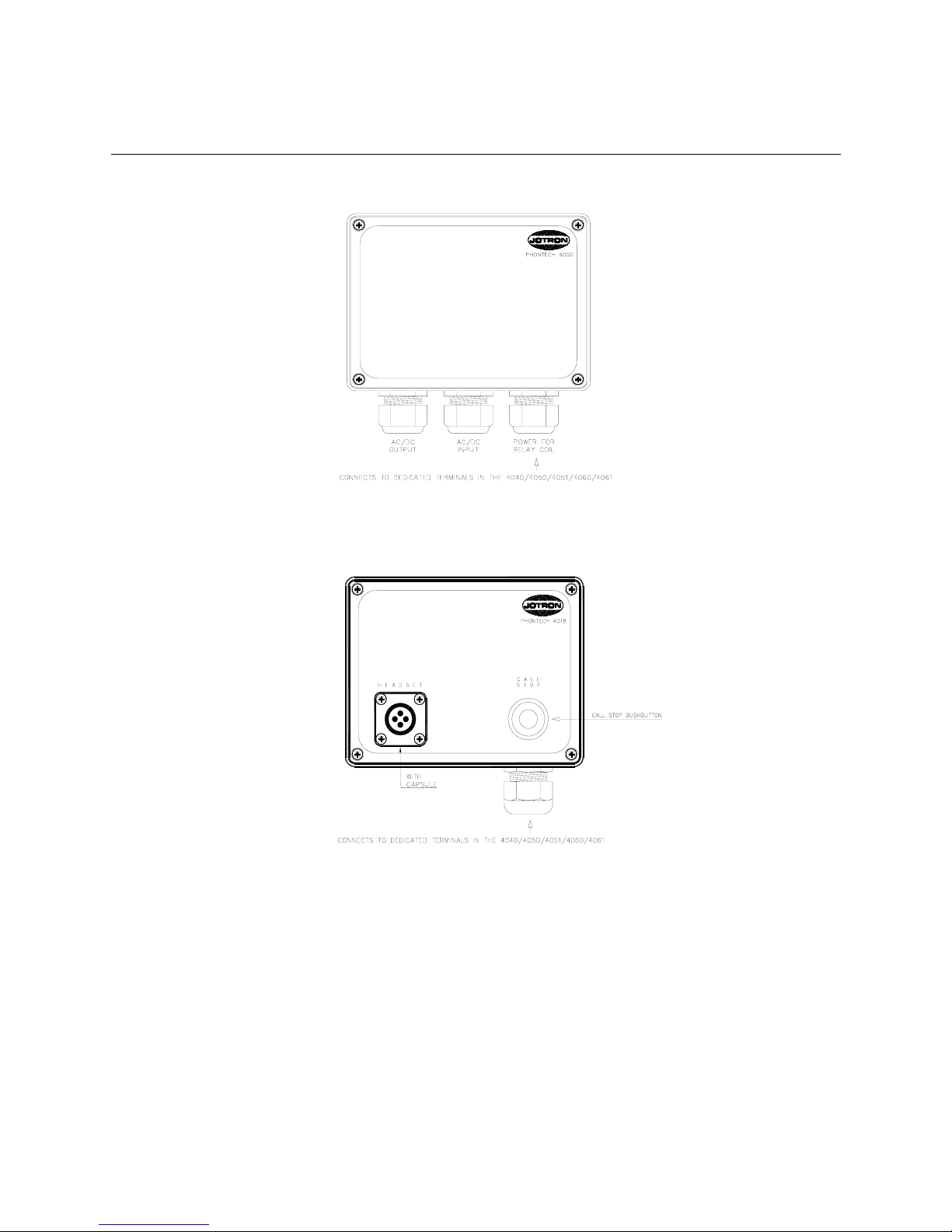

3.3. PLUGBOX FOR HEADSET WITH CALL STOP, TYPE 4018
Handbook page
7/50

Doc.No.: 08400-006-DE
Page 8 of 19
.
3.4. HEADSET WITH PTT SWITCH AND PLUG, TYPE 0018
3.5. HEADSET WITH PTT SWITCH, TYPE 9010
9 meter CABLE
Handbook page
8/50
