Congratulations!
You have made an excellent choice.
JULABO thanks you for the trust you have placed in us.
This operating manual has been designed to help you gain an understanding of the operation and
possible applications of our circulators. For optimal utilization of all functions, we recommend that you
thoroughly study this manual prior to beginning operation.
The JULABO Quality Management System
Temperature control devices for research and industry are developed,
produced, and distributed according to the requirements of ISO 9001 and
ISO 14001. Certificate Registration No. 01 100044846
Unpacking and inspecting
Unpack the circulator and accessories and inspect them for possible transport damage. Damage
should be reported to the responsible carrier, railway, or postal authority, and a damage report should
be requested. These instructions must be followed fully for us to guarantee our full support of your
claim for protecting against loss from concealed damage. The form required for filing such a claim will
be provided by the carrier.
1.953.2442-V5 06/18Printed in Germany Changes without prior notification reserved
Important: keep operating manual for future use

HE / SE
3
TABLE OF CONTENTS
Operating manual................................................................................................................ 5
1. Intended use................................................................................................................. 5
1.1. Description ............................................................................................................... 5
2. Operator responsibility – Safety recommendations....................................................... 6
2.1. Disposal ................................................................................................................... 8
2.2. Technical specifications ........................................................................................... 9
Operating instructions ....................................................................................................... 11
3. Safety notes for the user............................................................................................. 11
3.1. Explanation of safety notes .................................................................................... 11
3.2. Explanation of other notes...................................................................................... 11
3.3. Safety recommendations........................................................................................ 12
4. Operating controls and functional elements ................................................................ 14
5. Preparations ............................................................................................................... 17
5.1. Installation.............................................................................................................. 17
5.2. Bath fluids .............................................................................................................. 18
5.3. Temperature application to external systems ......................................................... 19
5.3.1.Tubing ............................................................................................................... 20
5.4. Filling / draining...................................................................................................... 21
5.5. Countercooling....................................................................................................... 22
6. Operating procedures ................................................................................................. 23
6.1. Power connection................................................................................................... 23
6.2. Switching on / Start - Stop...................................................................................... 23
6.2.1.Switching on the circulator................................................................................. 23
7. Setting of temperatures ................................................................................. 24
7.1. Using the pre-settings in the menu ........................................................... 24
7.2. Direct setting of temperatures ................................................................................ 25
8. Safety installations, warning functions........................................................... 26
8.1. Excess temperature protection............................................................................... 26
8.1.1.Early warning system, low level protection......................................................... 27
8.2. Switch-over from warning to shutdown function...................................................... 28
8.3. Over and Sub temperature warning function .......................................................... 29
9. Menu functions.............................................................................................. 30
9.1. MENU PROGRAM – START.................................................................................. 31
9.2. MENU PROGRAM – creation, administration......................................................... 34
9.3. MENU PUMP - Setting of pump pressure............................................................... 36
9.4. MENU CONFIG - Configuration of unit................................................................... 37

4
9.4.1.Remote control via the serial interface................................................................38
9.4.2.Keypad control or setpoint setting via the analog input .......................................39
9.4.3.AUTOSTART......................................................................................................39
9.4.4.OFF-MODE ........................................................................................................40
9.4.5.ACTVAR - actuating variable ..............................................................................40
9.4.6.Setting of clock and date ....................................................................................41
9.4.7.RESET – Factory settings ..................................................................................41
9.5. MENU CONTROL – Control characteristics and parameters ..................................41
9.5.1.CONTROL – Control INTERNAL / EXTERNAL...................................................43
9.5.2.SELFTUNING.....................................................................................................44
9.5.3.Dynamic internal.................................................................................................44
9.5.4.Control parameters– XP-, TN-, TV- INTERNAL ..................................................45
9.5.5.COSPEED - external ..........................................................................................46
9.5.6.Control parameters – XPU-, XP-, TN-, TV- EXTERNAL......................................46
9.6. MENU SERIAL - BAUDRATE, HANDSHAKE, PARITY...........................................47
9.7. MENU ATC - Absolut Temperature Calibration .......................................................48
9.7.1.ATC SENSOR - INTERNAL / EXTERNAL ..........................................................50
9.7.2.ATC STATUS - YES / NO...................................................................................50
9.7.3.CALIBRATION TYPE: 1 -/ 2 -/ 3 POINT .............................................................51
9.7.4.Example: 3-point calibration for internal control .................................................52
9.8. MENU LIMITS - Begrenzungen...............................................................................54
9.8.1.Limits for internal control.....................................................................................55
9.8.2.Limits for external control....................................................................................55
9.9. MENU IN/OUT – Analog inputs/outputs (Option).....................................................57
9.9.1.Outputs of the connector - REG+E-PROG..........................................................60
9.9.2.Input of the connector - REG+E-PROG ..............................................................61
9.9.3.ALARM-output / Stand-by-input ..........................................................................63
10. Troubleshooting guide / error messages......................................................................65
11. Electrical connections ..................................................................................................68
12. Remote control ............................................................................................................70
12.1. Setup for remote control..........................................................................................70
12.2. Communication with a PC or a superordinated data system ...................................70
12.3. List of commands....................................................................................................71
12.4. Status messages ....................................................................................................74
12.5. Error messages.......................................................................................................74
13. Installation of electronic module...................................................................................75
14. JULABO Service – Online remote diagnosis................................................................76
15. Cleaning / repairing the unit .........................................................................................77
16. WARRANTY PROVISIONS .........................................................................................78

HE / SE
5
Operating manual
1. Intended use
JULABO circulators have been designed to control the temperature of specific fluids in a bath tank.
The units feature pump connections for temperature control of external systems (loop circuit).
JULABO circulators are not suitable for direct temperature control of foods, semi-
luxury foods and tobacco, or pharmaceutical and medical products.
Direct temperature control means unprotected contact of the object with the bath
medium (bath fluid).
1.1. Description
1x10
ICC
TCF
ATC
3
RS232
Pt100
PUMP
SMART
The circulators are operated via the splash-proof keypad. The implemented
microprocessor technology allows to set and to store different values that can be
indicated on the VFD COMFORT-DISPLAY. Three menu keys facilitate adjusting
setpoints, warning and safety functions and menu functions.
Temperature- and time-dependent processes can be stored and executed using the
integrated programmer.
The control electronics including “ICC - Intelligent Cascade Control” automatically
adjust the heat supply to the thermal requirements of the bath.
The TCF -Temperature Control Features give the user access to all important
temperature control parameters. This means full control of the control behavior at all
times and the ability to manually adjust or adapt the controls to the specific
application.
Absolute Temperature Calibration (ATC3) provides high temperature stability at all
points in the bath. With the 3-point calibration, an offset is adjusted at three
temperatures to ensure an accurate temperature pattern at the selected spot in the
bath over the entire temperature range.
Electrical connections:
The serial interface, switchable from RS232 to RS485, allows modern process
technology without additional interface.
Connection for Pt100 external sensor for external temperature measurement and
control.
Alarm output for external alarm message or control of JULABO refrigerating baths
or solenoid valve (cooling water).
The electronic module (option) provides 3 further analog connections (alarm input,
standby input, recorder output, programmer input).
The excess temperature protection conforming to IEC 61010-2-010 is a safety
installation independent from the control circuit. This protection can be indicated
and set on the VFD COMFORT-DISPLAY.
The early warning system for low level signals that bath fluid needs to be refilled
before the low level protection conforming to IEC 61010-2-010 causes a complete
shutdown of the main functional elements.
Intelligent pump system: The pump capacity (electronically adjustable via the motor
speed) enables to adapt to varying conditions for internal and external temperature
applications.

Operator responsibility – Safety recommendations
6
2. Operator responsibility – Safety recommendations
The products of JULABO ensure safe operation when installed, operated, and maintained according to
common safety regulations. This section explains the potential dangers that may arise when operating
the circulator and also specifies the most important safety precautions to preclude these dangers as
far as possible.
The operator is responsible for the qualification of the personnel operating the units.
The personnel operating the units should be regularly instructed about the dangers involved with
their job activities as well as measures to avert these dangers.
Make sure all persons tasked with operating, installing, and maintaining the unit have read and
understand the safety information and operating instructions.
When using hazardous materials or materials that could become hazardous, the circulator may be
operated only by persons who are absolutely familiar with these materials and the circulator.
These persons must be fully aware of possible risks.
If you have any questions concerning the operation of your unit or the information in this manual,
please contact us!
Contact JULABO USA, Inc.
884 Marcon Boulevard
Allentown, PA 18109
Phone: [phone]
Fax: [phone]
info.us@ julabo.com
www.julabo.com
Safety instructions for the operator:
You have received a product designed for industrial use. Nevertheless, avoid strikes to the
housing, vibrations, damage to the operating-element panel (keypad, display), and contamination.
Make sure the product is checked for proper condition regularly (depending on the conditions of
use). Regularly check (at least every 2 years) the proper condition of the mandatory, warning,
prohibition and safety labels.
Make sure that the mains power supply has low impedance to avoid any negative effects on
instruments being operated on the same mains.
This unit is designed for operation in a controlled electromagnetic environment. This means that
transmitting devices (e.g., cellular phones) should not be used in the immediate vicinity.
Magnetic radiation may affect other devices with components sensitive to magnetic fields
(e.g., monitors). We recommend maintaining a minimum distance of 1 m.
Permissible ambient temperature: max. 40 °C, min. 5 °C.
Permissible relative humidity: 50% (40 °C).
Do not store the unit in an aggressive atmosphere.
Protect the unit from contamination.
Do not expose the unit to sunlight.
Appropriate operation
Only qualified personnel is authorized to perform configuration, installation, maintenance and repairs of
the circulator.
Routine operation can also be carried out by untrained personnel who should however be instructed by
trained personnel.

HE / SE
7
Use:
The bath can be filled with flammable materials. Fire hazard!
There might be chemical dangers depending on the bath medium used.
Observe all warnings for the used materials (bath fluids) and the respective instructions (safety data
sheets).
Insufficient ventilation may result in the formation of explosive mixtures. Only use the unit in well
ventilated areas.
Only use recommended materials (bath fluids). Only use non-acid and non corroding materials.
When using hazardous materials or materials that could become hazardous, the operator must affix
the enclosed safety labels to the front of the unit so they are highly visible:
If this unit is intended for use within the United States of America, all 3 warning labels must be affixed
to the housing of the unit prior to use.
Directions for the positioning of the individual warning labels are enclosed with the warning labels
included in the delivery.Warning labels must be easily visible to users.
1
Warning label W00: Colors: yellow, black
Danger area. Attention! Observe instructions.
(operating manual, safety data sheet)
2
or
Mandatory label M018: Colors: blue, white
Carefully read the user information prior to beginning operation.
Scope: EU
2
Semi S1-0701 Table A1-2 #9
Carefully read the user information prior to beginning operation.
Scope: USA, NAFTA
3
Warning label Proposition 65
Particular care and attention is necessary because of the wide operating range.
There are thermal dangers: Burn, scald, hot steam, hot parts and surfaces that can be touched.
Warning label W26: Colors: yellow, black
Hot surface warning.
(The label is put on by JULABO)
Observe the instructions in the manuals for instruments of a different make that you connect to the
circulator, particularly the respective safety recommendations. Also observe the pin assignment of
plugs and technical specifications of the products.

Operator responsibility – Safety recommendations
8
2.1. Disposal
The circulator contains a back-up battery that supplies voltage to memory chips when the unit is
switched off. Do not dispose of the battery with household waste!
Depending on battery regulations in your country, you might be obliged to give back used or defect
batteries to gathering places.
The product may be used with oil as bath fluid. These oils fully or partially consist of mineral oil or
synthetic oil. For disposal, observe the instructions in the safety data sheets.
Contact an authorized waste management company in your country.
Disposal with household waste (unsorted waste) or similar collections of municipal
waste is not permitted!

HE / SE
9
2.2. Technical specifications
Heating circulators
HE-4 SE-6 SE-12 SE-26
Working temperature range
°C
20 … 250
20 ... 300
20 ... 300
20 ... 300
Temperature stability
°C
±0.01
±0.01
±0.01
±0.01
Bath opening (WxL)
cm
13x15 13x15 22x15 22x30
Bath depth
cm
15
20
20
20
Filling volume
liters
3 ... 4,5 4,5 ... 6 7,5 ... 12 18 ... 26
Overall dimensions (WxDxH)
cm
21x42x40
21x43x44
30x43x47
36x61x47
Weight
kg
11 13,5 14,0 27,0
Bridge mounted circulator
SE-Z
Working temperature range
°C
20 ... 300
Temperature stability
°C
±0.01
Immersion depth max./min.
cm
18/9
Overall dimensions (WxDxH)
cm
32x17x33
Weight
kg
7
HE
SE
Mains power connection
V/Hz
208-230 / 50/60
208-230 / 50/60
Current draw (at 208 V / 230 V)
A
8 / 9
13 / 14
Mains power connection
V/ Hz
100-115 / 50/60
Current draw (at 100 V / 115 V)
A
9 / 10
All measurements have been carried out at: rated voltage and frequency
ambient temperature: 20 °C bath fluid: water operating temperature: 70 °C
Technical changes without prior notification reserved.
HE
SE
Temperature selection
digital
via keypad
indication on VFD COMFORT-DISPLAY
remote control via PC
indication on monitor
Temperature indication
VFD COMFORT-DISPLAY
Resolution
°C
0.01
0.01
ATC3 INT/EXT °C ±3 / ±9 ±3 / ±9
Temperature control
ICC - Intelligent Cascade Control
Heater wattage (at 230 V)
kW
2,0
3,0
Heater wattage (at 115 V)
kW
1,0
---
Electronically adj. pump capacity stages
1 ... 4
1 ... 4
Flow rate at 0 bar
l/min
22 ... 26
22 ... 26
Max. pressureat 0 liters
bar
0.7
0.7
Max. suction at 0 liters
bar
0.4
0.4
Electrical connections:
See page 10
Ambient temperature
°C
5 … 40
5 ... 40

Operator responsibility – Safety recommendations
10
Electrical connections:
External alarm device 24-0 V DC / max. 25 mA
Computer interface RS232 or RS485
External Pt100 sensor
Optional for HE, SE
(Order No. 8900100 Electronic module with analog connections)
Programmer input -100 °C to 400 °C = 0 - 10 V or 0 - 20 mA or 4 - 20 mA
Input for the signal of a flow meter or external manipulated variable
Temperature recorder outputs 0 - 10 V (0 V = -100 °C, 10 V = 400 °C)
0 - 20 mA (0 mA = -100 °C, 20 mA = 400 °C)
4 - 20 mA (4 mA = -100 °C, 20 mA = 400 °C)
Standby input for external emergency switch-off
Alarm output for external alarm signal
Safety installations according to IEC 61010-2-010:
Excess temperature protection adjustable from 0 °C ... 320 °C
Low liquid level protection float switch
Classification according to DIN 12876-1 class III
Supplementary safety installations
Early warning system for low level float switch
High temperature warning function optical + audible (in intervals)
Low temperature warning function optical + audible (in intervals)
Supervision of working sensor plausibility control
Reciprocal sensor monitoring between
working and safety sensors difference >35 K
Alarm message optical + audible (permanent)
Warning message optical + audible (in intervals)
Environmental conditions according to IEC 61 010-1:
Use indoors only.
Altitude up to 2000 m - normal zero.
Ambient temperature: see Technical specifications
Humidity:
Max. relative humidity 80% for temperatures up to +31 °C,
linear decrease down to 50% relative humidity at a temperature of +40 °C
Max. mains voltage fluctuations of ±10% are permissible.
Protection class according to IEC 60 529 IP21
The unit corresponds to Class I
Overvoltage category II
Pollution degree 2
Caution:
The unit is not suitable for use in explosive environment

HE / SE
11
EMC requirements
The device is an ISM device of group 1 per CISPR 11 (uses HF for internal purposes) and is
classified in class A (industrial and commercial sector).
Notice
•Devices of class A are intended for the use in an industrial electromagnetic environment.
•When operating in other electromagnetic environments, their electromagnetic
compatibility may be impacted.
•This device is not intended for the use in living areas and cannot guarantee adequate
protection of the radio reception in such environments.
Operating instructions
3. Safety notes for the user
3.1. Explanation of safety notes
In addition to the safety warnings listed, warnings are posted throughout the operating
manual. These warnings are designated by an exclamation mark inside an equilateral
triangle. “Warning of a dangerous situation (Attention! Please follow the
documentation).”
The danger is classified using a signal word.
Read and follow these important instructions for averting dangers.
Warning:
Describes a possibly highly dangerous situation. If these instructions are not
followed, serious injury and danger to life could result.
Caution:
Describes a possibly dangerous situation. If this is not avoided, slight or minor
injuries could result. A warning of possible property damage may also be contained in
the text.
Notice:
Describes a possibly harmful situation. If this is not avoided, the product or anything
in its surroundings can be damaged.
3.2. Explanation of other notes
Note!
Draws attention to something special.
Important!
Indicates usage tips and other useful information.
This icon is used in the operating instructions to indicate flashing values or
parameters
which have to be set or confirmed.

Safety notes for the user
12
3.3. Safety recommendations
Follow the safety instructions to avoid personal injury and property damage. Also, the
valid safety instructions for workplaces must be followed.
•Only connect the unit to a power socket with an earthing contact (PE – protective
earth)!
•The power supply plug serves as a safe disconnecting device from the line and
must always be easily accessible.
•Place the unit on an even surface on a base made of nonflammable material.
•Do not stay in the area below the unit.
•Make sure you read and understand all instructions and safety precautions listed in
this manual before installing or operating your unit.
•Set the excess temperature safety installation at least 25 °C below the fire point of
the bath fluid.
•Observe the limited working temperature range when using plastic bath tanks.
•Never operate the unit without bath fluid in the bath.
•Pay attention to the thermal expansion of bath oil during heating to avoid
overflowing of the fluid.
•Prevent water from entering the hot bath oil.
•Do not drain the bath fluid while it is hot!
Check the temperature of the bath fluid prior to draining (e.g., by switching the unit
on for a short moment).
•Use suitable connecting tubing.
•Avoid sharp bends in the tubing, and maintain a sufficient distance from
surrounding walls.
•Make sure that the tubing is securely attached.
•Regularly check the tubing for material defects (e.g., for cracks).
•Never operate damaged or leaking units.
•Always turn off the unit and disconnect the mains cable from the power source
before performing any service or maintenance procedures, or before moving the
unit.
•Always turn off the unit and disconnect the mains cable from the power source
before cleaning the unit.
•Always empty the bath before moving the unit.
•Transport the unit with care.
•Sudden jolts or drops may cause damage in the interior of the unit.
•Observe all warning labels.
•Never remove warning labels.
•Never operate units with damaged mains power cables.
•Repairs are to be carried out only by qualified service personnel.
Some parts of the bath tank and the pump connections may become extremely hot
during continuous operation. Therefore, exercise particular caution when touching
these parts.

HE / SE
13
Caution:
The temperature controlling i.e. of fluids in a reactor constitutes normal circulator
practice.
We do not know which substances are contained within these vessels.
Many substances are:
•inflammable, easily ignited or explosive
•hazardous to health
•environmentally unsafe
i.e.: dangerous
The user alone is responsible for the handling of these substances!
The following questions shall help to recognize possible dangers and to reduce the
risks to a minimum.
•Are all tubes and electrical cables connected and installed?
Note:
sharp edges, hot surfaces in operation, moving machine parts, etc.
•Do dangerous steams or gases arise when heating?
Is an exhaust needed when working?
•What to do when a dangerous substance was spilled on or in the unit?
Before starting to work, obtain information concerning the substance and
determine the method of decontamination.
Notice: Check the safety installations at least twice a year!
•Excess temperature protection according to IEC 61010-2-010.
With a screwdriver turn back the adjustable excess temperature protection until the
shut-down point (actual temperature).
•Low level protection according to IEC 61010-2-010.
To check the function of the float, it can be manually lowered with a screwdriver for
example.
WARNING
This product contains chemicals known to the state of California to cause cancer, birth
defects or other reproductive harm.

Operating controls and functional elements
14

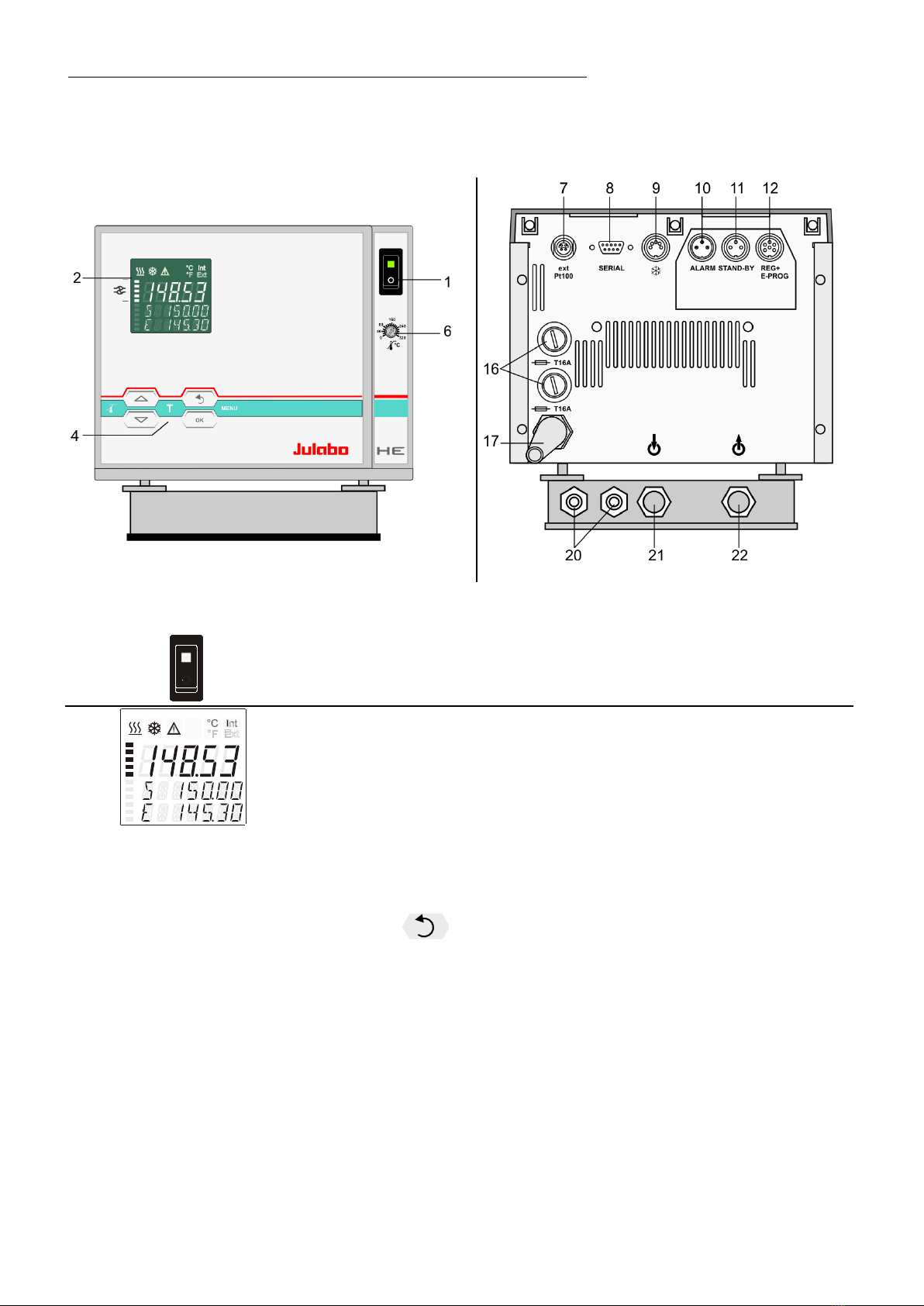

4. Operating controls and functional elements
Front view Rear view
1
Mains power switch, illuminated
2
VFD COMFORT-DISPLAY
Header: Control indicators
Line 1: Actual value internal or external
The display is depending on the selected control mode in the
menu > Control < (internal or external).
Line 2: Working temp. setpoint, constantly S xxx.xx
Line 3: Actual value (E = external or I = internal)
Alternating with the display in line 1
Use the keys to indicate further values in line 3
PI Capacity in % - with manipulated variable set to >control<*
PS Capacity in % - with manipulated variable set to >serial<* or
>eprog<*
H Heater capacity in Watts
U Mains voltage Volts
F Flow rate in liters/minute
(providing EPROG input set to >Flowrate<)
*refer to >MENU/CONFIG< >CONFIG / ACTVAR>

HE / SE
15
2.1
Control indicators in the header:
Heating / Cooling / Alarm /
Remote control
2.2
Control indicators in the header:
Temperature indication Internal or External actual value
Temperature indication in °C (°F not possible on this unit)
2.3
Display of set pump pressure stage
Four stages, can be set via the key , under >MENU - PUMP<.
4 Navigation keys
4.1
1. Key: >OK< Start / Stop (pump / heater )
2. >OK< in the menu Menu item / select submenu for setting
Save set value
Save selected parameter
A beep signals the end of setting
After the actions Start, Stop and change from VFD Display to standard
display the key is locked for a short time.
The above graph “front side” shows an example for standard display.
4.2
1. Key: >Return< Stop (pump / heater )
2. >Return< in the menu one menu level down
Correction function for parameters or values (prior to OK)
immediately back to standard display
- icon for „keep key pressed down“.
4.3
1. Key: >Up / Down <temperature – increase/decrease setpoint
Push key quickly for single steps,
Keep key pressed for fast change.
2. >Up/Down< in the menu selection of menu items / parameters
Menu keys
4.4 Key: start the menu > warning and safety values<
4.5 Key: start the menu >temperature setpoints<
4.6 Key: display of MENU structure
6
Adjustable excess temperature protection according to IEC 61010-2-010

Operating controls and functional elements
16
7
ext Pt100
Socket for external measurement and control sensor
or external setpoint programming
8
SERIAL
Interface RS232: remote control via personal computer
9
Socket: control cable of JULABO refrigerated circulator
or output for alarm messages
Option: Electronic module Order No. 8 900 100
10
ALARM
Alarm output (for external alarm signal)
11
STAND-BY
Standby input (for external emergency switch-off)
12
REG+E-PROG
Programmer input and temperature recorder output
16
Mains fuses, T16A
17
Mains power cable with plug
20
Cooling coil connectors
21
Pump connectors suction pump pressure pump

HE / SE
17
5. Preparations
5.1. Installation
Heating circulators
•Place the unit on an even surface
on a base made of
nonflammable material.
Bridge mounted circulator SE-Z
•Place the bath tank in an upright
position.
1. Remove screw on both sides (transportation safety device in
the middle).
2. Extend the bridge and place it on the bath tank.
The bridge is extendable from 310 mm to 660 mm.
3. Adjust the bridge to the width of the bath tank.

Preparations
18
5.2. Bath fluids
Caution:
Carefully read the safety data sheet of the bath fluid used, particularly with regard to
the fire point!
If a bath fluid with a fire point of ≤65 °C is used, only supervised operation is possible.
Water: The quality of water depends on local conditions.
•Due to the high concentration of lime, hard water is not suitable for temperature
control because it leads to calcification in the bath.
•Ferrous water can cause corrosion - even on stainless steel.
•Chloric water can cause pitting corrosion.
•Distilled and deionized water is unsuitable. Their special properties cause
corrosion in the bath, even in stainless steel.
Recommended bath fluids:
Bath fluid
Temperature range
soft/decalcified water
5 °C to 80 °C
See website for list of recommended bath fluids.
ATTENTION: The maximum permissible viscosity is 70 mm2/s.
Caution:
Fire or other dangers when using bath fluids that are not recommended:
Please contact JULABO before using other than recommended bath fluids.
Use only nonacidic and noncorrosive bath fluids.
JULABO assumes no liability for damage caused by the selection of an unsuitable
bath liquid.
Unsuitable bath fluids are fluids which, e.g.,
•are highly viscous
(much higher than recommended at the respective working temperature)
•have a low viscosity and have creep characteristics
•have corrosive characteristics or
•tend to crack.
•No liability for use of other bath fluids!

HE / SE
19
5.3. Temperature application to external systems
Caution: Securely attach all tubing to prevent slipping.
If the circulator is operated without external system, close the pump connector (22)
with the cap nut.
Temperature application to external, closed systems
T16A
T16A
ext
Pt100
SERIAL ALARM REG+
E-PROG
STAND-BY
21 22
The circulator is used for temperature application to external,
closed systems (loop circuit) with simultaneous temperature
application in the circulator bath.
•Unscrew the M16x1 collar nuts on the pump connectors with
a 19 mm (3/4“) wrench and remove the sealing disks. Using
the collar nuts, screw on the tubing connection fittings (for
tubing 8 mm or 12 mm in diameter) delivered with the unit
and tighten firmly. (Pressure pump: 22, suction pump: 21)
•Push on the tubings, and secure with tube clamps.
•Attach the tubings to the connectors of the external closed
system, e.g., an instrument with a pressure-resistant
temperature jacket or a temperature coil, and fasten with
tube clamps to prevent slipping.
Temperature application to external, open systems
S = Suction pump connection
D = Pressure pump connection
K = Float
H = Height adjustment
The circulator is equipped with both a pressure and suction pump
for external temperature application in open systems.
Differing flow rates of the pressure and suction pumps should be
compensated. To maintain a constant liquid level, the JULABO
„D+S“ Level Adapter is recommended for the external bath tank.
The flow rate of the pressure pump will be then regulated by a
built-in float device. The liquid level may be changed by a height
adjustment on the „D+S“ Level Adapter.
Accessory: „D+S“ Level Adapter Order No. 8 970 410
Important:
The liquid level should be equal in the internal and external
baths (absolute height).
If you take out samples (for example Erlenmeyer flasks) from
the external bath, turn the circulator off with the Start/Stop key.

Preparations
20
Return flow safety device
If the liquid levels in the circulator bath and the external system are at
different heights, overflowing must be prevented after the power has
been turned off.
Flood hazard!
For this reason, shut-off valves can be integrated in the loop circuit.
Order No. Description
8 970 456 Shut-off valve (suitable up to +90 °C)
8 970 457 Shut-off valve (suitable up to +200 °C)
5.3.1. Tubing
Recommended tubing:
Order No. Length
Temperature range
8930008 1 m
CR® tubing 8 mm inner dia.
-20 °C to 120 °C
8930012 1 m
CR®tubing 12 mm inner dia.
-20 °C to 120 °C
8930108 1 m
Viton tubing 8 mm inner dia.
-35 °C to 200 °C
8930112 1 m
Viton tubing 12 mm inner dia.
-35 °C to 200 °C
8930410 1 m
Insulation for tubing 8 mm inner dia.
-50 °C to 100 °C
8930412 1 m
Insulation for tubing 12 mm inner dia.
-50 °C to 100 °C
8 930 209 0.5 m
8 930 210 1.0 m
8 930 211 1.5 m
8 930 214 3.0 m
Metal tubing, triple insulated, M16x1
-100 °C to +350 °C
8 930 220 0.5 m
8 930 221 1.0 m
8 930 222 1.5 m
8 930 223 3.0 m
Metal tubing, insulated, M16x1
-50 °C to +200 °C
Warning: Tubing:
At high working temperatures the tubing used for temperature application and cooling
water supply represents a danger source.
A damaged tubing line may cause hot bath fluid to be pumped out within a short time.
This may result in:
•Burning of skin
•Difficulties in breathing due to hot atmosphere
Safety recommendations
•Employ suitable connecting tubing.
•Make sure that the tubing is securely attached.
•Avoid sharp bends in the tubing, and maintain a sufficient distance from
surrounding walls.
•Regularly check the tubing for material defects (e.g. for cracks).
•Preventive maintenance: Replace the tubing from time to time.
