Jung eNet FMUD5500REG User manual

eNet radiografische dimactor 1-voudig, voor DIN-rail
eNet radiografische dimactor 1-voudig, voor DIN-rail
Art. no.: FMUD5500REG
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage. The load
is not electrically isolated from the mains even when the device is switched off.
Danger of electric shock. During installation and cable routing, comply with the regulations and
standards which apply for SELV circuits.
Risk of destruction if the set operating mode and load type do not match. Set correct operating
mode when connecting or exchanging the load.
Fire hazard. For operation with inductive transformers, each transformer must be fused on the
primary side in accordance with the manufacturer's instructions. Only safety transformers ac-
cording to EN 61558-2-6 may be used.
Fire hazard! Operation exclusively with the power supplies listed under accessories
These instructions are an integral part of the product, and must remain with the end customer.
2 Intended use
– Switching and dimming of lighting
– Operation with power supply RMD and receiver module RMD cover or eNet server (see
accessories)Operation with power supply RMD and receiver module RMD cover or eNet
server (see accessories)
– Operation with suitable radio transmitters
– Installation in small distributors on DIN rail according to EN 60715
Product characteristics
– Switch-on via bulb-preserving soft start
– Switch-on brightness can be saved permanently
– Minimum brightness can be saved permanently
– Scene operation possible
– Status indication with LED
– Status feedback to radio transmitter
– Switchable with Prog. button
– Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
– Electronic over-temperature protection
– Automatic or manual setting of the dimming principle suitable for the load
– It is possible to increase power by means of power packs
Can be set with eNet server:
– Maximum brightness
– Dimming speed
– Switch-on delay / switch-off delay
– Dim up/dim down ramp
– Switch-off warning
1 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
– Operation locks
– Continuous on, Continuous off
– Hotel function
– Run-on time
– Light control
Supplementary functions with eNet Server:
– Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
– Update of the device software
– Reading of error memory
Behaviour in case of bus voltage failure and return
If the bus voltage fails, the actuator switches off. The response to bus voltage return can be
parameterised with eNet server. Default setting: Off.
3 Operation
When operating with the eNet Server, operation and signalling could vary from what is de-
scribed here.
Operation with radio transmitters
Operation is with radio transmitters, please observe the radio transmitter instructions.
Operation with Prog button
Switching the light
￭ Press button Prog (3) briefly.
The light switches on or off at the saved switch-on brightness.
Status-LED (4) lights up: output is switched on.
Status-LED (4) off: output is switched off.
Save switch-on brightness
￭ Set the light with a connected radio transmitter to the required brightness.
￭ Press the Prog button for longer than 4 seconds.
The light switches off briefly and then switches on again to the new switch-on brightness.
Switch-on brightness is saved.
Alternatively, the switch-on brightness can be saved with a radio transmitter, e.g. wall
transmitter.
4 Information for electrically skilled persons
4.1 Fitting and electrical connection
DANGER!
Mortal danger of electric shock.
Before carrying out work on the device or load, disengage all the corresponding cir-
cuit breakers. Cover up live parts!
Fitting the device
Observe the temperature range. Ensure adequate cooling. Maintain a distance of
18 mm (1 module) between the devices when operating multiple dimmers or power units within
a sub-division.
￭ Mount device on DIN rail. Output terminals must be at the top.
2 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
Connect bus line
Figure1: Connection diagram of bus line
Labelling / Colour Connection
DC– / GY dark grey Power supply –
DC+ / RD red Power supply +
Bus– / WH white Data cable –
Bus+ / YE yellow Data cable +
As bus line, use e.g. J-Y(St)Y 2x2x0.8
￭ Connect the device with bus line (Figure 1) to the RMD reception module and power sup-
ply (see instructions of RMD reception module and power supply).
Connect the load
Figure2: Connection diagram
(1) Load connection
3 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
(2) Operating mode switch
(3) Button Prog
(4) Status LED
(5) Bus line connection
Connect 600 Watt LED lamps or compact fluorescent lamps at most per 16ampere circuit
breaker. When connecting transformers, observe the data of the transformer manufac-
turer.
Our dimmers take into account the different electronic characteristics of most LED lamps
found on the market. However, it cannot be guaranteed that in individual cases the de-
sired results may not be achieved.
Figure3: Clampable conductor cross-section
￭ Connect the load according to connection diagram (Figure 2)
Presetting the operating mode
Figure4: Operating mode switch
Switch position Function/connectable loads
PC Dimming principle and parameter set with eNet Server.*)
R,L,C
Universal
Automatic calibration to the load, leading edge phase control
or trailing edge phase control. Connection of incandescent
lamps, HV halogen lamps, electronic transformers for halo-
gen or LED lamps or dimmable inductive transformers for
halogen or LED lamps.
HV-|
LED leading edge phase control
Setting for incandescent lamps, HV halogen lamps, elec-
tronic transformers with halogen or LED lamps that can be
dimmed according to the trailing edge phase control principle
or dimmable HV-LED or compact fluorescent lamps that can
be dimmed according to the leading edge phase control prin-
ciple. The connection of inductive transformers is not permit-
ted.
HV-{
LED trailing edge phase control
Setting for incandescent lamps, HV halogen lamps, elec-
tronic transformers with halogen or LED lams that can be
dimmed according to the trailing edge phase control prin-
ciple, dimmable HV-LED or compact fluorescent lamps that
can be dimmed according to the trailing edge phase control
principle. The connection of inductive transformers is not per-
mitted.
min. Setting of the minimum brightness
4 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
*) If the operating mode switch is turned from the position PC, the operating mode and
parameters are set to the default setting. The settings made with the eNet Server will
be lost.
When setting the minimum brightness, the parameter settings remain unchanged.
￭ Set the operating mode switch.
￭ Switch on mains voltage.
4.2 Commissioning
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
During commissioning, cover the parts carrying voltage on radio transmitters and
actuators and in their surrounding area.
The actuator can also be commissioned with eNet Server as an alternative to the commis-
sioning described here.
Connecting with radio transmitter
Load is switched off.
￭ Press the Prog button for longer than 4 seconds.
The status LED (4) flashes after 4 seconds. The actuator is in programming mode for
approx. 1 minute.
￭ Switch radio transmitter to programming mode (see radio transmitter instructions).
￭ Trigger telegram on the radio transmitter.
The status LED lights up for 5 seconds.
The actuator is connected to the radio transmitter. The actuator and radio transmitter exit
the programming mode automatically.
If the status LED of the actuator flashes 3 times at 1-second intervals for approx.
5 seconds, then the programming procedure was not successful. All the memory locations
in the actuator or radio transmitter are occupied.
All On and All Off buttons of a radio transmitter are connected to the actuator automatic-
ally as soon as the first connection to a radio transmitter takes place. Scene buttons must
be connected separately.
Disconnecting connection to a radio transmitter
￭ Carry out the same steps as when connecting (see Connecting to radio transmitter).
The status LED (4) flashes quickly for 5 seconds. The actuator is disconnected from the
radio transmitter. The actuator and radio transmitter exit the programming mode automat-
ically.
If there several connections or scene buttons for a radio transmitter, all connections must
be disconnected individually.
All On and All Off buttons of a radio transmitter are disconnected automatically as soon as
the last connection to the radio transmitter is disconnected. Manual disconnection is not
possible.
Resetting actuator to default setting
All connections to radio transmitters are disconnected and parameters are reset to default set-
ting. If the operating mode switch is on PC, the dimming principle universal, automatic calibra-
tion to the load, is set.
The connections in the radio transmitters are preserved and must be deleted separately.
5 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
Load is switched off.
￭ Press the Prog button for at least 20 seconds.
The status LED flashes after 4 seconds. After 20 seconds the status LED flashes faster.
￭ Release Prog button and press briefly once again within 10 seconds.
The status LED flashes more slowly for approx. 5 seconds.
The actuator is reset to default setting.
Setting the minimum brightness
The minimum brightness can be set within a range of approx. 1...67 %, if, e.g. the light flickers
at low brightness or to compensate for differences in brightness.
￭ Turn operating mode switch (1) to the min. position.
￭ Adjust brightness with the radio transmitter.
￭ Turn operating mode switch to the original position again.
When leaving the position min., the minimum brightness is saved.
Save switch-on brightness
See operation.
5 Technical data
Rated voltage AC 230 V~
Mains frequency 50 / 60 Hz
Power loss max. 4 W
Standby power max. 0.3 W
Ambient temperature -5 ... +45 °C
Connected load at 35°C (Figure 5)
Power specifications including transformer power dissipation.
Operate inductive transformers with at least 85% nominal load.
For ohmic-inductive mixed load, maximum 50% proportion of ohmic load. Otherwise in-
correct calibration of the dimmer may result.

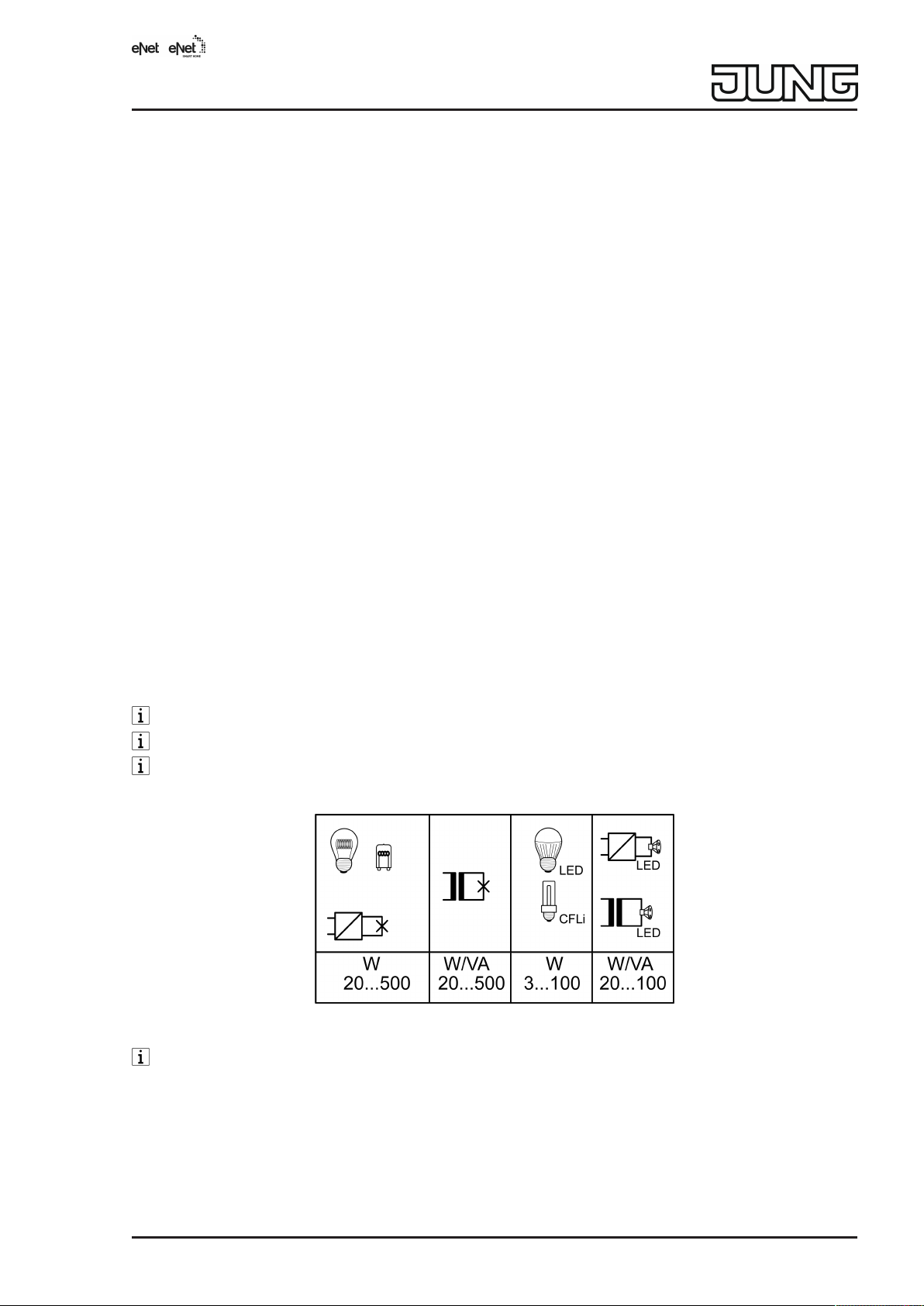

Figure5: Connected load
If the operating mode is set to HV { LED trailing edge phase control, the maximum
connected load for LED lamps increases to typ. 200 W.
Mixed load
ohmic-inductive 20 ... 500 VA
ohmic-capacitive 20 ... 500 VA
capacitive-inductive not permitted
Ohmic and HV LED typ. 3 ... 100 W
6 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
Ohmic and compact fl lamp. typ. 3 ... 100 W
Power reduction
per 5°C in excess of 35°C -5%
Power boosters See power booster instructions
Total length power cable per channel 100 m
Fitting width 36 mm / 2 module
RMD bus
Rated voltage DC 12 V SELV
Current consumption 10 mA
Connection, Bus device connection terminal
Cable length max. 3 m
6 Parameter list
The device parameters can be changed with the eNet server:
Device and channels
Parameters Setting options, Basic setting Explanations
Function Light, unused
Basic setting: Light
Light
The channel is integrated for
the "Lighting" central function
in the eNet SMART HOME
app.
Unused
The channel is not displayed
in the eNet SMART HOME
app and is disabled for use in
the commissioning interface.
Operating mode Normal operation
Continuous on
Continuous off
Basic setting: Normal Opera-
tion
Normal operation
The output can be operated
with radio transmitters and the
Prog button.
Continuous on
The output switches to con-
tinuously "On". All operations
of radio transmitters and the
Prog button are ignored.
Continuous off
The output switches to con-
7 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
Parameters Setting options, Basic setting Explanations
tinuously "Off". All operations
of radio transmitters and the
Prog button are ignored.
Advanced device settings
Parameters Setting options, Basic setting Explanations
Manual commissioning On, Off
Basic setting: On
Blocks manual commissioning
for the device channel.
Note: In the "Off" setting, the
device cannot be reset to the
factory setting.
Channel settings
Parameters Setting options, Basic setting Explanations
Switch-on brightness 1...100 %
Basic setting: 100 %
During brief operation, the out-
put switches on at the set
switch-on brightness.
Note: If the value is above the
set maximum brightness or
below the minimum bright-
ness, then the system will
switch to the appropriate limit
value.
Minimum brightness 1...67 %
Basic setting: 5 %
Specifies the minimum set-
table brightness.
Note: If parameters or scene
values are set to a level lower
than the minimum brightness,
then the system will dim to
minimum brightness.
Maximum brightness 75...100 %
Basic setting: 100 %
Specifies the maximum set-
table brightness.
Note: If parameters or scene
values are set to a level higher
than the maximum brightness,
then the system will dim to
maximum brightness.
Dimming adjustment time 1…60 s
Basic setting: 4 s
Time from minimum bright-
ness until reaching maximum
brightness (dimming speed).
Switch-on delay 0 s … 24 h
Basic setting: 0 s
The load switches on after a
delay. Repeated switch-on
commands restart the delay
time. If the load has not yet
been switched on due to the
delay when a switch-off com-
mand comes, then the load
will remain off.
Note: The set time apply to
operation using radio transmit-
ters. The device is switched
immediately when the Prog
button is pressed.
8 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
Parameters Setting options, Basic setting Explanations
Switch-off delay 0 s … 24 h
Basic setting: 0 s
The load switches off after a
delay. Repeated switch-off
commands restart the delay
time. If the load has not yet
been switched off due to the
delay when a switch-on com-
mand comes, then the load
will remain on.
Note: The set time apply to
operation using radio transmit-
ters. The device is switched
immediately when the Prog
button is pressed.
Dim up ramp 0 s … 24 h
Basic setting: 0 s
Time between switch-on and
reaching switch-on brightness.
The light is switched on at
minimum brightness and then
dimmed to the switch-on
brightness.
Only applies to switch-on with
transmitters (short operation).
If scenes are recalled or
switching uses logic modules,
the switch-on brightness is ap-
proached using so-called soft
dimming (not configurable).
Dim down ramp 0 s … 24 h
Basic setting: 0 s
Time until reaching minimum
brightness. The light is
dimmed to minimum bright-
ness and then switched off.
Only applies to switch-off with
transmitters (short operation).
If scenes are recalled or
switching uses logic modules,
the system switches off dir-
ectly.
Run-on time 0 s … 24 h
Basic setting: 0 s
As soon as a run-on time has
been entered, the actuator will
no longer remain on perman-
ently, but only for the length of
the run-on time. The run-on
time is restarted if actuation is
repeated. This parameter is
directly connected to the
"Manual switch-off of run-on
time" parameter.
Note: The set time apply to
operation using radio transmit-
ters. The device is switched
immediately when the Prog
button is pressed.
Manual switch-off of the run-
on time
On, Off
Basic setting: Off
Allows manual switch-off of a
running run-on time. If the
parameter is switched off,
then a switch-off command
9 / 16
82581633 11.10.2019
J0082581633

eNet radiografische dimactor 1-voudig, voor DIN-rail
Parameters Setting options, Basic setting Explanations
will also switch the actuator
on. Only visible if a run-on
time was set.
Operating hours 0...65535
Basic setting: Current value
The time is counted during
which the load is physically
switched on.
This parameter can be reset
to "0", for example after ex-
changing the load.
The Reset button is used to
reset the counter to "0". The
device must be programmed
to apply the change.
Extended channel settings
Parameters Setting options, Basic setting Explanations
Operating mode Normal operation
Continuous on
Continuous off
Basic setting: Normal Opera-
tion
see Device and channels
Manual commissioning On, Off
Basic setting: On
Blocks manual commissioning
for the device channel.
Note: In the "Off" setting, the
device cannot be reset to the
factory setting.
Local Operation On, Off
Basic setting: On
Blocks the output for operation
using the Prog button.
Dimming principle Universal
LED leading edge phase con-
trol
LED trailing edge phase con-
trol
Leading edge phase control
Trailing edge phase control
Basic setting: Universal
Specifies the dimming prin-
ciple for the selected output.
Universal
Automatic calibration to the
load, dimming principle, lead-
ing edge phase control or trail-
ing edge phase control. Con-
nection of incandescent
lamps, HV halogen lamps,
Tronic transformers for halo-
gen or LED lamps or dim-
mable inductive transformers
for halogen or LED lamps.
LED leading edge phase con-
trol
Setting for phase-dimmable
HV-LED or compact fluores-
cent lamps that can be
dimmed according to the lead-
ing edge phase control prin-
ciple.
LED trailing edge phase con-
trol
10 / 16
82581633 11.10.2019
J0082581633
