Juntek DPM8600 Series User manual

1
1

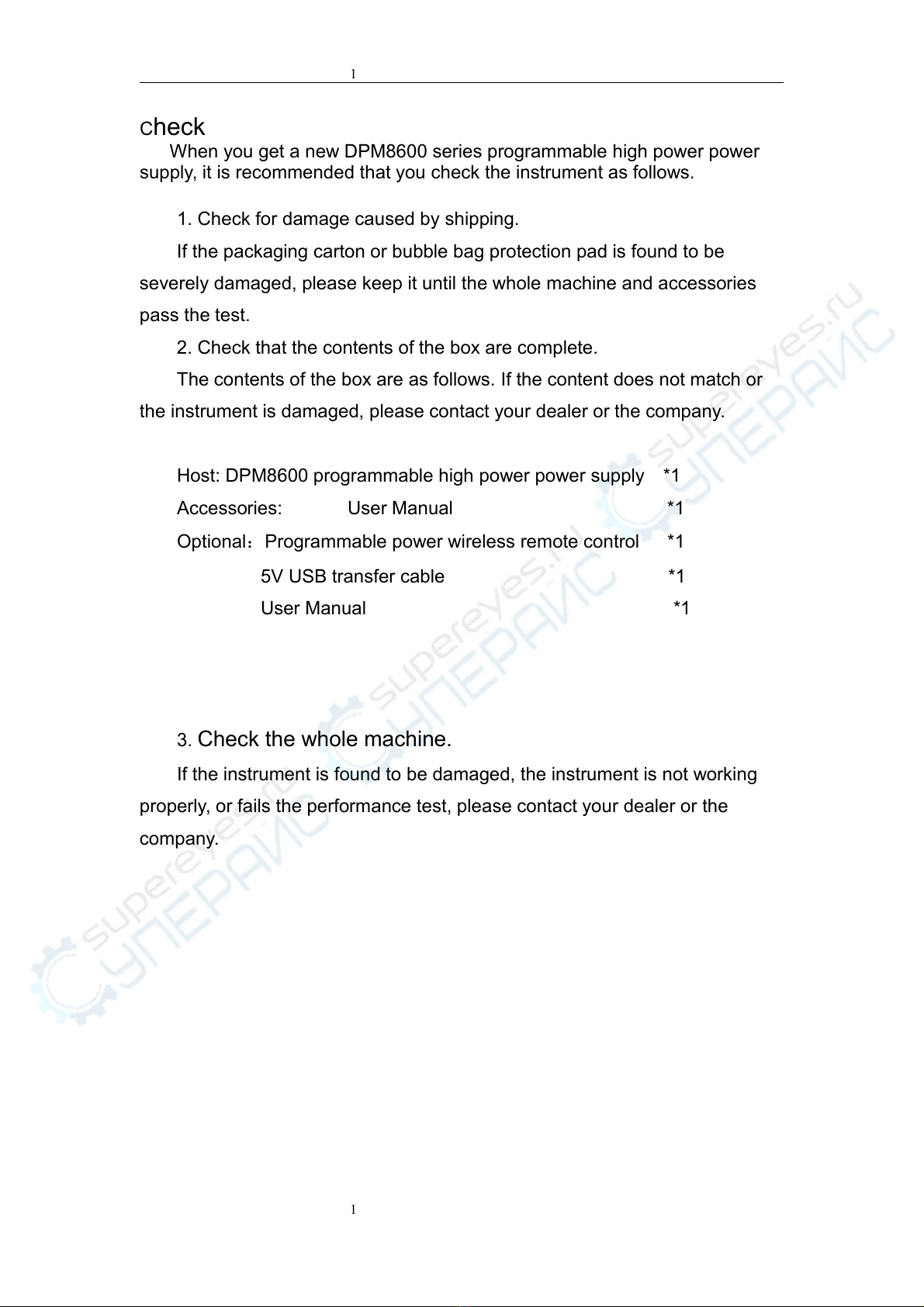

C heck
When y o u g e t anew DPM8600 series programmable highpower power
supply, i t i s recommended thaty o u check theinstrument asfollows.
1.Check fordamage caused byshipping.
Ifthepackaging carton orbubble bag protection pad i s found tobe
severely damaged, please keep i t until thewhole machine and accessories
pass thetest.
2.Check that thecontents ofthebox arecomplete.
Thecontents oftheboxareasfollows. Ifthecontent does not matchor
theinstrument i s damaged, please contact your dealer orthecompany.
H o s t : DPM8600 programmable highpower power supply *1
Accessories: U s e r Manual *1
Optional：Programmable power wireless r e m o t e control *1
5VU S B transfer cable *1
U s e r Manual * 1
3.Check thewhole machine.
Iftheinstrument i s found tobedamaged, theinstrument i s notworking
properly, orfails theperformance test, please contact your dealer orthe
company.

2
2
The DPM8600 series power supplies are single output programmable
high power switching power supplies, large output power, small size，
beautifully structured. At the same time, it is equipped with TTL serial
communication interface and RS485 communication interface, which
provides serial communication protocol, it can also be applied to modbus-
RTU communication protocol, supports user secondary development, can
provide multi-purpose solution according to your design and testing
requirements. DPM8600 series can be equipped with wireless remote
control. The wireless controller adopts 2.4-inch LCD screen. It has rich
display content, simple operation, built-in lithium battery, can be recharged,
and it can control the switching power supply within 10 meters wirelessly . A
wireless controller can control multiple switching power supplies
simultaneously.
Modular power supply is applied in several aspects.
1. power, mainly integrated and ammeter and smart meter, LED driver.
2. industrial control, industrial control.
3. medical treatment, medical equipment, mainly include tyre protector,
monitor and so on.
4. military industry, military industry is a widely applied aspect. In
military equipment.
5.solar voltage regulation, battery charging and discharging.

3
3
【Switching power supply instructions】
The following description uses the DPM8624 as an example. The
DPM8608 operates in the same way as the DPM8624. The difference is in the
current display. The DPM8608 and DPM8605 currents display three decimal
places such as: 3.000, and the DPM8624 and DPM8616 currents display two
decimal places such as 03.00.

4
4

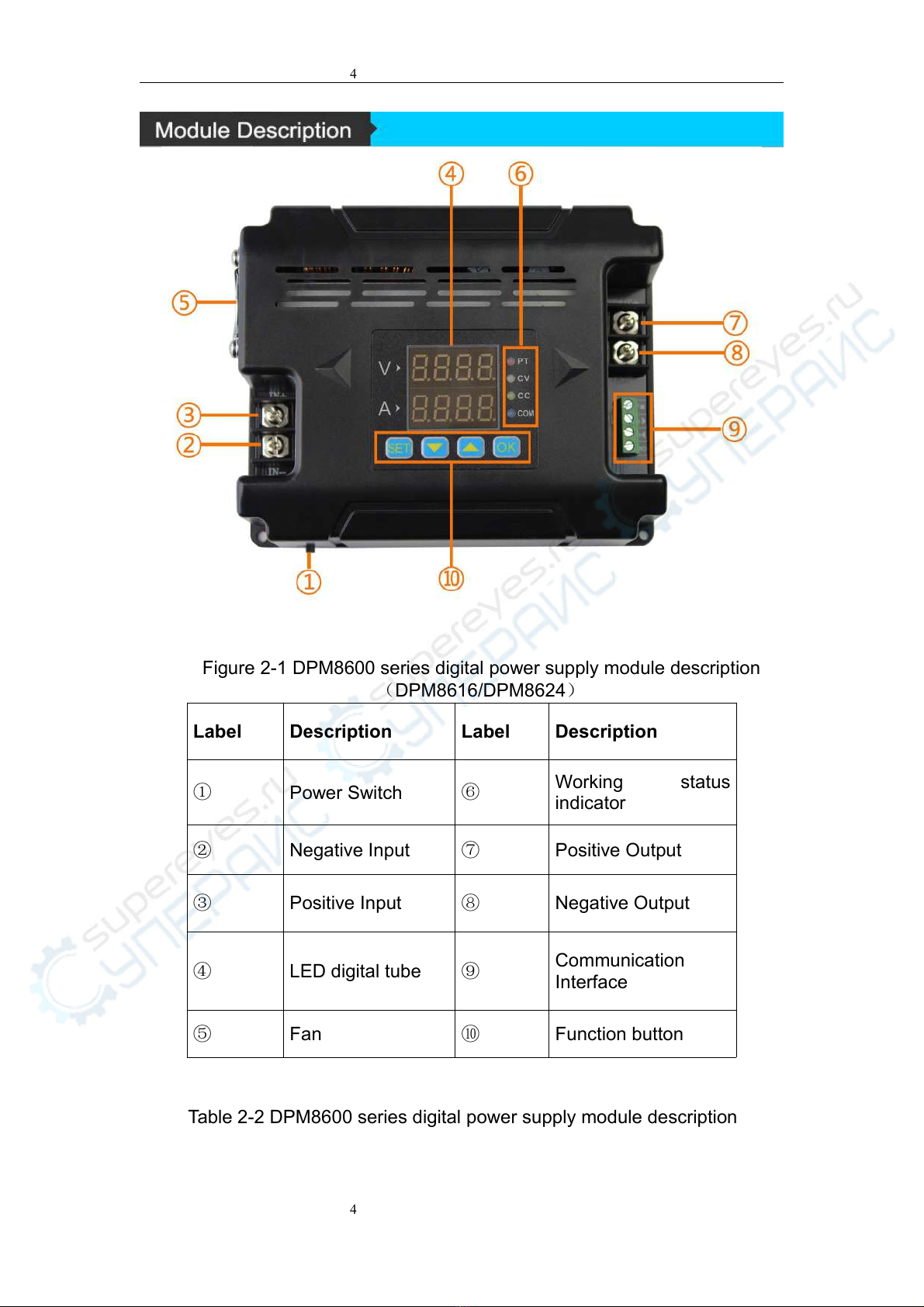

Figure 2-1 DPM8600 series digital power supply module description
（DPM8616/DPM8624）
Label
Description
Label
Description
①
Power Switch
⑥
Working status
indicator
②
Negative Input
⑦
Positive Output
③
Positive Input
⑧
Negative Output
④
LED digital tube
⑨
Communication
Interface
⑤
Fan
⑩
Function button
Table 2-2 DPM8600 series digital power supply module description

5
5
Table 2-2 Display description of DPM8600 series power supply

6
6
PT: Overheat protection indicator, when the
temperature is greater than 80 °C, the PT light
is on to indicate overheat protection.
CV: Constant voltage indicator, CV indicator light
indicates constant voltage output.
CC: Constant current indicator, CC indicator light
indicates constant current output.
COM: Communication indicator, when there is an
instruction input, the COM light will be on, indicating
communicating.
First, the use of voltage and current adjustment and
shutdown output instructions
Connect the input and output correctly to ensure that the input voltage is
within the required range. Reverse connection is strictly prohibited. The input
voltage must be higher than the output voltage by more than 0.5V.
Note: Input voltage range: 10V~75V;
Output current range: 0~16A (DPM-8616), 0~24A (DPM-8624);
Output voltage range: 0~60V.
2. Set the required voltage and current values. It should be noted that the
“V ”digital tube displays the voltage, the “A ”digital tube displays the current,
the decimal point of the voltage display value is in the second position (such
as 00.00), and the decimal point of the current display value is in the first
position (such as 0.000). After the setting is completed, press OK to turn on
the output. At this time, the CV or CC light is on to indicate that the output
state is turned on. The method of setting the voltage and current value is as

7
7
follows (blue indicates digital flashing):
Save and Load function instructions
Press the up or down button on the voltage and current display interface to
enter the save and load function, as well as the temperature display and
calibration functions.
The specific operations are as follows:
The default setting
is 5V, 3A.
Short press ,a
certain value flashes.
Short press
many times,the
flashing bit will move
at different bits of
voltage and current.
The value can
be change the value
by pressing and ,
for example, adjust
12V, 5A,
press button to exit
the adjustment state.
Press to turn
the output on and off,
as the load current is
less than the set
current, the output is
constant voltage
output, and the CV
light is on.
As the load
current reaches the set
current, the output is
the set current,
constant current
output, CC light is on.

8
8
Press to
switch to the below
interface.
Press to
switch to the below
interface.
Press to load
settings of M0.or
press to enter
next interface.
Press or
to adjust to M3,
press OK to load
settings of M3.
Press to load
settings of M9.or
press to enter
next interface.
Press to retum main
interface,or press to
calibrate the display
data. For details of the
calibration, please see
the function description
below.
Press or to
exit the temperature
display interface.
Press button to
save to M0.or
press to enter
next interface.
Press button to
save to M9.or
Press to enter
next interface.
Press or to
adjust to M3, press
OK to save 12V, 5A
to M3.

9
9
Corr calibration function introduction
1.When the set voltage is greater than 20V, for example, 25V is set as the
output voltage, but the load is not connected, the display voltage of 25V and
the current of zero point (that is, the current is calibrated to zero) are
calibrated.
2.When the output is turned off, the display voltage of zero and the display
current of zero are calibrated.
3.When the output is short-circuited and the current output is greater than 2A,
for example, setting the current output as 3A, the calibration current value of
3A is calibrated.
Temperature display and fan speed introduction
The temperature is displayed as the temperature of the instrument, which can
control the fan speed and over-temperature protection. When the temperature
is greater than 40 °C, the fan starts working, and the fan speed increases by 1
level for every 5 °C increase. When the temperature reaches 60 °C, the fan
rotates at maximum wind speed, when the temperature is greater than 80 °C,
the product over temperature protection automatically turns off the output.
SET function setting operation instructions
Long press button can enter the SET function setting, then short press
button can be switched in 1-SA, 2-dF, 3-on, 4-Fd, 5-CS, 6-bd, 7-Ad, etc.,
and then in each function interface.In each function interface, you can change
the sub-options in each function setting by pressing the 、keys, and
press the button to confirm the setting.
For details on the interface display, please refer to the
table below.
Examples are as follows:

10
10
Default interface.
Long press to
enter the voltage and
current upper and lower
limit save interface, change
the sub-option by pressing
and , 10 means the
current voltage and current
value is set to the upper
limit, 11 means to set the
lower limit, 12 means to
cancel the upper and lower
limit. Press and the
setting is successful.
Short press to
enter the factory reset
interface, press
and to change
the sub-option, N
means "no", Y means
"yes", then press OK,
the setting is
successful.
Short press to
enter the power-on
default output status
interface, change the
sub-option by
pressing and
, 0 means “off”, 1
means “on”, then press
OK, the setting is
successful.
Short press to
enter the fast response
interface, and the sub-
option is changed by
pressing and .
0 means “slow”, 1
means “fast”, then
press OK, the setting is
successful.
Short press to enter
the communication protocol
selection interface, and the
sub-option is changed by
pressing and . 0
means “simple
communication protocol”, 1
means “MODBUS-RTU
communication protocol”,
then press OK button, the
setting is successful.
Short press to enter the baud rates
selection interface, a total of 7 groups of
baud rate, the unit is kbps, change the
baud rates by pressing and
, and then press the OK button, the
setting is successful.
Short press to enter the local
address selection interface, there are 99
groups of 01-99 communication address,
change the communication address by
pressing and , and then press the
OK and the setting is successful.

11
11
Introduction of voltage and current upper and lower limits:
The upper and lower limits of the voltage and current are set voltage upper
limit adjustment limits and lower limit adjustment limits. For example: set 30V,
5A in the main interface, enter the voltage and current upper limit save
position, press OK to save it as the upper limit of voltage and current, and the
product's voltage adjustment range is up to 30V, the maximum current is 5A.
The same method can also set the lower limit of adjustment.
Communication protocol function:
There are two kinds of communication protocols: simple communication
protocol and MODBUS communication protocol, which can be selected on the
product. We can provide communication protocols.
Simple communication protocol is our custom communication protocol, it
is easy to understand.
MODBUS communication protocol is the standard MODBUS
communication protocol.
Quick response function introduction:
After the quick response is turned on,the response time is short when the
voltage is adjusted from high to low. For example, when the output is 30V,
adjust it directly to the output of 5V. When the quick response is not turned on,
it takes 5 seconds to reduce from 30V to 5V. After turning on the quick
discharge, it takes less than 1 second to reduce from 30V to 5V.
Power-on default status setting introduction:
The default state of power-on refers to whether the output is turned on or off
by default when the power is turned on. When this function is enabled,After
the power is turned on, the output voltage and current values are directly
turned on without operating.
Key locking function
Long press OK key can press key lock, when key lock state long press OK
key can cancel keystroke lock

12
12
【Wireless controller instructions】
The wireless controller uses a 2.4G frequency RF module to transmit
signals wirelessly with the power supply, up to 10 meters remote control. The
wireless controller has a built-in 3.7V, 2000mA lithium battery that can be
recharged. It can be used for more than 10 hours at full power. The wireless
controller adopts a 2.4-inch TFT liquid crystal display with rich display content.
With multi-function buttons and knobs, it can be quickly set and adjusted, and
the operation is simple and
fast.

13
13

14
14
1 Product model 2 Signal indication 3 Key lock
4 Address 01-99 5 Channel 01-30 6 Battery Capacity
7 Output voltage 8 Output current 9 Output power
10 Voltage setting 11 Current setting 12 Temperature display
13 Capacity 14 Running time 15 Operating status
16 Function bar 17 Constant current indicator
18 Constant voltage indicator
Operating Instructions
一 、 Voltage and current setting and on/off output: Press button V, the
cursor appears at the voltage setting, rotate the knob to change the value,
and the left and right buttons can change the step value. Press button A, the
cursor appears at the current setting, the knob can be rotated to change the
value, and the left and right buttons can change the step value. Press OK to
turn the output on or off.
The voltage and current setting display interface is as follows:

15
15
The output status interface is as follows:
二、Function setting: Press SET button on the main interface to display the
position in function option box 01. Press left or right button or rotate knob to
select recall, save, clear, address, channel, quick response, auto output,
upper limit setting, lower Line setting, limit reset, brightness, auto power off,
language, factory reset, about 15 function settings, press OK to enter its
function settings, press left or right button or rotate knob to change
parameters, then press OK，the setting is successful.
Examples of the function setting display interface are as follows:
Boot default
connection status
Voltage setting state
Current setting
state
When the constant
voltage output is 5V,
1A, and the load
current is less than the
set current, the output
is constant voltage
output, and the CV light
is on.
When the load current
reaches the set
current, the output is
the set current, the
constant current is
output, and the CC
light is on.

16
16
三、Quickly load: Press M1, M2, M3, M4 to quickly load the data in M1, M2,
M3, M4 storage locations.
四、Key lock: Press and hold the SET button to lock the button. When you
press and hold the SET button again, the button can be unlocked. After the
button is locked, the button lock on the display will turn into a red lock state,
indicating that the button is locked.
The key lock display interface is as follows:
五.Upper and lower limit setting: After setting the voltage and current, select
the upper or lower limit in the function and save it, you can set the current
voltage and current value as the upper limit or lower limit. The upper limit is
displayed as MAX and the lower limit is displayed as MIN. If the upper and
lower limits are the same value, the display is LOCK. To cancel the limit,
select the limit reset function.

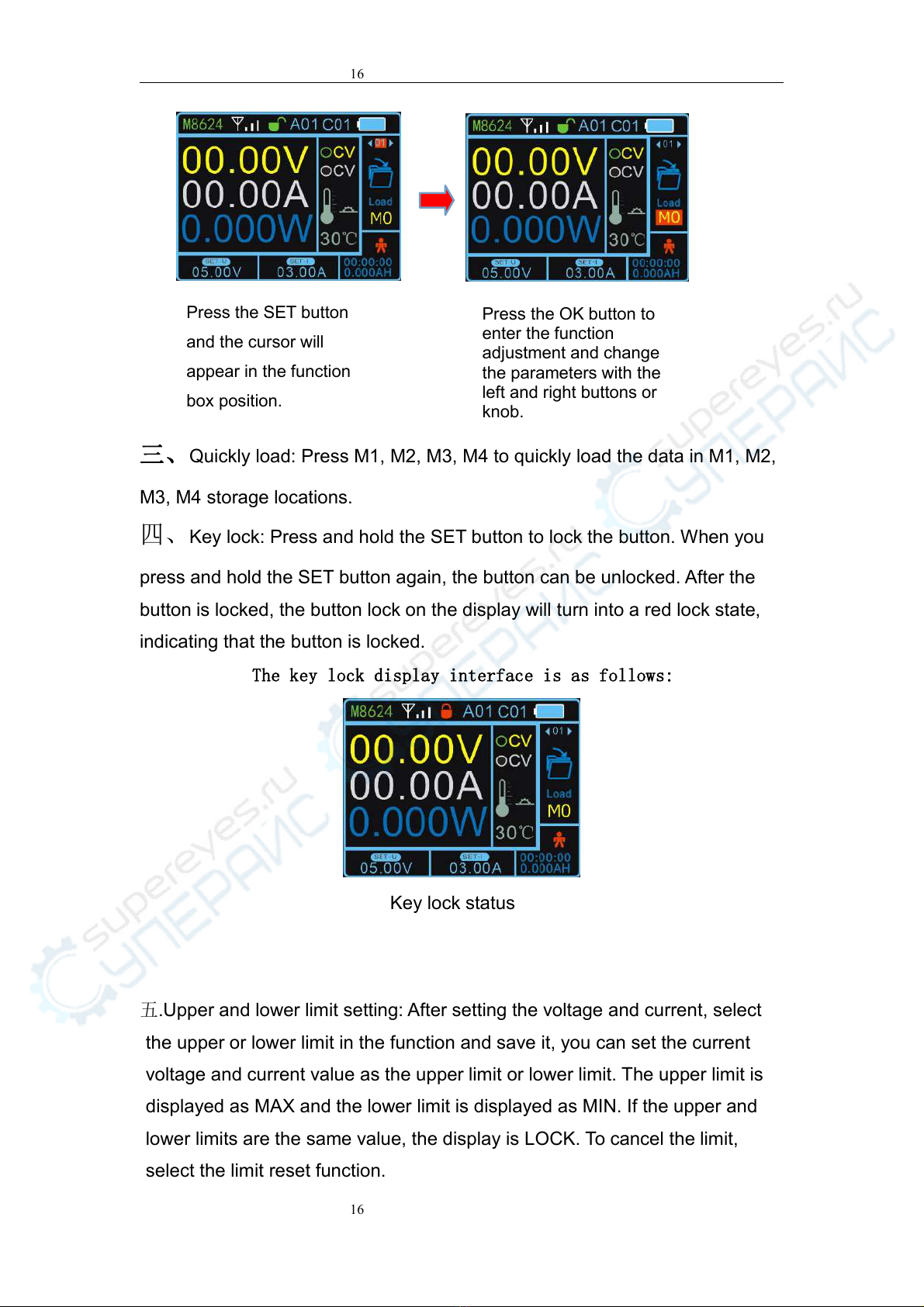

Press the SET button
and the cursor will
appear in the function
box position.
Press the OK button to
enter the function
adjustment and change
the parameters with the
left and right buttons or
knob.
Key lock status

17
17

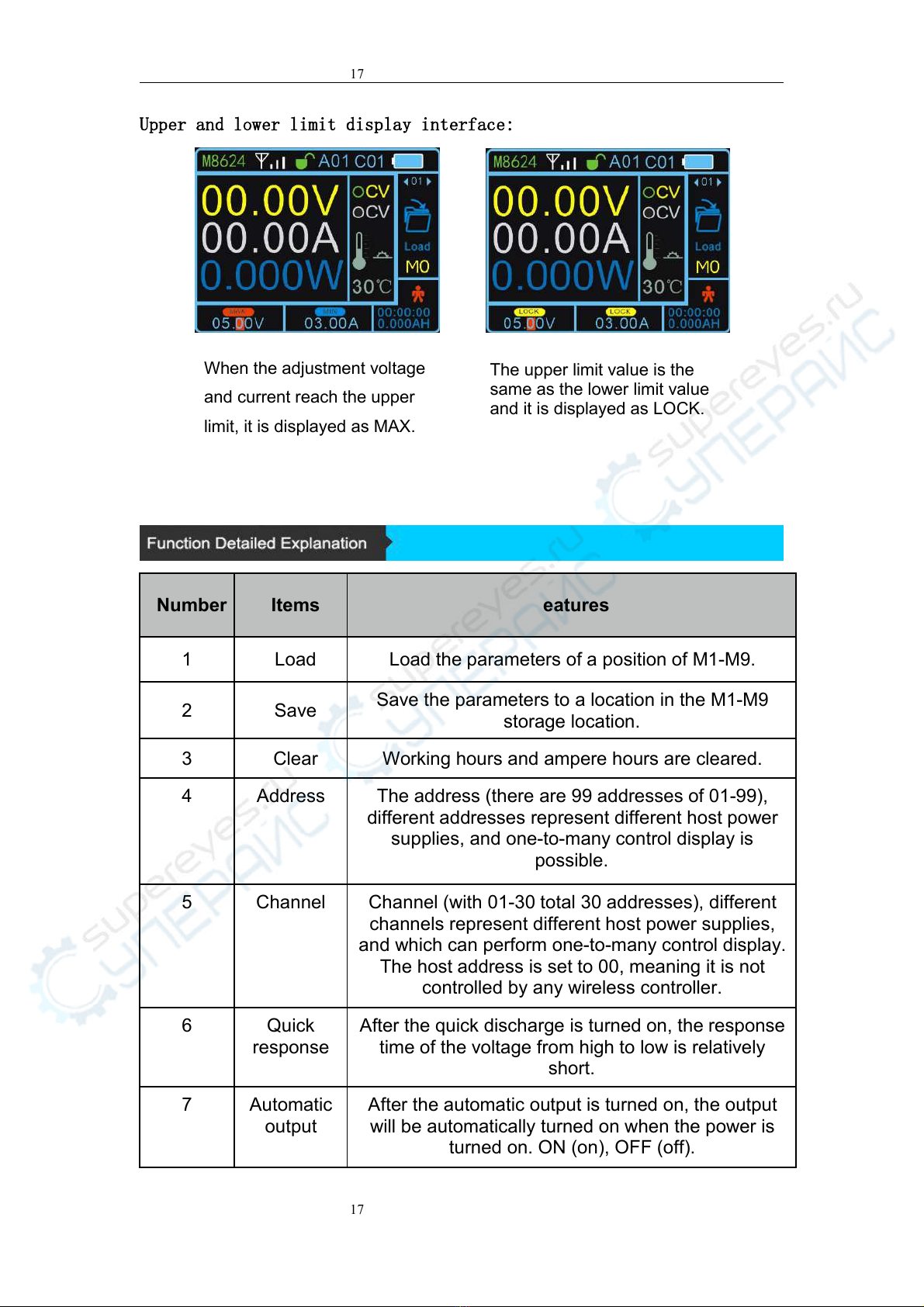

Upper and lower limit display interface:
Number
Items
eatures
1
Load
Load the parameters of a position of M1-M9.
2
Save
Save the parameters to a location in the M1-M9
storage location.
3
Clear
Working hours and ampere hours are cleared.
4
Address
The address (there are 99 addresses of 01-99),
different addresses represent different host power
supplies, and one-to-many control display is
possible.
5
Channel
Channel (with 01-30 total 30 addresses), different
channels represent different host power supplies,
and which can perform one-to-many control display.
The host address is set to 00, meaning it is not
controlled by any wireless controller.
6
Quick
response
After the quick discharge is turned on, the response
time of the voltage from high to low is relatively
short.
7
Automatic
output
After the automatic output is turned on, the output
will be automatically turned on when the power is
turned on. ON (on), OFF (off).
When the adjustment voltage
and current reach the upper
limit, it is displayed as MAX.
The upper limit value is the
same as the lower limit value
and it is displayed as LOCK.

18
18

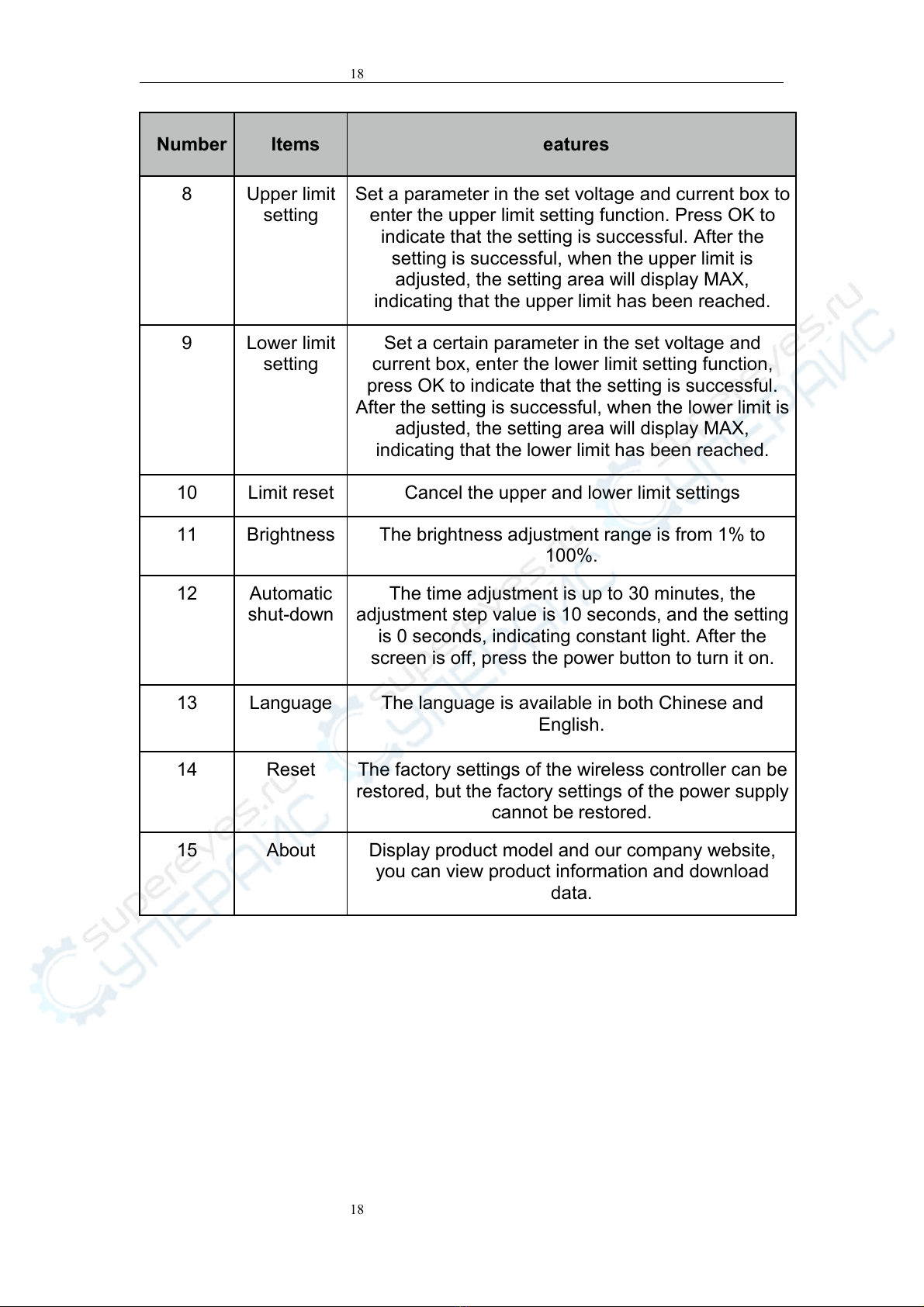

Number
Items
eatures
8
Upper limit
setting
Set a parameter in the set voltage and current box to
enter the upper limit setting function. Press OK to
indicate that the setting is successful. After the
setting is successful, when the upper limit is
adjusted, the setting area will display MAX,
indicating that the upper limit has been reached.
9
Lower limit
setting
Set a certain parameter in the set voltage and
current box, enter the lower limit setting function,
press OK to indicate that the setting is successful.
After the setting is successful, when the lower limit is
adjusted, the setting area will display MAX,
indicating that the lower limit has been reached.
10
Limit reset
Cancel the upper and lower limit settings
11
Brightness
The brightness adjustment range is from 1% to
100%.
12
Automatic
shut-down
The time adjustment is up to 30 minutes, the
adjustment step value is 10 seconds, and the setting
is 0 seconds, indicating constant light. After the
screen is off, press the power button to turn it on.
13
Language
The language is available in both Chinese and
English.
14
Reset
The factory settings of the wireless controller can be
restored, but the factory settings of the power supply
cannot be restored.
15
About
Display product model and our company website,
you can view product information and download
data.
