SERVICE MANUAL
COPYRIGHT © 2010 Victor Company of Japan, Limited No.YD125<Rev.001>
2010/1
BLU-RAY DISC & HDD RECORDER
YD125<Rev.001>20101SERVICE MANUAL
SR-HD1250US, SR-HD1500US,
SR-HD1500KR, SR-HD1250EU,
SR-HD1500EU, SR-HD1500ER,
SR-HD1500AG, SR-HD1500AC
COPYRIGHT © 2010 Victor Company of Japan, Limited
TABLE OF CONTENTS
1 PRECAUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.1 SAFETY PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3.1 Removing the top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3.2 Removing the front panel assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3.3 Removing the HDD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3.4 Removing the BD drive unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3.5 Removing the REG/SD board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
3.6 Removing the BE-DIGITAL board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
3.7 Removing the D-SUB/BNC board and TERMINAL board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
3.8 Removing the DISPLAY board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
5 TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
5.1 DISPLAYING TEST MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
5.2 UPDATING MAIN UNIT FIRMWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
5.3 UPDATING SYSCON FIRMWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
5.4 UPDATING DRIVE FIRMWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
5.5 INITIALIZING TO FACTORY SETTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
5.6 REPLACING HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
5.7 Exchanging the fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
5.8 Taking out a disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11
5.9 DISPLAYING MAINTENANCE MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
STOP REV PLAY PAUSEFWD
OPEN/
CLOSE
STANDBY/ON
HDV/DV IN
REC
SDREC CERDDHBD
ONE TOUCH
DUBBING
REC
MODE
RESET
INPUT
SELECT HDD
MIDIA SELECT
BD/SD

1-2 (No.YD125<Rev.001>)
SPECIFICATION
SR-HD1250US SR-HD1500US SR-HD1500KR SR-HD1250EU SR-HD1500EU SR-HD1500ER SR-HD1500AG SR-HD1500AC
GENERAL
Power requirement AC 120 V~, 60 Hz AC 220-240V~,
60Hz
AC 220-240V~, 50Hz/60Hz
Power consumption Power on: 34 W
Power off: 3.0 W
Power on: 34 W
Power off: 3.0 W
Power on: 34 W
Standby: 0.5 W
Laser specifi-
cation
For CD Wavelength: 779 to 789 nm
Output: 13.1 mW (Operating condition)
For DVD Wavelength: 656 to 663 nm
Output: 9.02 mW (Operating condition)
For BD Wavelength: 400 to 410 nm
Output: 17.3 mW (Operating condition)
Temperature Operating 5°C to 35°C (41°F to 95°F) 5°C to 35°C
Storage -20°C to 60°C (-4°F to 140°F) -20°C to 60°C
Operating position Horizontal only
Dimensions (WxHxD) 435 mm x 70 mm x 351 mm
(17-1/10" x 2-6/8" x 13-13/16")
435 mm x 70 mm x 351 mm
Weight 5.0 kg (11.0 lbs) 5.1 kg (11.2 lbs) 5.1 kg 5.0 kg 5.1 kg
Input/Output
Video input 1.0 Vp-p, 75Ω(BNC)
Video output 1.0 Vp-p, 75Ω(BNC)
Audio input Max 2 Vrms / 10 kΩ(pin jack)
Audio output 2 Vrms 10 kΩterminated (pin jack)
S-video input Y: 1.0 Vp-p, 75Ω
C: 0.286 Vp-p, 75 Ω
S-video output Y: 1.0 Vp-p, 75 Ω
C: 0.286 Vp-p, 75 Ω
DV 4-pin for HDV/DV IN
Remote Input 3.5 mm Jack
Serial Command - D-SUB 9-PIN - D-SUB 9-PIN -
Component video output Y: 1.0 Vp-p, 75 Ω
CB/CR, PB/PR: 0.7 Vp-p, 75 Ω
Corresponding to copy protection
Digital audio output Optical : PCM, AAC, Dolby Digital and DTS
HDMI output 19-pin type A
(Deep Color, x.v.Color, Ver1.3)
USB terminal USB2.0
SD memory card
SD, SDHC
HDD Deck
250GB 500GB 250GB 500GB
Recording
compression
system
Video MPEG2 (VBR)
H.264/AVC
Audio Dolby Digital (2 ch)
Linear PCM (2ch, XP mode only)
BD/DVD Deck
Recording
compression
system
Video MPEG2 (CBR/VBR)
H.264/AVC
Audio Dolby Digital (2 ch)
Linear PCM (2ch, XP mode only)
Region
code
BD : Region A
DVD : #1
BD : Region A
DVD : #3
BD : Region B
DVD : #2
BD : Region C
DVD : #5
BD : Region A
DVD : #3
BD : Region C
DVD : #6
ACCESSORIES
Provided accessories AC power cord,Audio/Video ca-
ble,BNC male to RCA female
adapter,Infrared remote control
unit,”AA” battery x 2,CD-ROM
AC power
cord,Audio/Vid-
eo cable,BNC
male to RCA fe-
male adapter,In-
frared remote
control unit,”AA”
battery x 2
AC power cord (for continental Eu-
rope, etc),AC power cord (for
U.K.),Audio/Video cable,Infrared
remote control unit,”AA” battery x
2,CD-ROM
AC power cord,Audio/Video ca-
ble,Infrared remote control
unit,”AA” battery x 2,CD-ROM
AC power
cord,Audio/Vid-
eo cable,Infra-
red remote
control unit,”AA”
battery x 2

(No.YD125<Rev.001>)1-3
SECTION 1
PRECAUTION
1.1 SAFETY PRECAUTIONS
Prior to shipment from the factory, JVC products are strictly in-
spected to conform with the recognized product safety and elec-
trical codes of the countries in which they are to be
sold.However,in order to maintain such compliance, it is equally
important to implement the following precautions when a set is
being serviced.
1.1.1 Precautions during Servicing
(1) Locations requiring special caution are denoted by labels
and inscriptions on the cabinet, chassis and certain parts of
the product.When performing service, be sure to read and
comply with these and other cautionary notices appearing
in the operation and service manuals.
(2) Parts identified by the symbol and shaded ( ) parts
are critical for safety.
Replace only with specified part numbers.
NOTE :
Parts in this category also include those specified to
comply with X-ray emission standards for products
using cathode ray tubes and those specified for
compliance with various regulations regarding spu-
rious radiation emission.
(3) Fuse replacement caution notice.
Caution for continued protection against fire hazard.
Replace only with same type and rated fuse(s) as speci-
fied.
(4) Use specified internal wiring. Note especially:
• Wires covered with PVC tubing
• Double insulated wires
• High voltage leads
(5) Use specified insulating materials for hazardous live parts.
Note especially:
• Insulation Tape
• PVC tubing
•Spacers
• Insulation sheets for transistors
• Barrier
(6) When replacing AC primary side components (transformers,
power cords, noise blocking capacitors, etc.) wrap ends of
wires securely about the terminals before soldering.
Fig.1-1-1
(7) Observe that wires do not contact heat producing parts
(heatsinks, oxide metal film resistors, fusible resistors, etc.)
(8) Check that replaced wires do not contact sharp edged or
pointed parts.
(9) When a power cord has been replaced, check that 10-15
kg of force in any direction will not loosen it.
Fig.1-1-2
(10) Also check areas surrounding repaired locations.
(11) Products using cathode ray tubes (CRTs) In regard to such
products, the cathode ray tubes themselves, the high volt-
age circuits, and related circuits are specified for compli-
ance with recognized codes pertaining to X-ray emission.
Consequently, when servicing these products, replace the
cathode ray tubes and other parts with only the specified
parts. Under no circumstances attempt to modify these cir-
cuits.Unauthorized modification can increase the high volt-
age value and cause X-ray emission from the cathode ray
tube.
(12) Crimp type wire connector In such cases as when replac-
ing the power transformer in sets where the connections
between the power cord and power trans former primary
lead wires are performed using crimp type connectors, if
replacing the connectors is unavoidable, in order to prevent
safety hazards, perform carefully and precisely according
to the following steps.
•Connector part number :E03830-001
•Required tool : Connector crimping tool of the proper
type which will not damage insulated parts.
•Replacement procedure
a) Remove the old connector by cutting the wires at a
point close to the connector.Important : Do not re-
use a connector (discard it).
Fig.1-1-3
b) Strip about 15 mm of the insulation from the ends
of the wires. If the wires are stranded, twist the
strands to avoid frayed conductors.
Fig.1-1-4
c) Align the lengths of the wires to be connected. In-
sert the wires fully into the connector.
Fig.1-1-5
d) As shown in Fig.1-1-6, use the crimping tool to
crimp the metal sleeve at the center position. Be
sure to crimp fully to the complete closure of the
tool.
Fig.1-1-6
e) Check the four points noted in Fig.1-1-7.
Fig.1-1-7
(13) Battery replacement caution notice.
CAUTION RISK OF EXPLOSION IF BATTERY IS RE-
PLACED BY AN INCORRECTIVE TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
Power cord
cut close to connector
15 mm
Connector
Metal sleeve
1.25
2.0
5.5
Crimping tool
Not easily pulled free Crimped at approx. cente
r
of metal sleeve
Conductors extended
Wire insulation recessed
more than 4 mm

1-4 (No.YD125<Rev.001>)
1.1.2 Safety Check after Servicing
Examine the area surrounding the repaired location for damage
or deterioration. Observe that screws, parts and wires have been
returned to original positions, Afterwards, perform the following
tests and confirm the specified values in order to verify compli-
ance with safety standards.
(1) Insulation resistance test
Confirm the specified insulation resistance or greater be-
tween power cord plug prongs and externally exposed
parts of the set (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks, ear-
phone jacks, etc.).See table 1 below.
(2) Dielectric strength test
Confirm specified dielectric strength or greater between
power cord plug prongs and exposed accessible parts of
the set (RF terminals, antenna terminals, video and audio
input and output terminals, microphone jacks, earphone
jacks, etc.). See Fig.1-1-11 below.
(3) Clearance distance
When replacing primary circuit components, confirm spec-
ified clearance distance (d), (d') between soldered termi-
nals, and between terminals and surrounding metallic
parts. See Fig.1-1-11 below.
Fig.1-1-8
(4) Leakage current test
Confirm specified or lower leakage current between earth
ground/power cord plug prongs and externally exposed ac-
cessible parts (RF terminals, antenna terminals, video and
audio input and output terminals, microphone jacks, ear-
phone jacks, etc.).
Measuring Method : (Power ON) Insert load Z between
earth ground/power cord plug prongs and externally ex-
posed accessible parts. Use an AC voltmeter to measure
across both terminals of load Z. See Fig.1-1-9 and follow-
ing Fig.1-1-12.
Fig.1-1-9
(5) Grounding (Class 1 model only)
Confirm specified or lower grounding impedance between
earth pin in AC inlet and externally exposed accessible
parts (Video in, Video out, Audio in, Audio out or Fixing
screw etc.).Measuring Method:
Connect milli ohm meter between earth pin in AC inlet and
exposed accessible parts. See Fig.1-1-10 and grounding
specifications.
Fig.1-1-10
Fig.1-1-11
Fig.1-1-12
NOTE :
These tables are unofficial and for reference only. Be sure to confirm the precise values for your particular country and locality.
Chassis
Power cord
primary wire
d'
d
ab
c
V
A
Externally
exposed
accessible part
Z
Exposed accessible part
Grounding Specifications
AC inlet
Region
USA & Canada
Europe & Australia
Grounding Impedance (Z)
Z 0.1 ohm
Z 0.5 ohm
Earth pin
MIlli ohm meter
AC Line Voltage Region
Japan
Europe & Australia
R 1 M /500 V DC
USA & Canada 1 M R 12 M /500 V DC
R 10 M /500 V DC
Insulation Resistance (R)Dielectric Strength Clearance Distance (d), (d')
100 V
100 to 240 V
110 to 130 V
110 to 130 V
200 to 240 V
AC 1 kV 1 minute
AC 1.5 kV 1 minute
AC 1 kV 1 minute
(Class )
(Class )
AC 3 kV 1 minute
AC 1.5 kV 1 minute
d, d' 3 mm
d, d' 4 mm
d, d' 3.2 mm
d' 8 m m (Power cord)
d' 6 m m (Primary wire)
d 4 m m
AC Line Voltage Region
Japan
Europe & Australia
USA & Canada
Load Z Leakage Current (i) a, b, c
100 V
110 to 130 V
110 to 130 V
220 to 240 V
i 1 mA rms
i 0.5 mA rms
i 0.7 mA peak
i 2 mA dc
i 0.7 mA peak
i 2 mA dc
Exposed accessible parts
Exposed accessible parts
Antenna earth terminals
Other terminals
1
1.5
2
50
0.15

(No.YD125<Rev.001>)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY
Before disassembly, be sure to turn OFF the power and unplug
the power cord.

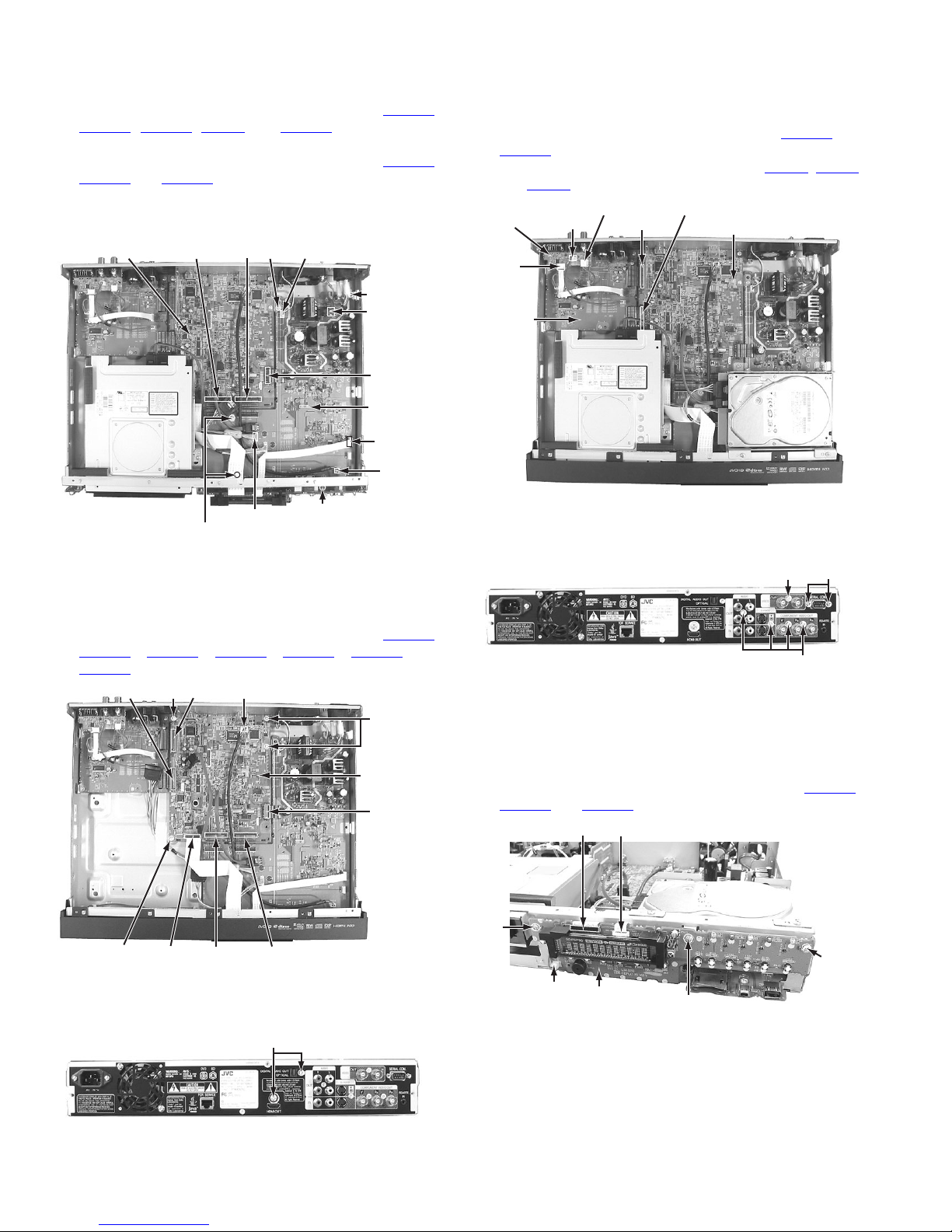

3.1 Removing the top cover (See Figure 1)
(1) Remove the four screws Aattaching the top cover from
both sides.
(2) Remove the three screws Battaching the top cover from
the back.
(3) Remove the top cover by sliding it backward.
Fig.1
3.2 Removing the front panel assembly (See Figure 2 and
Figure 3)
• Remove the top cover.
(1) Remove the nine tabs on the front panel assembly, and
then remove the front panel assembly.
Fig.2
Fig.3
3.3 Removing the HDD (See Figure 4)
• Remove the top cover.
(1) Pull out the SATA cable and the HDD power cable con-
nected to the HDD.
(2) Remove the four screws Cattaching the HDD bracket.
(3) HDD is removed from the HDD bracket.
Fig.4
3.4 Removing the BD drive unit (See Figure 5)
• Remove the top cover.
(1) Pull out the SATA cable and the BD drive power cable con-
nected to the BD drive unit.
(2) Remove the four screws Dattaching the drive bracket.
(3) The rear side of the BD drive unit is lifted a little and re-
moved.
(4) Drive bracket is removed from the BD drive unit.
Fig.5
A x 2
A x 2
B
B
B
Top cover
Top cover
Top cover
Tab
Tab Tab
Front panel assembly
Front panel assembly
Tab
C
HDD
C
HDD Power cable SATA Cable
DD
BD Drive unit
BD Drive power cable
SATA Cable

1-6 (No.YD125<Rev.001>)
3.5 Removing the REG/SD board (See Figure 6)
• Remove the top cover, front panel assembly and HDD.
(1) Pull out the each wire from the connectors CN5306,
CN5001, CN5303, CN801 and CN5305 on the REG/SD
board.
(2) Pull out the socket wires from the connectors CN2102,
CN5501 and CN4002 on the BE-DIGITAL board.
(3) Remove the five screws Eattaching the REG/SD board,
and then remove the REG/SD board.
Fig.6
3.6 Removing the BE-DIGITAL board (See Figure 7 and
Figure 8)
• Remove the top cover, HDD and BD drive unit.
(1) Pull out the each wire from the connectors CN1501,
CN1502, CN4001, CN2102, CN5501, CN4002 and
CN2801 on the BE-DIGITAL board.
Fig.7
(2) Remove the two screws Fattaching the terminal from back
of the main unit.
Fig.8
(3) Remove the four screws Gattaching the BE-DIGITAL
board.
3.7 Removing the D-SUB/BNC board and TERMINAL board
(See Figure 9 and Figure 10)
• Remove the top cover.
(1) Pull out the socket wires from the connectors CN1501 and
CN1502 on the BE-DIGITAL board.
(2) Pull out the each wire from the connectors CN401, CN402
and CN403 on the D-SUB/BNC board.
Fig.9
(3) Remove the five screws Hand the two nuts attaching the
each terminal from back of the main unit.
Fig.10
3.8 Removing the DISPLAY board (See Figure 11)
• Remove the top cover and front panel assembly.
(1) Remove the three screws Jattaching the DISPLAY board.
(2) Pull out the each wire from the connectors CN7401,
CN7402 and CN7403 on the DISPLAY board.
Fig.11
E
CN5305
CN801
CN5306
CN4002
REG/SD
Board
E
E
CN5001
CN5303ECN2102
BE-DIGITAL
Board CN5501
CN4001
G
G
G
CN1502 CN1501 CN2801
CN2102 CN5501
CN4002
BE-DIGITAL
Board
F
CN401
CN402
CN403
CN1501
CN1502
BE-DIGITAL Board
D-SUB/BNC
Board
TERMINAL
Board
H
H
Nut
J
J
J
CN7403
CN7401 CN7402
DISPLAY Board

(No.YD125<Rev.001>)1-7
SECTION 4
ADJUSTMENT
This service manual does not describe ADJUSTMENT.
SECTION 5
TROUBLE SHOOTING
5.1 DISPLAYING TEST MODE
TEST MODE contains the firmware version information of the main unit and the drive unit.
(1) While pressing the [PLAY] button and the [STOP] button, plug in the power cord.
(2) “TEST” flashes in the display window on the main unit. In about one minute, the TEST MODE menu is displayed on the TV
screen.
(3) To exit the TEST MODE menu, press the POWER button on the main unit.
5.2 UPDATING MAIN UNIT FIRMWARE
• The firmware update disc supports CD-R.
• When firmware update is needed, information will be available from SMIS in JS-NET.
5.2.1 Creating an Update Disc
Refer to JS-NET for details of creating an update disc.
(1) Download the update file (#########.iso) from SMIS in JS-NET.
(2) Write the update file onto a CD-R in image writing using writing software.
• Be sure to write in “Disc-at-Once”.
• Refer to the instructions of the writing software for image writing settings.
5.2.2 Update Procedures
(1) Place an update disc on the tray and close the tray.
During disc reading, a warning “THERE IS NO PLAYABLE MEDIA INSERTED” is displayed once or twice. Ignore the warning.
TEST MODE
MODEL NAME SR-HDxxxx
DESTINATION xx
TOTAL Ver. xxxx
APPLI Ver. xxxx
BOOT Ver. xxxx
DRIVE Ver. x.xx
SYSCON ROM CODE xxx
SYSCON Ver. xx.xx
REGION(DRIVE/DVD/BD/NUM) x/x/x/x
Firmware version of main unit.
Firmware version of drive unit.
Firmware version of system controller.
MODEL INFORMATION
VIDEO ADJ [VIDEO ADJ] KEY
TEST MODE OFF [POWER] KEY
CHANGE MODE
CONFIRM
THERE IS NO PLAYABLE MEDIA INSERTED

1-8 (No.YD125<Rev.001>)
(2) When disc reading is completed, the following displays are repeated in the display window on the main unit. “APPLI FIRM” →
“START [PLAY]” →“CANCEL [FF]”. Press the [PLAY] button on the main unit to start update.
When update starts, the followings are displayed in the display window on the main unit.
“L 10” →“L 20” →*** →“L 100” →
“C 10” →*** →*** →“C 100” →“W 10” →*** →“W 100”
“R 10” →*** →“R 100” →“V 00” →“COMPLETED”
(3) After update disc reading, the tray is ejected. Remove the update disc.
(4) Press the POWER button on the main unit.
The main unit power is turned on, and then turned off. The update is completed.
(5) In the TEST MODE menu, check whether the main unit firmware is correctly updated.
5.3 UPDATING SYSCON FIRMWARE
• The SYSCON firmware update disc supports CD-R.
• When SYSCON firmware update is needed, information will be available from SMIS in JS-NET.
5.3.1 Creating an Update Disc
Refer to JS-NET for details of creating an update disc.
(1) Download the update file (#########.iso) from SMIS in JS-NET.
(2) Write the update file onto a CD-R in image writing using writing software.
• Be sure to write in “Disc-at-Once”.
• Refer to the instructions of the writing software for image writing settings.
5.3.2 Update Procedures
(1) Place an update disc on the tray and close the tray.
During disc reading, a warning “THERE IS NO PLAYABLE MEDIA INSERTED” is displayed once or twice. Ignore the warning.
(2) When disc reading is completed, the following displays are repeated in the display window on the main unit. “SYSCON FIRM”
→“START [PLAY]” →“CANCEL [FF]”.
Press the [PLAY] button on the main unit to start update.
When update starts, “PLEASE WAIT” is displayed in the display window on the main unit.
(3) After update disc reading, the following is displayed on the TV screen and the tray is ejected. Remove the update disc.
(4) Press the POWER button on the main unit.
The main unit power is turned off and update is completed.
(5) In the TEST MODE menu, check whether the SYSCON firmware is correctly updated.
5.4 UPDATING DRIVE FIRMWARE
• The drive firmware update disc supports CD-R.
• When drive firmware update is needed, information will be available from SMIS in JS-NET.
5.4.1 Creating an Update Disc
Refer to JS-NET for details of creating an update disc.
(1) Download the update file (#########.iso) from SMIS in JS-NET.
(2) Write the update file onto a CD-R in image writing using writing software.
• Be sure to write in “Disc-at-Once”.
• Refer to the instructions of the writing software for image writing settings.
CONFIRM
THERE IS NO PLAYABLE MEDIA INSERTED
SYSCON FIRM UPDATE COMPLETE!!
Take out the disc and turn off power.

(No.YD125<Rev.001>)1-9
5.4.2 Update Procedures
(1) Place an update disc on the tray and close the tray.
During disc reading, a warning “THERE IS NO PLAYABLE MEDIA INSERTED” is displayed once or twice. Ignore the warning.
(2) When disc reading is completed, the following displays are repeated in the display window on the main unit. “DRIVE FIRM” →
“START [PLAY]” →“CANCEL [FF]”. Press the [PLAY] button on the main unit to start update.
When update starts, “PLEASE WAIT” is displayed in the display window on the main unit.
(3) After update disc reading, the following is displayed on the TV screen and the tray is ejected. Remove the update disc.
(4) Press the POWER button on the main unit.
The main unit power is turned off and update is completed.
(5) In the TEST MODE menu, check whether the drive firmware is correctly updated.
5.5 INITIALIZING TO FACTORY SETTING
Before starting initialization, always obtain permission from the user as initialization returns all the setting information to the initial set-
tings, and the user content and the related information will all be erased.
(1) Set the main unit to the TEST MODE.
(2) Transmit “##·6F” using the JIG remote control. (Set “##” as follows according to the main unit remote control code. Code setting
1: Set “##” to “43”. Code setting 2: Set “##” to “53”. Code setting 3: Set “##” to “6F”. Code setting 4: Set ““##” to “7F”).
“COLD SET” flashes in the display window on the main unit. The initialization completes in about 30 seconds and the power is
turned off.
CONFIRM
THERE IS NO PLAYABLE MEDIA INSERTED
DRIVE FIRM UPDATE COMPLETE!!
Take out the disc and turn off power.
Custom code
43:A(1) Code
53:B(2) Code
6F:C(3) Code
7F:D(4) Code
Data code
Initial
mode
JIG remote control
3
JIG remote control
[Data transmission]
Set the data code,
and then press the
" " button.
(Part number : PTU94023B)

1-10 (No.YD125<Rev.001>)
5.6 REPLACING HDD
After HDD replacement, initialize the HDD following the procedure below. (Without HDD initialization, HDD recording is impossible.)
(1) Turn on the power of the main unit.
(2) Press the [MEDIA MANAGE] button on the supplied remote control to display the MEDIA MANAGE menu on the TV screen.
(3) Use the [Down] button on the remote control to move the highlight to HDD FORMAT, and then press the [OK] button on the
remote control.
(4) The confirmation to execute HDD FORMAT is displayed on the TV screen. Move the highlight to “YES” using the [Left] button,
and then press the [OK] button on the remote control.
MEDIA MANAGE
FORMAT
FINALIZE
RENAME DISC
FORMAT
BD-VIDEO DATA ERASE
FORMAT
BD/DVD
SD CARD
HDD
MEDIA MANAGE
FORMAT
FINALIZE
RENAME DISC
FORMAT
BD-VIDEO DATA ERASE
FORMAT
BD/DVD
SD CARD
HDD
CONFIRM
THE HDD WILL BE FORMATTED
ALL RECORDED TITLES WILL BE ERASED
DO YOU WANT TO FORMAT?
YES NO

(No.YD125<Rev.001>)1-11
(5) Once again, the confirmation to execute HDD FORMAT is displayed. Perform the same procedure as step (4).
HDD FORMAT is executed.
(6) When the HDD FORMAT is completed, the confirmation for the completion of HDD FORMAT is displayed on the TV screen.
Press the [OK] button on the remote control.
5.7 Exchanging the fitting
As the fitting that comes with the service drive unit cannot be used, make sure to attach a service fitting when the drive unit is ex-
changed.
The fitting that is removed from the old drive unit can be attached to the new drive unit.
The fitting can be removed by pulling upwards while opening out the lower part of the fitting outwards.
5.8 Taking out a disc
(1) Remove the top cover.
(2) Open the front door of the main unit manually.
(3) Insert a fine wire (e.g. a straightened paper clip) into the hole in the right side part of the drive unit.
(4) As the tray ejects a little, pull out the tray manually.
CONFIRM
THE HDD WILL BE FORMATTED
ALL RECORDED TITLES WILL BE ERASED
DO YOU WANT TO FORMAT?
FORMAT DO NOT FORMAT
CONFIRM
THE HDD HAS BEEN FORMATTED
OK
Fitting
Tray
Front door
Tray
Hole

1-12 (No.YD125<Rev.001>)
5.9 DISPLAYING MAINTENANCE MODE
MAINTENANCE MODE contains information about the HDD and the drive unit.
(1) Displaying MAINTENANCE Top Menu
a) Turn off the power of the main unit.
b) Press the [REC] button and the [RESET] switch on the main unit at the same time.
c) “SERVICE” is displayed in the display window on the main unit. In about 30 seconds, the MAINTENANCE Top Menu is
displayed on the TV screen.
d) To exit MAINTENANCE MODE, press the POWER button on the main unit.
(2) Displaying Product Information
Product Information contains the firmware version information of the main unit and the drive unit.
a) While the MAINTENANCE Top Menu is displayed, press the [1] button on the supplied remote control to display Product
Information on the TV screen.
b) To go back to the MAINTENANCE Top Menu, press the [Return] button on the remote control.
To exit MAINTENANCE MODE, press the POWER button on the main unit.
MAINTENANCE MODE
Press key
[1] key : Product Information
[2] key : Temperature Information
[3] key : Laser Diode Information
[4] key : HDD SMART Information
[5] key : REBOOT COUNT Information
[Power off] : Exit
MAINTENANCE MODE > Product Information
[Return] : Top Menu, [Power off] : Exit
<<<Reviesion>>>
Middle Ware Version : xxxx
NAND Version : xxxx
Application Version : xxxx
NOR Version : xxxx
Drive Version
<<<Information>>>
Vendor Name : JVC
Model Name : SR-HDxxxx
1394 Serial Num : xxxxxxxxx
ID : xxxx
Farm Version : xxxx

(No.YD125<Rev.001>)1-13
(3) Displaying Temperature Information
Temperature Information records the temperatures around the drive unit measured in the past.
While the power is on, the temperature is recorded every 20 minutes. The temperature is also recorded if it changes drastically.
(Maximum recording: 2000 measurements)
Recording date/time and the elapsed time after the last recording are also recorded.
a) While the MAINTENANCE Top Menu is displayed, press the [2] button on the remote control to display Temperature In-
formation on the TV screen.
b) To display old records, press the [Right] button on the remote control.
To display new records, press the [Left] button on the remote control.
c) To go back to the MAINTENANCE Top Menu, press the [Return] button on the remote control.
To exit MAINTENANCE MODE, press the POWER button on the main unit.
(4) Displaying Laser Diode Information
Laser Diode Information records the past rates of diode current change in the drive unit.
The rate of diode current change in the drive unit at the time of power off is recorded.
(Maximum recording: 2000 measurements)
Recording date/time is recorded at the same time.
a) While the MAINTENANCE Top Menu is displayed, press the [3] button on the remote control to display Laser Diode Infor-
mation on the TV screen.
b) To display old records, press the [Right] button on the remote control.
To display new records, press the [Left] button on the remote control.
c) To go back to the MAINTENANCE Top Menu, press the [Return] button on the remote control.
To exit MAINTENANCE MODE, press the POWER button on the main unit.
MAINTENANCE MODE > Temperature Information [Total Data]13 [Page]1/2
[Left] : Prev, [Right] : Next, [Return] : Top Menu, [Power off] : Exit
[no]xxxx [date]xxxx/ xx/ xx [time]xx:xx:xx [lenght]xxxx [type]xx
[no]xxxx [date]xxxx/ xx/ xx [time]xx:xx:xx [lenght]xxxx [type]xx
[no]xxxx [date]xxxx/ xx/ xx [time]xx:xx:xx [lenght]xxxx [type]xx
[no]xxxx [date]xxxx/ xx/ xx [time]xx:xx:xx [lenght]xxxx [type]xx
[no]xxxx [date]xxxx/ xx/ xx [time]xx:xx:xx [lenght]xxxx [type]xx
[no]xxxx [date]xxxx/ xx/ xx [time]xx:xx:xx [lenght]xxxx [type]xx
MAINTENANCE MODE > Laser Diode Information [Total Data]11 [Page]1/2
[Left] : Prev, [Right] : Next, [Return] : Top Menu, [Power off] : Exit
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx [DVD]xxx [BD]xxx [CD]xxx
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx [DVD]xxx [BD]xxx [CD]xxx
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx [DVD]xxx [BD]xxx [CD]xxx
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx [DVD]xxx [BD]xxx [CD]xxx
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx [DVD]xxx [BD]xxx [CD]xxx
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx [DVD]xxx [BD]xxx [CD]xxx

1-14 (No.YD125<Rev.001>)
(5) Displaying HDD SMART Information
HDD SMART Information displays the total HDD operating time and SMART information obtained when starting MAINTENANCE
MODE.
a) While the MAINTENANCE Top Menu is displayed, press the [4] button on the remote control to display HDD SMART In-
formation on the TV screen.
First page
Second page
b) To go to the next page, press the [Right] button on the remote control.
To go back to the previous page, press the [Left] button on the remote control.
c) To go back to the MAINTENANCE Top Menu, press the [Return] button on the remote control.
To exit MAINTENANCE MODE, press the POWER button on the main unit.
MAINTENANCE MODE > HDD SMART Information [Page]1/2
[Left] : Prev, [Right] : Next, [Return] : Top Menu, [Power off] : Exit
HDD total time : xxx hour
Raw Read Error Rate xx xx xx xx xx xx xx xx xx xx xx xx
Throughput Performance xx xx xx xx xx xx xx xx xx xx xx xx
Spin Up Time xx xx xx xx xx xx xx xx xx xx xx xx
Start/Stop Count xx xx xx xx xx xx xx xx xx xx xx xx
Real located Sectors Count xx xx xx xx xx xx xx xx xx xx xx xx
Seek Error Rate xx xx xx xx xx xx xx xx xx xx xx xx
Seek Time Performance xx xx xx xx xx xx xx xx xx xx xx xx
Power-On Hours xx xx xx xx xx xx xx xx xx xx xx xx
Spin Retry Count xx xx xx xx xx xx xx xx xx xx xx xx
Device Power Cycle Count xx xx xx xx xx xx xx xx xx xx xx xx
------------------------------------------------------------------------------------
MAINTENANCE MODE > HDD SMART Information [Page]2/2
[Left] : Prev, [Right] : Next, [Return] : Top Menu, [Power off] : Exit
Load/Unload Cycle Count xx xx xx xx xx xx xx xx xx xx xx xx
Temperature xx xx xx xx xx xx xx xx xx xx xx xx
Real location Event Count xx xx xx xx xx xx xx xx xx xx xx xx
Current Pending Sector Count xx xx xx xx xx xx xx xx xx xx xx xx
Off-Line Scan Uncorrectable Sector Count xx xx xx xx xx xx xx xx xx xx xx xx
UltraDMA CRC Error Count xx xx xx xx xx xx xx xx xx xx xx xx

(No.YD125<Rev.001>)1-15
(6) REBOOT COUNT Information
REBOOT COUNT Information displays date/time of reboot occurred due to any reason.
a) While the MAINTENANCE Top Menu is displayed, press the [5] button on the remote control to display REBOOT COUNT
Information on the TV screen.
(Maximum recording: 100 occurrences)
b) To display old records, press the [Right] button on the remote control.
To display new records, press the [Left] button on the remote control.
c) To go back to the MAINTENANCE Top Menu, press the [Return] button on the remote control.
To exit MAINTENANCE MODE, press the POWER button on the main unit.
MAINTENANCE MODE > REBOOT COUNT Information [TotalData]xxxx [Page]xxx/xxx
[Left] : Prev, [Right] : Next, [Return] : Top Menu, [Power off] : Exit
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx
[No]xxxx [Date]xxxx/ xx/ xx [Time]xx:xx:xx

(No.YD125<Rev.001>)
VSE
Printed in Japan
Victor Company of Japan, Limited
Business Solution Division

(No.YD125<Rev.001>)3-1
PARTS LIST
[SR-HD1250US, SR-HD1500US, SR-HD1500KR,
SR-HD1250EU, SR-HD1500EU, SR-HD1500ER,
SR-HD1500AG, SR-HD1500AC]
* SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with
specified part numbers.
* BEWARE OF BOGUS PARTS
Parts that do not meet specifications may cause trouble in regard to safety and
performance. We recommend that genuine JVC parts be used.
* (x_) in a description column shows the number of the used part.
- Contents -
Exploded view of general assembly and parts list
Electrical parts list
Packing materials and accessories parts list
3-2
3-4
3-8

3-2(No.YD125<Rev.001>)
Exploded view of general assembly and parts list
Green/Yellow
Blue
Brown
Block No.M1MM
26
WR6
WR7
20
23
19
18
22
21
33
19
8
8
9
5
6
6
D-SUB/BNC
board assembly<09>
27
30
6
6
6
6
6WR5
6
13
19
7
WR13
WR12
WR10
WR4
WR3
WR2
WR1
28
WR8
6
6
WR9
WR11
13
12
11
25
4
31
29
32
13 6
6
24
17
16
17
16
15
15
14
19
6
1
3
3
2
3
3
Terminal
board assembly<06>
REG/SD
board assembly<01>
34
Display
board assembly<05>
OPE board assembly<07>
OPT DIGI
board assembly<08>
a
a
b
b
c
c
d
d
e
e
g
g
f
f
h
h
j
j
k
m
m
n
n
p
p
k
1A
1B
6
10
10
35
36

(No.YD125<Rev.001>)3-3
General assembly
Block No. [M][1][M][M]
 Symbol No. Part No. Part Name Description Local
1 LS10265-005A FRONT PANEL ASSY 1250EU
1 LS10265-002B FRONT PANEL ASSY 1250US
1 LS10265-006A FRONT PANEL ASSY 1500AC
1 LS10265-004A FRONT PANEL ASSY 1500AG,1500ER,1500EU
1 LS10265-001B FRONT PANEL ASSY 1500KR,1500US
 1A LS20429-001B DOOR(DVD)
1B LS42002-001A TORSION SPRING
 2 LS10267-001B TOP COVER
3 LS31279-003A SPECIAL SCREW (x7)
 4 LS20430-001A FITTING(P)
 5 LS10268-001A BOTTOM CHASSIS
6 LS31279-001A SPECIAL SCREW (x25)
7 QYSPSP4008ZA SCREW M4 x 8mm
8 LS31280-002A FOOT (x4)
 9 LS42015-001A COOLING SHEET
10 QZW0092-005 WIRE CLAMP (x3)
11 LS31281-001A BRACKET(DRIVE)(L)
12 LS31282-001A BRACKET(DRIVE)(R)
13 QYSDST3006NA TAP SCREW M3 x 6mm(x5)
14 LS20431-001A BRACKET(HDD)
15 LS42004-001A DAMPER (x4)
16 LS42005-001A SPRING (x2)
17 LS42006-001A SPECIAL SCREW (x4)
 18 LS20432-006A REAR PANEL 1250EU
 18 LS20432-002B REAR PANEL 1250US
 18 LS20432-007A REAR PANEL 1500AC
 18 LS20432-004B REAR PANEL 1500AG,1500KR
 18 LS20432-005A REAR PANEL 1500ER,1500EU
 18 LS20432-001B REAR PANEL 1500US
19 QYSDSF3008NA TAP SCREW M3 x 8mm(x9)
20 QYSPSPH4025NA SCREW M4 x 25mm(x2)
21 QYNFS4000NA NUT M4(x2)
22 QAR0505-001 FAN MOTOR
 23 QNC0116-001 AC INLET
24 QAL1223-001 HDD 1250EU,1250US
24 QAL1222-001 HDD
1500AC,1500AG,1500ER,1500EU,1500KR,1500US
 25 QAL1229-001-1 DRIVE UNIT 1250US,1500US
 25 QAL1229-001-2 DRIVE UNIT 1500EU,1250EU
 25 QAL1229-001-3 DRIVE UNIT 1500AG,1500KR
 25 QAL1229-001-5 DRIVE UNIT 1500ER
 25 QAL1229-001-6 DRIVE UNIT 1500AC
26 QZW0001-001 WIRE CLAMP
 27 QMF51V2-2R0-S FUSE 2A AC250V
28 QQR0490-001 NOISE FILTER
29 LS31422-001A-H GASKET (x2)
30 LS31422-002A-H GASKET
31 LS31422-003A-H GASKET
32 LS31422-004A-H GASKET
33 QNB0036-001 CONN ACCESSORY (x2)
1500AC,1500AG,1500ER,1500EU,1500KR,1500US
34 LSU06907-01AEU2 BE DIGI BOARD ASSY 1250EU
34 LSU06907-01AUS2 BE DIGI BOARD ASSY 1250US
34 LSU06907-01AAC5 BE DIGI BOARD ASSY 1500AC
34 LSU06907-01AAG5 BE DIGI BOARD ASSY 1500AG
34 LSU06907-01AER5 BE DIGI BOARD ASSY 1500ER
34 LSU06907-01AEU5 BE DIGI BOARD ASSY 1500EU
34 LSU06907-01AKR5 BE DIGI BOARD ASSY 1500KR
34 LSU06907-01AUS5 BE DIGI BOARD ASSY 1500US
35 QYWAS326505NA WASHER 6.5mm/3.2mm x 0.5mm 1250EU
36 QZW0384-001 WIRE CLAMP
1250EU,1500AC,1500AG,1500ER,1500EU,1500KR
WR 1 QAM1049-002 SATA CABLE BE DIGI J4801-DRIVE UNIT
WR 2 QAM1049-002 SATA CABLE BE DIGI PWB J4901-HDD
WR 3 WJJ1064-001A-E WIRE REG/SD CN5304-HDD
WR 4 WJJ1064-002A-E WIRE REG/SD CN5305-DRIVE UNIT
WR 5 WJW0127-001A-E E-TWISTED ASSY DIGI CN2801-REG/SD CN801
WR 6 WJM0522-001A-E WIRE AC INLET-REG/SD CN5001
 WR 7 WJV0146-001A-E E-PRIMARY WIRE AC INLET-BOTTOM CHASSIS
WR 8 QUR310-2122AC-E FFC WIRE BE DIGI CN4001-DISPLAY CN7401
WR 9 QUQ112-0724CG-E FFC WIRE DISPLAY CN7402-REG/SD CN5306
WR10 QUQ112-0516CG-E FFC WIRE D-SUB/BNC CN401-TERMINAL CN203
1250US,1500AC,1500AG,1500ER,1500EU,1500KR,1500US
WR11 QJJ009-022612-E WIRE DISPLAY CN7403-OPE CN7404
WR12 QJJ009-021512-E WIRE D-SUB/BNC CN402-TERMINAL CN204
WR13 QJJ009-031313-E WIRE D-SUB/BNC CN403-TERMINAL CN205

3-4(No.YD125<Rev.001>)
Electrical parts list
REG/SD board
Block No. [0][1]
 Symbol No. Part No. Part Name Description Local
PW1 LSA10109-01B1H
REG/SD BOARD ASSY 1250EU,1500AC,1500AG,1500ER,1500EU
PW1 LSA10109-01A1H REG/SD BOARD ASSY 1250US,1500KR,1500US
IC5101 FSQ0565R IC(HYBRID)
IC5301 MM1431AT-T IC
IC5303 AOZ1016AI-X IC
IC5305
PQ6CU12X2APQ-X IC
IC5306 AOZ1016AI-X IC
Q5303 2SC2412K/QR/-X TRANSISTOR
Q5304 2SB1184/QR/-X POW TRANSISTOR
Q5305 2SA1037AK/R/-X TRANSISTOR
Q5307 2SA1363/EF/-X TRANSISTOR
Q5308 2SC3928A/QR/-X TRANSISTOR
Q5309 ISA1530AC1/QR/X TRANSISTOR
Q5310 ISA1530AC1/QR/X TRANSISTOR
Q5311 RT1N144C-X DIGI TRANSISTOR
Q5312 2SC3928A/QR/-X TRANSISTOR
Q5313 ISA1530AC1/QR/X TRANSISTOR
Q5314 RT1N241C-X DIGI TRANSISTOR
Q5315 ISA1530AC1/QR/X TRANSISTOR
Q5316 2SC3928A/QR/-X TRANSISTOR
Q5317 ISA1530AC1/QR/X TRANSISTOR
Q5318 2SB1184/QR/-X POW TRANSISTOR
Q5319 2SA1947/E/-X TRANSISTOR
Q5320 2SC3928A/QR/-X TRANSISTOR
Q5321 ISA1530AC1/QR/X TRANSISTOR
Q5323 2SC3928A/QR/-X TRANSISTOR
Q5325 ISA1530AC1/QR/X TRANSISTOR
D5001 D3SBA60 BRIDGE DIODE
D5101 SARS01-T FR DIODE
D5102 FR104S-T5 FR DIODE
D5201 FMN-G12S SI DIODE
D5203 FMB-24M SB DIODE
D5205 FR104S-T5 FR DIODE
D5304 RB400VA-50-X SB DIODE
D5306 MA2SD31-X SB DIODE
D5310 MA111-X SI DIODE
D5311 RB160M-30-X SB DIODE
D5312 MA2SD31-X SB DIODE
D5314 SR24-X SB DIODE
D5315 MA2SD31-X SB DIODE
D5318 MA2SD31-X SB DIODE
 PC5101 PC123Y22FZ PHOTO COUPLER
C811 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C812 NCB20JK-106X C CAPACITOR 10uF 6.3V K
C813 NCB20JK-106X C CAPACITOR 10uF 6.3V K
C814 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C815 NCB31HK-103X C CAPACITOR 0.01uF 50V K
 C5001 QFZ9073-104 MM CAPACITOR 0.1uF AC250V M
 C5002 QFZ9067-223 MM CAPACITOR 0.022uF
 C5003 QETM2GM-107 E CAPACITOR 100uF 400V M
 C5004 QCZ9079-101 C CAPACITOR 100pF AC250V K
C5101 QCZ0213-472 C CAPACITOR 4700pF 1kV K
C5102 NCB31HK-333X C CAPACITOR 0.033uF 50V K
C5103 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C5104 QTMT1HM-476 E CAPACITOR 47uF 50V M
C5105 NCB31HK-331X C CAPACITOR 330pF 50V K
C5107 NCB31HK-104X C CAPACITOR 0.1uF 50V K
C5201 QTM91CM-128 E CAPACITOR 1200uF 16V M
C5202 QTM91AM-338 E CAPACITOR 3300uF 10V M
C5204 QTM91CM-477 E CAPACITOR 470uF 16V M
C5301 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5304 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5306 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5307 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5308 QETN1HM-226Z E CAPACITOR 22uF 50V M
C5309 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C5311 NCB41CK-226X C CAPACITOR 22uF 16V K
C5312 NCB41AK-226X C CAPACITOR 22uF 10V K
C5313 NCB41AK-226X C CAPACITOR 22uF 10V K
C5314 NCB31HK-102X C CAPACITOR 1000pF 50V K
C5315 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C5316 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C5326 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K
C5327 NCB11HK-474X C CAPACITOR 0.47uF 50V K
C5328 NCB11HK-474X C CAPACITOR 0.47uF 50V K
C5329 NCB41AK-226X C CAPACITOR 22uF 10V K
C5330 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C5331 NCB31HK-102X C CAPACITOR 1000pF 50V K
C5332 NCB41AK-226X C CAPACITOR 22uF 10V K
C5333 NCB41AK-226X C CAPACITOR 22uF 10V K
C5334 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5335 QETN0JM-478Z E CAPACITOR 4700uF 6.3V M
C5336 QETN1HM-106Z E CAPACITOR 10uF 50V M
 C5337 QCZ9079-102 C CAPACITOR 1000pF AC250V M
C5339 NCB31HK-333X C CAPACITOR 0.033uF 50V K
C5342 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5343 NCB31AK-154X C CAPACITOR 0.15uF 10V K
C5344 NCB31HK-333X C CAPACITOR 0.033uF 50V K
C5348 QETN1CM-477Z E CAPACITOR 470uF 16V M
C5350 NCB21CK-105X C CAPACITOR 1uF 16V K
C5353 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5354 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C5355 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C5356 NCB31CK-103X C CAPACITOR 0.01uF 16V K
C5357 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5358 QETN1CM-107Z E CAPACITOR 100uF 16V M
C5359 QETN1CM-107Z E CAPACITOR 100uF 16V M
R811 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R812 NRSA63J-473X MG RESISTOR 47k
Ω 1/16W J
R813 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R814 NRSA63J-220X MG RESISTOR 22
Ω 1/16W J
R815 NRSA63J-220X MG RESISTOR 22
Ω 1/16W J
R816 NRSA63J-220X MG RESISTOR 22
Ω 1/16W J
R817 NRSA63J-220X MG RESISTOR 22
Ω 1/16W J
R818 NRSA63J-0R0X MG RESISTOR 0
Ω 1/10W J
R819 NRSA63J-220X MG RESISTOR 22
Ω 1/16W J
R820 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R821 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R822 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R823 NRSA63J-123X MG RESISTOR 12k
Ω 1/16W J
R5101 QRL01DJ-683X OMF RESISTOR 68k
Ω 1W J
 R5102 QRZ9005-470X FUSI RESISTOR 47 Ω
R5103 QRL01DJ-753X OMF RESISTOR 75k Ω 1W J
R5105 QRJ143J-223X
UNF C RESISTOR 22k Ω 1/4W J
R5106 QRJ143J-333X
UNF C RESISTOR 33k Ω 1/4W J
 R5107 QRZ9051-4R7X FUSI RESISTOR 4.7 Ω
R5109 QRE141J-0R0Y C RESISTOR 0 Ω 1/4W J
R5301 NRSA63J-0R0X MG RESISTOR 0
Ω 1/10W J
R5302 NRSA63J-683X MG RESISTOR 68k
Ω 1/16W J
R5303 NRSA63J-133X MG RESISTOR 13k
Ω 1/16W J
R5304 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R5309 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R5311 NRSA63D-103X MG RESISTOR 10k
Ω 1/16W D
R5312 NRSA63D-304X MG RESISTOR 300k
Ω 1/16W D
R5313 NRSA63J-124X MG RESISTOR 120k
Ω 1/16W J
R5314 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R5315 NRSA63J-472X MG RESISTOR 4.7k
Ω 1/16W J
R5317 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R5318 NRSA63J-563X MG RESISTOR 56k
Ω 1/16W J
R5319 NRSA63J-153X MG RESISTOR 15k
Ω 1/16W J
R5320 QRE141J-181Y C RESISTOR 180
Ω 1/4W J
R5321 NRSA63J-0R0X MG RESISTOR 0
Ω 1/10W J
R5322 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R5323 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R5324 QRE141J-331Y C RESISTOR 330
Ω 1/4W J
R5325 QRE141J-131Y C RESISTOR 130
Ω 1/4W J
R5328 QRE141J-104Y C RESISTOR 100k
Ω 1/4W J
R5329 NRSA63J-562X MG RESISTOR 5.6k
Ω 1/16W J
R5330 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R5331 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R5332 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R5333 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
