JVC GR-FX14EG User manual

1
INSTRUCTIONS ENGLISH LYT0860-001B
AUTOMATIC DEMONSTRATION
Aut om atic De monst ra tion tak e s pla ce w he n “DEM O MODE” is se t t o “ON ”
(fa ctory-preset ).
• Available when the Power Switch @is set to “ ” or “ ”.
• Performing any operation during the demonstration stops the demonstration temporarily. If no operation
is performed for more than 1 minute after that, the demonstration will resume.
• “DEMO MODE” remains “ON” even if the camcorder power is turned off.
• To cancel Automatic Demonstration, set the Power Switch @to “ ” and press the MENU Wheel 1in
while the demo is in progress. This takes you directly to the demo mode’s Setting Menu (so you will not
have to go through the main Menu Screen). Rotate the MENU Wheel 1to select “OFF” and press it.
NOTES:
• When a tape whose Erase Protection tab is in the position that allows recording is loaded in the
camcorder, demonstration is not available.
• If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration
activated on the LCD monitor* or viewfinder.
* Applicable models only.
Dear Customer,
Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read
“PRECAUTIONS” (pg. 3, 4) to ensure safe use of this product.
EG Printed in Malaysia
1001MKV
*
UN
*
PJ
COMPACT VHS CAMCORDER
GR-SXM58
GR-SXM48
GR-FXM383
GR-FXM38
GR-SX24
GR-FX14
VHS
PAL
625
S-VHS is compatible with
GR-SXM58/SXM48/SX24
only
COPYRIGHT© 2001 VICTOR COMPANY OF JAPAN, LTD
Downloaded from: https://www.usersmanualguide.com/

2
PROVIDED ACCESSORIES
AP-V12EG, AP-V11EG or AP-V10EG
• Battery Pack
BN-V11U
(GR-SXM48/FXM383/
FXM38/SX24/FX14)
BN-V20U
(GR-SXM58)
• Cable Adapter
• PC Connection Cable
(GR-SXM58 only)
• Shoulder Strap
• CD-ROM
(GR-SXM58 only)
• Lens Cap
• Power Cord • A/V (Audio/Video)
Cable
• S-Video Cable
(GR-SXM58/SXM48/
SX24 only)
NOTE:
In order to maintain optimum performance of the camcorder, provided cables may be equipped with
one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be
connected to the camcorder.
• AC Adapter
Downloaded from: https://www.usersmanualguide.com/

3
SAFETY PRECAUTIONS
PRECAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE
THIS UNIT TO RAIN OR
MOISTURE.
CAUTIONS
•To prevent shock, do not open the cabinet. No
user serviceable parts inside. Refer servicing to
qualified personnel.
•When you are not using the AC Adapter for a long
period of time, it is recommended that you
disconnect the power cord from AC outlet.
NOTES:
•The rating plate (serial number plate) and safety
caution are on the bottom and/or the back of the
main unit.
• The rating information and safety caution of the
AC Adapter are on its bottom.
CAUTIONS
•This camcorder is designed to be used with
PAL-type colour television signals. It cannot be
used for playback with a television of a different
standard. However, live recording and LCD
monitor*/viewfinder playback are possible
anywhere.
•Use the JVC BN-V11U**/V12U/V20U/V400U
battery packs and, to recharge them or to supply
power to the camcorder from an AC outlet, use
the provided multi-voltage AC Adapter. (An
appropriate conversion adapter may be
necessary to accommodate different designs of
AC outlets in different countries.)
* Applicable models only.
** GR-SXM48/FXM383/FXM38/SX24/FX14 only.
Crossed Out Dust Bin Mark
•The Crossed Out Dust Bin
Mark on the battery pack
indicates that the product
complies with Directives
91/157/EEC and 93/86/EEC.
•Nickel-Cadmium (Ni-Cd)
battery pack must be
recycled or disposed of
properly.
Cassettes marked and can be used used with this camcorder.
However, S-VHS recordings are possible* only with cassettes marked .
* GR-SXM58/SXM48/SX24 only.
CAUTIONS
To avoid electric shock or damage to the
unit, first firmly insert the small end of the
power cord into the AC Adapter until it is no
longer wobbly, and then plug the larger end
of the power cord into an AC outlet.
Downloaded from: https://www.usersmanualguide.com/

4
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space
on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get
out.)
No naked flame sources, such as lighted candles, should be placed on the apparatus.
When discarding batteries, environmental problems must be considered and the local rules or
laws governing the disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or splashing.
Do not use this equipment in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such as cosmetics or medicines,
flower vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
Downloaded from: https://www.usersmanualguide.com/

5
INDEX
A
AC Adapter ................................................................. pg. 6
Animation Recording ................................................ pg. 21
Auto Date Record ....................................................pg. 19
Auto Focus ............................................................... pg. 18
Auto Shut Off ........................................................... pg. 11
B
Battery Pack ......................................................... pg. 6, 26
Blue Filter Effect ...................................................... pg. 24
Brighten The Image ................................................. pg. 18
Brighten The LCD Monitor ....................................... pg. 11
C
Cassette Adapter ..................................................... pg. 16
Charge Marker ........................................................... pg. 6
Charging The Battery Pack ........................................ pg. 6
Classic Film Effect.................................................... pg. 24
Clean The Camcorder .............................................. pg. 27
Connection To a VCR/TV .........................................pg. 15
Connection To A PC ................................................. pg. 16
Counter Memory ...................................................... pg. 14
D
Darken The Image ................................................... pg. 18
Darken The LCD Monitor ......................................... pg. 11
Date/Time Display .................................................... pg. 19
Date/Time Settings..................................................... pg. 7
Demonstration Mode ............................................ pg. 1, 22
Digital Effects ........................................................... pg. 24
Digital Zoom ............................................................. pg. 20
Dioptre Adjustment .....................................................pg. 8
E
Electronic Fog Filter Mode ....................................... pg. 24
Erase Protection ........................................................ pg. 8
Exposure Control ..................................................... pg. 18
F
Fade-In/Out .............................................................. pg. 23
Fast-Forward Tape ................................................... pg. 11
5-Second Recording Mode ...................................... pg. 12
G
Grip Adjustment ......................................................... pg. 8
H
High Speed Shutter Mode ........................................ pg. 24
I
Instant Titles ............................................................. pg. 19
L
LCD Monitor/Viewfinder, Indications .............. pg. 9, 10, 17
Load A Tape ............................................................... pg. 8
M
Manual Focus .......................................................... pg. 18
Menu Screen .................................................... pg. 18 – 22
Monotone Effect ....................................................... pg. 24
Mosaic Effect ........................................................... pg. 24
N
ND Effect Mode ........................................................ pg. 24
Nega/Posi Mode ...................................................... pg. 24
Night-Scope ............................................................. pg. 23
P
Picture Stabiliser ...................................................... pg. 12
Playback .................................................................. pg. 11
Playback Special Effects .......................................... pg. 14
Programme AE with Special Effects ........................ pg. 24
Provided Accessories ................................................ pg. 2
Q
Quick Review ........................................................... pg. 13
R
Recording, Advanced Features .......................... pg. 23, 24
Recording, Start/Stop ............................................... pg. 11
Recording Format (S-VHS/S-VHS ET) .................... pg. 20
Recording Mode ....................................................... pg. 20
Record-Standby ....................................................... pg. 11
Red Filter Effect ....................................................... pg. 24
Retake ...................................................................... pg. 13
Rewind The Tape ..................................................... pg. 11
S
Self-Recording ......................................................... pg. 11
Sepia Mode .............................................................. pg. 24
Shoulder Strap Attachment ........................................ pg. 8
Snapshot During Playback ....................................... pg. 12
Snapshot .................................................................. pg. 12
Solarisation Effect .................................................... pg. 24
Specifications ........................................................... pg. 28
Sports Mode ............................................................. pg. 24
Still Playback ............................................................ pg. 11
Stretch Effect ........................................................... pg. 24
Strobe Effect ............................................................ pg. 24
Super LoLux (S.LX) ................................................. pg. 19
Super VHS Expansion Technology .......................... pg. 20
T
Tape Counter ........................................................... pg. 14
Tape Dubbing ...........................................................pg. 15
Tape Length Setting ................................................. pg. 21
Tele Macro ............................................................... pg. 21
Time Base Corrector ............................................... pg. 14
Time-Lapse Shooting ............................................... pg. 21
Tracking ................................................................... pg. 14
Tripod Mounting ......................................................... pg. 8
Twilight Mode ........................................................... pg. 24
U
Unload A Tape ............................................................ pg. 8
V
Video Echo Effect ..................................................... pg. 24
Video Light ............................................................... pg. 13
Viewfinder Adjustment ...............................................pg. 8
W
White Balance Adjustment ....................................... pg. 19
Wide Mode ............................................................... pg. 20
Wipe-In/Out .............................................................. pg. 23
Z
Zooming ................................................................... pg. 13
Downloaded from: https://www.usersmanualguide.com/

6
GETTING STARTED
Hook on.
Push in.
BATTERY RELEASE Switch
Battery pack
Power Switch
To DC IN
connector
To AC outlet
AC Adapter
CH ARGI NG THE BAT TERY PACK
1) Hook the end of the battery pack to the
camcorder and push the battery in until it locks
in place.
•If the battery pack is attached in the wrong
position, a malfunction may occur.
2) Set the Power Switch @ to “OFF”. Connect the
AC Adapter to the DC IN connector 9, then
connect the Power Cord to the AC Adapter.
3) Plug the Power Cord into an AC outlet. The
CHARGE lamp *blinks to indicate charging
has started.
4) When the CHARGE lamp *stops blinking but
stays lit, charging is finished. Unplug the AC
Adapter from the AC outlet. Disconnect the AC
Adapter from the camcorder.
To Detach The Battery Pack . . .
... slide BATTERY RELEASE 8and pull out the
battery pack.
Battery pack
BN-V11U*
BN-V12U (optional)
BN-V20U** (optional)
BN-V400U (optional)
Charging time
approx. 1 hr. 30 min.
approx. 1 hr. 30 min.
approx. 2 hrs. 20 min.
approx. 4 hrs. 30 min.
Charging times are for a fully discharged battery pack.
* GR-SXM48/FXM383/FXM38/SX24/FX14 only.
** Provided with GR-SXM58 only.
USING TH E BAT TERY PACK
Perform step 1) of “CHARGING THE BATTERY
PACK”.
Approximate recording time (unit: min.)
1When using models equipped with LCD monitor
2When using GR-SX24/FX14
( ):when the video light is on
(GR-SXM58/SXM48/FXM383/SX24 only)
Battery pack
BN-V11U
BN-V12U
(optional)
BN-V20U
(optional)
BN-V400U
(optional)
Viewfinder on
12
95 100
(50) (50)
95 100
(50) (50)
150 165
(85) (90)
360 385
(205) (210)
LCD monitor on
1
80
(45)
80
(45)
135
(75)
315
(190)
USING AC POWER
Connect the AC Adapter to the camcorder (step
2) and 3) of “CHARGING THE BATTERY PACK”).
•The provided AC Adapter features automatic
voltage selection in the AC range from 110 V to
240 V.
ATTENTION
Before detaching the power source,
make sure that the camcorder’s power is turned
off. Failure to do so can result in a camcorder
malfunction.
REFRESH:
Be sure to fully discharge a battery pack before
recharging or storing it for a long period of time,
otherwise the battery performance will be reduced.
1) Perform steps 1) through 3) of “CHARGING
THE BATTERY PACK”.
2) Press REFRESH rfor over 2 seconds. The
REFRESH lamp (blinks to indicate
discharging has started.
3) When discharging is finished, charging
automatically starts and the CHARGE lamp *
blinks.
Charge marker helps you remember
whether the battery pack has been
charged or not. Two colours are provided
(red and black)—you choose which one
means charged and which means
discharged.
Downloaded from: https://www.usersmanualguide.com/

7
•During charging or discharging, the camcorder
cannot be operated.
•Charging and discharging is not possible if the
wrong type of battery is used.
•When charging the battery pack for the first time
or after a long storage period, the CHARGE lamp
*may not light. Remove the battery pack from
the camcorder, then try charging again.
• If a fully-charged battery’s operation time remains
extremely short, the battery is worn out. Please
purchase a new one.
•Perform charging where the temperature is
between 10°C and 35°C. 20°C to 25°C is the ideal
temperature range for charging. If the environment
is too cold, charging may be incomplete.
•Charging time varies according to the ambient
temperature and the status of the battery pack.
• Since the AC Adapter processes electricity
internally, it becomes warm during use. Be sure to
use it only in well-ventilated areas.
•The following operation stops charging or
discharging:
•Set the Power Switch @to “”, “ ” or “”.
•Disconnect the AC Adapter from the camcorder.
•Unplug the AC Adapter’s power cord from the
AC outlet.
•Detach the battery from the camcorder.
•Using the optional AA-V15EG AC Power Adapter/
Charger, you can charge the BN-V11U/V12U/
V20U/V400U battery pack without the camcorder.
However, it cannot be used as an AC adapter.
•To avoid interference with reception, do not use
the AC Adapter near a radio.
•Recording time is reduced significantly when
Zoom or Record-Standby mode is engaged
repeatedly or the LCD monitor* is used
repeatedly.
•Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.
* Applicable models only.
Da te/Time Settings
1) Set the Power Switch @to “ ”.
2) Press the MENU Wheel 1in. The Menu Screen
appears.
•You can select the language (ENGLISH or
RUSSIAN) of messages in menu screens
(pg. 18, 22 “MENU LANG.” in SYSTEM
MENU).
3) Rotate the MENU Wheel 1to select
“
4 TO SYSTEM MENU” and press it to display
SYSTEM MENU. Rotate the MENU Wheel 1to
select “
4 NEXT” and press it to display the next
page.
4) Rotate the MENU Wheel 1to select “DATE/
TIME” and press it. The DATE/TIME Menu
appears.
5) To set “YEAR”, “MONTH”, “DAY” or “TIME”
(hour/minute), rotate the MENU Wheel 1to
select the desired item, and press it. When the
setting begins blinking, rotate the MENU Wheel
1until the correct setting appears and then
press it. The setting stops blinking.
6) When none of these settings (“YEAR”,
“MONTH”, “DAY”, “TIME”) blinks, rotate the
MENU Wheel 1to select “EXIT”, and press it.
The Menu Screen reappears with the highlight
bar on “
4 RETURN”.
7) Press the MENU Wheel 1in to close the Menu
Screen.
• To display the date and time in the camcorder’s
display and on a connected TV, see DATE/TIME
DISP. (pg. 19) in CAMERA MENU.
•The date/time cannot be stored in memory if the
built-in clock battery runs out. Consult an
authorised JVC dealer for replacement, or set the
date/time as necessary before you start shooting.
Y
M
D
T
E
E
O
A
I
X
A
N
Y
M
I
R
T
E
T
H
DATE / T I ME
2
2
0
0
:
0
2
2
2
6
8
0
1
@
24-hour indication
Downloaded from: https://www.usersmanualguide.com/

8
t
i
t
i
Grip Adjustme nt
1) Separate the Velcro strip.
2) Pass your right hand through the loop and grasp
the grip.
3) Adjust so that your thumb and fingers can easily
operate the Recording Start/Stop Button !and
Power Zoom Lever 3. Refasten the Velcro strip.
Loa ding/Unloading A Casse t te
1) Open the LCD monitor fully*. Slide EJECT t
until the cassette holder opens. Do not use force
to open.
2) Insert or remove a cassette. When inserting,
make sure the label is facing outward. D
appears when a cassette is loaded.
3) Press the Close button ito close the cassette
holder until it locks into place. Close the LCD
monitor*.
•Closing the LCD monitor while the cassette holder is
still open may cause damage to the LCD monitor*.

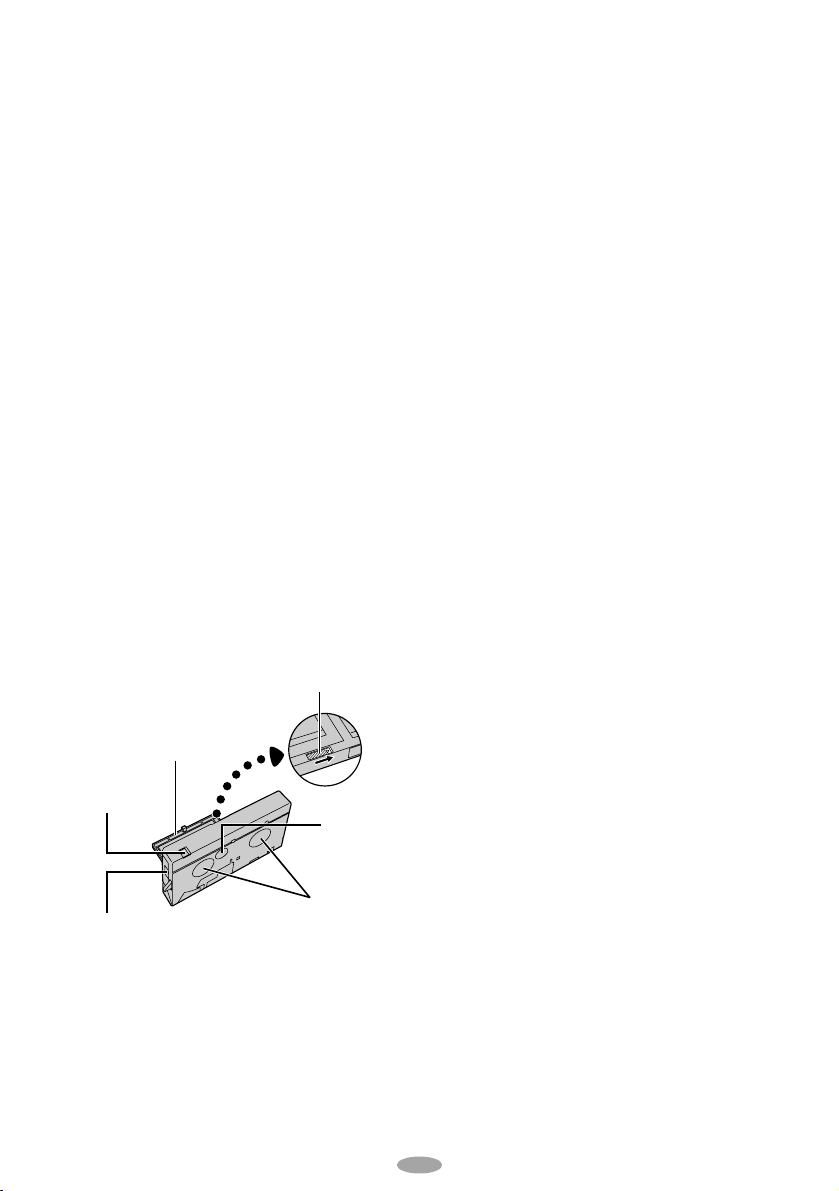

•Make sure the erase protection tab is in the position
that allows recording. If not, slide the tab. Some
cassettes have removable tabs. If the tab has been
removed, cover the hole with adhesive tape.
• The cassette holder cannot be opened while the
camcorder is in the record mode or detached from
the power source.
* Applicable models only.
Tripod Mounting
Align the screw and camera direction stud on the
tripod with the tripod mounting socket W. Then
tighten the screw.
CAUTION
When using a tripod, be
sure to open and extend
its legs fully to stabilise
the camcorder. To
prevent damage to the
unit caused by falling
over, do not use a
small-sized tripod.
Shoulder St ra p At t achment
Thread the strap through the eyelet y, then fold it
back and thread it through the buckle. Repeat the
procedure to attach the other end of the strap to
the other eyelet y, making sure the strap is not
twisted. Adjust the length.
Vie w finder Adjustment
1) Set the Power Switch @to “”or “”.
2) Turn the Dioptre Adjustment Control ountil the
indications in the viewfinder are clearly focused.
PAUSE
180°180°
Cassette holder
Erase Protection tab
Gear
Turn to
take up
slack.
y
3
!
Cassette
holder
Downloaded from: https://www.usersmanualguide.com/

9
$# % &
)qwe t
r
*(
p
Q
^
W
i
y
1
R
4
B
2
2
E
4
5
1
R
5
0
C
4
M
/
I
.
M
I
2
G
C
1
I
S
N
S
H
O
2
N
P
1
T
N
.
S
G
0
N
–
–
R
1
I
V
P
A
G
H
A
–
T
H
S
U
–
U
T
S
–
L
S
R
E
–
A
–
2
E
–
T
E
0
C
–
I
1
T
x
–
O
1
6
N
:
–
S
4
T
+
M
–
5
4
0
W
–
:
0
2
B
1
+
8
1X
O
as
df
h
j
g
P
;
lk
U
TY
ERI
b
A
S
a
T
V
B
O
C
L
M
U
O
M
N
E
OT
–
O
S
N
–
–
E
–
E
–
T
–
–
–
1
6
:
–
S
2
–
P
3
–
:
–
4
4
A
–
5
T
+
F : G J D H LK
z
u
y
12
9!0@
6
7
8
34
o
180°
180°90°
90°

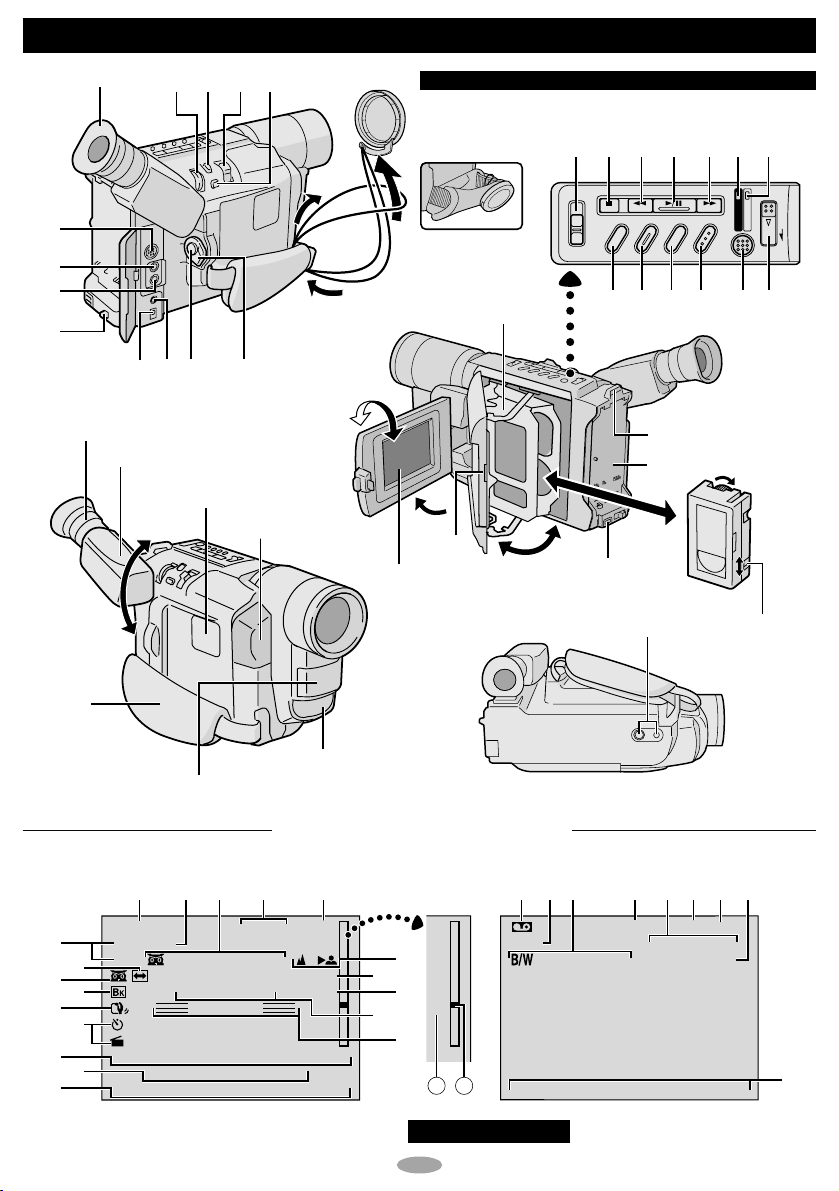

CONTROLS, CONNECTORS AND INDICATORS
Eyepiece
During shooting
Refer to this diagram while reading the instructions.
Keep the lens
cap attached to
the camcorder.
Cassette holder
Turn the gear to
take up slack.
Erase
protection tab
LCD monitor
(applicable models only)
During Recording During Playback
Viewfinder
Speaker
(applicable models only)
pg. 25 for Warning Indications .
LCD Monitor/Viewfinder Indications
Video light
(GR-SXM58/SXM48/FXM383/SX24 only)
Microphone
Downloaded from: https://www.usersmanualguide.com/

10
1•MENU Wheel [–, +] ................................ pg. 18
•BRIGHT Wheel [–, +]*1........................... pg. 11
•TRACKING Wheel [–, +] ........................ pg. 14
2•Snapshot Button [SNAPSHOT]*2........... pg. 12
•5-Second Recording Button
[5 SEC. REC]*3...................................... pg. 12
3•Power Zoom Lever [T/W] ....................... pg. 13
•Speaker Volume Control [VOL.]*1........... pg. 11
4•Picture Stabiliser Button
[P.STABILIZER] ..................................... pg. 12
•Time Base Corrector Button [TBC] ........ pg. 14
S-Video Output Connectors [S]*2............. pg. 15
6Audio Output Connector [A] ..................... pg. 15
7Video Output Connector [V] ..................... pg. 15
8Battery Release Switch
[BATTERY RELEASE] ............................... pg. 6
9DC IN Connector ....................................... pg. 6
0Digital Connector [DIGITAL]*4
!Recording Start/Stop Button ..................... pg. 11
@Power Switch [ , OFF, , ] ........... pg. 11
#Video Light Switch
[LIGHT OFF/AUTO/ON]*5........................ pg. 13
$Stop Button [STOP] ..................................pg. 11
%•Retake Rewind Button [RETAKE R] ...... pg. 13
• Quick Review Button [ R] ................. pg. 13
•Rewind Button [R] ...................................pg. 11
^Play/Pause Button .................................... pg. 11
&•Retake Forward Button [RETAKE F] ..... pg. 13
•Fast-Forward Button [F] ..........................pg. 11
*CHARGE Lamp ......................................... pg. 6
(REFRESH Lamp ....................................... pg. 6
)•Fade/Wipe Button [FADE/WIPE] ........... pg. 23
•Counter Reset/Memory Button
[COUNTER R/M] ................................... pg. 14
qProgramme AE Button [P.AE] .................. pg. 24
wDigital Effect Button [DIGIFECT] ............. pg. 24
eNIGHT-SCOPE Button*2.......................... pg. 23
rREFRESH Button ...................................... pg. 6
tEJECT Switch ............................................ pg. 8
yShoulder Strap Eyelets .............................. pg. 8
uBattery Pack Mount ................................... pg. 6
iClose Button .............................................. pg. 8
oDioptre Adjustment Control ........................ pg. 8
pCamera Sensor
Be careful not to cover this area; a sensor
necessary for shooting is built-in here.
QGrip Strap .................................................. pg. 8
WTripod Mounting Socket ............................. pg. 8
ETape Remaining Time .............................. pg. 21
RRecording Mode Indicator ....................... pg. 20
T•Digital Effect Indicator ............................ pg. 24
•Programme AE Indicator ....................... pg. 24
•Night-Scope Indicator*2.......................... pg. 23
•Fade/Wipe-Standby Indicator ................ pg. 23
YRecording Format Indicator (S/S-ET)*2... pg. 20
UTape Length Indicator .............................. pg. 21
IZoom Indicator Bar .................................. pg. 13
Zoom Level Indicator
Approximate Zoom Ratio
ORecording Indicator .................................. pg. 11
PDigital Effect Indicator .............................. pg. 24
a•Programme AE Indicator ....................... pg. 24
•Night-Scope Indicator*2.......................... pg. 23
sFade/Wipe-Standby Indicator .................. pg. 23
dPicture Stabiliser Indicator ....................... pg. 12
f•Interval Time/Recording Time Indicator .... pg. 21
•5 Sec. Rec Mode Indicator*3.................. pg. 12
gBright Level Indicator*1............................. pg. 11
hInstant Title Display ................................. pg. 19
jDate/Time Display ................................... pg. 19
kFocus Indicator ........................................ pg. 18
lExposure Control Level Counter ............. pg. 18
;White Balance Mode Indicator ................. pg. 19
AS-VHS/S-VHS ET Recording
Indicator*2................................................ pg. 20
SRecord-Standby Mode Indicator ............... pg. 11
D: Cassette Indicator ............................. pg. 8
FTBC Indicator ........................................... pg. 14
GPlayback Special Effect Indicator*2.......... pg. 14
HRecording Format Indicator (S/S-ET)*2... pg. 20
JTape Counter ........................................... pg. 14
KRecording Mode Indicator (SP/LP) .......... pg. 20
LTape Running Indicator
4 : Playback
3 : Fast-Forward/Shuttle Search
2 : Rewind/Shuttle Search
6: Pause
:Tracking Indicator .................................... pg. 14
z•BRIGHT: Bright Level Indicator*1............ pg. 11
•VOLUME: Speaker Volume Indicator*1.... pg. 11
*1Applicable models only.
*2GR-SXM58/SXM48/SX24 only.
*3GR-FXM383/FXM38/FX14 only.
*4GR-SXM58 only.
*5GR-SXM58/SXM48/FXM383/SX24 only.
Downloaded from: https://www.usersmanualguide.com/
