HD HARD DISK CAMCORDER
Model GZ-HD10
PC OPERATION GUIDE
EN
For Windows®Users
You Can Do This..................................3
Software Installation ...........................6
Connecting the Camera to the PC .....8
File Backup on the PC.........................9
File Backup on the PC from the
Specified Media................................10
File Backup on the PC without Using
Software............................................11
Playing Back Files on the PC ...........13
Creating a Video Disc
(DIRECT DISC button) .....................15
Creating a Video Disc
(Using Software) ..............................16
Editing and Creating a Video Disc
(Basic Editing)..................................19
Editing and Creating a Video Disc
(Advanced Editing) ..........................23
Editing and Saving a File (AVCHD)...25
Playing Back on a DVD burner ........28
FAQ.....................................................29
For Macintosh Users
You Can Do This................................30
Connecting the Camera to the
Macintosh .........................................31
File Backup on the Macintosh..........32
For All Users
Folder Structure and Extensions
(EVERIO_HDD) .................................34
Folder Structure and Extensions
(EVERIO_SD)....................................35
Customer Support Information ........36
JVC Software License Agreement ...37

2
Preparation
◆For Windows users
•
Install the software included in the provided CD-ROM (p. 6).
•To create a Blu-ray disc
➡Use a recordable Blu-ray disc drive.
•To create a high definition DVD (AVCHD disc) or a DVD video disc with standard picture quality
➡Use a recordable DVD drive.
◆For Macintosh users
•
Use commercially available software to edit video or create a disc.
To play back a video disc
◆To play back a Blu-ray disc
➡Use a commercially available Blu-ray disc player etc.
◆To play back an AVCHD video disc
➡Use a DVD burner (CU-VD50, sold separately), commercially available device and software (the
supplied PowerDVD, etc.) that supports AVCHD format.
If you insert the disc into other device, you may not be able to remove it.
◆To play back a DVD video disc
➡Use a commercially available DVD player etc.
(With some device, correct playback may not be possible.)
◆To play back a DVD created using a DVD burner (CU-VD50/CU-VD40, sold separately)
➡To play back the disc, use a DVD burner. If you insert the disc into other device, you may not be able
to remove it.
Concerning operation, refer to the instruction manual supplied with the devices.
Caution
•
The i.LINK Connection cannot be used to import recorded files.
Use the USB Connection.

3
Windows®1
You Can Do This
After recording video or still images, you can save them onto your computer and use the supplied
software to play back, edit or create discs.

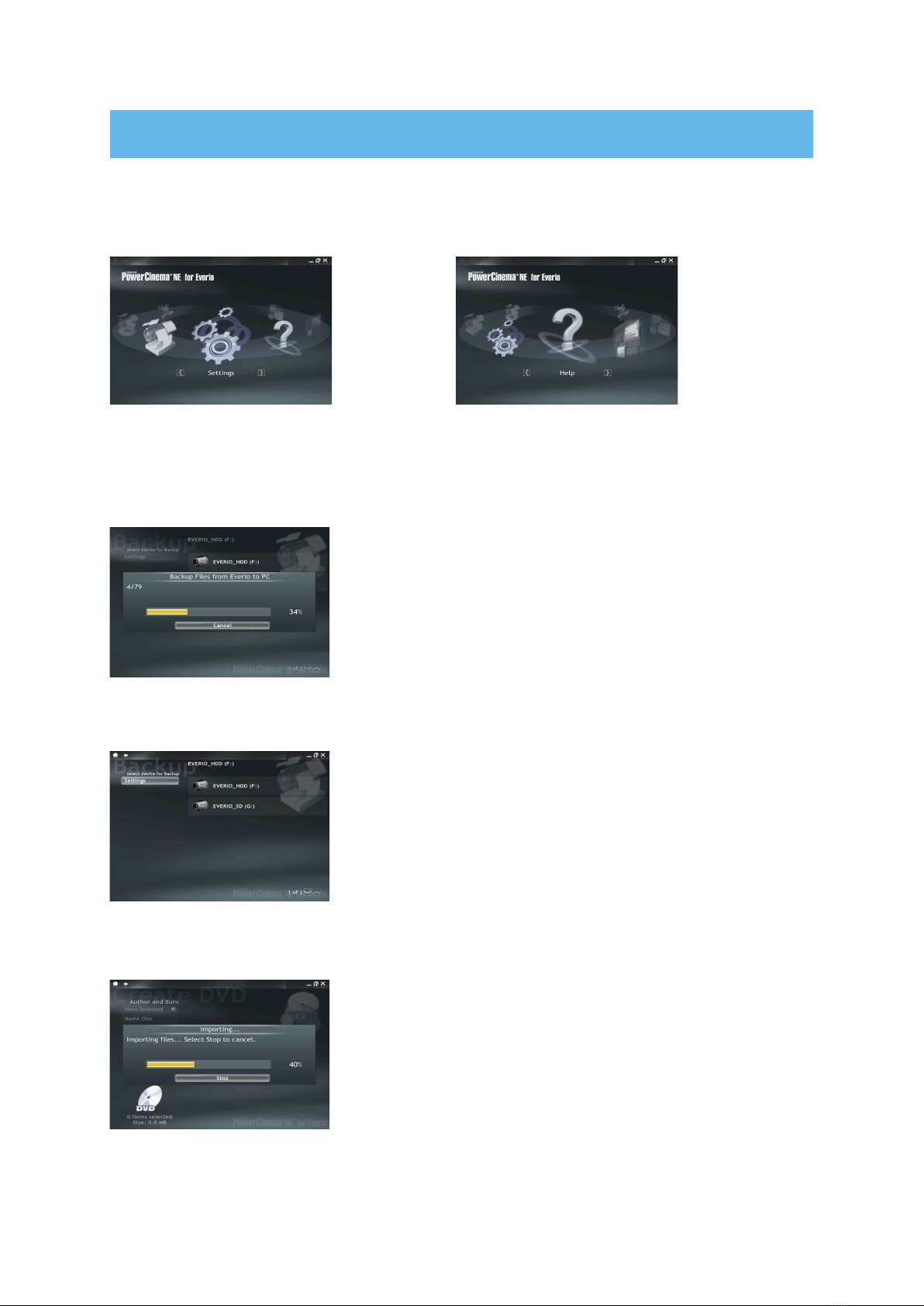

[Settings]
You can set each item in detail.
nSaving, playback, copying and editing is easy with PowerCinema
[Help]
You can view detailed instructions on the
Internet.
lDIRECT BACK UP: Easy save operation from your Everio
You can save the videos that you have recorded onto your
computer by pressing DIRECT BACK UP button.
lBackup: Save operation from your computer
You can select HDD of the camera or microSD card and save the
newly recorded videos onto your computer.
lDIRECT DISC: Saving on a DVD with an operation from your Everio
You can save the newly recorded videos on a DVD and create an
AVCHD disc by pressing DIRECT DISC button.
For Windows®Users

4
nEdit with PowerDirector! nCreate a disc with PowerProducer!
nMake the most of your still images with Digital Photo Navigator!
<NOTES>
•If you are having trouble operating the supplied software, contact customer support (p. 36).
•For details on how to create a disc for videos that you have edited on your computer, see the
following web site:
http://www2.cli.co.jp/products/ne/
l[Advanced Functions] for creating discs or editing
[Copy Files]:
You can select and copy the desired video file.

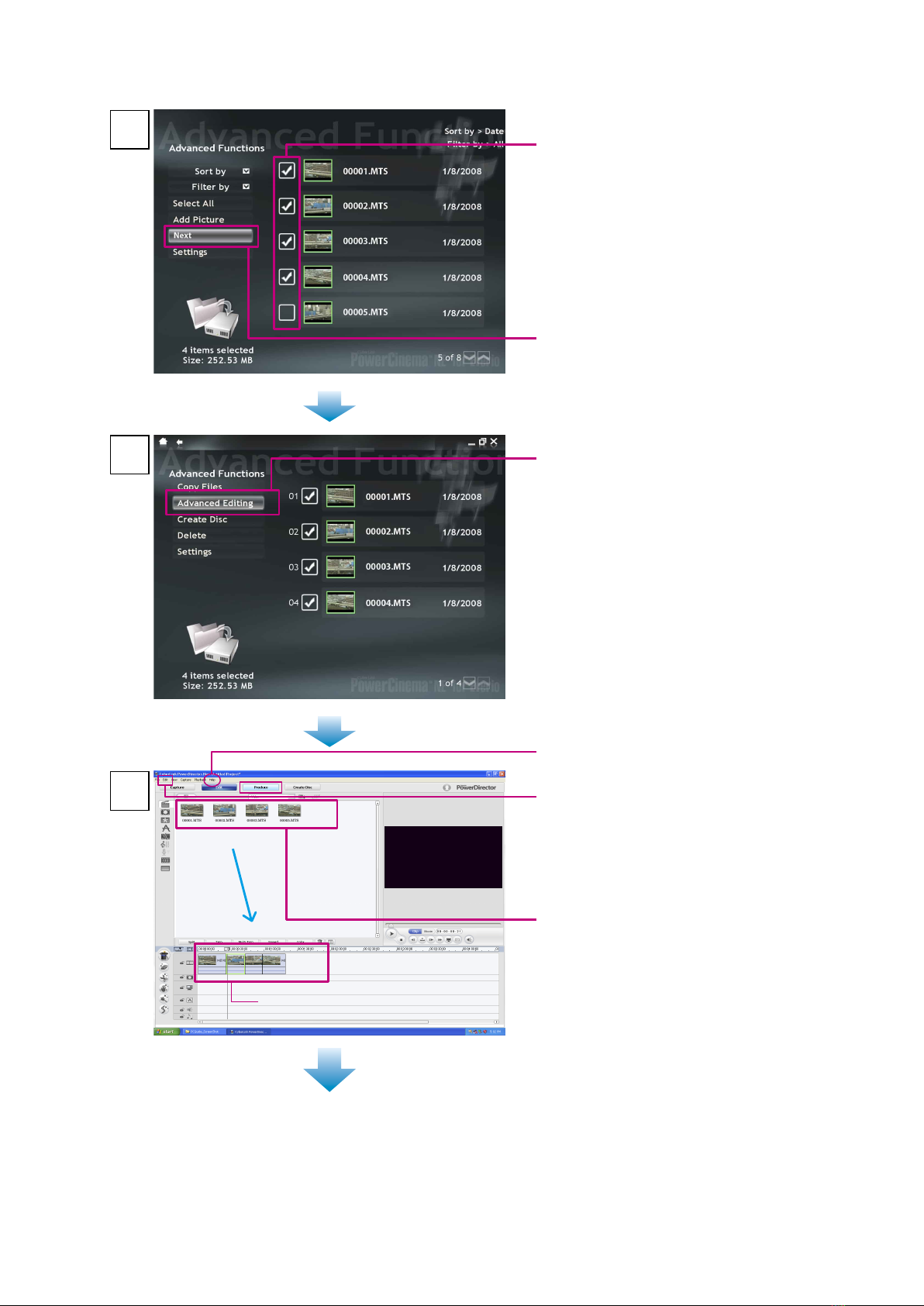

[Advanced Editing]:
You can select the desired video file and edit it with
PowerDirector.

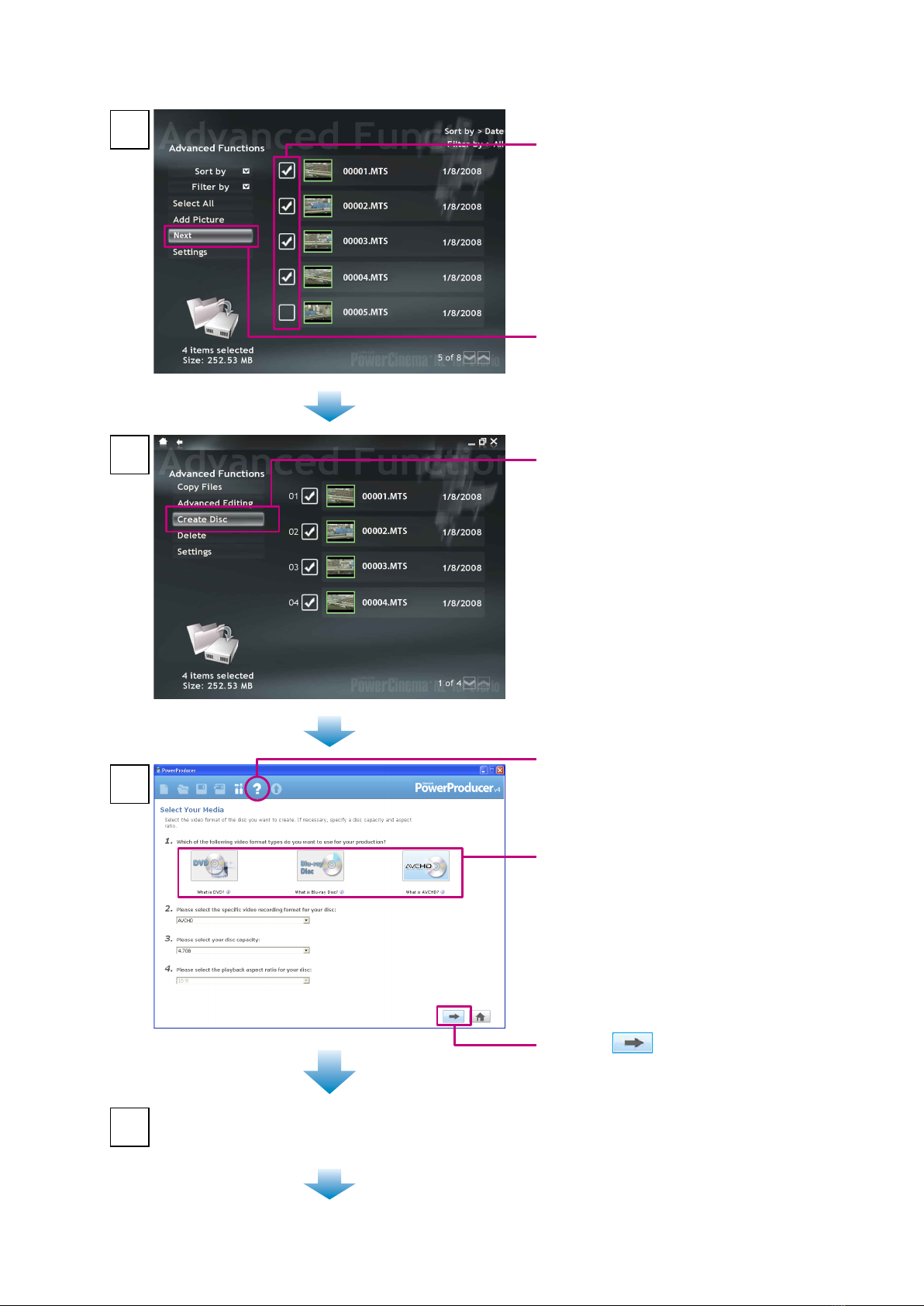

[Create Disc]:
You can select the desired video file and create a disc with
PowerProducer. You can also create Blu-ray discs.
[Delete]:
You can select and delete video files that you no longer require.
(You cannot delete files in the camera.)
nPlaying back a disc with PowerDVD
You can play back DVD video discs and AVCHD discs that you have created.
You can play back AVCHD discs or DVD videos with standard
picture quality.
(You cannot play back Blu-ray discs.)

5
System Requirements
OS:
Either one of the following OS should be pre-installed (32-bit):
•Windows®XP Home Edition (SP2)
•Windows®XP Professional (SP2)
•Windows Vista®Home Basic
•Windows Vista®Home Premium
CPU:
•Intel®Pentium®4, at least 3.2 GHz
•Intel®Pentium®M, at least 1.8 GHz
(Intel®CoreTM Duo, at least 1.66 GHz recommended)
(For editing video)
•Intel®CoreTM 2 Duo at least 2.4 GHz (Recommended for editing video in AVCHD format)
RAM:
•[XP] At least 1 GB
(2 GB or more recommended)
•[Vista] At least 2 GB
Free hard disk space:
•At least 750 MB for installation
•For creating Blu-ray disc, at least 30 GB
(60 GB or more recommended)
Connector:
USB 2.0 connector
Video card:
•Intel/nVidia/ATI MPEG-2 HD DxVA compatible card
•For AVCHD format: video RAM 256 MB or more recommended
•Use the latest driver.
Sound card:
Direct Sound compatible sound card
Display:
Must be capable of displaying at least 1024 x 768 (XGA) in high color 16 bit or higher
(1280 x 1024 (SXGA) or higher is recommended)
Supplied software
CyberLink BD Solution :
•PowerCinema NE for Everio
•PowerDirector 6 NE
•PowerProducer 4 NE
•PowerDVD 7 NE
Digital Photo Navigator :
•Digital Photo Navigator
<NOTE>
•Even if your system meets the recommended requirements above, you may still experience dropped
frames while playing back high definition video, or you may find that editing takes a long time. In
order to use these functions more smoothly, it is recommended that you use a higher performance
PC.

6
Windows®2
Software Installation
Preparation:
•Quit any other software you are using.
(Check that there are no other application icons on the status bar.)
Load the provided CD-ROM into the PC.
l 
After a moment, the [SETUP] screen appears. If the [SETUP] screen does not appear, double-
click the CD-ROM icon in [My Computer].
l 
For Windows Vista®, click [Run INSTALL.EXE] on the [AutoPlay] screen, and then click
[Continue] on the [User Account Control] screen. [SETUP] screen appears.
2
1
Click [Easy Installation].
l 
If you want to specify the type of
software to install or the installation
destination folder etc., select
[Custom Installation].
Follow the instructions on the screen
to install the software.
3
Click [Yes].
lDigital Photo Navigator
installation starts.
4
Select the desired language and
click [OK].

7

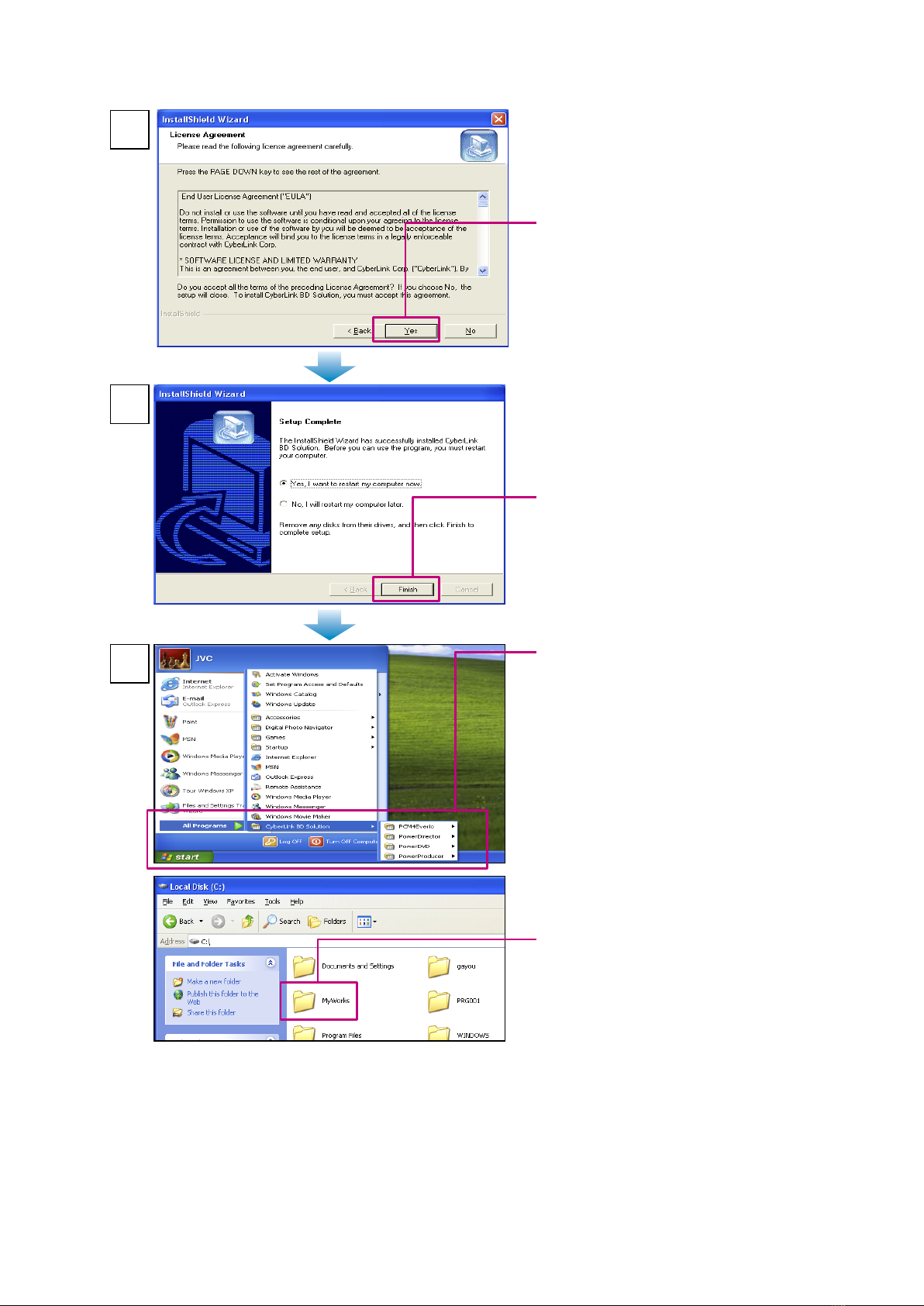

5
Click [Yes].
lCyberLink BD Solution
Installation starts
Click [Finish].
6
◆When installation is completed
lThe installed software is displayed
in [All Programs] – [CyberLink BD
Solution].
lFor details on the supplied software,
see the software Instruction
Manuals, User's Guides, Help and
Readme.
The backup destination folder
[MyWorks] for files is created on the
hard disk drive that has the most free
space.
7
PowerCinema NE for Everio
PowerDirector 6 NE
PowerProducer 4 NE
PowerDVD 7 NE
<CAUTION>
•
Installing PowerDVD 7 NE will uninstall PowerDVD which supports Blu-ray Discs; therefore you cannot
play back Blu-ray Discs.
<NOTES>
•If you select [Easy Installation], icons are created on your desktop for Digital Photo Navigator,
PowerCinema and PowerDVD only.
•The above screens are for Windows®XP. For Windows Vista®, the screens are different.

8
Windows®3
Connecting the Camera to the PC
Preparation:
•Close the LCD monitor to turn off the camera.
AC Adapter
DC Connector
To AC Outlet
USB Cable USB Connector
USB Connector
<NOTES>
•Never disconnect the USB cable while the access lamp on the camera lights or blinks.
•Do not turn off the camera when the USB cable is connected, to prevent malfunctions of the PC.
•Connect the camera directly to the PC, not through a hub.
•Do not use an extension USB cable.
•Do not delete, move, or rename the files and folders in the camera from the PC.
◆When you have finished operation
Always follow the procedures below when disconnecting the camera, or turning off the camera/PC
power. Failing to do so may cause damage to the camera and PC.
1) Confirm that the access lamp on the camera does not light or blink. (If the access lamp lights or
blinks, wait until it is turned off before proceeding.)
2) Double-click the [Safely Remove Hardware] or [Unplug or Eject Hardware] icon in the status bar.
3) Select [USB Mass Storage Device] or [USB Disk], and then click [Stop].
4) Click [OK].
5) Disconnect the USB cable.
6) Turn off the camera and PC.

9
Windows®4-1
File Backup on the PC

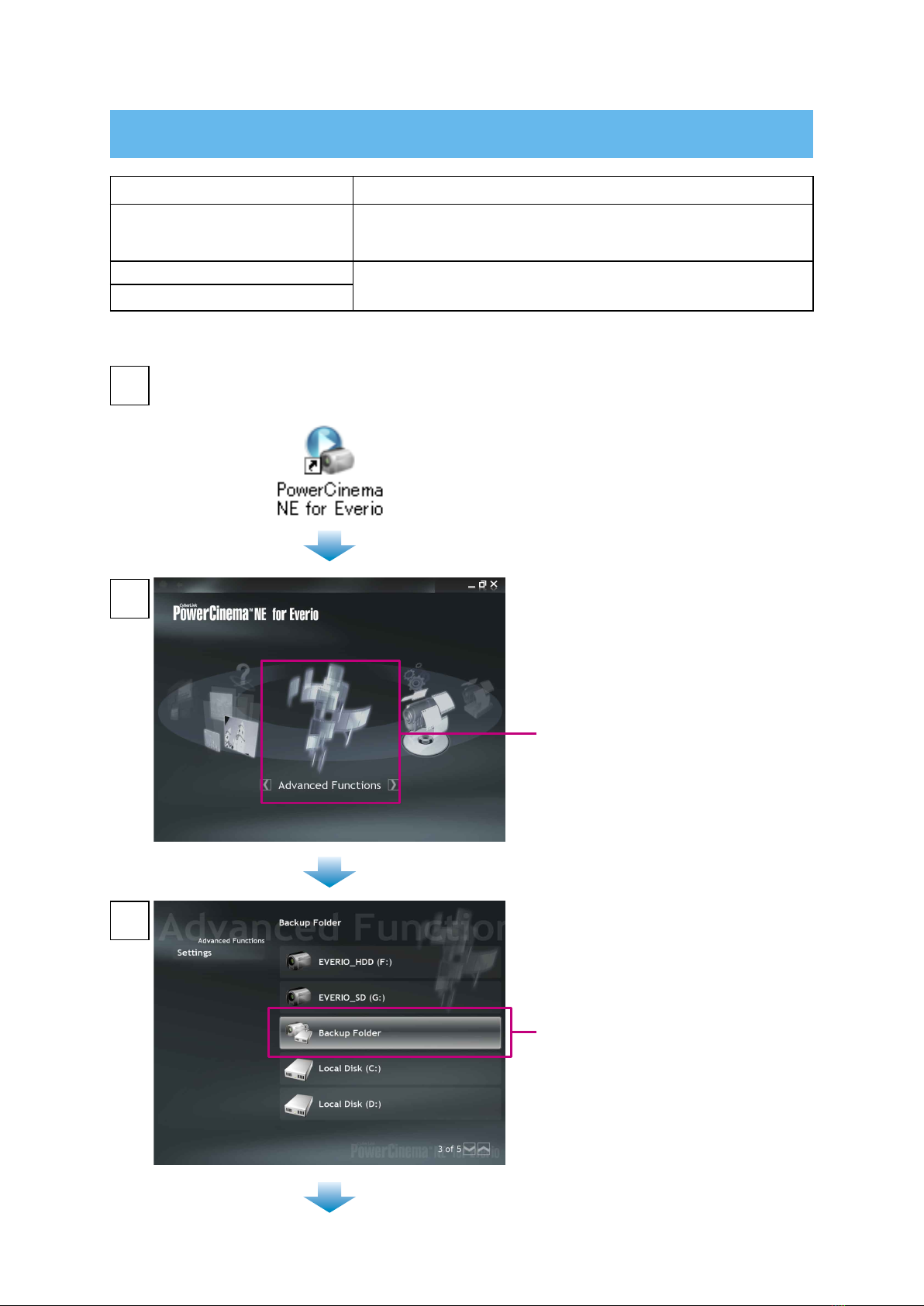

This method uses the software on the CD-ROM to back up files onto your PC.
Video files in the Everio HDD that have never been backed up onto the PC are automatically selected
and backed up.
Preparation:
•Install the software.
•Connect the camera to the PC.
Open the LCD monitor to turn on the camera.
3
1
•A dialog box is displayed on the PC
screen. However, you do not need
to use the dialog box. File copy
starts automatically.
•When the progress bar disappears,
the process is complete.
<NOTE>
•When backup is performed,
[EverioBackup] folder is created in
the [MyWorks] folder, and the files
are backed up inside these folder.
On the camera,
press the DIRECT BACK UP button.
2

10
Windows®4-2
File Backup on the PC from the Specified Media
You can select what to copy (HDD or microSD card) and save the files that are inside onto your
computer.
Preparation:
•Install the software.
•Connect the camera to the PC.
Open the LCD monitor to turn on the camera.
2
1
On the camera,
select [BACK UP].
3
On the PC,
click [EVERIO_HDD] or
[EVERIO_SD].
•When the progress bar disappears,
the process is complete.
<NOTE>
•You can also select [Backup] on the PowerCinema screen. In this case, first select [PLAYBACK ON
PC] on the camera.

11
Windows®4-3
File Backup on the PC without Using Software
Preparation:
•Connect the camera to the PC.
On the PC, create a folder to back
up files into.
2
1
Open the LCD monitor to turn on the camera.
3

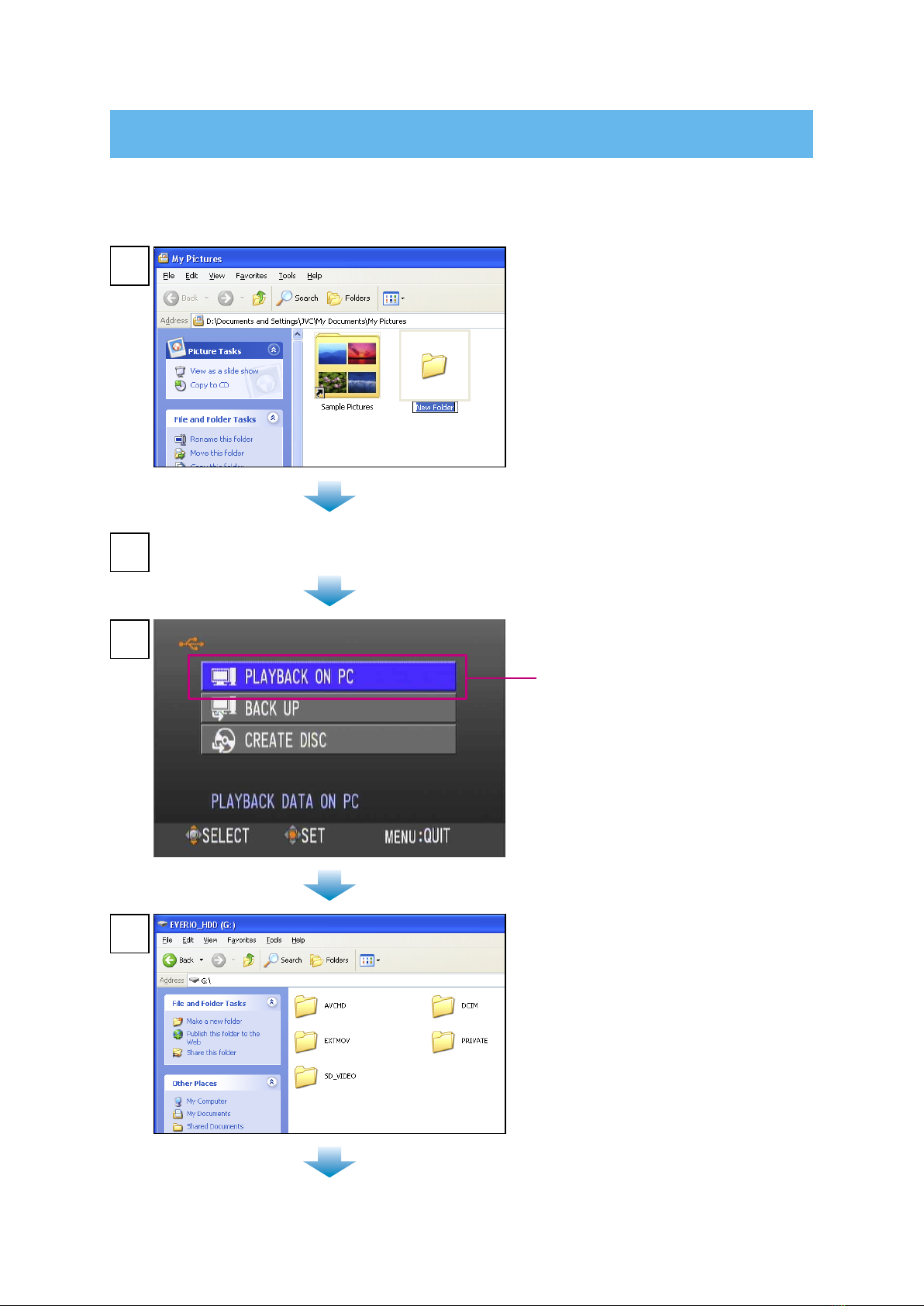

On the camera,
select [PLAYBACK ON PC].
4On the PC,
Double-click [EVERIO_HDD] or
[EVERIO SD].

12

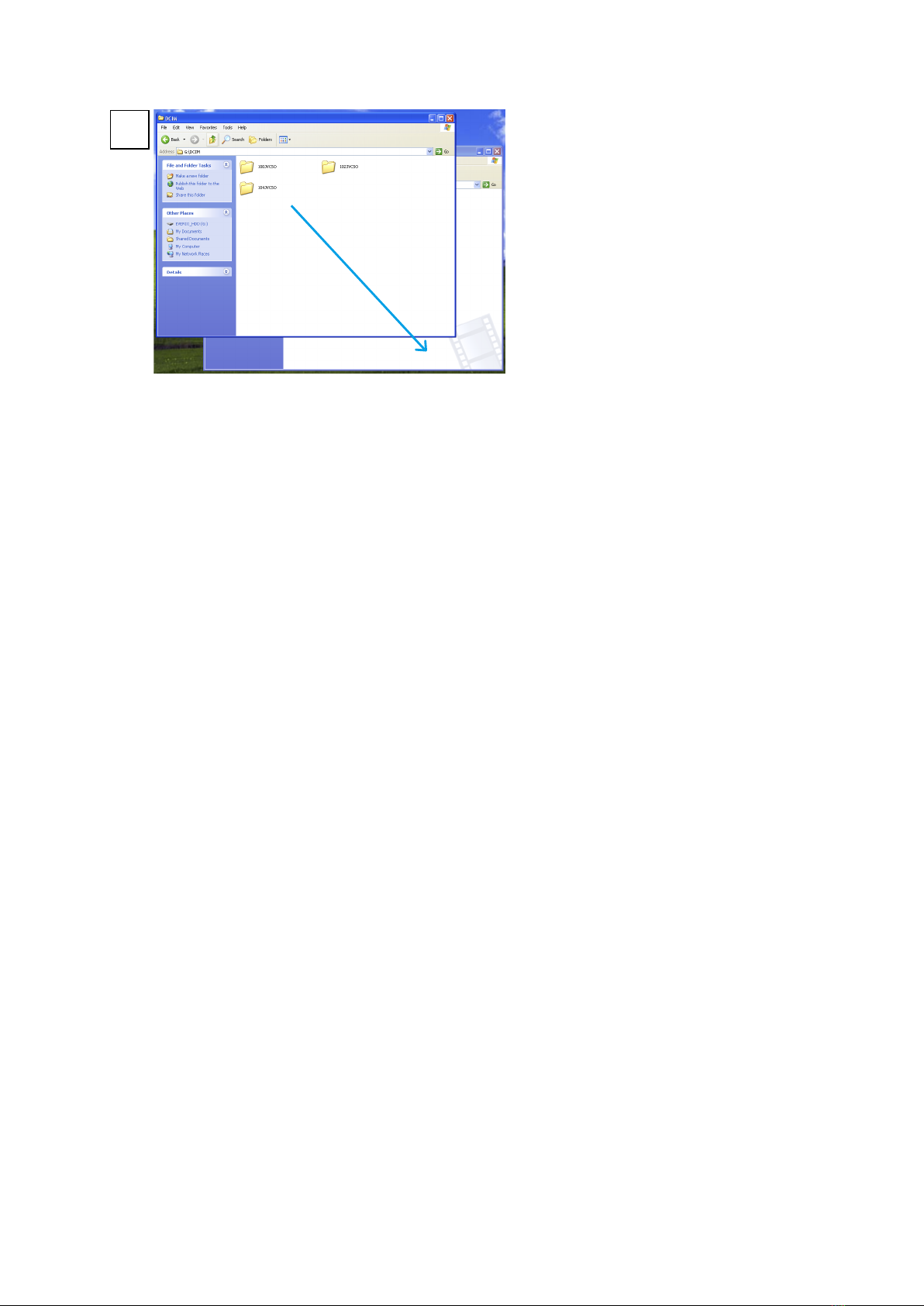

5Select the folder that you want to
back up, and drag & drop it into the
folder you created in step 1.
•AVCHD:
Folder that contains video files in
AVCHD format (gSh). If you want
to back up files, drag & drop the
folder.
•DCIM:
Folder that contains still image
files. If you want to back up files
individually, open this folder, and
drag & drop files such as
[PIC_0001.JPG] one by one.
<NOTES>
•For further details on the use of
folders, see pages 34-35.
•The above screens are for
Windows®XP. For Windows Vista®,
the screens are different.

13
Open the LCD monitor to turn on the camera.
2
1
On the camera,
select [PLAYBACK ON PC].
•A dialog box is displayed on the PC
screen. However, you do not need
to use the dialog box. PowerCinema
starts automatically.
3
Click [Browse Videos] (for video
playback) or [Browse Pictures] (for
still image playback).
4Click the media that contains
desired files.
Windows®5
Playing Back Files on the PC
Preparation:
•Install the software.
•Connect the camera to the PC.

14
5Click the desired file.
If you click [Sort by]/[Filter by]/[View
by], searching options are displayed.
•[Sort by]:
The order of files is rearranged
according to item that you selected.
•[Filter by]:
Files are filtered according to the
item that you selected.
•[View by]:
You can change the number of
thumbnails on a screen.
For more information on detailed
operations of the software, refer to
their Read me or CyberLink web site.

15
Windows®6-1
Creating a Video Disc (DIRECT DISC button)
1Press the DIRECT DISC button.
•PowerCinema starts.
2
3After the DVD writing finishes, exit PowerCinema and disconnect the camera.
You can use the DIRECT DISC button to save videos on a DVD. The videos in the Everio HDD that
you have not previously saved on a DVD with this operation are selected automatically and saved.
Preparation:
!Install the software.
#(Everio) Set the mode switch to !.
$(Everio) Connect the camera to your computer and turn the power back on again (p. 8).
Set a new DVD.
Disc supported for creation Requirements
AVCHD Disc (High-definition) •Recordable DVD drive (and supported, recordable DVD media)
•Video in AVCHD format (gSh)
•A dialog box is displayed on the PC
screen. However, you do not need
to use the dialog box. File copy
starts automatically.
•When the progress bar disappears,
the process is complete.

16
Windows®6-2
Creating a Video Disc (Using Software)
Click [Advanced Functions].
•
If you do not know which operation
to perform, click [Help]. To use
[Help], your computer needs to be
connected to the Internet.
Double-click the PowerCinema icon.
•PowerCinema starts.
2
3
1
Click [Backup Folder].
Disc supported for creation Requirements
Blu-ray Disc (High-definition) l  Recordable Blu-ray disc drive (and supported, recordable Blu-
ray media)
l Video (all picture qualities)
AVCHD Disc (High-definition) l Recordable DVD drive (and supported, recordable DVD media)
l Video (all picture qualities)
DVD Disc (Standard Quality)
Preparation:
•Install the software.

17
!Check the check box of the
desired file.
#Click [Next].
Click [Create Disc].
•PowerProducer starts.
4
5
6
7Check that the data has been completely imported
to PowerProducer and the screen in step 8 has been
displayed, and then exit PowerCinema.
!Select the disc that you want to
create.
•To create a Blu-ray Disc, click
[Blu-ray Disc].
•To create an AVCHD Disc, click
[AVCHD].
•To create a DVD video, click [DVD].
•If you do not know which
PowerProducer operation to perform
or function to use, click this.
#Click .

18
The disc creation starts.
◆To finish
➡Exit PowerProducer.
8
9
Registered file
•Four titles are created.
Click .
Click .
<NOTES>
•
Video conversion can take a long time when creating a DVD video. Video quality is also degraded.
•Video quality is degraded from high-definition to standard when creating a DVD.
•
Depending on the type of commercially available player or recorder, some discs created on a
computer may not play back correctly.
•
Depending on the type of computer, it may take more than 10 times the normal time taken to write a
video.
•
Depending on the type of computer, the computer may fail to erase recorded discs.
If this occurs, use [Disc Utilities] – [Erase a Disc] in PowerProducer to erase the discs before use.
•
Use the type of disc recommended by the drive manufacturer.

19
Windows®7-1
Editing and Creating a Video Disc (Basic Editing)
Click [Advanced Functions].
•
If you do not know which operation
to perform, click [Help]. To use
[Help], your computer needs to be
connected to the Internet.
2
3
Double-click the PowerCinema icon.
•PowerCinema starts.
1
Click [Backup Folder].
Disc supported for creation Requirements
Blu-ray Disc (High-definition) l  Recordable Blu-ray drive (and supported, recordable Blu-ray
media)
l Video (all picture qualities)
AVCHD Disc (High-definition) l Recordable DVD drive (and supported, recordable DVD media)
l Video (all picture qualities)
DVD Disc (Standard Quality)

20
!Check the check box of the file
you want to edit.
#Click [Next].
Click [Advanced Editing].
•PowerDirector starts.
•Exit PowerCinema.
4
5
6
•Click [Help] if you do not know which
PowerDirector operation to use.
Track
!Check that [Aspect ratio] in the
[Edit] menu is [16:9].
•If you change the aspect ratio during
the editing, the editing will not be
saved.
#Select the thumbnails, and drop
them onto the video track.
•To perform advanced editing
➡(p. 23–24)
$Click [Produce].
