JVC Announces New 3CCD High Definition
Hard Disk Drive Camcorder
New palm-sized HD Everio GZ-HD3 delivers hi-def performance to a wider market
Model for outside Japan
JVC (Victor Company of Japan, Ltd.) today announced the launch of a new consumer high definition
camcorder that combines a 3-CCD image sensor, high definition 1440 x 1080 recording and embedded
60GB hard disk storage in a compact size that fits in the palm of the hand.
The new HD Everio GZ-HD3 follows the launch earlier this year of the high definition HD Everio GZ-HD7,
which combined the pristine image quality of high definition with the convenience and high capacity of
recording to a built-in hard drive With the new GZ-HD3, JVC brings these same benefits to a wider
audience in a palm-sized camcorder that’s easy to carry and offers point-and-shoot simplicity.
Note: "Full HD 1080” refers to interlace recording in the 1080 vertical pixel High Definition format.

2
Main Features of HD Everio GZ-HD3

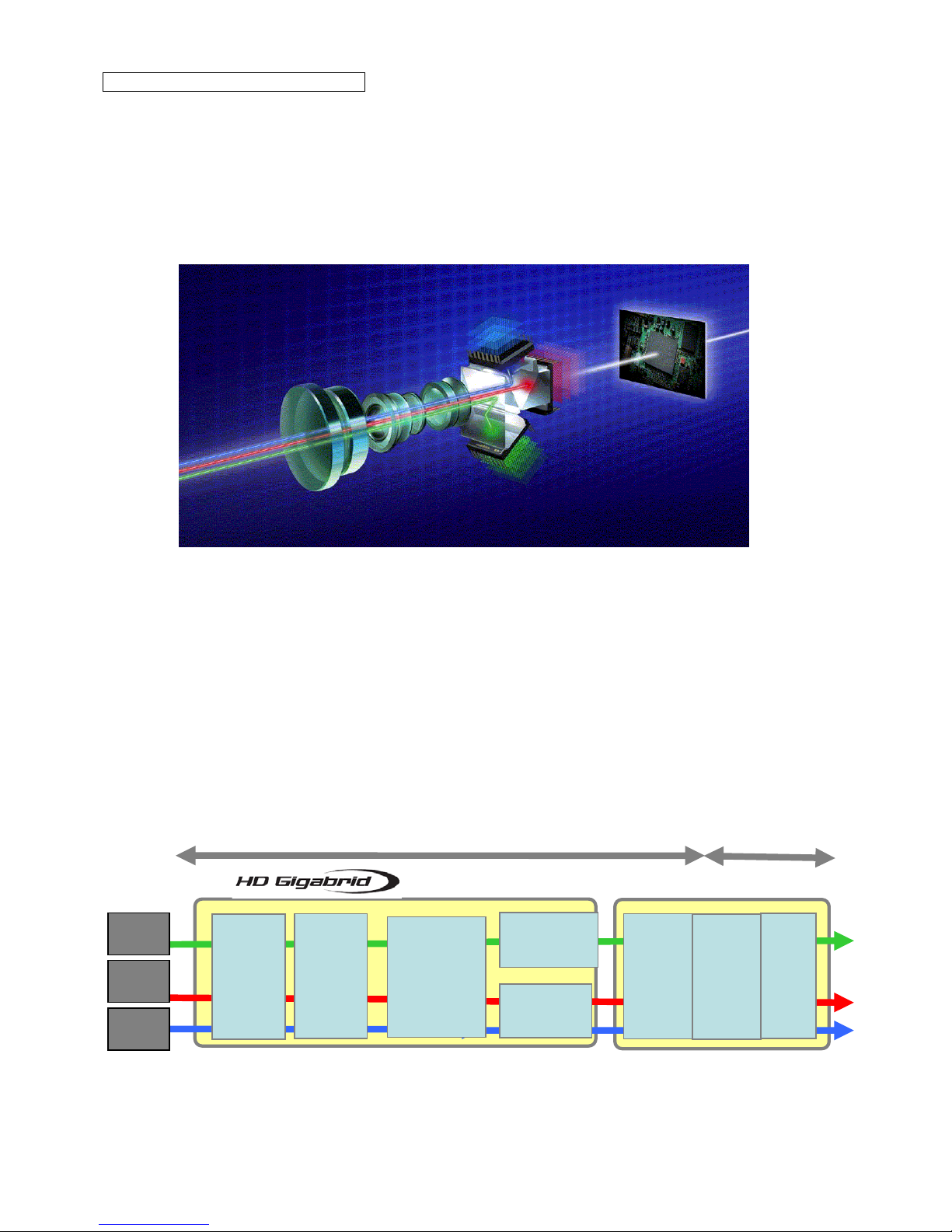

1. 3-CCD Camera System for 1440x1080 HD Recording
•By using three 16:9 progressive scan CCDs, each dedicated to one of the three primary colors –
red, green, blue – the image sensor can capture truly lifelike images and deliver vivid and accurate
color reproduction. Since the CCDs themselves are 16:9, they record a pixel array with native 16:9
dimensions for viewing on an HDTV and authoring to DVD or Blu-ray disc. The lens block also uses
CCD pixel shift technology to increase horizontal and vertical resolution.
● As is the case with the GZ-HD7, the GZ-HD3’s image processing is driven by JVC’s HD Gigabrid
Engine, which processes images from the progressive CCDs in native progressive to maintain as much
quality as possible while applying five different noise reduction technologies to improve vertical resolution
by approximately 30 percent from previous JVC Standard Definition camcorders. Images are reproduced
with the depth and richness only possible with high-definition television, and feature natural skin tones,
and vivid, glossy colors, especially green.
Luminance Signal
Color-Difference
Signal
Matrix Processing
Luminance Signal
Noise Reduction
Color Signal
Noise Reduction
3-Dimension
Noise
Reduction
P-I
Conversion
Video
Encoder
Y
Cｒ
Cb
<Spurious Signal Suppression>
<Color Reproductivity Improvement>
<Contour Correction>
<Noise Reduction>
Interpolation
Processing
Color Signal
Processing
GCCD
Sensor
< Progressive > < Interlace >
RCCD
Sensor
BCCD
Sensor
<14 bit A/D
conversion>

3
•The HD Everio GZ-HD3 uses a KONICA MINOLTA HD LENS,
developed to ensure optimum performance with JVC’s 3-
CCD and HD recording technologies. The zoom lens features
an ultra-compact hybrid aspherical lens system using low
dispersion glass that plays a pivotal role in reducing
aberrations and captures HD images with vivid colors and
high resolution. The lens structure also contributes to the
miniaturization of the camera.
2. Built-in 60GB HDD for 7 Hours of HD Recording
In addition to an SP mode that allows up to
about seven hours of HD recording, the GZ-
HD3 is also equipped with an XP mode that
records at a higher bit rate for those extra
special scenes. There’s also a 1440CBR mode,
which is convenient for those who wish to edit
using HDV-compatible software.

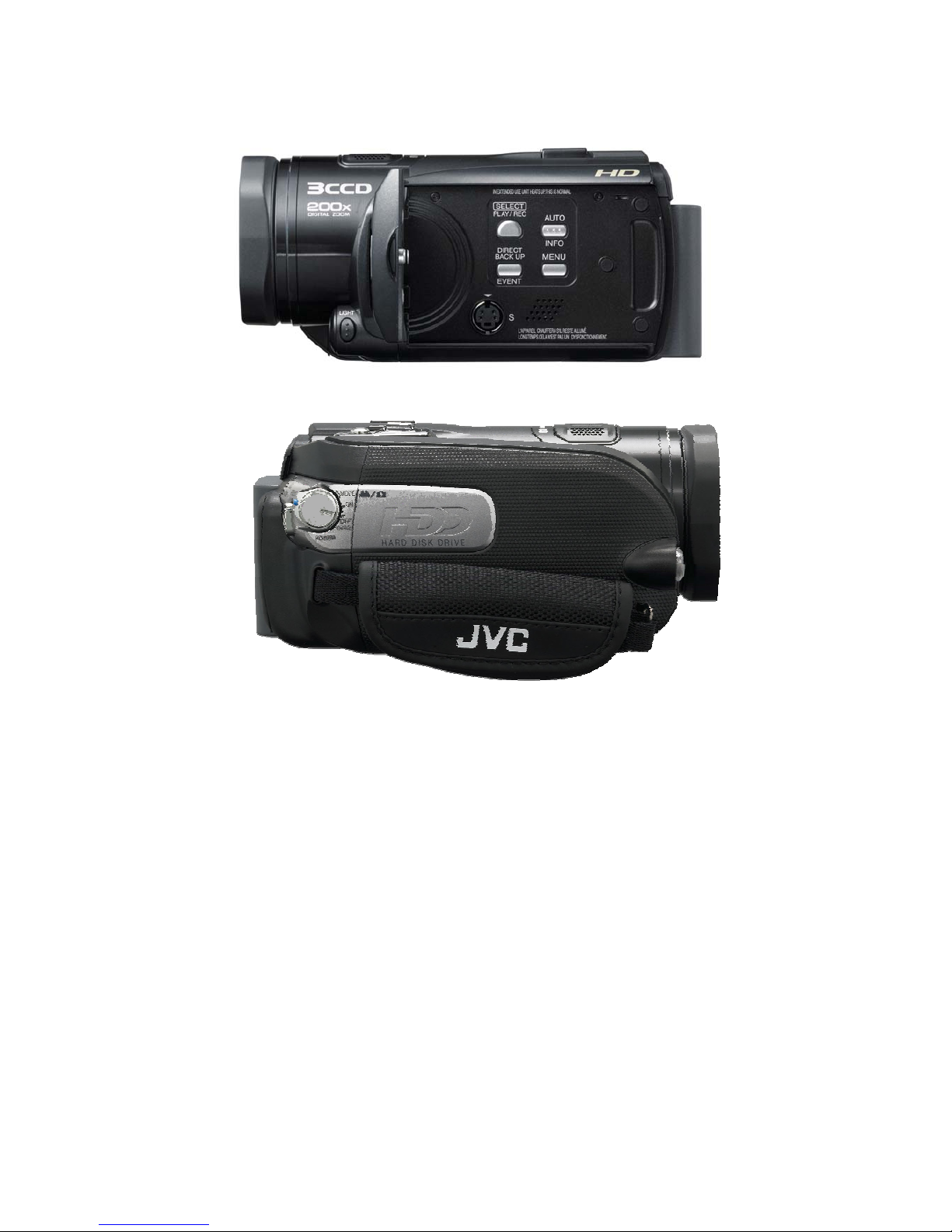

3. Compact Body; Simple Controls
To make it easy to take the GZ-
HD3 anywhere, the palm-sized
camcorder features a lightweight,
compact body 27% smaller than
the GZ-HD7, and weighing a mere
670 grams (1.5 lbs.). It also offers
point-and-shoot simplicity so no
crucial scenes are missed, plus
manual controls for more ambitious
users.
4. Full Complement of Interfaces
JVC equipped the GZ-HD3 with a
wide range of interface terminals,
including HDMI and component
outputs so HD footage can be
viewed on the latest HDTV
displays. And standard AV-S
terminals that output a down-
converted SD signal provide connectivity to ordinary Standard Definition TVs. USB and i.LINK connectors
are included for transferring recordings to a personal computer for editing.
Rec Mode Resolution Recording Rate Rec Time
(approx)
XP 1440×1080i VBR: max. 30Mbps 5 hrs.
SP 1440×1080i VBR: max. 22Mbps 7 hrs.
1440CBR* 1440×1080i ＣBR: approx.27Mbps 5 hrs.
*for HDV compatible stream via i.LINK

4
5. PC-less Archiving Using Exclusive DVD Burner
By connecting the GZ-HD3 directly to the optional CU-VD40
HD Everio SHARE STATION via USB, no PC required, the
user can burn HD footage to 12cm DVD discs to make
backups and permanent archives of selected scenes in any
desired order with just a few simple
steps. Approximately 55 minutes of SP
mode-recorded HD footage can be
stored on 8.5GB dual layer DVD disc.
The CU-VD40 can also be used with
the GZ-HD7, and plays back in HD via HDMI or component, and in standard
definition as well.
6. Bundled HD Editing CyberLink BD Solution™ Software for Windows, Plug in for Mac
Using the supplied software, it is possible to view and edit HD footage on a Windows® PC, as well as
author that footage to DVD and Blu-ray discs. A plug-in is also provided that allows Mac users to import
the HD footage into editing applications like iMovie HD and Final Cut Pro.
Other HD Everio GZ-HD3 Features
1. Various shooting assist and manual functions:
- Focus Assist outlines the in-focus part of the picture in red, blue or green to make focusing easier;
- Digital Image Stabilization (DIS) provides important stability for hand held shooting;
- The Zebra Function puts a stripe pattern on highlighted parts of the picture to assist in setting the
exposure manually;
-Program AE includes Aperture- and Shutter-Priority;
- Joystick control for easy selection and operation of manual
settings and menu items, including manual focus and quick
control of focus mode.
Focus Assist in focus outline Zebra Pattern on highlights

5

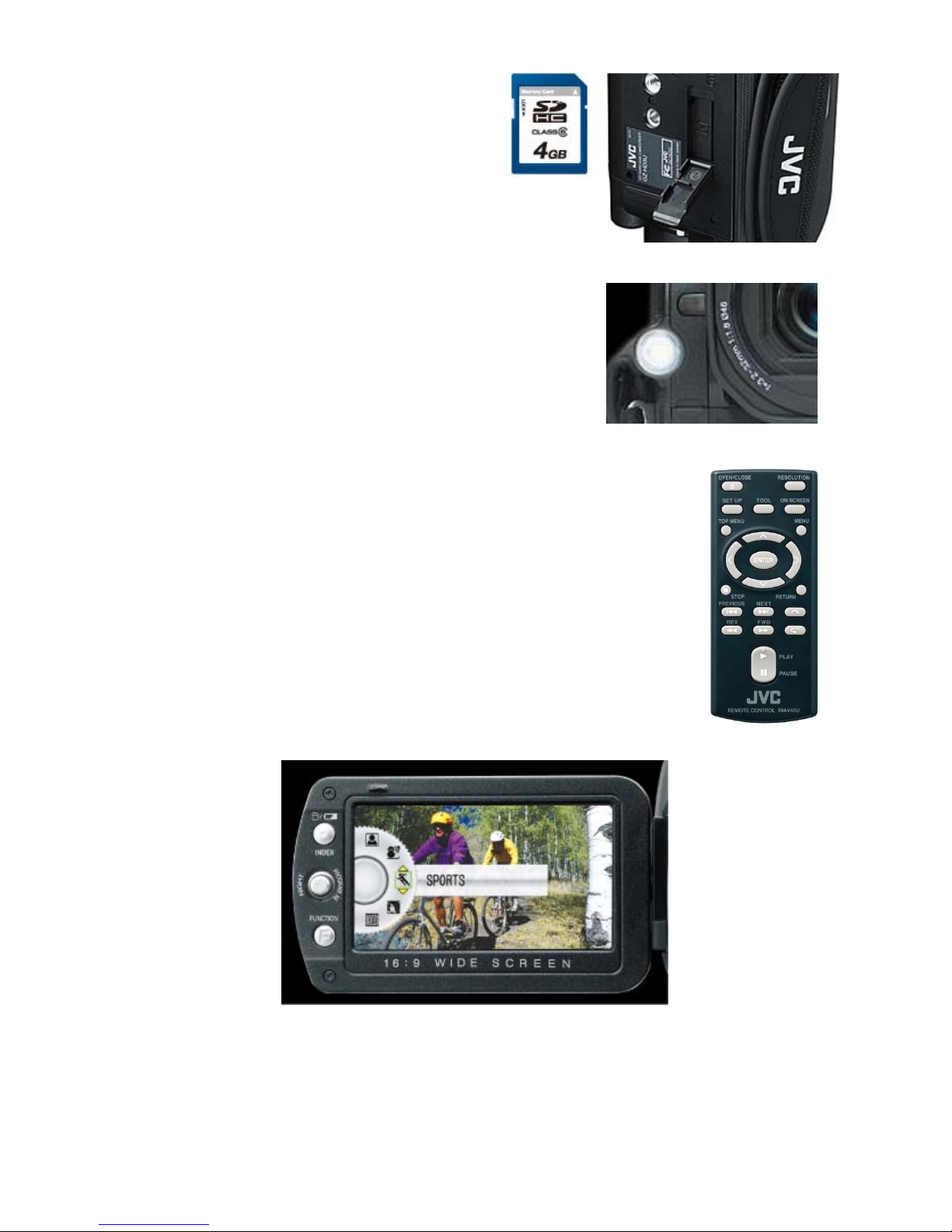

2. The SD Card Slot also stores stills and high
definition video (SP mode only) on commonly
available SDHC/SD memory cards (10MB/S hi-speed
type card required for video recording; SDHC Class 6
or more is necessary, simultaneous recording to Hard
Disk and SD Card is not possible).
3. Automatic Video Light- “Auto Illumi.Light”
The built-in light automatically turns on when shooting in low light
situations.
4. Convenience Features:
- Quick Power Off to prevents battery drain if the camera is left on by mistake;
- The Built-in Lens Cover protects the lens;
- Data Batteries allow the user to check remaining recording time, displaying
battery level and maximum remaining recording time;
- Index Button to display remaining disk space and recording time;
- Remote Control
5. 2.8” 16:9 Widescreen Clear Bright LCD Monitor for viewing a bright, high-
contrast image while shooting.

6
6. When pressed, the Direct Backup Button on the camcorder automatically launches the appropriate
application to back-up only recordings that haven’t yet been backed up to a computer.
Model for outside Japan
7. New Dimple Pattern Grip design for solid and comfortable shooting
8. The Mic Input and Accessory Shoe allow use of the optional MZ-V8 Stereo Microphone.
Like the entire JVC Everio line, the new GZ-HD3 offers the benefits of recording to a built-in hard drive.
These include long recording time (five to seven hours on HD Everios; seven to 37 hours with SD Everios),
no need to purchase and carry removable tapes or discs, direct access to desired scenes, easy scene
deletion, in-camera basic editing, and no risk of mistakenly erasing a desired scene. In addition, using a
built-in hard drives allows the camcorder to be more compact than designs that record to DVD or tape.
A version of the JVC HD Everio GZ-HD3 for Japan will be available in August, for the US in early
September, and for Europe/Asia in September/October.
# # #

7
Manual Assist
p
PC-Less Archiving
Easy
Backup
HDMI
Approx. 40 min
of HD video on to
a DL DVD disk
Easy
Playback
DVD-R/DL VD-RDL85EVE
•CU-VD40
PC-Less Easy HD Data Copy
Recorded at Full HD mode
(Ave. bit rate: 26.6Mbps)
RCU Included!
Focus
Assist
Button
＊JVC patent
•“Assist Function” & “Manual Function”
forHighQualityHDVideoRecording
F
Fo oc cu us s A As ss si is st t f fu un nc ct ti io on n
The edge of the in-focus picture is shown
in color, so the operator can tell that the
subject is in focus.
The operator can check which point in the image is
in focus in real time.
Z
Ze eb br ra a
Displays a striped pattern
in the LCD monitor
Across highlight areas,
helping manual exposure setting
Manual Focus
Shutter Speed Priority
Aperture Priority
Exposure Control
S
ports
T
wilight
Portrait
M Ma an nu ua al l F Fu un nc ct ti io on ns s
White Balance
Program AE
Sharpness Control

8
Specifications
Format SD-VIDEO High Definition Video Recorder Profile:
Video: MPEG-2 TS
Audio: MPEG-1 Layer2
Still: JPEG
Storage Media 1.8” Hard Disk Drive (Embedded), SD/SDHC Memory Card
Hard Disk Drive Capacity 60GB
Image Sensors 16:9 1/5” Progressive 3-CCD, 570K-pixel each, with Pixel Shift
Moving images 430K-pixel eachEffective Pixels
for Capture Still images 530K-pixel each
Zoom Ratio Optical 10x (Still: 8x) / Digital 200x
Focal Length Video: 3.2 – 32mm (35mm equiv. 42 – 422mm)
Still: 4.0 – 32mm (35mm equiv. 48 – 384mm)
F Stop Video: (W-T) F1.8 – F2.4, Still: (W-T) F1.9 – F2.4
KONICA
MINOLTA HD
LENS
Filter Diameter 46.0mm
ISO Settings 100, 200, 400
Moving images 1/2 – 1/4000Shutter Speeds
Still images 1/2 – 1/500
Video Recording Modes (VBR) XP (1440x1080i, 26.6Mbps) / SP (1440x1080i, 19Mbps) /
1440CBR (1440x1080i, 27Mbps [CBR])
Video Recording Time (max.) 5hr. (XP/1440CBR) / 7hr. (SP)
Still Image Sizes [4:3] 1440x1080 / 1024x768 / 640x480
[16:9] 1920x1080
No. of Still Images (max.) 9999
Clear LCD Monitor 2.8” Wide, 207K-pixel
Multi-Language On-Screen 21 Languages (Eng. / Fre. / Ger. / Spa. / Ita. / Dut. / Por. / Rus.
/ Pol. / Cze. / Tur. / Jap. / Kor. / Chi. [Simple and Traditional] /
Per. / Ara. / Malay / Indon. / Thai / Hindi)
Interfaces USB2.0/1.1, HDMI Out, i.LINK Out, Component Video Out, S-
Video Out, AV Out, SDHC/SD Memory Card Slot, DC In
Power Consumption Approx. 6.7W
Dimensions (WxHxL) 3-1/4” x 3” x 6-1/8” (82mm x 75mm x 154mm) with lens hood
Weight (with lens hood) Approx. 585g (1.3lbs ) without battery
Approx. 670g (1.5lbs ) with battery
Battery operation times (approx.)
Continuous Typical Shooting
BN-VF808 (data battery) 40 min. 20 min.
BN-VF815 (data battery) (provided) 1 hr. 25 min. 45 min.
BN-VF823 (data battery) 2 hr. 10 min. 1 hr. 5 min.

9
Video recording times (approx.)
Image Size 1440x1080 pixels
Recording ModeStorage Media
XP SP 1440CBR
Internal 60GB Hard Disk 5 hours 7 hours 5 hours
SDHC Memory Card
(4GB commercially available)
-- 25 minutes --
Note: Above figures are approximate. To record video, an SDHC card with Class 6 performance is required.
SD/SDHC memory cards (128MB to 4GB) have been tested for the following brands: Panasonic, Toshiba,
SanDisk, ATP. Note that using other media may result in recording failure or data loss. For compatibility of
memory cards, please consult an authorized JVC dealer.
Photo Quantities (approx.)
Media HDD SD card
Image Size Image mode 60GB 512MB １GB 2GB 4GB
1920x1080 Fine 550 1080 2160 4320
Standard 880 1720 3440 6880
1440x1080 Fine 740 1440 2880 5760
Standard 1160 2270 4540 9080
1024x768 Fine 1460 2850 5700 9999
Standard 2320 4540 9080 9999
640X480 Fine 3650 7140 9999 9999
Standard
9999
6400 9999 9999 9999
Note: Above figures are approximate. SD/SDHC memory cards (128MB to 4GB) have been tested for the
following brands: Panasonic, Toshiba, SanDisk, ATP. Note that using other media may result in recording
failure or data loss. For compatibility of memory cards, please consult an authorized JVC dealer.
Provided Accessories
zAC Power Adapter
zRechargeable Battery Pack (BN-VF815, 1460mAh)
zAV Cable
zUSB Cable
zComponent Video Cable
zRemote Control
zShoulder Strap
zSoftware CD-ROM
Software CD-ROM (OS requirement and contents)
(For Windows®)
zDigital Photo Navigator
zCyberLink BD Solution™ - contains: PowerCinema™ NE for Everio, PowerProducer™ 3 NE,
PowerDirector™ 5 NE Express
(For Macintosh)
zQuickTime component for Everio

10
Software System Requirements
Windows®
CyberLink BD Solution
OS: Microsoft® Windows® XP Home Edition/XP Professional (pre-installed),
Windows VistaTM Home Basic/Home Premium (32-bit edition, pre-installed),
USB2.0 connector is required.
CPU: Intel® Pentium® 4, at least 2.4GHz. Pentium® 4, at least 3.0GHz recommended. Intel® Pentium®
M, at least 1.6GHz.
RAM: Windows XP: At least 512MB, at least 1GB recommended.
Windows VistaTM: At least 1GB, at least 2GB recommended.
GRAPHIC: Intel/nVidia/ATI graphic card for MPEG-2 HD DxVA
Even if a PC meets the listed system requirements, there may be cases of dropping frames during HD playback,
or editing may take excessive time. For faster and more responsive operation, we recommend use of a PC with
higher performance such as with an Intel® Core™ 2 Duo CPU and 2GB RAM.
Macintosh
QuickTime Component for Everio
Hardware: Macintosh with 1.25GHz or faster PowerPC G4/G5, or Intel® processors. (At least Intel® Core™
Duo recommended.), USB2.0 connector is required.
OS: Mac OS X (10.4.4 to 10.4.9)
RAM: At least 512MB, at least 1GB recommended.
Notes:
• The terms and conditions above are as of the announcement date, and subject to change without notice.
• The terms and conditions above do not guarantee operation by all personal computers equipped with a USB
2.0 terminal.
• When PowerDirector5 NE Express is used with Windows VistaTM, "The sound loudness adjustment" button of
the edit display and "Post recording" button might not be able to be used with some PCs.
• Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
• Apple, Apple logo, Macintosh, Mac OS, QuickTime iMovie, and Final Cut Pro are registered trademarks of
Apple Inc. in the United States.
• HDV and HDV logo are trademarks of Sony Corporation and Victor Company of Japan, Limited (JVC).
• i.LINK and i.LINK logo are trademarks of Sony Corporation.
• The SD and SDHC logos are trademarks of the SD Card Association.
• All brand names are trademarks, registered trademarks, or trade names of their respective holders.
• External appearance and specifications of the product are subject to change without previous notice.
• Please confirm details in the catalog or homepage, etc.
# # #

11
For International Press information, please contact:
Toshiya Ogata, Senior Staff Manager, or Akiko Sakakibara, Manager,
Public Relations Office, Corporate Communications Department,
Victor Company of Japan, Limited (JVC)
Tel: [phone], 2952
Fax: [phone]
E-mail: [e-mail]
[e-mail]
URL: www.jvc.co.jp/english
