JVC GZ-HD5U User manual

HD HARD DISK CAMCORDER
VIDEOCÁMARA EQUIPADA CON DISCO DURO
Dear Customer
Thank you for purchasing this hard disk
camera. Before use, please read the safety
information and precautions contained in
pages 6 and 7 to ensure safe use of this
product.
For Future Reference:
Enter the Model No. (located on the bottom
of the camera) and Serial No. (located on
the battery pack mount of the camera)
below.
Model No.
Serial No.
INSTRUCTIONS
MANUAL DE INSTRUCCIONES
Apreciado cliente
Muchas gracias por haber adquirido esta
cámara con disco duro integrado. Antes de
usarla, lea la información de seguridad y
las precauciones contenidas en las páginas
6 y 7 para garantizar un uso seguro de este
producto.
Para futuras consultas:
Escriba a continuación el número de
modelo (situado en la base de la cámara)
y el número de serie (situado en el
compartimiento de la batería de la cámara).
Número de modelo
Número de serie
GZ-HD5
GZ-HD6
ENGLISH ESPAÑOL
SPEN
Read these INSTRUCTIONS to enjoy your
CAMCORDER. For more details on the
operations, refer to the GUIDEBOOK and the PC
OPERATION GUIDE in the supplied CD-ROM.
NOTE
Select your desired language with a single
click.
The model name is indicated on the bottom of
your camcorder.
Lea este MANUAL DE INSTRUCCIONES para
disfrutar de su VIDEOCÁMARA. Para obtener
más información sobre las operaciones, consulte
los documentos GUIDEBOOK y PC OPERATION
GUIDE en el CD-ROM suministrado.
NOTA
Seleccione el idioma deseado con un solo clic.
El nombre del modelo viene indicado en la parte
inferior de la videocámara.
The camera illustrations appearing in this
instruction manual are of the GZ-HD6.
Las ilustraciones de la cámara que aparecen en
este manual de instrucciones corresponden al
modelo GZ-HD6.
U
U

2
Easy Start Guide

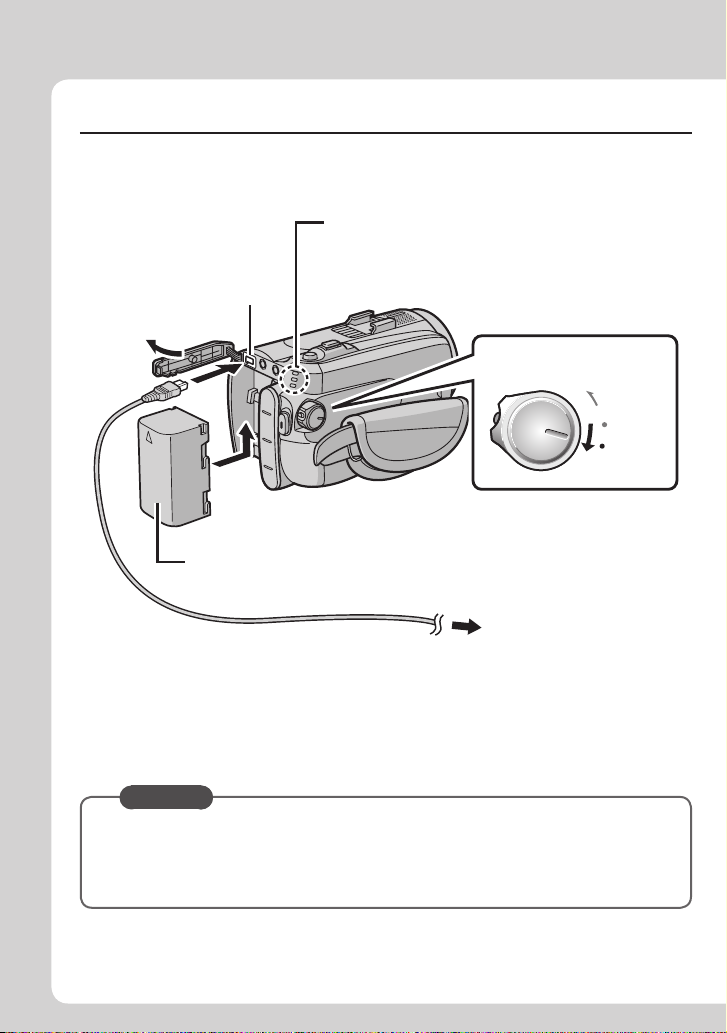

Charge the battery before recording
Turn off the camera and attach the battery pack.
OFF
(CHARGE)
ON
LAfter charging is finished, set the date/time.
Power: OFF
Charge lamp
blinks: Charging
goes out: Charging finished
DC Connector
Battery Pack
To AC Outlet
(110V to 240V)
AC Adapter
CAUTION
•Charge the battery pack before use.
•Be sure to use JVC battery packs. If you use any other battery packs
besides JVC battery packs, safety and performance can not be
guaranteed.

3
ENGLISH
Before recording, charge the battery and set the date/time.
See the next page for recording videos.
Preparation
QOpen the LCD monitor and set the power/mode switch to
ON
OFF
(CHARGE)
ON
!Video lamp
#Still image lamp
Slide while pressing
down the lock button
RSelect video mode
OFF
(CHARGE)
ON
MODE
The mode changes when
you slide the switch
L!Video mode L#Still image mode
Video lamp lights Still image lamp lights
SSelect recording or playback mode
LWhen recording LWhen playing back
VIDEO
8/8
SELECT SET SORT
(墌p. 20, 21) (墌p. 24, 25)
The mode changes when
you press the button
PLAY/REC
SELECT

4

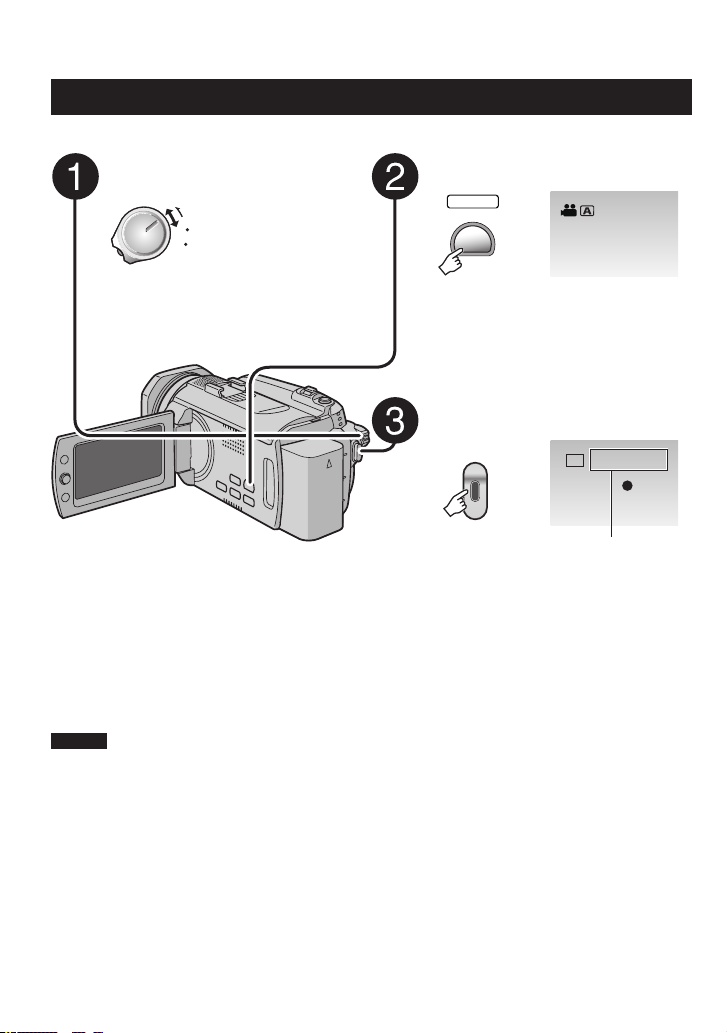

Video recording
QSelect auto recording mode
RStart recording
CAUTION
•Before recording an important scene, it is recommended to conduct a trial
recording.
•Try recording with easy [AUTO] mode first.
The mode changes
when you press the
button
Auto recording mode
AUTO
INFO
[4h59m]
FHD
REC
Remaining space on
the hard disk
Picture Quality Record-standby
Recording
NOTE
Select the mode which suits your purpose.
Video quality Purpose
RFHD To record in full high-definition Full high-definition
(1920 x 1080i)
SSP To record in higher quality video
High-definition
(1440 x 1080i)
TLP To record a longer time
U1440 CBR To copy and edit the video as high-definition
images by i.LINK output
LTo change the settings (墌p. 18)
Press the REC button
to start recording, and
press it again to stop

5
ENGLISH
Playing back
QSelect playback mode
RSelect the desired file
VIDEO
8/8
SELECT SET SORT
The mode changes when
you press the button
PLAY/REC
SELECT
SPress down the set lever
Press down the set lever to
start playback, and press it
again to stop
Index screen
Playback screen
LOperations during Video Playback (墌p. 24, 25)
LTo view video/still image files on TV (墌p. 26)
CAUTION
•Don’t forget to make copies after recording! To copy files onto DVD discs.
(墌p. 29)
•To dub files using a VCR/DVD recorder. (墌GUIDEBOOK in the CD-ROM)
•To play back a created DVD disc. (墌GUIDEBOOK in the CD-ROM)

6
Safety Precautions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING:TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
NOTES:
•The rating plate and safety caution are on the
bottom and/or the back of the main unit.
•The serial number plate is on the battery pack
mount.
•The rating information and safety caution of the
AC adapter are on its upper and lower sides.
Caution on Replaceable lithium battery
The battery used in this device may present a fire
or chemical burn hazard if mistreated.
Do not recharge, disassemble, heat above 100°C
or incinerate.
Replace battery with Panasonic (Matsushita
Electric), Sanyo, Sony or Maxell CR2025.
Danger of explosion or Risk of fire if the battery is
incorrectly replaced.
•Dispose of used battery promptly.
•Keep away from children.
•Do not disassemble and do not dispose of in
fire.
For USA-California Only
This product contains a CR Coin Cell Lithium
Battery which contains Perchlorate Material
– special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
When the equipment is installed in a cabinet or on
a shelf, make sure that it has sufficient space on
all sides to allow for ventilation (10 cm (3-15/16")
or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. the heat may not be able
to get out.)
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
When discarding batteries, environmental
problems must be considered and the local rules
or laws governing the disposal of these batteries
must be followed strictly.
The apparatus shall not be exposed to dripping
or splashing.
Do not use this equipment in a bathroom or
places with water.
Also do not place any containers filled with water
or liquids (such as cosmetics or medicines, flower
vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this
equipment, fire or electric shock may be caused.)
Do not point the lens directly into the sun. This
can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also a
risk of fire or electric shock.
CAUTION!
The following notes concern possible physical
damage to the camera and to the user.
Carrying or holding the camera by the LCD monitor
can result in dropping the unit, or in a malfunction.
Do not use a tripod on unsteady or unlevel surfaces.
It could tip over, causing serious damage to the
camera.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.)
to the camera and leaving it on top of the TV is
not recommended, as tripping on the cables will
cause the camera to fall, resulting in damage.
CAUTION:
The mains plug shall remain readily operable.
WARNING:
Batteries, including lithium batteries installed in
the camera and the remote control, should not
be exposed to excessive heat such as direct
sunshine, fire or the like.

7
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Only use attachments/accessories specified by
the manufacturer.
10.Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer,
or sold with the
apparatus. When a cart
is used, use caution
when moving the
cart/apparatus combination to avoid injury from
tip-over.
11.Unplug this apparatus during lightning storms
or when unused for long periods of time.
12.Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
Remember that this camera is intended for
private consumer use only.
Any commercial use without proper permission
is prohibited. (Even if you record an event such
as a show, performance or exhibition for personal
enjoyment, it is strongly recommended that you
obtain permission beforehand.)
Trademarks
•i.LINK is a trademark of Sony
Corporation.
•x.v.ColorTM is a trademark of
Sony Corporation.
•HDMI is a trademark of HDMI
Licensing, LLC.
•Windows®is either registered
trademark or trademark of Microsoft Corporation
in the United States and/or other countries.
•Macintosh is a registered trademark of Apple
Inc.
•Other product and company names included
in this instruction manual are trademarks
and/or registered trademarks of their respective
holders.
If this symbol is shown, it is only
valid in the European Union.

8
Contents
GETTING STARTED
Accessories .......................................... 10
Attaching/Detaching the Lens Hood............10
Attaching the Shoulder Strap.......................11
Preparing the Remote Control.....................11
Attaching the Core Filter to the DC Cord..... 11
Index ...................................................... 12

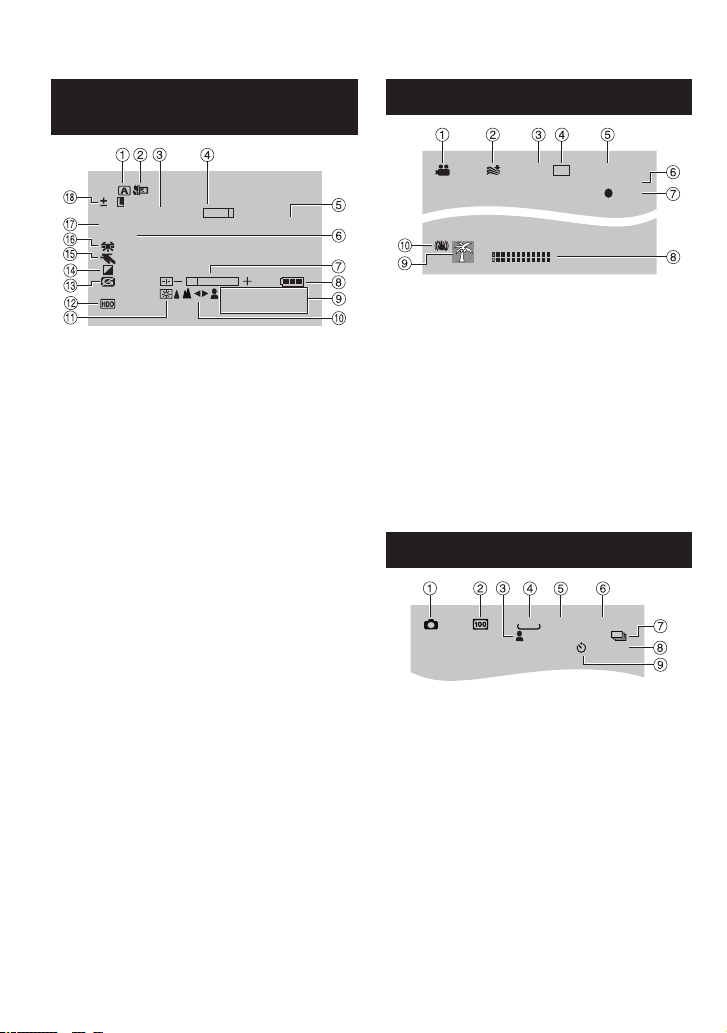

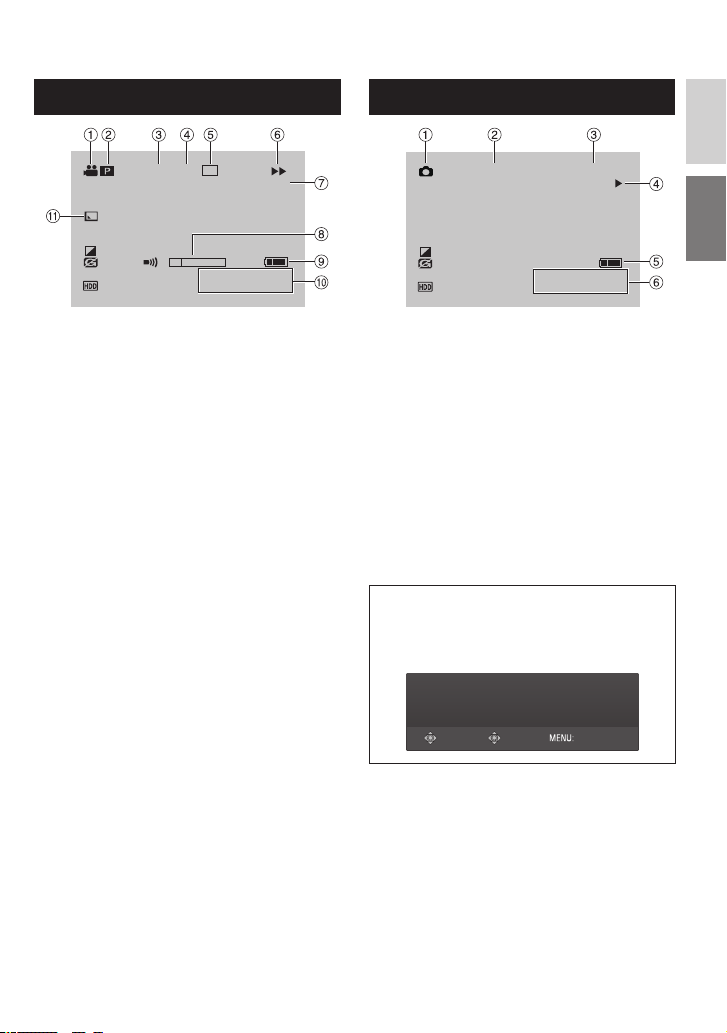

Indications on LCD Monitor................. 14
Necessary Settings before Use........... 16
Charging the Battery Pack...........................16
Language Setting ........................................17
Date/Time Setting........................................17
Other Settings....................................... 18

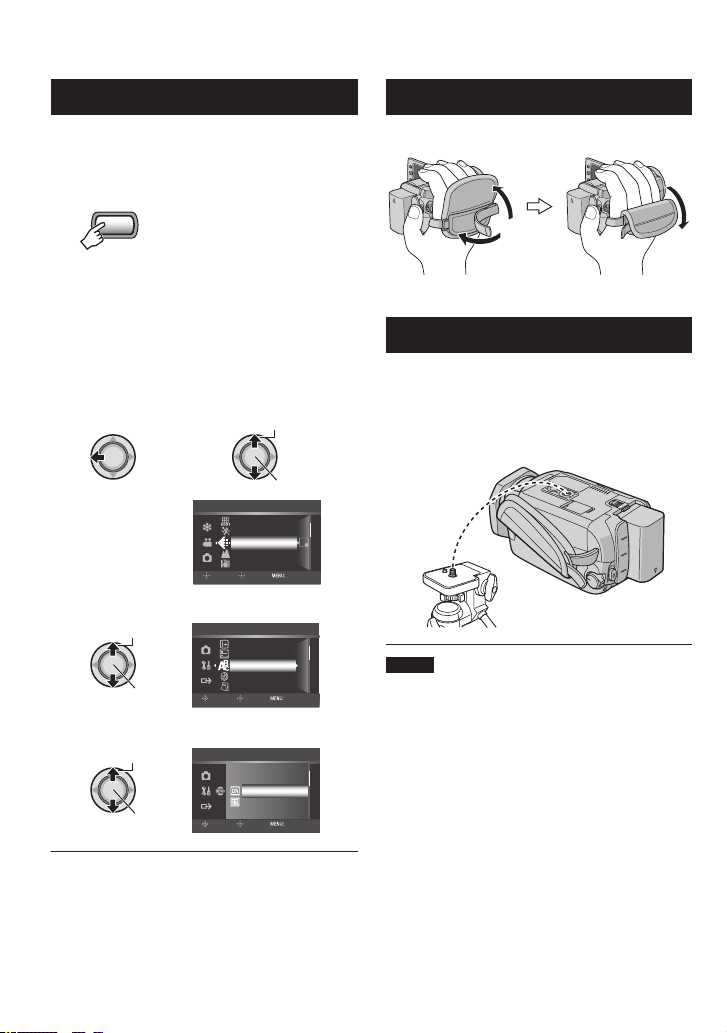

Changing the Menu Setting.........................18
Grip Adjustment...........................................18
Tripod Mounting...........................................18
When Using a microSD Card ......................19
RECORDING
Recording Files..................................... 20
Video Recording..........................................20
Still Image Recording ..................................21
Zooming.......................................................22
Registering Files to Events .........................22
Checking the Remaining Battery Power...... 22
Manual Recording ............................... 23
To Change to Manual Recording Mode.......23
Program AE.................................................23
Manual Setting in Function Menu................23
PLAYBACK
Playing Back Files ................................ 24
Video Playback ...........................................24
Still Image Playback ...................................25
Watching Images on TV........................ 26
Connection with TV......................................26
Playback Operation .....................................27
Managing Files...................................... 28
Deleting/Protecting Files..............................28
Copying Files ........................................ 29
Using a DVD Burner to Copy Files from the
Camera .....................................................29
PC OPERATION
File Backup on a Windows® PC ........... 31
System Requirements .................................31
Software Installation ....................................32
Connecting the Camera to the PC...............33
File Backup on the PC.................................34
File Backup on a Macintosh ................ 35
System Requirements .................................35
Software Installation ....................................35
Connecting the Camera to the Macintosh ... 35
Customer Support Information ........... 36
FURTHER INFORMATION
Troubleshooting.................................... 37
Warning Indications ............................. 39
Specifications ....................................... 40
Cautions ................................................ 42
Terms..................................................... 44

9
ENGLISH
Read This First!
Make a backup of important recorded data
It is recommended to copy your important recorded data to a DVD or other recording media for
storage. (墌p. 29) JVC will not be responsible for any lost data.
Make a trial recording
Before the actual recording of important data, make a trial recording and play back the recorded
data to check that the video and sound have been recorded correctly.
Reset the camera if it does not operate correctly
This camera uses a microcomputer. Factors such as background noise and interference can
prevent it from operating correctly. If the camera does not operate correctly, reset the camera.
(墌p. 37)
Precautions on handling batteries
•Be sure to use the JVC BN-VF815U/VF823U battery packs.
•If the camera is subjected to electrostatic discharge, turn the power off before using it again.
If a malfunction occurs, stop using the camera immediately and consult your
local JVC dealer
•If a problem occurs when using the microSD card, take the card together with the camera for
repair. If one of them is not included, the cause of the malfunction cannot be diagnosed, and
the camera cannot be repaired.
•Recorded data may be erased while the camera is being repaired or inspected. Back up all
data before requesting repairs or inspections.
Because cameras may be used for demonstration in a shop, the
demonstration mode is set to on by default
To deactivate the demonstration mode, set [DEMO MODE] to [OFF]. (墌p. 18)
Do not cover the fan (墌p. 12 &, C)
If the camera becomes too hot inside it may cause a malfunction.
Read these INSTRUCTIONS to enjoy your CAMCORDER.
For more details on the operations, refer to the GUIDEBOOK and the PC
OPERATION GUIDE in the supplied CD-ROM.
In order to view the GUIDEBOOK, Adobe®Acrobat®ReaderTM or Adobe®
Reader®must be installed.
Adobe®Reader®can be loaded from Adobe’s web site:
http://www.adobe.com/
NOTE
Select your desired language with a single click.
The model name is indicated on the bottom of your camcorder.

10
AC Adapter
AP-V14U Battery Pack BN-VF815U Component Cable (墌p. 26) Audio/Video Cable (墌p. 26, 27)
USB Cable
(墌p. 29, 33, 35)
GZ-HD6
Lens Hood
Already attached to the
camera. (墌below)
Shoulder Strap
(墌p. 11) CD-ROM (墌p. 32, 35)
NOTE
Make sure to use the
provided cables for
connections. Do not
use any other cables.
Remote Control
RM-V750U (墌p. 11) Lithium Battery CR2025
Pre-installed in the
remote control unit.
Core Filter
(墌p. 11)
GZ-HD6 Attaching/Detaching the Lens Hood
Guide ridge Place the guide
ridge in the groove.
GETTING STARTED
Accessories

11
ENGLISH
Attaching the Shoulder Strap
Preparing the Remote Control
A battery is included inside the remote control at the time of purchase.
Remove the insulation sheet before use.
Beam Effective Area
NOTE
The transmitted beam may not be effective
or may cause incorrect operation when the
remote sensor is directly exposed to sunlight
or powerful lighting.
To Reinsert the Battery
Pull out the battery holder by pressing the
lock tab.
Eyelet Strap Guide
Buckle
Effective distance:
Max. 5 m (16 ft)
Remote Sensor Lock Tab
Lithium Battery
(CR2025)
Attaching the Core Filter to the DC Cord
Attach the core filter to the DC cord. The core filter reduces interference. Connect the end of the
cable with the core filter to the camera.
Release the stopper. 3 cm (1-3/16") Wind once.

12
NOTES
•The LCD monitor can rotate 270°.
•Power-linked operation
You can also turn the camera on/off by
opening/closing the LCD monitor.
•Be careful not to cover sensors 5, <and =
during shooting.
Index

13
ENGLISH
7USB (Universal Serial Bus) Connector [ 2]
(墌p. 29, 33, 35)
8HDMI Connector [HDMI] (墌p. 26)
9Component Connector [COMPONENT]
(墌p. 26)
:Audio/Video Connector [AV] (墌p. 27)
;i.LINK Connector [ i ]
<Remote Sensor (墌p. 11)
=Lens Cover/Lens
>GZ-HD6 Lens Hood (墌p. 10)
?Shoe
@microSD Card Slot (墌p. 19)
AStud Hole (墌p. 18)
BTripod Mounting Socket (墌p. 18)
CFan inlet
DBattery Release Button [BATT.] (墌p. 16)
EBattery Pack Mount (墌p. 16)
Remote Control
QInfrared Beam Transmitting Window
RZOOM (T/W) Buttons
(Zoom in/out during playback.)
SUp Button
Rotate Button (counterclockwise) (墌p. 25)
TSkip Backward Button
ULeft Button
VBack Button
WPLAYLIST Button
XSTART/STOP Button
YSNAPSHOT Button (墌p. 21)
ZINFO Button
aSkip Forward Button
bPLAY/PAUSE Button
cRight Button
dNext Button
eDown Button
Rotate Button (clockwise) (墌p. 25)
fINDEX Button
gDATE Button
NOTE
You can move the zooming area with the up/
down/left/right button during zoom in playback
mode.
Camera
!Index Button [INDEX]/
Remaining Space Button/
Data Battery Button [ 0/ 1] (墌p. 22)
#Set Lever
Move to ¡:
Reverse Skip (墌p. 24)/Up/ Backlight
Compensation Button [BACK LIGHT]
Move to ¢:
Forward Skip (墌p. 24)/Down/ Manual
Focus Button [FOCUS]
Move to £:
Reverse Search (墌p. 24)/Left/Nightalive
[NIGHT]
Move to ¤:
Forward Search (墌p. 24)/Right/Program
AE [PROGRAM AE] (墌p. 23)
Press down:
Play/Pause (墌p. 24)
$Function Button [FUNCTION] (墌p. 23)
%Auto/Manual Mode Button [AUTO]
(墌p. 23)/Information Button [INFO]
&Fan outlet
(Playback/Recording Mode Switching
Button [PLAY/REC] (墌p. 20)
)Zoom Lever [W 7,T ,] (墌p. 22)
Speaker Volume Control [–VOL+] (墌p. 24)
*Still Image Shooting Button [SNAPSHOT]
(墌p. 21)
+Access/Charge Lamp [ACCESS/CHARGE]
(墌p. 16) (Blinks when you access files
or charge the battery. Do not turn off the
power or remove the battery pack/AC
adapter while accessing files.)
Video/Still Image Mode Lamp [ !, #]
(墌p. 20, 21)
,LCD Monitor
-Direct Backup Button [DIRECT BACK UP]
(墌p. 34)/Event Button [EVENT] (墌p. 22)
.Focus Assist Button [FOCUS ASSIST]
/Menu Button [MENU] (墌p. 18)
0Video Recording Start/Stop Button [REC]
(墌p. 20)
1DC Input Connector [DC] (墌p. 16)
2Microphone Input Connector [MIC]
3GZ-HD6 Headphone Connector
4Power/Mode Switch [OFF (CHARGE), ON,
MODE] (墌p. 16)
5Stereo Microphone
6Grip Strap (墌p. 18)

14
During both Video and Still Image
Recording
WT
0
FOCUS
200X
F5.6
1/4000
LCD
PM
4:55
JAN.20.2008
!Selected Recording Mode Indicator
(墌p. 23)
#Tele Macro Mode Indicator
$Approximate Zoom Ratio (墌p. 22)
%Zoom Indicator (墌p. 22)
&Focus Assist Indicator
(Shutter Speed
)Brightness/Sharpness Control Indicator
*Battery Indicator (墌p. 22)
+Date/Time (墌p. 17)
,Manual Focus Adjustment Indicator
-Monitor Backlight
.Selected Recording Medium Indicator
/Drop Detection Indicator (Appears when
[DROP DETECTION] is set to [OFF].)
0Effect Mode Indicator
1Program AE Mode Indicator (墌p. 23)/
5: Nightalive Indicator
2White Balance Indicator
3Aperture Value (F-number)
4±0 : Exposure Adjustment Indicator
-: Backlight Compensation Indicator
.: Spot Exposure Control Indicator
C: Iris Lock Indicator
During Video Recording Only
REC
0:04:01
[4h59m]
FHD
xvC
!Mode Indicator (墌p. 20)
#Wind Cut Indicator
$x.v.ColorTM
%Picture Quality
&Remaining Time (墌p. 20, 41)
(Counter
) 7REC : (Appears during recording.)
(墌p. 20)
79 : (Appears during record-standby
mode.)
*External Microphone Input Level Indicator
+Event Indicator (墌p. 22)
,Optical Image Stabilizer (OIS) Indicator
(Appears when [OIS] is set to [OFF].)
During Still Image Recording Only
[9999]
FINE
10
1920
!Mode Indicator (墌p. 21)
#ISO Sensitivity
(GAIN): When set to [AUTO], there is no
indication.
$Focus Indicator (墌p. 21)
%Image Size
&Picture Quality
(Remaining Number of Shots (墌p. 41)
){: Continuous Shooting Mode Indicator
J: Bracket Shooting Mode Indicator
*Shooting Indicator (墌p. 21)
+Self-Timer Recording Indicator
Indications on LCD Monitor

15
ENGLISH
During Video Playback
1:55:01
X-60
FHD
xvC1080p
4:55 PM
JAN.20.2008
!Mode Indicator (墌p. 24)
#6: Playlist Playback Indicator (Appears
when playing back a playlist.)
$Output with 1080p
%x.v.ColorTM
&Picture Quality
(Playback Mode (墌p. 24)
U: Playback
9: Pause
5 : Forward Search
3 : Reverse Search
9U : Forward Slow-Motion
Y9 : Reverse Slow-Motion
(The number on the left shows speed.)
)Counter
*Volume Level Indicator
+Battery Indicator
,Date/Time
-Wipe/Fader Effect Indicator
During Still Image Playback
PM
4:55
JAN.20.2008
101-0098
1080p
!Mode Indicator (墌p. 25)
#Output with 1080p
$Folder/File Number
%Slide Show Playback Indicator (墌p. 25)
&Battery Indicator
(Date/Time
Operation guide display
The operation guide is displayed at the
bottom of the screen during menu display
etc.
SELECT SET QUIT

16
Charging the Battery Pack
1Set the power/mode switch to OFF.
OFF
(CHARGE)
2Attach the battery pack.
BATT.
3Connect the AC adapter.
•The access/charge lamp blinks to
indicate charging has started.
•When the lamp goes out, charging is
finished.
Required charging/recording time (approx.)
Battery pack Charging time Recording
time
BN-VF815U
(Provided) 2 hr. 40 min.
GZ-HD5
1 hr. 25 min.
GZ-HD6
1 hr. 20 min.
BN-VF823U 3 hr. 50 min.
GZ-HD5
2 hr. 05 min.
GZ-HD6
2 hr. 00 min.
8To detach the battery pack
Slide and hold BATT. (step 2), then remove
the battery pack.
8To check the remaining battery power
See page 22.
NOTES
•You can also use the camera with just the
AC adapter.
•Please do not pull or bend the AC adapter
plug and cable. This may damage the AC
adapter.
DC Connector
AC Adapter To AC Outlet
(110V to 240V)
Necessary Settings before Use

17
ENGLISH
Language Setting
The language on the display can be changed.
1Set the power/mode switch to ON.
ON
2Select the menu mode.
MENU
3Select [GENERAL].
¬
Select
Set
SP
ZOOM
QUALITY
OIS
VIDEO
SELECT SET QUIT
SCENE COUNTER
EXTERNAL MIC LEVEL
4Select [LANGUAGE].
Select
Set
DISPLAY
DISPLAY ON TV
CLOCK ADJUST
LANGUAGE
DATE DISPLAY STYLE
GENERAL
SELECT SET QUIT
5Select the desired language.
Select
Set
ENGLISH
LANGUAGE
SELECT SET QUIT
DEUTSCH
8To return to the previous screen
Move the set lever to £.
8To exit the screen
Press the MENU button.
Date/Time Setting
After performing steps 1-3 (墌left column)
4Select [CLOCK ADJUST].
Select
Set
5Set the date and time.
Select
Set
JAN 31 11 AM 07
2007
DATE TIME
CLOCK ADJUST
SELECT SET QUIT
Repeat this step to input the month, day,
year, hour and minute.
8To return to the previous screen
Move the set lever to £.
8To exit the screen
Press the MENU button.

18
Changing the Menu Setting
For more details on the operations, refer to
the GUIDEBOOK in the supplied CD-ROM.
1Select the menu mode.
MENU
2Select the desired first menu item.
!: VIDEO
#: IMAGE
Y: GENERAL
Q: OUTPUT SETTING
: MEDIA
¬
Select
Set
SP
ZOOM
QUALITY
OIS
VIDEO
SELECT SET QUIT
SCENE COUNTER
EXTERNAL MIC LEVEL
3Select the desired second menu item.
Select
Set
DISPLAY
DISPLAY ON TV
CLOCK ADJUST
LANGUAGE
DATE DISPLAY STYLE
GENERAL
SELECT SET QUIT
4Select the desired setting.
Select
Set
ON
OFF
DEMO MODE
SELECT SET QUIT
8To return to the previous screen
Move the set lever to £.
8To exit the screen
Press the MENU button.
Grip Adjustment
Open the pad and make grip adjustments.
Tripod Mounting
Align the camera stud hole with the tripod
stud, and the mounting socket with the screw,
and then rotate the camera clockwise to
mount it to the tripod.
Bottom of the Camera
NOTE
Do not use a tripod on unsteady or unlevel
surfaces. It could tip over, causing serious
damage to the camera.
Other Settings

19
ENGLISH
When Using a microSD Card
Operations are certified on the following
microSD cards.
- Panasonic
- TOSHIBA
- SanDisk
- ATP
Video recording:
Class 6 compatible SDHC card (4 GB)
Still image recording:
microSD card (128 MB to 2 GB) or
SDHC card (4 GB)
QInsert a microSD card
Preparation:
Set the power/mode switch to OFF.
1Open the microSD card cover.
2Firmly insert the card with its clipped
edge first.
Bottom of the Camera
3Close the microSD card cover.
8To remove a microSD card
Push the microSD card once.
After the card comes out a little, pull it out.
NOTES
•Insert and remove the microSD card only
while the power is turned off. Otherwise,
data on the card may be corrupted.
•Do not touch the terminal on the reverse
side of the label.
RChange the recording medium
The camera is programmed to record on the
built-in hard disk when it is shipped from the
factory.You can change the recording medium
to microSD card.
Set [REC MEDIA FOR VIDEO] and [REC
MEDIA FOR IMAGE] to [SD]. (墌p. 18)
NOTE
Video picture quality will automatically be set
to [SP].
SFormat a microSD card when using it
for the first time
This will also ensure stable speeds and
operation when accessing the microSD card.
Select [EXECUTE] in [FORMAT SD
CARD] to format the card. (墌p. 18)

20
Video Recording
Preparation: Set the power/mode switch to ON.
Press the PLAY/REC button to
select the recording mode.
PLAY/REC
SELECT
The lens cover opens automatically.
Press the REC button to start
recording.
REC
[4h59m]
SP
Approximate remaining
time for recording
8To stop recording
Press the REC button again.
8To change the picture quality
Change the settings in [QUALITY].
(墌p. 18)
8To register a file to an event
See page 22.
Slide the power/mode switch to
MODE to select !(video) mode.
MODE
The switch returns to
the original position
when it is released.
The !lamp on the camera lights up.
NOTES
•If the camera is not operated for 5 minutes while the power is on, it turns itself off automatically
to conserve power. To turn the camera on again when using the battery pack, set the power/
mode switch to OFF, then to ON. When using the AC adapter, perform any operation such as
zooming.
•Video files are given the names MOV001.TOD to MOV009.TOD, MOV00A.TOD to
MOV00F.TOD, and MOV010.TOD in order of recording.
•A new file will be created for every 4 GB or approx. 19 minutes of continuous shooting.
•This camera records video in MPEG2 format compliant with SD-VIDEO format.
•Do not move or shake the camera suddenly during recording. If you do so, the driving sound
(hum) of the hard disk may be recorded.
RECORDING
Recording Files
