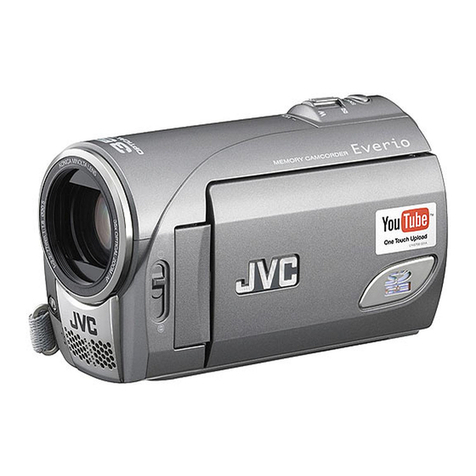

JVC GZ-MS95 EK Manual

ENGLISH
EN
CAMCORDER
Dear Customer
Thank you for purchasing this
camcorder. Before use, please
read the safety information and
precautions contained in pages 2
and 3 to ensure safe use of this
product.
GUIDEBOOK
LYT2008-009B-M
GZ-MS120
GZ-MS95
EK
EK
GZ-MS120_95EK_GB_EN.indb 1 8/3/2009 12:14:33 PM

2
Safety Precautions
When the equipment is installed in a cabinet or on
a shelf, make sure that it has sufficient space on
all sides to allow for ventilation (10 cm or more on
both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a
newspaper, or cloth etc. the heat may not be able
to get out.)
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
When discarding batteries, environmental
problems must be considered and the local rules
or laws governing the disposal of these batteries
must be followed strictly.
The apparatus shall not be exposed to dripping
or splashing.
Do not use this equipment in a bathroom or
places with water.
Also do not place any containers filled with water
or liquids (such as cosmetics or medicines, flower
vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this
equipment, fire or electric shock may be caused.)
Do not point the lens directly into the sun. This
can cause eye injuries, as well as lead to the
malfunctioning of internal circuitry. There is also a
risk of fire or electric shock.
CAUTION!
The following notes concern possible physical
damage to the camera and to the user.
Carrying or holding the camera by the LCD
monitor can result in dropping the unit, or in a
malfunction.
Do not use a tripod on unsteady or unlevel
surfaces. It could tip over, causing serious damage
to the camera.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.)
to the camera and leaving it on top of the TV is
not recommended, as tripping on the cables will
cause the camera to fall, resulting in damage.
CAUTION:
To avoid electric shock
or damage to the
unit, first firmly insert
the small end of the
power cord into the
AC Adapter until it is
no longer wobbly, and
then plug the larger
end of the power cord into an AC outlet.
IMPORTANT (for owners in the U.K.)
Connection to the mains supply in the United
Kingdom.
DO NOT cut off the mains plug from this
equipment.
If the plug fitted is not suitable for the power points
in your home or the cable is too short to reach
a power point, then obtain an appropriate safety
approved extension lead or consult your dealer.
BE SURE to replace the fuse only with an
identical approved type, as originally fitted,
and to replace the fuse cover.
If nonetheless the mains plug is cut off be sure
to remove the fuse and dispose of the plug
immediately, to avoid possible shock hazard by
inadvertent connection to the mains supply.
If this product is not supplied fitted with a mains
plug then follow the instructions given below:
DO NOT make any connection to the Larger
Terminal coded E or Green.
The wires in the mains lead are coloured in
accordance with the following code:
Blue to N
(Neutral) or Black
Brown to L (Live)
or Red
If these colours do not correspond with the terminal
identifications of your plug, connect as follows:
Blue wire to terminal coded N (Neutral) or coloured
black.
Brown wire to terminal coded L (Live) or coloured Red.
If in doubt — consult a competent electrician.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN
OR MOISTURE.
CAUTIONS:
•To prevent shock, do not open the cabinet. No
user serviceable parts inside. Refer servicing to
qualified personnel.
•When you are not using the AC adapter for a
long period of time, it is recommended that you
disconnect the power cord from AC outlet.
NOTES:
• The rating plate and safety caution are on the
bottom and/or the back of the main unit.
• The serial number plate is on the battery pack
mount.
• The rating information and safety caution of the
AC adapter are on its upper and lower sides.
WARNING:
The battery pack and the camcorder with battery
installed should not be exposed to excessive heat
such as direct sunshine, fire or the Iike.
CAUTION:
The mains plug shall remain readily operable.
GZ-MS120_95EK_GB_EN.indb 2 8/3/2009 12:14:34 PM

3
ENGLISH
Information for Users on Disposal of Old
Equipment and Batteries
Products
Battery
Notice:
The sign Pb below the symbol
for batteries indicates that this
battery contains lead.
[European Union]
These symbols indicate that the electrical and
electronic equipment and the battery with this symbol
should not be disposed of as general household
waste at its end-of-life. Instead, the products should
be handed over to the applicable collection points for
the recycling of electrical and electronic equipment as
well as batteries for proper treatment, recovery and
recycling in accordance with your national legislation
and the Directive 2002/96/EC and 2006/66/EC.
By disposing of these products correctly, you will
help to conserve natural resources and will help to
prevent potential negative effects on the environment
and human health which could otherwise be caused
by inappropriate waste handling of these products.
For more information about collection points and
recycling of these products, please contact your local
municipal office, your household waste disposal
service or the shop where you purchased the product.
Penalties may be applicable for incorrect disposal of
this waste, in accordance with national legislation.
[Business users]
If you wish to dispose of this product, please visit
our web page www.jvc-europe.com to obtain
information about the take-back of the product.
[Other Countries outside the European Union]
These symbols are only valid in the European Union.
If you wish to dispose of these items, please do so
in accordance with applicable national legislation or
other rules in your country for the treatment of old
electrical and electronic equipment and batteries.
SOME DO’S AND DON’TS ON THE
SAFE USE OF EQUIPMENT
This equipment has been designed and manufactured
to meet international safety standards but, like any
electrical equipment, care must be taken if you are to
obtain the best results and safety is to be assured.
DO read the operating instructions before you attempt
to use the equipment.
DO ensure that all electrical connections (including
the mains plug, extension leads and interconnections
between pieces of equipment) are properly made and in
accordance with the manufacturer’s instructions. Switch
off and withdraw the mains plug when making or changing
connections.
DO consult your dealer if you are ever in doubt about
the installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
DON’T continue to operate the equipment if you are in any
doubt about it working normally, or if it is damaged in any
way — switch off, withdraw the mains plug and consult your
dealer.
DON’T remove any fixed cover as this may expose
dangerous voltages.
DON’T leave equipment switched on when it is unattended
unless it is specifically stated that it is designed for
unattended operation or has a standby mode. Switch off
using the switch on the equipment and make sure that your
family knows how to do this. Special arrangements may
need to be made for infirm or handicapped people.
DON’T use equipment such as personal stereos or radios
so that you are distracted from the requirements of road
safety. It is illegal to watch television whilst driving.
DON’T listen to headphones at high volume, as such use
can permanently damage your hearing.
DON’T obstruct the ventilation of the equipment, for
example with curtains or soft furnishings. Overheating will
cause damage and shorten the life of the equipment.
DON’T use makeshift stands and NEVER fix legs with
wood screws — to ensure complete safety always fit the
manufacturer’s approved stand or legs with the fixings
provided according to the instructions.
DON’T allow electrical equipment to be exposed to rain
or moisture.
ABOVE ALL
•NEVER let anyone especially children push
anything into holes, slots or any other opening in the
case — this could result in a fatal electrical shock;
•
NEVER guess or take chances with electrical equipment
of any kind — it is better to be safe than sorry!
Remember that this camcorder is intended for
private consumer use only.
Any commercial use without proper permission
is prohibited. (Even if you record an event such
as a show, performance or exhibition for personal
enjoyment, it is strongly recommended that you
obtain permission beforehand.)
Trademarks
•Manufactured under licence from Dolby
Laboratories. Dolby and double-D symbol are
trademarks of Dolby Laboratories.
•Windows®is either registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.
•Macintosh is a registered trademark of Apple Inc.
•iTunes is a trademark of Apple Inc., registered in
the U.S. and other countries.
•YouTube and the YouTube logo are trademarks
and/or registered trademarks of YouTube LLC.
•
Other product and company names included in
this instruction manual are trademarks and/or
registered trademarks of their respective holders.
GZ-MS120_95EK_GB_EN.indb 3 8/3/2009 12:14:34 PM

4
Easy Start Guide
Charge the Battery Before Recording
Turn off the camcorder and attach the battery pack.
Open the cover
Battery Pack
AC Adapter
To AC Outlet
(110V to 240V)
Power/charge lamp
blinks: Charging
goes out: Charging finished
Access lamp
blinks: Accessing files
The battery pack is not charged
at the time of purchase.
BA
CAUTION
•Be sure to use JVC battery packs. If you use any other battery packs besides
JVC battery packs, safety and performance can not be guaranteed.
Do not remove the AC adapter, the
battery pack or the SD card when
the lamp is blinking.
Insert the SD Card
Slot B Slot A
Firmly insert the card.
Press Power ( ) button to turn off the camcorder.
( )
Grip Adjustment
•Do not pull the strap when you open
the fasten. Please pull the tab to
open it.
•Fasten the strap when you grip the
camcorder.
•When carrying the camcorder,
please be careful not to drop it.
Grip Strap
Fasten
Tab
1. Insert and remove the SD card only
while the power is turned off. Otherwise,
data on the card may be corrupted.
2. Format an SD card when using it for the
first time. (Zp. 58)
Adjust the strap and fasten.
GZ-MS120_95EK_GB_EN.indb 4 8/3/2009 12:14:35 PM

5
ENGLISH
Date/Time Setting
Open the LCD monitor to
turn on the camcorder
Q
Select [YES] within
10 seconds
R
Slide your finger up and down on the
sensor. Then touch OK. (Zp. 9)
Select [CLOCK SETTING]
S
Set the date and time
V
SAVE QUIT
CLOCK SETTING
GMT 0:00
DATE TIME
16 5511 2009
1
Power button ( )
LCD monitor
•When the message disappears, press
the power button for at least 2 seconds
to turn off the power, and then press it
again for at least 2 seconds.
•Touch the sensors with your finger. The
sensors do not function if you touch
them with your finger nail or with gloves
on.
QUIT
SET THE CITY, DATE AND TIME
@
CLOCK SETTING
AREA SETTING
SET FOR DAYLIGHT SAVING TIME
CLOCK ADJUST
Select the city closest to
the area where you use
the camcorder
T
AREA SETTING
SET QUIT
GMT
:1.1.2009 01:00
Select [ON] or [OFF]
U
Select [ON] if daylight saving time is
effective.
SET QUIT
SET DAYLIGHT SAVING TIME
1. 1.2009 01:00
SET FOR DAYLIGHT SAVING TIME
DAYLIGHT SAVING TIME (DST)
OFF
Touch sensor: Sets the date and time
:Moves the cursor to the right
OK: Clock starts
GZ-MS120_95EK_GB_EN.indb 5 8/3/2009 12:14:37 PM

6
Video Recording
•Before recording an important scene, it is recommended to conduct a trial
recording.
CAUTION
Slide the mode switch to select !(video) mode
Q
0:04:01
[4 h 59 m ]
REC
The mode changes when
you press the button.
Press the START/STOP
button to start recording,
and press it again to stop.
Start recording
S
Remaining space on
the SD Card
Record-standby
Video Quality
Recording
Select recording mode
R
REC
The auto recording
indicator appears.
GZ-MS120_95EK_GB_EN.indb 6 8/3/2009 12:14:39 PM

7
ENGLISH
Playing Back
Select playback mode
Q
The mode changes when
you press the button.
Select the desired file
R
,
DIGEST
VIDEO PLAYBACK
01. 11. 2009 16:55
1/2
Index screen
J
K
16:55
0:00:42
1. 11. 2009
Q
K J
L
B
Playback screen
LTo perform operations such as forward search or reverse search (Zp. 24)
LTo view files on TV (Zp. 31)
Do not forget to make copies after recording!
•To copy files onto DVD discs (Zp. 45)
•To dub files using a VCR/DVD recorder (Zp. 50)
•To play back a created DVD disc (Zp. 44)
•To edit files on your computer (Zp. 45)
CAUTION
Select  (Touch OK)
S
GZ-MS120_95EK_GB_EN.indb 7 8/3/2009 12:14:40 PM

8
Contents
GETTING STARTED
Accessories .......................................... 11
Attaching the Core Filter.............................. 11
Attach the Lens Cap...................11
Index ...................................................... 12
Indications on LCD Monitor................. 14
Necessary Settings before Use........... 16
Charging the Battery Pack...........................16
Date/Time Setting........................................ 16
Language Setting ........................................ 17
Other Settings....................................... 18
Grip Adjustment........................................... 18
Tripod Mounting ........................................... 18
Using an SD Card........................................19
RECORDING/PLAYBACK
Recording Files..................................... 20
Video Recording.......................................... 20
Still Image Recording .................................. 21
Zooming.......................................................22
LED Light..................................22
Checking the Remaining Battery Power...... 22
Checking the Remaining Space on the
Recording Media ........................................ 23
Registering Files to Events.......................... 23
Playing Back Files ................................ 24
Video Playback............................................ 24
Still Image Playback ....................................25
File Search Function....................................26
To Play Back MPG Files ..............................27
Manual Recording ............................... 28
Changing to Manual Recording Mode.........28
Backlight Compensation.............................. 28
Manual Setting in Menu............................... 28
USING WITH TV
Viewing Files on TV .............................. 31
Connection with TV...................................... 31
Playback Operation ..................................... 31
EDITING
Managing Files...................................... 32
Capturing a Still Image from a Video ........... 32
Deleting Files............................................... 32
Protecting Files............................................ 34
Viewing File Information ..............................35
Changing the Event Registration................. 36
Trimming Files .............................................37
Playlists ................................................. 38
Creating Playlists......................................... 38
Playing Back Playlists.................................. 39
Other Operations of Playlists....................... 39
COPYING
Copying Files ........................................ 40
Copying/Moving Files .................................. 40
Using a DVD Burner ................. 41
Creating a DVD using a PC ......................... 45
Dubbing Files to VCR/DVD Recorder ..........50
Using with a Portable Media Player .... 51
Turning on the Export Mode ........................ 51
Changing the Export Setting ....................... 51
Transferring the Files to PC .........................52
Uploading Files to Websites................ 53
Turning on the Upload Mode ....................... 53
Upload Trimming.......................................... 53
Uploading Files............................................ 54
FURTHER INFORMATION
Changing the Menu Settings ............... 55
Troubleshooting.................................... 59
Warning Indications ............................. 63
Cleaning ................................................ 65
Specifications ....................................... 66
Cautions ................................................ 68
Terms ..................................................... 72
GZ-MS120_95EK_GB_EN.indb 8 8/3/2009 12:14:40 PM

9
ENGLISH
RECORDING/
PLAYBACK
GETTING
STARTED
USING
WITH TV
FURTHER
INFORMATIONCOPYINGEDITING
How to use the Touch
Sensor
After the menu is displayed on the LCD monitor:
VIDEO
DUBBING PLAYBACK
PLAYBACK MPG FILE
ON-SCREEN DISPLAY
SET QUIT
SWITCH DISPLAYED CONTENTS
EDIT
l
Q
R
QSlide your finger up and down on the sensor.
RSelect [SET]. (Touch OK.)
A
B
A
To select an on-screen button appearing on
the left side, touch the portion of the sensor
next to the on-screen button.
B
To select an on-screen button appearing at
the bottom of the screen, touch the buttons
underneath them.
GZ-MS120_95EK_GB_EN.indb 9 8/3/2009 12:14:41 PM

10
Make a backup of important recorded data
JVC will not be responsible for any lost data. It is recommended to copy your important
recorded data to a DVD or other recording media for storage. (Zp. 41)
Make a trial recording
Before the actual recording of important data, make a trial recording and play back the
recorded data to check that the video and sound have been recorded correctly. We
recommend you to use the same recording media when performing both the trial recording
and the actual recording.
Reset the camcorder if it does not operate correctly
This camcorder uses a microcomputer. Factors such as background noise and
interference can prevent it from operating correctly.
Close the LCD monitor and remove the power supply (battery pack or AC adapter) from
the camcorder, then reattach it.
Precautions on handling batteries
•Be sure to use the JVC BN-VF808U/VF815U/VF823U battery packs. This product
includes patented and other proprietary technology and is made to be used with the JVC
battery and not with other batteries. JVC cannot guarantee safety or performance of this
product when it is operated by other batteries.
•If the camcorder is subjected to electrostatic discharge, turn off the power before using it
again.
If a malfunction occurs, stop using the camcorder immediately
and consult your nearest JVC dealer.
•If a problem occurs when using the SD card, take the card together with the camcorder
for repair. If one of them is not included, the cause of the malfunction cannot be
diagnosed, and the camcorder cannot be repaired.
•Recorded data may be erased while the camcorder is being repaired or inspected. Back
up all data before requesting repairs or inspections.
Because the camcorder may be used for demonstration in a
shop, the demonstration mode is set to [ON] by default
To deactivate the demonstration mode, set [DEMO MODE] to [OFF]. (Zp. 57)
When Using an SD Card
•Operations are confirmed on the following SD cards.
Class 4 or higher compatible SD or SDHC card
Panasonic, TOSHIBA, SanDisk, ATP SD card (256 MB to 2 GB) or SDHC card (4 GB to
32 GB)
•If other media are used, they may fail to record data correctly, or they may lose data that
had already been recorded.
•MultiMediaCards are not supported.
GZ-MS120_95EK_GB_EN.indb 10 8/3/2009 12:14:41 PM

11
ENGLISH
GETTING
STARTED
Accessories
Attaching the Core Filter
The core filter reduces interference caused when connecting to other devices. Connect the end
of the cable with the core filter to the camcorder.
Release the stopper. 3 cm
USB cable: Wind once.
AC Adapter: Wind twice.
To be connected
to the camcorder
or
AP-V20M/AP-V14E
AC Adapter
Power Cord BN-VF808U
Battery Pack
AV Cable USB Cable CD-ROM Core Filter (x2)
Lens Cap
(Z11)
NOTE
Make sure to use the provided cables for connections. Do not use any other cables.
Attach the Lens Cap
To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration.
Place here during
recording.
GZ-MS120_95EK_GB_EN.indb 11 8/3/2009 12:14:43 PM

12
Index
NOTE
•The LCD monitor can rotate 270°.
•Be careful not to cover 4, 5and 6during
shooting.
GETTING STARTED
DC
DC
DC
BA
GZ-MS120_95EK_GB_EN.indb 12 8/3/2009 12:14:44 PM

13
ENGLISH
GETTING
STARTED
Camcorder
!Touch Sensor (Zp. 9)
#OK Button
$MENU Button
%Power Button [ ]
&UPLOAD Button (Zp. 53)
(PLAY/REC Button (Zp. 20, 21, 24, 25)
)Mode Switch [!, #]
*DIRECT DVD Button (Zp. 42)
INFO Button (Zp. 22, 23, 35)
+SD Card Slot
,EXPORT Button (Zp. 51)
-AV Connector (Zp. 31, 50)
.START/STOP Button (Zp. 20)
/SNAPSHOT Button (Zp. 21)
0Zoom Lever [W 7,T] (Zp. 22)
Speaker Volume Control [–VOL+] (Zp. 24)
1Speaker
2DC Connector
3USB Connector [ 2] (Zp. 41, 46)
4Lens
5LED Light (Zp. 22)
6Stereo Microphone
7Grip Strap
8Belt Strap
9Fasten
:Stud Hole
;Tripod Mounting Socket
<Battery Release Button [BATT.] (Zp. 16)
GZ-MS120_95EK_GB_EN.indb 13 8/3/2009 12:14:45 PM

14
During both Video and Still Image
Recording
16:55
1. 11. 2009
!Selected Recording Mode Indicator
(Z p. 28)
@: Auto Mode
3: Manual Mode
#Effect Mode Indicator (Z p. 30)
$Tele Macro Mode Indicator (Z p. 30)
%LED Light Indicator (LED Light Indicator (Z p. 22)
&Scene Select Indicator (Z p. 29)
(Quick Review Indicator (Z p. 20, 21)
)Zoom Indicator (Z p. 22)
*SD Card Slot Indicator
: Slot A (Default Setting)
B
: Slot B
+White Balance Indicator (Z p. 30)
,Monitor Backlight Indicator (Z p. 57)
-Battery Indicator
.Date/Time (Z p. 16)
/Manual Focus Adjustment Indicator
(Z p. 29)
0Backlight Compensation Indicator (Z p. 28)
1Brightness Control Indicator (Brightness Control Indicator (Z p. 29)
.: Photometry Area Control Indicator
(Z p. 30)
2Shutter Speed (Z p. 29)
During Video Recording Only
!Mode Indicator
#Export Mode Indicator ((Z p. 51)
$Counter
%Upload Mode Indicator ((Z p. 53)
&Video Quality: B(ULTRA FINE),
C(FINE), D(NORMAL), E(ECONOMY)
(Z p. 56)
(Remaining Time
)MREC: (Appears during recording.)
MQ: (Appears during record-standby
mode.)
*Digital Image Stabilizer (DIS) Indicator
(Appears when [DIS] is set to [OFF].)
(Z p. 56)
+Auto Switch Rec Media (Z p. 56)
,Wind Cut Indicator (Z p. 56)
-Shooting Indicator (Shooting Indicator (Z p. 20)
.Event Indicator (Z p. 23)
During Still Image Recording Only
!Mode Indicator
#Focus Indicator (Z p. 21)
$Image Quality: FINE (fine) or STD
(standard) (Z p. 56)
%Remaining Number of Shots
&Shooting Indicator (Z p. 21)
(Shutter Mode Indicator (Z p. 55)
)Self-Timer Indicator (Z p. 55))
Indications on LCD Monitor
GZ-MS120_95EK_GB_EN.indb 14 8/3/2009 12:14:47 PM

15
ENGLISH
GETTING
STARTED
During Video Playback
8
16:55
1.11.2009
!Mode Indicator
#Playlist Playback Indicator (Appears when
playing back a playlist.) (Z p. 39)
$Video Quality: B(ULTRA FINE),
C(FINE), D(NORMAL), E(ECONOMY)
(Z p. 56)
%Counter
&Playback Mode
F: Playback
Q: Pause
K: Forward Search
J: Reverse Search
 G: Forward Slow-Motion
 E: Reverse Slow-Motion
(The number on the left shows speed.)
(Battery Indicator
)Date/Time (Z p. 16)
*Volume Level Indicator
During Still Image Playback
16:55
1.11.2009
!Mode Indicator
#Folder/File Number
$Slide Show Playback Indicator
%Battery Indicator
&Date/Time (Z p. 16)
GZ-MS120_95EK_GB_EN.indb 15 8/3/2009 12:14:47 PM

16
Charging the Battery Pack
1Close the LCD monitor to turn off the
camcorder.
2
Attach the battery pack, then connectbattery pack, then connect
the AC adapter.
•With the “” (arrow) on the battery pack
pointing at the correct direction, slide the
battery pack until it locks in place.
•Connect the power cord to the AC adapter,Connect the power cord to the AC adapter,
and plug the power cord into an AC outlet.
•The power/charge lamp blinks to indicate
charging has started.
•When the lamp goes out, charging is
finished.
LRequired charging/recording time
(approx.)
* When the LED light is off andWhen the LED light is off and
the monitor backlight is set to [STANDARD]
mode.
Battery pack Charging time Recording time
BN-VF808U
(Provided)
1 hr. 50 min. 2 hr. 45 min.*
BN-VF815U 2 hr. 40 min. 5 hr. 25 min.*
BN-VF823U 3 hr. 40 min. 8 hr. 10 min.*
LTo detach the battery pack
NOTE
•You can also use the camcorder with just
the AC adapter.
•The actual recording time may shorten
depending on the recording environment,
such as when recording scenes with fast
moving.
•Please do not pull or bend the AC adapter
plug and cable. This may damage the AC
adapter.
Necessary Settings before Use
AC Adapter
To AC Outlet
(110V to 240V)
Date/Time Setting
1Open the LCD monitor to turn on the
camcorder.
2Touch MENU.
3Select [DISPLAY SETTINGS].
VIDEO
SELECT ASPECT RATIO
WIND CUT
DISPLAY SETTINGS
SET QUIT
CONFIGURE ON-SCREEN DISPLAY
AUTO SWITCH REC MEDIA
4Select [CLOCK ADJUST].
DISPLAY SETTINGS
9
:
;
B
LANGUAGE
DATE DISPLAY STYLE
CLOCK ADJUST
SET QUIT
SET DATE AND TIME
MONITOR BRIGHT
Arrow
GZ-MS120_95EK_GB_EN.indb 16 8/3/2009 12:14:49 PM

17
ENGLISH
GETTING
STARTED
Language Setting
The language on the display can be changed.
1Open the LCD monitor to turn on the
camcorder.
2Touch MENU.
3Select [DISPLAY SETTINGS].
VIDEO
SELECT ASPECT RATIO
WIND CUT
DISPLAY SETTINGS
SET QUIT
CONFIGURE ON-SCREEN DISPLAY
AUTO SWITCH REC MEDIA
4Select [LANGUAGE].
DISPLAY SETTINGS
9
:
;
B
LANGUAGE
DATE DISPLAY STYLE
CLOCK ADJUST
SET QUIT
ON-SCREEN DISPLAY LANGUAGE
MONITOR BRIGHT
5Select the desired language.
LTo return to the previous screen
Select @.
LTo quit the screen
Select [QUIT].
5Select [CLOCK SETTING].
CLOCK ADJUST
AREA SETTING
CLOCK SETTING
SET QUIT
SET THE CITY, DATE AND TIME
SET FOR DAYLIGHT SAVING TIME
6Select the city closest to the area
where you use the camcorder.
AREA SETTING
SET QUIT
GMT
:
1. 11.2009 16:55
7Select [ON] if daylight saving time is
effective.
SET QUIT
SET DAYLIGHT SAVING TIME
1. 11.2009 16:55
SET FOR DAYLIGHT SAVING TIME
DAYLIGHT SAVING TIME (DST)
OFF
8Set the date and time.
Select the item by using the touch sensor
and select () to set.
SAVE QUIT
CLOCK SETTING
GMT 0:00
DATE TIME
16 5511 2009 1
9Select [SAVE].
To reset the setting, select [QUIT].
Setting the clock to local time when
traveling
After performing steps 1-4 (Zp. 16)
5Select [AREA SETTING].
CLOCK ADJUST
AREA SETTING
CLOCK SETTING
SET QUIT
SET WHEN IN ANOTHER COUNTRY
SET FOR DAYLIGHT SAVING TIME
6Select the city closest to the area you
are traveling.
AREA SETTING
SET QUIT
GMT
:
1. 11.2009 16:55
LTo return to the previous screen
Select @.
LTo quit the screen
Select [QUIT]
Selected area is highlighted
Principal city of the
selected area
Time difference to
GMT
[ON]: Clock is advanced
1 hour from the normal
time which you set.
[OFF]: Deactivates the
function.
GZ-MS120_95EK_GB_EN.indb 17 8/3/2009 12:14:50 PM

18
Other Settings
Grip Adjustment
Adjust the strap and fasten.
NOTE
•Do not pull the strap when you open the
fasten. Please pull the tab to open it.
•Fasten the strap when you grip the
camcorder.
•When carrying the camcorder, please be
careful not to drop.
Tripod Mounting
Align the camcorder stud hole with the tripod
stud, and the mounting socket with the screw,
and then rotate the camcorder clockwise to
mount it to the tripod.
NOTE
Do not use a tripod on unsteady or unlevel
surfaces. It could tip over, causing serious
damage to the camcorder.
Grip Strap
Fasten
Tab
Bottom of the
camcorder
GZ-MS120_95EK_GB_EN.indb 18 8/3/2009 12:14:51 PM

19
ENGLISH
GETTING
STARTED
Using an SD Card
If you want to record to an SD card, the
following operations need to be performed.
•Operations are confirmed on the following
SD cards. Class 4 or higher compatible
SD or SDHC card Panasonic, TOSHIBA,
SanDisk, ATP SD card (256 MB to 2 GB) or
SDHC card (4 GB to 32 GB).
•If other media are used, they may fail to
record data correctly, or they may lose data
that had already been recorded.
•MultiMediaCards are not supported.
•Cards used to record video on this
camcorder cannot be played back on other
devices.
•Some card readers (including internal card
readers in PCs) may not be able to support
SDHC format. If you use an SDHC card for
recording and encounter any reading error,
the card reader you are using, might be a
non-SDHC supported device. Please use
the camcorder or other SDHC compatible
devices to access the card.
QInsert an SD card
Preparation:
Press Power ( ) button to turn off the
camcorder.
1Open the SD card cover.
2Firmly insert the card with its clipped
edge first.
3Close the SD card cover.
LTo remove an SD card
Push the SD card once.
After the card comes out a little, pull it out.
NOTE
•Insert and remove the SD card only while
the power is turned off. Otherwise, data on
the card may be corrupted.
•Do not touch the terminal on the reverse
side of the label.
RChange the recording medium
The camcorder is programmed to record on
SLOT A when it is shipped from the factory.
You can change the recording medium to
SLOT B.
Set [VIDEO SLOT SELECTION] and
[IMAGE SLOT SELECTION] to [SLOT A]
or [SLOT B]. (Zp. 58)
SCENE SELECT
SHUTTER SPEED
FOCUS
ADJUST BRIGHTNESS
@
@
@
1
,
S
CENE SELEC
T
S
H
U
TTER
S
PEE
D
FOC
U
S
@
@
1
,
MEDIA SETTING
SET QUIT
SLOT B
SLOT A
Clipped Edge
1. Recording media switches automatically
from Slot A to Slot B and vice versa
after the card in the selected slot is full.
( Zp. 56)
2. You can select Slot A or Slot B manually
as recording media for video and still
image respectivety. (Zp. 58)
INFORMATION
SFormat an SD card when using it for
the first time
Select [FORMAT SD CARD] to format
the card. (Zp. 58)
MEDIA SETTING
VIDEO SLOT SELECTION
IMAGE SLOT SELECTION
FORMAT SD CARD
ERASE ALL DATA
SET QUIT
,
GZ-MS120_95EK_GB_EN.indb 19 8/3/2009 12:14:53 PM

20
Recording Files
Video Recording
Preparation:
•Open the LCD monitor to turn on the camcorder.
•Insert an SD card.
Press PLAY/REC to select
recording mode.
PLAY/REC
Press START/STOP to start
recording.
0 : 00 : 01
REC
B
LTo stop recording
Press the START/STOP button again.
LTo view the video you just recorded
Select Aduring pause.
During the preview, you can delete the
video by selecting *.
LTo change the video quality
Change the settings in [VIDEO QUALITY].
(Zp. 56)
LTo register a file to an event
See page 23.
LTo change the aspect ratio of the image
(16:9/4:3)
Change the settings in [SELECT ASPECT
RATIO]. (Zp. 56)
L To record a still image during video
recording
Press SNAPSHOT.
Slide the mode switch to select
!(video) mode.
NOTE
•The video recording mode is automatically selected when you turn the camcorder’s power off and
then on again.
•If the camcorder is not operated for 5 minutes while the power is on, it turns itself off automatically to
conserve power. To turn the camcorder on again when using the battery pack, close the LCD monitor
and open it again. When using the AC adapter, perform any operation such as zooming.
•After recording video for 12 consecutive hours, recording stops automatically. To ensure continuous
recording, set [AUTO SWITCH REC MEDIA] to [ON] before you start recording.
•A new file will be created for every 4 GB of continuous shooting.
•This camcorder records video in MPEG2 format compliant with SD-VIDEO format. This camcorder is
not compatible with other digital video formats.
RECORDING/PLAYBACK
0 : 00 : 00
B
Approximate remaining
time for recording
You can also start/stop recording by
selecting [REC] on the LCD monitor.
(On-screen recording control)
SNAPSHOT
GZ-MS120_95EK_GB_EN.indb 20 8/3/2009 12:14:54 PM
