2

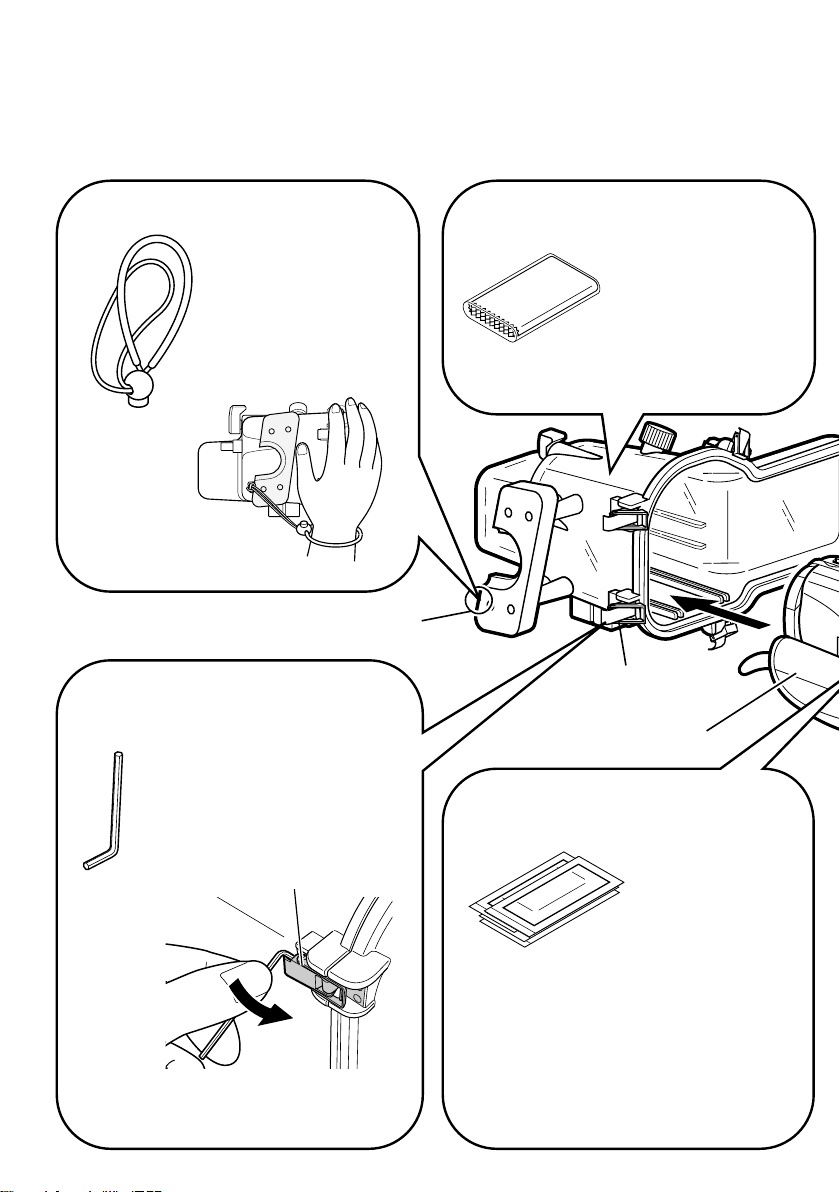

Strap
Pass the strap
through the strap
attachment hole
before using the
marine case to
maintain a firm grip
in water.
START/STOP
Buckle opener
(Hexagonal wrench)
For use when you have
difficulty opening the buckle.
Hook the wrench to the
buckle and pull towards you.
Buckle
Silicon cloth
Wash the marine
case with fresh
water, and wipe
the outer side with
the silicon cloth
after drying.
Silica gel
(anti-fogging agent)
Prevents fogging
inside the marine
case.
Insert it between
the camera and the
camera grip belt
before inserting the camera into the
marine case.
Caution: The moisture absorption
ability of silica gel that has previously
been used may deteriorate depending
on the conditions of use. As such, we
recommend that the silica gel be
replaced each time.
Strap attachment hole
Buckle
Grip belt of camera
Procedures for Using the
WR-MG77_EN_A5_EN.book Page 2 Thursday, May 3, 2007 9:34 AM

3
Screw key
Use the key to tighten
the screw of the
camera base.
Glass cleaner agent
(to prevent fogging)
Apply the glass cleaner on the
front glass before using the marine
case.
Add two to three drops of the
cleaner on a lens tissue paper,
and wipe the inner side of the front
glass.
Cleaner agent
For removing dirt from the front
glass after using the marine case.
Add two to three drops of the
cleaner on a lens tissue paper,
and wipe the inner side of the front
glass.
Lens tissue paper
Use the lens tissue paper
when applying the antifog
liquid on or removing dirt
from the front glass.
Marine case
Front glass
Camera base

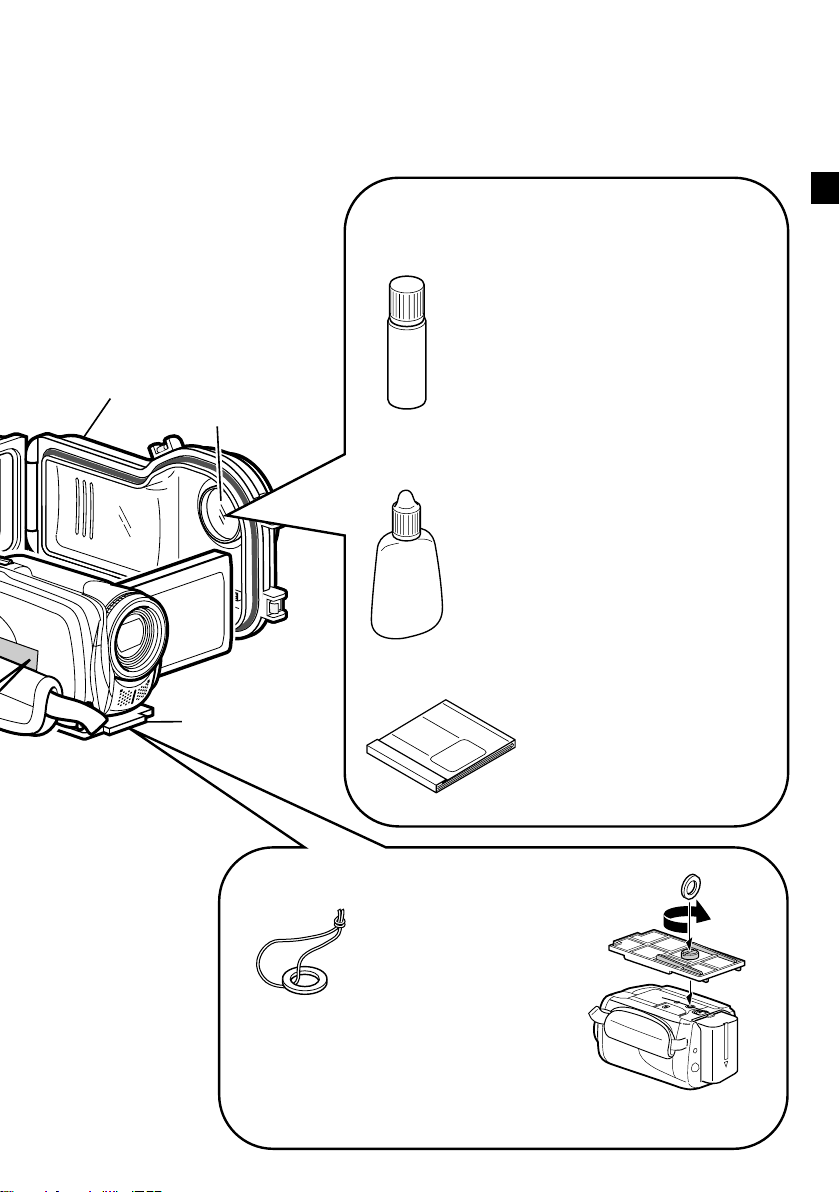

Supplied Maintenance Kit
WR-MG77_EN_A5_EN.book Page 3 Thursday, May 3, 2007 9:34 AM

4
O-ring
Rubber ring for waterproofing.
Check to ensure that the ring is not twisted and foreign materials are not
attached, followed by attaching it to the designated position.

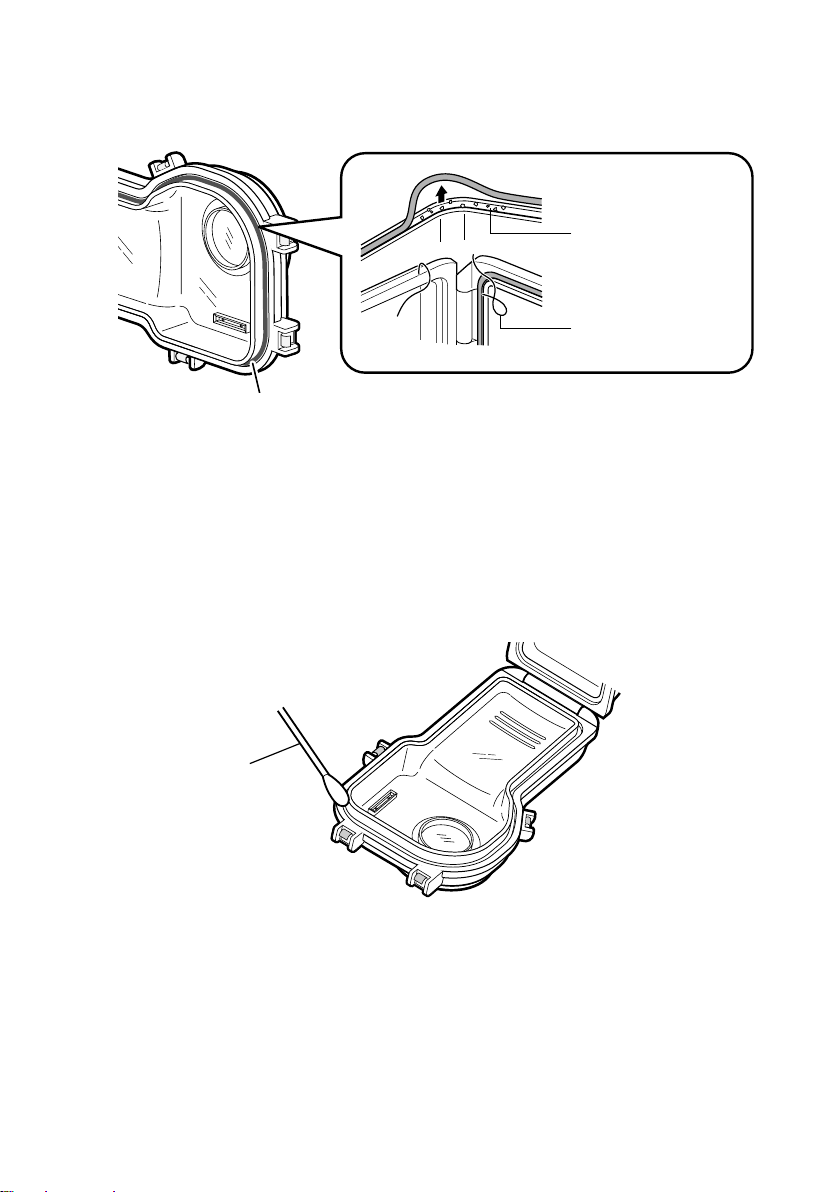

Cotton swab
For cleaning the O-ring groove.
Press it lightly against the O-ring groove and move it around the circumference
of the groove.
Dirt, sand, salt
crystals, etc.
Hair, thread, etc.
O-ring
Cotton swab
WR-MG77_EN_A5_EN.book Page 4 Thursday, May 3, 2007 9:34 AM

5
Plectrum
For removing the O-ring.
To remove the O-ring, insert the plectrum between the O-ring and the O-ring
groove.

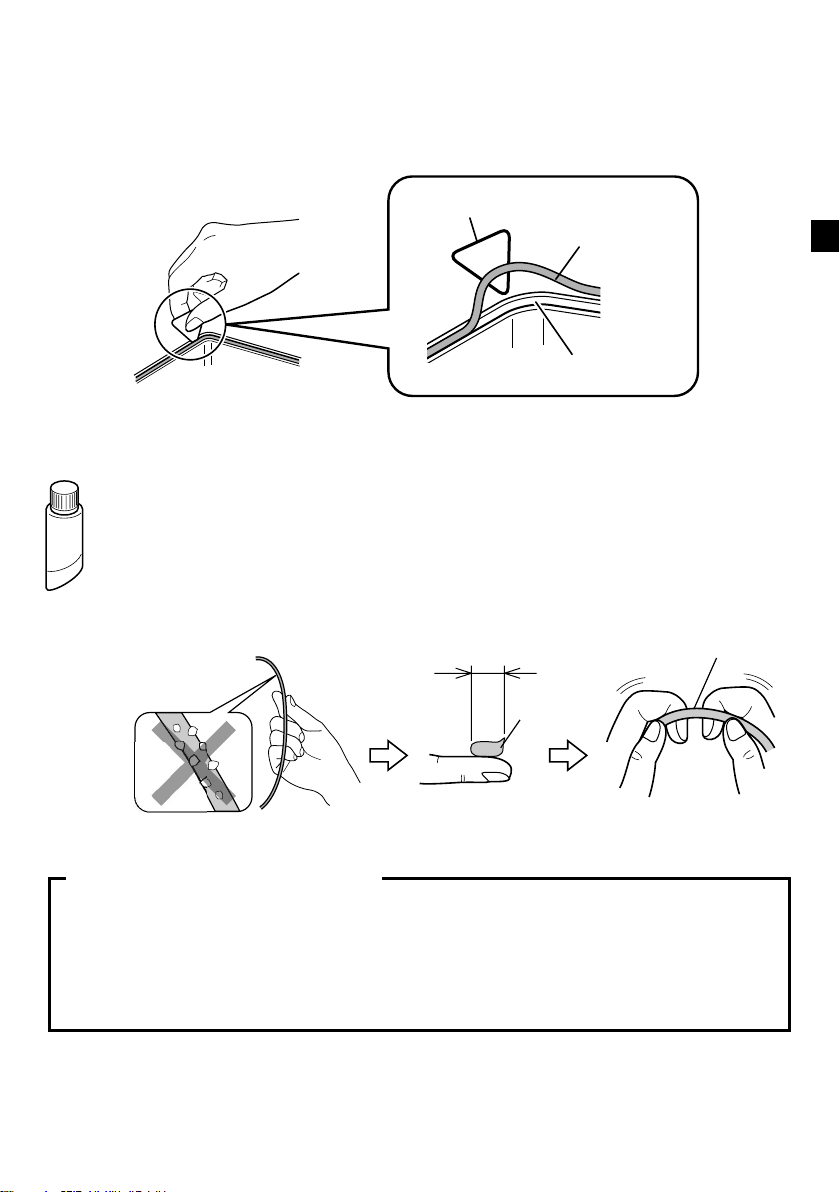

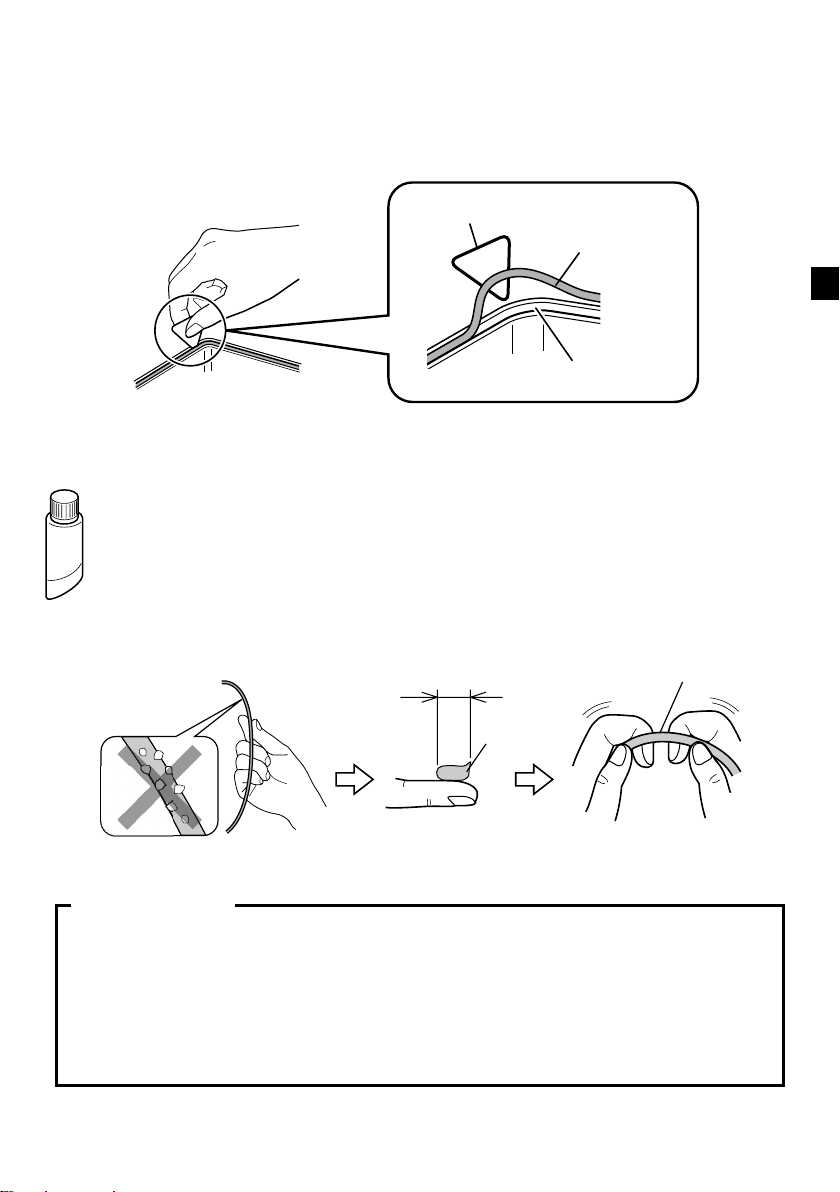

Silicon grease
For protecting the O-rings and preventing water leakage.
Check to ensure that there is no foreign substance on the O-ring before
applying the grease.
Squeeze about 1 cm of the grease onto your finger, and apply it on the
O-ring by holding the O-ring with your fingers.
* Do not pull the O-ring with force.
Precautions
O-ring is important as it keeps the marine case airtight. Failure to
attach it correctly may cause water to enter the marine case and
the camera inside to malfunction as a result. Pay careful attention
when attaching the O-ring.
Plectrum
O-ring
O-ring groove
About 1 cm O-ring
Grease
WR-MG77_EN_A5_EN.book Page 5 Thursday, May 3, 2007 9:34 AM

6
Make sure to perform maintenance on the marine case.
Salt crystal or dirt will accumulate inside the marine case if maintenance is not
performed, and this may cause water leakage.
A Prepare a container that contains fresh water that is five times more
than the volume of the marine case.
• If only small containers are available, pour in fresh water that is equivalent to at
least five times the volume of the marine case over a few times, followed by
performing salt removal in G.
• The container must be big enough to allow the marine case to submerge fully.
• Perform salt removal for the grip as well.
B After diving, submerge the marine case in fresh water for 30 minutes
without removing the camera.
C Temporary salt removal
Shake the marine case in the upward, downward, left and right
directions for at least 10 times, followed by rinsing it.
• If you do not need to take out the camera immediately, proceed to Gfor the
actual salt removal.
D Remove the marine case and wipe off water droplets on the case
surface using a dry cloth.

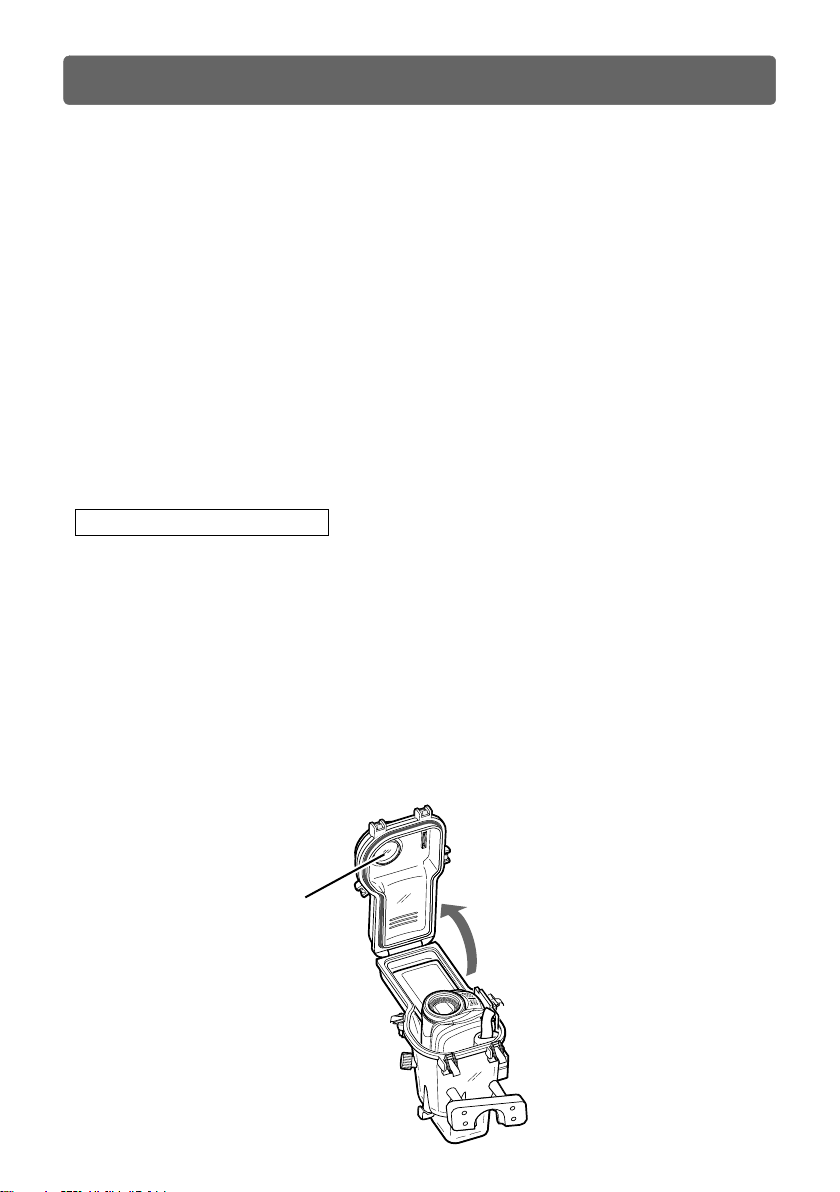

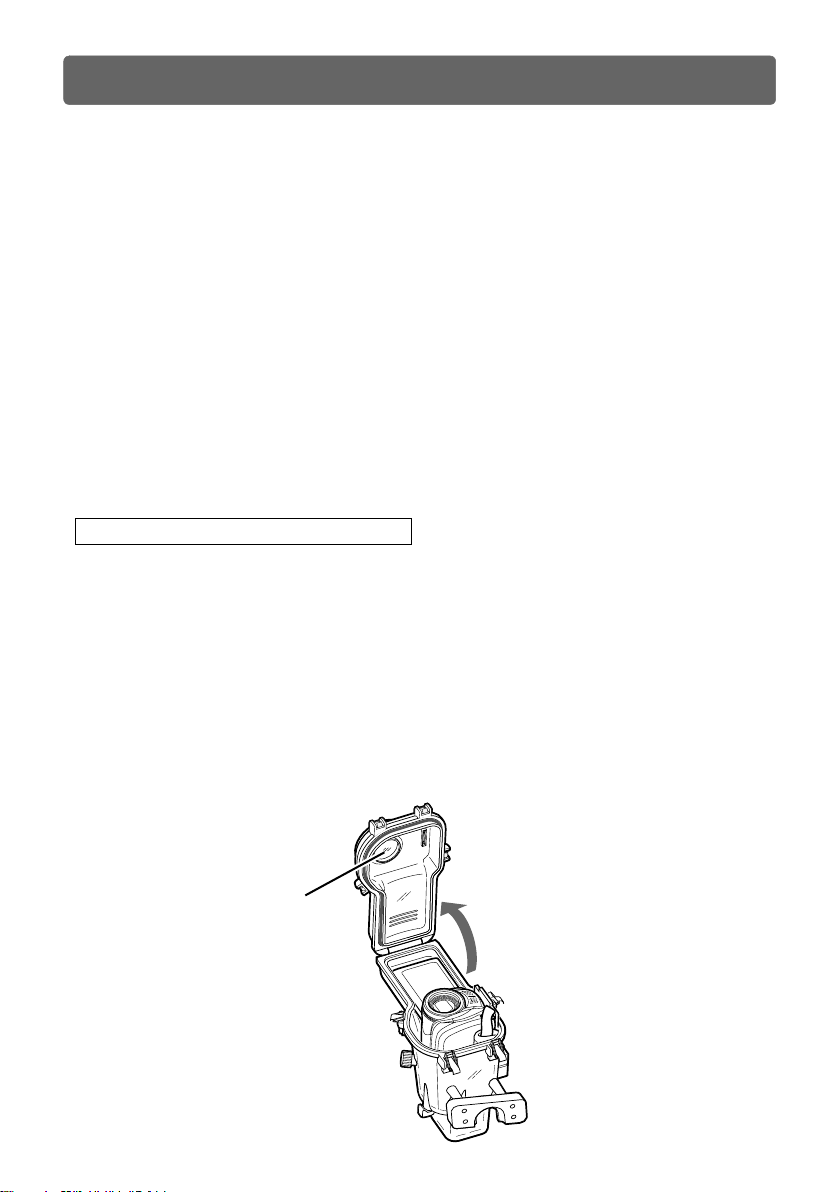

E Face the front glass of the marine case upwards, and open the
buckles to remove the camera, while paying attention not to let water
droplets at the O-ring or buckles enter the case.
Example: Container with volume
equivalent to 1 marine case JPour in water over 5 times
After shooting (sea salt removal)
Front glass
WR-MG77_EN_A5_EN.fm Page 6 Wednesday, May 9, 2007 1:23 PM

7
F Upon removing the camera, close the marine case again while paying
attention not to allow water droplets enter the case, followed by
tightening all the buckles.
G Final salt removal
Submerge the marine case in fresh water for at least 1 hour to
remove salt.
• Shaking the case body in the upward and downward directions and rinsing it
helps to remove salt more effectively.
• Make sure the marine case is fully submerged in the fresh water.
H Remove the marine case and wipe off water droplets on the case
surface using a dry cloth. Then open the buckles to allow the inside
and outside of the case to dry thoroughly.
• Temperature, humidity, water temperature, salinity and other conditions
vary according to the environment of use.
Memo
Memo
䡵When the Start/Stop button does not function
• The Start/Stop button may be disabled when the zoom lever is fixed at the
T or W end.
• In this case, restore the zoom lever to the center position.
䡵To prevent the zoom lever from being jammed at a position
• Attachment of salt or sand to the zoom lever may cause it to jam, and
therefore cause the Start/Stop button to stop functioning.
• After use, submerge it in fresh water for at least 1 hour to remove any salt
deposit. Move the lever and button in the water to wash off salt deposited
in the spaces in between.
Note
Note
WR-MG77_EN_A5_EN.fm Page 7 Monday, May 14, 2007 9:23 AM

8

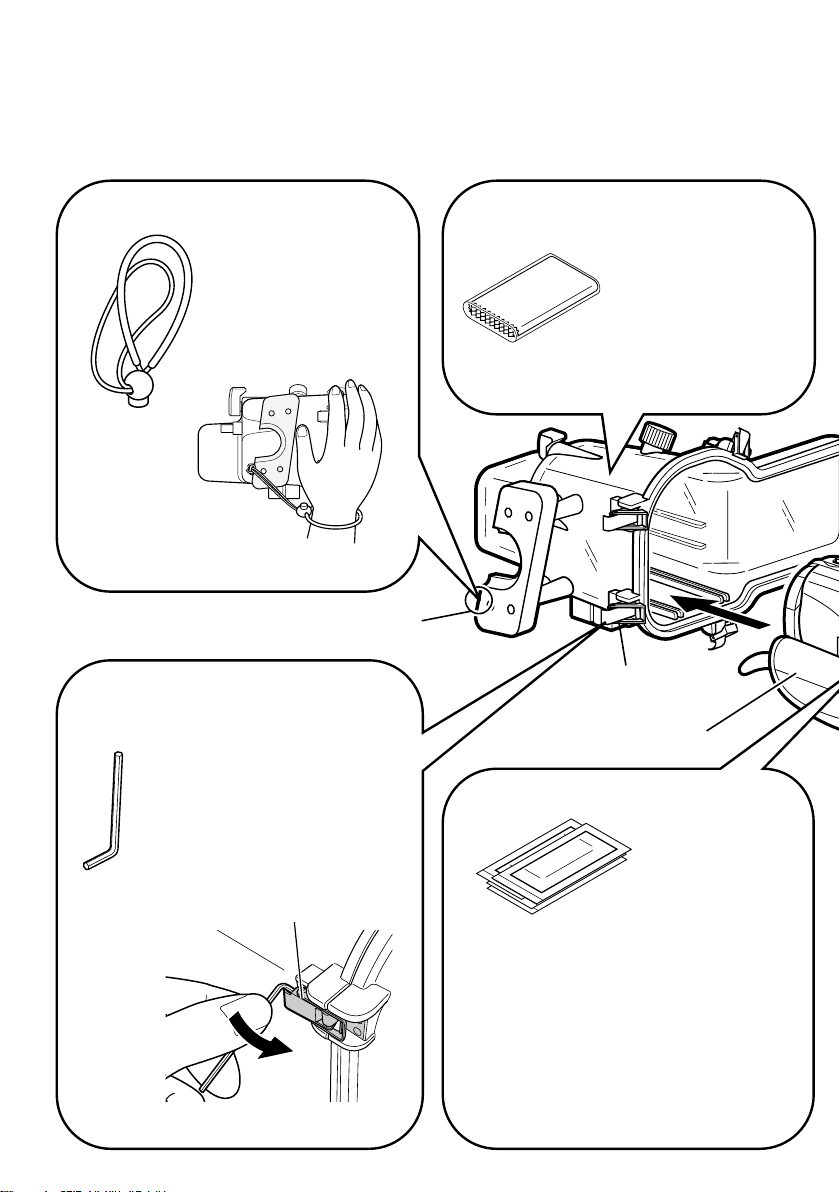

Gurt
Führen Sie den Gurt
durch das Gurtbefesti-
gungsloch bevor Sie
das Unterwasserge-
häuse verwenden, um
sicheren Halt im Was-
ser zu gewährleisten.
STAR T / STOP
Schlossöffner
(Sechskantschlüssel)
Zur Verwendung, wenn sich
das Schloss schwer öffnen
lässt.
Führen Sie den Schlüssel in
das Schloss ein, und ziehen
Sie ihn zu sich.
Schloss
Silikontuch
Säubern Sie das
Unterwassergehäuse
mit frischem Wasser,
und wischen Sie die
Außenseite nach
dem Trocknen mit
dem Silikontuch ab.
Silica-Gel (Anti-Beschlagmittel)
Verhindert das
Beschlagen im
Unterwasserge-
häuse.
Bringen Sie es
zwischen der
Kamera und dem
Kameragriffgurt an, bevor Sie die
Kamera in das Unterwassergehäuse
einsetzen.
Achtung: Die Feuchtigkeitsaufnahme-
fähigkeit des Silica-Gels, das zuvor
verwendet wurde, kann sich je nach
Nutzungsbedingungen verschlech-
tern. Aus diesem Grund empfehlen
wir Ihnen, das Silica-Gel jedes Mal
auszutauschen.
Gurtbefestigungsloch
Schloss
Kameragriffgurt
Vorgehensweise bei der Anwendung
WR-MG77_GE_A5.fm Page 8 Tuesday, May 8, 2007 9:38 AM

9
Schraubschlüssel
Verwenden Sie den
Schlüssel, um die
Bodenplattenschraube
festzuziehen.
Antibeschlagsflüssigkeit
(um das Beschlagen zu verhindern)
Reinigen Sie das Frontglas mit
dem Glasreiniger, bevor Sie das
Unterwassergehäuse verwenden.
Geben Sie zwei bis drei Tropfen
des Reinigers auf ein Blatt des
Objektivseidenpapiers, und
wischen Sie damit die Innenseite
des Frontglases ab.
Reinigungsflüssigkeit
Zum Entfernen von Schmutz vom
Frontglas nach Verwendung des
Unterwassergehäuses.
Geben Sie zwei bis drei Tropfen
des Reinigers auf ein Blatt des
Objektivseidenpapiers, und
wischen Sie damit die Innenseite
des Frontglases ab.
Objektivseidenpapier
Verwenden Sie das
Objektivseidenpapier zum
Auftragen des Anti-
Beschlagmittels oder zum
Entfernen von Schmutz
vom Frontglas.
Unterwassergehäuse
Frontglas
Kamerabodenplatte
des mitgelieferten Wartungssets
WR-MG77_GE_A5.fm Page 9 Tuesday, May 8, 2007 9:38 AM

10
O-Ring
Gummiring zum Schutz vor Wassereindringen.
Überprüfen Sie den Ring auf Verkrümmungen und Fremdkörper, und bringen
Sie ihn anschließend in die vorgesehene Position.
Wattestäbchen
Zum Reinigen der O-Ring-Fuge.
Drücken Sie ihn leicht gegen die O-Ring-Fuge und wischen Sie sie ab.
Schmutz, Sand,
Salzkristalle etc.
Haare, Fäden etc.
O-Ring
Wattestäbchen
WR-MG77_GE_A5.fm Page 10 Tuesday, May 8, 2007 9:38 AM
