JVC KD-G425S User manual

ENGLISH
INDONESIA
CD RECEIVER KD-G425S
ALAT PENERIMA CD KD-G425S
For canceling the display demonstration, see page 5.
Untuk membatalkan tampilan demonstrasi, lihat halaman 5.
INSTRUCTIONS
BUKU PETUNJUK
GET0550-001A
[UN]
Cover_KD-G425S[UN]f.indd 2Cover_KD-G425S[UN]f.indd 2 2/18/08 11:13:51 AM2/18/08 11:13:51 AM

2
ENGLISH
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLASS 1 LASER PRO UCT
2. CAUTION: o not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRO UCTION OF LABEL: CAUTION LABEL, PLACE OUTSI E THE UNIT.
How to reset your unit
• Your preset adjustments will also be erased.
• If a disc is loaded, it will eject. Be careful not to
drop the disc.
How to forcibly e ect a disc
• If this does not work, reset your unit.
• Be careful not to drop the disc when it ejects.
Warning:
If you need to operate the unit while driving,
be sure to look ahead carefully or you may be
involved in a traffic accident.
Caution on volume setting:
iscs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
EN02-05_KD-G425S[UN]f.indd 2EN02-05_KD-G425S[UN]f.indd 2 2/18/08 2:00:24 PM2/18/08 2:00:24 PM

ENGLISH
3
How to read this manual
• Button operations are mainly explained with
the illustrations in the table below.
• Some related tips and notes are explained in
“More about this unit” (see pages 15 – 1 ).
Press briefly.
Press repeatedly.
Press either
one.
Press and hold until your
desired response begins.
Press and hold both
buttons at the same time.
The following marks are used to indicate...
: Built-in CD player operations.
: External CD changer operations.
: Indicator displayed for the
corresponding operation.
How to use the MODE button
If you press MODE, the unit goes into functions
mode, then the number buttons and 5/∞
buttons work as different function buttons.
Ex.: When number button 2 works as
MO (monaural) button.
To use these buttons for their original
functions again after pressing MODE, wait for
5 seconds without pressing any of these buttons
until the functions mode is cleared or press
MODE again.
CONTENTS
Control panel ................................... 4
Getting started ................................. 5
Basic operations .................................................... 5
Radio operations .............................. 6
Disc operations .................................
Playing a disc in the unit ...................................... 7
Playing discs in the CD changer ............................ 7
Sound adjustments ........................... 10
General settings — PSM ................... 11
iPod operations ................................ 13
Other external component operations ... 14
Maintenance .................................... 15
More about this unit ......................... 15
Troubleshooting ............................... 1
Specifications ................................... 19
For safety...
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in
the car becomes normal before operating the
unit.
Time countdown indicator
EN02-05_KD-G425S[UN]f.indd 3EN02-05_KD-G425S[UN]f.indd 3 2/18/08 2:00:37 PM2/18/08 2:00:37 PM

4
ENGLISH
1 4 /¢ buttons
2 (standby/on attenuator) button
3 5 (up) / ∞ (down) buttons
4 Loading slot
5 Display window
6 0 (eject) button
7 EQ (equalizer) button
8 SRC (source) button
9 AND button
p Control dial
q SEL (select) button
w MO (monaural) button
e SSM (Strong-station Sequential Memory)
button
r Number buttons
t RPT (repeat) button
y RND (random) button
u MODE button
i DISP (display) button
o (control panel release) button
Display window
; Disc information indicators—TAG (ID3
Tag), (folder), (track/file)
a Disc type indicators—WMA, MP3
s Playback source indicators—
CH: Lights up only when CD-CH is
selected as the playback source.
DISC: Lights up for the built-in CD player.
d Playback mode / item indicators—
RND (random), (disc), (folder),
RPT (repeat)
f LOUD (loudness) indicator
g EQ (equalizer) indicator
h Sound mode (C-EQ: custom equalizer)
indicators—JAZZ, CLASSIC, HIP HOP,
POPS, ROCK, USER
j Tr (track) indicator
k Source display / Volume level indicator
l Main display
/ Tuner reception indicators—ST (stereo),
MO (monaural)
Parts identification
Display window
Control panel
EN02-05_KD-G425S[UN]f.indd 4EN02-05_KD-G425S[UN]f.indd 4 2/21/08 4:10:45 PM2/21/08 4:10:45 PM

ENGLISH
5
Getting started
Basic operations
~ Turn on the power.
Ÿ
* You cannot select these sources if they
are not ready or not connected.
! For FM/AM tuner
⁄ Adjust the volume.
@ Adjust the sound as you want. (See
pages 10 and 11.)
To drop the volume in a
moment (ATT)
To restore the sound, press
it again.
To turn off the power
Volume level indicator
Volume level appears.
Basic settings
• See also “General settings — PSM” on pages
11 and 12.
1
2
1 Can eling the display
demonstrations
Select “DEM ,” then “DEM FF.”
2 Setting the lo k
Select “CL CK H” (hour), then adjust
the hour.
Select “CL CK M” (minute), then
adjust the minute.
3 Finish the pro edure.
To check the current clock
time when the power is
turned off
EN02-05_KD-G425S[UN]f.indd 5EN02-05_KD-G425S[UN]f.indd 5 2/18/08 2:00:47 PM2/18/08 2:00:47 PM

6
ENGLISH
Radio operations
~
Ÿ
! Start searching for a station.
When a station is received, searching
stops.
To stop searching, press the same button
again.
To tune in to a station manually
In step ! above...
1
2 Select a desired station frequency.
Lights up when receiving an FM stereo
broadcast with sufficient signal strength.
Selected band appears.
When an FM stereo broadcast is hard to
receive
Reception improves, but stereo effect will be
lost.
To restore the stereo effect, repeat the same
procedure. “MONO OFF appears and the MO
indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting —
SSM (Strong-station Sequential
Memory)
1 Select the FM band (FM1 – FM3) you
ant to store into.
2
3
“SSM flashes, then disappears when
automatic presetting is over.
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Lights up when monaural mode is activated.
EN06-11_KD-G425S[UN]f.indd 6EN06-11_KD-G425S[UN]f.indd 6 2/18/08 11:14:18 AM2/18/08 11:14:18 AM

7
ENGLISH
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
3
Listening to a preset station
1
2 Select the preset station (1 – 6) you
ant.
or
To chec the other information while
listening to an FM or AM station
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you
change the source or eject the disc.
To stop play and eject the
disc
Playing discs in the CD changer
All discs in the magazine will be played
repeatedly until you change the source.
• Ejecting the magazine will also stop playing.
~
* If you have changed the external input
setting to “EXT IN” (see page 12) you
cannot select the CD changer.
Ÿ Select a disc.
For disc number from 01 – 06:
For disc number from 07 – 12:
Cloc Ô Frequency
Preset number flashes for a while.
To be continued...
EN06-11_KD-G425S[UN]f.indd 7EN06-11_KD-G425S[UN]f.indd 7 2/18/08 11:14:20 AM2/18/08 11:14:20 AM

8
ENGLISH
To go to the next or previous folders (only for
MP3 or WMA discs)
For MP3 discs:
For WMA discs:
To locate a particular trac (for CD) or folder
(for MP3 or WMA discs) directly
To select a number from 01 – 06:
To select a number from 07 – 12:
• To use direct folder access on MP3/WMA
discs, it is required that folders are assigned
with 2-digit numbers at the beginning of their
folder names—01, 02, 03, and so on.
To select a particular track in a folder (for
MP3 or WMA discs):
About MP3 and WMA discs
MP3 and WMA “tracks (words “file and
“track are used interchangeably) are recorded
in “folders.
About the CD changer
It is recommended to use a JVC
MP3-compatible CD changer with your unit.
• You can also connect other CH-X series CD
changers (except CH-X99 and CH-X100).
These units are not compatible with MP3
discs.
• You cannot play any WMA disc in the CD
changer.
• You cannot use the KD-MK series CD
changers with this unit.
• Disc text information recorded in the CD
Text can be displayed when a JVC CD Text
compatible CD changer is connected.
To fast-forward or reverse the trac
To go to the next or previous trac s
EN06-11_KD-G425S[UN]f.indd 8EN06-11_KD-G425S[UN]f.indd 8 2/18/08 11:14:21 AM2/18/08 11:14:21 AM

9
ENGLISH
Other main functions
S ipping trac s quic ly during play
Only possible on JVC
MP3-compatible CD changer
• For MP3 or WMA discs, you can skip tracks
within the same folder.
Ex.: To select track 32 while playing tracks
whose number is a single digit (1 to 9)
1
2
Each time you press the button, you can
skip 10 tracks.
• After the last track, the first track will be
selected and vice versa.
3
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same
procedure.
Changing the display information
While playing an audio CD or a CD Text
While playing an MP3 or a WMA*2 disc
• When “TAG DISP” is set to “TAG ON”
(see page 12)
• When “TAG DISP” is set to “TAG OFF”
: Clock ith the current track number
: Elapsed playing time ith the current
track number
*1 If the current disc is an audio CD
“NO NAME” appears.
*2 Only for the built-in CD player.
*3 If an MP3/WMA file does not have Tag
information folder name and file name
appear. In this case the TAG indicator will
not light up.
EN06-11_KD-G425S[UN]f.indd 9EN06-11_KD-G425S[UN]f.indd 9 2/18/08 11:14:22 AM2/18/08 11:14:22 AM

10
ENGLISH

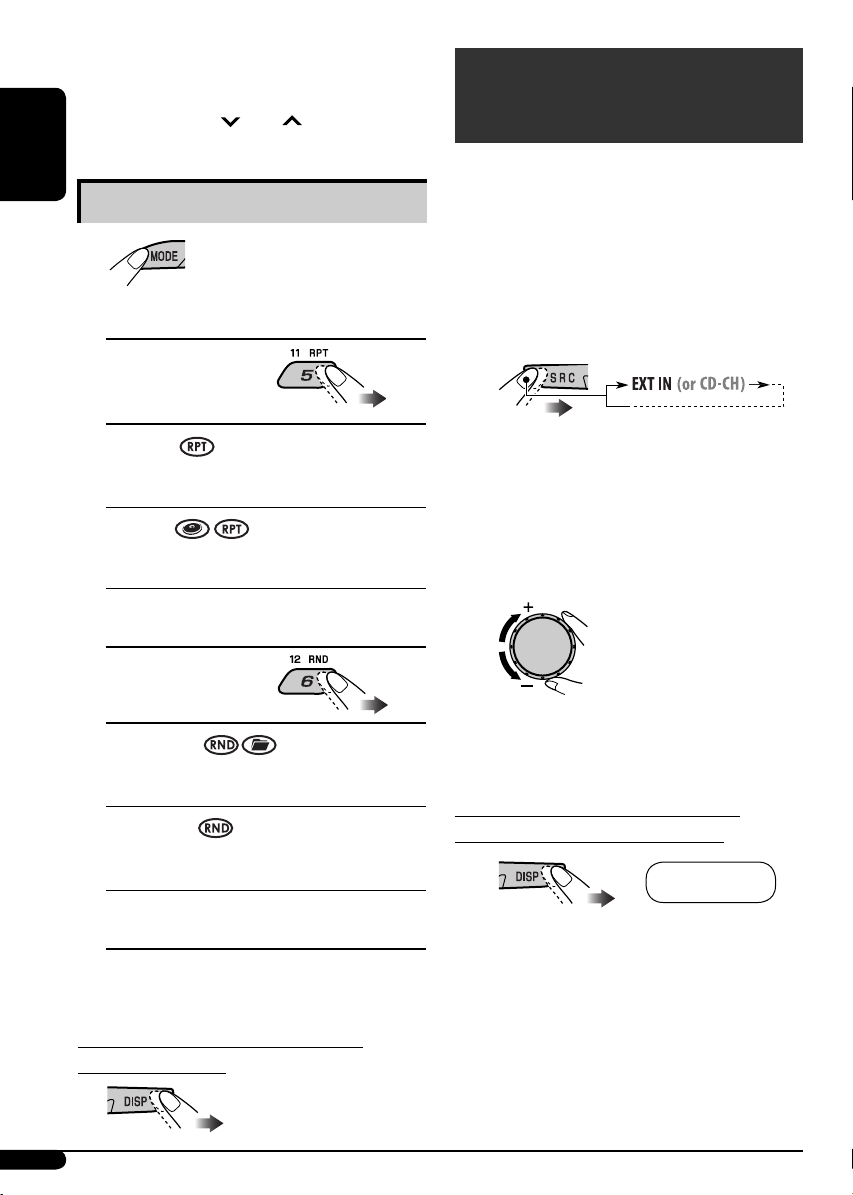

Selecting the playbac modes
You can use only one of the following playback
modes at a time.
1
2 Select your desired playback mode.
7 Repeat play
Mode Plays repeatedly
TRK RPT : The current track.
FLDR RPT*4 : All tracks of the current
folder.
DISC RPT*5 : All tracks of the current disc.
RPT OFF : Cancels.
7 Random play
Mode Plays at random
FLDR RND*4 : All tracks of the current
folder, then tracks of the next
folder and so on.
DISC RND : All tracks of the current disc.
MAG RND*5 : All tracks of the inserted
discs.
RND OFF : Cancels.
*4 Only while playing an MP3 or a WMA
disc.
*5 Only while playing discs in the CD
changer.
Sound adjustments
You can select a preset sound mode suitable to
the music genre (C-EQ: custom equalizer).
Indication (For)
BAS TRE LOUD
(bass) (treble) (loudness)
USER
(Flat sound) 00 00 OFF
ROCK
(Rock or disco music) +03 +01 ON
CLASSIC
(Classical music) +01 –02 OFF
POPS
(Light music) +04 +01 OFF
HIP HOP
(Funk or rap music) +02 00 ON
JAZZ
(Jazz music) +02 +03 OFF
Adjusting the sound
You can adjust the sound characteristics to your
preference.
1
Preset values
Ex. When “ROCK” is selected
EN06-11_KD-G425S[UN]f.indd 10EN06-11_KD-G425S[UN]f.indd 10 2/18/08 11:14:23 AM2/18/08 11:14:23 AM

11
ENGLISH
To be continued...
General settings — PSM
You can change PSM (Preferred Setting Mode)
items listed in the table on page 12.
1
2 Select a PSM item.
3 Adjust the PSM item selected.
4 Repeat steps 2 and 3 to adjust other
PSM items if necessary.
5 Finish the procedure.
2
Indication [Range]
BAS*1 (bass)
Adjust the bass. [ 06 to +06]
TRE*1 (treble)
Adjust the treble. [ 06 to +06]
FAD*2 (fader)
Adjust the front and rear speaker balance.
[R06 to F06]
BAL*3 (balance)
Adjust the left and right speaker balance.
[L06 to R06]
LOUD*1 (loudness)
Boost low and high frequencies to produce
a well-balanced sound at low volume level.
[LOUD ON or LOUD OFF]
SUB.W*4 (subwoofer)
Adjust the subwoofer output level. [00 to 08]
VOL (volume)
Adjust the volume. [00 to 30 or 50*5]
*1 When you adjust the bass, treble, or loudness,
the adjustment you have made is stored for
the currently selected sound mode (C-EQ)
including USER.”
*2 If you are using a two-speaker system, set the
fader level to 00.”
*3 This adjustment cannot affect the subwoofer
output.
*4 This takes effect only when a subwoofer is
connected.
Displayed only when L/O MODE” is set to
WOOFER” (see page 12).
*5 Depending on the amplifier gain control
setting. (See page 12 for details.)
Ex.: When “DIMMER” is selected
EN06-11_KD-G425S[UN]f.indd 11EN06-11_KD-G425S[UN]f.indd 11 2/18/08 2:01:12 PM2/18/08 2:01:12 PM

12
ENGLISH
Indications Selectable settings, [reference page]
DEMO
Display
demonstration
DEMO ON : [Initial]; Display demonstration will be activated
automatically if no operation is done for about 20 seconds,
[5].
DEMO OFF : Cancels.
CLOCK H
Hour adjustment
– 2, [5]
[Initial: 1 (1:00)]
CLOCK M
Minute adjustment
00 – 59, [5]
[Initial: 00 (1:00)]
DIMMER
Dimmer
ON : Dims the display illumination of this unit.
OFF : [Initial]; Cancels.
SCROLL*6
Scroll
ONCE : [Initial]; Scrolls the disc information once.
AUTO : Repeats scrolling (5-second intervals in between).
OFF : Cancels.
• Pressing DISP for more than one second can scroll the display regardless
of the setting.
WOOFER*7
Subwoofer cutoff
frequency
LOW : Frequencies lower than 90 Hz are sent to the subwoofer.
MID : [Initial]; Frequencies lower than 35 Hz are sent to the
subwoofer.
HIGH : Frequencies lower than 80 Hz are sent to the subwoofer.
EXT IN*8
External input
CHANGER : [Initial]; To use a JVC CD changer, [7], an Apple iPod,
[ 3].
EXT IN : To use any other external component than the above, [ 4].
L/O MODE
Line output mode
When connecting the amplifier or subwoofer, set this correctly.
REAR : [Initial]; Select if the REAR LINE OUT terminals are used
for connecting the speakers through an external amplifier.
WOOFER : Select if the REAR LINE OUT terminals are used for
connecting a subwoofer through an external amplifier.
TAG DISP
Tag display
TAG ON : [Initial]; Shows the Tag information while playing MP3/
WMA tracks, [9].
TAG OFF : Cancels.
AMP GAIN
Amplifier gain
control
You can change the maximum volume level of this unit.
LOW PWR : VOL 00 – VOL 30 (Select this if the maximum power of
the speaker is less than 50 W to prevent them from being
damaged.)
HIGH PWR : [Initial]; VOL 00 – VOL 50
*6 Some characters or symbols will not be shown correctly (or will be blanked) on the display.
*7 Displayed only when L/O MODE” is set to WOOFER.”
*8 Displayed only when one of the following sources is selected—FM, AM, or DISC.
EN12-17_KD-G425S[UN]f.indd 12EN12-17_KD-G425S[UN]f.indd 12 2/18/08 11:14:38 AM2/18/08 11:14:38 AM

ENGLISH
13
To be continued...
To pause playback
To resume
playback, press it
again.
To fast-forward or
reverse the track
To go to the next
or previous tracks
Selecting a track from the menu
1 Enter the main menu.
Now the 5/∞/4 /¢ buttons
work as the menu selecting buttons*.
* The menu selecting mode will be canceled:
– If no operations are done for about
5 seconds.
– When you confirm the selection of a
track.
2 Select the desired menu.
PLAYL ST Ô ART STS Ô ALBUMS Ô SONGS
Ô GENRES Ô COMPOSER Ô (back to the
beginning)
3 Confirm the selection.
To move back to the previous
menu, press 5.
• If a track is selecte , playback starts
automatically.
iPod operations
This unit is rea y for operating an Apple iPo
from the control panel.
Before operating, connect the Interface adapter
for iPod, KS-PD100 (separately purchase ) to
the CD changer jack on the rear of this unit.
• For etails, refer also to the manual supplie
with the interface a apter.
Caution:
Make sure to turn off this unit or turn off the
vehicle’s ignition switch before connecting
or isconnecting the iPo .
Preparations:
Make sure “CHANGER” is selecte for the
external input setting, see page 12.
~
Ÿ
Playback starts automatically from where
it has been pause previously.
! Adjust the volume.
⁄ Adjust the sound as you want. (See
pages 1 and 11.)
• Make sure the equalizer on the iPo is
eactivate .
EN12-17_KD-G425S[UN]f.indd 13EN12-17_KD-G425S[UN]f.indd 13 2/21/08 1:55:54 PM2/21/08 1:55:54 PM

14
ENGLISH
• If the selected item has another layer, you
will enter the layer. Repeat steps 2 and 3
until the desired track is played.
• Holding 4 /¢ can skip 10
items at a time.
Selecting the playback modes
1
2 Select your desired playback mode.
7 Repeat play
ONE RPT
Functions the same as Repeat One” of the
iPod.
ALL RPT
Functions the same as Repeat All” of the
iPod.
RPT OFF
Cancels.
7 Random play
ALBM RND*
Functions the same as Shuffle Albums” of
the iPod.
SONG RND
Functions the same as Shuffle Songs” of
the iPod.
RND OFF
Cancels.
* Only if you select “ALL” in “ALBUMS” of
the main “MENU.”
To check the other information while
listening to an iPod
Other external component
operations
You can connect an external component to
the CD changer jack on the rear using the Line
Input Adapter—KS-U57 (not supplied) or AUX
Input Adapter—KS-U58 (not supplied).
• For listening to the iPod, refer to pages 13 and
14.
~
If EXT IN” does not appear, see page 12
and select the external input ( EXT IN”).
Ÿ Turn on the connected component
and start playing the source.
! Adjust the volume.
⁄ Adjust the sound as you want. (See
pages 10 and 11.
To check the other information while
listening to an external component
Clock Ô EXT IN
EN12-17_KD-G425S[UN]f.indd 14EN12-17_KD-G425S[UN]f.indd 14 2/18/08 2:01:43 PM2/18/08 2:01:43 PM

ENGLISH
15
To be continued...
Maintenance
Moisture condensation
Moisture may condense on the lens inside the
CD player in the following cases:
• After starting the heater in the car.
• If it becomes very humid inside the car.
Should this occur the CD player may
malfunction. In this case eject the disc and
leave the unit turned on for a few hours until
the moisture evaporates.
How to handle discs
When removing a disc from
its case, press down the center
holder of the case and lift the
disc out holding it by the edges.
• Always hold the disc by the
edges. Do not touch its recording surface.
When storing a disc into its case, gently insert
the disc around the center holder (with the
printed surface facing up).
• Make sure to store discs into the cases after
use.
To keep discs clean
A dirty disc may not play correctly.
If a disc does become dirty wipe it
with a soft cloth in a straight line
from center to edge.
• Do not use any solvent (for example
conventional record cleaner spray thinner
benzine etc.) to clean discs.
To play new discs
New discs may have some rough
spots around the inner and outer
edges. If such a disc is used this
unit may reject the disc.
To remove these rough spots rub the edges
with a pencil or ball-point pen etc.
Center holder
More about this unit
Basic operations
Turning on the power
• By pressing SRC on the unit you can also
turn on the power. If the source is ready
playback also starts.
Turning off the power
• If you turn off the power while listening to a
disc disc play will start from where playback
has been stopped previously next time you
turn on the power.
Tuner operations
Storing stations in memory
• During SSM search...
– All previously stored stations are erased and
stations are stored newly.
– Received stations are preset in No. 1 (lowest
frequency) to No. 6 (highest frequency).
– When SSM is over the station stored in
No. 1 will be automatically tuned in.
• When storing a station manually the
previously preset station is erased when a new
station is stored in the same preset number.
Warped disc
Sticker Sticker residue
Stick-on label
Do not use the following discs:
EN12-17_KD-G425S[UN]f.indd 15EN12-17_KD-G425S[UN]f.indd 15 2/26/08 4:47:31 PM2/26/08 4:47:31 PM

16
ENGLISH
Disc operations
Caution for DualDisc playback
• The Non-DVD side of a “DualDisc” does
not comply with the “Compact Disc Digital
Audio” standard. Therefore, the use of Non-
DVD side of a DualDisc on this product may
not be recommended.
General
• This unit has been designed to reproduce
CDs/CD Texts, and CD-Rs (Recordable)/
CD-RWs (Rewritable) in audio CD (CD-DA),
MP3 and WMA formats.
• When a disc has been loaded, selecting
“DISC” for the playback source starts disc
play.
Inserting a disc
• When a disc is inserted upside down, the disc
automatically ejects.
• Do not insert 8 cm discs (single CD) and
unusual shape discs (heart, flower, etc.) into
the loading slot.
laying a disc
• While fast-forwarding or reversing on an MP3
or WMA disc, you can only hear intermittent
sounds.
laying a CD-R or CD-RW
• Use only “finalized” CD-Rs or CD-RWs.
• This unit can play back only files of the same
type which are first detected if a disc includes
both audio CD (CD-DA) files and MP3/
WMA files.
• This unit can play back multi-session discs;
however, unclosed sessions will be skipped
while playing.
• Some CD-Rs or CD-RWs may not play
back on this unit because of their disc
characteristics, or for the following reasons:
– Discs are dirty or scratched.
– Moisture condensation occurs on the lens
inside the unit.
– The pickup lens inside the unit is dirty.
– CD-R/CD-RW on which the files are
written with “Packet Write” method.
– There are improper recording conditions
(missing data, etc.) or media conditions
(stained, scratched, warped, etc.).
• CD-RWs may require a longer readout time
since the reflectance of CD-RWs is lower than
that of regular CDs.
• Do not use the following CD-Rs or CD-RWs:
– Discs with stickers, labels, or a protective
seal stuck to the surface.
– Discs on which labels can be directly
printed by an ink jet printer.
Using these discs under high temperatures or
high humidities may cause malfunctions or
damage to the unit.
laying an M 3/WMA disc
• This unit can play back MP3/WMA files
with the extension code <.mp3> or <.wma>
(regardless of the letter case—upper/lower).
• This unit can show the names of albums,
artists (performer), and Tag (Version .0, . ,
2.2, 2.3, or 2.4) for MP3 files and for WMA
files.
• This unit can display only one-byte
characters. No other characters can be
correctly displayed.
• This unit can play back MP3/WMA files
meeting the conditions below:
– Bit rate: 8 kbps — 320 kbps
– Sampling frequency:
48 kHz, 44. kHz, 32 kHz (for MPEG- )
24 kHz, 22.05 kHz, 6 kHz (for MPEG-2)
– Disc format: ISO 9660 Level /Level 2,
Romeo, Joliet, Windows long file name
• The maximum number of characters for file/
folder names vary among the disc format used
(includes 4 extension characters—<.mp3> or
<.wma>).
– ISO 9660 Level : up to 2 characters
– ISO 9660 Level 2: up to 3 characters
– Romeo: up to 28 characters
– Joliet: up to 64 characters
– Windows long file name: up to 28
characters
• This unit can play back files recorded in VBR
(variable bit rate).
Files recorded in VBR have a discrepancy
in elapsed time display, and do not show
the actual elapsed time. Especially, after
performing the search function, this
difference becomes noticeable.
• This unit can recognize a total of 5 2 files, of
200 folders, and of 8 hierarchies.
EN12-17_KD-G425S[UN]f.indd 16EN12-17_KD-G425S[UN]f.indd 16 2/18/08 11:14:45 AM2/18/08 11:14:45 AM

ENGLISH
17
To be continued...
• This unit cannot play back the following files:
– MP3 files encoded with MP3i and
MP3 PRO format.
– MP3 files encoded in an inappropriate
format.
– MP3 files encoded with Layer /2.
– WMA files encoded with lossless,
professional, and voice format.
– WMA files which are not based upon
Windows Media® Audio.
– WMA files copy-protected with DRM.
– Files which have the data such as WAVE,
ATRAC3, etc.
• The search function works but search speed is
not constant.
Changing the source
• If you change the source, playback also stops
(without ejecting the disc).
Next time you select “DISC” for the playback
source, disc play starts from where it has been
stopped previously.
Ejecting a disc
• If the ejected disc is not removed within
5 seconds, the disc is automatically inserted
again into the loading slot to protect it from
dust. (Disc will not play this time.)
General settings— SM
• If you change the “AMP GAIN” setting from
“HIGH PWR” to “LOW PWR” while the
volume level is set higher than “VOL 30,” the
unit automatically changes the volume level
to “VOL 30.”
i od operations
• When you turn on this unit, the iPod is
charged through this unit.
• While the iPod is connected, all operations
from the iPod are disabled. Perform all
operations from this unit.
• If the text information includes more than
8 characters, it scrolls on the display (see
also page 2). This unit can display up to 40
characters.
Notice:
When operating an iPod, some operations
may not be performed correctly or as
intended. In this case, visit the following JVC
web site: <http://www.jvc.co.jp/english/car/
support/ks-pd 00/index.html>
Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service
center.
Symptoms Remedies/Causes
General
• Sound cannot be heard from the
speakers.
• Adjust the volume to the optimum level.
• Check the cords and connections.
• The unit does not work at all. Reset the unit (see page 2).
FM/AM
• SSM automatic presetting does not
work.
Store stations manually.
• Static noise while listening to the radio. Connect the antenna firmly.
Disc playback
• Disc cannot be played back. Insert the disc correctly.
• CD-R/CD-RW cannot be played back.
• Tracks on the CD-R/CD-RW cannot be
skipped.
• Insert a finalized CD-R/CD-RW.
• Finalize the CD-R/CD-RW with the component
which you used for recording.
• Disc can be neither played back nor
ejected.
• Unlock the disc (see page 9).
• Eject the disc forcibly (see page 2).
EN12-17_KD-G425S[UN]f.indd 17EN12-17_KD-G425S[UN]f.indd 17 2/18/08 11:14:47 AM2/18/08 11:14:47 AM

18
ENGLISH
Symptoms Remedies/Causes
Disc playback
• Disc sound is sometimes interrupted. • Stop playback while driving on rough roads.
• Change the disc.
• Check the cords and connections.
• “NO DISC appears on the display. Insert a playable disc into the loading slot.
MP3/WMA playback
• Disc cannot be played back. • Use a disc with MP3/WMA tracks recorded in the
format compliant with ISO 9660 Level 1, Level 2,
Romeo, or Joliet.
•
Add the extension code <.mp3> or <.wma> to the file names.
• Noise is generated. Skip to another track or change the disc. (Do not
add the extension code <.mp3> or <.wma> to
non-MP3 or WMA tracks.)
•
A longer readout time is required
(“CHECK keeps flashing on the display).
Do not use too many hierarchies and folders.
• Tracks do not play back in the order
you have intended them to play.
Playback order is determined when the files are
recorded.
• Elapsed playing time is not correct. This sometimes occurs during play. This is caused
by how the tracks are recorded on the disc.
• “NO FILES appears on the display. Insert a disc that contains MP3/WMA tracks.
• Correct characters are not displayed
(e.g. album name).
This unit can only display letters (upper case),
numbers, and a limited number of symbols.
CD changer
• “NO DISC appears on the display. Insert a disc into the magazine.
• “NO MAG appears on the display. Insert the magazine.
• “RESET 8 appears on the display. Connect this unit and the CD changer correctly and
press the reset button of the CD changer.
• “RESET 1 – “RESET 7 appears on
the display.
Press the reset button of the CD changer.
• The CD changer does not work at all. Reset the unit (see page 2).
iPod playback
• The iPod does not turn on or does
not work.
• Check the connecting cable and its connection.
• Update the firmware version.
•
Change the battery.
• Buttons do not work as intended. The functions of the buttons have been changed.
Press MODE before performing the operation.
• The sound is distorted.
Deactivate the equalizer either on the unit or the iPod.
• “NO IPOD appears on the display. Check the connecting cable and its connection.
• Playback stops. The headphones are disconnected during playback.
Restart the playback operation using the control
panel (see page 13).
• No sound can be heard when
connecting an iPod nano.
Disconnect the headphones from the iPod nano.
• “NO FILES appears on the display. No tracks are stored. Import tracks to the iPod.
• “RESET 1 – “RESET 7 appears on
the display.
Disconnect the adapter from both the unit and
iPod. Then, connect it again.
• “RESET 8 appears on the display.
Check the connection between the adapter and this unit.
• The iPod’s controls do not work
after disconnecting from this unit.
Reset the iPod.
EN18-19_KD-G425S[UN]f.indd 18EN18-19_KD-G425S[UN]f.indd 18 2/18/08 11:15:00 AM2/18/08 11:15:00 AM

ENGLISH
19
Specifications
AUDIO AMPLIFIER SECTION
Maximum Power Output:
Front: 50 W per channel
Rear: 50 W per channel
Continuous Power Output (RMS):
Front: 1 W per channel into 4 Ω, 40 Hz
to 20 000 Hz at no more than 0.8%
total harmonic distortion.
Rear: 1 W per channel into 4 Ω, 40 Hz
to 20 000 Hz at no more than 0.8%
total harmonic distortion.
Load Impedance: 4 Ω (4 Ω to 8 Ω allowance)
Tone Control Range:
Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Frequency Response: 40 Hz to 20 000 Hz
Signal-to-Noise Ratio: 70 dB
Line-Out Level/Impedance:
2.5 V/20 kΩ load (full scale)
Subwoofer-Out Level/Impedance:
2.0 V/20 kΩ load (full scale)
Output Impedance: 1 kΩ
Other Terminal: CD changer
TUNER SECTION
Frequency Range:
FM: 87.5 MHz to 108.0 MHz
AM: 531 kHz to 1 602 kHz
[FM Tuner]
Usable Sensitivity: 11.3 dBf (1.0 μV/75 Ω)
50 dB Quieting Sensitivity:
16.3 dBf (1.8 μV/75 Ω)
Alternate Channel Selectivity (400 kHz): 65 dB
Frequency Response: 40 Hz to 15 000 Hz
Stereo Separation: 30 dB
Capture Ratio: 1.5 dB
[AM Tuner]
Sensitivity: 20 μV
Selectivity: 35 dB
CD PLAYER SECTION
Type: Compact disc player
Signal Detection System: Non-contact optical
pickup (semiconductor laser)
Number of Channels: 2 channels (stereo)
Frequency Response: 5 Hz to 20 000 Hz
Dynamic Range: 6 dB
Signal-to-Noise Ratio: 8 dB
Wow and Flutter: Less than measurable limit
MP3 Decoding Format:
MPEG1/2 Audio Layer 3
Max. Bit Rate: 320 kbps
WMA (Windows Media® Audio) Decoding
Format:
Max. Bit Rate: 1 2 kbps
GENERAL
Power Requirement:
Operating Voltage:
DC 14.4 V (11 V to 16 V allowance)
Grounding System: Negative ground
Allowable Operating Temperature:
0°C to +40°C
Dimensions (W × H × D):
Installation Size (approx.):
178 mm × 50 mm × 151 mm
Panel Size (approx.):
186 mm × 61 mm × 17 mm
Mass (approx.):
1.3 kg (excluding accessories)
Design and specifications are subject to change
without notice.
• Microsoft and Windows Media are either
registered trademarks or trademarks of
Microsoft Corporation in the United States
and/or other countries.
• iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
EN18-19_KD-G425S[UN]f.indd 19EN18-19_KD-G425S[UN]f.indd 19 2/27/08 5:25:40 PM2/27/08 5:25:40 PM

2
INDONESIA
Harap membaca seluruh petunjuk dengan teliti sebelum mengoperasikan, untuk memastikan anda
memahami secara keseluruhan dan mendapatkan performansi terbaik dari unit ini.
PENTING UNTUK PRODUK-PRODUK LASER
1. PRODUK ASER KE AS 1
2. PERHATIAN: Jangan membuka penutup atas. Tidak ada bagian yang dapat diperbaiki oleh
pengguna di dalam unit tersebut; biarkanlah semua bagian yang diperbaiki untuk memenuhi
syarat perbaikan teknis.
3. PERHATIAN: Radiasi laser yang terlihat dan tidak terlihat ketika membuka dan salah sambung
atau gagal. Hindari sorotan pencahayaan yang langsung.
4.
REPRODUKSI DARI ABE : ABE PERHATIAN, TEMPATKAN DI UAR UNIT TERSEBUT.
Bagaimana mereset unit anda
• Penyetelan-penyetelan pengaturan awal anda
akan terhapus juga.
• Jika sebuah disk sudah dimuat, akan
dikeluarkan. Hati-hati untuk tidak
menjatuhkan disk tersebut.
Bagaimana secara paksa
menge uarkan sebuah disk
• Jika ini tidak bekerja, coba mengeset kembali
(reset) unit anda.
• Hati-hati untuk tidak menjatuhkan disk
tersebut ketika dikeluarkan.
Peringatan:
Jika anda perlu mengoperasikan unit
tersebut sementara mengemudi, pastikan
untuk melihat ke atas dengan hati-hati atau
anda mungkin terlibat suatu kecelakaan lalu
lintas.
Perhatian pada pengaturan vo ume:
Disk-disk menghasilkan sangat kecil noise
(derau) dibandingkan dengan sumber yang
lain. Kecilkan volume sebelum disk untuk
menghindari kerusakan speaker-speaker
dengan penambahan mendadak dari level
keluaran.
IN02-05_KD-G425S[UN]f.indd 2IN02-05_KD-G425S[UN]f.indd 2 2/21/08 2:33:53 PM2/21/08 2:33:53 PM
