JVC KD SH1000 - Radio / CD User manual

ENGLISHDEUTSCH
РУCCKИЙ
CD RECEIVER
CD-RECEIVER
РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ
KD-SH1000
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Указа ия по уста овке и выпол е ию соеди е ий приводятся в отдель ой и струкции.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ
GET0366-006A
[EY]
For canceling the display demonstration, see page 8.
Zum Abbrechen der Displaydemonstration siehe Seite 8.
И формацию об отме е демо страции фу кций дисплея см. а стр. 8.
Cover_SH1000E_006A_f.indd 2Cover_SH1000E_006A_f.indd 2 1/6/06 2:53:54 PM1/6/06 2:53:54 PM

2
ENGLISH
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to
obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1. CLA 1 LA ER PRODUCT
2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave
all servicing to qualified service personnel.
3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated.
Avoid direct exposure to beam.
4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUT IDE THE UNIT.
Warning:
If you need to operate the unit while driving,
be sure to look ahead carefully or you may be
involved in a traffic accident.
Caution on volume setting:
Discs produce very little noise compared
with other sources. Lower the volume
before playing a disc to avoid damaging
the speakers by the sudden increase of the
output level.
Noti e:
The display window built in this unit has
been produced with high precision, but
it may have some ineffective dots. This is
inevitable and is not malfunction.
For security reasons, a numbered ID card
is provided with this unit, and the same ID
number is imprinted on the unit’s chassis.
Keep the card in a safe place, as it will help the
authorities to identify your unit if stolen.
How to reset your unit
• Your preset adjustments will also be erased.
How to for ibly eje t a dis
• If an D card is inserted, eject the D card
first (see page 14).
1
2
• If this does not work, reset your unit.
• Be careful not to drop the disc when it ejects.
EN02-09_SH1000E_006A_f.indd 2EN02-09_SH1000E_006A_f.indd 2 1/23/06 5:56:00 PM1/23/06 5:56:00 PM

ENGLISH
3
How to read this manual
• Button operations are mainly explained with
the illustrations in the table below.
• Some related tips and notes are explained in
“More about this unit” (see pages 34 – 3 ).
Press briefly.
Press repeatedly.
Press either
one.
Press A, then
B.
Press and hold until your
desired response begins.
Press and hold both
buttons at the same time.
The following marks are used to indicate...
: Built-in CD player operations.
: External CD changer operations.
: SD player operations.
: External USB memory operations.
For safety...
• Do not raise the volume level too much, as
this will block outside sounds, making driving
dangerous.
• Stop the car before performing any
complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot
or cold weather, wait until the temperature in
the car becomes normal before operating the
unit.
CONTENTS
Control panel ................................... 5
Remote controller — RM-RK3 ............ 6
Getting started ................................. 7
Basic operations ............................................... 7
Radio operations .............................. 8
FM RDS operations ............................ 11
Searching for your favorite FM RDS
programme ............................................... 11
Disc/SD card/USB memory
operations .................................... 14
Playing a disc in the unit .................................. 14
Playing discs in the D changer ........................ 14
Playing from an SD card .................................... 14
Playing from a USB memory ............................. 15
Sound adjustments ........................... 18
Selecting the DSP modes (DSP) ........................ 18
Using the equalizer—EQ ................................. 19
Activating crossover network ........................... 21
Setting the sound modes—SEL ...................... 21
General settings — PSM ................... 23
Title assignment .............................. 26
iPod®/D. player operations ................ 27
DAB tuner operations ........................ 29
Other external component operations ... 33
Maintenance .................................... 33
More about this unit ......................... 34
Troubleshooting ............................... 38
Specifications ................................... 42
EN02-09_SH1000E_003A_f.indd 3EN02-09_SH1000E_003A_f.indd 3 1/16/06 3:39:11 PM1/16/06 3:39:11 PM

4
ENGLISH
How to enter the various menus
The main menu contains seven menus (MODE,
PSM, SEL, TITLE, BBE, EQ, DSP).
• If no ope ation is done fo about 5 seconds,
menu sc een is canceled.
1
2 Select a menu you want.
3 Enter the selected menu.
• To go back to the p evious sc een o
exit the MENU sc een, p ess BACK
epeatedly.
4 Operate as instructed on the screen.
• To go back to the MENU sc een, p ess
MENU.
How to detach/attach the control
panel
How to change the control panel
angle
1
2
When using the remote controller
Caution:
Detaching...
Attaching...
Time countdown indicator
EN02-09_SH1000E_003A_3.indd 4EN02-09_SH1000E_003A_3.indd 4 1/3/06 9:26:36 AM1/3/06 9:26:36 AM

ENGLISH
5

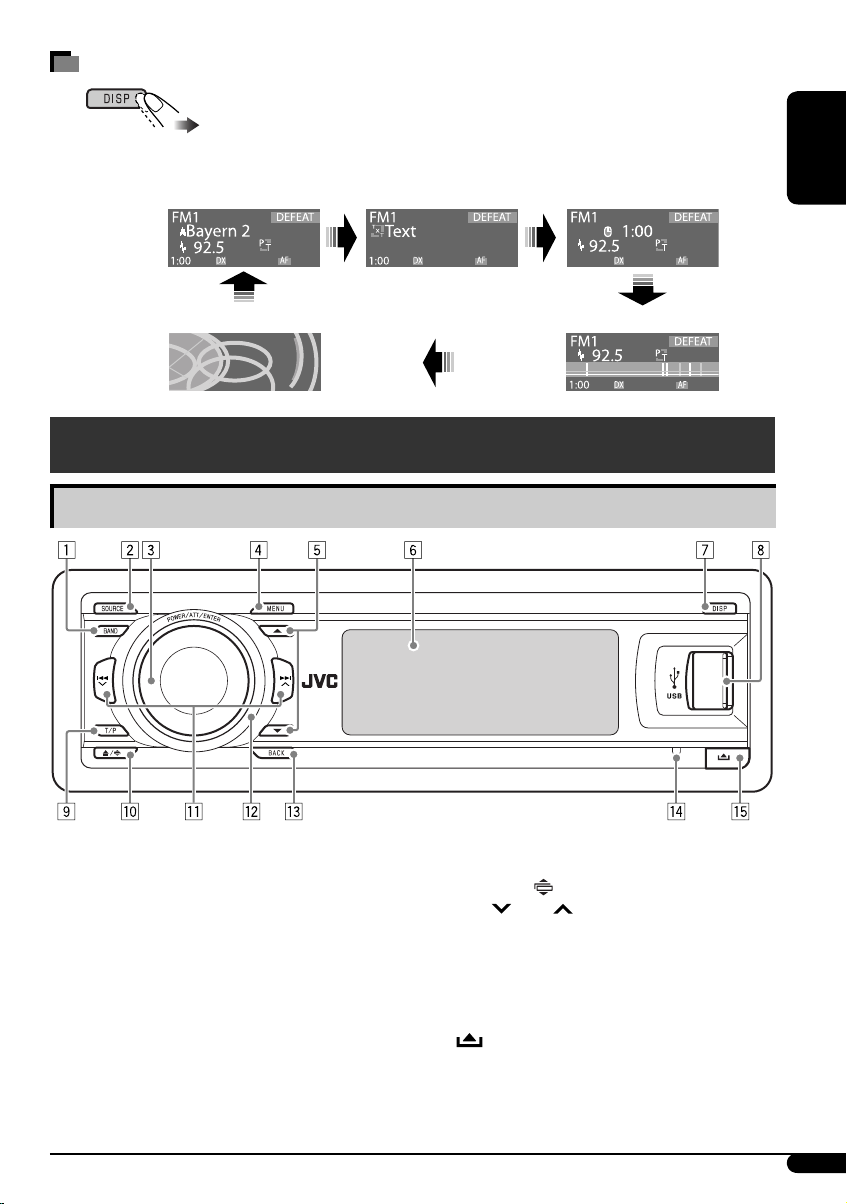

How to change the display information and patterns
1 BAND button
2 SOURCE button
3 • Control dial
• POWER/ATT (attenuator)/ENTER
button
4 MENU button
5 5 (up) / ∞ (do n) buttons
6 Display indo
7 DISP (display) button
8 USB (Universal Serial Bus) input terminal
Parts identification
Control panel
9 T/P (traffic programme/programme type)
button
p 0 (eject) / (angle) button
q 4 /¢ buttons
w Remote sensor
DO NOT expose the remote sensor to strong
light (direct sunlight or artificial lighting).
e BACK button
r Reset button
t (control panel release) button
Source operation display
Text information display for
FM RDS stations and DAB services Clock time display
Small graphic displayarge graphic display (full display size)
Ex.: When tuner is selected as the source
EN02-09_SH1000E_003A_4.indd 5EN02-09_SH1000E_003A_4.indd 5 1/6/06 6:20:08 PM1/6/06 6:20:08 PM

6
ENGLISH
Remote controller — RM-RK300
Installing the lithium oin battery
(CR2025)
Aim the remote controller directly at the
remote sensor on the unit. Make sure there is
no obstacle in between.
Warning:
• Do not install any battery other than
CR2025 or its equivalent; otherwise, it may
explode.
• tore the battery in a place where children
cannot reach to avoid risk of accident.
• To prevent the battery from over-heating,
cracking, or starting a fire:
– Do not recharge, short, disassemble, heat
the battery, or dispose of it in a fire.
– Do not leave the battery with other
metallic materials.
– Do not poke the battery with tweezers or
similar tools.
– Wrap the battery with tape and insulate
when throwing away or saving it.
Caution:
The unit is equipped with the steering wheel
remote control function.
• ee the Installation/Connection Manual
(separate volume) for connection.
Main elements and features
1 (standby/on/attenuator) button
• Turns the power on if pressed briefly or
attenuates the sound when the power is
on.
• Turns the power off if pressed and held.
EN02-09_SH1000E_003A_3.indd 6EN02-09_SH1000E_003A_3.indd 6 12/30/05 5:36:50 PM12/30/05 5:36:50 PM

ENGLISH
7
Continued on the next page
2 SOURCE button
Selects the source.
3 5 (up) / ∞ (down) buttons
• For DAB: Changes the service.
• For MP3/WMA/SD/USB: Changes the
folders.
• Whi e istening to an App e iPod® or a
JVC D. p ayer:
– Pauses/stops or resumes playback with
∞.
– Enters the main menu with 5.
Now 5/∞/4/¢ work as the menu
selecting buttons.)*
4 VOL (vo ume) + / – buttons
Adjusts the volume level.
5 Number buttons
• For FM/AM/DAB: Selects the preset
station or service) if pressed, or store a
station or a service) if pressed and held.
• For CD/CD Text: Selects the tracks.
• For MP3/WMA/SD/USB: Selects the
folders.
• For CD changer: Selects the discs.
6 ANGLE button
Adjusts the control panel angle.
7 BAND button
Selects the band.
8 4 / ¢ buttons
• For FM/AM/DAB: Searches for stations
or ensembles) if pressed, or skips
frequencies after pressed and held.
• For CD/CD Text/MP3/WMA/SD/USB:
Changes the tracks if pressed, or fast-
forwards or reverses the track if pressed
and held.
• Whi e istening to an iPod or a D. p ayer
(in menu se ecting mode):
– Selects an item if pressed briefly. Then,
press ∞ to confirm the selection.)
– Skips 10 items at a time if pressed and
held.
* 5 : Returns to the previous menu.
∞ : Confirms the selection.
Getting started
Activates or deactivates crossover network
see page 21) before turning on the power.
Basic operations
~ Turn on the power.
Ÿ
FM/AM = DAB* = CD* = SD* =
USB* = CD-CH*/iPod*/D. player*
or EXT-IN) = LINE-IN = back to the
beginning)
* You cannot select these sources if they
are not ready or not connected.
!
For FM/AM tuner
For DAB tuner
⁄ Adjust the vo ume.
@ Adjust the sound as you want. (See
pages 18 – 22.)
EN02-09_SH1000E_003A_4.indd 7EN02-09_SH1000E_003A_4.indd 7 1/6/06 6:20:31 PM1/6/06 6:20:31 PM

8
ENGLISH
To drop the volume in a
moment (ATT)
To restore the sound, press
it again.
To turn off the power
Basic settings
• See also “General settings — PSM” on pages
23 – 26.
1 Enter the PSM menu (see page 4).
2
1 Canceling the display
demonstrations
Select “ emo,” then “Off.”
2 Setting the clock
Select “Clock H” (hour), then adjust the
hour.
Select “Clock M” (minute), then adjust
the minute.
Select “24H/12H,” then “24Hours” or
“12Hours.”
3 Finish the procedure.
To check the current clock time while the
power is turned off
Radio operations
~
Ÿ
! Start searching for a station.
When a station is received, searching
stops.
To stop searching press the same button
again.
To tune in to a station manually
In step ! above...
1
2 Select a desired station frequency.
When an FM stereo broadcast is hard
to receive
1 Enter the MODE menu (see page 4).
2
3
Selected band appears.
EN02-09_SH1000E_003A_f.indd 8EN02-09_SH1000E_003A_f.indd 8 1/16/06 3:41:11 PM1/16/06 3:41:11 PM

ENGLISH
9
4 MO indicator lights up.
Reception improves, but stereo
effect will be lost.
To restore the stereo effect repeat the same
procedure and select “Off” in step 3. The MO
indicator goes off.

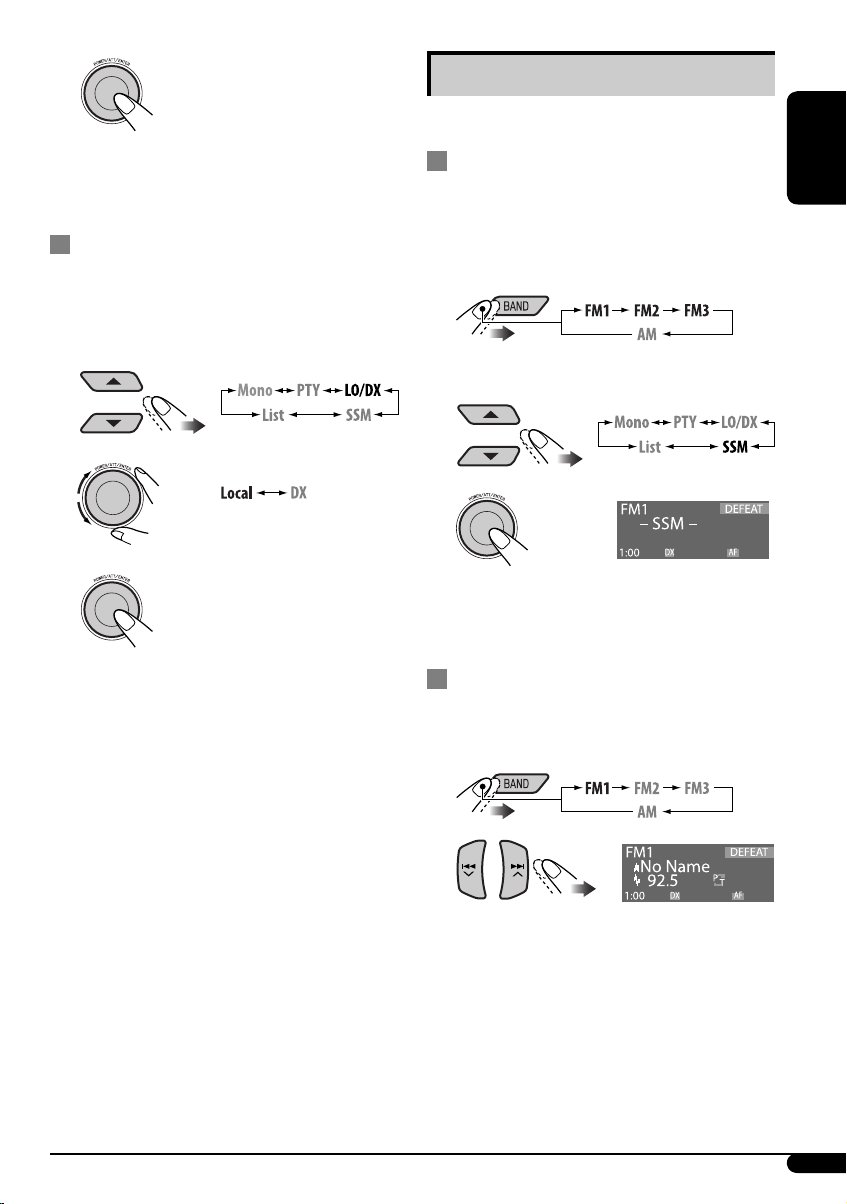

Tuning in to FM stations with strong
signals only LO (local)/DX (Distance-
Extreme)
1 Enter the MODE menu (see page 4).
2
3
4
X indicator goes off and LO indicator
lights up.
Only stations with sufficient signal strength
will be detected.
To tune in to all receivable stations repeat the
same procedure and select “ X” in step 3. The
LO indicator goes off and X indicator lights
up.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting
SSM (Strong-station Sequential
Memory)
1 Select the FM band (FM1 – FM3) you
want to store into.
2 Enter the MODE menu (see page 4).
3
4
Local FM stations with the strongest signals are
searched and stored automatically in the FM
band.
Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset
number 4 of the FM1 band.
1
2
3 Enter the MODE menu (see page 4).
• If you hold down 5/∞, the Preset Station
List appears (go to step 6).
Continued on the next page
EN02-09_SH1000E_003A_f.indd 9EN02-09_SH1000E_003A_f.indd 9 1/16/06 3:41:14 PM1/16/06 3:41:14 PM

10
ENGLISH
4
5
6 Select a preset number.
• You can move to the lists of the other FM
bands by turning the control dial.
7 Store the station.
When using the remote controller
After tuning in to a station you want to
preset...
Listening to a preset station
1
2 Enter the MODE menu (see page 4).
3
4
5 Select a preset number.
• You can move to the lists of the other FM
bands by turning the control dial.
When using the remote controller
Directly select the preset number.
EN10-17_SH1000E_003A_3.indd 10EN10-17_SH1000E_003A_3.indd 10 12/30/05 5:36:25 PM12/30/05 5:36:25 PM

11
ENGLISH
Continued on the next page
FM RDS operations
What you can do with RDS
RDS Radio Data System) allows FM stations
to send an additional signal along with their
regular programme signals.
By receiving the RDS data, this unit can do the
following:
• Programme Type PTY) Search see the
following)
• TA Traffic Announcement) and PTY
Standby Receptions see pages 12 and 24)
• Tracing the same programme automatically
—Network-Tracking Reception see page 13)
• Programme Search see page 13)
• Receiving the message service—RDS
Radiotext RT) see page 13)
Searching for your favorite
FM RDS programme
You can search for your favorite programmes
being broadcast by selecting the PTY code of
your favorite programmes.
PTY codes
NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE,
SCIENCE, VARIED, POP M (music), ROCK M (music), EASY
M (music), LIGHT M (music), CLASSICS, OTHER M (music),
WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE
IN, TRAVEL, LEISURE, JA , COUNTRY, NATION M (music),
OLDIES, FOLK M (music), DOCUMENT
~
1 Pop M 4 Classics
2 Rock M 5 Affairs
3 Easy M 6 Varied
PTY Preset List appears.
Ÿ Select a PTY code.
• You can select one of the PTY codes
including the six preset codes which
can be presetted as you like, see the
following).
! Start searching for our favorite
programme.
If there is a station broadcasting a
programme of the same PTY code as you
have selected, that station is tuned in.
Storing your favorite programme
types
You can store your favorite PTY codes into the
PTY Preset List.
1
2 Select a PTY code.
3 Enter the preset list.
4 Select a preset number.
EN10-17_SH1000E_003A_3.indd 11EN10-17_SH1000E_003A_3.indd 11 12/30/05 5:36:28 PM12/30/05 5:36:28 PM

12
ENGLISH
5 Store the setting.
6 To store other PTY codes into other
preset numbers.
7 Finish the procedure.
Using the standby receptions
TA Standby Reception
TA Standby Reception allows the unit to switch
temporarily to Traffic Announcement (TA)
from any source other than AM.
The volume changes to the preset TA volume
level if the current level is lower than the preset
level (see page 2 ).
• If DAB tuner is connected, Standby Reception
also works to search for a DAB service
broadcasting Traffic Announcement.
To activate TA Standby Reception
The TP (Traffic Programme)
indicator either lights up or
flashes.
• If the TP indicator lights up, TA Standby
Reception is activated.
• If the TP indicator flashes, TA Standby
Reception is not yet activated. (This occurs
when you are listening to an FM station
without the RDS signals required for TA
Standby Reception.)
To activate TA Standby Reception, tune in
to another station (or DAB service) providing
the related signals. The TP indicator will stop
flashing and remain lit.
Repeat steps 2 to 5.
To deactivate the TA Standby Reception
The TP indicator goes off.
PTY Standby Reception
PTY Standby Reception allows the unit to
switch temporarily to your favorite PTY
programme from any source other than AM.
• If DAB tuner is connected, Standby Reception
also works to search for a DAB service.
To select your favorite PTY code for PTY
Standby Reception, see page 2 .
The PTY indicator either lights up or flashes.
To activate the PTY Standby Reception
1 Enter the ODE menu (see page 4).
2
3 Select one of the PTY codes.
4 Finish the procedure.
The PTY indicator either lights
up or flashes.
• If the PTY indicator lights up, PTY
Standby Reception is activated.
• If the PTY indicator flashes, PTY Standby
Reception is not yet activated.
To activate PTY Standby Reception, tune
in to another station providing these
signals. The PTY indicator will stop
flashing and remain lit.
To deactivate the PTY Standby Reception,
select “Off” in step 3. The PTY indicator goes
off.
EN10-17_SH1000E_003A_f.indd 12EN10-17_SH1000E_003A_f.indd 12 1/16/06 3:41:48 PM1/16/06 3:41:48 PM

13
ENGLISH
Tracing the same programme—
Network-Tracking Reception
When driving in an area where FM reception
is not sufficient enough, this unit automatically
tunes in to another FM RDS station of the
same network, possibly broadcasting the same
programme with stronger signals (see the
illustration below .
Programme A broadcasting on different frequency areas
(01 – 05)
When shipped from the factory, Network-
Tracking Reception is activated.
To change the Network-Tracking Reception
setting, see “AF-Reg” on page 24.
Automatic station selection—
Programme Search
Usually when you press the number buttons,
the preset station is tuned in.
If the signals from the FM RDS preset station
are not sufficient for good reception, this unit,
using the AF data, tunes in to another frequency
broadcasting the same programme as the
original preset station is broadcasting.
• The unit takes some time to tune in to
another station using programme search.
• See also page 24.
Using the message service—
RDS Radiotext RT)
What is RDS Radiotext
RDS Radiotext is part of the RDS data signal
to transmit various text information (e.g.
programme information, phone numbers,
e-mail and web addresses, artist/title
information, and news headlines . The text
service is part of the RDS broadcast.
One message may contain up to 64 characters.
The message service is an optional service and is
not supported by all broadcasters.
Once you tuned in to a station that supports
the message service, the service is automatically
received.
To show the RDS Radiotext RT) information
While listening to a station that supports RT...
Radiotext screen appears on
the display.
• The Radiotext screen will be temporarily
canceled when you operate the unit.
It takes time to load data. While loading,
“Loading” and progress indications appear.
• You can see approximate loading percentage
with the indications.
If text message is unavailable, the text screen
will change to source operation screen. Yet,
when text message becomes available later, the
text screen will automatically appear.
EN10-17_SH1000E_003A_4.indd 13EN10-17_SH1000E_003A_4.indd 13 1/6/06 6:20:47 PM1/6/06 6:20:47 PM

14
ENGLISH
Disc/SD card/USB memory
operations
Playing a disc in the unit
All tracks will be played repeatedly until you
change the source or eject the disc.
To stop play and eject the disc
Note:
If a USB memory is attached to the unit, you
cannot eject the disc. “Please Eject USB”
flashes on the display. If this happens, detach
the USB memory, then, press 0 / button
again.
Playing discs in the CD changer
All discs in the magazine will be played
repeatedly until you change the source.
• Ejecting the magazine will also stop playback.
* If you have changed the external input setting
to “Ext In” (see page 25), you cannot select the
CD changer
Playing from an SD card
Before detaching the control panel, turn off the
power.
~
Ÿ
Press in the SD card until you hear a
clicking sound.
To eject the SD card, press the SD card
again.
• Press the SD card softly do not release
your finger quickly); otherwise, the SD
card may pop out from the unit.
SD loading slot
SD card
EN10-17_SH1000E_003A_3.indd 14EN10-17_SH1000E_003A_3.indd 14 12/30/05 5:36:31 PM12/30/05 5:36:31 PM

15
ENGLISH
Continued on the next page
! Attach the control panel.
⁄ • The control panel goes
back to the previous
position.
Playback starts automatically if tracks are
recorded.
Playing from a USB memory
This unit can play MP3/WMA tracks stored in a
USB memory.
All tracks in the USB memory will be played
repeatedly until you change the source.
• Removing the USB memory will also stop
playback.
~
Ÿ
To detach the USB memor , straightly pull it
out from the unit.
USB memory
USB input terminal
Cautions:
• Avoid using the SD card/USB memory
when it might hinder your safety driving.
• Make sure all important data have been
backed up to avoid losing the data.
If an SD card or USB memor has been
attached...
Playback starts from where it has been stopped
previously.
• If a different SD card or USB memory is
currently attached, playback starts from the
beginning.
A out MP3 and WMA tracks
MP3 and WMA “tracks” words “file” and
“track” are used interchangeably) are recorded
in “folders.”
A out the CD changer
It is recommended to use a JVC
MP3-compatible CD changer with your unit.
• You can also connect MP3-incompatible
CD changers. However, these units are not
compatible with MP3 discs.
• You cannot use the CH-X99, CH-X100, and
KD-MK series CD changers with this unit.
• You cannot play any WMA disc in the CD
changer.
• Disc text information recorded in the CD
Text can be displayed when a JVC CD Text
compatible CD changer is connected.
• For connection, see Installation/Connection
Manual separate volume).
To fast-forward or reverse the track
EN10-17_SH1000E_003A_3.indd 15EN10-17_SH1000E_003A_3.indd 15 12/30/05 5:36:32 PM12/30/05 5:36:32 PM

16
ENGLISH
To go to the next or previous tracks
To go to the next or previous folders (only for
MP3/WMA/SD/ SB)
For MP3 tracks:
For WMA tracks:
• Holding the buttons can display the Disc List
( and Folder List ( / /
, see the following.
Other main functions
Selecting a disc/folder/track on the list
• This function is not available for an audio CD
or a CD Text when the source is “CD.”
1 Enter the MODE menu (see page 4).
2
3 Select a list type.
*1 Selectable only when the source is
“CD-CH.”
*2 Appears only for MP3/ MA/SD/USB.
4 Confirm the selection.
The selected list appears on the display.
• You can move to the other list by turning
the control dial.
5 Select a disc/folder/file from the list.
Only for MP3/WMA/SD/USB:
If you select the current disc/folder
(highlighted on the screen , its Folder/File
List appears.
6 Starts playbac .
When using the remote controller
• To directly select a disc (
• To directly select a track of an audio CD or
a CD Text (
• To directly select an MP3/WMA folder
( / /
To select a number from 1 – 6:
To select a number from 7 (1 – 12 (6 :
For MP3/WMA folders:
It is required that folders are assigned with
2-digit numbers at the beginning of their
folder names—01, 02, 03, and so on.
Current folder
Ex.: When “Folder” is selected on step 3
EN10-17_SH1000E_003A_4.indd 16EN10-17_SH1000E_003A_4.indd 16 1/6/06 6:22:09 PM1/6/06 6:22:09 PM

17
ENGLISH
Prohibiting disc ejection
You can lock a disc in the loading slot.
1
2 After making sure “No Eject?” is
selected...
• “No Eject” flashes, and the
disc cannot be ejected.
To cancel the prohibition, repeat the same
procedure after making sure “Eject OK ” is
selected.
• “Eject OK” flashes on the display.
Selecting the playback modes
You can use only one of the following playback
modes at a time.
1 Enter the M DE menu (see page 4).
2 Select one of the playback modes.
3 Select one of the items (see the
following table).
4 Finish the procedure.
Intro Plays the beginning 15 seconds of...
Track : All tracks of the current playback
media. [ ]
Folder*1 : First track of all folders of the
current playback media. [ ]
Disc*2 : First track of all the inserted discs.
[ ]
Off : Cancels.
Repeat Plays repeatedly
Track : The current track. [ ]
Folder*1 : All tracks of the current folder.
[ ]
Disc*2 : All tracks of the inserted discs.
[ ]
Off : Cancels.
Random Plays at random
Folder*1 : All tracks of the current folder, then
tracks of the next folder and so on.
[ ]
Disc : All tracks of the current disc.
[ ]
All*3 : All tracks of the inserted discs/
media. [ ]
Off : Cancels.
*1 Only while playing a media (MP3/WMA/SD/
USB).
*2 Only when the sou ce is CD-CH.
*3 Only when the sou ce is CD-CH, SD, o USB.
EN10-17_SH1000E_003A_f.indd 17EN10-17_SH1000E_003A_f.indd 17 1/16/06 3:42:21 PM1/16/06 3:42:21 PM

18
ENGLISH
To make more precise settings, see the
following.
To cancel the acoustic effect, select “Defeat” in
step Ÿ.
Precise settings for the DSP modes
1 Select a DSP mode.
2 Select the number of the built-in
speakers.
• For “Defeat” and “V.Cancel,” the speaker
number is fixed to “ ch.”
3 Select your listening seat position.
4 Select the speaker to be adjusted.
* Appears only when “4ch” is selected in step
2.
Sound adjustments
Selecting the DSP modes (DSP)
You can create a more acoustic sound field such
as in a theater, hall, etc.
• When crossover network (see page 21) is
activated, the DSP mode is fixed to “Defeat.”
DSP modes
Defeat (No acoustic effect is applied), Theater, Hall,
Club, Dome, Studio, V.Cancel (Voice Cancel: Reduces the
ocal sounds. Good for mastering your fa orite songs—
Karaoke.)
~ Enter the DSP menu (see page ).
Ÿ Select one of the DSP modes.
• To finish the procedure
• To adjust the effect level
For “Defeat” and “V.Cancel,” the effect
level is not adjustable.
! Adjust the effect level.
• To finish the procedure
Go to step !.
EN18-23_SH1000E_003A_f.indd 18EN18-23_SH1000E_003A_f.indd 18 1/16/06 3:56:55 PM1/16/06 3:56:55 PM

19
ENGLISH
3 Finish the procedure.
Using the equalizer—EQ
You can adjust the sound equalization patterns
to your preference by using either Graphic EQ
or Parametric EQ.
• Adjust the equalizer to match the
reproducible frequency range of the
connected speakers; otherwise, the
adjustments may not be effective.
Selecting preset sound modes—
Graphic EQ
Sound modes
Flat (No sound mode is applied), HardRock, R&B
(Rhythm&Blues), Pop, Jazz, Dance, Country, Reggae,
Classic, User 1, User 2, User 3
1 Enter the EQ menu (see page ).
2
3 Select a sound mode.
4 Finish the procedure.

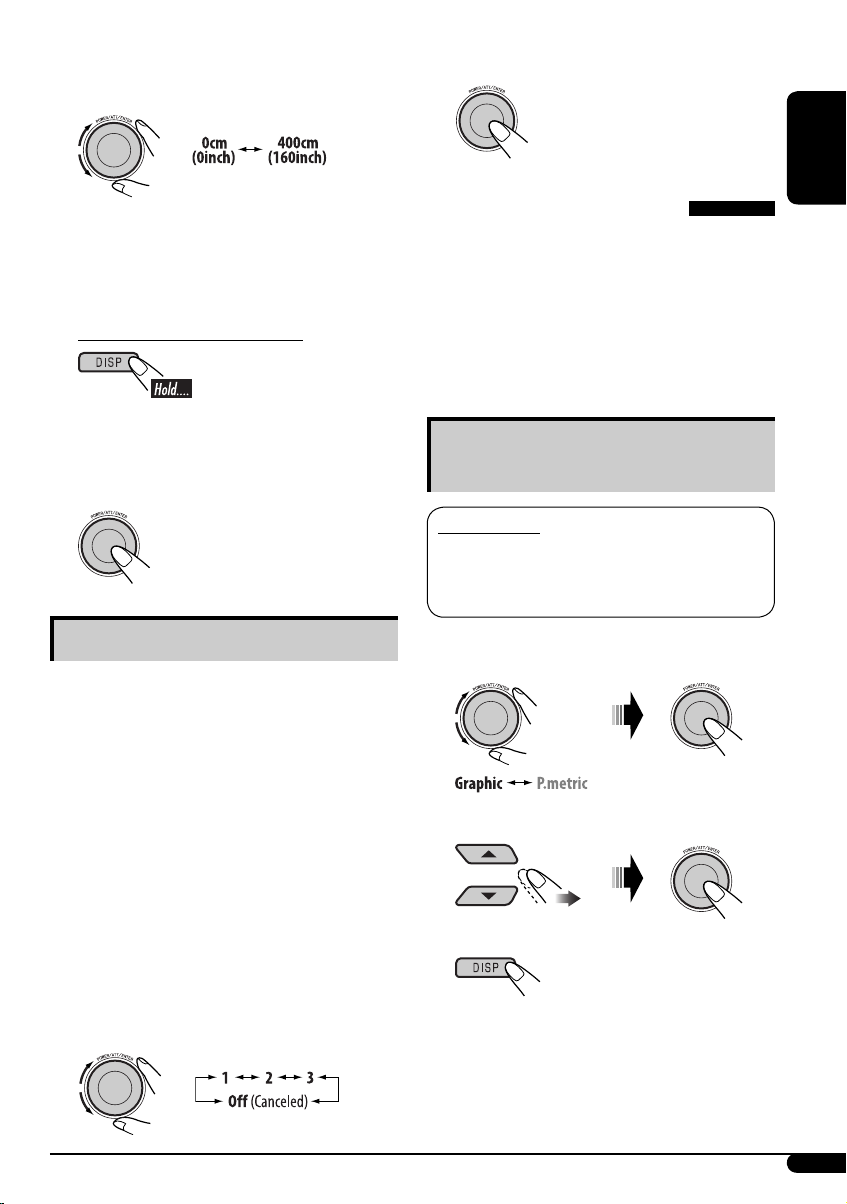

5 Select the distance between the
selected speaker and the seat.
Once you have set the distance, it is
memorized for each seat position selected
in step 3. The memorized setting is recalled
next time you select the seat position.
To change the measuring unit
6 Repeat steps 4 and 5 to adjust the
distance for the other speakers.
7 Finish the procedure.
Acti ating BBE Digital
BBE Digital is a digital processing method to
restore the brilliance and clarity of the original
live sound in recording, broadcasts, etc. When
a speaker reproduces sound, it introduces
frequency-dependent phase shifting, causing
high-frequency sounds to take longer to reach
the ear than low frequency sounds.
BBE Digital adjusts the phase relationship
between the low, mid, and high frequencies by
adding a progressively longer delay time to the
low and mid frequencies, so that all frequencies
reach the listener’s ears at the proper time. A
more brilliance and clearer sound is heard.
1 Enter the BBE menu (see page ).
2 Select the effect level.
EN18-23_SH1000E_003A_f.indd 19EN18-23_SH1000E_003A_f.indd 19 1/16/06 3:56:57 PM1/16/06 3:56:57 PM

20
ENGLISH
3 Select a band.
Band1 : 20.0 Hz – 1.2 kHz
Band2 : 80.0 Hz – 5.0 kHz
Band3 : 315.0 Hz – 20 kHz
4 Adjust the enhanced level for the
selected band.
5 Select the frequency.
• Band 1/2/3 are required to be preset at
least 5 steps (frequencies) away from each
other. (Only selectable frequencies are
shown on the display.)
6 Select the band width (Q).
• To adjust the other bands, press BACK.
Then repeat steps 3 to 6.
7 Finish the procedure.
Once you have made adjustments, it is
memorized. The memorized setting is recalled
next time you select Parametric EQ.
Storing your own sound modes
1 Select a sound mode.
2 Select a frequency band.
3 Adjust the enhanced level for the
selected frequency band.
4 Repeat steps 2 and 3 to adjust the
other frequency bands.
5
6 Select one of the user modes.
7 Store the adjustments.
Adjusting Parametric EQ
1 Enter the EQ menu (see page ).
2
EN18-23_SH1000E_003A_f.indd 20EN18-23_SH1000E_003A_f.indd 20 1/16/06 3:56:59 PM1/16/06 3:56:59 PM
