JVC MC-R434U User manual

MC-R434U
LST0172-001A
INSTRUCTIONS
Thank you for purchasing the JVC MC-R434U DVD-RAM/R DRIVE.
Before you start operating this unit, please read the instructions
carefully in order to obtain the best possible performance.
For Customer Use:
Enter below the Model No. and Serial
No. which are located at the top of the
unit. Retain this information for future
reference.
Model No. MC-R434U
Serial No.
This instruction book is made from 100% recycled paper.
ENGLISH
DEUTSCH
FRANÇAIS
Downloaded from: https://www.usersmanualguide.com/

E
INSTALLATION FLOW
Follow the steps below for installation.
PRECAUTIONS BEFORE USE
INSTALLATION
Page 3, 4
●Install the MC-R434U in the CD/DVD Library.
䡵Procedure for Opening the Door of the CD/DVD Library
䡵Procedure for Opening the Drive Storage Cover of the
CD/DVD Library
䡵Procedure for Determining the Setup Position for the MC-R434U
䡵Procedure for Installing the MC-R434U in the CD/DVD Library
CONNECTION
Page 4, 5
●Connect the MC-R434U to the CD/DVD Library.
䡵Procedure for Connecting the Cables to the Back of the MC-R434U
SETUP
Page 5
●Set the SCSI ID of the MC-R434U and close the door of the CD/
DVD Library.
䡵Procedure for Setting the DIP Switch
䡵Procedure for Attaching the Drive Storage Cover of the CD/DVD
Library
䡵Procedure for Closing the CD/DVD Library Door
EXECUTION OF AUTOMATIC
DRIVE DETECTION MODE.
Page 6
●Execute the automatic drive detection mode and connect the host
computer.
䡵Procedure for Executing the Automatic Drive Detection Mode of
the CD/DVD Library
䡵Procedure for Connecting the CD/DVD Library to the Host Com-
puter
●The ambient temperature around the CD/DVD Library should
be maintain at about 5˚C to 30˚C when a MC-R434U is con-
nected to multiple units of the MC-8100LU or MC8200LU/
8600LU the CD/DVD Library, as mentioned below.
• MC-8100LU : 4 units
• MC-8200LU/8600LU : 6 units
1. DANGER: Invisible laser radiation will occur if the unit is
open due to a failed or defective interlocking device.
2. CAUTION: Do not open the top cover.There are no user
serviceable parts inside the unit; leave all servicing to
qualified service personnel.
●The MC-R434U is a DVD-RAM/R drive designed for use with
the JVC MC-8100LU/8200LU/8600LU “CD/DVD Library”.
●When installing this unit in a Library that is being used, please
read the instruction manual carefully.
●The MC-R434U cannot be operated on its own.
●This unit cannot be used in combination with the following
models.
• CD-ROM Library : MC-1000 series/2000 series
• DVD-RAM Library: MC-7000 series
• CD/DVD Library : MC-8000 series
●For the compatible discs, see the Specifications on page E7.
Downloaded from: https://www.usersmanualguide.com/

E
ENGLISH
1. Select the [DOOR OPEN MODE] on the MENU screen of
the CD/DVD Library's LCD.
2. Press and hold the "SELECT" switch for five seconds.
3. Turn off the power of the CD/DVD Library when [THE DOOR
CAN BE OPENED] message is displayed on the LCD.
4. Insert the key in the key cylinder located at the center of
the door to unlock and open the door.
*The illustration shows the CD/DVD Library with the drive storage
cover removed for ease of description.
<With the MC-8100LU>
<With the MC-8200LU>
1. Remove the screws from the drive storage cover of the
CD/DVD Library.
2. Remove the drive storage cover.
1. Install the drives to the drive slots No.1 through No.6 (No. 1
through No. 4 in the case of the MC-8100LU) sequentially.
䡵It makes the work easy if the drives are installed from
the lowest number to the highest.
<
MC-8100LU drive storage section ><
MC-8200LU drive storage section >
●Install the MC-R433U in the CD/DVD Library.
Before starting installation, be sure to turn both the
host computer and peripherals off.
For information related to the CD/DVD Library, refer
to the instruction manual for the CD/DVD Library.
INSTALLATION
<With the MC-8100LU>
<With the MC-8200LU>
Drive locking
screw mounting
hole
Drive storage
section
Drive storage
section
Drive locking
screw mounting
hole
Drive No. 3
Drive No. 4
Drive No. 1
Drive No. 2
Drive No. 6
Drive No. 3
Drive No. 4
Drive No. 5
Drive No. 1
Drive No. 2
Drive storage
cover
Screw
Screw
Drive storage
section
Drive storage
section
Screw
Drive storage cover
Procedure for Opening the Door of the
CD/DVD Library
Procedure for Opening the Drive Storage
Cover of the CD/DVD Library
Procedure for Determining the Setup
Position for MC-R434U
Downloaded from: https://www.usersmanualguide.com/

E
<MC-R434U connection example>
1. Connect the power supply cable, control cable and SCSI
cable to the connectors at the rear of the MC-R434U.
䡵When using the MC-8100LU, the No. of the cable must
always correspond to the No. of the drive bay to which it
is being connected. If a cable with the wrong number is
connedted, it will lead to the equipment malfunctioning.
䡵When using an MC8200LU/8600LU, connect the con-
trol cables which lead from the side of the drive bay where
the MC-R434 is to be inserted.
䡵Insert all connectors firmly.
䡵SCSI cables are connected as a daisy chain connec-
tion. Each connector should be connected to the drive
positions as illustrated in the diagram.
•The SCSI cable, which is built into the MC-8100LU/
8200LU/8600LU standard models, terminates at the
location where the connection is physically terminated.
<MC-R434U rear panel>
Interior
Drive 4
Drive 3
Drive 2
Drive 1
Library SCSI board
Drive 6
Drive 5
Terminator
Internal SCSI (LVD) cable
68-pin external SCSI connector
To host computer (SE/LVD)
SE-LVD conversion board
Terminator
Internal SCSI (SE) cable
Power cable
Control cable
DIP switch
SCSI cable
14p
3
4p
2
3
1

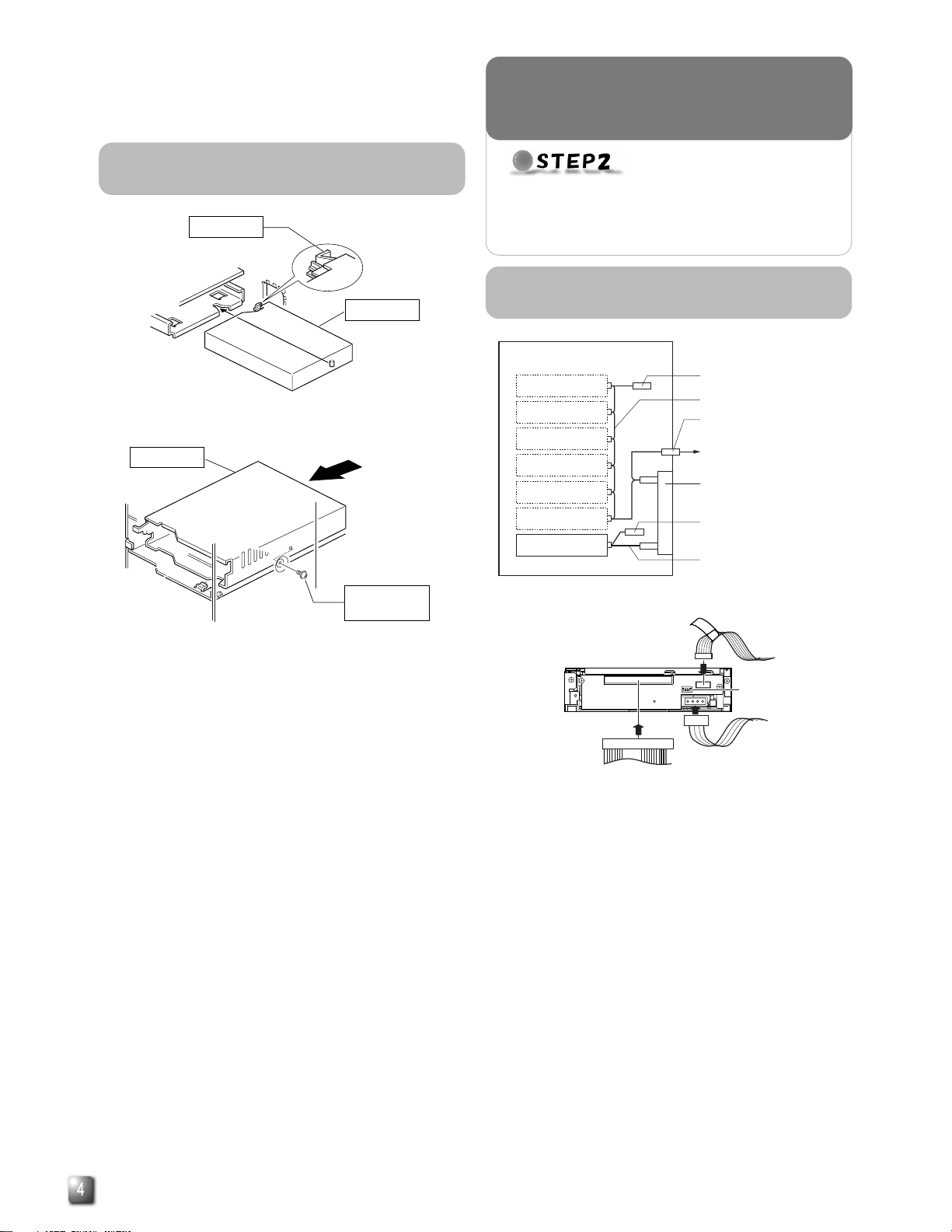

Procedure for Connecting the Cables to
the Back of the MC-R434U
1. Insert the MC-R434U from the rear of the CD/DVD Library
䡵Be sure not to damage the sensor slit.
䡵Make sure that the direction of the MC-R434U is correct
when inserting it.
䡵Be sure that the cables connected to the rear of the CD/
DVD Library are not caught or pinched when inserting
the MC-R434U.
2. Insert the MC-R434U slowly until the screw installation hole
located on the side of the MC-R434U and the screw instal-
lation hole located on the drive locking section are aligned.
3. Screw in the provided drive locking screw to the screw in-
stallation hole of the drive locking section.
䡵Tighten the screw firmly.
䡵If the drive locking screw is loose, the drive and/or Li-
brary may be damaged.
Sensor slit
MC-R434U
Drive locking
screw
MC-R434U
<MC-R434U insertion direction>
<MC-R434U locking method>
Procedure for Installing the MC-R434U in
the CD/DVD Library ●Connect the MC-R434U to the CD/DVD Library.
Also refer to the instruction manual for the CD/
DVD Library.
CONNECTION
Downloaded from: https://www.usersmanualguide.com/

E
ENGLISH
2. Connect the two LVD power cables (6P) to the SE-LVD
conversion board.
䡵Both cables have identical connector types, so that ei-
ther cable can be connected to either connector on the
SE-LVD conversion board.
3. Connect the internal SCSI (SE) cable (50P) to the SE-LVD
conversion board.
䡵The other end of the internal SCSI (SE) cable is con-
nected to the library SCSI board in the library.
4. Connect the internal SCSI (LVD) cable (68P) to the drives.
䡵The other end of the internal SCSI (LVD) cable is con-
nected to the SE-LVD conversion board.
Connecting the cables
Library
<SE-LVD conversion board>
To each drive
Internal SCSI (LVD) cable
LVD
power cable
Internal SCSI (SE) cable
3.
4.
5.
6p
6p
50p
68p
Drive 4
Drive 3
Library SCSI board
Internal SCSI
(SE) cable
To SE-LVD conversion board
Drive 2
Drive 1
Terminator
Internal SCSI cable (approx. 1.0 m)
Terminator
<Interior of library>
<With the MC-8100LU>
1. Secure the cover with the screws that were removed.
"Procedure for Opening the Drive Storage Cover of
the CD/DVD Library" on page 3.
1. Close the door and lock the key cylinder.
Procedure for Attaching the Drive
Storage Cover of the CD/DVD Library
Procedure for Closing the CD/DVD
Library Door
<MC-R434U DIP switch settings on the rear panel>
Procedure for Setting the DIP Switch
●Set the SCSI ID of the MC-R434U and close the door
of the CD/DVD Library.
Always turn the power of the CD/DVD Library off when
the dip switches are moved.
For the details of the default factory settings, please
refer to the section "SCSI ID No. SETTING" of the
instructions from the CD/DVD Library.
SETUP
<SCSI ID No. and DIP switch settings>
*: Factory setting.
SCSI ID No. Switch
ID2 ID1 ID0
0OFF OFF OFF
1*OFF OFF ON
2OFF ON OFF
3OFF ON ON
4ONOFF OFF
5ONOFF ON
6ONONOFF
7ONONON
ON
OFF
(Factory setting)
RSV ID 2 ID 1 ID 0
ON
1234
1. ID2, ID1, ID0: Setting of the SCSI ID No. of each drive.
䡵When setting the SCSI ID No., use a number that is not
being used by other SCSI devices on the same bus.
䡵The MC-R434 should be used with one of the SCSI ID
No. 0 to 7. It cannot be used with No. 8 to 15.
䡵RSV: Not available
Downloaded from: https://www.usersmanualguide.com/

E
䡵The length of the SCSI cable built into the CD/DVD library is
1.0 meters.
䡵When the built-in SCSI cable is used by connecting it to an
external SCSI cable, check the total length of the SCSI cable.
If it should exceed the length described below it might be the
cause of a malfunction.
1) Used for an LVD: The maximum external cable length
should be 10 meters.
2) Used for an SE (Narrow) unit: The maximum external cable
length should be as follows.
• SCSI-2, 10 Mbyte/s, SYNC : 1.5 meters (Up to a maxi
mum of 2 drives)
• SCSI-2, 10 Mbyte/s, SYNC : 1.5 meters
• SCSI-2, ASYNC : 4.5 meters
䡵Optimum performance may not be achieved depending on
the settings of the transmission rate, operation conditions,
etc., and could be the cause of a failure when writing on the
DVD-R or CD-R with high-speed.
䡵Use an Ultra160-compatible cable as the external SCSI cable.
A malfunction may occur if any another type of cable is used.
䡵Be sure to fasten the SCSI connector with suitable screws
after making a connection with an external SCSI cable.
䡵Use an Ultra160-compatible cable as the external SCSI cable.
●Execute the automatic drive detection mode of the
CD/DVD Library.
For the automatic drive detection mode, refer to the
instruction manual for the CD/DVD Library.
EXECUTION OF AUTO-
MATIC DRIVE DETEC-
TION MODE.
CAUTION
䡵Be sure to close the drive storage cover and door of the
CD/DVD Library before turning it on.
䡵After installing, adding, replacing or removing the drives,
be sure to execute the automatic drive detection mode.
Otherwise, a malfunction may result.
䡵After installing, adding, removing or replacing the drives,
or changing the SCSI ID No., be sure to turn the host
computer off and then turn it on again.
Procedure for Executing the Automatic
Drive Detection Mode of the CD/DVD
Library

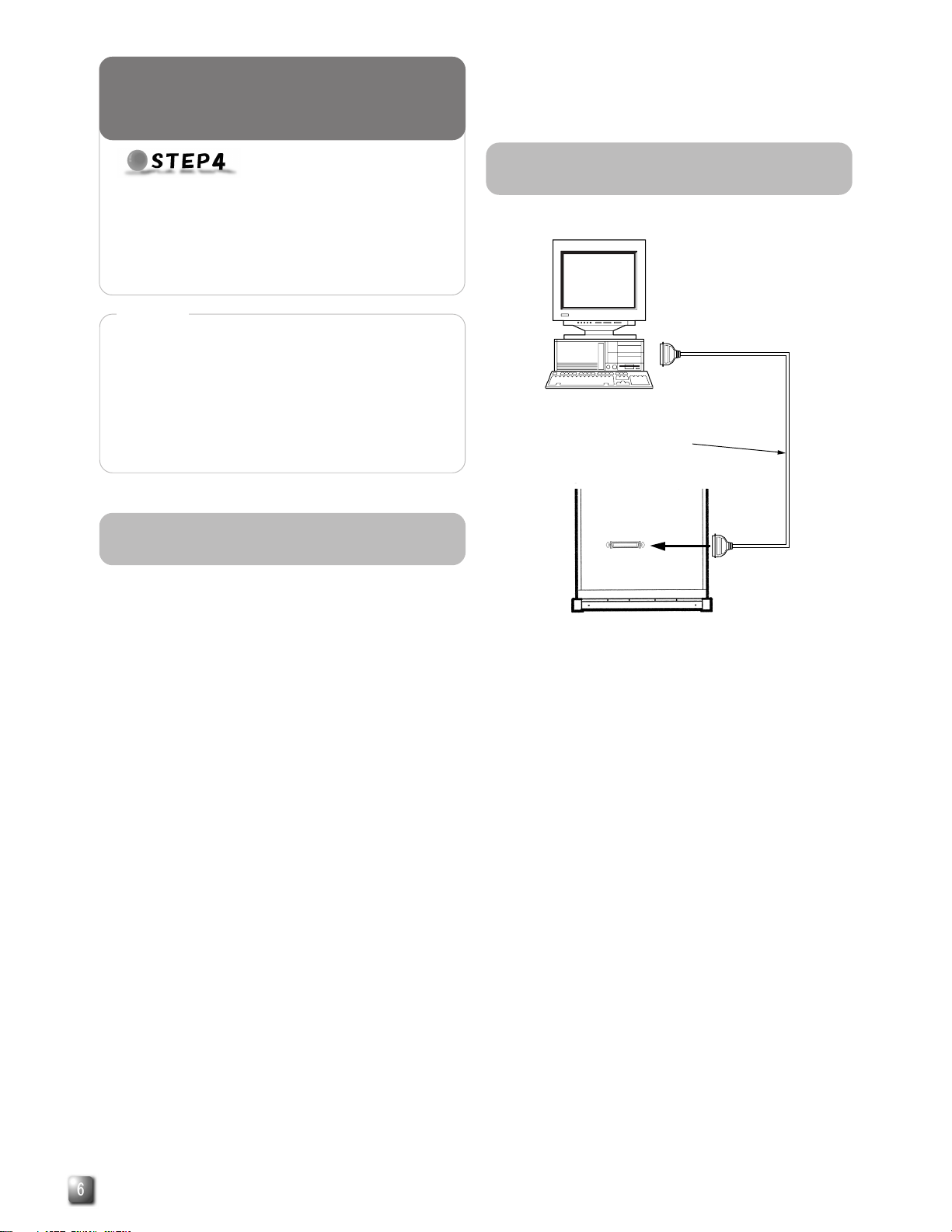

Procedure for Connecting the CD/DVD
Library to the Host Computer
Host computer
CD/DVD library
To the SCSI
connector
"IN" terminal
"SCSI-C"
To the host computer's
host adapter for
controlling the CD/DVD
library
External SCSI cable
(commercially available)
(Ultral60 compatibly)
1. While holding the "8" key on the control panel, turn the
power of the CD/DVD Library on.
2. When the LCD shows "DRIVE DETECTION COM-
PLETED," turn the power of the CD/DVD Library off.
3. Turn the power on again and check the indication for the
drive type (DRIVE DISPLAY).
䡵“DVD-RAM” will be displayed at the DRIVE DISPLAY on
the CD/DVD Library. If “UNKNOWN” is displayed, a cable
connection may not have been performed correctly. In
such a case, first turn off the power, then check the in-
stallation and connection again.
Downloaded from: https://www.usersmanualguide.com/

E
ENGLISH
䡵Interface
Ultra 2 SCSI (80 Mbytes/s)
䡵Data transmission rate
Sustained (when the maximum sync transfer rate of the host adapter is
set to 80 Mbytes/s)
DVD-RAM 4.15 Mbytes/s (3X max.)
(Single-sided 4.7 GB or double-sided 9.4 GB)
DVD-RAM 1.38 Mbytes/s (1X)
(Single side 2.6 GB, read only)
DVD-R 5.44 Mbytes/s (4X max.) (write)
(Single-sided 4.7 GB or double-sided 9.4 GB)
DVD-R 8.31 Mbytes/s (6X max.) (read)
(Single-sided 4.7 GB or double-sided 9.4 GB)
DVD-ROM 16 Mbytes/s
(Single Layer, 12X max.: CAV)
CD-ROM 1.5 Mbytes/s to 4.8 Mbytes/s
(32X max.: CAV)
CD-R Max. 1.8 Mbytes/s (write)
(12X max.)
CD-RW Max. 1.2 Mbytes/s (write)
(8X max.)
Burst(when the maximum sync transfer rate of the host adapter is set to 80
Mbytes/s)
Max. 80 Mbytes/s (sync transfer)
䡵Average access time (1/3 stroke)
DVD-R (4.7 GB for General) : 145 ms
DVD-ROM (Single Layer) : 130 ms
DVD-RAM (4.7 GB) : 185 ms
DVD-RAM (2.6 GB) : 195 ms
CD-ROM : 150 ms
*The above values were measured using JVC's measure
methods.
䡵Buffer capacity
2 Mbytes
䡵Additional write count (DVD-R for General, 4.7 GB)
500 times typical (when a disc and a drive are combined)
15 times typical (when a disc and multiple drives are com bined)
䡵Dimensions
171 mm(W) x 47.5 mm(H) x 240 mm(D)
䡵Weight
1.5 kg
䡵Accessories
Drive locking screw ........................................................x 2
SPECIFICATIONS
䡵Applicable discs
DVD-R 4.7 GB (Ver. 2.0 for General Use)
Recommended discs: Single-sided 4.7 GB
Matsushita Electric Corp.
Mitsubishi Kagaku Media Corp.
Hitachi Maxell Ltd.
TDK Corp.
Ta i y o Yuden Co., Ltd.
Recommended discs: Double-sided 9.4 GB
Mitsubishi Kagaku Media Corp.
Hitachi Maxell Ltd.
DVD-R 3.95 GB (Ver. 1.0, Disc-at-once, read only)
DVD-ROM
DVD-RAM (Ver. 2.1, single-sided 4.7 GB, double-sided 9.4 GB)
Matsushita Electric Corp.
Hitachi Maxell Ltd.
DVD-RAM (Ver. 1.0, single-sided 2.6 GB, read only)
CD-ROM (Mode-1, Mode-2, etc.)
CD-R
Ricoh Company Ltd.
Mitsubishi Kagaku Media Corp.
Hitachi Maxell Ltd.
TDK Corp.
Taiyo Yuden Co., Ltd.
Mitsui Chemicals, Inc.
CD-RW
Ricoh Company Ltd.
Mitsubishi Kagaku Media Corp.
* Note 1: It is recommended to write and read the DVD-R,
DVD-RAM, CD-R and CD-RW discs using the drives
of the same model. If drives of different models
are used in write and read, discs of certain manu-
facturers or production lots may not manifest the
full performance.
* Note 2: Only discs with a diameter of 120 mm are appli-
cable.
* Note 3: Use DVD-R, CD-R and CD-RW discs that match the
optimal writing speed. However, even if the appro-
priate discs are used, an adequate performance
may not be achieved depending on the disc manu-
facturer or production lot compatibility.
䡵Design and specifications are subject to change without no-
tice.
Downloaded from: https://www.usersmanualguide.com/

MC-R434U DVD-RAM/R DRIVE
VICTOR COMPANY OF JAPAN, LIMITED
Printed in Japan
LST0172-001A
© 2003 VICTOR COMPANY OF JAPAN, LIMITED
is a registered Trademark owned by VICTOR COMPANY OF JAPAN, LTD.
is a registered Trademark in JAPAN, the U.S.A., the U.K. and many other countries.
Downloaded from: https://www.usersmanualguide.com/

This file has been downloaded from:
www.UsersManualGuide.com
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
documentation manual, user maintenance, brochure, user reference, pdf manual
Downloaded from: https://www.usersmanualguide.com/
