JVC XV-40BK User manual



OPEN
/CLOSE
STANDBY/ON
PLAY
MODE
123
56
89
0+1010
7
4
3D
PHONIC CANCEL
SUBTITLEANGLE AUDIO
THEATER
POSITION
DIGEST
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW–
TITLE
MENU
CHOICE
ENTER
RM-SXVB40A REMOTE CONTROL
SELECT
DISPLAY
ZOOM
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
STANDBY
STANDBY ON
DVD/VIDEO CD/CD
PAUSEPLAYSTOP
SKIP
OPEN/CLOSE
387
0
¢4
DVD/CD PLAYER
DOLBY
D I G I T A L
Introduction 2
Preliminary knowledge 5
Getting started 13
Basic operations 17
Advanced operations 20
Initial settings 35
Additional information 42
 !






 !"
#$%
"
,16758&7,216 #$!


&'()* +,-.


CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
For U.S.A.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
For Canada/pour le Canada
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT
ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQUAU FOND
For Canada / Pour le Canada
THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B
LIMITS FOR RADIO NOISE EMISSIONS FORM DIGITAL
APPARATUS AS SET OUT IN THE INTERFERENCE-CAUSING
EQUIPMENTSTANDARDENTITLED“DIGITALAPPARATUS,”ICES-
003 OF THE DEPARTMENT OF COMMUNICATIONS.
CETAPPAREILNUMERIQUERESPECTELESLIMITESDEBRUITS
RADIOELECTRIQUES APPLICABLES AUX APPAREILS
NUMERIQUES DE CLASSE B PRESCRITES DANS LA NORME
SUR LE MATERIEL BROUILLEUR: “APPAREILS NUMERIQUES”,
NMB-003 EDICTEE PAR LE MINISTRE DES COMMUNICATIONS.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1. Do not remove screws, covers or cabinet.
2. Do not expose this appliance to rain or moisture.
ATTENTION
Afin d’éviter tout risque d’électrocution, d’incendie, etc.:
1. Ne pas enlever les vis ni les panneaux et ne pas ouvrir le coffret de
l’appareil.
2. Ne pas exposer l’appareil à la pluie ni à l’humidité.
Warnings, Cautions and Others
Mises en garde, précautions et indications diverses
IMPORTANT FOR LASER PRODUCTS
IMPORTANT POUR LES PRODUITS LASER
1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and interlock failed or
defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user service-
able parts inside the Unit; leave all servicing to qualified service
personnel.
1. PRODUIT LASER CLASSE 1
2. ATTENTION: Radiationlaservisiblequandl'appareilestouvertou
queleverrouillageestenpanneoudésactivé.Eviteruneexposition
directe au rayon.
3. ATTENTION: Nepas ouvrir le couvercledudessus. Il n'y aaucune
pièce utilisable à l'intérieur. Laisser à un personnel qualifié le soin
de réparer votre appareil.
Caution –– STANDBY/ON switch!
Disconnect the mains plug to shut the power off completely. The
STANDBY/ON switch in any position does not disconnect the
mains line. The power can be remote controlled.
Attention –– Commutateur STANDBY/ON !
Déconnecterlafichedesecteurpourcoupercomplètementlecourant.
LecommutateurSTANDBY/ON necoupejamaiscomplètementla
ligne de secteur, quelle que soit sa position. Le courant peut être
télécommandé.
CAUTION:
• Do not block the ventilation openings or holes.
(If the ventilation openings or holes are blocked by a newspaper or
cloth, etc., the heat may not be able to get out.)
• Do not place any naked flame sources, such as lighted candles, on
the apparatus.
• Whendiscardingbatteries,environmentalproblemsmustbeconsid-
eredandlocalrulesorlawsgoverningthedisposalofthesebatteries
must be followed strictly.
• Do not use this apparatus in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such as
cosmetics or medicines, flower vases, potted plants, cups, etc.) on
top of this apparatus.
ATTENTION
• Ne bloquez pas les orifices ou les trous de ventilation.
(Silesorificesoules trous de ventilation sont bloqués par un journal
un tissu, etc., la chaleur peut ne pas être évacuée correctement de
l’appareil.)
• Ne placez aucune source de flamme nue, telle qu’une bougie, sur
l’appareil.
• Lors de la mise au rebut des piles, veuillez prendre en
considération les problèmes de l’environnement et suivre
strictement les règles et les lois locales sur la mise au rebut des
piles.
• N’utilisez pas cet appareil dans une salle de bain ou un autre
endroit avec de l’eau.
Ne placez aucun récipient contenant de l’eau (tel que des
cosmétiques ou des médicaments, un vase de fleurs, un pot de
fleurs, une tasse, etc.) sur cet appareil.
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Introduction
1
English

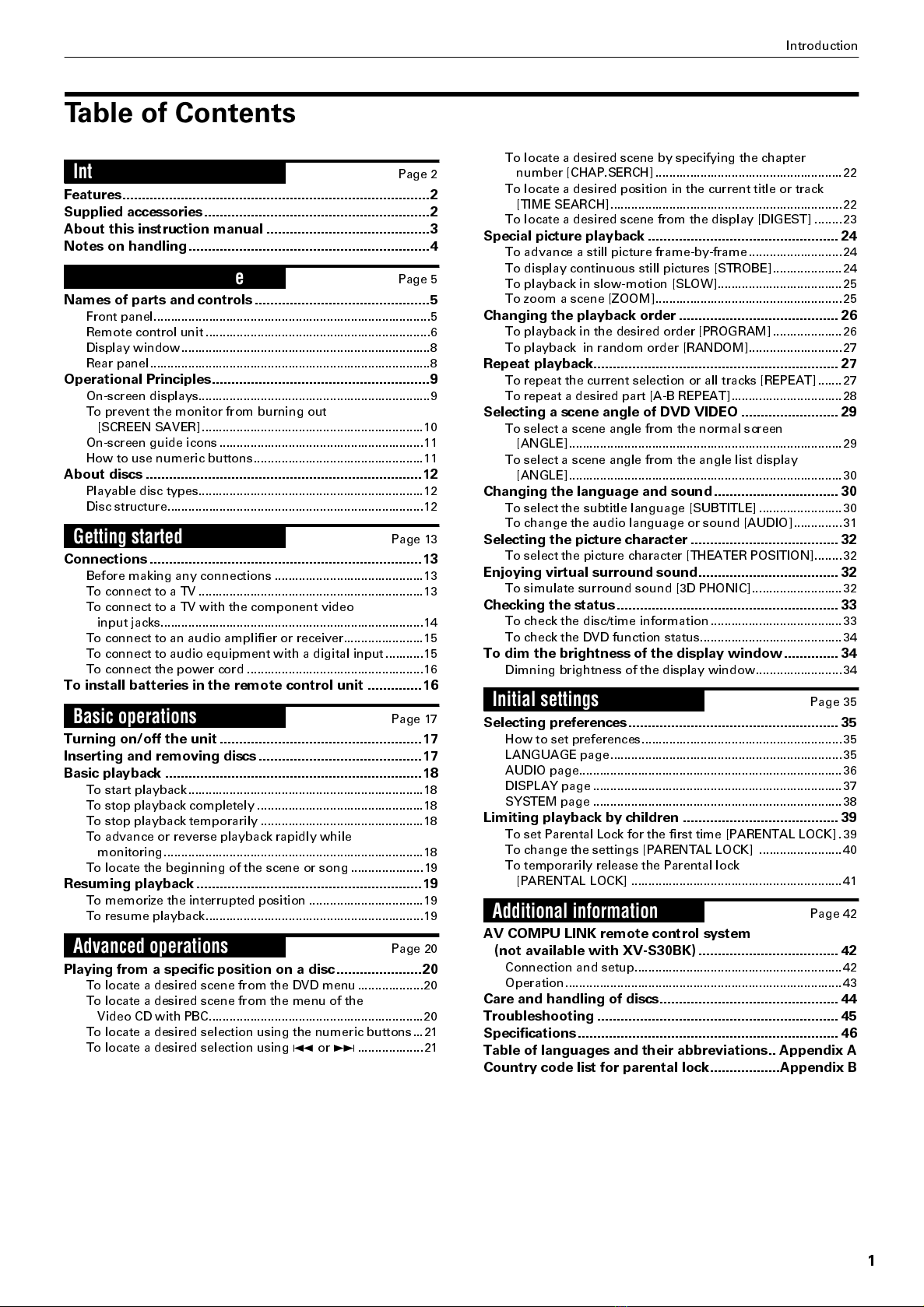

Table of Contents
Introduction
Page 2

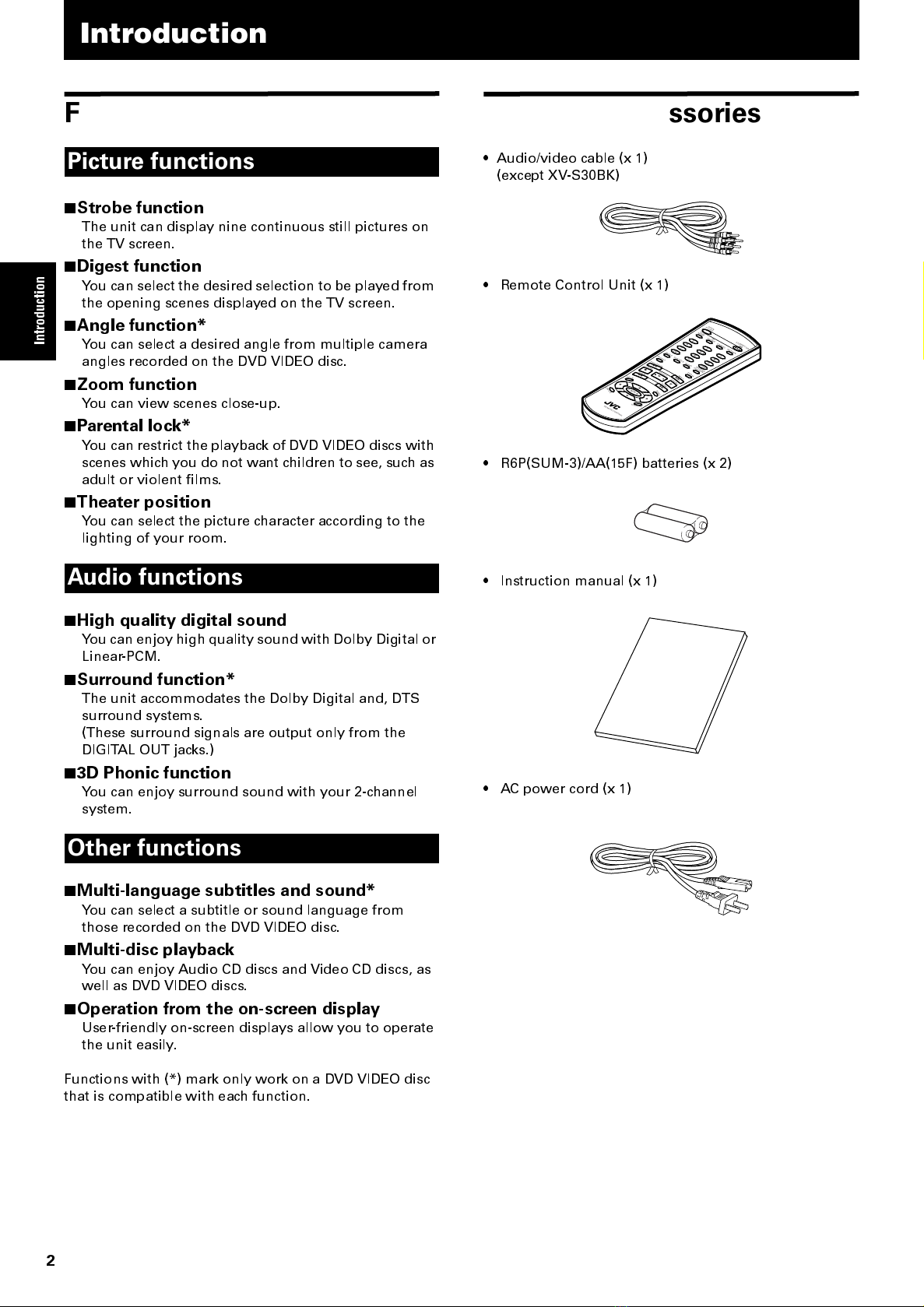

Features...............................................................................2
Supplied accessories..........................................................2
About this instruction manual ..........................................3

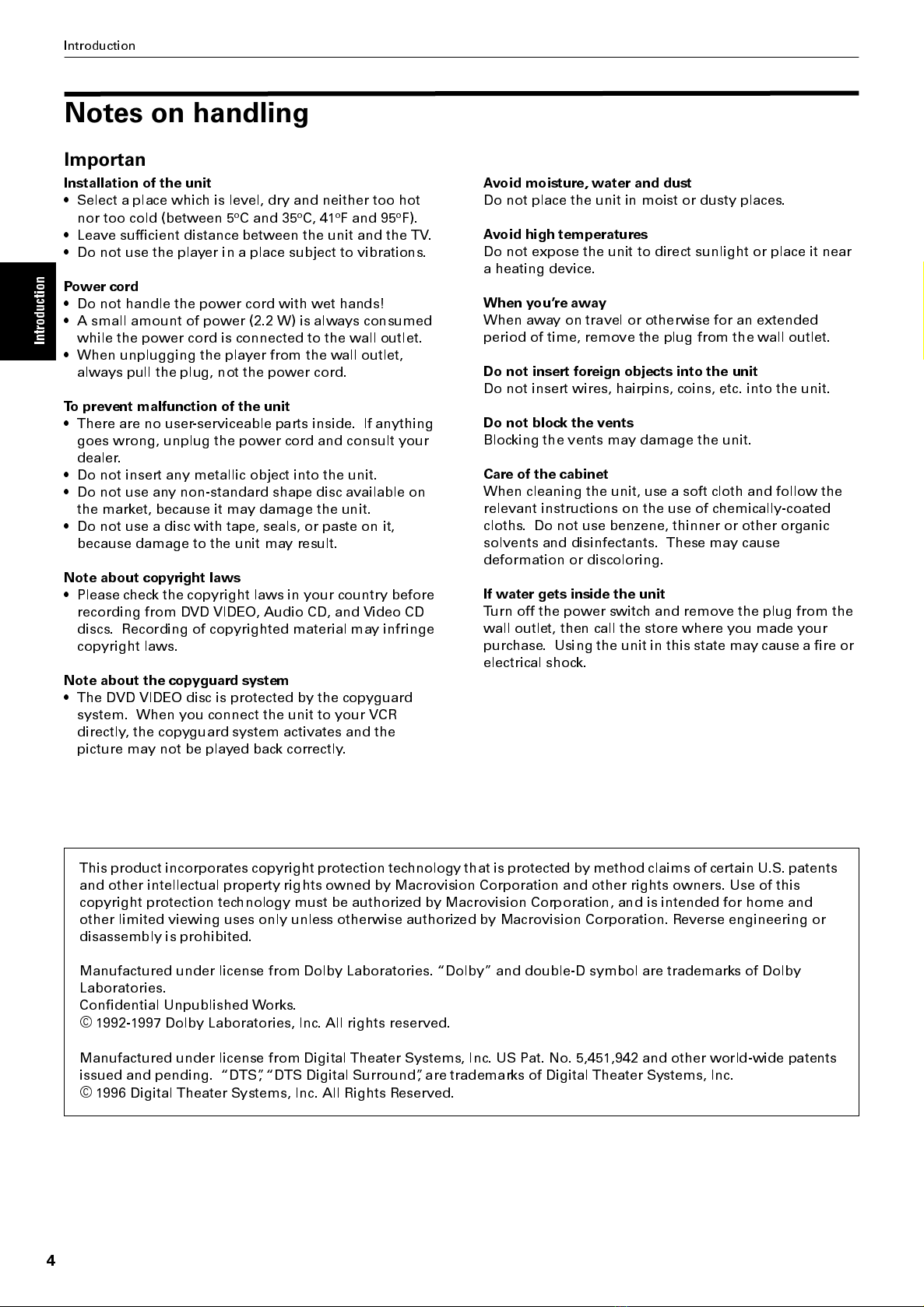

Notes on handling..............................................................4
Preliminary knowledge
Page 5
Names of parts and controls.............................................5
Front panel................................................................................5
Remote control unit .................................................................6
Display window........................................................................8
Rear panel.................................................................................8
Operational Principles........................................................9
On-screen displays...................................................................9
To prevent the monitor from burning out
[SCREEN SAVER]................................................................10
On-screen guide icons...........................................................11
How to use numeric buttons.................................................11

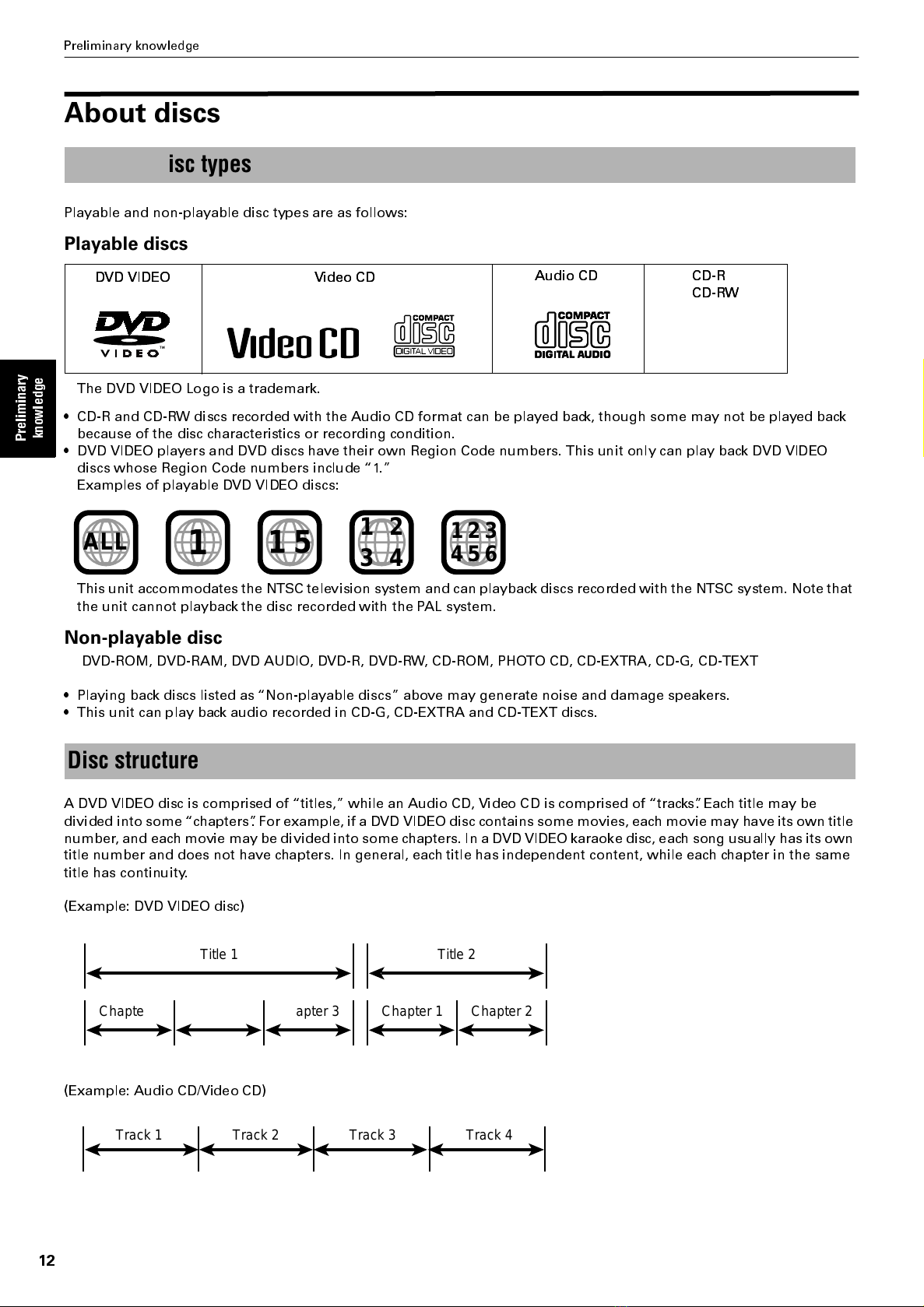

About discs .......................................................................12
Playable disc types.................................................................12
Disc structure..........................................................................12
Getting started
Page 13
Connections ......................................................................13
Before making any connections ...........................................13

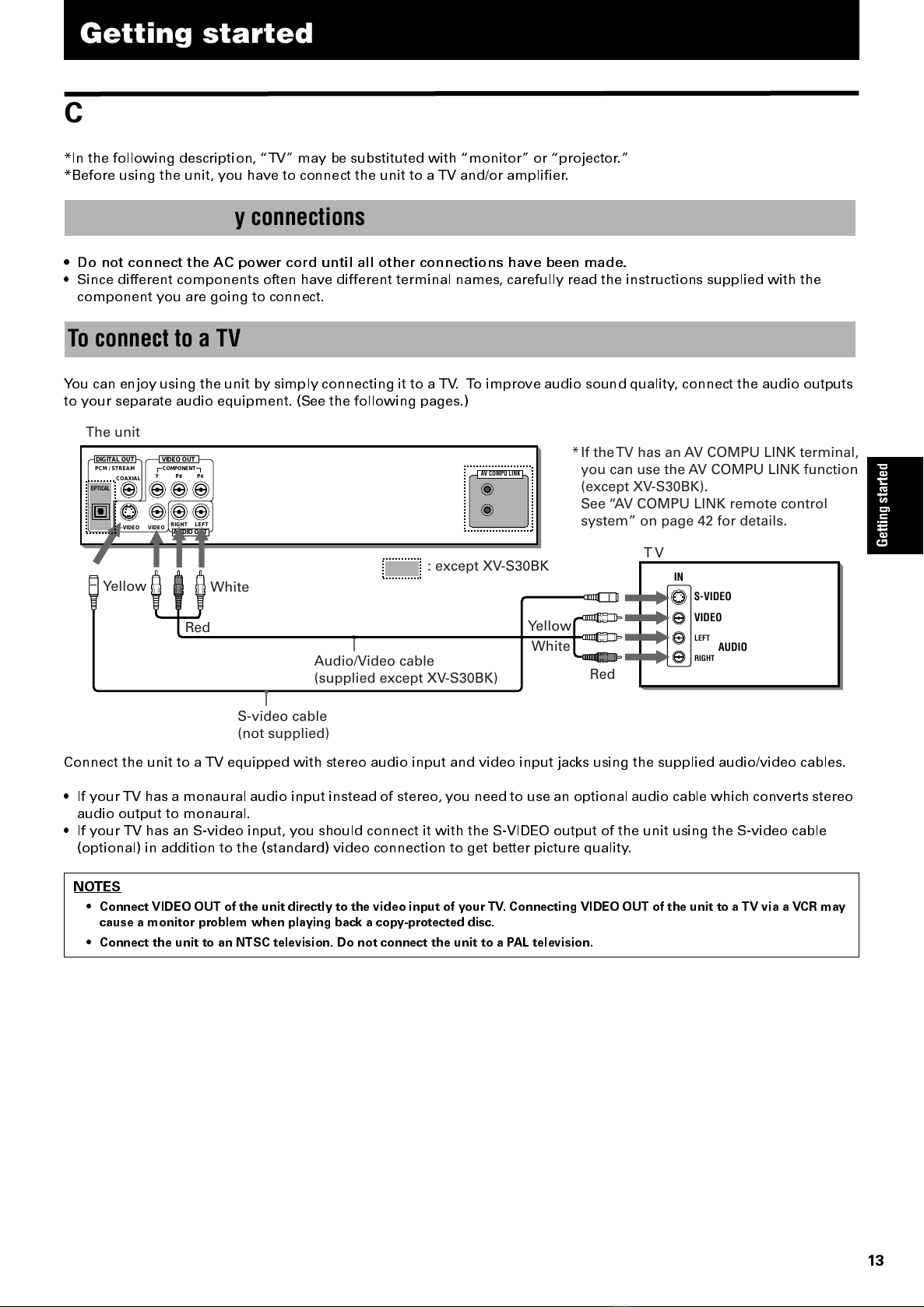

To connect to a TV .................................................................13
To connect to a TV with the component video
input jacks............................................................................14

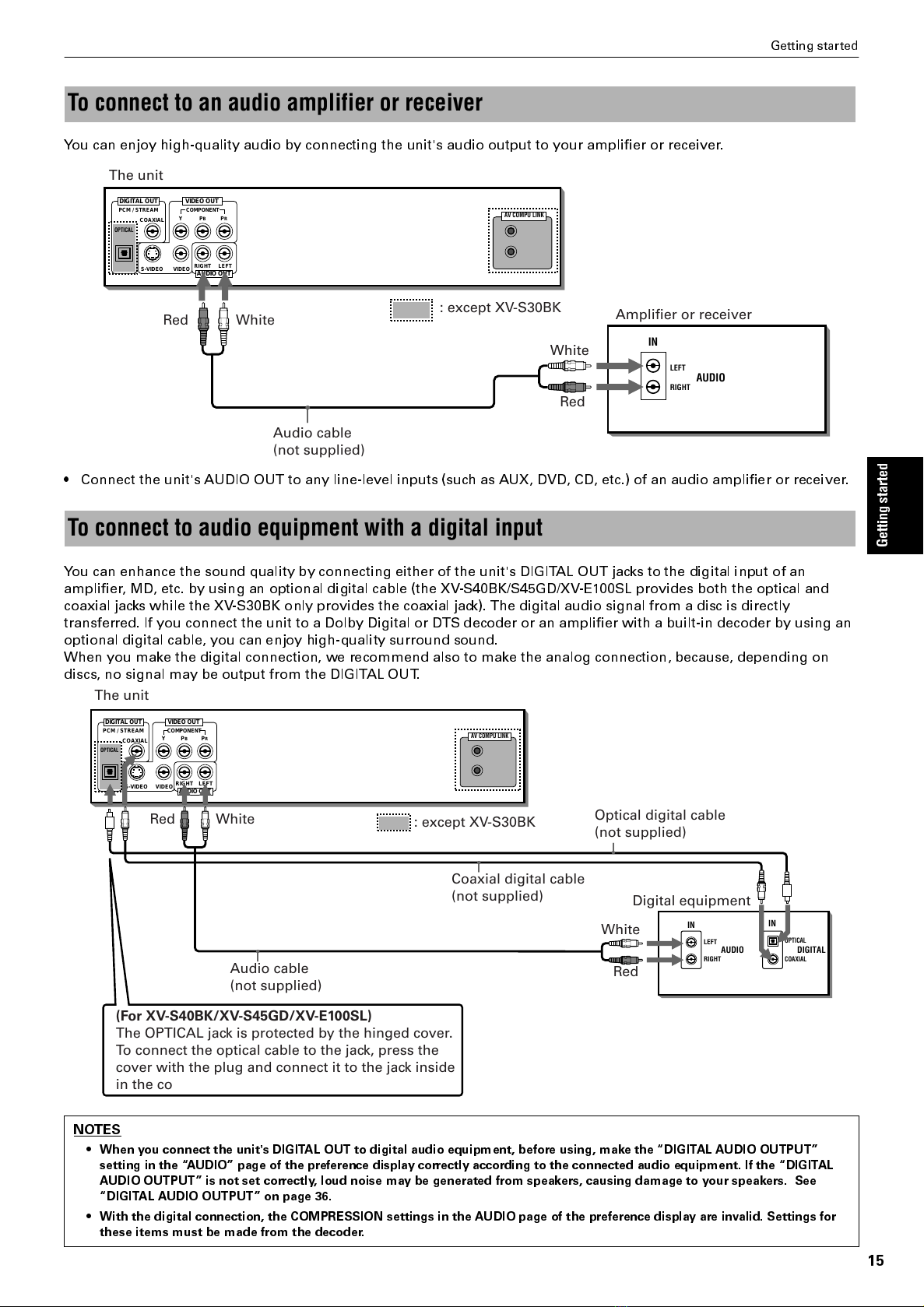

To connect to an audio amplifier or receiver.......................15
To connect to audio equipment with a digital input...........15

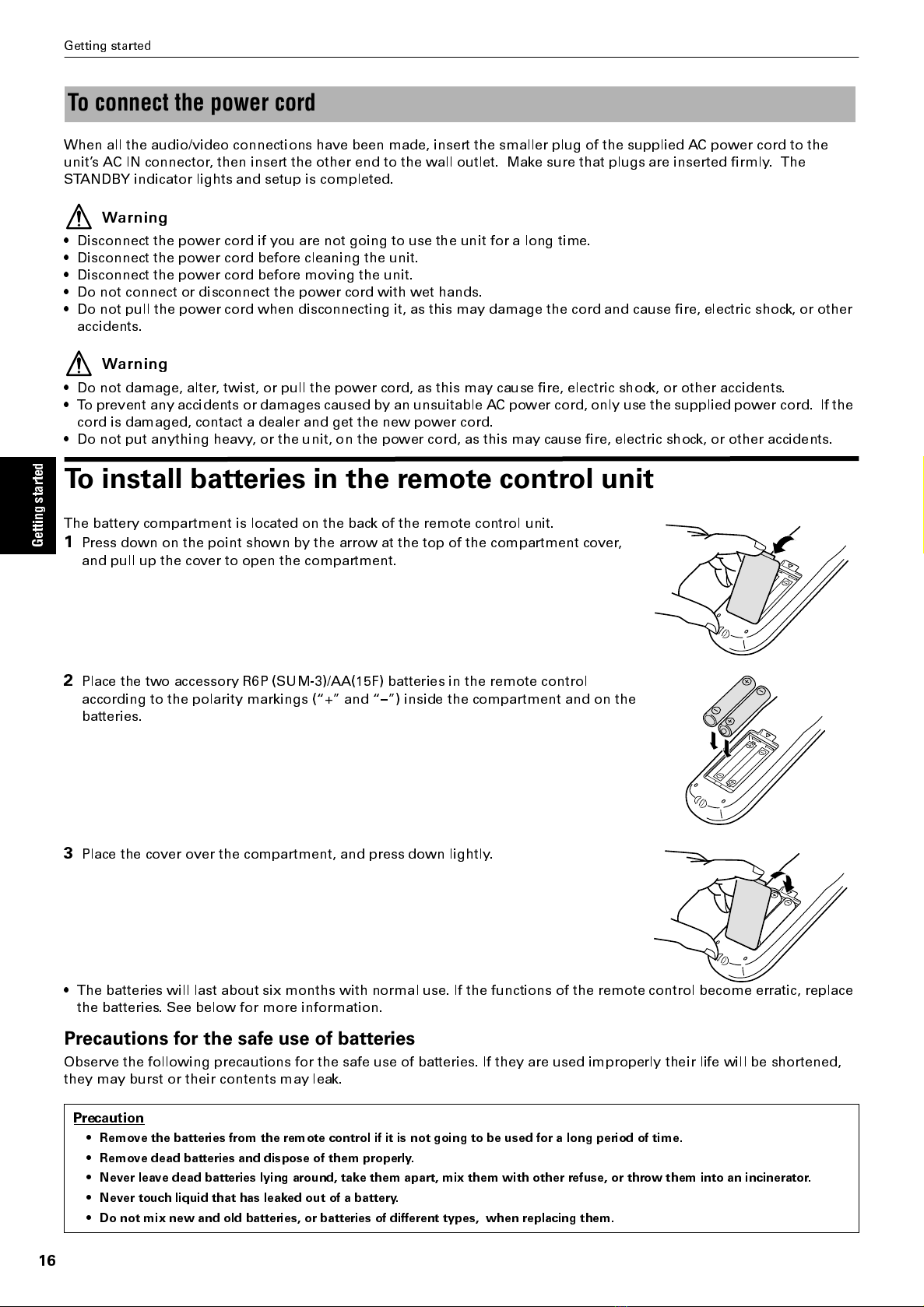

To connect the power cord ...................................................16
To install batteries in the remote control unit ..............16
Basic operations
Page 17
Turning on/off the unit ....................................................17
Inserting and removing discs..........................................17
Basic playback ..................................................................18
To start playback....................................................................18
To stop playback completely ................................................18
To stop playback temporarily ...............................................18
To advance or reverse playback rapidly while
monitoring...........................................................................18
To locate the beginning of the scene or song .....................19
Resuming playback ..........................................................19
To memorize the interrupted position .................................19
To resume playback...............................................................19
Advanced operations
Page 20
Playing from a specific position on a disc......................20
To locate a desired scene from the DVD menu...................20
To locate a desired scene from the menu of the
Video CD with PBC..............................................................20
To locate a desired selection using the numeric buttons...21
To locate a desired selection using 4 or ¢ ...................21
To locate a desired scene by specifying the chapter
number [CHAP.SERCH]......................................................22
To locate a desired position in the current title or track
[TIME SEARCH]...................................................................22
To locate a desired scene from the display [DIGEST] ........23
Special picture playback ................................................. 24
To advance a still picture frame-by-frame...........................24
To display continuous still pictures [STROBE]....................24
To playback in slow-motion [SLOW]....................................25
To zoom a scene [ZOOM]......................................................25
Changing the playback order ......................................... 26
To playback in the desired order [PROGRAM]....................26
To playback in random order [RANDOM]...........................27
Repeat playback............................................................... 27
To repeat the current selection or all tracks [REPEAT].......27
To repeat a desired part [A-B REPEAT]................................28
Selecting a scene angle of DVD VIDEO ......................... 29
To select a scene angle from the normal screen
[ANGLE]...............................................................................29
To select a scene angle from the angle list display
[ANGLE]...............................................................................30
Changing the language and sound................................ 30
To select the subtitle language [SUBTITLE] ........................30
To change the audio language or sound [AUDIO]..............31
Selecting the picture character ...................................... 32
To select the picture character [THEATER POSITION]........32
Enjoying virtual surround sound.................................... 32
To simulate surround sound [3D PHONIC]..........................32
Checking the status......................................................... 33
To check the disc/time information ......................................33
To check the DVD function status.........................................34
To dim the brightness of the display window.............. 34
Dimning brightness of the display window.........................34
Initial settings
Page 35
Selecting preferences...................................................... 35
How to set preferences..........................................................35
LANGUAGE page...................................................................35
AUDIO page............................................................................36
DISPLAY page ........................................................................37
SYSTEM page ........................................................................38
Limiting playback by children ........................................ 39
To set Parental Lock for the first time [PARENTAL LOCK] .39
To change the settings [PARENTAL LOCK] ........................40
To temporarily release the Parental lock
[PARENTAL LOCK] .............................................................41
Additional information
Page 42
AV COMPU LINK remote control system
(not available with XV-S30BK).................................... 42
Connection and setup............................................................42
Operation................................................................................43
Care and handling of discs.............................................. 44
Troubleshooting .............................................................. 45
Specifications................................................................... 46
Table of languages and their abbreviations.. Appendix A
Country code list for parental lock..................Appendix B
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

2
Introduction
Introduction
Features
7 Strobe function
The unit can display nine continuous still pictures on
the TV screen.
7 Digest function
You can select the desired selection to be played from
the opening scenes displayed on the TV screen.
7 Angle function*
You can select a desired angle from multiple camera
angles recorded on the DVD VIDEO disc.
7 Zoom function
You can view scenes close-up.
7 Parental lock*
You can restrict the playback of DVD VIDEO discs with
scenes which you do not want children to see, such as
adult or violent films.
7 Theater position
You can select the picture character according to the
lighting of your room.
7 High quality digital sound
You can enjoy high quality sound with Dolby Digital or
Linear-PCM.
7 Surround function*
The unit accommodates the Dolby Digital and, DTS
surround systems.
(These surround signals are output only from the
DIGITAL OUT jacks.)
7 3D Phonic function
You can enjoy surround sound with your 2-channel
system.
7 Multi-language subtitles and sound*
You can select a subtitle or sound language from
those recorded on the DVD VIDEO disc.
7 Multi-disc playback
You can enjoy Audio CD discs and Video CD discs, as
well as DVD VIDEO discs.
7 Operation from the on-screen display
User-friendly on-screen displays allow you to operate
the unit easily.
Functions with (*) mark only work on a DVD VIDEO disc
that is compatible with each function.
Supplied accessories
 Audio/video cable (x 1)
(except XV-S30BK)
 Remote Control Unit (x 1)
 R6P(SUM-3)/AA(15F) batteries (x 2)
 Instruction manual (x 1)
 AC power cord (x 1)
Picture functions
Audio functions
Other functions
OPEN
/CLOSE STANDBY/ON
PLAY
MODE
123
56
89
0+1010
7
4
3D
PHONIC CANCEL
SUB TITLEANGLE AUDIO THEATER
POSITION
DIGEST
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW
TITLE
MENU
CHOICE
ENTER
RM-SXVB40A REMOTE CONTROL
SELECT
DISPLAY
ZOOM
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Introduction
3
Introduction
About this instruction manual
This instruction manual basically explains operations as follows:
You can play titles or tracks on discs inserted in random
order by using the Random function.
7While stopped
1Press PLAY MODE.
The play mode menu appears on the TV screen.
2Use CURSOR 2/3to move to
[RANDOM].
3Press ENTER.
The unit starts random playback.
The “RANDOM” indicator appears in the display
window on the front panel. After playing all titles/
tracks of the discs, random playback ends.
• The same title or track will not be played back more than
once during random play.
• To stop/quit random playback in the middle
Press 7to stop playback. The unit is still in random
playback mode, so pressing 3starts random playback
again.
To quit random playback, press 7again while stopped.
The “RANDOM” indicator in the display window turns
off.
To playback in random order
[RANDOM]
NOTE
• Some DVD VIDEO discs may not be played back
correctly in the random mode.
1
3
2
OPEN
/CLOSE STANDBY/ON
PLAY
MODE
123
56
89
0+1010
7
4
3D
PHONIC CANCEL
SUBTITLEANGLE AUDIO THEATER
POSITION
DIGEST
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW–
TITLE
MENU
CHOICE
ENTER
RM-SXVB40A REMOTE CONTROL
SELECT
DISPLAY
ZOOM
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
REPEAT PROGRAM RANDOM
These symbols
indicate the types
of discs which the
operation can be
used for.
The number
indicates the
following procedural
step(s) in which the
button(s) is(are)
used.
You may also use the
corresponding
buttons on the front
panel of the unit if
available.
The names of buttons
on the remote control
unit (or on the front
panel of the unit) are
all given in uppercase
letters.
The number
indicates the
procedural step.
Other convenient
procedures, etc.
Additional
supplemental
remarks
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Introduction
4
Introduction
Notes on handling
Important cautions
Installation of the unit
 Select a place which is level, dry and neither too hot
nor too cold (between 5
o
Cand35
o
C, 41
o
F and 95
o
F).
 Leave sufficient distance between the unit and the TV.
 Do not use the player in a place subject to vibrations.
Power cord
 Do not handle the power cord with wet hands!
 A small amount of power (2.2 W) is always consumed
while the power cord is connected to the wall outlet.
 When unplugging the player from the wall outlet,
always pull the plug, not the power cord.
To prevent malfunction of the unit
 There are no user-serviceable parts inside. If anything
goes wrong, unplug the power cord and consult your
dealer.
 Do not insert any metallic object into the unit.
 Do not use any non-standard shape disc available on
the market, because it may damage the unit.
 Do not use a disc with tape, seals, or paste on it,
because damage to the unit may result.
Note about copyright laws
 Please check the copyright laws in your country before
recording from DVD VIDEO, Audio CD, and Video CD
discs. Recording of copyrighted material may infringe
copyright laws.
Note about the copyguard system
 The DVD VIDEO disc is protected by the copyguard
system. When you connect the unit to your VCR
directly, the copyguard system activates and the
picture may not be played back correctly.
Safety precautions
Avoid moisture, water and dust
Do not place the unit in moist or dusty places.
Avoid high temperatures
Do not expose the unit to direct sunlight or place it near
a heating device.
When youre away
When away on travel or otherwise for an extended
period of time, remove the plug from the wall outlet.
Do not insert foreign objects into the unit
Do not insert wires, hairpins, coins, etc. into the unit.
Do not block the vents
Blocking the vents may damage the unit.
Care of the cabinet
When cleaning the unit, use a soft cloth and follow the
relevant instructions on the use of chemically-coated
cloths. Do not use benzene, thinner or other organic
solvents and disinfectants. These may cause
deformation or discoloring.
If water gets inside the unit
Turn off the power switch and remove the plug from the
wall outlet, then call the store where you made your
purchase. Using the unit in this state may cause a fire or
electrical shock.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and
other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
Manufactured under license from Dolby Laboratories. Dolby and double-D symbol are trademarks of Dolby
Laboratories.
Confidential Unpublished Works.
©
1992-1997 Dolby Laboratories, Inc. All rights reserved.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents
issued and pending. DTS, DTS Digital Surround, are trademarks of Digital Theater Systems, Inc.
©
1996 Digital Theater Systems, Inc. All Rights Reserved.
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

5
Preliminary
knowledge
Preliminary knowledge
Names of parts and controls
Refer to the corresponding pages indicated in () for details.
Front panel
1STANDBY indicator
Lights when the power cord is connected and the unit is
on standby. When the unit is turned on, the STANDBY
indicator goes off.
2STANDBY/ON button (17)
Turns the unit on or off (standby).
3
33
3Remote sensor
Receives signals from the remote control unit.
4Disc tray (17)
Used to load a disc.
50(OPEN/CLOSE) button (17)
Used to open and close the disc tray.
6Display window (8)
Indicates the current status of the unit.
74/¢(SKIP) buttons (18)
Used to skip a chapter, title or track. Also, used for the
page selection of a menu screen (for Video CD).
Holding down 4or ¢during playback reverses or
advances playback rapidly.
87(STOP) button (18)
Stops blayback. Also used to change the video output
setting (See page 14).
93(PLAY) button (18)
Starts playback. Also, used as a SELECT button for
PBC of Video CDs.
08(PAUSE) button (18)
Pauses playback. Also, used to display
nine continuous still pictures (STROBE function).
STANDBY
STANDBY ON
DVD / VIDEO CD / CD
PAUSEPLAYSTOP
SKIP
OPEN/CLOSE
387
0
¢4
DOLBY
D I G I T A L
DVD/CD PLAYER
1STANDBY indicator 3Remote sensor 50(OPEN/CLOSE) button
2STANDBY/ON
button
4Disc tray
6Display window 08(PAUSE) button
93(PLAY) button
87(STOP) button
74/¢(SKIP) buttons


Preliminary knowledge
6
Preliminary
knowledge
Remote control unit
OPEN
/CLOSE
STANDBY/ON
PLAY
MODE
123
56
89
0+1010
7
4
3D
PHONIC CANCEL
SUBTITLEANGLE AUDIO
THEATER
POSITION
DIGEST
PREVIOUS
NEXT
CLEAR
STROBE
SLOW+
SLOW–
TITLE
MENU
CHOICE
ENTER
RM-SXVB40A REMOTE CONTROL
SELECT
DISPLAY
ZOOM
RETURN
4
¢
1
¡
5
5
5
∞
7
8
3
1OPEN/CLOSE button
2PLAY MODE button
33D PHONIC button
4Numeric buttons
5ANGLE button
6SUBTITLE button
7DIGEST button
84/PREVIOUS button
97/CLEAR button
01/SLOW– button
-TITLE button
=5UP, ∞DOWN,2LEFT,
3RIGHT (CURSOR)buttons
~CHOICE button
!Infrated signal-emitting
window
@STANDBY/ON
button
#RETURN button
$CANCEL button
%THEATER POSITION
button
^AUDIO button
&ZOOM button
*¢/NEXT button
(8/STROBE button
_¡/SLOW+ button
)3/SELECT button
+MENU button
¡ENTER button
™DISPLAY button


Preliminary knowledge
7
Preliminary
knowledge
1OPEN/CLOSE button (17)
Opens and closes the disc tray.
2PLAY MODE button (22, 26, 27, 28)
Displays an on-screen display for controlling the
advanced playback functions.
33D PHONIC button (32)
Produces a simulated surround effect.
4Numeric buttons (11)
Used to select a title or track number, as well as used to
enter a time for the Time search and a chapter number for
the Chapter search.
5ANGLE button (29, 30)
Changes camera angles during playback of a DVD VIDEO
disc containing multiple camera angles (for DVD VIDEO).
6SUBTITLE button (30)
Used to display the subtitle selection display on the TV
screen, as well as used to turn the subtitle on or off (for
DVD VIDEO).
7DIGEST button (23)
Displays beginning scenes of each title, chapter or track
on the TV screen (for DVD VIDEO/Video CD).
84/PREVIOUS button (18, 19, 21)
Skips back a chapter, title or track. Also used for the page
selection of a menu screen (for DVD VIDEO/Video CD).
Holding down this button during playback reverses
playback rapidly.
97/CLEAR button (18, 26)
Stops playback. Also used to erase all the programmed
tracks for the program play.
01/SLOW– button (18, 25)
Pressing this button during playback reverses playback
rapidly.
Pressing this button while a DVD VIDEO disc is paused
reverses playback slowly.
-TITLE button (20)
Displays the title menu of a DVD VIDEO disc on the TV
screen.
=5UP, ∞DOWN, 2LEFT, 3RIGHT (CURSOR) buttons
Used to select an item form a menu or on-screen display,
or to change the setting of an item in the on-screen
display.
In this manual, we sometimes call them “CURSOR”
buttons.
~CHOICE button (35)
Displays the preference on-screen display on the TV
screen.
!Infrared signal-emitting window
Point this window toward the remote sensor on the front
panel when pressing buttons.
@STANDBY/ON button (17)
Turns the unit on or off (standby).
#RETURN button (20)
Returns to the previous menu (for DVD VIDEO/Video CD).
$CANCEL button (26)
Cancels the last programmed selection in the Program
mode.
%THEATER POSITION button (32)
Selects a picture character from 4 options (for DVD
VIDEO/Video CD).
^AUDIO button (31)
Selects the audio (for DVD VIDEO/Video CD).
&ZOOM button (25)
Zooms in the picture (for DVD VIDEO/Video CD).
*¢/NEXT button (18, 19, 21)
Skips forward a chapter, title or track. Also used for the
page selection of a menu screen (for DVD VIDEO/Video
CD).
Holding down this button during playback advances
playback rapidly.
(8/STROBE button (18, 24)
Pauses playback. Also, used to display nine continuous
still pictures (STROBE function).
)3/SELECT button (18, 20)
Starts playback. Also used as a SELECT button for PBC of
Video CDs.
_¡/SLOW+ button (18, 25)
Pressing this button during playback advances playback
rapidly.
Pressing this button while a DVD VIDEO or Video CD disc
is paused advances playback slowly.
+MENU button (20)
Displays a DVD menu on the TV screen.
¡ENTER button
Executes the selected item in a menu or on-screen
display.
DISPLAY button (34)
Displays the status information (only for DVD disc) or the
time information (for any types of discs).


Preliminary knowledge
8
Preliminary
knowledge
Display window
1Disc indicator
Indicates the type of the disc set in the selected tray.
When setting a DVD VIDEO, Video CD or Audio CD disc is
set, “DVD”, “VCD” or “CD” illuminates, respectively.
2Title/chapter/track indicators
Displays title/chapter, or track number.
3Repeat mode indicators
The appropriate indicator illuminates according to the
current repeat mode.
4PROGRAM/RANDOM indicators
The appropriate indicator illuminates while the unit is in
the Program or Random playback mode.
5Multi-information window
Displays the current title/track/chapter number(s), time
and status information.
Rear panel
1DIGITAL OUT jack(s) (OPTICAL/COAXIAL) (15)
Outputs digital audio signals. You must select the signal
type correctly according to the external device connected
to via the Preference display. The XV-S40BK/XV-S45GD/
XV-E100SL provides both the OPTICAL and COAXIAL
connectors, while XV-S30BK provides only the COAXIAL
connector.
2COMPONENT VIDEO OUT jacks (Y/PB/PR) (14)
Output component video signals.
These jacks are not active in the initial (factory preset)
condition. See page 14 for details about how to make
them active.
3S-VIDEO OUT jack (13)
Outputs an S-video signal.
Note that this jack is not active when you make the
COMPONENT VIDEO OUT jacks active. See pages 13 and
14 for details about how to make them active.
4VIDEO OUT jack (13)
Outputs a composite video signal.
5AUDIO OUT jacks (LEFT/RIGHT) (13,14)
Outputs stereo analog audio signals.
6AV COMPU LINK jacks (42) (except XV-S30BK)
Connects with other JVC equipment supporting the AV
Compulink function to facilitate integrated operations.
7AC IN connector (16)
Connects to the wall outlet using the suppplied AC power
cord.
VCDVD TITLE TRACK CHAP A
-
B1
PROGRAM
RANDOM
1Disc indicator 2Title/chapter/
track indicators
3Repeat mode indicators
5Multi-information window
4PROGRAM/RANDAM indicators
1DIGITAL OUT jack(s) (OPTICAL/COAXIAL)
2COMPONENT VIDEO OUT jacks (Y/PB/PR)
5AUDIO OUT jacks (LEFT/RIGHT)
6AV COMPU LINK jacks
: except XV-S30BK
7AC IN connector
4VIDEO OUT jack
3S-VIDEO OUT jack
1
DIGITAL OUT
PCM / STREAM
COAXIAL
VIDEO OUT
AC IN
AUDIO OUT
COMPONENT
S-VIDEO VIDEO RIGHT LEFT
YP
BPR
AV COMPU LINK
OPTICAL


Preliminary knowledge
9
Preliminary
knowledge
Operational Principles
The unit provides several on-screen displays.
With some displays, you can set or select preferences or
functions, while the others are display-only.
Opening displays
The Opening display appears automatically in some
conditions.
At the bottom, the following information are indicated
depending on the units status.
 NOW READING: The unit is now reading the disc
information (TOC).
 REGION CODE ERROR!: The DVD VIDEO disc loaded
cannot be played because the region code of the disc
does not match the unit.
 OPEN: The disc tray is now opening.
 CLOSE: The disc tray is now closing.
Preference displays
When no disk is inserted or when a DVD VIDEO or Video
CD disk is inserted and stopped, pressing the CHOICE
button brings up the preference display for setting the
preferences.
There are four pages: LANGUAGE, AUDIO, DISPLAY and
SYSTEM as shown on the right.
See page 35 for detailed information.
PARENTAL LOCK display
When no disc is inserted or a DVD VIDEO disc is stopped,
pressing the ENTER button while holding down the
7
button brings up the PARENTAL LOCK display in which
you can set the level for limiting playback.
See page 39 for detailed information.
On-screen displays
AUTO STANDBY OFF
OFF
EXIT
RESUME
AUDIO DISPLAY SYSTEM
LANGUAGE
DVD 1
AV COMPULINK MODE
PRESS KEY
SYSTEM
Country CodeUS
—
- - - -
EXIT
Set Level
PASSWORD
PRESS KEY ENTER
PARENTAL LOCK
PARENTAL LOCK
MONITOR TYPE 4:3 LB
MODE 2
ON
EXIT
SCREEN SAVER
ON SCREEN GUIDE
AUDIO DISPLAY SYSTEM
LANGUAGE
PRESS KEY
DISPLAY
DIGITAL AUDIO OUTPUT STREAM / PCM
Lo / Ro
ON
EXIT
DOWN MIX
COMPRESSION
AUDIO DISPLAY SYSTEM
LANGUAGE
PRESS KEY
AUDIO
MENU LANGUAGE ENGLISH
ENGLISH
ENGLISH
ENGLISH
EXIT
AUDIO LANGUAGE
SUBTITLE
ON SCREEN LANGUAGE
AUDIO DISPLAY SYSTEM
LANGUAGE
PRESS KEY
LANGUAGE
NOW READING
Opening display
* The AV COMPULINK
MODE selection is
not availablewith the
XV-S30BK.
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Preliminary knowledge
10
Preliminary
knowledge
Play mode displays
Pressing the PLAY MODE button brings up the play
mode display in which you can control playback
functions.
Different displays appear depending on the disc type and
the units status.
Status displays
Pressing the DISPLAY button during playback brings up
the status display.
For a DVD VIDEO disc, pressing the DISPLAY button
toggles between the DVD VIDEO function status display,
the disc/time display and off.
For a Video CD or Audio CD disc, pressing the DISPLAY
button switches the disc/time display on and off.
A television monitor screen may be burned out if a static
picture is displayed for a long time. To prevent this, the
unit automatically activates the screen saver function if a
static picture, such as an on-screen display or menu, is
displayed for over 5 minutes.
 Pressing any button on the unit or the remote control
unit will release the screen saver function and return to
the previous display.
 You can select one of several screen saver modes
available (see page 37).
 The screen saver function is not activated during
Audio CD playback or after stopping Audio CD
playback.
REPEAT PROGRAM RANDOM
While stopped
DVD CONTROL
REPEAT A-B REPEAT TIME SEARCH CHAP. SEARCH
During DVD VIDEO playbac
k
CD CONTROL
REPEAT A-B REPEAT TIME SEARCH
During Audio CD playback
VCD CONTROL
REPEAT A-B REPEAT TIME SEARCH PBC CALL
During Video CD playback
ENGLISH ENGLISH
1 / 2 1 / 2 1 / 2
DVD VIDEO function status
1 25 2:25:25 3.3
TITLE CHAP. TIME BITRATE Mbps
Disk/time (DVD VIDEO)
1 00:08
TRACK TIME EACH
Disk/time (Audio CD/Video CD
without PBC)
1 25:25 PBC
TRACK TIME
Disk/time
(Video CD with PBC)
To prevent the monitor from burning out [SCREEN SAVER]
DVD/Video CD/CD PLAYER
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Preliminary knowledge
11
Preliminary
knowledge
On-screen guide icons
During DVD VIDEO playback, you may see icons displayed over the picture. These have
the following meanings.
: Displayed at the beginning of a scene recorded from multiple angles. (See page 29.)
: Displayed at the beginning of a scene recorded with multiple audio languages. (See
page 31.)
: Displayed at the beginning of a scene recorded with multiple subtitle languages. (See
page 30.)
You can set the unit not to display on-screen icons above via the preference settings
described on page 38.
About invalid operation icon
When you press a button, if the unit does not accept its operation, appears on your
television screen. Operations are occasionally unacceptable even if is not displayed.
Note that some operations may not be accepted. For example, some discs may not allow
rapid advance/reverse or slow-motion playback.
How to use numeric buttons
To select a track/title number
 To select a number between 1 and 10
Press the corresponding button for the number.
 To select a number higher than 10
Use the +10 button.
Examples:
To select 13 +10 o 3
To select 34 +10 o +10 o +10 o 4
To select 40 +10 o +10 o +10 o 10
To enter a time or chapter number
The method for entering a time for Time search or chapter number for Chapter search is
different from above. See the corresponding sections in this manual for the details.
/CLOSE
SUBTITLEANGLE AUDIO THEATER
POSITION
123
56
89
0+1010
7
4
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Preliminary knowledge
12
Preliminary
knowledge
About discs
Playable and non-playable disc types are as follows:
Playable discs
The DVD VIDEO Logo is a trademark.
 CD-R and CD-RW discs recorded with the Audio CD format can be played back, though some may not be played back
because of the disc characteristics or recording condition.
 DVD VIDEO players and DVD discs have their own Region Code numbers. This unit only can play back DVD VIDEO
discs whose Region Code numbers include 1.
Examples of playable DVD VIDEO discs:
This unit accommodates the NTSC television system and can playback discs recorded with the NTSC system. Note that
the unit cannot playback the disc recorded with the PAL system.
Non-playable discs
DVD-ROM, DVD-RAM, DVD AUDIO, DVD-R, DVD-RW, CD-ROM, PHOTO CD, CD-EXTRA, CD-G, CD-TEXT
 Playing back discs listed as Non-playable discs above may generate noise and damage speakers.
 This unit can play back audio recorded in CD-G, CD-EXTRA and CD-TEXT discs.
A DVD VIDEO disc is comprised of titles, while an Audio CD, Video CD is comprised of tracks. Each title may be
divided into some chapters. For example, if a DVD VIDEO disc contains some movies, each movie may have its own title
number, and each movie may be divided into some chapters. In a DVD VIDEO karaoke disc, each song usually has its own
title number and does not have chapters. In general, each title has independent content, while each chapter in the same
title has continuity.
(Example: DVD VIDEO disc)
(Example: Audio CD/Video CD)
Playable disc types
Disc structure
DVD VIDEO Video CD Audio CD CD-R
CD-RW
ALL 151 4
2
3
13
2
16
5
4
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2
Title 1 Title 2
Track 1 Track 2 Track 3 Track 4
DVD VIDEO Video CD Audio CD CD-R
CD-RW
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

13
Getting started
Getting started
Connections
*In the following description, TV may be substituted with monitor or projector.
*Before using the unit, you have to connect the unit to a TV and/or amplifier.
 Do not connect the AC power cord until all other connections have been made.
 Since different components often have different terminal names, carefully read the instructions supplied with the
component you are going to connect.
You can enjoy using the unit by simply connecting it to a TV. To improve audio sound quality, connect the audio outputs
to your separate audio equipment. (See the following pages.)
Connect the unit to a TV equipped with stereo audio input and video input jacks using the supplied audio/video cables.
 If your TV has a monaural audio input instead of stereo, you need to use an optional audio cable which converts stereo
audio output to monaural.
 If your TV has an S-video input, you should connect it with the S-VIDEO output of the unit using the S-video cable
(optional) in addition to the (standard) video connection to get better picture quality.
Before making any connections
To connect to a TV
NOTES
 Connect VIDEO OUT of the unit directly to the video input of your TV. Connecting VIDEO OUT of the unit to a TV via a VCR may
cause a monitor problem when playing back a copy-protected disc.
 Connect the unit to an NTSC television. Do not connect the unit to a PAL television.
DIGITAL OUT
PCM / STREAM
COAXIAL
VIDEO OUT
AUDIO OUT
COMPONENT
S-VIDEO VIDEO RIGHT LEFT
YP
BPR
AV COMPU LINK
OPTICAL
VIDEO
AUDIO
RIGHT
LEFT
S-VIDEO
IN
If theTV has an AV COMPU LINK terminal,
you can use the AV COMPU LINK function
(except XV-S30BK).
See “AV COMPU LINK remote control
system” on page 42 for details.
*
T V
Yellow
Audio/Video cable
(supplied except XV-S30BK)
White
Red
S-video cable
(not supplied)
: except XV-S30BK
The unit
Yellow White
Red
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Getting started
14
Getting started
You can enjoy high picture quality by connecting the units COMPONENT VIDEO OUT jacks to the COMPONENT VIDEO IN
jacks of your TV with the video cables.
Note that the COMPONENT VIDEO OUT jacks are not active in the initial (factory preset) condition. See below for details
how to make them active.
 Connect Y to Y, P
B
toP
B
, P
R
toP
R
 correctly.
How to make the COMPONENT VIDEO OUT jacks active
Either the COMPONENT VIDEO OUT jacks or the S-VIDEO jack can be active. In the initial (factory preset) condition, the S-
VIDEO jack is active while the COMPONENT VIDEO OUT jacks are not active.
To change the active jack(s) from the initial S-VIDEO to COMPONENT VIDEO, use the following procedure.
7 When the unit is turned on
1
Press and hold down the 7 (STOP) button on the front panel when no disc is inserted or while the unit is stopped.
S-VIDEO (the current setting) appears in the display window after a few seconds,.
2
Keep holding down the 7 (STOP) button on the front panel.
After a few more seconds, COMPONENT replaces S-VIDEO in the display window.
Now the COMPONENT VIDEO jacks are active.
 To change the active jack(s) from the COMPONENT VIDEO to the S-VIDEO jack, use the similar procedure.
To connect to a TV with the component video input jacks
NOTE
 When the component video input jacks of the TV is of the BNC type, use an adapter to convert a pin jack to a BNC jack
(optional).
VIDEO
IN
IN
S-VIDEO
YPBPR
AUDIO
RIGHT
LEFT
DIGITAL OUT
PCM / STREAM
COAXIAL
VIDEO OUT
AUDIO OUT
COMPONENT
S-VIDEO VIDEO RIGHT LEFT
YP
BPR
AV COMPU LINK
OPTICAL
TV
Audio cable (not supplied)
White
Red
: except XV-S30BK
The unit
WhiteRed
Green Red
Blue
Component video cable
(not supplied)
Green Red
Blue
VCDVD TITLE TRACK CHAP A
-
B1
PROGRAM
RANDOM
(Display Window)
VCDVD TITLE TRACK CHAP A
-
B1
PROGRAM
RANDOM
(Display Window)
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Getting started
15
Getting started
You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.
 Connect the unit's AUDIO OUT to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or receiver.
You can enhance the sound quality by connecting either of the unit's DIGITAL OUT jacks to the digital input of an
amplifier, MD, etc. by using an optional digital cable (the XV-S40BK/S45GD/XV-E100SL provides both the optical and
coaxial jacks while the XV-S30BK only provides the coaxial jack). The digital audio signal from a disc is directly
transferred. If you connect the unit to a Dolby Digital or DTS decoder or an amplifier with a built-in decoder by using an
optional digital cable, you can enjoy high-quality surround sound.
When you make the digital connection, we recommend also to make the analog connection, because, depending on
discs, no signal may be output from the DIGITAL OUT.
To connect to an audio amplifier or receiver
To connect to audio equipment with a digital input
NOTES
 When you connect the unit's DIGITAL OUT to digital audio equipment, before using, make the DIGITAL AUDIO OUTPUT
setting in the AUDIO page of the preference display correctly according to the connected audio equipment. If the DIGITAL
AUDIO OUTPUT is not set correctly, loud noise may be generated from speakers, causing damage to your speakers. See
DIGITAL AUDIO OUTPUT on page 36.
 With the digital connection, the COMPRESSION settings in the AUDIO page of the preference display are invalid. Settings for
these items must be made from the decoder.
DIGITAL OUT
PCM / STREAM
COAXIAL
VIDEO OUT
AUDIO OUT
COMPONENT
S-VIDEO VIDEO RIGHT LEFT
YP
BPR
AV COMPU LINK
OPTICAL
AUDIO
RIGHT
LEFT
IN
Amplifier or receiver
Audio cable
(not supplied)
White
Red
: except XV-S30BK
The unit
WhiteRed
AUDIO
RIGHT
LEFT
IN
OPTICAL
COAXIAL
DIGITAL
IN
DIGITAL OUT
PCM / STREAM
COAXIAL
VIDEO OUT
AUDIO OUT
COMPONENT
S-VIDEO VIDEO RIGHT LEFT
YP
BPR
AV COMPU LINK
OPTICAL
Digital equipment
Audio cable
(not supplied)
White
Red
: except XV-S30BK
The unit
WhiteRed
Coaxial digital cable
(not supplied)
Optical digital cable
(not supplied)
(For XV-S40BK/XV-S45GD/XV-E100SL)
The OPTICAL jack is protected by the hinged cover.
To connect the optical cable to the jack, press the
cover with the plug and connect it to the jack inside
in the correct direction.
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

Getting started
16
Getting started
When all the audio/video connections have been made, insert the smaller plug of the supplied AC power cord to the
units AC IN connector, then insert the other end to the wall outlet. Make sure that plugs are inserted firmly. The
STANDBY indicator lights and setup is completed.
Warning
 Disconnect the power cord if you are not going to use the unit for a long time.
 Disconnect the power cord before cleaning the unit.
 Disconnect the power cord before moving the unit.
 Do not connect or disconnect the power cord with wet hands.
 Do not pull the power cord when disconnecting it, as this may damage the cord and cause fire, electric shock, or other
accidents.
Warning
 Do not damage, alter, twist, or pull the power cord, as this may cause fire, electric shock, or other accidents.
 To prevent any accidents or damages caused by an unsuitable AC power cord, only use the supplied power cord. If the
cord is damaged, contact a dealer and get the new power cord.
 Do not put anything heavy, or the unit, on the power cord, as this may cause fire, electric shock, or other accidents.
To install batteries in the remote control unit
The battery compartment is located on the back of the remote control unit.
1
Press down on the point shown by the arrow at the top of the compartment cover,
and pull up the cover to open the compartment.
2
Place the two accessory R6P (SUM-3)/AA(15F) batteries in the remote control
according to the polarity markings (+ and ) inside the compartment and on the
batteries.
3
Place the cover over the compartment, and press down lightly.
 The batteries will last about six months with normal use. If the functions of the remote control become erratic, replace
the batteries. See below for more information.
Precautions for the safe use of batteries
Observe the following precautions for the safe use of batteries. If they are used improperly their life will be shortened,
they may burst or their contents may leak.
To connect the power cord
Precaution
 Remove the batteries from the remote control if it is not going to be used for a long period of time.
 Remove dead batteries and dispose of them properly.
 Never leave dead batteries lying around, take them apart, mix them with other refuse, or throw them into an incinerator.
 Never touch liquid that has leaked out of a battery.
 Do not mix new and old batteries, or batteries of different types, when replacing them.
6(1*ERRN 3DJH  7KXUVGD\ )HEUXDU\    30

17
Basic operations
Basic operations
In the following description, the buttons on the remote control unit are mainly used, however, you may use the
corresponding buttons on the front panel of the unit if available.
Turning on/off the unit
Press STANDBY/ON on the remote control unit or press on the front panel.
• You can turn on the unit by pressing the 3button. In this
case, the unit starts playback if the disc is set in the disc
tray.
• If no disc is set, “NO DISC” appears on the display window.
• You can turn on the unit by pressing the 0(OPEN/CLOSE)
button on the front panel.
Inserting and removing discs
1Press0(OPEN/CLOSE) to open the disc tray.
2Place the disc in the tray.
3Press 0(OPEN/CLOSE) to close the disc tray.
• If you press 0(OPEN/CLOSE) during playback, the unit stops playback and opens the tray.
OPEN
/CLOSE
STANDBY/ON
PLAY
MODE
123
56
89
0+1010
7
4
3D
PHONIC CANCEL RETURN
STANDBY/ON
STANDBY
STANDBY ON
DVD / VIDEO CD / CD
PAUSEPLAYSTOP
SKIP
OPEN/CLOSE
387
0
¢4
DOLBY
D I G I T A L
DVD/CD PLAYER
NOTE
• Even if you press the STANDBY/ON or button to turn off the unit, the unit is not disconnected from the AC power source
as long as it is connected to the wall outlet. This state is called the standby mode. In this state, the unit consumes a very small
amount of power.
NOTES
• The unit can playback DVD VIDEO, Audio CD, and Video CD discs only. Do not load other disc types. For details about playable
disc types, see page 12.
• When loading a disc in the tray, be sure to position the disc inside the recess. Otherwise, the disc may be damaged when the
tray is closed, and the disc may not be removed from the unit.
STANDBY
STANDBYON
DVDVIDEOCDCD
PAUSE
PLAY
STOP
SKIP
OPEN/CLOSE
38
7
0
¢
4
XV-S30DVDPLAYER
DOLBY
D
I
G
I
T
A
L
VCDVD
GROUPTITLETRACKCHAPD.MIX
A
-
B
1
ANGLE
LPCM
MPEG
DOLBY
DIGITAL
PROGRAM
RANDOM
DTS
With the label side up
To insert an 8-cm disc, place
it in the inner recess.
•


Basic operations
18
Basic operations
Basic playback
Now you can play a disc. First, let’s enjoy simple playback according to following procedure.
Press 3.
The unit starts playback from the begining.
.
Press 7 .
The unit stops playback.
Press 8.
The unit pauses playback. To resume playback, press 3.
.
7During playback
From the Remote control unit
Press 1or ¡.
Each press of 1or ¡increases the playback speed. You can select the speed among 2x, 5x, 10x, 20x and 60x the
normal speed.
Pressing 3returns the unit to normal playback.
From the Front panel
Hold down 4or ¢.
Holding down ¢advances playback rapidly, while holding down 4reverses playback rapidly. The speed will
change from 5x to 20x the normal speed if you keep holding down the button for a certain period of time. Releasing
the button returns the unit to normal playback.
To start playback
NOTES
• When the resume point is memorized, pressing 3starts playback from that point instead
of the beginning. See page 19 and 38.
• During playback, the display window shows the title/chapter or track number being
played.
• With Video CD discs with PBC control or some DVD discs, the menu display may appear
on the TV screen after starting playback. In such a case, select an item to be played back
from the menu.
For operation using a menu, see page 20.
• With some DVD discs, the unit starts playback automatically after inserting the disc.
To stop playback completely
To stop playback temporarily
To advance or reverse playback rapidly while monitoring
DIGEST
PREVIOUS
NEXT
CLEAR
STROBE
SLOW
+
SLOW–
SELECT
ZOOM
4
¢
1
¡
7
8
3
Basic
control
buttons

