JVC LT-32K680 User manual

• Keep the protective bag on your TV until you have attached the stand and positioned the TV.
• The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object,
or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because
the screen could crack.
Please inspect your TV for damage after unpacking. If you do notice any damage please consult your dealer.
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to any local regulations.
TV
TV Stand
Remote Control/
AAA Batteries x2
Screws x 6
Instruction Manual
Quick Start Guide
Unpacking
1
1. Remove the screw. Slide open the battery compartment on the back of
the remote control.
Operating Your Remote Control
2
Thank you for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance
your viewing experience. We would suggest that you allow
about 20 mins for initial setup.
Please follow this guide for a successful rst time installation.
The latest eco-friendly power-saving technology will
switch o the TV if it is left on and idle for 4 hours. Please
refer to“Auto Standby” under the “Time Settings” section
of the instruction manual for more detail.
Quick Start Guide
32" LED Smart HD TV
LT-32K680(A)
2. Insert two AAA size batteries. Make sure to match the (+) and ( - )
ends of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
3. Slide the battery compartment cover back into place. Make sure it clicks
into place. Replace the screw.
• Do not connect the TV to the mains supply until you have completed all the connections.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power.
To completely disconnect the mains power, please remove the mains plug from the mains socket.
1. Connect one end of the RF coaxial cable to the aerial socket on the wall
and the other end of the cable to the ANT socket on the back of your TV.
2. Plug the TV into a mains socket and switch on at the mains.
3. In standby mode, press the button on the remote control to turn the
TV on. The LED indicator will ash for a few seconds then the TV will
switch on.
Connecting the Aerial and Turning on the TV
4
SCART
SPDIF VGA
ANT.
HDMI1(ARC)
HDMI2
LAN
Optic.OUT
LNB
300mAMax.
13Vdc/18V dc
SCART
SPDIF VGA
ANT.
HDMI 1(ARC)
HDMI 2
LAN
Optic.OUT
LNB
300mA Max.
13V dc/18V dc
RF coaxial cable
(not included)
RF coaxial cable
with ‘F Type’ connector
(not included)
Optional
If you want to connect to the internet via a wired connection
then connect your ethernet cable to the LAN socket.
Installing the TV Stand
3
Slide under
the lip
SCART
SPDIF
Optic.OUT
VGA
ANT.
HDMI1(AR C)
HDMI2
LAN
Table
Cushioned
material
TV stand (supplied)
Fitting the Stand to the TV
3. Ensure the TV is switched o and not connected to the mains power supply.
4. Lay the TV down on a at surface ideally on the edge of a table so the base of the TV slightly
overhangs the edge of the table, with the back side facing up. Please make sure a soft cushioned
material (such as a dry bath towel or thick piece of foam) is placed beneath the screen.
5. Slide the stand under the lip, the neck will t snugly over the screw holes.
Then screw the stand to the TV using the 4 screws supplied.
Fitting the Stand Neck and Base Together
1. Fit the neck onto the base.
2. Using 2 of the supplied screws, screw the neck to the base.
Protective
Bag
JVC 32' LED Smart HD TV LT-32K680(A) Quick Start Guide.indd 1 04/05/2018 11:32

Well done, your new TV is now ready to use. You
will nd that there are many exciting features available.
To get to know all these features, please take
some time to read the instruction manual provided with
your TV.
(QSG-LT-32K680(A)-180504V1)
Need More Help!
If you need more help setting up your TV then please call:
210 289 9999
Lines are open Monday – Friday: 9:00-21:00 and Saturday: 9:00-20:00

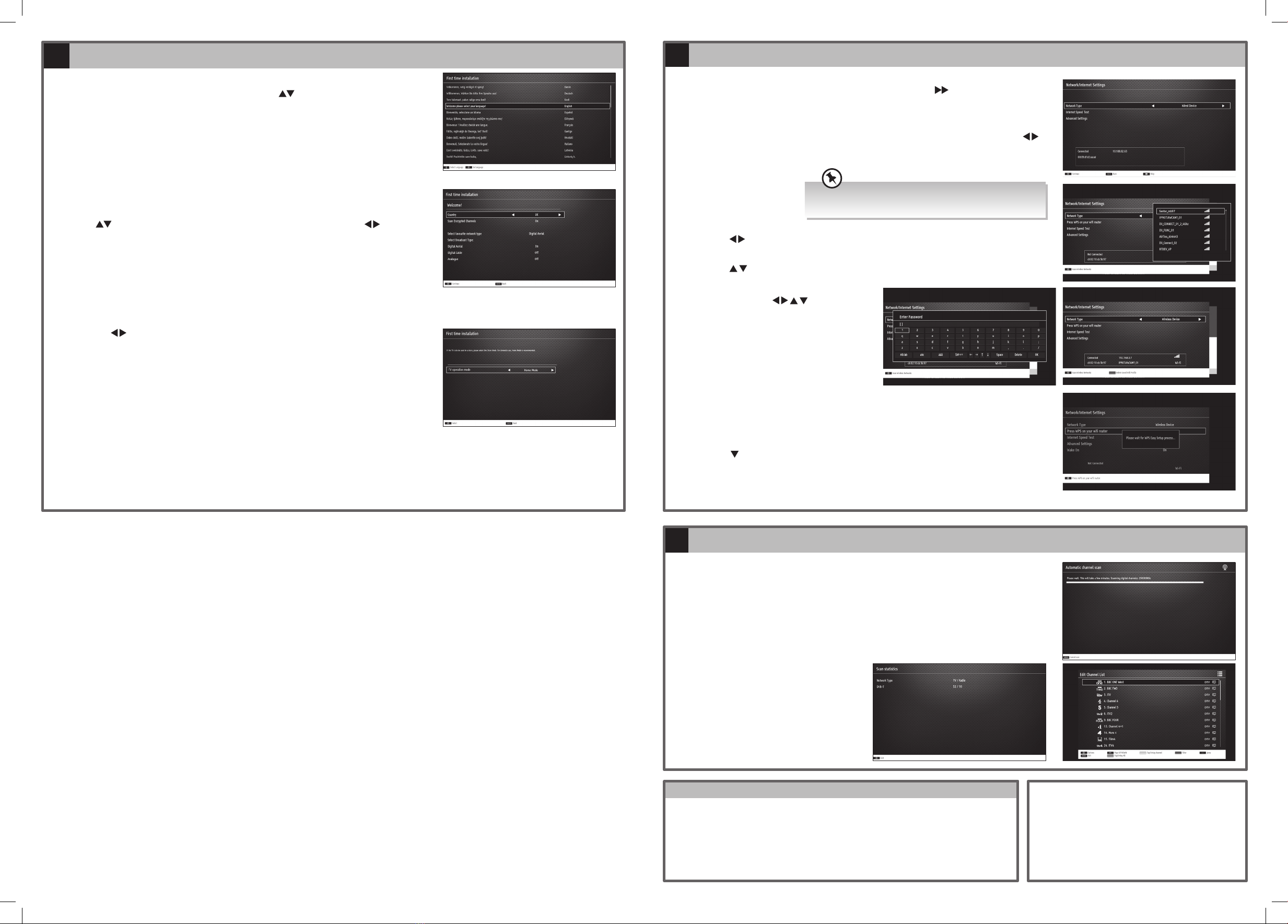

Tuning in Your TV
7
2. The Scan statistics screen will appear,
showing you the amount of TV and radio
stations that have been tuned in. Press OK to
exit this screen.
3. The Edit Channel list will appear, press the
EXIT button to remove this. Your TV is now
fully tuned in and ready to use.
1. Your TV will now start automatic channel scan. It will tune in all available TV
channels.
1. The first time you turn the TV on, it will go straight into the First Time Installation menu. Please
ensure the aerial or satellite cable is plugged in. Press the buttons to highlight your language
then press OK.
Getting Started Connecting to the Internet - Wired, Wireless or using the WPS button
56
Your country will already be selected and Scan Encrypted channels will be set to ON.
You now need to select what you want to tune in from, either your aerial, Satellite or cable.
Press the buttons to highlight SELECT FAVOURITE NETWORK TYPE, then press the buttons to
select Digital Aerial, Digital Cable, Satellite, Analogue or None for your favourite network type. If you wish
to tune in more than one network you can add others below.
If you View TV Through a Set Top Box
If you have attached a Set top box via a HDMI cable select None. This will mean your TV will not try to
tune any channels in. To view your set top box press the SOURCE button and select the HDMI socket you
have attached your set top box to.
2. Confirm these settings by pressing OK.
3. Press the buttons to highlight
Home Mode then press OK.
To access all the features of your Smart TV you must be connected to the internet. If you do not wish
to set up your network connection you can skip this section by pressing , however we recommend
you set up your network connection now.
WIRED Connection
•If you have connected your ethernet cable to the LAN socket on the back of your TV press the
buttons to select WIRED DEVICE. When Network says CONNECTED press OK.
WIRELESS Connection
You can connect using a wireless
connection via your router.
1. Press the buttons to select WIRELESS DEVICE. Wait a few seconds and a list of all wireless
networks will be displayed.
2. Press the buttons to select your wireless network then press OK.
3. You now need to enter your password, a keyboard
will appear. Press the buttons to select a
letter/number/symbol and press OK to enter each
one. Once you have typed your password highlight
OK and press OK. The network will now show
Connected.
4. Press the OK button to continue.
WPS Connection
Rather than having to enter your Wireless password, you can select the WPS option. This will allow you
to connect to your router without a password once the WPS button is pressed on your router.
1. Select WIRELESS DEVICE, when you see list of wireless networks press the BACK button.
2. Press the button to select 'Press WPS on your wifi router' then press OK. Now press the WPS
button on your router and your TV will connect to your router, without the use of a password.
Make sure your TV is as close to your router as possible, within
5m and its recommended its in the same room as the TV.
