JVC TH-C60J Administrator Guide

SCHEMATIC DIAGRAMS
TH-C60J,TH-C60C
TH-C50J,TH-C50C
TH-C40J,TH-C40C
Contents
Block diagrams

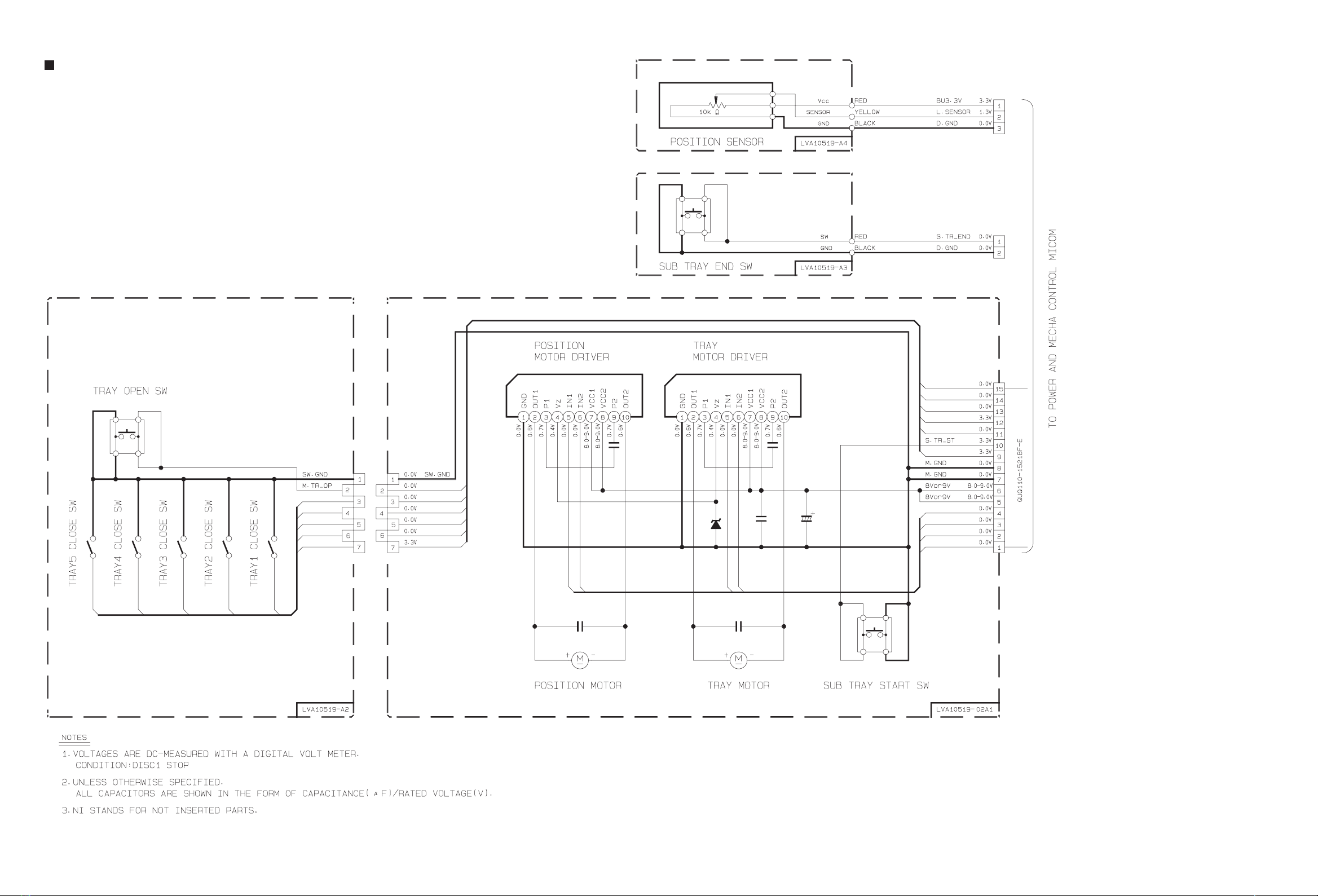

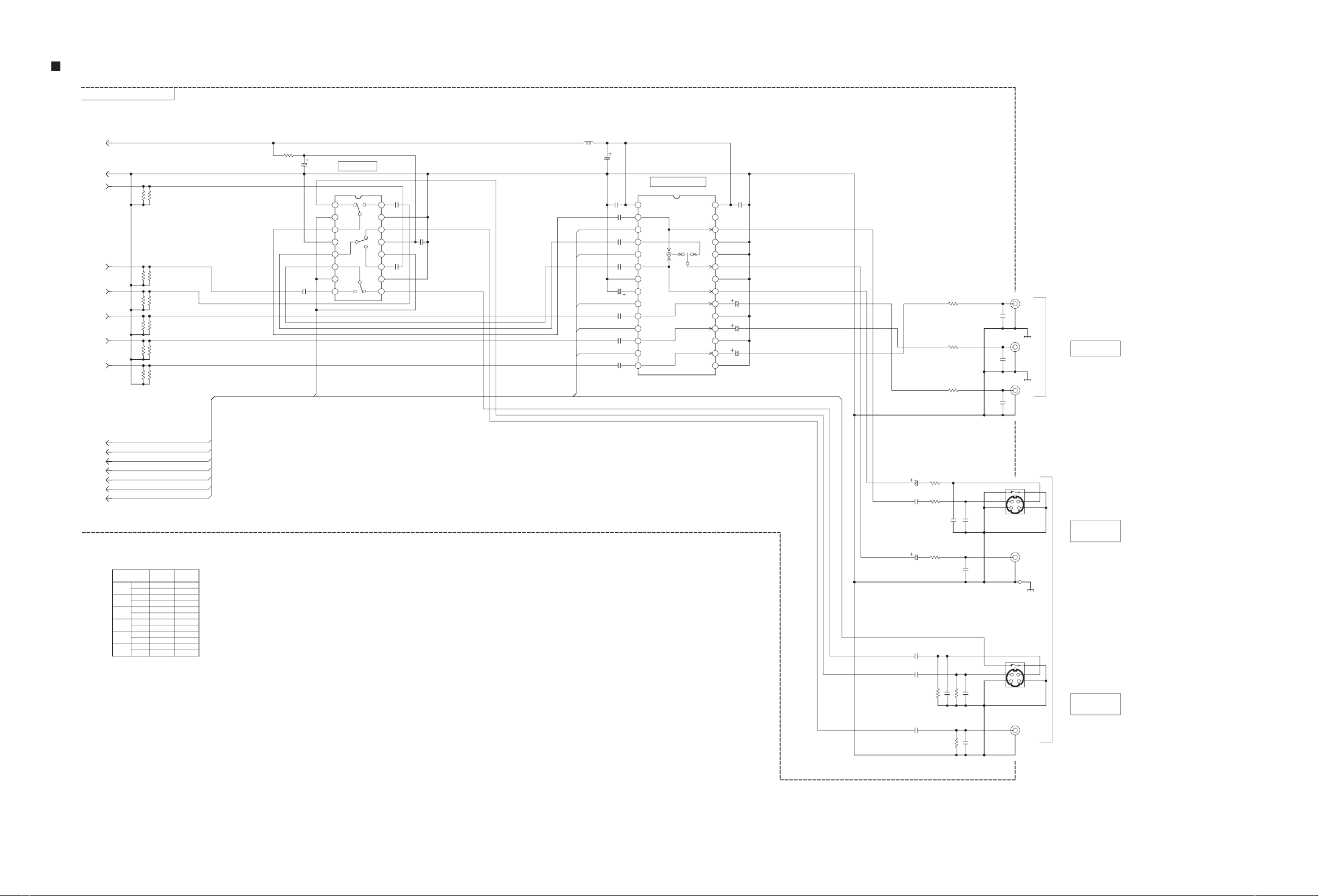

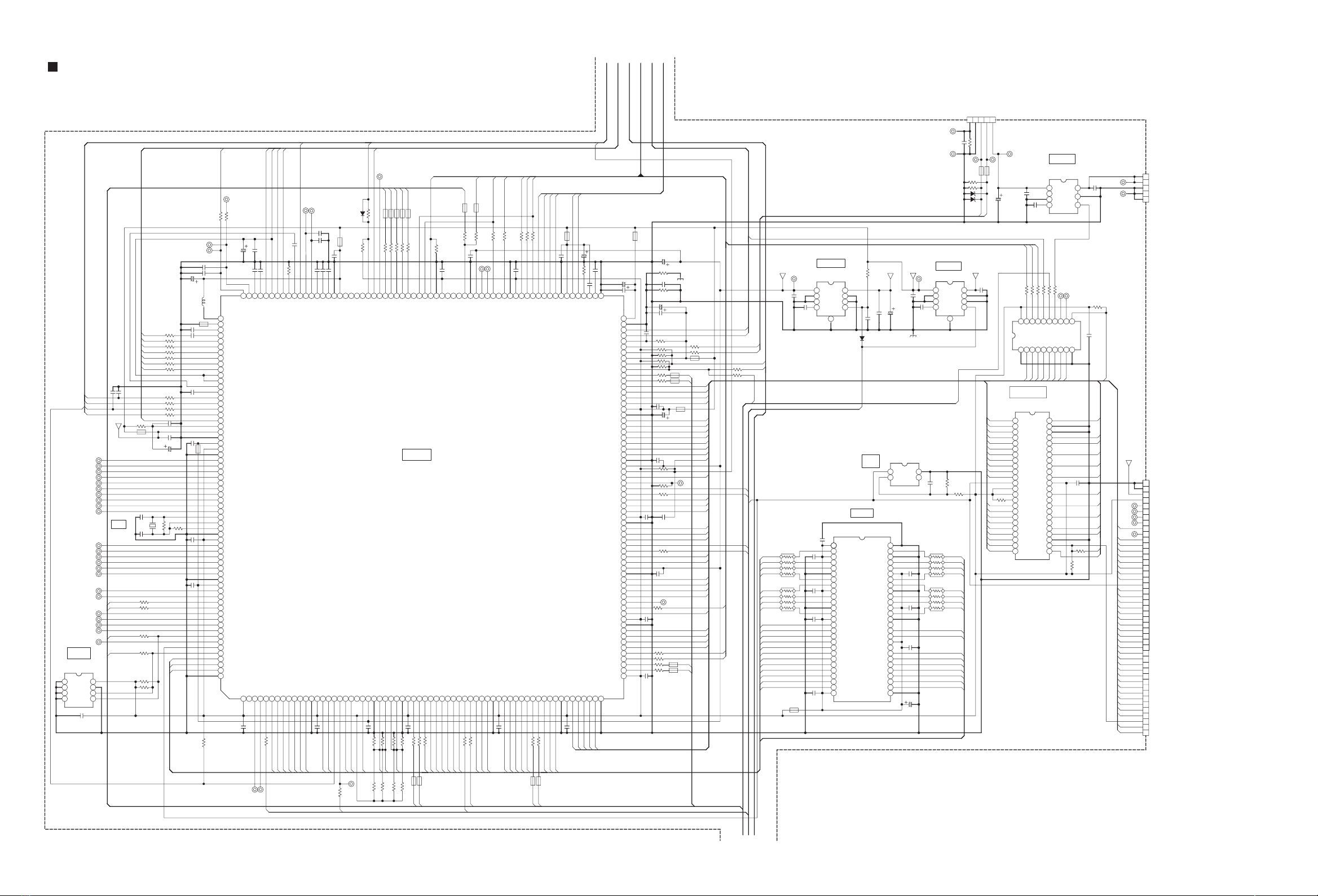

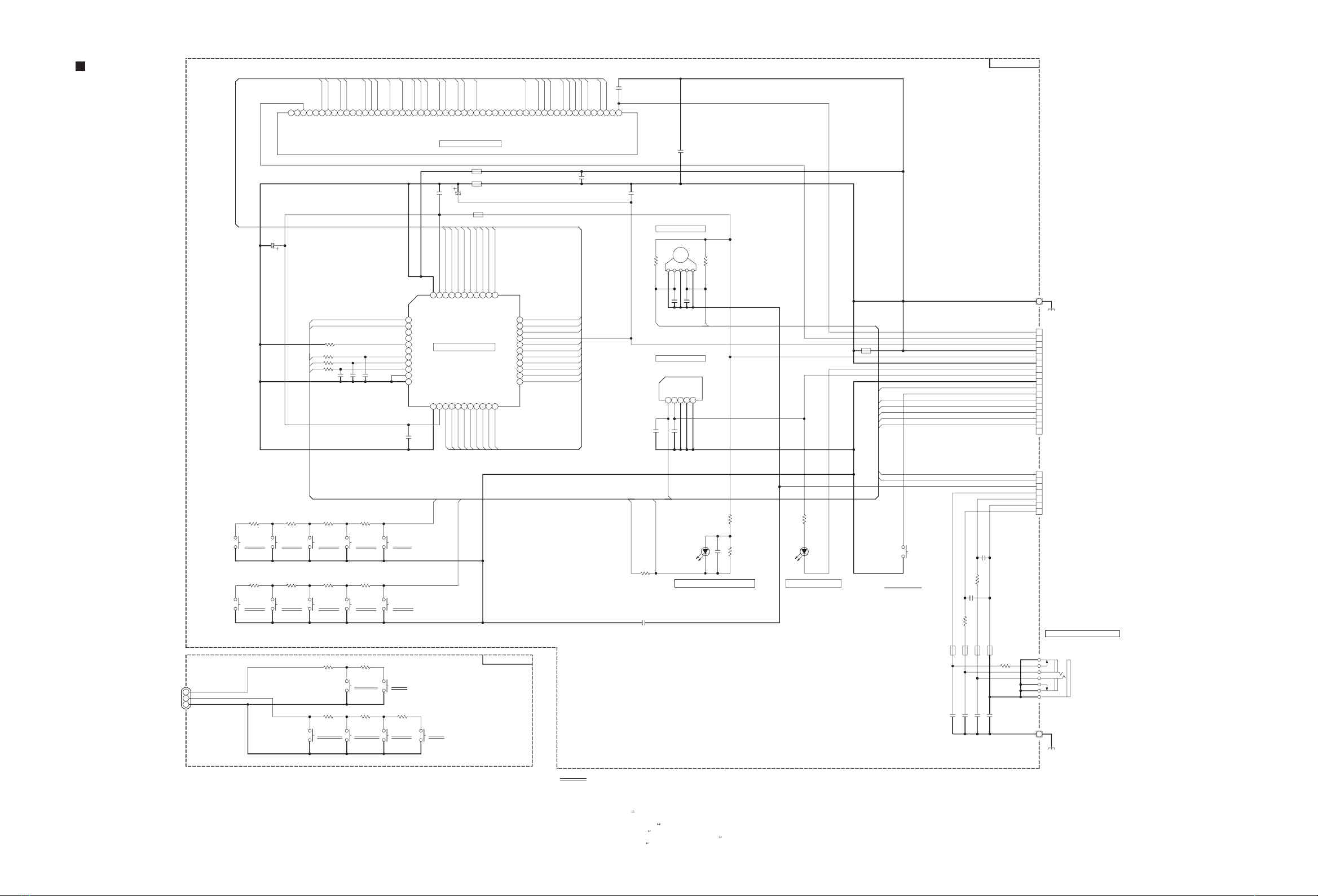

Standard schematic diagrams

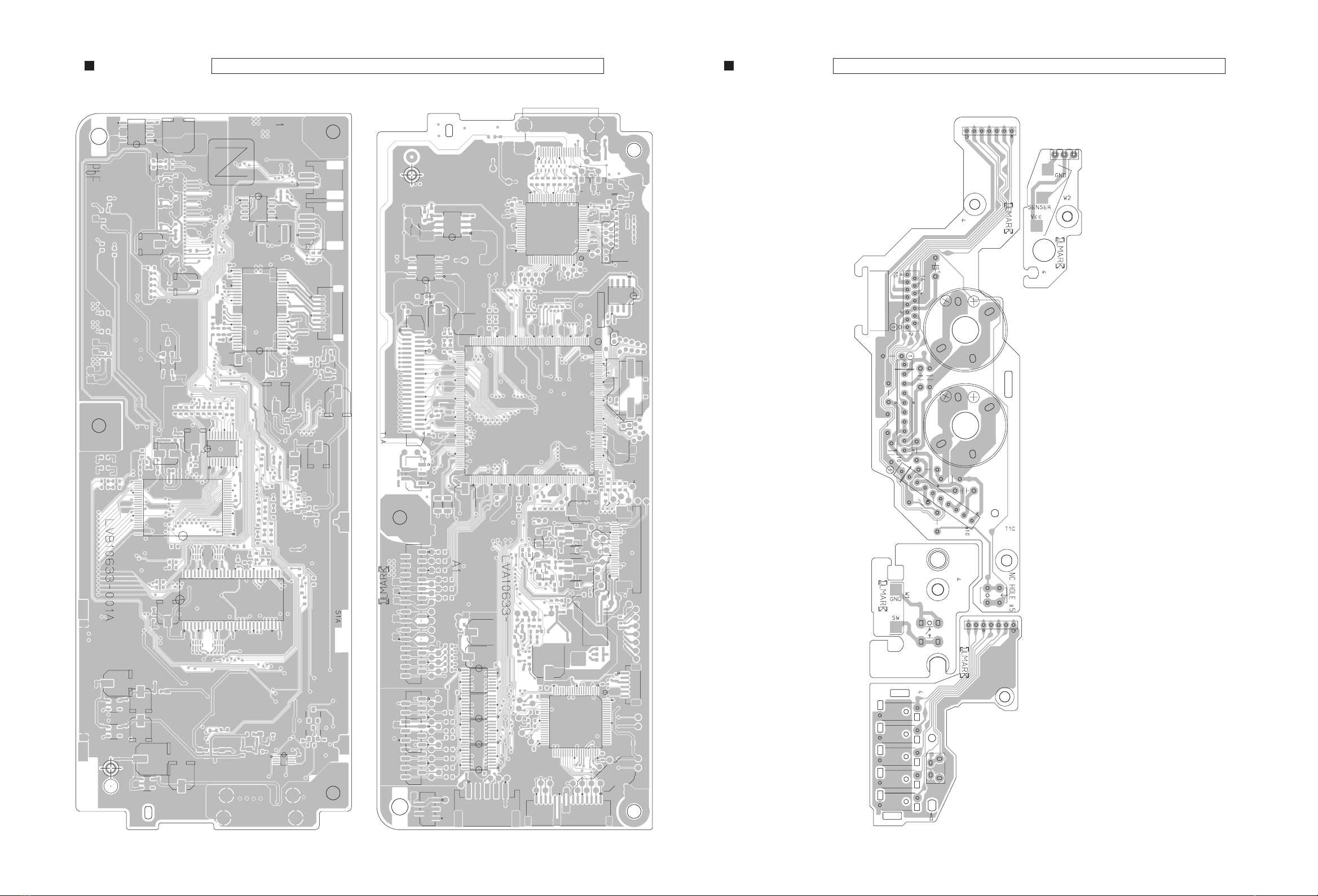

Printed circuit boards
2-1
2-2
2-13 to 16
CD-ROM No.SML200605
DVD DIGITAL THEATER SYSTEM
No.MB511SCH
2006/5
COPYRIGHT 2006 Victor Company of Japan, Limited.
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
XV-THC60
SP-PWC60
SP-THC60F SP-THC60F SP-THC60S
SP-THC60C
XV-THC50
SP-PWC50
SP-THC50S
SP-THC60F SP-THC60F
SP-THC60C
XV-THC40
SP-PWC40
SP-THC40S
SP-THC40F
SP-THC40C

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the
parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "
mark nearby are critical for safety.

2-1

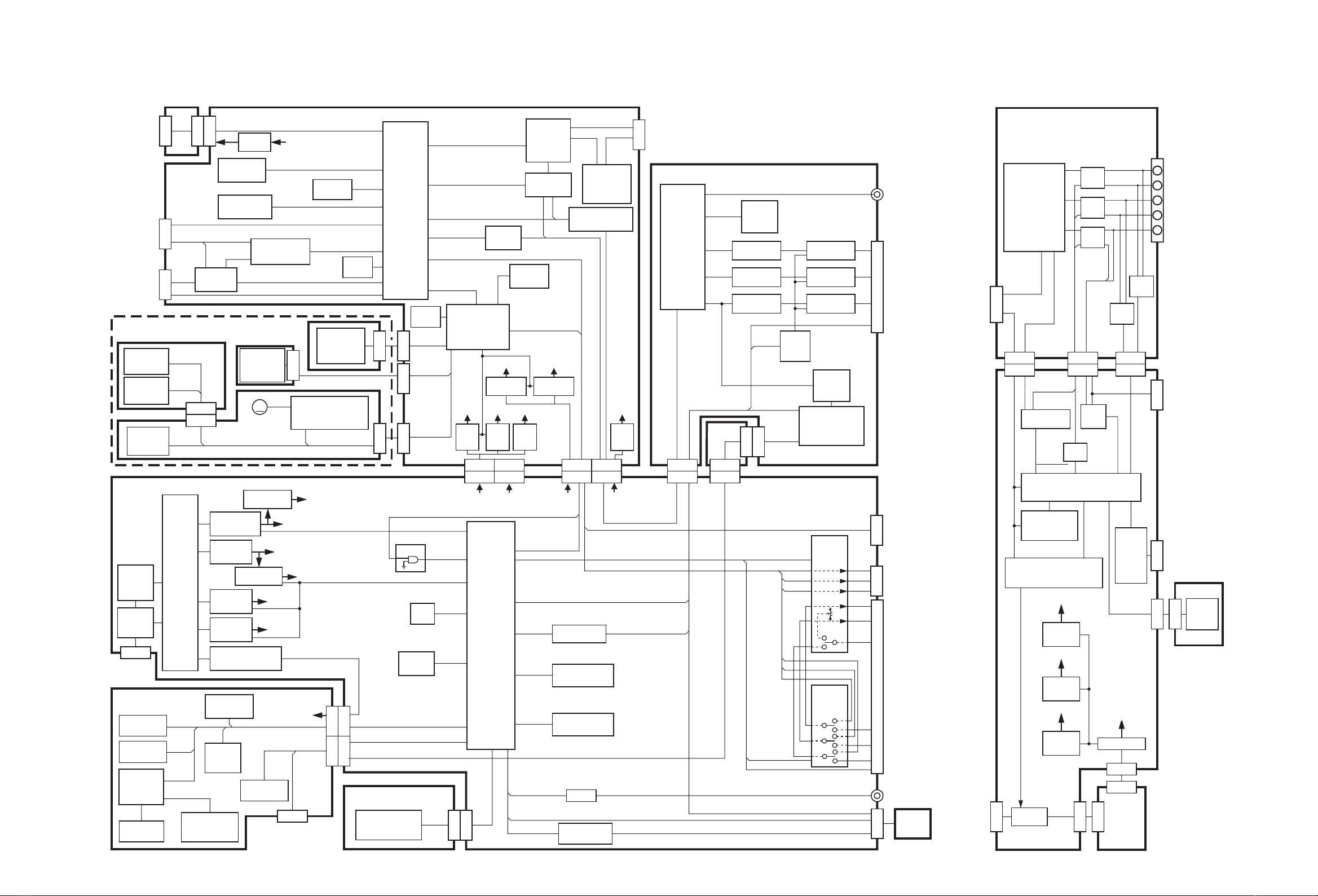

Block diagram
<Main body section> <Subwoofer section>
CN102
Tuner
Pack
T901
POWER
TRANS.
IC901
SWITCH
REG.
D901
DIODE
BRIDGE
F+,F-
-VDISP
Q951, Q953
FL SW, -VDISP SW
AC IN
P901
Q959,Q984
M9V REG.
Q958,Q969
A12V SW
Power supply section
IC501
FL
DRIVER
DI501
FL DISPLAY
IC511
REMOCON F+/-,-VDISP
B5V,D5V
CN501
VOL1
VOL2
REMOCON
DI-CK
DI-DT
DI-CS
G1 to G11
S1 to S17
JS541
VOLUME
S531 to S540
DISC_KEY
KEY3
KEY4
D551
ILLUMINATION
LED
ILLUMI1
ILLUMI2 HP-L
HP-R
HP_DET
HPOUT_L, HPOUT_R
FL display section
S521
POWER SW
D511
STANDBY
LED
KEY1
STANDBY
FW521
S522,S523
S526 to S529
OPERATION SW
KEY1
KEY2
KEY1
KEY2
FL display section
(Operation key)
DVD changer mechanism section
CN1
IC1, IC2
TRAY / POSITION
MOTOR DRIVER
POS_UP, POS_DOWN
TR_OP, TR_CL
W7
SUB TRAY
START SW
M1,M2
TRAY/POSITION
MOTOR
M
S.TR_ST
CN2
SW1 to SW5
TRAY1 to 5
CLOSE SW
SW6
TRAY
OPEN SW
M.TR_OP
TR1_CL to
TR5_CL
CN3
R1
POSITION
SENSOR
SW8
SUB TRAY
END SW
IC201
DRVER
IC451
MECHA
CONTROLLER
IC301
Phoenix
IC505
SDRAM
IC801
HDMI TX
IC802
Q801 to Q803
LEVEL
CONVERTER
IC509
FLASH ROM
IC452
EEPROM
IC510
EEPROM
CN453
DVD traverse
mechanism
CN101
A, B, C, D
E, F, RF+
CDPD
DVDPD
F+/-
T+/-
FM+/-
WOUT
VOUT
UOUT
COM
LD(CD)
LD(DVD)
CLSWT1 to 5
STSTSW
MTOPSW
POSMUP
POSMDN
MTOP, MTCL
CN451
CN452
W1
W2
LSENSOR
STEDSW
DVDPWR
AINL
AINR FAOUTL
FAOUTR
RAOUTL
RAOUTR
CAOUT
SWAOUT
Q101,Q103
LASER DRIVER
S2UDT, U2SDT, UCS
SCLK, SCS, CPURST
DISCSET, DISCSTP
LA0 to 21
LD0 to 7
LDE, LCS3
LWRLIB
DISPRST, DISPBUSY
DISPCS, DISPCK
DISPD2S, DISPS2D
MA0 to 11, MDQ0 to 15, BA0, BA1
DQM, DSCK, NCS, NRAS, NCAS, NWE
FDAC, VDAC, CDAC, UDAC, IDAC, SPDIF_I
EPDI, EPDO
EPCS, EPSK
X301
27MHz
X451
8MHz
DVD traverse
mechanism
CN201
CDLDO
DVDLDO
SPDRV, TRSDRV, FODRV, TRDRV
DRVMUTE, LCS2, SPNP
TRVSW
H_CSCL
H_CSDA
CN701 CN702
IC704
ADC
IC309
IC701 to IC703
DAC
TSD0 to 2, MC, MD, DACPDN
AIN, TWS, MCLK
TBCK, DACPDN
LRMUTE
DVD servo section
IC101
SIG SEL.
VOL AMP.
IC131
HP AMP.
Q1101
Q1102
S.MUTE
Q1131 to Q1133
HP MUTE
J1101
AUX IN
L-IN
R-IN
HPMUTE
HP_OUT_L
HP_OUT_R
CN414
IC481
DIGITAL
IN
RX
L+RCIN
L+RSWIN
IC121
TUNER
L.P.F.
Audio & Digital input section
DVD_U2SDT
DVD_BUSY
CN450
CN502 CN451
STAND-BY, REMOCON
KEY1, KEY3, KEY4
DI-CK, DI-DT, DI-CS
CN457
CN410
Q4091, Q4092
TU9V REG.
TU_PON TU9V
J4891
AVVLR
Q4703
IC472
RESET
RST
X4701
8MHz
AVC_OUT
AVC_IN
DVD_RST
DVD_CS
DVD_CK
DVD_S2UDT
Q4821
AM-BEAT CUT
AM BEAT
IC477
EEPROM
EEP-DT
EEP-WP
EEP-CK
TU-L
TU-R
TU_DTI, TU_DTO
TU_CK, TU_CE
IC471
SYSTEM
MICOM
AV
COMPULINK
CN413
CN101 CN415
CN411
CN402 CN403
DVD_U2SDT2
DVD_BUSY2
Q4811, Q4812
SW-PON
ADINL, ADINR
OUT-L, OUT-R
OUT-SL, OUT-SR
OUT-C, OUT-SW
LRMUTE
VOL_DT
VOL_CK
TU-L
TU-R
ADIN-L
ADIN-R
OUT-L
OUT-R
OUT-SL
OUT-SR
OUT-C
OUT-SW
SWPON2SW_PON
VOL_DT, VOL_CK
HPMUTE, SMUTE
System control section
C
Y
V
Y1
V
C
V_SW
VCR_S/C
V_YCMIX
V_LPF, V_RGB
V_MUTE1, V_MUTE2
IC411
VIDEO
SW
S-VIDEO IN
COMPOSITE
VIDEO IN
J4401
J4402
Pr
Pb
Y
CR
CB
Y2
C
Y
V
COMPONENT
VIDEO OUT
IC431
VIDEO
DRIVER
S-VIDEO OUT
COMPOSITE
VIDEO OUT
Video input/output section
Q501 to Q505
POWER CONTROL
& PROTECTOR
CN101
AC IN
iPROTECT
D151, D152
RY101
Q542
LOW VOLTAGE
DETECTOR
CN102 CN103
CN151
CN152
CN502 CN372 CN501
Mother section
L_IN, R_IN
SL_IN, SR_IN
C_IN, SW_IN
CN274
TO SW
SPEAKER
CN371
FAN
MOTOR
RY273
RY272
RY271
IC201,IC202
Q2101,Q2201
Q2301,Q2401
Q2501,Q2601
POWER AMP
&
PROTECTOR.
CN273 CN272 CN271
FLOUT
FROUT
FCOUT
SLOUT
SROUT
J2702
J2701
Mini Din
CONN.
Amplifier section
IC301
AMP.
IC302
AMP.
AD_L
AD_R
AD_L
AD_R
AD_SL
AD_C
AD_SL
AD_C
SW_SIG
SR_SIG
IC303
AMP.
Q603
Q604
SP_RELAY-
SP RELAY
SP_RELAY-
DC_DETECT
DC_DETECT
P.ON_SIG RESET
FAN ON
LED
Q523 to Q525
PROTECTOR
Q3702
to
Q3704
FAN
MOTOR
DRIVER
IC601
MICON
P.ON_SIG
PROTECT
Q152
5V_REG.
+5V
D165
7V_REG.
+7V
D166
-7V_REG.
-7V +VH, -VH
+VL, -VL
SW_SIG
PROTECT
T101
POWER
TRANS.
D561
POWER
LED
FW501 FW501
A12V
M9V
D998
SWD5V REG.
SWD5V
Q974,Q989
SW5.6V REG.
SWD5.6V
D999
B5V REG.
Q954,Q979
SW5V REG.
DVD-PON
D5V
B5V
SYS-PON
ADCD
ADDVD
J6001
HEADPHONE
OUT
VOL1, VOL2, H-_DET
IC473
HPOUT_L
HPOUT_R
S-MUTE
SWOUT
COUT
SLOUT
SROUT
LOUT
ROUT
SW
C
Q1123
SWC MUTE
Q1122
SL SR MUTE
Q1121
LR MUTE
IC113
SW/C AMP.
IC112
SL/SR AMP.
IC111
L/R AMP.
SYSTEM
CONNECTOR
J1103
SL
SR
L
R
SW_PON
TX0+/-, TX1+/-
TX2+/-, TXC+/-
TX_HPD
TX_SCL
TX_SDA
HPD
DSCL
DSDA
H_RESET
LD0 to 7
LCS1
H_D0 to 11, H_DE, H_IDCK
H_HSYNC, H_VSYNC
H_SPDIF, H_MCLK
H_CSDA, H_CSCL
HDMI
MONITOR
OUT
J801
CN801
CN401
US6V
D4V
IC806
TX5V
REG.
TX5V
IC805
3.3V
REG.
3.3V
IC305
3.3V REG.
S3.3V
IC804
1.8V
REG.
1.8V
IC302
1.2V REG.
D1.2V
ML0 to 2
CN703
CN404
D6V A6V D2V
D4V
IC705
A5V
REG.
A5V
IC306
5V REG.
D6V
D5V
USB_PO
USB_NO
D+/-
USB
CN704
J6101
CN511

2-2
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.

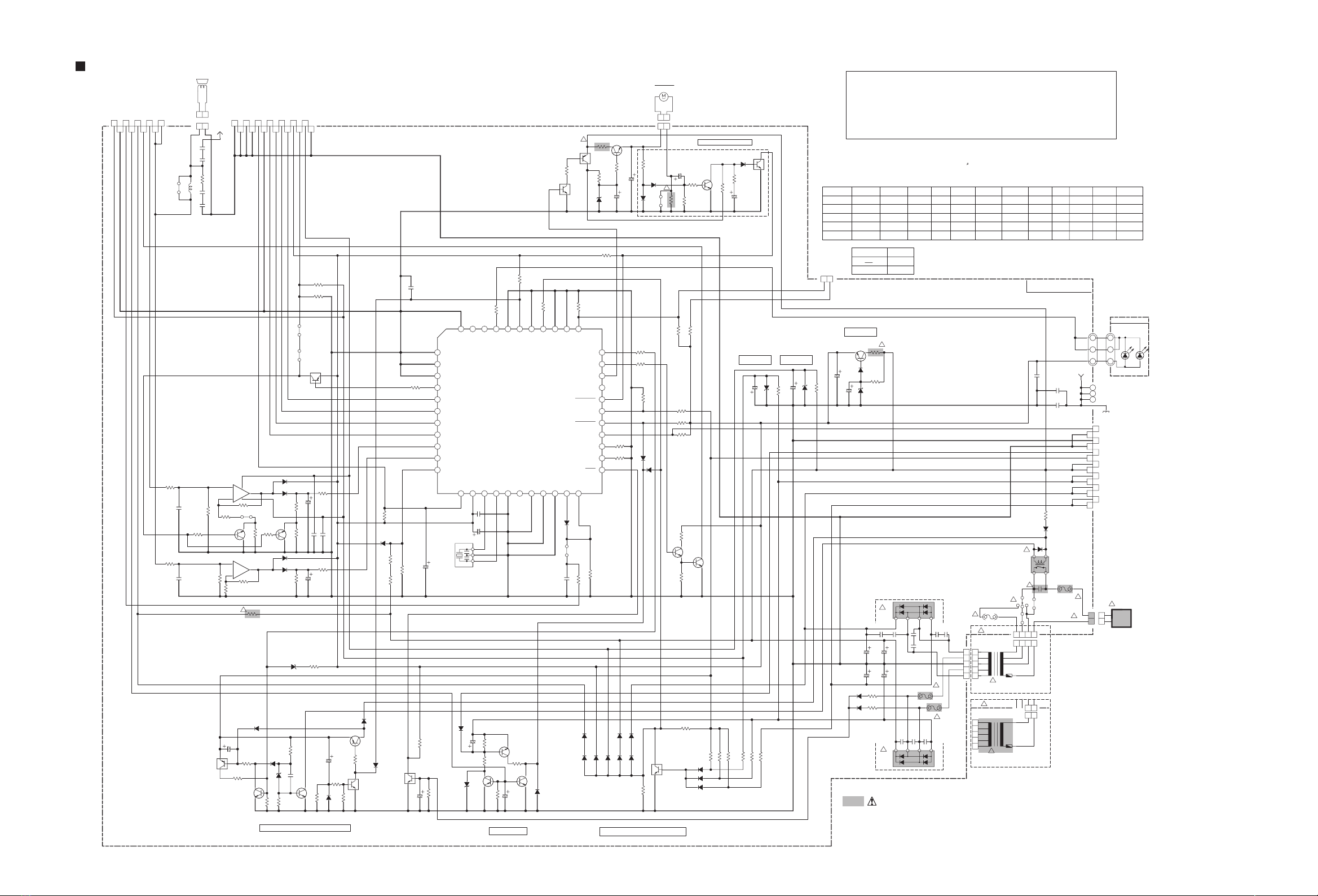

Standard schematic diagrams
A12V
Q953
KTA1267/YG/-T
D901
DI106
!
3
1
4
2
L901
QQR0908-001
!
1 32
4
D902
20NFA60-FC5
D903
NI
PC901
PC123Y22FZ
!
32
14
D951
FR104S-T5
D952
FR104S-T5
D954
UF202G-F26
!
Q951
2SC3576-JVC-T
D960
MTZJ2.2A-T2
0.22
L951
D950
MTZJ24D-T2
CP951
ICP-N10-T
!
22L955
10
L957
Q991
KTC3875/YG/-X
D992
MTZJ2.0A-T2
Q958
KTA1273/Y/-T
Q969
RT1N241C-X
P901
QNC0082-001
!
12
FC901
FC902
2
!
0.022/50
C994
470/10 C969
220/16
C984
0.0022
/1000
C908
22/50
C964
0.001/AC250V
C904
!
1
2
100/25
C990
22/50 C962
0.1/50
C993
220p/50
C954
220p/50
C951
220/16
C997
1.5/25
C981
0.0022/AC250V
C916
!
2 1
NI
C967
1.5/25C961
150/200
C907
!
0.001/AC250V
C905
!
1
2
330P
C909
820/16
C999
39/50
C963
0.068/AC275V
C903
!
1
2
560/25
C982
0.1/50
C918
47/50
C914
82/16
C960
220p/50
C956
12p/50
C910
100p/1000
C952
220p/2000
C913
0.1/16
C968
1k
R983
1.3k
R985
22k
R955
2.2K
R969
10k
R952
R921 3.3M
!
12
R951 15
FR
R954
10
(1/4W)
!
3.3K
R960
18k
R904
3.3kR908
120 R963
68k
R901
2W
4.3K
R909
3.3k
R980
1.3k
R965
33k
R990
D999
1N4003S-T5
CP999
ICP-N20-T
!
Q965
RT1P441C-X
22k
R953
22k R961
Q979
RT1N241C-X
Q989
RT1N241C-X
22
L972
100p/50C973
1000/10
C975
470/10
C979
NI
C988
D973
SB360-F82
!
0.1/16
C978
470/10
C976
22k R971
22k
R981
Q959
RT1N241C-X
NI
C987
NI
C995
5610
NI
R970
IC901
MIP4170MYSLJ
1234567
0.1/50
C920
0.068/AC275V
C902
!
2
1
R922 3.3M
!
12
1.5/25
C991
Q980
RT1N241C-X
12k
R905
2.2K
R968
15K
R972
0.1/50
C921
D911
RB160M-30-X
D904
FR104S-T5
Q954
RTR030P02-X
D
G
S
Q974
RTR030P02-X
D
G
S
Q984
RTR030P02-X
D
G
S
F+
-VDISP
D5V
B5V
DVD-PON
SYS-PON
F-
SWD5V
SWD5.6V
M9V
A12V
FR
R903 27
(1/4W)
!
NI
R956
D956
FR104S-T5
!
T901
QQS0371-001
!
D998 1N4003S-T5 !
0.1/16
C977
NI
C911
1
2
NI
C912
1
2
330p/50
C998
EP901
QNZ0870-001
123
TH901
7.5mm
BUS
D955
MA111-X
27kR957
220p/50
C955
220p/50
C957
B4146
5mm
220p/50
C950
NIR991
22/50
C992
NIR992
EP903
QNZ0870-001
559
123
C996 0
0.3
R973 2W
0.56
R982
2W
Q982
KTA1267/YG/-T
150
R987
R986 20k
Q983
KTC3203/OY/-T
10K R988
NRSA63J-103X
0.1
C989
24k
R984
100/16C983
R989 470
D981
MTZJ4.3B-T2
D993
MTZJ3.3B-T2
W921
WJL0021-001A-E
1
2
3
4
5
6
7
W912
1
W915
1
W914
1
W911
1
W917
1
W913
1
D912
NI
VERSION CODES
LVA10635-A1
Ver.J/C
120V 60Hz
TO
M9V
SW5V
F901
J/C
OF LVA10635-A1
D
(SHEET 2/6)
(B-5)
40,50,60
ADDRESS
J :U.S.A.
C :CANADA
(B-7)
(B-9)
(B-10)
*
B :GREAT BRITAIN
UY/UW/UJ/UP
*C907
REF No.
UW:BRAZIL/MEXICO/PERU
UY:ARGENTINE
Ver.
*
-VDISP
FL SW
SWITCH REG.IC
*D903
UJ:USA MILITALY BASE
*R957
*R955
13.5V
(B-8)*C952
SWA12V
POWER PWB
A :AUSTRALIA
!
*
FOR POWER CONSUMPTION C/M:
US :SINGAPORE
UG:TURKEY/EGYPT/SOUTH AFRICA
UN:INDONESIA
UX:SAUDI ARABIA
UT:TAIWAN
US/UX/UG/UT
12V
9V
5.6V
SWD5V
SW5.6V
B5V
S
VDD
D
VCC
TR
FB
HS901
(SHEET 2/6) OF LVA10635-A1 TO
1
2
3
7
8
10
11
12
13
16
15
6
5
LV40057-002A
MGND
AGND
DGND
DGND
FLGND
QETM2DM-157 QETM2GM-107
QUY150-050Y
BUS WIRE:5mm 20NFA60-FC5
QCZ0136-102ZQCZ0136-101Z
NONE NRSA63J-273X
NONENRSA63J-223X
*
*
*R921 (C-3)
(B-2)*P901
QRZ9037-335 NONE
QNC0082-001 QNC0081-001
A/EE
*
*
*
*B4146 (B-6) QUY150-050Y NONE
NONE
5.9v
0v
17.8v
3.2v
1.7v
0.7v
0v 3.9v
4.9v
3.9v
2.1v
1.5v
12.8V
13.4V
0V
4.9V
0V
0V
4.9V
0V
10.7V
0V
10.7V
10.7V
10.7V
0V
0V
2.1V
0V
5.0V
0V 0V
0V
5.8V
5.8V
5.0V
5.8V5.8V
5.8V
5.0V
4.9V
0V
5.0V
0V
0V
0V
4.9V
5.0V
4.4V
4.9V
-15.6V -15.7V
-15.0V
-23.6V
-26.9V
-26.9V
4.9V
-26.9V
-24.3V
0V
-27.0V
-15.6V
-21.3V
6.1V
10.7V
13.5V
0v
1.5v
-17.1V
-21.3V
-23.6V
0V
5.0V
0V
4.9V
5.0V
4.9V
5.8V
0V
10.7V
0V
13.4V
0V
NC
W911
W915
W913
W914
W912
W917
5.0V
J/C20,30
QETM2DM-157
QUY150-050Y
BUS WIRE:5mm
QCZ0136-101Z
NONE
QRZ9037-335
QNC0082-001
QUY150-050Y
*R963 (F-8)
*
NRSA63D-121X NRSA63D-151X NRSA63D-151X
PARTS LIST
*
UF
QETM2GM-107
20NFA60-FC5
QCZ0136-102Z
NRSA63J-273X
NONE
QNC0081-001
NONE
NRSA63D-151X
*T901 (A-7) QQS0371-001 QQS0371-001 QQS0371-001 QQS0383-001
!
Power section

2-3
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Micon section
V
Y1
C
Y2
STANDBY
VOL2 VOL1 REMOCON
V_SW
VCR_S/C
V_SW
V_MUTE1
V_MUTE2
V_YCMIX
V_RGB
V_LPF
VOL_DT VOL_CK
V_RGB
V_YCMIX
V_MUTE2
V_MUTE1
DVD_CK DVD_CS
DVD_CS
DVD_RST
TU_CE TU_DTO TU_CK TU_DTI
F+
-VDISP
KEY2
CB
DI_CS
DI_DT
DI_CK
HP_DET
DI_CS DI_DT DI_CK
ECHO
ADINR
ADINL
OUT-R
OUT-L
OUT-SR
OUT-SW
OUT-C
STANDBY
SMUTE
TU_CE
TU_DTO
TU_DTI
TU_CK
VOL_DT
VOL_CK
DVD_BUSY
RST
F-
-VDISP
F- F+
REMOCON
KEY1 KEY3 KEY4 KEY1
SAFETY1
SW_PON2
HPOUT_R
HPOUT_L
C V Y2 CR CB Y1
DVD_BUSY
DVD_U2SDT
VOL1 VOL2
DVD_RST
ADINL ADINR
DVD-PON
SYS-PON
HPOUT_L HPOUT_R
MIC
MIC_DET
ECHO
MIC_MUTE
DVD_BUSY2
DVD_U2SDT2
DVD_S2UDT
MIC
CR
GND
GND
GND
DVD_BUSY2 DVD_U2SDT2
LRMUTE
KEY3
KEY2
OUT-SL
KEY4
KEY1
V_LPF
VCR_S/C
SYS-PON
DVD-PON
TU_PON
SW_PON
SW_PON
SW_PON2
DVD_S2UDT
DVD_U2SDT
DVD_CK
SAFETY2
MIC_MUTE
A5V
SMUTE
LRMUTE
HPMUTE
HPMUTE
RST
B5V
B5V
MIC_DET
HP_DET
SAFETY2
TU_PON
OUT-L OUT-C OUT-SL
GND
GND
AVVLR
SAFETY1
GND
OUT-SW
OUT-SR OUT-R
AVC_OUT
AVC_IN
GND
GND
GND
GND
GND
GND
GND
GND
GND
S-TU S-KA
S-TU
S-KA
A5V
C
V
CB
Y2
VCR_S/C
Q4811
RT1P141C-X
V_SW
V_MUTE1
V_MUTE2
V_YCMIX
V_RGB
Q4812
RT1N141C-X
D4811
1SS133-T2
V_LPF
X4701
QAX0246-001Z
321
D4703
MTZJ4.7B-T2
Q4701
RT1N140C-X
D4891 MTZJ6.2C-T2
Q4091
KTA1271/OY/-T
Q4092
2SC3928A/QR/-X
D4092
MTZJ6.8A-T2
Q4821
RT1N141C-X
Y1
K4702
4
J4891
QNS0089-001
2
1
3
IC473 SN74AHCT08NS-X
141312111098
7654321
IC477
BR24L08F-W-X
8765
4321
CN410
QGF1205C2-11
1 2 3 4 5 6 7 8 9
10 11
CN457
QGD2504C1-03Z
1 2 3
D4841
MTZJ2.0A-T2
D4842
MTZJ3.3A-T2
D4708
1SS133-T2
D4709
0.1/16
C4771
1/16
C4006
0.1C4791
NI
C4002
C4719
0.01
220P
C4011
0.01 C4706
0.01
C4705
C4718
0.01
0.01
C4708
220P
C4892
C4710 0.01
220P
C4891
C4711 100/16
C4091
22/16
0.1/16
C4772
0.1/16
C4773
470/10C4707
220P
C4012
0.1/16
C4774
0.01
C4709
100/16
C4092
10k
R4714
2.7kR4866
180
R4821
R4752
R4778 100
820
R4093
10kR4756 10k
R4753
330
R4871
220
R4891
R4763
5.6kR4886
R4773
R4771
330
R4872
220
R4892
4.7kR4884
R4710
100k
R4774
330
R4873
1k
R4703
2.2k
R4863
4.7kR4883
R4882
100
2.2k
R4760
R4876
330
10k
R4761
R4713 330
10k
R4092
R4875
330
10k
R4704
1k
R4011
10k
R4762
10kR4755
R4712 330
FR
R4811 4.7 !
4.7k
R4091
NIR4999
22k
R4705
R4775 330
1k
R4012
10kR4754
R4711 330
R4709
100
10kR4772
FR
R4921
10
!
NI
R4013
R4776 330
150
R4822
NI
R4014
R4751
R4777 100
10kR4757
220
R4791
R4842 NI
C4016
*
D4091
1SS133-T2
CN450
QGF1036C2-17
17 16 15 14 13 12 11 10
9 8 7 6 5 4 3 2 1
CN451
QGF1205C2-07
7 6 5 4 3 2 1
F-
F+
-VDISP
D5V
B5V
DVD-PON
SYS-PON
SWD5.6V
SWD5V
M9V
A12V
C4005
NI
CN404
QGF1036C2-05
1 2 3 4 5
CN403
QGF1036C2-18
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18
CN401
QGF1036C2-05
1 2 3 4 5
CN402
QGF1036C2-28
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
CN420
NI
1
2
3
4
5
6
R4843
2.2
1W
Q4832
RT1P430C-X
R4841
680
Q4833
RT1N430C-X
4.7k
R4835
D4831
1SS133-T2
D4833
1SS133-T2
0.01
C4904
IC491
KIA7805API
1
2
3
D4832
1SS133-T2
Q4831
RT1N141C-X
39k
R4834
D4962
1SS133-T2
D4835
MTZJ6.8A-T2
100/16
C4903
12k
R4833
D4834
1SS133-T2
0.01
C4902
Q4961
KTC3203/OY/-T
D4961 MTZJ4.7A-T2
100/16
C4961
270
R4961
D4963
1SS133-T2
R4893
100
IC481
TORX147
321
C4893 0.1/16
C4894
NI
CR
2.2k
R4861
4.7kR4881
2.2kR4864
FR
R4844
47
!
C4844
1/16
D4705
1SS133-T2
Q4703
RT1N141C-X
220
R4708
10k
R4707
R4846 10k R4847 R4848 R4849
10k
NI
C4018
NI
C4019
*
C4020
*
C4021
C4017
2.2/16
CN455
QGF1205C1-07
1 2 3 4 5 6 7
NI
C4962
470/10
C4963
NI
C4905
1k
R4702
CN411
QGF1036C2-25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
D4093
1SS133-T2
CN406
NI
1
2
3
4
5
R4717 NI
R4716 NI
EP401
QNZ0870-001
1
2
3
R4852 R4851 R4758
10k
R4759
10k
R4831
12k
Q4822
2SD2114K/VW/-X
150
R4825
150
R4826
150
R4827
150
R4824
3.9k
R4823
C4031
0.0056
C4032
0.0056
CN413
QGB2501J1-06
6
5
4
3
2
1
C4035 0.0056 C4036 0.0056 C4033 0.0056 C4034 0.0056
C4845 NI
C4704
NI
C4895
NI
R4718
NI
NI
K6101 NQR0502-001X
K6102 NQR0022-002X
K6103 NQR0022-002X
K6104 0
CN511
WJP0079-002A-E
1
2
3
4
5
D6101 NI
1
2 3
C6101
0.0018
C6102
0.0018
C6103 15p C6104 15p
J6101
QNZ0851-001
1234
EP511
QNZ0870-001
1 2 3
IC472
S-80840CNNB-G-W
12
34
IC471
MN101C49GPW
12345678910111213141516171819202122232425
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75
76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99
100
SYSTEM MICOM
KEY3
KEY4
VPP
NC GND
VCC RST
(FOR FLASH)
D5V DGND
NTSEL(RGBSEL)
VERSION2
DI-DT/CB_TEST_TX
DI-CK
KEY2
DVD B3.3V
SW-PON
VREF-
0V
0V
0V
VREF+
VDD
OSC2(8MHz)
OSC1(8MHz)
GND
XI
XO
GND
0V
0V 4.7V
3.1V
4.9V
0.4V
0.3V
4.9V
KEY1
4.9V
NC/CB_TEST_RX
NC NC NC
B5V
12.3V 12.3V
DVD RST
DVD SCS
DVD CK/CLK
DVD U2SDT/RX
AGND RDS NC TU-R TU9V
0V
TU-L AGND TU-DO TU-CLK TU-DI TU-CE
0V
4.8V
0V
0V
4.9V
4.9V
4.9V
4.9V
AC OFF
DETECT
RESET
4.9V
4.9V
4.9V
4.9V
4.9V
2.5V
2.5V
0V
DVD S2UDT/TX
CLK
FOR FLASH
/FLASH-VDD
/FLASH-VSS
0V
4.8V
3.8V
4.7V
4.7V
4.8V
4.8V
0V
0V
0V
4.8V
0V
4.9V
4.8V
4.9V
0V
4.8V
4.8V
0V
4.9V
0.4V 4.9V
3.6V 4.9V 4.9V 4.9V 4.9V 4.9V
0V 0V 0V
4.9V 4.9V
0V 0V
4.9V
4.3V
0V 0V
VDD2 RESET/RST
0V 4.9V 4.8V 0.5V 4.9V 0V 4.8V 4.9V 0V 0V 4.9V 4.9V 4.8V
4.9V
4.7V
AV
4.9V
0.9V
0V
0V
TO VIDEO BLOCK
11.8V
0V
0V
12.4V 0V
11.8V
AGND FAOUTL FAOUTR A6V LRMUTE AGND
BGND BGND
4.8V
S-TU INH
FLGND
EEP ROM
LEVEL SHIFT
AGND
A0 A1 A2 GND
VCC WP SCL SDA
4.9V
AGND AGND
(B4112)
4.9V
0V 0V
0V 0V 0V 0V
4.9V 4.9V 4.9V 4.9V
0V
3.3V 9.4V 2.4V 2.4V
0V 0V 0V 0V 0V 0V 0V
5.6V 5.6V
TU-R
AGND
TU-L
S-TU
UOT-R
AGND
OUT-L
HPMUTE
OUT-SR
S-KA
OUT-SL
AGND
OUT-SW
OUT-C
AGND
ADINR
AGND
ADINL
DGND
S-MUTE
VOL_CK
VOL_DT
BGND
B5V
(WITHOUT FLASH)
NC
AGND
AGND
HPOUT_R
A11V
AGND
HPOUT_L
0V
0V
0V
0V
0V
12.0V
B3.3V M9V M9V M9V RX MGND MGND MGND TX D2V D2V IDAC D4V UDAC S5V CDAC DGND YDAC DGND VDAC FDAC DGND DISPCK DISPS2D DISPCS DISPD2S DISPBUSY DISPRST AGND MICR AINR MICL AINL
0V
RAOUTR RAOUTL SWOUT AGND CAOUT
CN501
HPOUT_R HPOUT_L
4.8V
4.7V
4.8V
0V
0.4V
12.4V
1
SAFETY1
0V
0V
0V 3.6V
3
4.9V
A5V REG
2
CN502
A12V MIC AGND A5V MIC-DET ECHO MICMUTE
3.8V
4.9V
0V
0.2V
3.2V
DIGITAL
DGND DGND DGND D5.6V D5.6V HDMICEC NC 5.6V DGND D4V
F+ F- -VDISP KEY1 REMOCON KEY2 DI-CK DI-CS DI-DT KEY4 STANDBY VOL1 VOL2 HP-DET KEY1 KEY2
SW_PON2
3.2V
0V
0.4V
0V 0V
0.8V 4.8V 2.8V 4.0V 2.8V 0.2V
10.0V
3.2V 3.1V 3.2V 3.2V 2.6V 0.3V 3.2V 0.4V 1.0V
0V 0V 0V 0V
10.0V 10.0V
1.0V
HDMI CECI S-KARAOKE NC
4.7V
0V
0V
AV
DVD BUSY
*
*
* *
*
*
**
12V
DGND
QQR0621
-001Z NC
NC
AVCO
AVCI
BGND
DEVICE KEY
WRITING
-001Z
QQR0621
DGND
MGND
AGND
FLGND
DGND
DGND
** *
D5V
0V
2.4V 2.4V 2.4V 2.4V 2.5V 2.5V
0V 0V
CN701
D5V
GND
5.0V
D-
D+
GND
CN414
VDD
GND
DIN
4.7V
4.7V
0V
0V
0V
0V
4.9V
0V
0V
X
VERSION1
10k
(NTSC): UT/UP
FMU-SB1
3.3kP-UP
10k
J : J/C
KARAOKE SW
27k
P-DOWN
P-UP
NTSEL
10k
27k
X
X
U2
P-DOWN
CN455
10k
CN401
10k
AV COMPULINK
X
EE
X
R4751
10k
MIC
P-UPR4851
EE : EE
10k
R4847
10k
P-DOWN
27k
U1
P-UP
J4891/CN406
R4763
X
U3(PAL) : UX
R4852
X
o
X
R4848
15k
X
(NTSC/YC)
10k
P-UP
*PARTS LIST
(PAL/RGB)
8.2k
10k
/RGBSEL
R4752
R4771
10k
C20-C30
10k
U1(PAL) : A/US/UB/UF/UN/UG
10k
R4774
/FMU-SM3
X
10k
U3
P-DOWN
X
P-DOWN
10k
10k
10k
10k
R4773
U4
VERSION2
X
HDMI
U4(NTSC): UJ
10k
X
10k
X
J
27k
X
X
10k10k
X
XX
10k
10k
X
X
X
10k
X
C40-C60 C90
oo o o
X
XXXXX
X/ o/
IN
COMPULINK
U2SDT
S2UDT
RESET
VDD
DGND
DETECT
SAFETY2
DETECT
0.7V
0V 0V 0V
5.2V 5.0V
0V 0V
0V
4.9V
12.4V
0V
12.4V
0V
0V
2.4V
2.8V
2.4V
4.8V
2.4V
0V
2.4V
2.4V
0V
2.4V
2.5V
0V
6.2V
0V
0V
0V
2.5V
6.0V
AM-BEAT
CUT
COMPULINK
TU9V REG
4.9V 4.9V 0V 0V 0V 0V 0.5V 0V 4.9V 4.9V 4.6V 4.7V 4.2V 4.9V 4.9V 4.9V 4.9V 0V 4.9V 4.9V 0V 4.9V 0V -23.5V -17.4V -21.3V
LVS10488-005A
TO TOP KEY
CN701
LVS10488-006A
TO FRONT
LVS10488-005A
LVA10636-A2
FW521
LVA10635-A2
TO MIC
LVA10636-A4
LVS10488-003A LVA10635-A1
TO AUDIO BLOCK TO AUDIO BLOCK LVS10488-005A LVA10636-A1
CN102 LVS10488-005A LVA10636-A1
5.0V
0V
D5V
D-
D+
GND
USB
LVA10636-A4
USB PWB
2.5V
0V
TO TUNER
QAU0412-001
CN801CN704 CN703 CN702
LVS10494-001A
LVA10655-101A LVA10633-101A
LVS10483-001A
TO DVD BLOCK
or
FMU-SM3FMU-SB1
LVA10635-A1
(2/3)
MAIN PWB
TO POWER SUPPLY LVS10488-001A LVA10635-A1
VCR S/C
VERSION1
EEP-DT EEP-WP EEP-CK NC NC NC NC
NC
NC
NC
NC
NC
NC
NC
NC
AM BEAT
NC
NC
NC
NC NC NC
SAFETY3 SAFETY2
CB TEST
FAN
KARAOKE_SW
ESS/DVN_SW
NC NC
DAVSS
NC
DAVDD
10EDB
20-T4
4.9V
0V
0V
oX
*AV COMPULINK
*AV COPUULINK
*AV COPUULINK
*HDMI
*MIC
2.5V
2.5V
2.5V
/RATED VOLTAGE (V).
Tray mode
CERAMIC CAPACITOR
the
,
ALL INDUCTANCE VALUES
ALL RESISTANCE VALUES ARE
1/16W
OF
ALL CAPACITORS ARE 50V 16V
0.5%
VOLT METER
A1
5%
,
2.
WITHOUT INPUT SIGNAL.
CONDITION ---
,
ARE IN H(m=mH).
METAL GLAZE RESISTOR.
,.
and
6.3V
in
ALL E.CAPACITORS ARE SHOWN IN THE FORM
1.
F(p=pF).
10V
NOTES
CAPACITANCE( F)
OR
STOP
.
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
disc
ALL CAPACITANCE VALUES ARE IN
DVD
METAL GLAZE RESISTOR.
UNLESS OTHERWISE SPECIFIED.
IN OHM( ).
ALL RESISTORS ARE
25V or
3. NI STANDS FOR NOT INSERTED PARTS.
U2(NTSC): UW
(PAL) : UY
C4016
C4020
C4021
10k
NI
NI
NI
0.01
0.01
0.01
or QNS0221-001

2-4
Audio section
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
VOL_CK
OUT-L
OUT-R
TU-L
TU-R
VOL_DT
OUT-L
OUT-C
OUT-SR
OUT-SL
OUT-SR
OUT-SL
OUT-SW
OUT-C
ADIN-R
ADIN-L
VOL_DT
VOL_CK
OUT-R
OUT-SW
ADIN-R
ADIN-L
TU-L
TU-R
AGND
IC121
RC4580ID-X
2
3
1
9
10 11
TPSW4
TPSL4
TPL4
TPC4
TPSR4
TPR4
TPSR1
TPSW1
TPSL1
TPC1
TPL1
TPSW2
J1103
QND0118-001
1
3
6
7
8
5
2
4
4.7/50
C1212
4.7/50
C1104
0.047/16
C2557
4.7/50
C1205
0.047/16
C2556
4.7/50
C1103
4.7/50
C1206
4.7/50
C1211
330p/50
C1101
C2501
*1
2.2/50
C1217
4.7/50
C1218
330p/50
C1102
22k
R2559
22k
R2551
R1109
330k
100k
R1176
R1174
NI
R1103
100k
R1172
470
R1102
100k
R1175
1k
R2556
NI
R1104
R1108
330k
R1173
5.6K
R2557
470
R1101
100k
R1171
1k
R2506
C1105 NI
R1112
NI
C1106 NI
C1107
NI
IC114
NI
6
5
7
8
4
C1108
NI
R1114 NI
C1109
NI
IC114
NI
2
3
1
R1111
27k
R1113
NI
R1110
27k
R1115NI
R1116
1k
1k
R1117
IC101
R2S15902FP
6841
1234567891011
12
13
14
15
16
17
18
19
20
21
22
2324252627282930313233
34
35
36
37
38
39
40
41
42
43
44
CN102
QGF1036F2-25
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1k
R2505
1k
R2504
1k
R2503
100
R2501
R2554
10k
R2553
8.2k
47/25 C2552
10/50C2511
10/50C2512
R2513
47k
R2514
47k
C2530
*1
100/16
C2533
0.1/16
C2531
2.2/50
C2550
IC121
RC4580ID-X
6
5
7
8
4
C2554
*1
10k
R2558
4.7/50
C2553
0.047/50
C2536
0.15/50
C2537
R2521
4.7k
0.047/50
C2538
0.15/50C2539
R2520
4.7k
0.022/50C2540 0.022/50C2541 4.7/50
C2522
0.039/16C2516 0.039/16C2515
R2511
22k
R2512
22k
47k
R2552
22/50
C2551
TPR1
100
R2502 C2502
*1
R1207
27K
R1212 NI
C1126
NI
C1125
NI
330p/50
C1122
NI
R1206
27k
R1203
C1127
NI
27k
R1204
R1202
330k
R1209
NI
4.7/50
C1124
IC115
NI
6
5
7
8
4
R1211 NI
C1129
NI
1k
R1213
NI
R1205
4.7/50
C1123
R1210
NI
IC115
NI
2
3
1
330p/50
C1121
C1128
NI
R1208
27k
J1102
QNN0476-001
4
3
1
R1214
1k
R1201
330k
R1301
100k
1k
R1303
4.7/50
C1333
1k
R1304
100p
C1332
R1302
100k
100p
C1331
J1102
QNN0476-001
5
6
2
4.7/50
C1334
R2605
4.7k
IC131
RC4580ID-X
6
5
7
8
4
R2601
10k
R2604
10k
C2610
0.1/16
IC131
RC4580ID-X
2
3
1
C2604
220/10
C2601 56p
R2603
10k
C2603
220/10
R2602
10k
C2602 56p
R2606
4.7k
22k
R2620
2.2k
R2621
10/50 C2611
Q1131
RT1N141C-X
Q1132
2SA1530A/QR/-X
R2607
4.7k
R2608
4.7k
R2609
39
R2610
39
R2612
10
R2611
10
TPHPL
TPHPR
4.7/50
C2521
0.22/16
C2513
0.22/16
C2503
0.22/16C2504
0.22/16C2505
4.7/50C2506
Q1133 IMX9-W
654
321
2.2k
R2614
2.2k
R2613
4.7k
R2555
0
C1111
0
C1112
0
C1132
0
C1131
J1101
QNN0598-001
4
3
J1101
2
1
47p
C1223
Q1102
RT1N141C-X
IC111
RC4580ID-X
6
5
7
NI
C1208
470p
C1225
NI
C1202
NI
R1147
Q1101
2SA1530A/QR/-X
1k
R1142
R1159
*1
R1163
*1
100k
R1146
4.7/50
C1203
3.3k
R1135
C1171
*1
R1165
10k
1k
R1134
1k
R1133
NI
C1201
100k
R1138
3.3k
R1136
1k
R1149
IC112
RC4580ID-X
2
3
1
8
4
TPSR3
IC113
RC4580ID-X
2
3
1
IC112
RC4580ID-X
6
5
7
NI
C1214
NI
R1139
Q1122 IMX9-W
654
321
R1158
*1
1k
R1150
4.7/50
C1204
47p
C1226
R1162
*1
R1160
10k
10k
R2561
C1172
*1
TPL3
47p
C1222
10k
R2560
Q1123 IMX9-W
654
321
C1170
*1
47p
C1224
NI
R1140
NI
R1148
47/50
C2560
R1167
*1
NI
C1207
4.7/50
C1210
100k
R1155
100k
R1137
4.7/50
C1209
47p
C1221
Q1121
IMX9-W
654
321
1k
R1141
3.3k
R1144
4.7/50
C1216
R1164
10k
IC113
RC4580ID-X
6
5
7
8
4
10k
R1168
100k
R1145
TPSL3
R1161
10k
NI
R1131
3.3k
R1143
R1166
*1
NI
C1213
IC111
RC4580ID-X
2
3
1
8
4
3.3k
R1152
3.3k
R1151
100k
R1156
TPSW3
27k
R1169
TPC3
TPR3
NI
R1132
4.7/50
C1215
1k
R1185
1k
R1186
1k
R1183
1k
R1184
1K
R1181
1k
R1182
1k
R2922
D2922
1SS133-T2
Q2921
KTC3203/OY/-T
D2921
MTZJ11C-T2
47/25 C2921 C2922
*1
CN101
QGB2501J1-06
1
2
3
4
5
6
0.22/16
C2514
0.015/16
C2532
C2517
4.7/50
C2518
4.7/50
CN414
QGB2501K2-06
1
2
3
4
5
6
CN415
QGB2501K2-06
1
2
3
4
5
6
0.047/50
C2534
0.047/50
C2535
0.0022
C1441
0.0022
C1442
0.0022
C1444
0.0022
C1443
0.0022
C1445
0.0022
C1446
XV-THC20/26
L-IN
R-IN
IN
R
L
SR
SL
C
SW
SYSTEM
CONNECTOR
XV-THC30/40
AUX
10k
(2/2)
10k
*1 PARTS LIST
*2 USE C90
10k
LVA10636-A1
TO MAIN BLOCK
CN411
(2/2)
(1/2)
INR2
INL3
INR3
INL4
INR4
AGND
VREF
VCC
ADCR
L+RCIN
L+RSWIN
ADCL LOUTSL LINSL ROUTSR RINSR LIN RIN CIN SWIN SLIN SRIN
DGND
DATA
CLOCK
SROUT
SLOUT
SWOUT
COUT
ROUT
LOUT
BASR1
BASR2
TU-R
AGND
TU-L
ADIN-R
AGND
ADIN-L
AGND
OUT-R
AGND
OUT-L
HPMUTE
OUT-SR
AGND
OUT-SL
AGND
OUT-SW
S-MUTE
OUT-C
B5V
12V
DGND
VOL_CK
VOL_DT
SW_PON
AGND
A11V
AGND
HPOUT_L
AGND
HPOUT_R
AGND
(1/2)
(1/2)
TAPE
AUDIO PWB
(2/2)
L-IN
R-IN
IN
TAPE
R-OUT
OUT
L-OUT
7V
7V
12.4V
(1/2)
7V
7V
7V
7V
0V
0V
4.3V
5.0V
4.9V
0V
H.P.MUTE DRIVER
USE C90
(1/2)
S-MUTE DR.
12.4V
4.9V
4.9V
(2/2)
(1/2)
0V
7V
(2/2)
0V
7V
0V
7V
0V
12.4V
7V
0V
0V 0V
0V
7V
7V
7V
7V
7V
12.4V
7V
7V
7V
HP_OUT_R
4.9V
(2/2)
0V
7V
7V
(1/2)
HP_OUT_L
0V
7V
7V
7V
7V
0V
12.0V 10.0V
10.6V
C AMP
SW AMP
AUX AMP
TAPE IN AMP
SL AMP
SR AMP
LcH AMP
RcH AMP
HP AMP
SIG SEL.VOL AMP
A10V REGURATOR
LR MUTE
SL SR
MUTE
SW C
MUTE
TUNER
L.P.F.
*2
10k
R1158
R1159 R1166 R1167
18k
18k
XV-THC50/43
XV-THC60/67
LVS10448-002A (SEET 2/6)
LVA10635-A1
5.0V
5.0V
5.0V
5.0V
5.0V
0V
5.0V
10.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
5.0V
0V
5.0V
5.0V
5.0V
5.0V
GAINOUTL VOLINR BASL1 VOLINL INL2 TRER INR1 TRER INL1 BASL2 GAINOUTR
5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V
5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V 5.0V
15k 10k 10k
10k
9.1k 15k
*1*1
R1163
68k
R1162
10k
10k
-
LVA10635-A1CN413
LVS10448-002A (SEET 2/6)
TO MAIN BLOCK
LVA10636-A5
CONNECT PWB
(2/2)
R1174
R1173
100k
100k
100k
3.9k
2.4V
0V
2.5V
6.0V
2.8V
2.4V
0V
0V
4.8V
4.9V
2.4V
0V
2.4V
0V
12.4V
0V
2.4V
12.4V
2.4V
0V
0V
0V
6.2V
0V
2.5V
7V 7V
7V
7V
7V
0V
0V
12.4V
0V
0V
0V
12.0V
0V
0V
0V
0V
0V
12.0V
0V
0V
0V0V 0V
0V
0V
0V 0V 0V
0V 0V 0V
0V 0V 0V
0V 0V 0V
0V
/RATED VOLTAGE (V).
Tray mode
CERAMIC CAPACITOR
the
,
ALL INDUCTANCE VALUES
ALL RESISTANCE VALUES ARE
1/16W
OF
ALL CAPACITORS ARE 50V 16V
0.5%
VOLT METER
A1
5%
,
2.
WITHOUT INPUT SIGNAL.
CONDITION ---
,
ARE IN H(m=mH).
METAL GLAZE RESISTOR.
,.
and
6.3V
in
ALL E.CAPACITORS ARE SHOWN IN THE FORM
1.
F(p=pF).
10V
NOTES
CAPACITANCE( F)
OR
PLAY
.
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
disc
ALL CAPACITANCE VALUES ARE IN
METAL GLAZE RESISTOR.
UNLESS OTHERWISE SPECIFIED.
IN OHM( ).
ALL RESISTORS ARE
25V or
NI STANDS FOR NOT INSERTED PARTS.3.
CD
C1170
C1171
C1172
0.01/50
0.01/50
1/16
1/16
C1446
0.0022
0.0022
0.001
0.001
C2554
0.1/50
0.1/50
1/16
1/16
C2501
C2502
C2530
1/50
1/50
4.7/50
4.7/50
C2922
100/16
100/16
47/25
47/25
100/16
100/16
100/25
100/25

2-5
Front section
S2 S3 S4 S5 S6 S7 S8 S9
S10
G9 G8 G7 G6 G5 G4 G3 G2
G10 G11
G1
VOL1
S11 S12
S1
G1
G11 G10
G2 G3 G4 G5 G9 G8
S10
S11
S12
S13
S14
S15
S16
S17
G6
G7
S9 S8 S7 S6 S5 S4 S3 S2 S1
S13 S15 S16 S14
REMOCON
KEY3
KEY4
DI-DT
DI-CS
DI-CK
VOL2
S17
ILLUMI1 ILLUMI2
ILLUMI2
ILLUMI1
REMOCON
KEY3
KEY4
KEY4
VOL1
VOL2
KEY1
S532S533S534S535
S540 S539 S538 S537 S536
D511
SLR-343VC/NPQ-T
S531
S529
S522 S523
S521
QSW1120-001Z
S526 S527 S528
FW521
QUM213-08DGZ4-E
1
2
3
0K501
0K502
JS541
QSW1059-001
41325
NI
C501
10k
R542
3.9k
R527
3.3k
R531
0.01/50
C541
3.9k
R522
NI
C512
3.3k
R536
6.8k
R528
15k
R534
NI
C505
1k
R501
15k
R539
1/16 C511
1k
R502
0.01/50
C542
3.9k
R532
3.3k
R521
3.9k
R537
10k
R541
NI
C502
1k
R503
0.01/50
C507
3.3k
R526
6.8k
R533
NI
C503
220
R511
6.8k
R538
IC511
GP1UM261XKVF
12345
DI501
QLF0168-001
123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354
W5001 NI
1
120 R552
C551
NI
D551
SELU2E10C-P
J6001
QNS0231-001
2
3
1
4
5
6
7
R505 82K
IC501
PT6315
1234567891011
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
33
R506
NI
C508
NI
R551
0.01/50
C515
1/6.3
C506
K6004
K6001 K6002 K6003
CN501
QGF1036F2-17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
CN502
QGF1205F2-07
1
2
3
4
5
6
7
0.001/50
C517
C6105
0.01
C6205
0.01
0K504
0.001/50
C518
0
K503
NI
C509
1k
R6001
0.022/16
C6002
0.1/16C6003
0.01/50
C6004
0.022/16C6001
W6001
QUB220-12HPXL-E
1
39
R6107
39
R6207
NI
C519
REMOCON
FL DRIVER
F+
DI-CK
-VDISP
VOL2
BGND
B5V
VOL1
DI-CS
DI-DT
TO MAIN PWB
CN450 OF
LVS10488-002A
STANDBY
D5V
VDD
STANDBY
KEY4
F+
GND OUT
LVA10636-A2
VSS
2.6V
2.6V
0V
0V
FRONT PWB
5.0V
-12.5V -21.0V -12.5V -16.8V -18.9V -18.7V
0V
REMOCON
FL DISPLAY
KEY3
5.0V
0V
DISC1 DISC1 DISC2 DISC2 DISC3
DISC4 DISC5 DISC5
KEY1
KEY2
POWER SW
SOURCE
LVA10635-A2
TOP KEY PWB
18.9V
0V
GND GND
PLAY PLAY PLAY
PLAY PLAY
OP/CL OP/CL
OP/CL OP/CL OP/CL
VOLUME
DISC3 DISC4
0V 0V
LED
PAUSE PLAY
STOP
F.SKIP B.SKIP
5.0V
5.0V
0V
KEY1
QSW0522-002Z
S531-S540
QSW1120-001Z
S522-S529
S10
S11
S12
S13
S14
S15
S16
VEE
S17
G11
G10
G9 G8 G7 G6 G5 G4 G3 G2 G1 VDD
BGND
(SHEET 2/6)
-21.3V
-23.1V
-14.5V
-21.3V
-23.5V
-10.3V
-21.3V
-23.2V
-13.0V
-18.9V
-18.9V
-21.3V
5.0V
-21.3V
5.0V 5.0V
0V 0V 0V
LEDILLUMINATION
NQR0007-002X
HP-L
0V
AGND
HEADPHONE
HP-DET
0V
K6001-K6004
HP-R
0V
0V
0V
OUT
S9 S5 S8 S6 S7 S4 S3 S2 S1 VDD VSS
K2
K1
DI-CS
DI-CK
DI-DT
NC
OSC
NC
NC
FLGND
F-
BGND
NC
DGND
G11 G1 G10 G2 G3 G4 G5 G6 G7 G8 G9 S17 S16 S15 S14 S13 S12 S11 S10 S9 S8 S7 S6 S5 S4 S3 S2 S1
LVS10488-002A
TO MAIN PWB
CN451 OF
(SHEET 2/6)
5.0V
5.0V
5.0V
5.0V
5.0V
-17.4V
5.0V
0V
0V
5.0V
0V
-21.3V
-23.5V
5.0V
0V
0V
0.5V
0V
5.0V
0V
CD PLAY
ALL E.CAPACITORS ARE SHOWN IN THE FORM CAPACITANCE( F) /RATED VOLTAGE (V).
VOLT METER
1/16W
ALL CAPACITANCE VALUES ARE IN
in
,
1
NOTES
,or
ALL RESISTORS ARE
3.
1.
disc the
5%
and
CERAMIC CAPACITOR
NI STANDS FOR NOT INSERTED PARTS.
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
ALL INDUCTANCE VALUES
2.
,
.
25V
ARE IN H(m=mH).
0.5%
,Tray
METAL GLAZE RESISTOR.
.
IN OHM( ).
WITHOUT INPUT SIGNAL.
F(p=pF).
6.3V
OF
CONDITION --- mode
UNLESS OTHERWISE SPECIFIED.
ALL CAPACITORS ARE 10V
METAL GLAZE RESISTOR.
A
50V
ALL RESISTANCE VALUES ARE
16V
OR
LVA10635-A1
LVA10635-A1
LVA10635-A1
LVS10488-002A
TO MAIN PWB
CN457 OF
(SHEET 2/6)
-21.3V -23.2V -13.0v -18.9V -18.9V -23.1V -14.5v -21.0V -21.0V -12.5V -17.3V -10.3V -18.7V -18.9V -16.8V -12.5V -18.7V -18.9V
-21.3V -21.3V -21.3V -21.3V -21.3V -21.3V -21.3V
-8.2V 21.0V
F-
-21.3V -21.3V -21.3V -21.3V -21.3V -21.3V -21.3V -21.3V -21.3V -21.3V -21.3V -21.3V
0V
0V

2-6
Video section
V_SW
V_MUTE1
V_MUTE2
V_YCMIX
V_LPF
V_MUTE2
V_RGB
V_YCMIX
V_MUTE1
V_LPF
VCR_S/C
V_SW
V_RGB
Y1
VCR_S/C
V
C
16
15
2
1
J4402
QNN0572-001
6
5
4
3
220
L4391
QQL25CK-221Z
A5V
V_RGB
V_SW
V_MUTE1
V_MUTE2
V_YCMIX
V
Y2
CB
8
7
CR
VCR_S/C
V_LPF
J4401
QNN0570-001
12
34
56
910
11
12
13
NC
14
C
17
IC411 MM1233XF-X
161514131211109
87654321
IC431 MM1623XF-X
2827262524232221201918171615
14 13 12 11 10 9 8 7 6 5 4 3 2 1
C4395
22/50
1/6.3
C4173
470/10
C4451
1/6.3
C4121
470/10
C4391
47p
C4122
470/10
C4441
0.1/16
C4392
0.01
C4111
470/10
C4431
1/6.3
C4172
1/6.3
C4101
47p
C4452
0.01/50
C4311
470/10
C4421
47p
C4442
1/6.3
C4321
470/10
C4401
47p
C4112
47p
C4432
1/6.3
C4331
47pC4102
1/6.3
C4341
0.01
C4411
1/6.3
C4351
0.1/16
C4394
47pC4402
47/25
C4191
1/6.3
C4171
47pC4412
0.01
C4192
47pC4423
R4202R4252 R4232
R4221
R4242 R4222
R4231
75
R4411
R4241
0
R4191
75
R4421
R4251
75
R4431
75
R4441
75
R4451
75R4111 75R4121
75R4101
75
R4401
R4201
1/6.3
C4301
R4211 R4212
Y1
Y
Pb
Pr
VCC
(COMPONENT)
VIDEO OUT
CV IN
(S-VIDEO/
MUTE1 SW
C IN
GND
Y1 IN
YC MIX SW
RGB SW
VIDEO OUT
Y2 IN
LPF SW
Y
Cb IN
VIDEO DRIVER
BIAS
(S-VIDEO
COMPOSITE)
Y
CIN1CIN2
CVIN1
CVIN2
YIN2YIN1
COUT
CVOUT
YOUT
GND
GND
VCC
GNDCTLa
CTLc
CTLb
VIDEO SW
R4201
R4202
R4231
R4232
R4241
R4242
R4251
R4252
620
300
510
510
620
C
V
C
V
330
330
330
* PARTS LIST
4.7V
2.3V
4.9V
1.1V
0V
1.4V
0V
2.3V
4.9V
1.4V
0V
2.5V
2.3V
2.3V
LH
H
LH
L
COMPOSITE)
VCR IN
C20/C30
R4211
R4212
V
C
Y2
CB
CR
620
300
LH
(3/3)
R4222
R4221
330
510
Y
DGND
LVA10635-A1
MAIN PWB
TO MICOM BLOCK LVS10488-002A LVA10635-A1
2.7V
0V
1.5V
4.9V
0V
1.4V
0V
1.5V1.7V
0V
1.0V
0.7V
0V
2.7V
0V
2.0V
C OUT
S-DC OUT
VCC
S1
S2
CV OUT
GND
Cr OUT
GND
Cb OUT
GND
Y1 OUT
Y2 OUT
GND
0V
2.3V
0V
2.3V
0V
4.7V
2.3V
0V
0V
1.7V
0V
1.7V
1.8V
Cr IN
MUTE2 SW
* *
*****
*****
J/C
OTHER
100
220
100
47
220
47
220
62
220
62
47
47

2-7
DVD section (1)
H_D8
H_MCLK
H_D10
H_D9
H_D11
MTCL
POSMDN
MTOP
POSMUP
MTOPSW
STSTSW
CLSWT5
CLSWT1
CLSWT4
CLSWT2
CLSWT3
STEDSW
POSMDN
POSMUP
STSTSW
CLSWT1
CLSWT2
CLSWT3
CLSWT4
CLSWT5
MTOPSW
STEDSW
DISPS2D
DISPD2S
DISPCK
DISPBUSY
DISPCS
EPCS EPSK EPDI EPDO
MTCL
MTOP
EPSK
EPDI
EPDO
EPCS
DISPRST
H_IDCK
H_SPDIF
M9V
CPURST
DVDPWR
MGND
H_D7
H_D5
H_D2
H_D1
H_DE
H_D6
H_D0
H_D4
H_D3
DISCSET
DISCSTP
UCS SCLK U2SDT S2UDT
SCS
H_HSYNC
H_VSYNC
H_RESET
H_CSCL
H_CSDA
R808 4.7k
R826 20
TP840
TP802
K803
NQR0502-001X
TP831 TP829
R837 4.7k
TP805
R812 NI
C826 0.1
L802
NQR0597-001X
1
23
4
TP804
TP827
C816
2.2
TP836
R839 47k
K802
NQR0502-001X
R811 4.7k
TP834
R829 20
L804
NQR0597-001X
1
23
4
2
R813 NI
Q803
2SC3928A/R/-X
C810
2.2
R810 470
K804
NQR0502-001X
3
C803
47/4
C833
1
C831
47/6.3
C807
1
C830 1
TP838
C823 0.1
R843 10k
C822 0.1
C815 0.1
R842 4.7k
C812 0.1
C829
0.1
C832 1
R832 20
R833 1.8k
C804
1
TP826
L803
NQR0597-001X
1
23
4
TP833
R841 1k
R828 20
R838 22k
TP807
R830 20
D802
NAF0013-001X
1
L801
NQR0597-001X
1
23
4
3
TP832
Q802
2SC3928A/R/-X
C813 0.1
TP825
C811
0.1
IC806
LD2981ABM50-X
1
IN
2
GND
3
INH
4
NC
5
OUT
C820
0.1
D803
BAV99L-X
2
1
3
R825 20
R834 1.8k
K805
NQR0502-001X
C834
NI
C819 0.1
TP806
IC802
SN74CB3T3306U-X
8
VCC
7
2OE
6
2B
5
2A
1
1OE
2
1A
3
1B
4
GND
R809 4.7k
TP830
TP835
C818 0.1
TP839
D801
NAF0013-001X
1
R844 1k
TP809
R807 4.7k
2
K801
NQR0502-001X
C821
2.2
R840 4.7k
C814
2.2
TP837
IC805
MM3143DN-X
1
VIN
2
GND
3
CE
4
NC
5
VOUT
IC804
MM3141JN-X
1
VIN
2
GND
3
CE
4
NC
5
VOUT
C801
47/6.3
T
C802 1
C805 1
C825 0.1
C824 0. 1
TP828
TP801
TP808
TP810
C817
2.2
R831 20
R827 20
C827
0.1
Q801
2SA1530A/R/-X
1
HSYNC
2
VSYNC
3
CGND
4
CVCC18
5
SPDIF
6
MCLK
7
SD3
8
SD2
9
SD1
10
SD0
11
WS
12
SCK
13
IOVCC
14
IOGND
15
CGND
16
CVCC18
17
INT
18
HPD
19
DSDA
20
DSCL
21 RSVDL
22 PGND1
23 PVCC1
24 EXT_SWING
25 AGND
26 TXC-
27 TXC+
28 AVCC
29 TX0-
30 TX0+
31 AGND
32 TX1-
33 TX1+
34 AVCC
35 TX2-
36 TX2+
37 AGND
38 PVCC2
39 PGND2
40 NC
41
CI2CA
42
RESET#
43
CSCL
44
CSDA
45
CVCC18
46
CGND
47
IOGND
48
IOVCC
49
D23
50
D22
51
D21
52
D20
53
D19
54
D18
55
D17
56
D16
57
D15
58
D14
59
CVCC18
60
CGND
61 D13
62 D12
63 D11
64 D10
65 D9
66 IDCK
67 D8
68 D7
69 D6
70 D5
71 IOVCC
72 IOGND
73 CGND
74 CVCC18
75 D4
76 D3
77 D2
78 D1
79 D0
80 DE
IC451
MN101C61GNW
1
VREF-
2
LSENSOR
3
DET3.3V
4
DET1.2V
567
SM1/SM2
8
OUTC
9
VPP
10
VREF+
11
VDD
12
OSC2
13
OSC1
14
VSS
15
XI
16
XO
17
MMOD
18
DISPS2D
19
DISPD2S
20
DISPCK
21 S2UDT 22 U2SDT 23 SCLK 24 25 /RESET 26 SCS 27 CPURST 28 DISPBUSY 29 30 31 UCS 32 DISPCS 33 INT 34 35 36 37 38 39 EPCS 40 EPSK
41
EPDI
42
EPDO
43 44
STSTSW
45
CLSWT1
46
CLSWT2
47
CLSWT3
48
CLSWT4
49
CLSWT5
50
MTOPSW
51
STEDSW
52
MTOP
53
MTCL
54
POSMUP
55
FDATA
56
FCLOCK
57
POSMDN
58
DISCSTP
59
DISCSET
60
61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80DVDPWR
X451 NAX0248-001X
123
CN453
QGA2001F6-03X
1
2
3
CN452
QGA2001F6-02X
1
2
CN451 QGF1016F8-15W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
TP451 TP452 TP453 TP454 TP455 TP456 TP457
TP458
TP462
TP461 TP460 TP459
TP471
TP472
TP473 TP474
K454 0
K455 0
K456 0
R453
10k
R466
NI
R464
100
R457 100
R461 100
R452 1k
R463 100
R465
1k
R455
10k
R454
10k
CN455
QGA1002C1-06X
1 2 3 4 5 6
IC452
BR93L56RF-W-X
8
VCC
7
NC
6
NC
5
GND
4
DO
3
DI
2
SK
1
CS
R456 10k
C453
0.1
F
TP467
C454 0.01
C451
0.1
F
C452
0.1
F
TP811
TP812
C806
47/4
20
J801 NNZ0161-001
1 TX2+
2 TX2GND
3 TX2-
4 TX1+
5 TX1GND
6 TX1-
7 TX0+
8 TX0GND
9 TX0-
10 TXC+
11 TXCGND
12 TXC-
13 CEC
14 Reserved
15 TX_SCL
16 TX_SDA
17 GND
18 TX_5V
19 TX_HPD
R806
NI
R805
NI
R804
NI
R803
NI
R802
NI
R801
NI
TP803
B3.3V
DGND
M9V
MGND
S3.3VD1.2V
CN801
QGF1016C6-05W
1 CEC
2 US6V
3 DGND
4 D4V
5NC
22
C890 NI
C891 NI
K811 NI
TP841
K812
NQR0502-001X
K813
NQR0502-001X
TP899
C899 NI
R890 0
R891 0
R899 0
TP852 TP853 TP851
21
23
TP463 TP464
TP465
TP470
TP469
TP466
TP468
C809
0.1
R815 NI
R814 NI
TP815
TP814
TP816
81
R902
0
R901
0
IC801
SII9030CTU
Shield
HDMI TX
Shield
For TX5V
1.8V
3.3V
LOADER ASS'Y
CH6-BASE-1
See
LVS20135-002A
MECHA CONTOROLLER
8MHz

2-8
DVD section (2)
LA4
LA15
LA10
MDQ8
MA11
LA14
MDQ0
MDQ10
MDQ6
LD7
MDQ5
MA2
NCAS
MDQ7
MDQ4
LA18
MA10
MA4
LD6
MDQ15
MA5
MA7MA0
LD4
MA8
LA20
LD2
DSCK
LA21
MDQ12
LA16
MDQ13
MA3
LA11
LA12
MA9
NRAS
MA1
LA3
LWRLLB
LA13
NWE
MDQ1
LA8
LD5
LOE
DQM
LD0
MDQ2
LA2
LA0
MDQ9
LA17
LA5
MDQ3
BA0
LA6
LA19
LD1
BA1
NCS
LA9
LD3
MDQ11
DQM
LA7
MDQ14
MA6
MA4
MA5
MA6
MA9 MA3 MA2 MA1 MA0 MA10 BA1 BA0 NCS DQM MDQ0 MDQ1 MDQ2 MDQ3 MDQ4 MDQ5 MDQ6 MDQ7 MDQ8 MDQ9 MDQ10 MDQ11 MDQ12 MDQ13 MDQ14 MDQ15
LA16 LA15 LA14 LA13 LA12
LA11
LA10
LA9
LA20
LA21
LA19
LA18
LA8
LA7
LA6
LA5
LA4
LA3
LA0
LA17
LA2
LD7
LD6
LD5
LD4
LD3
LD2
LD1
LD0
LA1
LOE
CDPD
FDAC YDAC CDAC IDAC UDAC
LCS3
MA11
USB_NO
USB_PO
USB_PO USB_NO
LA0
LA1
LA3
LA2
LA4
LA5
LA6
LA7
LA8
LA9
LA10
LA11
LA12
LA13
LA14
LA15
LA16
LA17
LA18
LA19
LA20
LA21
LD0
LD1
LD2
LD3
LD4
LD5
LD6
LD7
LOE
MICR
H_DE
H_MCLK
H_CSDA
MCLK TSD0
MA8 MA7
LWRLLB
LCS3
LCS2
SVREF
LWRLLB
LCS3
SPDIF_O
LA1
DSCK
RF+
A
B
C
D
E
F
FODRV
TRDRV
H_D11 H_D10
H_VSYNC
H_D1
H_D8
H_D9
H_D3
H_D2
H_D7 H_D6 H_D5 H_D4
H_HSYNC
DVDPD
H_D0
H_IDCK
MICL
VDAC
HD0
HD15
HD1
HD14
HD2
HD13
HD3
HD12
HD4
HD11
HD5
HD6
HD7
HD8
HD9
HD10
HWR
HRD
HIORDY
HIRQ
HA1
HA0
HCS1
HA2 HCS3
TRVSW
SPDIF_I
VREFH
DACPDN
MD
MC
U2SDT
S2UDT
DISCSTP
DISCSET
CDLDO
DVDLDO
SCLK SCS UCS
LD7 LD6 LD5 LD4 LD3 LD2 LD1 LD0
LCS1
ML0 ML1 ML2
LRMUTE
H_SPDIF H_RESET
TBCK
LDCO
AIN
H_CSCL
TSD2
TWS
TSD1
NRAS NCAS
NWE
SPNP
LCS1
LCS2
LCS2
SPDRV
TRSDRV
DRVMUTE
CPURST
D VDPWR
IC301
ES8381FCC
1
VD33
2
CAMCLK
3
HA2
4
HCS3_B
5
AUX2
6
DMA7
7
DMA8
8
DMA9
9
DMA3
10
DMA2
11
DMA1
12
DMA0
13
VS33
14
VD33
15
DMA10
16
DMA11
17
HOMESW
18
AUX4
19
DRAS2_B
20
DRAS1_B
21
DCS1_B/TSD1
22
DCS0_B
23
VDD
24
VSS
25
DRAS0_B
26
DCAS_B
27
DOE_B
28
DWE_B
29
VS33
30
VD33
31
HDMI_D11
32
HDMI_D10
33
DSCK
34
DQM
35
DB7
36
DB6
37
DB5
38
DB4
39
DB3
40
AUX7
41
HDMI_VSYNC
42
DB2
43
DB1
44
DB0
45
VS33
46
VD33
47
DB8
48
DB9
49
DB10
50
DB11
51
DB12
52
HDMI_D0
53
HDMI_D1
54
DB13
55
DB14
56
DB15
57
VS33
58
VD33
59
LA16
60
LA15
61
LA14
62
LA13
63
LA12
64
VS33
65VD33
66HDMI_D9
67HDMI_D8
68AUX30/FLAG0
69AUX31/FLAG1
70LA11
71LA10
72LA9
73LA20
74VS33
75VD33
76LA21
77AUX32/FLAG2
78AUX33/FLAG3
79LWRLL_B
80LA19
81LA18
82LA8
83VSS
84VDD
85LA7
86LA6
87AUX34/FLAG4
88AUX35/FLAG5
89LA5
90LA4
91LA3
92VS33
93VD33
94LA2
95LA17
96LA0
97AUX36/FLAG6
98AUX37/FLAG7
99LCS0_B/GPIO_MUTE/TSD2
100 LCS1_B
101 LCS2_B
102 VDD
103 VSS
104 LCS3_B
105 LD7
106 LD6
107 LD5
108 LD4
109 LD3
110 LD2
111 VS33
112 VD33
113 LD1
114 LD0
115 LOE_B
116 LA1
117 HDMI_D3
118 HDMI_D2
119 SPDIF_OUT
120 SPDIF_IN
121 AVD33
122 USB_P0
123 USB_N0
124 ADC_BIAS
125 MIC_L
126 MIC_R
127 AVSS33
128 VD33PLL
129
VS33PLL
130
VREF
131
COMP
132
RSET
133
FDAC
134
VDAC
135
VD33DAC
136
VS33DAC
137
YDAC
138
CDAC
139
UDAC
140
IDAC
141
PWM_O1L/TWS
142
PWM_O2L/TSD0
143
PWM_O2R/TSD1
144
VD33
145
VS33
146
PWM_O3L/TSD2
147
PWM_03R/TSD3
148
PWM_O1R/TBCK
149
ML/LINE_OL
150
MD/LINE_OR
151
VDD
152
VSS
153
MCLK
154
RSD/TSD0
155
RBCK/SDCLK/TBCK
156
RWS/SDCMD/TWS
157
VD33
158
VS33
159
TDMDR
160
TDMCLK
161
TDMFS
162
TSD3
163
HDMI_CLK
164
HDMI_D7
165
HDMI_D6
166
HDMI_D5
167
HDMI_D4
168
HRST_B
169
LDCO
170
AMPSTBY
171
CLOSESW
172
CLOSE
173
OPENSW
174
OPEN
175
VPB
176
VGB
177
MP
178
DB
179
MB
180
TE
181
FE
182
V165O
183
PI
184
REX
185
DVDLD
186
CDLD
187
VBO
188
DVCCDPD
189
AGC2
190
AGC1
191
SPNN
192
SPNP
193 VPA
194 VGA
195 DRFN
196 DRFP
197 A
198 B
199 C
200 D
201 E
202 F
203 G
204 H
205 MIN
206 SLV
207 DMO
208 FOO
209 SLO
210 TRO
211 CDPD
212 REFD
213 AVD33
214 AVS33
215 DVCC
216 VD33
217 VS33
218 HD0
219 HD15
220 HD1
221 HD14
222 HD2
223 HD13
224 HD3
225 HD12
226 HD4
227 HD11
228 VID_XI
229 VID_XO
230 CLK
231 VS33
232 VD33
233 HD5
234 HD6
235 HD7
236 HD8
237 HD9
238 HD10
239 VSS
240 VDD
241 HWR_B
242 HRD_B
243 HDMI_HSYNC
244 HDMI_ACT
245 HIORDY
246 HIRQ
247 HA1
248 HA0
249 AUX0
250 HCS1FX_B
251 RESET_B
252 AUX1
253 DMA4
254 DMA5
255 DMA6
256 VS33
0.1
C559
F
0.1
C560
F
IC505
K4S281632F-UC60
27
VDD
28
VSS
29
A4
30
A5
31
A6
32
A7
33
A8
34
A9
35
A11
36
NC
37
CKE
38
CLK
39
UDQM
40
NC/RFU
41
VSS
42
DQ8
43
VDDQ
44
DQ9
45
DQ10
46
VSSQ
47
DQ11
48
DQ12
49
VDDQ
50
DQ13
51
DQ14
52
VSSQ
26
A3
25
A2
24
A1
23
A0
22
A10/AP
21
BA1
20
BA0
19
/CS
18
/RAS
17
/CAS
16
/WE
15
LDMQ
14
VDD
13
DQ7
12
VSSQ
11
DQ6
10
DQ5
9
VDDQ
8
DQ4
7
DQ3
6
VSSQ
5
DQ2
4
DQ1
3
VDDQ
2
DQ0
1
VDD
53
DQ15
54
VSS
NI
R462
0.1
C563
F
1
C562
F
0.1
C554
F
1k
R458
NI
C561
F
0.1
C555
F
0.01
C455
0.001
C557
47k
R535
IC453
S-80830CNNB-G-W
12
34
K501
NQR0502-001X
47k
R530
47/4
C558
T
0.1
C551
F
47/4
C339
IC510
BR24L16F-W-X
8
VCC
7
WP
6
SCL
5
SDA
4
GND
3
A2
2
A1
1
A0
0.1
C564
F
4.7k
R542
4.7k
R541
1
C380
S3.3V
DGND
2.2
C381
470p
C382
TP369
R301
100k
R302
33
C301
6p
C302
6p
X301
NAX0741-001X
C303
2.2 C304 2.2
C305
0.1
C306
0.1
C307
0.1
C308
0.1
C309
0.1
C310
0.1
C311
0.1
C312
0.1
C313
0.1
C314
0.1
C316
0.1
C317
0.1
C318
0.1
C319 0.1
C320
0.1
C321
0.1
C322
0.1
C323
0.1
C324
0.1
C325 680p
C326 680p
C327 0.1
C328
0.1
R303 220 R305 220
R310 220
R304 220
R317
150
R318
150
R319
910
K301
NQR0502-001X
K302
0
K303
0
K304
0
K305
0
C330 0.001 C331 100p
R320
10k C332
0.022
C333 NI
C334
NI
C335 4700p C336 0.001 C337 0.15
R32133 1/2W
R322 33 1/2W
K307
0
K308
0
470p
C392
TP385
1
C390
2.2
C391
IC306
MM1565AF-X
1234
567
R323
15k
R324
15k
D301
UDZW5.6B-X
D302
UDZW5.6B-X
TP382
TP383 TP384
TP386
TP387
C393
220/6.3
CN704
QGA2001F6-05X
1 2 3 4 5
TP381
R325
0
NI
C384
CN708
QGF0529C2-45W
1 DGND
2 DGND
35V
43.3V
5
6
7
8
9 LA16
10
11 LA15
12 LA11
13 LA14
14 LA10
15 LA13
16 LA9
17 LA12
18 LA20
19 RESET
20 LA21
21 LA17
22 LWRLLB
23 LA0
24 LA19
25 LD7
26 LA18
27 LD6
28 LA8
29 LD5
30 LA7
31 LD4
32 LA6
33 LD3
34 LA5
35 LD2
36 LA4
37 LD1
38 LA3
39 LD0
40 LA2
41 LOE
42 LCS2
43 CE-FLASH
44 LCS3
45 LA1
C338
0.1 C345
0.1
R326
390 0.5%
R327
68k
C349
270p
CN703 QGF1016C6-05W
1
2
3
4
5
R328 22
R329 22
R334 150
R356
47
0
R532
TP373
TP377
TP379
R359 120
R360 4.7k C342 0.1
R361 0
R362 0
R363 0
R364 0
R365 0
R366 100
R367 100
R368 1.2k
R369 0
R370 1.2k
R371 0
TP322
TP323
R372
47k
R373 150 R374 150 R375 150 R376 150 R377 150
R378
150
R379 150
R380 150
R381 150
R384 150 R385 150 R386 150 R388 150
IC509
SG16A90TFIR1
48
A16
47
/BYTE
46
VSS
45
D15/A-1
44
D7
43
D14
42
D6
41
D13
40
D5
39
D12
38
D4
37
VCC
36
D11
35
D3
34
D10
33
D2
32
D9
31
D1
30
D8
29
D0
28
/OE
27
VSS
26
/CE
25
A0
24
A1
23
A2
22
A3
21
A4
20
A5
19
A6
18
A7
17
A17
16
A18
15
RY/BY
14
NC
13
NC
12
/RST
11
/WE
10
NC(A20)
9
A19
8
A8
7
A9
6
A10
5
A11
4
A12
3
A13
2
A14
1
A15
R335 150
IDE1
IDE2
IDE3
IDE4
IDE5
IDE6
IDE7
IDE8
IDE9
IDE10
IDE11
IDE12
IDE13
IDE14
IDE15
IDE16
IDE17
IDE18
IDE19
IDE20
IDE21
IDE22
IDE23
IDE24
IDE25 IDE26
R306 220
C315
0.1
R393
NI
R394
47k
R395 47k
R396
NI
R390
4.7k
R398
NI
K309 0
K310
0
D4V
RN554
33
1
2
3
4
8
7
6
5
RN553
33
1
2
3
4
8
7
6
5
RN552
33
1
2
3
4
8
7
6
5
RN551
33
1
2
3
4
8
7
6
5
C360
0.1
C361
10/16
IR
R401 NI
R400
0
AGND
47/4 C344
47/4
C341
NI
C346
K388
NQR0360-002X
K384
NQR0360-002X
K385
NQR0360-002X
K386
NQR0360-002X
K387
NQR0360-002X
K375
NQR0360-002X
K376
NQR0360-002X
K374
NQR0360-002X
K373
NQR0360-002X
K379
NQR0360-002X
K378
NQR0360-002X
K381 NQR0360-002X
K380
NQR0360-002X
K317
NQR0022-002X
K318
NQR0022-002X
K306
0
L311
NQL044K-220X
R397
NI
R399
NI
R355
220
R387 150 R389 NI
47/4
C348
C329
47/4
47/4
C347
S5V
IDE27
R313 330
R392 330
R307 330
TP325
TP324
R343 220
R345 220
C351 0.01
R358
47k
C353
100p
R349
220
R344 220
R342 220
IC309 TC74VHC574FT-X
20
Vcc
19
Q0
18
Q1
17
Q2
16
Q3
15
Q4
14
Q5
13
Q6
12
Q7
11
CK
10
GND
9
D7
8
D6
7
D5
6
D4
5
D3
4
D2
3
D1
2
D0
1
/OE
C350 0.1
R339 330 R338 330 R337 330 R336 330 R333 330 R332 330
TP332
TP331
P3.3V
TP326
TP327
R382 1k
C401 0.1
C352 NI
R330 1k R331 NI
TP330
TP372
TP371
R352
47k
R351
NI
R353 NI
R354
47k
TP321
NI
C343
D2V
0.01
C359
IC302
MM1701EH-X
8
Vin
7
NC
6
NC
5
Cont
4
Cn
3
GND
2
NC
1
Vo
9
1
C340
1
C358
D1.2V
R340
47k
1
C383
R402 4.7k
R403
4.7k
IC305
MM1663DH-X
8
Vin
7
NC
6
NC
5
Cont
4
Cn
3
GND
2
NC
1
Vo
9
C355 0.47 C354 0.47
D303 NI
TP328
D305
RB521S-30-X
1.6V
2.7V
0V
0V
1.7V
0.4V
2.8V
0.1V
2.4V
2.0V
3.3V
3.1V
1.3V
1.3V
0V
OUT
0V
2.8V
3.3V
1.6V
VDD
1.6V
2.8V
1.3V
1.3V
1.3V
1.1V
3.3V
1.3V
0V
3.3V
3.2V
1.8V
0V
2.0V
1.6V
2.7V
2.8V
2.8V
2.7V
0V
0V
0V
2.7V
2.7V
0.4V
0.3V
1.2V
3.1V
1.6V
0.8V
3.1V
1.4V
1.8V
0.7V
0V
0.5V
2.8V
0.7V
0V
0.9V
0.7V
0V
0.7V
0V
1.6V
3.3V
1.6V
3.0V
2.0V
1.6V
0.8V
1.6V
0V
3.3V
1.7V
2.8V
0V
1.3V
1.1V
2.3V
VSS
1.5V
3.3V
0.9V
1.8V
3.3V
DET
3.3V
0.9V
NC
2.8V
2.4V
3.3V
2.6V
0V
0.5V
3.3V
3.0V
SDRAM
0V
1.1V
1.7V
FLASH ROM
0.6V
0V
1.0V
1.3V
3.3V
0V
EEPROM
3.3V
1.9V 3.3V
0V
REG.
4.0V
3.3V
0V
GND
Sub
Cn
Vout
5.0V
1.9V
Cont
3.3V
0V
NC
Vin
REG
6.0V
5.0V
0V
Phoenix
D6V
D6V
DGND
DGND
DGND
1.4V REG.
(PLL2) (PLL3)
(PLL0) (PLL1)
27MHz

2-9
DVD section (3)
DISPRST
MC
DISPCK
DISPBUSY
ML0
LRMUTE
MD
ML1
DISPS2D
TSD1
ML2
DISPCS
MCLK
TSD2
DISPD2S
TSD0
AIN
FM-
E
D
WOUT
COM
VOUT
VOUT
UOUT
T-
RF+
T+
FM+
UOUT
TRVSW
WOUT
F-
F
F+
TRSDRV
COM
F-
T-
FM+
FM-
F+ T+
VREFH
C
B
A
MICR
MICL
DVDPD
FDAC
VDAC
YDAC
CDAC
UDAC
IDAC
SPDIF_O
SPDIF_I
SVREF
CDPD
TRDRV
FODRV SPDRV LCS2
DACPDN
TBCK
TWS
LDCO
DVDLDO
CDLDO ADDVD
ADCD
VCCLD
VCCLD ADCD ADDVD
SPNP
DRVMUTE
10/16
C706
D2V
-
D701
NI
1
2 3
TP725
K706 NQR0022-005X
470R721
CN707
NI
5
4
3
2
1
TP718
TP719
0.1
C701
F
0.1
C742
F
TP745
47/6.3
C704
NI
R740
K721 0
2.2
R701
TP747
1C713
0.1
C702
F
K707 NQR0022-002X
470R723
470R7240.1
C708
F
TP743
NI
C756
TP724
TP754
10/16
C744
NI
C728
TP748 TP744
TP761
K722 0
MGND
TP711
NI
C753
M9V
NI
C714
0
R741
TP755
0.1
C707
F
0.1
C743
F
TP707
0.1
C740 F
330R730
100R715
IC705
MM1615AN-X
123
45
K708 NQR0022-002X
5.1
R742
NI
C752
NI
C755
TP752 TP749
470R725
100
R714
TP723
1
C741
F
DGND
TP720
0.1
C709
F
TP746
470R727
10/16
C745
TP722
47kR718
1
C711
IC704
AK5358ET-X
16
CKS0
15
CKS2
14
DIF
13
PDN
12
SCLK
11
MCLK
10
LRCK
9
SDOUT
8
DGND
7
VD
6
VA
5
AGND
4
VCOM
3
CKS1
2
AINL
1
AINR
IC703
AK4387ET-X
16
DZFL
15
DZFR
14
VDD
13
VSS
12
VCOM
11
AOUTL
10
AOUTR
9
P/S
8
CDTI
7
CCLK
6
CSN
5
PDN
4
LRCK
3
SDTI
2
BICK
1
MCLK
TP721
TP750
TP716
K710 NQR0022-002X
NI
C715
0.1
C703
F
D4V
1kR732
NI
R719
0.01 C712
TP714
TP756
NI
C754
470R728
K709 NQR0022-002X
TP713
K711 NQR0022-002X
470
R716
TP109
22k
R204
5.1k
R283
S3.3V
IC201
LA6502-X
1
AMP2IN+
2
AMP2IN-
3
AMP2OUT
4
VCC2
5
NC
6
NC
7
OUT2R
8
OUT2F
9
OUT1R
10
OUT1F
11
OUT3R
12
MGND
49
MGND
13
MGND
14
OUT3F
15
OUT4R
16
OUT4F
17
WOUT
18
VOUT
19
UOUT
20
NC
21
SPRF
22
VCC1
23
FR
24
MCOM
25
SPCTL
26
VREF
27
SPFC
28
SGND
29
AMP4IN-
30
AMP4IN+
31
AMP3IN+
32
AMP3IN-
33
AMP3OUT
34
AMPOUT
35
AMPIN-
36
AMPIN+
50
MGND
37
SPVCOIN
38
SPCK
39
SPC1
40
SPC2
41
SPFGO
42
AMP1OUT
43
AMP1IN-
44
AMP1IN+
45
BR
46
MUTE3
47
MUTE2
48
MUTE1
TP105
NI
R126
0.1
C256
22/6.3
C106
T
NI
C206
0.1
C217
F
0.022
C211
TP231
1
C210
F
22/6.3
C108
T
CN201
QGF1016F8-08W
1
2
3
4
5
6
7
8
TP106
8.2k
R214
15k
R282
0.39 R251
1/2W
TP204
TP208
6.8k
R221
TP107
NI
C290
0.01
C203
TP102
0.1
C102
F
220p
C201
TP121
62k
R206
Q101
KTA1001/Y/-X
100
R102
0.47
C251
0.1 C107 F
3.9
R105
TP117
18k
R219
TP116
47k
R207
1k
R202
TP115
TP104 TP101
56k
R281
0.1
C104 F
470
R201
TP205
TP110
TP226
TP111
1
C371
F
10k
R213
TP220
0.0082
C257
TP123 TP120
CN101
QGF0523F3-24W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
TP103
0.022C260
5.1k R205
0.1
C204
F
TP122
NI
R290
10k
R259
100
R101
2.2
R106
NI
R231
TP206
120p
C205
TP202
TP118
TP207
Q103
KTA1001/Y/-X
0
R112
0.015
C259
0.1
C103 F
56k
R284
0.015
C258
2.2
R114
0
R104
NI
R257
TP201
TP291
0.022C262
TP119
24k
R220
0.022C261
TP222
0.1
C101
F
TP112
TP203
100/16
C263
NI
R111
220p
C202
3.9
R113
NI
R103
TP108
NI
R233
D102
NI
D101
NI
C110
0.001
C109
0.001
47k
R713
47k
R712
IC702
AK4387ET-X
16
DZFL
15
DZFR
14
VDD
13
VSS
12
VCOM
11
AOUTL
10
AOUTR
9
P/S
8
CDTI
7
CCLK
6
CSN
5
PDN
4
LRCK
3
SDTI
2
BICK
1
MCLK
IC701
AK4387ET-X
16
DZFL
15
DZFR
14
VDD
13
VSS
12
VCOM
11
AOUTL
10
AOUTR
9
P/S
8
CDTI
7
CCLK
6
CSN
5
PDN
4
LRCK
3
SDTI
2
BICK
1
MCLK
B3.3V
CN701
QG F1016C6-28W
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
K712 NQR0022-005X
K701 NQR0022-005X
K702 NQR0022-005X
K703 NQR0022-005X
K704 NQR0022-005X
K705 NQR0022-005X
P3.3V
0
R232
CN702
QGF1016C6-18W
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
K713 0
K714 0
TP799
NI
C799
TP705 TP703 TP702 TP701
AGND
47/6.3
C105
1
R125
NI
R129
K125
0
47/6.3
C111
36k
R208
560p C208 560p C271
560p
C253
22k
R254
560p
C274
NI
C212
0
R215
0.015
C255
10k
R255
Q105
NI
NI
R121
NI
R122
0R799
TP704 TP706 TP708
TP742 TP741
S5V
3.3k
R210
1k
R115
1k
R116
NIR702
NI
C721
NI
C722
NIR703
NIR704
NI
C723
NI
R124
10k
R118
10k
R117
NI
R110
15k
R285
TP221
NI
R286
NI
C265
TP710
K101
NQR0502-001X
S5V
NI R287
0V
Noise
SYSTEM
AGND
301A
0.5%
NI STANDS FOR NOT INSERTED PARTS.
1.6V
0V
OR
2.4V
for
3.3V
DISPCK
0V
VOLT METER
B3.3V
TX
2.4V
UNLESS OTHERWISE SPECIFIED.
6.0V
DVD .
2.4V
1.6V
0V
ALL CAPACITANCE VALUES ARE IN
METAL GLAZE RESISTOR.
ALL CAPACITORS ARE
FAOUTL
DGND
2.4V
2.4V
DISPRST
RAOUTR
D2V
0V
A6V
0.5V
OF
6.0V
3.2V
3.3V
4.0V
0.4V
CERAMIC CAPACITOR,
4.9V
1.6V
3.3V
4.9V
3.3V
SWAOUT
GND
2.4V
modetheA
3.3V
0V
1.6V
A6V
IN OHM( ).
ALL RESISTORS ARE
3.3V
2.4V
3.3V
Vout
2.4V
0V
2.4V
AGND
RAOUTL
ALL RESISTANCE VALUES ARE
1.3V
. ,
0V
FAOUTR
1.7V
CAOUT
3.3V
1.6V
2.8V
0V
1.6V
16V,
0V
3.3V
0V
AUDIO
DGND
Cont
ARE IN H(m=mH).
2.4V
0V
RX
3.3V
1/16W
LVA10633-
0V
3.3V
2.4V
0V
2.4V
1
METAL GLAZE RESISTOR.
MGND
0V
2.4V
4.0V
in
0V
0V
150mA
3.3V
0V 3.3V
4.9V
and
1.6V
0V
6.3V
FAOUTL
0V
LRMUTE
LRMUTE
F(p=pF).
NOTES
0V
STOP
D2V
D4V
A5V
MGND
M9V
FAOUTR
25V or
5.0V
/RATED VOLTAGE (V).
0V
AGND
Tray
AINR
2.4V
1.6V
3.3V
2.4V
0V
50V
4.9V
2.4V
4.9V
3.
4.9V
0V
AGND
0V
0V
AINL
2.
WITHOUT INPUT SIGNAL.
NC(SWMUTE)
,
0V
0V
ALL INDUCTANCE VALUES
0V
CAPACITANCE( F)
2.4V
ADC
VOLTAGES ARE DC-MEASURED WITH A DIGITAL
S5V
disc
REG
3.3V
3.3V
3.3V
1.6V
Vin
0V
for
0V
AUDIO
0V
DAC
DGND
SYSTEM
3.5V
DISPS2D
3.5V
4.9V
ALL E.CAPACITORS ARE SHOWN IN THE FORM
1.
3.3V
0V
DISPD2S
10V
1.6V
3.3V
DISPBUSY
2.4V
0V
3.3V
0V
5%
DISPCS
CONDITION ---
2.4V
2.4V
0V
0V
GND
B
0V 9V
0V
or
COM
0V 0V
0V
VR(DVD)
FM+
3.3V
VOUT
T+
DRIVER
0V
FM-
2SB1424/R/-W
0V
or
SW
CHASSIS
2SB1424/R/-W
HFM
A
C
E
VCC(HF)
0V
0V
T-
GND
LD(DVD)
SWGND
VCC
MECHA
NC
+RF
F
GND
WOUT
UOUT
F-
LD(CD)
9V
F+
VR(CD)
0V
TRVSW
D
PD(CD)
PD(DVD)
VS
M9V
AGND
MICR
MICL
AGND
MGND
M9V
FDAC
VDAC
YDAC
CDAC
UDAC
IDAC
DRIVERLASER
FEED
(OPA-652PH3)
QAR0144-003
QAR0308-001
QAL0786-003
FXL-D20
PICKUP
ASS'Y
ASS'Y
MOTOR
MECHA
SPINDLEMOTOR
TRA

2-10
Loader section
SW6
TP2
TP1
TP4
M2
TP3
W1
TP5
R1R1
W2
M1
SW8
IC2 IC1
C6C7
SW7
C2
D1
CN3
SW1 SW2 SW3 SW4 SW5
CN2
C3 C5
C1
CN1
QSW0854-002
QRA0164-001
WJM0330-002A-E
QVY0027-B14
WJM0331-001A-E
QRA0164-001
QSW0923-001
LB1641 LB1641
0.1/500.1/50
QSW0886-002
0.1/50
MTZJ6.2A-T2
QGB2024J1-07S
QSW0844-002 QSW0844-002 QSW0844-002 QSW0844-002 QSW0844-002
QGB2024K1-07S
0.01/50 0.01/50
100/16
QGF1036F1-15
TR5_CL
TR4_CL
TR3_CL
TR2_CL
TR1_CL TR1_CL
TR2_CL
TR3_CL
TR4_CL
TR5_CL
M.TR_OP
POS_UP
TR_OP
POS_DOWN
TR_CL
M.TR_OP
TR1_CL
TR5_CL
TR2_CL
TR4_CL
TR3_CL
TR_OP
TR1_CL TR2_CL TR3_CL TR4_CL TR5_CL
TR_CL
POS_DOWN
POS_UP

2-11
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Sub woofer power supply section
+
-
+
-
-+
.NOTES:UNLESS OTHERWISE SPECIFIED
ALL RESISTANCE VALUES ARE IN OHMS.
ALL INDUCTANCE VALUES ARE IN H.
ALL CAPACITANCE VALUES ARE IN F.
SW_SIG
FC157
!
D151
GBU803
2341
Q525
2SC3928A/QR/-X
D514
1SS133-T2
FC158
FC156
D152
GBU803
2341
Q523
2SC3928A/QR/-X
FC155
!
Q517
RT1N431C-X
D154
1SS133-T2
Q524
2SA1530A/QR/-X
D548
1SS133-T2
D506
1SS133-T2
D504
1SS133-T2
Q505
RT1N44HC-X
Q504
2SA1530A/QR/-X
D501
1SS133-T2
D507
1SS355-X
D505
UDZS5.1B-X
Q501
RT1P441C-X
D601
NI
Q3702
RT1P141C-X
Q3703
RT1N241C-X
Q3705
NI
D3706
NI
D3708
NI
Q3706
NI
Q3704
KTC2026/Y/
D3707
NI
Q3501
NI
IC303
RC4558D-X
2
3
1
8
4
D3502
1SS133-T2
D3501
1SS133-T2
Q3502
NI
IC303
6
5
7D3602
1SS133-T2
D3601
1SS133-T2
D610
NI
D611
1SS133-T2
Q3701
NI
D521
MTZJ6.8C-T2
FC102
D101
1SS133-T2
FC101
!
RY101
QSK0142-001
!
24
1
3
Q152
KTC2026/Y/
D165
MTZJ6.8C-T2
D164
MTZJ6.2B-T2
D163
1SS133-T2
D166
MTZJ6.8C-T2
D543
1SS133-T2
D545
NI
D541
1SS133-T2
D546
1SS133-T2
D542
NI
D3703
MTZJ15C-T2
X601
QAX0246-001Z
8MHz
3
2
1
OMF
R171
47
2W
!
220
R163
UNF
1/4W
390
R166
OMF
2W
CN501
QGB2510K2-14
1 SP_GND_SR
2 SP_GND_R
3 SP_GND_SL
4 SP_GND_L
5 TH+
6 TH-
7 A/D_SL
8A/D_C
9A/D_R
10 A/D_L
11 +5V
12 SSSETUP
13 +7V
14 SP_GND_C
CN274
QGA3901C1-02
1 2
R623
10k
C3501
0.0015/50
C159
R631
NI
22k
R560
C3715
NI
10K
R536
100/16
C168
4.7/50
C501
C3705 0.01/50
0.047/50
C153
R3727
18
1W
OMF
100/16
C171
R644
NI
R602
3.9k
NI
C502
100k
R502
R3513
NI
22k
R558
100/16
C172
4.7/50
C503
R3726
NI
3.3k
R164
1/4W
R3601
20k
R3501
20k
C3604
10/50
R3728
NI
R613
22k
R3511
470
R601
10k
C3720 47/25
R3504
22k
1k
R505
R624
4.7k
R3717
10k
R3510
100k
R3721
220
R3507 330k
R3605
150k
R3604
22k
R614
22k
4.7K
R540
R3610
100k
47/25
C167
15k
R553
R3611
470
22k
R523
10K
R506
C3601
0.0015/50
22k
R554
R3729 NI
C161
R628
22k
4.7/50
C512
C523
0.0047/250
C101
!
4.7k
R501
R3741
NI
R3732
C157
R621
10k
0.047/50
C156
22k
R559
2.2k
R152
10K R533
4700/25
C163
8.2k
R561
1k
R504
C3716
NI
R3719
1k
1/4W
4700/25
C164
C606
10/50
0.047/50
C154
C602
NI
R612
22k
R3512
NI
NI
R522
R622
22k
10/50
C522
C3706 0.01/50
C162
R3742
NI
R3509
1k
10k
R534
C3504
2.2/50
R611
NI
R3607 100K
100KR535
R3506
47
C601
100/16
R3730
NI
R3505 470k C605
0.01
R603
2.2k
0.047/50
C155
IC601
MN101C427NB
1234567891011
12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 28 29 30 31 32 33
34 35 36 37 38 39 40 41 42 43 44
CN371 QGA2501C1-02
2 1
CN101
QGA7901C1-02
!2
1
CN151
QGA3901C1-05
1
2
3
4
5
CN502
QGB2510K2-14
1 POWER_CTL
2 POWERGND
3 PREGND
4 POWERGND
5 PROTECT
6 P.ON_SIG
7 +VL
8
9-VL
10
11 +VH
12
13 -VH
14
CN372
QGB2510K2-09
1 -7V
2GND
3 TX/RX
4 DC_DETECT
5 SP_RELAY+
6 SP_RELAY-
7 SR_SIG
8 SW_SIG
9 SW_SIG
QAR0377-001
D561
SLR-342MC-T12
FW501
3
2
1
UNF
R3720
10
1/4W
C3721
100/16
R3725
NI
D551 1SS133-T2 D552
NI
D553 1SS133-T2 D510
1SS133-T2
!
CN373
NI
12
R645
NI
C591
0.01/50
C592
0.01/50
R574
150
1/10W
C571
0.01/50
R671
1k
R508
22k
R509
NI
R507
NI
390
R165
OMF
2W
R625
4.7k
39k
R562
22k
R563
R629 10K
C604
0.01/50
Q502
2SC3928A/QR/-X
Q503
2SC3928A/QR/-X
Q603
2SC3928A/QR/-X
Q604
KTC3265/Y/-X
R627
1k
R626
10k
D535
1SS133-T2 270
R555
UNF
1/4W
D549
1SS133-T2
D550
1SS133-T2
R667
4.7k
1/4W
L2102
NI
UNF
R2115 NI
1/4W
C2111
NI
C2112
NI C2114
NI
C2113
NI
C151
NI
C152
NI
C158
D153
NI NI
R151
D562
NI
D516
MTZJ30C-T2
D515
1SS133-T2
D612
1SS133-T2
R510
4.7k
R646
1k
B5040
QUY150-050Y
Q542
RT1N136C-X
B5043
NI
B5002 NI
(FOR SSS)
B5204 NI
(FOR SSS)
B5404
NI
(FOR SSS)
B2023
QUY150-050Y
EP501
QNZ0869-001
123
EP
EP
TO EP501
S901
!
1
5
6
7
B5201
CN102
QGA7901C1-04
!
1 2 3 4
FC103 FC104
!
B5406
*7
F153
&PROTECTOR
HS151
POWER CONTROL
F154
PROTECTOR LOW VOLTAGE DETECTOR
FUSE
F101
MAINS
PLUG
-7V_REG. 7V_REG.
5V_REG.
LED
RESET
M3 M2 M1
SP RELAY
SWin
FAN ON
PROTECT
iFANSTOP
PREVccSLin
iP.ON
SMART
SETUP
Lin
iPROTECTCin
Rin
SRin
VDD OSC2
ACON
VSS OSC1
Sin
Sout
D.AMP RELAY
Vhigh
Vlow
THERMISTOR
D.AMP CLK
T101
1
2
1
2
1
2
1
2
1
2
3
4
5
3
2
1
!
!
!
!
A/EE/UP/UF
T101
QQT0482-004
QQT0482-002
QQT0482-003
F101
8A-125V
T3.15AL
T6.3AL
F102
T3.15AL
F153/F154
10A-125V
T8AL
T8AL
VERSION
A : AUSTRALIA
B : GREAT BRITAIN
C : CANADA
E : GERMANY/FRANCE/HOLLAND
EN: SWEDEN/NORWAY/FINLAND/DENMARK
EE: RUSSIA
EV: EAST EUROPE
J : U.S.A
UT: TAIWAN
US: SINGAPORE
UB: HONG KONG
UP: KOREA
UF: CHINA
UX: SAUDI ARABIA
UW: BRAZIL/MEXICO/PERU
UJ: USA MILITARY BASE
UG: TURKY/EGYPT/SOUTH AFRICA
F102
1 2 3 4
1
2
3
4
5
T101
CN102
127V 110V
220-240V
FAN MOTOR
FAN MOTOR STOP DETECTOR
ALL CAPACITORS ARE SHOWN IN THE FORM OF CAPACITANNCE(uF)/RATED VOLTAGE(V).
(p=pF)
LVA10569-B2
QGA7901C1-02
LVA10569-B3
TO CN272 TO CN271
TO CN273
CN152
CN103
QGE3901A2-05
QGE3901A2-03 QGE3901A2-07
CN103
0V
0V
0V
5.1V
0V
0V
0V
0V
0V
0V
2.7V
0V
4.9V
0V
5.1V
5.1V
3.9V
5.1V
0V
0V
0V
0V
1.7V 5.1V
0V
2.5V
0V 0V 0V 0V 0V 0V 0V 0V
0V 0V 5.0V 0V 5.1V 0V 0.6V 5.1V 0V 0V
0V
0V
19.7V
19.7V
0V
19.7V
19.7V
0V
0V
5.1V 13.5V
5.7V
5.0V
0V
0V
4.9V
0V
0V
0V
0V
-19.4V
4.9V
-19.9V
-19.6V
7.0V
0V
0V
11.3V
11.5V
12.0V
11.5V
0V
0V
0V
0V
0.8V
0V
11.8V
0V
11.9V
0V
12.0V
0V
0V
0V
0V
0V
0V
7.0V
-7.0V
0V
0V
0.8V
0.8V
1.4V
*7 MARK
*7
*7
*7
*7
*7
*7
*7
3300/50
4700/50
VERSION HS151
C50/C60 J/C
QZW0138-001
QZW0138-001
QZW0138-001
QZW0115-001
8A-125V 10A-125V
4700/63
US/UY
*7 *7
*7
1
2
!
C20 J/C
C30/C40 J/C
QQT0522-001
S901 B5201
NO USE
NO USE
NO USE
QSW0924-001
QUY158-100YNO USE
NO USE
NO USE
NO USE
QUY158-100Y
QUY158-100Y
UY: ARGENTINE
*7
22k
15k
15k
*8
QZW0138-001
QQT0482-004 8A-125V
NO USE
10A-125V
NO USE QUY158-100Y
C161/C162 R3732
3300/50
3300/50 22k
15k
US/UY
OTHER
*8 MARK
OTHER
VERSION C523
47/25
100/25
C20/C30/C40 J/C
EE
C158C157/C159
0.1/50 0.1/50
0.022/50
0.022/50
0.022/50
0.022/50
*7 *7
NO USE
NO USE
NO USE
NO USE
*7
VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER WITHOUT INPUT SIGNAL.,(*MARK:FOR C50/C60 J/C)
B5406
QUY158-150Y
*7
NO USE
NO USE
NO USE
NO USE
!
!
!

2-12
Parts are safety assurance parts.
When replacing those parts make
sure to use the specified one.
Sub woofer amplifier section
+
-
+
-
+
-
+
-
.NOTES:UNLESS OTHERWISE SPECIFIED
ALL RESISTANCE VALUES ARE IN OHMS.
ALL INDUCTANCE VALUES ARE IN H.
ALL CAPACITANCE VALUES ARE IN F.
R_OUT
L_OUT
C_OUT
SL_OUT
SW_IN
C_IN
SR_OUT
SW_OUT
SR_IN
R_IN
SL_IN
L_IN
L2401
0.45
Q2401
2SA1530A/QR/-X
D2401
1SS133-T2
L2501
0.45
Q2501
2SA1530A/QR/-X
D2501
1SS133-T2
L2601
0.45
D2601
1SS133-T2
L2301
0.45
L2201
0.45
Q2201
2SA1530A/QR/-X
Q2301
2SA1530A/QR/-X
L2101
0.45
Q2101
2SA1530A/QR/-X
D2201
1SS133-T2
D2301
1SS133-T2
D2101
1SS133-T2
Q2703
RT1N141C-X
D2703
9
L2202 (B2020)
11
RY272
QSK0127-001
256
143
RY271
QSK0127-001
256
143
RY273
QSK0127-001
25
6
143
L2302 (B2019)
L2502 (B2017)
L2402 (B2016)
L2602 (B2018)
12
Q2601
2SA1530A/QR/-X
Q2701
2SC3928A/QR/-X Q2702
KTA1046/Y/
TH271
NAD0025-103X
10k
UNF
R2615
1/4W
UNF
R2515
1/4W
UNF
R2315
1/4W
UNF
R2415
1/4W
UNF
R2215
1/4W
4.7
R2708
FR
1/4W
!
MF
R2406
0.22
5W MF
R2506
0.22
5W
MF
R2306
0.22
5W
MF
R2106
0.22
5W
MF
R2206
0.22
5W
FR R2710
10
!
4.7
R2709 FR
1/4W !
J2701
QND0118-001
1
3
6
7
8
5
2
4
MF
R2606
0.22
5W
C2710
NI
CN271
QGB2510J1-14
1SP_GND_SR
2SP_GND_R
3SP_GND_SL
4SP_GND_L
5TH+
6TH-
7A/D_SL
8A/D_C
9A/D_R
10A/D_L
11+5V
12SSSETUP
13+7V
14SP_GND_C
IC301
RC4558D-X
2
3
1
8
4
IC301
RC4558D-X
6
5
7
Q3101
NI Q3102
NI
Q3201
NI Q3202
NI
D3102
1SS133-T2
D3101
1SS133-T2
D3202
1SS133-T2
D3201
1SS133-T2
Q3302
NI
D3302
1SS133-T2
IC302 RC4558D-X
2
3
1
8
4
D3402
1SS133-T2
Q3301
NI
D3401
1SS133-T2
D3301
1SS133-T2
IC302
RC4558D-X
6
5
7
Q3402
NI
Q3401
NI
R2604
560
C2514
NI
R2408
15k
R2504
560
R2711
33k
R3206
47
C3701
0.01/50
C2303
4.7/50
C2408
0.1/50
R2105
56K
R3305 470K
C2108
0.1/50
R2414 100k
C2105
100p/50
R3405
470K
R2705
33k
C2205
100p/50
R2614 100k
R2404
560
C2701
R3101
20k
C2213
NI
C2304
100/16
C3104
2.2/50
R2513
2.2k
R2605
56K
C2705
C3301
0.0015/50
R3409 1K
R3106
47
R2613
2.2k
C3702
0.01/50
R2108
15k
C2613
NI
R2111
10 UNF
1/4W
C3704
0.01/50
C2407
0.1/50
C2312
R3412
NI
R2407
1k
R2203
56k
R2205
56K
C2214
NI
R2103
56k
C2405
100p/50
R2501
C2706
R3306
47
C2606
3p/50
R3406
47
R3107 330K
R2601
10k
R2722
4.7k 1/4W
R2204
560
C2203
4.7/50
C2614
NI
R2411
10 UNF
1/4W
R3313
NI
C2211
C2206
3p/50
C2608
0.1/50
R2208 15k
R2311
10 UNF
1/4W
R2112
39k
R2201
10k
R3104
22k
R3111
470
C2512
C3204
2.2/50
R3207
330K
C2406
3p/50
R2101
R3407
330K
C2707
10/50
R2301
10k
C2513
NI
R2410
4.7
UNF
1/2W
R2413
2.2k
R2309
47k
C2607
0.1/50
R2509
47k
R2210
4.7 1/2W
UNF
R3211
470
C2505
100p/50
C2307
0.1/50
R3410
100K
C2212
R2405
56K
C3201
0.0015/50
C2605
100p/50
R3307 330K
R2104
560
R2303
56k
C2511
R2312
R2611
10 UNF
1/4W
R2109
47k
R2609
47k
R2510
4.7 1/2W
UNF
R3310 100K
C2611
R3105
470K
R3212
NI
R3109 1K
R2401
C2503
4.7/50
R3309 1K
C2308
0.1/50
R2207
1k
R2308
15k
C2506
3p/50
R3201
20k
R3312
NI
R3311
470
R2107
1k
C2103
4.7/50
C2603
4.7/50
R2514 100k
R2610
4.71/2W
UNF
R2511
10 UNF
1/4W
R2603
56k
C2612
R3213
NI
R3110
100K
R2503
56k
R2211
10 UNF
1/4W
R2307
1k
R2304
560
R2505
56K
C3703
0.01/50
R2213
2.2k
R2214 100k
C2403
4.7/50
R2305
56K
C2507
0.1/50
C3304 2.2/50
C2202
470p/50
C2413
NI
R3411
470
C2602
470p/50
R3113
NI
R3209 1K
C2502
470p/50
R2607 1k
C2508
0.1/50
C2104
100/16
C2102
0.047/16
C2712
0.01/50
C2204
100/16
C2207
0.1/50
R2507
1k
R2403
56k
R2721
4.7k
1/4W
C2306
3P/50
R2409
47k
C2412
C2305
100p/50
C2414
NI
R3112
NI
R3210
100K
R2612R2512
6.2k
C2703
R2313
2.2k
R3204
22k
C2713
0.01/50
R2113
2.2k
R2110
4.7
UNF
1/2W
C2208
0.1/50
R2114 100k
R3413
NI
R2209
47k
R2701
22
FR
1/4W
!
R2212
C2313
NI
C3404
2.2/50
R2412
6.2k
C3401
0.0015/50 C2604
100/16
47/25
C2702
C2504
100/16
R2608
15k
C3101
0.0015/50
R3205
470K
C2107
0.1/50
R2508
15k
R3404
22k
C2106
3p/50
C2302
470p/50
R3301
20k
R2310
4.71/2W
UNF
C2404
100/16
C2314
NI
R3401
20k
47/50
C2704
C2711
10/50
IC202
!
12345678910111213141516171819202122
IC201
!
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
CN273
QGB2510J1-14
1
POWER_CTL
2
POWER_GND
3
PRE_GND
4
POWER_GND
5
PROTECT
6
P.ON_SIG
7
+VL
8
9
-VL
10
11
12
+VH
13
-VH
14
QNB0195-001
J2702
81
4
7
10 3
6
92
5
CN272
QGB2510J1-09
1-7V
2GND
3TX/RX
4DC_DETECT
5SP_RELAY+
6SP_RELAY-
7SR_SIG
8SW_SIG
9SW_SIG
C2402
470p/50
C2411
C2311
Q2707
KTA1267/YG/-T
4.7
R2707
FR
1/4W
!
470
R2704
470
R2703
4.7
R2706
FR 1/4W
!
D2701
MTZJ15C-T2
Q2708 KTC3199/GL/-T
D2702
MTZJ15C-T2
5.6k
R2712
5.6k
R2713
R2421
NI
R2522
NI
C2521
NI
CN275
NI
1 SL_OUT
2 SP_GND
3 SR_OUT
4 GND
5 +5V
R3304
22k
R2521
NI C2421
NI
R2422
NI
D2705 1SS133-T2 D2704 1SS133-T2
C2708
R2723
Q2710
R2724
Q2709
R2702
D2706
Q2711
R2314 100k
B2035
QUY150-050Y
B2007 NI (FOR SSS)
B2021
B2031
QUY150-050Y
B2032
QUY150-050Y
B2033
QUY150-050Y
B2034
QUY150-050Y
B2005
NI (FOR SSS)
EP201
QNZ0869-001
123
10 11
CH1NF -VS CH3-VE +VL -VL CH2IN PRE+VCC +VH CH1-VE CH3+VE +VS CH1+VE CH2-VE CH2+VE BIAS CH2NF PRE-VCC CH3NF -VH CH3IN CH1IN SUB_GND CH1-VE CH3+VE +VS CH1+VE CH2-VE CH2+VE BIAS CH2NF PRE-VCC CH3NF -VH CH3IN CH1IN SUB_GND CH1NF -VS CH3-VE +VL -VL CH2IN PRE+VCC +VH
SLOUT
FCOUT
FROUT
SROUT
FLOUT
LR
GND
SLSR
SW
C
P.ON
LVA10569-B1
ALL CAPACITORS ARE SHOWN IN THE FORM OF CAPACITANCE(uF)/RATED VOLTAGE(V).
VOLTAGES ARE DC-MEASURED WITH A DIGITAL VOLT METER WITHOUT INPUT SIGNAL.,(*MARK:FOR C50/C60 J/C)
TO CN502 TO CN372 TO CN501
(p=pF)
44.5V 19.7V
0V 0V
-19.9V -44.3V
0V 0V 0V 0V 0V
-43.1V
42.8V
0V 0V
-41.9V
0V 0V 0V 0V 0V 0V
44.5V 19.7V
0V 0V
-19.0V -44.3V
0V 0V 0V 0V 0V
-43.1V
42.8V
0V 0V
-41.9V
0V 0V 0V 0V 0V 0V
0V
27.3V
0V 42.9V
43.0V
43.0V 43.6V
0V
0V
-19.5V
0V
0V
-19.5V -19.5V
0V
0V
0.2V
-19.9V 0V
0V19.7V
-0.1V
0V
0V
-19.5V
-19.5V
0V
0V
0V
0V
-19.5V
0V
0V
0V
0V
0V
0V
7.0V
-7.0V
0V
0V
0V
0V
0V
0V
7.0V
-7.0V
*5
*4
*3 *6
*3
*3
*3
*3 *3
*3
*3
*1*1
*1
*1
*1 MARK
OTHER
MODEL D2703
MTZJ20C-T2
MTZJ16C-T2
*6 MARK
*6
STK413-430
STK413-400
MODEL
STK413-400C20 J/C
IC202
OTHER STK413-430
STK413-430
STK413-400
*5 MARK
IC201
C2511/2611
R2215/2315/2415C2211/2311/2411
EE/UP 0.1/50
VERSION R2515/2615
(OPEN)
L2202/2302/2402
0.1/50
L2502/2602
C2212/2312/2412
10 OHM 1/4W UNF
*4 MARK
0.45 H
C2512/2612
NO USE
2SA1530A/QR/-X
*3 MARK
RT1P141C-XNO USE
1/4W UNF
R2724
R2723
NO USE
(OPEN) (OPEN)
NO USE
22 OHM
NO USE
OTHER 4.7k
(OPEN)
MTZJ22A-T2
(OPEN)
B2021 Q2711R2702
(OPEN)
10/50
D2706
C2708VERSION Q2710
(OPEN)
Q2709
NO USE
KTC2026/Y/
1/4W FR
NO USE
VERSION C2701
OTHER
C50/C60 J/C 100/63
100/50
C2703
C2705
C2706
*1 *1
*2 MARK
*2*2
*2
*2
*5
MTZJ16C-T2
MTZJ24C-T2
10k 10k
R2612
VERSION R2401 R2501
3k 4.3k
R2212R2101 R2312
3k
OTHER 6.2k
(SW) (L) (R) (C)(SL)(SR)
OTHER
C50/C60 J/C
C30/C40 J/C
C50/C60 J/C
QUY150-050Y
BUS WIRE
QUY150-050Y
NO USE
22 OHMC20/C30/C40 J/C
EE
C20/C30/C40 J/C
EE
C20/C30/C40 J/C
EE
(OPEN)
NO USE
(OPEN)
NO USE
*49.2V
*49.2V
*49.8V
*49.8V
*50.7V
*-50.8V
*-49.1V
*49.0V
*-47.9V *-47.9V
*49.0V
*-49.1V *-50.8V
*50.7V
!

2-13
Main board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
Printed circuit boards
Q953
D901
L901
D902
D903
PC901
D951
D952
D954
Q951
D960
L951
D950
D998
CP951
L955
L957
Q991
D992
Q958
Q969
P901
FC901 FC902
T901
C994
C969
C984
C911
C908
C964
C904
C990
C962
C993
C954
C951
C997
C981
C992
C916
C967
C912
C961
C907
C905
C909
C999
C963
C903
C982
C918
C914
C960
C956
C910
C952
C913
C968
R983
R985
R955
R969 R952
R921
R951
R954
C957
R960
R904
R908
R963
R901
R909
C955
R980
R965
R990
D999
CP999
Q965
R953
R961
Q979
Q989
L972
C973
C975
C979
C977
D973
C978
C976
R971
R981
Q959
W914
W913
C995
W401
C4962
C920
C902
R922
C991
Q980
R905
C950
R957
D955
R968
EP901
R972
TH901
C921
D911
D904
Q954
Q974
Q984
R903
R956
D956
Q4811
Q4812
D4811
X4701
D4703
Q4701
C4963
C4905
D4891
R4714
Q4091
Q4092
D4092
Q4821
K4702
J4891
IC473
IC477
CN410
IC472
IC471
CN457
D4841
D4842
D4708
D4709
C4771
C4006
C4791
C4002
C4719
C4011
R4702
C4706
C4705
C4718
C4708
C4892
C4710
C4891
C4711
C4091
C4772
C4773
C4707
C4012
C4774
C4709
C4092
B4011
R4866
R4821
R4752
R4778
R4093
R4756
R4753
R4715
R4871
R4891
R4763
R4886
R4773 R4771
R4872
R4892
R4884
R4710
R4774
R4873
R4703
R4863
R4883
R4882
R4760
R4876
R4761
R4713
R4092
R4875
R4704
R4011
R4762
R4755
R4712
R4811
R4091
R4999
R4705
R4775
R4012
R4754
R4711
R4709
R4772
R4921
R4776
R4822
R4751
R4777
R4757
R4791
R4842
C4016
D4091
CN450
CN451
CN413
CN404
CN401
CN403
CN420
R4843
Q4832
R4841 Q4833
R4835
D4831
D4833
C4904
IC491
D4832
Q4831
R4834
D4962
D4835
C4903
R4833
D4834
C4902
Q4961
D4961
C4961
R4961
D4963
R4893
IC481
C4893
C4894
R4861
R4881
R4864
R4844
C4844
CN411
D4705
Q4703
R4708
R4707
R4846
R4847
R4848 R4849
EP401
C4018
C4019
C4020
C4021
C4017
CN455
J4401
J4402
L4391
IC411
IC431
C4395
C4173
C4451
C4121
C4391
C4122
C4441
C4392
C4111
C4431
C4172
C4101
C4452
C4311
C4421
C4442
C4321
C4401
C4112
C4432
C4331
C4102
C4341
C4411
C4351
C4394
C4402
C4191
C4171
C4412
C4192
C4423
R4202
R4252
R4232
R4221
R4242
R4222
R4231
R4411
R4241
R4191
R4421
R4251
R4431
R4441
R4451
R4111
R4121
R4101
R4401
R4201
C4301
R4211 R4212
CN402
R991
CN406
R4716
R4717
EP903
C4031
HS901
IC901
R4831
D4093
C4032
Q4822 R4823
R4824
R4825
R4826
R4827
C996
C4895
C4033
C4034
C998
C4035
C4036
D4845
C4704
B4001
PP401
R4718
R4759
R4758
W901
PP402
W915
W912
W917
W911
R973
Q982
R987
R4851
R4852
R982
R986
Q983
R988
C989
PP403
W921
R984
C983
D981 R989
PP404
D993
W402
D912
R958
S529
S522 S523
S526 S527 S528
FW521
R527
R522
R528
R521
R526
(Main board) (Operation board)

2-14
Audio board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
(Audio and Digital input board)
(Connection board)
(USB jack board)
(Front board)
CN415
CN414
J6101
CN511
EP511
C6104
D6101
C6101
K6101
K6102
K6103
K6104
C6102
C6103
IC121
J1103
TPSW4
TPSL4
TPL4
TPC4
TPSR4
TPR4
TPSR1
TPSW1
TPSL1
TPC1
TPL1
TPSW2
C1212
C1104
C2557
C1205
C2556
C1103
C1206
C1211
C1101
C2501
C1217
C1218
C1102
R2559
R2551
R1109
R1176
R1174
R1103
R1172
R1102
R1175
R2556
R1104
R1108
R1173
R2557
R1101
R1171
R2506
C1105
R1112 C1106
C1107
IC114
C1108
R1114
C1109
R1111
R1113
R1110
R1115
R1116
R1117
IC101
CN101
CN102
R2505
R2504
R2503
R2501
R2554 R2553 C2552
C2511
C2512
R2514
R2513
C2530
C2533
C2531
C2534
C2535
C2532
C2550
C2554
R2558
C2553
C2536 C2537
R2521
C2538 C2539
R2520
C2540
C2541
C2522
C2516
C2515
R2511
R2512
R2552
C2551
TPR1
R2502
C2502
R1207
R1212 C1126
C1125
C1122
R1206
R1203
C1127
R1204
R1202
R1209
C1124
IC115
R1211
C1129
R1213
R1205
C1123
R1210
C1121
C1128
R1208
J1102
R1214
R1201R1301
R1303
C1333
R1304 C1332
R1302
C1331
C1334
R2605
IC131
R2601
R2604
C2610
C2604
C2601 R2603
C2603
R2602
C2602
R2606
R2620
R2621
C2611
Q1131
Q1132
R2607
R2608
R2609
R2610
R2612
R2611
TPHPL TPHPR
C2521
C2513
C2514
C2503
C2504
C2505
C2506
Q1133
R2614
R2613
R2555
C1111
C1112
C1132
C1131
J1101
C1223
Q1102
IC111
C1208
C1225
C1202
R1147
Q1101
R1142
R1159
R1163
R1146
C1203
R1135
C1171
R1165
R1134
R1133
C1201
R1138
R1136
R1149
IC112
TPSR3
IC113
C1214
R1139
Q1122
R1158
R1150
C1204
C1226
R1162
R1160
R2561
C1172
TPL3
C1222
R2560
Q1123
C1170
C1224
R1140
R1148
C2560
R1167
C1207
C1210
R1155
R1137
C1209
C1221
Q1121
R1141
R1144
C1216
R1164
R1168
R1145
TPSL3
R1161
R1131
R1143
R1166
C1213
R1152
R1151
R1156
TPSW3
R1169
TPC3
TPR3
R1132
C1215
R1185
R1186
R1183
R1184
R1181
R1182
R2922
D2922
Q2921
D2921
C2921
C2922
C2517
C1441
C1442
C1443
C1444
C1445
C1446
C1447
C2518
S532 S533 S534 S535
S540S539
S538
S537S536
D511
S531
S521
K501
K502
JS541
C501
R542
R531
C541
C512
R536
R534
C505
R501
R539
C511
R502
C542
R532 R537
R541
C502
R503
C507
R533
C503
R511
R538
IC511
W5001
R552
C551
D551
J6001
R505
IC501
R506
C508
R551
C515
C506
K6004
K6001
K6002 K6003
CN501
CN502
C517
C6105
C6205
K504
C518
K503
C509
R6001
C6002
C6003
C6004
C6001
W6001
R6107
R6207
C519
DI501

2-15
DVD servo board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) Loading board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
forward side reverse side
(Tray switch board)
(Switch board)
(Sensor board)
(Motor board)
K803
K802
Q803
K804
C803
C831
Q802
IC806
K805
C834
IC802
K801
IC805
IC804
C801
X451
CN453
CN452
K454 K455
IC452
C806
K812
K813
IC505
K501
C558
K302
K304
IC306
D301 D302
C393
IC509
K309
K310
RN554 RN553
RN552
RN551
C344
C346
K388
K384
K385
K386
K387
K381
K380
K317
K306
L311
C329
IC309
C706
D701
K706
K721
K722
IC705
C745
IC201
CN201
K713 K714
C105
K125
C111
Q105
C265
K101
TP840
TP802
TP831 TP829
TP805
L802
TP804 TP827
TP836
TP834
L804
D802
TP838
TP826
L803
TP833
TP807
L801
D801
TP832
TP825
D803
TP806
TP830
TP835
TP839
TP809
TP837
TP828
TP801
TP808
TP810
Q801
IC451
CN451
TP451
TP452
TP453
TP454
TP455
TP456
TP457
TP458 TP462
TP461
TP460
TP459
TP471 TP472
TP473 TP474
K456
CN455
TP467
TP811 TP812
J801
TP803
CN801
K811
TP841
TP852
TP853
TP851
IC301
IC453
C339
IC510
TP321
IC302
TP369
X301
C343
K303
K305
TP385
TP382
TP383 TP384
TP386
TP387CN704
TP381
CN708
CN703
TP373
TP377
TP379
TP322
TP323
IDE1
IDE2
IDE3
IDE4
IDE5
IDE6
IDE7
IDE8
IDE9
IDE10
IDE11
IDE12IDE13
IDE14
IDE15
IDE16
IDE17
IDE18
IDE19
IDE20 IDE21
IDE22
IDE23
IDE24
IDE25
IDE26
C361
IR
C341
K375 K376
K374
K373
K379
K378
K318
C348
C347
IDE27
TP325
TP324
TP332
TP331
TP326
TP327
TP725
CN707
TP718
TP719
TP745
C704
TP747
K707
TP743
TP724
TP754
C744
TP748
TP744
TP761
TP711
TP755
TP707
K708
TP752
TP749
TP723
TP720
TP746
TP722
IC704
IC703
TP721
TP750
TP716
K710
TP714
TP756
K709
TP713
K711
TP109
TP105
C106
TP231
C108
TP106
TP204
TP208
TP107
TP102
TP121
Q101
TP117
TP116
D305
TP115
TP104
TP101
TP205
TP110
TP226
TP111
TP220
TP123
TP120
CN101
TP103
TP122
TP206 TP202
TP118
TP207
Q103
TP201
TP291
TP119
TP221
TP112
TP203
C263
TP108
D102
D101
IC702IC701
CN701
K712
K701
K702
K703
K704
K705
CN702
TP799
TP705
TP703
TP702
TP701
TP704
TP706
TP742
TP741
TP463
TP464
TP465
TP466
TP371
TP372
TP330
TP468
TP469
TP470
TP222
TP328
IC305
D303
TP814
TP815
TP816
TP710
IC801
R1
TP3
TP5
TP4
IC2
IC1
C3
C5
D1
C1
C7
C6
SW7
C2
M2 M1
CN2
CN1
SW5
CN3
SW4SW3SW2
SW1
SW6
TP2
TP1
SW8

2-16
Sub woofer board
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
IC202
R2413
R2401
C2403
R2403
C2402
R2412
C2404
R2404
C2405
R2410
L2401
Q2401
R2409
D2401
R2408
R2407
L2501
R2509
R2510
Q2501
R2507
D2501
R2508
C2408
C2407
R2411
L2601
R2609
R2610
R2607
D2601
R2608
R2711
R2613
R2601
C2605
R2603
C2602
R2612
C2604
R2604
R2513
R2501
TH272
C2505
C2503
R2503
C2502 R2512
C2504
R2504
R2605
C2606
C2406 R2405
C2506 R2505
C2204
R2113
C2303
R2108
R2204
R2101
R2303
R2107
R2213
L2301
C2302 C2105
L2201
C2206
R2309
R2312
C2103
R2305
C2306
R2209
R2310
C2304
R2103
R2201
R2210
R2308
R2304
C2102
R2110
C2106
Q2201
Q2301
R2112
L2101
R2207
R2307
C2104
R2313
Q2101
R2105
D2201
C2203
R2301
R2104
IC201
R2705
R2203
R2208 R2109
D2301
C2202
C2305
R2212
D2101
C2205
R2205
R2311
C2307 C2308
R2211
C2207
C2208
C2107
C2108
R2111
C2608
C2607
R2611
R2511
C2508
C2703
C2702
C2704
C2701
D2702
D2701
EP201
Q2708
Q2703
R2702
R2721
R2701
D2703
Q2709
R2606
D2705
R2722
D2704
Q2710 Q2711
R2724
D2706
C2708
R2723
R3101
C2705
C2706
C2311
C2412
J2701
R2514
C2612
C2511
L2402
R2414
C2611
J2702
RY272
C2212
C2211
C2512
RY271
RY273
L2602
C2411
C2312
L2302
R2214
L2502
R2114
L2202
C2707
Q2601
C2603
C2507
Q2701
Q2702 Q2707
C2213 C2214
C2313 C2314
TH271
C2613 C2614
C2513 C2514
C2413 C2414
R2215
R2315
R2615
R2515
R2415
C2711
R2708
CN272
HS201
R2406
R2506
R2306
R2106
R2206
R2706
R2707
R2710
R2709
R2704
R2703
CN271
CN273
R3301
R3302
C2712
C2713
R3102
R3104
R3105
R3106
R3107
R3109
C2710
R3110
C3101
C3701
C3702
C3102
C3103
C3104
D3101
D3102
D3201
D3202
C3202
R2314
R2614
C3203
C3204
Q3101
Q3102
Q3201Q3202
R3112
R3113
R3201
R3202
R3204
R3205
R3206
R3207
R3209R3210
R3211
R3212
R3213
C3201
IC301R3111
R3304
R3305
R3306
R3307R3309R3310 C3301
C3703
C3704
C3302
C3303
C3304
D3301
D3302
D3401
D3402
C3402
C3403
C3404
Q3301Q3302
Q3401
Q3402
R3312
R3313
R3401
R3402
R3404
R3405
R3406
R3407
R3409 R3410
R3411
R3412R3413
C3401
IC302
R3311
B21
WC201
C2714
C2715
C2716
R2712
R2713
R2521
R2421
R2422
R2522
C2421
C2521
CN275
CN274
R534 R536
FC157
D151
D153
Q525
D514
FC158
R535
C182
R522
FC156
C164
R533
R152R151
C523
C512
C181
D152
Q523
FC155
Q517
D154
C522
Q524
C163
IC601
R523
R561
D542
R563
D550
D546
R558
R560
D549
Q542
D548
D543
R553
D545
R562
R559
R501
C503
Q502
D506
D504
Q505
R505
Q503
Q504
R502
D501
D507
R506
C502
C501
R504
D505
Q501
D541
R554
D553
D601
R601
C3715
R3726
Q3702
R3727
Q3703
R603
R3717
R3741 R3742
C606
R3729
R3728
C605
R3721
R3720
R3730
C3720
Q3705
D3706
C3716
D3708 Q3706
Q3704
R602
D3707
B1
C592
C591
C3504
R3607
R3505
Q3501
C3502
IC303
C161
R3513
C162
D3502
R3510
R3725
L2102
C3705
R2115
C2111
R3501
D3501
C2112
C3503
C2113
R3512
R3511
D510
R3509
Q3502
R661
D552
R3507
C3706
D551
CN373
R3504
R3502
R3506
C3501
R645
C3602
C3604
R3610
R3605
R3602
R3611
D3602
R3604
C3601
D3601
R3601
C2114
R606 C601
R663
R612
D610
R574
R611
R651
C602
R607
R608
R664
R628
R629
C604
R614
R613
R635 R633 R631
R624
R623
R637
R622
D611
R621
CN372
R3732
R665
Q604
Q603
R625
R626
R627
R644
Q3701
D521
R540
C101
FC102
D101
FC101
RY101
D515
D516
C172
C168
Q152
D612
D165
C167
R510
D164
D535
D163
C171
R646
R164
D166
R666
R671
R681
R682
C571
R683
CN502
R684
R3719
D3703
C3721
X601
R685
R686
R687
R508
R509
R555
R163
R171
R165
CN151
CN501
CN371
R507
CN101
R166
Q183
FW501
R182
R186
S901
CN102
FC103
FC104
HS151
C151 C153 C155
C158
D181
C159
R189
C157
R184
C152 C154 C156
L181
R183
C184
R185
D182
Q181
R188
Q182
R187
C183
R181
C185
L182
K181
K182
R667
R662
EP501
D561
FW501
D562
(Amp board)
(Mother board)
(LED board)

< MEMO >

Victor Company of Japan, Limited
(No.MB511SCH)
Printed in Japan
VPT
Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
