1 Introduction
Thank you for purchasing the camera. Before installing it, read the guide carefully and check the model.
For more information, please refer to the INSTRUCTIONS on CD-ROM.
This manual is designed for administrators and users of the network camera. Please read it carefully before use. All
requirements should be followed before using this camera. Keep this document for future reference.
Unpack Everything
FIXED HD IP DOME CAMERA
WARRANTY CARD
SAFETY PRECAUTIONS
QUICK GUIDE
2-PIN TERMINAL BLOCK for power input
8-PIN TERMINAL BLOCK for alarm input/output
CD-ROM containing INSTRUCTIONS and IP Finder software
TEMPLATE : mounting template
2 SCREW ANCHORs
2 SCREWs
Operating Precautions
■Storage and Operating Environment
This camera has designed for indoor use. It cannot be
used outdoors.
Do not install the camera in following places
･In a place exposed to rain or moisture.
･In a place with vapor or oil, for example in a kitchen.
･When the ambient temperature rises above or falls
below the acceptable range (from -10℃to 50℃)
･In a place at which corrosive gases are emitted.
･Near a source of radiation, X-rays, strong radio waves
or magnetism.
･In a place subject to vibration.
･In a place with excessive dirt.
■Notes for LAN Cable
Use a LAN cable of which the length of
the connector is less than 35 mm. If it is
more than 35 mm, the camera housing
cannot be attached to the camera.
■Maintenance
Wipe the camera with a dry, soft cloth to remove any dirt.
Do not use benzene or thinner to wipe the camera. Doing
so may melt the surface or cause it to fog. For tough stains,
wipe with a neutral detergent diluted with water, followed
by wiping with a dry cloth.
■Power supply
Please make sure the power source is DC 12 V / AC 24 V /
PoE. Only connect the camera to this power system.
The AC 24 V and DC 12 V power supply shall conform to
the following: Class 2 only (For USA), Isolated power
supply only (For Europe).
When using AC 24 V power supply, do not connect the
power cable to commercial power supply. If it is connected
by mistake, the internal circuit may be damaged. Do not
use the camera and make sure to send it to the nearest
JVC dealer for inspection.
■Real Time Clock
The real time clock of the camera will be initialized by
power off over 3 days. In such case, please set data/time
manually, or set NTP server.
If the real time clock is initialized, event log, data in SD
card, and mail sent by the camera do not show correct
time.
■SD Card
SD card is fragile and not reliable for long term use. Our
company will not be liable for damages resulting from the
use of SD card. Frequent back up of data is
recommended. Data of SD card will be lost by troubles
below.
Less than
35 mm

3
･Electrical or Mechanical Shock to SD card.
･Power off or ejecting of SD card during recording.
･Rewriting times exceeds upper limit of the SD card (The
upper limit depends on grade of the SD card.)
■Energy Conservation
When the camera is not in use for a long time, turn off the
power for safety and energy conservation reasons.
■Copyright Protection
With the exception of the user being the copyright holder
or when permission such as for duplication has been
granted by the copyright holder, permission is required in
principle for the duplication, modification, or transmission
of copyrighted material.
Unauthorized duplication, modification, or transmission of
copyrighted material may constitute a copyright
infringement, and the user may be liable to compensate
for any damages. When using copyrighted material, be
sure to check the license agreement of the copyrighted
material thoroughly.
When rights or rights holders are involved with regard to
the targeted duplicating subject, permission may be
required for shooting or using (processing) it. Be sure to
check the licensing conditions thoroughly.
■Disclaimer
We will not be responsible for any inconveniences or
disturbances caused in the event of privacy invasion as a
result of camera footages of this product.
■Others
Because the camera controls auto exposure by shutter
speed, flicker can be shown by fluorescent light. To
reduce the flicker, please select PAL mode if the power is
50Hz, or NTSC mode if the power is 60Hz. (Refer to
INSTRUCTIONS “4 Overview of Navigation and Controls”
- “Video Type”)
Preparation
The following tools might help you to complete the installation:
Drill
Screwdrivers
Wire cutters
Camera Installation
Note
All the installation and operations here should conform to your local electricity
safety rules.
Disassembling the Camera

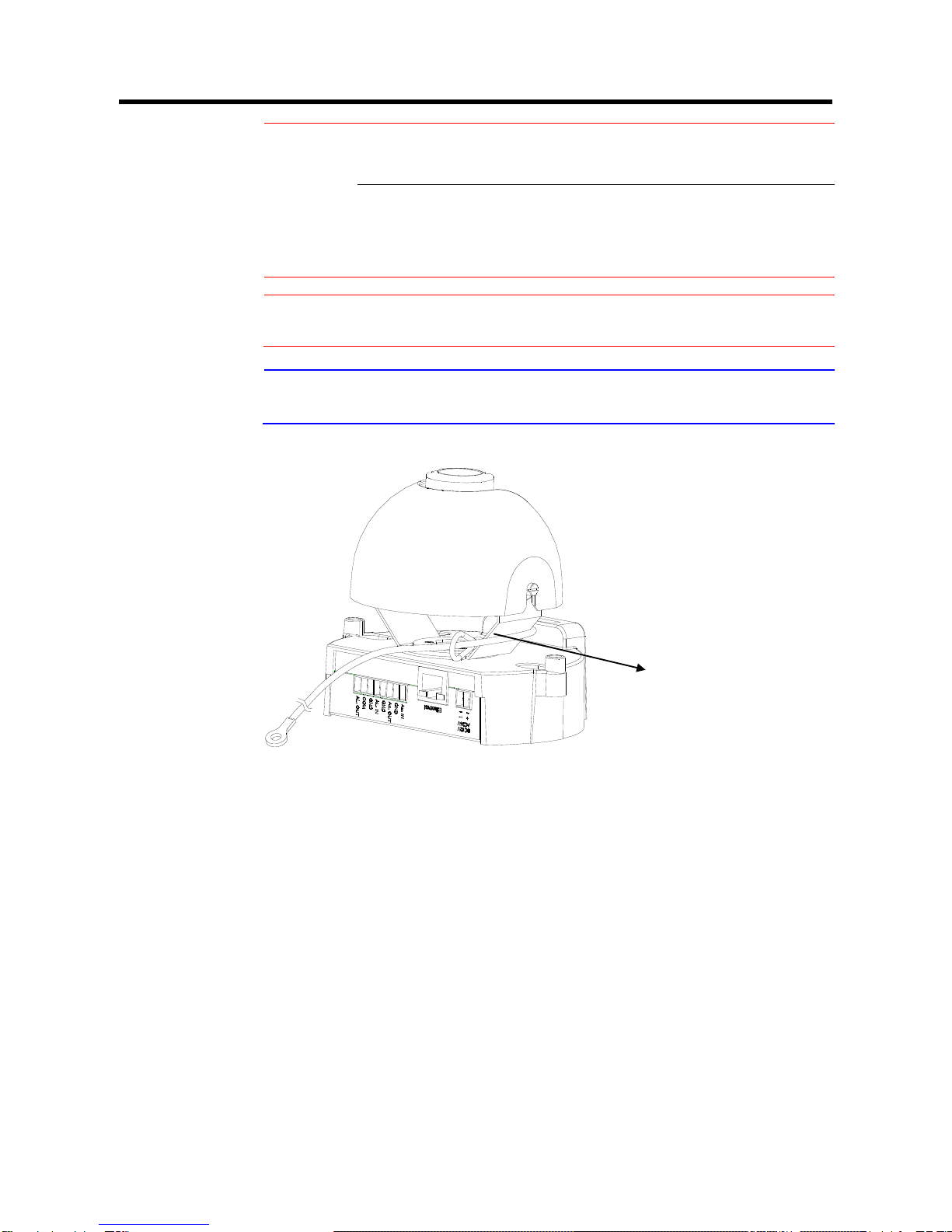

Gently remove the screw to take off camera housing (4)
Remove the inner liner (3) by pulling it free of the two notches (2) in the housing.
Set the camera housing (5) and liner (3) aside.

4
Connecting the Power Wiring
Connect the power supply cable to the power connectors.
Select one of the following options.
For DC12V
Connect 12 V (-)toterminal=DC12V-
Connect 12 V (+) to terminal =DC12V+
For AC24V
Connect 24 V (~) cables to terminals ~AC24V.
PoE
Connect the network cable to the RJ45 terminal using a switch.
Caution
If using a DC supply, make sure the polarity is correct. Incorrect connection
may cause malfunction and / or damage to the camera.
Note
Connectors and field wiring terminals for external Class 2 circuits provided with
marking indicating minimum Class of wiring to be used. Class 2 shall be
marked adjacent to the field wiring terminals.
Adjusting the Camera Position
The dome camera has three axes for positioning the camera. Whilemonitoring the picture on the
monitor, adjust the camera position as follows:
Pan Adjustment (A) For Wall Mount and Tilted Ceilings Rotate the lens base
(maximum360°) until you are satisfied with the field of view.
Horizontal Rotation (B) Rotate 3D assembly in the base. Do not turn assembly more than
360°as this assembly may cause the internal cables to twist and disconnect or break.

5
Tilt Adjustment (C) After loosening the thumbnuts, position the camera as desired, then
finger –tighten the thumbnuts to set the position.
Caution
Do not turn the lens more than 360° as this may cause internal cables to disconnect
or break.
Adjusting Zoom and Focus
Loosen the zoom lever (D) / locking screw by turning it counter-clockwise.
Rotate the zoom ring to achieve the desired picture.
Loosen the focus lever (E) / locking screw by turning it counter-clockwise.
Rotate the focus ring to adjust the focus.
If re-adjustment is necessary, repeat the steps above.
Retighten the zoom lever (D) / locking screw and the focus lever (E) / locking screw.
Caution
Retighten the locking screws to prevent loss of adjustment.
Mounting the Camera
Place the mounting template (supplied) on the mounting surface and mark the holes.
Drill two holes, and then insert the screw anchors into the holes.
Take off the camera housing.

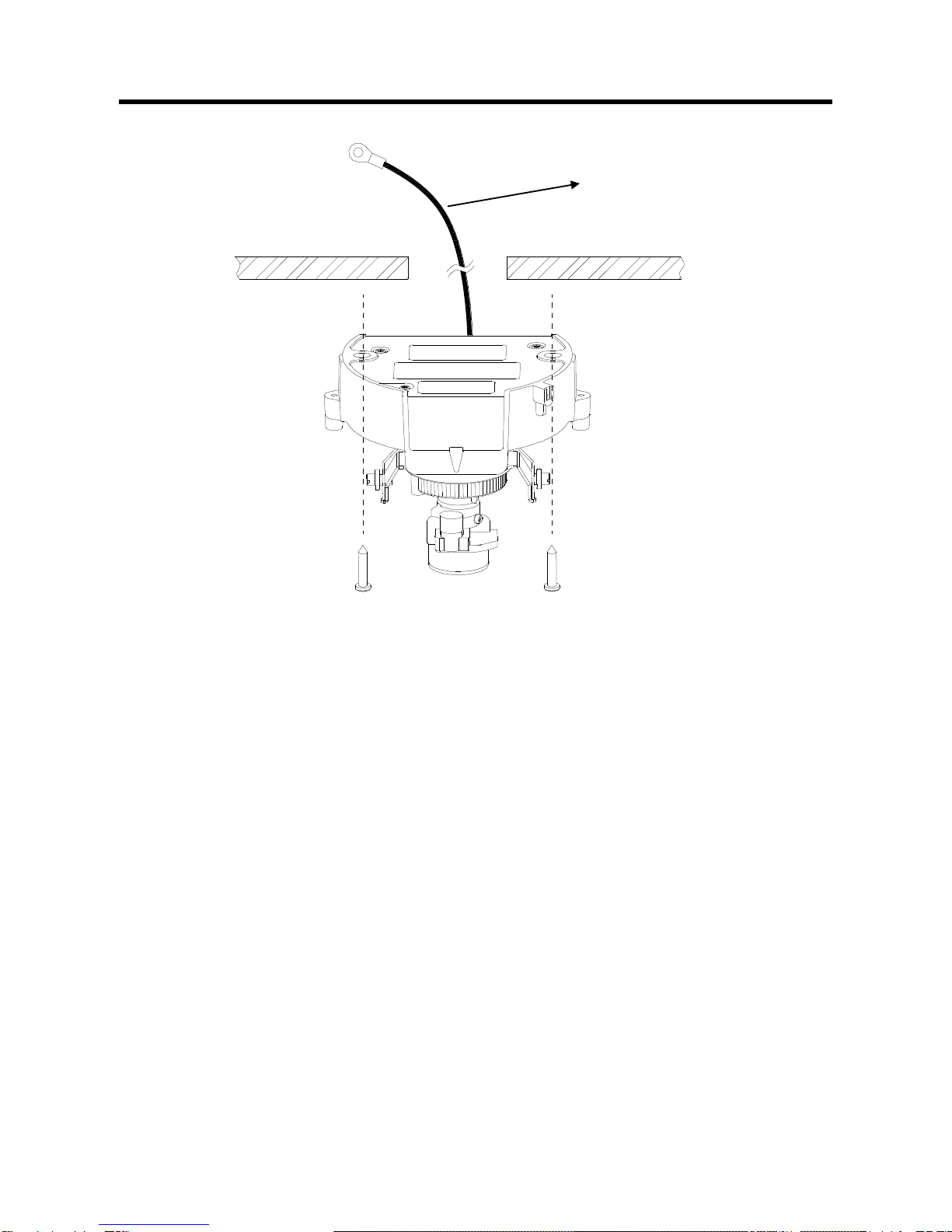

Connect the Safety Wire (Fall Prevention Wire, not supplied) to the ceiling.
Secure the camera bottom case (1) to the wall/ceiling with the TP4 x 15 mm tapping screws,
supplied.
Insert the power cable, LAN cable and Audio cables.
Adjust the view angle (zoom, focus, and Horizontal Rotation).
A
D
C
E
B

6
Warning
To prevent the camera from falling off, ensure that it is connected to a firm place
(ceiling slab or channel) using a Safety Wire (Fall Prevention Wire is not
supplied).
Pay also careful attention to the length, strength, wiring, and material (insulating
properties) of the fall prevention wire to be used. The length should be as short
as possible within the permissible range of the mounting length. The wire
should be strong enough to withstand the total weight of this product. (Pay also
attention to the finishing at the end of the wire.)
Caution
Must be isolated camera and the wall/ceiling which are connected by the Safety
Wire (Fall Prevention Wire).
Note
Depending on the material of your mounting surface, you may require different
screws and anchors than thosesupplied.
Safety Wire (fall prevention
wire is not supplied).
Please tighten a safety wire
on a firm place as figure.

7
Locking the Camera
Use soft, lint-free cloth to wipe the dome cover clean and remove fingerprints.
Attach the inner liner and camera housing.
Turn the power on after you have installed the camera.
Safety Wire (Fall Prevention Wire, not
supplied)

8
Network Configuration
Setting IP
This is a network-based camera and must be assigned an IP address first.
The camera’s default IP address is 192.168.0.2 and sub mask is 255.255.255.0. To change IP
address, open Network Settings page described later.
If your network uses a DHCP server, an IP address can be assigned automatically from the DHCP
server by enabling DHCP in the Network Settings page described later.
Connecting the Camera to a Personal Computer
1. Connect the network cable to the camera and then turn on the camera’s power.
2. Set the personal computer’s IP address. The camera’s default IP address is 192.168.0.2
and sub mask is 255.255.255.0.
3. Check that the camera and computer are connected by Pinging the IP address you have
set. To do this, start a command prompt (Windows: from the Start Menu, select Program.
Then select Accessories and choose Command Prompt.) Type: Ping 192.168.0.2. If the
message “Reply from…” appears, it means the connection is done.

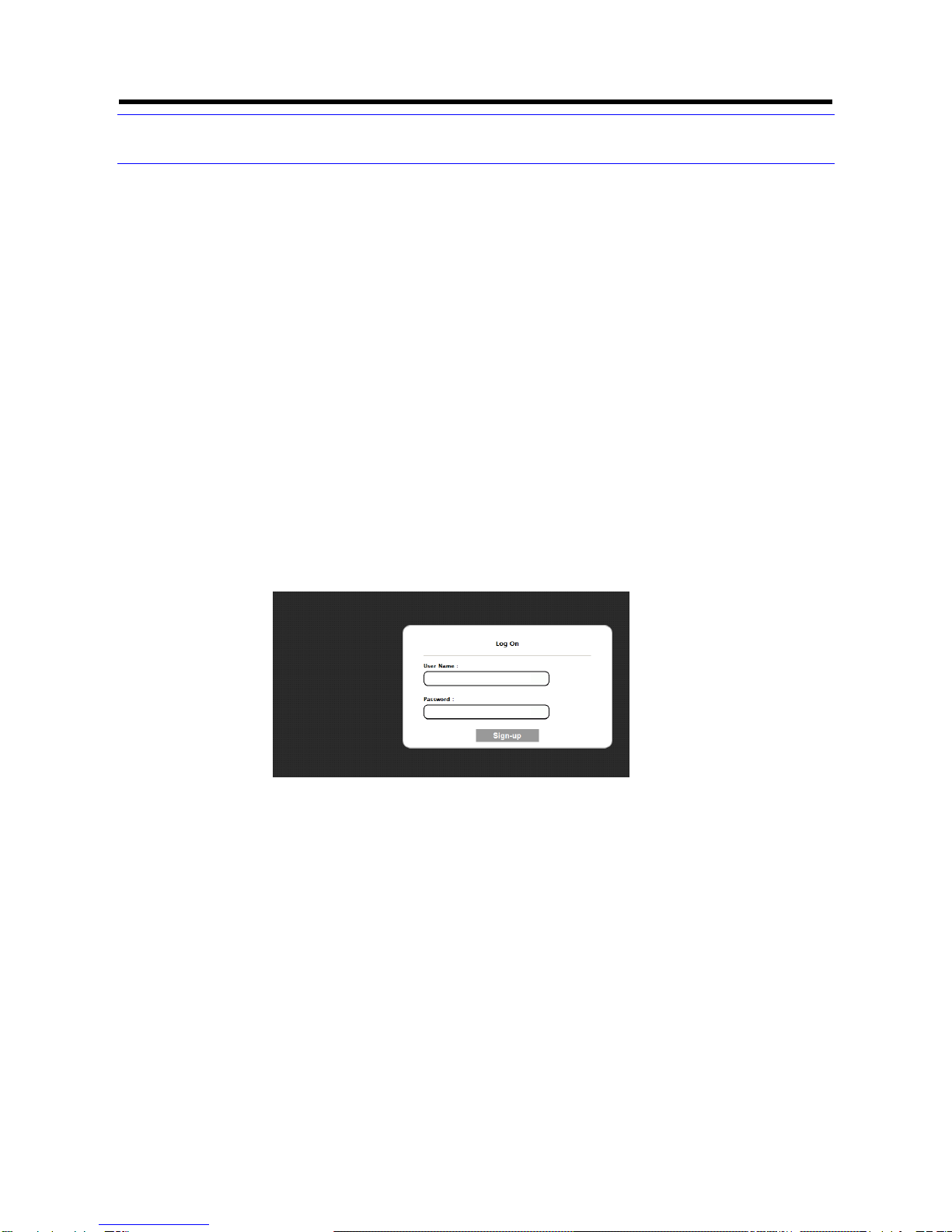

4. Start Internet Explorer and enter IP address: 192.168.0.2. A login window will appear.
Enter the default user name: admin and password: jvc to log in.
5. Images of the camera can be viewed through Internet Explorer. Before viewing, follow
these steps to enable the display.
a. Enable Cookies as shown below:
In Internet Explorer, click Internet Options on the Tools menu.
On the Privacy tab, move the settings slider to Low or Accept All Cookies.
Click OK.
b. When a proxy server is used, click Internet Options on the Tools menu of Internet
Explorer, select Connect tab, click LAN button, and set proxy server.
c. Change Security in Internet options as shown below:
On tool menu, click Internet Option.
Press the Security tab.
If the camera operates inside the Intranet, click the Intranet icon. If the camera
operates on the Internet, click the Internet icon.

9
In Windows 7 only, Click【Tools】【Internet Options】【Security】
Enable Protected Mode (require restarting Internet Explorer) Unchecked

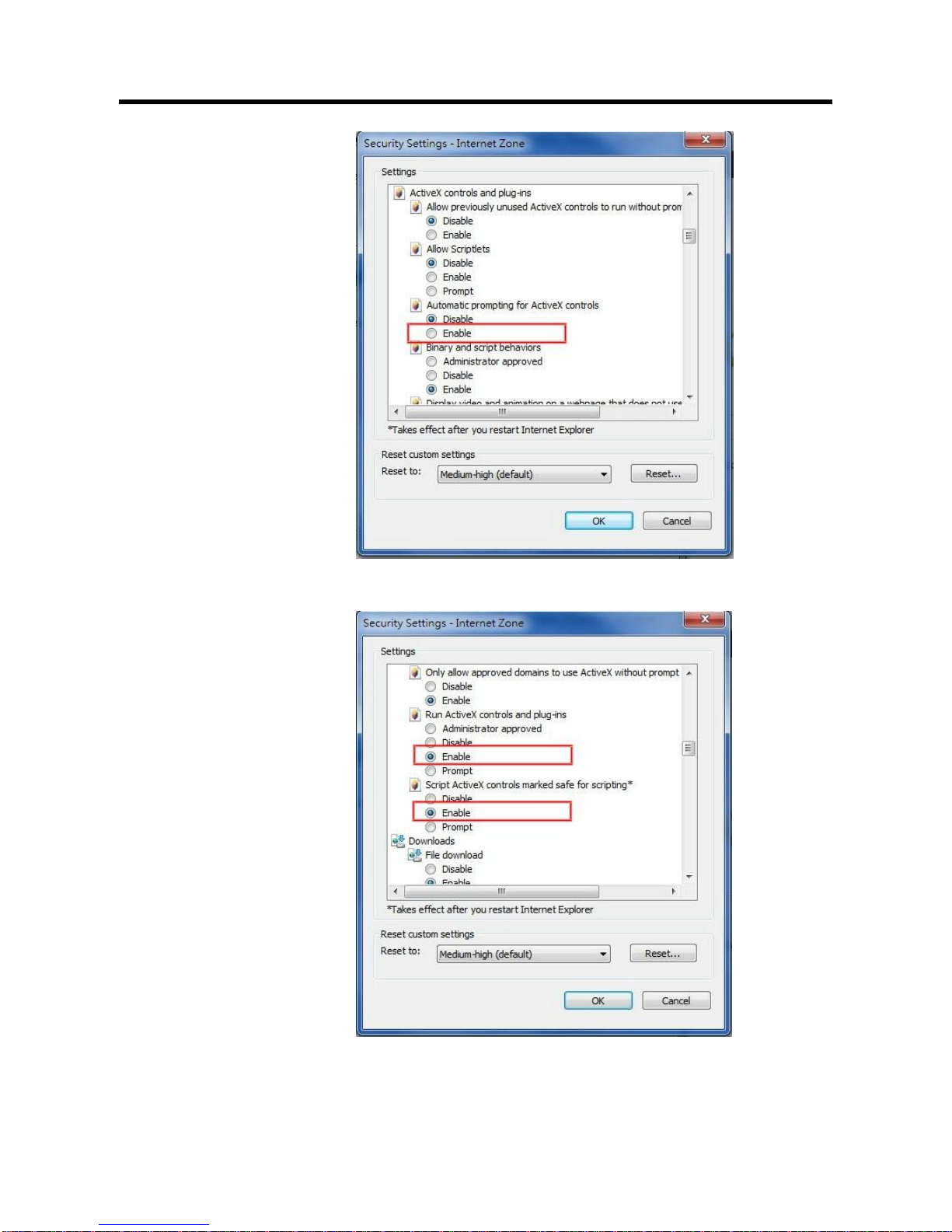

Click Custom Level. This will open the Security Settings –Internet Zone
screen.
Scroll down to the ActiveX controls and plug-ins radio buttons and set as
follows:
【Download signed ActiveX controls】Prompt (recommended)
【Download unsigned ActiveX controls】Prompt
【Initialize and script ActiveX not marked as safe for scripting】Prompt

10
【Automatic prompting for ActiveX controls】Enable
【Run ActiveX controls and plug-ins】Enable
【Script ActiveX controls marked safe for scripting*】Enable
Press OK to save the settings. Close all Internet Explorer windows and start a new
window. This will allow the new settings to take effect.

11
6. Type your setting IP address into the browser.
7. Then you should be able to see the camera image screen.
Using “IP Finder” to Search Camera’s IP Address
The IP Finder is a tool which helps users to find VN-T16/216 series network cameras in the LAN
which your computer is connected. Please note that IP Finder is only compatible with Windows 7,
windows Vista and Windows XP.
1. Insert the CD-ROM in the CD-ROM drive.
2. Copy the IP Finder’s folder to your computer.
3. Double click the IpFinder.exe in your computer’s IP Finder folder. An IP Camera Finder
window will pop out. The window will display a list of IP cameras which you are using
currently.
4. Press Search to search cameras.

12
2 Warnings
Installation and maintenance should be performed only by qualified and experienced technicians
to conform to all local codes and to maintain your warranty.
DANGER! AC24V models require the use of CSA Certified/UL Listed Class 2 power adapters to
ensure compliance with electrical safety standards. Power over Ethernet (PoE) should meet the
IEEE 802.3af. PoE standard.
3 Dimensions
0.70"(18mm)
0.62"(16mm)
4.92"(125mm)
4.17"(106mm)
3.25"(82.5mm)
3.64"(92.5mm)
4.17"(106mm)
4.92"(125mm)

13
4 Specifications
Operational Specifications
Image device
1/2.7-type Mega-pixel CMOS sensor
Sensitivity
Color: 0.6 lx, B/W: 0.6 lx (50％)
Day/Night
Easy D/N
Auto Gain Control
Off/On, selectable
Auto Iris Control
AES (Automatic Electric Shutter)
White Balance
ATW (2800K～8500K) and Manual
Electric Shutter
NTSC: 1/30~1/10000 sec
PAL: 1/25~1/10000 sec
Noise Reduction
Yes
3 Axis Gimbals
Yes
Motion detection
Yes
Lens Type
1/3-type 3-9 mm F:1.2
BLC
Yes
Audio
Line in/out
Alarm
1 in / 1 out (Alarm out spec: 0.5 A / AC 120 V max)
IP Specifications
Video Compression
H.264 & MPEG4 & MJPEG
Video Streaming
Real time stream:
1080P H.264 or 720P H.264+D1 or D1+D1
Independent controllable frame rate and bandwidth.
Constant or variable bitrate control
Resolution
NTSC: 1080P(1920 x 1080), 720P(1280 x 720),
D1(720 x 480), 4CIF(704 x 480), VGA(640 x 480),
CIF(352 x 240), QVGA(320 x 240)
PAL: 1080P(1920 x 1080), 720P(1280 x 720), D1(720
x 576), 4CIF(704 x 576), VGA(640 x 480), CIF(352 x
288), QVGA(320 x 240)
Image Frame Rate
NTSC: Up to 30 fps
PAL: Up to 25 fps

14
Security
Multiple user access levels with password
protection
Users
1 Administrator, 5 Users
Video Access from
Web Browser
Full control of all camera settings available to
administrator
Minimum Web
Browsing
Requirements
Windows XP or Windows 7 as OS,
Internet Explorer Version 6.0-9.0,
CPU: Intel Pentium 4 2.4 GHz or equivalent AMD,
Memory: 1 GB or above
Supported Protocols
IPv4, HTTP, TCP, RTSP, RTP, ICMP, UDP, IGMP,
RTCP, FTP, DNS, DHCP, ARP
Network interface
RJ-45, 100BASE-TX/10BASE-T,
FULL/HALF/Auto negotiation
Surveillance Protocol
ONVIF Compatible (pass compliance test tool)
Onboard Storage
SDHC (suggest class 10)
Electrical
Power Supply
PoE IEEE 802.3af Class 0, DC 12 V, AC 24 V
Power Consumption
PoE 0.13 A, DC 12 V 550 mA
Mechanical
Dimension
Ø125 mm x 106 mm
Weight
490 g
Connectors
Power Input: removable terminal block
Network: RJ45 connector
Audio In/out: removable terminal block
Alarm In/out: removable terminal block
Environmental
Operating Temperature
-10 °C to 50 °C
Operating Humidity
20 % to 90 % (without condensation)
Storage Temperature
-20 °C to 60 °C

15
©2012 JVC KENWOOD Corporation
