JVC LT-32X506 - 32" LCD TV User manual

For Models:
LT-32X506
LT-26X506
Illustration of LT-32X506 and RM-C1271G
Important NOte:
In the Spaces below, enter the model and serial number Of your television (located at the
rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this
guid e. Keep this user!s guide in a convenient place for future reference. Keep the carton
and origina! packaging for futu[e use,
Model Number:
Serial Number: LCT1899-001A-A
0605TNH-II-IM

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock. Do not
remove cover (or back). No user serviceable
parts inside. Refer servicing to qualified service
personnel,
The lightning flash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS TV SET
TO RAIN OR MOISTURE.
CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES
REGARDING THE USE OF THIS UNIT.
1. Operate only from the power source specified on the unit.
2. Avoid damaging the AC plug and power cord.
3. Avoid Improper installation and never position the unit where good ventilation is unattainable.
4. Do not allow objects or liquid into the cabinet openings.
5. In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair
it yourself or remove the rear cover.
Changes or modifications not approved by JVC could void the warranty.
* When you don't use this TV set for a long period of time, be sure to disconnect both the
power plug from the AC outlet and antenna for your safety.
* To prevent electric shock do not use this polarized plug with an extension cord, receptacle or
other outlet unless the blades can be fully inserted to prevent blade exposure.
This product has a fluorescent !amp that contains a small amount of mercury. It a!so
contains lead in some components. Disposal of the materials may be regulated in your
community due to enwonmental considerations. For disposal or recycling information,
please contact your local authorities, or the Electronic !ndustries A!liance:
http://www.eiae.org
m

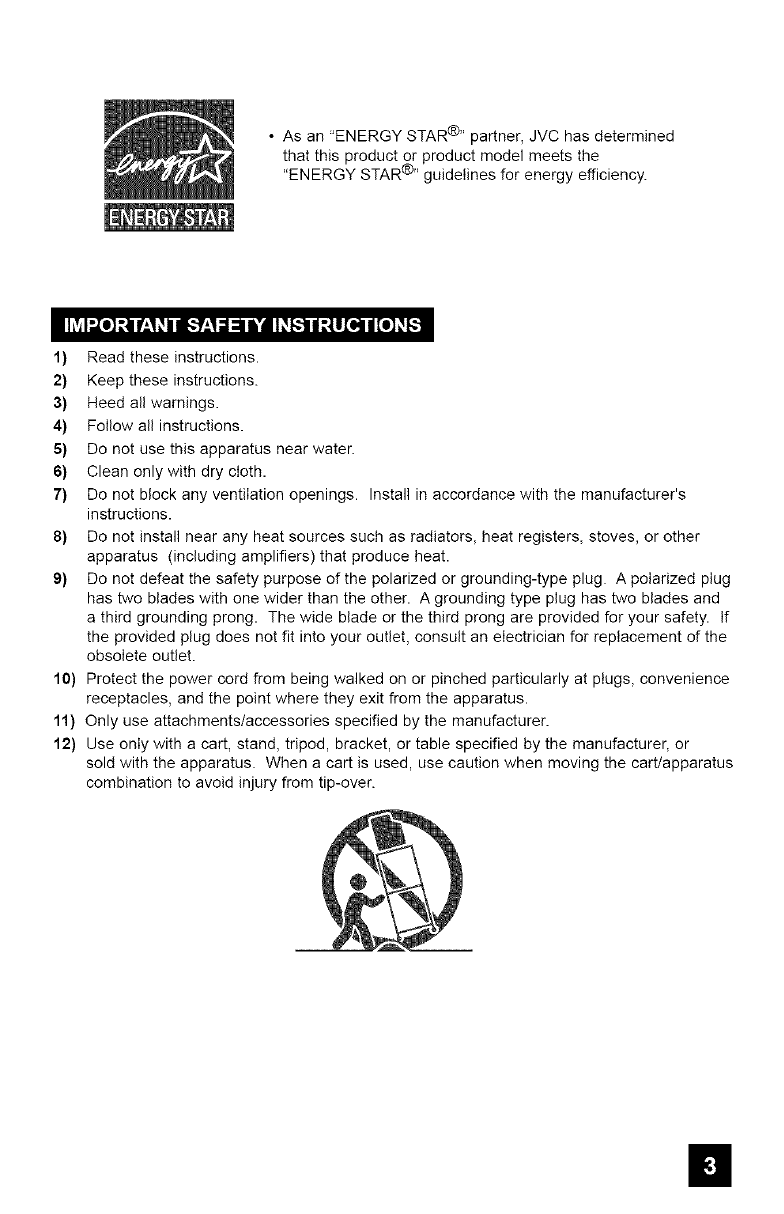

• As an "ENERGY STAR®,' partner, JVC has determined
that this product or product model meets the
"ENERGY STAR®'' guidelines for energy efficiency.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6} Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
II

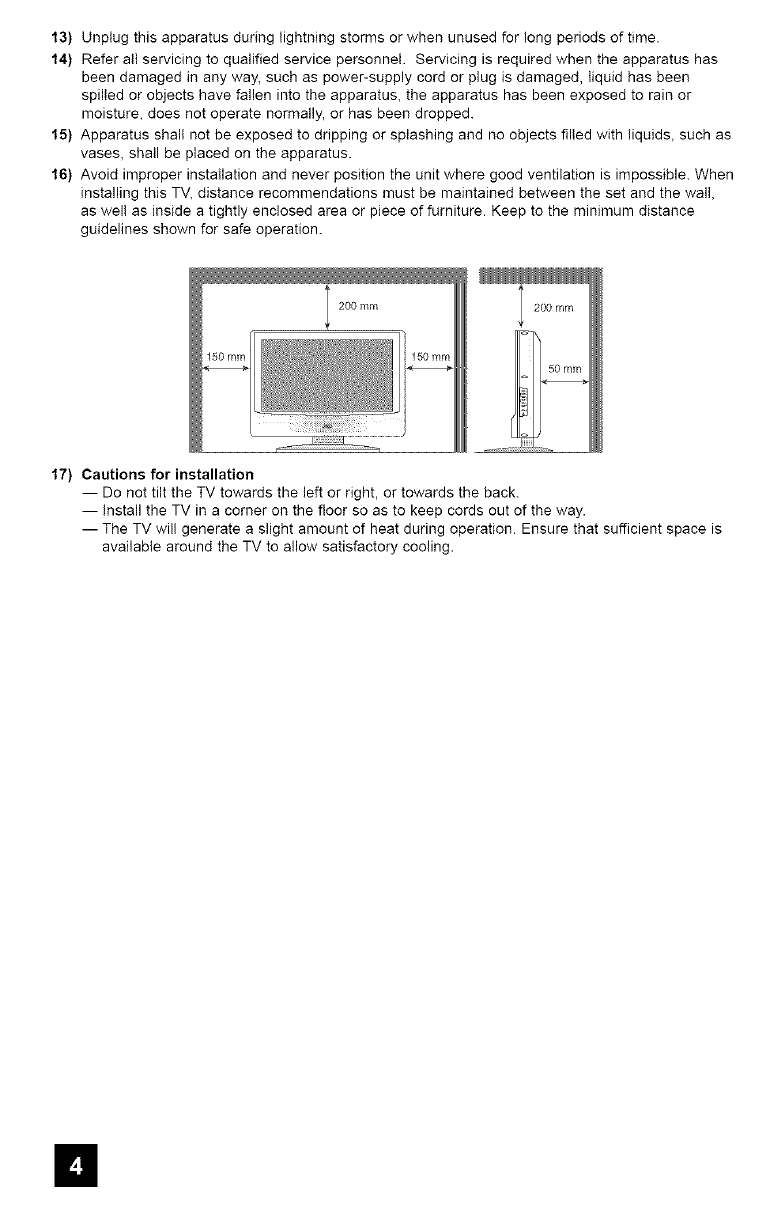

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14} Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15) Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
16} Avoid improper installation and never position the unit where good ventilation is impossible. When
installing this TV, distance recommendations must be maintained be'b,,veen the set and the wall,
as wel! as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance
guidelines shown for safe operation.
200 mm
17) Cautions for installation
-- Do not tilt the TV towards the left or right, or towards the back.
-- Install the TV in a corner on the floor so as to keep cords out of the way.
-- The TV will generate a slight amount of heat during operation. Ensure that sufficient space is
available around the TV to allow satisfactory cooling.
=l

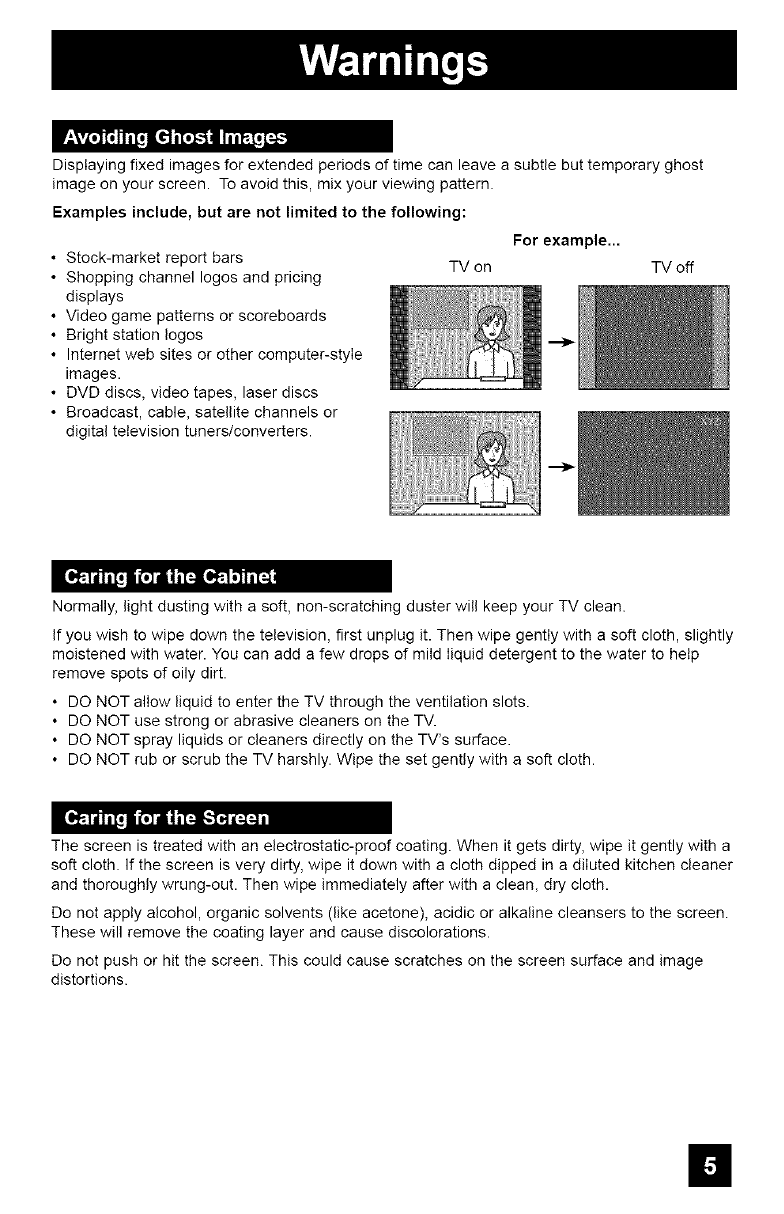

Displaying fixed images for extended periods of time can leave a subtle but temporary ghost
image on your screen. To avoid this, mix your viewing pattern.
Examples include, but are not limited to the following:
• Stock-market report bars
• Shopping channel Iogos and pricing
displays
• Video game patterns or scoreboards
• Bright station Iogos
• Internet web sites or other computer-style
images.
• DVD discs, video tapes, laser discs
• Broadcast, cable, satellite channels or
digital television tuners/converters.
TV on
For example...
TV off
Normally, light dusting with a soft, non-scratching duster will keep your TV clean.
If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly
moistened with water. You can add a few drops of mild liquid detergent to the water to help
remove spots of oily dirt.
• DO NOT allow liquid to enter the TV through the ventilation slots.
• DO NOT use strong or abrasive cleaners on the TV.
• DO NOT spray liquids or cleaners directly on the TV's surface.
• DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth.
The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a
soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner
and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth.
Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen.
These will remove the coating layer and cause discolorations.
Do not push or hit the screen. This could cause scratches on the screen surface and image
distortions.
m

Your fingers may become trapped under
the TV, causing injuries. Hold the TV at the
bottom in the middle, and do not allow the TV
to tilt up or down.
The TV may fall causing injuries. Hold the
bottom of the stand with your hand and tilt
the TV up or down.
n

mii(!io]ii_imLi_'.f'_"__)ji "iN(_i.(_.|! It|[.1i) _ _ _ -'[o] ! I i[ i |-A'_P'; I I! [,-'+1......... )
rili':.l(illi[i__
I,o_ _ml, .............

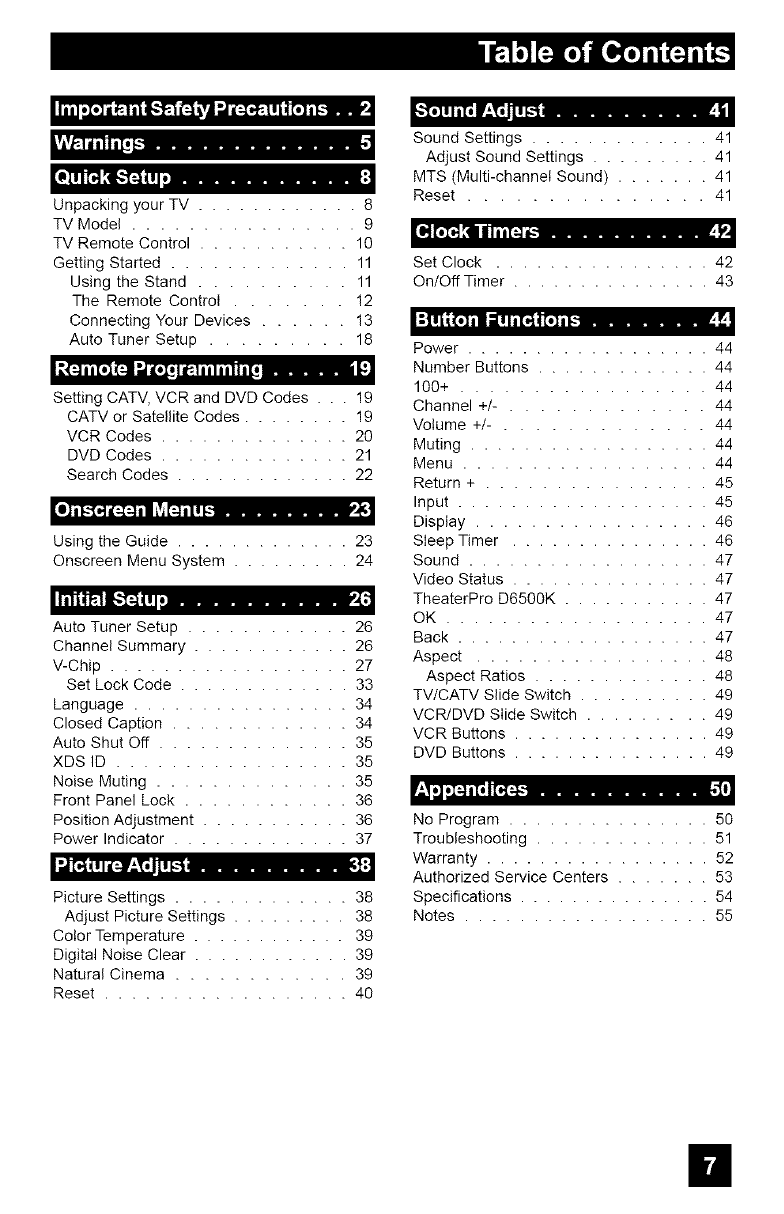

Unpacking your TV ............ 8
TV Mode( ................ 9
TV Remote Control ........... 10
Getting Started ............. 11
Using the Stand .......... 11
The Remote Control ....... !2
Connecting Your Devices ...... 13

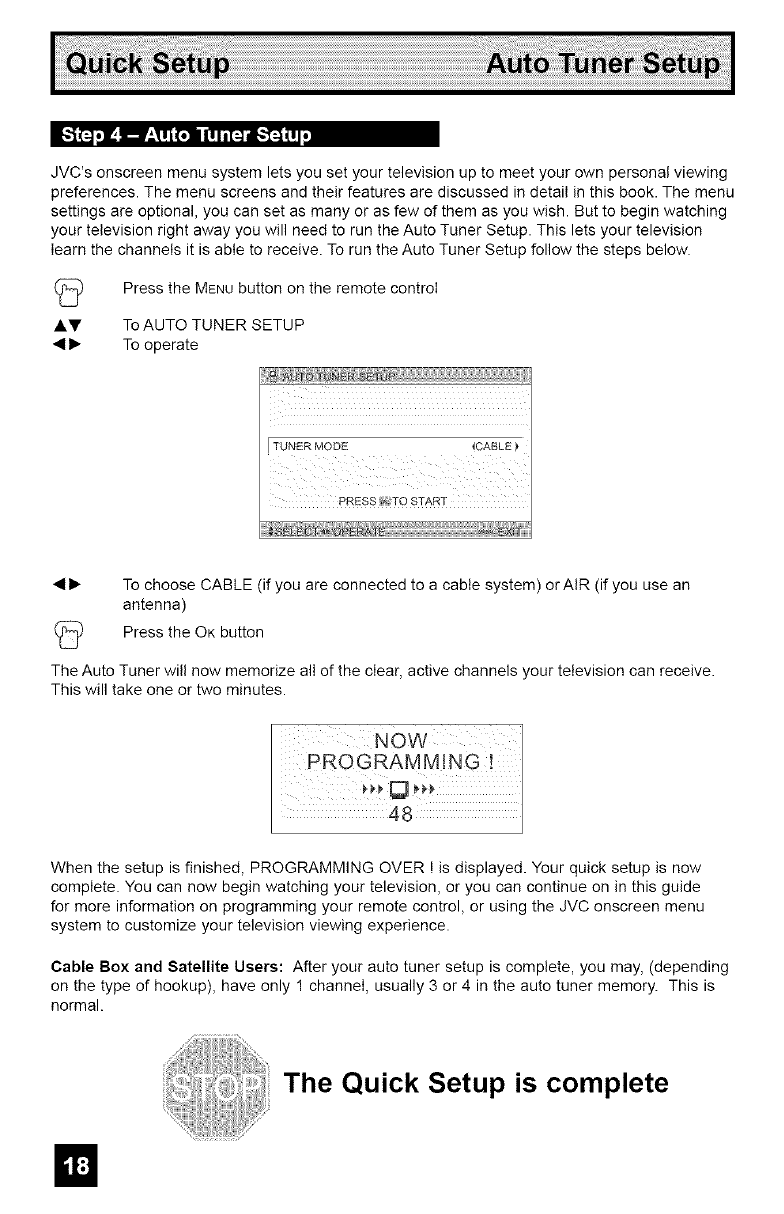

Auto Tuner Setup ......... 18
((=,,]ilEOlj_l-l_J(o(illP:-lillillllTo ...... i
Setting CATV, VCR and DVD Codes . . . 19
CATV or Satellite Codes ........ 19
VCR Codes .............. 20
DVD Codes .............. 21
Search Codes ............. 22
[oJ mI.-"[_(_=4 mIIk++1=4mIm[.-......... k__
Using the Guide ............. 23
Onscreen Menu System ......... 24
_i'_")l[',,_(!Ii...........
Auto Tuner Setup ............ 26
Channel Summary ............ 26
V-Chip .................. 27
Set Lock Code ............. 33
Language ................ 34
Closed Caption ............. 34
Auto Shut Off .............. 35
XDS ID ................. 35
Noise Muting .............. 35
Front Panel Lock ............ 36
Position Adjustment ........... 36
Power Indicator ............. 37
"JT'_,L,I(_ it,[-i ........... ]
Picture Settings ............. 38
Adjust Picture Settings ......... 38
Color Temperature ............ 39
Digital Noise Clear ............ 39
Natural Cinema ............ 39
Reset .................. 40
Sound Settings ............. 41
Adjust Sound Settings ......... 41
MTS (Multi-channel Sound) ....... 41
Reset ............... 41
[il'](;'_ [i dlii[_ i_........... )l
Set Clock ................ 42
On/Off Timer ............... 43
i"[mllit'[O]mllleIm[_,l[o]ml_........ ,r
Power .................. 44
Number Buttons ............. 44
100+ ................. 44
Channel +/- . ............ 44
Volume +/- . ............ 44
Muting .................. 44
Menu .................. 44
Return + ................ 45
Input ................... 45
Display ................. 46
Sleep Timer ............... 46
Sound .................. 47
Video Status ............... 47
TheaterPro D6500K ........... 47
OK ................... 47
Back ................... 47
Aspect ................. 48
Aspect Ratios ............. 48
TV/CATV Slide Switch .......... 49
VCR/DVD Slide Switch ......... 49
VCR Buttons ............... 49
DVD Buttons ............... 49
No Program ............... 50
Troubleshooting ............. 51
Warranty ................. 52
Authorized Service Centers ....... 53
Specifications ............... 54
Notes .................. 55
U

Thank you for your purchase of a JVC LCD Flat Television. Before you begin setting up your
new television, please check to make sure you have all of the following items. In addition to
this guide, your television box should include:
1 Television 1 Remote Control Two AA
Batteries
IOnce you have unpacked your television, the next Step is to connect it to your antenna/
cable 0r Satellite sYstem and to Connect the audiolvideo devices you want to use with Your I
television. To make these connections you wilI use plugs like the ones illustrated below. I
Used to connect an
external antenna or
cable TV system to
your TV. Used to connect audio/
video devices like
VCRs, DVD players,
stereo amplifiers, game
consoles, etc.
Used to make video
connections with S-Video
VCRs, Camcorders and
DVD players.
We recommend that before you start using your new television, you read your entire User's
Guide so you can learn about your new television's many great features. If yodre anxious to
start using your television right away, a quick setup guide follows on the next few pages.
II

NOTE: Before you connect your television to another device, please refer to the proper
diagrams for your specific TV and remote. These will help assist you in understanding
how to connect your television to another device, as well as use the remote to set up
your television.
Ir,.t":"-_"f'iI".,_"1'_t'_IIm]_'._L_lJlt
In the rear cover
[.,,."]1"_L_Ii ".,,_"1Tl_ I D]FT_J_.1iil
Ha

Note:
• For information on remote control buttons, see pages 44 49
m

_'_;k'11"iI_111

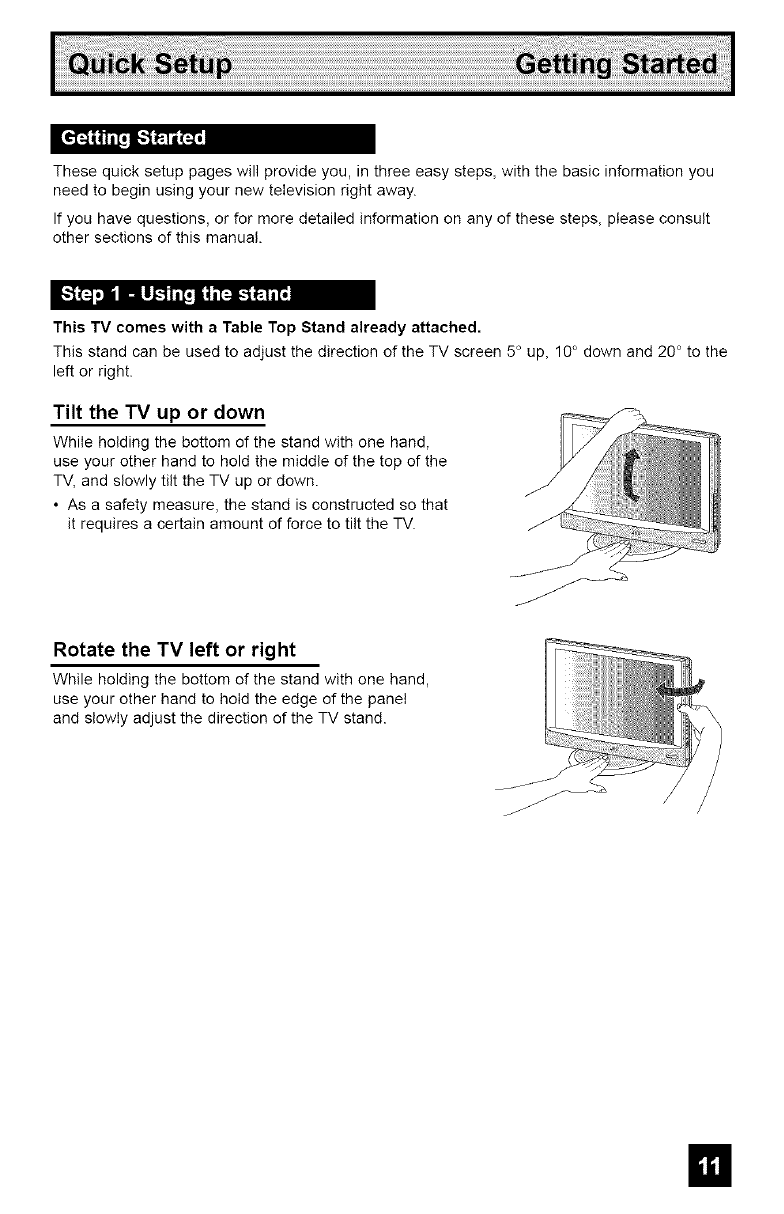

These quick setup pages will provide you, in three easy steps, with the basic information you
need to begin using your new television right away.
If you have questions, or for more detailed information on any of these steps, please consult
other sections of this manual.
This TV comes with a Table Top Stand already attached,
This stand can be used to adjust the direction of the TV screen 5° up, 10° down and 20 ° to the
left or right.
Tilt the TV up or down
While holding the bottom of the stand with one hand,
use your other hand to hold the middle of the top of the
TV, and slowly tilt the TV up or down.
• As a safety measure, the stand is constructed so that
it requires a certain amount of force to tilt the TV.
Rotate the TV left or right
While holding the bottom of the stand with one hand,
use your other hand to hold the edge of the panel
and slowly adjust the direction of the TV stand.
I!

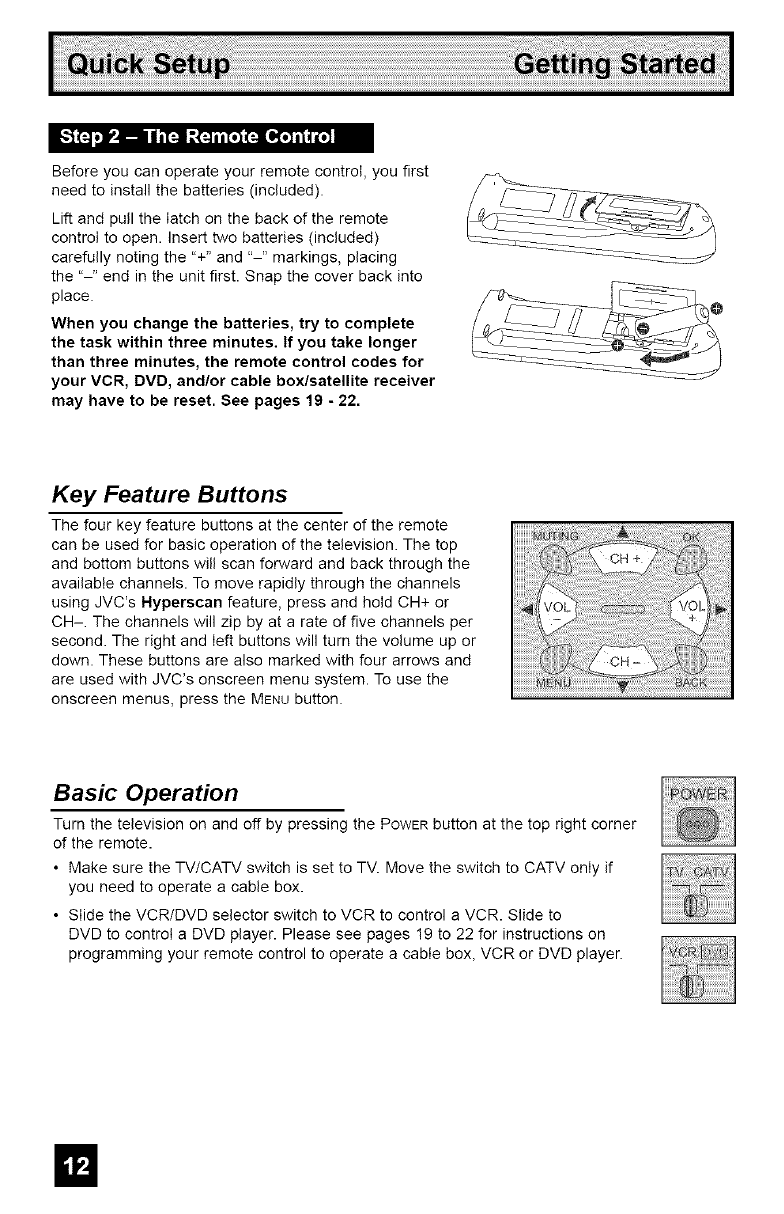

Before you can operate your remote control, you first
need to install the batteries (included).
Lift and pull the latch on the back of the remote
control to open. Insert two batteries (included)
carefully noting the "+" and "-" markings, placing
the "-" end in the unit first. Snap the cover back into
place.
When you change the batteries, try to complete
the task within three minutes. If you take longer
than three minutes, the remote control codes for
your VCR, DVD, and/or cable box/satellite receiver
may have to be reset. See pages 19 - 22.
Key Feature Buttons
The four key feature buttons at the center of the remote
can be used for basic operation of the television. The top
and bottom buttons will scan forward and back through the
available channels. To move rapidly through the channels
using JVC's Hyperscan feature, press and hold CH+ or
CH-. The channels will zip by at a rate of five channels per
second. The right and left buttons will turn the volume up or
down. These buttons are also marked with four arrows and
are used with JVC's onscreen menu system. To use the
onscreen menus, press the MENU button.
Basic Operation
Turn the television on and off by pressing the POWERbutton at the top right corner
of the remote.
• Make sure the TV/CATV switch is set to TV. Move the switch to CATV only if
you need to operate a cable box.
• Slide the VCR/DVD selector switch to VCR to control a VCR. Slide to
DVD to control a DVD player. Please see pages 19 to 22 for instructions on
programming your remote control to operate a cable box, VCR or DVD player.
m
m

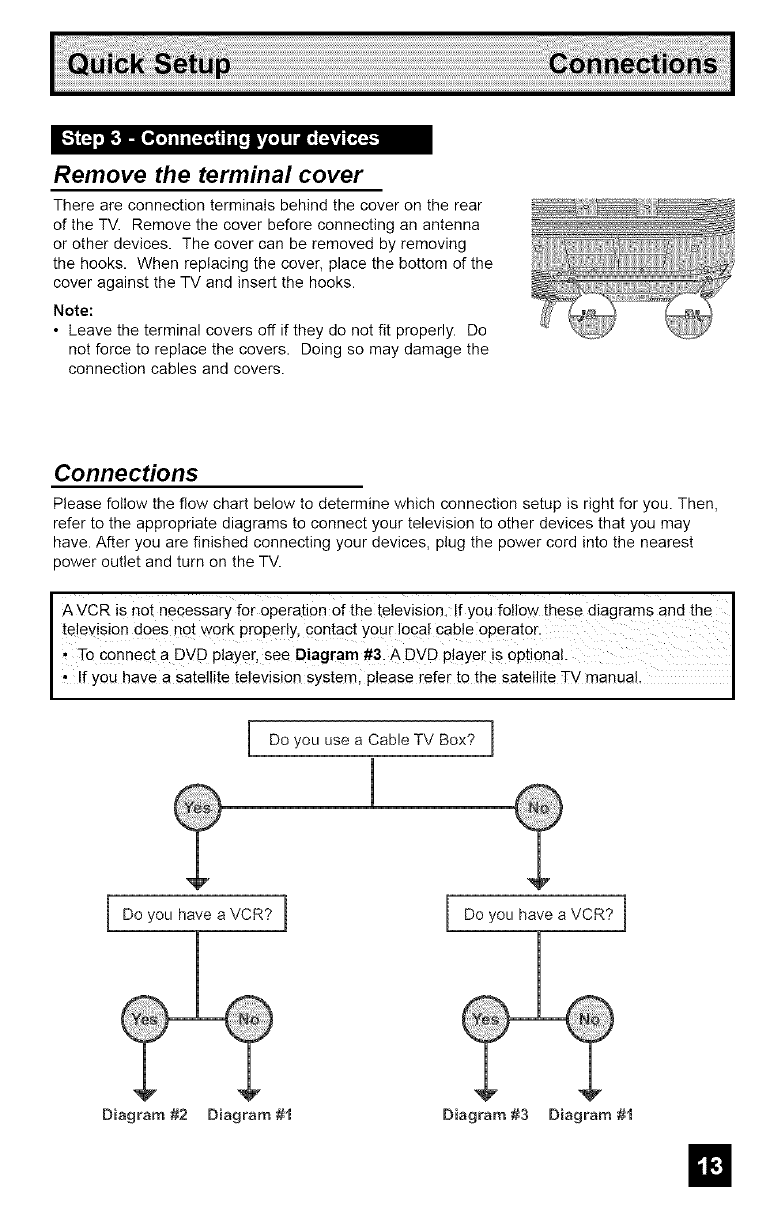

Remove the terminal cover
There are connection terminals behind the cover on the rear
of the TV. Remove the cover before connecting an antenna
or other devices. The cover can be removed by removing
the hooks. When replacing the cover, place the bottom of the
cover against the TV and insert the hooks.
Note:
• Leave the terminal covers off if they do not fit properly. Do
not force to replace the covers. Doing so may damage the
connection cables and covers.
Connections
Please follow the flow chart below to determine which connection setup is right for you. Then,
refer to the appropriate diagrams to connect your television to other devices that you may
have. After you are finished connecting your devices, plug the power cord into the nearest
power outlet and turn on the TV.
A VCR is not necessary for Operation Of the television, !f yOu follow these diagram s and the
te!ey!si0n d°es n°! w°[k Pr°per!y' c0ntac! y°ur !°ca! cab!e 0perat°[: I
To connect a DVD player, see Diagram #3. A DVD player is oPtional.
' f you havea Sate te teiev s on SYstem, P ease rdeF to the sate te T',/rnanua,
Do you use a Cable TV Box? ]
Do you have a VCR? ] Do you have a VCR? I

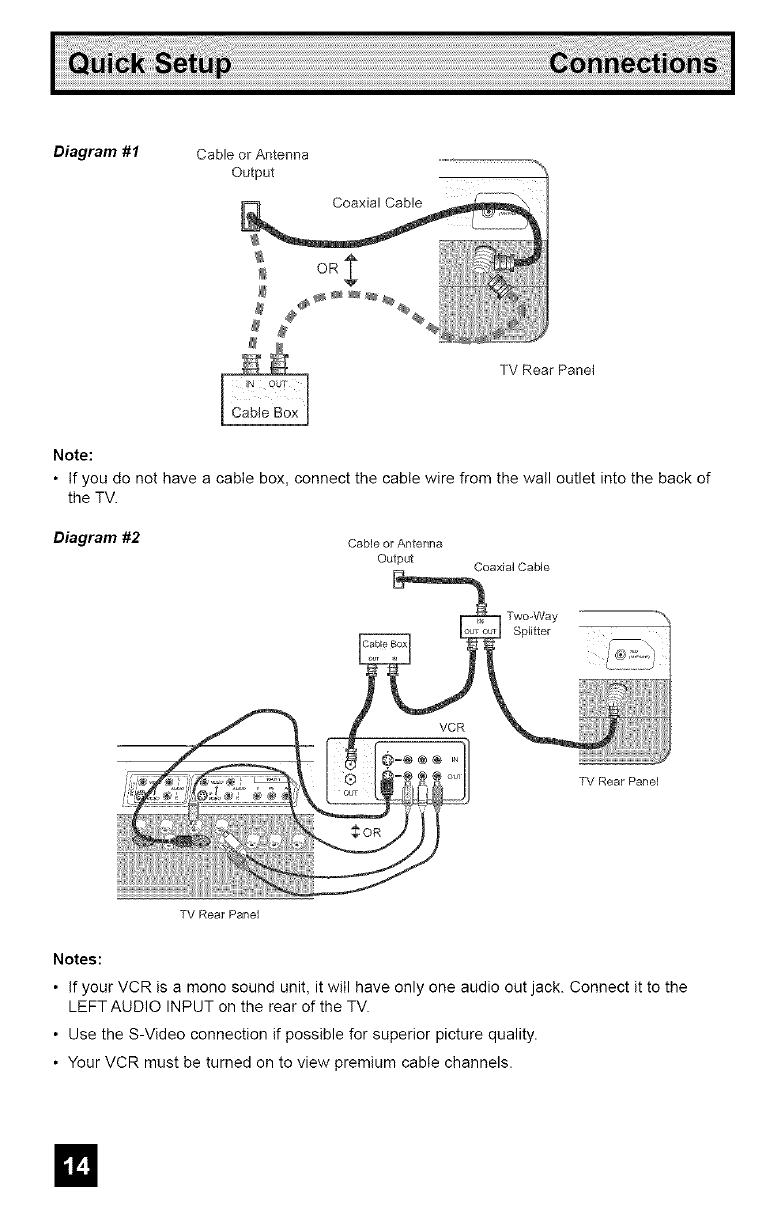

Diagram #2 Diagram #t Diagram #3 Diagram #t m

Diagram #I Cable or Antenna
Output
Coaxial Cable
TV Rear Panel
Note:
• If you do not have a cable box, connect the cable wire from the wall outlet into the back of
the TV.
Diagram #2 Cable or Antenna
Output Coaxial Cable
Two-Way
Splitter
TV Rear Panel
TV Rear Panel
Notes:
• If your VCR is a mono sound unit, it will have only one audio out jack. Connect it to the
LEFT AUDIO INPUT on the rear of the TV.
• Use the S-Video connection if possible for superior picture quality.
• Your VCR must be turned on to view premium cable channels.
In

Notes:
• Green, blue and red are the most common colors for DVD cables. Some models may vary
colors. Please consult the user's manual for your DVD player for more information.
• Be careful not to confuse the red DVD cable with the red audio cable. It is best to complete
one set of connections (DVD or audio output) before starting the other to avoid accidentally
switching the cables.
• You may also connect the DVD player to Input 1.
Diagram #3
Cable or Antenna
Output Coaxial Cable
TwoWYay
Splitter
TV Rear Panel
TV Rear Panel
DVD Player (OPTIONAL)
Green
Blue
Red
ID

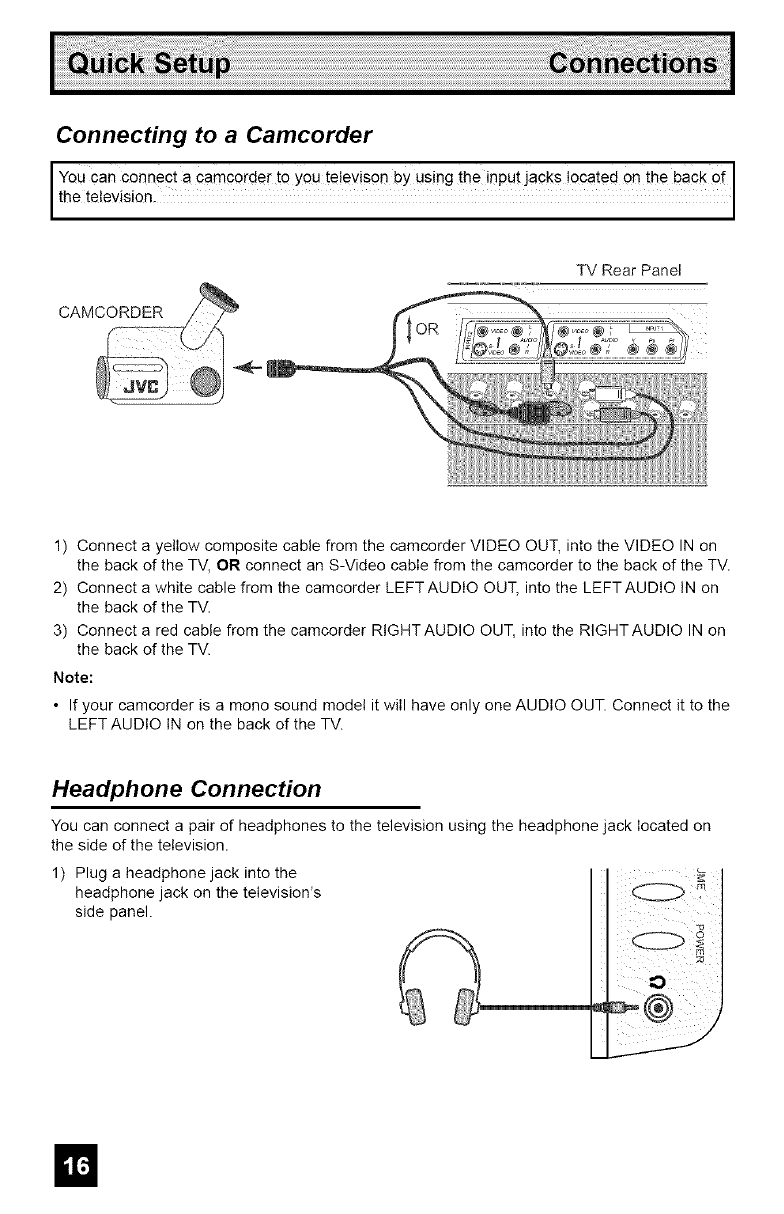

Connecting to a Camcorder
You can connec t a camcorder to you te!eyison by using the inpu!jacks ocated on the bac k oi
the te ev s on,
CAMCORDER
TV Rear Panel
@® ....
1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on
the back of the TV, OR connect an S-Video cable from the camcorder to the back of the TV.
2) Connect a white cable from the camcorder LEFTAUDIO OUT, into the LEFTAUDIO IN on
the back of the TV.
3) Connect a red cable from the camcorder RIGHTAUDIO OUT, into the RIGHTAUDIO IN on
the back of the TV.
Note:
• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to the
LEFT AUDIO IN on the back of the TV.
Headphone Connection
You can connect a pair of headphones to the television using the headphone jack located on
the side of the television.
1) Plug a headphone jack into the
headphone jack on the television's
side panel.
ID

Connecting to an External Amplifier
TV Rear Paner
Speaker
Amplifier
Speaker
1) Connect a white cable from the LEFT AUDIO OUTPUT on the back of the TV to the
LEFTAUDIO INPUT on the amplifier.
2) Connect a red cable from the RIGHT AUDIO OUTPUT on the back of the TV to the
RIGHT AUDIO INPUT on the amplifier.
Notes:
• Refer to your amplifier's manual for more information.
• You can use AUDIO OUTPUT for your home theater system.
II

JVC's onscreen menu system lets you set your television up to meet your own personal viewing
preferences. The menu screens and their features are discussed in detail in this book. The menu
settings are optional, you can set as many or as few of them as you wish. But to begin watching
your television right away you will need to run the Auto Tuner Setup. This lets your television
learn the channels it is able to receive. To run the Auto Tuner Setup follow the steps below.
J.y To AUTO TUNER SETUP
• I_ To operate
Press the MENUbutton on the remote controi
ii
iiiiiiiiill
FTUNER MODE
PRES8'_ TO START
• 1_ To choose CABLE (if you are connected to a cable system) orAIR (if you use an
antenna)
Press the OK button
The Auto Tuner will now memorize all of the clear, active channels your television can receive.
This will take one or two minutes.
NOW I
PROGRAMMING
48
When the setup is finished, PROGRAMMING OVER ! is displayed. Your quick setup is now
complete. You can now begin watching your television, or you can continue on in this guide
for more information on programming your remote control, or using the JVC onscreen menu
system to customize your television viewing experience.
Cable Box and Satellite Users: After your auto tuner setup is complete, you may, (depending
on the type of hookup), have only 1 channel, usually 3 or 4 in the auto tuner memory. This is
normal.
The Quick Setup is complete
El

r I
IYou Can prQgram your remote to Operate your Cable box, sate!lite receiver, VCR or DVD
player by using the instructions and COdes listed below. If the equipment does not respond I
to any of the codes listed below or to the code search function, use the remote control
Supped by the manufacturer.
[_3 _ltl1-11_3[11"I!-"r51_ II[IP-I[_t; [_
The remote control is programmed with cable box and satellite codes for power on/off,
channel up/down, and 10 key operation.
1) Find the cable box or satellite brand from the list of codes shown below.
2) Slide the 2-way selector switch to "CATV".
3) Press and hold down the DISPLAYbutton, then enter the first code number listed with the 10
key pad.
4) Release the DISPLAYbutton, and confirm the operation of the cable box/satellite receiver.
• If your cable or satellite box does not respond to the first code, try the others listed. If it does
not respond to any code, try the search codes function, on page 22.
ABC
Archer
Cableview
Citizen
Cudis
Diamond
Eagle
Easlem
GC Brand
Gemini
GeneralInstrumer_
HamIin
Hitachi
Jerrold
Macom
Magnavox
Memorex
Movietime
Oak
Panasonic
Paragon
Philips
Pioneer
Pulsar
i024
i032,025
i051,032
i022,051
i058,059
i024,032,025
i029
i034
i032,051
i022,043
i065,024,025,
i026,027,020,
i021,022,057,
i023
i040,041,042,
i045,058,064
i049,024
i065,024,025,
i026,027,020,
i021,022,057,
i023
i049,050,051,
i054
i033
i030
i032,051
i039,037,048
i055,056,060,
i071,073
i063
i028,029,030,
i052,053,031,
i069
i047,062
i051,032
Puser
RCA
Realistic
Regal
Regency
Rembrandt
Samsung
Scientific Atlanta
SLMark
Sprucer
Stargate
Telecaption
Teleview
Texscan
Tocom
Toshiba
Unika
Universal
Videoway
Viewstar
Zenith
Zenith/Drake
Satellite
032
061,070
032
058,064,040,
041,042,045,
O68
034
037,032,051,
O38
051
057,058,059
051,047
051,056
032,051
067
047,051
044
035, 036,066
050
032,025
022,032
052
029,030
063,046
046
Echostar 100,
115
Express VU 100,
G.E. 106
G.I. 108
Gradiente 112
Hitachi 104,
HNS (Hughes) 104
Panasonic 105
PhiIips 102,
Primes_r 108
Proscan 106,
RCA 106,
Sony 107
S_r Choice 104,
Toshiba 101
Uniden 102,
113,114,
113
111
103
109, 110
109,110
108
103

kVLo,]:_o,],_',_,;L,'_-'_
The remote control is programmed with VCR codes for power on/off, play, stop, fast-forward,
rewind, pause, record, channel up/down operation.
1) Find the VCR brand from the Iist of codes shown below.
2) Slide the first 2-way selector switch to "TV" and the other 2-way selector switch to "VCR".
3) Press and hold down the DISPLAYbutton, then enter the first code number listed with the !0
key pad.
4) Release the DISPLAYbutton, and confirm the operation of the VCR.
• If your VCR does not respond to the first code, try the others listed. If it does not respond to
any of the codes, try the search codes function on page 22.
• After you program your remote, some VCR buttons may not work properly. If so, use the
VCR's remote.
• To record, hold down the REc button on the remote and press PLAY.
iiiiiiii_i_i_iiii_iiiiiiiiiiiiiiii!iiiiiiiiiiiiii!:i!ii!_!_iiiiiiiiiiii!l
Admiral 035
Aiwa 027,032,095
Akai 029, 072,073,
074
AudioDynamic 003, 005
Bell & Howell 063, 071
Broksonic 020, 026, 094
Canon 023, 025
CCE 043
Citizen 064
Craig 063, 029, 064
Cuds Mathes 045, 024, 027,
093
Daewoo 043, 059,024,
092
DBX 003, 004,005
DJmensJa 045, 093
Emerson 043,026,077,
061,025,042,
020, 076
Fisher 063,066,067,
065, 071,091
Funai 027, 026,020,
000
G E 033, 045,024
Go Video 037,051,049,
050, 089
Goidstm 064
GradJente 083, 084,081,
000, 001
Hitachi 023,045,058,
027,081,093
Instant Replay 024, 023
Jensen 003
JVC 000, 001,002,
003, 004,005
Kenwood 003,004,064,
005
LXI 027,064,058,
065, 066,063,
067
Magnavox 031,023,024,
O86
........_:_@iii!_i_i_i_i_i_i_i_i_i_i_i_i_i_ii_i_i_i_i_i_ii_iil;!il;!¢i,i_!i¸i_i@i_!i_i!ii_iiii_!_!!i_!I_,_
Ma_antz 003,004, 005
Maria 064
Memorex 024,067
MGA 038, 040, 047
048,041,042
Minolta 058,045, 093
Mitsubishi 038,040, 047,
048, 041,042,
078,090
Muititech 047,027,062
NEC 003,004, 005,
000
Oiymprc 024,023
OptJmus 028, 021,035,
064
Orion 026, 020
Panasonic 023,024, 021,
022
Penney 024,058, 045,
063, 003, 004,
005, 093
Pentax 058, 005, 045,
093
Philco 031,024, 027,
023,026, 020,
043
Philips 031,023, 024,
086
Pioneer 023
PIoscan 045, 058, 023,
024, 0gl, 046,
059, 060, 033,
087,093
Quasar 021,022,023,
O24
Radio Shack 033, 024, 063,
036, 067,040,
027
RCA 033,045, 058,
023,024,031,
046, 059, 060,
083,084, 085,
087,093
Realistic 024,063,036,
067,040,027
Samsung
Samtron
Sansui
Sanyo
Sco_
Sears
Shintom
Sharp
Signature 2000
Singer
Sony
SV 2000
Sylvania
Symphonic
Teshiro
Tatung
Teac
Technics
Teknika
Toshiba
Vecior Research
Wards
Yamaha
Zenith
037,060 062,
033,089
O89
003,026, 020,
O52
063,067, 091,
071
059,060, 062,
067,038, 040,
047,048, 026,
020
063,064, 065,
066,058, 000,
0el
O75
035, 036, 080,
088
027,035
075
028,029, 030,
053, 05,4,055
027
031,023, 024,
027
027,081
064
003,004, 005
003,004,027,
005
021,022,023,
O24
024,027,070
059,046, 079
005
035,036, 067,
044,064
063,003, 004,
005
044,082,064,
O94
El
