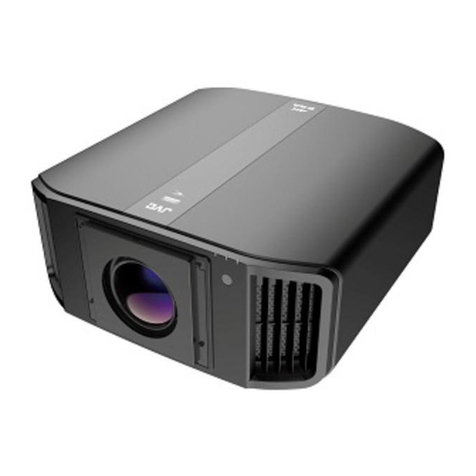

JVC D-ILA DLA-RS40 Manual

DLA-RS40/50/60 Projector Throw Distance Chart
Screen Size (16: ) Projector Throw Distance
60 1,328 52.28 747 29.41 1.78 5.84 3.66 12.01
70 1,549 60.98 872 34.33 2.09 6.86 4.28 14.04
80 1,771 69.72 996 39.21 2.4 7.87 4.89 16.04
90 1,992 78.43 1,121 44.13 2.7 8.86 5.51 18.08
100 2,214 87.17 1,245 49.02 3.01 9.88 6.13 20.11
110 2,435 95.87 1,370 53.94 3.31 10.86 6.75 22.15
120 2,656 104.57 1,494 58.82 3.62 11.88 7.36 24.15
130 2,878 113.31 1,619 63.74 3.92 12.86 7.98 26.18
140 3,099 122.01 1,743 68.62 4.23 13.88 8.6 28.22
150 3,320 130.71 1,868 73.54 4.53 14.86 9.22 30.25
160 3,542 139.45 1,992 78.43 4.84 15.88 9.84 32.28
170 3,763 148.15 2,117 83.35 5.14 16.86 10.45 34.28
180 3,984 156.85 2,241 88.23 5.45 17.88 11.07 36.32
190 4,206 165.59 2,366 93.15 5.75 18.86 11.68 38.32
200 4,427 174.29 2,490 98.03 6.06 19.88 12.3 40.35
Projector Throw Distance = Screen Width x Zoom Lens Setting
Example 100 Inch Wide Screen (Lens in Wide Position) 100*1.4=140 or 140" Throw Distance
Version 1.0
Screen
Diagonal
(inch)
Width
(mm)
Width
(Inches)
Height
(mm)
Height
(Inches)
Wide
(m)
Wide
(Feet)
Tele
(m)
Tele
(Feet)
Lens Zoom Range: 1.4 - 2.8:1 ± 5% Design Tolerance
Example 100 Inch Wide Screen (Lens in Tele Position) 100*2.8=280 or 280" Throw Distance

Projector Dimensions
mm inches
Width 455 17.91
Height 179 7.05
De th 472 18.58
