JVC KY-F560 User manual

KY-F560
KY-F560

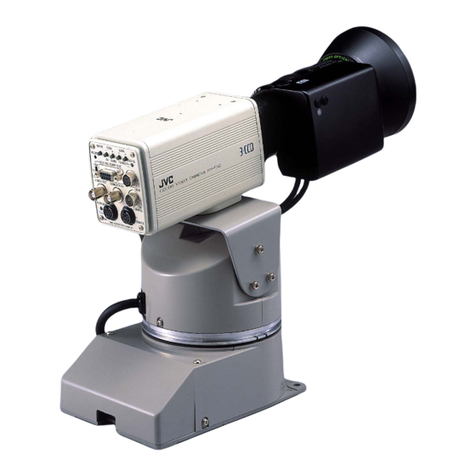

COLOUR VIDEO CAMERA
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
*Illustration with optional lens attachment.
*Illustration mit montiertem optionalem Objektiv.
*Illustration avec objectif optionnel.
COLOUR VIDEO CAMERA
FARBVIDEOKAMERA
APPAREIL VIDEO EN COULEURS
EnglishFrançais Deutsch
Thank you for purchasing this JVC product.
Before operating this unit, please read the
instructions carefully to ensure the best
possible performance.
VICTOR COMPANY OF JAPAN, LIMITED
Printed in Japan
LWT0164-001A
is a registered trademark owned by VICTOR COMPANY OF JAPAN, LTD.
is a registered trademark in Japan, the U.S.A., the U.K. and many other countries.
© 2004 VICTOR COMPANY OF JAPAN, LIMITED
®
®
LWT0164-001A
KY-F560
COLORVIDEOCAMERA

E-2
Supplement
This equipment is in conformity with the provisions and protection requirements of the
corresponding European Directives.This equipment is designed for professional video ap-
pliances and can be used in the following environments:
5
Residential (including both of the location type class 1 and 2 found in IEC 1000-2-5)
5 Commercial and light industrial (including, for example, theatres)
5 Urban outdoors (based on the definition of location type class 6 in IEC 1000-2-5)
This apparatus is designed for rack mounting or is used close to other apparatus.
In order to keep the best performance and furthermore for electromagnetic compatibility
we recommend to use cables not exceeding the following lengths:
Caution:
5Where there are strong electromagnetic waves or magnetism, for example near a radio or TV
transmitter, transformer, motor, etc., the picture and sound may be disturbed. In such a case,
please keep the apparatus away from the sources of the disturbance.
Port Cable Length
LENS Exclusive Cable 0.4 meters
VIDEO OUT Coaxial Cable 5 meters
GENLOCK IN Coaxial Cable 5 meters
REMOTE Exclusive Cable 5 meters
DC IN Exclusive Cable 2 meters

E-3
English
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.
This unit should be used with 12 V DC
only.
CAUTION:
To prevent electric shocks and fire
hazards, do NOT use any other power
source.
CAUTION
To prevent electric shock, do not open the
cabinet. No user serviceable parts inside. Refer
servicing to qualified service personnel.
Note:
The rating plate (serial number plate) is on
bottom cabinet.
SAFETY PRECAUTIONS

E-4
1. Getting Started
Features ............................................................................................................................................... 6
Points to Note During Use .................................................................................................................... 7
Part Names and Functions ................................................................................................................... 8
Description of Terminals ..................................................................................................................... 11
2. Preparation Before Shooting
Basic System ...................................................................................................................................... 12
Applied System ................................................................................................................................... 13
Mounting the Lens .............................................................................................................................. 14
Connecting the Power Supply ............................................................................................................ 15
Mounting the Camera ......................................................................................................................... 16
Precautions to Prevent Camera From Falling .................................................................................... 17
3. Setting and Adjustment During Shooting
External Monitor Adjustment .............................................................................................................. 18
Back Focus Adjustment ...................................................................................................................... 19
White Balance Adjustment ................................................................................................................. 20
White Shading Adjustment ................................................................................................................. 22
4. Various Modes of Shooting
Shooting the Computer Monitor .......................................................................................................... 24
Output of Negative Image ................................................................................................................... 25
White Spot Correction ........................................................................................................................ 26
Thank you for purchasing this product.
These instructions are for KY-F560E.
Contents

E-5
English
5. Setting Via the Menu Screen
Flow of Menu Screens ........................................................................................................................ 28
Setting Procedures ............................................................................................................................. 30
“EXPOSURE” Screen ......................................................................................................................... 31
“ADVANCED EXPOSURE” Screen .................................................................................................... 33
“WHITE BALANCE” Screen................................................................................................................ 34
“PROCESS (1/2)” Screen ................................................................................................................... 36
“PROCESS (2/2)” Screen ................................................................................................................... 38
“MATRIX ADJUST” Screen ................................................................................................................ 40
“SYSTEM” Screen .............................................................................................................................. 41
“FILE MANAGE” Screen ..................................................................................................................... 42
6. Others
Connecting the Remote Control Unit .................................................................................................. 44
Connecting Optional Devices ............................................................................................................. 46
Specifications ..................................................................................................................................... 47
Notations and Symbols Used in This Manual
Caution
Note
☞
Precautions during operation are stated.
Restrictions of functions and specifications are stated for reference purposes.
Indicates the page and item to refer to.
All product names in this manual are trademarks or registered trademarks of their respective companies.
Marks such as ™, ® and © are not used in this manual.

E-6
Features
●Supersensitive and high-performance camera that realizes a horizontal resolution of 850 lines and F13/
2000 lx via three and a half inch CCD and 12-bit DSP processing.
Enables camera control and hence offers a wide range of uses via use of cameras for high resolution
monitoring, relay, data transmission, weddings and conventions with a swivel base.
●Miniature Camera that Employs Bayonet Mount
Employment of bayonet mount and 1/2-inch colour separation optics, and compact design through high-
density mounting of the newly developed IC.
●Automatic Switching between Internal Sync/External Sync
Employs automatic switching between internal/external sync, which is useful for switching between mul-
tiple cameras or system upgrade via connection with other devices.
●EBU-compliant Built-in Colour Bars Generator
Colour monitor can be adjusted with ease with the use of EBU colour bars.
●Variable Scan Shutter
Eliminates flicker when shooting screen pictures other than PAL, such as computer screens.
●Equipped with White Shading Function
Corrects colour shading triggered by optical characteristics.
●Black Stretch/Black Compress Feature
Stretches or compresses the gain of the dark section in an image to adjust the tone of that section.
●Negative
Used for special purposes such as shooting using films.
●AE (Automatic Exposure)
5 selectable modes in the AE area that are useful when there is a difference in brightness between the
object and its surroundings.
In addition, exposure settings can also be performed according to shooting conditions via selection of AE
level adjustment or photometry detection.
●Built-in White Spot Correction Feature
●Equipped with Remote Terminal
Supports remote control via the remote control unit (sold separately).
●Equipped with Expansion Slot
System upgrade via connection of optional devices (sold separately) is possible.
1.Getting Started

E-7
English
Points to Note During Use
•For important shootings, perform trials in advance to ensure that they are properly recorded.
•We will not compensate for contents lost due to the malfunction of this unit.
Characteristic CCD Phenomena
•Smear and Blooming
When shooting a bright light source, the CCD may induce white streaks (smear) in the vertical direc-
tion of the light source. When the light source is extremely bright, light of the surroundings may
expand (blooming).
•Aliasing
Note that a jagged effect may occur when shooting striped patterns or lines.
•White spot
Operating this unit under a high temperature may give rise to white spots in the image. Ensure to use
this unit within the specified range (–5˚C to 40˚C).
This unit comes with the white spot correction feature that helps to reduce this phenomenon.
☞Page 26
Precautions During Handling
•Strong Electromagnetic Waves or Magnetism
When placed near radios or TV transmitters, or transformers and monitors that emit strong magne-
tism, noise or colour change may occur in the image. Ensure that this unit is kept away from the above
during use.
•Compatible Lens ☞Page 14 ‘Mounting the Lens’
Lens mount of this unit makes use of bayonet mount and there are restrictions on the type of lens to
be used.
Pay attention to their performance and dimensions when lenses other than those specified are used.
•Cleaning the Body of this Unit (Turn off the power before cleaning.)
Wipe using a soft cloth.
Do not wipe with thinner or benzene. These may corrode or tarnish the surface.
When it is extremely dirty, wipe using a neutral detergent diluted with water, follow by wiping with a
dry cloth.
•When not in use, turn off the power of the system to reduce power consumption.
•Do not mount unit at locations that emit radiation, X-rays or corrosive gases.

E-8
3Fastening Screws for Camera
Mounting Bracket
(M2.6 x 6 mm, 3 pcs)
Caution
Make sure to use screws that are supplied with
this unit.
Use of screws that are 6 mm or longer in length
may give rise to malfunction of the unit.
4Camera Mounting Screw Holes
(1/4-20UNC)
Use when mounting this unit
to fixer or swivel bases.
(Use screws that are 7 mm
or shorter in length.)
1Lens Mounting Ring/Lens Lock
Lever
When dismounting the lens, do so by holding
the lens and turning the lens lock lever in the
anti-clockwise direction.
When mounting the lens, check that the guide
pins of the lens are aligned, followed by turning
the lens lock lever in the clockwise direction to
fasten.
☞Page 14 ‘Mounting the Lens’
2Camera Mounting Bracket
This is attached to the bottom face of the cam-
era when supplied. Mount it to the top surface
according to the conditions of use. Mount the
fastening screws for the camera mounting
bracket 3to the screw holes on the top surface.
☞Page 16 ‘Mounting the Camera’
Part Names and Functions
Front / Bottom
1. Getting Started (continued)
KY-F560
COLOR VIDEO CAMERA
4
1
2
3
7mm
and
below

E-9
English
5[MENU] Menu Button
Press this button for 1-2 seconds. Menu screen
will be output from the [VIDEO OUT] terminal.
Press the button for 1-2 seconds again to clear
the menu screen.
☞Page 30 ‘Setting Procedures’
6[SET] Set Button
When the menu screen is displayed, use it to
select a submenu or to confirm a selected item
or set value.
☞Page 30 ‘Setting Procedures’
Back
7[AW/ ] Auto White/Down Button
8[BARS/ ] Colour Bars/Up Button
When menu screen is displayed
Press these buttons to move between se-
lection items on the menu screen.
Use the [ ] button to move upwards.
Use the [ ] button to move downwards.
Used for altering the set values when an item
is being selected.
When the menu screen is off
●Press the [AW] button to adjust the white
balance.
☞Page 20 ‘White Balance Adjustment’
●Press the [BARS] button to switch be-
tween the colour bars output and camera
image output.
●Use this button when adjusting the moni-
tor or when recording colour bars signal.
☞Page 18 ‘External Monitor Adjustment’
Part Names and Functions (continued)
5 87 6
MENU
AW BARS
SET
LENS
REMOTE
GENLOCK IN VIDEO OUT
POWER
DC IN
SEE INSTRUCTION MANUAL

E-10
9[REMOTE] Remote Terminal
(Mini DIN 6 Pin, Female)
Terminal for connection to remote control unit
(RM-LP55 or RM-LP57, both sold separately).
☞Page 11 ‘Description of Terminals’
☞Page 44 ‘Connecting the Remote Control
Unit’
0[LENS] Lens Connection Terminal
Connect the lens cable.
☞Page 11 ‘Description of Terminals’
☞Page 14 ‘Mounting the Lens’
![VIDEO OUT] Video Signal Output
Terminal
Output terminal for composite video signals.
Connect to video input terminals such as moni-
tors or switchers.
@[POWER] Power Indicator Light
Lights up when power is supplied to this unit.
Part Names and Functions (continued)
1. Getting Started (continued)
#[DC IN] Power Input Terminal
(Mini DIN 8 Pin, Female)
Power of this unit (DC 12 V) is supplied through
this terminal.
Use an AC adaptor (AA-P700) for the power
supply.
☞Page 11 ‘Description of Terminals’
☞Page 15 ‘Connecting the Power Supply’
$ [GENLOCK IN] External Sync Signal
Input Terminal
Reference signal input terminal for synchroni-
zation with this unit.
Inputs composite video signals or black burst
signals.
%Slot Cover for Option Cards
Remove the cover to install the option card.
☞Page 46 ‘Connecting Optional Devices’
Please consult your JVC-authorized dealer on
optional devices.
Back
11
10
12
MENU
AW BARS
SET
LENS
REMOTE
GENLOCK IN VIDEO OUT
POWER
DC IN
SEE INSTRUCTION MANUAL
13
15
14
9

E-11
English
Description of Terminals
Power Input Terminal (Mini DIN 8 Pin,
Female)
Remote Terminal (Mini DIN 6 Pin,
Female)
Lens Connection Terminal (Metal 12
Pin, Female)
Notes
•Please consult your JVC-authorized dealer on
connection of remote terminals.
•Ensure to use cables that are shielded.
1
4
3
6
7
8
5
2
6
7
82
1
9
3
4
12 5
10
11
1
3
5
6
4
2
Pin No.
1
2
3
4
5
6
Signal
GND
OPERATE (L:ON)
GND
SID2(TX)
SID1(RX)
+ 9 V Output
Pin No.
1
2
3
4
5
6
7
8
9~12
Signal
LENS RET
NC
GND
LENS AUTO
IRIS CONTROL
+ 12 V Output
IRIS POSITION
IRIS A/R
NC
Pin No.
1
2
3
4
5
6
7
8
Signal
NC
GND
NC
NC
GND
+ 12 V Input
NC
+ 12 V Input

E-12
ECE-R22
8P8P
MACRO MACRO
VC-P893
PC
MENU
AW BARS
SET
LENS
REMOTE
GENLOCK IN VIDEO OUT
POWER
DC IN
SEE INSTRUCTION MANUAL
AC ADAPTER AA-P700
ON
OFF
POWER
AC120 V
(FUJINON)
RMD-10
RMD-20
(CANON)
TCR-101F
2. Preparation Before Shooting
Basic System
Sync Signals
(Composite Video
Signals or Black
Burst Signals)
The diagram below illustrates connection of a basic system.
When connecting
•Perform this when the unit is off.
•Read the instruction manual of the unit before performing it.
•Consult your JVC-authorized dealer on details of the equipment in use of cables with the mark.
RS-232C PC
CAMERA CONTROL
REMOTE
CONTROL UNIT
RM-LP55
RM-LP57
LENS CABLE
ZOOM LENS
S17 x 6.6BRM (FUJINON)
YH16 x 7K12U (CANON)
MD ZOOM LENS
S16 x 7.3BMD (FUJINON)
YH16 x 7BKTS (CANON)
MD
CONTROL
CABLE
LENS REMOTE
CONTROL
MONITOR
BNC CABLE
AC POWER ADAPTER
AA-P700
POWER CORD (2 m)
TRIPOD
TP-P300
DOLLY
TP-P205
KY-F560
STANDARD PACKAGE
PAN
AND
TILT
UNIT

E-13
English
Applied System
The diagram below illustrates connection of an applied system.
When connecting
•Perform this when the unit is off.
•Read the instruction manual of the unit before performing it.
•Consult your JVC-authorized dealer on details of the equipment in use of cables with the mark.
8P8P
AC
MACRO MACRO
COLOR VIDEO CAMERA KY-F560
VC-710 (5 m)
4P
4P
(FUJINON)
RMD-10
RMD-20
CALLTALLY
INTERCOM
LEVEL
FULL AUTO F1 SHUTTER
GAIN
F2
F3 MENU/SHUTTER GAIN PAINT AUTO
BR
W.BAL
AUTO
MANU
WHITE MASTER BLACK
POWER
I
O
IRIS
STEP
SHUTTER
MENU
PUSH-ON
DOWN UP
VARIABLE
PUSH-ON
HIGH
LOW
B
A
PRESET
CLOSE OPEN
MID
DOWN UP
F4
BARS
REMOTE CONTROL UNIT RM-P210
INTERCOM
INCOM MIC
INCOM LEVEL
ON
OFF
MAXMIN
DYNAMIC
CARBON
PUSH
CALL
VF
(CANON)
TCR-101F
REMOTE
CONTROL UNIT
RM-LP55
RM-LP57
LENS REMOTE CONTROL
CAMERA REMOTE CONTROL UNIT
RM-P210
HEAD SET VIEWFINDER
VF-P400
MD ZOOM LENS
S16 x 7.3BMD (FUJINON)
YH16 x 7BKTS (CANON)
ZOOM LENS
S17 x 6.6BRM (FUJINON)
YH16 x 7K12U (CANON)
COLOUR VIDEO CAMERA
POWER CORD (2 m)
STUDIO KIT
KA-F5602
KA-F5603
SDI OUTPUT
CARD
KA-F5601
AC POWER ADAPTER
AA-P250
BNC CABLE
TRIPOD
TP-P300
DOLLY
TP-P205
ECE-R22
LENS CABLE
KY-F560
STANDARD PACKAGE
FOCUS MANUAL UNIT
HZ-FM13 (FUJINON)
HZ-FM15 (CANON)
ZOOM SERVO UNIT
HZ-ZS13B
MONITOR

E-14
2. Preparation Before Shooting (continued)
1. Loosen by turning the lens lock lever in the anti-clockwise direction.
2. Mount upon ensuring that the pin and mounting hole of the lens are aligned.
3. Fasten by turning the lens lock lever in the clockwise direction.
4. Plug the lens cable into the [LENS] terminal at the back of the unit and ensure that it is locked.
5. When connecting to the lens remote control, connect the cable (female) for controlling the lens to the
remote control.
Note
When connecting the manual iris lens or lens remote control to operate the lens iris manually, set the “IRIS
MODE” item to “MANUAL”.
☞Page 31 ‘ “IRIS MODE” Item on “EXPOSURE” Screen’
Caution
•Perform this when the unit is off.
Connecting with the power on may give rise to malfunction of the unit.
•When removing the lens mount cap, ensure that no foreign substances are inside the mount.
•Lenses are not supplied with this unit. Make sure to use lenses that are compatible with this unit.
Mounting the Lens
Follow the procedures below when mounting the auto iris lens.
Refer to the ‘instruction manual’ for the lens and lens remote control as well.
MACRO
4.
3.
5.
MENU
AW BARS
SET
LENS
REMOTE
GENLOCK IN VIDEO OUT
POWER
DC IN
SEE INSTRUCTION MANUAL
2.
1.
Compatible MD Zoom Lens
S16 x 7.3 BMD (Fujinon)
YH16 x 7 BKTS (Canon)
Lens Pin Hole
Lever for securing the lens
Control Cable
Lock (Female)
Lens Remote
Control
Lens Cable Lock (Male)
Compatible Lens
Remote Control
(Fujinon)
RMD-10
RMD-20
(Canon)
TCR-101F

E-15
English
Connecting the Power Supply
Connect the [DC IN] terminal at the back of this unit to the [TO CAMERA] terminal of the AC adaptor (AA-
P700) using the power cable supplied (2 m).
Caution
Ensure to make use of AA-P700 for the power supply.
When connecting, ensure that power switch of AA-P700 is turned OFF. Connecting with the power on may
give rise to malfunction of the equipment.
Note
Allow a 10 second interval after switching off the power before turning on again. If the power switch is turned
ON and OFF too soon, malfunctioning such as startup failure may occur.
●Insert plug fully, turn ring and ensure that it is fas-
tened.
Connect the plug in the same way at the AC adaptor's
end.
POWER
DC IN
VIDEO OUTPUT
TO CAMERAS(Y/C) OUTPUT
DC 12V=OUTPUT
EITHER
OUTPUT
MAX 1.25A
SEE INST-
RUCTION
MANUAL
AC 100V
MENU
AW BARS
SET
LENS
REMOTE
GENLOCK IN VIDEO OUT
POWER
DC IN
SEE INSTRUCTION MANUAL
AA-P700 AC Adaptor
AC 120 V [TO CAMERA] Terminal
Power Cable (2 m)
(accessories)
[DC IN]
Terminal
Plug
Ring
White Marking
Connect the end with
white marking to the AC
adaptor.

E-16
Camera Mounting Bracket is mounted to the bottom
surface of the camera when supplied. To mount it to
the top surface, do so by removing the 3 fastening
screws of the camera mounting bracket.
Caution
Make sure to use screws supplied with this unit. Use
of screws that are 6 mm or longer in length may give
rise to malfunction of the unit.
Mounting the Camera
2. Preparation Before Shooting (continued)
•To mount this unit, make use of the screw holes
for mounting the camera on the camera mounting
bracket.
•When mounting this unit, make use of the anti-
rotation hole to prevent it from falling.
<Mounting Procedures>
<Changing the Camera Mounting Bracket>
KY-F560
COLOR VIDEO CAMERA
Screw Hole for Mounting Camera
Anti-rotation Hole
Camera Mounting Bracket

E-17
English
Precautions to Prevent Camera From Falling
●Special attention is required when mounting to the wall or ceiling. Get a
contractor to perform the work and avoid doing it on your own. Unit may
fall off and cause injuries or accidents.
●Mount the unit to a secure place using safety cable to prevent it from fall-
ing. To mount, make use of the bracket fastening screw holes on the face
without the camera mounting bracket. (M2.6 x 6 mm)
Pay attention also to the length of the cable.
●Strength of cable to prevent falling of unit shall be at least 10 times greater
than the total mass of the camera and lens.
KY-F560
COLOR VIDEO CAMERA
Safety cable to Prevent
Falling of Equipment
Camera Head
6 mm
Caution

E-18
Display the built-in colour bars signal at the camera on the monitor to perform colour/contrast/brightness
adjustment.
3. Setting and Adjustment During Shooting
External Monitor Adjustment
1. Connect the colour video monitor to the [VIDEO OUT] of this
unit.
2. Press the [BARS] button to output the colour bars signal (EBU-
compliant colour bars).
3. With the colour bars displayed, turn [BLUE CHECK] at the moni-
tor to ON.
Screen turns into a monochrome of blue and colour bars ap-
pear as blue stripes.
4. Turn the [CHROMA] adjustment knob on the monitor and ad-
just colour bars 1and 7to the same brightness level.
5. With [BLUE CHECK] in the ON mode, turn the [PHASE] ad-
justment knob on the monitor to adjust colour bars 3and 5to
the same brightness level.
6. If brightness of colour bars 1and 7vary upon [PHASE] ad-
justment, repeat chroma adjustment as in step 4. .
7. Turn [BLUE CHECK] at the monitor to OFF and return to the
normal screen (R, G and B are all displayed).
2. [BARS] button
MENU
AW BARS
SET
LENS
REMOTE
GENLOCK IN VIDEO OUT
POWER
DC IN
SEE INSTRUCTION MANUAL
1.
3.~7.
12345 678
Red
White
Yellow
Cyan
Green
Magenta
Blue
Black

E-19
English
Back Focus Adjustment
Zoom Lens
1. Set iris mode switch of lens to M (manual).
2. Set zoom mode switch to M (manual).
3. Turn to open the iris ring.
Adjust illumination to obtain the proper image level.
4. Turn the zoom lever to adjust lens to the greatest telephoto
position.
5. Turn the focus ring and align focus on the object.
6. Adjust lens to the widest angle position.
7. Loosen the fastening screw for the back focus ring.
8. Focus on the same object and select a position for which focus
is best aligned, followed by fastening the back focus ring.
9. Repeat steps 4. ~ 8. for about three times until focus is aligned
for both telephoto and wide angle.
10. Tighten fastening screw for back focus ring securely.
Power Zoom Lens
There is no manual mode for power zoom lens. Connect the
lens remote control.
Adjustment Procedures
To adjust, follow steps 3. ~ 10. above.
For more details, please refer to the instruction manual for the
lens or lens remote control.
When the lens is mounted for the first time, adjust back focus of the lens if the focus for telephoto/wide angle
during zoom is not aligned.
•Check whether the macro ring has been moved before adjustment. If so, restore the macro fixing knob
to the original position.
•Place the camera at a distance of 3 m or further away from the object.
The best will be to use the Siemens Star Chart as the object.
Siemens Star Chart (Object)
M
RET
WT
A
MACRO
1.
3. 5.
4., 6.
2. 7., 8.,
10.

E-20
MENU
AW BARS
SET
LENS
REMOTE
GENLOCK IN VIDEO OUT
White balance adjustment includes Auto White, Full-time Auto White
(FAW), manual and preset.
Setting procedures for Auto White
(“AUTO1”,“AUTO2”)
1. Press the [MENU] button for 1-2 seconds.
The “MENU” screen will be displayed.
2. Use the [ /] buttons to select “WHITE BALANCE..”, then
press the [SET] button.
The “WHITE BALANCE” screen will be displayed.
3. Use the [ /] buttons to select “WHITE BALANCE”, then press
the [SET] button.
The set value displayed will start to blink.
4. Use the [ /] buttons to select “AUTO1” or “AUTO2”, then
press the [SET] button.
5. Press the [MENU] button for 1-2 seconds.
The normal screen will be displayed.
Note
Upon returning to the normal screen, place a white object with
the same illumination conditions as the object, zoom in to the
white portion at the center of the screen (above 80% within the
area).
6. Press the [AW](Auto White) button.
●When auto white is activated, the auto white operation area
and “AUTO WHITE1 OPERATION” are displayed on the
monitor.
●When white balance is achieved “AUTO WHITE1 OK” will
be displayed for about 3 seconds before returning to the
normal screen.
Colour of light (colour temperature) may vary with light sources. When light source for illumination of object
is changed, adjust white balance (AUTO WHITE) again. Do not place strong reflectors such as metals near
the object. This may cause error in achieving white balance.
3. Setting and Adjustment During Shooting (continued)
White Balance Adjustment
Auto White Operation
Activated
“WHITE BALANCE” Screen
Auto White Operation Ends
WHIAUTO E1T
RATOPE ION
WHAUTO TIE1
OK
-- ---CE-WHI TE BALAN
CEBALAN
TPRESE
WH I T E
0
AUTO1
0
LEVEL (R)
LEVEL (B)
LEVEL (R)
LEVEL (G)
LEVEL (B)
SHADING
PAGE BACK
- - - - - -
- - - - - -
- - - - - -
Auto White Operation Area
Item Set Value
[MENU] [SET]
[/AW]
[ ]
