SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.MB547
2006/6
COMPACT COMPONENT SYSTEM
MB54720066
MX-DK51EE,MX-DK51A,MX-DK51US,
MX-DK51UX,MX-DK51UG,MX-DK51UN
Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
CA-MXDK51
SP-MXDK51C
SP-MXDK51F SP-MXDK51WSP-MXDK51FSP-MXDK51S SP-MXDK51S

1-2 (No.MB547)
SPECIFICATION
*Measured at 1 kHz, with tape recording signal 400 mV
Design and specifications are subject to change without notice.
Amplifier section Output Power FRONT SPEAKERS 100 W per channel, min. RMS, driven into 6 Ωat 1 kHz with
no more than 10% total harmonic distortion.
CENTER SPEAKER 50 W per channel, min. RMS, driven into 6 Ωat 1 kHz with
no more than 10% total harmonic distortion.
SURROUND SPEAKERS 50 W per channel, min. RMS, driven into 6 Ωat 1 kHz with
no more than 10% total harmonic distortion.
SUBWOOFER 100 W per channel, min. RMS, driven into 6 Ωat 63 Hz
with no more than 10% total harmonic distortion.
Audio input sensitivity/
Impedance*
AUX 400 mV/47 kΩ
MIC 1/2 3.0 mV/50 kΩ
VIDEO OUT Color system NTSC/PAL selectable
VIDEO (composite) 1 V(p-p)/75 Ω
S-VIDEO Y (luminance) : 1 V(p-p)/75 Ω
C (chrominance, burst) : 0.286 V(p-p)/75 Ω
COMPONENT
(Interlace/Progressive)
(Y) : 1 V(p-p)/75 Ω
(PB/PR) : 0.7 V(p-p)/75 Ω
Speaker Terminals 6 Ω- 16 Ω(Front speakers)
6 Ω- 16 Ω(Center speaker)
6 Ω- 16 Ω(Surround speakers)
6 Ω- 16 Ω(Subwoofer)
Tuner section FM tuning range 87.50 MHz - 108.00 MHz
AM (MW) tuning range 531 kHz - 1 710 kHz (at 9 kHz)
530 kHz - 1 710 kHz (at 10 kHz)
For Saudi Arabia only 530 kHz - 1 600 kHz (at 10 kHz)
For Russia only 522 kHz - 1 629 kHz
Disc player section Playable disc DVD Video/DVD Audio/CD/VCD/SVCD
CD-R/-RW/-ROM (CD/VCD/SVCD/MP3/WMA/MPEG-1/
MPEG-2/ASF/JPEG/DivX format)
DVD-R/-RW (DVD Video/DVD Video Recording (VR)/
MP3/WMA/MPEG-1/MPEG-2/ASF/JPEG/DivX format)
+R/+RW (DVD Video format)
Dynamic range 90 dB
Horizontal resolution 500 lines
Wow and flutter Immeasurable
Cassette deck section Frequency response Normal (type I) 50 Hz - 14 000 Hz
Wow and flutter 0.15% (WRMS)
General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V ,
(adjustable with the voltage selector), 50 Hz / 60 Hz
Power consumption 225 W (at operation)
22 W (on standby)
Dimensions (approx.) 265 mm ×335 mm ×370 mm (W/H/D)
Mass (approx.) 8.4 kg

(No.MB547)1-3
SECTION 1
PRECAUTION
1.1 Safety Precautions
(1) This design of this product contains special hardware and
many circuits and components specially for safety purpos-
es. For continued protection, no changes should be made
to the original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to
those used in the original circuits. Services should be per-
formed by qualified personnel only.
(2) Alterations of the design or circuitry of the product should
not be made. Any design alterations of the product should
not be made. Any design alterations or additions will void
the manufacturers warranty and will further relieve the
manufacture of responsibility for personal injury or property
damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteris-
tics are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by us-
ing replacement components rated for higher voltage, watt-
age, etc. Replacement parts which have these special
safety characteristics are identified in the Parts List of Ser-
vice Manual. Electrical components having such features
are identified by shading on the schematics and by ( ) on
the Parts List in the Service Manual. The use of a substitute
replacement which does not have the same safety charac-
teristics as the recommended replacement parts shown in
the Parts List of Service Manual may create shock, fire, or
other hazards.
(4) The leads in the products are routed and dressed with ties,
clamps, tubings, barriers and the like to be separated from
live parts, high temperature parts, moving parts and/or
sharp edges for the prevention of electric shock and fire
hazard. When service is required, the original lead routing
and dress should be observed, and it should be confirmed
that they have been returned to normal, after reassem-
bling.
(5) Leakage shock hazard testing
After reassembling the product, always perform an isola-
tion check on the exposed metal parts of the product (an-
tenna terminals, knobs, metal cabinet, screw heads,
headphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.Do not
use a line isolation transformer during this check.
• Plug the AC line cord directly into the AC outlet. Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal parts of the cabinet, particular-
ly any exposed metal part having a return path to the
chassis, to a known good earth ground. Any leakage cur-
rent must not exceed 0.5mA AC (r.m.s.).

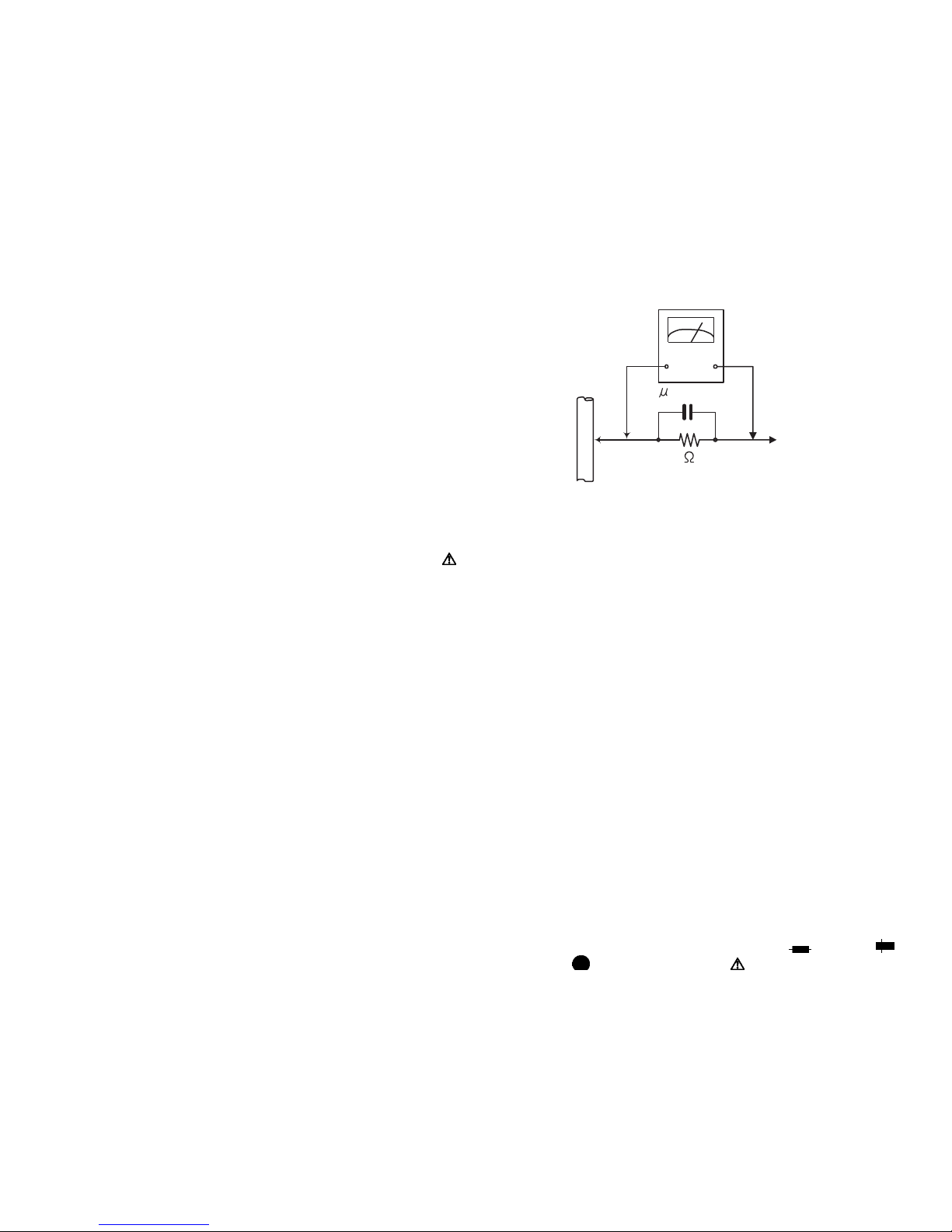

• Alternate check method
Plug the AC line cord directly into the AC outlet. Use an
AC voltmeter having, 1,000Ωper volt or more sensitivity
in the following manner. Connect a 1,500Ω10W resistor
paralleled by a 0.15µF AC-type capacitor between an ex-
posed metal part and a known good earth ground.
Measure the AC voltage across the resistor with the AC
voltmeter.
Move the resistor connection to each exposed metal
part, particularly any exposed metal part having a return
path to the chassis, and measure the AC voltage across
the resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Voltage measured any must
not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5
mA AC (r.m.s.).
1.2 Warning
(1) This equipment has been designed and manufactured to
meet international safety standards.
(2) It is the legal responsibility of the repairer to ensure that
these safety standards are maintained.
(3) Repairs must be made in accordance with the relevant
safety standards.
(4) It is essential that safety critical components are replaced
by approved parts.
(5) If mains voltage selector is provided, check setting for local
voltage.
1.3 Caution
Burrs formed during molding may be left over on some parts
of the chassis.
Therefore, pay attention to such burrs in the case of pre-
forming repair of this system.
1.4 Critical parts for safety
In regard with component parts appearing on the silk-screen
printed side (parts side) of the PWB diagrams, the parts that are
printed over with black such as the resistor ( ), diode ( )
and ICP ( ) or identified by the " " mark nearby are critical
for safety. When replacing them, be sure to use the parts of the
same type and rating as specified by the manufacturer.
(This regulation dose not Except the J and C version)
Good earth ground
Place this
probe on
each exposed
metal part.
AC VOLTMETER
(Having 1000
ohms/volts,
or more sensitivity)
1500 10W
0.15 F AC TYPE

1-4 (No.MB547)
1.5 Important for laser products
1.CLASS 1 LASER PRODUCT
2.CAUTION :
(For U.S.A.) Visible and/or invisible class II laser radiation
when open. Do not stare into beam.
(Others) Visible and/or invisible class 1M laser radiation
when open. Do not view directly with optical instruments.
3.CAUTION : Visible and/or invisible laser radiation when
open and inter lock failed or defeated. Avoid direct
exposure to beam.
4.CAUTION : This laser product uses visible and/or invisible
laser radiation and is equipped with safety switches which
prevent emission of radiation when the drawer is open and
the safety interlocks have failed or are defeated. It is
dangerous to defeat the safety switches.
5.CAUTION : If safety switches malfunction, the laser is able
to function.
6.CAUTION : Use of controls, adjustments or performance of
procedures other than those specified here in may result in
hazardous radiation exposure.
REPRODUCTION AND POSITION OF LABELS and PRINT
!Please use enough caution not to
see the beam directly or touch it
in case of an adjustment or operation
check.
WARNING LABEL and PRINT

(No.MB547)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
Please refer to "MX-DK5 (No.MB523)" about this section.
SECTION 3
DISASSEMBLY
Please refer to "MX-DK5 (No.MB523)" about this section.
SECTION 4
ADJUSTMENT
Please refer to "MX-DK5 (No.MB523)" about this section.
SECTION 5
TROUBLESHOOTING
Please refer to "MX-DK5 (No.MB523)" about this section.

(No.MB547)
Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan
Victor Company of Japan, Limited
VPT
Printed in Japan

3-1
PARTS LIST
* All printed circuit boards and its assemblies are not available as service parts.
- Contents -
Exploded view of general assembly and parts list (Block No.M1)

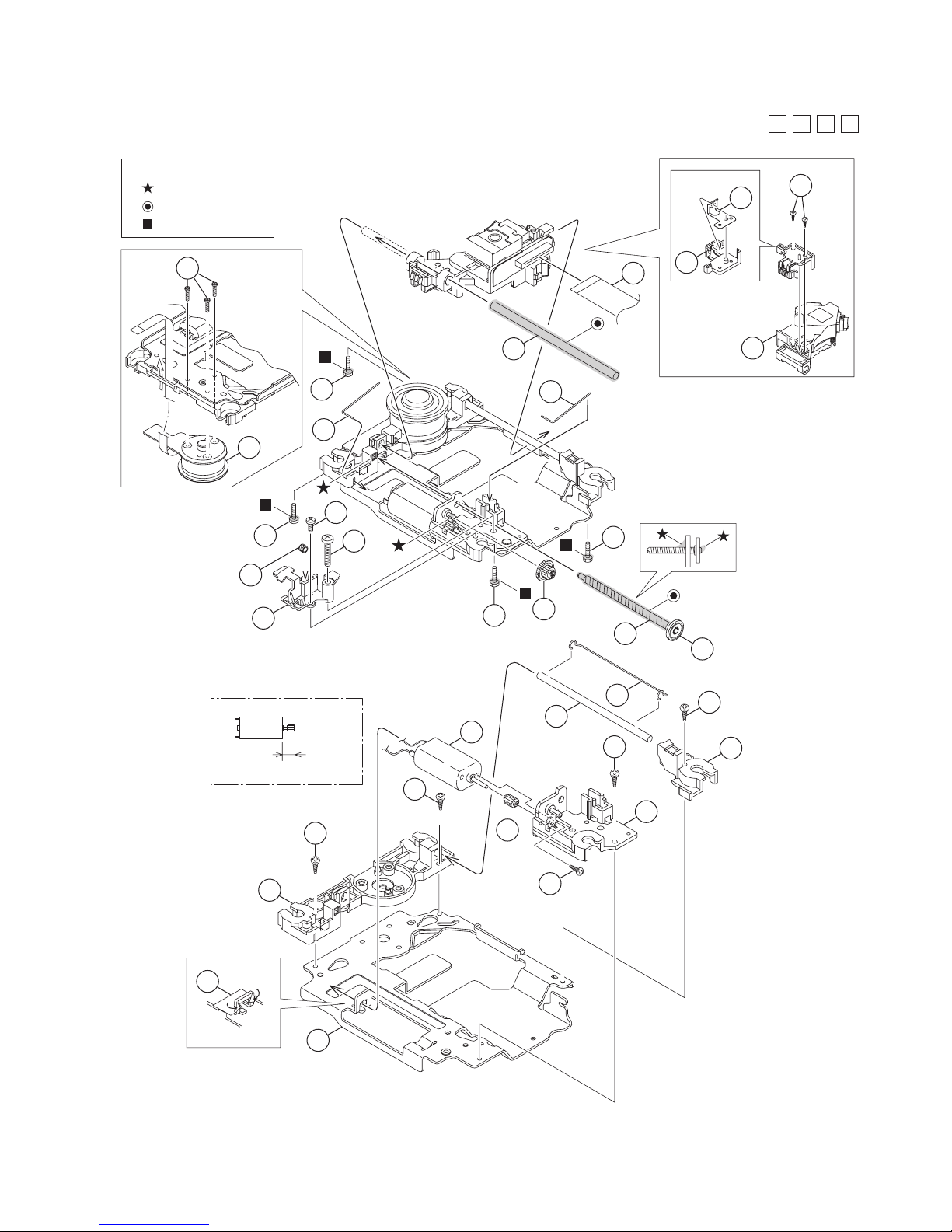

DVD mechanism assembly and parts list (Block No.MJ)

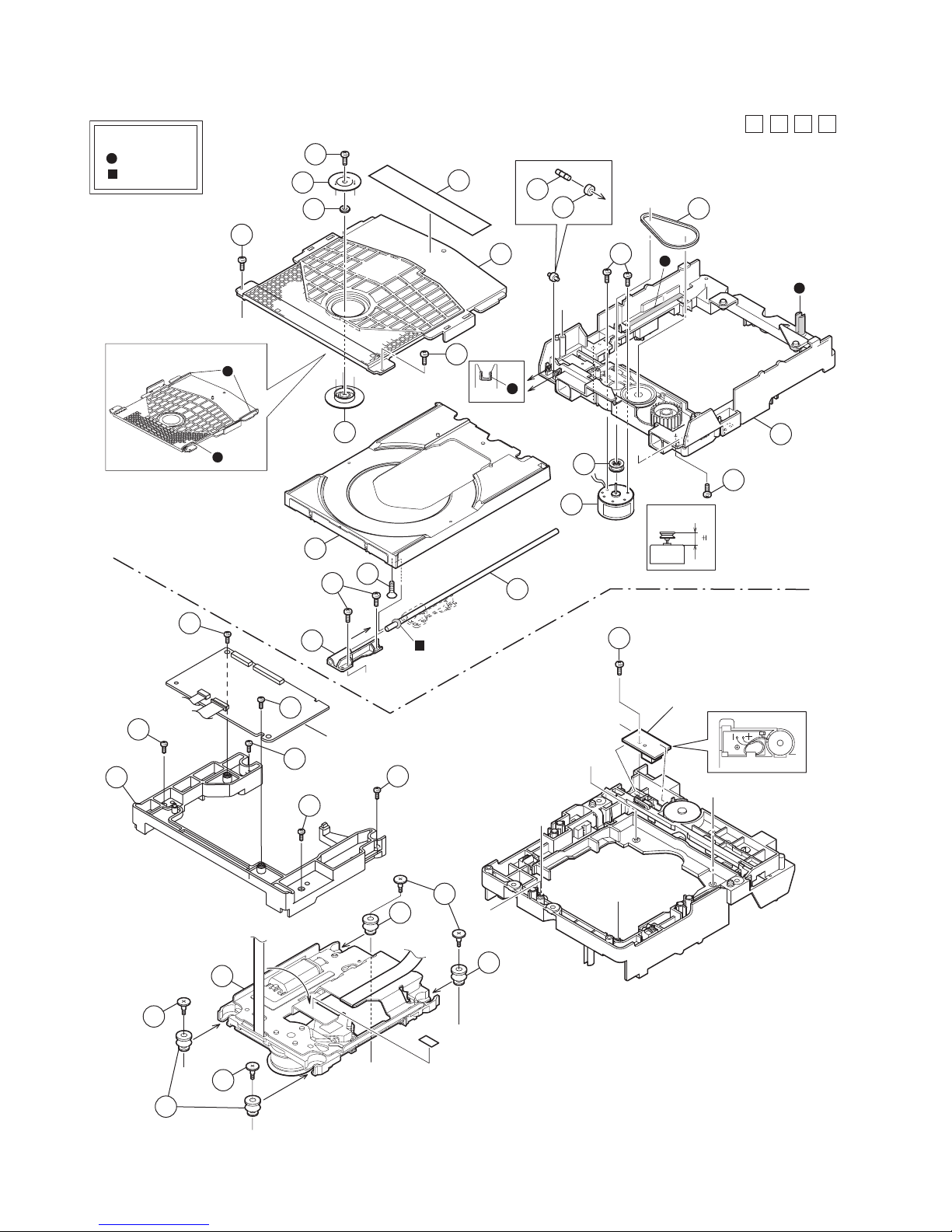

DVD loading base assembly and parts list (Block No.MN)
Electrical parts list (Block No.01~07)
Packing materials and accessories parts list (Block No.M3)
MX-DK51EE,MX-DK51A,MX-DK51US
3- 2
3- 6
3- 8
3-10
3-22
MX-DK51UX,MX-DK51UG,MX-DK51UN
No.MB547

3-2

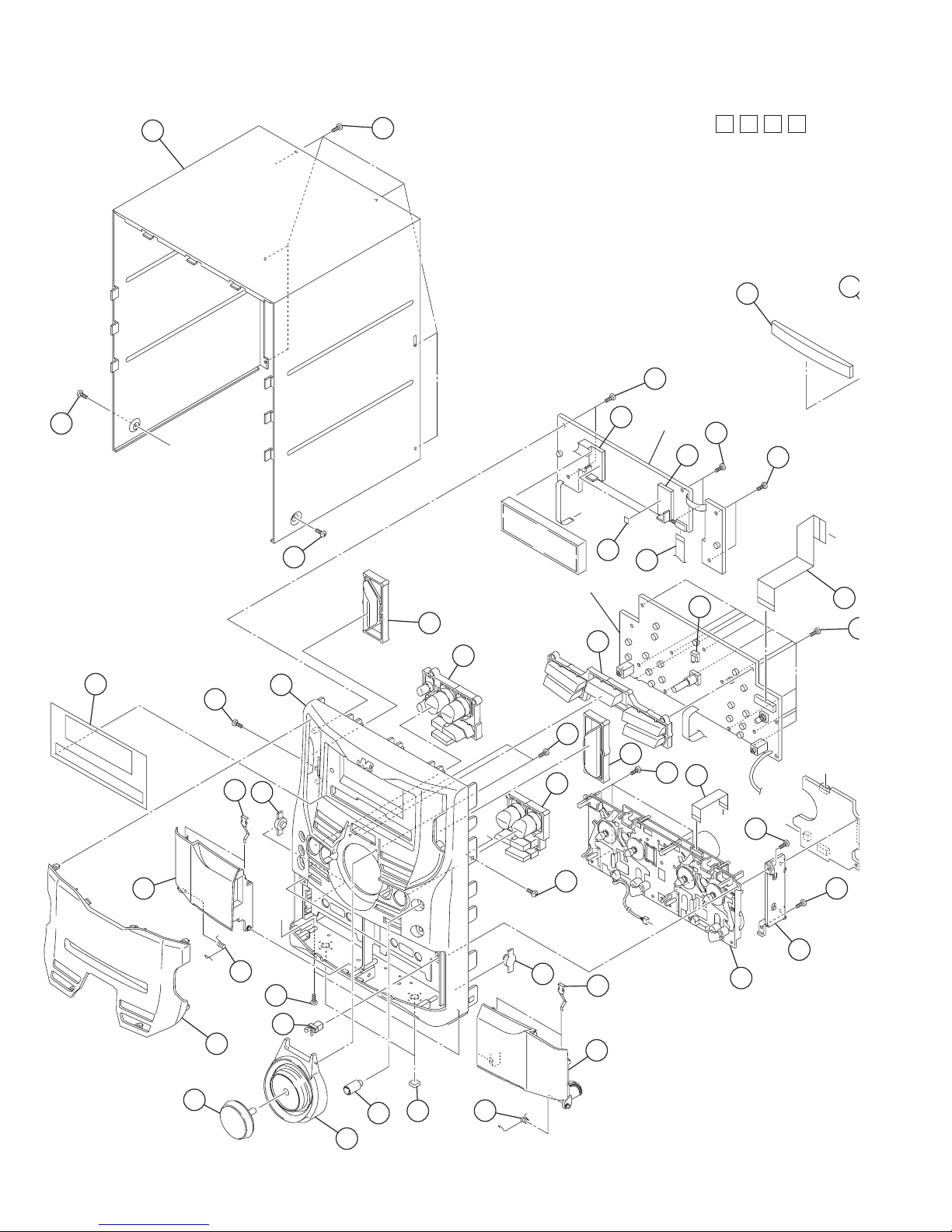

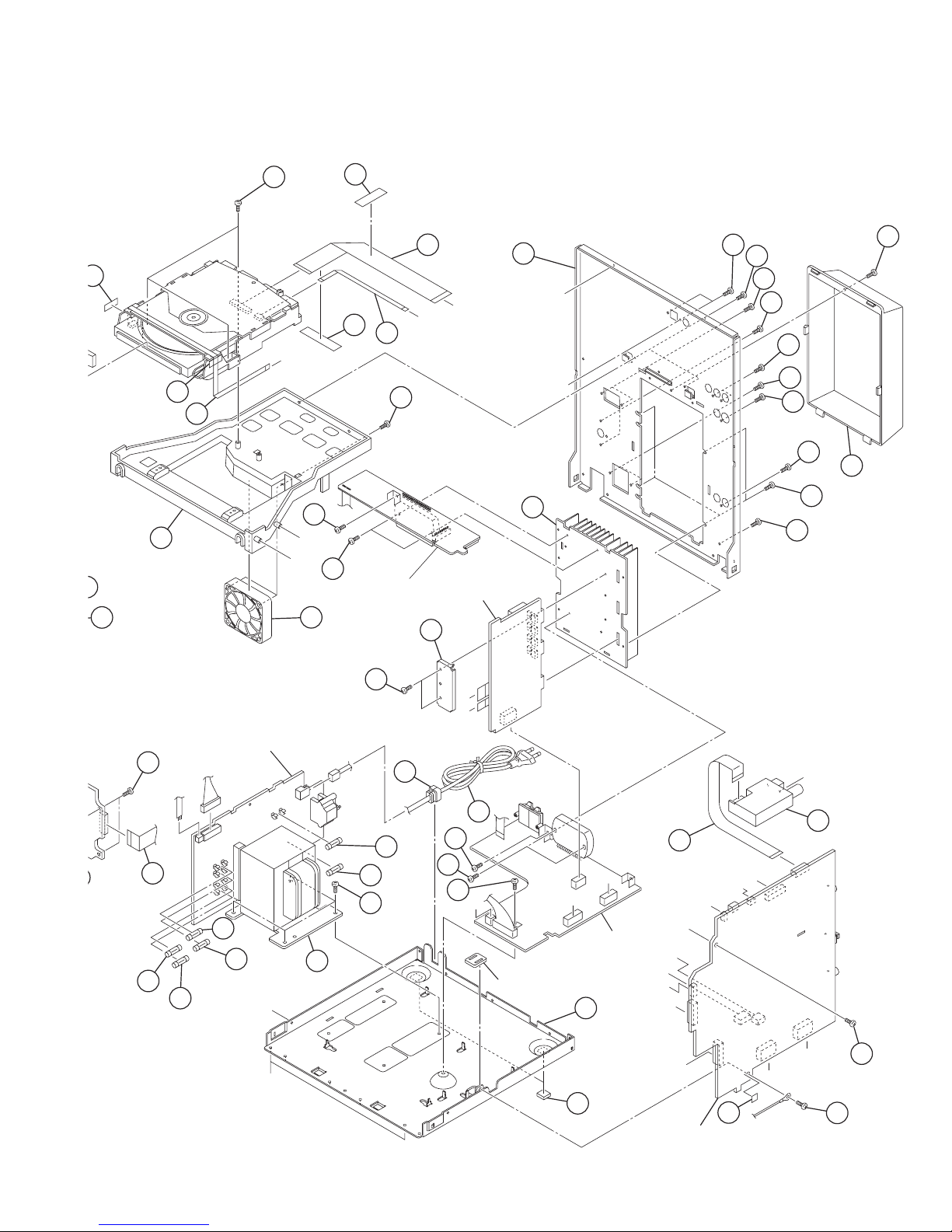

Exploded view of general assembly and parts list
47 67
68
68
9
21
25
30
24
2
6
7
7
7
79
78
8
18
28
3
12
30
17
26
28
28
24 25
22
16
13
11
10
48
1
14 32
71
69
70
72
23
20
19
5
4
15
B
A
C
FL board
Switch board
E
k
o
p
m
n
s
s
r
r
Block No. MM
M
1

3-3
8
8
27
77
74
3
2
32
82
34
33
31
80
81
29
53
52
57
56
66
55
51
36
38
37
50
73
83
84
49
85
86
88
87
16 45
46
43
40
44
76
54
42
89
61
59
64
65
62
35
75
39
41
58
a
m
B
b
b
n
A
E
d
c
c
p
e
e
f
o
j
g
g
h
j
q
k
F103
F101
F001
F003
F102
F104
a
Main board
dh
f
Primary board
Bracket board
Transformer board
Regulator &
amprifier board
C
D
D
q
Surround board
t
t

3-4
General Assembly
Block No. [M][1][M][M]
 Symbol No. Part No. Part Name Description Local
1 GV10328-015A FRONT PANEL ASSY DK51EE,DK51US,DK51UX,DK51UG,DK51UN
1 GV10328-016A FRONT PANEL ASSY DK51A
2 GV30871-001A POWER BUTTON
3 GV30872-001A EJECT BUTTON
4 GV30873-003A BUTTON A
5 GV30874-007A BUTTON B
6 GV20418-002A FUNCTION BUTTON
7 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
8 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x12)
9 GV10319-008A FRONT LENS
10 GV30875-005A VOLUME KNOB
11 GV30894-002A V.ORNAMENT ASSY
12 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x2)
13 GV40083-004A MIC.KNOB DK51EE,DK51US,DK51UX,DK51UG,DK51UN
14 GV30878-002A TRAY FITTING
15 GV40706-003A FL FILTER
16 GV40246-003A FOOT SPACER (x4)
17 QAL0789-001 ALPS MECHA
18 QUQU12-0706AJ-E FFC WIRE 7pin 6cm
19 GV10321-002A CASS.HOLDER(L)
20 GV10322-002A CASS.HOLDER(R)
21 GV40694-001A DOOR SPRING(L)
22 GV40695-001A DOOR SPRING(R)
23 GV40220-001A LACH (x2)
24 GV40034-001A DAMPER ASSY. (x2)
25 VKY4180-401 CASSETTE SPRING (x4)
26 GV30883-001A PCB BRACKET
27 QYSDSG2606EA TAP SCREW M2.6 x 6mm(x2)
28 QYSBSF3010ZA TAP SCREW M3 x 10mm(x6)
29 GV10320-001A CENTER CHASSIS
30 QYSSSF3010ZA TAP SCREW M3 x 10mm(x2)
31 QYSBSF3010ZA TAP SCREW M3 x 10mm(x3)
32 LV30225-011A SPACER (x2)
33 GV30349-047A SPACER
34 GV30349-067A SPACER
35 QYSBSF3035ZA TAP SCREW M3 x 35mm(x2)
36 GV30882-003A HEAT SINK
37 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
38 GV40488-001A LEAF SPRING
39 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
40 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
41 QYSBSG3010EA TAP SCREW M3 x 10mm
42 QYSBSG3010EA TAP SCREW M3 x 10mm
43 GV10323-001A BOTTOM CHASSIS
44 QYSBSGG3008EA TAP SCREW M3 x 8mm
45 QYSBSGG3008EA TAP SCREW M3 x 8mm
46 QYSBSF3010ZA TAP SCREW M3 x 10mm
47 GV10217-007A/S/ METAL COVER
48 QYSBSG3010ZA TAP SCREW M3 x 10mm(x2)
49 QYSDSTL4008EA TAP SCREW M4 x 8mm(x4)
 50 QZW0033-001 STRAIN RELIEF
51 GV10324-015A REAR PANEL DK51EE
51 GV10324-017A REAR PANEL DK51A
51 GV10324-014A REAR PANEL DK51US,DK51UN
51 GV10324-016A REAR PANEL DK51UX,DK51UG
52 GV10325-001A REAR COVER
53 QYSBSGY3008EA TAP SCREW M3 x 8mm
54 QAU0412-001 TUNER
55 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
56 QYSBSGY3008EA TAP SCREW M3 x 8mm(x4)
57 QYSBSGY3008EA TAP SCREW M3 x 8mm DK51EE,DK51US,DK51UX,DK51UG,DK51UN
58 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
59 QYSBSGY3008EA TAP SCREW M3 x 8mm
61 QYSBSGY3008EA TAP SCREW M3 x 8mm
62 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
64 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
65 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
66 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)
67 QYSBSGY3008EA TAP SCREW M3 x 8mm(x6)
68 QYSDSG3006NA TAP SCREW M3 x 6mm(x2)
69 GV30880-001A FL HOLDER A
70 GV30891-001A FL HOLDER B
71 GV30349-048A SPACER (x2)
72 GV40411-001A LED HOLDER

3-5
 73 QMPK200-200-JD POWER CORD(EU) 2m BLACK DK51EE,DK51US,DK51UX,DK51UG,DK51UN
 73 QMPG150-244-JC POWER CORD(AST) 2.44m BLACK DK51A
 74 QQT0506-001 POWER TRANSF T1
75 QAR0405-001 FAN
76 QUQU12-1116AJ-E FFC WIRE 11pin 16cm
77 QUQU12-1911AJ-E FFC WIRE 19pin 11cm
78 QUQU12-1915BJ-E FFC WIRE 19pin 15cm
79 QUQU12-0915BJ-E FFC WIRE 9pin 15cm
80 QUR110-2522AJ-E FFC WIRE
81 QUR110-1518AJ-E FFC WIRE
82 QUR110-0530BJ-E FFC WIRE
 83 QMF51W2-5R0-J8 FUSE F001 5A AC250V
 84 QMF51W2-2R5-J8 FUSE F003 2.5A AC250V
 85 QMF51W2-6R3-J8 FUSE F101 6.3A AC250V
 86 QMF51W2-6R3-J8 FUSE F102 6.3A AC250V
 87 QMF51W2-2R0-J8 FUSE F103 2A AC250V
 88 QMF51W2-3R15-J8 FUSE F104 3.15A AC250V
89 GV30349-048A SPACER
 Symbol No. Part No. Part Name Description Local

3-6
DVD mechanism assembly and parts list
Grease
=1401C
=JVS-1003
=JVG-31N
< Back side >
The parts without symbol number are not service.
FXL-D10-1M
+
7.0mm 0.2mm
-
Block No. MM
M
J
17
31
25
30
20 14
15
31
31 23
22
24
29
28
26
27
16
18
3
13
11
1
6
12
7
21
9
8
31
4
5
10
2
30
3

3-7
DVD mechanism
Block No. [M][J][M][M]
 Symbol No. Part No. Part Name Description Local
1 LV22234-001A TM.CHASSIS
2 LV22235-001A SPINDLE BASE
3 QYSDST2005ZA TAP SCREW M2 x 5mm(x2)
4 LV36555-001A G.S.HOLDER
5 QYSDST2005ZA TAP SCREW M2 x 5mm
6 LV44041-002A GUIDE SHAFT
7 LV44479-001A BAR SPRING
8 LV22236-001A FEED HOLDER
9 QAR0165-001 FEED MOTOR
10 LV30225-0X5A SPACER
11 LV36557-001A F.M.GEAR
12 QYSPSPT2030MA SCREW M2 x 3mm
13 QYSDST2005ZA TAP SCREW M2 x 5mm
14 QAL0786-002 P.UP
15 LV22237-001A RACK ARM
16 LV36560-001A RACK ARM SPRING
17 QYSPSFU1740ZA TAP SCREW M1.7 x 4mm(x2)
18 QUQK05-2415AC-E FFC WIRE 24pin 15cm
20 LV44041-002A GUIDE SHAFT
21 LV36559-001A L.S.GEAR
22 LV41517-003A LEAD SCREW
23 LV36558-001A MIDDLE GEAR
24 LV36556-001A SPRING HOLDER
25 LV44623-001A COMP.SPRING
26 QYSDST2005ZA TAP SCREW M2 x 5mm
27 QYSDST2616MA TAP SCREW M2.6 x 16mm
28 QAR0386-001 S.MOTOR
29 QYSPSPU1775ZA SCREW M1.7 x 7.5mm(x3)
30 LV44042-001A ROD SPRING (x2)
31 LV44046-001A ADJUST SCREW (x4)

3-8
DVD loading base assembly and parts list
JVS-1003
JVG-450
Grease Block No. MM
M
N
7.75mm 0.10mm
h
h
FMU-MB4-21M
Backside
The parts without symbol number are not service.
c
e
d
DVD loading switch board
DVD module board
f
< Back side >
g
j
A
A
B
B
e
f
c
d
k
j
16
12
15
8
19
18
20
10
9
16
17
4
23
23
3
2
6
1
14
11
27
22
22
13
7
5
21
24
25
26
26
25
25
25
23
22

3-9
DVD loading base
Block No. [M][N][M][M]
 Symbol No. Part No. Part Name Description Local
1 LV11065-004A LOADER SUB ASSY
2 E407140-001SS C.D ROLLER
3 E407149-001SS RUBBER TUBE
4 LV10979-002A TRAY
5 LV35499-001A SHAFT GUIDE
6 LV44022-001A SHAFT
7 QYSSSF2008ZA TAP SCREW M2 x 8mm
8 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2)
9 QAR0197-001 MOTOR
9 or QAR0280-001 LOADING MOTOR
10 LV43844-002A MOTOR PULLEY
11 QYSPSPU1730ZA SCREW M1.7 x 3mm(x2)
12 QYSDSF2008ZA TAP SCREW M2 x 8mm
13 LV43974-001A BELT
14 LV21852-003A CLAMPER BASE
15 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2)
16 LV41741-004A SPECIAL SCREW
17 LV35056-002A DVD CLAMPER
18 LV42930-003A P.C.MAGNET
18 or LV41118-003A MAGNET
19 LV43848-001A YOKE
20 LE40906-002A SPECIAL SCREW
21 ----------------- SINGLE DVD TRAM
22 LV44043-001A INSULATOR (x4)
23 LV44044-001A SPECIAL SCREW (x4)
24 LV11212-002A CB HOLDER
25 QYSBSF2608ZA TAP SCREW M2.6 x 8mm(x4)
26 LV44209-001A WASHER SCREW (x2)
27 LV44603-001A LASER CATION

3-10
Electrical parts list
Power board
Block No. [0][1]
 Symbol No. Part No. Part Name Description Local
 IC119 STK413-400 IC
 IC160 KIA7809API IC
 IC170 KIA7805API IC
 IC180 KIA7812API IC
 IC190 KIA7809API IC
 IC195 KIA7805API IC
Q1030 KRA111M-T DIGI TRANSISTOR
Q1031 KTC2876-T TRANSISTOR
Q1032 KTC2876-T TRANSISTOR
Q1033 KTC2876-T TRANSISTOR
Q1034 KTC2876-T TRANSISTOR
Q1050 KTC3200/GL/-T TRANSISTOR
Q1051 KTC3199/GL/-T TRANSISTOR
Q1052 KTA1268/GL/-T TRANSISTOR
Q1053 KTA1268/GL/-T TRANSISTOR
Q1070 KTC3199/GL/-T TRANSISTOR
Q1090 KTA1268/GL/-T TRANSISTOR
Q1091 KTC1027/OY/-T TRANSISTOR
Q1092 KTC3200/GL/-T TRANSISTOR
Q1093 KTA1023/OY/-T TRANSISTOR
Q1120 KTC3199/GL/-T TRANSISTOR
Q1140 KTC3199/GL/-T TRANSISTOR
Q1180 KTC3199/GL/-T TRANSISTOR
 Q1221 KTA1046/Y/ TRANSISTOR
Q1222 KTC3199/GL/-T TRANSISTOR
Q1223 KTC3199/GL/-T TRANSISTOR
Q1295 KRC102M-T DIGI TRANSISTOR
 Q2010 KTA1046/Y/ TRANSISTOR
Q2011 KTC3203/OY/-T TRANSISTOR
D1040 1SS133-T2 SI DIODE
D1041 1SS133-T2 SI DIODE
D1042 1SS133-T2 SI DIODE
D1050 1SS133-T2 SI DIODE
D1070 1SS133-T2 SI DIODE
D1071 1SS133-T2 SI DIODE
D1090 1SS133-T2 SI DIODE
D1100 MTZJ15B-T2 Z DIODE
D1101 MTZJ15B-T2 Z DIODE
D1102 MTZJ36B-T2 Z DIODE
D1103 MTZJ36B-T2 Z DIODE
D1105 2A02-M DIODE
D1106 2A02-M DIODE
D1120 1SS133-T2 SI DIODE
D1140 1SS133-T2 SI DIODE
D1180 1SS133-T2 SI DIODE
D1221 MTZJ5.6C-T2 Z DIODE
D1222 2A02-M DIODE
D1260 MTZJ11B-T2 Z DIODE
D1271 MTZJ6.8C-T2 Z DIODE
D1280 MTZJ15B-T2 Z DIODE
D1290 MTZJ11B-T2 Z DIODE
D1295 1SS133-T2 SI DIODE
D1296 MTZJ4.3B-T2 Z DIODE
D1298 MTZJ2.0B-T2 Z DIODE
 D2010 1N5402M-20 SI DIODE
 D2011 1N5402M-20 SI DIODE
 D2012 1N5402M-20 SI DIODE
 D2013 1N5402M-20 SI DIODE
D2015 1N4003S-T5 SI DIODE
D2016 1N4003S-T5 SI DIODE
D2017 1N4003S-T5 SI DIODE
D2018 MTZJ33B-T2 Z DIODE
D2020 MTZJ5.6B-T2 Z DIODE
D2100 1N5402M-20 SI DIODE
D2101 1N5402M-20 SI DIODE
D2102 1N5402M-20 SI DIODE
D2103 1N5402M-20 SI DIODE
D2200 1N5402M-20 SI DIODE
D2201 1N5402M-20 SI DIODE
D2202 1N5402M-20 SI DIODE
D2203 1N5402M-20 SI DIODE
C1001 QEZ0819-688 E CAPA 6800uF
C1002 QEZ0819-688 E CAPA 6800uF
C1010 QETM1HM-228 E CAPACITOR 2200uF 50V M
C1011 QETM1HM-228 E CAPACITOR 2200uF 50V M
C1050 QETN1EM-476Z E CAPACITOR 47uF 25V M
C1051 QETN1EM-476Z E CAPACITOR 47uF 25V M
C1052 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1080 QCBB1HK-471Y C CAPACITOR 470pF 50V K
C1081 QTE1V06-106Z E CAPACITOR 10uF 35V
C1082 QCBB1HK-471Y C CAPACITOR 470pF 50V K
C1083 QTE1V06-106Z E CAPACITOR 10uF 35V
C1084 QCBB1HK-471Y C CAPACITOR 470pF 50V K
C1085 QTE1V06-106Z E CAPACITOR 10uF 35V
C1090 QETN1CM-107Z E CAPACITOR 100uF 16V M
C1091 QFZ0212-104Z M CAPACITOR 0.1uF
C1092 QFZ0212-104Z M CAPACITOR 0.1uF
C1120 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K
C1122 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C1123 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C1124 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C1140 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K
C1142 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C1143 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C1144 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C1160 QETN1JM-476Z E CAPACITOR 47uF 63V M
C1161 QETN1JM-476Z E CAPACITOR 47uF 63V M
C1162 QETN1JM-476Z E CAPACITOR 47uF 63V M
C1180 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K
C1182 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C1183 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C1184 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C1190 QETN1HM-105Z E CAPACITOR 1uF 50V M
C1221 QETM1EM-688 E CAPACITOR 6800uF 25V M
C1222 QETM1CM-688 E CAPACITOR 6800uF 16V M
C1225 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C1226 QCBB1HK-221Y C CAPACITOR 220pF 50V K
C1260 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1261 QETN1CM-227Z E CAPACITOR 220uF 16V M
C1270 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1271 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1280 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1281 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1290 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1291 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1295 QETN1HM-106Z E CAPACITOR 10uF 50V M
C1296 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2010 QETN1JM-107Z E CAPACITOR 100uF 63V M
C2011 QETN2AM-476Z E CAPACITOR 47uF 100V M
C2012 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2013 QETN1HM-226Z E CAPACITOR 22uF 50V M
C2014 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K
C2015 QETN1HM-106Z E CAPACITOR 10uF 50V M
C2019 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
 C2020 QFZ0227-104Z M CAPACITOR 0.1uF
C2100 QFZ0228-104Z M CAPACITOR 0.1uF
C2200 QFZ0227-104Z M CAPACITOR 0.1uF
R1001 QRE141J-104Y C RESISTOR 100k
Ω 1/4W J
R1002 QRE141J-104Y C RESISTOR 100k Ω 1/4W J
R1010 QRE141J-104Y C RESISTOR 100k
Ω 1/4W J
R1011 QRE141J-104Y C RESISTOR 100k
Ω 1/4W J
R1030 QRE141J-823Y C RESISTOR 82k Ω 1/4W J
R1031 QRE141J-823Y C RESISTOR 82k
Ω 1/4W J
R1033 QRE141J-472Y C RESISTOR 4.7k
Ω 1/4W J
R1034 QRE141J-472Y C RESISTOR 4.7k
Ω 1/4W J
R1035 QRE141J-472Y C RESISTOR 4.7k
Ω 1/4W J
R1036 QRE141J-472Y C RESISTOR 4.7k Ω 1/4W J
 R1037 QRL01DJ-471X OMF RESISTOR 470 Ω 1W J
 R1038 QRL01DJ-471X OMF RESISTOR 470 Ω 1W J
R1040 QRE141J-153Y C RESISTOR 15k Ω 1/4W J
R1041 QRE141J-272Y C RESISTOR 2.7k
Ω 1/4W J
R1042 QRE141J-272Y C RESISTOR 2.7k
Ω 1/4W J
R1043 QRE141J-153Y C RESISTOR 15k Ω 1/4W J
R1044 QRE141J-272Y C RESISTOR 2.7k
Ω 1/4W J
 Symbol No. Part No. Part Name Description Local

3-11
Input board
Block No. [0][2]
R1045 QRE141J-153Y C RESISTOR 15k Ω 1/4W J
R1050 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R1051 QRE141J-104Y C RESISTOR 100k Ω 1/4W J
R1052 QRE141J-104Y C RESISTOR 100k Ω 1/4W J
R1053 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R1054 QRE141J-104Y C RESISTOR 100k
Ω 1/4W J
R1055 QRE141J-103Y C RESISTOR 10k
Ω 1/4W J
R1070 QRE141J-222Y C RESISTOR 2.2k Ω 1/4W J
R1080 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R1081 QRE141J-563Y C RESISTOR 56k Ω 1/4W J
R1082 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R1083 QRE141J-563Y C RESISTOR 56k Ω 1/4W J
R1084 QRE141J-563Y C RESISTOR 56k Ω 1/4W J
R1085 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R1090 QRE141J-104Y C RESISTOR 100k Ω 1/4W J
R1091 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R1092 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R1093 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R1094 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
 R1095 QRJ146J-470X UNF C RESISTOR 47 Ω 1/4W J
 R1096 QRJ146J-470X UNF C RESISTOR 47 Ω 1/4W J
R1097 QRE141J-222Y C RESISTOR 2.2k
Ω 1/4W J
R1100 QRE141J-682Y C RESISTOR 6.8k Ω 1/4W J
R1101 QRE141J-682Y C RESISTOR 6.8k Ω 1/4W J
R1102 QRE141J-682Y C RESISTOR 6.8k Ω 1/4W J
R1103 QRE141J-682Y C RESISTOR 6.8k Ω 1/4W J
 R1104 QRJ146J-100X UNF C RESISTOR 10 Ω 1/4W J
 R1120 QRZ0224-R22 EMIT RESISTOR 0.22 Ω
R1121 QRE141J-563Y C RESISTOR 56k Ω 1/4W J
R1122 QRE141J-202Y C RESISTOR 2k Ω 1/4W J
R1123 QRE141J-202Y C RESISTOR 2k Ω 1/4W J
R1124 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
 R1125 QRJ146J-100X UNF C RESISTOR 10 Ω 1/4W J
R1126 QRJ146J-100X UNF C RESISTOR 10 Ω 1/4W J
R1127 QRE141J-562Y C RESISTOR 5.6k Ω 1/4W J
R1128 QRE141J-473Y C RESISTOR 47k Ω 1/4W J
R1129 QRE141J-104Y C RESISTOR 100k Ω 1/4W J
 R1140 QRZ0224-R22 EMIT RESISTOR 0.22 Ω
R1141 QRE141J-563Y C RESISTOR 56k Ω 1/4W J
R1142 QRE141J-202Y C RESISTOR 2k Ω 1/4W J
R1143 QRE141J-202Y C RESISTOR 2k Ω 1/4W J
R1144 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
 R1145 QRJ146J-100X UNF C RESISTOR 10 Ω 1/4W J
 R1146 QRJ146J-100X UNF C RESISTOR 10 Ω 1/4W J
R1147 QRE141J-562Y C RESISTOR 5.6k Ω 1/4W J
R1148 QRE141J-473Y C RESISTOR 47k Ω 1/4W J
R1149 QRE141J-104Y C RESISTOR 100k Ω 1/4W J
R1160 QRE141J-333Y C RESISTOR 33k Ω 1/4W J
 R1161 QRJ146J-122X UNF C RESISTOR 1.2k Ω 1/4W J
 R1162 QRJ146J-122X UNF C RESISTOR 1.2k Ω 1/4W J
 R1163 QRJ146J-122X UNF C RESISTOR 1.2k Ω 1/4W J
 R1180 QRZ0224-R22 EMIT RESISTOR 0.22 Ω
R1181 QRE141J-563Y C RESISTOR 56k Ω 1/4W J
R1182 QRE141J-202Y C RESISTOR 2k Ω 1/4W J
R1183 QRE141J-202Y C RESISTOR 2k
Ω 1/4W J
R1184 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
R1185 QRJ146J-100X UNF C RESISTOR 10 Ω 1/4W J
 R1186 QRJ146J-100X UNF C RESISTOR 10 Ω 1/4W J
R1187 QRE141J-562Y C RESISTOR 5.6k Ω 1/4W J
R1188 QRE141J-473Y C RESISTOR 47k
Ω 1/4W J
R1189 QRE141J-104Y C RESISTOR 100k
Ω 1/4W J
R1221 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R1222 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
R1223 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
R1224 QRE141J-681Y C RESISTOR 680 Ω 1/4W J
R1225 QRE141J-472Y C RESISTOR 4.7k
Ω 1/4W J
R1226 QRE141J-272Y C RESISTOR 2.7k
Ω 1/4W J
R1227 QRE141J-681Y C RESISTOR 680
Ω 1/4W J
R1295 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
 R2010 QRJ146J-4R7X UNF C RESISTOR 4.7 Ω 1/4W J
R2011 QRE141J-333Y C RESISTOR 33k
Ω 1/4W J
R2012 QRE141J-103Y C RESISTOR 10k
Ω 1/4W J
R2016 QRE141J-333Y C RESISTOR 33k Ω 1/4W J
 R2017 QRJ146J-470X UNF C RESISTOR 47 Ω 1/4W J
 R2018 QRJ146J-470X UNF C RESISTOR 47 Ω 1/4W J
L1120 QQLZ035-R39 COIL 0.39uH
L1140 QQLZ035-R39 COIL 0.39uH
 Symbol No. Part No. Part Name Description Local
L1180 QQLZ035-R39 COIL 0.39uH
CN103 QGD2504C1-03Z CONNECTOR (1-3)
CN110 QGB2510J1-12 CONNECTOR B-B (1-12)
 CN119 QGA3901F1-08 CONNECTOR W-B (1-8)
CN120 QGB2510J1-07 CONNECTOR B-B (1-7)
CN130 QGB2510J1-08 CONNECTOR B-B (1-8)
CN140 QGD2504C1-03Z CONNECTOR (1-3)
CN150 QGB2510K1-08 CONNECTOR B-B (1-8)
CN160 QGB2510K1-12 CONNECTOR B-B (1-12)
CN250 QGA7901F2-02 CONNECTOR W-B (1-2)
EP119 QNZ0136-001Z EARTH PLATE
EP120 E409182-001SM GRAND TERMINAL
EP121 GV40327-002A IC BRD.HOLDER EP 651
FT111 QNG0003-001Z FUSE CLIP
FT112 QNG0003-001Z FUSE CLIP
FT131 QNG0003-001Z FUSE CLIP
FT132 QNG0003-001Z FUSE CLIP
FT151 QNG0003-001Z FUSE CLIP
FT152 QNG0003-001Z FUSE CLIP
FT511 QNG0003-001Z FUSE CLIP
FT512 QNG0003-001Z FUSE CLIP
FT521 QNG0003-001Z FUSE CLIP
FT522 QNG0003-001Z FUSE CLIP
FT531 QNG0003-001Z FUSE CLIP
FT532 QNG0003-001Z FUSE CLIP
FW100 QJK015-083324-E WIRE
FW150 QUM154-16DGZ4-E FLAT WIRE
FW160 QUM156-14DGZ4-E FLAT WIRE
FW170 QUM154-14DGZ4-E FLAT WIRE
J100 QNB0298-001 SPK.TERMINAL
RY110 QSK0127-001 RELAY
RY120 QSK0127-001 RELAY
S500 QSW0812-001 VOLTAGE SWITCH
 Symbol No. Part No. Part Name Description Local
IC300 SN74AHCT08NS-X IC
IC305 LB1641 IC
IC325 KIA278R05PI IC
IC350 UPD78F0547GC IC
IC400 KIA4558F-X IC
IC410 KIA4558F-X IC DK51EE,DK51UX
IC410 NJM4565E-X IC DK51US,DK51UG,
DK51UN
IC430 KIA4558F-X IC
IC450 KIA4558F-X IC
IC470 R2S15904SP-X IC
IC473 KTC812T-X IC
IC490 R2S15904SP-X IC
IC500 KTC812T-X IC
IC510 R2S15904SP-X IC
IC560 KIA4558F-X IC DK51EE,DK51A
DK51UX
IC560 NJM4565E-X IC DK51US,DK51UG,
DK51UN
IC580 KIA4558F-X IC DK51EE,DK51A,
DK51UX
IC580 NJM4565E-X IC DK51US,DK51UG,
DK51UN
IC600 KTC812T-X IC
IC610 KTC812T-X IC
IC620 KTC812T-X IC
IC640 KIA4558F-X IC
IC650 KIA4558F-X IC
IC700 BH7868FS-X IC
Q3100 KRA102S-X DIGI TRANSISTOR
Q3101 KRC102S-X DIGI TRANSISTOR
Q3300 KTC3203/OY/-T TRANSISTOR
Q4000 KTC2875-X CHIP TR.
Q4001 KRA104S-X DIGI TRANSISTOR
 Symbol No. Part No. Part Name Description Local

3-12
Q4080 KRA104S-X DIGI TRANSISTOR
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
Q4081 KTC2875-X CHIP TR.
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
Q4730 KRA104S-X DIGI TRANSISTOR
Q5100 KTC2875-X CHIP TR.
Q5400 KTC3875/YG/-X TRANSISTOR
Q5401 KTC3875/YG/-X TRANSISTOR
Q5402 KTC3875/YG/-X TRANSISTOR
Q5500 KTC3875/YG/-X TRANSISTOR
Q5501 KTC3875/YG/-X TRANSISTOR
Q5502 KTC3875/YG/-X TRANSISTOR
Q6000 KRA104S-X DIGI TRANSISTOR
Q6200 KRA104S-X DIGI TRANSISTOR
D3050 MTZJ5.6B-T2 Z DIODE
D3051 1N4003S-T5 SI DIODE
D3100 MTZJ2.2A-T2 S.B.DIODE
D3101 1SS133-T2 SI DIODE
D3200 1N4003S-T5 SI DIODE
D3201 1N4003S-T5 SI DIODE
D3202 1N4003S-T5 SI DIODE
D3250 MTZJ5.6C-T2 Z DIODE
D3251 1N4003S-T5 SI DIODE
D3252 1N4003S-T5 SI DIODE
D3253 1N4003S-T5 SI DIODE
D3300 MTZJ5.1B-T2 Z DIODE
D4000 1SS133-T2 SI DIODE
D4001 1SS133-T2 SI DIODE
D4730 1SS133-T2 SI DIODE
D4731 1SS133-T2 SI DIODE
D5300 1SS133-T2 SI DIODE
D6850 1SS133-T2 SI DIODE
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
D6851 1SS133-T2 SI DIODE
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C3000 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C3050 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C3051 NCB31CK-104X C CAPACITOR 0.1uF 16V K
C3052 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3100 QETN1CM-107Z E CAPACITOR 100uF 16V M
C3101 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C3102 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C3103 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C3250 QETN1HM-106Z E CAPACITOR 10uF 50V M
C3251 QETN1EM-477Z E CAPACITOR 470uF 25V M
C3300 QETN1EM-476Z E CAPACITOR 47uF 25V M
C3500 NDC31HJ-270X C CAPACITOR 27pF 50V J
C3501 NDC31HJ-270X C CAPACITOR 27pF 50V J
C3502 QETN1HM-474Z E CAPACITOR 0.47uF 50V M
C3503 QETN1CM-107Z E CAPACITOR 100uF 16V M
C4000 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C4001 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C4002 QFVF1HJ-274Z MF CAPACITOR 0.27uF 50V J
C4004 QTE1V06-106Z E CAPACITOR 10uF 35V
C4005 QFLC1HJ-153Z M CAPACITOR 0.015uF 50V J
C4006 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4050 QETN1VM-107Z E CAPACITOR 100uF 35V M
C4080 QETN1HM-106Z E CAPACITOR 10uF 50V M
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C4081 NCB31EK-683X C CAPACITOR
0.068uF 25V K
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C4082 QETN1HM-226Z E CAPACITOR 22uF 50V M
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C4100 QETN1HM-226Z E CAPACITOR 22uF 50V M
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C4101 QETN1HM-106Z E CAPACITOR 10uF 50V M
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C4121 QTE1V06-106Z E CAPACITOR 10uF 35V
 Symbol No. Part No. Part Name Description Local
C4200 QETN1HM-226Z E CAPACITOR 22uF 50V M
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C4201 QETN1HM-106Z E CAPACITOR 10uF 50V M
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C4301 NDC31HJ-100X C CAPACITOR 10pF 50V J
C4401 NDC31HJ-100X C CAPACITOR 10pF 50V J
C4501 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C4502 QFLC1HJ-273Z M CAPACITOR 0.027uF 50V J
C4601 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J
C4602 QFLC1HJ-273Z M CAPACITOR 0.027uF 50V J
C4701 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C4702 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4703 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4705 QETN1JM-476Z E CAPACITOR 47uF 63V M
C4707 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C4708 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C4710 QTE1H06-475Z E CAPACITOR 4.7uF 50V
C4711 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4722 QTE1C28-107Z E CAPACITOR 100uF 16V
C4723 QETN1JM-476Z E CAPACITOR 47uF 63V M
C4730 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4734 QTE1H28-106Z E CAPACITOR 10uF 50V
C4735 NDC31HJ-471X C CAPACITOR 470pF 50V J
C4736 QETN1JM-476Z E CAPACITOR 47uF 63V M
C4801 QETN1HM-225Z E CAPACITOR 2.2uF 50V M
C4802 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4803 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4805 QETN1JM-476Z E CAPACITOR 47uF 63V M
C4807 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J
C4808 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J
C4810 QTE1H06-475Z E CAPACITOR 4.7uF 50V
C4811 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4834 QTE1H28-106Z E CAPACITOR 10uF 50V
C4835 NDC31HJ-471X C CAPACITOR 470pF 50V J
C4836 QETN1JM-476Z E CAPACITOR 47uF 63V M
C4900 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4902 QETN1HM-106Z E CAPACITOR 10uF 50V M
C4903 QETN1HM-104Z E CAPACITOR 0.1uF 50V M
C4904 QETN1HM-105Z E CAPACITOR 1uF 50V M
C4922 QTE1C28-107Z E CAPACITOR 100uF 16V
C5000 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5002 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5003 QETN1HM-104Z E CAPACITOR 0.1uF 50V M
C5004 QETN1HM-105Z E CAPACITOR 1uF 50V M
C5100 QETN1HM-106Z E CAPACITOR 10uF 50V M
C5101 QETN1HM-105Z E CAPACITOR 1uF 50V M
C5102 QETN1HM-104Z E CAPACITOR 0.1uF 50V M
C5103 QETN1HM-105Z E CAPACITOR 1uF 50V M
C5122 QTE1C28-107Z E CAPACITOR 100uF 16V
C5201 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C5203 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C5300 QETN1HM-475Z E CAPACITOR 4.7uF 50V M
C5301 QETN1HM-105Z E CAPACITOR 1uF 50V M
C5600 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C5601 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C5602 QETN1JM-476Z E CAPACITOR 47uF 63V M
C5700 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C5701 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J
C5702 QETN1JM-476Z E CAPACITOR 47uF 63V M
C5800 NDC31HJ-100X C CAPACITOR 10pF 50V J
C5801 QFVF1HJ-124Z MF CAPACITOR 0.12uF 50V J
C5802 QFLC1HJ-153Z M CAPACITOR 0.015uF 50V J
C6000 QETN1HM-106Z E CAPACITOR 10uF 50V M
C6200 QETN1HM-106Z E CAPACITOR 10uF 50V M
C6400 QETN1JM-476Z E CAPACITOR 47uF 63V M
C6401 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C6402 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J
C6500 QTE1V06-106Z E CAPACITOR 10uF 35V
C6502 NDC31HJ-151X C CAPACITOR 150pF 50V J
C6600 QTE1V06-106Z E CAPACITOR 10uF 35V
C6602 NDC31HJ-151X C CAPACITOR 150pF 50V J
C6850 NCB31HK-222X C CAPACITOR 2200pF 50V K
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
C7000 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C7001 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C7002 NCB31HK-103X C CAPACITOR 0.01uF 50V K
 Symbol No. Part No. Part Name Description Local

3-13
C7003 QETN1EM-476Z E CAPACITOR 47uF 25V M
C7005 QETN1HM-226Z E CAPACITOR 22uF 50V M
C7006 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C7007 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C7008 NCB30JK-105X C CAPACITOR 1uF 6.3V K
C7009 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C7010 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C7011 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C7012 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C7500 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
C7501 NCB31HK-103X C CAPACITOR 0.01uF 50V K
C7502 QETN0JM-477Z E CAPACITOR 470uF 6.3V M
R3000 NRSA63J-331X MG RESISTOR 330 Ω 1/16W J
R3002 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3003 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3004 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3005 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3006 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3007 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3100 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3101 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3102 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3103 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3300 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3301 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3302 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3350 NRSA63J-912X MG RESISTOR 9.1k Ω 1/16W J
R3351 NRSA63J-203X MG RESISTOR 20k Ω 1/16W J
R3450 NRSA63J-912X MG RESISTOR 9.1k Ω 1/16W J
R3451 NRSA63J-203X MG RESISTOR 20k Ω 1/16W J
R3500 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3505 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3507 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3508 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3511 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3512 NRSA63J-201X MG RESISTOR 200 Ω 1/16W J
R3513 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3514 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3519 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3520 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3521 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3522 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3523 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3524 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3525 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3526 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3529 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3530 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3531 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3532 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3533 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3534 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R3535 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3536 NRSA63J-122X MG RESISTOR 1.2k
Ω 1/16W J
R3537 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3538 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3539 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3540 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3541 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3542 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3543 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3544 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3545 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3546 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3547 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3548 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3549 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3550 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3551 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R3552 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3554 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3555 NRSA63J-133X MG RESISTOR 13k Ω 1/16W J
R3556 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R3557 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3600 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3601 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
R3602 NRSA63J-222X MG RESISTOR 2.2k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R3603 NRSA63J-222X MG RESISTOR 2.2k Ω 1/16W J
R3604 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3605 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3606 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3607 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3608 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3609 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R3610 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3611 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3612 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3613 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3614 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3615 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3616 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3618 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3619 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3620 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R3621 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R4000 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4001 NRSA63J-303X MG RESISTOR 30k Ω 1/16W J
R4002 NRSA63J-132X MG RESISTOR 1.3k
Ω 1/16W J
R4003 NRSA63J-273X MG RESISTOR 27k
Ω 1/16W J
R4004 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R4005 NRSA63J-184X MG RESISTOR 180k Ω 1/16W J
R4006 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R4007 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R4008 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R4009 NRSA63J-332X MG RESISTOR 3.3k Ω 1/16W J
R4010 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4011 NRSA63J-563X MG RESISTOR 56k Ω 1/16W J
R4050 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4051 NRSA63J-122X MG RESISTOR 1.2k Ω 1/16W J
R4080 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4081 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4082 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4083 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4101 QRE141J-912Y C RESISTOR 9.1k Ω 1/4W J
R4102 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4103 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4104 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4105 NRSA63J-332X MG RESISTOR
3.3k Ω 1/16W J
R4201 QRE141J-912Y C RESISTOR 9.1k Ω 1/4W J
R4202 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4203 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4204 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R4205 NRSA63J-332X MG RESISTOR
3.3k Ω 1/16W J
R4300 NRSA63J-203X MG RESISTOR 20k Ω 1/16W J
R4301 QRE141J-203Y C RESISTOR 20k
Ω 1/4W J
R4302 QRE141J-203Y C RESISTOR 20k
Ω 1/4W J
R4303 NRSA63J-512X MG RESISTOR
5.1k Ω 1/16W J
R4400 NRSA63J-203X MG RESISTOR 20k Ω 1/16W J
R4401 QRE141J-203Y C RESISTOR 20k Ω 1/4W J
R4402 QRE141J-203Y C RESISTOR 20k
Ω 1/4W J
R4403 NRSA63J-512X MG RESISTOR
5.1k Ω 1/16W J
R4502 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R4503 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R4602 NRSA63J-223X MG RESISTOR 22k
Ω 1/16W J
R4603 NRSA63J-223X MG RESISTOR 22k Ω 1/16W J
R4700 NRSA63J-682X MG RESISTOR
6.8k Ω 1/16W J
R4720 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4721 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
 Symbol No. Part No. Part Name Description Local

3-14
Front board
Block No. [0][3]
R4730 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4731 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R4732 NRSA63J-104X MG RESISTOR 100k Ω 1/16W J
R4733 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R4800 NRSA63J-682X MG RESISTOR 6.8k Ω 1/16W J
R4831 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R4832 NRSA63J-104X MG RESISTOR
100k Ω 1/16W J
R4833 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R4901 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4902 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R4903 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R4920 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R4921 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5001 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5002 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5003 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5101 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R5102 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5103 NRSA63J-103X MG RESISTOR 10k Ω 1/16W J
R5104 QRE141J-223Y C RESISTOR 22k Ω 1/4W J
R5120 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R5121 NRSA63J-102X MG RESISTOR 1k
Ω 1/16W J
R5201 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5204 QRE141J-223Y C RESISTOR 22k Ω 1/4W J
R5300 QRE141J-562Y C RESISTOR 5.6k Ω 1/4W J
R5301 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R5302 QRE141J-823Y C RESISTOR 82k Ω 1/4W J
R5400 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R5401 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5402 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5404 QRE141J-153Y C RESISTOR 15k Ω 1/4W J
R5500 NRSA63J-224X MG RESISTOR 220k Ω 1/16W J
R5501 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5502 NRSA63J-101X MG RESISTOR 100 Ω 1/16W J
R5504 QRE141J-153Y C RESISTOR 15k Ω 1/4W J
R5600 QRE141J-152Y C RESISTOR 1.5k Ω 1/4W J
R5601 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R5602 QRE141J-472Y C RESISTOR 4.7k Ω 1/4W J
R5603 QRE141J-153Y C RESISTOR 15k Ω 1/4W J
R5700 QRE141J-152Y C RESISTOR 1.5k Ω 1/4W J
R5701 NRSA63J-124X MG RESISTOR 120k Ω 1/16W J
R5702 QRE141J-472Y C RESISTOR 4.7k Ω 1/4W J
R5703 QRE141J-153Y C RESISTOR 15k Ω 1/4W J
R5800 NRSA63J-123X MG RESISTOR 12k Ω 1/16W J
R5802 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R5803 QRE141J-223Y C RESISTOR 22k Ω 1/4W J
R5804 QRE141J-223Y C RESISTOR 22k Ω 1/4W J
R5820 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6000 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6001 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R6002 QRE141J-182Y C RESISTOR 1.8k Ω 1/4W J
R6003 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
R6101 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R6102 QRE141J-182Y C RESISTOR 1.8k Ω 1/4W J
R6103 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
R6111 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R6112 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R6113 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
R6200 NRSA63J-102X MG RESISTOR 1k Ω 1/16W J
R6201 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R6202 QRE141J-103Y C RESISTOR 10k
Ω 1/4W J
R6203 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R6301 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R6302 QRE141J-103Y C RESISTOR 10k
Ω 1/4W J
R6303 QRE141J-102Y C RESISTOR 1k Ω 1/4W J
R6311 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R6312 QRE141J-103Y C RESISTOR 10k
Ω 1/4W J
R6313 QRE141J-102Y C RESISTOR 1k
Ω 1/4W J
R6400 NRSA63J-103X MG RESISTOR 10k
Ω 1/16W J
R6401 QRE141J-223Y C RESISTOR 22k Ω 1/4W J
R6402 QRE141J-223Y C RESISTOR 22k
Ω 1/4W J
R6403 NRSA63J-243X MG RESISTOR 24k
Ω 1/16W J
R6404 QRE141J-103Y C RESISTOR 10k Ω 1/4W J
R6420 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
R6500 QRE141J-513Y C RESISTOR 51k
Ω 1/4W J
R6501 QRE141J-223Y C RESISTOR 22k Ω 1/4W J
R6502 NRSA63J-393X MG RESISTOR 39k
Ω 1/16W J
R6503 NRSA63J-513X MG RESISTOR 51k
Ω 1/16W J
 Symbol No. Part No. Part Name Description Local
R6520 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
R6600 QRE141J-513Y C RESISTOR 51k Ω 1/4W J
R6601 QRE141J-223Y C RESISTOR 22k Ω 1/4W J
R6602 NRSA63J-393X MG RESISTOR 39k Ω 1/16W J
R6603 NRSA63J-513X MG RESISTOR 51k Ω 1/16W J
R6700 NRSA63J-183X MG RESISTOR 18k
Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R6701 NRSA63J-823X MG RESISTOR 82k
Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R6800 NRSA63J-183X MG RESISTOR 18k Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R6801 NRSA63J-823X MG RESISTOR 82k Ω 1/16W J
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
R7000 NRSA63J-201X MG RESISTOR 200 Ω 1/16W J
R7002 NRSA63J-201X MG RESISTOR 200 Ω 1/16W J
R7004 NRSA63J-181X MG RESISTOR 180 Ω 1/16W J
R7005 NRSA63J-201X MG RESISTOR 200 Ω 1/16W J
R7006 NRSA63J-181X MG RESISTOR 180 Ω 1/16W J
R7007 NRSA63J-201X MG RESISTOR 200
Ω 1/16W J
R7008 NRSA63J-751X MG RESISTOR 750
Ω 1/16W J
R7009 NRSA63J-271X MG RESISTOR 270 Ω 1/16W J
R7300 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R7301 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R7302 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R7500 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R7501 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
R7502 NRSA63J-750X MG RESISTOR 75 Ω 1/16W J
CN300 QGF1036C2-05 CONNECTOR FFC/FPC (1-5)
CN301 QGF1036C2-25 CONNECTOR FFC/FPC (1-25)
CN302 QGF1036C2-15 CONNECTOR FFC/FPC (1-15)
CN303 QGF1205C2-19 CONNECTOR FFC/FPC (1-19)
CN304 QGF1205F2-05 CONNECTOR FFC/FPC (1-5)
CN306 QGF1205C2-09 CONNECTOR FFC/FPC (1-9)
CN307 QGF1205C2-19 CONNECTOR FFC/FPC (1-19)
CN308 QGF1205C2-07 CONNECTOR FFC/FPC (1-7)
CN309 QGB2510K1-08 CONNECTOR B-B (1-8)
CN310 QGB2510J1-10 CONNECTOR B-B (1-10)
CN311 QGB2510K1-07 CONNECTOR B-B (1-7)
CN312 QGD2504C1-03Z CONNECTOR (1-3)
CN313 QGD2504C1-03Z CONNECTOR (1-3)
CN314 QGD2504C1-04Z CONNECTOR (1-4)
CN330 QGA2501C1-03 CONNECTOR W-B (1-3)
CN335 QGF1205C2-11 CONNECTOR FFC/FPC (1-11)
HS325 LV40057-002A HEAT SINK
J6700 QNN0420-001 SURROUND JACK
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
J7300 QNN0779-001 VIDEO JACK
J7500 QNN0557-002 PIN JACK
K3100 QQR0621-001Z COIL
K4730 NRSA63J-0R0X MG RESISTOR 0 Ω 1/16W J
K4731 NRSA63J-0R0X MG RESISTOR 0
Ω 1/16W J
SC325 QYSBSG3008ZA TAP SCREW M3 x 8mm
X3500 QAX0724-001Z CRYSTAL 12.000000MHz
 Symbol No. Part No. Part Name Description Local
IC901 PT6315 IC
IC902 GP1UM281XKVF IR DETECT UNIT
IC950 PT2399-S-W ECHO IC
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
IC960 KIA4558F-X IC
DK51EE,DK51US,
DK51UX,DK51UG,
DK51UN
IC970 KIA4558F-X IC DK51A
 Symbol No. Part No. Part Name Description Local
