JVC TH-WL707H User manual

2.1 ALUMINIUM
SOUNDBAR WITH
WIRELESS SUBWOOFER
TH-WL707H
Instruction Manual
Instruksjonsmanual
Instruktionsbok
Käyttöopas
Brugervejledning

3
GB
Contents
Safety Warnings...................................................................................................................4
Unpacking.............................................................................................................................6
Product Overview ................................................................................................................7
Main Unit.........................................................................................................................................................7
Rear View of Subwoofer............................................................................................................................8
Remote Control ............................................................................................................................................9
Preparation.........................................................................................................................10
Battery Replacement for the Remote Control ............................................................................... 10
Remote Control Operation Range...................................................................................................... 10
Installing the Foot Pads...........................................................................................................................11
Wall Mounting.............................................................................................................................................11
Speakers Placement..................................................................................................................................13
Connections........................................................................................................................14
Method 1: Optical / Coaxial Connection...........................................................................................14
Method 2: AUX Connection ...................................................................................................................15
Connecting an MP3 Player .....................................................................................................................15
Connecting to the Mains Supply ........................................................................................................ 16
Pairing the Wireless Subwoofer with the Soundbar ....................................................................17
General Operation.............................................................................................................18
Standby / ON .............................................................................................................................................. 18
Automatic Power O Function............................................................................................................ 18
Selecting Modes........................................................................................................................................ 18
Adjusting the Speaker Level Settings and Eects.........................................................................19
AUX / Coaxial / Optical Operation ....................................................................................19
Bluetooth® Operation ....................................................................................................... 20
NFC (Near Field Communication) Operation ................................................................. 20
Maintenance.......................................................................................................................21
Hints and Tips.....................................................................................................................21
Specifications.................................................................................................................... 23

4
GB Safety Warnings
Ventilation
• To prevent the risk of electric shock or
re hazard due to overheating, ensure
that curtains and other materials do not
obstruct the ventilation vents.
• A minimum distance of 5 cm around the
unit should be maintained to allow for
sucient ventilation.
• Do not install or place this unit in a
bookcase, built-in cabinet or in another
conned space. Ensure the unit is well
ventilated.
Safety
• Always disconnect the unit from the mains
supply before connecting / disconnecting
other devices or moving the unit.
• Unplug the unit from the mains socket
during a lightning storm.
• In the interests of safety and to avoid
unnecessary energy consumption,
never leave the unit switched on while
unattended for long periods of time, e.g.
overnight, while on holiday or while out of
the house. Switch it o and disconnect the
mains plug from the mains socket.
Mains Cable
• Make sure the unit or unit stand is not
resting on top of the mains cable, as the
weight of the unit may damage the mains
cable and create a safety hazard.
• If the mains cable is damaged it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard.
Mains Adapter Cable
• Make sure the unit or unit stand is not
resting on top of the mains adapter cable,
as the weight of the unit may damage the
cable and create a safety hazard.
Mains Adapter
• The mains adapter will continue to
draw electricity from the mains supply
when plugged in the mains socket.
In the interests of safety and to avoid
unnecessary energy consumption, never
leave the adapter plugged in the mains
socket while unattended for long periods
of time. Disconnect the adapter from the
power supply.
Use only power supplies listed in the
user instructions.
• Read all the instructions carefully before
using the unit and keep them for future
reference.
• Retain the manual. If you pass the unit
onto a third party make sure to include this
manual.
• Check that the voltage marked on the
rating label matches your mains voltage.
Damage
• Please inspect the unit for damage after
unpacking.
• Do not continue to operate the unit if you
are in any doubt about it working normally,
or if it is damaged in any way - switch o,
withdraw the mains plug and consult your
dealer.
Location of Unit
• The unit must be placed on a at stable
surface and should not be subjected to
vibrations.
• Do not place the unit on sloped or unstable
surfaces as the unit may fall o or tip over.
• The mains socket must be located near the
unit and should be easily accessible.
• This unit is designed for indoor, domestic
use only.
Temperature
• Avoid extreme degrees of temperature,
either hot or cold. Place the unit well away
from heat sources such as radiators or gas /
electric res.
• Avoid exposure to direct sunlight and other
sources of heat.
• Attention should be drawn to the use of
apparatus in moderate climates.
Naked Flames
• Never place any type of candle or naked
ame on the top of or near the unit.
Moisture
• To reduce the risk of re, electric shock or
product damage, do not expose this unit
to rain, moisture, dripping or splashing.
No objects lled with liquids, such as
vases, should be placed on the unit. Do
not operate the unit with wet hands, near
water or other liquid.
• If you spill any liquid into the unit, it can
cause serious damage. Switch it o at the
mains immediately. Withdraw the mains
plug and consult your dealer.

5
GB
Interference
• Do not place the unit on or near appliances
which may cause electromagnetic
interference. If you do, it may adversely
aect the operating performance of the
unit, and cause a distorted picture or
sound.
Batteries
• Batteries used in the remote control for this
unit are easily swallowed by young children
and this is dangerous.
• Keep loose batteries away from young
children and make sure that the battery
holder tray is secure in the remote control.
Seek medical advice if you believe a cell
has been swallowed.
• Please dispose of batteries correctly by
following the guidance in this manual.
• Attention should be drawn to the
environmental aspects of battery disposal.
Supervision
• Children should be supervised to ensure
that they do not play with the unit and the
remote control.
• Never let anyone especially children push
anything into the holes, slots or any other
openings in the case - this could result in a
fatal electric shock.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning ash with arrowhead
symbol, within an equilateral
triangle, is intended to alert the
user to the presence of uninsulated
“dangerous voltage”within the
unit’s enclosure that may be of
sucient magnitude to constitute a
risk of electric shock.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and
maintenance (servicing)
instructions in the manual
accompanying the unit.
Service
• To reduce the risk of electric shock, do not
remove screws. The unit does not contain
any user-serviceable parts. Please leave all
maintenance work to qualied personnel.
• Do not open any xed covers as this may
expose dangerous voltages.
Maintenance
• Ensure to unplug the unit from the mains
socket before cleaning.
• Do not use any type of abrasive pad or
abrasive cleaning solutions as these may
damage the unit’s surface.
• Do not use liquids to clean the unit.
To prevent the
spread of re,
keep candles
or other open
ames away
from this
product at all
times.

6
GB
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Main Unit Remote Control
Cable
Subwoofer
Wall Bracket x 2
Mains Adapter for
Main Unit
Thank you for purchasing your new JVC Soundbar.
We recommend that you spend some time reading this instruction manual
in order that you fully understand all the operational features it oers. You
will also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
AUX1
OPT
TREB
COAX
AUX2
VOL
VOL
SUB
TREB
SUB
PAIR
Optical Cable
Screw x 2 Foot Pad x 2 Instruction ManualAAA Battery x 2
Instruction
Manual
3.5mm to
RCA Stereo Audio Cable
RCA Extension Cable

7
GB
SOURCE VOL– VOL+
Product Overview
Main Unit
Front View
1. LED Display
Show the current status.
2. Remote Control Sensor
Receive signal from the remote control.
3. NFC (Near Field Communication)
Sensor
1. Button
Switch the unit between On and
Standby mode.
2. SOURCE Button
Select the input source.
3. VOL – / + Button
Adjust the volume.
Top View
1 2 3
SOURCE VOL– VOL+
1 2 3

8
GB
Rear View of Subwoofer
1. 15V 2A Socket
2. COAXIAL Socket
3. OPTICAL Socket
1. POWER Indicator
Light up orange when the pairing
succeed.
2. PAIR Button
Pair with the main unit.
4. AUX 2 Socket
5. AUX 1 (L/R) Sockets
3. AC 100~240V Power Socket
4. ON/OFF Switch
Switch the subwoofer ON or OFF.
Rear View
1 2 3 4 5
AC 100-240V~
PAIR
Power
ON OFF
1
2
3
4

9
GB
1. Button
Switch the unit between On and
Standby modes.
2. Button
Mute the unit or resume the sound.
3. AUX 1 Button
Press to enter AUX 1 mode.
4. PAIR Button
Direct switch to Bluetooth® mode.
Press and hold to enable Bluetooth®
pairing in Bluetooth® mode.
If there is an existing connection,
press and hole to disconnect the
paired Bluetooth® device. The unit
will then enter paring mode.
5. AUX 2 Button
Press to enter AUX 2 mode.
6. OPT Button
Press to enter OPTICAL mode.
7. COAX Button
Press to enter COAXIAL mode.
8. VOL + / – Buttons
Adjust the volume.
Button
Skip to the previous track in
Bluetooth® mode.
Button
Play / pause / resume playback in
Bluetooth® mode.
Button
Skip forwards to the next track in
Bluetooth® mode.
9. TREB – / + Buttons
Adjust the treble sound level.
10. SUB – / + Buttons
Adjust the subwoofer sound level.
11. SOURCE Button
Select the input source.
Remote Control
AUX 1
OPT
TREB
COAX
AUX 2
VOL
VOL
SUB
TREB
SUB
PAIR
1
3
10
8
6
9
11
4
2
5
7

10
GB
Remote Control Operation Range
• The remote control sensor on the front unit is
sensitive to the remote control’s commands up to a
maximum of 5 metres away and within a maximum
of a 60° arc.
• Please note that the operating distance may
vary depending on the brightness of the room.
3. Close the battery compartment cover.
Handling the Battery
• Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause re,
personal injury or damage to property.
• Only use the battery type indicated in this manual.
• Do not install new batteries with used ones and do not mix dierent types of batteries.
• Do not dispose of used batteries as domestic waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
• Do not drop the remote control.
• Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or
battery leakage may occur and result in physical injury, and / or property damage, and / or re.
• When the battery is exhausted, the remote control will not function.
Preparation
Battery Replacement for the Remote Control
1. Press and slide the back cover to open the
battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure the
(+) and ( – ) ends of the batteries match the
(+) and ( – ) ends indicated in the battery
compartment.
AUX1
OPT
TREB
COAX
AUX2
VOL
VOL
SUB
TREB
SUB
PAIR
30° 30°
Max. 5 m

11
GB
Wall Mounting
• Installation must be carried out by qualied personnel only. Incorrect assembly can result in severe
personal injury and property damage (if you intend to install this product yourself, you must check
for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the
installer’s responsibility to verify that the wall will safely support the total load of the Soundbar.
• Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future reference.
• Use an electronic stud nder to check the wall type before drilling and mounting.
1. Attached the wall brackets (included) to the main unit with the supplied screws.
618 mm
Wall (Front view)
2. Drill 2 parallel holes (Ø 3-8 mm each according to wall type) in the wall. The distance
between the holes should be 618 mm.
Installing the Foot Pads
Ensure all cables to the main unit are disconnected before installing or removing the foot pads.

12
GB
4. Insert 1 screw (not included) into each dowel. Be sure to leave a 3 mm gap between the
wall and the screw’s head. Lift the unit over the heads of the screws and slot into place.
3 mm
3. Firmly x 1 dowel (not included) into each hole in the wall if necessary.
Dowel
Solid wall (i.e., Solid brick,
Solid concrete, Solid wood,
Solid wooden battens)
Drywall, Plaster wall,
Lath wall, etc.
25-30 mm

13
GB
Speakers Placement
SUBWOOFER
SOUNDBAR
Soundbar
Soundbar carries most of the dialog as well as music and eects.
• If your TV is placed on a table, you can place the soundbar on the table directly in front
of the TV stand, centered with the TV screen.
• If your TV is attached to a wall, you can mount the soundbar on the wall directly below
the TV screen.
Subwoofer
A subwoofer is designed to reproduce powerful low bass eects (explosions, the rumble of
spaceships, etc.).
• The performance of a subwoofer is directly related to its placement in the listening
room. Experiment with placement before choosing a nal location for your subwoofer.
Find the location where the bass performance is best.
• The subwoofer should
be within 5 metres of
the soundbar in an
open area (the closer
the better).
• Do not put anything
on the top of the
subwoofer.

14
GB Connections

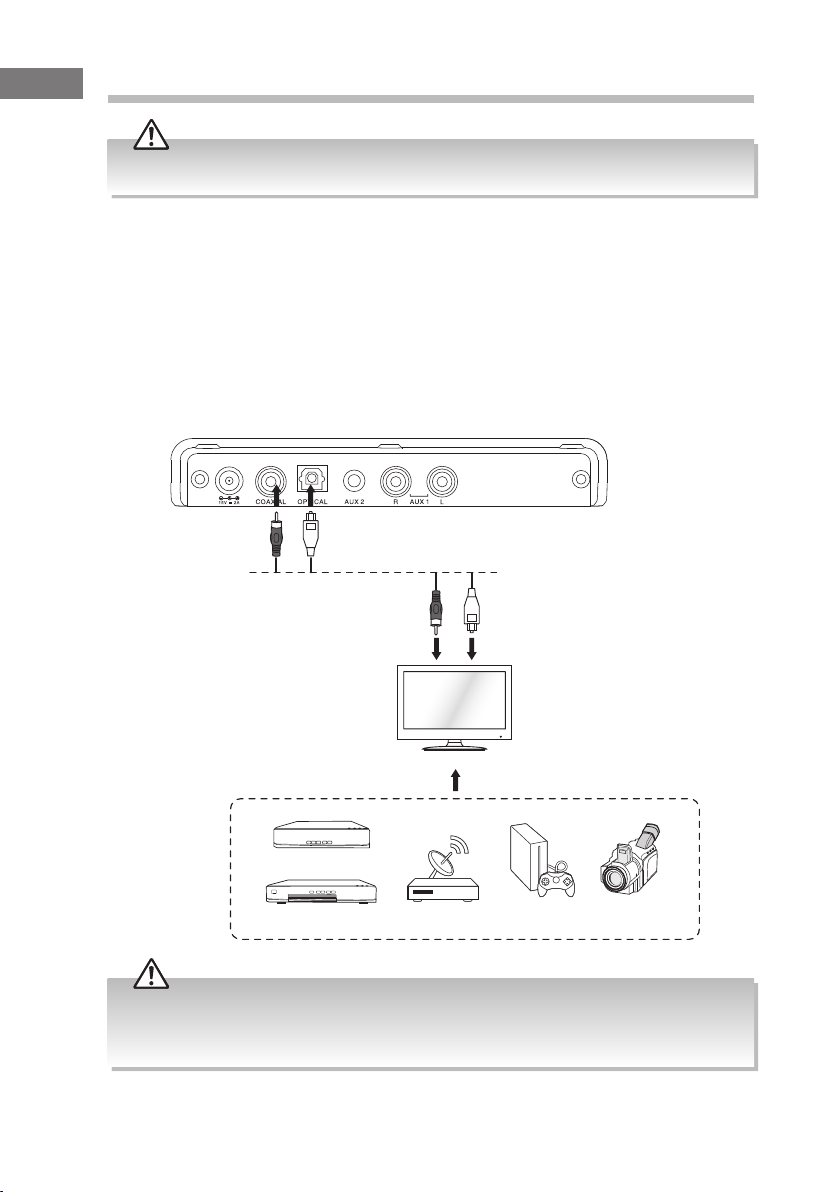

Method 1: Optical / Coaxial Connection
Use an optical cable (included) / coaxial cable (not included) to connect the soundbar’s
OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external
device. The simplest option is to connect your soundbar directly to your TV. If you connect
the soundbar to another external device (e.g. Blu-Ray player), you will hear the sound from
that device through the soundbar.
After connection, press SOURCE on the unit or on the remote control repeatedly, or OPT /
COAX on the remote control repeatedly to select OPTICAL / COAXIAL to play audio from
your input device.
TV
Rear View of the Soundbar
Blu-ray Player / DVD Player
/ Recorder
Set-top Box
Satellite
Receiver
Game
Console
Video
Camera
This section involves various methods of connecting the product to other external components. Ensure
all audio connections of the unit are connected before connecting to the mains power socket.
The unit may not be able to decode all digital audio formats from the input source. In this case, the unit
will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game console,
DVD player, etc.) is set to PCM (Refer to the user manual of the input source device for its audio setting
details) with optical / coaxial input.
Optical cable (included) or
Coaxial cable (not included)

15
GB
Ensure to match the colours on the cable plugs to the colours on the input and output sockets.
Method 2: AUX Connection
Use an RCA to RCA stereo audio cable (not included) or RCA to 3.5mm stereo audio cable
(included) to connect the soundbar’s AUX 1 (L/R) sockets to the AUDIO OUT sockets of the
external devices.
After connection, press SOURCE on the unit or on the remote control repeatedly, or AUX 1
on the remote control to select AUX 1 to play audio from your input device.
Connecting an MP3 Player
Use a 3.5mm to 3.5mm stereo audio cable (not included) to connect the soundbar’s AUX 2
to the headphone socket of the external device.
After connection, press SOURCE on the unit or on the remote control repeatedly, or AUX 2
on the remote control to select AUX 2 to play audio from your input device.
Rear View of the Soundbar
HEADPHONE
3.5mm to 3.5mm Stereo
Audio Cable (not included)
Mobile devices
Rear View of the Soundbar
TV Blu-ray Player / DVD
Player / Recorder
Satellite
Receiver
Game
Console
Video
Camera
Set-top Box
RCA to 3.5mm Stereo Audio
Cable (included)
RCA to RCA Stereo Audio
Cable (not included) or

16
GB Connecting to the Mains Supply
The soundbar and subwoofer are designed to operate with the supplied mains adapter and
mains cables.
• Connecting the unit to any other power source may damage the unit.
• Ensure all audio connections of the unit are connected before connecting to the mains power socket.
• Make sure the mains plug is rmly inserted into the mains socket.
• To switch the unit o completely, remove the mains plug from the mains socket.
• Please turn the unit o completely to save energy when not in use.
• The mains adapter and mains cable are designed for this JVC soundbar only. DO NOT use the mains
adapter and mains cable for other purposes.
Soundbar
Unwind the mains adapter cable to its full length. Connect mains cable to the mains
adapter and then connect to the 15V 2A socket on the rear of the unit and a
mains socket at the other end. Make sure the mains adapter is fully inserted into the mains
socket.
Subwoofer
Connect the other end of the mains cable to the AC 100-240V socket at the rear of the
subwoofer then connect the mains plug to the mains socket.
To the
mains socket
Rear View of the Unit
AC 100-240V~
PAIR
Power
ON OFF
To the
mains socket
Rear View of the Subwoofer

17
GB
Pairing theWireless Subwoofer with the Soundbar
Automatic Pairing
Plug the soundbar and the subwoofer into the mains sockets and switch on the subwoofer.
Press on the unit or on the remote control to switch the unit to On mode. The display will
show“WELCOME”. Then the subwoofer and soundbar will automatically paired within 30
seconds.
• After connecting the power, you must press PAIR on the subwoofer within 20 seconds to be eective.
• The subwoofer should be within 5 m of the soundbar in an open area.
• If the wireless connection fails again, check if there is conict or strong interference (for example,
interference from an electronic device) around your location. Remove these conicts or strong
interferences and repeat the above procedures.
Manual Pairing
Do not press PAIR on the rear of the subwoofer, except for manual pairing.
It is very abnormal that the connection would fail, you should not attempt manual pairing in normal
usage.
If the automatic pairing fails or the subwoofer is switched OFF, the display will ash“CHK
SUB”for 20 seconds. Ensure that all the cables are well connected, the main unit and the
subwoofer is switched to On mode. If it still doesn’t work, pair the subwoofer with the
soundbar manually.
1. Unplug both units from the mains sockets, then plug them in again after 3 minutes.
2. Press and hold the PAIR button on the rear of the subwoofer, and then press and hold
and SOURCE on the unit for a few seconds to start pairing. The pair indicator on the
subwoofer will rapidly blink when pairing and will become solid when successful.
3. While the unit is pairing with the subwoofer, “CNCT SUB“ will ash on the display.
4. After the subwoofer is paired with the unit,“CNCT SUB“ will disappear, and the display
will show the current channel.

18
GB
This instruction manual explains the basic instructions for operating this unit. Unless otherwise stated, all
operations described are based on remote control use.
General Operation
Standby / ON
When you rst connect the unit to the mains socket, the unit will be in Standby mode.
• During Standby mode, the POWER indicator of the subwoofer will be o. Press
on the unit or on the remote control to switch the unit on. The display will show
“WELCOME“, and then the last used mode. The sound level will x on level 15 after
every time the unit is switched on.
• After the unit is idle for about 10 seconds, the display will show“--“. Press any button
(except and MUTE) to exit the idle mode.
• Press on the unit or on the remote control again to switch the unit back to Standby
mode. The display will show“GOODBYE“, and then turn o.
Alternatively,
• press AUX 1/AUX2 on the remote control repeatedly to select AUX 1/AUX 2 mode.
• press OPT on the remote control repeatedly to select OPTICAL mode.
• press COAX on the remote control repeatedly to select COAXIAL mode.
• Press on the remote control repeatedly to select BT (Bluetooth®) mode directly.
• To switch the unit o completely, remove the mains plug from the mains socket.
• Please turn the unit o completely to save energy when not in use.
Selecting Modes
Press SOURCE on the unit or remote control repeatedly to select between AUX 1, AUX 2,
BT (Bluetooth®), OPTICAL and COAXIAL modes.
Automatic Power O Function
The unit automatically turns to Standby mode after about 10 minutes if the TV or the
external unit is disconnected, switched o or the volume is too close to mute.

19
GB
Adjusting the Speaker Level Settings and Eects
Adjusting the Volume
• Press VOL + / – to adjust the volume.
• If you wish to turn the sound o, press on the remote control. The display will show
“MUTE”. Press again, or press VOL + / – on the unit or on the remote control to
resume normal listening.
Adjusting the Subwoofer Volume Level
Press SUB + / – repeatedly to adjust the bass volume level from SUB MIN (–10) to SUB MAX
(10).
Adjusting the Treble Volume Level
Press TREB + / – repeatedly to adjust the treble volume level from TREB MIN (–12) to TREB
MAX (12), each press will increase or decrease 2 level.
AUX / Coaxial / Optical Operation
There are COAXIAL / OPTICAL / AUX 1(L/R) and AUX 2 sockets located at the rear of
the unit. Analogue audio sound signals from other sources can be connected to the unit
through these sockets.
1. Before connecting to the mains socket, ensure all the connections are completed.
2. While in the On mode, press SOURCE on the unit or remote control repeatedly to select
between AUX 1, AUX 2, BT (Bluetooth®), OPTICAL and COAXIAL modes.
Alternatively,
• press AUX 1/AUX2 on the remote control repeatedly to select AUX 1/AUX 2 mode.
• press OPT on the remote control repeatedly to select OPTICAL mode.
• press COAX on the remote control repeatedly to select COAXIAL mode.
• Press on the remote control repeatedly to select BT (Bluetooth®) mode directly.
3. Operate your audio device directly for playback features.

20
GB
Bluetooth® Operation
Pairing the unit with a Bluetooth®device to listen to music:
First time pairing
1. During On mode, press SOURCE on the unit repeatedly or press PAIR on the remote
control to select Bluetooth® mode. The display will show“BT“. Then“PAIRING“ will ash
in the display.
2. Activate your Bluetooth® device and select the search mode.“TH-WL707X”will appear
on your Bluetooth®device list.
3. Select “TH-WL707X”and enter“0000” for the password if necessary. After pairing, the
display will show“PAIRED“.
• Press and hold SOURCE on the unit or PAIR on the remote control to clear all pairing
setting. The unit will enter pairing mode, and PAIRING will ash in the display. Follow
step 2-3 to pair your Bluetooth® device.
Bluetooth® device already in the connection memory
1. After entering the Bluetooth® mode, the display will show“BT“ and then“BT READY“.
2. The unit will automatically reconnect with the Bluetooth® device. After pairing, the
display will show“PAIRED“.
If your Bluetooth® device supports A2DP, play music via your device.
To disconnect the Bluetooth®function, switch to another function on the unit or disable the
function from your Bluetooth®device. You may also press and hold SOURCE on the unit or
PAIR on the remote control to clear all pairing setting.“PAIRING“ will ash in the display
and the unit is now ready for pairing. Follow step 2-3 in“First time pairing“ above to pair
your Bluetooth® device.
• The operational range between the unit and the device is approximately 6 metres.
• Before connecting a Bluetooth® device to the unit, ensure you know the device’s capabilities.
• Compatibility with all Bluetooth® devices is not guaranteed.
• Any obstacle between the device and the unit can reduce operational range.
• Keep this player away from other electronic devices that may cause interference.
• The player will also be disconnected when your device is moved beyond the operational range.
NFC (Near Field Communication) Operation
Pair your NFC-enabled mobile device directly with this unit by just a single tap.
1. Activate NFC on your mobile device.
2. Tap the mobile device on the icon of the unit. Your unit will switch to Bluetooth®
mode automatically. The display will show BT. The unit will enter pairing mode, and
PAIRING will ash in the display.
3. Operate your mobile device for playback features.
4. To disconnect, tap the mobile device on the icon of the unit to disconnect or disable
Bluetooth® from your mobile device.
• The NFC function only works with mobile devices that support NFC technology.
• You may need to remove your mobile devices case to connect using NFC.
