SERVICE MANUAL

2006/6

MICRO COMPONENT SYSTEM

MB53920066

UX-N1SA,UX-N1SUS,UX-N1SUB,

UX-N1SUF,UX-N1SUP,UX-N1SUT,

UX-N1SUW,UX-N1SUY,UX-N1SUJ,

UX-N1WA,UX-N1WUS,UX-N1WUB,

UX-N1WUF,UX-N1WUP,UX-N1WUT,

UX-N1WUW,UX-N1WUJ

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

CA-UXN1S

for DIGIATLAUDIO PLAYER

IN LINE OUT

SP-UXN1SSP-UXN1S

CA-UXN1W SP-UXN1WSP-UXN1W

1-2 (No.MB539)

SPECIFICATION

Design and specifications are subject to change without notice.

Amplifier section OUTPUT POWER 10 W (5 W + 5 W) at 4 Ω(10% THD)

Speakers/Impedance 4 Ω- 16 Ω

Audio Input : LINE IN 500 mV/47 kΩ(at "LINE IN LVL1")

250 mV/47 kΩ(at "LINE IN LVL2")

125 mV/47 kΩ(at "LINE IN LVL3")

Audio output : LINE OUT 1.0 Vrms (47 kΩ) (at "LINE OUT LVL1")

2.0 Vrms (47 kΩ) (at "LINE OUT LVL2")

Tuner section FM Tuning range 87.50 MHz - 108.00 MHz

AM Tuning range 530 kHz - 1 710 kHz (in 10 kHz spacing)

531 kHz - 1 710 kHz (in 9 kHz spacing)

CD player section Dynamic range 88 dB

Signal-to-noise ratio 93 dB

Wow and flutter Immeasurable

Speakers Speaker units 8 cm cone ×1

Impedance 4 Ω

Dimensions (approx.) (W/H/D) 130 mm ×171 mm ×136 mm

Mass (approx.) 0.75 kg each

General Power requirements AC 110/220 - 240 V (adjustable with the voltage selector except for Hong Kong

and Australia), 50/60 Hz

AC 240 V , 50 Hz (only Australia)

AC 220 V , 50 Hz (only Hong Kong)

Power consumption 21.0 W (Power on)

5.0 W (Standby mode)

4.5 W or less (Save mode)

Dimensions (W/H/D) 270 mm ×68.5 mm ×203 mm

Mass 1.8 kg

(No.MB539)1-3

SECTION 1

PRECAUTION

1.1 Safety Precautions

(1) This design of this product contains special hardware and

many circuits and components specially for safety purpos-

es. For continued protection, no changes should be made

to the original design unless authorized in writing by the

manufacturer. Replacement parts must be identical to

those used in the original circuits. Services should be per-

formed by qualified personnel only.

(2) Alterations of the design or circuitry of the product should

not be made. Any design alterations of the product should

not be made. Any design alterations or additions will void

the manufacturers warranty and will further relieve the

manufacture of responsibility for personal injury or property

damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have

special safety-related characteristics. These characteris-

tics are often not evident from visual inspection nor can the

protection afforded by them necessarily be obtained by us-

ing replacement components rated for higher voltage, watt-

age, etc. Replacement parts which have these special

safety characteristics are identified in the Parts List of Ser-

vice Manual. Electrical components having such features

are identified by shading on the schematics and by ( ) on

the Parts List in the Service Manual. The use of a substitute

replacement which does not have the same safety charac-

teristics as the recommended replacement parts shown in

the Parts List of Service Manual may create shock, fire, or

other hazards.

(4) The leads in the products are routed and dressed with ties,

clamps, tubings, barriers and the like to be separated from

live parts, high temperature parts, moving parts and/or

sharp edges for the prevention of electric shock and fire

hazard. When service is required, the original lead routing

and dress should be observed, and it should be confirmed

that they have been returned to normal, after reassem-

bling.

(5) Leakage shock hazard testing

After reassembling the product, always perform an isola-

tion check on the exposed metal parts of the product (an-

tenna terminals, knobs, metal cabinet, screw heads,

headphone jack, control shafts, etc.) to be sure the product

is safe to operate without danger of electrical shock.Do not

use a line isolation transformer during this check.

• Plug the AC line cord directly into the AC outlet. Using a

"Leakage Current Tester", measure the leakage current

from each exposed metal parts of the cabinet, particular-

ly any exposed metal part having a return path to the

chassis, to a known good earth ground. Any leakage cur-

rent must not exceed 0.5mA AC (r.m.s.).

• Alternate check method

Plug the AC line cord directly into the AC outlet. Use an

AC voltmeter having, 1,000Ωper volt or more sensitivity

in the following manner. Connect a 1,500Ω10W resistor

paralleled by a 0.15µF AC-type capacitor between an ex-

posed metal part and a known good earth ground.

Measure the AC voltage across the resistor with the AC

voltmeter.

Move the resistor connection to each exposed metal

part, particularly any exposed metal part having a return

path to the chassis, and measure the AC voltage across

the resistor. Now, reverse the plug in the AC outlet and

repeat each measurement. Voltage measured any must

not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5

mA AC (r.m.s.).

1.2 Warning

(1) This equipment has been designed and manufactured to

meet international safety standards.

(2) It is the legal responsibility of the repairer to ensure that

these safety standards are maintained.

(3) Repairs must be made in accordance with the relevant

safety standards.

(4) It is essential that safety critical components are replaced

by approved parts.

(5) If mains voltage selector is provided, check setting for local

voltage.

1.3 Caution

Burrs formed during molding may be left over on some parts

of the chassis.

Therefore, pay attention to such burrs in the case of pre-

forming repair of this system.

1.4 Critical parts for safety

In regard with component parts appearing on the silk-screen

printed side (parts side) of the PWB diagrams, the parts that are

printed over with black such as the resistor ( ), diode ( )

and ICP ( ) or identified by the " " mark nearby are critical

for safety. When replacing them, be sure to use the parts of the

same type and rating as specified by the manufacturer.

(This regulation dose not Except the J and C version)

Good earth ground

Place this

probe on

each exposed

metal part.

AC VOLTMETER

(Having 1000

ohms/volts,

or more sensitivity)

1500 10W

0.15 F AC TYPE

1-4 (No.MB539)

1.5 Important for laser products

1.CLASS 1 LASER PRODUCT

2.CAUTION :

(For U.S.A.) Visible and/or invisible class II laser radiation

when open. Do not stare into beam.

(Others) Visible and/or invisible class 1M laser radiation

when open. Do not view directly with optical instruments.

3.CAUTION : Visible and/or invisible laser radiation when

open and inter lock failed or defeated. Avoid direct

exposure to beam.

4.CAUTION : This laser product uses visible and/or invisible

laser radiation and is equipped with safety switches which

prevent emission of radiation when the drawer is open and

the safety interlocks have failed or are defeated. It is

dangerous to defeat the safety switches.

5.CAUTION : If safety switches malfunction, the laser is able

to function.

6.CAUTION : Use of controls, adjustments or performance of

procedures other than those specified here in may result in

hazardous radiation exposure.

REPRODUCTION AND POSITION OF LABELS and PRINT

!Please use enough caution not to

see the beam directly or touch it

in case of an adjustment or operation

check.

CLASS 1

LASER PRODUCT

WARNING LABEL and PRINT

(No.MB539)1-5

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

Please refer to "UX-N1 (No.MB514)" about this section.

SECTION 3

DISASSEMBLY

Please refer to "UX-N1 (No.MB514)" about this section.

SECTION 4

ADJUSTMENT

Please refer to "UX-N1 (No.MB514)" about this section.

SECTION 5

TROUBLESHOOTING

Please refer to "UX-N1 (No.MB514)" about this section.

(No.MB539)

Audio/Video Systems Category 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

Victor Company of Japan, Limited

VPT

Printed in Japan

SCHEMATIC DIAGRAMS

UX-N1SA,UX-N1SUS,UX-N1SUB

UX-N1SUF,UX-N1SUP,UX-N1SUT

UX-N1SUW,UX-N1SUY,UX-N1SUJ

UX-N1WA,UX-N1WUS,UX-N1WUB

UX-N1WUF,UX-N1WUP,UX-N1WUT

UX-N1WUW,UX-N1WUJ

Contents

Block diagrams

Standard schematic diagrams

Printed circuit boards

2-1

2-2

2-6 to 8

CD-ROM No.SML200606

MICRO COMPONENT SYSTEM

No.MB539SCH

2006/6

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

CA-UXN1S

for DIGIATLAUDIO PLAYER

IN LINE OUT

SP-UXN1SSP-UXN1S

CA-UXN1W SP-UXN1WSP-UXN1W

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the

parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "

mark nearby are critical for safety.

2-1

Block diagram

CN601

CD pickup

mechanism

CN431

CN432

CN707

CN316

CN911

CN311

CN312

J3301 J3001

CN703

CN313

CN704

CN314

CN702

CN251

CN701

CN221

CN511

CN602

CD traverse

mechanism

IC601

FOCUS

TRACKING

SPINDLE

FEED

BTL. AMP.

IC602

DSP

IC701

MICON

IC604

BUFFER

X7001

8MHz

IC702

EEPROM

IC511

DOOR

MOTOR

DRIVER

IC303

E.VOLUME

IC301

POWER AMP.

Q3101,Q3201

Q3303

MUTING

Q4601 to Q4603

LINE MUTING

IC451

LINE IN AMP.

IC452,Q4501

QP LINK

Q4604 to Q4606

LINE VOLUME

S7001

DOOR

DETECT

Q4102

Q4202

Q4302

Q3601

Q3602

IC401,IC402

Q4011,Q4012

Q4101,Q4201

Q4301

SENSE AMP.

S2501 to S2508

KEY MATRIX

Q2501,Q2502

D2501 to D2503

LED

IC221

LCD DRIVER

DI221

LCD DISPLAY

IC241

REMOCON

Q2411,D2411

STANDBY LED

Q2210,Q2202

D2201,D2202

BACK LIGHT

CD servo control section System control section

Touch sense section

Key switch section

LCD section

Main section Main section

(Terminal)

A+C

B+D

E, F

LD, PD

SP+/-

TRV+/-

FO+/-

TR+/-

SENSE CD

SENSE FM/AM

SENSE LINE

OSC

FM/AM

LINE

FM/AM

LINEIN

FAN1,FAN2, QPLINK, LVOL

SMUTE, LMUTE

SW10, FTU, FCD, SAFTY1,SAFTY2

VOLDATA, VOLCE, VOLCK, S.BASS

TUCE, TUCLK,TUDI, TUDO

TUCE,TUCLK,TUDI,TUDO

TUNERL/R

KEY0

KEY4

KEY0

KEY4

TP.LED

POUT

/INH

LCDCS

LCDCLK

LCDDATA

/INH

LCDCS

LCDCLK

LCDDATA

REM

LEDDIM

POUT

REM

COM1 to COM4

SG1 to SG38

CDSW

TRVP

SPOUT

TRP

FOP IRQ

STAT

IRQ

STAT

E2CLK

E2DATA

MLD, MDATA, MCLK

CDREST

CDL/R

CDL

CDR

Q7002

Q7003

BUP

BCTL

Q7001

RESET

TOUCH

SENSOR

J4351 CN101

CN103

CN102

LINE IN

J4352

LINE OUT

Q8101 to Q8104

FAN DRIVE

CN811

DOOR

DRIVE

MOTOR

MOTOR1

MOTOR2

SMUTE POUT

S.BASS

LMUTELVOL

LSEL0

RSEL0

QPLINK

FAN1

FAN2

VOLCE

VOLCK

VOLDATA

LOPOUT

ROPOUT

OPEN

HEADPHONE

SPEAKER

L+/-

R+/-

TUNER

UNIT

FAN

MOTOR

Q3311

Q3312

SAFTY1

T901

POWER

TRANS.

CN104

CN105

S1001

VOLTAGE

SELECTOR

AC IN

CD8V

US6V

Q3501,Q3502

CD8V REG.

Q3801,Q3802

TU9V REG.

Q3401,Q3402

SW9V REG.

IC711

US6V REG.

IC911

DAB6V REG.

D1001

DIODE

BRIDGE

FCD

SAFTY2

FTU

SW10

CD8V

TU9V

SW9V

DAB6V

US6V

POUT

Used for Area suffix

US/UT/UW/UY/UJ

Used for Area suffix

A/UB/UF/UP

RDSCLK, RDSDAT

Used for Area suffix UP

RDSCLK, RDSDAT

Used for Area suffix UP

2-2

Parts are safety assurance parts.

When replacing those parts make

sure to use the specified one.

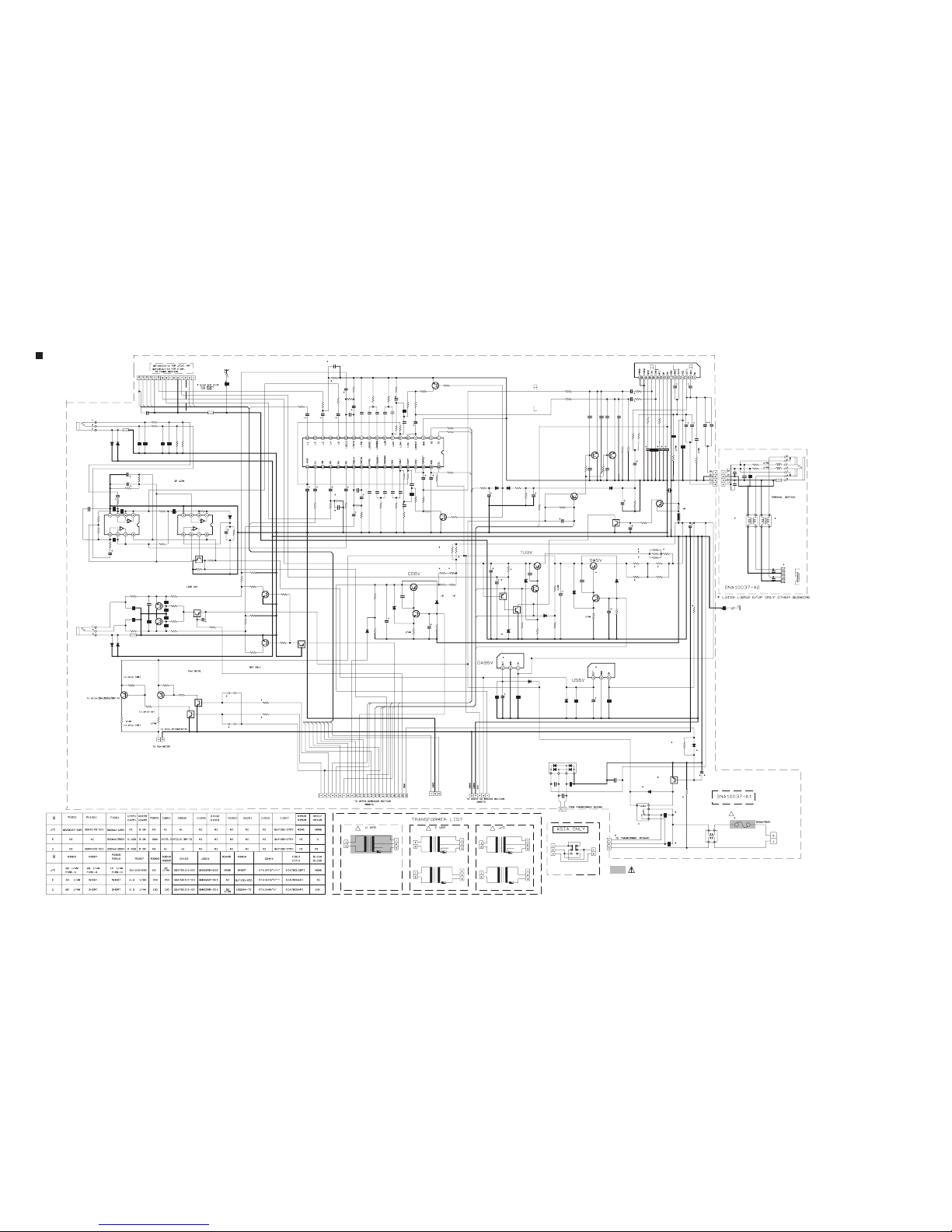

Standard schematic diagrams

Amplifier section

S1001

C3208

C3108

L3101

R3108

R3208

K3301

R4512

CN313

Q4606

C4510

C3803

R3403

R3804

R3807

R3805

D3302

C3309 R3301

Q3303

R3306

C3310

R3305

C3311

R3308

R3309

D3305

D3306

C3312

R3310

C3301

CN311 CN312

Q3402

Q3502

D3402

C3402

R3401

Q3401

C3401 R3402

Q4605

D3401

R3505

Q4604 R4614

R3507

R3509

R3510

C9003

C9002

C1001

C1004

C1005

C1008

D1002

C9001

RY101

CN102

D1001

CN103

J3301

C1006

C1007

R4615

K901

LF101

F1001

IC711

D7102

D7101

IC303

C3144

R4601

C4601

C3143C3142

C3154 Q3602

R3142

R3143

R3141 R3140

R3147

R3247

C3254

R3243

Q3601 R3242

C7103

C7102 C7101

L3201

CN314

IC911

R4608

R3106

J4351

R4251

R4151

K4351

IC451

C4503

C4502

R4506

R4507

C4504

C4505

D4501

IC452

C4602

R4505

R4503

J4352

R4502

R4501

Q4501

R3250

R3206

CN911

R4602

R4603

R4604

R4605

R4606

Q4603

D3502

R3504

R3503

C3503

D3501

C3502

R3502

Q3501

C3501 R3501

D3503

R3154

C4508

C4506

C4509

C4507

K4602

C3802

C3801

R3802

R3801

R3343

R3342

Q3801

R3803

R4510

R4607

C4603

R3209

R3109

R4609

Q8101

R4610

R4611

R8103

R8101

Q8102

R8104

R8102

R8105

R8106

Q8103

Q8104

CN811

L3202

R3344

L3102

C3213

C3113

C3114

C3214

R1003

J3001

CN105

CN101

T901T901

C1003

C9004

R3155

T901

IC301

CN316

Q1001

R3255

T901

C3151

C3251

R3311

Q3311

R3312

C3313

R3806

Q3312

CN104

R3508 R3506

R3404

R3405 R3406

R8107

R8108

B1106

B1104

TH101

C3106

C3104

C3304

C3303

C3105

C3201

C3202

C3101

C3102

R3102

R3101

C3204

R3202

R3203

R3103

C3206

C3302

C3205

R3201

C3305

C3207

C3107

Q3101

Q3201

R3205

R3105

R3104

R3204

Q3802

D3801

C3404

R3411R3412

D3403

R3146

R3148

C3150

C3149

C3148

C3145

C3141

C3140

C3152

C3153

R3145

R3144

C3157

C3155

R3150 C3156

R3149

C3342

C3249

C3248

C3245

C3244

C3243

C3242

C3241

C3240

R3241

R3240

R3246

R3248

C3252

C3253

C3250

R3245

R3244

C9102

C9101

C9103

R4613

R4612

R4152

R4252

D4353

D4352

C4501

R4509

R4504

R4508

D4602

C3257

C3255

C3256

R3249

Q4601

Q4602

C4151

C4251

C4152

C4252

C4604C4605

R3152

R3151

R3254

R3252

R3251

R4511

R3307

D4601

D3802

C3341

R3341

R1001

Q3803

C4606

C4607

C4608C4609

C3112

C3212

Q3804

D1003

C3109

C3110

C3111

C3209

C3210

C3211

QSW1190-001

10/35

4.7u

120

NQR0502-002X

15K

QGF1040C1-23

0.22

0.01

1SS133-T2

0.1/50 4.7K

2SA1530A/QR/-X

5.6K

22/16

10K

1/50

220K

120K

1SS133-T2

10/25

22K

6800/25

QGB2510J1-04 QGB2510K2-04

2SC3928A/QR/-X

MTZJ6.2B-T2

0.01

470

10/25 6.8K

2SC3661-X

1SS133-T2

2SC3661-X 4.7K

0.0033

1000P

0.01

0.001

QGA3901C1-02

FL402

QNS0272-001

4.7K

QQR1645-001

QMF51W2-R20-J8

1SS133-T2

MTZJ8.2B-T2

LC75345M-X

470P

0.47 2SC3661-X

47K

15k

22K

7.5K NI

6.2K

6.2k

0.47

22K

2SC3661-X

47K

0.1

100/16 0.1

4.7u

QGA2001C1-05

47K

6.8K

QNS0271-001

13K

NJM4565M-WE

47/16

47K

2.2/50

1SS133-T2

NJM4565M-WE

470P

2.2K

220K

QNS0271-001

4.7K

RT1N44HC-X

15k

6.8K

QGF1208C1-15

2SC3661-X

300

2.2K

2SC3661-X

2.2K

300

RT1P441C-X

18K

39K

100/16

MTZJ5.6A-T2

0.01

270

KTB772/Y/

10/25 6.8K

1SS133-T2

NI 100P

100P

100/16

470

20K

4.7K

KTB772/Y/

10/25

47K

3.3K

2SA1530A/QR/-X

10K

RT1N431C-X

QGA2001C1-02

QQR0797-002

4.7K

QQR0797-002

220P

3300P

QGA7901C1-03

QGA7901F1-02

QQQT0511-001QQT0512-001

1000p

QQT0513-001

QQT0511-002

BA5417

QJP007-031700-E

QQT0512-002

0.22

KTA1267/YG/-T

68k

22u/25V

RT1N141C-X

QGA7901C1-02

QAD0159-001

100/16

220/16

47/16

0.022

22/16

2200/16

22/16

2200/16

820

2.2

100/16

820

18K

100/16

0.1

0.022

2.2

1/50

330P

2SC3661-X

2.2K

47K

RT1P141C-X

2SC3928A/QR/-X

MTZJ5.6B-T2

100/16

9.1K

3.6K

1SS133-T2

1.8K

220K

22/16

10/25

0.1/50

4.7/50

0.0027

0.1

0.068

1.5K

2.2K

390P

4.7/50

3.3K

220/10

10/25

0.1/50

4.7/50

0.0027

0.1

7.5k

1.8k

220K

0.068

22/16

1.5k

2.2k

100/16

0.1

3.6K

51K

1SS133-T2

10/25

100K

390P

4.7/50

3.3K

1SS133-T2

220P

NINI

220/10

100

RT1P430C-X

100P

100PNI

RT1N141C-X

470P

SAFTY1

SW10

CDR

FTU

S.BASS

L+

R+

VOLDATA

VOLCE

VOLCK

L-

CDL

R-

SAFTY2

CDL

LVOL

LMUTE

SW10

FTU

VOLCK

S.BASS

TUCE

SMUTE

TUCLK

RDSCLK

SAFTY1

TUCE

TUNERR

RDSDAT

TUNERL

VOLCE

VOLDATA

TUDO

TUCLK

TUDI

QPLINK

3.3V

TUDO

POUT

SMUTE

TUDI

CDR

RDSDAT

FCD

RDSCLK

US6V

VCC9V

CD8V

FAN2

FAN1

POUT

!!!

2-3

Micon section

IC701

R7056

R7057

R7058

R7059

R7060

R7064

R7061

R7062

R7063

C7010

R7065

R7054 R7053

C7017

R7038

R7066

R7067

R7041

C7014

L7002

CN706

CN705

R7016

R7017

R7018

R7019

R7020

R7040

R7039

R7045

R7044

R7043

R7042

R7046

R7037

R7035

R7034

R7033

R7032

CN704

R7031

R7030

R7029

IC702

C7015

CN703

R4305

C7001

C7005

L7001

D7004

R7005

C7004

C7006

C7003

R7004

D7003

Q7002

D7002

R7002

Q7001

R7001 D7001

C7007

C7008

K7001

C4005

Q4202

R4008

CN702

C7016

Q4102

R4017

Q4101

Q4301

R4016 R4012

R7070

C4012 Q4012

R4014

R4015

R4013

Q4201

IC402

R4101C4103

C4202R4202

R4103

R4102

R4104

R4204

R4203

R4201 C4201

C4102

C4101

C4203

IC401

R7052

R4301

C4303

R4303

R4302

R4304

R4002

R4003

C4302

C4301

CN707

R7051

R7050

R7049

S7001

R7055

Q4302

IC511

C5102

CN511

CN701

D5101

C7011

C7012

C7013

R7048

R7068

R7022

L7003

Q7003

C7009

R7006

R7007

R7008

R7009

R7010

R7011

R7012

R7013

R7023

R7024

R7025

R7026

R7027

R7069

R7036

R7047

C4111

C4112

C4211

C4212

R7028

C4311

C4312

R7075

L7004

CN431

R4313

R4312

C7002

X7001

R4314

CN432

R4113

R4112

K7002

C4011

R4114R4011

R4213

R4212

R4214

R7074

R7073

R7072

R7071

Q4011

C4006

R4007 R4006

C4003

R4001R4005

C4004

R7076

R4315

R4316

C4313

C4314

C5101

MN101CP49K

22K

4.7K

2.2K

4.3K

2.2K

22K

22P

2.2K

1K 1K

0.001

2.2K

10K

0.001

4.7

QJK018-060601-E

QGF1040F1-05

100K

2.2K

QJK043-050400-E

2.2K

BR24L02F-W-X

0.047

QGF1040F1-23

10K

10/16

0.1

1SS133-T2

330

2200/6.3

100/10

150P

100K

1SS133-T2

RT1N430C-X

MTZJ5.1B-T2

10K

RT1N430C-X

10K 1SS133-T2

22P

NQR0389-003X

10/16

RT3WLMM/EF/-X

22K

QGF1040F1-06

0.001

RT3WLMM/EF/-X

100K

RT1N140C-X

100K 220K

2.2K

68P RT3CLLM/EF/-X

22K

10K

47K

RT1N140C-X

NJM4565M-WE

68K

100P

2P 1M

22K

68K 5P

100P

NJM4565M-WE

10K

68K

100P

22K

220K

QGA2001F1-03

10K

QSW0933-001

RT3WLMM/EF/-X

LB1641

0.1

QGA2501C1-02

QGF1040F1-09

MTZJ6.8B-T2

22P

2.2K

100K

2SA1530A/QR/-X

0.1

2.2K

100

10K

2.2K

QGF1038F2-05X

100K

2.2/50

QAX0902-001

10K

QGF1040F1-05

100K

NQR0389-003X

100/16

10K1M

100K

10K

2.2K

RT1N431C-X

1/50

30K 30K

680P

100K100K

10/16

100/16

0.01

LVOL

LMUTE

FTU

SW10

FCD

SMUTE

POUT

RSW

SAFTY2

DABSAVE

IRQ

VOLDATA

VOLCE

DABREST

RDSCLK

MLD

MCLK

STAT

MDATA

REM

CDSW

DABTX

DABRX

VOLCK

QPLINK

LCDDATA

CDREST

/INH

LCDCK

LCDCS

LEDDIM

KEY4

KEY0

TP.LED

SAFTY1

DABON

S.BASS

FAN1

FAN2

/INH

KEY0

LEDDIM

CDR

US6V

RDSCLK

REM

LCDCK

LCDDATA

SAFTY1

LCDCS

TP.LED

RSW

MGND

KEY4

AGND

CDREST

CDL

CDSW

RDSDAT

10V

FAN1

POUT

SW10

QPLINK

CD8V

TUDI

FCD

TUCLK

FTU

VOLCE

LVOL

VOLDATA

LMUTE

SAFTY2

TUDO

SMUTE

TUCE

S.BASS

FAN2

VOLCK

DABSAVE

DABREST

DABRX

DABTX

DABON

MLD

MCLK

MDATA

STAT

IRQ

TUDO

TUDI

TUCLK

RDSDAT

TUCE

DGND

2-4

CD section

C647

C646

C643

C649

C648

C645

C642

R624

IC602

IC604

TP601

IC601

Q601R659 R658

C650

R669

R655

R656

C651

R657

C644

R654

R653

R652

R651 R650

R649

R648 R647

R646

R645 R644

R643

R642 R641

R640

C641

C640

C639

C638

D602

R604

R605

R606

C602

C606

C607

C608

R610

R609

C604

C605

R613

R614

R616

R617

R615

R618

C610

C615

C611

R619

R612

C609

R611

C617

C618

C619

C620

C622

C623

C624

TP602

R625

C621

R628

R629

R630

R631

R632

R633

R627

R626

C632

R636 R637

C635

X601

R634

C661

R663

C660

TP612

TP611

R601

CN602

CN601

R660

D601

C636

C637

C633

R7077

C603

R608

R607

C614

C613

C616

C612

R621

R620

R668 Q602

C627

C628

C629

C631

C630

C626

C625

R635

R671

R623

R622

R662

R661

TP613

TP614

TP615

C653

R670

0.1

68P

0.01

0.1

82K

MN6627945EE

SN74LVC07ANS-X

AN41012A-W

KTA1273/Y/-T

100/16

8.2K

5.6K

3.3K

220/6.3

220/10

4.7K 3.3K

18K 12K

5.6K

8.2K

3.3K

015K

5.6K

27K

15K

5.6K

0.0022

0.0056

0.0068

0.0022

1SS133-T2

39K

390P

270P

0.022

1.8K

0.33

47/6.3

47K

4.7

47/6.3

0.1

680P

0.015

0.1

0.082

0.1

220/6.3

820

0.001

4.7K

2.2K

4.7K

0.22

220

0.1

QAX0901-001Z

2.2K

0.01

0.1

10K

QGA1501C5-06W

QGF1007F4-16

100

QUY150-050Y

0.0022

0.001

2700P

4.7K

33K

0.1

3300P

47/6.3

2SA1530A/QR/-X

0.1

47/6.3

4.7K

0.1

VREF

FO+

FO-

TR-

TR+

TRV+

SP-

TRV-

SP+

CDL

CDREST

MCLK

MDATA

MLD

IRQ

STAT

A+C

B+D

SP-

SP+

TRV-

TRV+

VREF

A+C

B+D

CDSW

FO-

TR-

TR+

FO+

CDR

FOP

TRP

SPOUT

TRVP

US6V

SPOUT

TRVP

TRP

FOP

MGND

CD8V

AGND

MCLK

MDATA

MLD

STAT

IRQ

CDREST

CDL

CDR

DGND

CDSW

2-5

FL and Key switch section

IC221

DI221

C2201

D2203

D2201

D2504

C2202

R2506

R2505

R2504

R2503

IC241

R2411

D2411

R2502

Q2411

S2508

D2505

S2507

R2202

S2506

R2201

R2501

S2504

S2505

S2503

S2502

S2501

Q2201 Q2202

D2202

R2509

R2508

R2203 R2206 R2207

R2208

CN221

Q2502

CN251

R2510

C2501

D2502

D2503

R2507

D2501

Q2501

PT6524LQ-L

QLD0429-001

0.022

1SS133-T2

NSPW310BS/B2RST

QUY150-050Y

100P

1.2K

510

430

1.2K

RPM7138-H9

390

SLR-342VC-T

510

RT1P141C-X

QSW1120-001Z

100

QSW1120-001Z

100

430

QSW1120-001Z

RT1N144C-X RT1N144C-X

NSPW310BS/B2RST

7.5K

270K

1K 1K

QGF1040F1-09

RT1N144C-X

QGF1040F1-06

220/16

SELU2E10C-P

2.2K

SELU2E10C-P

2SC3928A/QR/-X

COM1

COM3

/INH

LCDCS

LCDCLK

LCDDATA

COM4

SG17

SG18

SG19

SG20

SG21

SG22

SG23

SG24

SG25

SG26

SG27

SG28

SG29

SG30

SG31

SG32

COM2

SG38

SG37

SG34

SG33

SG32

SG31

SG30

SG29

SG28

SG27

SG26

SG25

SG24

SG23

SG22

SG21

SG20

SG19

SG18

SG17

SG16

SG15

SG14

SG13

SG12

SG11

SG10

SG9

SG8

SG7

SG6

SG5

SG4

SG3

SG2

SG1

COM4

COM3

COM2

COM1

POUT

SG35

SG1

SG2

SG3

SG4

SG5

SG6

SG7

SG8

SG9

SG10

SG11

SG12

SG13

SG14

SG15

SG16

REM

US6V

SG33

SG34

SG35

SG36

KEY4

KEY0

LCDDATA

/INH

LCDCLK

LCDCS

PT.LED

GND

SG36

SG37

SG38

2-6

Main board

Printed circuit boards

C609

C611

C612

C616

C624

C625

C626

C630

C631

C644

C650

C651

C4011

C7001

C7002

C7004

C7006

CN432

CN511

CN701

CN702

CN704

CN705

CN706

D601

D602

D5101

D7001

D7002

D7003

D7004

IC511

L7001

L7002

L7003

L7004

Q601

S7001

X601

X7001

CN707

CN703

CN602

CN601

C4313

C4314

D2201

D2202

D2203

D2411

DI221

IC241

CN221

C602

C603

C604

C605

C606

C607

C608

C609

C610

C611

C612

C613

C614

C615

C616

C617

C618

C619

C620

C621

C622

C623

C624

C625

C626

C627

C628

C629

C630

C631

C632

C633

C635

C636 C637

C638

C639

C640

C641

C642

C643

C644

C645

C646

C647

C648

C649

C650

C651

C653

C660

C661

C4011

C4111

C4112

C4211

C4212

C4311

C4312

C5101

C5102

C7001

C7002

C7003

C7004

C7005

C7006

C7007 C7008

C7009

C7010

C7011

C7012

C7013

C7014

C7015

C7016

C7017

CN432

CN511

CN701

CN702

CN704

CN705

CN706

D601

D602

D5101

D7001

D7002

D7003

D7004

IC511

IC601

IC602

IC604

IC701

IC702

R7076

R7077

L7001

L7002

L7003

L7004

Q601

Q602

Q7001

Q7002

Q7003

R601

R604

R605

R606

R607

R608

R609

R610

R611

R612

R613

R614

R615

R616

R617

R618

R619

R620

R621

R622

R623

R624

R625

R626

R627

R628

R629

R630

R631

R632

R633

R634

R635

R636

R637

R640

R641

R642

R643

R644

R645

R646

R647

R648

R649

R650

R651

R652 R653

R654

R655

R656

R657

R658

R659

R660

R661

R662

R663

R668

R669

R670

R671

R4011

R4112

R4113

R4114

R4212

R4213

R4214

R4312

R4313

R4314

R7001

R7002

R7004

R7005

R7006

R7007

R7008

R7009

R7010

R7011

R7012

R7013

R7016

R7017

R7018

R7019

R7020

R7022

R7023

R7024

R7025

R7026 R7027

R7028

R7029

R7030

R7031

R7032

R7033

R7034

R7035

R7036

R7037

R7038

R7039

R7040

R7041

R7042

R7043

R7044

R7045

R7046

R7047

R7048

R7049

R7050

R7051

R7052

R7053 R7054

R7055

R7056

R7057

R7058

R7059

R7060

R7061

R7062

R7063

R7064

R7065

R7066

R7067

R7068

R7069

R7070

R7071

R7072

R7073

R7074 R7075

S7001

TP601

TP602

TP611

TP612

TP613

X601

X7001

CN707

K7001

K7002

CN703

Q4102

Q4202

Q4302

R4316

R4315

C4313

C4314

C2201

C2202

D2201

D2202

D2203

D2411

IC221

IC241

Q2201

Q2202

Q2411

R2201

R2202

R2203

R2206

R2207

R2208

R2411

CN221

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

forward side reverse side

(CD & Micon board) (CD & Micon board)

(LED board) (LED board)

2-7

Sub board

Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

C1001

C1004

C1005

C1006

C1007

C1008

C3101

C3102

C3104

C3105

C3106

C3107

C3108

C3109

C3110

C3111

C3140

C3141

C3142

C3143

C3144

C3145

C3146

C3148

C3149

C3150

C3152

C3153

Q3401

C3155

C3156

Q4606

C3201

C3202

C3204

C3205

C3206

C3207

C3208

C3209

C3210 C3211

C3240

C3241

C3242

C3243

C3244

C3245

C3246

C3248

C3249

C3250

C3252

C3253

Q3402

C3255

C3256

C3157

C3301

C3302

C3303

C3304

C3305

D3401

D3402

C3309

C3310

C3311

C3312

C3341

C3342

C3401

C3402

R3401

C3404

C3501

C3502

C3503

C3801

C3802

C4151

C4152

C4251

C4252

C4501

C4502

C4503

C4504

C4505

C4506

C4507

C4508

C4509

C4601

C4602

C4603

C4604

C4605

C4606

C4607

C4608

C4609

C7101

C7102

C7103

C9101

C9102

C9103

CN101

CN102

CN103

CN311

CN314

CN811

CN911

D1001

D1002

R3402

D3302

D3305

D3306

D3403

D3501

D3502

D3503

D3802

D4352

D4353

D4501

D4601

D4602

D7101

D7102

IC303

IC451

IC452

IC711

IC911

J4351

J4352

R3155

LF101

Q1001

Q3101

Q3201

Q3303

Q3501

Q3502

Q3601

Q3602

Q3802

Q4501

Q4601

Q4602

Q4603

Q4604

Q4605

Q8101

Q8102 Q8103

Q8104

R3101

R3102

R3103

R3104

R3105

R3106

R3109

R3140

R3141

R3142

R3143

R3144

R3145

R3146

R3147

R3148

R3149

R3150

R3151

R3152

R3154

R3201

R3202

R3203

R3204 R3205

R3206

R3209

R3240

R3241

R3242

R3243

R3244

R3245

R3246

R3247

R3248

R3249

R3250

R3251

R3252

R3254

R3301

R3305

R3306

R3307

R3308

R3309

R3310

R3341

R3342

R3343

R3344

R4512

R3411

R3412

R3501

R3502

R3503

R3504

R3801

R3802

R3803

R4151

R4152

R4251

R4252

R4501

R4502

R4503

R4504

R4505

R4506

R4507

R4508 R4509

R4510

R4511

R4601

R4602

R4603

R4604

R4605

R4606

R4607

R4608

R4609

R4610

R4611

R4612

R4613

R8101

R8102

R8103

R8104

R8105

R8106

Z1001

Z1011

Q3801

K4351

K4602

C3154

C3254

C9001

C9002

C9003

IC301

R3404

C3151

C3251

R3255

RY101

R3506

CN313

R3311

Q3311

R3312

R4615

R4614

W302

CN316

K901

C3257

C4510

C3803

D3801

R3403

R3804

R3505

R3508

R3507

R3805

R3806

Q3803

Q3804

D1003

C1003

R1003

C9004

C3313

Q3312

R3312

R8107

R8108

TH101

R3405

R3406

C2501

CN251

D2501

D2502

D2503

Q2501

Q2502

R2501

R2502

R2503

R2504

R2505

R2506

R2507

R2508

R2509

R2510

S2501 S2502

S2503S2504

S2505

S2506

S2507

S2508

D2504

D2505

C3112

C3113

C3114

C3212

C3213

C3214

CN312 J3001

J3301

L3101

L3102

L3201

L3202

R3108

R3208

K3301

(Tact switch & LED board)

(Speaker board)

(Power & Audio board)

2-8

Touch board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade) Voltage board Lead free solder used in the board (material : Sn-Ag-Cu, melting point : 219 Centigrade)

C4101

C4102

C4103

C4201

C4202

C4203

C4301

C4302

C4303

IC401

IC402

R4001
