ENGLISH - 15 -
Safety Precautions
1. Power Source
The receiver should be operated only from a 220-240V AC,
50 Hz. outlet. Ensure you select the correct voltage setting
for your convenience.
2. Power Cord
The power supply cord should be placed so that they are not
likely to be walked on or pinched by items placed upon them
or against them. Pay particular attention to cord where they
enter the plug, power outlet, and the point where they e it
from the receiver.
3. Moisture and Water
Do not use this equipment in a humid and damp place (avoid
the bathroom, the sink in the kitchen, and near the washing
machine). Do not e pose this equipment to rain or water, as
this may be dangerous and do not place objects filled with
liquids on top. Avoid from dripping or splashing.
4. Cleaning
Before cleaning, unplug the receiver from the main supply
outlet. Do not use liquid or aerosol cleaners. Use with soft
and dry cloth.
5. Ventilation
The slots and openings on the receiver are intended for venti-
lation and to ensure reliable operation. To prevent overheating,
these openings must not be blocked or covered in anyway.
6. Lightning
In case of storm and lightning or when going on holiday, dis-
connect the power cord from the wall outlet.
7. eplacement Part
When replacement parts are required, be sure the service
technician has used replacement parts which are specified
by the manufacturer or have the same specifications as the
original one. Unauthorized substitutions may result in fire,
electrical shock, or other hazards.
8. Servicing
Please refer all servicing to qualified personnel. Do not re-
move cover as this may result in electric shock.
9. Flame sources
Do not place naked flame sources on the apparatus.
10. Stand-By
Do not leave your TV stand-by or operating condition when you
leave your house.
Warning!
Any intervention contrary to regulations, in particular, any
modification of high voltage or a replacement of the picture
tube may lead to an increased concentration of x-rays. Any
television modified in this way no longer complies with license
and must not be operated.
Instructions for waste disposal:
Packaging and packaging aids are recyclable and should
principally be recycled. Packaging materials, such as foil
bag, must be kept away from children.
Batteries, including those which are heavy metal-free, should
not be disposed of with household waste. Please dispose of
used batteries in an environmentally sound manner. Find out
about the legal regulations which apply in your area.
Contents
Safety Precautions ................................................. 15
Remote Control Buttons ........................................ 16
Control Panel Buttons ............................................ 17
Antenna Connections .............................................17
Preparation .............................................................. 18
Features .........................................................................18
Before Switching on your V ................................ 18
Power connection ............................................................ 18
Aerial Connections .......................................................... 18
How to connect the e ternal equipments .........................18
Inserting batteries in the remote control handset ............. 18
Switching the V ON/OFF ...................................... 18
To switch the TV on ......................................................... 18
To switch the TV off ......................................................... 18
Initial Settings ......................................................... 18
Operating with the onset buttons .....................................19
Operating with Remote Control ........................................ 19
Menu System ........................................................... 19
Sound Menu .................................................................... 19
Picture Menu .................................................................. 20
Feature Menu ..................................................................21
Install. Menu ...................................................................21
Program. (Programming) Menu ....................................... 22
Other Features........................................................ 23
Sound Mute ....................................................................23
Information on Screen ..................................................... 23
To Display the Time......................................................... 23
Standard .........................................................................23
VCR Control Buttons ....................................................... 23
eletext .................................................................... 23
To operate Telete t .......................................................... 23
To select a page of Telete t ............................................. 23
To Select Inde Page ...................................................... 24
Searching for a telete t page while watching TV .............. 24
To Select Double Height Te t .......................................... 24
To Reveal concealed Information ................................... 24
To Stop Automatic Page Change .....................................24
To Select a Subcode Page .............................................. 24
To e it Telete t ................................................................ 24
Faste t and Topte t ........................................................24
Connect the External Equipments ........................ 25
Via the Euroconnector ..................................................... 26
RGB mode ...................................................................... 26
AV-2 S Mode ...................................................................26
Via the RCA jacks ........................................................... 26
Via the ANT (aerial) socket.............................................. 26
TV and Video Recoder (VCR) ..........................................26
NTSC Playback ..............................................................26
Copy Facility ...................................................................26
Connecting Headphones .................................................26
ips ........................................................................... 26
Specifications .......................................................... 27
02-ENG&BG-3D-AK30-C1100-2156MAV-(AV-21PS4N)-50049807.p65 17.02.2004, 18:5015

ENGLISH - 16 -
Remote Control Buttons
CAUTION
RISK OF ELECTRIC SHOCK
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk
of electric shock of persons.
The e clamation point within an equilateral triangle is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the appliance.
= Stand By / Power
0 - 9 = Direct Program
Standard Button (PICTURE default settings)
Colour Buttons
MENU = Menu Button
( ) = Cursor Up / Programme Up
( ) = Cursor Right / Volume +
Telete t Control Buttons
VCR Control Buttons
( ) = Cursor Down / Programme Down
( ) = Cursor Left / Volume -
AV = AV Button
= Information Button
= Mute
02-ENG&BG-3D-AK30-C1100-2156MAV-(AV-21PS4N)-50049807.p65 17.02.2004, 18:5016

ENGLISH - 17 -
Control Panel Buttons
Antenna Connections
02-ENG&BG-3D-AK30-C1100-2156MAV-(AV-21PS4N)-50049807.p65 17.02.2004, 18:5017

ENGLISH - 18 -
Preparation
Place TV on a solid surface.
For ventilation, leave a space of at least 10 cm free all around
the set. To prevent any fault and unsafe situations, please do
not place any objects on top of the set.
Use this apparatus in tropical and/or moderate climates.
Features
 It is a remote controlled colour television.
 100 programmes from VHF, UHF bands or cable channels
can be preset.
 It can tune cable channels.
 Controlling the TV is very easy by its menu driven system.
 It has two Euroconnector sockets for e ternal devices (such
as video recorder, video games, audio set, etc.)
 Front AV Input available.
 Stereo sound systems (Nicam + German) are available.
 3D Panorama.
 Full function Telete t (Faste t, Topte t).
 It is possible to connect headphone.
 Direct channel access.
 APS (Automatic Programming System).
 All programmes can be named.
 Forward or backward automatic tuning.
 Sleep timer.
 Child Lock.
 Automatic sound mute when no transmission.
 5 minutes after the broadcasting (closedown), the TV
switches itself automatically to stand-by mode.
Before Switching on your TV
Power connection
Impor an : The TV set is designed to operate on 220-240 V
AC, 50 Hz.
 After unpacking, allow the TV set to reach the ambient room
temperature before you connect the set to the mains.
Aerial Connections
 Connect the aerial plug to the aerial input socket located at
the back of the TV.

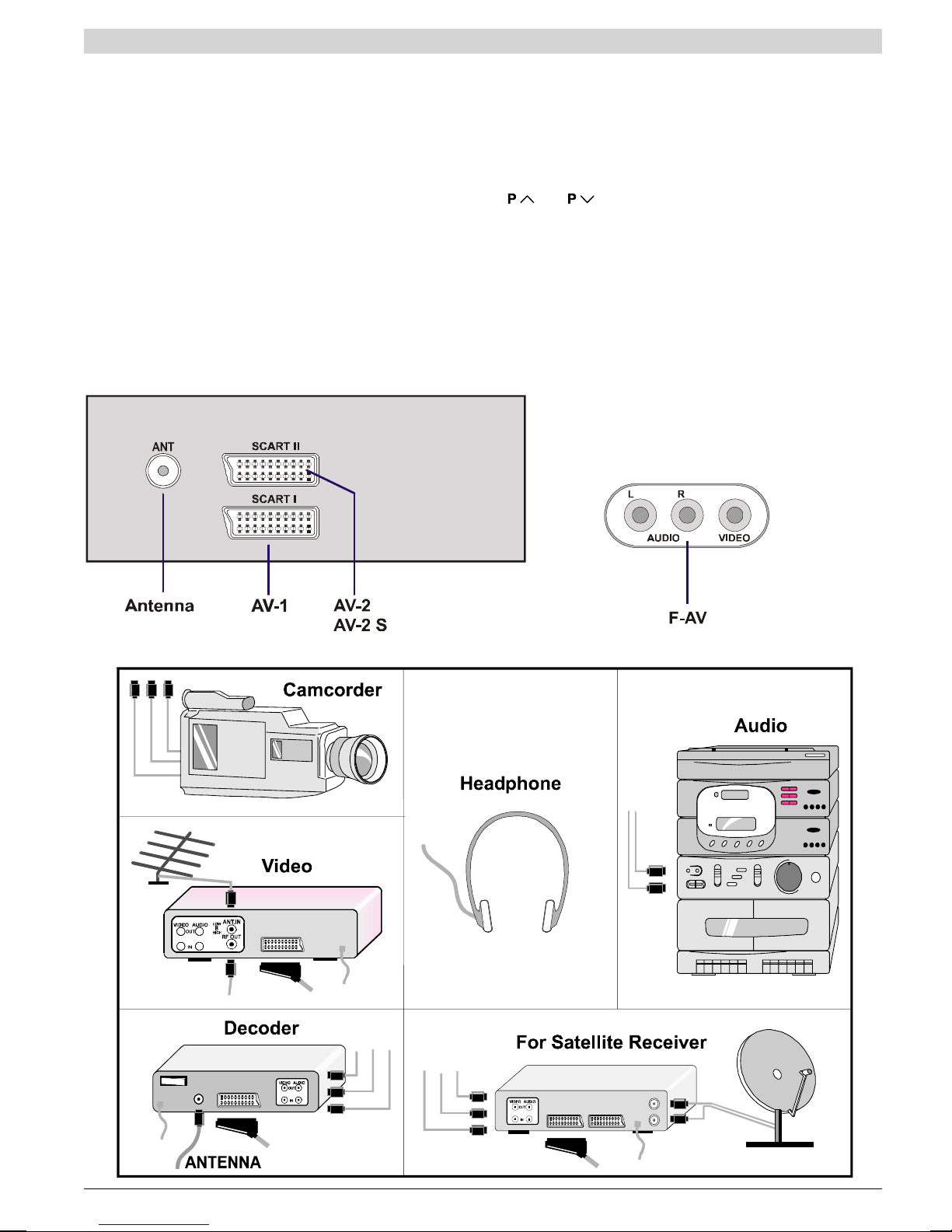

How to connect the external equipments
See Connec he Ex ernal Equipmen s on page 25.
 See the instruction manuals provided with the e ternal de-
vices too.

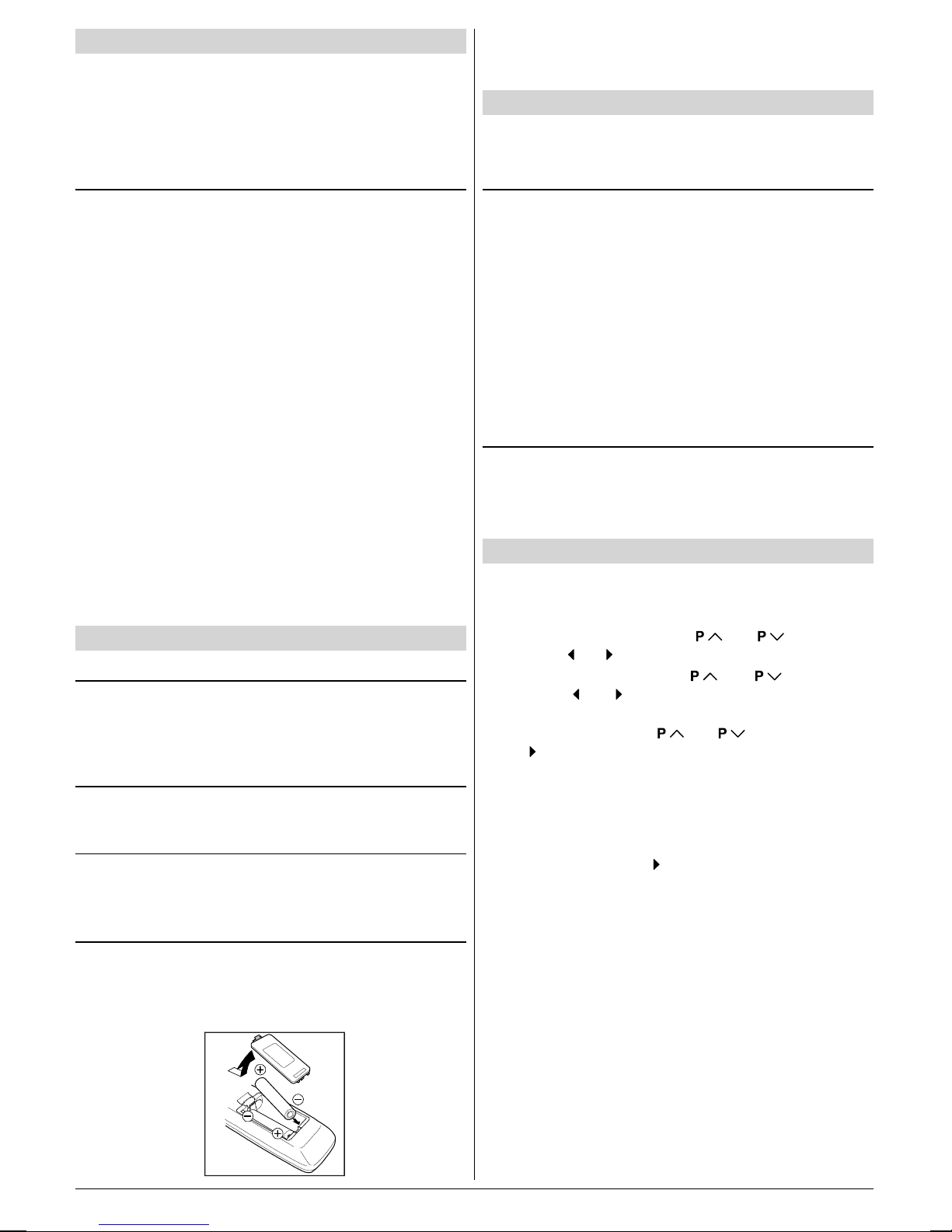

Inserting batteries in the remote control handset
 Remove the battery cover located on the back of the hand-
set by gently pulling upwards from the indicated part.
 Insert two AA (R6) or equivalent type batteries inside.
 Replace the battery cover.
NOTE: Remove batteries from remote control handset when it is
not to be used for a long period. Otherwise it can be damaged
due to any leakage of batteries.
Switching the TV ON OFF
You can operate your TV either using the remote control
handset or directly using the TV onset buttons.
To switch the TV on
Your TV will switch on in two steps:
1- Press the power button located on the front of the TV. Then
the TV switches itself to standby mode and the RED LED
located below the TV turns on.
2- To switch on the TV from stand-by mode either:
Press a digit button on the remote control so that a program-
me number is selected,
or,
Press Standby / Power Button or Programme Up and Down
buttons on the front of the TV or on the remote control re-
spectively, so the TV will switch on and the RED Led will turn
GREEN.
To switch the TV off
 Press the stand-by button on the remote control, so the TV
will switch to stand-by mode and the GREEN LED will be-
come RED, or,
 Press the power button located on the front of the TV.

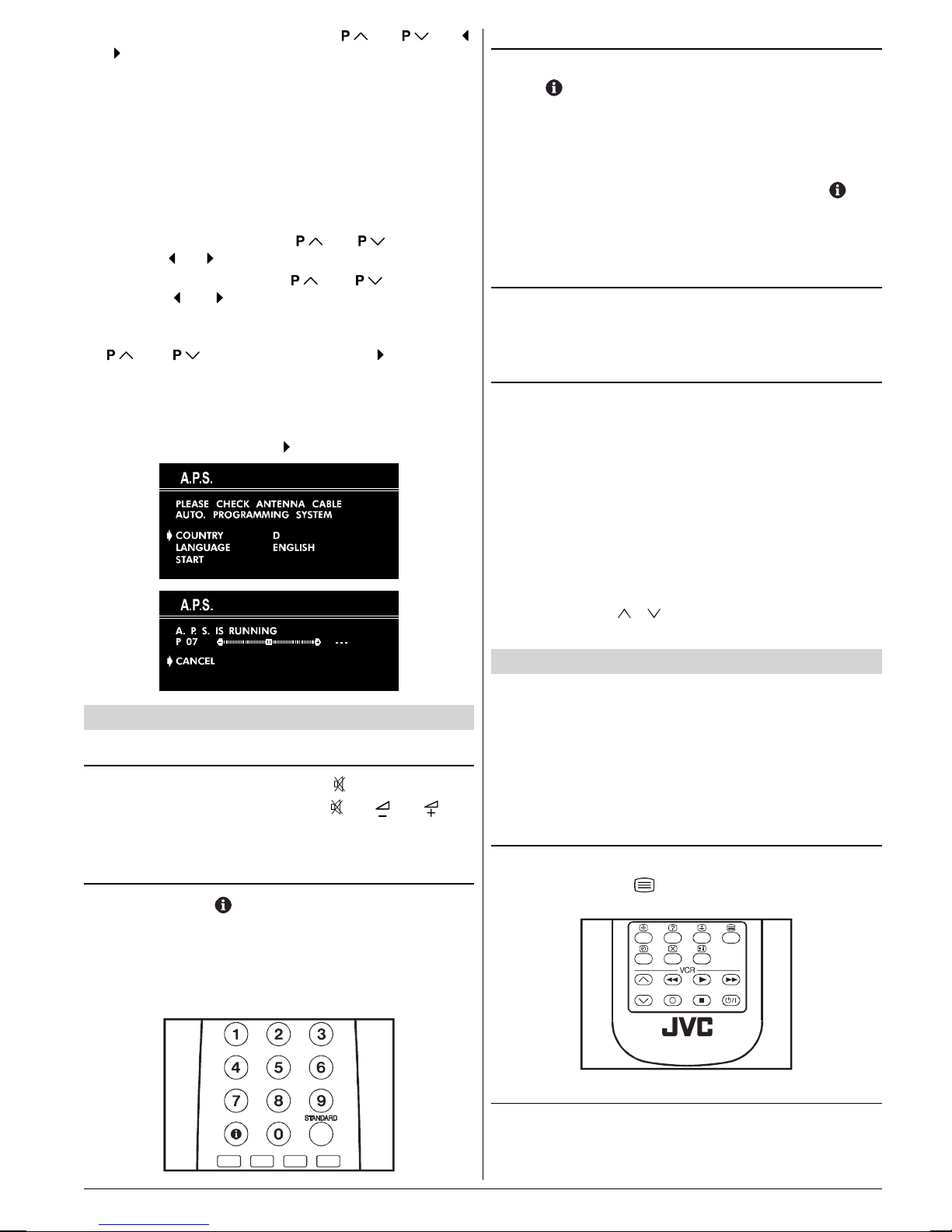

Initial Settings
The message "PLEASE CHECK ANTENNA CABLE AUTO.
PROGRAMMING SYSTEM" will be displayed when you turn
on your TV for the first time.
1- Select LANGUAGE with the   or   button, then
press the   or   button to select a menu language.
2- Select COUNTRY with the   or   button, then
press the   or   button to select the country you are
now located.
3- Select START with the   or   button, then press
the   button to start APS.
APS (Automatic Programming System) automatically pro-
grammes the received channels in your TVs programme
numbers. During APS, "A. P. S. IS RUNNING" will be dis-
played. After APS is finalized, the PROGRAM. menu ap-
pears.
To cancel APS, press the   button.
You can delete a channel, insert a channel into a programme
number, or re-start APS with the PROGRAM. menu.
For details, see Program. (Programming) Menu on page
22.
4- Press the "STANDARD" button to complete the initial set-
tings.
After the initial settings are complete, you can change a pro-
gramme number or to name a programme number or to pro-
gramme new channel manually. For details, see Ins all.
Menu on page 21.
If the message "PLEASE CHECK ANTENNA CABLE AUTO.
PROGRAMMING SYSTEM" does not appear, follow the de-
scription Program. (Programming) Menu on page 22 to
select a menu language and the country where you are now
located, and to use A.P.S..
02-ENG&BG-3D-AK30-C1100-2156MAV-(AV-21PS4N)-50049807.p65 17.02.2004, 18:5018
