SERVICE MANUAL
COPYRIGHT © 2006 Victor Company of Japan, Limited No.YA366
2006/4
COLOUR TELEVISION
YA36620064
AV-29L6SU
TABLE OF CONTENTS
1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
5 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28
BASIC CHASSIS
MR

1-2 (No.YA366)
SPECIFICATION
Design & specifications are subject to change without notice.
Items Contents
Dimensions ( W ×H ×D ) 67.0 cm ×61.6 cm ×40.4 cm
Mass 40.5 kg
TV RF System CCIR (B/G, I, D/K, L)
Colour System PAL, SECAM, NTSC3.58 / NTSC4.43 (Only EXT mode)
Stereo System A2 (B/G, D/K) / NICAM (B/G, I, D/K, L)
Receiving
Frequency
VHF 47 MHz - 470 MHz
UHF 470 MHz - 862 MHz
French CATV 116 MHz - 172 MHz
220 MHz - 469 MHz
Intermediate
Frequency
VIF 38.9 MHz (B/G, I, D/K, L)
SIF 33.4 MHz (5.5 MHz :B/G)
32.9 MHz ( 6.0 MHz:I )
32.4 MHz (6.5 MHz :L, D/K)
Colour Sub
Carrier Frequency
PAL 4.43 MHz
SECAM 4.40625 MHz / 4.25 MHz
NTSC 3.58 MHz / 4.43 MHz
Teletext System TOP (German system)
FLOF (Fastext)
WST (Standard system)
Power Input AC220 V - AC240 V, 50 Hz
Power Consumption 132 W, Standby : 2.8 W
Picture Tube Visible size : 67.6 cm [measured diagonally] (H : 55.0 cm ×V : 41.5 cm)
High Voltage 31.0 kV (+1 kV / -1.5 kV) (at zero beam current)
Speaker 13 cm ×6.5 cm oval type ×2
Audio Power Output 10 W + 10 W
Aerial Input Terminal 75 Ωunbalanced, coaxial
EXT-1 / EXT-2 (Input / Output) 21-pin Euro connector (SCART socket ×2)
EXT-3 (Input) Video
Audio (L/R)
1 V(p-p) 75 Ω, RCA pin jack ×1
500 mV(rms) (-4 dBs), High impedance, RCA pin jack ×2
Headphone Jack 3.5 mm stereo mini jack ×1
Remote Control Unit RM-C1502 (AA/R6 dry cell battery ×2)

(No.YA366)1-3
SECTION 1
PRECAUTION
1.1 SAFETY PRECAUTIONS
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should be
made to the original design unless authorized in writing by
the manufacturer. Replacement parts must be identical to
those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by ( ) on the parts list in Service
manual. The use of a substitute replacement which does
not have the same safety characteristics as the
recommended replacement part shown in the parts list of
Service manual may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : ( ) side
GND, the ISOLATED (NEUTRAL) : ( ) side GND and
EARTH : ( ) side GND.
Don't short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND at the same time with a
measuring apparatus (oscilloscope etc.). If above note will
not be kept, a fuse or any parts will be broken.
(5) If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See B1 POWER SUPPLY check).
(6) The high voltage applied to the picture tube must conform
with that specified in Service manual. Excessive high
voltage can cause an increase in X-Ray emission, arcing
and possible component damage, therefore operation
under excessive high voltage conditions should be kept to
a minimum, or should be prevented. If severe arcing
occurs, remove the AC power immediately and determine
the cause by visual inspection (incorrect installation,
cracked or melted high voltage harness, poor soldering,
etc.). To maintain the proper minimum level of soft X-Ray
emission, components in the high voltage circuitry
including the picture tube must be the exact replacements
or alternatives approved by the manufacturer of the
complete product.
(7) Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ
2W resistor to the anode button.
(8) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer's replacement components.
(9) Isolation Check (Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an
isolation check on the exposed metal parts of the cabinet
(antenna terminals, video/audio input and output terminals,
Control knobs, metal cabinet, screw heads, earphone jack,
control shafts, etc.) to be sure the product is safe to operate
without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second. (.
. . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.). Use
an AC voltmeter having 1000Ωper volt or more
sensitivity in the following manner. Connect a 1500Ω
10W resistor paralleled by a 0.15µF AC-type capacitor
between an exposed metal part and a known good earth
ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the
resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across the
resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured must
not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000 /V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1500 10W
0.15 F AC-TYPE
GOOD EARTH GROUND

1-4 (No.YA366)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 FEATURES
ZOOM
This function can change the screen size according to the
picture aspect ratio.
PICTURE MODE
This function can adjust the picture settings automatically.
3D CINEMA SOUND
You can enjoy sounds with a wider ambience.
DIGITAL VNR
This function cuts down the amount of noise in the original
picture.
DigiPure
This function uses the latest in digital technology to give you a
natural-looking picture.

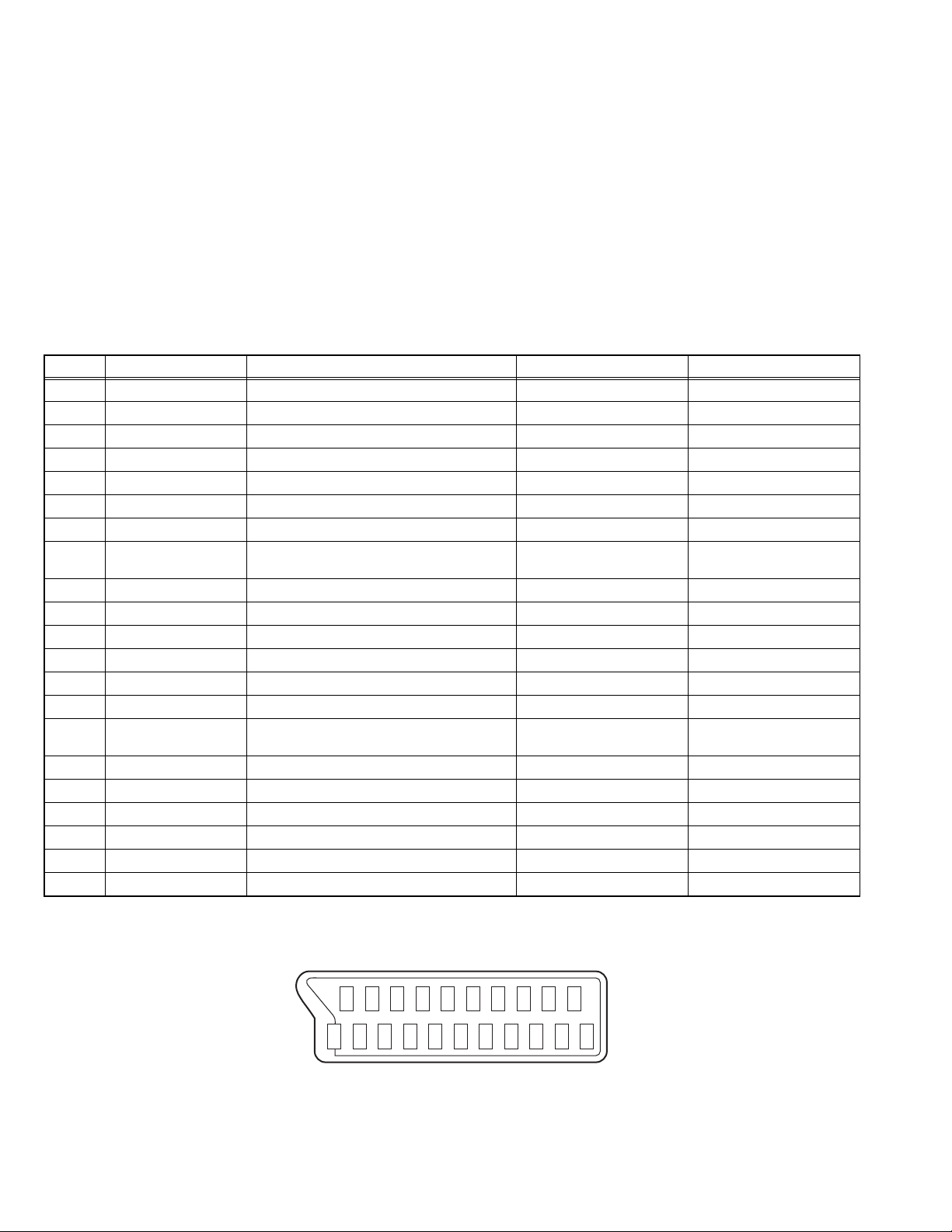

2.2 21-PIN EURO CONNECTOR (SCART) : EXT-1 / EXT-2
(P-P= Peak to Peak, B-W= Blanking to white peak)
Pin No. Signal designation Matching value EXT-1 EXT-2
1 AUDIO R output 500mV(rms) (Nominal), Low impedance Used (TV OUT) Used (LINE OUT)
2 AUDIO R input 500mV(rms) (Nominal), High impedance Used (R1) Used (R2)
3 AUDIO L output 500mV(rms) (Nominal), Low impedance Used (TV OUT) Used (LINE OUT)
4 AUDIO GND Used Used
5 GND (B) Used Used
6 AUDIO L input 500mV(rms) (Nominal), High impedance Used (L1) Used (L2)
7 B input 700mV(B-W), 75ΩUsed Used
8 FUNCTION SW
(SLOW SW)
Low : 0V-3V
High : 8V-12V, High impedance
Used Used
9 GND (G) Used Used
10 SCL / T-V LINK Not used Used (SCL2 / TV-LINK)
11 G input 700mV(B-W), 75ΩUsed Used
12 SDA Not used Used (SDA2)
13 GND (R) Used Used
14 GND (YS) Used Not used
15 R / C input R : 700mV(B-W), 75Ω
C : 300mV(P-P), 75ΩUsed (R) Used (C2/R)
16 Ys input (FAST SW) Low : 0V-0.4V, High : 1V-3V, 75ΩUsed Used
17 GND (VIDEO output) Used Used
18 GND (VIDEO input) Used Used
19 VIDEO output 1V(P-P) (Negative sync), 75ΩUsed (TV OUT) Used (LINE OUT)
20 VIDEO / Y input 1V(P-P) (Negative sync), 75ΩUsed Used
21 COMMON GND Used Used
20 18 16 14 12 10 8 6 4 2
21 19 17 15 13 11 9 7 5 3 1
[Pin assignment]

(No.YA366)1-5
2.3 TECHNINAL INFORMATION
2.3.1 MAIN MI-COM (CPU) PIN FUNCTION
Pin No. Pin name I/O Function
1 T-V LINK_OUT O Data output for T-V LINK
2 MP_SW O External memory pack control [ON = L]
3 SUB MUTE O Not used
4 TCK I Clock for JTAG interface
5 TDO O Data output for JTAG interface
6 TDI I Data input for JTAG interface
7 TMS I Control signal for JTAG interface
8 RESETQ I CPU reset [Reset = L]
9 E3_R I Audio input for EXT-3
10 E3_L I Audio input for EXT-3
11 D_R I Not used
12 D_L I Not used
13 E1_R I Audio input for EXT-1
14 E1_L I Audio input for EXT-1
15 E2_R I Audio input for EXT-2
16 E2_L I Audio input for EXT-2
17 VREFAU I Reference voltage setting
18 VSUP8.0AU I 8V power supply
19 GNDA - GND
20 SGND - GND
21 D_R_OUT O Audio output for EXT-2
22 D_L_OUT O Audio output for EXT-2
23 R_OUT O Audio output for EXT-1
24 L_OUT O Audio output for EXT-1
25 HEADPHONE_R O Not used
26 HEADPHONE_L O Not used
27 SPEAKER_R O Audio output for speaker/headphone
28 SPEAKER_L O Audio output for speaker/headphone
29 SUBWOOFER O Not used
30 VREFSIF I Reference voltage setting
31 SIF_IN+ I SIF for VHF/UHF tuner
32 SIF_IN- I SIF for VHF/UHF tuner
33 VSUP5.0 I 5V power supply
34 GNDA - GND
35 GND3.3DIG - GND
36 VSUP3.3DIG I 3.3V power supply
37 SPDIF_OUT O Not used
38 I2S_DA_IN I Not used
39 I2S_CL - Not used
40 I2S_WS - Not used
41 I2S_DEL_OUT O Not used
42 I2S_DEL_IN I Not used
43 I2S_DEL_CL - Not used
44 I2S_DEL_WS - Not used
45 VSUP3.3RAM I 3.3V power supply
46 GND3.3RAM - GND
47 DVS - Not used
48 DEN - Not used
49 DCLK - Not used
50 DRI7 I Not used
51 DRI6 I Not used
52 DRI5 I Not used
53 DRI4 I Not used
54 DRI3 I Not used
55 DRI2 I Not used
56 DRI1 I Not used
57 DRI0 I Not used
58 DGI7 I Not used
59 DGI6 I Not used
60 DGI5 I Not used
61 DGI4 I Not used
62 DGI3 I Not used
63 DGI2 I Not used
64 DGI1 I Not used
65 DGI0 I Not used
66 DBI7 I Not used
67 DBI6 I Not used
68 DBI5 I Not used
69 DBI4 I Not used
70 DBI3 I Not used
71 DBI2 I Not used
72 DBI1 I Not used
73 DBI0 I Not used
74 GND3.3DRI - GND
75 VSUP3.3DRI I 3.3V power supply
76 GND3.3COM - GND
77 VSUP3.3COM I 3.3V power supply
78 X'TALIN I 20.25MHz oscillation for CPU system clock
79 X'TALOUT O 20.25MHz oscillation for CPU system clock
80 CLKOUT O Not used
81 VSO O Not used
82 HSO O Not used
83 SCL1 O Clock for I2C bus (for various devices)
84 SDA1 I/O Data for I2C bus (for various devices)
85 GND3.3FL - GND
86 VSUP3.3FL I 3.3V power supply
87 AFC1 I AFT voltage for VHF/UHF tuner
88 IDTV_POWER O Not used
89 SCL0 O Clock for I2C bus (for E2PROM)
90 SDA0 I/O Data for I2C bus (for E2PROM)
91 AUDIO MUTE O Audio output muting [Muting = H]
92 SLEEP_ON/OFF O Power off by sleep timer [OFF = H]
93 OSDV I V sync for OSD
94 OSDH I H sync for OSD
95 GND3.3IO1 - GND
96 VSUP3.3IO1 I 3.3V power supply
97 OSDCLK I Not used
98 OSDSW I Not used
99 POWER_G I Not used
100 PROTECTER I Abnormality detection [Emergent = L]
101 POWER_ON/OFF O Main power on/off control [ON = L]
102 ROTATION O Screen tilt adjustment
Pin No. Pin name I/O Function

1-6 (No.YA366)
103 OSDB1 O Not used
104 OSDB0 O Not used
105 ATT SW O Not used
106 REMOCON I Remote control sensor input [No input = H]
107 OSDG1 O Not used
108 OSDG0 O Not used
109 POW_LED O POWER ON indication [ON = L]
110 LED_G O Not used
111 OSDR1 O Not used
112 OSDR0 O Not used
113 GND3.3IO1 - GND
114 VSUP3.3IO1 I 3.3V power supply
115 TXD O Not used
116 RXD I Not used
117 IRQ O Not used
118 IDTV_RST O Not used
119 HS_OUT O H drive
120 VS_OUT O V drive
121 PCLK2 O Not used
122 PCLK1 O Not used
123 GND1.8DIG - GND
124 VSUP1.8DIG I 1.8V power supply
125 DBO1_0 O Not used
126 DBO1_1 O Not used
127 DBO1_2 O Not used
128 DBO1_3 O Not used
129 DBO1_4 O Not used
130 DBO1_5 O Not used
131 DBO1_6 O Not used
132 DBO1_7 O Not used
133 VSUP3.3IO2 I 3.3V power supply
134 GND3.3IO2 - GND
135 DBO1_8 O Not used
136 DBO1_9 O Not used
137 DGO1_0 O Not used
138 DGO1_1 O Not used
139 DGO1_2 O Not used
140 DGO1_3 O Not used
141 DGO1_4 O Not used
142 DGO1_5 O Not used
143 DGO1_6 O Not used
144 DGO1_7 O Not used
145 DGO1_8 O Not used
146 DGO1_9 O Not used
147 DRO1_0 O Not used
148 DRO1_1 O Not used
149 GND3.3IO2 - GND
150 VSUP3.3IO2 I 3.3V power supply
151 DRO1_2 O Not used
152 DRO1_3 O Not used
153 DRO1_4 O Not used
154 DRO1_5 O Not used
155 DRO1_6 O Not used
Pin No. Pin name I/O Function
156 DRO1_7 O Not used
157 DRO1_8 O Not used
158 DRO1_9 O Not used
159 AGC I RF AGC voltage for VHF/UHF tuner
160 KEY1 I
Key scan for front control (CH+/CH-/MENU)
161 E1_SLOW I EXT-1 SLOW detection
162 E2_SLOW I EXT-2 SLOW detection
163 GND3.3DAC - GND
164 VSUP3.3DAC I 3.3V power supply
165 ROUT O R output for CRT
166 GOUT O G output for CRT
167 BOUT O B output for CRT
168 SVMOUT O Y signal for velocity scan modulation
169 VSUP1.8FE I 1.8V power supply
170 VSUP3.3FE I 3.3V power supply
171 SC_YS1 I Ys input for EXT-1
172 SC_B1 I B input for EXT-1
173 SC_G1 I G input for EXT-1
174 SC_R1 I R input for EXT-1
175 SC_YS2 I Ys input for EXT-2
176 SC_B2 I B input for EXT-2
177 SC_G2 I G input for EXT-2
178 SC_R2/C I R input for EXT-2
179 VIN13 I Not used
180 VIN12 I Not used
181 D_CV I Not used
182 E3_CV I Video input for EXT-3
183 VIN8 I Not used
184 E1_CV I Video input for EXT-1
185 VSUP1.8FE I 1.8V power supply
186 GNDA - GND
187 SC_R2/C I C input for EXT-2
188 E2_CV/Y I Video/Y input for EXT-2
189 VIN3 I Not used
190 VIN2 I Not used
191 TV_CV I Video input for VHF/UHF tuner
192 VSUP3.3VO I 3.3V power supply
193 VOUT3 O Not used
194 VOUT2 O Not used
195 V2_OUT O Video output for EXT-2
196 GND3.3IO3 - GND
197 VSUP3.3IO3 I 3.3V power supply
198 656I0 I Not used
199 656I1 I Not used
200 656I2 I Not used
201 656I3 I Not used
202 656I4 I Not used
203 656I5 I Not used
204 656I6 I Not used
205 656I7 I Not used
206 656CLKI I Not used
207 656CLKO O Not used
208 TV_LINK_IN I Data input from T-V LINK
Pin No. Pin name I/O Function

(No.YA366)1-7
SECTION 3
DISASSEMBLY
3.1 DISASSEMBLY PROCEDURE
3.1.1 REMOVING THE REAR COVER
(1) Unplug the power cord.
(2) Remove the 9 screws [A] and 5 screws [B].
(3) Withdraw the REAR COVER toward you.
3.1.2 REMOVING THE AV TERMINAL BOARD
• Remove the REAR COVER
(1) Remove the 2 screws [C].
(2) Remove the ANTENNA TERMINAL.
(3) Withdraw the AV TERMINAL BOARD toward you.
3.1.3 REMOVING THE CHASSIS
• Remove the REAR COVER
(1) Slightly raise the both sides of the CHASSIS by hand and
remove the 2 claws under the both sides of the CHASSIS
from the front cabinet.
(2) Withdraw the CHASSIS backward.(If necessary, take off
the wire clamp, connectors etc.)
3.1.4 REMOVING THE POWER SW PWB
• Remove the REAR COVER.
• Remove the CHASSIS.
(1) Remove the 2 screws [D].
(2) Remove the CONTROL BASE with the POWER SW PWB
and FRONT CONTROL PWB.
(3) Remove the POWER SW PWB from the CONTROL BASE.
3.1.5 REMOVING THE FRONT CONTROL PWB
• Remove the REAR COVER.
• Remove the CHASSIS.
(1) Remove the 2 screws [D].
(2) Remove the CONTROL BASE with the POWER SW PWB
and FRONT CONTROL PWB.
(3) Remove the 2 screws [E].
(4) Remove the FRONT CONTROL PWB from the CONTROL BASE.
3.1.6 REMOVING THE MAIN PWB
• Remove the REAR COVER.
• Remove the CHASSIS.
(1) Remove the 4 screws [F].
(2) Remove the MAIN PWB.
3.1.7 REMOVING THE AC PWB
• Remove the REAR COVER.
• Remove the CHASSIS.
(1) Remove the 2 claws.
(2) Remove the AC PWB.
3.1.8 REMOVING THE SPEAKER
• Remove the REAR COVER.
• Remove the CHASSIS.
(1) Remove the 4 screws [G].
(2) Remove the SPEAKER.
(3) Remove the opposite SPEAKER by the same method.
3.1.9 CHECKING THE PW BOARD
• To check the backside of the PW Board.
(1) Pull out the CHASSIS. (Refer to REMOVING THE CHASSIS).
(2) Remove the CONTROL BASE.
(3) Front side is turned down and a chassis is stood perpendicularly.
The check by the side of the solder side of the MAIN PWB and
AC PWB is possible.
CAUTION:
• When erecting the CHASSIS, be careful so that there will be
no contacting with other PW Board.
• Before turning on power, make sure that the wire connector is
properly connected.
• When conducting a check with power supplied, be sure to confirm
that the CRT EARTH WIRE (BRAIDED ASS'Y) is connected to
the CRT SOCKET PW board.
3.1.10 WIRE CLAMPING AND CABLE TYING
(1) Be sure to clamp the wire.
(2) Never remove the cable tie used for tying the wires together.
Should it be inadvertently removed, be sue to tie the wires
with a new cable tie.

1-8 (No.YA366)

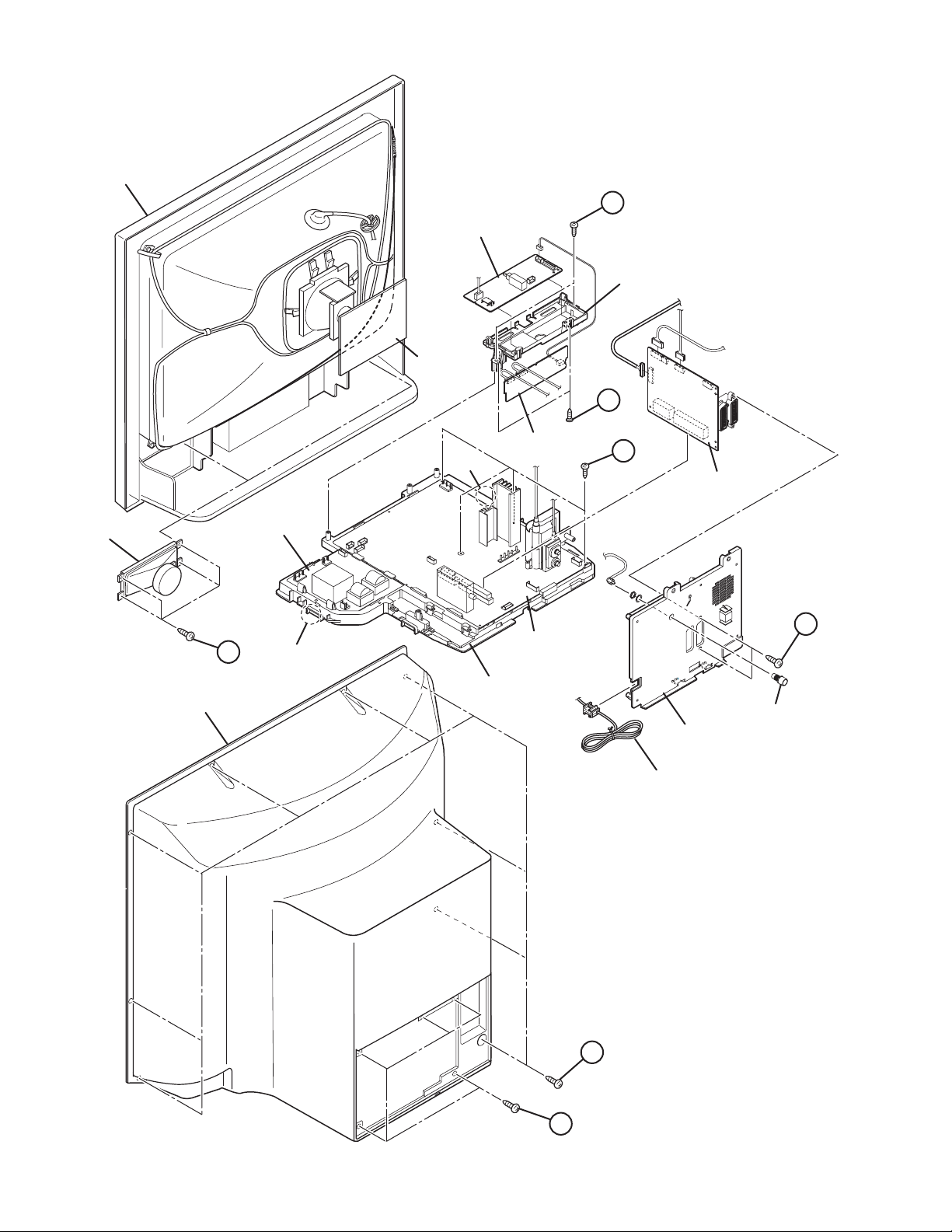

REAR COVER
SPEAKER
FRONT COVER
CHASSIS
CLAW
CLAW
MAIN PWB
SIGNAL PWB
FRONT CONTROL
PWB
POWER SW PWB
CRT SOCKET
PWB
AC PWB
POWER CORD
AV TERMINAL BOARD
ANTENNA TERMINAL
A
G
C
E
F
B
CONTROL BASE
D

(No.YA366)1-9
3.2 MEMORY IC REPLACEMENT
• This model uses the memory IC.
• This memory IC stores data for proper operation of the video and drive circuits.
• When replacing, be sure to use an IC containing this (initial value) data.

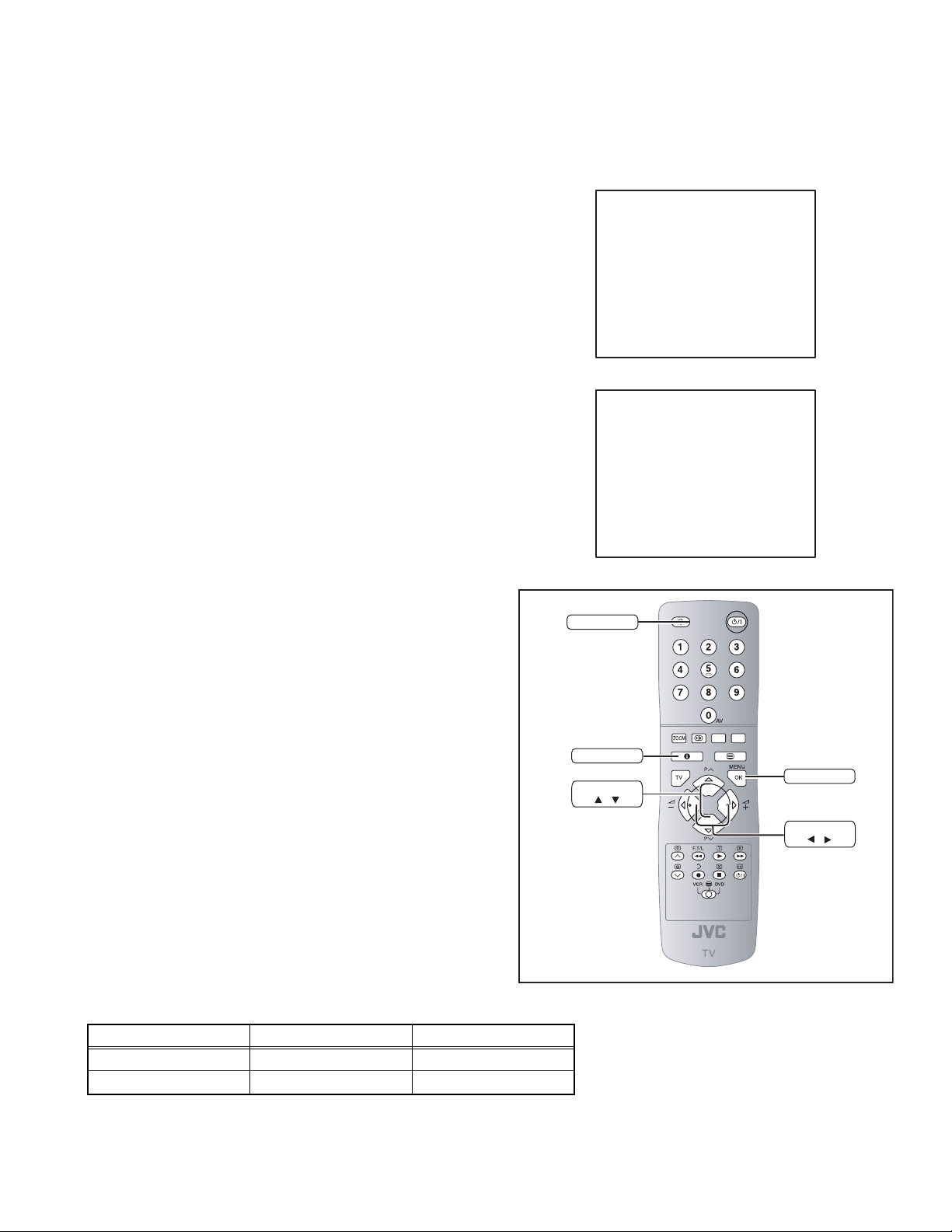

3.2.1 MEMORY IC REPLACEMENT PROCEDURE
1. Power off
Switch off the power and disconnect the power plug from the
AC outlet.
2. Replace the memory IC
Be sure to use the memory IC written with the initial setting
values.
3. Power on
Connect the power plug to the AC outlet and switch on the
power.
4. System constant check and setting
* It must not adjust without signal.
(1) Press the [INFORMATION] key and the [MUTING] key
of the REMOTE CONTROL UNIT simultaneously.
(2) The SERVICE MENU screen will be displayed (Fig. 1).
(3) While the SERVICE MENU is displayed, press the
[INFORMATION] key and [MUTING] key simultaneously,
and the SYSTEM CONSTANT SET screen will be
displayed (Fig. 2).
(4) Check the setting values of the SYSTEM CONSTANT
SET. If the value is different, select the setting item with
the [FUNCTION / ]key, and set the correct value
with the [FUNCTION /]key.
(5) Press the [OK] key to memorize the setting value.
(6) Press the [INFORMATION] key twice, and return to the
normal screen.
5. Receiving channel setting
Refer to the OPERATING INSTRUCTIONS and set the
receive channels (Channels Preset) as described.
6. User settings
Check the user setting items according to the given in page
later. Where these do not agree, refer to the OPERATING
INSTRUCTIONS and set the items as described.
7. SERVICE MODE setting
Verify what to set in the SERVICE MODE, and set whatever is
necessary (Fig.1). Refer to the SERVICE ADJUSTMENT for
setting.
Fig.1
Fig.2
3.2.2 SYSTEM CONSTANT SETTING
SERVICE MENU
SERVICE MENU
1.IF 2.V/C
1.IF 2.V/C
3.AUDIO 4.DEF
3.AUDIO 4.DEF
5.VSM PRESET 6.STATUS
5.VSM PRESET 6.STATUS
7.SHIPPING(OFF)
7.SHIPPING(OFF)
1-7: SELECT i:EXIT
1-7: SELECT i:EXIT
SYETEM CONSTANT SET
SYETEM CONSTANT SET
MODEL=MR EURO(0.37)
MODEL=MR EURO(0.37)
E2PROM=V0.14
E2PROM=V0.14
1.DESTINATION:EU
1.DESTINATION:EU
JVC MR EURO V00
JVC MR EURO V00
VCTP
VCTP
- + OK:STORE i:EXIT
- + OK:STORE i:EXIT
INFORMATION
MUTING
OK
FUNCTION
/
FUNCTION
/
Setting item Setting content Setting value
1.DESTINATION EU / EK / EI EU
2.PICTURE TILT YES / NO YES

1-10 (No.YA366)
3.2.3 SETTINGS OF FACTORY SHIPMENT
3.2.3.1 BUTTON OPERATION 3.2.3.2 REMOTE CONTROL DIRECT OPERATION
3.2.3.3 REMOTE CONTROL MENU OPERATION
(1) PICTURE SETTING
(2) SOUND SETTING
(3) FEATURES
(4) SET UP
(5) VSM PRESET TABLE
Setting item Setting position
POWER Off
CHANNEL PR1
VOLUME 10
Setting item Setting position
CHANNEL PR1
VOLUME 10
ZOOM AUTO
3D CINEMA SOUND OFF
Setting item Setting position
PICTURE MODE BRIGHT
COLOUR TEMP. COOL
FEATURES
DIGITAL VNR AUTO
DigiPure AUTO
COLOUR CREATION ON
COLOUR SYSTEM TV : According to preset CH
EXT : AUTO
Setting item Setting position
BASS Centre
TREBLE +6
BALANCE Centre
HYPER SOUND OFF
3D CINEMA SOUND
SURROUND MID
BASS BOOST MID
Setting item Setting position
SLEEP TIMER OFF
CHILD LOCK OFF
BLUE BACK ON
Setting item Setting position
AUTO PROGRAM TV channel automatically set
EDIT/MANUAL PRESET CH only
The others : BLANK
LANGUAGE ENGLISH
PICTURE TILT Middle
DECODER(EXT-2) OFF
EXT SETTING
ID BLANK
S-IN BLANK
DUBBING TV →EXT-2
Item Variable
range
Setting value
PICTURE MODE COLOUR TEMP.
BRIGHT STANDARD SOFT COOL NORMAL WARM
1.CONTRAST -16~+16 +16 +5 -3 --- --- ---
2.BRIGHT -16~+16 0 0 0 --- --- ---
3.SHARP -16~+16 0 0 0 --- --- ---
4.COLOUR -16~+16 0 0 0 --- --- ---
5.HUE -16~+16 0 0 0 --- --- ---
1.DRIVE R -64~+63 --- --- --- -5 0 +6
2.DRIVE G -64~+63 --- --- --- -5 0 0
3.DRIVE B -64~+63 --- --- --- 0 0 0

(No.YA366)1-11
3.2.4 SERVICE MODE SETING ITEMS
Setting item Setting value Setting item Setting value
1. IF --- 4. DEF 1. V-SHIFT
2. V-SIZE
3. H-CENT
4. H-SIZE
5. TRAPEZ
6. EW-PIN
7. COR-UP
8. COR-LO
9. COR-UP-S
10. COR-LO-S
11. ANGLE
12. BOW
13. V-S.CR
14. V-LIN
15. UP VLIN
16. LO VLIN
17. H COMP
18. PIN COMP
19. HC PARA DC
2. V/C 1. RGB BLK
2. CUTOFF R
3. CUTOFF G
4. CUTOFF B
5. DRIVE R
6. DRIVE G
7. DRIVE B
8. BRIGHT
9. CONT.
10. COLOUR
11. HUE
12. SHARP
13. SC ADJ
3. AUDIO
[Do not adjust]
1. ERROR RATE
2. A2 IDNET
3. STD RESULT
4. SPATIAL EFFECT
5. VIRTUAL EFFECT
6. BASS EFFECT
7. AMP LIMIT
8. HARMONIC
9. LPF
10. HPF
11. HYPER EFFFECT H
12. HYPER EFFFECT L
5. VSM PRESET BRIGHT/SOFT/STANDARD
1. CONTRAST
2. BRIGHT
3. SHARP
4. COLOUR
5. HUE
COOL/WARM/NORMAL
1. DRIVE R
2. DRIVE G
3. DRIVE B
6. STATUS
[Do not adjust]
---
7.SHIPPING (OFF)
[Do not adjust]
---

1-12 (No.YA366)
3.3 REPLACEMENT OF CHIP COMPONENT
3.3.1 CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
3.3.2 SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.

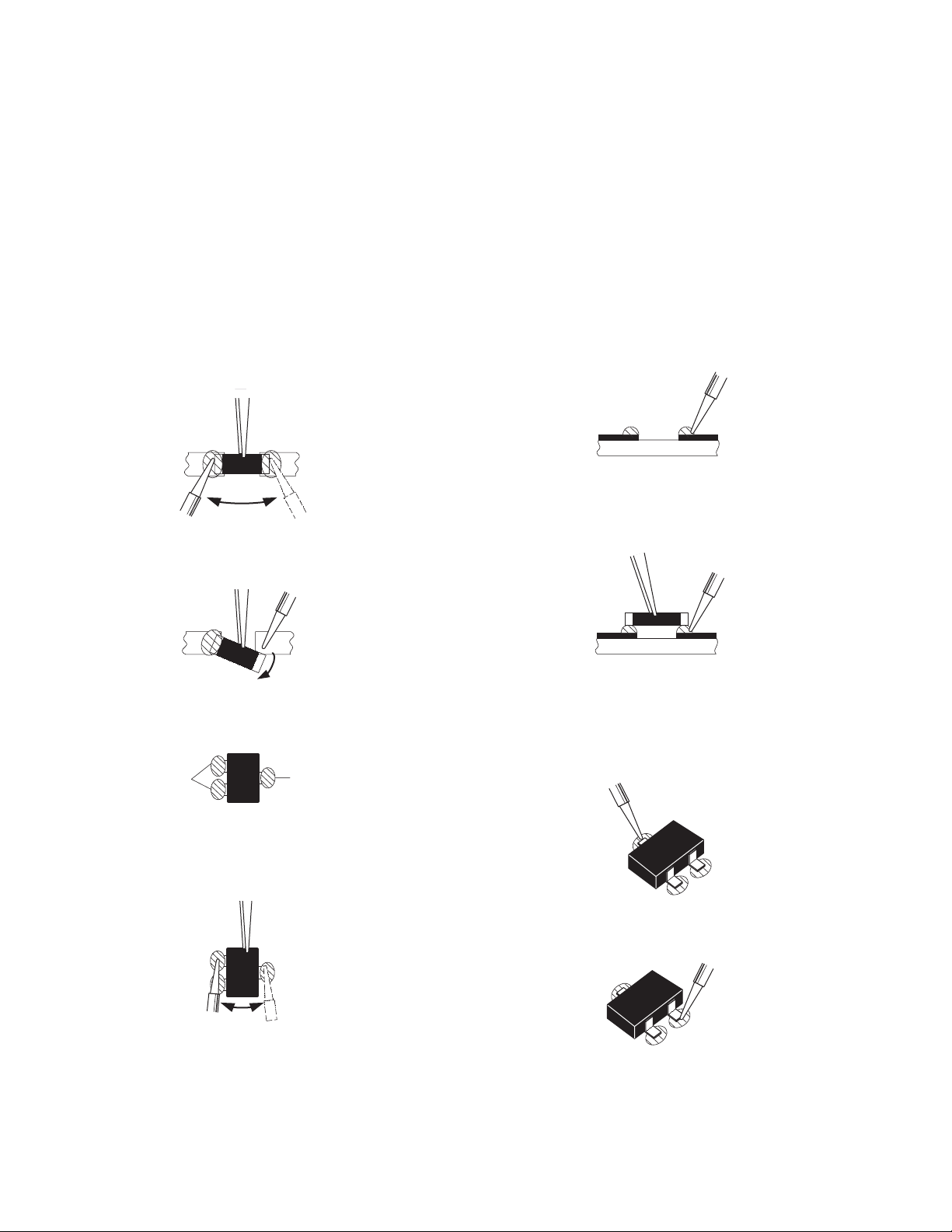

3.3.3 REPLACEMENT STEPS
1. How to remove Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with the tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
NOTE :
After removing the part, remove remaining solder from the
pattern.
2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of the
chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead Aas indicated in the figure.
(4) Then solder leads Band C.
SOLDER SOLDER
A
B
C
A
B
C

(No.YA366)1-13
SECTION 4
ADJUSTMENT
4.1 ADJUSTMENT PREPARATION
(1) There are 2 ways of adjusting this TV : One is with the
REMOTE CONTROL UNIT and the other is the
conventional method using adjustment parts and
components.
(2) The adjustment using the REMOTE CONTROL UNIT is
made on the basis of the initial setting values. The
setting values which adjust the screen to the optimum
condition can be different from the initial setting
values.
(3) Make sure that connection is correctly made AC to AC
power source.
(4) Turn on the power of the TV and measuring instruments for
warming up for at least 30 minutes before starting
adjustments.
(5) If the receive or input signal is not specified, use the most
appropriate signal for adjustment.
(6) Never touch the parts (such as variable resistors,
transformers and condensers) not shown in the adjustment
items of this service adjustment.
4.2 PRESET SETTING BEFORE ADJUSTMENT
Unless otherwise specified in the adjustment items, preset the
following functions with the REMOTE CONTROL UNIT.
4.3 MEASURING INSTRUMENT AND FIXTURES
(1) DC voltmeter (or digital voltmeter)
(2) Oscilloscope
(3) Signal generator
(Pattern generator : PAL / SECAM / NTSC)
(4) Remote control unit
4.4 ADJUSTMENT ITEMS
CHECK ITEM
• B1 VOLTAGE check
• HIGH VOLTAGE check
• IF VCO check
FOCUS
• FOCUS adjustment
DEFLECTION CIRCUIT.
• V. POSITION adjustment
• V. SIZE adjustment
• H. POSITION adjustment
• H. SIZE adjustment
• SIDE-PIN adjustment
• TRAPEZIUM adjustment
• UPPER/LOWER CORNER PIN adjustment
• PARALLELOGRAM(TILT) adjustment
• BOW adjustment
• V. S-SHAPE CORRECTION & V.LINEARITY adjustment
VIDEO CIRCUIT
• WHITE BALANCE adjustment
• SUB BRIGHT adjustment
• SUB CONTRAST adjustment
• SUB COLOUR adjustment
• SUB HUE adjustment
• COLOUR DECODER VCO adjustment
VSM PRESET SETTING
• VSM PRESET setting
Item Preset value
PICTURE MODE STANDARD
CONTRAST / BRIGHT / SHARP / COLOUR / HUE Centre
COLOUR TEMP NORMAL
DIGITAL VNR AUTO
BASS / TREBLE / BALANCE Centre
HYPER SOUND OFF
ZOOM REGULAR
SLEEP TIMER OFF

1-14 (No.YA366)

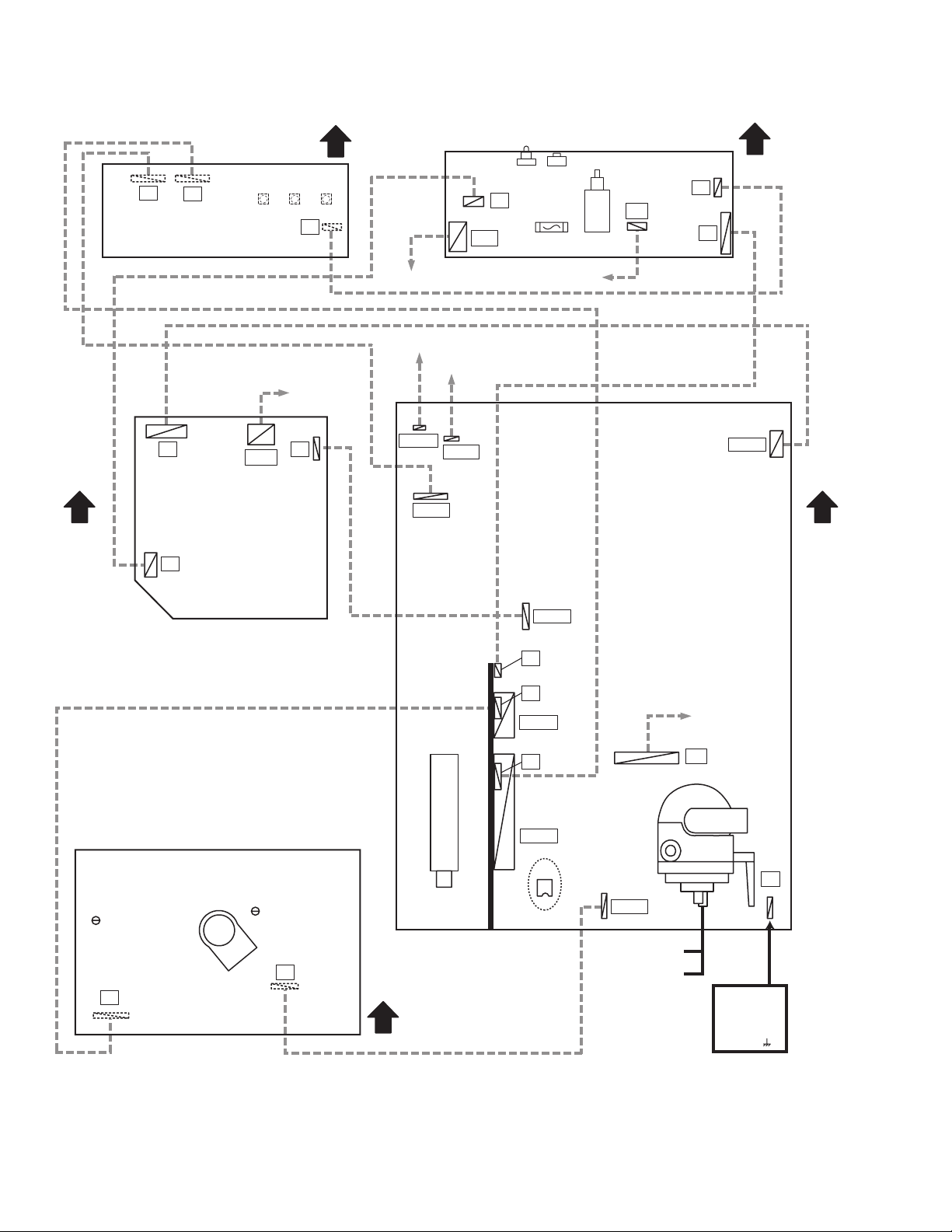

4.5 ADJUSTMENT LOCATIONS
FOCUS
X
KCN0SL
CN00H
CN0SR
F
B
T
R
R
A
G
HFB
W
W
HV
SCREEN
CN00G
MAIN PWB
AC PWB
SIGNAL
PWB
CN001
CN002
PW
DEG
TUNER
CRT SOCKET PWB
(SOLDER SIDE)
FRONT CONTROL PWB POWER SW PWB
POWER CORD
1 : TP-91(B1)
2 : NC
3 : X-RAY1
4 : X-RAY2
5 : TP-E ( )
DEF. YOKE
DEG COIL
TP-E TP-47B
1
5
SPEAKER(R)
SPEAKER(L)
FRONT
TOP
FRONT
FRONT
HVT
HVT
IC701
MEMORY IC
CN00K
CN00T
A
RT
(SOLDER SIDE)
POWER SW
FUSE
POWER LED
TOP
ROTATION COIL

(No.YA366)1-15
4.6 TOOL OF SERVICE MODE OPERATION
Operate the SERVICE MODE with the REMOTE CONTROL UNIT.
4.6.1 SERVICE MODE ITEMS
With the SERVICE MODE, various adjustment can be made, and they are broadly classified in the following items of settings.
4.6.2 BASIC OPERATION IN SERVICE MODE

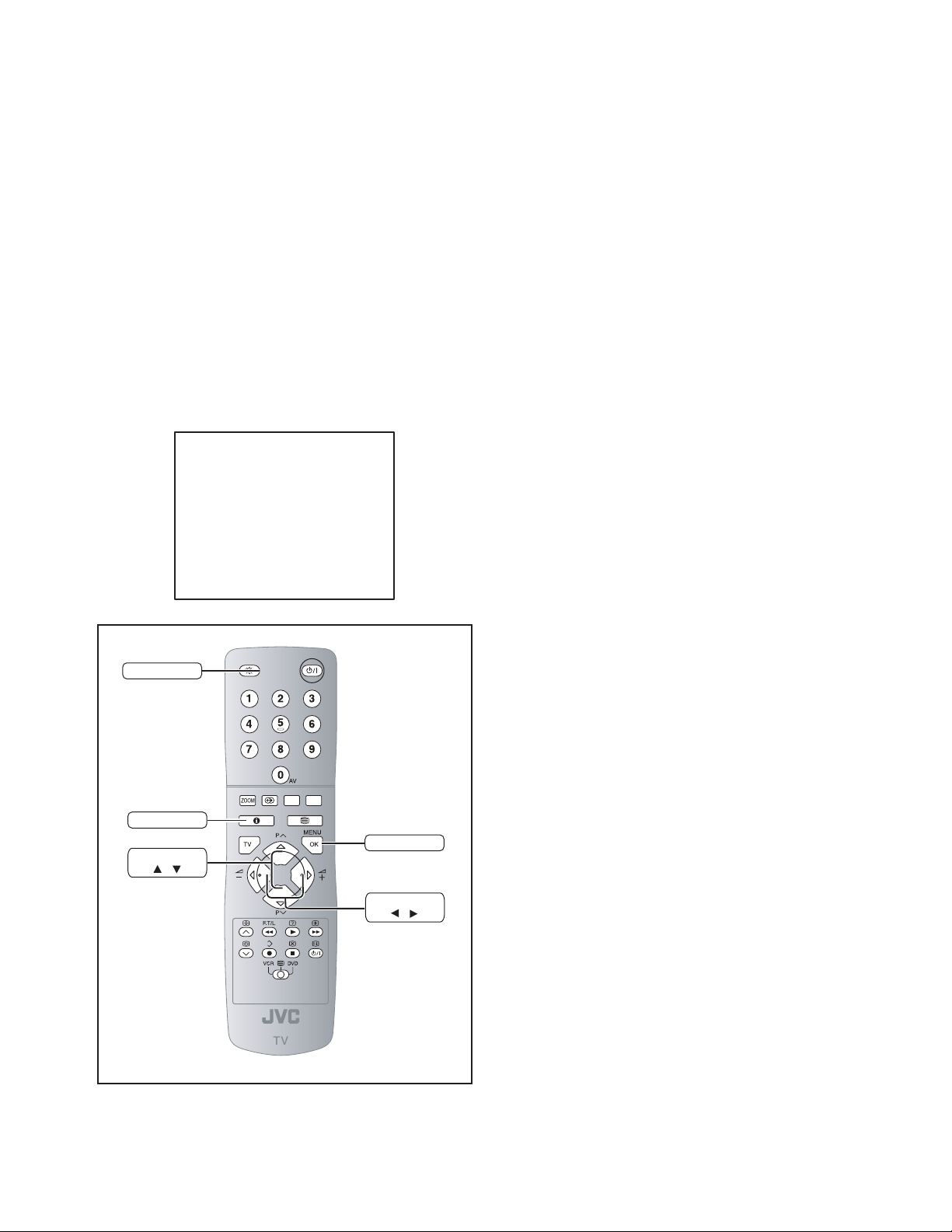

4.6.2.1 HOW TO ENTER THE SERVICE MODE
Press the [INFORMATION] key and [MUTING] key of the
REMOTE CONTROL UNIT simultaneously. Then SERVICE
MODE screen will be displayed as shown figure.
Fig.1
Fig.2
4.6.2.2 SELECTION OF SUB MENU SCREEN
Press one of the CHANNEL number key with the remote control
unit, and select the SUB MENU SCREEN from SERVICE
MODE.
4.6.2.3 SETTING METHOD
1.IF
[1. VCO] : It must not adjust without signal
(1) [1] key
Select 1.IF.
(2) Check the arrow position between the ABOVE REF. and
BELOW REF.
(3) [INFORMATION] key
Return to the SERVICE MODE main manu screen.
2.V/C, 4.DEF and 5.VSM PRESET
(1) [2], [4] and [5]key
Select one from 2.V/C, 4.DEF, 5.VSM PRESET.
(2) [FUNCTION /]key
Select setting items.
(3) [FUNCTION /]key
Set the setting values of the setting items.
(4) [OK] key
Memorize the setting value.
(Before storing the setting values in memory, do not
press the CH, TV, POWER ON / OFF key. if you do, the
values will not be stored in memory.)
(5) [INFORMATION] key
Return to the SERVICE MODE main manu screen.
3.AUDIO, 6.STATUS and 7.SHIPPING (OFF)
It is not requirement to adjustment.
4.6.2.4 MEMORIZE THE ADJUSTMENT DATA
When adjustment is completed, press the [OK] key to memorize
the adjustment value. If not to do it, adjustment data is not
memorized to the memory IC. And if exit the adjustment mode
before memorize the data, the adjustment value which you
change is canceled.
4.6.2.5 RELEASE OF SERVICE MODE
After completing the setting, return to the SERVICE MODE, then
again press the [INFORMATION] key.
1.IF : This mode adjusts the setting values of the IF circuit.
2.V/C : This mode adjusts the setting values of the VIDEO circuit.
3.AUDIO : This mode adjusts the setting values of the MULTI-SOUND circuit. [Do not adjust]
4.DEF : This mode adjusts the setting values of the DEFLECTION circuit.
5.VSM PRESET : This mode adjusts the setting values of COOL, NORMAL and WARM. (VSM : Video Status Memory)
6.STATUS : This mode is shows the monitor of SOFT, TELETEXT, ASPECT, PROTECT, FLASH. [Do not adjust]
7.SHIPPING (OFF) : This mode is set at shipping. [Do not adjust]
SERVICE MENU
SERVICE MENU
1.IF 2.V/C
1.IF 2.V/C
3.AUDIO 4.DEF
3.AUDIO 4.DEF
5.VSM PRESET 6.STATUS
5.VSM PRESET 6.STATUS
7.SHIPPING(OFF)
7.SHIPPING(OFF)
1-7: SELECT i:EXIT
1-7: SELECT i:EXIT
INFORMATION
MUTING
OK
FUNCTION
/
FUNCTION
/

1-16 (No.YA366)
4.6.3 SERVICE MODE FLOW CHART
SERVICE MENU
SERVICE MENU
1.IF 2.V/C
1.IF 2.V/C
3.AUDIO 4.DEF
3.AUDIO 4.DEF
5.VSM PRESET 6.STATUS
5.VSM PRESET 6.STATUS
7.SHIPPING(OFF)
7.SHIPPING(OFF)
1-7: SELECT i:EXIT
1-7: SELECT i:EXIT
DEF REGULAR 100Hzi
DEF REGULAR 100Hzi
1.V-SHIFT + 8
1.V-SHIFT + 8
(28)
(28)
- + OK:STORE i=EXIT
- + OK:STORE i=EXIT
V/C AUTO REG
V/C AUTO REG
1.RGB BLK 0
1.RGB BLK 0
CXA2150:9CH /SC DEV:+ 0H
CXA2150:9CH /SC DEV:+ 0H
- + OK:STORE i=EXIT
- + OK:STORE i=EXIT
VCO(CW) 216.00MHz
VCO(CW) 216.00MHz
TOO HIGH
TOO HIGH
ABOVE REFERENCE
ABOVE REFERENCE
JUST REFERENCE
JUST REFERENCE
BELOW REFERENCE
BELOW REFERENCE
TOO LOW
TOO LOW
i=EXIT
i=EXIT
VSM PRESET BRIGHT
VSM PRESET BRIGHT
1.CONTRAST + 16
1.CONTRAST + 16
- + OK:STORE i=EXIT
- + OK:STORE i=EXIT
STATUS
STATUS
VPS = 0000H (---)
VPS = 0000H (---)
PDC 8/30/1 = 0000H
PDC 8/30/1 = 0000H
= 0000H
= 0000H
WSS = 0000
WSS = 0000
8008 0048 00FF 4000
8008 0048 00FF 4000
03E0 0000
03E0 0000
0000 0000 0000
0000 0000 0000
i=EXIT
i=EXIT
AUDIO S:MID
AUDIO S:MID
B:MID
B:MID
1.ERROR RATE = 100H
1.ERROR RATE = 100H
ERROR BITS = 7F0H
ERROR BITS = 7F0H
- + OK:STORE i=EXIT
- + OK:STORE i=EXIT
MAIN MENU SCREEN
1. RGB BLK
2. CUTOFF R
3. CUTOFF G
4. CUTOFF B
5. DRIVE R
6. DRIVE G
7. DRIVE B
8. BRIGHT
9. CONT.
10. COLOUR
11. HUE
12. SHARP
13. SC ADJ
BRIGHT
SOFT
STANDARD
4. DEF 1. IF
5. VSM PRESET 2. V/C
6. STATUS [Do not adjust] 3. AUIDO [Do not adjust]
1. CONTRAST
2. BRIGHT
3. SHARP
4. COLOUR
5. HUE
6. DRIVE R
7. DRIVE G
8. DRIVE B
PICTURE MODE
COOL
WARM
NORMAL
COLOUR TEMP
1. V-SHIFT
2. V-SIZE
3. H-CENT
4. H-SIZE
5. TRAPEZ
6. EW-PIN
7. COR-UP
8. COR-LO
9. COR-UP-S
10. COR-LO-S
11. ANGLE
12. BOW
13. V-S.CR
14. V-LIN
15. UP VLIN
16. LO VLIN
17. H COMP
18. PIN COMP
19. HC PARA DC
1. ERROR RATE
2. A2 IDNET
3. STD RESULT
4. SPATIAL EFFECT
5. VIRTUAL EFFECT
6. BASS EFFECT
7. AMP LIMIT
8. HARMONIC
9. LPF
10. HPF
11. HYPER EFFFECT H
12. HYPER EFFFECT L

(No.YA366)1-17
4.7 INITIAL SETTING VALUE OF SERVICE MODE
(1) Adjustment of the SERVICE MODE is made on the basis of the initial setting values. However, the new setting values which
displays on the screen in its optimum condition may differ from the initial setting value.
(2) Do not change the initial setting values of the items not listed in “ADJUSTMENT PROCEDURE”.
(3) “---” is impossible to adjust or not requirement to adjustment.
4.7.1 [2. V/C]
NOTE: [ ] is fixed values.
NOTE: [ ] is fixed values.
4.7.2 [3. AUDIO] [Do not adjust]
Setting item Variable
range
Initial setting value
PAL SECAM NTSC 3.58 NTSC 4.43
1.RGB BLK --- --- --- --- ---
2.CUTOFF R 0 - 63 39 39 39 39
3.CUTOFF G 0 - 63 20 20 20 20
4.CUTOFF B 0 - 63 24 24 24 24
5.DRIVE R 0 - 63 30 30 30 30
6.DRIVE G 0 - 63 30 30 30 30
7.DRIVE B 0 - 63 [30] [30] [30] [30]
8.BRIGHT 0 - 63 25 25 25 25
9.CONT. 0 - 63 28 28 28 28
10.COLOUR 0 - 63 35 35 35 [0]
11.HUE -63 - +63 --- --- 0 [0]
Setting item Variable
range
Initial setting value
PAL SECAM NTSC 3.58 NTSC 4.43
TV EXT TV EXT TV EXT TV EXT
12.SHARP -3 - +3 [-3] [+3] [-3] [+3] [-3] [+3] [-3] [+3]
Setting item Variable
range
Initial setting value
PAL SECAM NTSC 3.58 NTSC 4.43
13.SC ADJ 0 - 63 13 --- --- ---
Setting item Variable range Fixed value
1. ERROR RATE
000H - FF0H 100H
2. A2 IDNET
00H - FFH 19H
3. STD RESULT --- ---
4. SPATIAL EFFECT 00H - FFH 4FH
5. VIRTUAL EFFECT 00H - FFH 4DH
6. BASS EFFECT 00H - FFH 29H
7. AMP LIMIT 00H - FFH FAH
8. HARMONIC 00H - FFH 00H
9. LPF 00H - FFH 09H
10. HPF 00H - FFH 05H
11. HYPER EFFFECT H 00H - FFH 7FH
12. HYPER EFFFECT L 00H - FFH 00H

1-18 (No.YA366)
4.7.3 [4. DEFLECTION]
NOTE: [ ] is fixed values.
4.7.4 [5. VSM PRESET]
Setting item Variable
range
Initial setting value
REGULAR 16 : 9
100Hz i 120Hz i 100Hz i 120Hz i
1. V-SHIFT -32 - +31 -4 -2 0 0
2. V-SIZE -32 - +31 +9 -2 [0] [0]
3. H-CENT -32 - +31 -5 0 0 0
4. H-SIZE -32 - +31 -10 -1 0 0
5. TRAPEZ -32 - +31 -13 -2 +1 0
6. EW-PIN -32 - +31 -18 0 +2 +1
7. COR-UP -32 - +31 +1 0 0 +1
8. COR-LO -32 - +31 -1 0 -2 +1
9. COR-UP-S 0 - +3 0 0 0 0
10. COR-LO-S 0 - +3 +1 0 0 0
11.ANGLE -32 - +31 -5 0 0 0
12.BOW -32 - +31 +1 +1 0 0
13.V-S.CR 0 - +15 +8 0 0 0
14.V-LIN 0 - +15 +8 0 0 0
15. UP VLIN 0 - +15 0 0 0 0
16. LO VLIN 0 - +15 0 0 0 0
17. H COMP 0 - +15 [+1] [+1] [+1] [+1]
18. PIN COMP 0 - +7 [+1] [+1] [+1] [+1]
19. HC PARA DC -32 - +31 [-8] [-8] [-8] [-8]
Item Variable
range
Setting value
PICTURE MODE COLOUR TEMP.
BRIGHT STANDARD SOFT COOL NORMAL WARM
1.CONTRAST -16~+16 +16 +5 -3 --- --- ---
2.BRIGHT -16~+16 0 0 0 --- --- ---
3.SHARP -16~+16 0 0 0 --- --- ---
4.COLOUR -16~+16 0 0 0 --- --- ---
5.HUE -16~+16 0 0 0 --- --- ---
1.DRIVE R -64~+63 --- --- --- -5 0 +6
2.DRIVE G -64~+63 --- --- --- -5 0 0
3.DRIVE B -64~+63 --- --- --- 0 0 0

(No.YA366)1-19
4.8 ADJUSTMENT PROCEDURE
4.8.1 CHECK ITEM
4.8.2 FOCUS
Item Measuring
instrument Test point Adjustment part Description
B1 VOLTAGE DC voltmeter
Remote
control unit
X connector
1-pin:TP-91
5-pin:TP-E
[MAIN PWB]
[2. V/C]
1. RGB BLK
(1) Receive any broadcast.
(2) Select 2. V/C from the SERVICE MODE.
(3) Select < 1.RGB BLK >.
(4) Press the [MENU /]key to find the cut off screen
(Black screen).
(5) Connect a DC voltmeter to TP-91(B1) and TP-E.
(6) Make sure that the voltage is DC139.0 ±2.0V.
HIGH VOLTAGE HV voltmeter
Remote
control unit
CRT anode
Chassis GND
[2. V/C]
1. RGB BLK
(1) Receive any broadcast.
(2) Select 2. V/C from the SERVICE MODE.
(3) Select < 1. RGB BLK >.
(4) Press the [MENU /]key to find the cut off screen
(Black screen).
(5) Connect the earth clip of HV voltmeter to chassis
GND.
(6) Connect the probe of HV voltmeter to CRT anode.
(7) Make sure that the voltage is DC31.0kV(+1kV, -1.5kV).
NOTE:
• Remove the probe before removing the earth clip.
IF VCO Remote
control unit
[1.IF]
VCO
• Under normal conditions, no adjustment is required.
• Confirmation adjustment.
(1) Select 1.IF from the SERVICE MODE.
(2) Receive any broadcast.
(3) Check the ←(Arrow) posspition between the ABOVE
REF. and BELOW REF.
VCO(CW) 216.00MHz
VCO(CW) 216.00MHz
TOO HIGH
TOO HIGH
ABOVE REFERENCE
ABOVE REFERENCE
JUST REFERENCE
JUST REFERENCE
BELOW REFERENCE
BELOW REFERENCE
TOO LOW
TOO LOW
i=EXIT
i=EXIT
Item Measuring
instrument Test point Adjustment part Description
FOCUS Signal
generator
FOCUS VR
[In HVT]
(1) Receive the cross hatch signal.
(2) Set the ZOOM mode to REGULAR.
(3) While looking at the screen, adjust the FOCUS VR
so that the vertical and horizontal lines will be clear
and in fine detail.
(4) Make sure that the picture is in focus even when the
screen gets darkened.
HVT
SCREEN
FOCUS

1-20 (No.YA366)
4.8.3 DEFLECTION CIRCUIT
This TV has two kinds of aspect modes ( 1. REGULAR, 2. 16 : 9).
120Hz-i is a signal that is output to a screen when a 60Hz signal is input to a television set. It is an interlace-scanned picture of 120Hz.
100Hz-i is a signal that is output to a screen when a 50Hz signal is input to a television set. It is an interlace-scanned picture of 100Hz.
• The adjustment using the remote control unit is made on the basis of the initial setting values. The setting values which adjust the
screen to the optimum condition can be different from the initial setting values.
There are two kinds of adjustment modes depending upon the vertical frequency of the signal for adjustment input to the
TV (100Hz/120Hz). Because there are two kinds of aspect modes for each vertical frequency, there are many adjustment
modes as same as the aspect modes. However, the adjustment value of other aspect modes of 100Hz (by the offset function)
is automatically corrected, if it adjusts in the REGULAR mode of 100Hz, even if it doesn't adjust in all modes. Each adjust-
ment value of 120Hz is automatically set based on the adjustment value in each aspect mode by 100Hz. Please confirm the
adjustment in each vertical frequency and each aspect mode after completing the adjustment in the REGULAR mode of
100Hz. And if it is not best respectively, adjust it.
Item Measuring
instrument Test point Adjustment part Description
V. POSITION Signal
generator
Remote
control unit
[4. DEF]
1. V-SHIFT
(1) Receive a circle pattern signal of vertical frequency
50Hz (PAL).
(2) Set the ZOOM mode to REGULAR.
(3) Select 4. DEF from the SERVICE MODE.
(4) Select < 1.V-SHIFT >.
(5) Adjust to become A= B.
(6) Check the adjustment value above in other zoom
mode changed by the [Red] key. If it is a wrong
adjustment, re-adjust in REGULAR mode and adjust
by < 1. V-SHIFT >.
(7) Press the [OK] key to memorize the set values.
V. SIZE Signal
generator
Remote
control unit
[4. DEF]
2.V-SIZE
(1) Receive the PAL cross hatch signal.
(2) Set the ZOOM mode to REGULAR.
(3) Select 4. DEF from the SERVICE MODE.
(4) Select < 2.V-SIZE >.
(5) Set the initial setting value of < 2.V-SIZE >.
(6) Adjust to make sure that the vertical screen size of
the picture size is 93%.
(7) Press the [OK] key to memorize the set values.
(8) Input the NTSC cross hatch signal from the EXT
terminal.
(9) Follow the same step 2 to 7 as in PAL signal, re-
adjust by < 2.V-SIZE > if it is a wrong adjustment.
(A)
(B)
Screen
size
93%
size
100%
