JVC AV-29QT19 User manual

ENGLISH
GGT0243-001B-H

COLOUR TELEVISION
INSTRUCTIONS
AV-29QT19
AV-29RT19S
AV-29RT29S
AV-29ST19B
AV-29ST29B
AV-21RT29S
AV-21ST29B
The illustrations of AV-29ST29B is used in this instruction manual for explanation
purpose. Your TV may not look exactly the same as illustrated.
This illustration shows AV-29ST29B.

2
• Never listen to headphones at high volume!
- It may damage your hearing.
• The surface of the TV screen is easily
damaged. Be very careful with it when
handling the TV. Should the TV screen
become soiled, wipe it with a soft dry cloth.
Never rub it forcefully. Never use any
cleaner or detergent on it.
Thank you for buying this JVC colour television.
To make sure you understand how to use your new TV, please read this manual thoroughly before you begin.
CAUTION TO ENSURE PERSONAL SAFETY, OBSERVE THE
FOLLOWING RULES REGARDING THE USE OF
THIS TV.
• Operate only
from the
power source
indicated on
the rear of the
TV.
• Avoid damaging the power cord
and main plug. When unplugging
the TV, grasp the main plug. Do
not pull on the power cord.
• This TV can be
turned on/off power
by connecting/
disconnecting the
AC plug into AC
outlet. While this TV is being
installed, enough space should
be reserved for connection/
disconnecting the AC plug into
AC outlet by hand.
WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
• Never block or cover the ventilation openings.
• Never install the TV where good ventilation is unattainable.
• When installing this TV, leave spaces for ventilation around
the TV of more than the minimum distances as shown.
• The apparatus
shall not be
exposed to
dripping or
splashing and that no objects filled
with liquids, such as vases, shall be
placed on the apparatus.
• Do not allow
objects or liquid
into the cabinet
openings.
In the event of a
fault, unplug the unit and
call a service technician. Do
not attempt to repair it yourself
or remove the
rear cover.

3
Knowing your TV’s features Contents
Knowing your TV’s features ...................3
Connections ..........................................4
Initial settings .........................................5

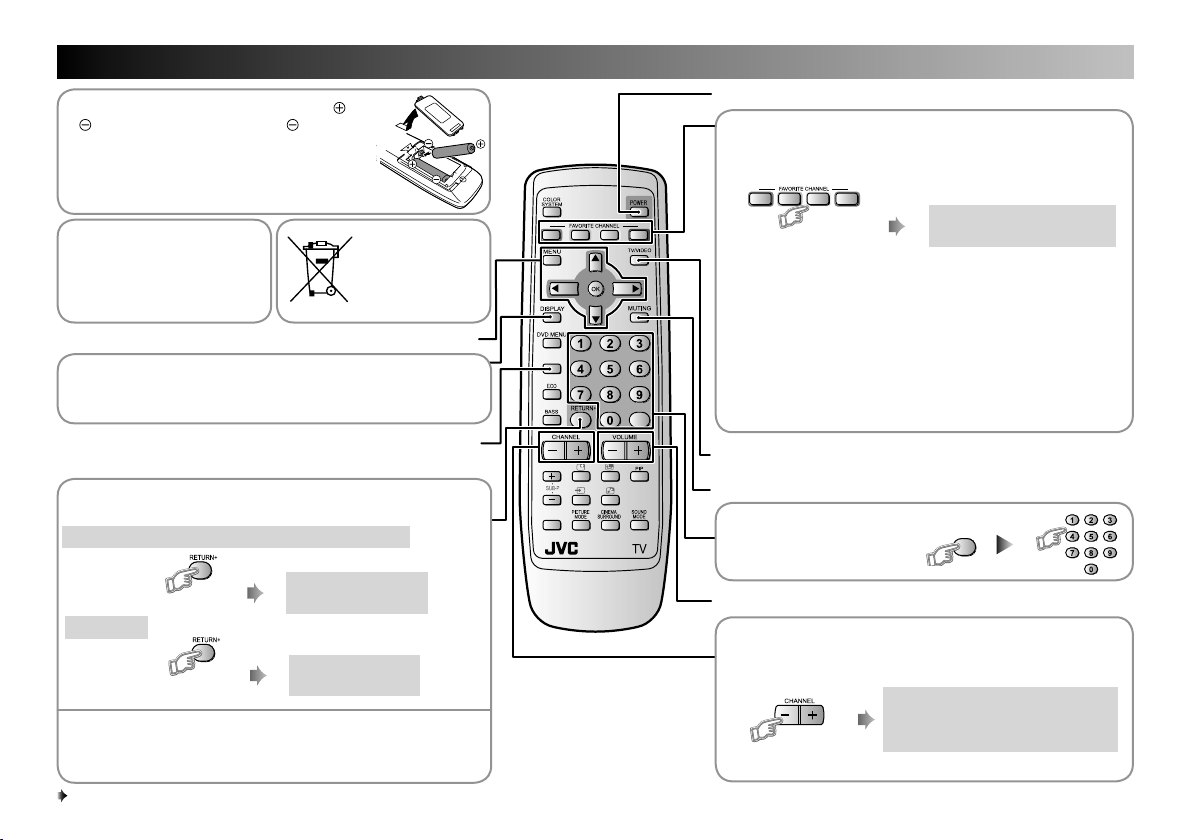

Remote control buttons and basic
functions ................................................6
TV buttons and functions .......................7
Operating the menus .............................7
Picture setting ........................................9
Picture in picture (PIP) operation ........10
Sound setting ......................................11
Customized setting ..............................12
TV channel presetting .........................14
Troubleshooting ...................................15
Specifications ......................................16
PREPARATION FUNCTIONS REFERENCE
Function
Features Descriptions
DVD MENU Just connect DVD player to the television. The television will detect DVD signal and
display picture on the screen automatically and you can adjust pictures and sound while
you are watching DVD as your desire. When disconnect DVD player, the television will
display the previous channel.
MaxxBass MaxxBass enhances bass sound that cannot be reproduced by normal speakers to be
heard by our ears.
PIP (Picture in Picture) You can view two screens (Main picture and Sub picture) at the same time.
MTS You can listen the stereo sound or SAP from TV program broadcasting by MTS system.
(SAP: Second audio program.)
CLOSED CAPTION You can display dialog on the screen from TV broadcasting with Closed caption system.
You also may be able to display some information in text form if available.
FAVORITE CH (Channel) You can register up to four favorite channels for quick recall with one press.
AI ECO SENSOR TV detects the brightness of your room and automatically adjust the picture brightness to
a suitable level for a better eyecare.
ECO MODE You can adjust TV screen contrast according to the brightness of your room to suitable
level for a better eyecare.
AI VOLUME TV adjusts the volume automatically for all TV channels to avoid sudden change of the
volume when selecting different TV channels or selecting Video Mode.
VNR You can reduce the picture noise when viewing noisy TV programs or video sources.
Note : Some functions written in this instruction manual may not be available for your TV.
Please see the chart below and check the function are equipped for your TV's model number.
The model number is indicated at the rear of your TV. When you press a button concerned to a function that is not
available for your TV, it does not work and the logo "Ø" appears on the screen.
Model No.
Function
AV-29QT19
AV-29RT19S AV-29RT29S AV-29ST19B AV-29ST29B AV-21RT29S AV-21ST29B
PIP control buttons (Green label) – – •–• • •
PICTURE TILT • • • • • – –
MaxxBass – • • • • • •
AI ECO SENSOR – • • • • • •
ECO MODE •– – – – – –

4



R VL/MONO
IN(VIDEO-3)
The illustration of AV-29ST29B is shown here for explanation purpose. Your TV may not look exactly the same as illustrated.
CAUTION
Ensure to turn off all equipments including the TV before connecting the AC main plug to the AC outlet.
Connections
After all the connections have been made,
insert the main plug to the AC outlet.
• When connecting to COMPONENT (VIDEO-2) input,
depending on the connection, choose the appropriate
video input using the menu (\ page 14).
Connecting to the front video input terminal
Connecting to the rear component/video
input terminal and output terminal
75-ohm coaxial
cable (not supplied)
VHF/UHF
outdoor
aerial
Rear of VCR
Camcorder or TV game
Headphones
DVD player
(with component
video signals
input)
VCR (for playing)
DVD player
(composite signals)
VCR (for recording)
Connecting to the aerial cable and VCR
(Connect
directly if not
using a VCR)
Aerial cable RF output
Video output
(Connect via a VCR)
Audio output
S-video output
RF input
TV rear terminals
Matching
aerial adapter
(supplied)

5
OK / : CHANNEL SUMMERY
22%
AUTO PROGRAM
CHANNEL SUMMARY
CH/02
CH/CC SKIP
CH/04
CH/03
CH/06
CH/05
CH/07
MENU : EXIT
SKIP
CANCEL
CH/08
1
3
2
To stop or wait until AUTO PROGRAM
finishes
Select AIR or CABLE
Searching for the channels (AUTO PROGRAM)
4Set undesired channels to be skipped
JVC logo appears
Turn on the TV
To restart Setup Tour after above setup has completed
PREPARATION
Initial settings
or wait 15 seconds to
run Setup Tour
AUTO PROGRAM
AIR
CABLE
OK / : SELECT
DISPLAY : BACK
MENU : EXIT
To complete
Setup Tour
\ page 14.
1 Select
2 Confirm
(while the cursor is pointing to
PICTURE MODE and within 3
seconds)
