Let’s Get Started Using Your Video Capable
iPod®with Your JVC TeleDock TV…
LCT2473-001A-A for Web - Frank Revised.indd 1 7/14/08 9:23:28 AM

2
Dock It
1) Choose the Adaptor suited to your iPod model
2) Gently pull down the TeleDock, place the adapter in the
dock and Insert your iPod (Make sure TV Out is turned on in
the iPod’s Video Menu)
3) Press the button and wait for
communication to be established
iPod iPod nano iPod mini
4G Photo/Color 5G (Video) Classic Touch* 1G 2G 3G 1G
2G
20GB
40GB
20GB
30GB
40GB
60GB
30GB
60GB
80GB
80GB
160GB
8GB
16GB
32GB
1GB
2GB
4GB
2GB
4GB
8GB
4GB
8GB
4GB
6GB
20GB – A 20GB – A
30GB – A 30GB – A 80GB – A E B C D A
A AE B C D
The TeleDock lights will flash to
indicate the TV is establishing
communication with your iPod.
When the JVC logo appears on
your iPod and the lights stop
flashing, you are ready to begin.
* Due to the nature of it’s build, features such as lock/unlock, menu, and selection of music/
video, selection of TV Output, and Photo Viewer On/Off must be performed on the iPod itself.
NOTE: Once communication is established, please
press the button on the remote before
removing the iPod from TeleDock.
iPod
iPod
LCT2473-001A-A for Web - Frank Revised.indd 2 7/14/08 9:23:31 AM

3

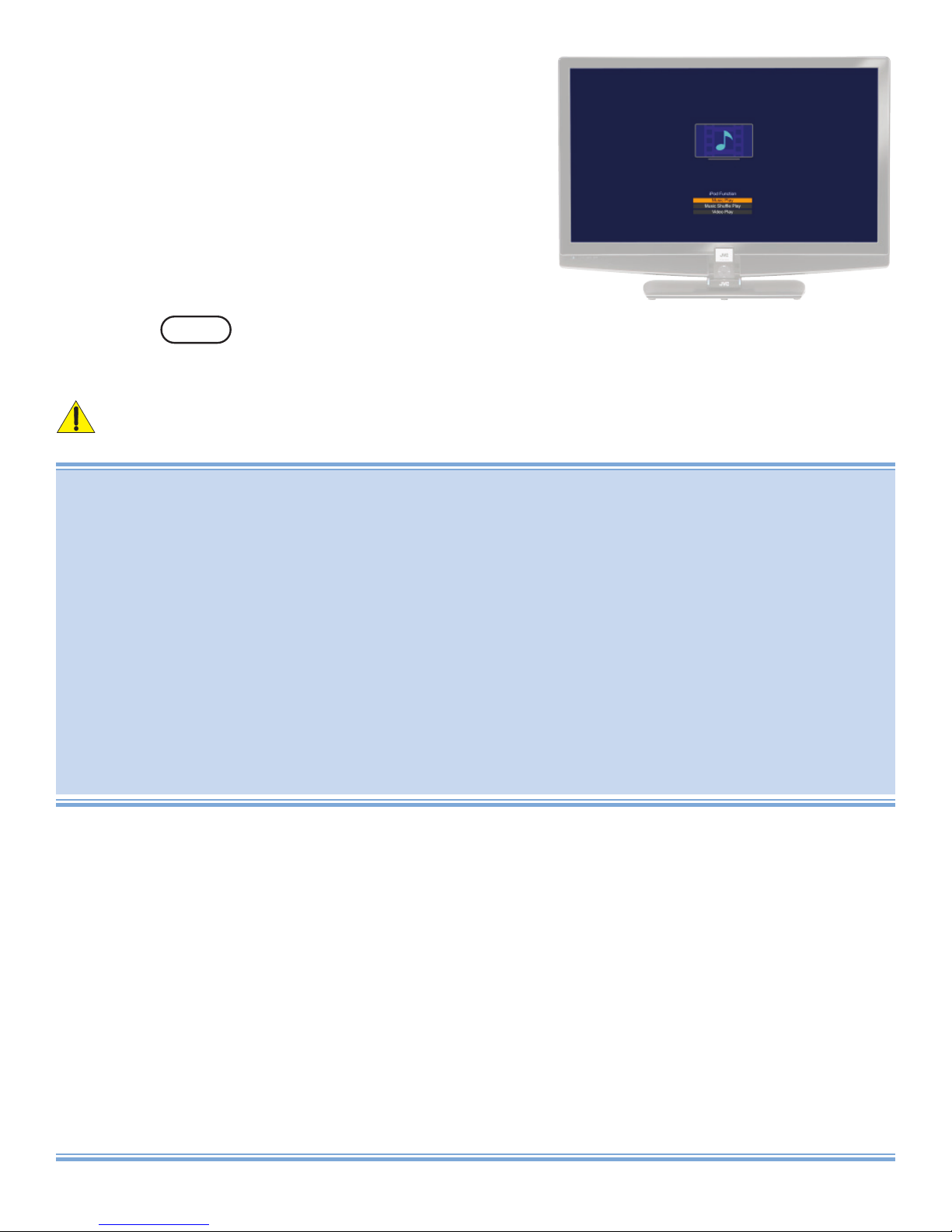

4) The main iPod menu appears
From the main menu, you can
select “Music Play”,
“Music Shuffle Play”
or “Video Play”.
Getting to Know what your TeleDock can do:
TCON Mode: TCON stands for Television Mode. In TCON mode your TV
Remote is in CONTROL of your iPod. (Page 5 – 7)
iTV Mode: Allows you to watch TV while listen to music on your iPod. (Page 7)
PCON Mode: PCON stands for iPod Mode. In PCON mode your iPod regains control
and you can navigate through the main interface of the iPod instead of
through the TV control. PCON is especially handy to choose from music
playlists and large video libraries. (Page 8 – 9)
Caring for your TeleDock: Always open and close the TeleDock gently. Close the
TeleDock when you are not using it.
NOTES:
• Press the button to enter or exit the menu.
• Disconnecting without doing so can interfere with the iPod/TV communications and you may have
to start over.
Detaching your iPod abruptly from the TeleDock will forcibly exit the menu.
(“iPod not found”) will appear on the TV screen.
iPod
LCT2473-001A-A for Web - Frank Revised.indd 3 7/14/08 9:23:52 AM

4

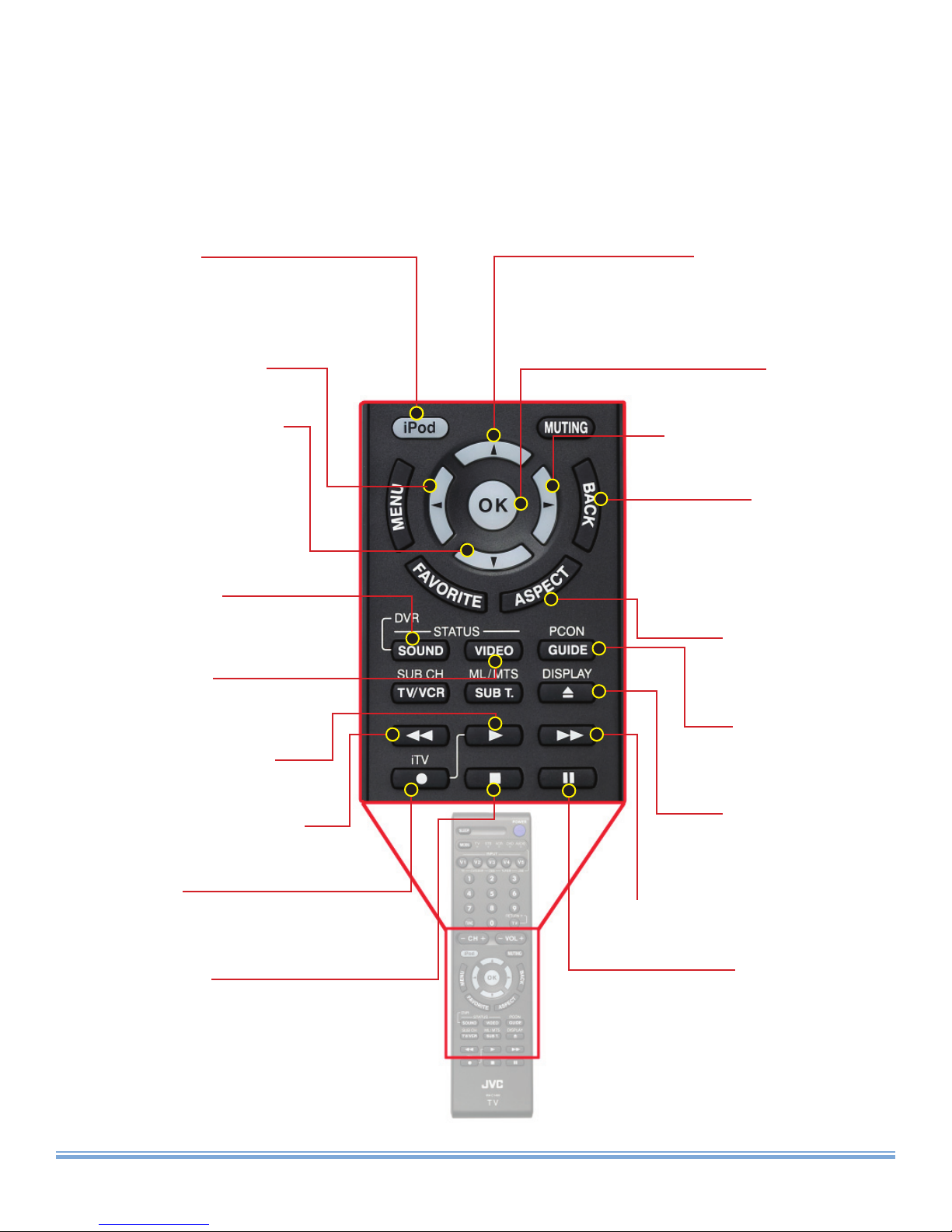

iPod Button
iPod Button:
Enter iPod Menu
Exit iPod Menu and go to last
channel
Right Arrow Button
Right Arrow Button:
Play Next
OK Button
OK Button:
Playback (Pause), Set
Back Button
Back Button:
In TCON, brings up
Initial iPod Menu
In PCON, goes back to
the previous menu
Sound Button
Sound Button:
Change your sound
status settings
Rewind Arrow Button
Rewind Arrow Button:
Rewind playback
Video Button
Video Button:
Change your video status
settings
Play Arrow Button
Play Arrow Button:
Playback
Stop Button
Stop Button:
In TCON, brings up Initial iPod Menu
In PCON, stops playback
iTV Button
iTV Button:
Watch your RF video source while
listening to your iPod’s music
Left Arrow Button
Left Arrow Button:
Play Previous
Down Arrow Button
Down Arrow Button:
Move cursor down
one position
In Music play, skip – 50
In Video play, move
down category
Up Arrow Button
Up Arrow Button:
Move cursor up one position
In Music play, skip +50
In Video play, move up category
Use your TV Remote to navigate through the TV’s iPod Menu
and control some basic iPod functions.
Play It
Aspect Button
Aspect Button:
Change the video’s
aspect ratio
PCON Button
PCON Button:
Change between
TCON and PCON
Display Button
Display Button:
Turn display messages
on or off
Forward Arrow Button
Forward Arrow Button:
Fast-forward playback
Pause Button
Pause Button:
Pause (Playback)
LCT2473-001A-A for Web - Frank Revised.indd 4 7/14/08 9:23:53 AM

5

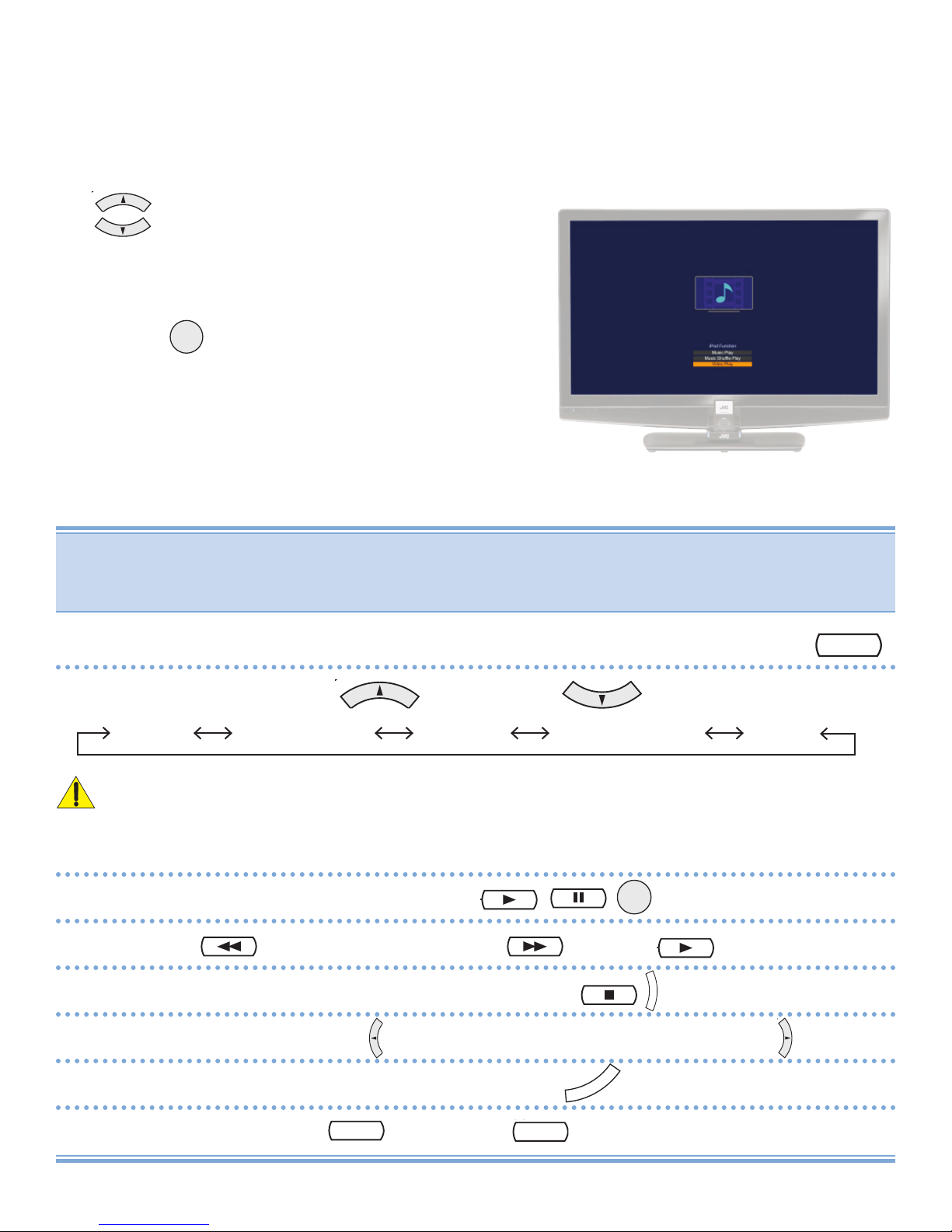

TeleDock lets you listen to music content stored on your iPod.

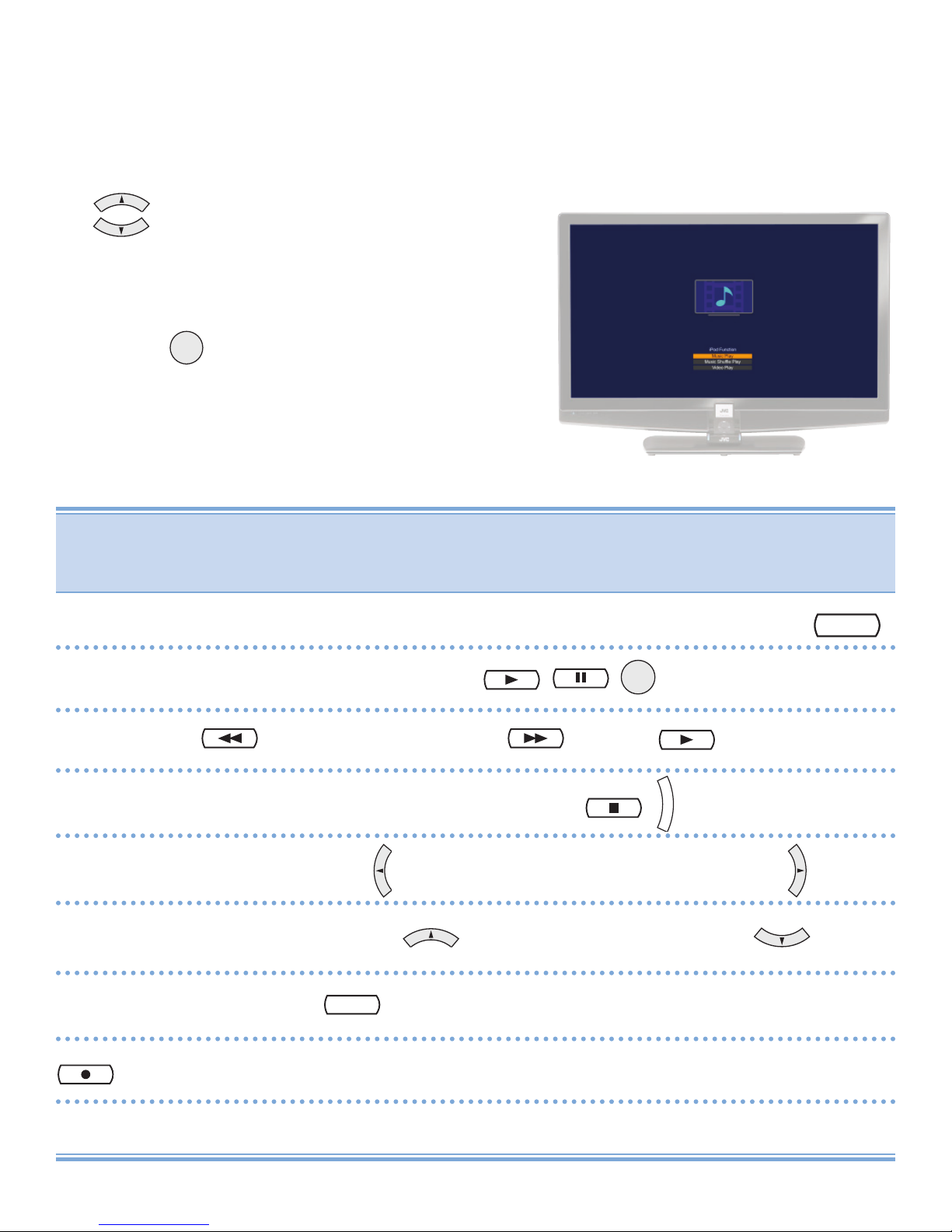

Listen To It – TCON Mode
1) Scroll to and select Music
Play or Music Shuffle Play from
the TV’s main iPod menu
2) Press
The track title, artist name and playing
time will be displayed.
OK
TCON (TV control) Playback Functions
In TCON Mode you can control most iPod playback functions with the
TV remote control.
To move back and forth between TCON and PCON, press .
To play, pause, or re-start, press .
To Rewind and Fast-Forward . Then to re-start.
To return to the Main iPod Menu, press .
To go back to previous or forward to the next track .
Skip to the next 50 tracks or previous 50 tracks .
To adjust the sound status.
Allows you to watch TV while listening to your iPod.
OK
B
A
C
K
STA
SOUND
GUIDE
PCON
iTV
LCT2473-001A-A for Web - Frank Revised.indd 5 7/14/08 9:23:53 AM

6
TeleDock lets you watch movies, music videos, TV shows, video
podcasts and rentals stored on your video iPod.

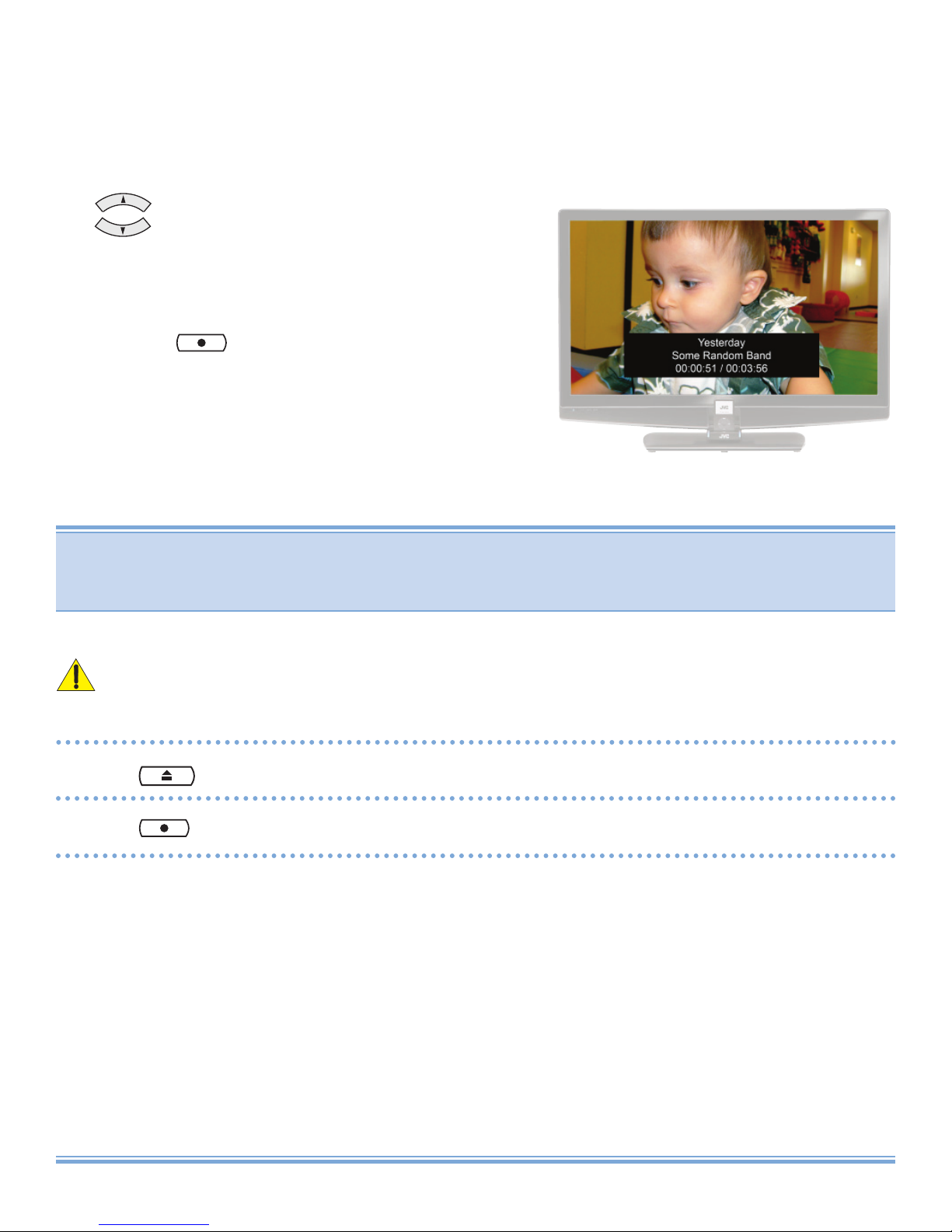

Watch It - TCON Mode
TCON (TV control) Playback Functions
1) Scroll to and select Video
Play from the TV’s main iPod
menu
2) Press
The first video in your library will begin to
play.
OK
In TCON Mode you can control most iPod playback functions with the
TV remote control.
To move back and forth between TCON and PCON, press .
To move to previous and next video category.
Movies Music Videos TV shows Video Podcasts Rentals
• A category not supported by your iPod will be skipped over.
• Playback of a video file in “Rentals” will start when “Rentals” is selected.
• Rental is available if you have rented a program. When you choose Rentals, your rental will
begin playing. Once you open, you have 24 hours to view your rental before your rented file
expires.
To play, pause, or re-start, press .
To Rewind and Fast-Forward . Then to re-start.
To return to the Main iPod Menu, press .
To go back to previous or forward to the next video .
To adjust the aspect ratio of the video .
To adjust the sound or video status.
US
VIDEO
SOUND
A
S
P
E
C
T
GUIDE
PCON
OK
B
A
C
K
LCT2473-001A-A for Web - Frank Revised.indd 6 7/14/08 9:23:56 AM

7
iTV allows you to watch TV and at the same time listen to the
music content on your iPod.
Enjoy It - TCON Mode
1) Scroll to and select Music
Play or Music Shuffle Play
2) Press iTV
iTV Mode
Press to turn ON or OFF the track title on the TV.
Press will go back to the previous screen.
iTV
DISPLAY
• External audio input is unavailable.
• The TV’s sound does not come out from the speaker.
• You can not change the aspect ratio.
• You can not choose the sound mode or the video status settings.
• You can not operate the TV menus.
Basic operations are the same as the operations when playing back
tracks in TCON mode. (Page 5)
The TV picture will change to what is
being received by the TV.
LCT2473-001A-A for Web - Frank Revised.indd 7 7/14/08 9:24:00 AM

8
You can perform basic iPod operations using the remote as well
as the iPod itself.

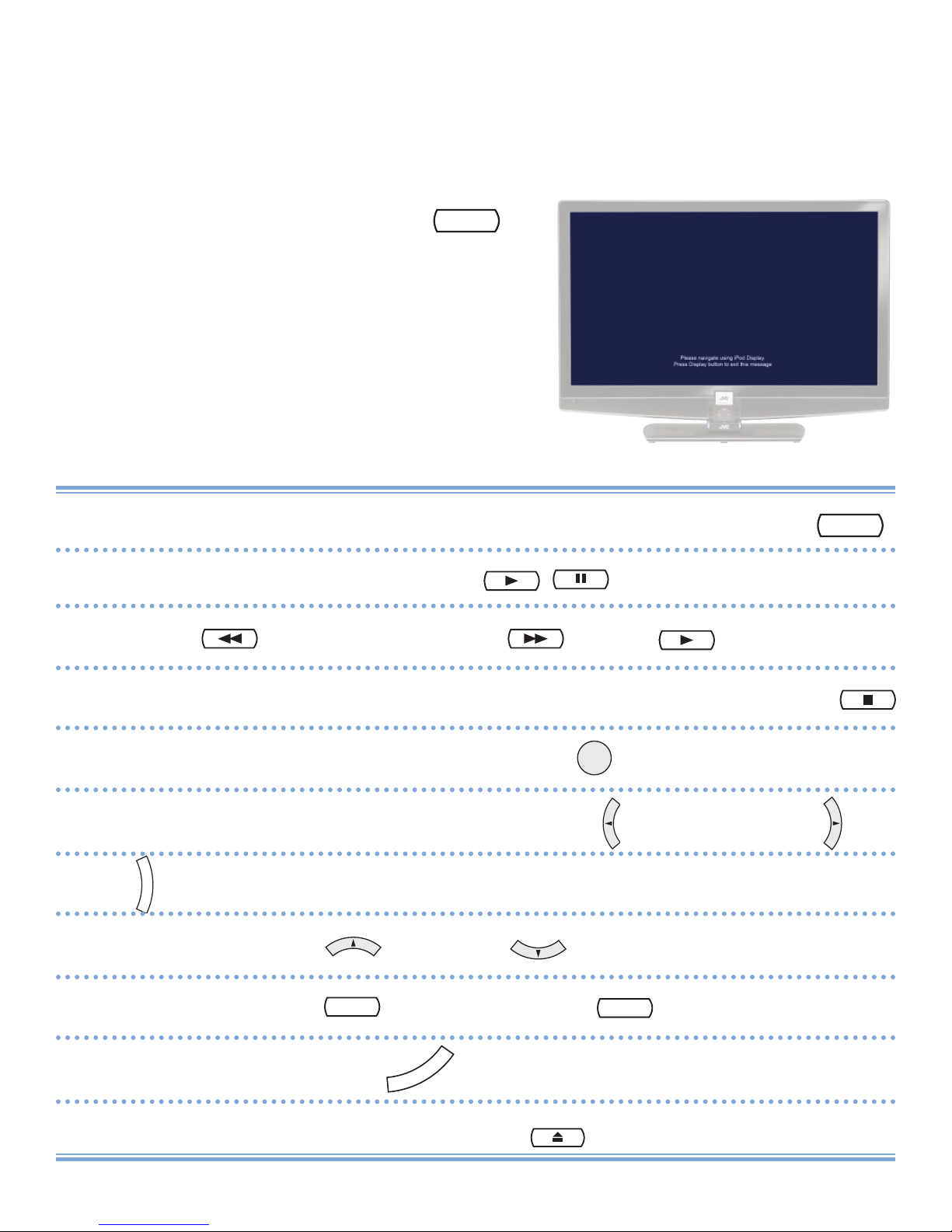

Play It - PCON Mode
While in TCON Mode, press
“Please navigate using iPod Display
Press Display button to exit this message”
will appear.
PCON (Pod control) Playback Functions
GUIDE
PCON
To move back and forth between TCON and PCON, press .
To play, pause, or re-start, press .
To Rewind and Fast-Forward . Then to re-start.
To stop playback and go back to the start menu of the iPod .
Move to the menu of the selected item .
Skip to previous or go back to beginning . Skips to next .
Press to move back to the previous menu.
Move the cursor up or down .
To adjust the sound or video status .
Adjust the Aspect mode .
Turn On/Off the TV message screen .
GUIDE
PCON
OK
B
A
C
K
VIDEO
SOUND
A
S
P
E
C
T
DISPLAY
LCT2473-001A-A for Web - Frank Revised.indd 8 7/14/08 9:24:01 AM

9
To watch videos with PCON Mode, pleae follow the steps
below.
Setup Your iPod to Play Videos and Photos
– PCON Mode
To display videos
1) Scroll to and select Videos.
2) Scroll to and select Settings.
3) Scroll to TV Out and select it to be On.
Your iPod is now set to be able to display videos on your TV.
NOTE: Setting up your iPod to play videos on your TV.
Depending on your iPod type, the above directions may differ slightly.
To display photos
1) Scroll and select Photos.
2) Scroll and select Settings.
3) Scroll to TV Out and select it to be On.
Your iPod is now set to be able to display videos on your TV.
NOTE: Setting up your iPod to play videos on your TV.
• Depending on your iPod type, the above directions may differ slightly.
• If you playback both photos and music, adjust Music setting.
Error Message: Solution:
“iPod not found”
Insert your iPod again. Also, this appears
when you press the iPod button without
inserting an iPod.
“Communication failed
Check Connection”
Insert your iPod again. This is a connection
error.
“File not found” This appears when your iPod has no files to
play.
LCT2473-001A-A for Web - Frank Revised.indd 9 7/14/08 9:24:04 AM

10
While you are watching videos, there are four different aspect modes
from which to choose. Because the quality of each video on your iPod can
vary drastically, we suggest checking each aspect ratio with each video to
choose the best one for it.
There are many ways you can enjoy your iPod videos on this TV
with TeleDock. Here are just a few:
Work It
Change the Aspect Ratio
Regular Full 4:3 Mini 16:9 Mini
About the Aspect Modes:
Regular: Perfect for 4:3 high resolution content on your iPod.
Full: Perfect for 16:9 (a.k.a. widescreen) content on your iPod.
4:3 Mini Mode: Ideal for lower resolution 4:3 content because this mode compresses
the video about 75%.
16:9 Mini Mode: Ideal for lower resolution 16:9 content.
NOTE: While the Aspect Mode menu is on screen, the remote will not respond to
commands. If you want the menu to go away, press the button once, or you
can wait a few seconds, then normal operations resume.
B
A
C
K
