SERVICE MANUAL
COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD. No.52089
2003/03
PD-35DX
PDP COLOUR TELEVISION
52089200303
PD-35DX
TABLE OF CONTENTS
1 PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
3 ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
4 TROUBLE SHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-45
TS-35DX
[FRONT SPEAKER (R)]
TS-35DX
[FRONT SPEAKER (L)]
TS-35DX
[SUB WOOFER]
VM-35DX
[PLASMA DISPLAY UNIT]
TU-35DX
[RECEIVER UNIT]
[RM-C63]
FREEZE
SUB-P
123
456
78
0
9
BASIC CHASSIS
MK

PD-35DX
1-2 (No.52089)
SPECIFICATION
Design and specifications subject to change without notice.
Item Contents
Dimensions (W x H x D) Plasma display unit 88.7cm x 54.5cm x 9.9cm (without Front speaker)
97.5cm x54.5cm x 10.3cm (with Front speaker)
Receiver unit 43.5cm x 9.9cm x 38.2cm
Front speaker 4.2cm x 54.5cm x 5.4cm
Sub woofer 43.5cm x 23.0cm x 12.6cm
Mass Plasma display unit 27.2kg (without Front speaker)
29.3kg (with Front speaker)
Receiver unit 5.3kg
Front speaker 0.7kg (per one speaker without attachment bracket)
Sub woofer 3.7kg
TV RF System B, G, I, D, K, K1
Colour System PAL / SECAM / NTSC
• The external terminals also support the NTSC 3.58/4.43 MHz system.
Stereo System A2 (B/G, D/K), NICAM (B/G, I, D/K)
Teletext System FLOF (Fastext), TOP, WST (World Standard System)
Receiving Frequency VHF (VL) 46.25MHz ~ 168.25MHz
VHF (VH) 175.25MHz ~ 463.25MHz
UHF 471.25MHz ~ 855.25MHz
CATV Mid (X ~ Z+2, S1 ~ S10) / Super (S11 ~ S20) / Hyper (S21 ~ S41) bands
Intermediate Frequency VIF 38.9MHz (B / G, D / K, I)
SIF 33.4MHz (5.5MHz: B/G) / 32.9MHz (6.0MHz: I) / 32.4MHz (6.5MHz: D/K)
Colour Sub Carrier PAL 4.43MHz
SECAM 4.40625MHz / 4.25MHz
NTSC 3.58MHz / 4.43MHz
Power Input AC110V ~ AC240V, 50Hz / 60Hz
Power Consumption Plasma display unit Operate: 243W, Stand by: 0.5W
Receiver unit Operate: 35W, Stand by: 2.4W
Plasma Display Panel (PDP) QLE0021-001
35-inch wide aspect (16:9)
Screen Size Viewable area 90.2cm (measured diagonally) W: 78.6cm x H: 44.3cm
Display Pixels Horizontal: 853 dots x Vertical: 480 dots [W-VGA]
Audio Output Front: 10W+10W, Sub woofer: 15W
Speaker Front speaker 9.5cm x 1cm square x 2, Direct Drive system
Sub woofer (for bass sound) 16cm Round x 1
Aerial Input (VHF/UHF) 75 ohm Unbalanced coaxial
Input/
Output jack
VIDEO/
AUDIO IN
S-VIDEO
(VIDEO-2, 3, 5)
Mini-DIN 4 pin x 3
Y: 1V(p-p), Positive (Negative sync provided), 75 ohm
C: 0.286V(p-p) (Burst signal), 75 ohm
VIDEO-1
VIDEO-2
VIDEO-3 VIDEO 1V(p-p) Positive (Negative sync provided), 75 ohm RCA pin jack x 4
VIDEO-5 AUDIO 500mV(rms), High impedance RCA pin jack x 8
COMPONENT
VIDEO/
AUDIO IN
VIDEO-4
COMPONENT VIDEO RCA pin jack x 3
Y: 1V(p-p), Positive (Negative sync provided), 75 ohm
Pb/Pr: 0.7V(p-p), 75 ohm
• Progressive-scanning signals (625p or 525p) are available.
AUDIO 500mV (rms), High impedance RCA pin jack x 2
LINE OUT VIDEO 1V(p-p), Positive (Negative sync provided), 75 ohm RCA pin jack x 1
AUDIO 500mV(rms), Low impedance RCA pin jack x 2
AUDIO OUT (Fixed) 500mV(rms), Low impedance RCA pin jack x 2
Headphone 3.5mm Stereo mini jack x 1
Display Input / Output Terminal
(For system cable)
Control / Audio: 24-pin D-sub connector
Video: 26-pin DVI-D connector
Speaker Terminal Front speaker: 6 ohm, Max. output 10W
Subwoofer: 4 ohm, Max. output 15W
Remote Control Unit RM-C63-1C (battery: R03 / UM-4 x 2)

PD-35DX
(No.52089)1-3
SECTION 1
PRECAUTIONS
1.1 SAFETY PRECAUTIONS
(1) The design of this product contains special hardware,
many circuits and components specially for safety
purposes. For continued protection, no changes should be
made to the original design unless authorized in writing by
the manufacturer. Replacement parts must be identical to
those used in the original circuits. Service should be
performed by qualified personnel only.
(2) Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void
the manufacturer's warranty and will further relieve the
manufacturer of responsibility for personal injury or
property damage resulting therefrom.
(3) Many electrical and mechanical parts in the products have
special safety-related characteristics. These
characteristics are often not evident from visual inspection
nor can the protection afforded by them necessarily be
obtained by using replacement components rated for
higher voltage, wattage, etc. Replacement parts which
have these special safety characteristics are identified in
the parts list of Service manual. Electrical components
having such features are identified by shading on the
schematics and by ( ) on the parts list in Service
manual. The use of a substitute replacement which does
not have the same safety characteristics as the
recommended replacement part shown in the parts list of
Service manual may cause shock, fire, or other hazards.
(4) Don't short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing.
Some model's power circuit is partly different in the GND.
The difference of the GND is shown by the LIVE : ( ) side
GND, the ISOLATED (NEUTRAL) : ( ) side GND and
EARTH : ( ) side GND.
Don't short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure the LIVE side GND and ISOLATED (NEUTRAL)
side GND or EARTH side GND at the same time with a
measuring apparatus (oscilloscope etc.).
If above note will not be kept, a fuse or any parts will be
broken.
(5) If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
(6) The high voltage applied to the picture tube must conform
with that specified in Service manual. Excessive high
voltage can cause an increase in X-Ray emission, arcing
and possible component damage, therefore operation
under excessive high voltage conditions should be kept to
a minimum, or should be prevented. If severe arcing
occurs, remove the AC power immediately and determine
the cause by visual inspection (incorrect installation,
cracked or melted high voltage harness, poor soldering,
etc.). To maintain the proper minimum level of soft X-Ray
emission, components in the high voltage circuitry
including the picture tube must be the exact replacements
or alternatives approved by the manufacturer of the
complete product.
(7) Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10k
2W resistor to the anode button.
(8) When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced.
Always use the manufacturer's replacement components.
(9) Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an
isolation check on the exposed metal parts of the cabinet
(antenna terminals, video/ audio input and output
terminals, Control knobs, metal cabinet, screw heads,
earphone jack, control shafts, etc.) to be sure the product
is safe to operate without danger of electrical shock.
a) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second. (.
. . . Withstand a voltage of 1100V AC (r.m.s.) to an
appliance rated up to 120V, and 3000V AC (r.m.s.) to an
appliance rated 200V or more, for a period of one second.)
This method of test requires a test equipment not generally
found in the service trade.
b) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
a line isolation transformer during this check.). Using a
"Leakage Current Tester", measure the leakage current
from each exposed metal part of the cabinet, particularly
any exposed metal part having a return path to the chassis,
to a known good earth ground (water pipe, etc.). Any
leakage current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
Alternate Check Method
Plug the AC line cord directly into the AC outlet (do not
use a line isolation transformer during this check.). Use
an AC voltmeter having 1000 ohms per volt or more
sensitivity in the following manner. Connect a 1500 ohm
10W resistor paralleled by a 0.15µF AC-type capacitor
between an exposed metal part and a known good earth
ground (water pipe, etc.). Measure the AC voltage
across the resistor with the AC voltmeter. Move the
resistor connection to each exposed metal part,
particularly any exposed metal part having a return path
to the chassis, and measure the AC voltage across the
resistor. Now, reverse the plug in the AC outlet and
repeat each measurement. Any voltage measured must
not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).
AC VOLTMETER
(HAVING 1000 /V,
OR MORE SENSITIVITY)
PLACE THIS PROBE
ON EACH EXPOSED
METAL PART
1500 10W
0.15 F AC-TYPE
GOOD EARTH GROUND

PD-35DX
1-4 (No.52089)
1.2 INSTALLATION
1.2.1 HEAT DISSIPATION
If the heat dissipation vent behind this unit is blocked, cooling
efficiency may deteriorate and temperature inside the unit will
rise. The temperature sensor that protects the unit will be
activated when internal temperature exceeds the pre-determined
level and power will be turned off automatically.
Therefore, please make sure pay attention not to block the heat
dissipation vent as well as the ventilation outlet behind the unit
and ensure that there is room for ventilation around it.

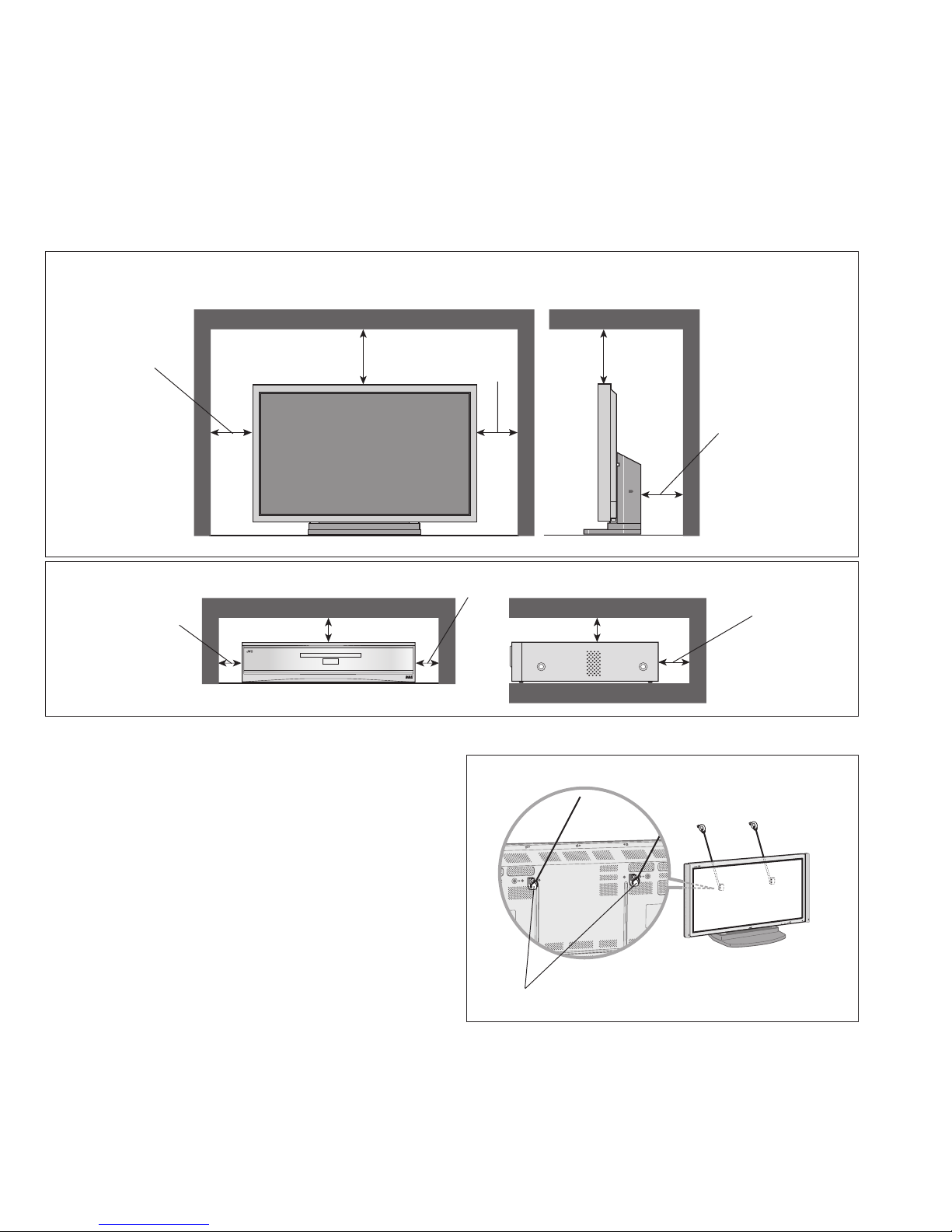

1.2.2 INSTALLATION REQUIREMENTS
Ensure that the minimal distance is maintained, as specified
below, between the unit with and the surrounding walls, as well
as the floor etc.
Install the unit on stable flooring or stands.
Take precautionary measures to prevent the unit from tipping in
order to protect against accidents and earthquakes.
1.2.3 FALL TIP PREVENTION MEASURES
Take precautionary measures to prevent the unit from falling or
tipping to protect against emergencies such as earthquakes as
well as accidents.
Fasten the supplied hook for tip fall prevention using the screws,
also supplied, behind the display unit, and use them together
with durable cords (to be purchased separately) to secure the
unit to a robust part such as the wall surface or pillars.
150mm or more 200mm or more 150mm
or more
200mm
or more
50mm or more
SPACE REQUIRED FOR INSTALLATION OF THE DISPLAY UNIT
100mm or more100mm or more
100mm or more
100mm or more 100mm or more
SPACE REQUIRED FOR INSTALLATION OF THE RECEIVER UNIT
MENU
OK
PTV/VIDE
The supplied hook for tipfall prevention

PD-35DX
(No.52089)1-5
1.3 PRECAUTIONS REGARDING PDP
1.3.1 PRECAUTIONS DURING NOTES FOR
TRANSPORTATION
When transporting the display unit, pressure exerted on the
internal PDP (Plasma Display Panel) due to improper handling
(such as tossing and dropping) may cause damages even when
the unit is carefully packed. To prevent accidents from occurring
during transportation, pay careful attention prior to delivery such
as through explaining the handling instructions to transporters.
Ensure that the following requirements are met during
transportation, as the PDP of this unit is made of glass and
therefore fragile:
(1) Avoid vibrations and impacts
The unit may be broken if it is toppled sideways even when
properly packed. Ensure that the unit is carried by at least
2 persons and pay careful attention not to exert any
vibration or impact on it.
(2) Do not place equipment horizontally
Ensure that it is placed upright and not horizontally during
transportation and storage as the PDP is very vulnerable to
lateral impacts and may break easily under such
circumstances.
During transportation, ensure that the unit is loaded along
the traveling direction of travel of the vehicle, and avoid
stacking them on one another.
For storage, ensure that they are stacked in 2 layers or less
even when placed upright.
1.3.2 RESIDUAL IMAGE / BURN-IN ON SCREEN
Like CRTs, “burn-in” may occur when a same image is
continuously displayed over an extended period of time.
As Tthis may also shorten the life span of the PDP. Therefore,
turn off the display when not in use, scroll the screen, make use
of screen-savers, or allow even distribution on the display by
inverting the brightness, switching to complementary colors or
inserting animated images at periodic intervals.
As burn-in is more likely to occur with high brightness and
contrast settings, try to use neutral gradations or medium tone
colors.
Burn-in does not occur in the case of animated images.
When switching to another image after continuous display of the
previous image, residual images may become prominent, as
luminance in a part of the display is higher than the other parts.
This is not a defect but is because due to the discharge surface
of the lighted portion has becomebeing relatively activated and
its luminance higher than the unlighted parts.
1.3.3 INFRARED RAYS
Near Near-infrared rays (800nm to 1000nm) are emitted from the
front of the panel, and this may give rise to glitchescause
malfunctions in infrared remote controls or communication
systems placed near it. In this case, avoid direct infrared rays
(and reflected rays in some cases) from the screen by either
changing the direction of the unit or other infrared systems or
securing a longer keeping a distance from the screen.
1.3.4 OPTICAL FILER (PANEL FILTER)
Avoid placing the unit under direct sunlight over a prolonged
period of time. This may cause the optical filter to deteriorate in
quality and color.
Clean the filter surface by wiping it softly lightly with outing
flannels a soft and lightly fuzz cloth (such as flannel).
Do not use solvents such as benzine or thinner to wipe the filter
surface. This may cause the filter to deteriorate in quality or the
coating on the surface to come off.
As Tthe filter surface is fragile., Ddo not scratch or hit it with hard
materials.
1.3.5 NOTES PRECAUTIONS FOR REPLACEMENT OF
EXTERIOR PARTS
Take note of the following when replacing exterior parts (back
REAR COVER, FRONT PANEL, optical filter)
• Do not exert pressure on the front of the PDP (glass surface).
• Pay careful attention not to scratch or stain the front of the PDP
(surface) with hands.
• When replacing exterior parts, the front of the PDP should be
placed facing downward. Place a mat, etc. underneath to avoid
causing scratches to the front surface. However, never use
materials that are too soft (such as blanket cloth). If
replacement is made with the PDP surface facing downward
and in contact with the blanket, pressure may be exerted on
the PDP, thus causing damages to it.

PD-35DX
1-6 (No.52089)
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
2.1 FEATURES
HIGH-DEFINITION IMAGE TECHNOLOGY (DIST), High Quality Sound Technology (DD) equipped.
2.1.1 MAIN FUNCTION
2.1.2 ASPECT CONTROL
The screen size can be changed according to the picture aspect ratio.
2.1.3 MULTI-SCREEN FUNCTION
DIST (Digital Image Scaling Technology) Employs an interpolation method that doubles the scanning lines to realize 480-line flicker-
free picture making it especially suitable for reproducing high-resolution pictures even on
large-screen displays.
DD (Direct Drive) Acoustic device that is accomplished through the interfacing of computer simulation and
the acoustic technology that we have developed over the years.
Attain wide and spontaneous acoustic field, real normal sound images that allows
enjoyment of the realistic sensation of reserved seats, from any audience seats.
DIGITAL VNR The DIGITAL VNR function cuts down the amount of noise in original picture. There are
three function settings of AUTO,MIN and MAX.
Super DigiPure This function uses the latest technology to give viewer a natural looking picture.
It consist of DigiPure and picture motion compensation function.
PULL DOWN This function displays a cinema film picture more smoothly and naturally on the screen.
COLOUR MANAGEMENT This function ensures dull colours are compensated to produce natural hues.
Sleep Timer Setting for situations such as falling asleep while watching TV, and for prevention against
forgetting to turn off the TV. The power supply of the TV will be cut off automatically when
the time exceeds the set up timing (maximum 2 hours).
CINEMA SURROUND function This function makes the speaker sounds like in a wider ambience.
Teletext function The teletext broadcast can be viewed and the teletext pages can be stored in memory.
ZOOM function Desired screen size (AUTO/REGULAR / PANORAMIC / 14:9 ZOOM / 16:9 ZOOM / 16:9
ZOOM SUBTITLE / FULL) can be selected.
Twin-pictures / PIP function With the function, two pictures can be displayed at the same time (Twin pictures mode and
Picture in picture mode).
Multi-picture function With this function, one of multi-picture (12 pictures and 4 pictures) can be displayed at the
same time.
Freeze function The images that are currently seen can be viewed on the memo screen (still picture).
It is convenient for taking down notes like application address and recipe of cooking
program etc, while enjoying the current program.

PD-35DX
(No.52089)1-7
2.2 TECHNICAL INFORMATION
2.2.1 PDP STRUCTURE AND CHARACTERISTIC
This unit (Display Unit) uses the flat type panel PDP (Plasma Display Panel), instead of the conventional CRT (Cathode Ray Tube),
as a display unit.
2.2.2 PIXEL (CELL) ARRAY
PDP is constructed by sealing the xenon, which emits neon and ultraviolet rays for discharging purpose, in between the electrodes
lay on the front glass substrate and rear glass substrate.
One pixel is composed of 3 RGB cells, with cell pitch of 0.36mm (1 pixel 1.08mm) horizontally and 1.08mm vertically.
The cell is arrayed in each RGB color as shown in Fig. 1. One pixel is formed by interlacing each RGB color cell.
One cell size is 0.36mm horizontally and 1.08mm vertically.
Fig.1
2.2.3 PIXEL DEFECTS
Though PDP is made by means of ultra precise technology, there are cases whereby not all pixels (cell) will function properly. In some
cases, there may be defective pixels that do not light at all or the ones that always light on.
There are 2 types of Pixel defects, [Bright Dot Defects] and [Dark Dot Defects], as defined respectively in the following:
(1) Bright Dot Defects
Bright dot defect is a pixel cell that lights or blinks though it should not light.
The presence of bright dot defects can be confirmed by inputting a full black signal (pattern).
(2) Dark Dot Defects
Dark dot defect is a pixel cell that does not light, blinks, or lights twice as brightly as the pixel cell should light, though it should light.
The presence of dark dot defects can be confirmed by inputting a 100% full white signal (pattern).
R G B R G B
RGBRGB
GBRG B
GBRGB
R
R
RGBRG B
RGBRGB
GBRG B
GBRGB
R
R
No.1
Pixel
sequence
No.2
Pixel
sequence
No.852
Pixel
sequence
No.853
Pixel
sequence
No.1
Pixel line
No.2
Pixel line
Horizontally
Vertically
Direction
1.08mm(Horizontally)
Pixel pitch
0.36mm(Vertically)
Cell pitch
1.08mm
(Verticall)
Pixel pitch
(Cell pitch)
1 pixel
(1 dot)
No.479
Pixel line
No.480
Pixel line
R Cell
G Cell
B Cell

PD-35DX
1-8 (No.52089)
2.3 MAIN CPU FUNCTIONAL TABLE (RECEIVER UNIT)
Pin No. Terminal Name Port Name I/O Remark
1TCK TCK I
2TMS TMS I
3TDI TDI I
4TDO TDO O
5 REMOCON P2.8 I/O
6 KEY1 P2.9 I/O
7 KEY2 P2.10 (NOR/INST) I/O
8 KEY3 P2.11 I/O
9 TV_LINK P2.12 I/O
10 POWER P2.13 I/O
11 PROTECT P2.14 I/O
12 POWERG P2.15 I/O
13 VSS33 VSS33 I GND
14 VDD33 VDD33 I 3.3V
15 TV_LINK OUT P4.5 O
16 A20 A20 O
17 A19 A19 O
18 A18 A18 O
19 A17 A17 O
20 VSS25 VSS25 I GND
21 VDD25 VDD25 I 2.5V
22 A16 A16 O
23 A8 A8 O
24 A7 A7 O
25 A9 A9 O
26 A6 A6 O
27 A5 A5 O
28 A10 A10 O
29 A11 A11 O
30 A12 A12 O
31 VSS33 VSS33 I GND
32 VDD33 VDD33 I 3.3V
33 A4 A4 O
34 A3 A3 O
35 A2 A2 O
36 A1 A1 O
37 A0 A0 O
38 A13 A13 O
39 A14 RAS/A14 O
40 A15 CAS/A15 O
41 VSS33 VSS33 I GND
42 VDD33 VDD33 I 3.3V
43 CLK MEMCLK O
44 CSSDRAM CSSDRAM O
45 CKE CLKEN O
46 CSROM CSROM O
47 RD RD O
48 UDQM UDQM O
49 LDQM LDQM O
50 WR WR O
51 D15 D15 I/O
52 VSS33 VSS33 I GND
53 VDD33 VDD33 I 3.3V
54 D7 D7 I/O
55 D0 D0 I/O
56 D14 D14 I/O
57 D8 D8 I/O
58 D6 D6 I/O
59 D1 D1 I/O
60 VSS33 VSS33 I GND
61 VDD33 VDD33 I 3.3V
62 D13 D13 I/O
63 D9 D9 I/O
64 D5 D5 I/O
65 D2 D2 I/O
66 D12 D12 I/O
67 D10 D10 I/O
68 VSS33 VSS33 I GND
69 VDD33 VDD33 I 3.3V
70 D4 D4 I/O
71 D3 D3 I/O
72 D11 D11 I/O
73 RESET-IN RSTIN I
74 SCL0 P3.0 I/O
75 SDA0 P3.1 I/O
76 P3.2 I/O
77 PIX_CLK P3.3 I/O
78 AMP_MUTE P3.4 I/O
79 AUDIO_MUTE P3.5 I/O
80 READY P3.6 I/O
81 STATUS P3.7 I/O
82 DATA P3.8 I/O
83 CLK P3.9 I/O
84 VSS33 VSS33 I GND
85 VDD33 VDD33 I 3.3V
86 VSS25 VSS25 I GND
87 VDD25 VDD25 I 2.5V
88 TXD0 TXD0 I/O
89 RXD0 RXD0 I/O
90 IE-MUTE P3.12 I/O
91 AA_SDA P3.13 I/O
92 AA_SCL P3.15 I/O
93 YS2 P5.14(YS2) I/O
94 HP_DET P5.15 I/O
95 NC TRIG_IN I/O
96 NC TRIG_OUT I/O
97 IIC_FREE P6.2 I/O
98 SCL1 P6.3 I/O
99 SCA1 P6.4 I/O
100 MSP_RESET P6.5 I/O
101 SDA2 P6.6 I/O
102 VSYNC VSYNC O
103 HSYNC HSYNC O
104 NC COR/RSTOUT O
105 YS BLANK O
106 VDD33 VDD33 I 3.3V
107 VSS33 VSS33 I GND
108 XTAL1 XTAL1 I
109 XTAL2 XTAL2 O
110 VSSA VSSA I GND
111 VSSD VDDA I
112 R R O
113 G G O
114 B B I
115 VSSA VSSA I GND
116 VSSD VDDA I 2.5V
117 CVBS2A CVBS2 I
118 VSSA VSSA I GND
119 VDDA VDDA I
120 CVBS1B CVBS1B I
121 CVBS1A CVBS1A I
122 VSSA VSSA I GND
123 VDDA VDDA I 2.5V
124 AFC1 P5.0 I
125 AFC2 P5.1 I
126 AGC P5.2 I
127 KEYP2 P5.3(KEYP2) I
128 TMODE TMODE I
Pin No. Terminal Name Port Name I/O Remark

PD-35DX
(No.52089)1-9
2.4 DISASSEMBLY PROCEDURE [DISPLAY UNIT]
CAUTION:
• When exchanging parts etc. with the front side (PDP side)
facing down, please place a protection sheet below before
starting, so as to prevent scratches on the front side.
2.4.1 REMOVING THE REAR COVER (Fig.1)
(1) Remove the power cord / system cable / speaker cord.
(2) Remove the 14 screws [A] and the 6 screws [B], and
remove the REAR COVER.
(3) Remove the 1 screw [C], and remove the INSULATION
SHEET.
Fig.1
2.4.2 REMOVING THE SPEAKER TERMINAL PWB (Fig.2)
• Remove the REAR COVER.
(1) Remove the 2 screws [D], and withdraw the TERMINAL
COVER.
(2) Remove the 6 screws [E], and remove the SPEAKER
TERMINAL PWB.
NOTE:
• Disconnect the connector [CN60SP] from the SPEAKER
TERMINAL PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.3 REMOVING THE AC INLET COVER (Fig.2)
• Remove the REAR COVER.
(1) Remove the 2 screws [F] and 1 screw [G], and withdraw the
AC INLET COVER.
NOTE:
• Disconnect the connector [CN0PW] from the LINE FILTER
PWB.
• It is advisable to take note of the connecting location (con-
nector number) of the removed connectors.
Fig.2
2.4.4 REMOVING THE LINE FILTER PWB (Fig.3)
• Remove the REAR COVER.
• Remove the AC INLET COVER.
(1) Remove the 6 screws [H], and remove the LINE FILTER
PWB together with the FILTER SHIELD.
NOTE:
• Disconnect the connector [CN00P] from the LINE FILTER
PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.5 REMOVING THE AUDIO PWB (Fig.3)
• Remove the REAR COVER.
• Remove the TERMINAL COVER and SPEAKER TERMINAL
PWB.
(1) Remove the 4 screws [I], and remove the AUDIO PWB.
NOTE:
• Disconnect the connectors [CN60SP], [CN600K],
[CN60CA], [CN60CE], [CN60CF] from the AUDIO PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.6 REMOVING THE SYSTEM POWER PWB (Fig.3)
• Remove the REAR COVER.
• Remove the INSULATION SHEET.
(1) Remove the 4 screws [J], and remove the SYSTEM
POWER PWB.
NOTE:
• Disconnect the connectors [CN900J], [CN900P], [CN90CB],
[CN90CA], [CN900K] from the SYSTEM POWER PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
AB
B
A
INSULATION SHEET
REAR COVER
(x2)
(x2)
(x4)
A
(x4)
(x8)
C
SPEAKER
TERMINAL
PWB
AC INLET
COVER
(x2)
D(x6)
E
TERMINAL COVER (x2)
F
G

PD-35DX
1-10 (No.52089)
2.4.7 REMOVING THE PDP POWER PWB (Fig.3)
• Remove the REAR COVER and INSULATOR SHEET.
(1) Remove the 6 screws [K], and remove the PDP POWER
PWB.
NOTE:
• Disconnect the connectors [CN00J], [CN0AU], [CN0AT],
[CN0AV] from the PDP POWER PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.8 REMOVING THE CHASSIS BASE (Fig.3)
• Remove the REAR COVER and INSULATION SHEET.
• Remove the TERMINAL COVER and SPEAKER TERMINAL
PWB.
• Remove the AC INLET COVER.
• Remove the FILTER SHIELD and LINE FILTER PWB.
• Remove the AUDIO PWB.
• Remove the SYSTEM POWER PWB.
• Remove the PDP POWER PWB.
(1) Remove the 4 screws [L] and 5 screws [M], and remove the
CHASSIS BASE.
Fig.3
2.4.9 REMOVING THE DISPLAY INTERFACE PWB (Fig.4)
• Remove the REAR COVER.
(1) Remove the 1 screw [N], 2 screws [O], 2 screws [P], and
remove the DISPLAY INTERFACE PWB.
NOTE:
• Disconnect the connectors [CN0AH], [CN0CB], [CN0CD],
[CN0CC], [CN0AV], [CN0CF], [CN0CE] from the DISPLAY
INTERFACE PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
2.4.10 REMOVING THE INTERFACE PWB BASE (Fig.4)
• Remove the REAR COVER.
• Remove the AC INLET COVER.
• Remove the CHASSIS BASE (with each PWB attached to
CHASSIS BASE).
• Remove the DISPLAY INTERFACE PWB.
(1) Remove the 3 screws [Q] and 3 screws [R], and remove the
INTERFACE PWB BASE.
Fig.4
2.4.11 REMOVING THE PDP (PANEL) UNIT (Fig.4), (Fig.5)
• Remove the REAR COVER.
• Remove the AC INLET COVER.
• Remove the CHASSIS BASE (with each PWB attached to the
CHASSIS BASE).
NOTE:
• Disconnect the connectors [CN0AU] and [CN0AT] from the
PDP POWER PWB.
• Disconnect the connectors [CN0AH], [CN0CB], [CN0CD],
[CN0CC], [CN0AV], [CN0CF], [CN0CE] from the DISPLAY
INTERFACE PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
FILTER
SHIELD
LINE
FILTER
PWB
AUDIO PWB
PDP POWER PWB
SYSTEM
POWER
PWB
CHASSIS
BASE
H
(x2)
(x6)
(x4)
(x2)
(x3)
INSULATION
SHEET
INSULATION
SHEET
M
(x2)
J
(x4)
I
(x4)
L
H
K
L
L
M
FRONT PANEL
INTERFACE PWB
BASE
DISPLAY INTERFACE
PWB
R
P
O
Q
T
S
N
Q
(x2)
(x2)
(x3)
(x2)
(x4)
(x4)

PD-35DX
(No.52089)1-11
(1) Remove the 4 screws [U], and remove the 2 pieces of
BOTTOM BRACKET, TOP BRACKET and 2 pieces of
SIDE BRACKET.
(2) Remove the 8 screws [V], and remove the 2 pieces of
BACK FRAME (BOTTOM) and 2 pieces of BACK FRAME
(TOP).
(3) Remove the 4 screws [S] and 4 screws [T].
(4) Lift the PDP UNIT upright and remove it with enough care
not to impose shock to the PDP UNIT.
CAUTION:
• Two or more people are required to remove the PDP UNIT.
• The gas pouring port is covered with the protection
material.In operation, be careful not to damage the gas
pouring port.
• Do not touch the front side (glass) of the PDP with your
fingers.
Fig.5

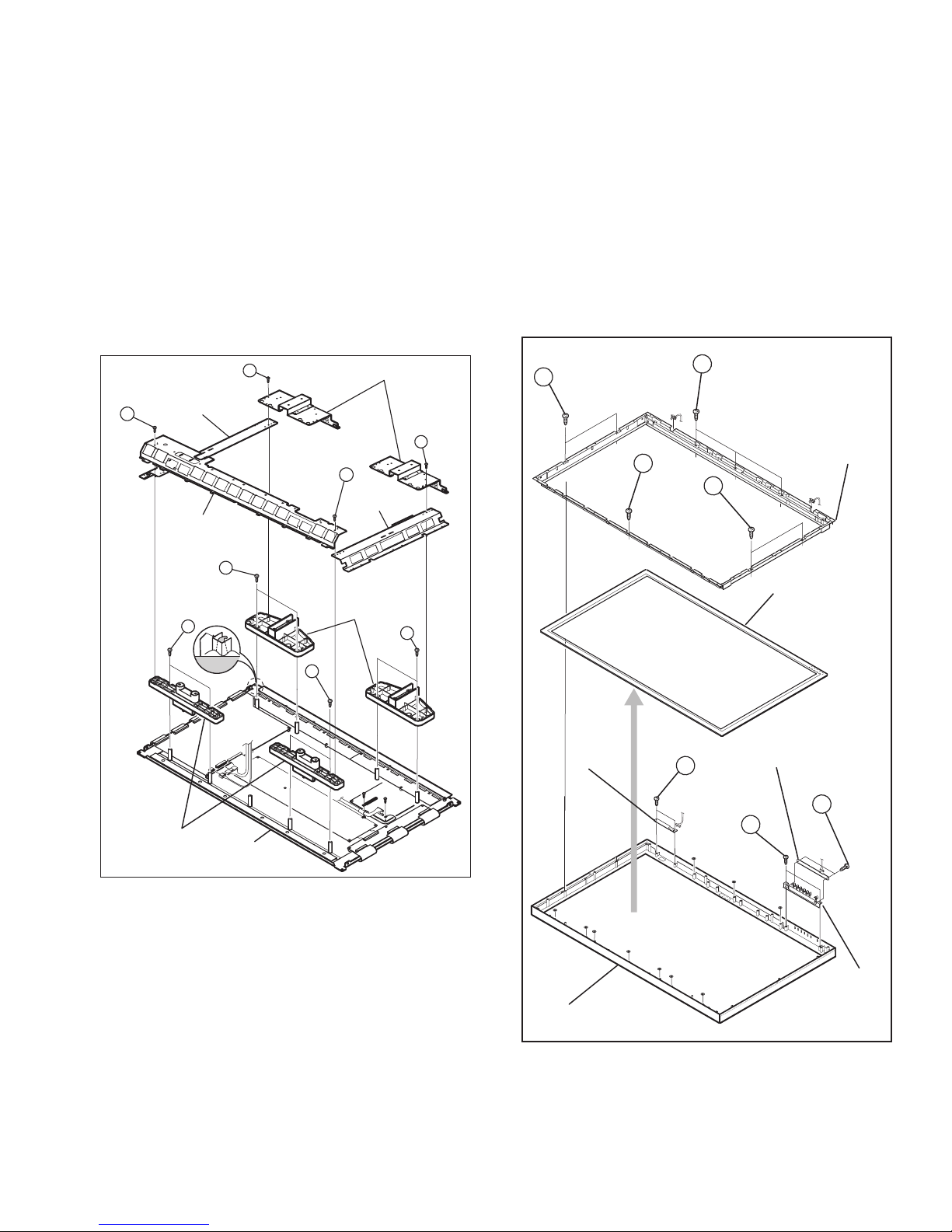

2.4.12 REMOVING THE INNER CASE and FRONT FILTER
(Fig.6)
• Remove the REAR COVER.
• Remove the PDP UNIT (with each PWB and CHASSIS BASE
affixed on the PDP UNIT).
NOTE:
• Disconnect the connectors [CN0CD] and [CN0CC] from the
DISPLAY INTERFACE PWB.
• It is advisable to take note of the connecting location
(connector number) of the removed connectors.
(1) Remove the 1 screw [W], 4 screws [X], 3 screws [Y] and
remove the INNER CASE.
(2) Remove the FRONT FILTER.
CAUTION:
• The INNER CASE is attached with the FRONT FILTER
(made of glass). Be careful not to impose shock to it.
• Remove the FRONT FILTER with enough care not to
damage it.
2.4.13 REMOVING THE DISPLAY LED PWB and DISPLAY
SWITCH PWB (Fig.6)
• Remove the PDP UNIT.
• Remove the INNER CASE.
(1) Remove the 2 screws [Z], and remove the DISPLAY LED
PWB.
(2) Remove the 2 screws [a], and remove the CONTROL
KNOB.
(3) Remove the 2 screws [b], and remove the DISPLAY
SWITCH PWB.
Fig.6
PDP (PANEL)
UNIT
V
V
V
V
(x2)
(x2)
(x2)
(x2)
BOTTOM BRACKET
SIDE BRACKET
TOP BRACKET
BACK FRAME
(BOTTOM)
BACK FRAME
(TOP)
U
SIDE BRACKET
U
GAS
insertion hole
U
U
DISPLAY SWITCH PWB
DISPLAY
LED
PWB
FRONT PANEL
Z
CONTROL
KNOB
(x2)
(x2)
(x2)
(x2)
(x2)
FRONT FILTER
INNER CASE
(x3)
a
b
XY
X
W

PD-35DX
1-12 (No.52089)

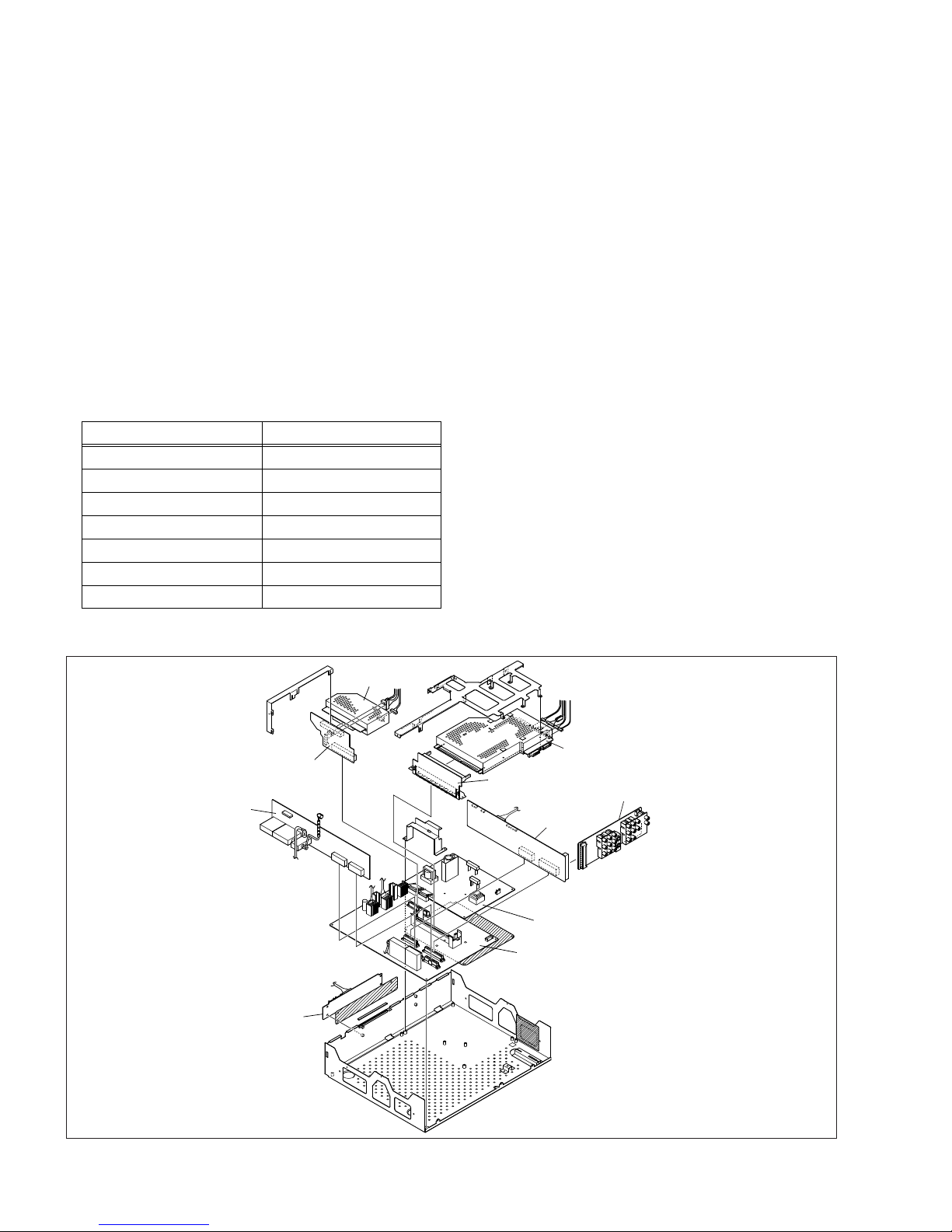

2.5 DISASSEMBLY OF PROCEDURE [RECEIVER UNIT]
2.5.1 REMOVING THE TOP COVER
(1) Remove the 4 screws [A] on the both left and right sides.
(2) Remove the 3 screws [B] on the rear side.
(3) Lift upwards and withdraw the TOP COVER.
2.5.2 REMOVING THE FRONT PANEL
• Remove the TOP COVER.
(1) Remove the 1 screw [C] and 1 screw [D].
(2) Disengage the 2 claws [E] on the both left and right sides.
(3) Disengage the 2 claws [F] on the bottom side.
(4) Withdraw the FRONT PANEL in a front direction.
2.5.3 REMOVING THE DAMPER (INSIDE FRONT PANEL)
• Remove the TOP COVER.
• Remove the FRONT PANEL.
(1) Remove the 1 screw [G], and remove the DAMPER.
2.5.4 REMOVING THE FRONT CONTROL PWB
• Remove the TOP COVER.
• Remove the FRONT PANEL.
(1) Remove the 4 screws [H], and remove the FRONT
CONTROL PWB.
2.5.5 REMOVING THE REAR COVER
• Remove the TOP COVER.
(1) Remove the 2 screws [I], and withdraw the AC INLET.
(2) Remove the 2 screws [J] and the 2 screws [K], and
withdraw the display output terminal.
(3) Remove the 14 screws [L], and withdraw the video/audio
terminal.
(4) Remove the 2 screws [M] and the 1 screw [N], and
withdraw the REAR COVER in a rear direction.
2.5.6 REMOVING THE DIST PWB, DIST RELAY PWB, MI-
COM PWB, MI-COM INTERFACE PWB, AV JACK
PWB, AV SW PWB, and SUB TUNER PWB.
• Remove the TOP COVER
• Remove the REAR COVER.
(1) Remove the 1 screw [O], and remove the PB HOLDER.
(2) Remove the 2 screws [P] and 2 screws [Q].
(3) lift upwards and withdraw the SUPPORT BRACKET, the
DIST PWB, and the DIST RELAY PWB.
(4) Remove the 5 screws [R] and 1 screw [S], and remove the
SUPPORT BRACKET.
(5) Pull right and left and remove the DIST PWB and the DIST
RELAY PWB.
(6) Lift upwards and withdraw the MI-COM PWB and the MI-
COM INTERFACE PWB.
(7) Pull right and left and remove the MI-COM PWB and the
MI-COM INTERFACE PWB.
(8) Lift upwards and withdraw the AV JACK PWB and the AV
SW PWB.
(9) Pull right and left and remove the AV JACK PWB and the
AV SW PWB.
(10) Lift upwards and withdraw the SUB TUNER PWB.
2.5.7 REMOVING THE MAIN PWB AND RECEIVER POWER
PWB
• Remove the TOP COVER
• Remove the REAR COVER.
• Remove the DIST PWB, DIST RELAY PWB, MI-COM PWB,
MI-COM INTERFACE PWB, AV JACK PWB, AV SW PWB,
and SUB TUNER PWB.
(1) Remove the 2 screws [T] and 2 screws [U]. Then, lift
upwards and withdraw the MAIN PWB.
(2) Remove the 6 screws [V], and remove the MI-COM
HOLDER and the RECEIVER POWER PWB.
2.5.8 REMOVING THE AC INLET
• Remove the TOP COVER
• Remove the REAR COVER.
(1) Remove the 1 screw [W], and remove the AC INLET.

PD-35DX
(No.52089)1-13
Fig.7
a
a
A
(x2)
B
(x3)
A
F
TOP COVER
FRONT PANEL
FRONT PANEL
FRONT
DOOR
FRONT PANEL
(BACK SIDE)
G
DAMPER
P
PQ
Q
R
S
W
E
E
MN
M
L
I
J
K
O
H
T
T
(x4)
(x4)
U
U
V
V
V
MAIN PWB
AC INLET
BACK
COVER
BOTTOM
CASE
FRONT
CONTROL
PWB
RECEIVER POWER PWB
AV SW PWB
AV JACK PWB
SUB TUNER
PWB
MI-COM
HOLDER
MI-COM PWB
PB HOLDER
MI-COM
INTERFACE
PWB
SUPPORT
BRACKET
DIST PWB
DIST RELAY PWB
(x2)
(x2)
(x2)
(x14)
(x5)
(x2)
INSULATOR
c
b
c
b
C
DD

PD-35DX
1-14 (No.52089)
2.6 REPLACEMENT OF MEMORY IC
This unit uses the nonvolatile memory IC.
The memory IC memories data for video and deflection circuits. To replace the memory IC without the data written, malfunctions might
occurred while power is on, and the normal image might not appear. When replacing the memory IC, be sure to use the IC written with
the initial values of data.
2.6.1 PROCEDURE FOR REPLACING THE MEMORY IC
(1) Switch the power off and unplug the power cord from the
wall outlet.
(2) Replacing the memory IC. [Be sure to use the IC written
with the initial values of data]
(3) Plug the power cord into the wall outlet and switch the
power on.
(4) Check and setting of SYSTEM CONSTANT SET
a) Press the [INFORMATION] key and [MUTING] key on
the remote control unit simultaneously.
The SERVICE MENU screen will be displayed. (See
Fig.1)
a) In the SERVICE MENU, press the [INFORMATION] key
and [MUTING] key simultaneously.
Then, the SYSTEM CONSTANT SET screen will be
displayed. (See FIg.2)
a) Check whether the setting value of the SYSTEM
CONSTANT SET is the same as these indicated in
Table 1.
a) Press the [INFORMATION] key twice to return to the
normal screen.
(5) Receive channel setting
Refer to the OPERATING INSTRUCTIONS and set the
receive channels.
(6) User setting
Memories the user setting items.
The [SETTINGS OF THE LAST MEMORY FACTORY
SHIPMENT] setting is as next page.
(7) Setting of SERVICE MENU
Check the serviceman setting items in the SERVICE
MENU, set if necessary.
For setting method, please refer to the [ADJUSTMENT
PREPARATION] to [ADJUSTMENT PROCEDURE] of
ADJUSTMENTS section.
Fig.1
Fig.2
2.6.2 SETTING OF THE SYSTEM CONSTANT SET
Table 1
SERVICE MENU
1. IF 2. V/C
3. AUDIO 4. DD/CM
5. VSM PRESET 6. STATUS
7. VNR 8. IP
9. SHIPPING (OFF) 0. BUS FREE
1-9 : SELECT i : EXIT
SERVICE MENU SCREEN
SERVICE MENU SCREEN
SYSTEM CONSTANT SET SCREEN
SYSTEM CONSTANT SET SCREEN
SYSTEM CONSTANT SET
1. DESTINATION ASIA
-/+ : STORE i : EXIT
OK
Setting item Setting content Setting value
DESTINATION ASIA / EURO ASIA

PD-35DX
(No.52089)1-15
2.6.3 SETTINGS OF THE LAST MEMORY FACTORY SHIPMENT
Table 2
2.6.4 VSM PRESET SETTING
2.6.4.1 Setting of VSM PRESET
(1) Enter "5.VSM PRESET" from the SERVICE MENU.
(2) Press the [OK] key to select BRIGHT/STD/SOFT/COOL/NORMAL/WARM mode.
(3) Select the setting item using the [FUNCTION (UP/DOWN)] key.
(4) Set the value using the [FUNCTION (+/-)] key.
(5) Press the [OK] key to save the value.
(6) Press the [INFORMATION] key twice to return to the normal screen.
Setting item Setting value Setting item Setting value
POWER OFF SOUND SETTING
SHIPPING CHANNEL PR1 STEREO/I·II Stereo sound
PRESET CHANNEL Refer to
OPERATING INSTRUCTIONS
BASS Center
TREBLE Center
VOLUME 10 BALANCE Center
PICTURE SETTING SPEAKER ON
PICTURE MODE BRIGHT BBE OFF
CONTRAST Center CINEMA SURROUND OFF
BRIGHT Center SUBWOOFER LOW
SHARP Center HEADPHONE
COLOUR Center VOLUME 20
TINT Center TV SPEAKER OFF
WHITE BALANCE MID OUTPUT MAIN
PICTURE FEATURES VIDEO SETTING
DIGITAL VNR AUTO ID LIST ---
Super DigiPure AUTO FEATURES
COLOUR SYSTEM TV: Depend on PR/CH
EXT: AUTO
SLEEP TIMER OFF
BLUE BACK ON
PULL DOWN AUTO CHANNEL GUARD
SET ID NO 0000
4:3 AUTO ASPECT PANORAMIC
COLOUR MANAGEMENT ON SNOW NOISE OFF
PIP Right below INSTALL
LANGUAGE ENGLISH
AUTO PROGRAM GROUP-1
EDIT / MANUAL EDIT
Item No. Item Variable
range
Setting value
PICTURE MODE WHITE BALANCE
BRIHGT STD SOFT COOL NORMAL WARM
1 CONT -16~16 9 0 -13 - - -
2BRIGHT -16~16 0 0 0 - - -
3 SHARP -16~16 6 0 -2 - - -
4 COLOUR -16~16 2 0 -1 - - -
5TINT -16~16 0 0 0 - - -
1 WDR R -128~127 - - - -4 0 8
2 WDR G -128~127 - - - 0 0 0
3 WDR B -128~127 - - - 8 0 -1

PD-35DX
1-16 (No.52089)
2.6.5 SERVICE MENU SETTING ITEMS
Table 3
Setting item Setting value Setting item Setting value
1.IF 1.VCO 6.STATUS (Do not adjust)
2.ATT ON/OFF
2. V/C 1.CUT OF R 13.COLOUR 7.VNR
(Do not adjust)
2.CUT OF G 14.HUE 1.MYLV 10.MCCOR
3.CUT OF B 15.BY GAIN 2.ONMVF 11.CLTL
4.DRIVE R 16.TWN COL 3.MYCOR 12.YNGA
5.DRIVE G 17.TWN TNT 4.MYGA 13.COR_OF
6.DRIVE B 18.B OF MR 5.YEGON 14.LPF_OF
7.TWIN HI R 19.B OF MB 6.YEGL 15.YCTL
8.TWIN HI B 20.B OF SR 7.YLTL 16.YNCL
9.BRIGHT 21.B OF SB 8.MCLV 17.YNCON
10.CONT S01 ~ S97 9.MCGA
11.TWN BRG A01 ~ A17
12.TWN CNT PDA01 ~ PDA12
3.AUDIO
(Do not adjust)
1.ERROR LIMIT 8.IP
(Do not adjust)
PPA001 ~ PPA008
2.A2 ID THR PPB001 ~ PPB036
3.Q-PEAK PPC001 ~ PPC007
4.SOUND LEVEL PPD001 ~ PPD016
ADS001 ~ ADS034
4.DD/CM DDT01 ~ DDT34 IPA001 ~ IPA120
CMT01 ~ CMT57 IPB001 ~ IPB088
DDP01 ~ DDP37 IPC001 ~ IPC044
CMP01 ~ CMP03 IPD001 ~ IPD058
OSD-G
OSD-B
OSD-R
5.VSM PRESET PICTURE MODE 9.SHIPPING(OFF) (Do not use under the adjustment)
1.CONT
2.BRIGHT
3.SHARP
4.COLOUR
5.TINT
WHITE BALANCE
1.WDR R
2.WDR G
3.WDR B

PD-35DX
(No.52089)1-17
2.7 REPLACEMENT OF CHIP COMPONENT
2.7.1 CAUTIONS
(1) Avoid heating for more than 3 seconds.
(2) Do not rub the electrodes and the resist parts of the pattern.
(3) When removing a chip part, melt the solder adequately.
(4) Do not reuse a chip part after removing it.
2.7.2 SOLDERING IRON
(1) Use a high insulation soldering iron with a thin pointed end of it.
(2) A 30w soldering iron is recommended for easily removing parts.

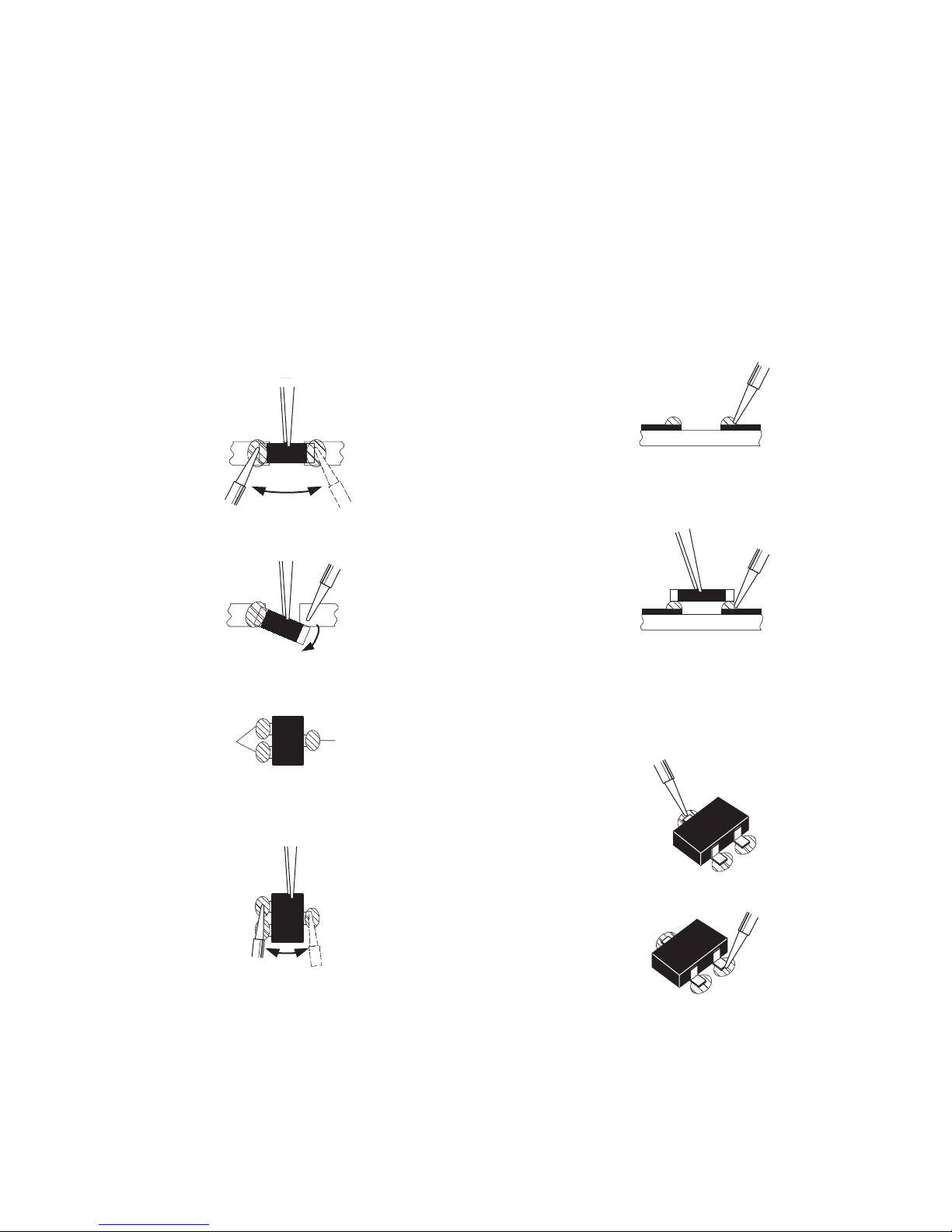

2.7.3 REPLACEMENT STEPS
1. How to remove Chip parts
[Resistors, capacitors, etc.]
(1) As shown in the figure, push the part with tweezers and
alternately melt the solder at each end.
(2) Shift with the tweezers and remove the chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply extra solder to each lead.
(2) As shown in the figure, push the part with tweezers and
alternately melt the solder at each lead. Shift and remove
the chip part.
Note :
After removing the part, remove remaining solder from the
pattern.
2. How to install Chip parts
[Resistors, capacitors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder. Then heat and melt the solder at both ends of the
chip part.
[Transistors, diodes, variable resistors, etc.]
(1) Apply solder to the pattern as indicated in the figure.
(2) Grasp the chip part with tweezers and place it on the
solder.
(3) First solder lead Aas indicated in the figure.
(4) Then solder leads Band C.
SOLDER SOLDER
A
B
C
A
B
C

PD-35DX
1-18 (No.52089)
SECTION 3
ADJUSTMENTS
3.1 ADJUSTMENT PREPARATION
(1) Prior to the following procedure, be sure to connect the
receiver unit and the display unit with the system cable.
(2) Adjustment of many Majority of the adjustment items for
this unit is performed using the remote control.
(3) However, adjustment of some adjustment items is
performed in the conventional way, i.e. with components
on the boards.
(4) Ensure that the power supply is AC220V.
(5) Allow the set and the measuring devices to run for at least
30 minutes.
(6) Do not alter settings of items/preset values on the service
screen that are not stated in this manual.
(7) Unless otherwise stated in the “ADJUSTMENT
PROCEDURE” section, follow the settings for the features
stated below using the remote control.
3.2 MEASURING INSTRUMENT AND FIXTURES
• DC voltmeter (or Digital voltmeter)
• Oscilloscope
• Signal generator (Pattern generator)
• Remote control unit
3.3 MAIN PARTS LOCATIONS (RECEIVER UNIT)
Fig.1
Setting item Settings
PICTURE MODE STANDARD
PICTURE adjustment All center (00)
WHITE BALANCE NORMAL
DIGITAL VNR AUTO
Super Digi Pure AUTO
SOUND adjustment All center (00)
ZOOM FULL
MAIN PWB
MI-COM PWB
MI-COM
INTERFACE
PWB DIST RELAY PWB
FRONT CONTROL PWB
RECEIVER POWER PWB
AV SW PWB
AV JACK PWB
SUB TUNER PWB
DIST PWB

PD-35DX
(No.52089)1-19

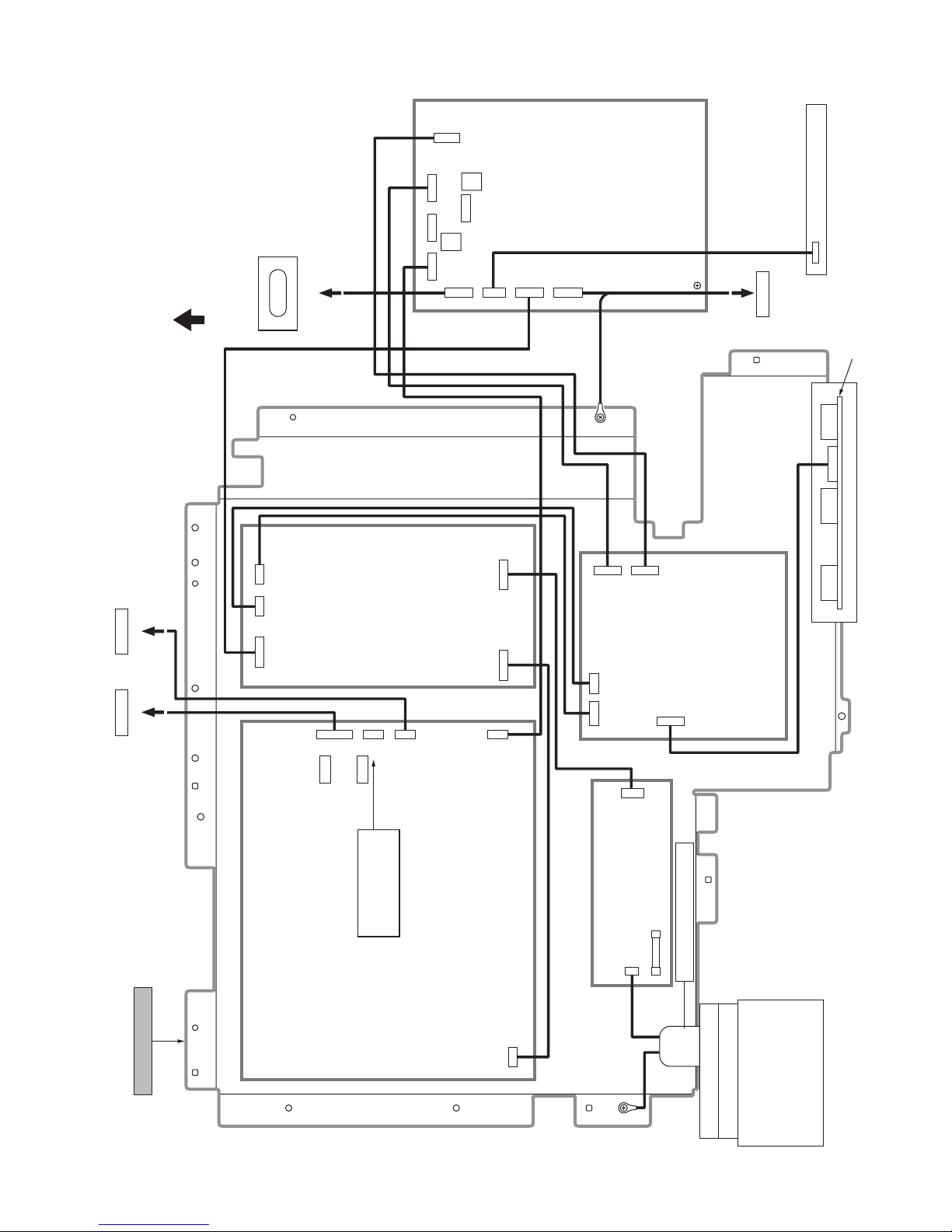

3.4 MAIN PARTS LOCATIONS (DISPLAY UNIT)
Fig.2
R628 R721
SP
POWER CONNECTOR
CHASSIS BASE
AH CB
CD CC
CE
AV C2
C1 NC
NC CF
CA K
CB
J P
CAK
CE
SP
CF
J
AT
AV
AU
C4
P
PW
F901
LINE FILTER PWB
TOP
CN104
(PDP UNIT)
CN301
(PDP UNIT)
CN302
(PDP UNIT)
DISPLAY
INTERFACE
PWB
DISPALY SWITCH PWB
SPEAKER TERMINAL PWB
PDP POWER PWB
SYSTEM POWER PWB
AUDIO PWB
SPEAKER TERMINAL
DISPLAY LED PWB
THE CONNECTOR
FOR ADJUSTMENT
CN0C4

PD-35DX
1-20 (No.52089)
3.5 SERVICE MENU SCREEN
Fig.3
SERVICE MENU
V/C
1. CUT OF R
2. V/C
PAL
- / + : STORE i : EXIT
DD/CM PAL
DDT01 0000
4. DD/CM
- / + : STORE i : EXIT
DDT01 ~ DDT34
CMT01 ~ CMT57
DDP01 ~ DDP37
CMP01 ~ CMP03
OSD-G
OSD-B
OSD-R
IF SERVICE MENU
1. VCO
2. ATT ON/OFF
1-2 : SELECT i : EXIT
SERVICE MENU
1. IF 2. V/C
3. AUDIO 4. DD/CM
5. VSM PRESET 6. STATUS
7. VNR 8. IP
9. SHIPPING (OFF) 0. BUS FREE
1-9 : SELECT i : EXIT
1. ERR LIMIT
2. A2 ID THR
3. Q
4. SOUND LEVEL
PEAK
AUDIO
3. AUDIO
1. ERROR LIMIT 0100
C_AD_BITS =
ERROR LIMIT =
- / + : STORE i : EXIT
1.IF
BRIGHT
STD
SOFT
5. VSM PRESET
VSM PRESET BRIGHT
1.CONT
- / + : STORE i : EXIT
1. CONT
2. BRIGHT
3. SHARP
4. COLOUR
5.
1.
2.
3.
TINT
WDR R
WDR G
WDR B
Do not adjust
Do not adjust
OK
6. STATUS
1. SOFT
2. TELE TEXT
3. ASPECT
4. IC
5. DEBUG
6. PANEL
7. VNR
1. MYLV
2. ONMVF
3. MYCOR
4. MYGA
5. YEGON
6. YEGL
7. YLTL
8. MCLV
9. MCGA
10. MCCOR
11. CLTL
12. YNGA
13. COR_OF
14. LPF_OF
15. YCTL
16. YNCL
17. YNCON
IP FULL PAL
8. IP
- / + : STORE i : EXIT
PPA001 ~ PPA008
PPB001 ~ PPB036
PPC001 ~ PPC007
PPD001 ~ PPD016
ADS001 ~ ADS034
IPA001 ~ IPA120
IPB001 ~IPB088
IPC001 ~ IPC044
IPD001 ~ IPD058
OK
OK
OK
STATUS
1.SOFT
- / + : SELECT i : EXIT
OK
OK
PICTURE MODE
COOL
NORMAL
WARM
WHITE BALANCE
1. CUT OF R
2. CUT OF G
3. CUT OF B
4. DRIVE R
5. DRIVE G
6. DRIVE B
7. TWN HI R
8. TWIN HI B
9. BRIGHT
10. CONT
11. TWN BRG
12. TWN CNT
13. COLOUR
14. HUE
15. BY GAIN
16. TWN COL
17. TWN TNT
18. B OF MR
19. B OF MB
20. B OF SR
21. B OF SB
S01 ~ S97
A01 ~ A17
PDA01 ~ PDA12
VNR
1.MYLV
- / + : STORE i : EXIT
0000
000
000
0000
00000000
0000 PPA001 0000
OK
